The document contains parts lists for an air nut runner motor, gearbox, drive assembly, and level handle with oiler. It lists over 70 individual part numbers, descriptions, and references. The parts are for various components of the air nut runner including the motor housing, rotors, gears, bearings, seals, and levers. Positional numbers, item numbers, and descriptions are provided for each part.

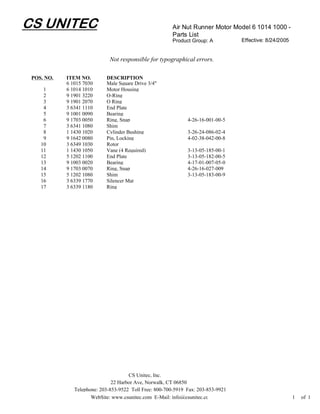

2. CS UNITEC Air Nut Runner Motor Model 6 1014 1000 -
Parts List
Product Group: A Effective: 8/24/2005
Not responsible for typographical errors.
POS. NO. ITEM NO. DESCRIPTION
6 1015 7030 Male Square Drive 3/4"
1 6 1014 1010 Motor Housing
2 9 1901 3220 O-Ring
3 9 1901 2070 O Ring
4 3 6341 1110 End Plate
5 9 1001 0090 Bearing
6 9 1703 0050 Ring, Snap 4-26-16-001-00-5
7 3 6341 1080 Shim
8 1 1430 1020 Cylinder Bushing 3-26-24-086-02-4
9 9 1642 0080 Pin, Locking 4-02-38-042-00-8
10 3 6349 1030 Rotor
11 1 1430 1050 Vane (4 Required) 3-13-05-185-00-1
12 5 1202 1100 End Plate 3-13-05-182-00-5
13 9 1003 0020 Bearing 4-17-01-007-05-0
14 9 1703 0070 Ring, Snap 4-26-16-027-009
15 5 1202 1080 Shim 3-13-05-183-00-9
16 3 6339 1770 Silencer Mat
17 3 6339 1180 Ring
CS Unitec, Inc.
22 Harbor Ave, Norwalk, CT 06850
Telephone: 203-853-9522 Toll Free: 800-700-5919 Fax: 203-853-9921
WebSite: www.csunitec.com E-Mail: info@csunitec.co 1 of 1

3. CS UNITEC Air Nut Runner Gearbox Model 6 1014 4400
Parts List
Product Group: A Effective: 8/24/2005
Not responsible for typographical errors.
POS. NO. ITEM NO. DESCRIPTION
24 + 34 9 1002 0050 Ball Bearing
20 6 1014 4010 Gearbox Casing
21 9 1901 2130 O-Ring
22 6 1014 4190 Cover Plate
23 9 1905 1080 Shaft Sealing
25 6 1014 4030 Planet Carrier
26 9 1001 0030 Grooved Ball Bearing (ref 100.587 NS)
27 6 1014 4040 Planetary Wheel
28 9 1015 0390 Needle Cage
29 3 6339 4050 Planetary Wheel Bolt
30 6 1014 4170 Pinion
31 9 3331 0130 Shim
32 9 1001 0460 Grooved Ball Bearing
33 9 1702 0020 Snap Ring
35 6 1014 7030 Coupling
CS Unitec, Inc.
22 Harbor Ave, Norwalk, CT 06850
Telephone: 203-853-9522 Toll Free: 800-700-5919 Fax: 203-853-9921
WebSite: www.csunitec.com E-Mail: info@csunitec.co 1 of 1

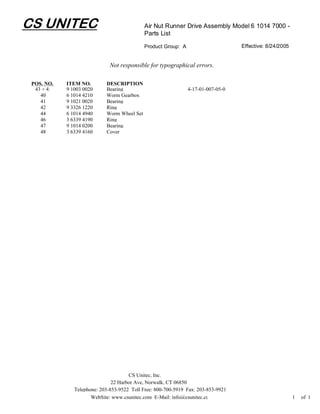

4. CS UNITEC Air Nut Runner Drive Assembly Model 6 1014 7000 -
Parts List
Product Group: A Effective: 8/24/2005
Not responsible for typographical errors.
POS. NO. ITEM NO. DESCRIPTION
43 + 45 9 1003 0020 Bearing 4-17-01-007-05-0
40 6 1014 4210 Worm Gearbox
41 9 1021 0020 Bearing
42 9 3326 1220 Ring
44 6 1014 4940 Worm Wheel Set
46 3 6339 4190 Ring
47 9 1014 0200 Bearing
48 3 6339 4160 Cover
CS Unitec, Inc.
22 Harbor Ave, Norwalk, CT 06850
Telephone: 203-853-9522 Toll Free: 800-700-5919 Fax: 203-853-9921
WebSite: www.csunitec.com E-Mail: info@csunitec.co 1 of 1

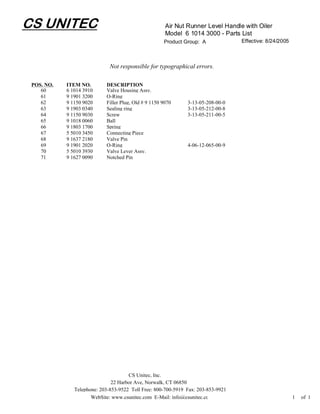

5. CS UNITEC Air Nut Runner Level Handle with Oiler
Model 6 1014 3000 - Parts List
Product Group: A Effective: 8/24/2005
Not responsible for typographical errors.
POS. NO. ITEM NO. DESCRIPTION
60 6 1014 3910 Valve Housing Assy.
61 9 1901 3200 O-Ring
62 9 1150 9020 Filler Plug, Old # 9 1150 9070 3-13-05-208-00-0
63 9 1903 0340 Sealing ring 3-13-05-212-00-8
64 9 1150 9030 Screw 3-13-05-211-00-5
65 9 1018 0060 Ball
66 9 1803 1700 Spring
67 5 5010 3450 Connecting Piece
68 9 1637 2180 Valve Pin
69 9 1901 2020 O-Ring 4-06-12-065-00-9
70 5 5010 3930 Valve Lever Assy.
71 9 1627 0090 Notched Pin
CS Unitec, Inc.
22 Harbor Ave, Norwalk, CT 06850
Telephone: 203-853-9522 Toll Free: 800-700-5919 Fax: 203-853-9921
WebSite: www.csunitec.com E-Mail: info@csunitec.co 1 of 1
