JFokus 2020 - How to migrate an application to serverless
- 1. © 2019, AmazonWeb Services, Inc. or its Affiliates. Migrating to Serverless JFokus - Stockholm 4.2.2020 Marcia Villalba @mavi888uy
- 2. © 2019, AmazonWeb Services, Inc. or its Affiliates.© 2019, Amazon Web Services, Inc. or its Affiliates.
- 3. © 2019, AmazonWeb Services, Inc. or its Affiliates.© 2019, Amazon Web Services, Inc. or its Affiliates.
- 4. © 2019, AmazonWeb Services, Inc. or its Affiliates. About me AWS Developer Advocate Coding for more than 15 years Host of FooBar YouTube Channel https://youtube.com/foobar_codes
- 5. © 2019, AmazonWeb Services, Inc. or its Affiliates. Definitions The fun part 😆
- 6. © 2019, AmazonWeb Services, Inc. or its Affiliates.© 2019, Amazon Web Services, Inc. or its Affiliates. “... A monolithic application built as a single unit. …” Martin Fowler “... it is a natural way to approach system building…” Main problems of monoliths SCALE COMPLEXITY

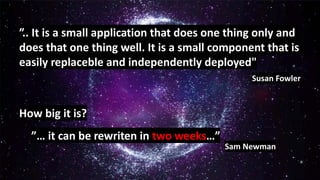

- 7. © 2019, AmazonWeb Services, Inc. or its Affiliates. ”.. It is a small application that does one thing only and does that one thing well. It is a small component that is easily replaceble and independently deployed" Susan Fowler How big it is? ”… it can be rewriten in two weeks…” Sam Newman

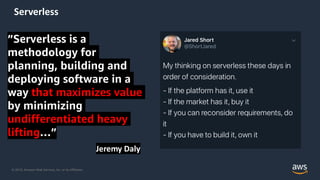

- 8. © 2019, AmazonWeb Services, Inc. or its Affiliates. Serverless ”Serverless is a methodology for planning, building and deploying software in a way that maximizes value by minimizing undifferentiated heavy lifting…” Jeremy Daly

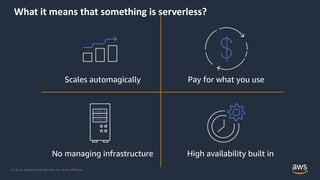

- 9. © 2019, AmazonWeb Services, Inc. or its Affiliates. What it means that something is serverless? No managing infrastructure High availability built in Pay for what you useScales automagically

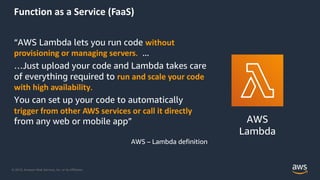

- 10. © 2019, AmazonWeb Services, Inc. or its Affiliates. Function as a Service (FaaS) “AWS Lambda lets you run code without provisioning or managing servers. ... …Just upload your code and Lambda takes care of everything required to run and scale your code with high availability. You can set up your code to automatically trigger from other AWS services or call it directly from any web or mobile app” AWS – Lambda definition AWS Lambda

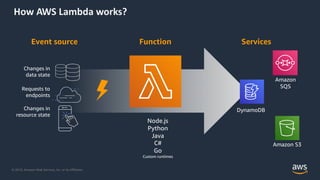

- 11. © 2019, AmazonWeb Services, Inc. or its Affiliates. How AWS Lambda works? Event source Function Services Node.js Python Java C# Go Custom runtimes Changes in data state Requests to endpoints Changes in resource state Amazon S3 DynamoDB Amazon SQS

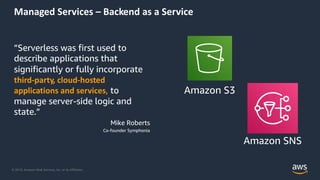

- 12. © 2019, AmazonWeb Services, Inc. or its Affiliates. Managed Services – Backend as a Service ”Serverless was first used to describe applications that significantly or fully incorporate third-party, cloud-hosted applications and services, to manage server-side logic and state.” Mike Roberts Co-founder Symphonia Amazon S3 Amazon SNS

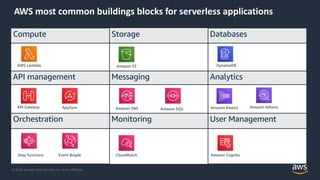

- 13. © 2019, AmazonWeb Services, Inc. or its Affiliates. AWS most common buildings blocks for serverless applications Compute Storage Databases API management Messaging Analytics Orchestration Monitoring User Management API Gateway AWS Lambda AppSync Step functions Event Brigde Amazon S3 Amazon SNS Amazon SQS CloudWatch DynamoDB Amazon Kinesis Amazon Athena Amazon Cognito
- 14. © 2019, AmazonWeb Services, Inc. or its Affiliates. Managing unknowns
- 15. © 2019, AmazonWeb Services, Inc. or its Affiliates.© 2019, Amazon Web Services, Inc. or its Affiliates. Lack of technology knowledge
- 16. © 2019, AmazonWeb Services, Inc. or its Affiliates. Will this solve my problem?
- 17. © 2019, AmazonWeb Services, Inc. or its Affiliates.© 2019, Amazon Web Services, Inc. or its Affiliates. Foundational work
- 18. © 2019, AmazonWeb Services, Inc. or its Affiliates. Conway Law ”Any organization that designs a system will inevitably produce a design whose structure is a copy of the organization communication structure…” Melvin Conway Reverse Conway’s maneuver Structure your organization to match the software you would like to build Small, agile teams – Two pizza teams
- 19. © 2019, AmazonWeb Services, Inc. or its Affiliates. Pick your tools - Programming languages - Deployment frameworks - Developer tools

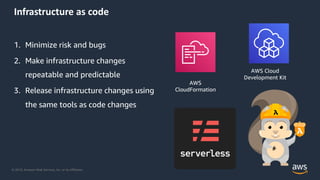

- 20. © 2019, AmazonWeb Services, Inc. or its Affiliates. Infrastructure as code 1. Minimize risk and bugs 2. Make infrastructure changes repeatable and predictable 3. Release infrastructure changes using the same tools as code changes AWS Cloud Development Kit AWS CloudFormation

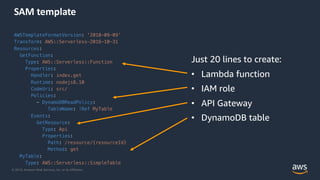

- 21. © 2019, AmazonWeb Services, Inc. or its Affiliates. SAM template AWSTemplateFormatVersion: '2010-09-09’ Transform: AWS::Serverless-2016-10-31 Resources: GetFunction: Type: AWS::Serverless::Function Properties: Handler: index.get Runtime: nodejs8.10 CodeUri: src/ Policies: - DynamoDBReadPolicy: TableName: !Ref MyTable Events: GetResource: Type: Api Properties: Path: /resource/{resourceId} Method: get MyTable: Type: AWS::Serverless::SimpleTable Just 20 lines to create: • Lambda function • IAM role • API Gateway • DynamoDB table

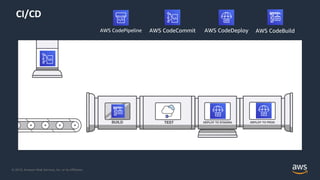

- 22. © 2019, AmazonWeb Services, Inc. or its Affiliates. CI/CD AWS CodeBuildAWS CodeCommit AWS CodeDeployAWS CodePipeline

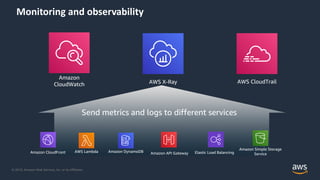

- 23. © 2019, AmazonWeb Services, Inc. or its Affiliates. Monitoring and observability Amazon CloudWatch AWS X-Ray AWS CloudTrail Amazon CloudFront AWS Lambda Amazon DynamoDB Amazon API Gateway Elastic Load Balancing Amazon Simple Storage Service Send metrics and logs to different services
- 24. © 2019, AmazonWeb Services, Inc. or its Affiliates. Migration strategies The real fun part 😅
- 25. © 2019, AmazonWeb Services, Inc. or its Affiliates.© 2019, Amazon Web Services, Inc. or its Affiliates. The big rewrite Please don’t do it

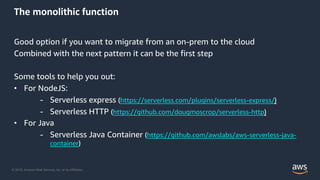

- 26. © 2019, AmazonWeb Services, Inc. or its Affiliates. The monolithic function Good option if you want to migrate from an on-prem to the cloud Combined with the next pattern it can be the first step Some tools to help you out: • For NodeJS: - Serverless express (https://serverless.com/plugins/serverless-express/) - Serverless HTTP (https://github.com/dougmoscrop/serverless-http) • For Java - Serverless Java Container (https://github.com/awslabs/aws-serverless-java- container)

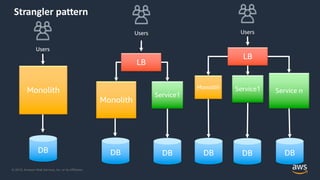

- 27. © 2019, AmazonWeb Services, Inc. or its Affiliates. Strangler pattern Monolith Users DB Monolith Service1 LB Users DBDB Monolith LB Service1 Service n Users DB DB DB
- 28. © 2019, AmazonWeb Services, Inc. or its Affiliates. The strangler pattern
- 29. © 2019, AmazonWeb Services, Inc. or its Affiliates.© 2019, Amazon Web Services, Inc. or its Affiliates. Steps for doing the strangler pattern Migrating to serverless in 5 steps

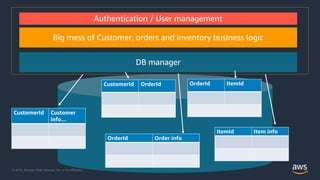

- 30. © 2019, AmazonWeb Services, Inc. or its Affiliates.© 2019, Amazon Web Services, Inc. or its Affiliates. Big mess of Customer, orders and inventory business logic OrderId Order info CustomerId Customer info… CustomerId OrderId OrderId ItemId ItemId Item info DB manager Authentication / User management
- 31. © 2019, AmazonWeb Services, Inc. or its Affiliates.© 2019, Amazon Web Services, Inc. or its Affiliates. Step 1 – Find the seams in the code ”… a seam is a portion of the code that can be treated in isolation and worked on without impacting the rest of the codebase…” Michael Feathers

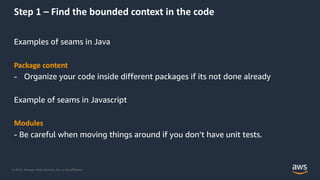

- 32. © 2019, AmazonWeb Services, Inc. or its Affiliates. Step 1 – Find the bounded context in the code Examples of seams in Java Package content - Organize your code inside different packages if its not done already Example of seams in Javascript Modules - Be careful when moving things around if you don’t have unit tests.

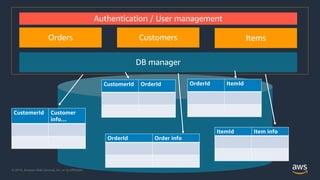

- 33. © 2019, AmazonWeb Services, Inc. or its Affiliates.© 2019, Amazon Web Services, Inc. or its Affiliates. ItemsCustomersOrders OrderId Order info CustomerId Customer info… CustomerId OrderId OrderId ItemId ItemId Item info DB manager Authentication / User management

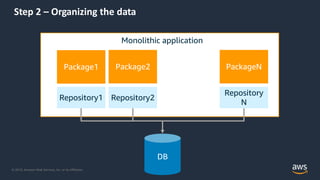

- 34. © 2019, AmazonWeb Services, Inc. or its Affiliates. Package1 Repository1 Package2 Repository2 PackageN Repository N Monolithic application DB Step 2 – Organizing the data
- 35. © 2019, AmazonWeb Services, Inc. or its Affiliates.© 2019, Amazon Web Services, Inc. or its Affiliates. ItemsCustomers Orders OrderId Order info CustomerId Customer info… CustomerId OrderId OrderId ItemId ItemId Item info DB order manager DB customer manager DB items manager Authentication / User management

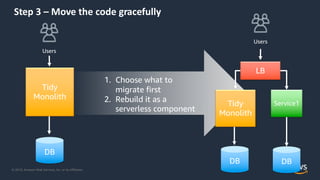

- 36. © 2019, AmazonWeb Services, Inc. or its Affiliates. Step 3 – Move the code gracefully 1. Choose what to migrate first 2. Rebuild it as a serverless component Tidy Monolith Users DB Tidy Monolith Service1 LB Users DBDB

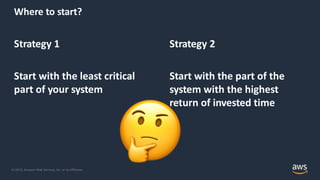

- 37. © 2019, AmazonWeb Services, Inc. or its Affiliates. Where to start? Strategy 1 Start with the least critical part of your system Strategy 2 Start with the part of the system with the highest return of invested time 🤔

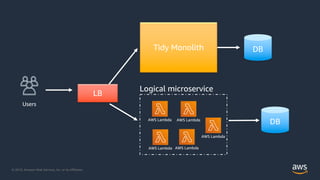

- 38. © 2019, AmazonWeb Services, Inc. or its Affiliates. Tidy Monolith LB Users Logical microservice AWS Lambda AWS Lambda AWS Lambda AWS Lambda AWS Lambda DB DB

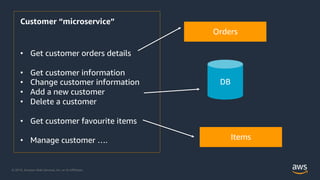

- 39. © 2019, AmazonWeb Services, Inc. or its Affiliates.© 2019, Amazon Web Services, Inc. or its Affiliates. Customer “microservice” • Get customer orders details • Get customer information • Change customer information • Add a new customer • Delete a customer • Get customer favourite items • Manage customer …. Orders DB Items

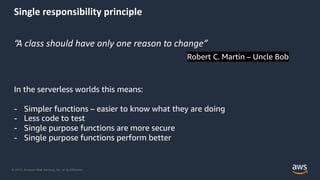

- 40. © 2019, AmazonWeb Services, Inc. or its Affiliates. Single responsibility principle “A class should have only one reason to change” Robert C. Martin – Uncle Bob In the serverless worlds this means: - Simpler functions – easier to know what they are doing - Less code to test - Single purpose functions are more secure - Single purpose functions perform better

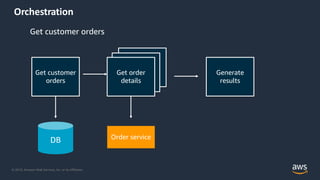

- 41. © 2019, AmazonWeb Services, Inc. or its Affiliates. Get order detailsGet order details Orchestration Get customer orders DB Get customer orders Get order details Order service Generate results

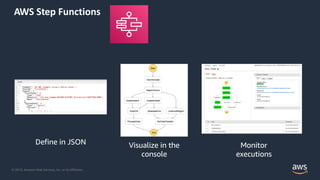

- 42. © 2019, AmazonWeb Services, Inc. or its Affiliates. AWS Step Functions Visualize in the console Define in JSON Monitor executions

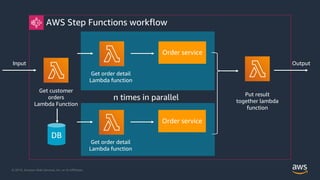

- 43. © 2019, AmazonWeb Services, Inc. or its Affiliates.© 2019, Amazon Web Services, Inc. or its Affiliates. AWS Step Functions workflow Get customer orders Lambda Function Get order detail Lambda function Put result together lambda function DB Order service Input Output Get order detail Lambda function Order service n times in parallel

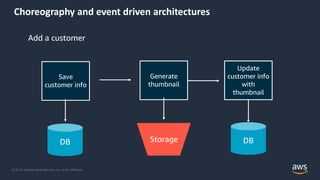

- 44. © 2019, AmazonWeb Services, Inc. or its Affiliates. Choreography and event driven architectures Add a customer Save customer info DB Generate thumbnail Update customer info with thumbnail DBStorage

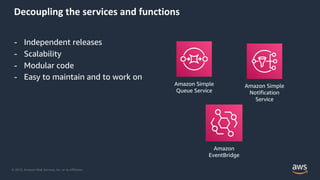

- 45. © 2019, AmazonWeb Services, Inc. or its Affiliates. Decoupling the services and functions - Independent releases - Scalability - Modular code - Easy to maintain and to work on Amazon Simple Notification Service Amazon Simple Queue Service Amazon EventBridge

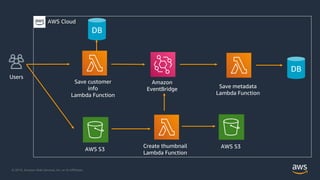

- 46. © 2019, AmazonWeb Services, Inc. or its Affiliates.© 2019, Amazon Web Services, Inc. or its Affiliates. Save metadata Lambda Function DB Amazon EventBridge AWS Cloud Users Save customer info Lambda Function DB AWS S3Create thumbnail Lambda Function AWS S3

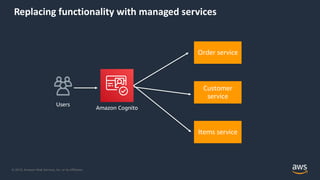

- 47. © 2019, AmazonWeb Services, Inc. or its Affiliates. Replacing functionality with managed services Amazon Cognito Order service Customer service Items service Users

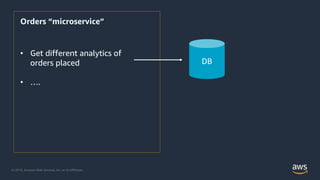

- 48. © 2019, AmazonWeb Services, Inc. or its Affiliates.© 2019, Amazon Web Services, Inc. or its Affiliates. Orders “microservice” • Get different analytics of orders placed • …. DB
- 49. © 2019, AmazonWeb Services, Inc. or its Affiliates. Serverless analytics pipeline Amazon Cognito Amazon S3 Users Amazon Kinesis Data Firehose Amazon Athena AWS Glue Amazon QuickSight S3 Bucket AWS Cloud Client

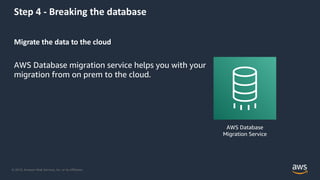

- 50. © 2019, AmazonWeb Services, Inc. or its Affiliates. Step 4 - Breaking the database Migrate the data to the cloud AWS Database migration service helps you with your migration from on prem to the cloud. AWS Database Migration Service

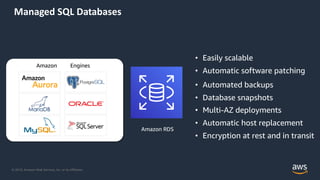

- 51. © 2019, AmazonWeb Services, Inc. or its Affiliates. Managed SQL Databases Amazon RDS Amazon RDS Engines • Easily scalable • Automatic software patching • Automated backups • Database snapshots • Multi-AZ deployments • Automatic host replacement • Encryption at rest and in transit

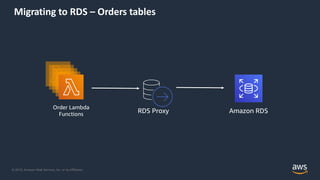

- 52. © 2019, AmazonWeb Services, Inc. or its Affiliates. Migrating to RDS – Orders tables Amazon RDSRDS Proxy Order Lambda Functions

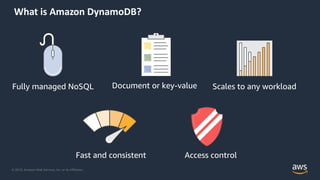

- 53. © 2019, AmazonWeb Services, Inc. or its Affiliates. What is Amazon DynamoDB? Fully managed NoSQL Document or key-value Fast and consistent Scales to any workload Access control

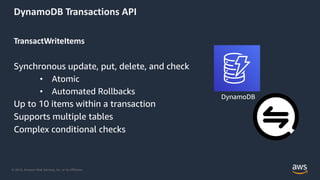

- 54. © 2019, AmazonWeb Services, Inc. or its Affiliates. DynamoDB Transactions API TransactWriteItems Synchronous update, put, delete, and check • Atomic • Automated Rollbacks Up to 10 items within a transaction Supports multiple tables Complex conditional checks DynamoDB

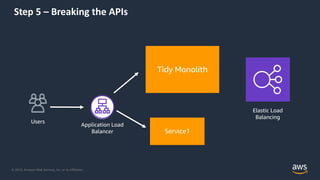

- 55. © 2019, AmazonWeb Services, Inc. or its Affiliates. Step 5 – Breaking the APIs Tidy Monolith Service1 Application Load Balancer Users Elastic Load Balancing
- 56. © 2019, AmazonWeb Services, Inc. or its Affiliates. Move traffic gradually to the new service Tidy Monolith with old service 1 Service1 Application Load Balancer Users 30% traffic 70% traffic ALB Weighted Target Groups
- 57. © 2019, AmazonWeb Services, Inc. or its Affiliates.© 2019, Amazon Web Services, Inc. or its Affiliates. Case Study
- 58. © 2019, AmazonWeb Services, Inc. or its Affiliates.
- 59. © 2019, AmazonWeb Services, Inc. or its Affiliates. SCALING CHALLENGES 350 DONATIONS PER SECOND

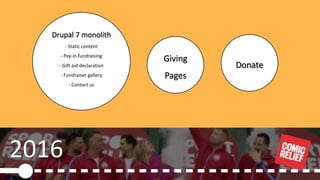

- 60. © 2019, AmazonWeb Services, Inc. or its Affiliates. 2016 Drupal 7 monolith - Static content - Pay-in fundraising - Gift aid declaration - Fundraiser gallery - Contact us Giving Pages Donate

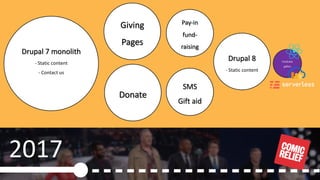

- 61. © 2019, AmazonWeb Services, Inc. or its Affiliates. 2017 Drupal 7 monolith - Static content - Contact us Drupal 8 - Static content Pay-in fund- raising SMS Gift aid Fundraise gallery Giving Pages Donate

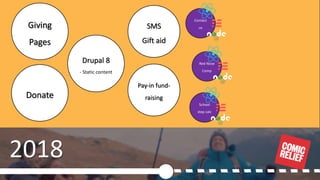

- 62. © 2019, AmazonWeb Services, Inc. or its Affiliates. 2018 Drupal 8 - Static content Pay-in fund- raising SMS Gift aid Giving Pages Donate Contact us Red Nose Comp School step calc
- 63. © 2019, AmazonWeb Services, Inc. or its Affiliates. 2018 Drupal 8 - Static content Pay-in fund- raising SMS Gift aid Contact usGiving Pages Donate Red Nose Comp School step calc Mailer Service Postcode lookup

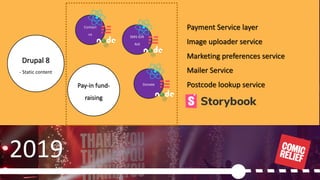

- 64. © 2019, AmazonWeb Services, Inc. or its Affiliates. 2019 Drupal 8 - Static content Pay-in fund- raising Contact us Payment Service layer Image uploader service Marketing preferences service Mailer Service Postcode lookup service SMS Gift Aid Donate

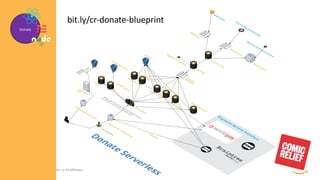

- 65. © 2019, AmazonWeb Services, Inc. or its Affiliates. Donate bit.ly/cr-donate-blueprint

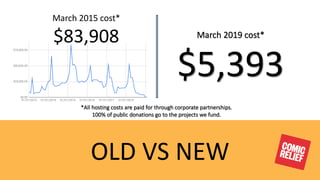

- 66. © 2019, AmazonWeb Services, Inc. or its Affiliates. OLD VS NEW March 2019 cost* $5,393 March 2015 cost* $83,908 *All hosting costs are paid for through corporate partnerships. 100% of public donations go to the projects we fund.
- 67. © 2019, AmazonWeb Services, Inc. or its Affiliates. WE COULD DO IT ALL AGAIN TOMORROW Serverless services cost $92
- 68. © 2019, AmazonWeb Services, Inc. or its Affiliates. comicrelief.com/donate
- 69. © 2019, AmazonWeb Services, Inc. or its Affiliates. Closing remarks
- 70. © 2019, AmazonWeb Services, Inc. or its Affiliates. Best practices Automate everything Decompose for agility Standardized tools Infrastructure as code

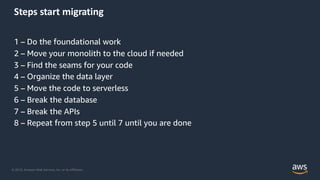

- 71. © 2019, AmazonWeb Services, Inc. or its Affiliates. Steps start migrating 1 – Do the foundational work 2 – Move your monolith to the cloud if needed 3 – Find the seams for your code 4 – Organize the data layer 5 – Move the code to serverless 6 – Break the database 7 – Break the APIs 8 – Repeat from step 5 until 7 until you are done
- 72. © 2019, AmazonWeb Services, Inc. or its Affiliates.© 2019, Amazon Web Services, Inc. or its Affiliates. Thank you! Marcia Villalba @mavi888uy
