Vert.x is a toolkit for building reactive applications on the JVM. It was awarded for 'Most Innovative Java Technology' at the JAX Innovation awards. Vert.x is event driven, non blocking and polyglot, which makes it an excellent platform for building microservices. In this talk, I’ll share experiences and real-world use cases from a Dutch company that started building reactive web applications with Vert.x about 4 years ago. You’ll learn the concepts behind Vert.x, why we chose Vert.x, how we’re using it and the challenges we faced. Topics include the anatomy of our projects, (micro)services architecture, deployment model and DevOps, scalability, the upgrade from Vert.x 2 to Vert.x 3 and cooperation with the team behind Vert.x. At the end of this session, you’ll know enough about Vert.x to get started yourself right away!
Recommended
Recommended
More Related Content
What's hot
What's hot (20)
Similar to JBCNConf 2017 - Building microservices with Vert.x
Similar to JBCNConf 2017 - Building microservices with Vert.x (20)
Recently uploaded
Recently uploaded (20)
JBCNConf 2017 - Building microservices with Vert.x
- 1. Building microservices with Vert.x Bert Jan Schrijver @bjschrijverbertjan@jpoint.nl
- 2. @bjschrijver Let’s meet Bert Jan Schrijver

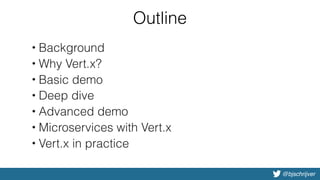

- 3. @bjschrijver Outline • Background • Why Vert.x? • Basic demo • Deep dive • Advanced demo • Microservices with Vert.x • Vert.x in practice
- 4. @bjschrijver Background •Introduction •Why Vert.x? •Basic demo •Deep dive •Advanced demo •Microservices with Vert.x •Vert.x in practice Malmberg is an educational publisher in the Netherlands. Malmberg is building modern, rich and scalable e-learning applications using Java 8, Vert.x, AngularJS and MongoDB, running on Amazon cloud services.

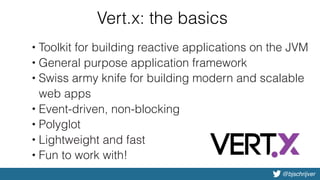

- 6. @bjschrijver Vert.x: the basics • Toolkit for building reactive applications on the JVM • General purpose application framework • Swiss army knife for building modern and scalable web apps • Event-driven, non-blocking • Polyglot • Lightweight and fast • Fun to work with!
- 7. @bjschrijver Why did we choose Vert.x? • We love open source • Powerful module system • Reactive characteristics

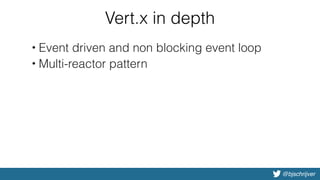

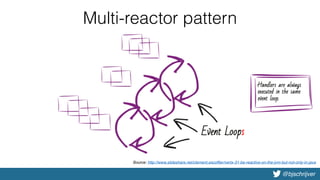

- 11. @bjschrijver Vert.x in depth • Event driven and non blocking event loop • Multi-reactor pattern

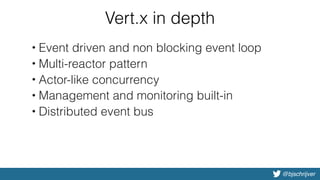

- 14. @bjschrijver Vert.x in depth • Event driven and non blocking event loop • Multi-reactor pattern • Actor-like concurrency • Management and monitoring built-in • Distributed event bus

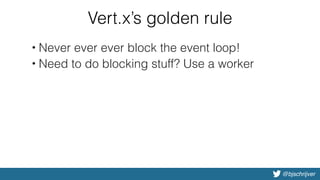

- 15. @bjschrijver Vert.x’s golden rule • Never ever ever block the event loop! • Need to do blocking stuff? Use a worker

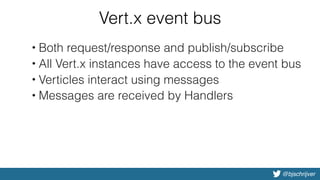

- 16. @bjschrijver Vert.x event bus • Both request/response and publish/subscribe • All Vert.x instances have access to the event bus • Verticles interact using messages • Messages are received by Handlers

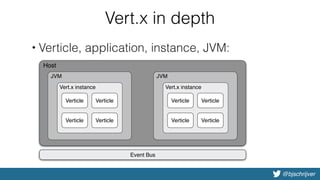

- 17. @bjschrijver Vert.x in depth • Verticle, application, instance, JVM: Host JVM Vert.x instance Verticle Event Bus Verticle Verticle Verticle JVM Vert.x instance Verticle Verticle Verticle Verticle

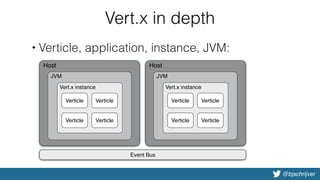

- 18. @bjschrijver Vert.x in depth • Verticle, application, instance, JVM: HostHost JVM Vert.x instance Verticle Event Bus Verticle Verticle Verticle JVM Vert.x instance Verticle Verticle Verticle Verticle

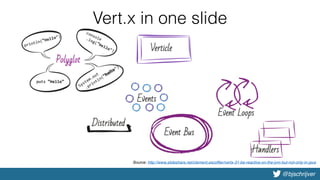

- 19. @bjschrijver Vert.x in one slide Source: http://www.slideshare.net/clement.escoffier/vertx-31-be-reactive-on-the-jvm-but-not-only-in-java

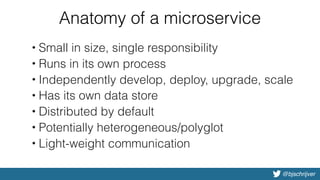

- 22. @bjschrijver Anatomy of a microservice • Small in size, single responsibility • Runs in its own process • Independently develop, deploy, upgrade, scale • Has its own data store • Distributed by default • Potentially heterogeneous/polyglot • Light-weight communication

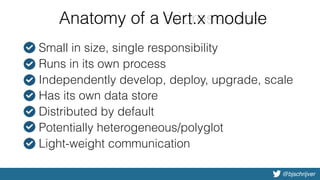

- 23. @bjschrijver Anatomy of a microservice • Small in size, single responsibility • Runs in its own process • Independently develop, deploy, upgrade, scale • Has its own data store • Distributed by default • Potentially heterogeneous/polyglot • Light-weight communication microserviceVert.x module

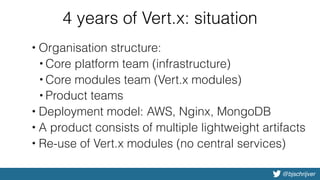

- 25. @bjschrijver 4 years of Vert.x: situation • Organisation structure: • Core platform team (infrastructure) • Core modules team (Vert.x modules) • Product teams • Deployment model: AWS, Nginx, MongoDB • A product consists of multiple lightweight artifacts • Re-use of Vert.x modules (no central services)
- 26. @bjschrijver 4 years of Vert.x: deployments • Rolled our own deployment tooling and open sourced it (https://github.com/msoute/vertx-deploy-tools) • Controlled from Jenkins • Zero-downtime deployments • Microservice deployments

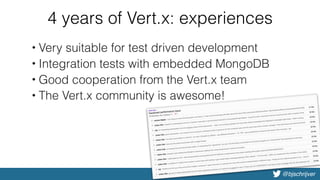

- 27. @bjschrijver 4 years of Vert.x: experiences • Very suitable for test driven development • Integration tests with embedded MongoDB • Good cooperation from the Vert.x team • The Vert.x community is awesome!

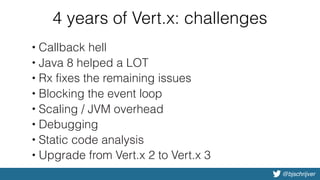

- 28. @bjschrijver 4 years of Vert.x: challenges • Callback hell • Java 8 helped a LOT • Rx fixes the remaining issues • Blocking the event loop • Scaling / JVM overhead • Debugging • Static code analysis • Upgrade from Vert.x 2 to Vert.x 3

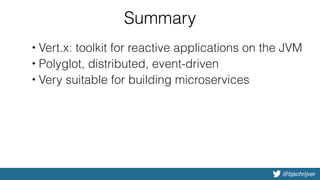

- 30. @bjschrijver Summary • Vert.x: toolkit for reactive applications on the JVM • Polyglot, distributed, event-driven • Very suitable for building microservices

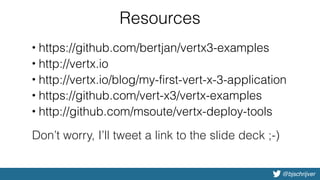

- 31. @bjschrijver Resources • https://github.com/bertjan/vertx3-examples • http://vertx.io • http://vertx.io/blog/my-first-vert-x-3-application • https://github.com/vert-x3/vertx-examples • http://github.com/msoute/vertx-deploy-tools Don’t worry, I’ll tweet a link to the slide deck ;-)

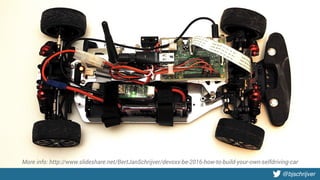

- 33. @bjschrijver Summary • Vert.x: toolkit for reactive applications on the JVM • Polyglot, event-driven • Very suitable for building microservices More info: http://www.slideshare.net/BertJanSchrijver/devoxx-be-2016-how-to-build-your-own-selfdriving-car
- 35. Thanks for your time. Got feedback? Tweet it! All pictures belong to their respective authors @bjschrijver
