1. JavaScript Multi Thread or
Single Thread?
-By Rahit Nath

2. What is
JavaScript?
￫ JavaScript is a programming language that is
commonly used to add interactivity and
functionality to web pages. It is an object-
oriented language that is primarily used in
front-end web development, allowing
developers to create dynamic and interactive
user interfaces.

3. How JavaScript
Works?
(Example-1)
function a(){
console.log(a);
}
a();
console.log("Hello World!");
w
Memory Heap
Call Stack

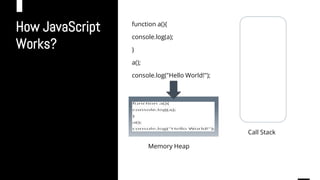

4. How JavaScript
Works?
function a(){
console.log(a);
}
a();
console.log("Hello World!");
w
Memory Heap
Call Stack
Memory Heap

5. function a(){
console.log(‘a’);
}
a();
console.log("Hello World!");
w
a()
Display Window
Call Stack
Memory Heap

6. function a(){
console.log(‘a’);
}
a();
console.log("Hello World!");
w
a()
a
Display Window
Call Stack
Memory Heap
console.log("
a");

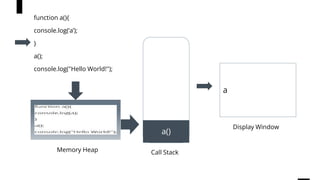

7. function a(){
console.log(‘a’);
}
a();
console.log("Hello World!");
w
a()
a
Display Window
Call Stack
Memory Heap

8. function a(){
console.log(‘a’);
}
a();
console.log("Hello World!");
w a
Display Window
Call Stack
Memory Heap

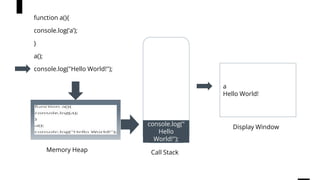

9. function a(){
console.log(‘a’);
}
a();
console.log("Hello World!");
w
console.log("
Hello
World!");
a
Hello World!
Memory Heap Call Stack
Display Window

10. function a(){
console.log(‘a’);
}
a();
console.log("Hello World!");
w a
Hello World!
Memory Heap Call Stack
Display Window

11. Is JavaScript
Single-Thread?
￫ Yes!, JavaScript is Single Threaded
language.
￫ It have a single Call Stack Memory where
the programs are executed line by line
￫ In hierarchical programming where on
function calls the other function, the
functions are stacked and executed one by
one.

12. How JavaScript
Works?
(Example-2)
function b(){
console.log(“Inside B”);
}
function a(){
console.log(a);
b();
}
a();
console.log("Hello World!");
w
Call Stack

13. function b(){
console.log(“Inside B”);
}
function a(){
console.log(a);
b();
}
a();
console.log("Hello World!");
w
Call Stack
a();
Display Window

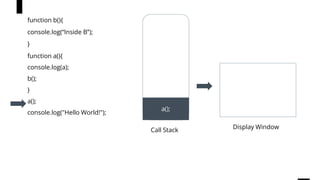

14. function b(){
console.log(“Inside B”);
}
function a(){
console.log(a);
b();
}
a();
console.log("Hello World!");
w
Call Stack
a();
a
Display Window
console.log("
a");

15. function b(){
console.log(“Inside B”);
}
function a(){
console.log(a);
b();
}
a();
console.log("Hello World!");
w
Call Stack
a();
b();
a
Display Window

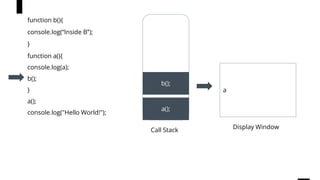

16. function b(){
console.log(“Inside B”);
}
function a(){
console.log(a);
b();
}
a();
console.log("Hello World!");
w
Call Stack
a();
b(); a
Inside B
Display Window
console.log("I
nside B");

17. function b(){
console.log(“Inside B”);
}
function a(){
console.log(a);
b();
}
a();
console.log("Hello World!");
w
Call Stack
a();
b();
Display Window
a
Inside B

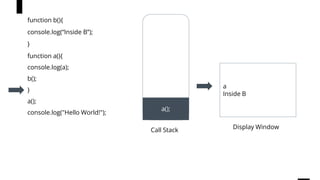

18. function b(){
console.log(“Inside B”);
}
function a(){
console.log(a);
b();
}
a();
console.log("Hello World!");
w
Call Stack
a();
Display Window
a
Inside B

19. function b(){
console.log(“Inside B”);
}
function a(){
console.log(a);
b();
}
a();
console.log("Hello World!");
w
Call Stack Display Window
a
Inside B
Hello World!
console.log("
Hello
World!");

20. function b(){
console.log(“Inside B”);
}
function a(){
console.log(a);
b();
}
a();
console.log("Hello World!");
w
Call Stack Display Window
a
Inside B
Hello World!

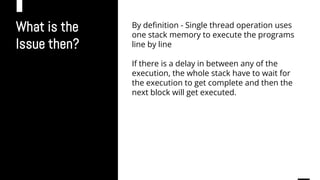

21. What is the
Issue then?
By definition - Single thread operation uses
one stack memory to execute the programs
line by line
If there is a delay in between any of the
execution, the whole stack have to wait for
the execution to get complete and then the
next block will get executed.

22. Issue In multi
threading
(Example-3)
function b(){
console.log(“Inside B”);
for(var i=0;i<10000;i++){
// execute some 10000 line of statements
}
}
function a(){
console.log(a);
b();
}
a();
console.log("Hello World!");
w
Call Stack

23. w
Call Stack
a();
Display Window
function b(){
console.log(“Inside B”);
for(var i=0;i<10000;i++){
// execute some 10000 line of statements
}
}
function a(){
console.log(a);
b();
}
a();
console.log("Hello World!");

24. w
Call Stack
a();
a
Display Window
function b(){
console.log(“Inside B”);
for(var i=0;i<10000;i++){
// execute some 10000 line of statements
}
}
function a(){
console.log(a);
b();
}
a();
console.log("Hello World!");
console.log(a)
;

25. w
Call Stack
a();
a
Display Window
function b(){
console.log(“Inside B”);
for(var i=0;i<10000;i++){
// execute some 10000 line of statements
}
}
function a(){
console.log(a);
b();
}
a();
console.log("Hello World!");
b()

26. w
Call Stack
a();
a
Inside B
Display Window
function b(){
console.log(“Inside B”);
for(var i=0;i<10000;i++){
// execute some 10000 line of statements
}
}
function a(){
console.log(a);
b();
}
a();
console.log("Hello World!");
b()
console.log(“I
nside B”);

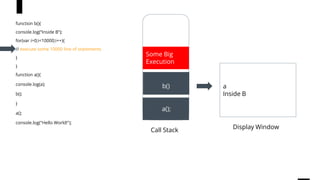

27. w
Call Stack
a();
a
Inside B
Display Window
function b(){
console.log(“Inside B”);
for(var i=0;i<10000;i++){
// execute some 10000 line of statements
}
}
function a(){
console.log(a);
b();
}
a();
console.log("Hello World!");
b()
Some Big
Execution

28. What to do
next?
￫ Here comes the non blocking concept of
JavaScript programming
￫ In the above example, if we want to
execute the statement after all the other
statement gets executed, we can achieve
with the non blocking techniques

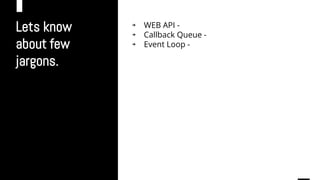

29. Lets know
about few
jargons.
￫ WEB API -
￫ Callback Queue -
￫ Event Loop -

30. What is WEB
API?
Web APIs play a significant role in implementing non-blocking
techniques in JavaScript, which allows for more efficient and responsive
web applications.
Here are some examples of non-blocking techniques in JavaScript that
use Web APIs:
1. Asynchronous JavaScript and XMLHttpRequest (XHR)
2. Web Workers
3. setTimeout and setInterval
4. Promises and async/await

31. What is
CallBack
Queue? In JavaScript, the Callback Queue is a data structure that stores callback
functions that are ready to be executed. It is part of the event loop, which
is responsible for handling asynchronous operations in JavaScript.
The Callback Queue ensures that asynchronous functions are executed
in the correct order and that they do not block the main thread of the
application

32. What is Event
Loop? ￫ When an asynchronous operation is completed.
￫ The Web API sends the result and any associated callback
functions to the event loop.
￫ The event loop then checks if the call stack is empty.
￫ If it is, the callback is pushed onto the call stack and executed.
-
￫ If the call stack is not empty, the callback is added to the callback
queue to be executed later.

33. Non Blocking
Techniques of
Js.
(Example- 4)
function getData(url, callback) {
const xhr = new XMLHttpRequest();
xhr.open('GET', url);
xhr.onload = function() {
if (xhr.status === 200) {
callback(null, xhr.response);
} else {
callback(xhr.status);
}
};
xhr.onerror = function() {
callback('Error');
};
xhr.send();
}
getData('https://example.com/api/data', function(err, data) {
if (err) {
console.log('Error: ' + err);
} else {
console.log('Data: ' + data);
}
});
console.log(“Hello World!”);
setTimeOut(()=>{
console.log(“after some timeout”);
},5000)

34. w
Call Stack
getData();
Display Window
function getData(url, callback) {
const xhr = new XMLHttpRequest();
xhr.open('GET', url);
xhr.onload = function() {
if (xhr.status === 200) {
callback(null, xhr.response);
} else {
callback(xhr.status);
}
};
xhr.onerror = function() {
callback('Error');
};
xhr.send();
}
getData('https://example.com/api/data',
function(err, data) {
if (err) {
console.log('Error: ' + err);
} else {
console.log('Data: ' + data);
}
});
console.log(“Hello World!”);
setTimeOut(()=>{
console.log(“after some timeout”);
},5000)
p2
p1
Callback Queue
Microtask Queue
WEB API

35. w
Call Stack
getData();
Display Window
function getData(url, callback) {
const xhr = new XMLHttpRequest();
xhr.open('GET', url);
xhr.onload = function() {
if (xhr.status === 200) {
callback(null, xhr.response);
} else {
callback(xhr.status);
}
};
xhr.onerror = function() {
callback('Error');
};
xhr.send();
}
getData('https://example.com/api/data',
function(err, data) {
if (err) {
console.log('Error: ' + err);
} else {
console.log('Data: ' + data);
}
});
console.log(“Hello World!”);
setTimeOut(()=>{
console.log(“after some timeout”);
},5000)
p2
p1
Callback Queue
Microtask Queue
WEB API
xhr.open('GET',
url);

36. w
Call Stack
Display Window
function getData(url, callback) {
const xhr = new XMLHttpRequest();
xhr.open('GET', url);
xhr.onload = function() {
if (xhr.status === 200) {
callback(null, xhr.response);
} else {
callback(xhr.status);
}
};
xhr.onerror = function() {
callback('Error');
};
xhr.send();
}
getData('https://example.com/api/data',
function(err, data) {
if (err) {
console.log('Error: ' + err);
} else {
console.log('Data: ' + data);
}
});
console.log(“Hello World!”);
setTimeOut(()=>{
console.log(“after some timeout”);
},5000)
p2
p1
Callback Queue
Microtask Queue
WEB API
xhr.open('GET', url);

37. w
Call Stack
Hello World!
Display Window
function getData(url, callback) {
const xhr = new XMLHttpRequest();
xhr.open('GET', url);
xhr.onload = function() {
if (xhr.status === 200) {
callback(null, xhr.response);
} else {
callback(xhr.status);
}
};
xhr.onerror = function() {
callback('Error');
};
xhr.send();
}
getData('https://example.com/api/data',
function(err, data) {
if (err) {
console.log('Error: ' + err);
} else {
console.log('Data: ' + data);
}
});
console.log(“Hello World!”);
setTimeOut(()=>{
console.log(“after some timeout”);
},5000)
p2
p1
Callback Queue
Microtask Queue
WEB API
xhr.open('GET', url);
console.log(“Hel
lo World!”)

38. w
Call Stack
Hello World!
Display Window
function getData(url, callback) {
const xhr = new XMLHttpRequest();
xhr.open('GET', url);
xhr.onload = function() {
if (xhr.status === 200) {
callback(null, xhr.response);
} else {
callback(xhr.status);
}
};
xhr.onerror = function() {
callback('Error');
};
xhr.send();
}
getData('https://example.com/api/data',
function(err, data) {
if (err) {
console.log('Error: ' + err);
} else {
console.log('Data: ' + data);
}
});
console.log(“Hello World!”);
setTimeOut(()=>{
console.log(“after some timeout”);
},5000)
p2
p1
Callback Queue
Microtask Queue
WEB API
xhr.open('GET', url);
timeOut()

39. Case -1 :
Promise
Resolve first
than
setTimeOut
w
Call Stack
Hello World!
<Some XHR Data>
Data
Display Window
p2
p1
Callback Queue
Microtask Queue
WEB API
timeOut()
xhr.open('GET',
url);

40. Case -2 :
Promise
Resolve after
setTimeOut
w
Call Stack Hello World!
after some timeout
Display Window
p2
p1
Callback Queue
Microtask Queue
WEB API
timeOut()
xhr.open('GET', url);

41. Case -3 :
Promise
Resolve
together with
setTimeOut
w
Call Stack
Hello World!
Display Window
p2
p1
Callback Queue
WEB API
timeOut()
xhr.open('GET',
url);
Microtask Queue

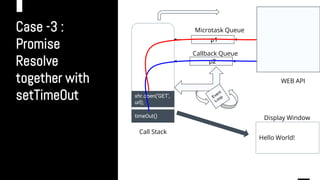

42. Case -3 :
Promise
Resolve
together with
setTimeOut
w
Call Stack Hello World!
<Some XHR Data>
Data
Display Window
p2
p1
Callback Queue
WEB API
timeOut()
Microtask Queue

43. Case -3 :
Promise
Resolve
together with
setTimeOut
w
Call Stack
Hello World!
<Some XHR Data>
Data
after some timeout
Display Window
p2
p1
Callback Queue
WEB API
Microtask Queue

44. Thank You!
