The document provides detailed specifications for the ZDBX series of automatic cutting and stripping machines, highlighting their advanced technology, operational efficiency, and safety features. Various models are described, including their dimensions, weight, power consumption, wire types supported, and processing capabilities. The machines are designed for different wire materials and sizes, featuring features like computerized controls and automatic adjustments to optimize production efficiency.

1. Tel:+86 577-61786606
线缆自动切剥设备
Automatic Cutting & Stripping Machine
ZDBX 系列自动剥线设备采用先进的技术，对各种线材，进行切断、
剥皮等不同的加工工序。
汇集了紧密结实的机身，使用方便的液晶显示屏操作，248 条信息
的存储，保证了机器的实用性和高效性。
ZDBX Automatic Cutting and Stripping Machine incorporates the
most advanced technology. Fully computerized with LCD-display
and can store up to 248 information. New improved safety features
ensure “zero” wastage. The machine can stop operating
automatically if it reaches the end of the coil wire.
型号
Model
ZDBX-22 ZDBX-1 ZDBX-2 ZDBX-3 ZDBX-4
尺寸
Meas-
urement
(WxDxH)
430x340
x250
360x288
x200
430x340
x250
430x340
x260
430x360
x268
重量
Weight
40kg 20kg 25kg 35kg 37kg
电源
Power
supply
AC220 AC220 AC220 AC220 AC220
电耗
Power
consump
-tion
300W 240W 260W 260W 300W
剥线长度
Stripping
Length
(mm)
0.1-40 0.1-30 0.1-30 0.1-30 0.1-30
线材
Wire Type
PVC,
Telfon,
Glass Wire
PVC,
Telfon,
Glass Wire
PVC,
Telfon,
Glass Wire
PVC,
Telfon,
Glass Wire
PVC,
Telfon,
Glass
Wire
裁线能力
Wire
guage
AWG
10-30
AWG
18-30
AWG
12-30
AWG
18-30
AWG
8-28
裁剪长度
Cutting
Length
0.1-999
99mm
0.1-999
99mm
0.1-999
99mm
0.1-999
99mm
0.1-9999
9mm
裁剪容差
Cutting
Tolerance
±(0.2+
0.002xL)
mm
±(0.2+
0.002xL)
mm
±(0.2+
0.002xL)
mm
±(0.2+
0.002xL)
mm
±(0.2+
0.002xL)
mm
加工能力
Capacity
(L=100mm)
103
pcs/min
85
pcs/min
90
pcs/min
150
pcs/min
90
pcs/min
加工能力视线材的种类、尺寸而变化
Production capacity varies depends on the type of wires.

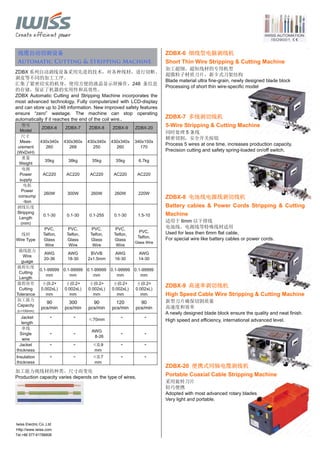

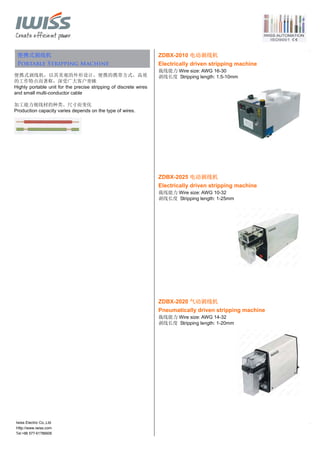

ZDBX-22 全自动剥线机
Automatic Wire Stripping & Cutting Machine
传感器自动检测线材线芯
罗盘式更换导嘴和调节滚轮的机械机构
Automatic measurement of wire diameter
Automatic opening and closing rollers
ZDBX-1 经济型电脑剥线机
Economical Wire Stripping Machine
经济、美观、小巧的机身
优廉价格更能提高经济效益
Compact in size, simple operation
Excellent price to performance ratio
ZDBX-2 通用型电脑剥线机
Universal Automatic Wire Stripping & Cutting
Machine
无论是加工性能，操作便利性，还是安全性
都基于电脑剥线机系列中代表机型
It is superior in performance,
safety operation and convenience.
Based on the most popular model in the ZDBX series.
图片中装配有可选配件
Picture: The spare parts can be option
ZDBX-3 电脑剥线机
Computerized Wire Stripping Machine
双刀片垂直运行结构
多种运作方式适用于不同电缆
A good cutting structure applies two blades running vertically
Different processing means can run various range wire
ZDBX-4 粗线缆自动剥线机
Thick Wire Automatic Cable Stripping Machine
高速电脑化线两端剥皮、切割
液晶显示屏，记忆功能。
High-speed computerized wire cut & strip on both ends.
LCD display of full picture. Memory function for faster and more
convenient production configuration.
Iwiss Electric Co.,Ltd
Http://www.iwiss.com

2. Tel:+86 577-61786606
线缆自动切剥设备
Automatic Cutting & Stripping Machine
ZDBX 系列自动剥线设备采用先进的技术，对各种线材，进行切断、
剥皮等不同的加工工序。
汇集了紧密结实的机身，使用方便的液晶显示屏操作，248 条信息
的存储，保证了机器的实用性和高效性。
ZDBX Automatic Cutting and Stripping Machine incorporates the
most advanced technology. Fully computerized with LCD-display
and can store up to 248 information. New improved safety features
ensure “zero” wastage. The machine can stop operating
automatically if it reaches the end of the coil wire..
型号
Model
ZDBX-6 ZDBX-7 ZDBX-8 ZDBX-9 ZDBX-20
尺寸
Meas-
urement
(WxDxH)
430x340x
260
430x360x
268
430x340x
250
430x340x
260
340x150x
170
重量
Weight
35kg 38kg 35kg 35kg 6.7kg
电源
Power
supply
AC220 AC220 AC220 AC220 AC220
电耗
Power
consump
-tion
260W 300W 260W 260W 220W
剥线长度
Stripping
Length
(mm)
0.1-30 0.1-30 0.1-255 0.1-30 1.5-10
线材
Wire Type
PVC,
Telfon,
Glass
Wire
PVC,
Telfon,
Glass
Wire
PVC,
Telfon,
Glass
Wire
PVC,
Telfon,
Glass
Wire
PVC,
Telfon,
Glass Wire
裁线能力
Wire
guage
AWG
20-36
AWG
18-30
BVVB
2x1.5mm
AWG
16-30
AWG
14-30
裁剪长度
Cutting
Length
0.1-99999
mm
0.1-99999
mm
0.1-99999
mm
0.1-99999
mm
0.1-99999
mm
裁剪容差
Cutting
Tolerance
±(0.2+
0.002xL)
mm
±(0.2+
0.002xL)
mm
±(0.2+
0.002xL)
mm
±(0.2+
0.002xL)
mm
±(0.2+
0.002xL)
mm
加工能力
Capacity
(L=100mm)
90
pcs/min
300
pcs/min
90
pcs/min
120
pcs/min
90
pcs/min
Jacket
length
- - ≤70mm
- -
单线
Single
wire
- - AWG
8-26
- -
Jacket
thickness
- - ≤0.9
mm
- -
Insulation
thickness
- - ≤0.7
mm
- -
加工能力视线材的种类、尺寸而变化
Production capacity varies depends on the type of wires.

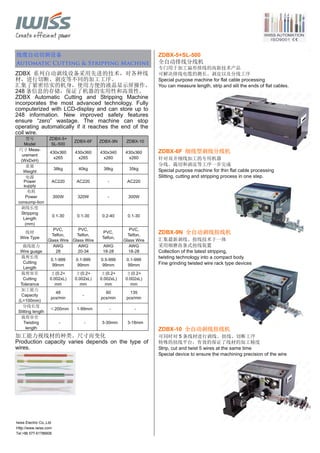

ZDBX-6 细线型电脑剥线机
Short Thin Wire Stripping & Cutting Machine
加工超细、超短线材的专用机型
超微粒子材质刀片，新卡式刀架结构
Processing of short thin wire-specific model
ZDBX-7 多线剥切线机
5-Wire Stripping & Cutting Machine
同时处理 5 条线
精密切割，安全开关按钮
Process 5 wires at one time, increases production capacity.
Precision cutting and safety spring-loaded on/off switch.
ZDBX-8 电池线电源线剥切线机
Battery cables & Power Cords Stripping & Cutting
Machine
适用于 6mm 以下排线
电池线、电源线等特殊线材适用
Used for less then 6mm flat cable,
For special wire like battery cables or power cords.
ZDBX-9 高速率剥切线机
High Speed Cable Wire Stripping & Cutting Machine
新型刀片确保切割质量
高速度和效率
A newly designed blade block ensure the quality and neat finish.
High speed and efficiency, international advanced level.
ZDBX-20 便携式同轴电缆剥线机
Portable Coaxial Cable Stripping Machine
采用旋转刀片
轻巧便携
Adopted with most advanced rotary blades
Very light and portable.
Blade material ultra fine-grain, newly designed blade block
Iwiss Electric Co.,Ltd
Http://www.iwiss.com

3. Tel:+86 577-61786606
线缆自动切剥设备
Automatic Cutting & Stripping Machine
ZDBX 系列自动剥线设备采用先进的技术，对各种线
材，进行切断、剥皮等不同的加工工序。
汇集了紧密结实的机身，使用方便的液晶显示屏操作，
248 条信息的存储，保证了机器的实用性和高效性。
ZDBX Automatic Cutting and Stripping Machine
incorporates the most advanced technology. Fully
computerized with LCD-display and can store up to
248 information. New improved safety features
ensure “zero” wastage. The machine can stop
operating automatically if it reaches the end of the
coil wire.
型号
Model
ZDBX-5+
SL-500
ZDBX-6F ZDBX-9N ZDBX-10
尺寸 Meas-
urement
(WxDxH)
430x360
x265
430x360
x265
430x340
x260
430x360
x260
重量
Weight
38kg 40kg 38kg 35kg
电源
Power
supply
AC220 AC220 - AC220
电耗
Power
consump-tion
300W 320W - 300W
剥线长度
Stripping
Length
(mm)
0.1-30 0.1-30 0.2-40 0.1-30
线材
Wire Type
PVC,
Telfon,
Glass Wire
PVC,
Telfon,
Glass Wire
PVC,
Telfon,
PVC,
Telfon,
Glass Wire
裁线能力
Wire guage
AWG
28
AWG
20-34
AWG
18-28
AWG
18-28
裁剪长度
Cutting
Length
0.1-999
99mm
0.1-999
99mm
0.5-999
99mm
0.1-999
99mm
裁剪容差
Cutting
Tolerance
±(0.2+
0.002xL)
mm
±(0.2+
0.002xL)
mm
±(0.2+
0.002xL)
mm
±(0.2+
0.002xL)
mm
加工能力
Capacity
(L=100mm)
48
pcs/min
-
60
pcs/min
135
pcs/min
分线长度
Slitting length
≤200mm 1-99mm - -
裁剪容差
Twisting
length
- - 3-30mm 3-18mm
加工能力视线材的种类、尺寸而变化
Production capacity varies depends on the type of
wires.

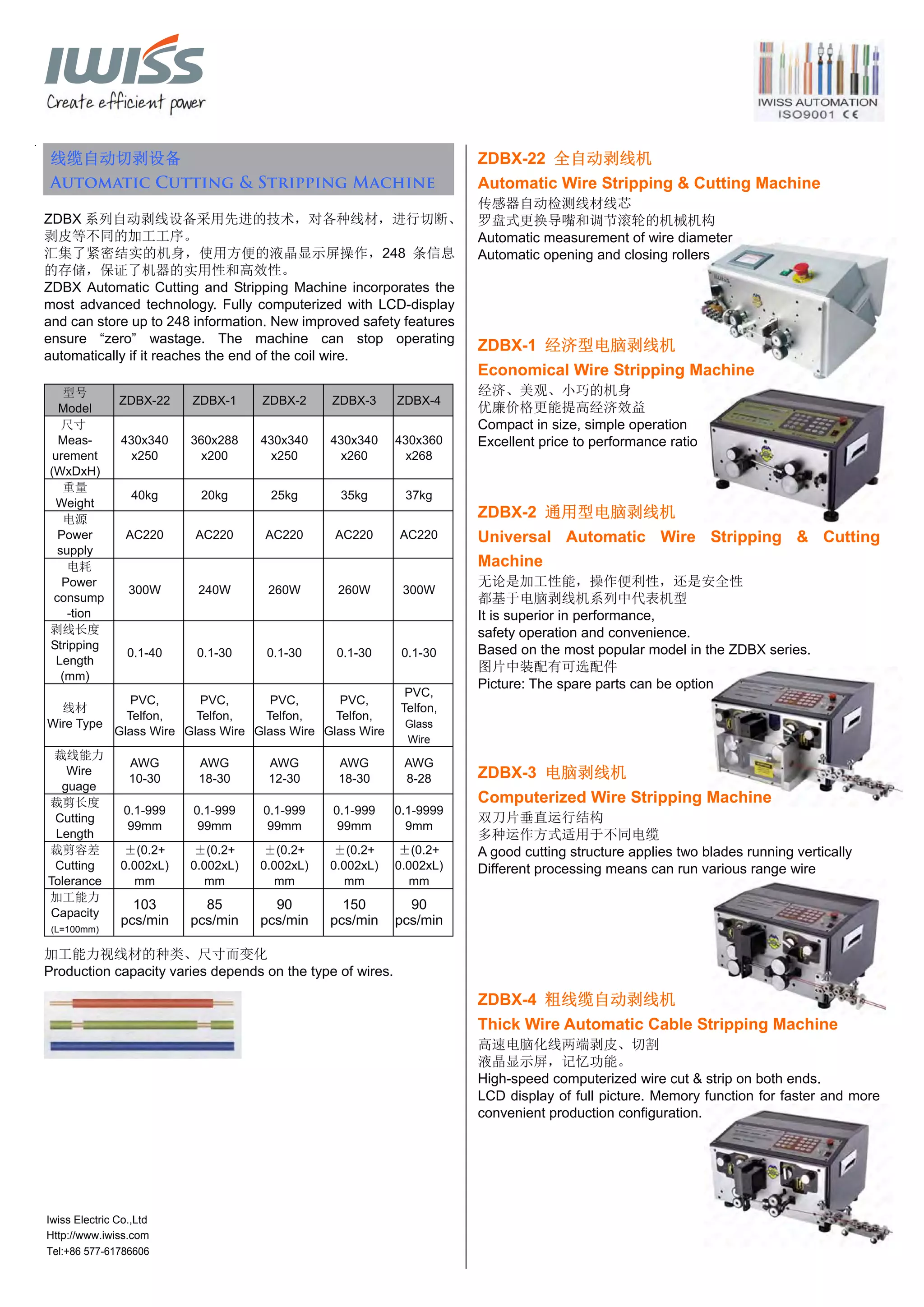

ZDBX-5+SL-500
全自动排线分线机
专门用于加工扁形排线的高新技术产品
可解决排线电缆的测长、剥皮以及分线工序
Special purpose machine for flat cable processing
You can measure length, strip and slit the ends of flat cables.
ZDBX-6F 细线型剥线分线机
针对双并细线加工的专用机器
分线、裁切和剥皮等工序一步完成
Special purpose machine for thin flat cable processing
Slitting, cutting and stripping process in one step.
ZDBX-9N 全自动剥线扭线机
汇集最新剥线、扭线技术于一体
采用细磨齿条式扭线装置
Collection of the latest stripping,
twisting technology into a compact body
Fine grinding twisted wire rack type devices
ZDBX-10 全自动剥线扭线机
可同时对 5 条线材进行剥线、扭线、切断工序
特殊的扭线平台，有效的保证了线材的加工精度
Strip, cut and twist 5 wires at the same time
Special device to ensure the machining precision of the wire
Iwiss Electric Co.,Ltd
Http://www.iwiss.com

4. Tel:+86 577-61786606
线缆自动切剥设备
Automatic Cutting & Stripping Machine
大功率，高性能新型传感器的应用，简单标准化的接口配置，
使全新的 ZDBX 系列型产品成为操作更简单，设置更直观便捷，
生产效率更高的全自动切剥设备。
Large-Power, high performance new sensors, simple and
standardized interface configuration are the three key features
of the fully automatic ZDBX cutting and stripping machines.
Simple, intuitive controls allow these machines to be used
efficiently in daily operation.
加工能力视线材的种类、尺寸而变化
Production capacity varies depends on the type of wires.
型号
Model
ZDBX-11 ZDBX-12 ZDBX-16 ZDBX-35
尺寸 Meas-
urement
(WxDxH)
736x425
X243
1700x750
X1580
1026x530
X325
1026x530
X325
重量
Weight
37kg 400kg 90kg 90kg
电源 Power
supply
AC220
AC220
/380V
AC220
/100W
AC220
/100W
电耗 Power
consump-tion
600W
AC Servo
motor
NP400W
MP2200W
NP400W
MP2200W
剥线长度
Stripping
Length
(mm)
0.1-200 3-30
No.1:
0.1-255mm
No.2:
0.1-140mm
No.1:
0.1-290mm
No.2:
0.1-150mm
线材
Wire Type
PVC,
Telfon,
Glass Wire
PVC,
Telfon,
Glass Wire
VSF,IV,KV,
Fiberglass
Wire
VSF,IV,KV,
Fiberglass
Wire
裁线能力
Wire guage
AWG
8-28
AWG
10-28
AWG
≤20
AWG
≤13
裁剪长度
Cutting
Length
0.1-999
99mm
42-999
99mm
- -
裁剪容差
Cutting
Tolerance
±(0.2+
0.002xL)
mm
Single
cycle and
auto
±(0.2+
0.002xL)
mm
±(0.2+
0.002xL)
mm
冲压能力
Press
Capacity
- 2.0Ton - -
ZDBX-11 全自动剥线机
对绝缘层外皮附着力较强的线材，
利用滚轮自动打开功能，重复性的反复剥皮。
剥线长度达 255mm
It can strip the strong adhesion of the new wire
insulation by repeating work
Max.stripping length reaches to 255mm
ZDBX-12 全自动剥线机
操作方便、调节简单。最多可同时加工 10 根普通电线
选配分线装置，可完成加工排线之分线、裁线等功能
Easy to operate and simple adjustment,
simultaneous processing up to 10 common wires
Optional slitting device, completes the processing
of the slitting, stripping and other functions
ZDBX-16 全自动剥线机
配备双重四轮驱动强力剥离器，
所以该机可加工线缆最大达 80mm2
With a dual 4WD powerful stripping unit
It can process cable within 80mm2
ZDBX-35 全自动电缆切剥机
采用先进的双组刀片，自动纵向移动设计
独特的横向剖刀结构，完美解决粗线中间剥皮工序。
皮带式驱动滚轮，保证加工精度。
With advanced automatic dual blade
design of longitudinal movement
Transverse profile knife unique,
perfect solution intermediate strip
Iwiss Electric Co.,Ltd
Http://www.iwiss.com

5. Tel:+86 577-61786606
全自动切割设备
Automatic Cutting Machine
ZDQG 系列自动切割设备，采用国际领先技术，对各种软管、
热缩管、电线、PVC 带、金属薄皮，以及波纹管进行测长、检
测定点，切断等不同的加工工序。
Strength, flexibility and performance are the features of the
automatic cutting machines. The machines are suited for the
accurate cutting hose, shrink tube, wire, film copper tinplate
and corrugated tube.

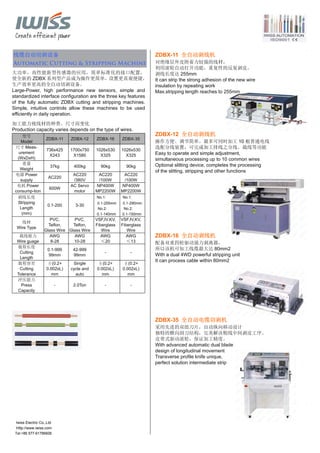

ZDQG-6100 自动切管机
配有接收外部信号的功能，
数字式控制速度自动报警并能提供各种警告信息
切断宽度可达 100mm
Application with receiving the outer signal,
various warning messages and alarm functions
Max. cutting width: 100mm
ZDQG-6900 柔顺扁平线切断机
二次切断传感器来检测切断点，
并控制送料的速度，切断的宽度可达 100mm
Detects cutting point and controls the speed of
feeding by using dual-cutting sensors

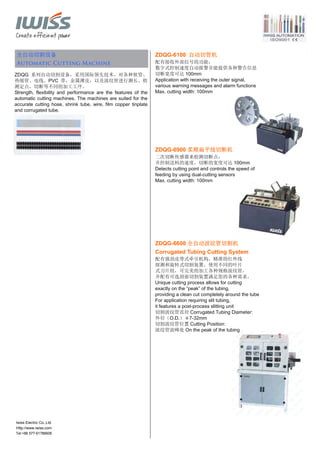

Max. cutting width: 100mm
ZDQG-6600 全自动波纹管切割机
Corrugated Tubing Cutting System
配有强劲皮带式牵引机构，精准的红外线
探测和旋转式切割装置，使用不同的叶片
式刀片组，可完美的加工各种规格波纹管，
并配有可选剖面切割装置满足您的各种需求。
Unique cutting process allows for cutting
exactly on the “peak” of the tubing,
providing a clean cut completely around the tube
For application requiring slit tubing,
it features a post-process slitting unit
切割波纹管直径 Corrugated Tubing Diameter:
外径（O.D.）φ7-32mm
切割波纹管位置 Cutting Position:
波纹管波峰处 On the peak of the tubing
Iwiss Electric Co.,Ltd
Http://www.iwiss.com

6. Tel:+86 577-61786606
线缆自动切剥设备-同轴电缆加工
Automatic Cutting & Stripping Machine
– Coaxial Cable Processing
本系列提供了用于半自动和全自动加工同轴电缆、微型同轴电
缆、三轴电缆和半硬式电缆的完整系列设备。在这些设备中，
先进的旋转剥皮和切割理念保证了威仕自动化独特稳定的剥皮
质量。
This series offers a complete range of semi-and fully
automatic machines for stripping coaxial, micro-coaxial,
triaxial as well as semirigid cables. In these machines, the
advanced rotary stripping and cutting concept ensures the
unique repeatable stripping quality of Iwiss Automation.
型号
Model ZDBX-36R ZDBX-39R ZDBX-65A
剥线长度
Stripping
Length
(mm)
0.1-30mm Max.95mm Max.42mm
线缆直径
Cable diameter φ5.9mm φ16mm φ12mm
剥皮步骤
Stripping step Max.6 Steps Max.9 Steps Max.9 Steps
剥线长度
设定单位
Stripping
Length scale
0.01mm - -
线材
Wire Type
Micro-coaxial/
Other single
-
Coxial, triaxial,
Stranded, solid,
shielded cable
裁线能力
Wire Size
- -
Multi-core
cable AWG4-32
Single-core
cable AWG10
尺寸 Meas-
urement
(WxDxH)
185x435x230 705x196x356 660x560x390
重量 Weight 15kg 27kg 80kg
电源 Power
supply
- 240VAC
50-60HZ
220VAC
50-60HZ
可编程长度
max
Programmable
total length
- - 9999.9m
切深分度值
Cut-depth
division value
0.01mm - -
切层数
Max.cutting
layer
Max.6 steps/
1cycle
- -
剥皮直径增量
Stripping dia.
increments
-
0.01mm
(0.001’’)
-
周期
Cycle time
- ≥7SEC -
Fuse - 3.15AT -
刀片类型
Blade type
- -
V-Blades
carbide
传输系统
Transport
system
- - Belt feed
加工能力视线材的种类、尺寸而变化
Production capacity varies depends on the type of wires.
ZDBX-36R 同轴线缆剥线机
采用先进的旋转刀架结构，确保了结构精度
特殊的轴心定位装置和回转刀具方式，提高了加工速度
Advanced rotary knives structure
ensures the machining accuracy
Special positioning device and the rotation
axis of the knives improve the processing speed.
ZDBX-39R 程控同轴线缆剥皮机
最新的电子技术，
具有一个样品程序资料库和上百个程序记忆
配有用户易操作的图解显示的菜单指导程序
Combined with world-of-the-art electronics,
and have a sample application database
and hundreds of memory program
A menu guidance program with a illustration show,
offering a better operation for user
ZDBX-65A 全自动切割同轴电缆机
专业用于剥皮和切断同轴电缆的高精度机器
独特的旋转式切剥机构设计，一次性完成多道加工程序
The unique rotary incision head design
combines rotary incision knives
with a universal centering system.
Precision-built parts guarantee
highest quality and repeatability.
Iwiss Electric Co.,Ltd
Http://www.iwiss.com

7. Tel:+86 577-61786606
便携式剥线机
Portable Stripping Machine
便携式剥线机，以其美观的外形设计，便携的携带方式，高效
的工作特点而著称，深受广大客户青睐
Highly portable unit for the precise stripping of discrete wires
and small multi-conductor cable
加工能力视线材的种类、尺寸而变化
Production capacity varies depends on the type of wires.
ZDBX-2010 电动剥线机
Electrically driven stripping machine
裁线能力 Wire size: AWG 16-30
剥线长度 Stripping length: 1.5-10mm
ZDBX-2025 电动剥线机
Electrically driven stripping machine
裁线能力 Wire size: AWG 10-32
剥线长度 Stripping length: 1-25mm
ZDBX-2020 气动剥线机
Pneumatically driven stripping machine
裁线能力 Wire size: AWG 14-32
剥线长度 Stripping length: 1-20mm
Iwiss Electric Co.,Ltd
Http://www.iwiss.com

8. Tel:+86 577-61786606
全自动端子压接设备（两端压着）
Fully Automatic Crimping Machine
全自动端子压接机，属于高速的电线束加工设备。生产力高、
更换时间短、用户易操作和高效的处理能力，如切割、剥皮、
压接、穿防水塞等。先进的模块化设计及内置质量监测系统，
实施着光、电、机、气、磁一体化的统一，从而确保其灵活性
及过程控制。
Fully automatic swivel arm crimping machines for high speed
wire processing. High productivity, short changeover times,
user-friendly operation and a wide range of processing
capabilities from cutting, stripping and crimping to sealing.
型号
Model
JQ-1 JQ-2 JQ-3
裁线能力
Wire
AWG 16-26 AWG 26-36 AWG 10-26
压着力
Crimping
force
2.0 Tons 2.0 Tons 2.0 Tons
切断长度
Cutting
length
40-9999mm 20-300mm 60-65000mm
剥线长度
Stripping
length
No.1:
0.1-10mm
No.2:
0.1-17mm
0.1-6mm
No.1:0.1-15mm
(28mm)
No.2:0.1-15mm
加工能力视线材的种类、尺寸而变化
Production capacity varies depends on the type of wires.
JQ-1 全自动端子压接机
Fully Automatic Crimping Machine
采用日本先进的数据交换方案
操作面板为液晶彩屏，形象生动的图表画面
标准化零部件的使用，维护成本低
供应高产能（0.8 秒/根）
Combines simplicity and functionality with economy
Wide range of options and accessories available
Low maintenance costs due to use of standard components
JQ-2 全自动端子压接机
Fully Automatic Crimping Machine
最适用于手机、相机、笔记本等产品上
所使用的超细超短规格电线的加工。
可压接电线达 AWG36，短线规格 20mm。
标准装配剥皮退刀功能
Suitable for processing ultra-short,
ultra-thin wire machine
Pull-back function
Less air consumption
JQ-3 全自动端子压接机
Fully Automatic Crimping Machine
全新的设计理念，整个加工范围
通过可编程的 V 型刀片进行，
皮带式送线机构不留痕迹，更提高了
长线加工质量。还可配备第三个工作站
如防水塞单元等，高端的控制软件，
确保具有最大的灵活性和高效性。
Ultra short conversion times, additional applications.
With its third processing station and
state of the art control software,
you are assured maximum flexibility
and an even more efficient way
of meeting your wire processing needs.
Iwiss Electric Co.,Ltd
Http://www.iwiss.com

9. Tel:+86 577-61786606

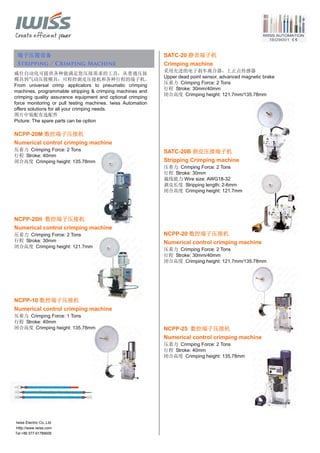

端子压接设备
Stripping / Crimping Machine
威仕自动化可提供各种能满足您压接需求的工具，从普通压接
模具到气动压接模具；可程控剥皮压接机和各种行程的端子机。
From universal crimp applicators to pneumatic crimping
machines, programmable stripping & crimping machines and
crimping quality assurance equipment and optional crimping
force monitoring or pull testing machines. Iwiss Automation
offers solutions for all your crimping needs.
图片中装配有选配件
Picture: The spare parts can be option
NCPP-20M 数控端子压接机
Numerical control crimping machine
压着力 Crimping Force: 2 Tons
行程 Stroke: 40mm
闭合高度 Crimping height: 135.78mm
NCPP-20H 数控端子压接机
Numerical control crimping machine
压着力 Crimping Force: 2 Tons
行程 Stroke: 30mm
闭合高度 Crimping height: 121.7mm
NCPP-10 数控端子压接机
Numerical control crimping machine
压着力 Crimping Force: 1 Tons
行程 Stroke: 40mm
闭合高度 Crimping height: 135.78mm
SATC-20 静音端子机
Crimping machine
采用先进的电子刹车离合器，上止点传感器
Upper dead point sensor, advanced magnetic brake
压着力 Crimping Force: 2 Tons
行程 Stroke: 30mm/40mm
闭合高度 Crimping height: 121.7mm/135.78mm
SATC-20B 剥皮压接端子机
Stripping Crimping machine
压着力 Crimping Force: 2 Tons
行程 Stroke: 30mm
裁线能力 Wire size: AWG18-32
剥皮长度 Stripping length: 2-6mm
闭合高度 Crimping height: 121.7mm
NCPP-20 数控端子压接机
Numerical control crimping machine
压着力 Crimping Force: 2 Tons
行程 Stroke: 30mm/40mm
闭合高度 Crimping height: 121.7mm/135.78mm
NCPP-25 数控端子压接机
Numerical control crimping machine
压着力 Crimping Force: 2 Tons
行程 Stroke: 40mm
闭合高度 Crimping height: 135.78mm
Iwiss Electric Co.,Ltd
Http://www.iwiss.com

10. Tel:+86 577-61786606

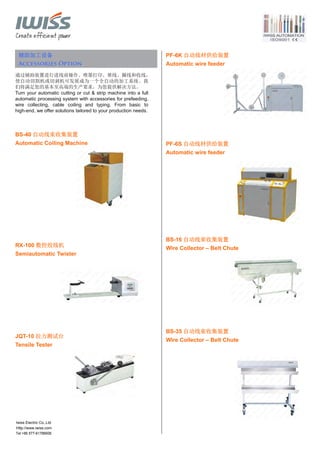

辅助加工设备
Accessories Option
通过辅助装置进行进线前操作、喷墨打印、堆线、圈线和收线，
使自动切割机或切剥机可发展成为一个全自动的加工系统。我
们将满足您的基本至高端的生产要求，为您提供解决方法。
Turn your automatic cutting or cut & strip machine into a full
automatic processing system with accessories for prefeeding,
wire collecting, cable coiling and typing. From basic to
high-end, we offer solutions tailored to your production needs.
PF-3A 皮带式自动供给装置
Prefeeding Machine – Belt Type
PF-3C 自动线材供给装置
Automatic wire feeder
PF-2 自动线材供给装置
Automatic wire feeder
PF-2A 线材供给盘
Feeding Plate
PF-2C 线材供给盘
Feeding Plate
PF-3 自动线材供给装置
Automatic wire feeder
Iwiss Electric Co.,Ltd
Http://www.iwiss.com

11. Tel:+86 577-61786606
辅助加工设备
Accessories Option
通过辅助装置进行进线前操作、喷墨打印、堆线、圈线和收线，
使自动切割机或切剥机可发展成为一个全自动的加工系统。我
们将满足您的基本至高端的生产要求，为您提供解决方法。
Turn your automatic cutting or cut & strip machine into a full
automatic processing system with accessories for prefeeding,
wire collecting, cable coiling and typing. From basic to
high-end, we offer solutions tailored to your production needs.
BS-40 自动线束收集装置
Automatic Coiling Machine
RX-100 数控绞线机
Semiautomatic Twister
JQT-10 拉力测试台
Tensile Tester
PF-6K 自动线材供给装置
Automatic wire feeder
PF-6S 自动线材供给装置
Automatic wire feeder
BS-16 自动线束收集装置
Wire Collector – Belt Chute
BS-35 自动线束收集装置
Wire Collector – Belt Chute
Iwiss Electric Co.,Ltd
Http://www.iwiss.com

12. Tel:+86 577-61786606

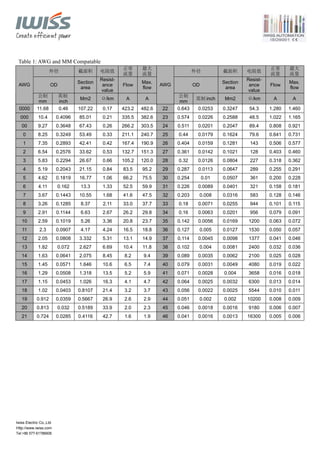

Table 1: AWG and MM Compatable
外径 截面积 电阻值
正常
流量
最大
流量
外径 截面积 电阻值
正常
流量
最大
流量
OD
Section
area
Resist-
ance
value
Flow
Max.
flow
OD
Section
area
Resist-
ance
value
Flow
Max.
flow
AWG
公制
mm
英制
inch
Mm2 Ω/km A A
AWG
公制
mm
英制 inch Mm2 Ω/km A A
0000 11.68 0.46 107.22 0.17 423.2 482.6 22 0.643 0.0253 0.3247 54.3 1.280 1.460
000 10.4 0.4096 85.01 0.21 335.5 382.6 23 0.574 0.0226 0.2588 48.5 1.022 1.165
00 9.27 0.3648 67.43 0.26 266.2 303.5 24 0.511 0.0201 0.2047 89.4 0.808 0.921
0 8.25 0.3249 53.49 0.33 211.1 240.7 25 0.44 0.0179 0.1624 79.6 0.641 0.731
1 7.35 0.2893 42.41 0.42 167.4 190.9 26 0.404 0.0159 0.1281 143 0.506 0.577
2 6.54 0.2576 33.62 0.53 132.7 151.3 27 0.361 0.0142 0.1021 128 0.403 0.460
3 5.83 0.2294 26.67 0.66 105.2 120.0 28 0.32 0.0126 0.0804 227 0.318 0.362
4 5.19 0.2043 21.15 0.84 83.5 95.2 29 0.287 0.0113 0.0647 289 0.255 0.291
5 4.62 0.1819 16.77 1.06 66.2 75.5 30 0.254 0.01 0.0507 361 0.200 0.228
6 4.11 0.162 13.3 1.33 52.5 59.9 31 0.226 0.0089 0.0401 321 0.158 0.181
7 3.67 0.1443 10.55 1.68 41.6 47.5 32 0.203 0.008 0.0316 583 0.128 0.146
8 3.26 0.1285 8.37 2.11 33.0 37.7 33 0.18 0.0071 0.0255 944 0.101 0.115
9 2.91 0.1144 6.63 2.67 26.2 29.8 34 0.16 0.0063 0.0201 956 0.079 0.091
10 2.59 0.1019 5.26 3.36 20.8 23.7 35 0.142 0.0056 0.0169 1200 0.063 0.072
11 2.3 0.0907 4.17 4.24 16.5 18.8 36 0.127 0.005 0.0127 1530 0.050 0.057
12 2.05 0.0808 3.332 5.31 13.1 14.9 37 0.114 0.0045 0.0098 1377 0.041 0.046
13 1.82 0.072 2.627 6.69 10.4 11.8 38 0.102 0.004 0.0081 2400 0.032 0.036
14 1.63 0.0641 2.075 8.45 8.2 9.4 39 0.089 0.0035 0.0062 2100 0.025 0.028
15 1.45 0.0571 1.646 10.6 6.5 7.4 40 0.079 0.0031 0.0049 4080 0.019 0.022
16 1.29 0.0508 1.318 13.5 5.2 5.9 41 0.071 0.0028 0.004 3658 0.016 0.018
17 1.15 0.0453 1.026 16.3 4.1 4.7 42 0.064 0.0025 0.0032 6300 0.013 0.014
18 1.02 0.0403 0.8107 21.4 3.2 3.7 43 0.056 0.0022 0.0025 5544 0.010 0.011
19 0.912 0.0359 0.5667 26.9 2.6 2.9 44 0.051 0.002 0.002 10200 0.008 0.009
20 0.813 0.032 0.5189 33.9 2.0 2.3 45 0.046 0.0018 0.0016 9180 0.006 0.007
21 0.724 0.0285 0.4116 42.7 1.6 1.9 46 0.041 0.0016 0.0013 16300 0.005 0.006
Iwiss Electric Co.,Ltd
Http://www.iwiss.com
