This document discusses developing web and mobile applications using WebSharper in F#. WebSharper allows developers to write client-side code in F# that compiles to JavaScript, enabling them to build client-based applications. It outlines trends toward moving functionality from servers to clients, and how WebSharper addresses issues like managing multiple languages and type safety. The document also provides an overview of WebSharper and its features for building robust, maintainable applications with less code.

1. Web (and Mobile) Development
with WebSharper in F#
Adam Granicz – F# MVP
CEO, IntelliFactory
http://fpish.net/blog/adam.granicz/all/0
#granicz
@ itcampro # itcamp12 Premium conference on Microsoft technologies

2. Mobile &
ITCamp 2012 sponsors Development
@ itcampro # itcamp12 Premium conference on Microsoft technologies

3. Mobile &
Adam Development
Commercial Users of Functional Programming (CUFP)
Tokyo, Japan – September 2011
@ itcampro # itcamp12 Premium conference on Microsoft technologies

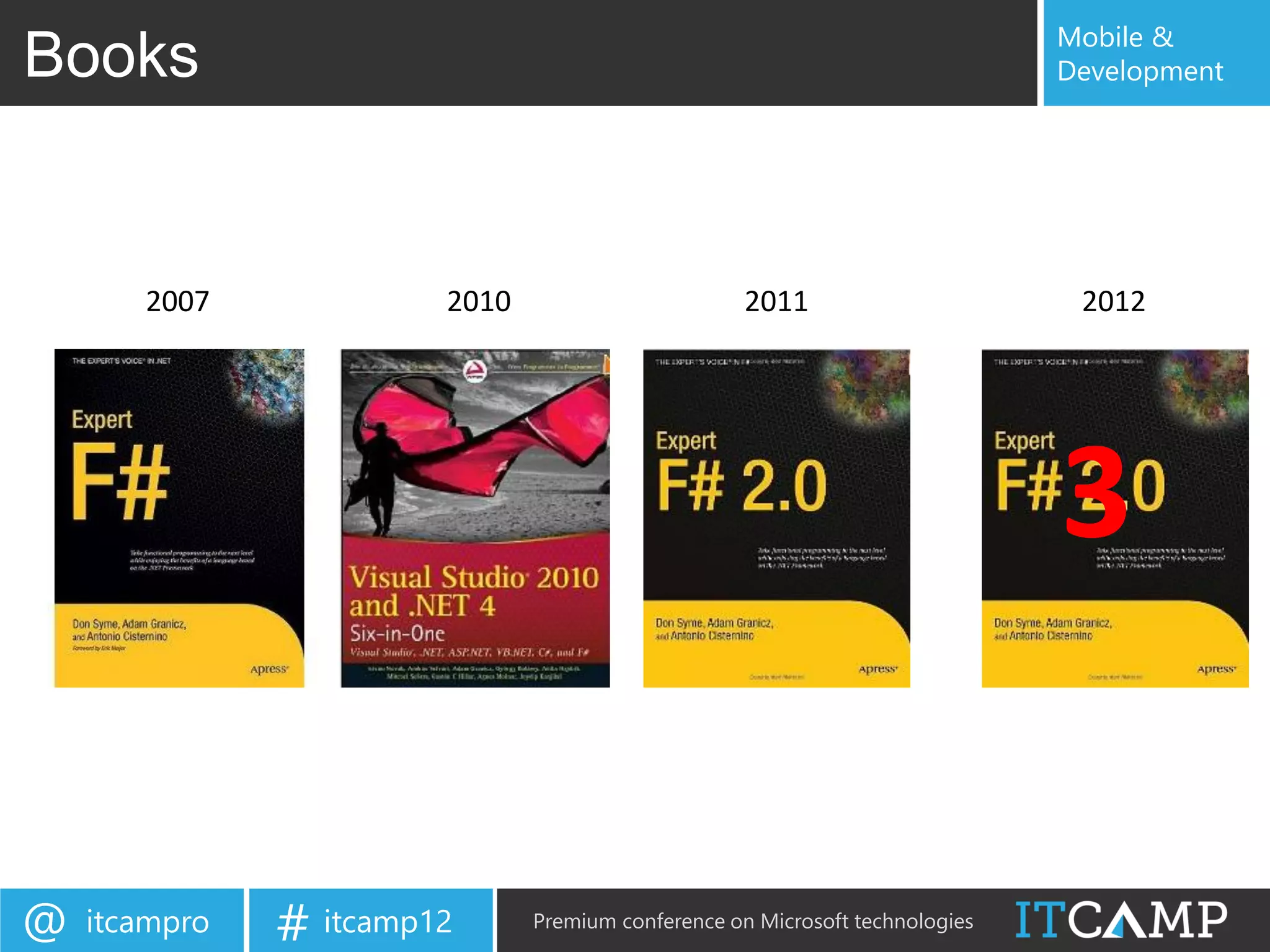

4. Mobile &
Books Development
2007 2010 2011 2012
3
@ itcampro # itcamp12 Premium conference on Microsoft technologies

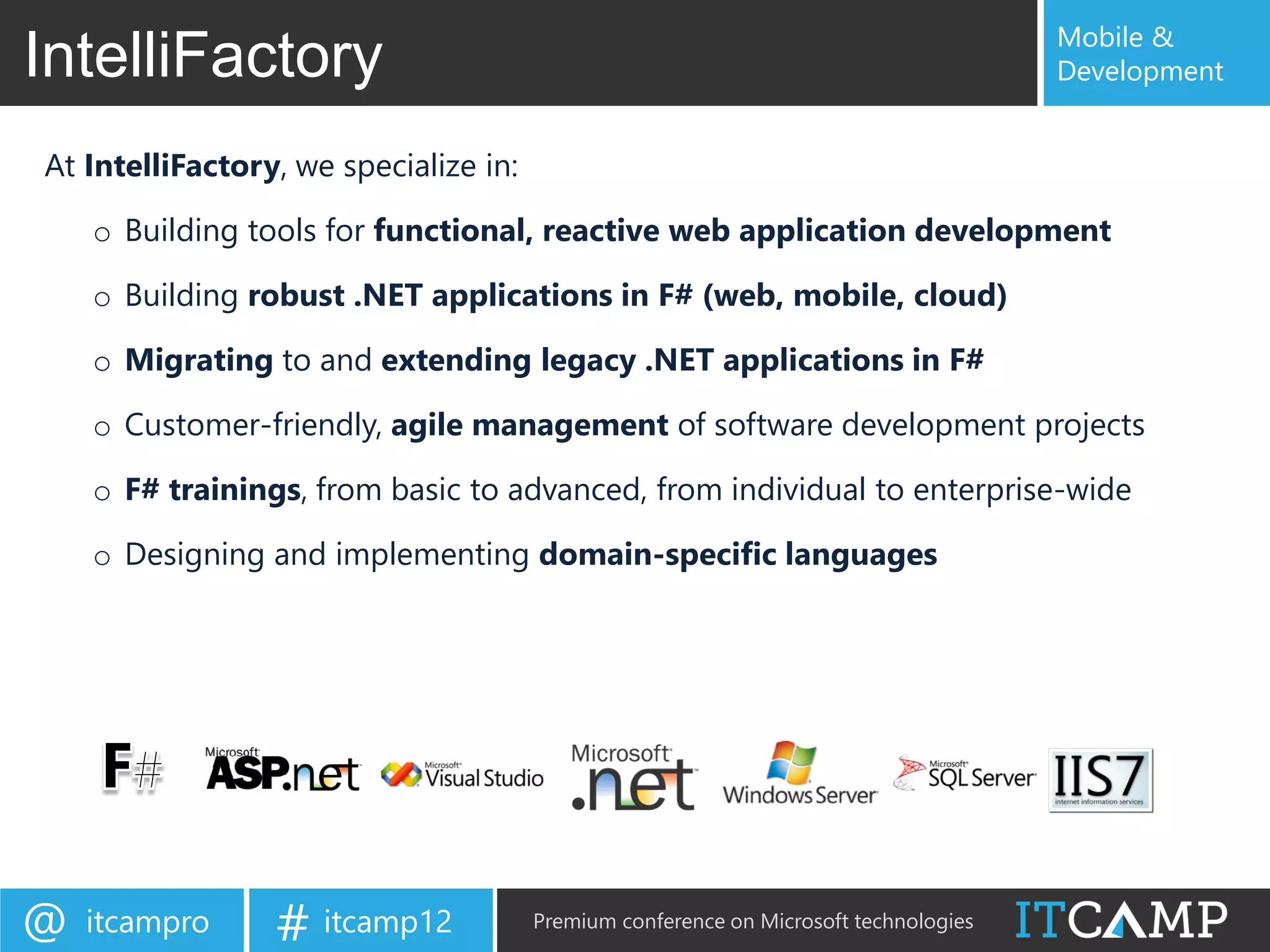

5. Mobile &
IntelliFactory Development
At IntelliFactory, we specialize in:
o Building tools for functional, reactive web application development
o Building robust .NET applications in F# (web, mobile, cloud)
o Migrating to and extending legacy .NET applications in F#
o Customer-friendly, agile management of software development projects
o F# trainings, from basic to advanced, from individual to enterprise-wide
o Designing and implementing domain-specific languages
@ itcampro # itcamp12 Premium conference on Microsoft technologies

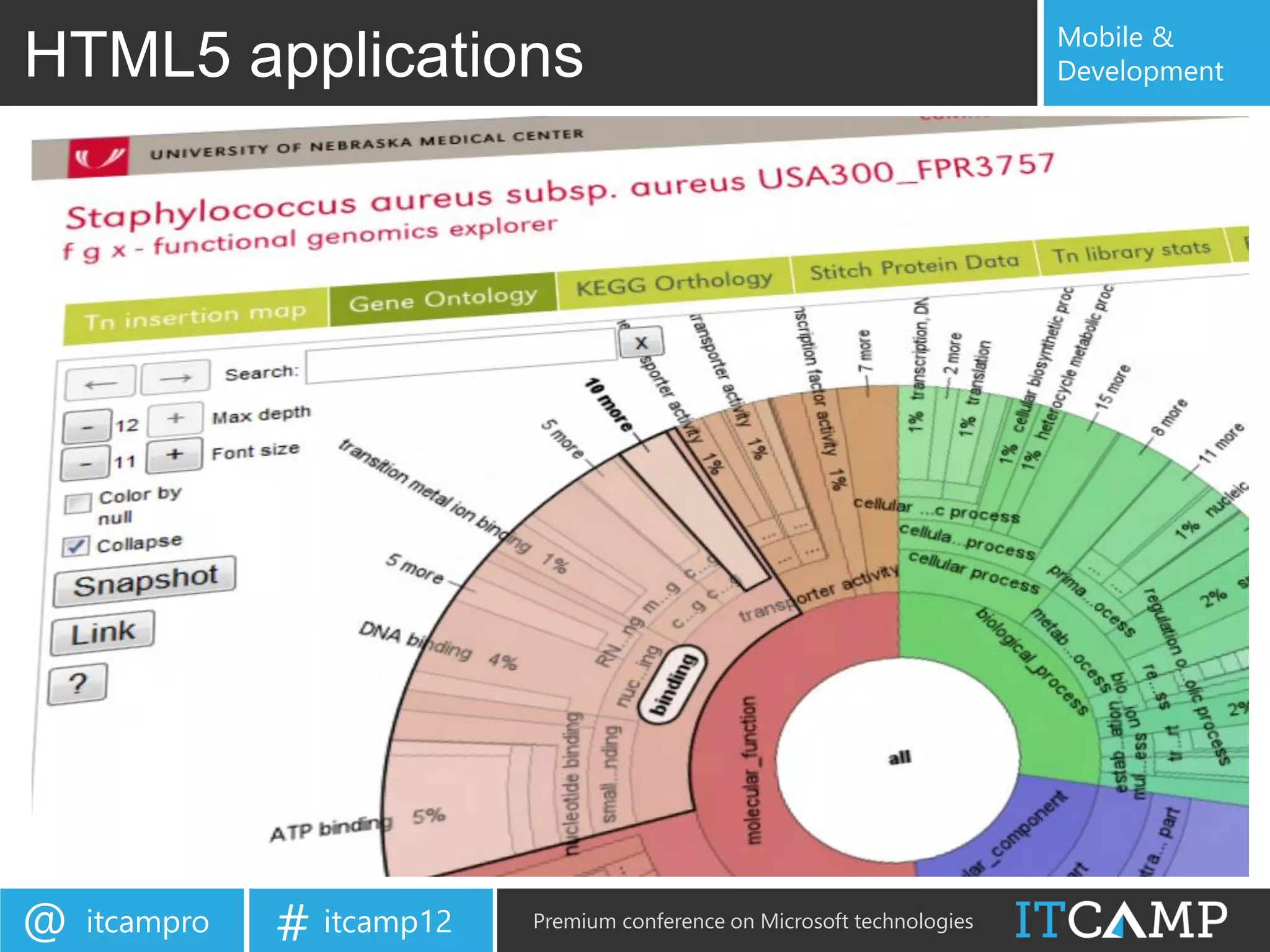

6. Mobile &
HTML5 applications Development
@ itcampro # itcamp12 Premium conference on Microsoft technologies

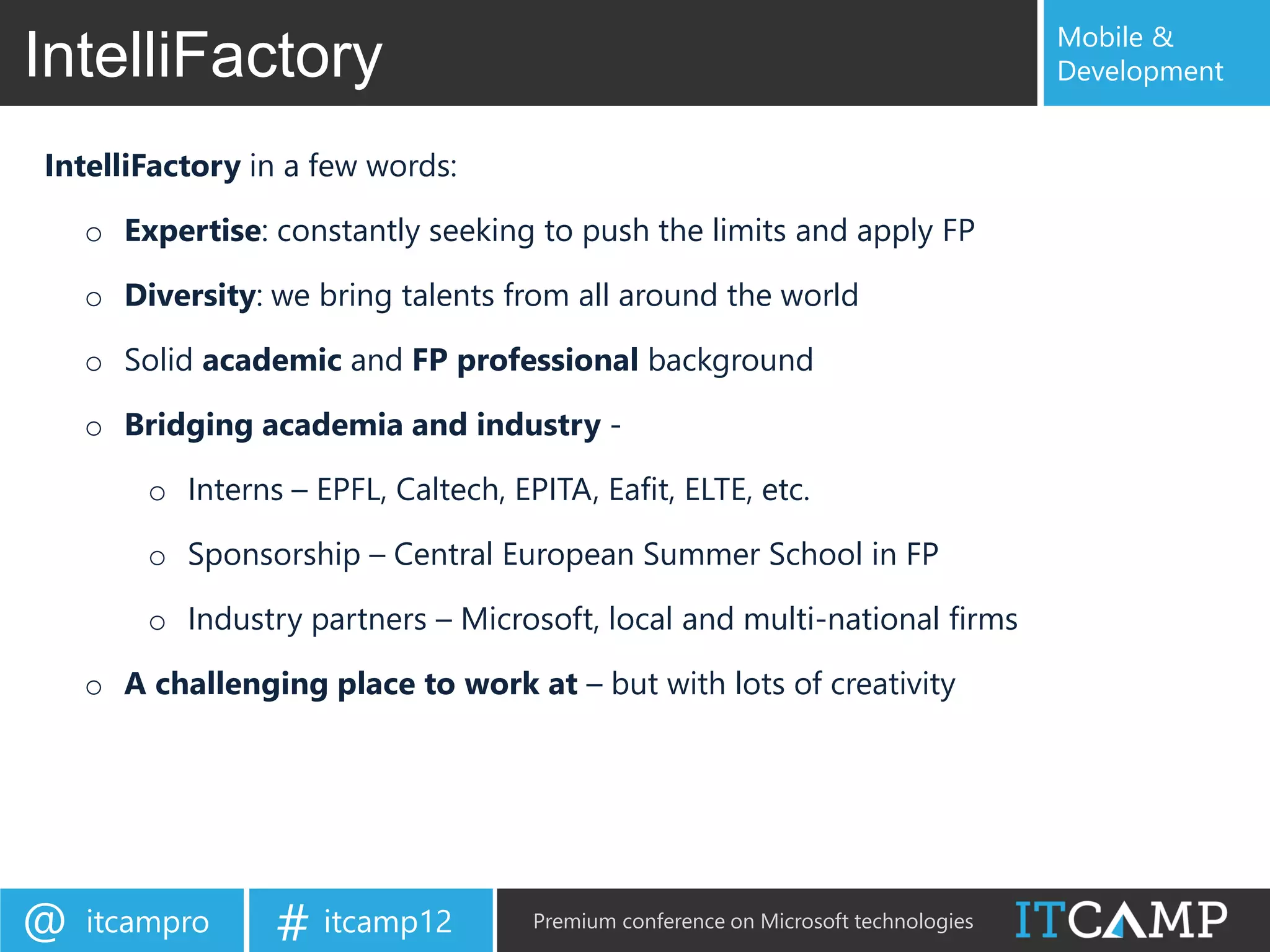

7. Mobile &
IntelliFactory Development
IntelliFactory in a few words:
o Expertise: constantly seeking to push the limits and apply FP
o Diversity: we bring talents from all around the world
o Solid academic and FP professional background
o Bridging academia and industry -
o Interns – EPFL, Caltech, EPITA, Eafit, ELTE, etc.
o Sponsorship – Central European Summer School in FP
o Industry partners – Microsoft, local and multi-national firms
o A challenging place to work at – but with lots of creativity
@ itcampro # itcamp12 Premium conference on Microsoft technologies

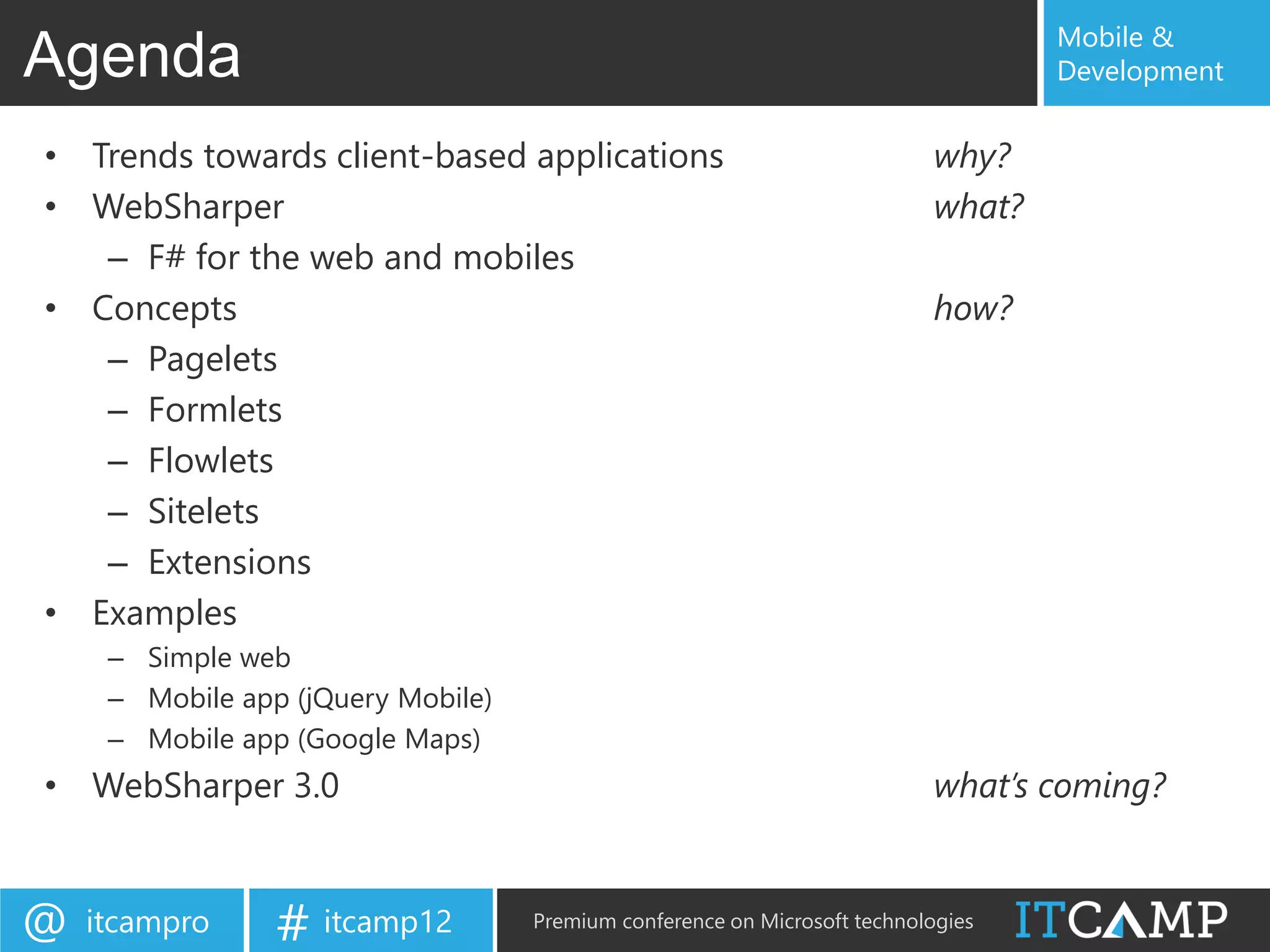

8. Mobile &
Agenda Development
• Trends towards client-based applications why?
• WebSharper what?
– F# for the web and mobiles
• Concepts how?
– Pagelets
– Formlets
– Flowlets
– Sitelets
– Extensions
• Examples
– Simple web
– Mobile app (jQuery Mobile)
– Mobile app (Google Maps)
• WebSharper 3.0 what’s coming?
@ itcampro # itcamp12 Premium conference on Microsoft technologies

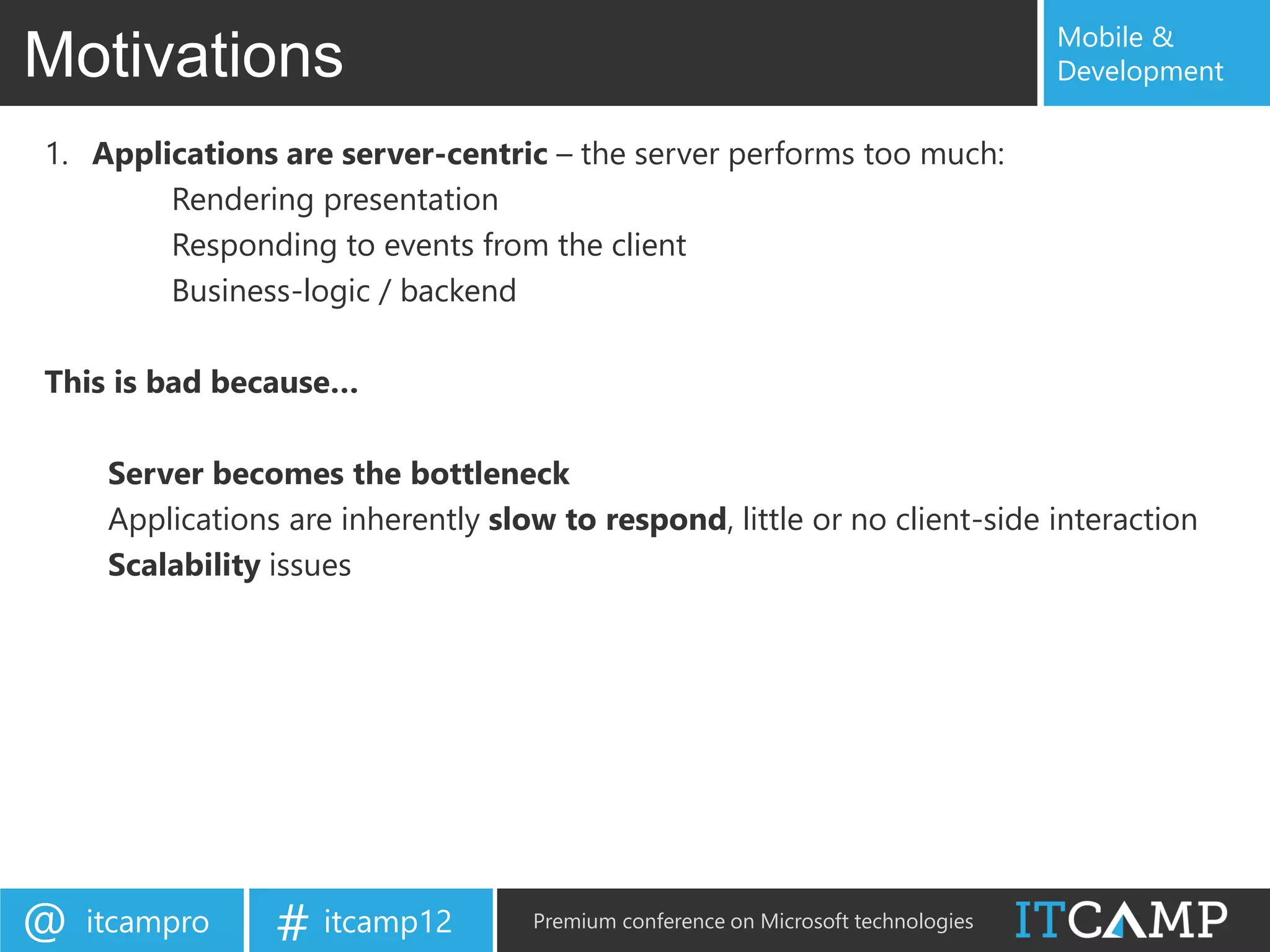

9. Mobile &
Motivations Development
1. Applications are server-centric – the server performs too much:
Rendering presentation
Responding to events from the client
Business-logic / backend
This is bad because…
Server becomes the bottleneck
Applications are inherently slow to respond, little or no client-side interaction
Scalability issues
@ itcampro # itcamp12 Premium conference on Microsoft technologies

10. Mobile &

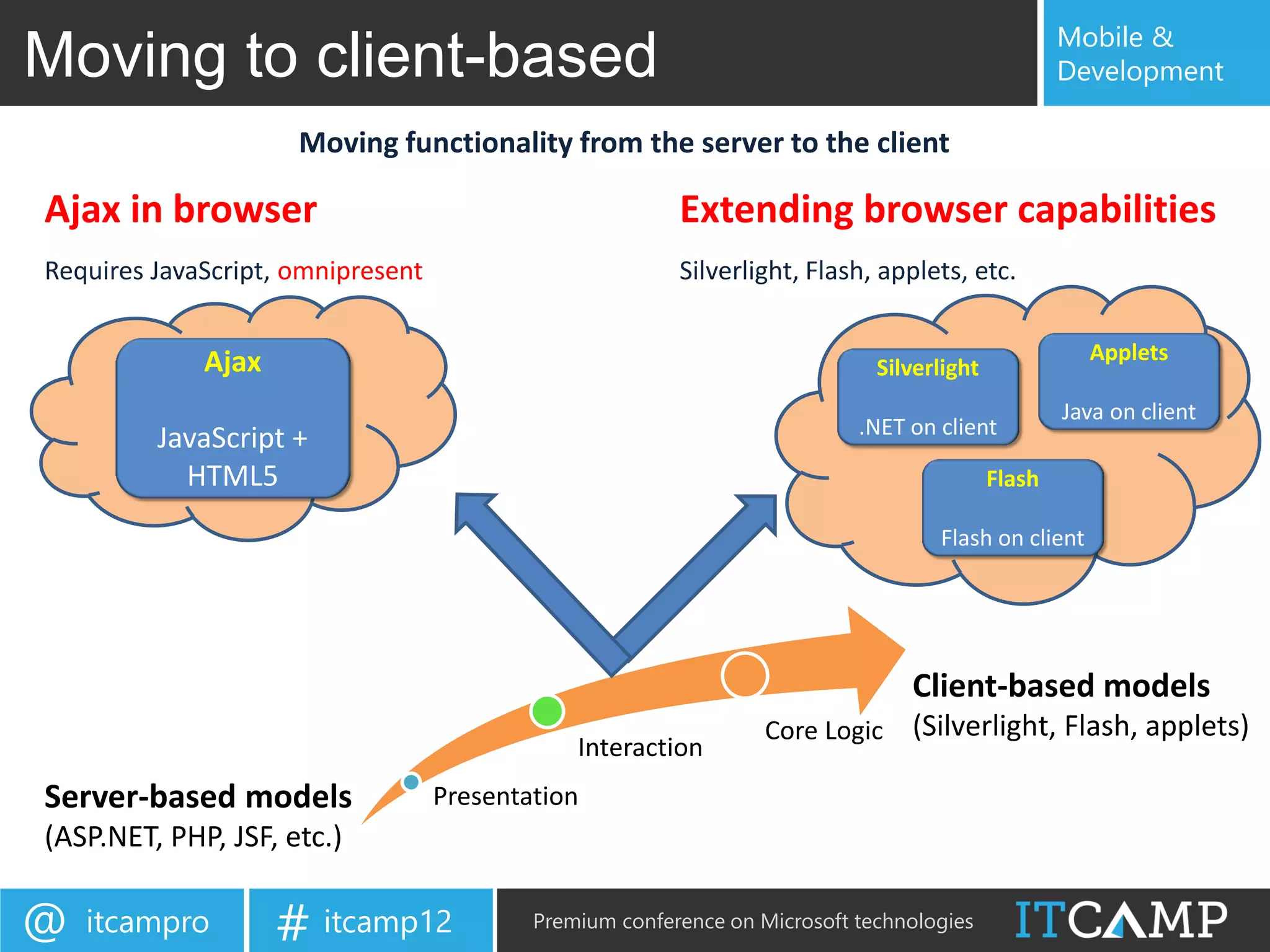

Moving to client-based Development
Moving functionality from the server to the client
Ajax in browser Extending browser capabilities
Requires JavaScript, omnipresent Silverlight, Flash, applets, etc.
Ajax Applets
Silverlight
Java on client
.NET on client
JavaScript +
HTML5 Flash
Flash on client
Client-based models
Core Logic (Silverlight, Flash, applets)
Interaction
Server-based models Presentation
(ASP.NET, PHP, JSF, etc.)
@ itcampro # itcamp12 Premium conference on Microsoft technologies

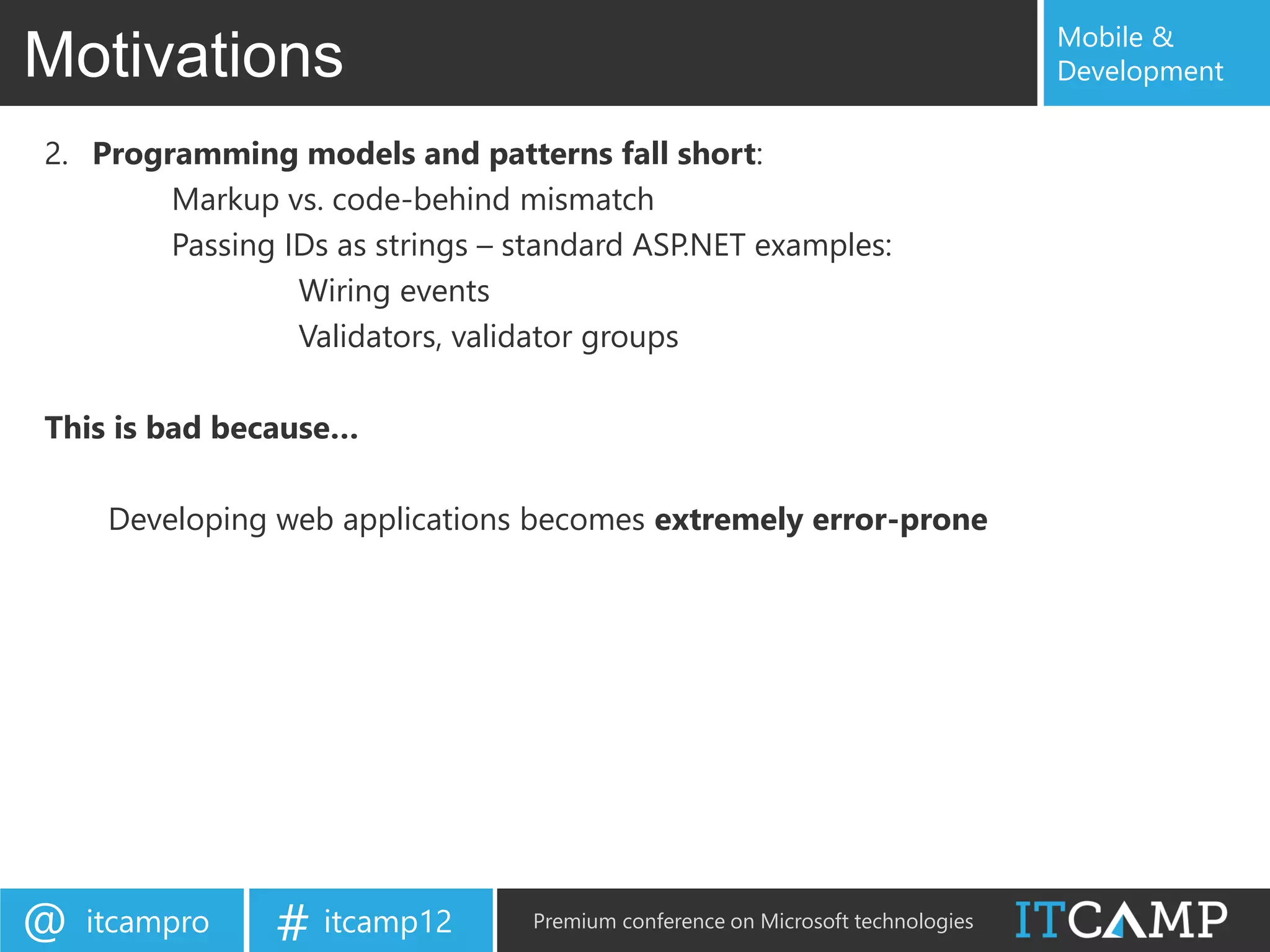

11. Mobile &
Motivations Development
2. Programming models and patterns fall short:
Markup vs. code-behind mismatch
Passing IDs as strings – standard ASP.NET examples:
Wiring events
Validators, validator groups
This is bad because…
Developing web applications becomes extremely error-prone
@ itcampro # itcamp12 Premium conference on Microsoft technologies

12. Mobile &

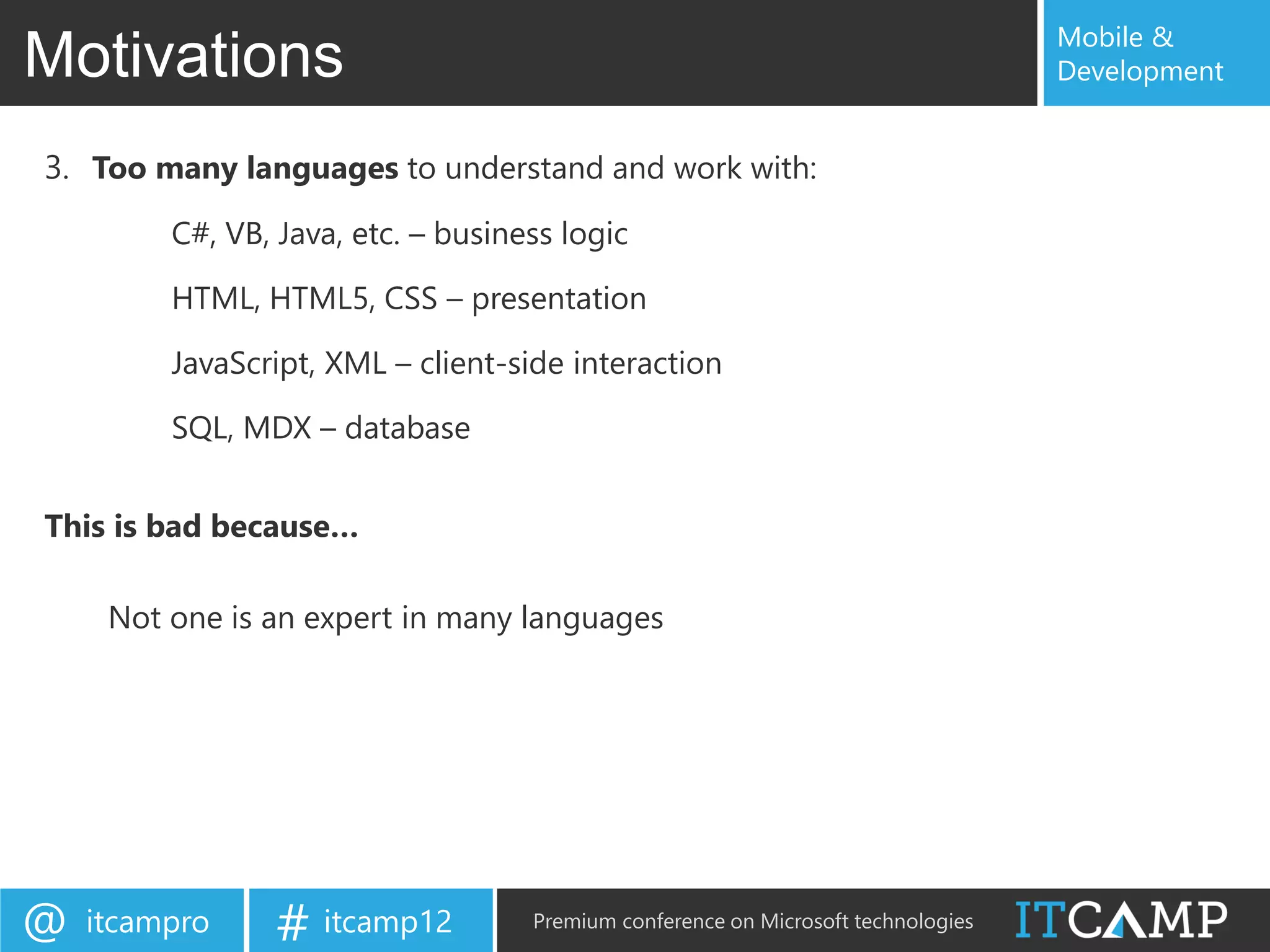

Motivations Development
3. Too many languages to understand and work with:
C#, VB, Java, etc. – business logic
HTML, HTML5, CSS – presentation
JavaScript, XML – client-side interaction
SQL, MDX – database
This is bad because…
Not one is an expert in many languages
@ itcampro # itcamp12 Premium conference on Microsoft technologies

13. Mobile &

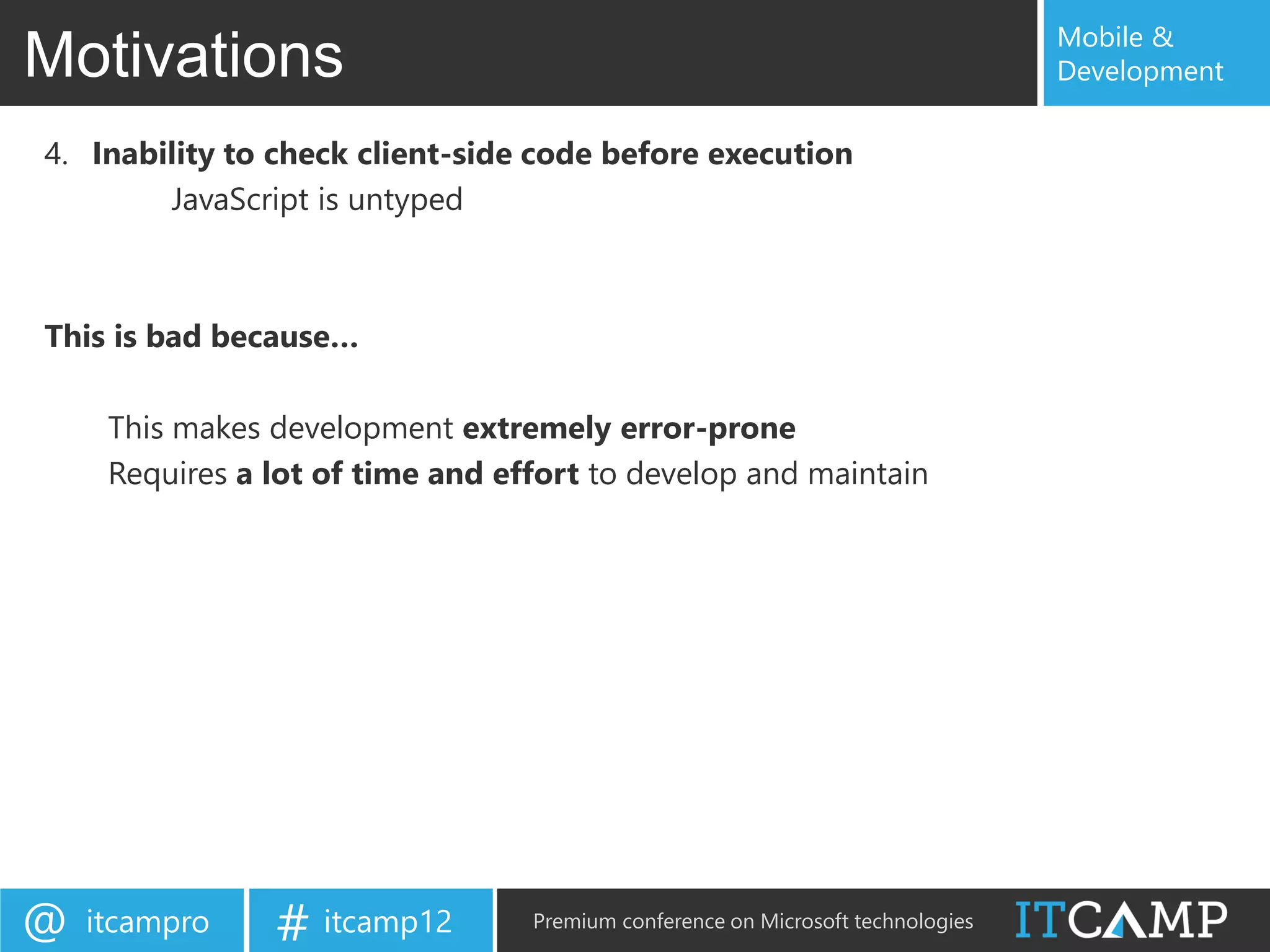

Motivations Development
4. Inability to check client-side code before execution
JavaScript is untyped
This is bad because…
This makes development extremely error-prone
Requires a lot of time and effort to develop and maintain
@ itcampro # itcamp12 Premium conference on Microsoft technologies

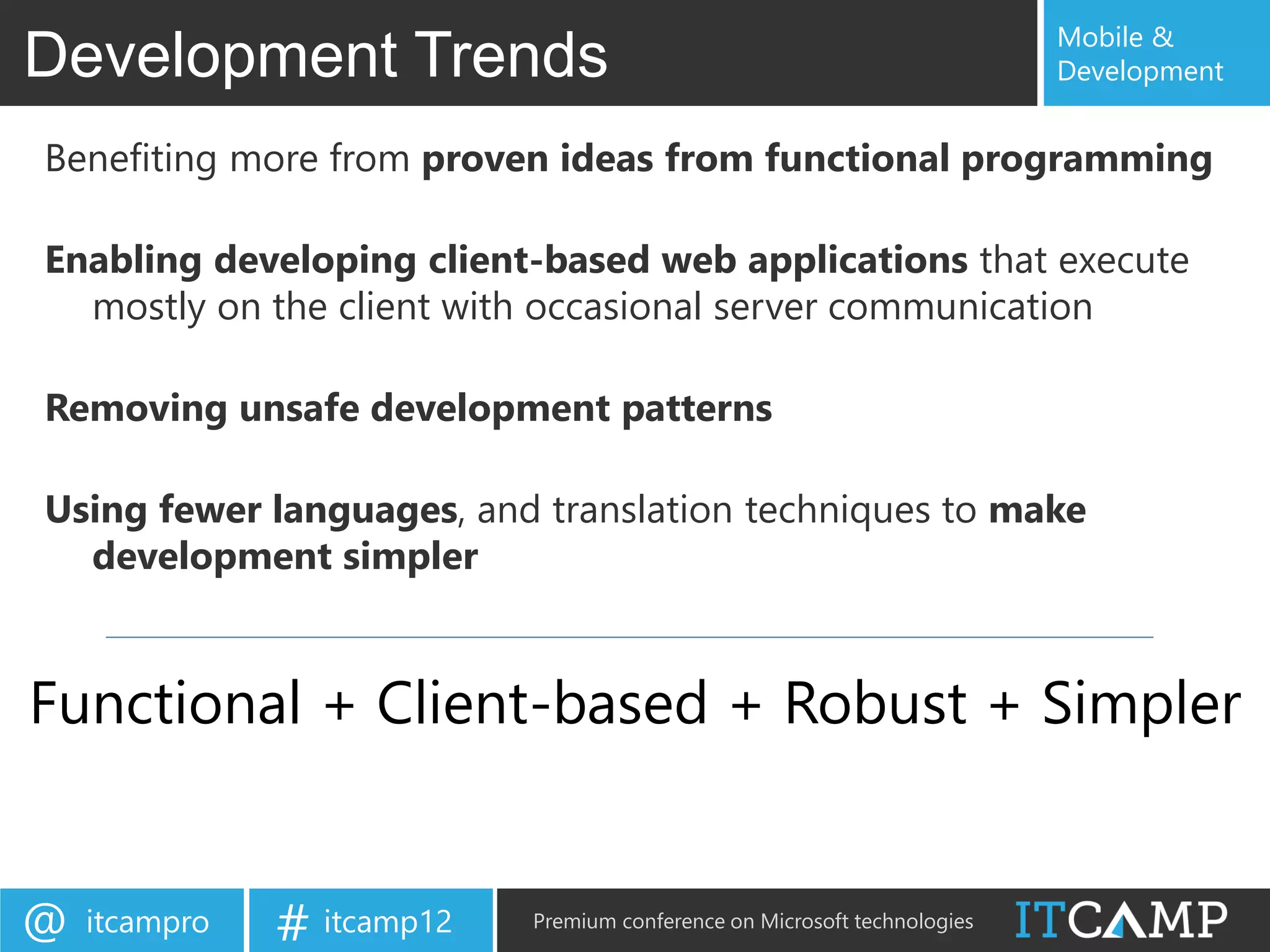

14. Mobile &
Development Trends Development
Benefiting more from proven ideas from functional programming
Enabling developing client-based web applications that execute
mostly on the client with occasional server communication
Removing unsafe development patterns
Using fewer languages, and translation techniques to make
development simpler
Functional + Client-based + Robust + Simpler
@ itcampro # itcamp12 Premium conference on Microsoft technologies

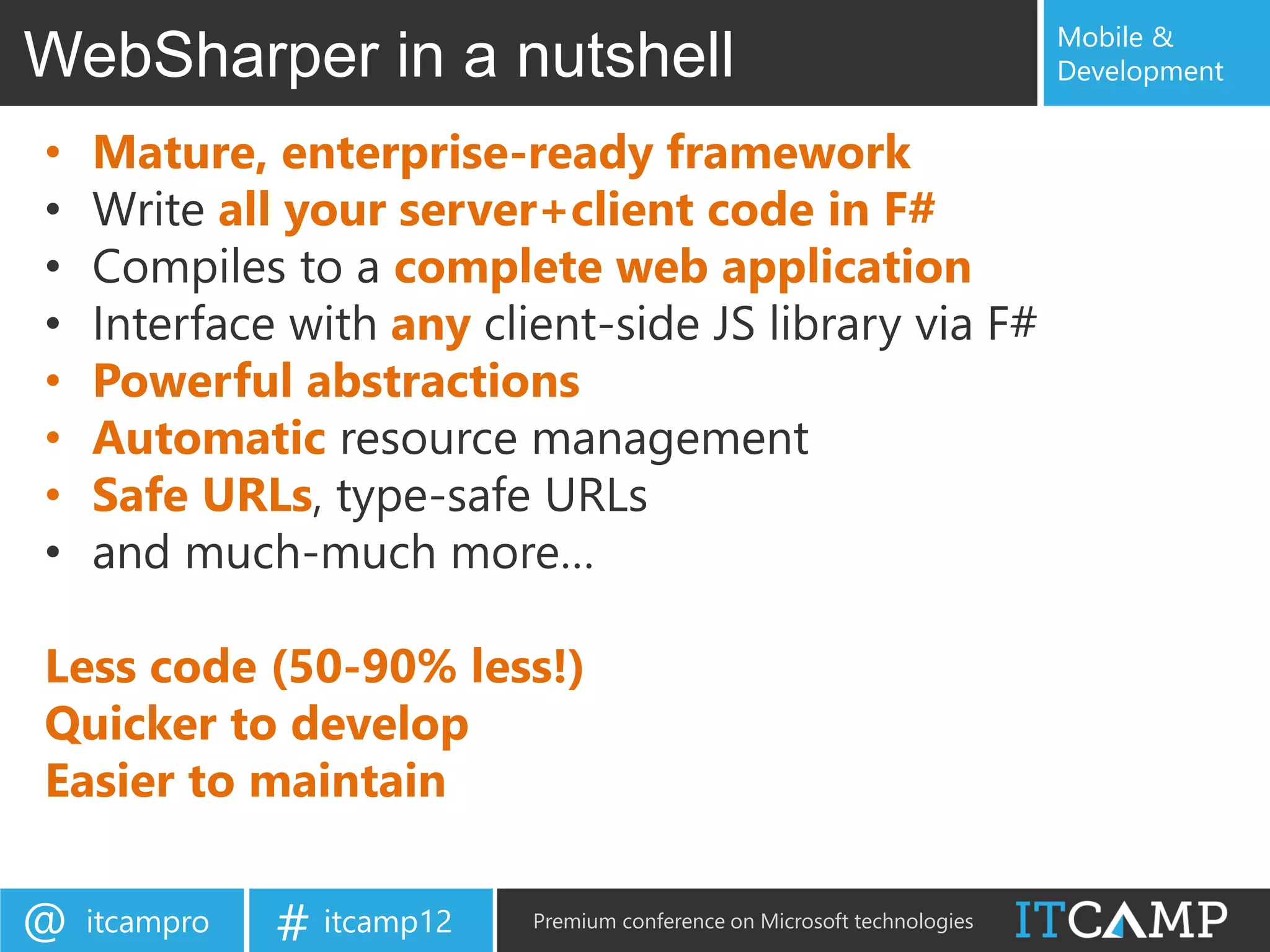

15. Mobile &
WebSharper in a nutshell Development
• Mature, enterprise-ready framework
• Write all your server+client code in F#
• Compiles to a complete web application
• Interface with any client-side JS library via F#
• Powerful abstractions
• Automatic resource management
• Safe URLs, type-safe URLs
• and much-much more…
Less code (50-90% less!)
Quicker to develop
Easier to maintain
@ itcampro # itcamp12 Premium conference on Microsoft technologies

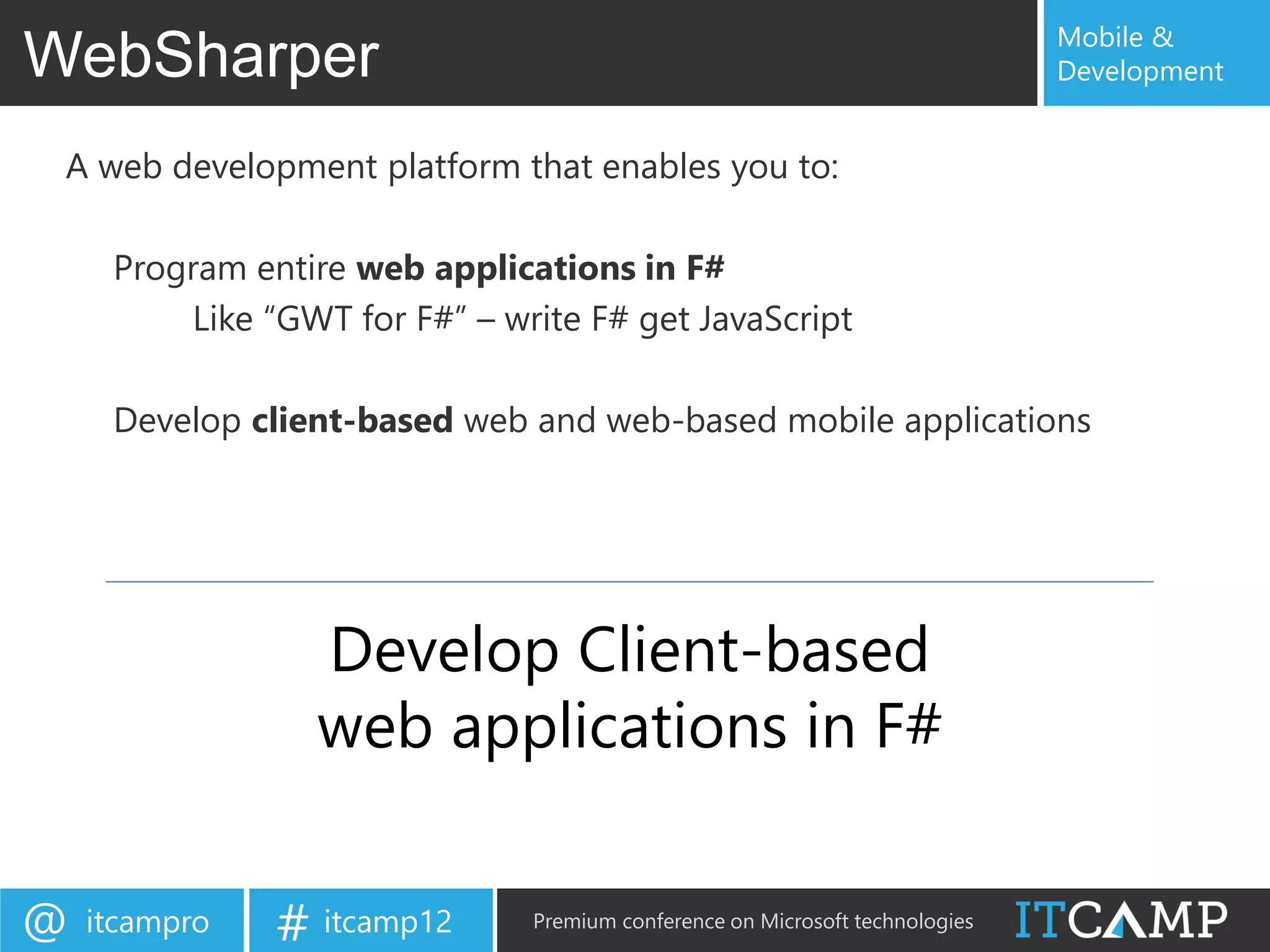

16. Mobile &
WebSharper Development
A web development platform that enables you to:
Program entire web applications in F#
Like “GWT for F#” – write F# get JavaScript
Develop client-based web and web-based mobile applications
Develop Client-based
web applications in F#
@ itcampro # itcamp12 Premium conference on Microsoft technologies

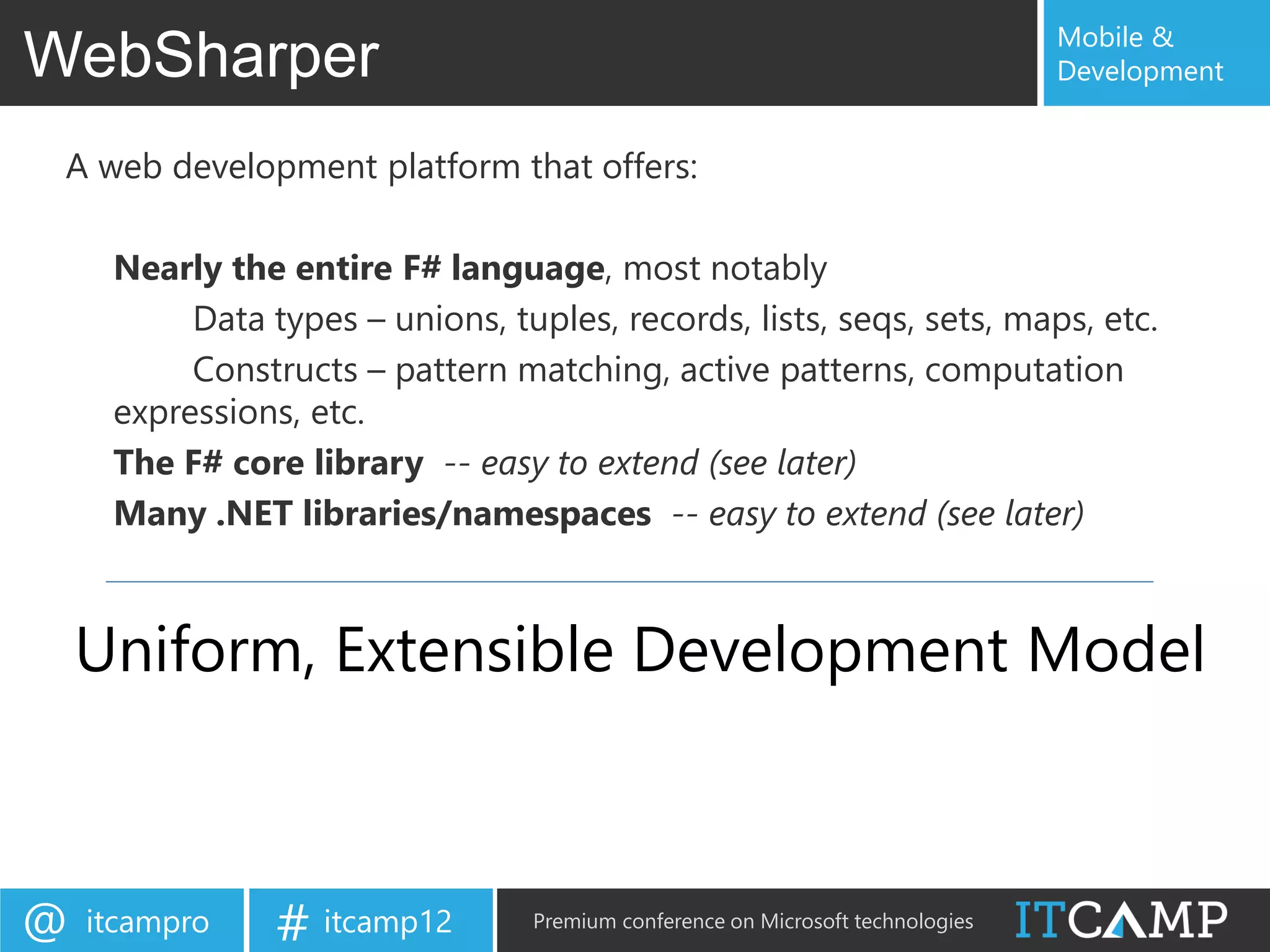

17. Mobile &
WebSharper Development
A web development platform that offers:
Nearly the entire F# language, most notably
Data types – unions, tuples, records, lists, seqs, sets, maps, etc.
Constructs – pattern matching, active patterns, computation
expressions, etc.
The F# core library -- easy to extend (see later)
Many .NET libraries/namespaces -- easy to extend (see later)
Uniform, Extensible Development Model
@ itcampro # itcamp12 Premium conference on Microsoft technologies

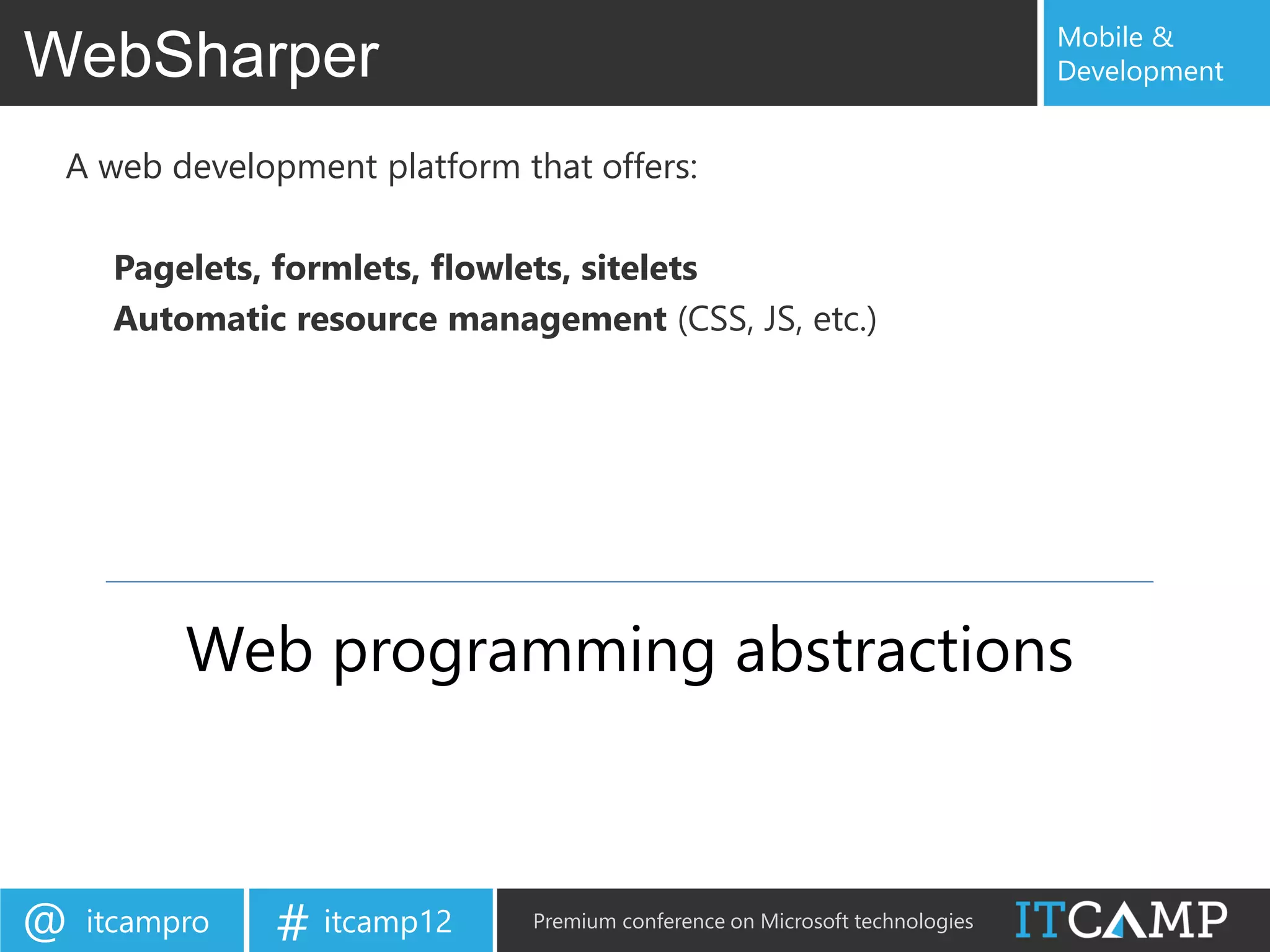

18. Mobile &
WebSharper Development
A web development platform that offers:
Pagelets, formlets, flowlets, sitelets
Automatic resource management (CSS, JS, etc.)
Web programming abstractions
@ itcampro # itcamp12 Premium conference on Microsoft technologies

19. Mobile &

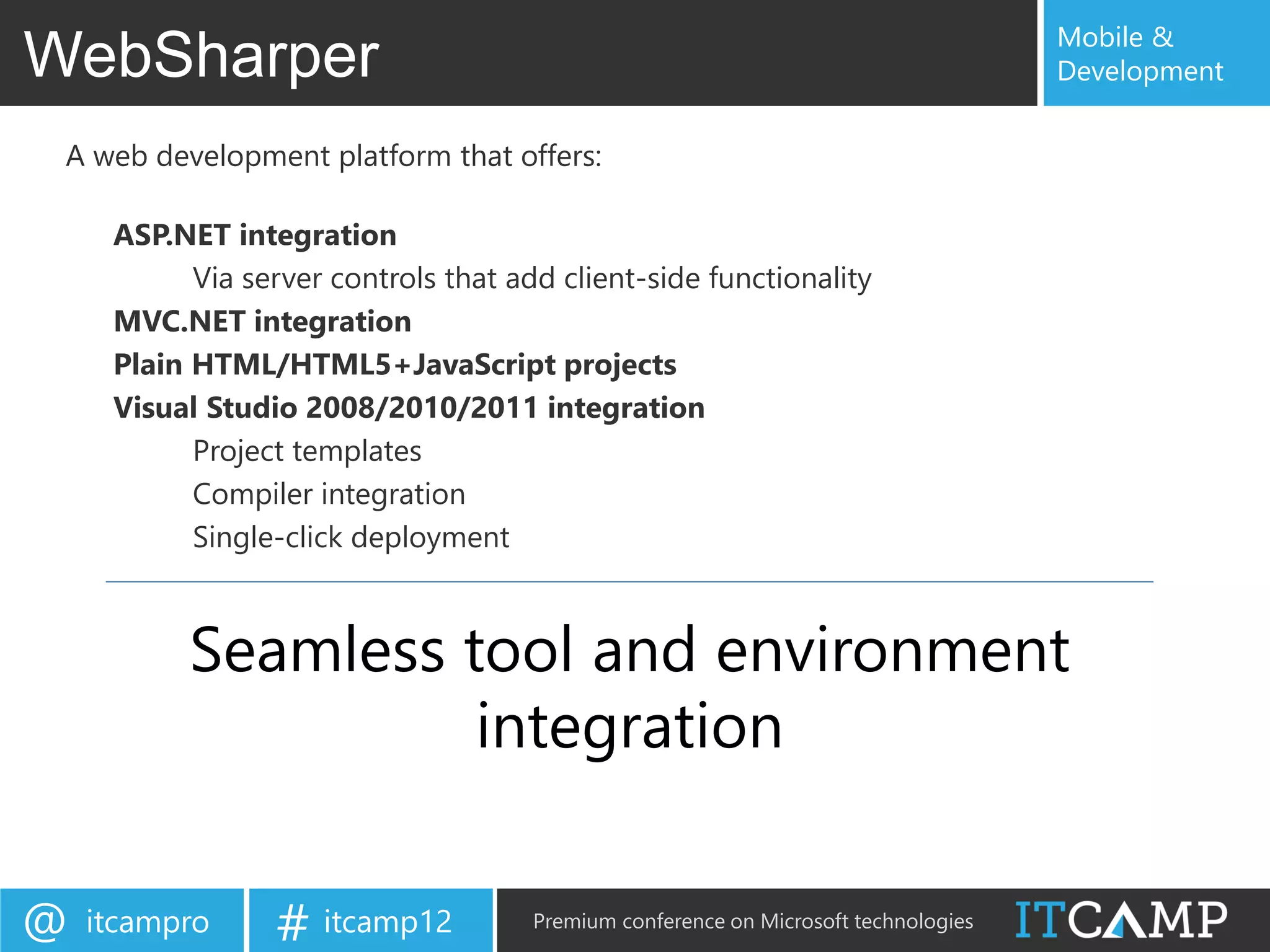

WebSharper Development
A web development platform that offers:
ASP.NET integration
Via server controls that add client-side functionality
MVC.NET integration
Plain HTML/HTML5+JavaScript projects
Visual Studio 2008/2010/2011 integration
Project templates
Compiler integration
Single-click deployment
Seamless tool and environment
integration
@ itcampro # itcamp12 Premium conference on Microsoft technologies

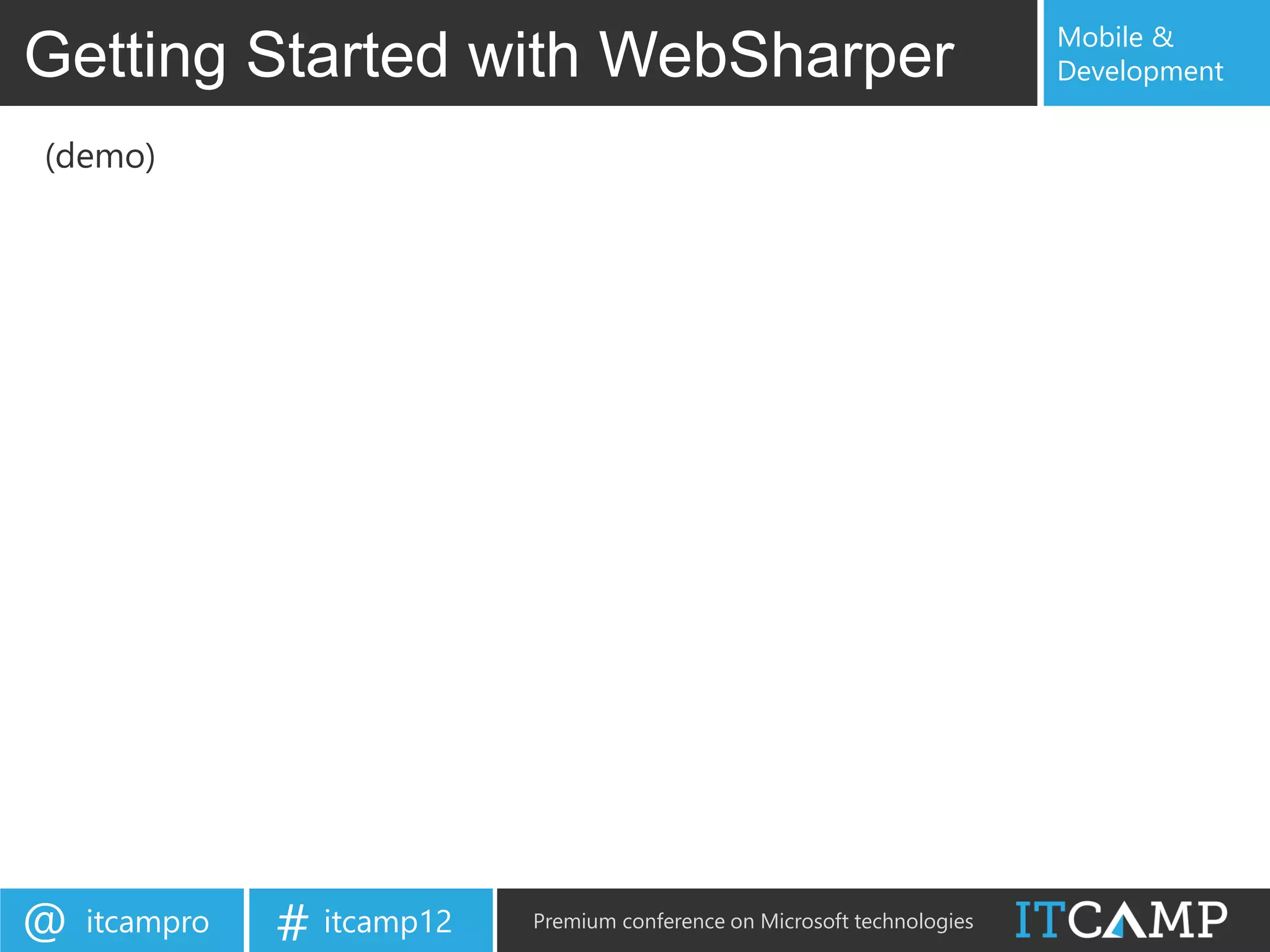

20. Mobile &
Getting Started with WebSharper Development
(demo)
@ itcampro # itcamp12 Premium conference on Microsoft technologies

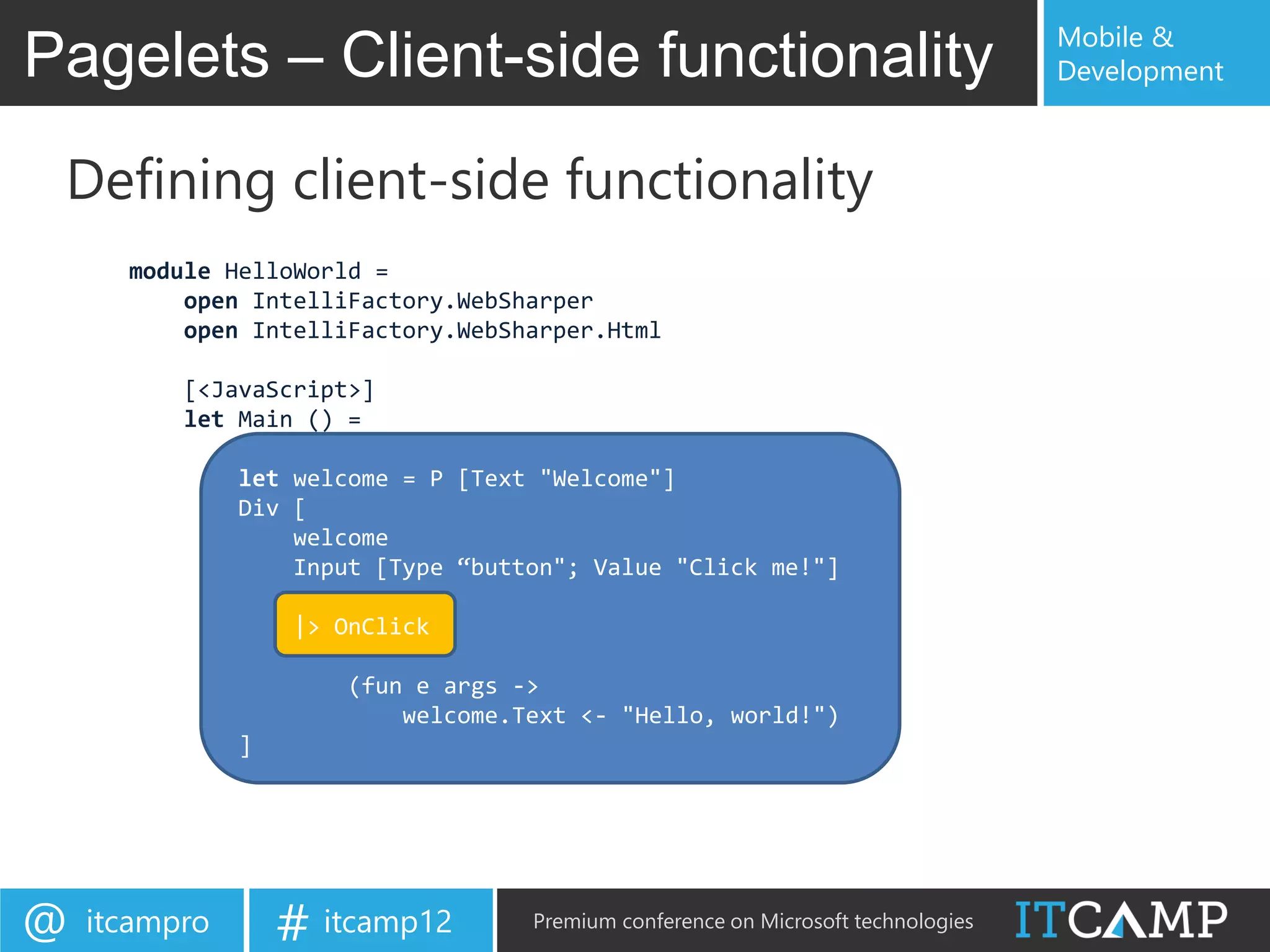

21. Mobile &
Pagelets – Client-side functionality Development
Defining client-side functionality
module HelloWorld =
open IntelliFactory.WebSharper
open IntelliFactory.WebSharper.Html
[<JavaScript>]
let Main () =
let welcome = P [Text "Welcome"]
Div [
welcome
Input [Type “button"; Value "Click me!"]
|> OnClick
(fun e args ->
welcome.Text <- "Hello, world!")
]
@ itcampro # itcamp12 Premium conference on Microsoft technologies

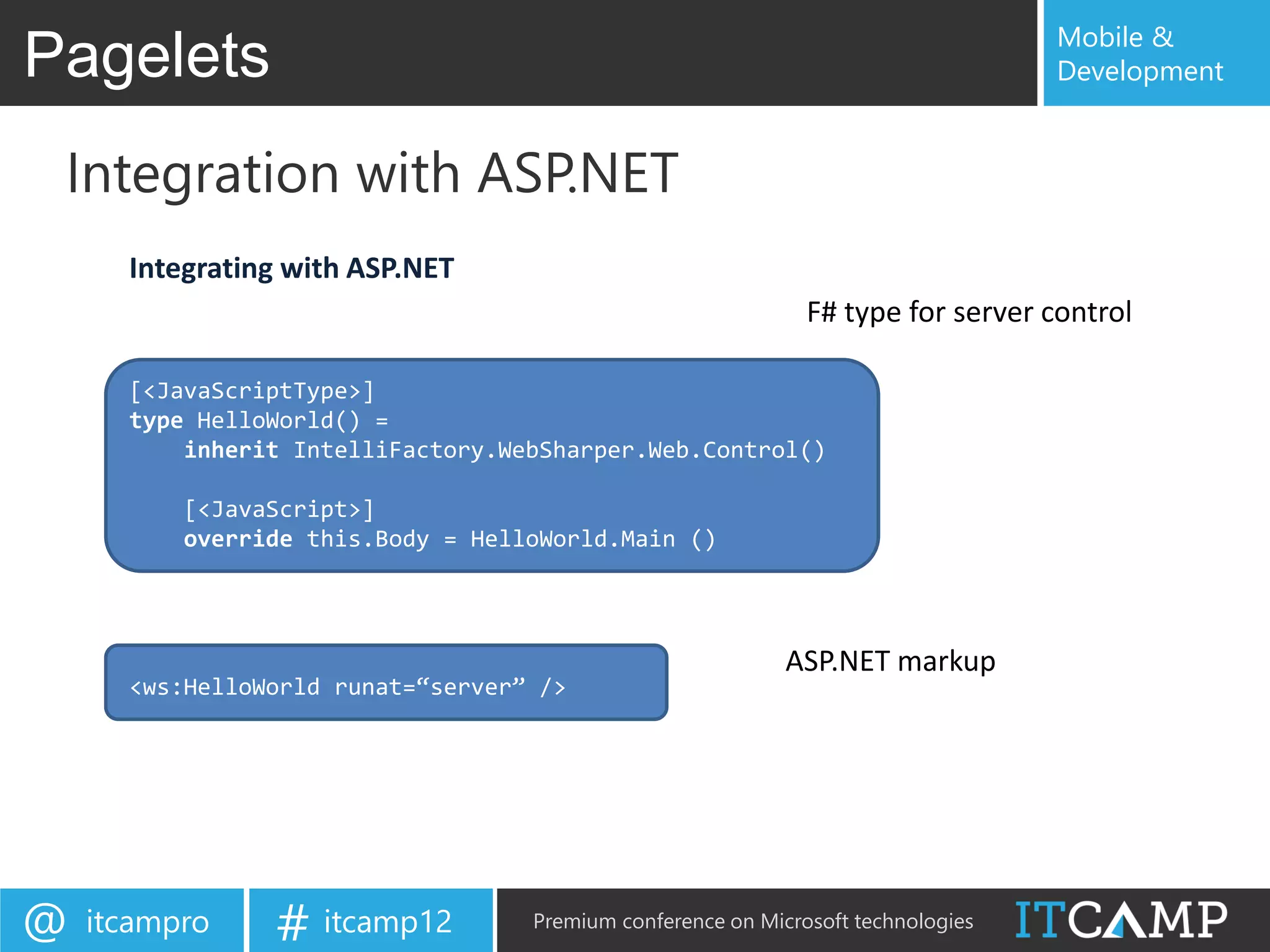

22. Mobile &
Pagelets Development
Integration with ASP.NET
Integrating with ASP.NET
F# type for server control
[<JavaScriptType>]
type HelloWorld() =
inherit IntelliFactory.WebSharper.Web.Control()
[<JavaScript>]
override this.Body = HelloWorld.Main ()
ASP.NET markup
<ws:HelloWorld runat=“server” />
@ itcampro # itcamp12 Premium conference on Microsoft technologies

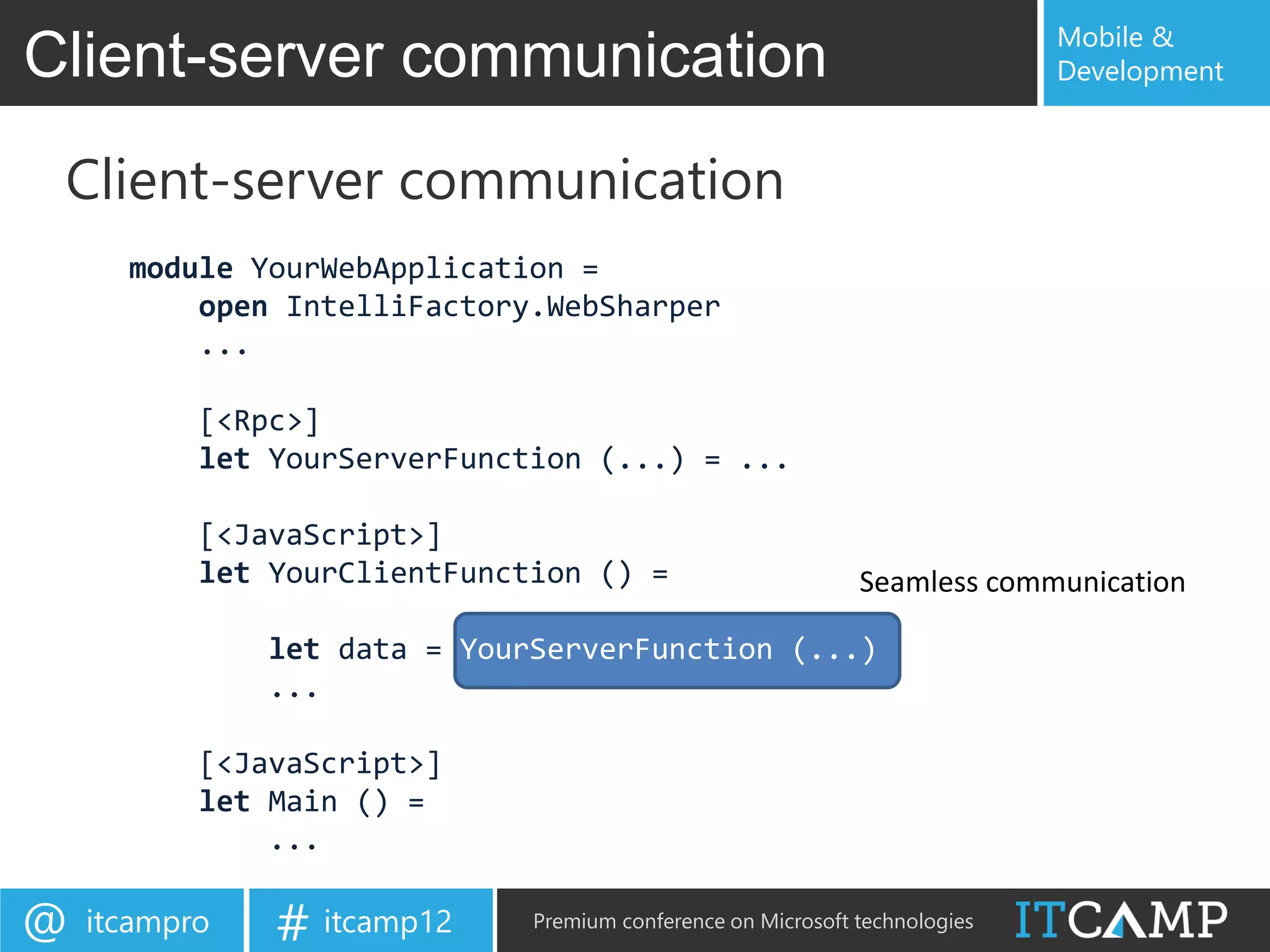

23. Mobile &
Client-server communication Development
Client-server communication
module YourWebApplication =
open IntelliFactory.WebSharper
...
[<Rpc>]
let YourServerFunction (...) = ...
[<JavaScript>]
let YourClientFunction () = Seamless communication
let data = YourServerFunction (...)
...
[<JavaScript>]
let Main () =
...
@ itcampro # itcamp12 Premium conference on Microsoft technologies

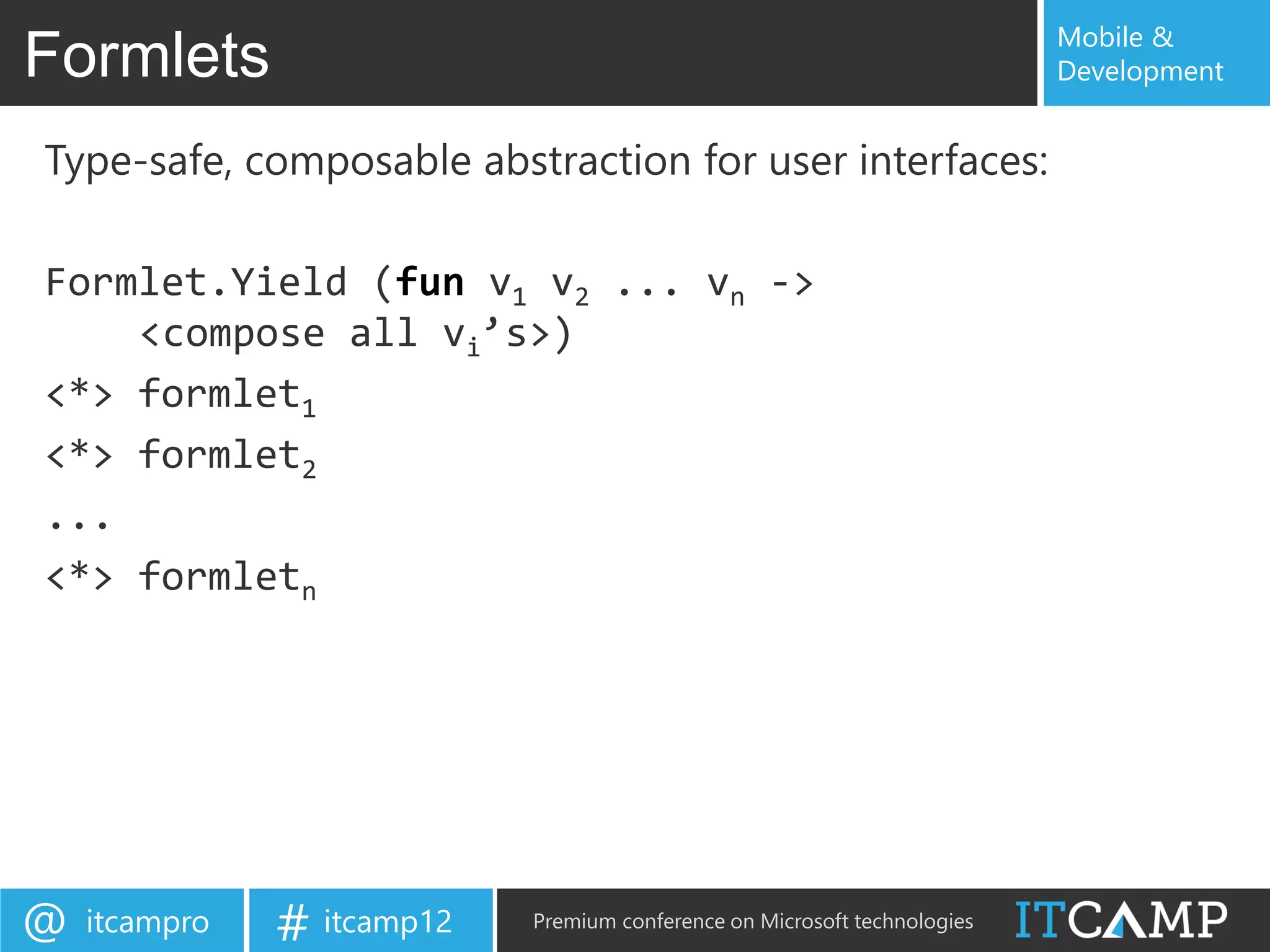

24. Mobile &
Formlets Development
Type-safe, composable abstraction for user interfaces:
Formlet.Yield (fun v1 v2 ... vn ->
<compose all vi’s>)
<*> formlet1
<*> formlet2
...
<*> formletn
@ itcampro # itcamp12 Premium conference on Microsoft technologies

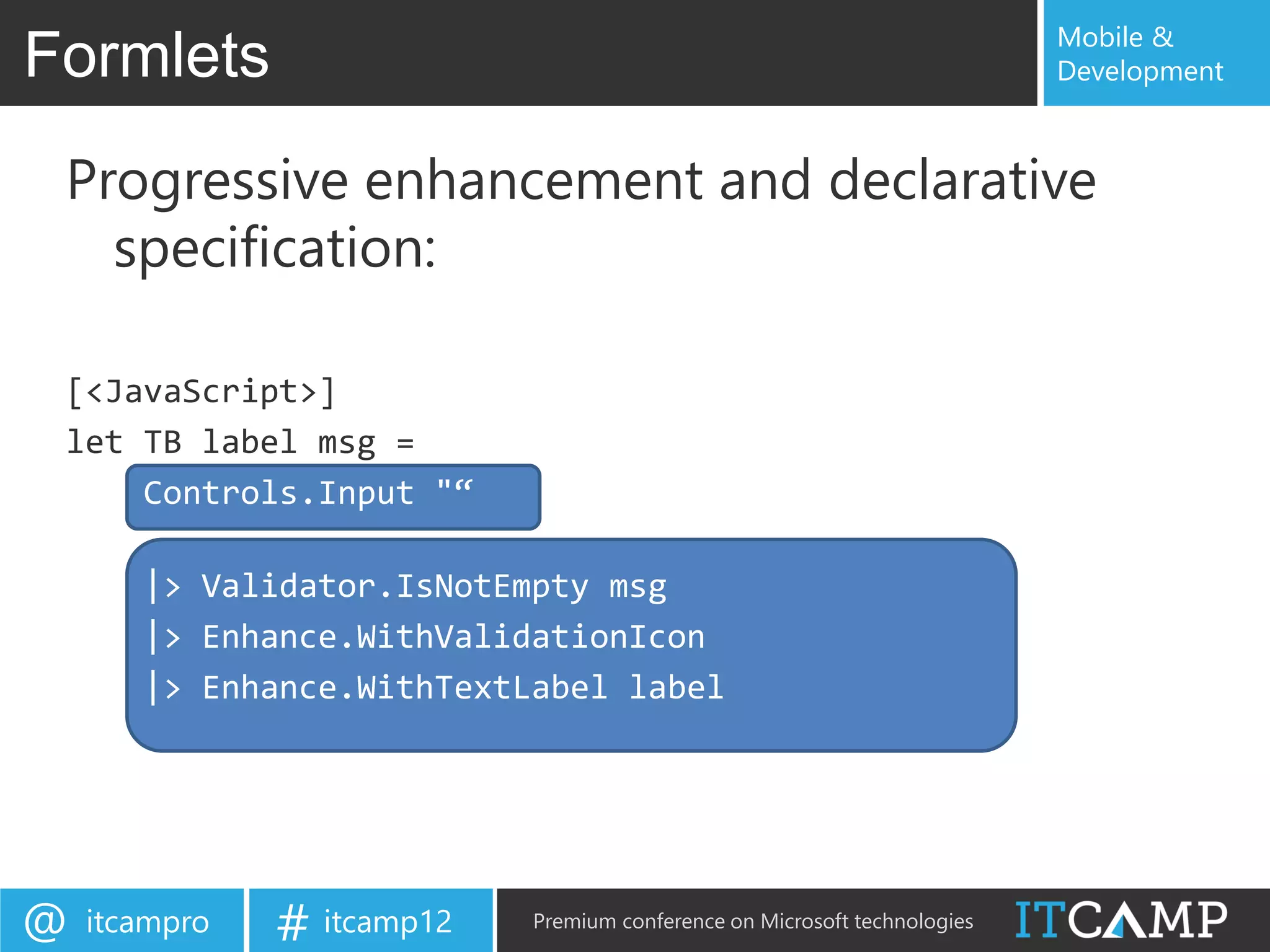

25. Mobile &
Formlets Development
Progressive enhancement and declarative
specification:
[<JavaScript>]
let TB label msg =
Controls.Input "“
|> Validator.IsNotEmpty msg
|> Enhance.WithValidationIcon
|> Enhance.WithTextLabel label
@ itcampro # itcamp12 Premium conference on Microsoft technologies

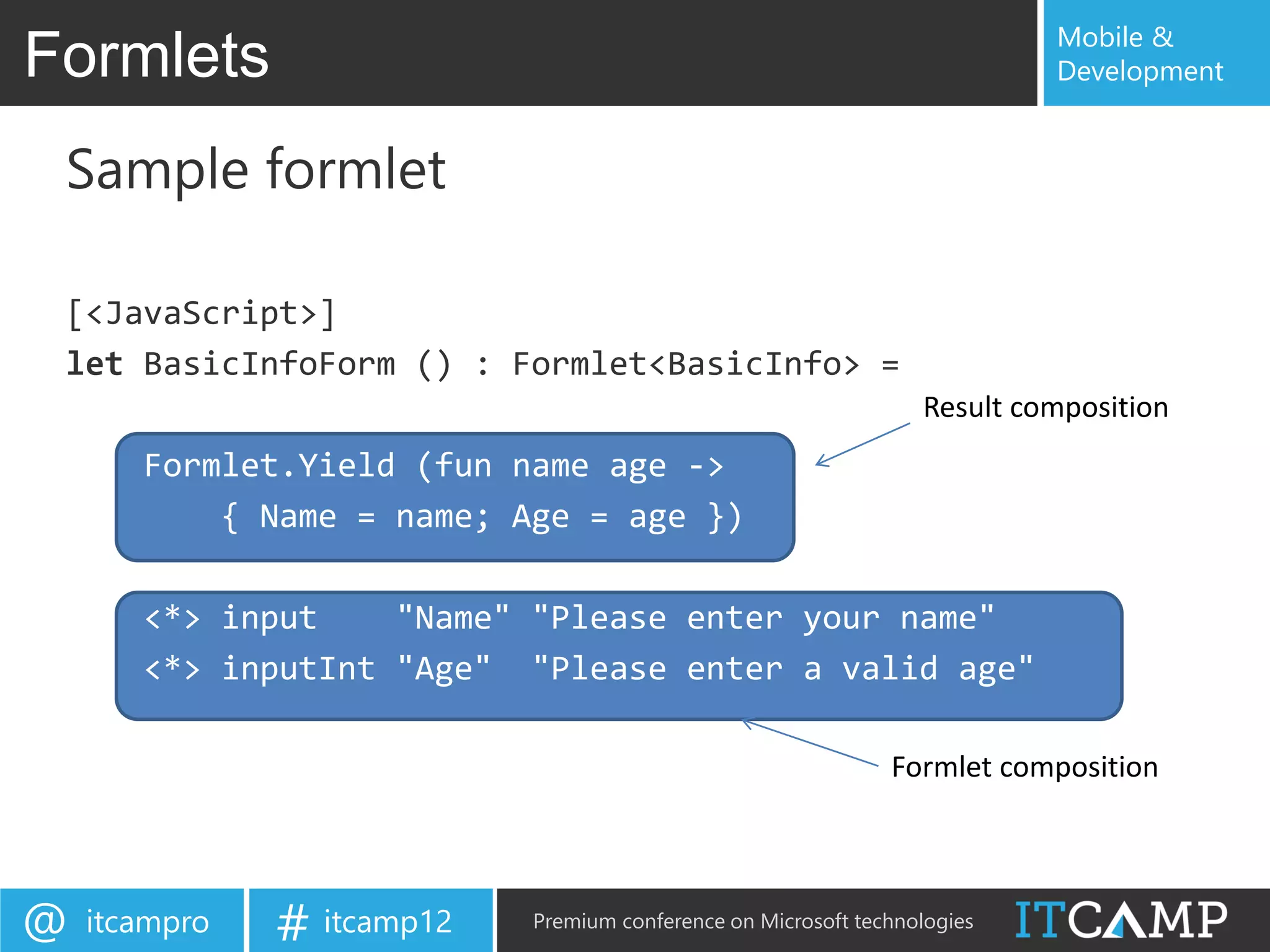

26. Mobile &
Formlets Development
Sample formlet
[<JavaScript>]
let BasicInfoForm () : Formlet<BasicInfo> =
Result composition
Formlet.Yield (fun name age ->
{ Name = name; Age = age })
<*> input "Name" "Please enter your name"
<*> inputInt "Age" "Please enter a valid age"
Formlet composition
@ itcampro # itcamp12 Premium conference on Microsoft technologies

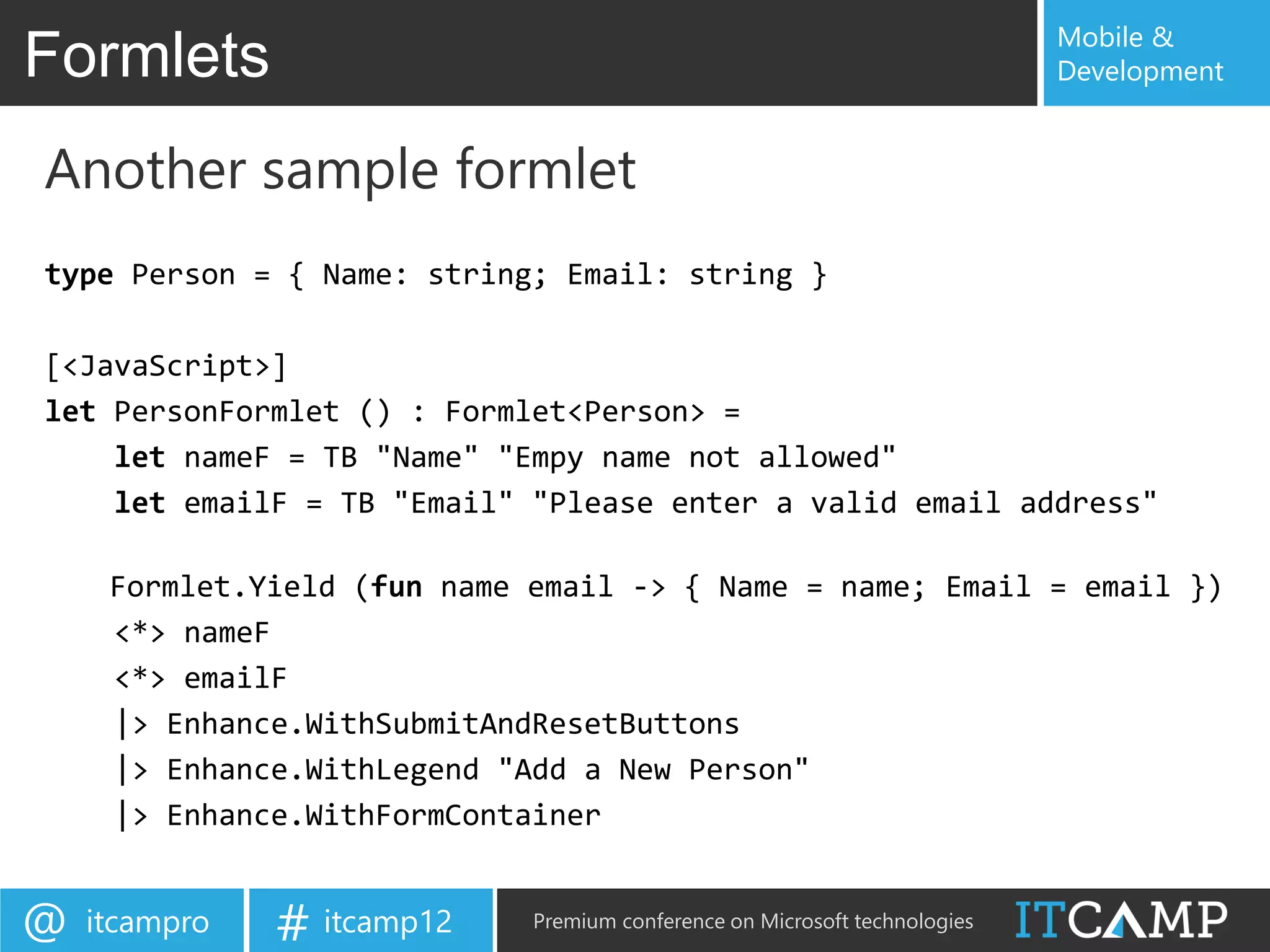

27. Mobile &
Formlets Development
Another sample formlet
type Person = { Name: string; Email: string }
[<JavaScript>]
let PersonFormlet () : Formlet<Person> =
let nameF = TB "Name" "Empy name not allowed"
let emailF = TB "Email" "Please enter a valid email address"
Formlet.Yield (fun name email -> { Name = name; Email = email })
<*> nameF
<*> emailF
|> Enhance.WithSubmitAndResetButtons
|> Enhance.WithLegend "Add a New Person"
|> Enhance.WithFormContainer
@ itcampro # itcamp12 Premium conference on Microsoft technologies

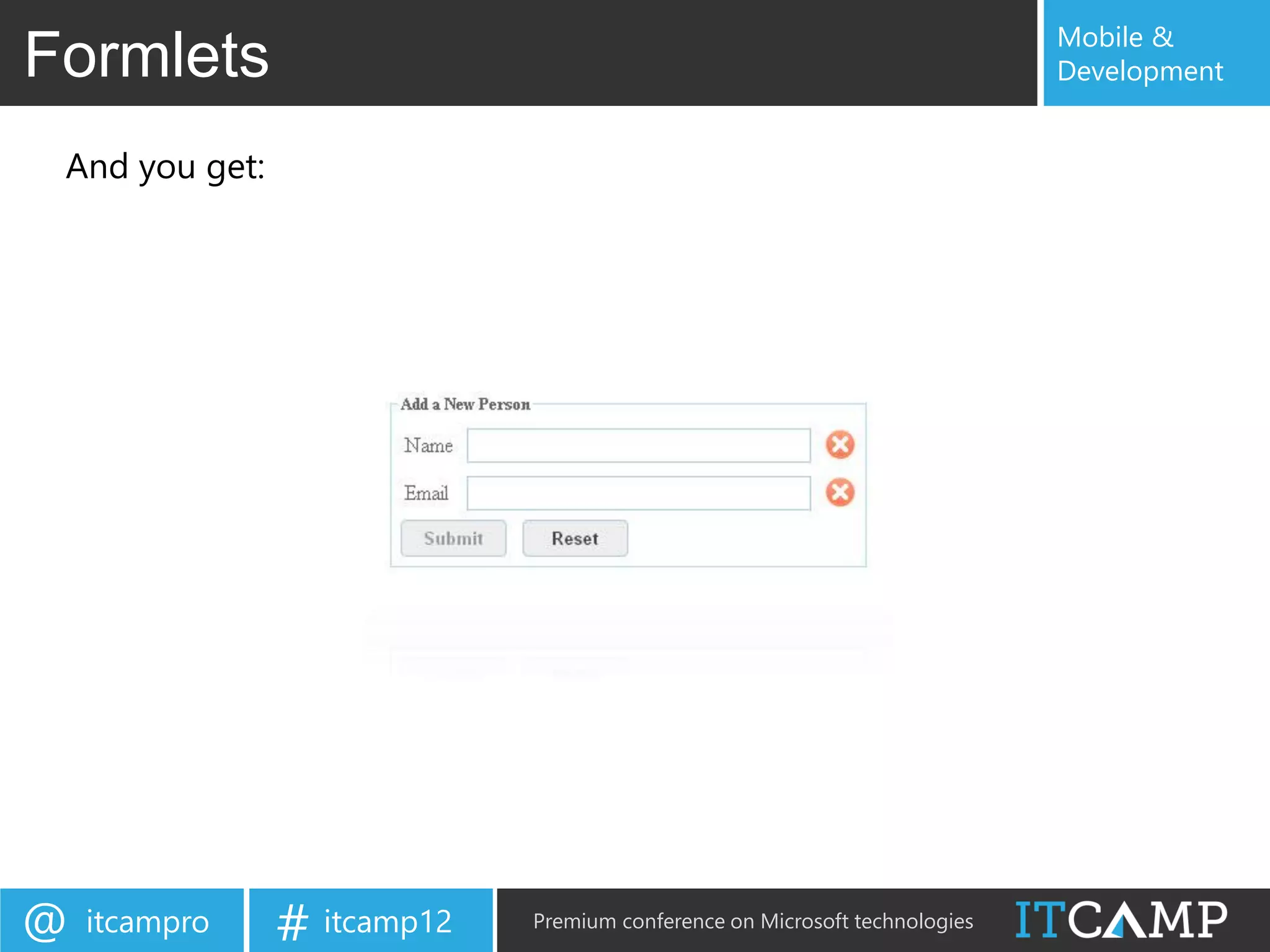

28. Mobile &
Formlets Development
And you get:
@ itcampro # itcamp12 Premium conference on Microsoft technologies

29. Mobile &

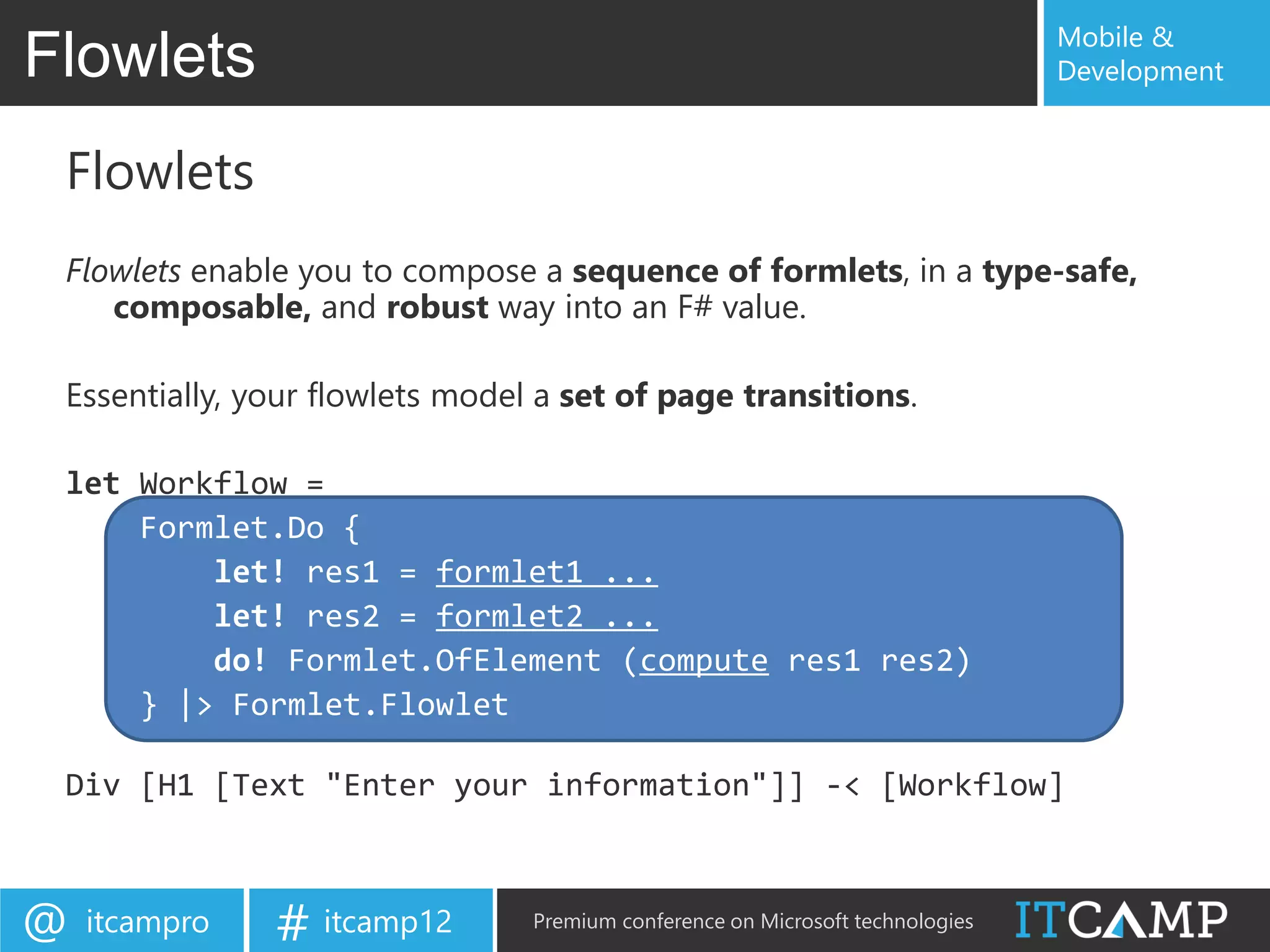

Flowlets Development
Flowlets
Flowlets enable you to compose a sequence of formlets, in a type-safe,
composable, and robust way into an F# value.
Essentially, your flowlets model a set of page transitions.
let Workflow =
Formlet.Do {
let! res1 = formlet1 ...
let! res2 = formlet2 ...
do! Formlet.OfElement (compute res1 res2)
} |> Formlet.Flowlet
Div [H1 [Text "Enter your information"]] -< [Workflow]
@ itcampro # itcamp12 Premium conference on Microsoft technologies

30. Mobile &

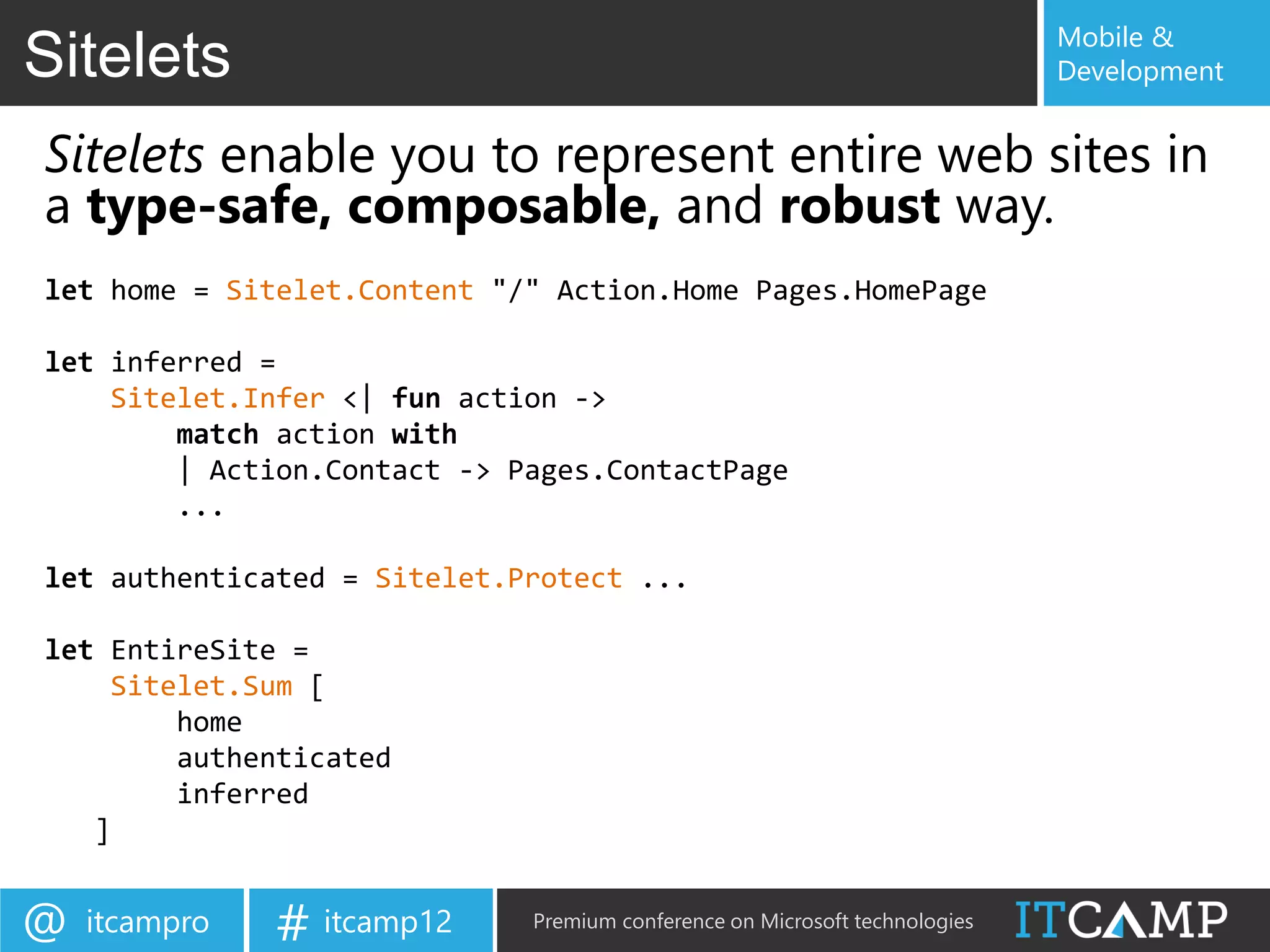

Sitelets Development
Sitelets enable you to represent entire web sites in
a type-safe, composable, and robust way.
let home = Sitelet.Content "/" Action.Home Pages.HomePage
let inferred =
Sitelet.Infer <| fun action ->
match action with
| Action.Contact -> Pages.ContactPage
...
let authenticated = Sitelet.Protect ...
let EntireSite =
Sitelet.Sum [
home
authenticated
inferred
]
@ itcampro # itcamp12 Premium conference on Microsoft technologies

31. Mobile &

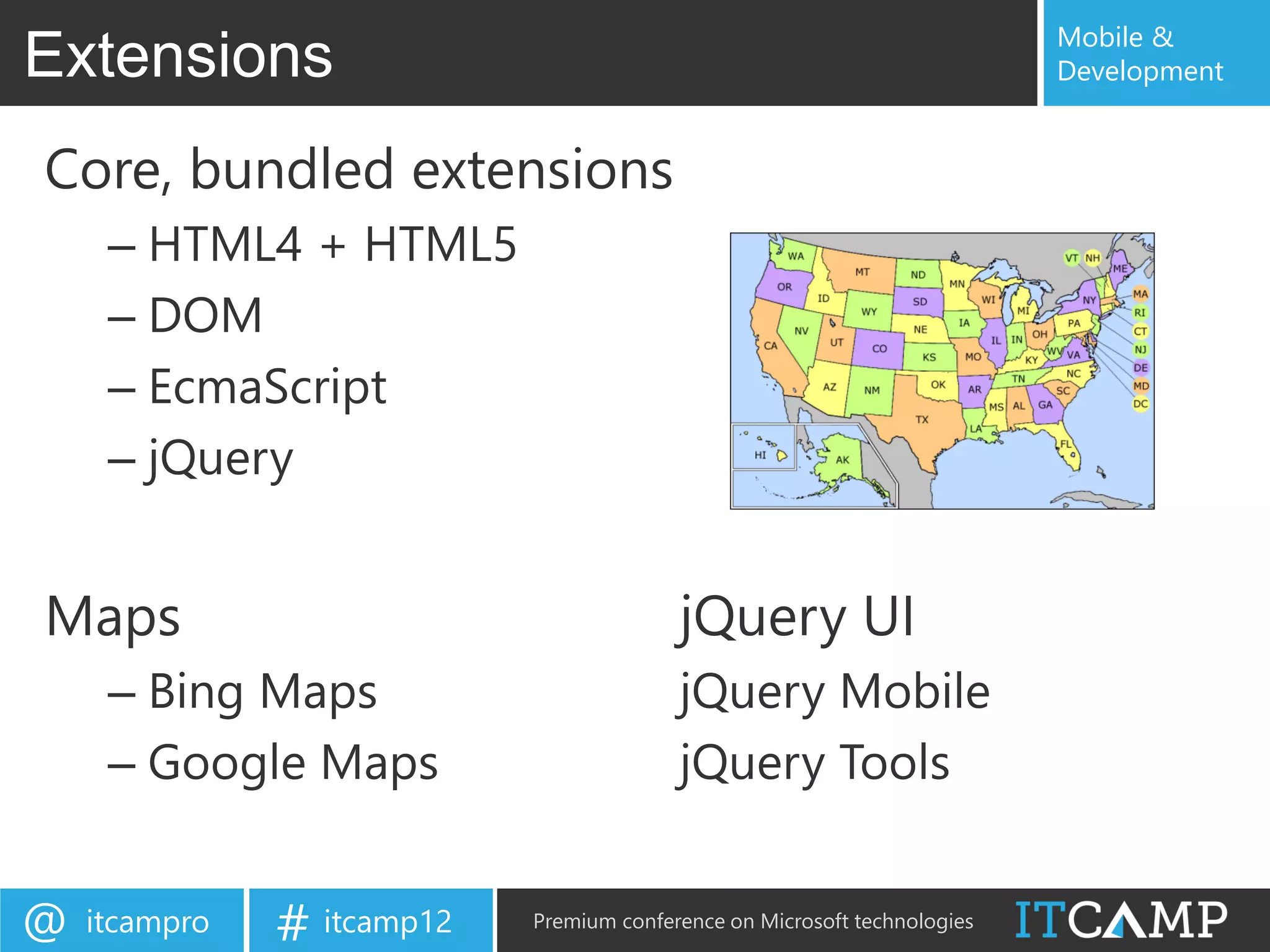

Extensions Development
Core, bundled extensions
– HTML4 + HTML5
– DOM
– EcmaScript
– jQuery
Maps jQuery UI
– Bing Maps jQuery Mobile
– Google Maps jQuery Tools
@ itcampro # itcamp12 Premium conference on Microsoft technologies

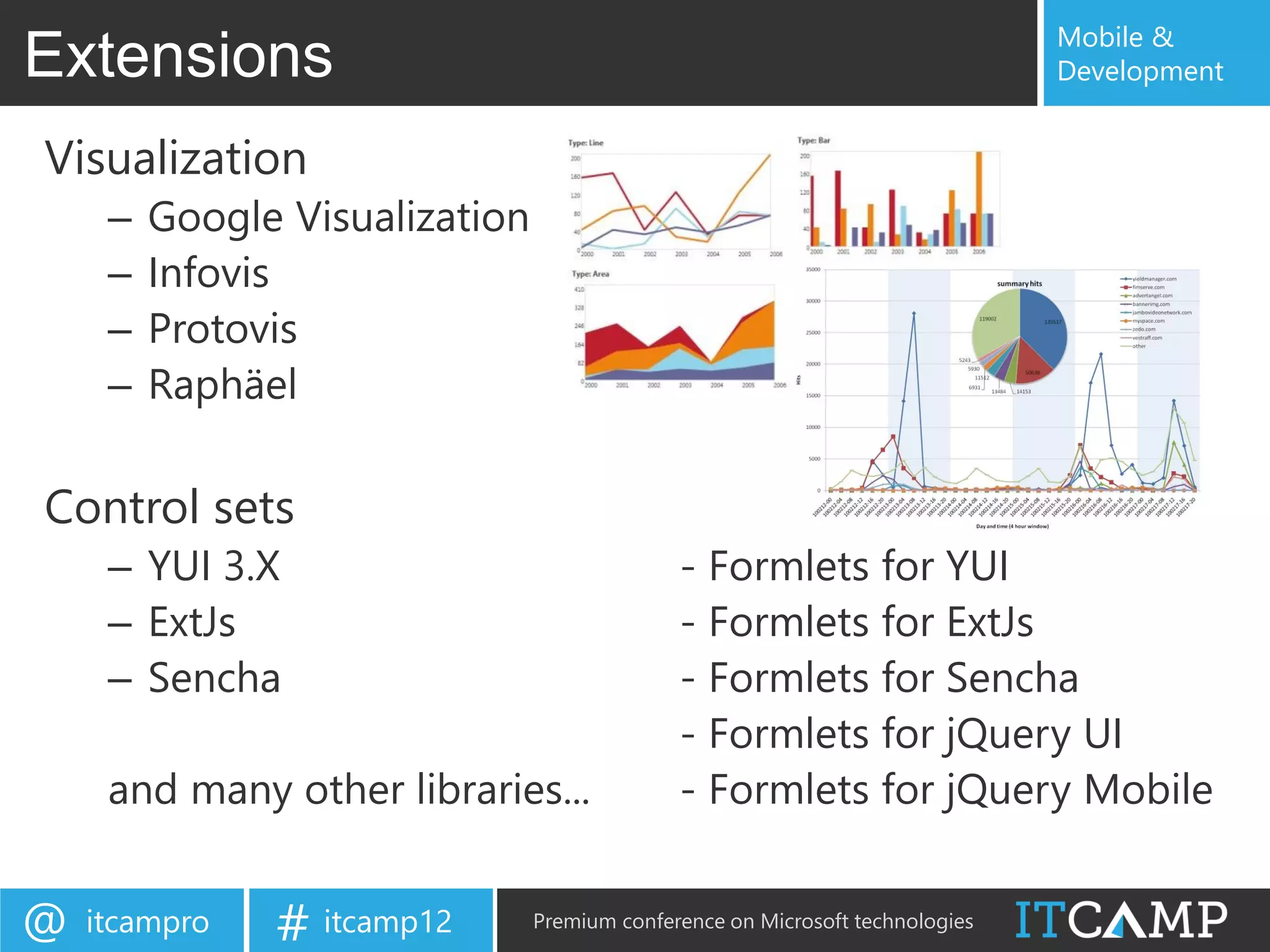

32. Mobile &
Extensions Development
Visualization
– Google Visualization
– Infovis
– Protovis
– Raphäel
Control sets
– YUI 3.X - Formlets for YUI
– ExtJs - Formlets for ExtJs
– Sencha - Formlets for Sencha
- Formlets for jQuery UI
and many other libraries... - Formlets for jQuery Mobile
@ itcampro # itcamp12 Premium conference on Microsoft technologies

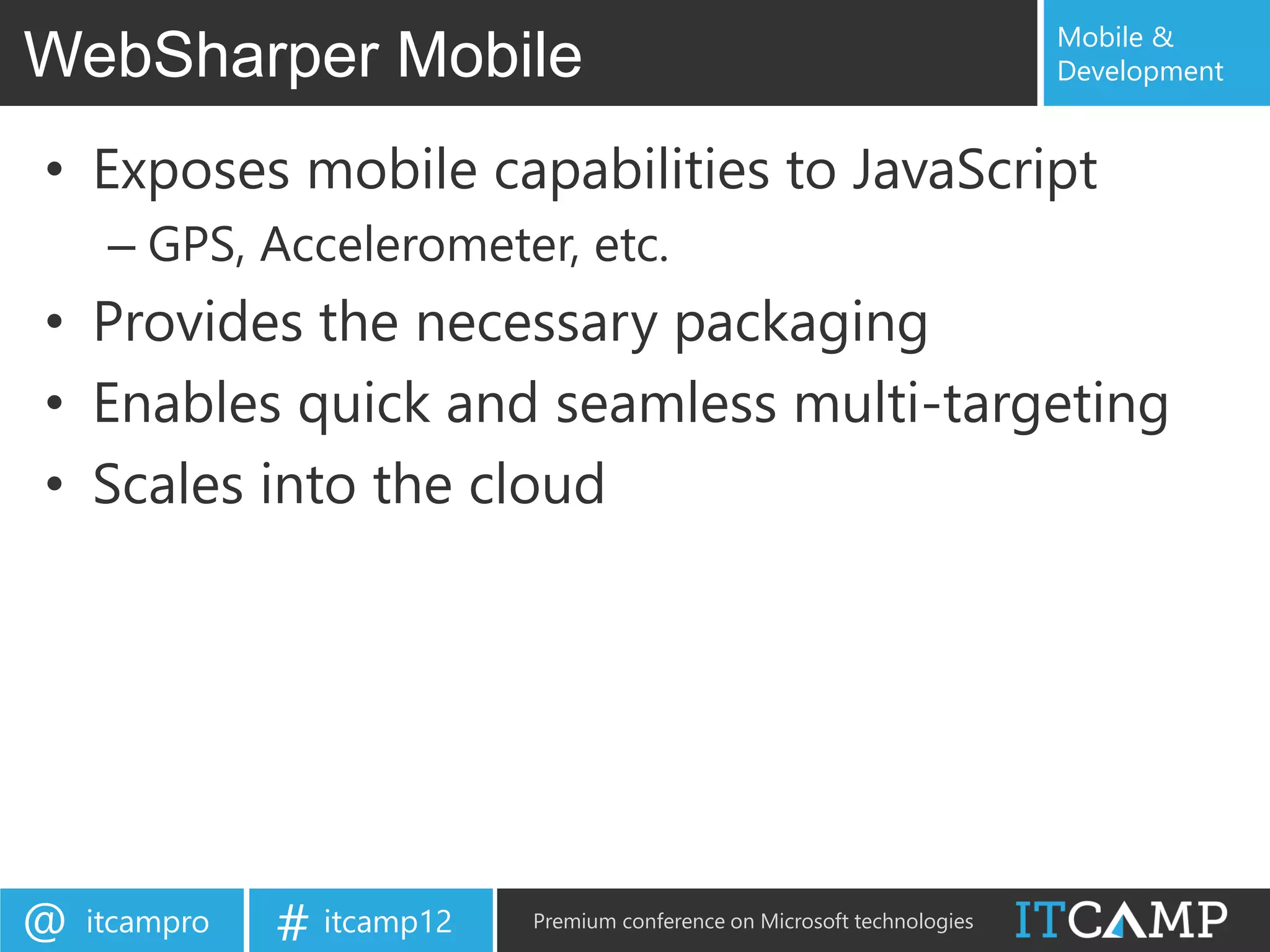

33. Mobile &
WebSharper Mobile Development
• Exposes mobile capabilities to JavaScript
– GPS, Accelerometer, etc.
• Provides the necessary packaging
• Enables quick and seamless multi-targeting
• Scales into the cloud
@ itcampro # itcamp12 Premium conference on Microsoft technologies

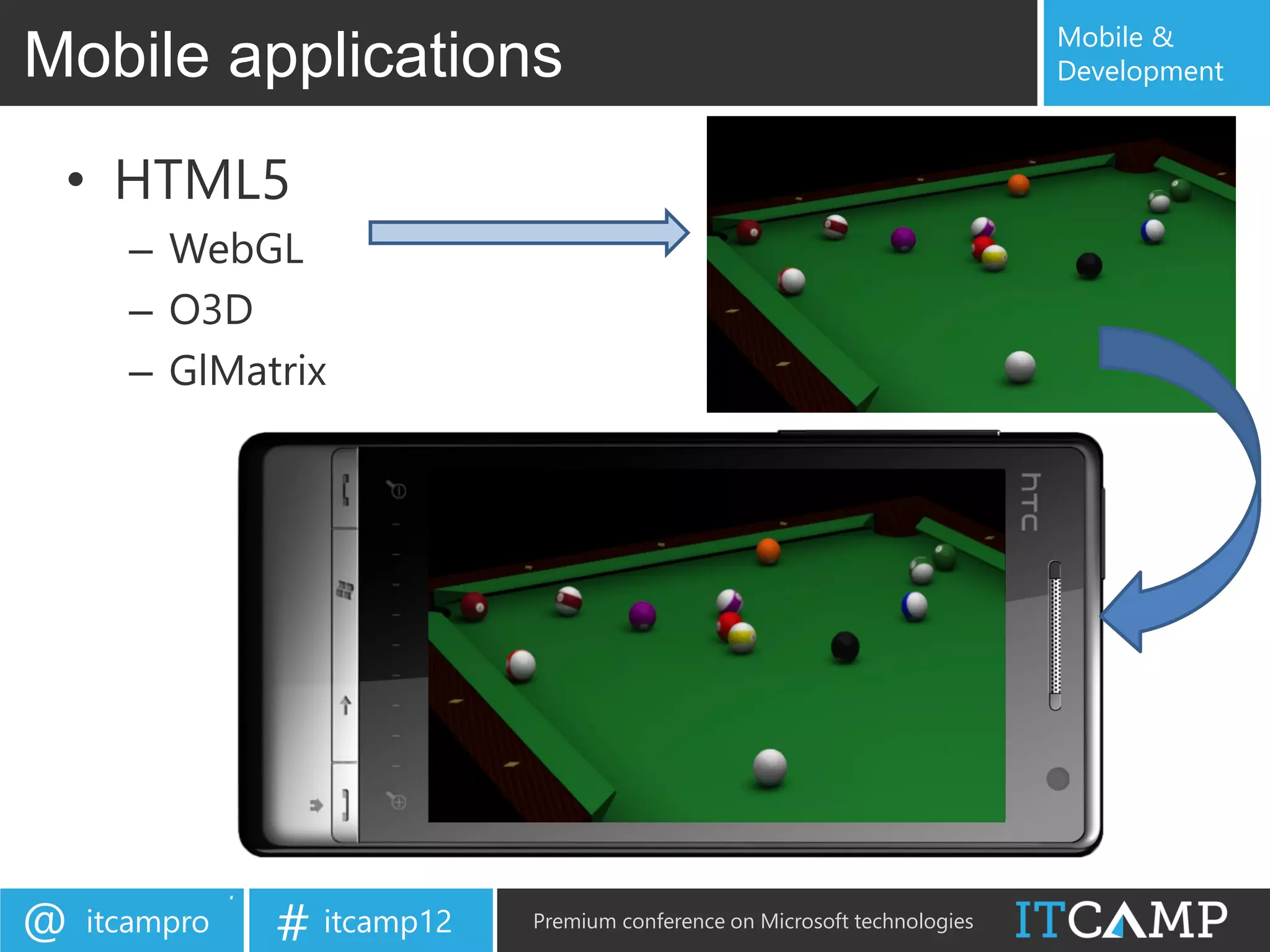

34. Mobile &
Mobile applications Development
• HTML5
– WebGL
– O3D
– GlMatrix
@ itcampro # itcamp12 Premium conference on Microsoft technologies

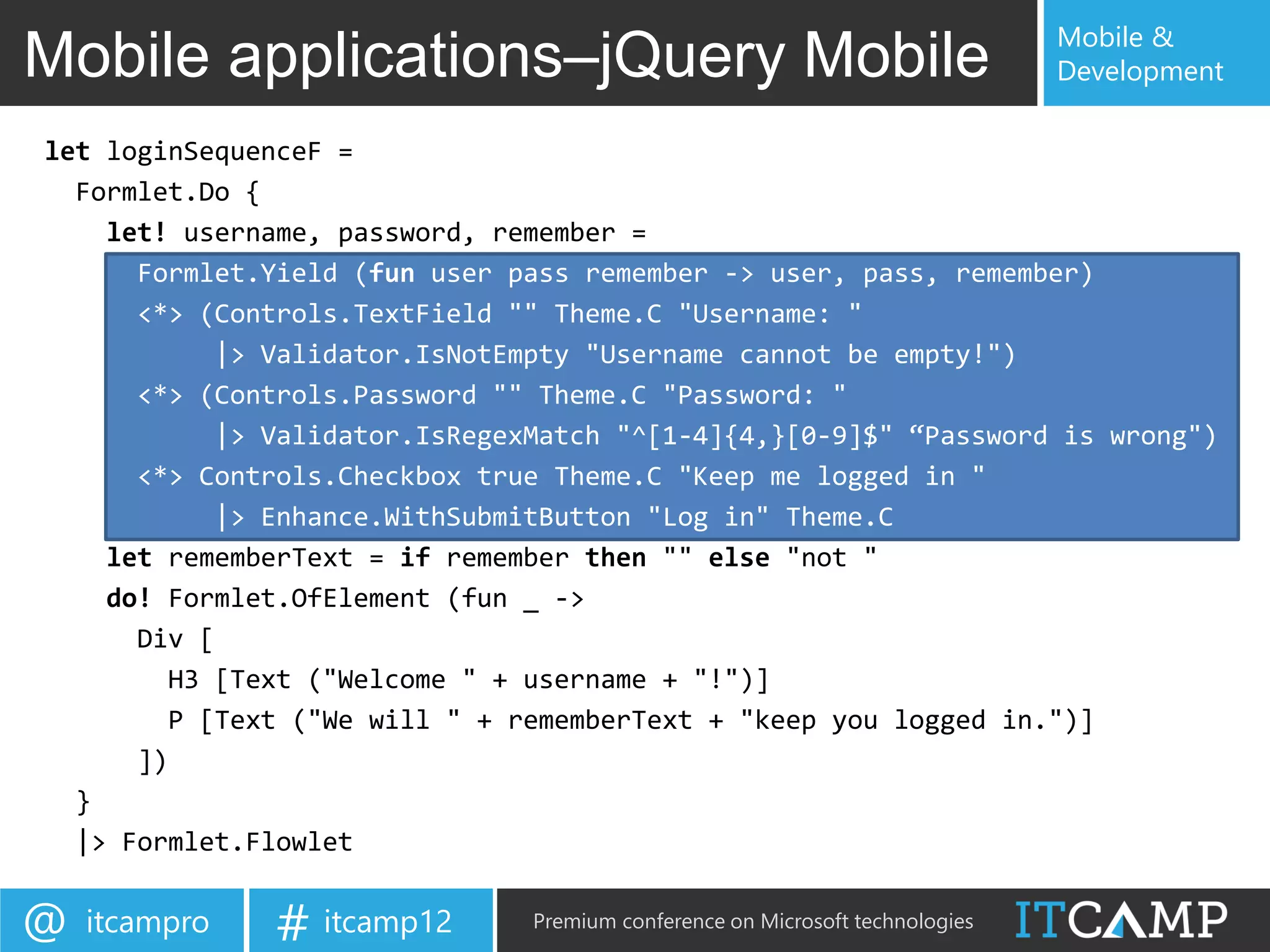

35. Mobile &
Mobile applications–jQuery Mobile Development
let loginSequenceF =
Formlet.Do {
let! username, password, remember =
Formlet.Yield (fun user pass remember -> user, pass, remember)
<*> (Controls.TextField "" Theme.C "Username: "
|> Validator.IsNotEmpty "Username cannot be empty!")
<*> (Controls.Password "" Theme.C "Password: "
|> Validator.IsRegexMatch "^[1-4]{4,}[0-9]$" “Password is wrong")
<*> Controls.Checkbox true Theme.C "Keep me logged in "
|> Enhance.WithSubmitButton "Log in" Theme.C
let rememberText = if remember then "" else "not "
do! Formlet.OfElement (fun _ ->
Div [
H3 [Text ("Welcome " + username + "!")]
P [Text ("We will " + rememberText + "keep you logged in.")]
])
}
|> Formlet.Flowlet
@ itcampro # itcamp12 Premium conference on Microsoft technologies

36. Mobile &
Mobile applications–jQuery Mobile Development
Div [HTML5.Attr.Data "role" "page"] -< [
Div [HTML5.Attr.Data "role" "header"] -< [
H1 [Text "WebSharper Formlets for jQuery Mobile"]>
]
Div [HTML5.Attr.Data "role" "content"] -< [
loginSequenceF
]
Div [HTML5.Attr.Data "role" "footer"] -< [
P [Attr.Style "text-align:center;"] -< [Text "IntelliFactory"]
]
]
@ itcampro # itcamp12 Premium conference on Microsoft technologies

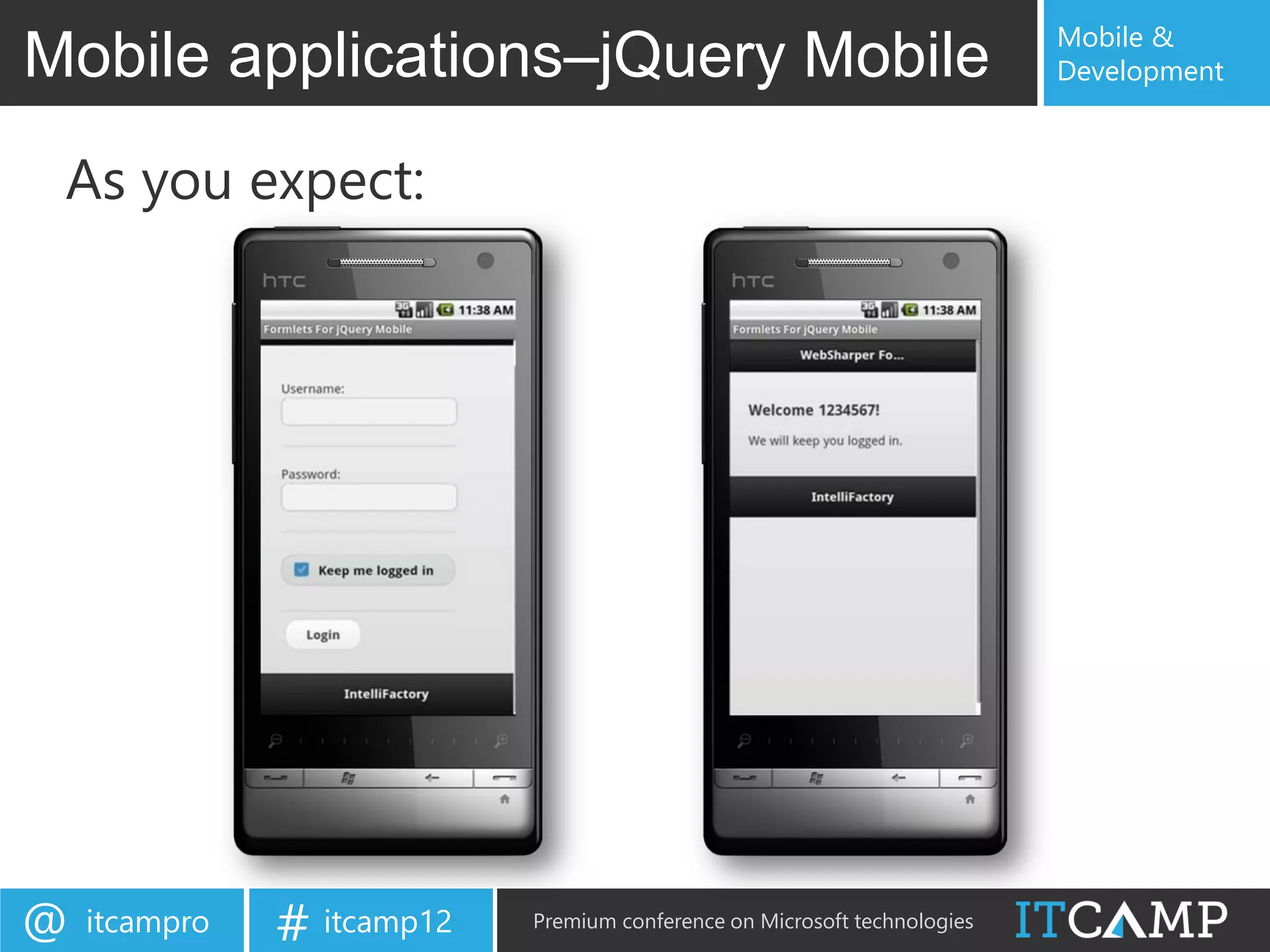

37. Mobile &
Mobile applications–jQuery Mobile Development
As you expect:
@ itcampro # itcamp12 Premium conference on Microsoft technologies

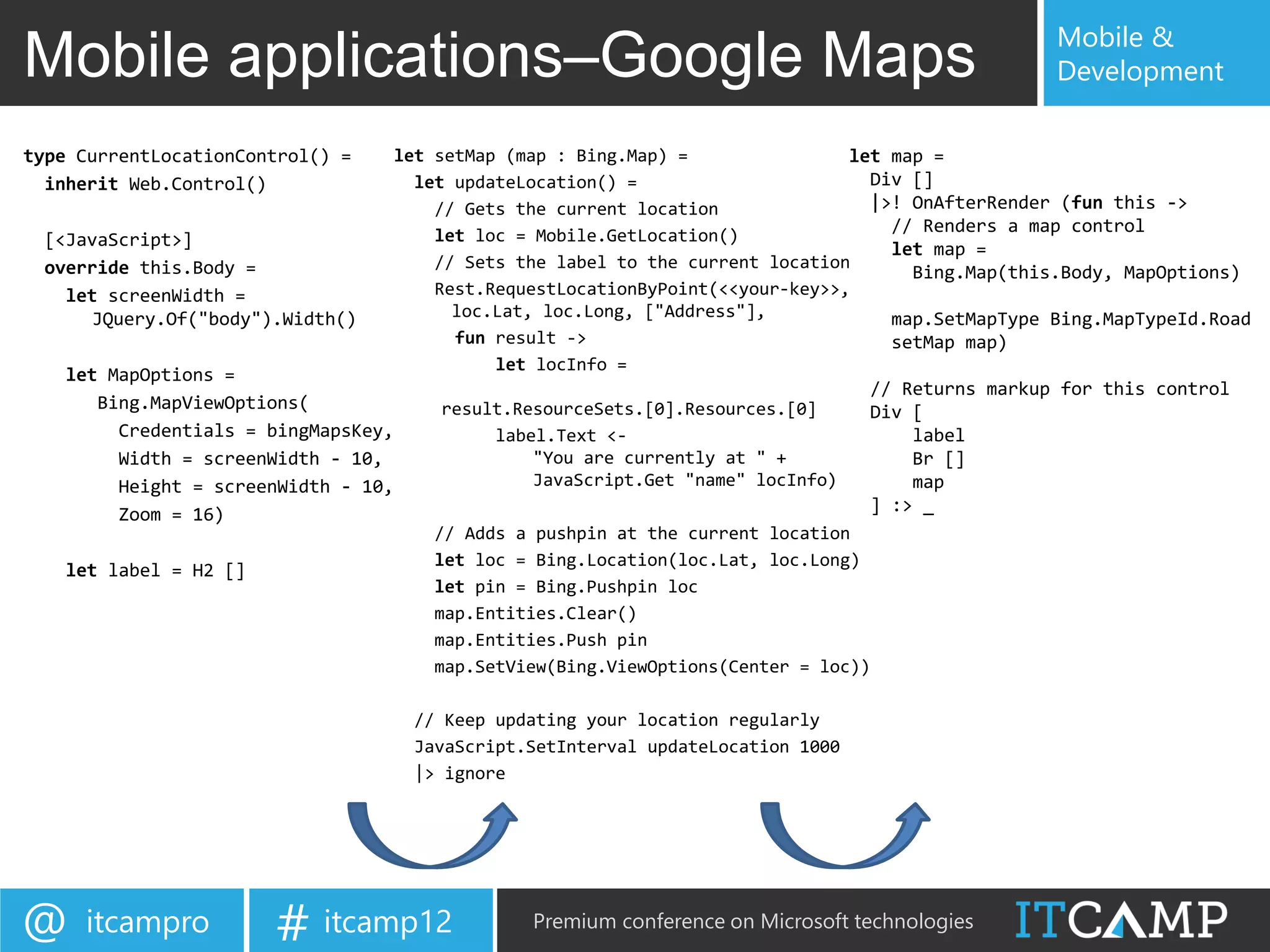

38. Mobile &
Mobile applications–Google Maps Development
type CurrentLocationControl() = let setMap (map : Bing.Map) = let map =
inherit Web.Control() let updateLocation() = Div []
// Gets the current location |>! OnAfterRender (fun this ->
let loc = Mobile.GetLocation()
// Renders a map control
[<JavaScript>] let map =
override this.Body = // Sets the label to the current location
Bing.Map(this.Body, MapOptions)
let screenWidth = Rest.RequestLocationByPoint(<<your-key>>,
JQuery.Of("body").Width() loc.Lat, loc.Long, ["Address"], map.SetMapType Bing.MapTypeId.Road
fun result -> setMap map)
let locInfo =
let MapOptions =
// Returns markup for this control
Bing.MapViewOptions( result.ResourceSets.[0].Resources.[0] Div [
Credentials = bingMapsKey, label.Text <- label
Width = screenWidth - 10, "You are currently at " + Br []
Height = screenWidth - 10, JavaScript.Get "name" locInfo) map
Zoom = 16) ] :> _
// Adds a pushpin at the current location
let loc = Bing.Location(loc.Lat, loc.Long)
let label = H2 []
let pin = Bing.Pushpin loc
map.Entities.Clear()
map.Entities.Push pin
map.SetView(Bing.ViewOptions(Center = loc))
// Keep updating your location regularly
JavaScript.SetInterval updateLocation 1000
|> ignore
@ itcampro # itcamp12 Premium conference on Microsoft technologies

39. Mobile &
Mobile applications–Google Maps Development
@ itcampro # itcamp12 Premium conference on Microsoft technologies

40. Mobile &
WebSharper 3.0 Development
• JavaScript translation from C# and VB
• Access to more native mobile capabilities
– Bluetooth
– Networking
– Camera
– etc.
• Stunning templates for iOS, Android, WP7
@ itcampro # itcamp12 Premium conference on Microsoft technologies

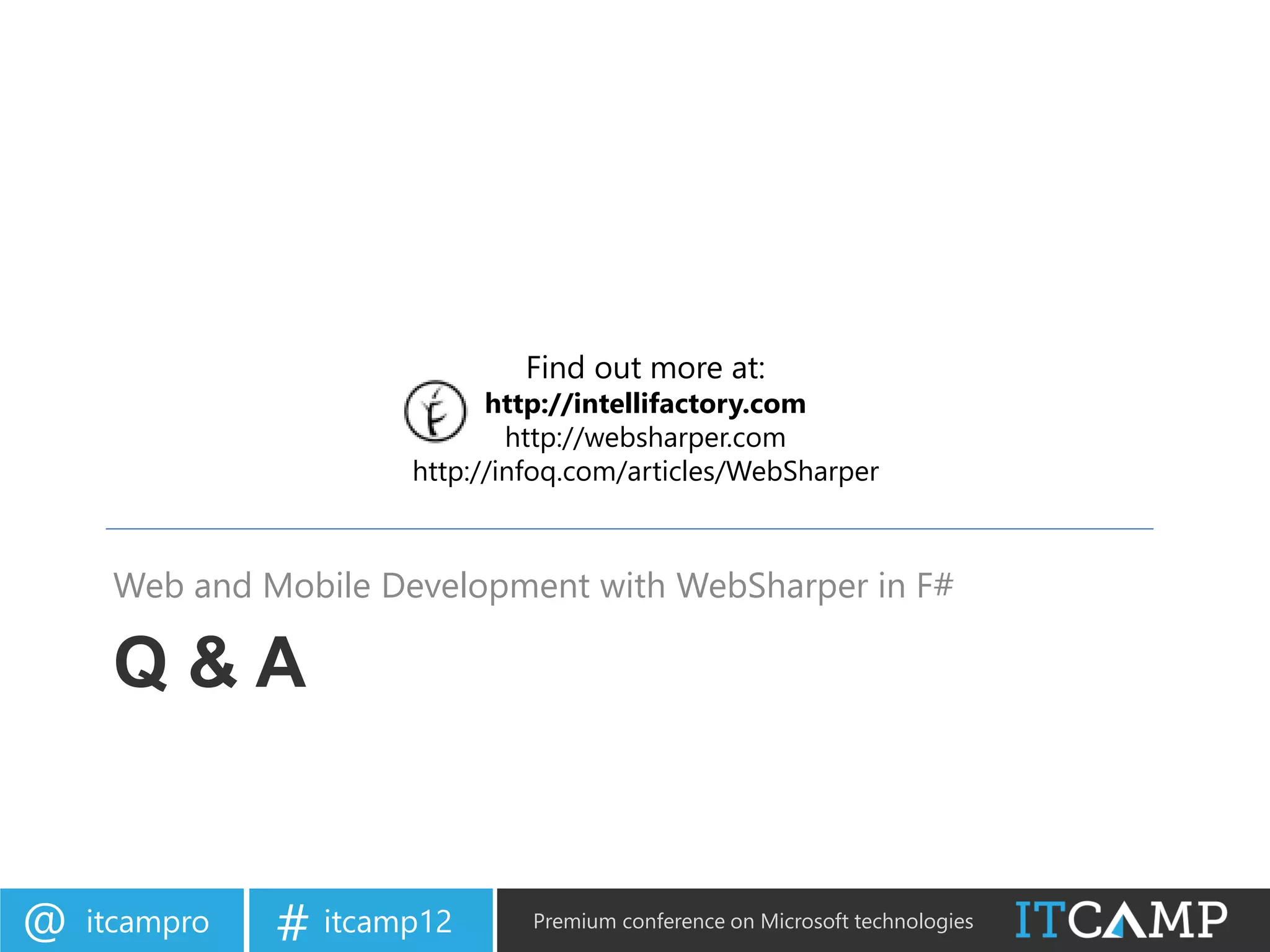

41. Find out more at:
http://intellifactory.com
http://websharper.com
http://infoq.com/articles/WebSharper
Web and Mobile Development with WebSharper in F#
Q&A
@ itcampro # itcamp12 Premium conference on Microsoft technologies

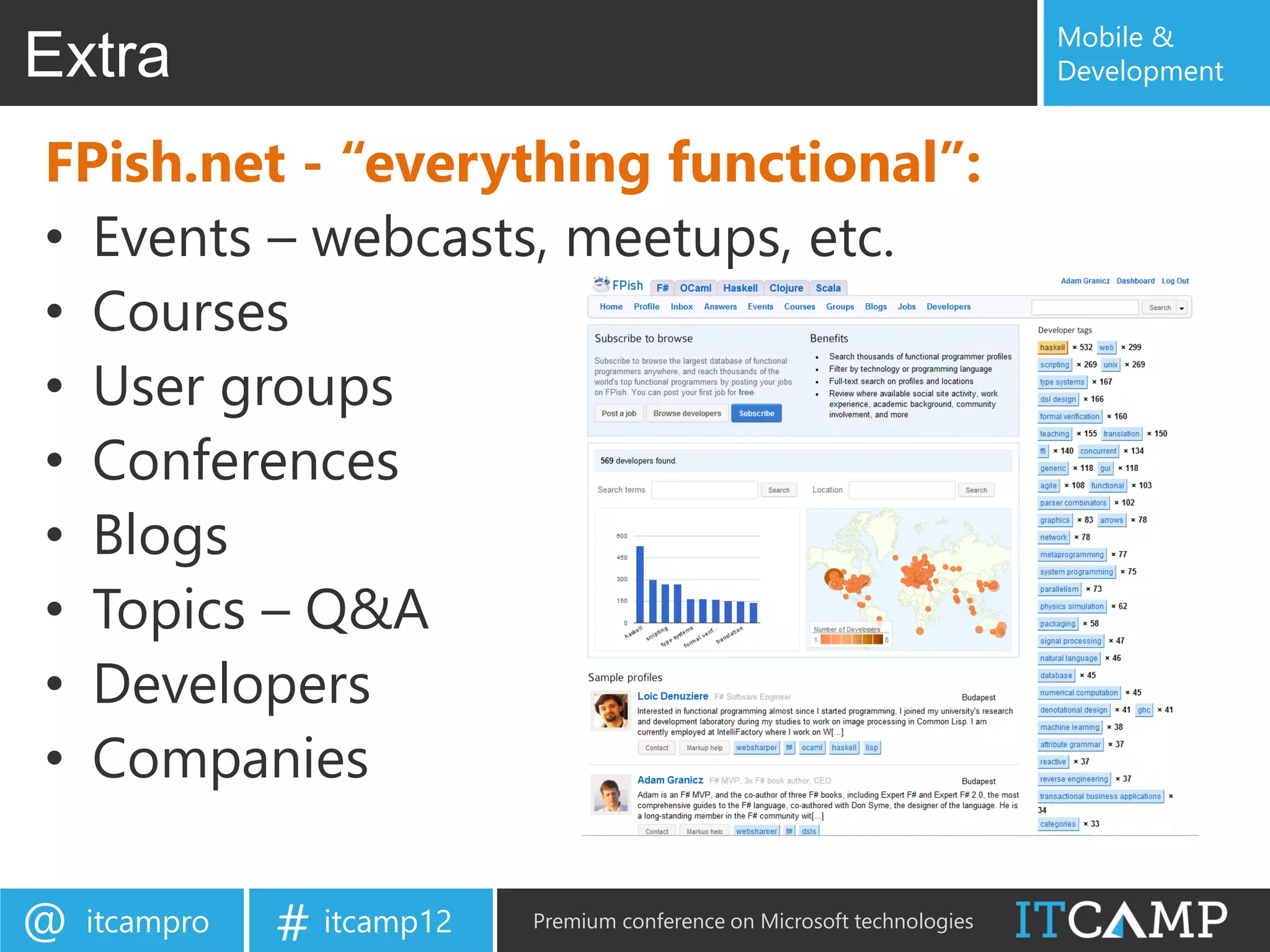

42. Mobile &
Extra Development
FPish.net - “everything functional”:
• Events – webcasts, meetups, etc.
• Courses
• User groups
• Conferences
• Blogs
• Topics – Q&A
• Developers
• Companies
@ itcampro # itcamp12 Premium conference on Microsoft technologies
