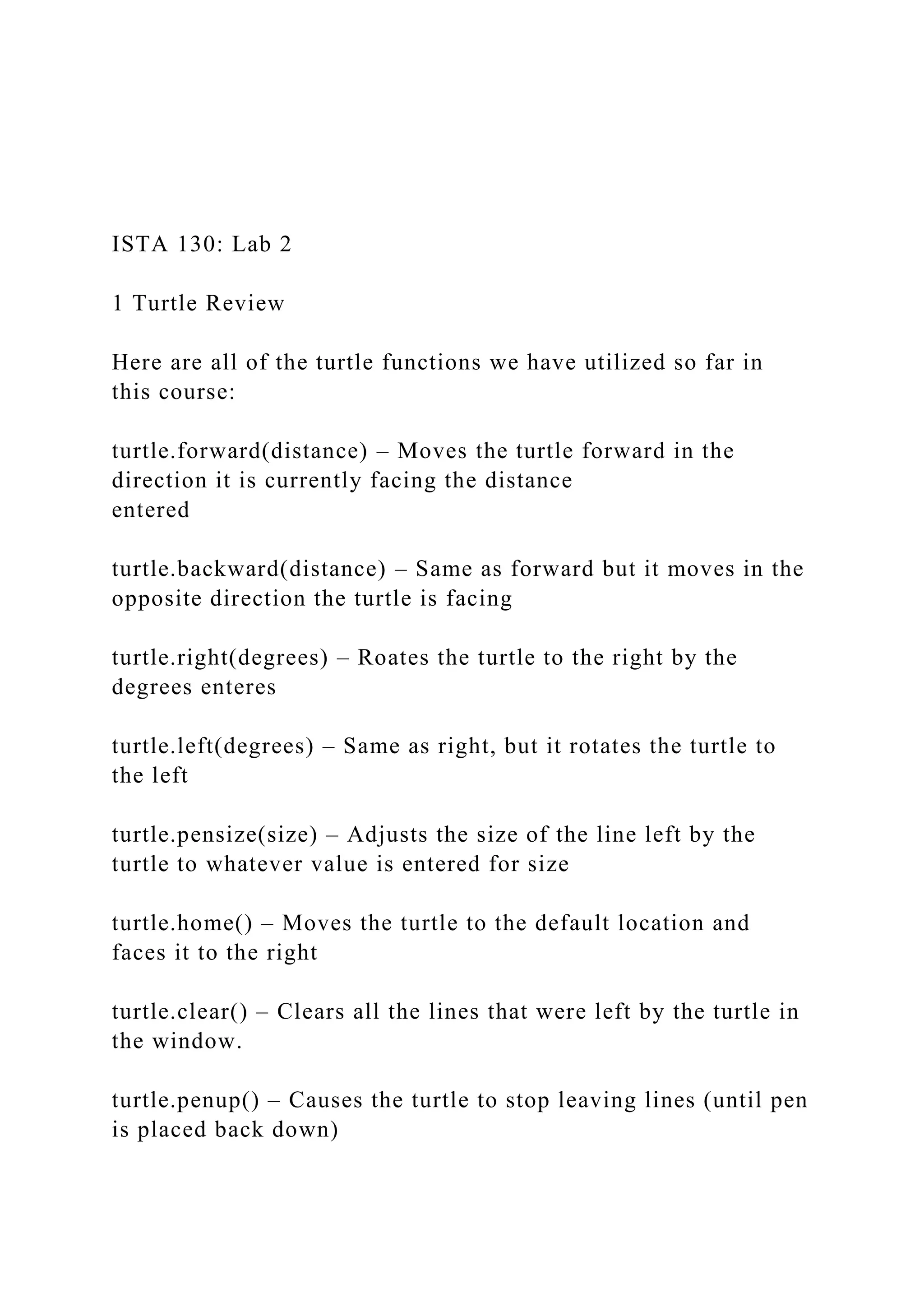

1. ISTA 130: Lab 2
1 Turtle Review
Here are all of the turtle functions we have utilized so far in
this course:
turtle.forward(distance) – Moves the turtle forward in the
direction it is currently facing the distance
entered
turtle.backward(distance) – Same as forward but it moves in the
opposite direction the turtle is facing
turtle.right(degrees) – Roates the turtle to the right by the
degrees enteres
turtle.left(degrees) – Same as right, but it rotates the turtle to
the left
turtle.pensize(size) – Adjusts the size of the line left by the
turtle to whatever value is entered for size
turtle.home() – Moves the turtle to the default location and
faces it to the right
turtle.clear() – Clears all the lines that were left by the turtle in
the window.
turtle.penup() – Causes the turtle to stop leaving lines (until pen
is placed back down)

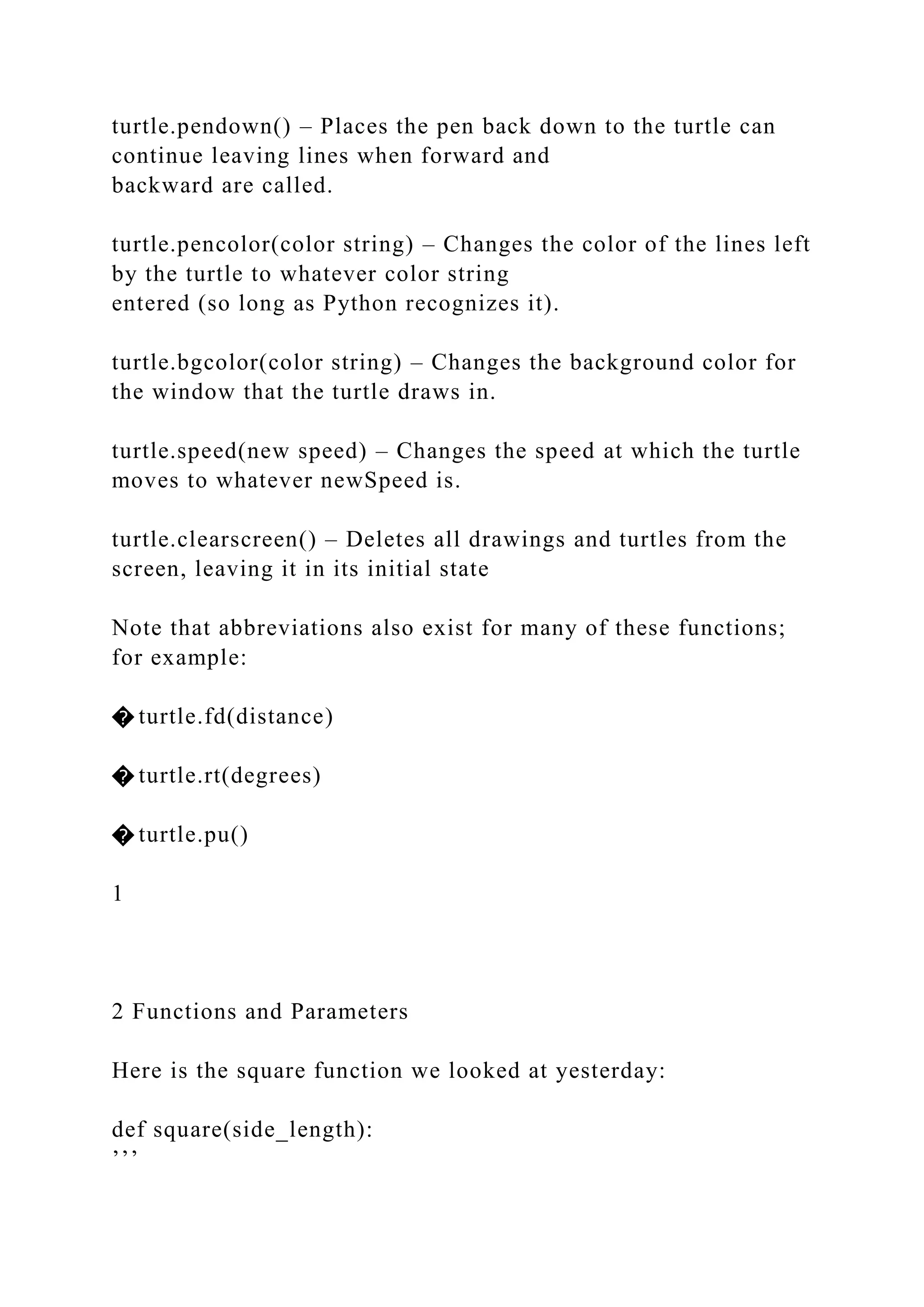

2. turtle.pendown() – Places the pen back down to the turtle can
continue leaving lines when forward and
backward are called.
turtle.pencolor(color string) – Changes the color of the lines left
by the turtle to whatever color string
entered (so long as Python recognizes it).
turtle.bgcolor(color string) – Changes the background color for
the window that the turtle draws in.
turtle.speed(new speed) – Changes the speed at which the turtle
moves to whatever newSpeed is.
turtle.clearscreen() – Deletes all drawings and turtles from the
screen, leaving it in its initial state
Note that abbreviations also exist for many of these functions;
for example:
� turtle.fd(distance)
� turtle.rt(degrees)
� turtle.pu()
1
2 Functions and Parameters
Here is the square function we looked at yesterday:
def square(side_length):
’’’

3. Draws a square given a numerical side_length
’’’
turtle.forward(side_length)
turtle.right(90)
turtle.forward(side_length)
turtle.right(90)
turtle.forward(side_length)
turtle.right(90)
turtle.forward(side_length)
turtle.right(90)
return
square(50) # This would give side_length the value of 50
square(100) # This would give side_length the value of 100
print side_length # This will give an error because side_length
# only exists inside the function!
Try it out:
(1 pt.) Create a new file called lab02.py. In this file, create a
simple function called rhombus. It
will take one parameter, side length. Using this parameter, have
your function create a rhombus
using turtle graphics. Call your rhombus function in the script.
What happens if you provide no
arguments to the function? Two or three arguments?
Then, modify your rhombus function so it takes another
argument for the angle inside the
rhombus.
3 Data types
Python recognizes many different types of values when working
with data. These can be numbers,

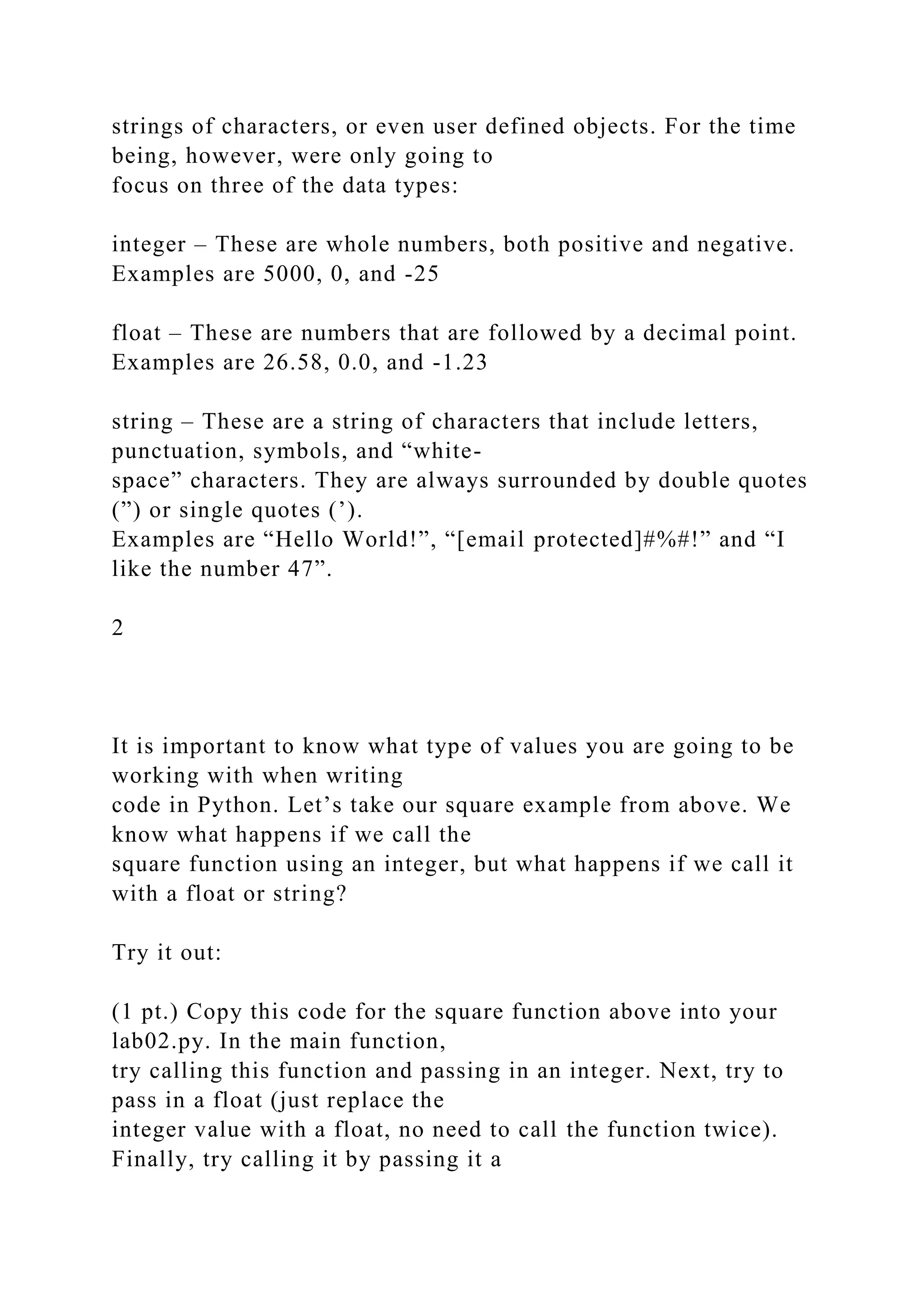

4. strings of characters, or even user defined objects. For the time
being, however, were only going to
focus on three of the data types:
integer – These are whole numbers, both positive and negative.
Examples are 5000, 0, and -25
float – These are numbers that are followed by a decimal point.
Examples are 26.58, 0.0, and -1.23
string – These are a string of characters that include letters,
punctuation, symbols, and “white-
space” characters. They are always surrounded by double quotes
(”) or single quotes (’).
Examples are “Hello World!”, “[email protected]#%#!” and “I
like the number 47”.
2
It is important to know what type of values you are going to be
working with when writing
code in Python. Let’s take our square example from above. We
know what happens if we call the
square function using an integer, but what happens if we call it
with a float or string?
Try it out:
(1 pt.) Copy this code for the square function above into your
lab02.py. In the main function,
try calling this function and passing in an integer. Next, try to
pass in a float (just replace the
integer value with a float, no need to call the function twice).
Finally, try calling it by passing it a

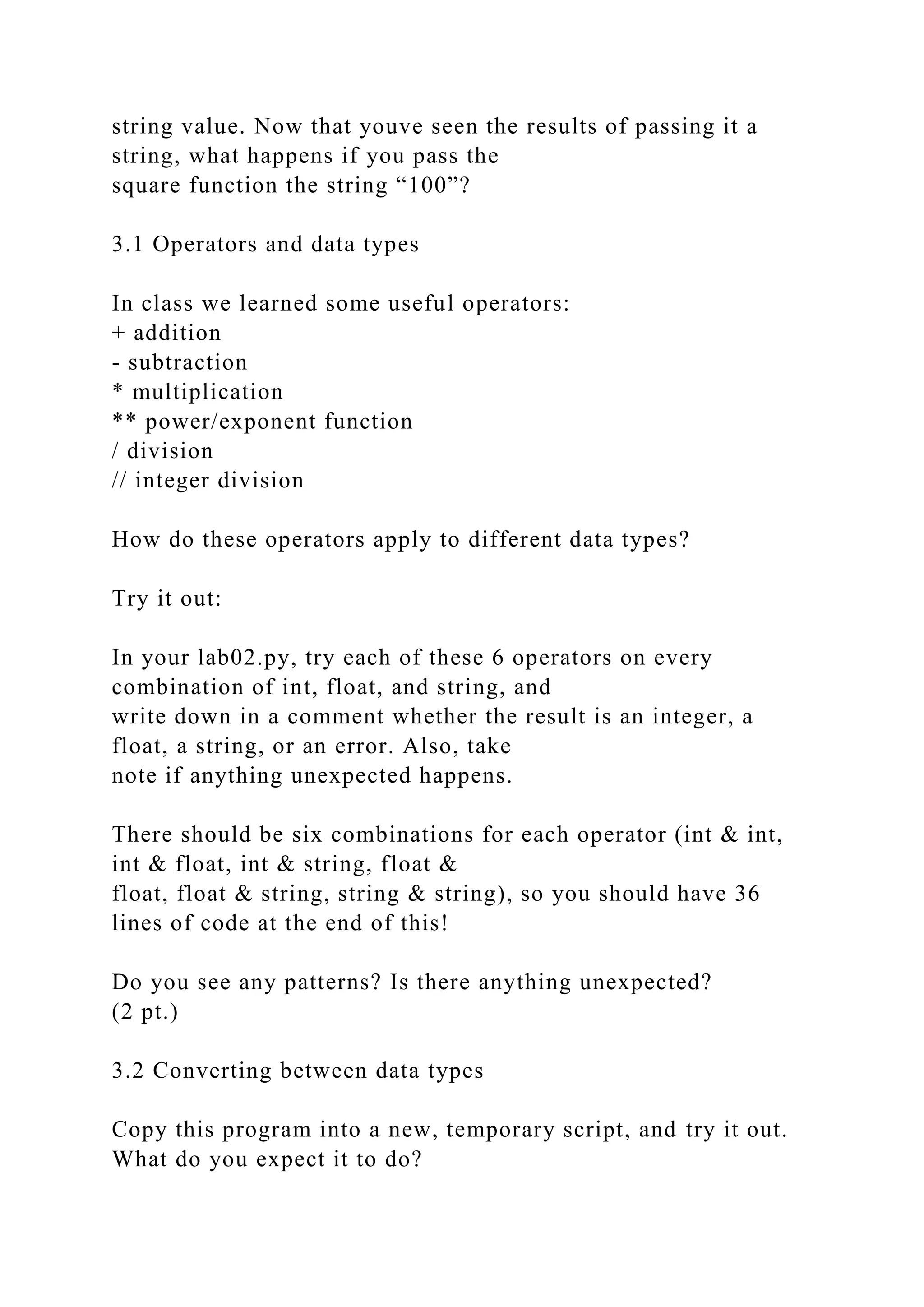

5. string value. Now that youve seen the results of passing it a
string, what happens if you pass the
square function the string “100”?
3.1 Operators and data types
In class we learned some useful operators:
+ addition
- subtraction
* multiplication
** power/exponent function
/ division
// integer division
How do these operators apply to different data types?
Try it out:
In your lab02.py, try each of these 6 operators on every
combination of int, float, and string, and
write down in a comment whether the result is an integer, a
float, a string, or an error. Also, take
note if anything unexpected happens.
There should be six combinations for each operator (int & int,
int & float, int & string, float &
float, float & string, string & string), so you should have 36
lines of code at the end of this!
Do you see any patterns? Is there anything unexpected?
(2 pt.)
3.2 Converting between data types
Copy this program into a new, temporary script, and try it out.
What do you expect it to do?

6. What does it do?
print "Enter first number: "
num1 = raw_input()
print "Enter second number: "
num2 = raw_input()
numsum = num1+num2
print "The sum is:" + numsum
3
Now try this program. What do you expect it to do? What does
it do?
print "Enter a number: "
num1 = raw_input()
doublenum = num1 / 2
print "Half that number is:" + doublenum
And finally, try this program. What do you expect it to do?
What does it do?
print "This one should be easy."
four = 2 + 2
print "2 + 2 = " + four
The problem: all three of these programs are mixing data types!
Specifically, they’re trying to
combine strings and integers. When a user enters something for
raw input, the result is a string,
not a number.
Fortunately, Python is able to convert between data types, using
these three functions:

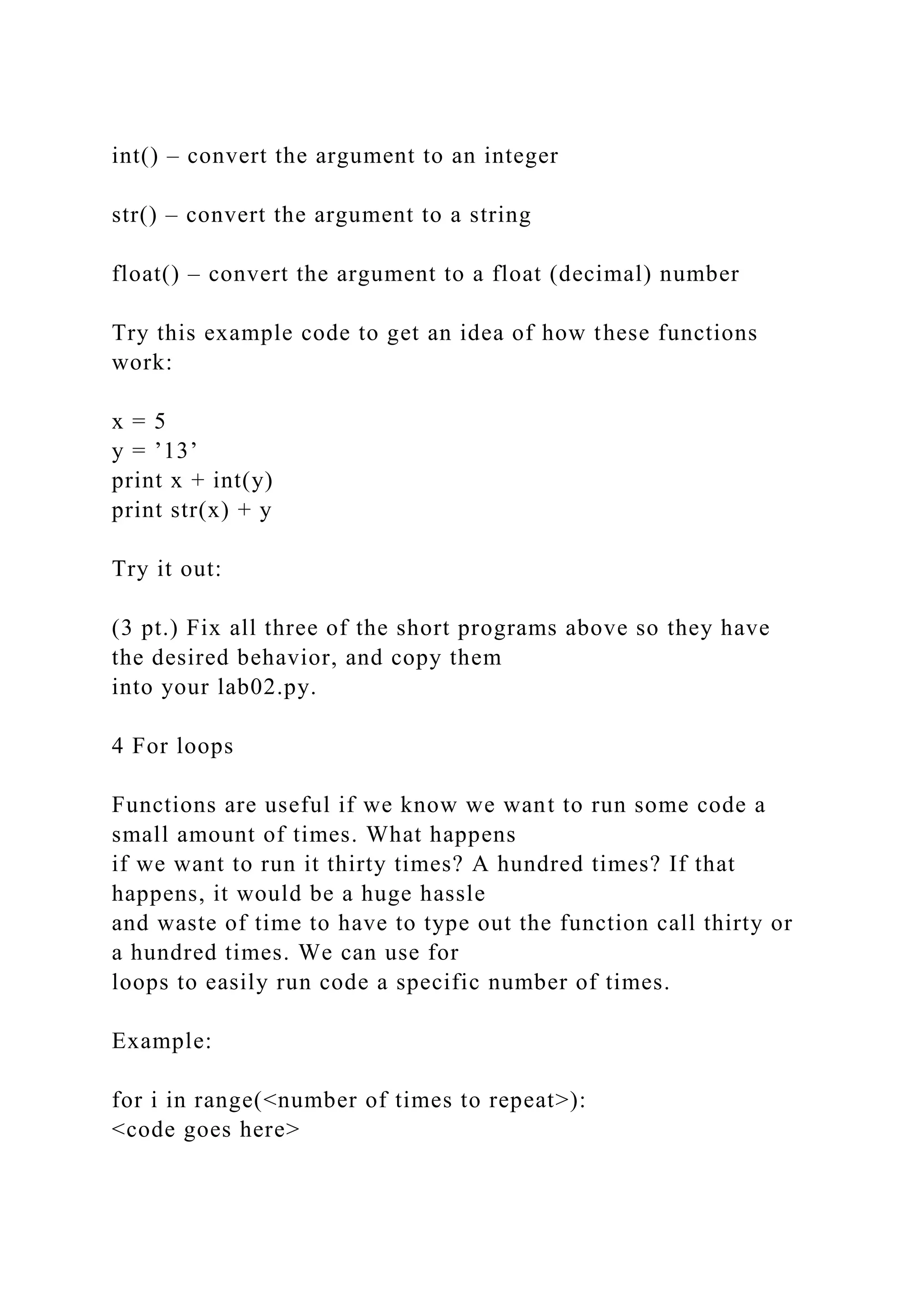

7. int() – convert the argument to an integer
str() – convert the argument to a string
float() – convert the argument to a float (decimal) number
Try this example code to get an idea of how these functions
work:
x = 5
y = ’13’
print x + int(y)
print str(x) + y
Try it out:
(3 pt.) Fix all three of the short programs above so they have
the desired behavior, and copy them
into your lab02.py.
4 For loops
Functions are useful if we know we want to run some code a
small amount of times. What happens
if we want to run it thirty times? A hundred times? If that
happens, it would be a huge hassle
and waste of time to have to type out the function call thirty or
a hundred times. We can use for
loops to easily run code a specific number of times.
Example:
for i in range(<number of times to repeat>):
<code goes here>

8. 4

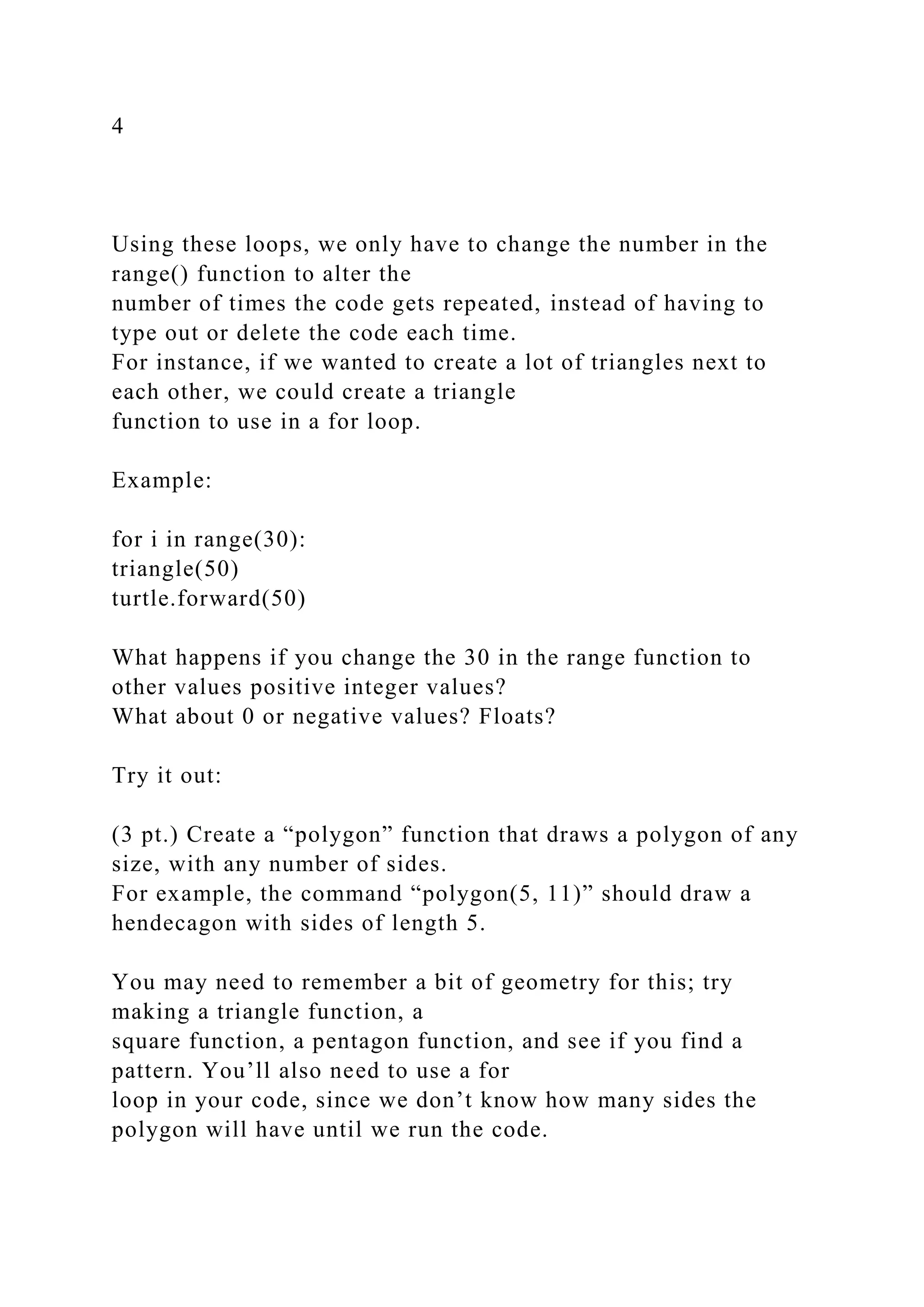

Using these loops, we only have to change the number in the
range() function to alter the
number of times the code gets repeated, instead of having to
type out or delete the code each time.
For instance, if we wanted to create a lot of triangles next to
each other, we could create a triangle
function to use in a for loop.
Example:
for i in range(30):
triangle(50)
turtle.forward(50)
What happens if you change the 30 in the range function to
other values positive integer values?
What about 0 or negative values? Floats?
Try it out:
(3 pt.) Create a “polygon” function that draws a polygon of any
size, with any number of sides.
For example, the command “polygon(5, 11)” should draw a
hendecagon with sides of length 5.
You may need to remember a bit of geometry for this; try
making a triangle function, a
square function, a pentagon function, and see if you find a
pattern. You’ll also need to use a for
loop in your code, since we don’t know how many sides the
polygon will have until we run the code.

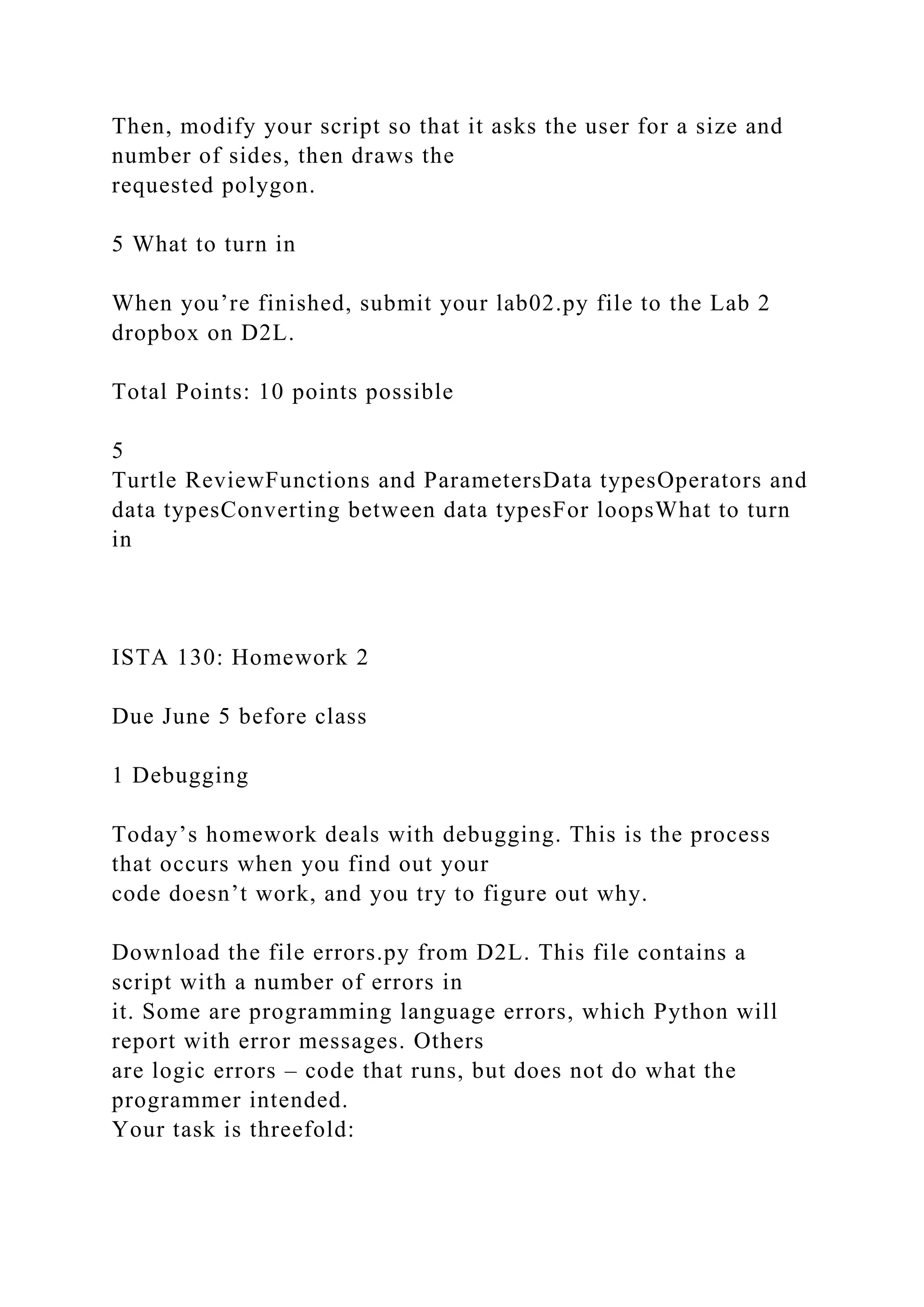

9. Then, modify your script so that it asks the user for a size and
number of sides, then draws the
requested polygon.
5 What to turn in
When you’re finished, submit your lab02.py file to the Lab 2
dropbox on D2L.
Total Points: 10 points possible
5
Turtle ReviewFunctions and ParametersData typesOperators and
data typesConverting between data typesFor loopsWhat to turn
in
ISTA 130: Homework 2
Due June 5 before class
1 Debugging
Today’s homework deals with debugging. This is the process
that occurs when you find out your
code doesn’t work, and you try to figure out why.
Download the file errors.py from D2L. This file contains a
script with a number of errors in
it. Some are programming language errors, which Python will
report with error messages. Others
are logic errors – code that runs, but does not do what the
programmer intended.
Your task is threefold:

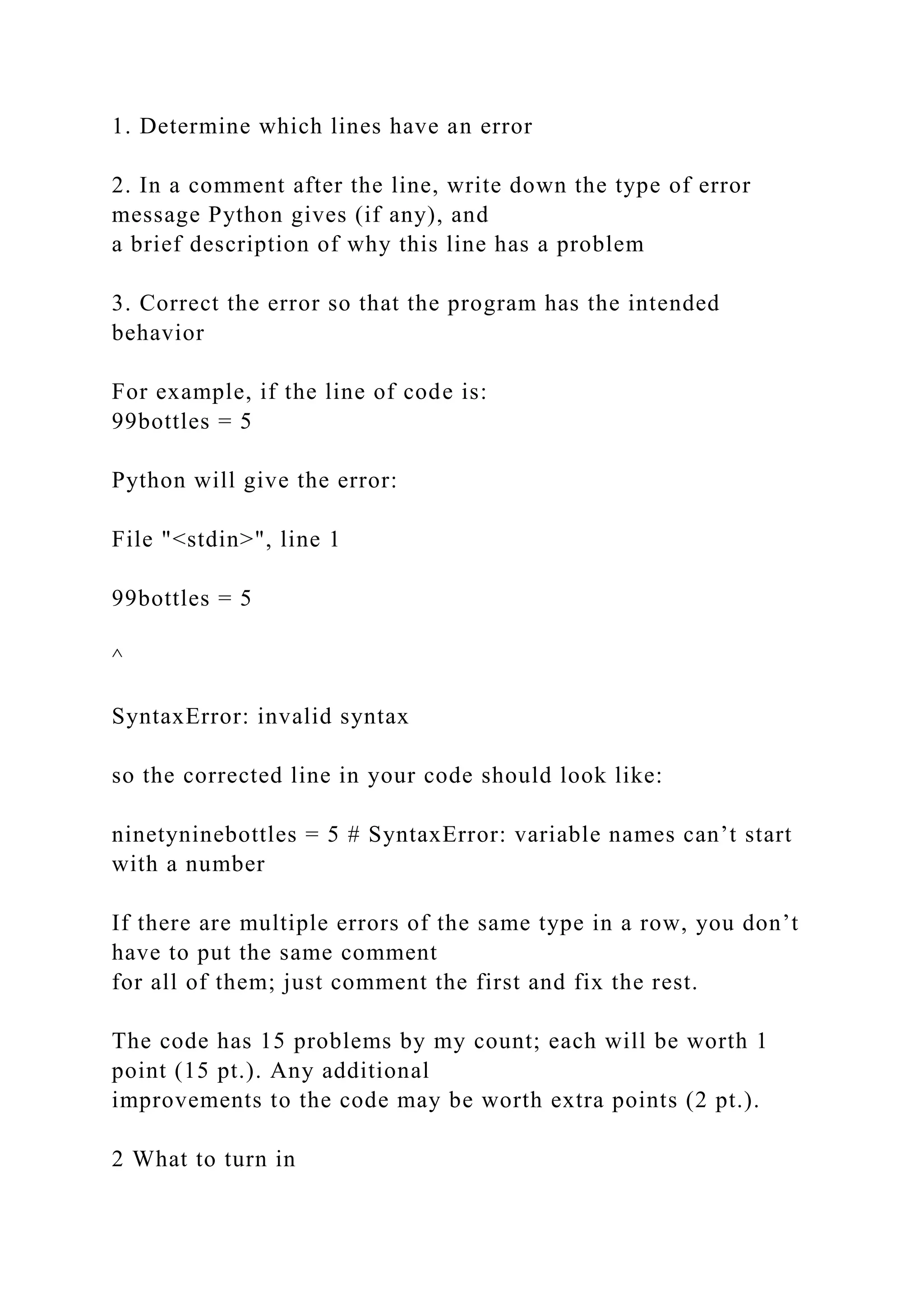

10. 1. Determine which lines have an error
2. In a comment after the line, write down the type of error
message Python gives (if any), and
a brief description of why this line has a problem
3. Correct the error so that the program has the intended
behavior
For example, if the line of code is:
99bottles = 5
Python will give the error:
File "<stdin>", line 1
99bottles = 5
^
SyntaxError: invalid syntax
so the corrected line in your code should look like:
ninetyninebottles = 5 # SyntaxError: variable names can’t start
with a number
If there are multiple errors of the same type in a row, you don’t
have to put the same comment
for all of them; just comment the first and fix the rest.
The code has 15 problems by my count; each will be worth 1
point (15 pt.). Any additional
improvements to the code may be worth extra points (2 pt.).
2 What to turn in

11. Submit your corrected errors.py script to the Homework 2
Dropbox folder in D2L:
Total Points: 15 points possible
Extra Credit: 2 points possible
