1. 9 Bits high video quality DVR Cards
Features:
• Philip7130 Chipset,9 Bits high quality image
• One system support 24 channels, multi channels view
simultaneously
• Low consumption of CPU
• High compatibility with Intel 865,945 motherboard, can
work with popular integrated display card and PCI-E
display card
• AVI recording format, playback by player of windows SP-7008 D (Video Card)
SP-7008 AD Audio / Video Card
SP-7004 D (Video Card)
SP-7004 AD ( Audio / Video Card)
Specification:
MODEL SP- 7008 D SP- 7004 D
Video Input 8 channels 4 channels
Frames 200fps PAL / 240fps NTSC 100fps PAL / 120fps NTSC
Compression H.264 / MPEG-4
File size 80-200M/h/ch
Multiple Cards 3 pieces 6 pieces
Resolution Display : 640 X 480
Recording: 352 X 288
info@sparshsecuritech.com www.sparshsecuritech.com
Designs and Specifications are subject to change without notice.

2. Video Amplifier
Features:
• 1 Input and 2/3/4/8 Outputs Video Amplifier 1:2
• Input RCA Connector/Output RCA Connector
• Constant S/N (Signal to Noise) to keep image quality
• Receives both B/W and color Signals.
• Adjustable Output gain.
• Power Supply included.
• Wide bandwidth with high frequency compensation
• Adjustment for sharpness
• Power supply included
Specification:
Model VDA 1 : 2 D
Video System PAL
Video Input 1 Input (RCA Connector) 1.0v p-p Compensative, 750 Ω
Video Output N Output (RCA Connector) 1.0v p-p Composite, 750 Ω
Power Supply 220v. AC ±10 %
Power Consumption 7WC (Maximum) Operating Temperature - 0° C to 50°C
info@sparshsecuritech.com www.sparshsecuritech.com
Designs and Specifications are subject to change without notice.

3. DS-7016HI D Series Net DVR
Features:
• H.264 video compression algorithm.
• Support multi-zone motion detection.
• Support mask function to mask sensitive area. DS - 7000HI Front Panel
• Support view tampering alarm function for spiteful camera block.
• Support video signal loss alarm function.
• Support position configurable OSD&LOGO.
• Support both constant bit rate and variable frame rate.
DS-7004HI Rear Pane
DS-7016HI Rear Panel
Specification:
Model DS-7004HI D DS-7008HI D DS-7016HI D
Video compression H.264
Preview resolution PAL: 704*576 (4CIF), NTSC: 704*480 (4CIF)
Playback resolution CIF/QCIF
Video input 4 8 16
Video output interface BNC (Electrical Level: 1.0Vp-p, resistance: 75Ω)
Video Output 1 channel, BNC (Electrical Level: 1.0Vp-p, resistance: 75Ω)
Video loop out 4 8 16
Total frame rate PAL: 100FPS PAL: 200FPS PAL: 400FPS
NTSC: 120FPS NTSC: 240FPS NTSC: 480FPS
Stream type Video/Video&Audio Video Video
Max bit rate 32Kbps--2Mbps, self-define
Audio input 4 -- 4
Audio input interface RCA (2.0Vp-p, -- RCA (2.0Vp-p,
Resistance: 1000Ω) Resistance: 1000Ω)
Audio output 1 channel, RCA 1 channel, RCA
(Linear Electrical Level, -- (Linear Electrical Level,
Resistance: 600Ω) Resistance: 600Ω)
Audio compression OggVorbis -- OggVorbis
Audio compression rate 16Kbps -- 16Kbps
Communication interface 1 RJ45 10M/100M Self-adaptive Ethernet Interface
1 RS232 interface
1 RS485 interface
HDD IDE interface 2 IDE interface, can support 4 IDE HDD and each HDD can support 2000GB or 2 HDD +
IDE CD-RW/DVD-RW
USB interface 1 USB interface, USB1.1, can support USB flash memory, USB HDD, USB CD-RW/DVD-RW.
VGA interface 1 VGA interface, support resolution: 800×600/60Hz, 800×600/75Hz, 1024×768/60Hz
External alarm in 4 8 16
Relay output 2 4 4
Power supply 100~240VAC, 6.3A, 50~60 HZ
Power consumption 20--42W (without HDD)
Working temperature -10°C--±55°C
Working humidity 10% -- 90%
Size 14.25 inch standard (440mm*3 90mm*70mm)
Weight ≤8Kg (without HDD and CD-R/W)
info@sparshsecuritech.com www.sparshsecuritech.com
Designs and Specifications are subject to change without notice.

4. SP-16V16AH D DVR
Features:
• Adopt standard H.264 format. Compared with other video compression format,
the recording bit rate is lower, the recorded picture quality is higher. It records
longer and occupies lower bandwidth.
• Support max 4 x SATA HDD. If 4x300G driver installed, it will record one
month at CIF 480fps, low bit rate and long storage time.
• Utilize graphic user interface, beatiful and easy to navigate menus
• Pentaplex: Preview, recording, playback, backup and network surveillance simultaneously
• Various recording mode: timer, motion detection, alarm. Recording picture quality, resolution&recording frame rate configurable
• Searching and playback: time, recording event(alarm, motion detection), recording list. Play back in full or 4 screens mode
• Support full mouse control through USB or PS/2 mouse, finishing all the setup and operation.
• Support VGA output, display resolution adjustable. Connected to VGA display directly, getting more clear picture.
• Backup: download the recorded files by IE browser through network, built-in DVD-RW and external USB2.0 flash drive, easy and fast to backup
• Support PTZ control with presets and auto cruise. 128 presets and 32 cruise tracks totally.
• Network protocol: TCP/IP, DHCP, DDNS, PPPoE
• Sophisticated network functions: remote live view, remote playback, PTZ control and remote menu setup. Users can set all the parameters through
network as you face the DVR, convenient to remote device management
• Support dual stream. Recording and network bit rate are adjustable respectively. Depending on the bandwidth, users can adjust the transmission bit
rate, not affecting the recording picture quality and frame rate, which is advantageous to fit different users’ bandwidth
• Support IE browser to remote view. Just download a small activeX file, not installing any software.
• Support mobile surveillance by phones with WinCE and 3G.
• Adopt standard FAT32 file system, compatible with computers. Users can check the files with special viewer software on the computer.
• Support AVI converter. users can view AVI files with the third party software, Such as realplayer, not installing any codec
• Support CMS software for multi devices central management
• Support multi-level user management. Administrator can manage the operating rights of other users.
• Support event log. Users can check the earlier working status of the DVR by this.
Specification:
Compression format Standard H.264 Baseline
Video output Composite 1.0V p-p / 75Ω BNC×2 S-VIDEOX1,VGAX1
Video input Composite 1.0V p-p/75Ω BNC×16
Display Resolution 720*576 (PAL), 720*480 (NTSC)
Record Resolution 352*288 , 704*576 (PAL)
352*240 , 704*480 (NTSC)
Display Frame Rate 400FPS (PAL), 480FPS (NTSC)
Record Frame Rate 400FPS, 100FPS (PAL) ; 480FPS, 120FPS (NTSC)
Audio input -8dB~ 22k, RCA X16
Alarm input NO or NC 16CH
Alarm output: 4CH
Record Mode Manual / Sensor /Timer / Motion detection
Simplex/Duplex/Triplex Pentaplex
Network Interface RJ45 (LAN, INTERNET)
PTZ control YES
Communication interface RS485, USB2.0 x 2(one for backup, another for USB mouse), PS/2 x 1
Hard disk info SATA x 4+DVD-RW x 1
Remote controller YES
Power supply 100-230V
info@sparshsecuritech.com www.sparshsecuritech.com
Designs and Specifications are subject to change without notice.

5. H.264 D Hexaplex 4CH Network DVR
(Support 2G ~ 3G Mobile Phone / PDA)
Features:
• Hexaplex 4CH H.264 DVR: live, recording, playback, backup,
network access and control.
• Playback search by Time, Alarm, Motion Detect & Video Loss.
• Independent camera setting: Video lost, Motion detect,
Alarm -> pre-record, buzzer, log, screen message, e-mail inform and
recording IPS(Event/Pre-record/Normal).
• Mixed operation windows - Plaback for selected channel in the live
monitoring mode.
• Network Capability - remote live view, backup, playback, PTZ
control and menu setup.
• Best channel bandwidth management for remote viewing
up to 5 users simultaneously.
• Multi-lingual support, Multi-Level password to ensure high security.
• I.E. software up to link 4 x H.264 DVRs.
• With Client player, CMS software and AVI Conversion Utility.
Specification:
Model SP7024 D
Video Input/Output Format NTSC/PAL: BNC 4CH ln/1CH Out/SPOT Out
Display Resolution NTSC 720x480, PAL 720x576, real time per channel
Compression Method Video: H.264 Audio: ADPCM
Recording Frame rate PAL 25 / 720x576, 50 / 720x288,100 / 360x288
Recording Mode Continuous/Schedule/Alarm/Motion Detect
Hard Disk Capacity 1 x SATA HDD up to 1 TB
Media Backup 1 USB 2.0 ports for Flash Disk, DVD+RW, DVD+R, DVD-R, card readers, HDD, etc.
Sensors, Alarm 4 Inputs, 1 Output(NC, NO relay)
Alarm Type Motion, Sensor,Video loss, HDD Failed
Audio 1CH ln/1CH Out, bi-direction audio capabilities
Network 1 RJ-45 10/IOOBaseT Ethernet connector(PPPoE, DHCP, DDNS, Static IP)
VGA Output Yes
PTZ Control RS-4&5
1/R Remote Controller Yes
Mouse port Yes
Power Supply DC12V-3A for AC Adaptor
Operating Temperature O°C ~ +50°C
Dimension 315(W)x224(D)x52(H)mm
info@sparshsecuritech.com www.sparshsecuritech.com
Designs and Specifications are subject to change without notice.

6. SP-0802L D / SP-0802LD D-With DVD RW
SP-0802XL D With VGA Output
SP-0802XLD D with -VGA & DVC RW
Features:
• Triplex Standalone
(Record / Playback / Network).
• Recording speed 60/50fps.
• Support flash slot USB archiving.
• Screen position adjustable.
• NTSC / PAL system compatible.
• Advance video compression MPEG.
• Manual / Motion / Programmed
• Support SATA HD.
recording modes.
• Auto Sequence Switching of channels.
• Automatically recording while alarm
• Support PTZ(Pan/Tilt/Zoom) control.
triggered.
• Support Alarm Input (8 Input, 10utput).
• Playback search by Time / Date / Event
List modes. • Support Mouse OSD control.
• Watch Dog. • LAN (TCP/IP, DHCP).
• HD usage rate indicator. • Support CD-RW / DVD-R backup (Optional).
• Motion detection. • IR remote controller .
• Support Audio recording (4 Input 10utput). • VGA output (Optional).
Specification:
MODEL SP-0802L D / SP-0802LD D / SP-0802XL D / SP-0802XLD D
Video System NTSC / PAL
Operating System Embedded RTOS
VGA output D - SUB 15P VGA (OPTION)
Video Input P8 x (1Vp-p 75 ohm) BNC
Audio Input 4 x RCA
Video Output 2 x (Monitor Out) BNC
Audio Output 1 x RCA
OSD interface OSD Multi - Language
Display Frame NTSC - 240 fields/S (8x30 fields/S)
PAL - 200 fields/S (8x25 fields/S)
Recording Frame NTSC - 60 fps
PAL - 50 fps
info@sparshsecuritech.com www.sparshsecuritech.com
Designs and Specifications are subject to change without notice.

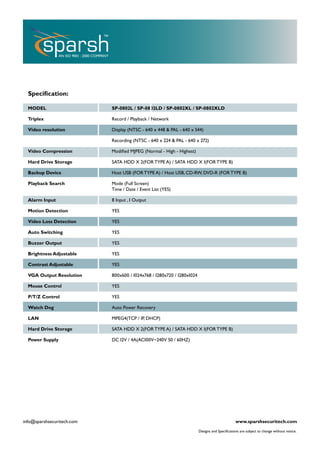

7. Specification:
MODEL SP-0802L / SP-0802LD / SP-0802XL / SP-0802XLD
Triplex Record / Playback / Network
Video resolution Display (NTSC - 640 x 448 & PAL - 640 x 544)
Recording (NTSC - 640 x 224 & PAL - 640 x 272)
Video Compression Modified MJPEG (Normal - High - Highest)
Hard Drive Storage SATA HDD X 2(FOR TYPE A) / SATA HDD X 1(FOR TYPE B)
Backup Device Host USB (FOR TYPE A) / Host USB, CD-RW, DVD-R (FOR TYPE B)
Playback Search Mode (Full Screen)
Time / Date / Event List (YES)
Alarm Input 8 Input , 1 Output
Motion Detection YES
Video Loss Detection YES
Auto Switching YES
Buzzer Output YES
Brightness Adjustable YES
Contrast Adjustable YES
VGA Output Resolution 800x600 / 1024x768 / 1280x720 / 1280x1024
Mouse Control YES
P/T/Z Control YES
Watch Dog Auto Power Recovery
LAN MPEG4(TCP / IP, DHCP)
Hard Drive Storage SATA HDD X 2(FOR TYPE A) / SATA HDD X 1(FOR TYPE B)
Power Supply DC 12V / 4A(AC100V~240V 50 / 60HZ)
info@sparshsecuritech.com www.sparshsecuritech.com
Designs and Specifications are subject to change without notice.
