AndroidとiOSのBLEな事情 3
- 1. AndroidとiOSのBLEな事情 3 2014/01/28 created 2014/03/232014/12/23 updated @youten_redo

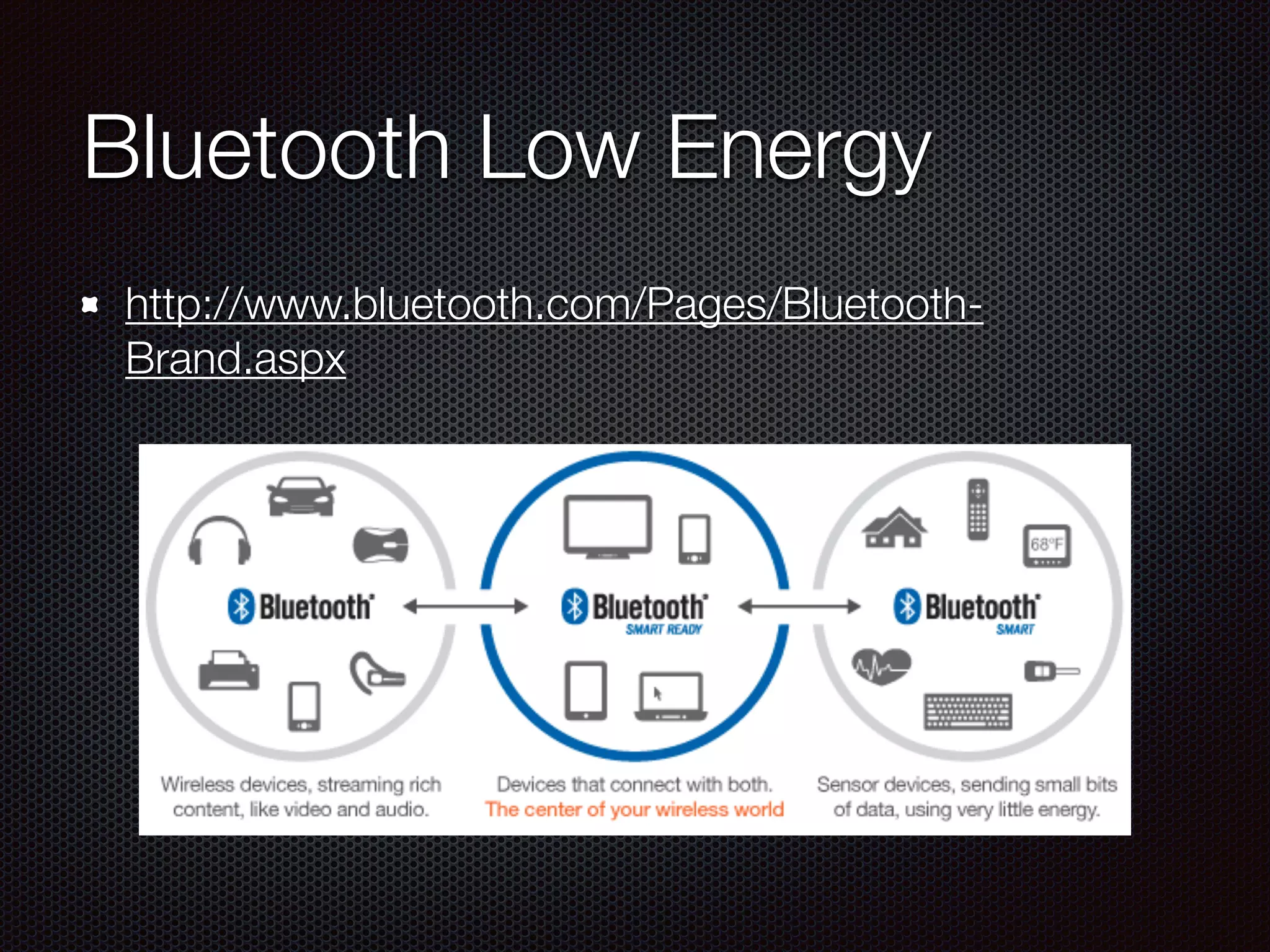

- 2.
- 3.
- 4.
- 5.
- 6.
- 7.
- 8.
- 9.
- 10.
- 11. Find Me Profile(FMP) Profile Immediate Alert Service Alert Level Char. - Write without Response Proximity Profile (PXP) Immediate Alert Service Alert Level Char. - Write without Response Link Loss Service Alert Level Char. - Read/Write Tx Power Service Tx Power Level Char. - Read M M O O M M M M

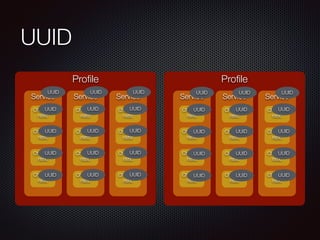

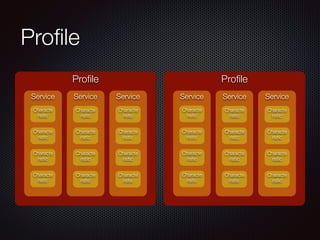

- 12. UUID Profile Service Characte ristic Characte ristic Characte ristic Characte ristic Service Characte ristic Characte ristic Characte ristic Characte ristic Service Characte ristic Characte ristic Characte ristic Characte ristic Profile Service Characte ristic Characte ristic Characte ristic Characte ristic Service Characte ristic Characte ristic Characte ristic Characte ristic Service Characte ristic Characte ristic Characte ristic Characte ristic UUID UUID UUID UUID UUID UUID UUID UUID UUID UUID UUID UUID UUID UUID UUID UUIDUUID UUID UUID UUID UUID UUID UUID UUID UUID UUID UUID UUID UUID UUID

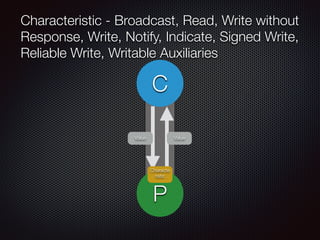

- 13. Characteristic - Broadcast,Read, Write without Response, Write, Notify, Indicate, Signed Write, Reliable Write, Writable Auxiliaries P C Characte ristic Value Value
- 14. Read, Write, Notify P C P C Characte ristic P C Characte ristic ValueValue Value Characte ristic
- 15. Write without Response, Indicate P C Characte ristic P C ValueValue Characte ristic
- 16.

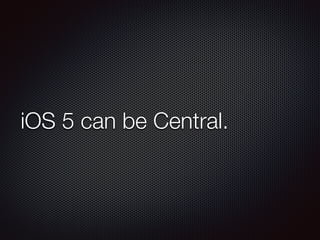

- 17. iOS 5 canbe Central.
- 18.
- 19.

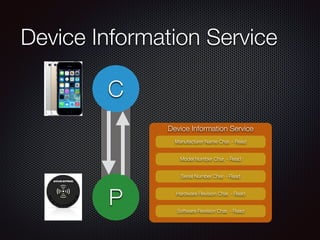

- 20. Device Information Service P C DeviceInformation Service Manufacturer Name Char. - Read Model Number Char. - Read Serial Number Char. - Read Hardware Revision Char. - Read Software Revision Char. - Read

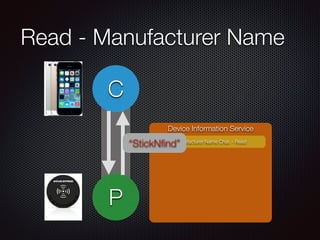

- 21. Read - ManufacturerName P C Device Information Service Manufacturer Name Char. - Read “StickNfind”

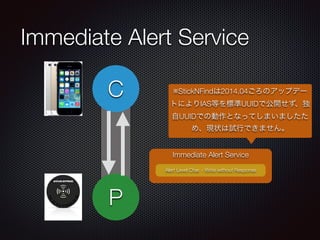

- 22. Immediate Alert Service P C ImmediateAlert Service Alert Level Char. - Write without Response ※StickNFindは2014.04ごろのアップデー トによりIAS等を標準UUIDで公開せず、独 自UUIDでの動作となってしまいましたた め、現状は試行できません。

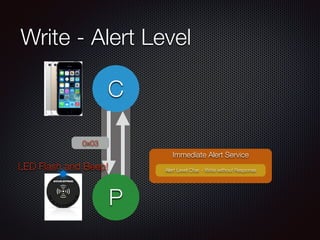

- 23. Write - AlertLevel P C Immediate Alert Service Alert Level Char. - Write without Response 0x03 LED Flash and Beep!
- 24. Android 4.3 canbe Central.
- 25.

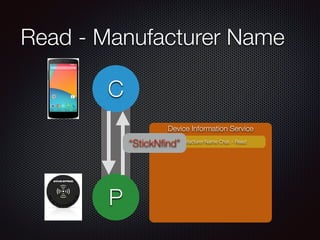

- 26. Read - ManufacturerName P C Device Information Service Manufacturer Name Char. - Read “StickNfind”
- 27. Write - AlertLevel P C Immediate Alert Service Alert Level Char. - Write without Response 0x03 LED Flash and Beep! ※StickNFindは2014.04ごろのアップデー トによりIAS等を標準UUIDで公開せず、独 自UUIDでの動作となってしまいましたた め、現状は試行できません。

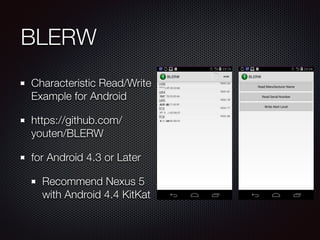

- 28. BLERW Characteristic Read/Write Example forAndroid https://github.com/ youten/BLERW for Android 4.3 or Later Recommend Nexus 5 with Android 4.4 KitKat
- 29. iOS 6 canbe Peripheral.

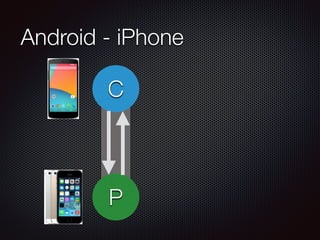

- 30.

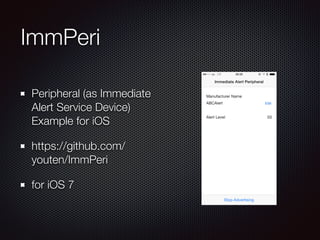

- 31. ImmPeri Peripheral (as Immediate AlertService Device) Example for iOS https://github.com/ youten/ImmPeri for iOS 7
- 32.

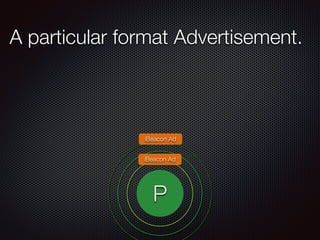

- 33. A particular formatAdvertisement. P iBeacon Ad iBeacon Ad

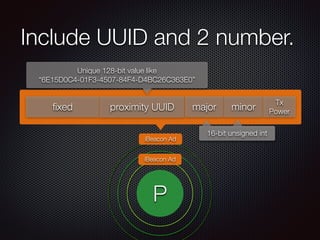

- 34. Include UUID and2 number. P iBeacon Ad iBeacon Ad fixed proximity UUID major minor Tx Power Unique 128-bit value like “6E15D0C4-01F3-4507-84F4-D4BC26C363E0” 16-bit unsigned int

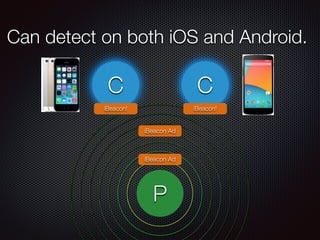

- 35. Can detect onboth iOS and Android. P iBeacon Ad CC CC iBeacon! iBeacon! iBeacon Ad

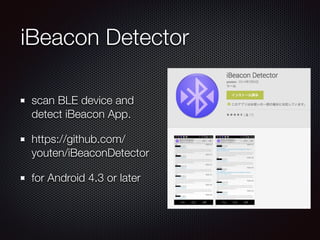

- 36. iBeacon Detector scan BLEdevice and detect iBeacon App. https://github.com/ youten/iBeaconDetector for Android 4.3 or later
- 37. Mavericks can beCentral and Peripheral.
- 38. Mavericks is Strong! P iBeaconAd CC CC iBeacon! iBeacon! iBeacon Ad
- 39. XBeacon OS X iBeaconApp. running on Status Bar. https://github.com/ youten/XBeacon for Mavericks Mac being available BLE. But Yosemite can’t adv as iBeacon.
- 40. Android 5.0 Lollipopcan be Peripheral.
- 41.

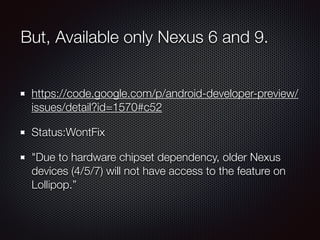

- 42. But, Available onlyNexus 6 and 9. https://code.google.com/p/android-developer-preview/ issues/detail?id=1570#c52 Status:WontFix "Due to hardware chipset dependency, older Nexus devices (4/5/7) will not have access to the feature on Lollipop.”
- 43. aBeacon (1) Peripheral thatAdvertise iBeacon compatible. (2) Find Me Profile Peripheral, include Device Information Service and Immediate Alert Service. https://github.com/youten/aBeacon For Android 5.0 Lollipop, I’ve tried with Nexus 9.
