1. Struts

2. Agenda
 Preface
 Struts and its components
 An example
 The architecture required for
Struts Applications

3. Preface
Problem we faced when designing JSP:
 Familiar with HTML and expertise in web
design (the content, font, color, web page
layout etc.)
 Having Programming knowledge with Java
(embedded java code in JSP)

4. Break down the
tasks with Struts

5. What is
Struts
 Norwegian word meaning ostrich
 A Java open source framework
especially used for web application
development.
 With Struts, developers can following
the MVC design pattern to design
web application

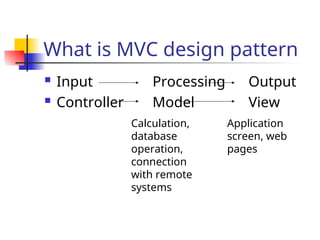

6. What is MVC design pattern
 Input Processing Output
 Controller Model View
Calculation,
database
operation,
connection
with remote
systems
Application
screen, web
pages

7. Controller in Struts
 Called ActionServlet
 Its functions:
- Receive http request from client
(Web browser)
- Invoke Model part by calling
Action objects
- Send the JSP file returned by
Action objects back to the client

8. Model component in Struts
 In Action objects
 Its functions:
- Carrying out business related
processing (by itself or other objects)
- Determining the next web page to
send to the client

9. View component in Struts
 Html and JSP files with Struts tags
embedded
 Features provided by Struts tags:
- Sophisticated html form handling
(validation, error display etc.)
- Display localized messages
stored in a resource file on web
page (message tag)
- And many others …

10. How to get M V C parts work
together
 A configuration file called struts-
config.xml in XML format
 Defines Action classes, Java Beans used
in the project
 Define “virtual” paths to be used in JSP
files

11. An
example
In TestWeb1.jsp:
…<struts-html:form action=“action1”>…
In struts-config.xml:
… < action path=“action1”
type=“JavaBean1”…>…
<forward name=“next1"
path="/nextpage1.jsp"/>
 If changing to use another java
bean as Action class in the future,…

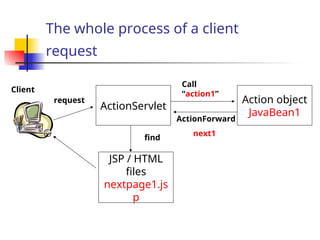

12. The whole process of a client
request
ActionServlet
Action object
JavaBean1
JSP / HTML
files
nextpage1.js
p
Call
“action1”
ActionForward
next1
Client
request
find

13. The architecture required for Struts Applications
Struts Applications
Struts classes / Taglib
Java Application Server
JSP / Servlet engine

14. Summary
 Breakdown web development into
MVC parts
 Easy to develop and maintain
