Introduction to Stack Buffer Overflow for beginners
- 1. Khashayar Fereidani http://fereidani.com Introduction to Stack Buffer Overflow for beginners Islamic Azad University Of Najafabad Network Security Presentation By Khashayar Fereidani

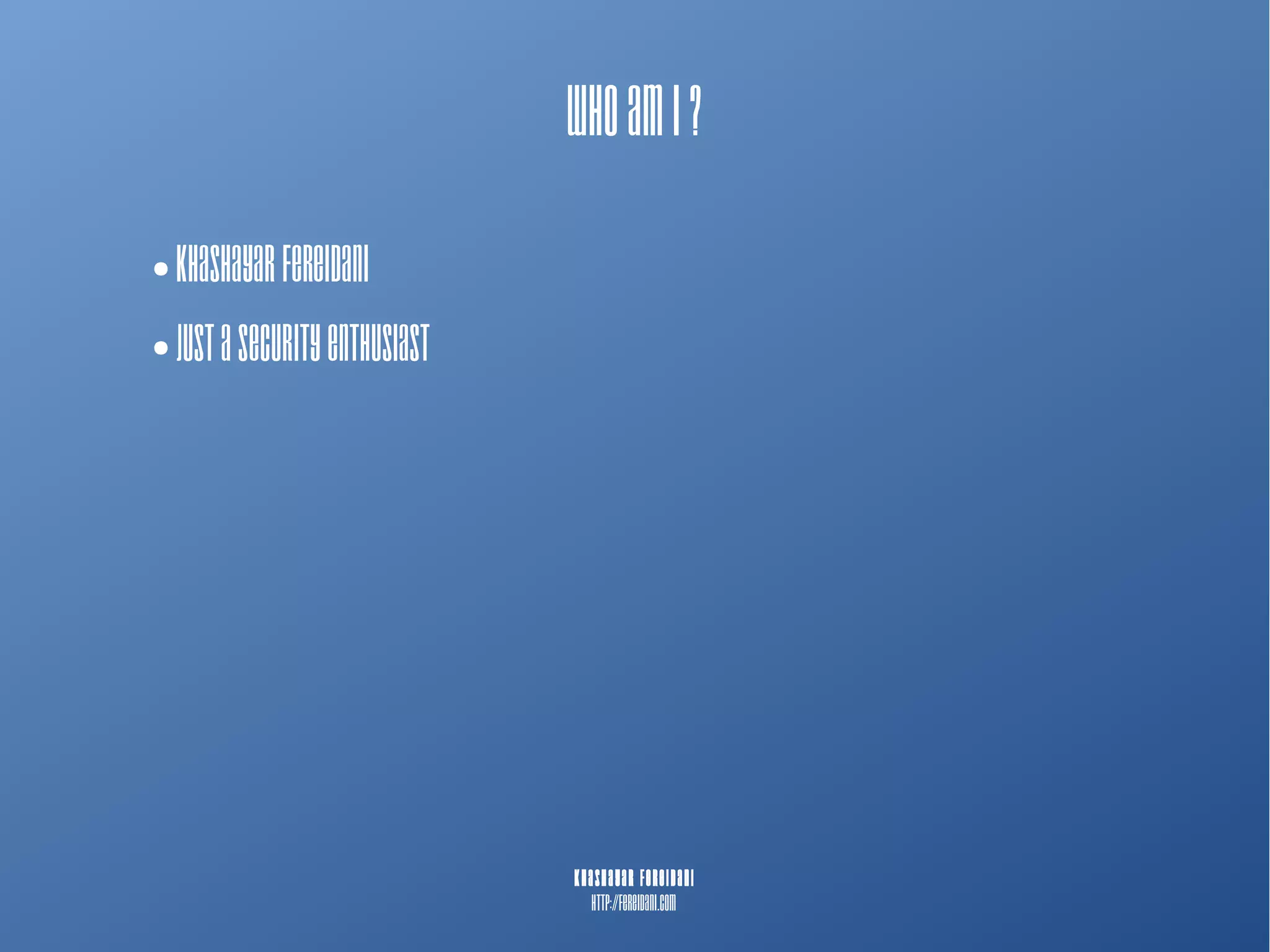

- 2. Khashayar Fereidani http://fereidani.com Who Am I ? ● Khashayar Fereidani ● Just A Security Enthusiast
- 4. Khashayar Fereidani http://fereidani.com What Is Buffer Overflow ? From Dear Memory Corruption Family Heap Overflow , Use After Free Buffer Underflow , Integer Overflow Buffer Overflow and more ...
- 5. Khashayar Fereidani http://fereidani.com What After Exploitation ? 1- File Control 2- Operation System Access 3 – Installing Backdoor 4- Full Device Access ( webcam / monitor / mic )
- 6. Khashayar Fereidani http://fereidani.com Advantages And Disadvantages ● Advantages 1- Effective 2- Locally And Remotely Exploitable ● Disadvantages 1- architecture dependent 2-operation system and even version dependent 3- high exploitation skills needed for this era .
- 7. Khashayar Fereidani http://fereidani.com New Era For Commercial Exploit ● Exploits from $1000 to $10000000 ● Intelligent and Universal ● Die Dear Lamers
- 8. Khashayar Fereidani http://fereidani.com Some Historical Attacks 1- 1988 Morris worm 6000 machines ( 10% of internet ) 2- 2003 SQL Slammer : overflow in MS-SQL server 75,000 machines infected in 10 minutes 3- 2014 Multiple Vulnerabilities in Microsoft / Adobe / D-link / Cisco / Oracle products
- 9. Khashayar Fereidani http://fereidani.com 9/23 Remember Remember ● ESP : Pointer To Top Of Stack ● EBP : Base Pointer ● EIP : Instruction Pointer ● MOV , JMP , CALL , RET
- 10. Khashayar Fereidani http://fereidani.com 10/23 Introduction To Process Environment Block (PEB) ● Stack ( func , ret info , args ) ● Heap ● Data Segment 1- .bss ( Static and uninitialized globals ) 2- .data (initialized globals ) 3- .text ( usually read only ) ● Shared Libraries
- 12. Khashayar Fereidani http://fereidani.com 12/23 Sample Code bool authenticate(char *name){ char msg[32]; if (check_username(name)==0){ sprintf(msg, "Unauthorized user '%s'n", name); Printf(“%s”,msg); return 0; }else{ printf("Welcome , %s n", name); return 1; } }
- 13. Khashayar Fereidani http://fereidani.com 13/23 Disassembled Code 0x08048529 <+0>:push %ebp 0x0804852a <+1>:mov %esp,%ebp 0x0804852c <+3>:sub $0x38,%esp 0x0804852f <+6>: mov 0x8(%ebp),%eax 0x08048532 <+9>:mov %eax,(%esp) 0x08048535 <+12>: call 0x804851f <check_username> 0x0804853a <+17>: test %eax,%eax 0x0804853c <+19>: jne 0x8048572 <authenticate+73> 0x0804853e <+21>: mov 0x8(%ebp),%eax 0x08048541 <+24>: mov %eax,0x8(%esp) 0x08048545 <+28>: movl $0x8048620,0x4(%esp) 0x0804854d <+36>: lea -0x28(%ebp),%eax 0x08048550 <+39>: mov %eax,(%esp) 0x08048553 <+42>: call 0x8048390 <sprintf@plt> 0x08048558 <+47>: lea -0x28(%ebp),%eax 0x0804855b <+50>: mov %eax,0x4(%esp) 0x0804855f <+54>: movl $0x8048639,(%esp) 0x08048566 <+61>: call 0x8048350 <printf@plt> 0x0804856b <+66>: mov $0x0,%eax 0x08048570 <+71>: jmp 0x804858a <authenticate+97> 0x08048572 <+73>: mov 0x8(%ebp),%eax 0x08048575 <+76>: mov %eax,0x4(%esp)
- 14. Khashayar Fereidani http://fereidani.com 14/23 Point Of View From Stack ARGV ARGC RET …. main and previously called procedures …. SAVED EIP SAVED EBP msg Start Of authenticate frame 32 Byte
- 15. Khashayar Fereidani http://fereidani.com 15/23 For Simple Input ARGV ARGC RET …. SAVED EIP SAVED EBP ???????? ???????? ???????? ???????? khashayar
- 16. Khashayar Fereidani http://fereidani.com 16/23 For Evil One :D ! ARGV ARGC RET …. AAAA (0x41414141) AAAA (0x41414141) AAAAAAAA AAAAAAAA AAAAAAAA AAAAAAAA AAAAAAAA
- 17. Khashayar Fereidani http://fereidani.com 17/23 Exploitation Theory ● Write Our Shellcode to memory ● Get Control Of EIP ● Jump To Our Shellcode
- 18. Khashayar Fereidani http://fereidani.com 18/23 Implementation ARGV ARGC RET …. (0x[ADDRESS OF SHELLCODE]) 0x90909090 NOPNOPNOPNOPNOP SHELLCODE SHELLCODE SHELLCODE SHELLCODE
- 19. Khashayar Fereidani http://fereidani.com 19/23 What Is Shellcode ?
- 20. Khashayar Fereidani http://fereidani.com 20/23 After Compile xebx16x31xd2x5b x88x53x04x53xbb xedx2ax86x7cxff xd3x52xbbx12xcb x81x7cxffxd3xe8 xe5xffxffxffx63 x61x6cx63x4e ● 34 byte ● Exec Calc
- 21. Khashayar Fereidani http://fereidani.com 21/23 Some OS Level Protections ● ASLR (First OpenBSD & Linux) ● DEP ( Software & Hardware ) ● STACK GS / COOKIE ●But Bypassed in the wild !
