This document provides an introduction to Software Defined Networks (SDN). It discusses: 1) The drawbacks of existing networks that led to the development of SDN, including difficulty performing experiments, slow innovation, and closed/proprietary systems. 2) The key aspects of the SDN architecture, including separating the control plane and data plane, running the control plane on general purpose hardware, and having programmable data planes. 3) The main components of SDN including the controller, which provides network-wide control and management via northbound APIs, and OpenFlow switches, which can be dynamically reconfigured through OpenFlow rules installed by the controller.

1. Damascus University
Faculty of Information Technology Engineering
Department of Computer Systems and Networks
‫دمشق‬ ‫جامعة‬
‫المعلوماتية‬ ‫الهندسة‬ ‫كلية‬
‫الحاسوب‬ ‫والشبكات‬ ‫النظم‬ ‫قسم‬
‫ة‬ّ‫ي‬
‫الشبكات‬ ‫ة‬
‫إدار‬ ‫عملي‬
Network Management
Session 5: Introduction to Software Defined Networks (SDN)
‫اعداد‬
:
‫م‬
.
‫غاندي‬
‫هسام‬
Ghandi
Hessam

2. PART 1:
BACKGROUND
8/30/2019 By Eng. Ghandy Hessam 2

3. Introduction

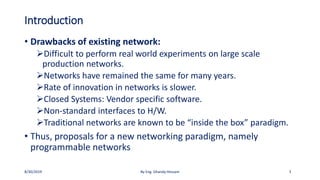

• Drawbacks of existing network:
➢Difficult to perform real world experiments on large scale
production networks.
➢Networks have remained the same for many years.
➢Rate of innovation in networks is slower.
➢Closed Systems: Vendor specific software.
➢Non-standard interfaces to H/W.
➢Traditional networks are known to be “inside the box” paradigm.
• Thus, proposals for a new networking paradigm, namely
programmable networks
8/30/2019 By Eng. Ghandy Hessam 3

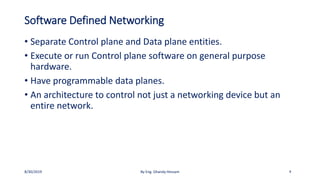

4. Software Defined Networking
• Separate Control plane and Data plane entities.
• Execute or run Control plane software on general purpose
hardware.
• Have programmable data planes.
• An architecture to control not just a networking device but an
entire network.
8/30/2019 By Eng. Ghandy Hessam 4

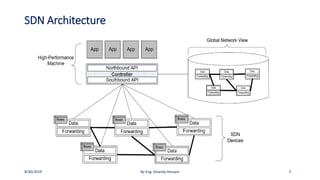

5. SDN Architecture
8/30/2019 By Eng. Ghandy Hessam 5

6. SDN Components: Controller
8/30/2019 By Eng. Ghandy Hessam 6

7. Existing SDN Controller Implementations
 Java-based versions:
 Python-based versions:
8/30/2019 By Eng. Ghandy Hessam 7

8. Controller northbound API
 Data Plane managed via
Network Controller
providing high level
services like:
– Firewall
– Load Balancing
– VPN
– Intrusion Detection
– …
8/30/2019 By Eng. Ghandy Hessam 8

9. SDN Components: OpenFlow Switch
 Plug-in services at the switch
layer
 Filtering traffic based on open
flow rules
 Create a underlay network
 Dynamically reconfigure
network based Events
 The widely known one is:
8/30/2019 By Eng. Ghandy Hessam 9

10. OpenFlow Protocol
 OpenFlow Basics:
❖ Ports and Port Queues
❖ Flow Table
❖ Packet Matching
❖ Actions and Packet
Forwarding
❖ Messaging Between
Controller and Switch
8/30/2019 By Eng. Ghandy Hessam 10

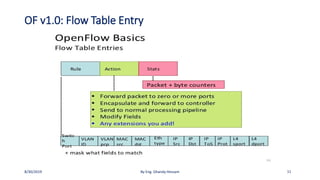

11. OF v1.0: Flow Table Entry
8/30/2019 By Eng. Ghandy Hessam 11

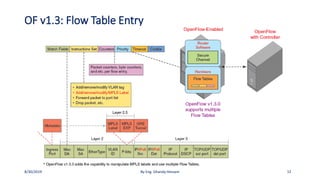

12. OF v1.3: Flow Table Entry
8/30/2019 By Eng. Ghandy Hessam 12

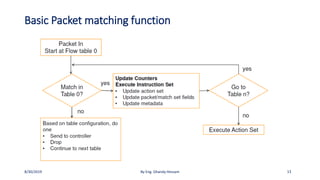

13. Basic Packet matching function
8/30/2019 By Eng. Ghandy Hessam 13

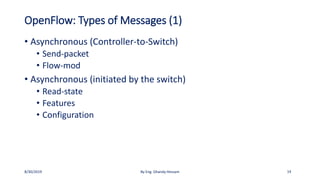

14. OpenFlow: Types of Messages (1)
• Asynchronous (Controller-to-Switch)
• Send-packet
• Flow-mod
• Asynchronous (initiated by the switch)
• Read-state
• Features
• Configuration
8/30/2019 By Eng. Ghandy Hessam 14

15. OpenFlow: Types of Messages (2)
• Asynchronous (initiated by the switch)
• Packet-in
• Flow-removed
• Port-status
• Error
• Symmetric (can be sent in either direction without solicitation)
• Hello
• Echo
• Vendor
8/30/2019 By Eng. Ghandy Hessam 15

16. Dimension of SDN Applications:
Rule installation
Proactive Rules Reactive Rules
Controller (N. O.S.)
Applications
Applications
Applications
Switch H.W
O.S
Controller (N. O.S.)
Applications
Applications
Applications
Switch H.W
O.S
8/30/2019 By Eng. Ghandy Hessam 16

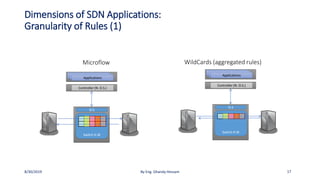

17. Dimensions of SDN Applications:
Granularity of Rules (1)
Microflow WildCards (aggregated rules)
Controller (N. O.S.)
Applications
Applications
Applications
Switch H.W
O.S
Controller (N. O.S.)
Applications
Applications
Applications
Switch H.W
O.S
8/30/2019 By Eng. Ghandy Hessam 17

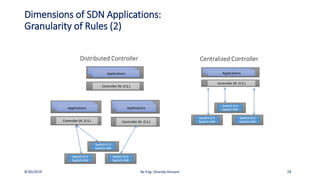

18. Dimensions of SDN Applications:
Granularity of Rules (2)
Distributed Controller Centralized Controller
Controller (N. O.S.)
Applications
Applications
Applications
Switch O.S
Switch HW
Switch O.S
Switch HW
Switch O.S
Switch HW
Controller (N. O.S.)
Applications
Applications
Applications
Switch O.S
Switch HW
Switch O.S
Switch HW
Switch O.S
Switch HW
Controller (N. O.S.)
Applications
Applications
Applications
Controller (N. O.S.)
Applications
Applications
Applications
8/30/2019 By Eng. Ghandy Hessam 18

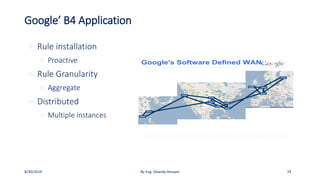

19. Google’ B4 Application
 Rule installation
 Proactive
 Rule Granularity
 Aggregate
 Distributed
 Multiple instances
8/30/2019 By Eng. Ghandy Hessam 19

20. End of Session 5
By Eng. Ghandy Hessam
8/30/2019 20
