Introduction to JavaFX on Raspberry Pi
- 1. Copyright © 2012, Oracle and/or its affiliates. All rights reserved.
Introduction to JavaFX
on Raspberry Pi
Bruno Borges
Oracle Product Manager for Latin America
Java Evangelist
bit.ly/javafxraspberrypij1
- 2. Copyright © 2012, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 132
Bruno Borges
Oracle Product Manager / Evangelist
Developer, Gamer, Beer lover
JavaFX / Embedded Enthusiast
Twitter: @brunoborges
- 3. Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

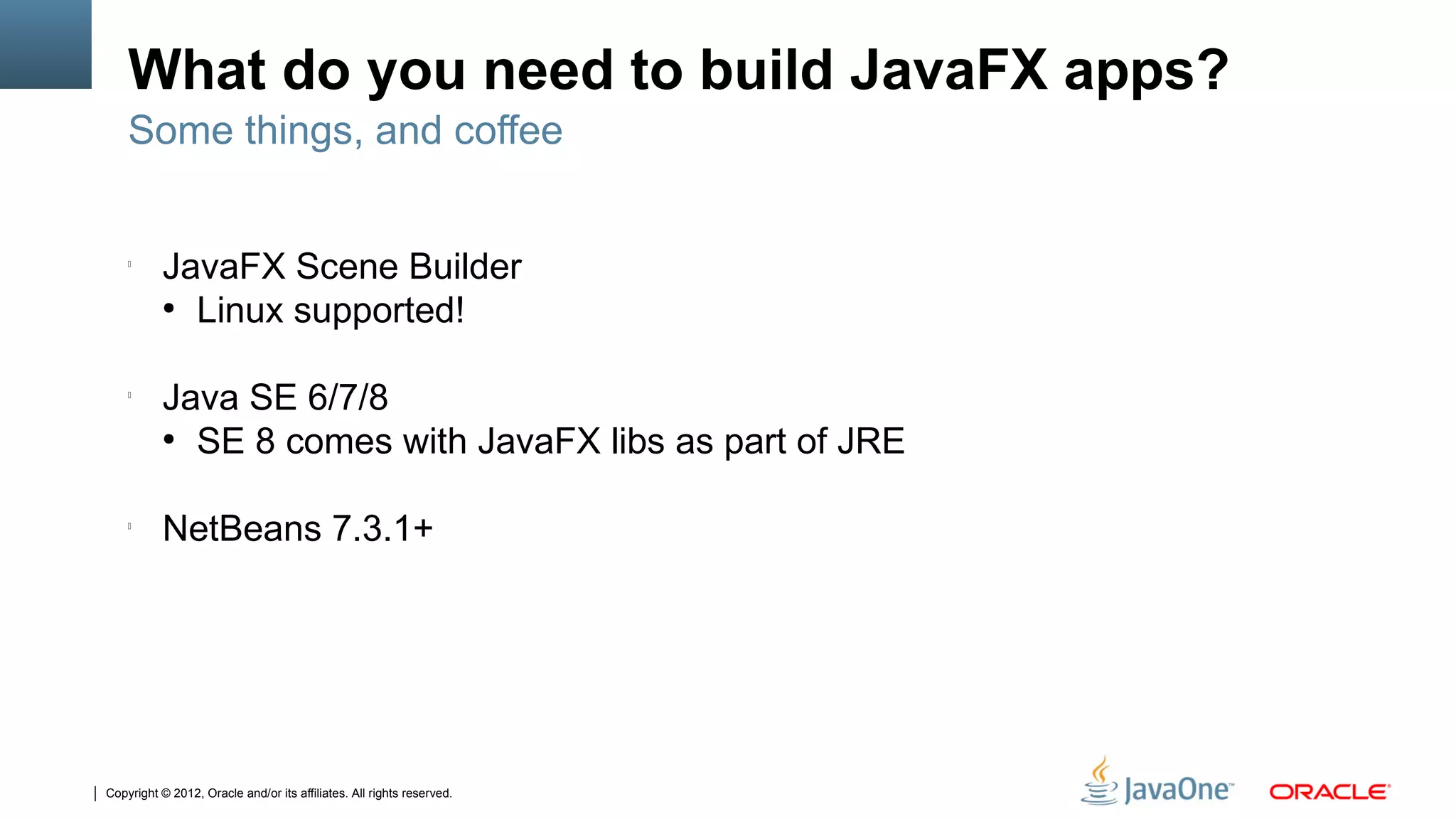

What do you need to build JavaFX apps?
JavaFX Scene Builder
●
Linux supported!
Java SE 6/7/8
●
SE 8 comes with JavaFX libs as part of JRE
NetBeans 7.3.1+
Some things, and coffee
- 4. Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

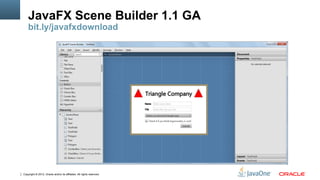

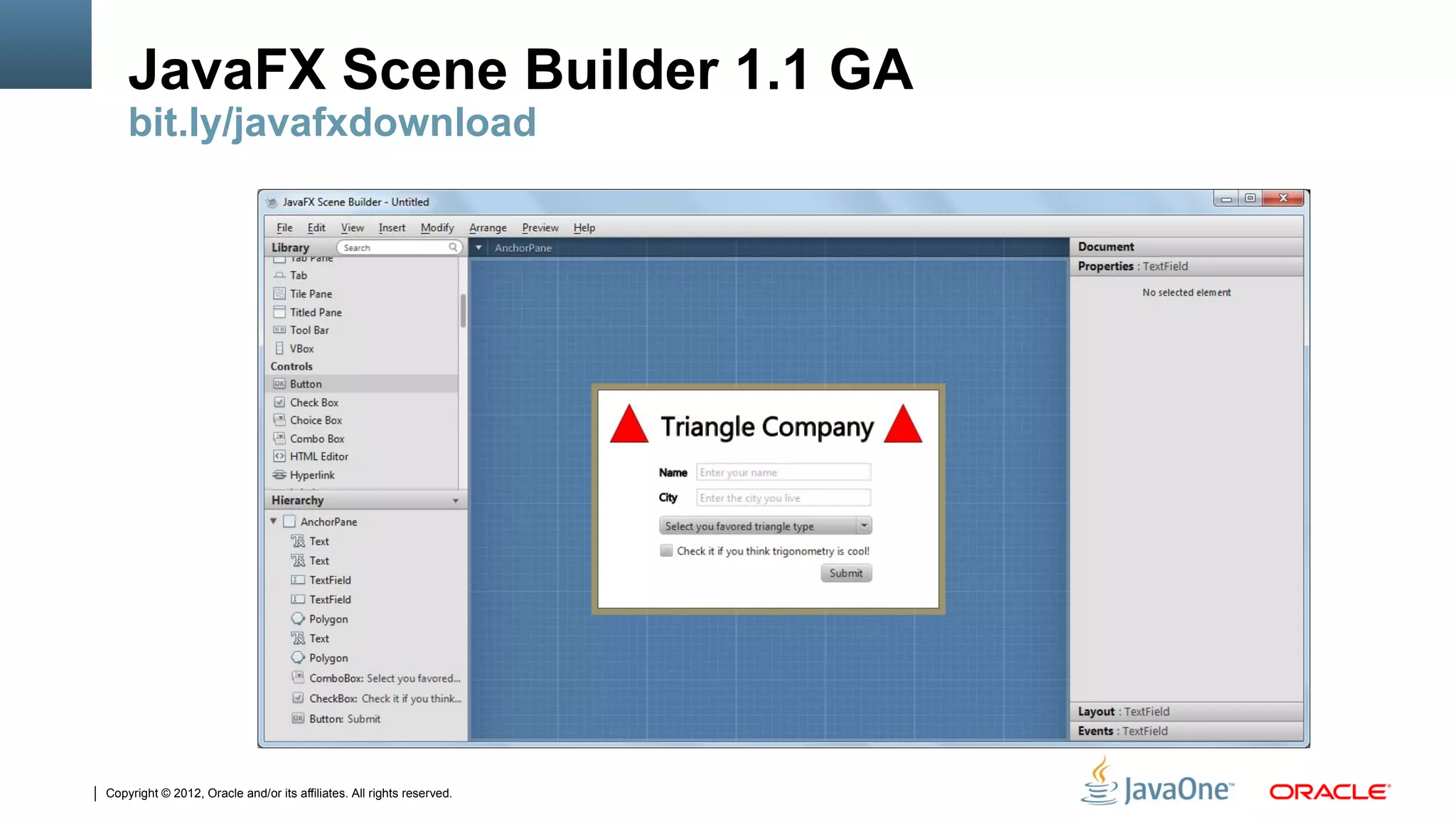

JavaFX Scene Builder 1.1 GA
bit.ly/javafxdownload
- 5. Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

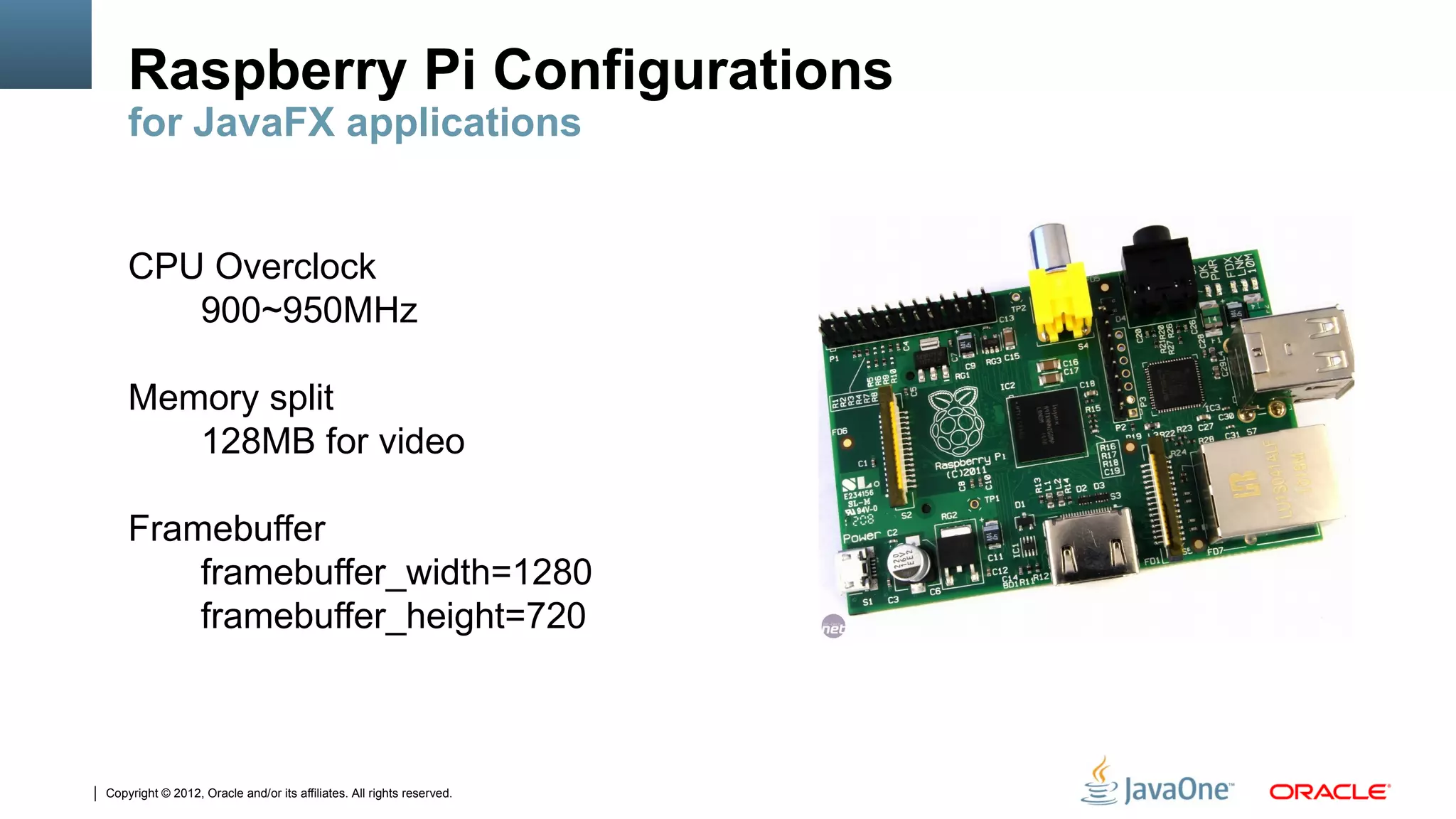

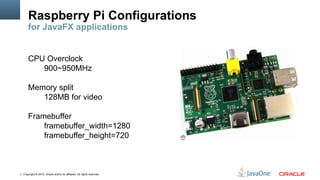

Raspberry Pi Configurations
for JavaFX applications
CPU Overclock
900~950MHz
Memory split
128MB for video
Framebuffer
framebuffer_width=1280
framebuffer_height=720
- 6. Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

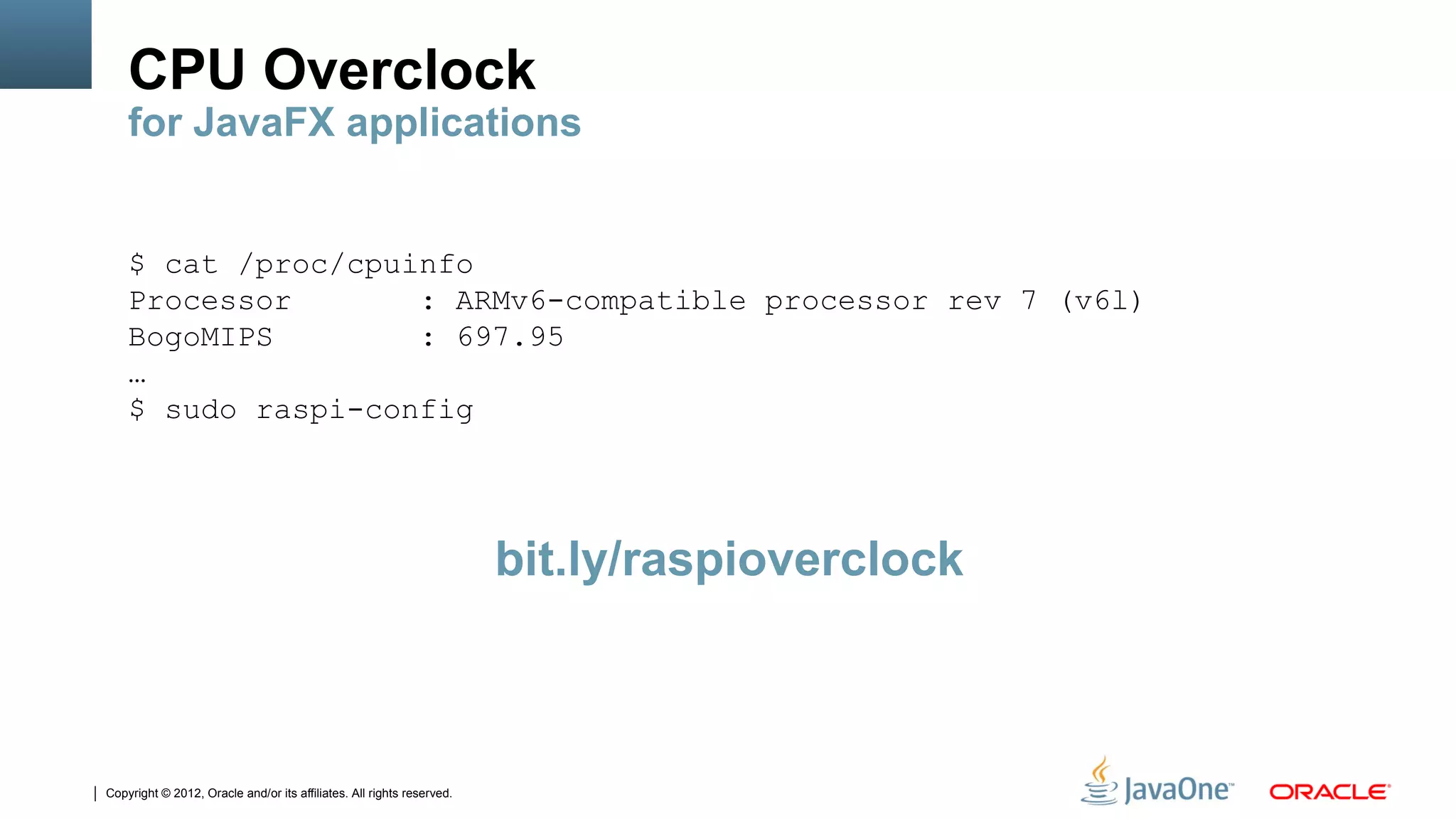

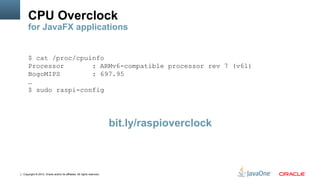

CPU Overclock
for JavaFX applications
$ cat /proc/cpuinfo
Processor : ARMv6-compatible processor rev 7 (v6l)
BogoMIPS : 697.95
…
$ sudo raspi-config
bit.ly/raspioverclock

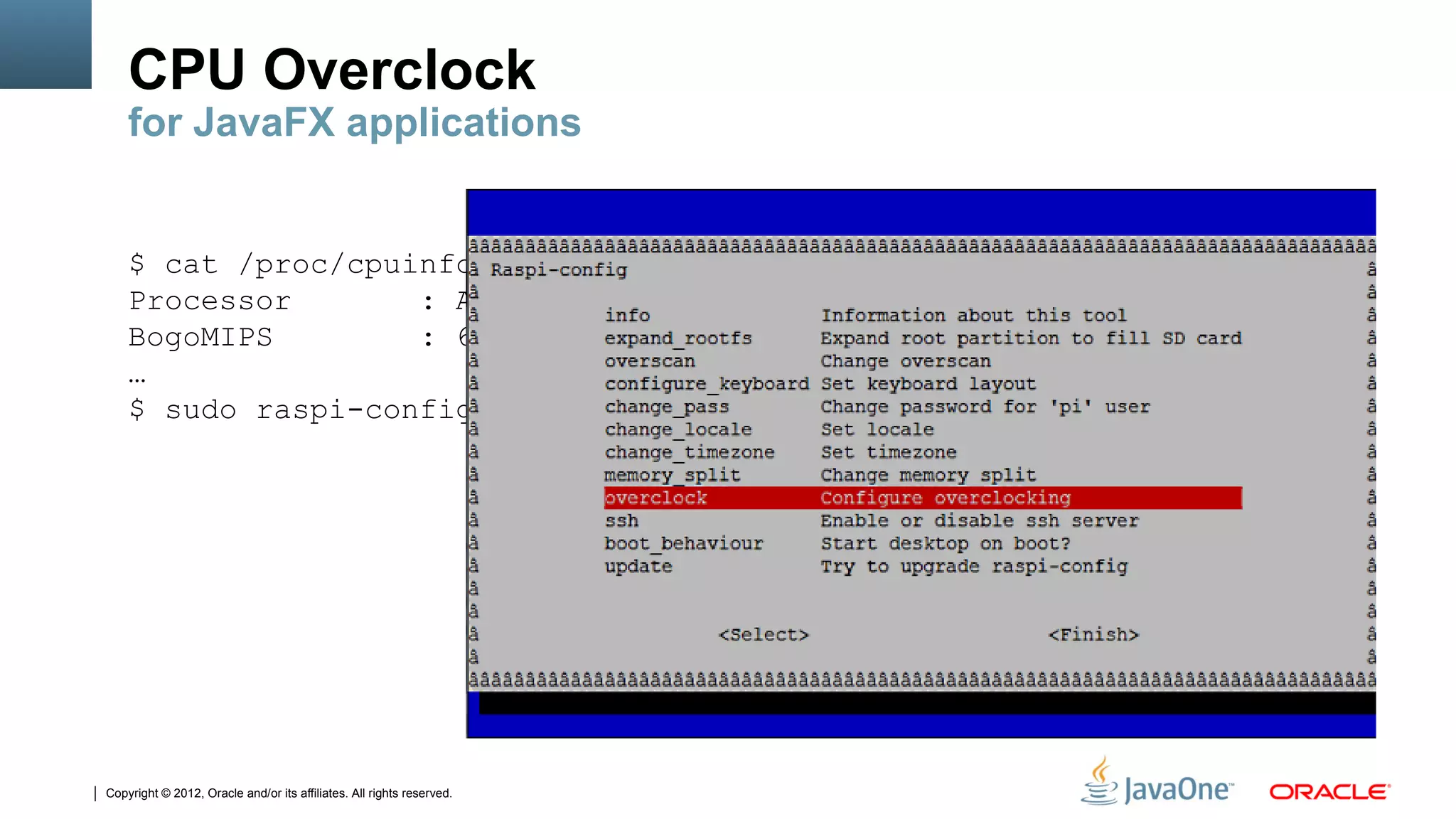

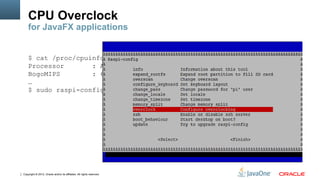

- 7. Copyright © 2012, Oracle and/or its affiliates. All rights reserved.
CPU Overclock
for JavaFX applications
$ cat /proc/cpuinfo
Processor : ARMv6-compatible processor rev 7 (v6l)
BogoMIPS : 697.95
…
$ sudo raspi-config
- 8. Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

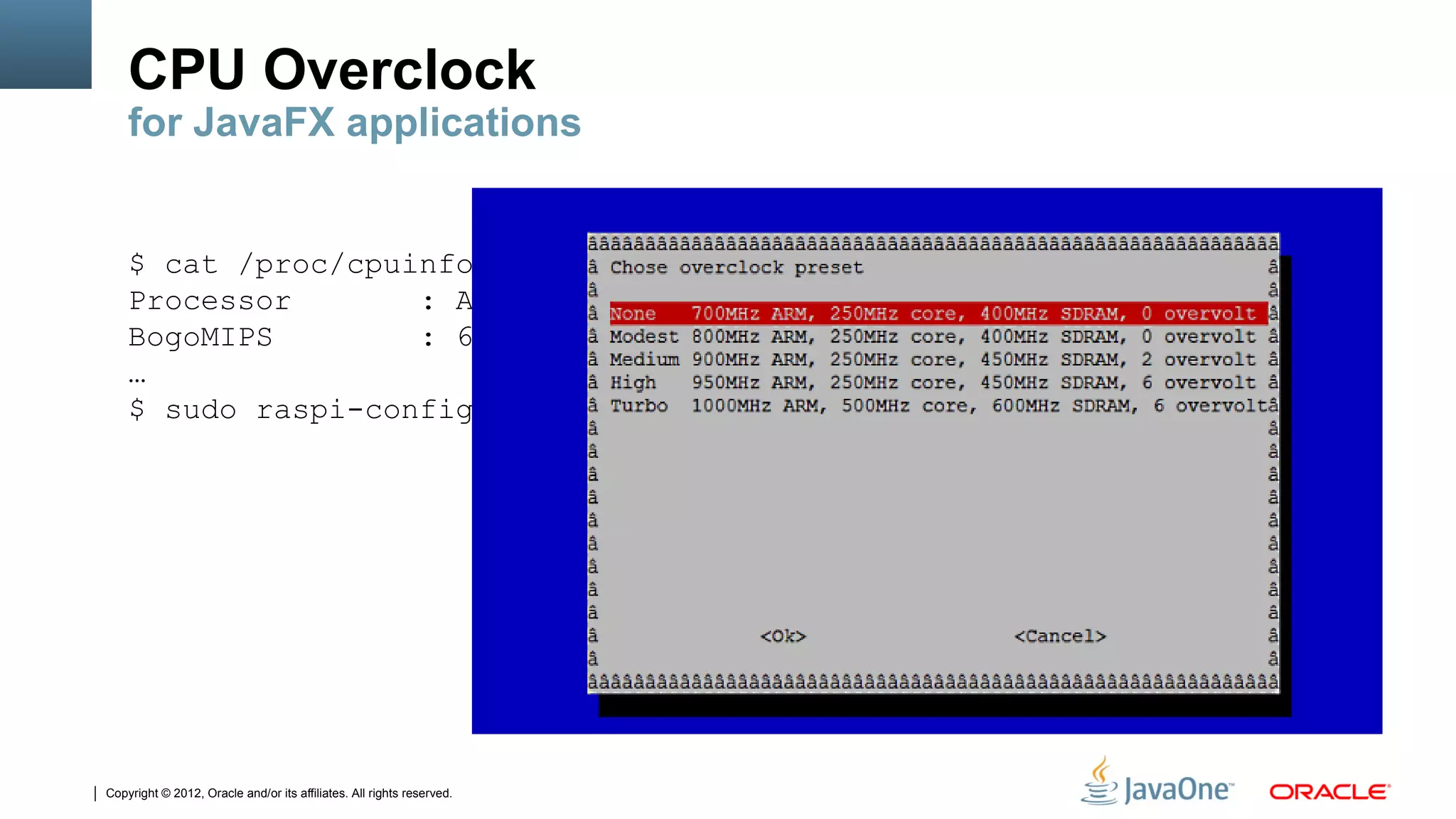

CPU Overclock
for JavaFX applications
$ cat /proc/cpuinfo
Processor : ARMv6-compatible processor rev 7 (v6l)
BogoMIPS : 697.95
…
$ sudo raspi-config
- 9. Copyright © 2012, Oracle and/or its affiliates. All rights reserved.
Memory Split
for JavaFX applications
128mb best
performance
64mb may work
$ sudo raspi-config

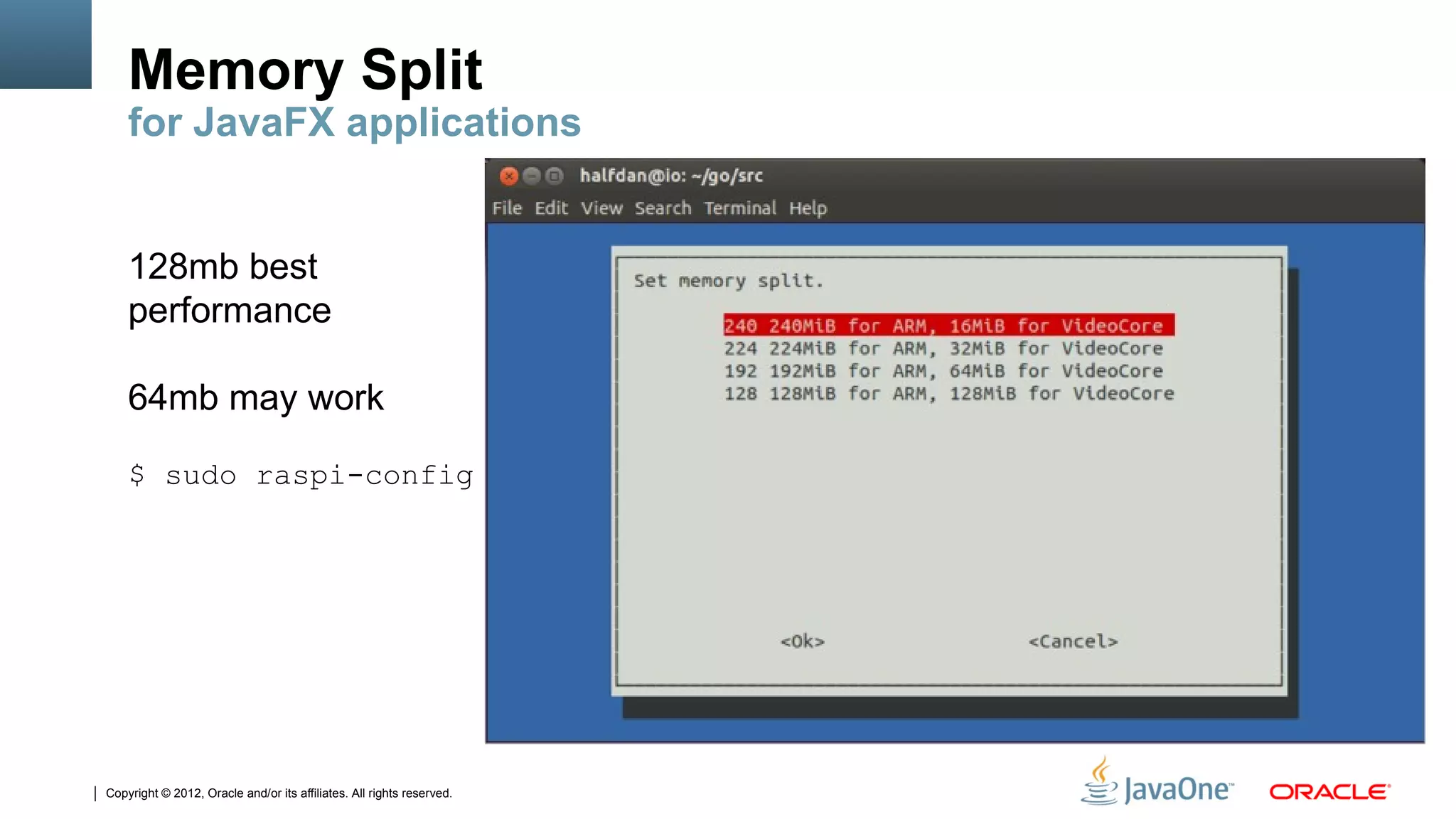

- 10. Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

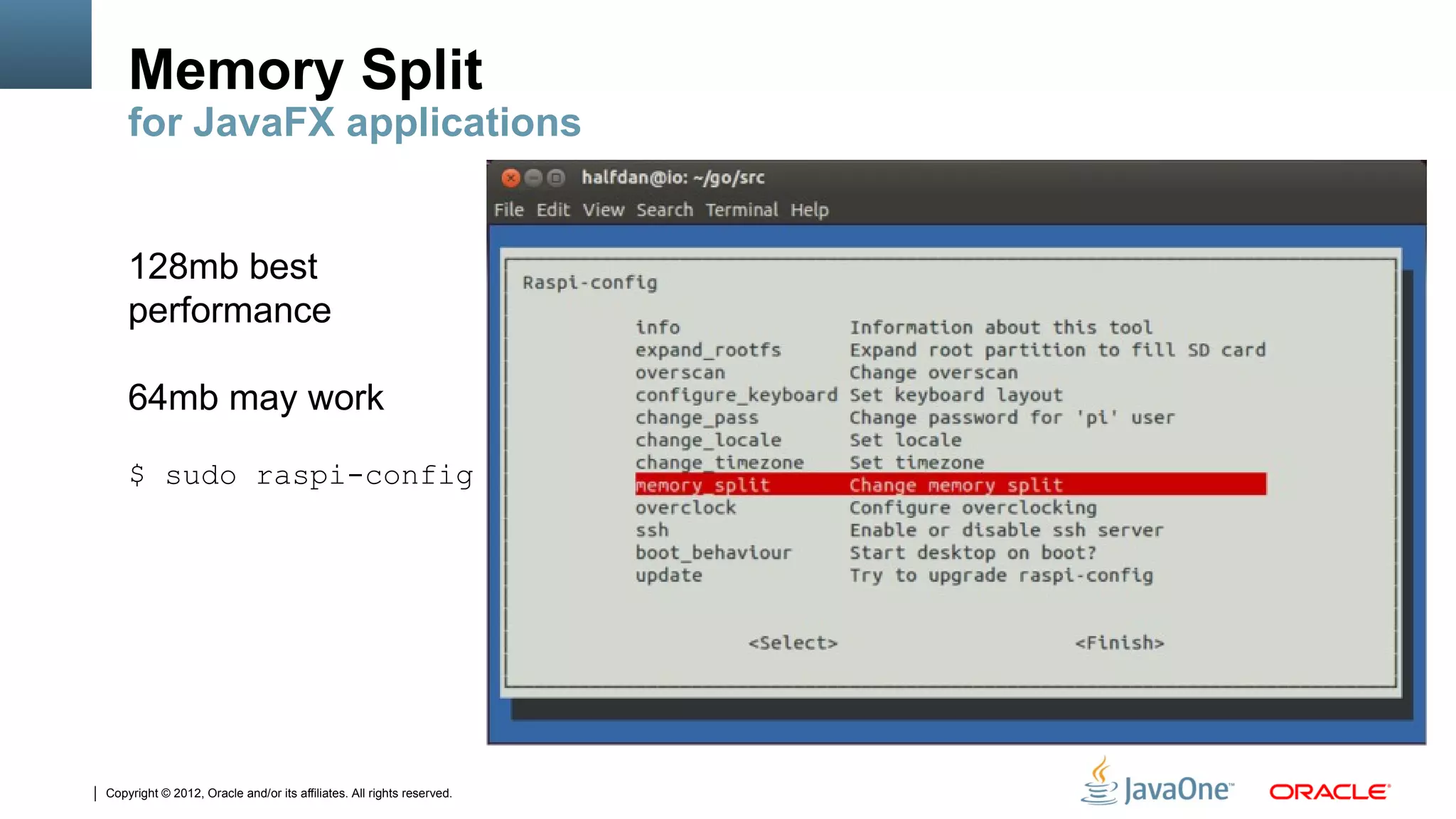

Memory Split
for JavaFX applications
128mb best
performance
64mb may work
$ sudo raspi-config
- 11. Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

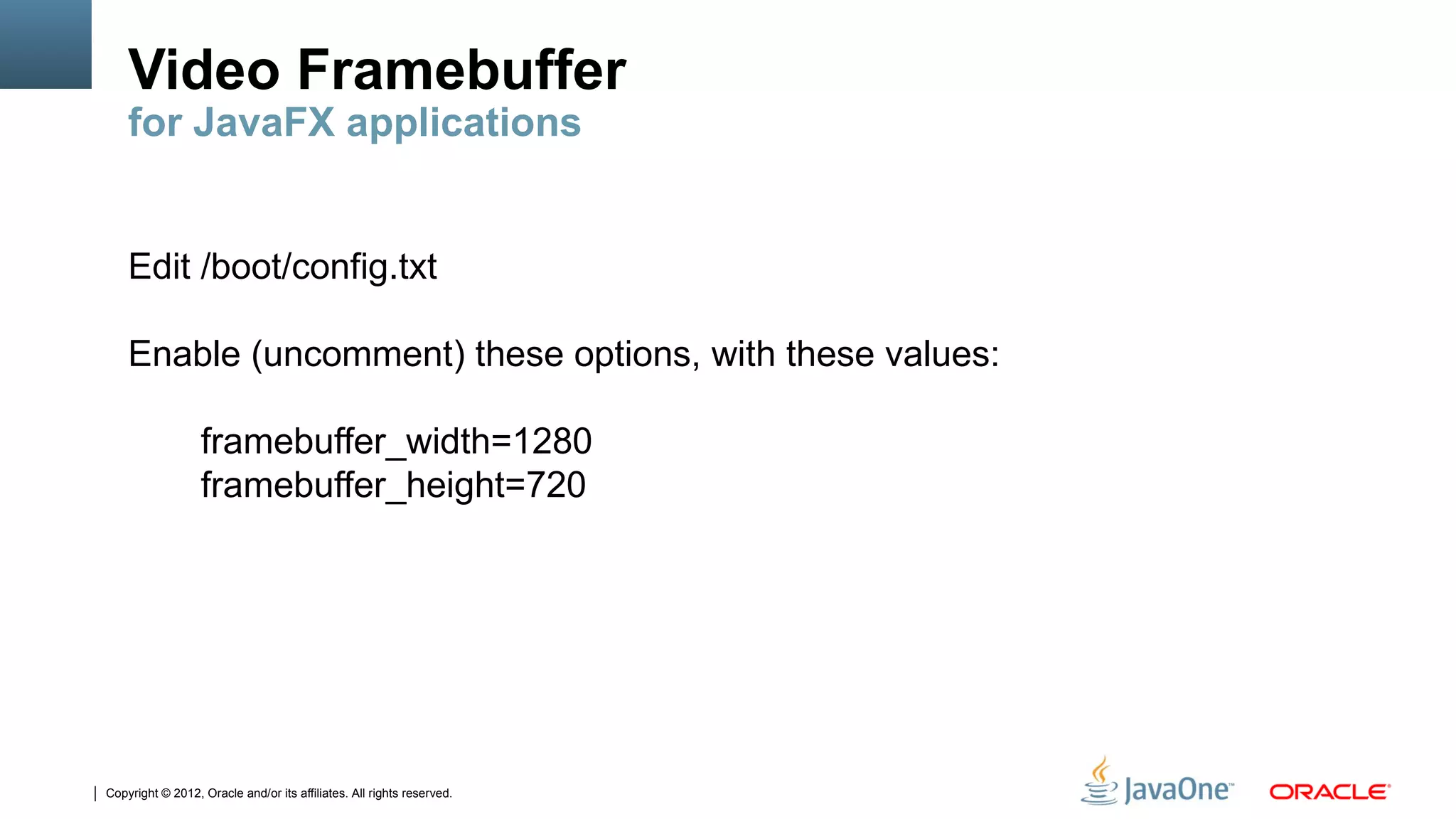

Video Framebuffer
for JavaFX applications
Edit /boot/config.txt
Enable (uncomment) these options, with these values:
framebuffer_width=1280
framebuffer_height=720
- 12. Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

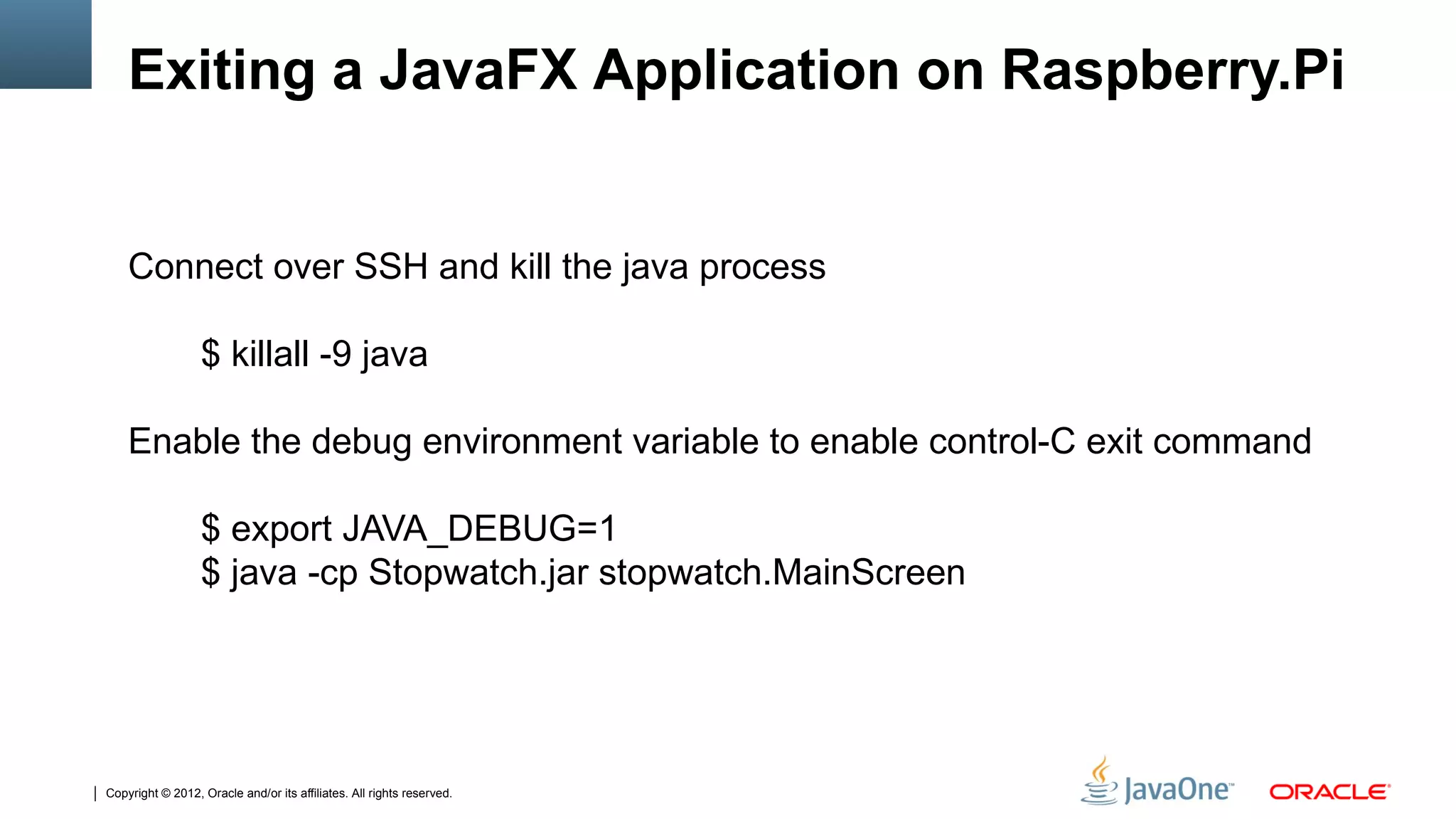

Exiting a JavaFX Application on Raspberry.Pi
Connect over SSH and kill the java process
$ killall -9 java
Enable the debug environment variable to enable control-C exit command
$ export JAVA_DEBUG=1
$ java -cp Stopwatch.jar stopwatch.MainScreen
- 13. Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

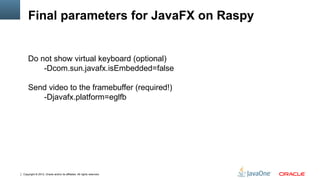

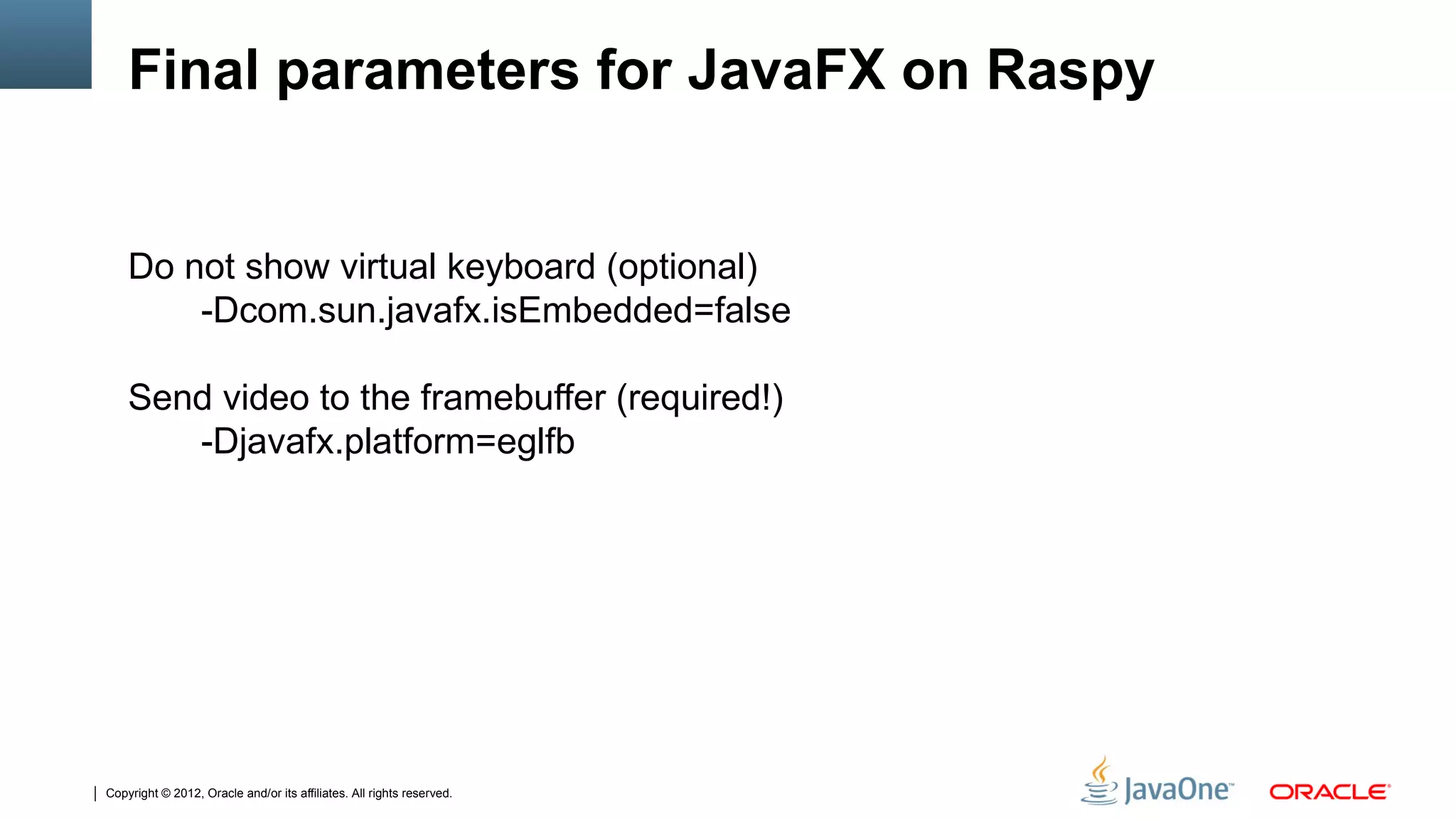

Final parameters for JavaFX on Raspy
Do not show virtual keyboard (optional)
-Dcom.sun.javafx.isEmbedded=false
Send video to the framebuffer (required!)
-Djavafx.platform=eglfb
- 14. Copyright © 2012, Oracle and/or its affiliates. All rights reserved.
Building Your 1st
JavaFX App
- 15. Copyright © 2012, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 1315

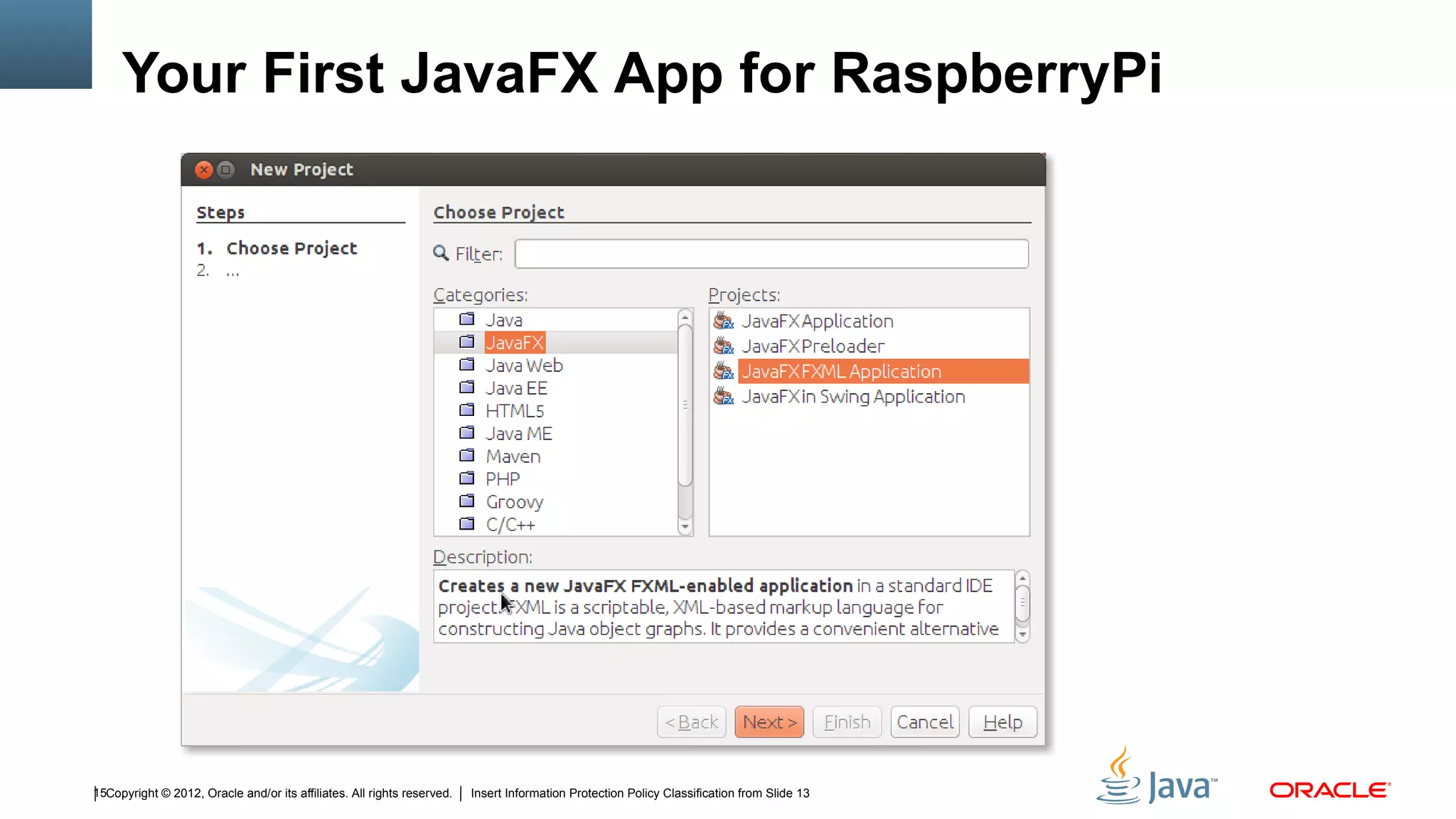

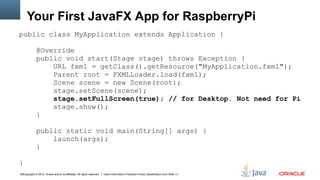

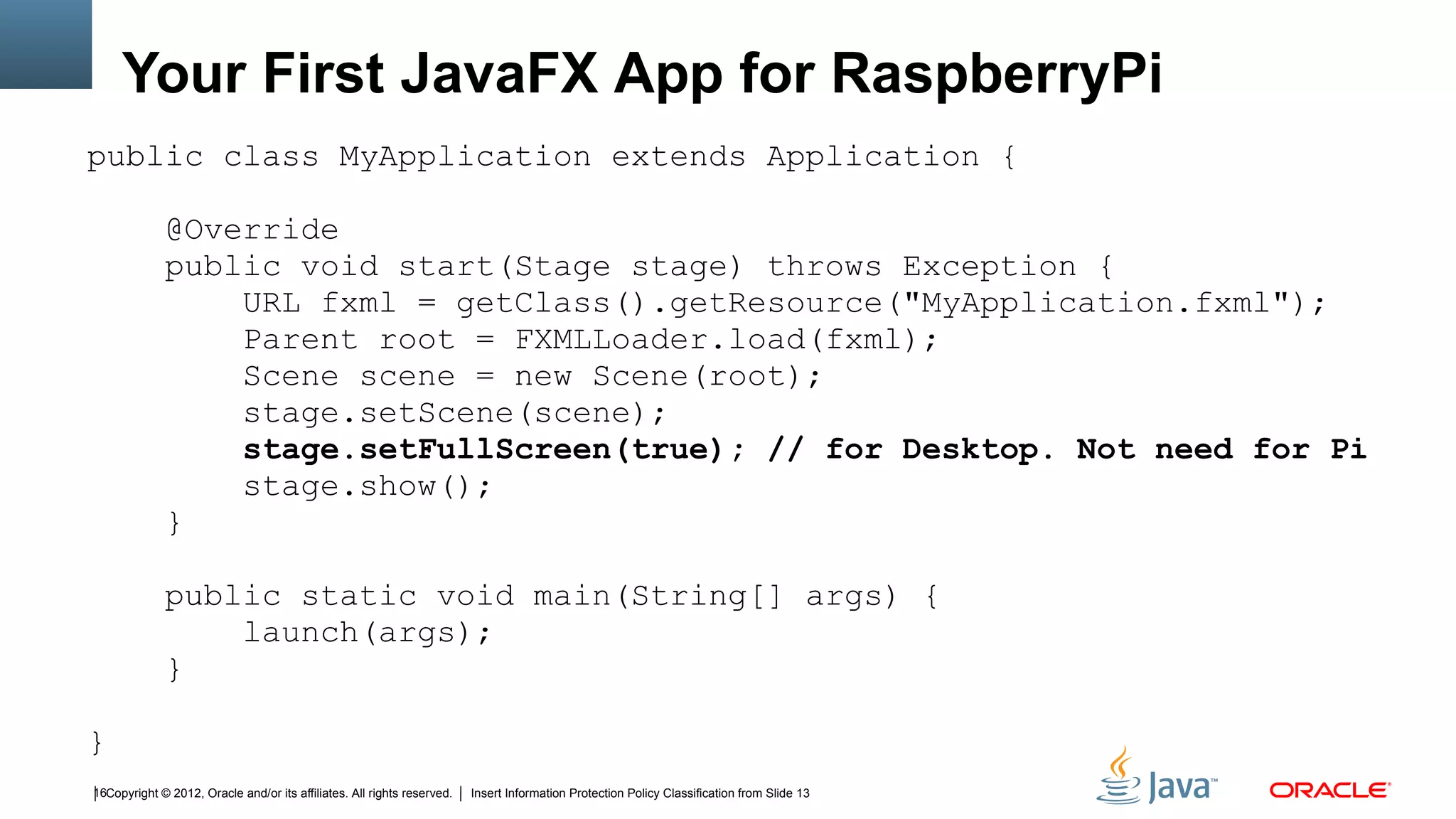

Your First JavaFX App for RaspberryPi
- 16. Copyright © 2012, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 1316
Your First JavaFX App for RaspberryPi
public class MyApplication extends Application {
@Override
public void start(Stage stage) throws Exception {
URL fxml = getClass().getResource("MyApplication.fxml");
Parent root = FXMLLoader.load(fxml);
Scene scene = new Scene(root);
stage.setScene(scene);
stage.setFullScreen(true); // for Desktop. Not need for Pi
stage.show();
}
public static void main(String[] args) {
launch(args);
}
}
- 17. Copyright © 2012, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 1317
Properties
// JavaFX
DoubleProperty value = new SimpleDoubleProperty(0);
public double getValue() {
return value.get();
}
public void setValue(double newValue){
value.set(newValue);
}
public DoubleProperty valueProperty() {
return value;
}
- 18. Copyright © 2012, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 1318

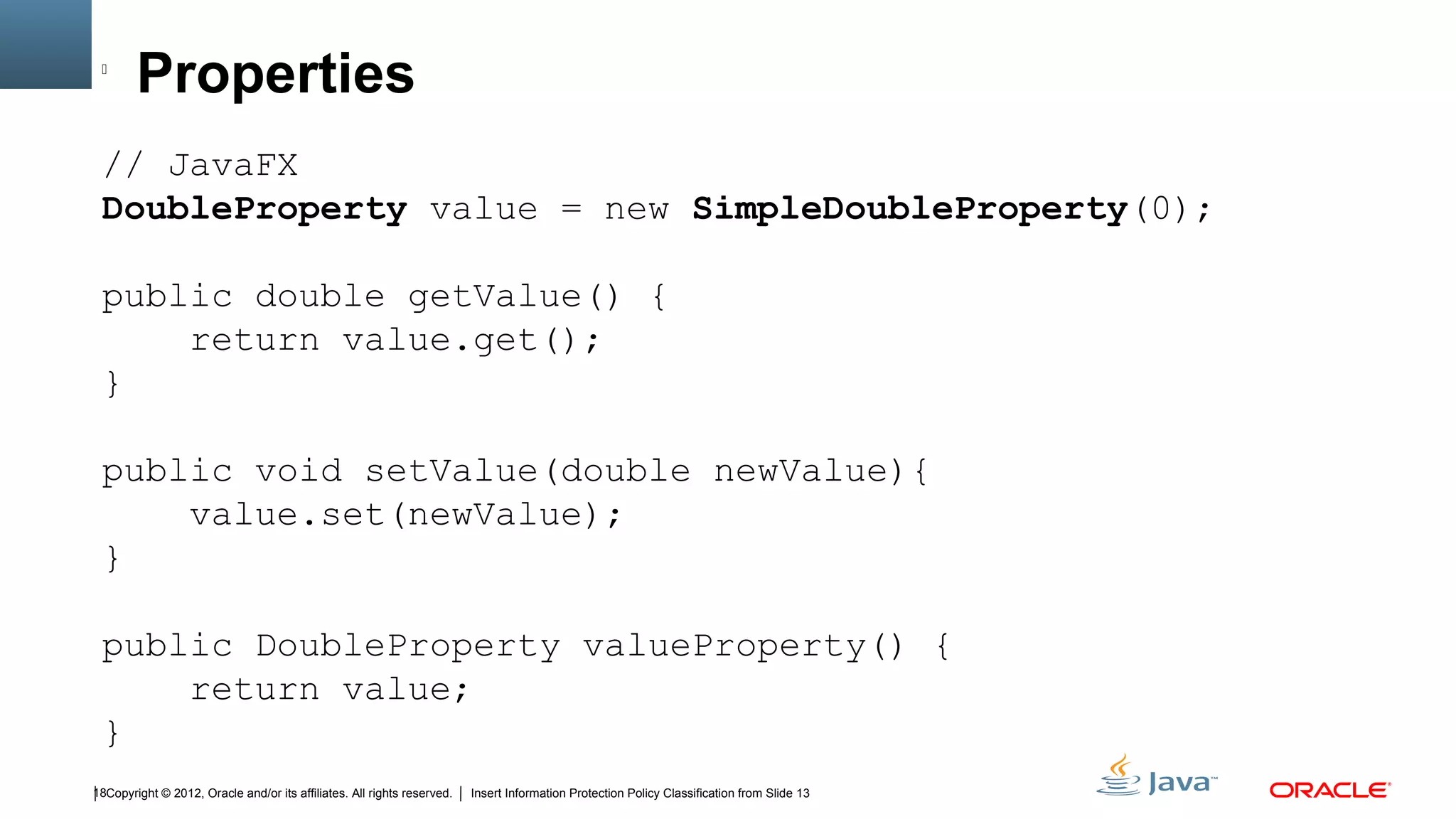

Properties
// JavaFX
DoubleProperty value = new SimpleDoubleProperty(0);
public double getValue() {
return value.get();
}
public void setValue(double newValue){
value.set(newValue);
}
public DoubleProperty valueProperty() {
return value;
}
- 19. Copyright © 2012, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 1319
Bindings
Binding unidirecional
●
bind();
Binding bi-direcional
●
bindBidirectional();
- 20. Copyright © 2012, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 1320

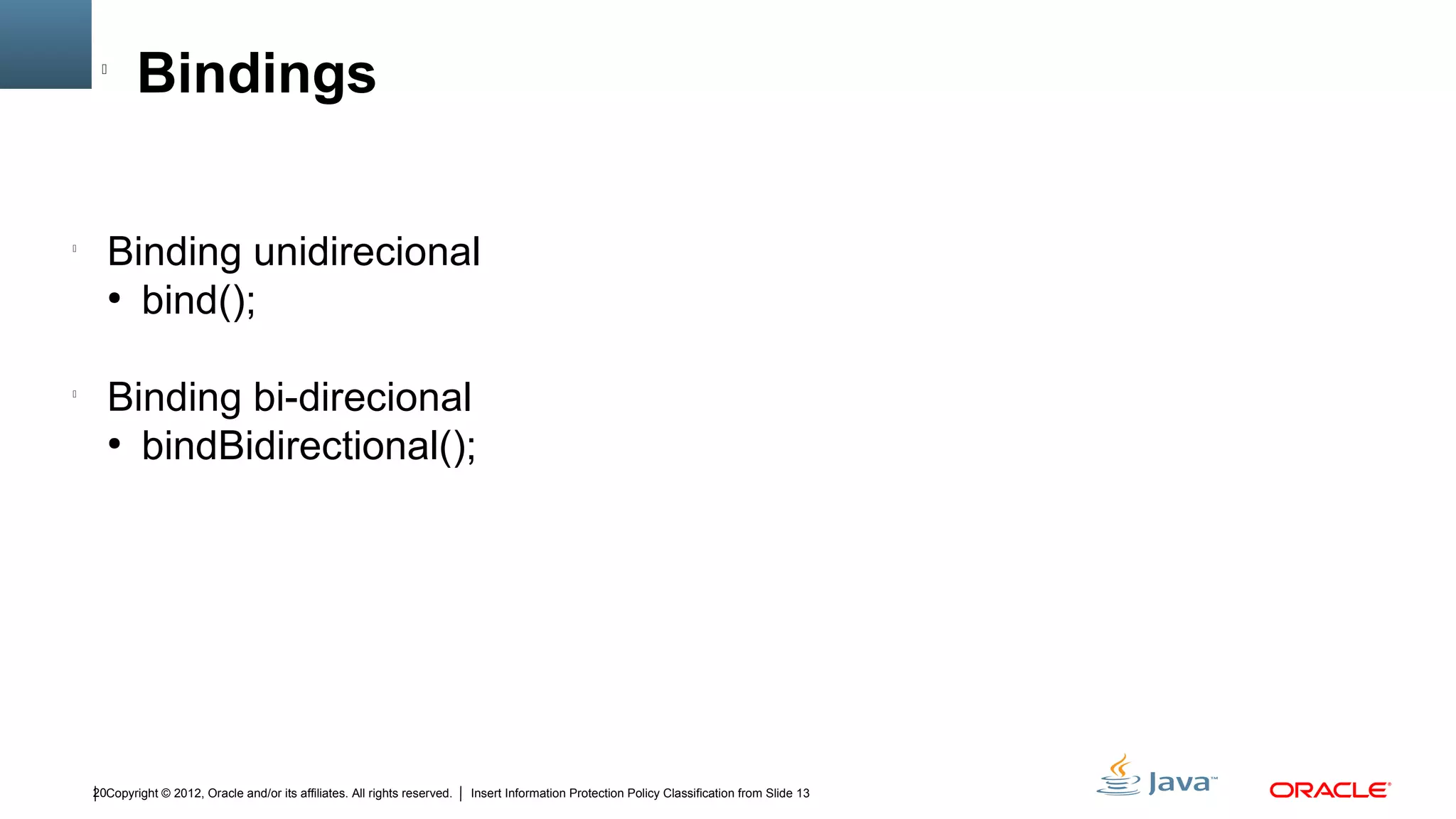

Bindings
Binding unidirecional
●
bind();
Binding bi-direcional
●
bindBidirectional();
- 21. Copyright © 2012, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 1321

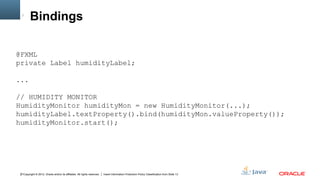

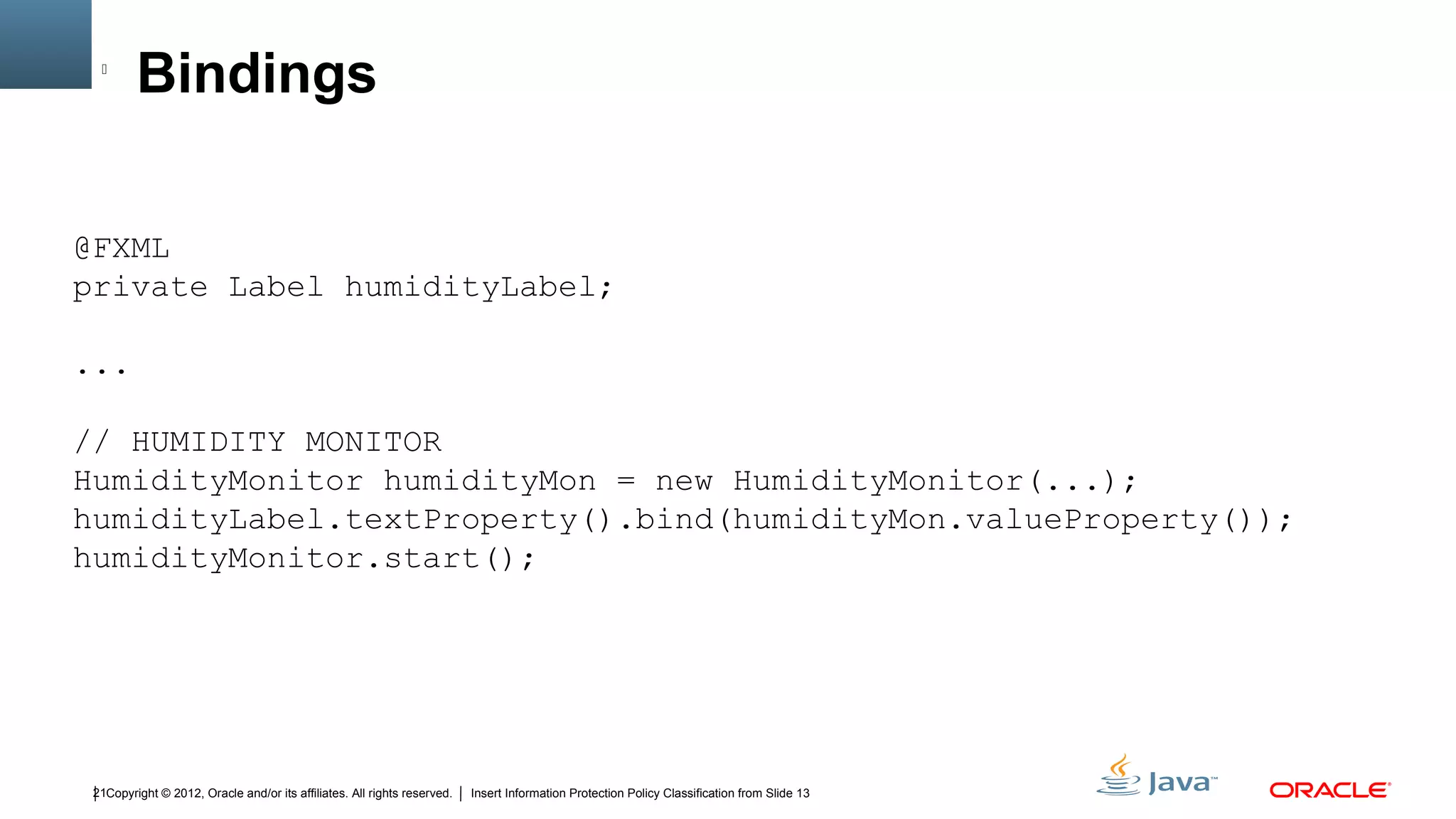

Bindings
@FXML
private Label humidityLabel;
...
// HUMIDITY MONITOR
HumidityMonitor humidityMon = new HumidityMonitor(...);
humidityLabel.textProperty().bind(humidityMon.valueProperty());
humidityMonitor.start();
- 22. Copyright © 2012, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 1322

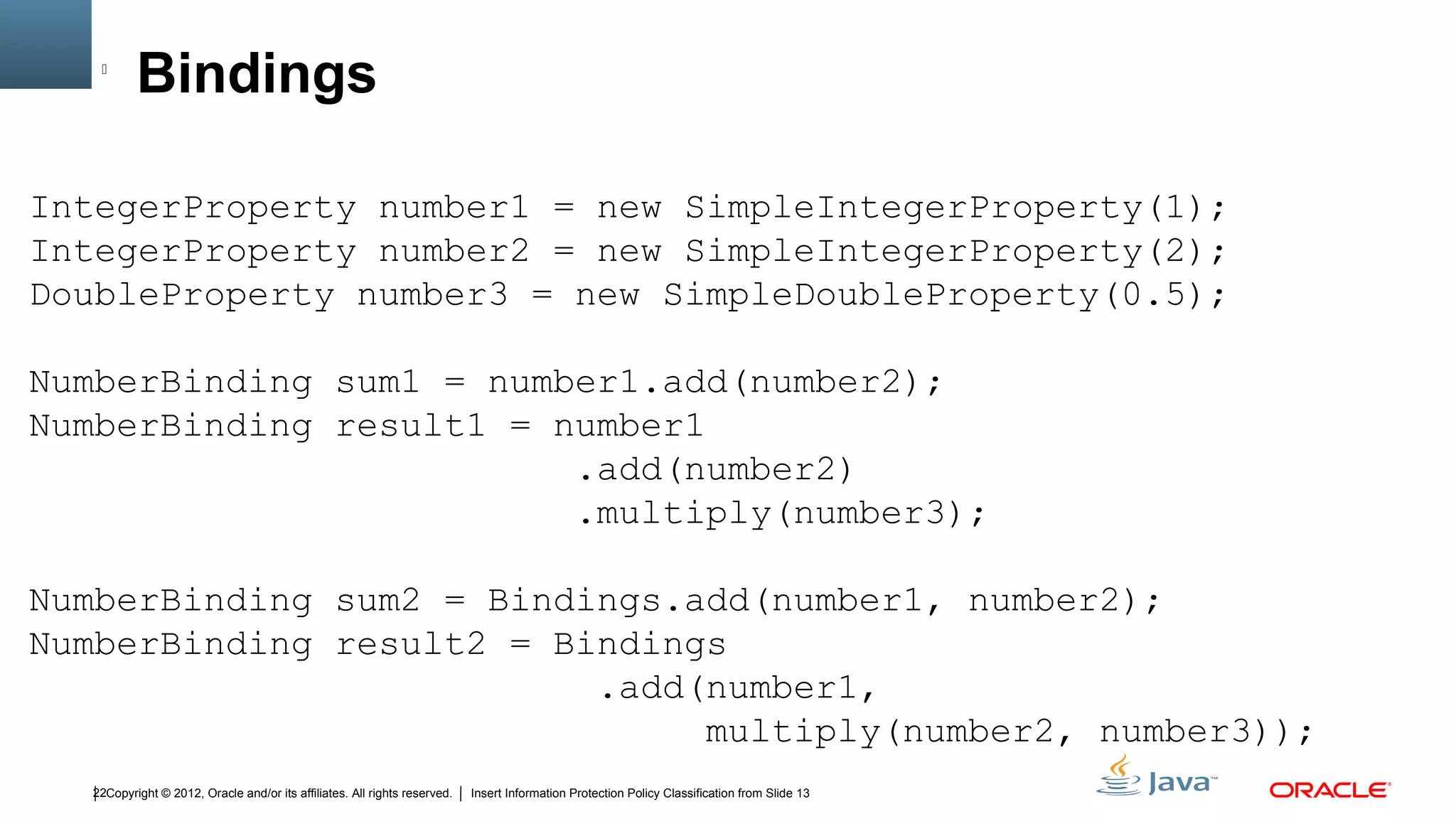

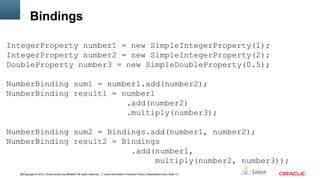

Bindings
IntegerProperty number1 = new SimpleIntegerProperty(1);
IntegerProperty number2 = new SimpleIntegerProperty(2);
DoubleProperty number3 = new SimpleDoubleProperty(0.5);
NumberBinding sum1 = number1.add(number2);
NumberBinding result1 = number1
.add(number2)
.multiply(number3);
NumberBinding sum2 = Bindings.add(number1, number2);
NumberBinding result2 = Bindings
.add(number1,
multiply(number2, number3));
- 23. Copyright © 2012, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 1323

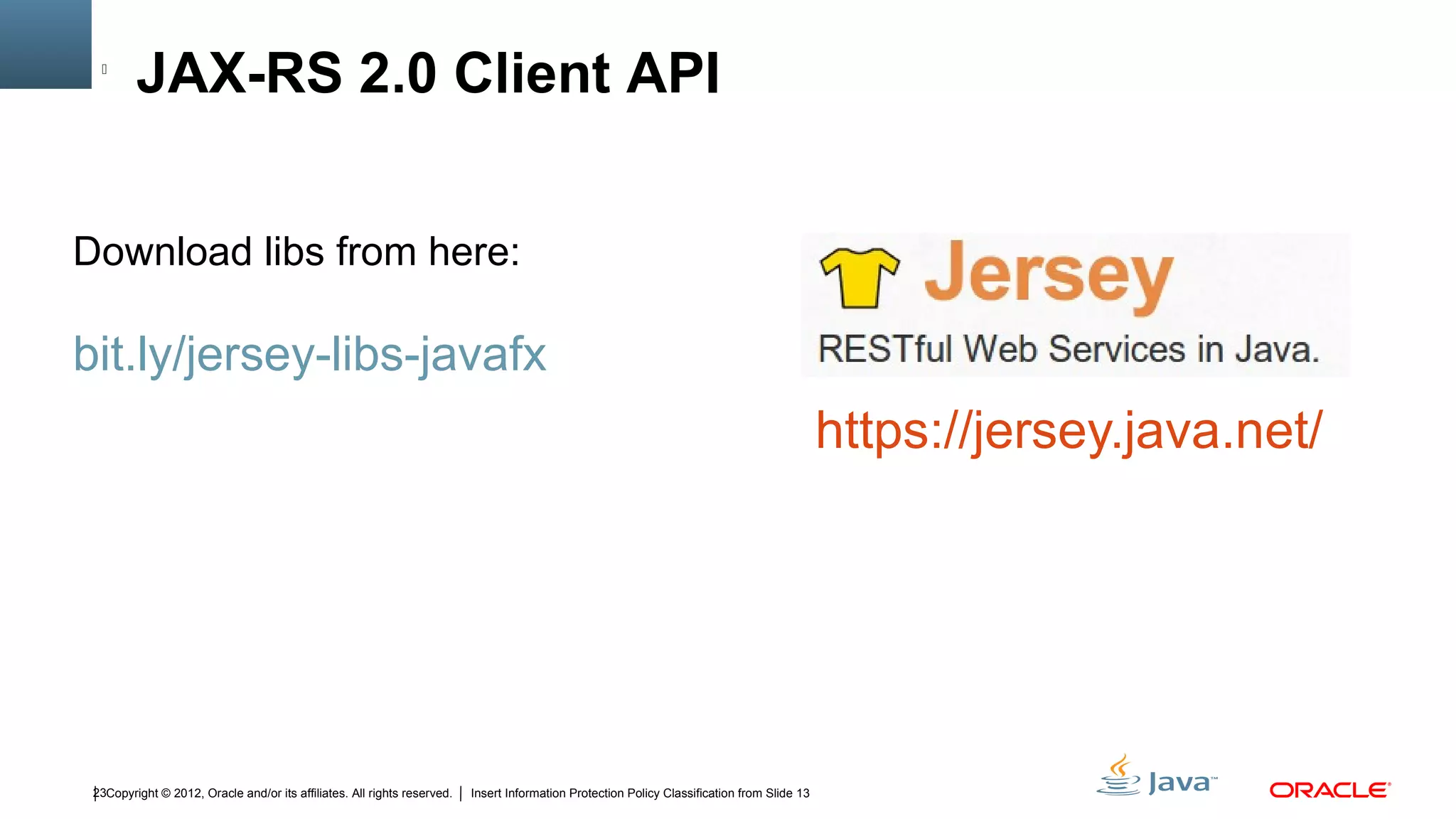

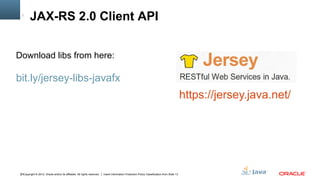

JAX-RS 2.0 Client API
Download libs from here:
bit.ly/jersey-libs-javafx
https://jersey.java.net/
- 24. Copyright © 2012, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 1324

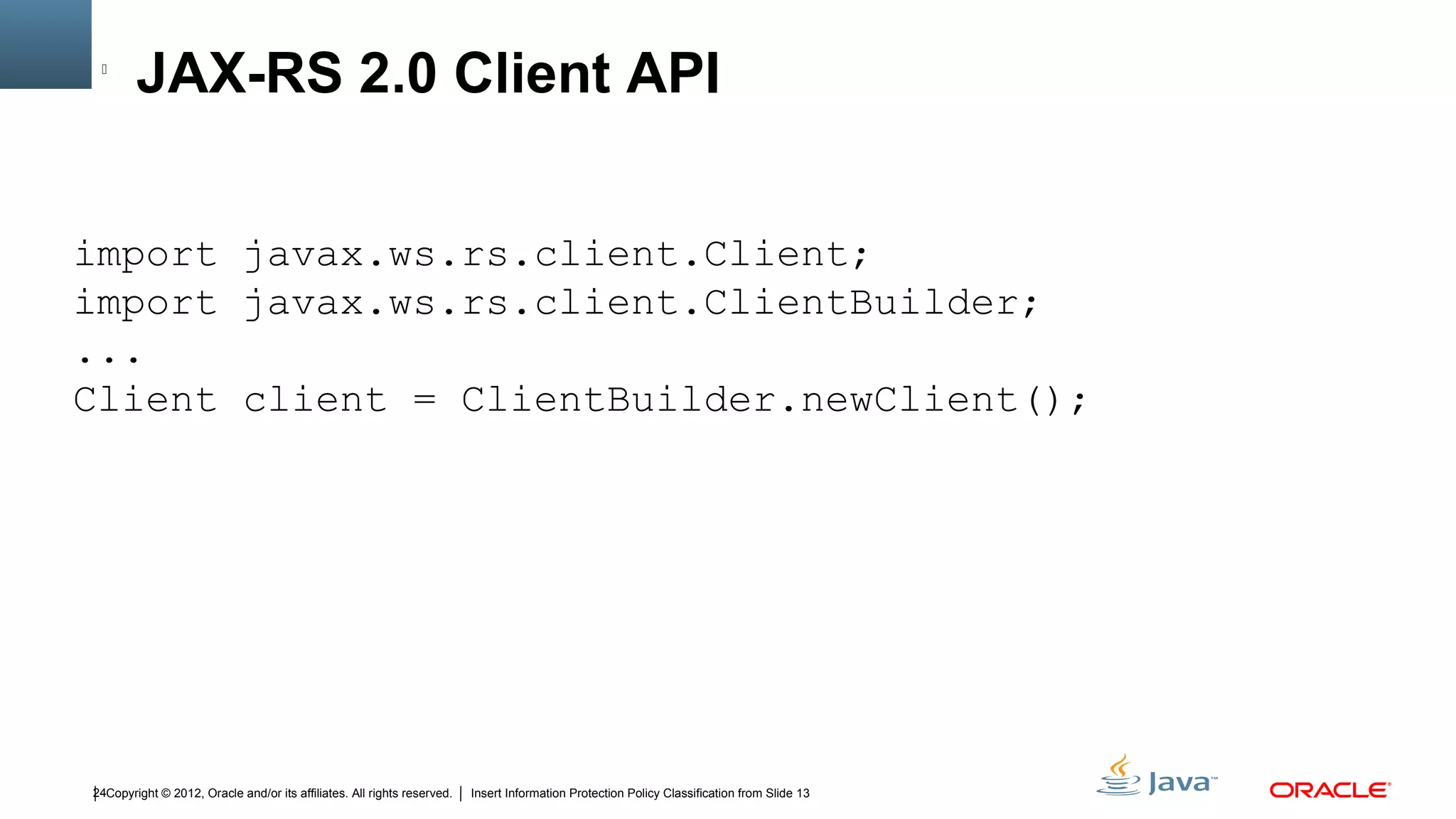

JAX-RS 2.0 Client API
import javax.ws.rs.client.Client;
import javax.ws.rs.client.ClientBuilder;
...
Client client = ClientBuilder.newClient();
- 25. Copyright © 2012, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 1325

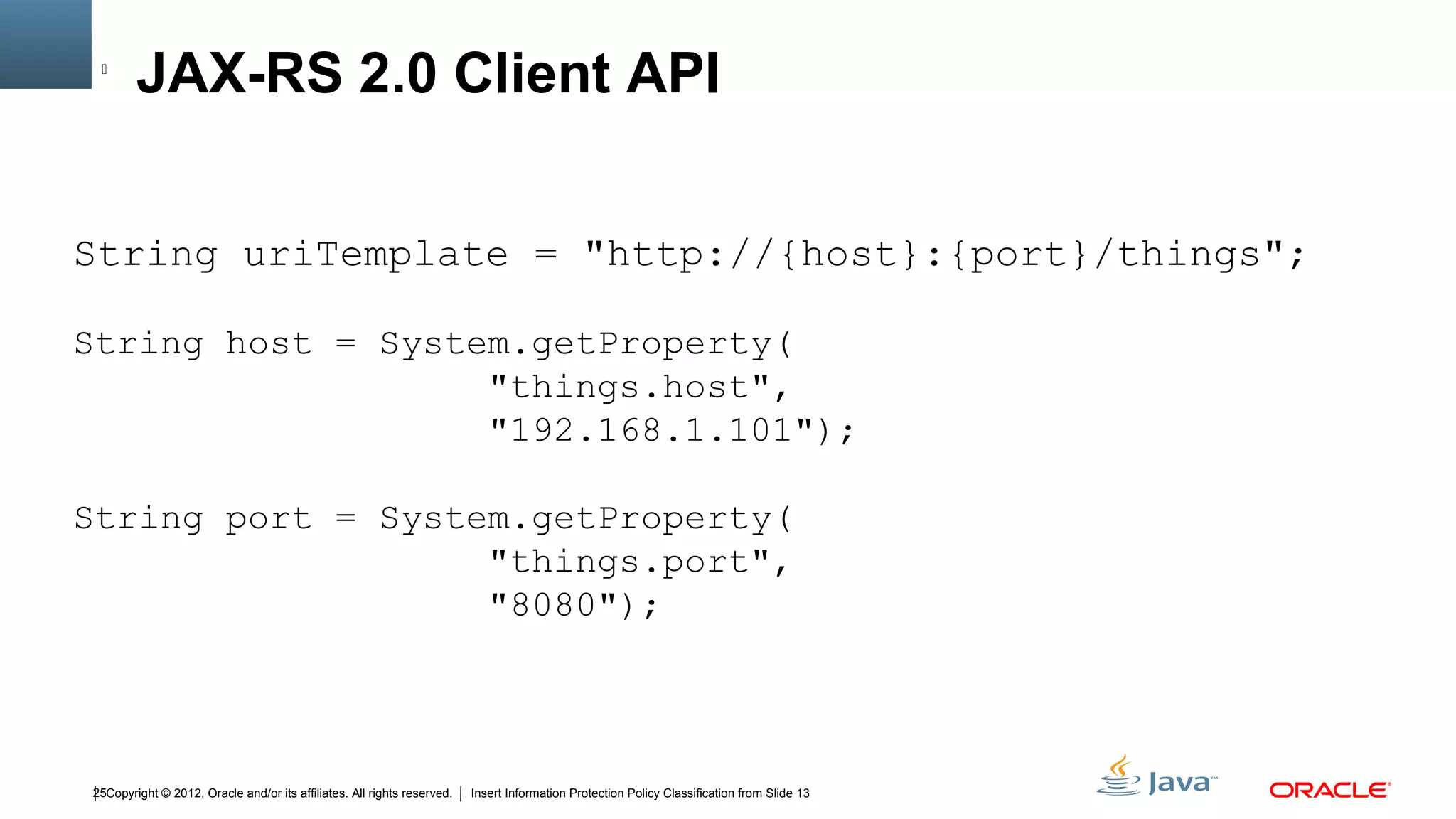

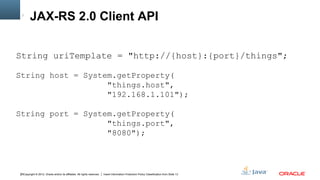

JAX-RS 2.0 Client API
String uriTemplate = "http://{host}:{port}/things";
String host = System.getProperty(
"things.host",
"192.168.1.101");
String port = System.getProperty(
"things.port",
"8080");
- 26. Copyright © 2012, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 1326

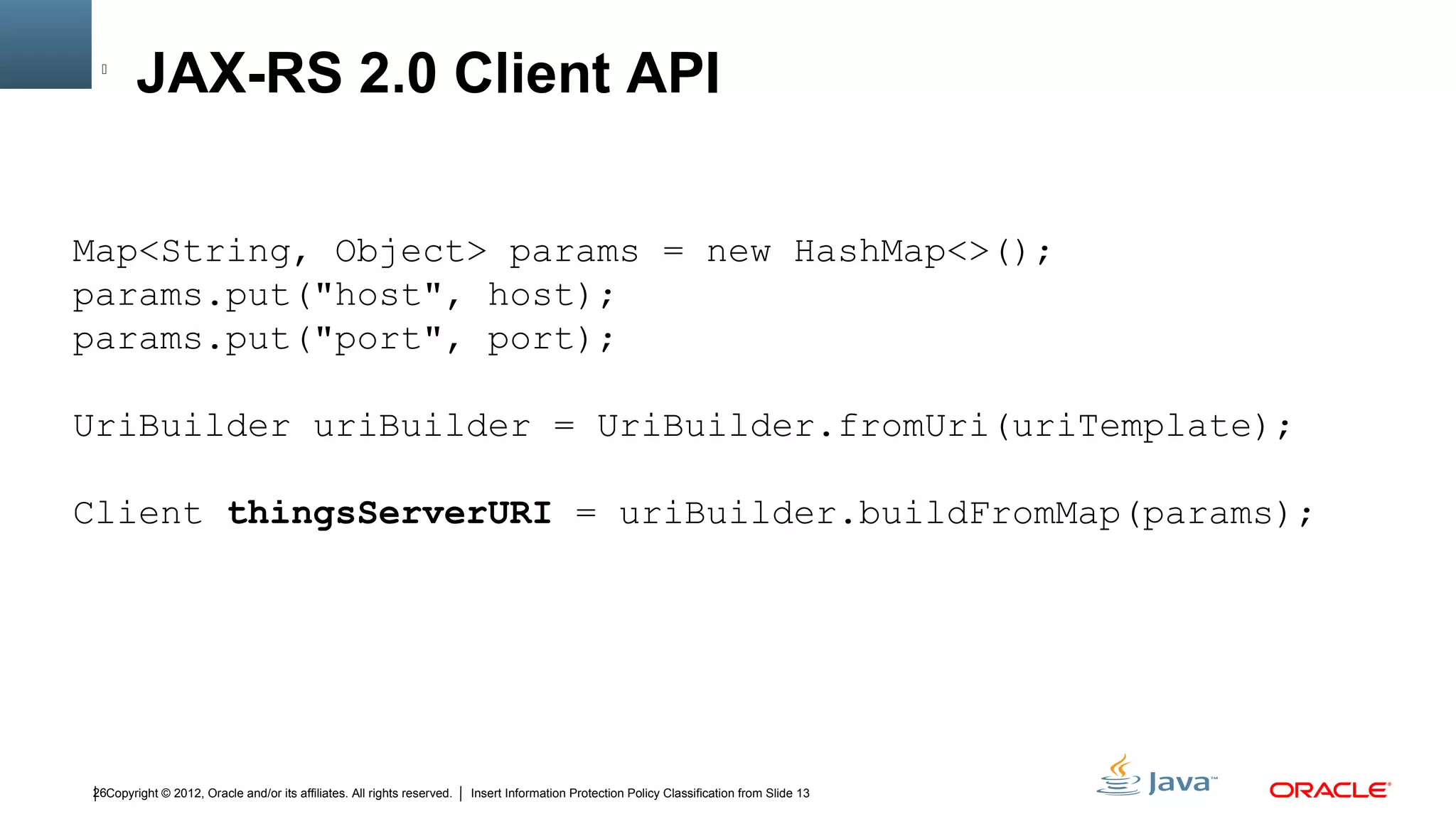

JAX-RS 2.0 Client API
Map<String, Object> params = new HashMap<>();
params.put("host", host);
params.put("port", port);
UriBuilder uriBuilder = UriBuilder.fromUri(uriTemplate);
Client thingsServerURI = uriBuilder.buildFromMap(params);
- 27. Copyright © 2012, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 1327

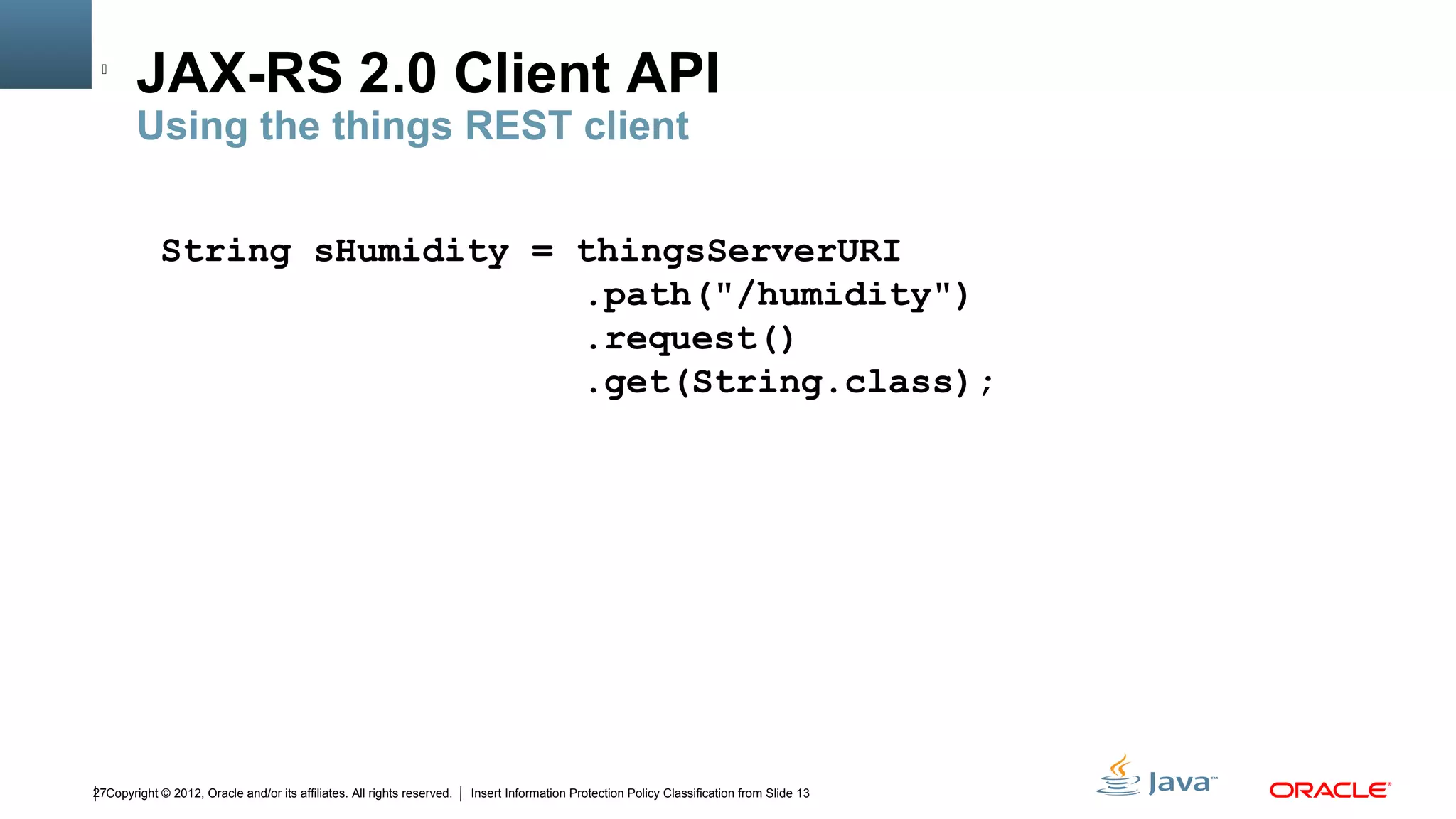

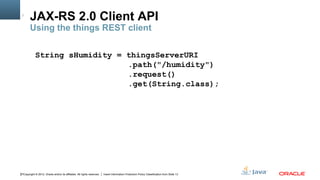

JAX-RS 2.0 Client API
Using the things REST client
String sHumidity = thingsServerURI
.path("/humidity")
.request()
.get(String.class);
- 28. Copyright © 2012, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 1328

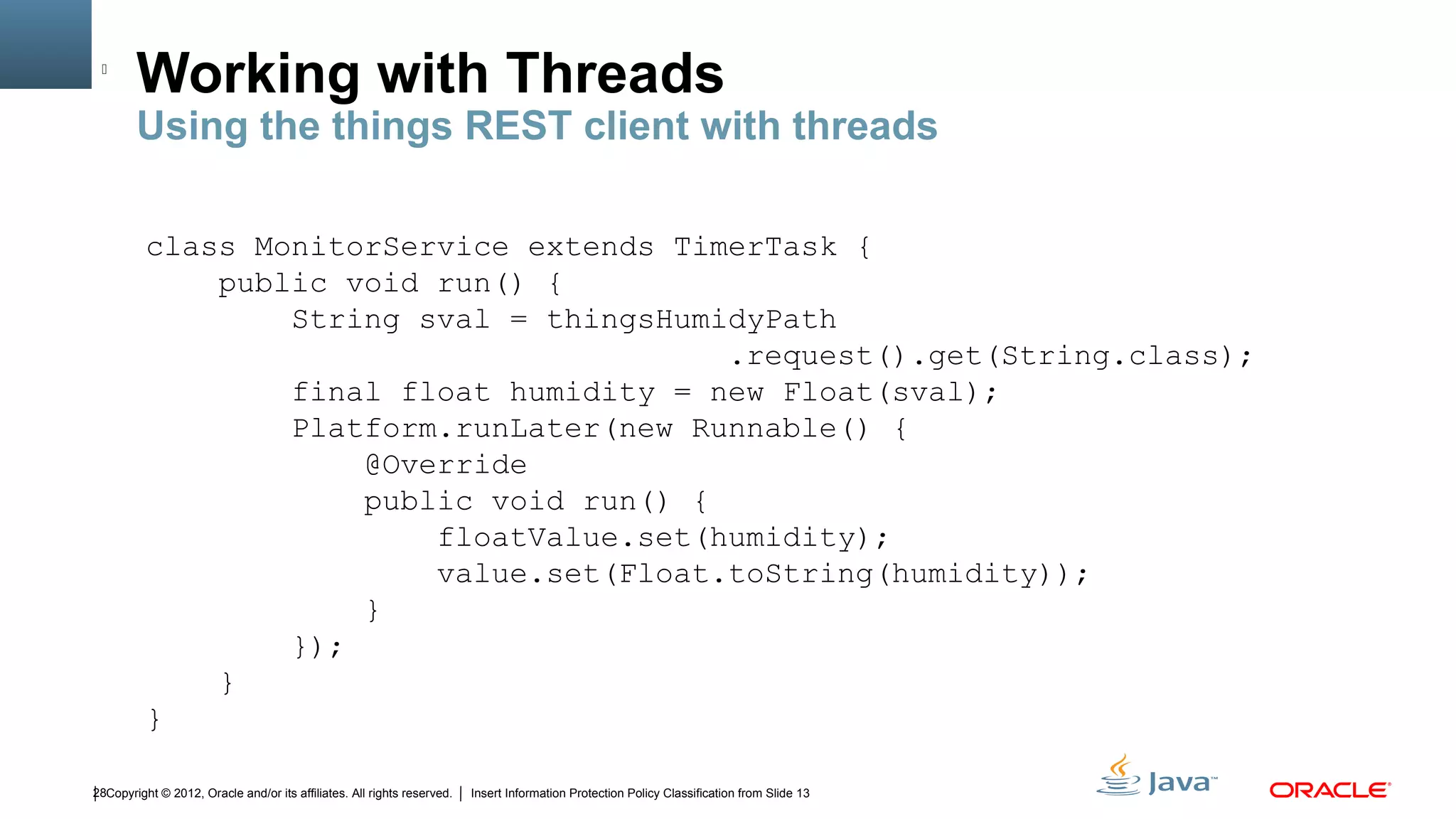

Working with Threads
Using the things REST client with threads
class MonitorService extends TimerTask {
public void run() {
String sval = thingsHumidyPath
.request().get(String.class);
final float humidity = new Float(sval);
Platform.runLater(new Runnable() {
@Override
public void run() {
floatValue.set(humidity);
value.set(Float.toString(humidity));
}
});
}
}
- 29. Copyright © 2012, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 1329

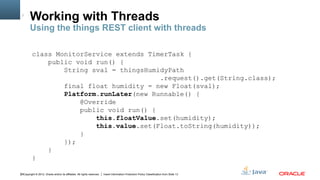

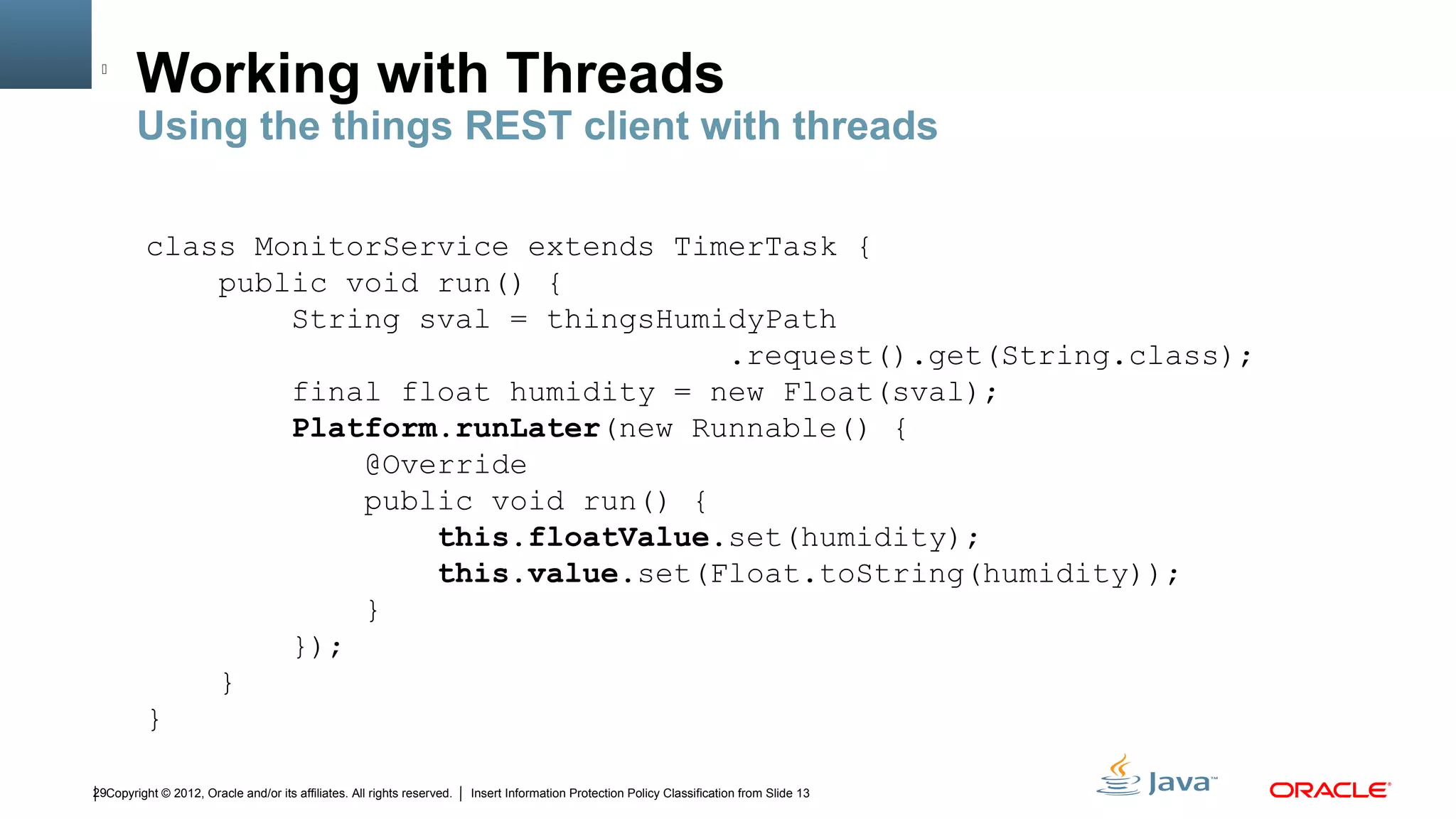

Working with Threads
Using the things REST client with threads
class MonitorService extends TimerTask {
public void run() {
String sval = thingsHumidyPath
.request().get(String.class);
final float humidity = new Float(sval);
Platform.runLater(new Runnable() {
@Override
public void run() {
this.floatValue.set(humidity);
this.value.set(Float.toString(humidity));
}
});
}
}
- 30. Copyright © 2012, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 1330

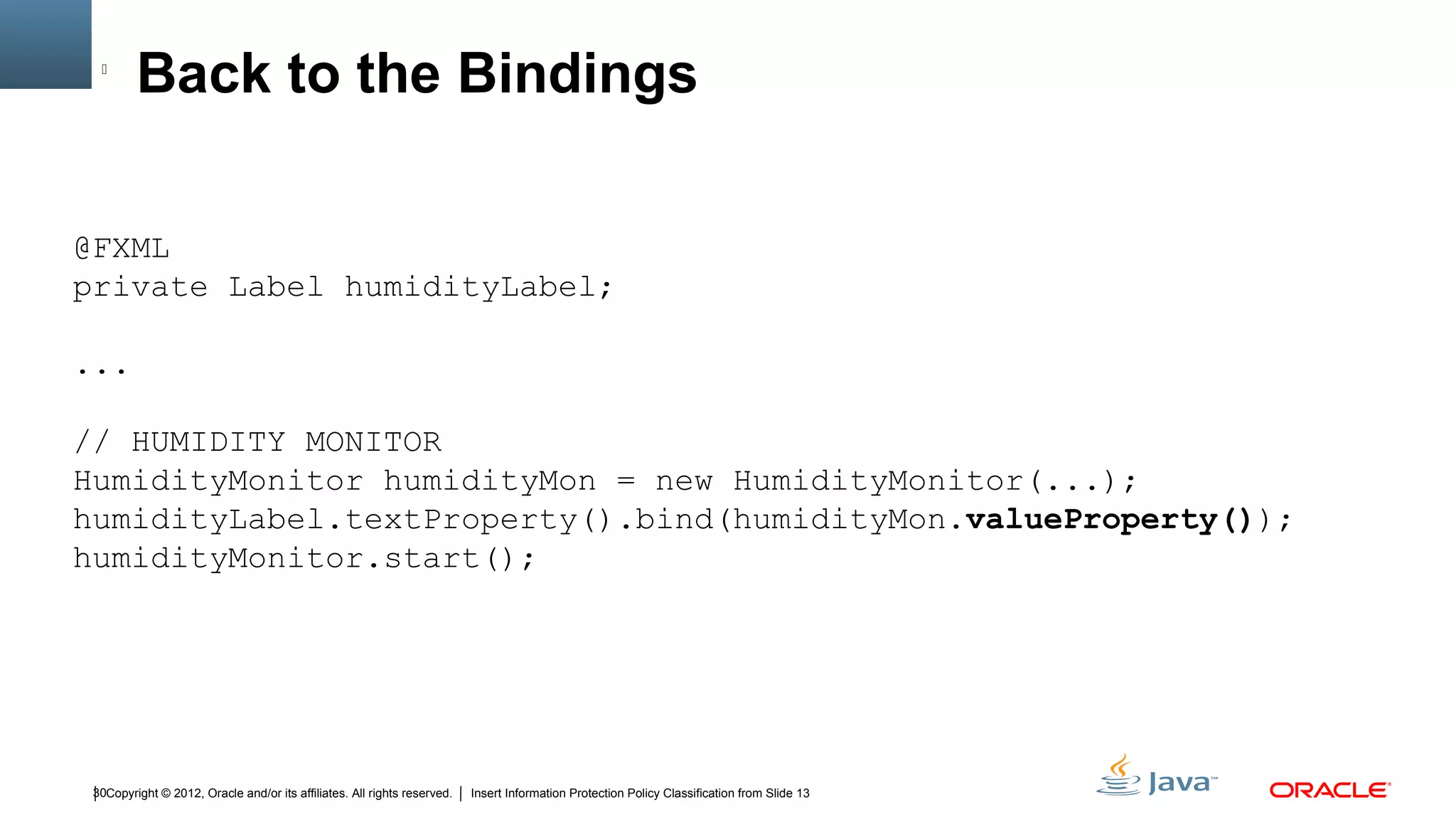

Back to the Bindings
@FXML
private Label humidityLabel;
...
// HUMIDITY MONITOR
HumidityMonitor humidityMon = new HumidityMonitor(...);
humidityLabel.textProperty().bind(humidityMon.valueProperty());
humidityMonitor.start();
- 31. Copyright © 2012, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 1331

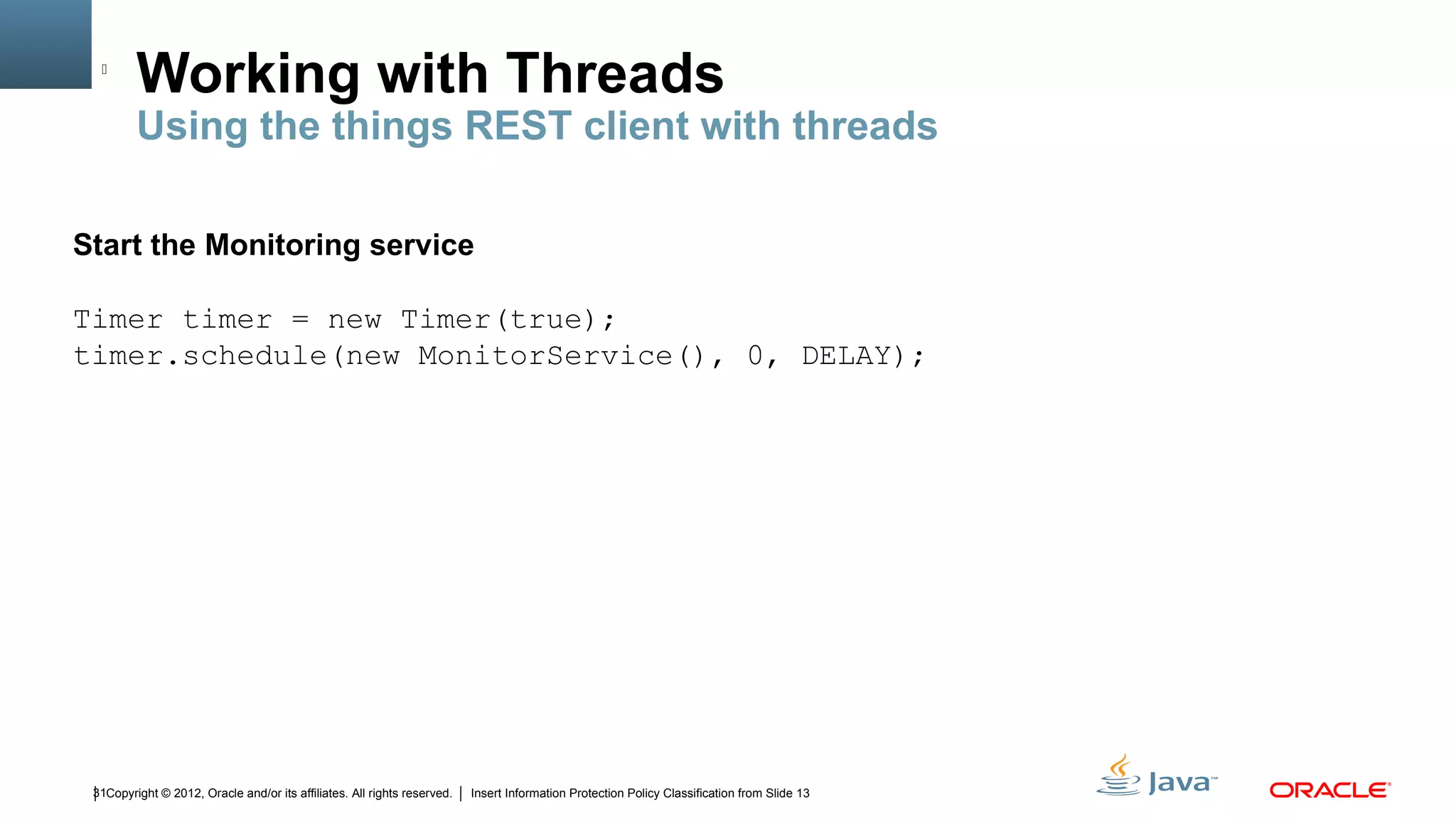

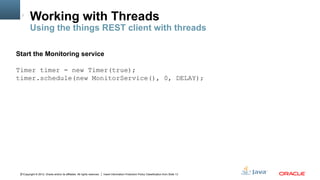

Working with Threads
Using the things REST client with threads
Start the Monitoring service
Timer timer = new Timer(true);
timer.schedule(new MonitorService(), 0, DELAY);
- 33. Copyright © 2012, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 1333
Thanks!
@brunoborges
