Introduction to dynamic memory allocation – Structures–accessing structure members – Pointers - Pointers to structures - self-referential structures.

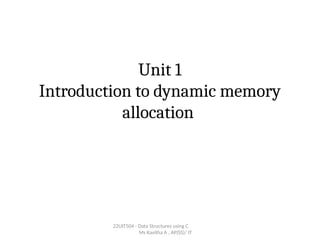

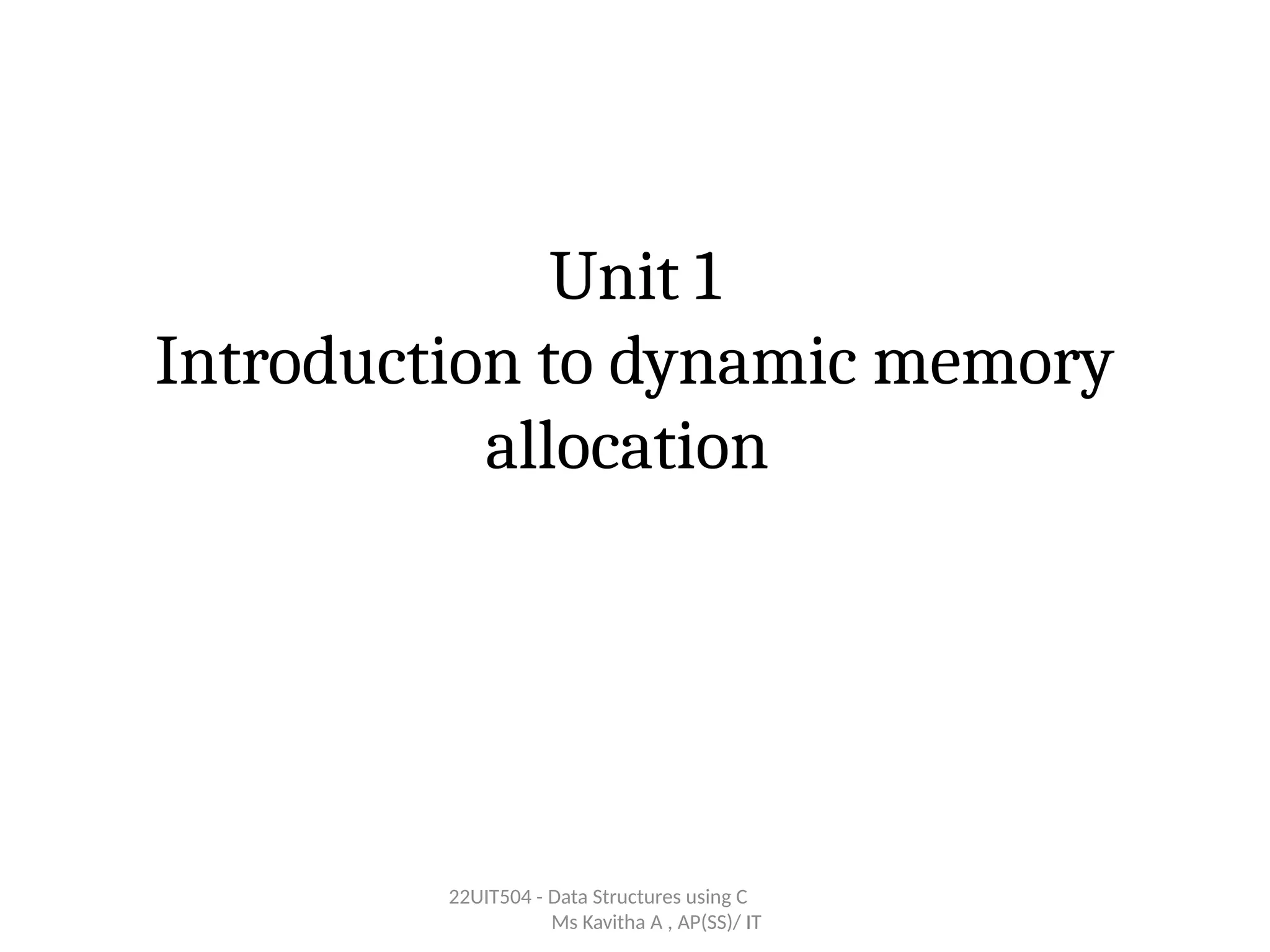

Unit 1
Introduction to dynamic memory
allocation
22UIT504 - Data Structures using C
Ms Kavitha A , AP(SS)/ IT

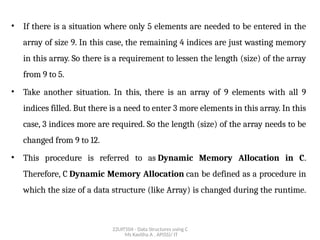

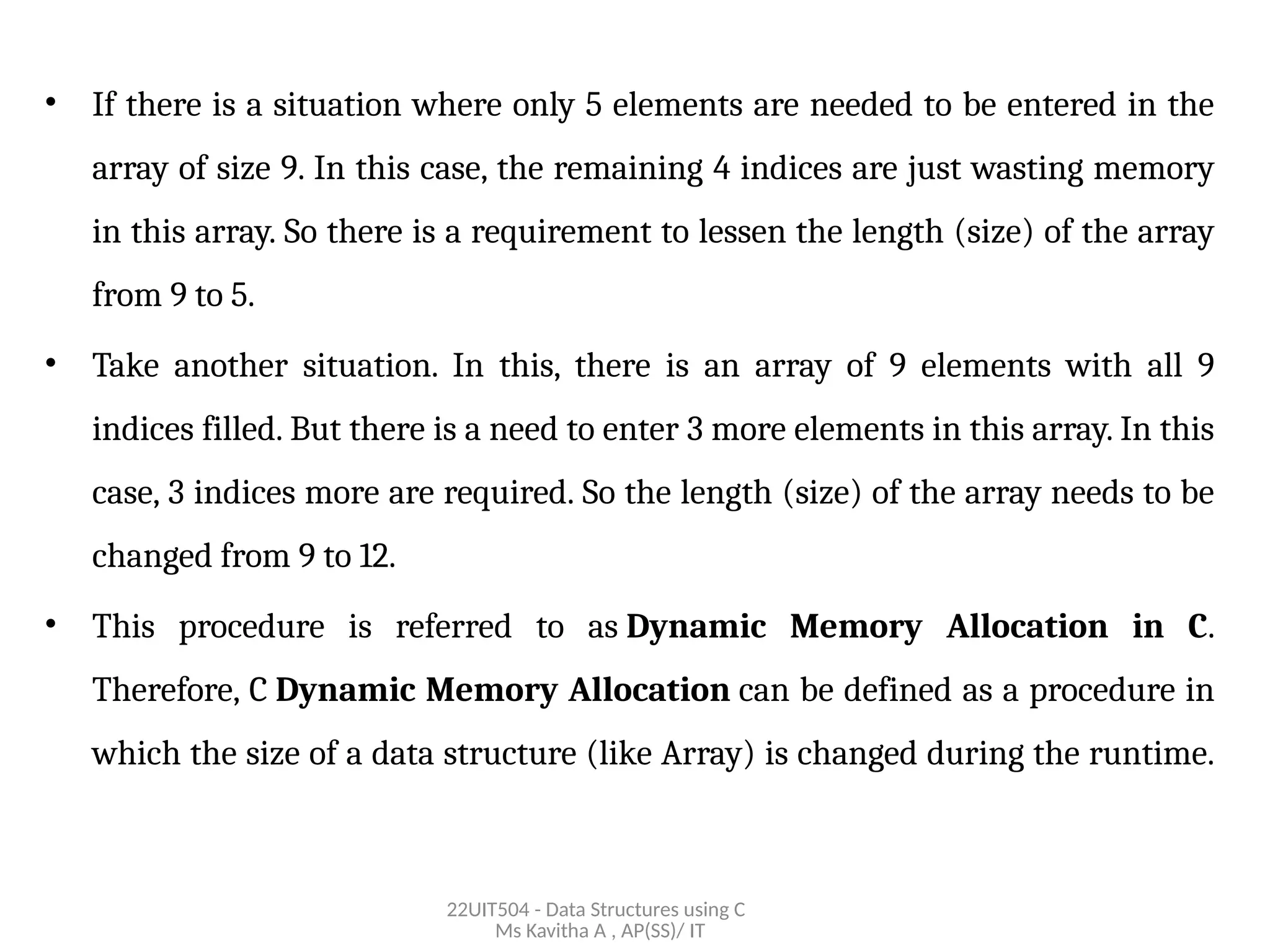

• If there is a situation where only 5 elements are needed to be entered in the
array of size 9. In this case, the remaining 4 indices are just wasting memory
in this array. So there is a requirement to lessen the length (size) of the array
from 9 to 5.
• Take another situation. In this, there is an array of 9 elements with all 9
indices filled. But there is a need to enter 3 more elements in this array. In this
case, 3 indices more are required. So the length (size) of the array needs to be
changed from 9 to 12.
• This procedure is referred to as Dynamic Memory Allocation in C.
Therefore, C Dynamic Memory Allocation can be defined as a procedure in
which the size of a data structure (like Array) is changed during the runtime.

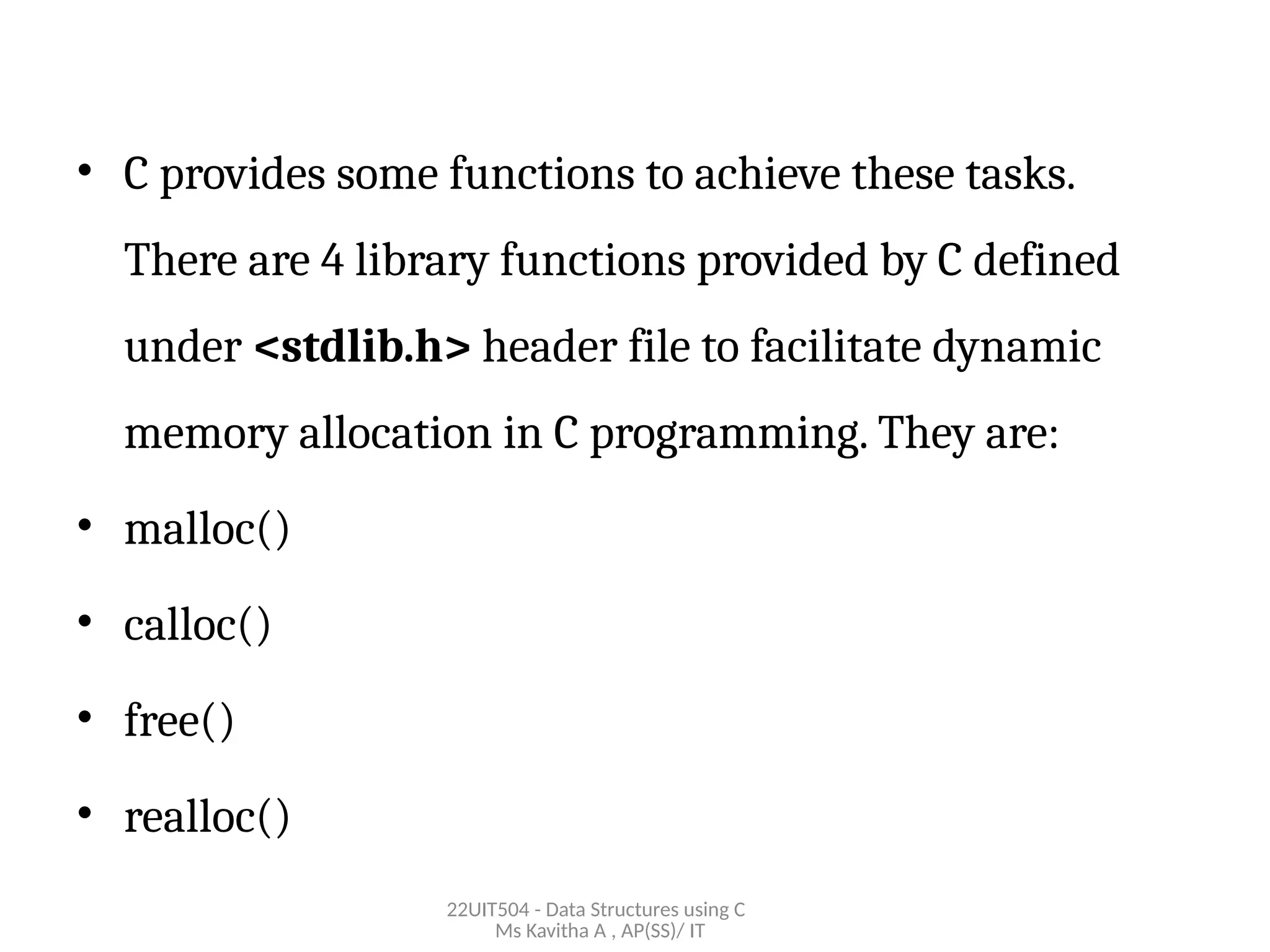

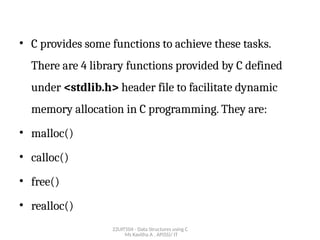

• C provides some functions to achieve these tasks.
There are 4 library functions provided by C defined
under <stdlib.h> header file to facilitate dynamic
memory allocation in C programming. They are:
• malloc()
• calloc()
• free()
• realloc()

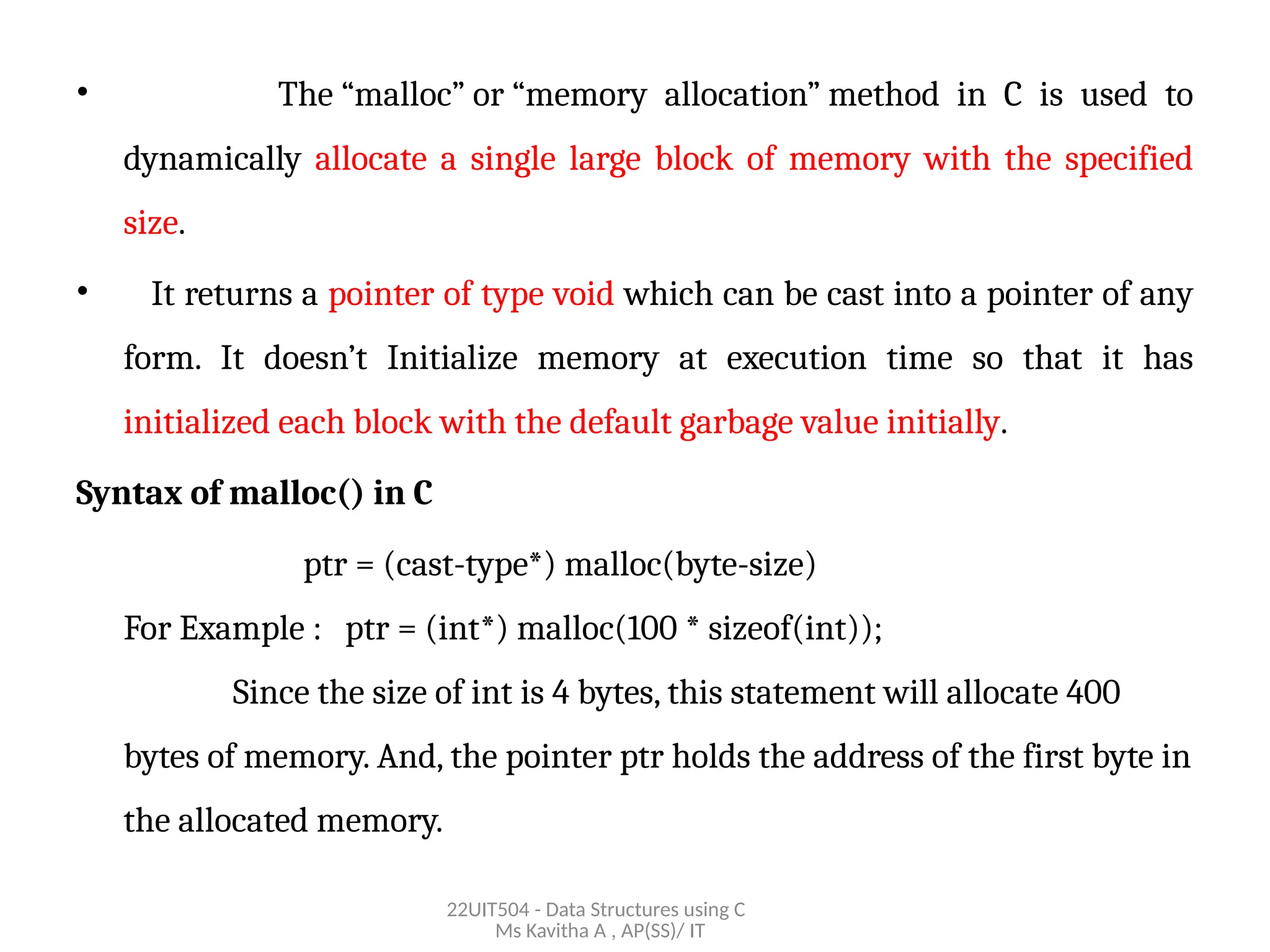

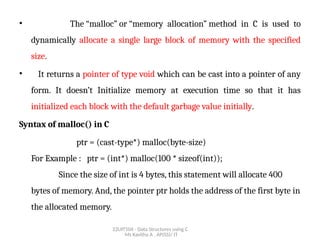

• The “malloc” or “memory allocation” method in C is used to
dynamically allocate a single large block of memory with the specified
size.
• It returns a pointer of type void which can be cast into a pointer of any
form. It doesn’t Initialize memory at execution time so that it has
initialized each block with the default garbage value initially.
Syntax of malloc() in C
ptr = (cast-type*) malloc(byte-size)
For Example : ptr = (int*) malloc(100 * sizeof(int));
Since the size of int is 4 bytes, this statement will allocate 400
bytes of memory. And, the pointer ptr holds the address of the first byte in
the allocated memory.

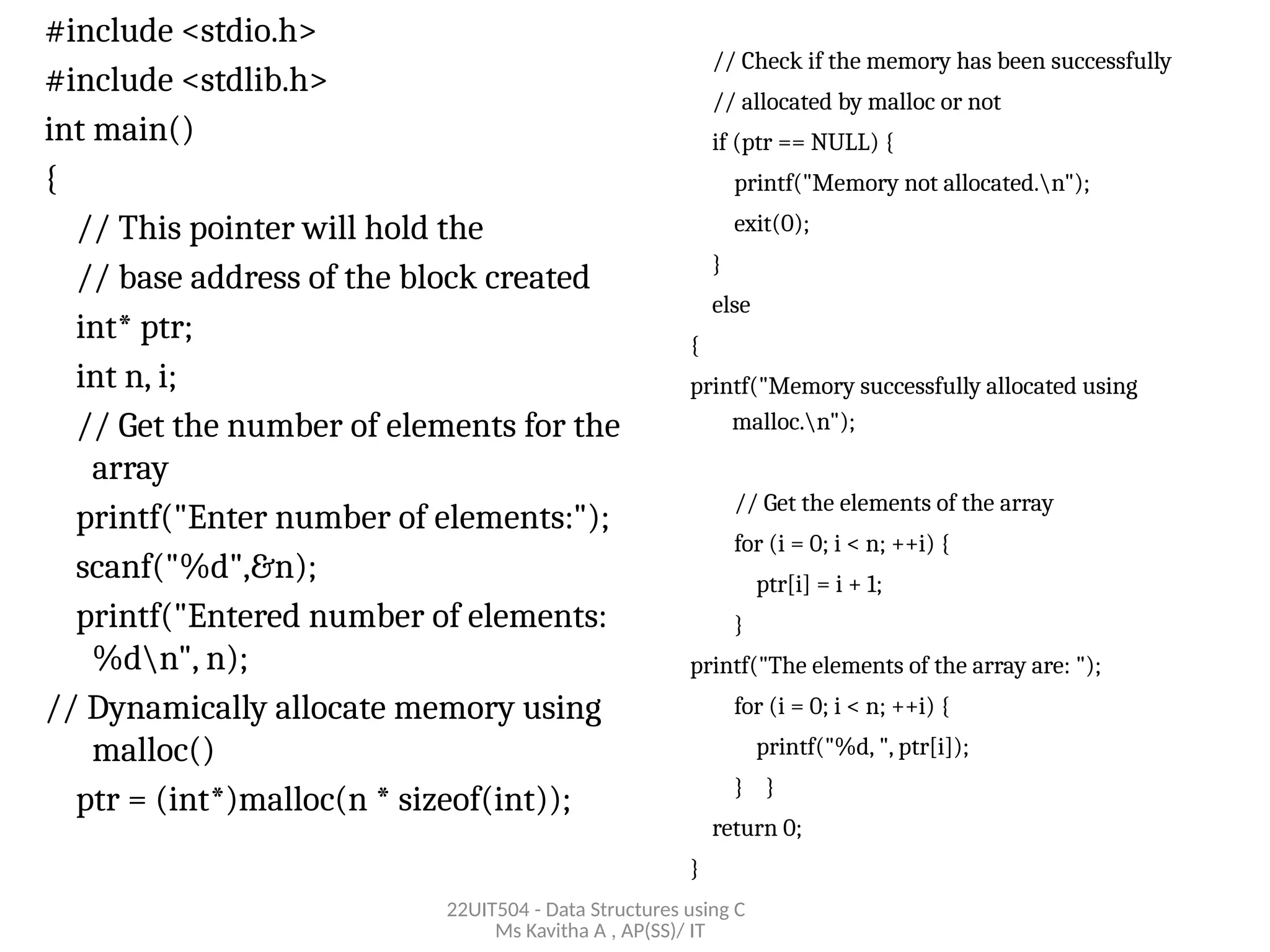

#include <stdio.h>
#include <stdlib.h>
int main()
{
// This pointer will hold the
// base address of the block created
int* ptr;
int n, i;
// Get the number of elements for the
array
printf("Enter number of elements:");
scanf("%d",&n);
printf("Entered number of elements:
%dn", n);
// Dynamically allocate memory using
malloc()
ptr = (int*)malloc(n * sizeof(int));
// Check if the memory has been successfully
// allocated by malloc or not
if (ptr == NULL) {
printf("Memory not allocated.n");
exit(0);
}
else
{
printf("Memory successfully allocated using
malloc.n");
// Get the elements of the array
for (i = 0; i < n; ++i) {
ptr[i] = i + 1;
}
printf("The elements of the array are: ");
for (i = 0; i < n; ++i) {
printf("%d, ", ptr[i]);
} }
return 0;
}

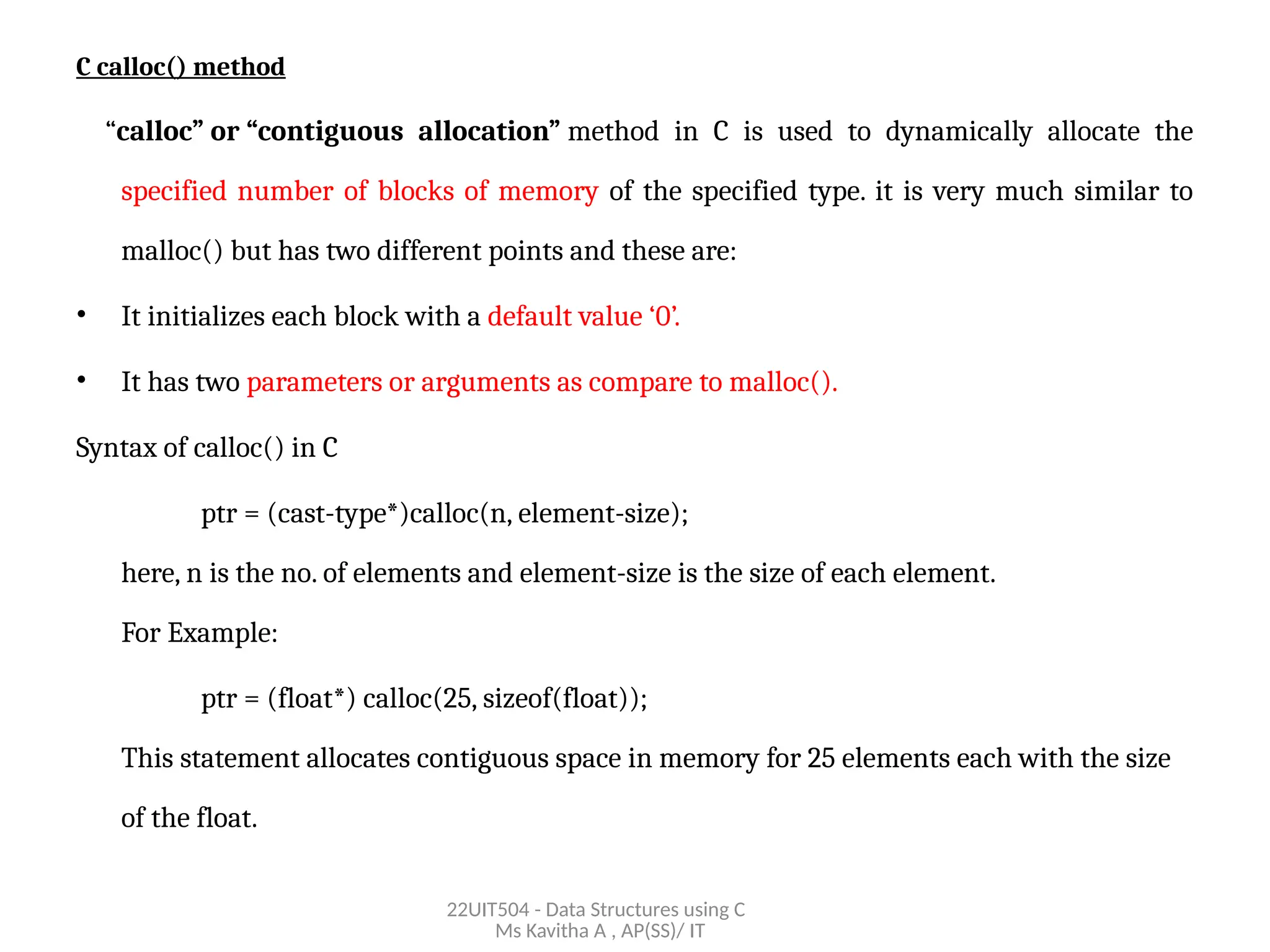

C calloc() method
“calloc” or “contiguous allocation” method in C is used to dynamically allocate the
specified number of blocks of memory of the specified type. it is very much similar to
malloc() but has two different points and these are:
• It initializes each block with a default value ‘0’.
• It has two parameters or arguments as compare to malloc().
Syntax of calloc() in C
ptr = (cast-type*)calloc(n, element-size);
here, n is the no. of elements and element-size is the size of each element.
For Example:
ptr = (float*) calloc(25, sizeof(float));
This statement allocates contiguous space in memory for 25 elements each with the size
of the float.

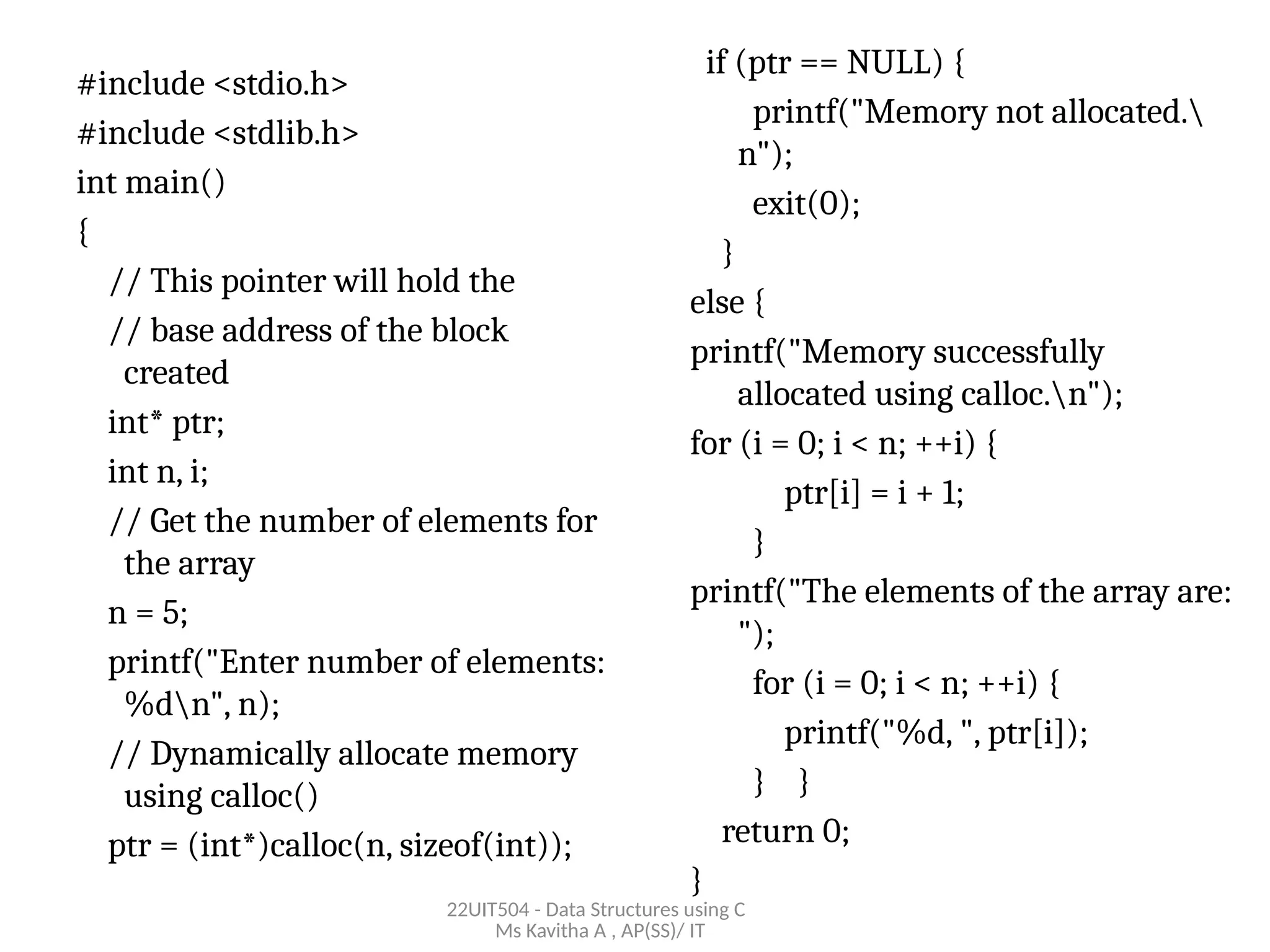

#include <stdio.h>
#include <stdlib.h>
int main()
{
// This pointer will hold the
// base address of the block
created
int* ptr;
int n, i;
// Get the number of elements for
the array
n = 5;
printf("Enter number of elements:
%dn", n);
// Dynamically allocate memory
using calloc()
ptr = (int*)calloc(n, sizeof(int));
if (ptr == NULL) {
printf("Memory not allocated.
n");
exit(0);
}
else {
printf("Memory successfully
allocated using calloc.n");
for (i = 0; i < n; ++i) {
ptr[i] = i + 1;
}
printf("The elements of the array are:
");
for (i = 0; i < n; ++i) {
printf("%d, ", ptr[i]);
} }
return 0;
}

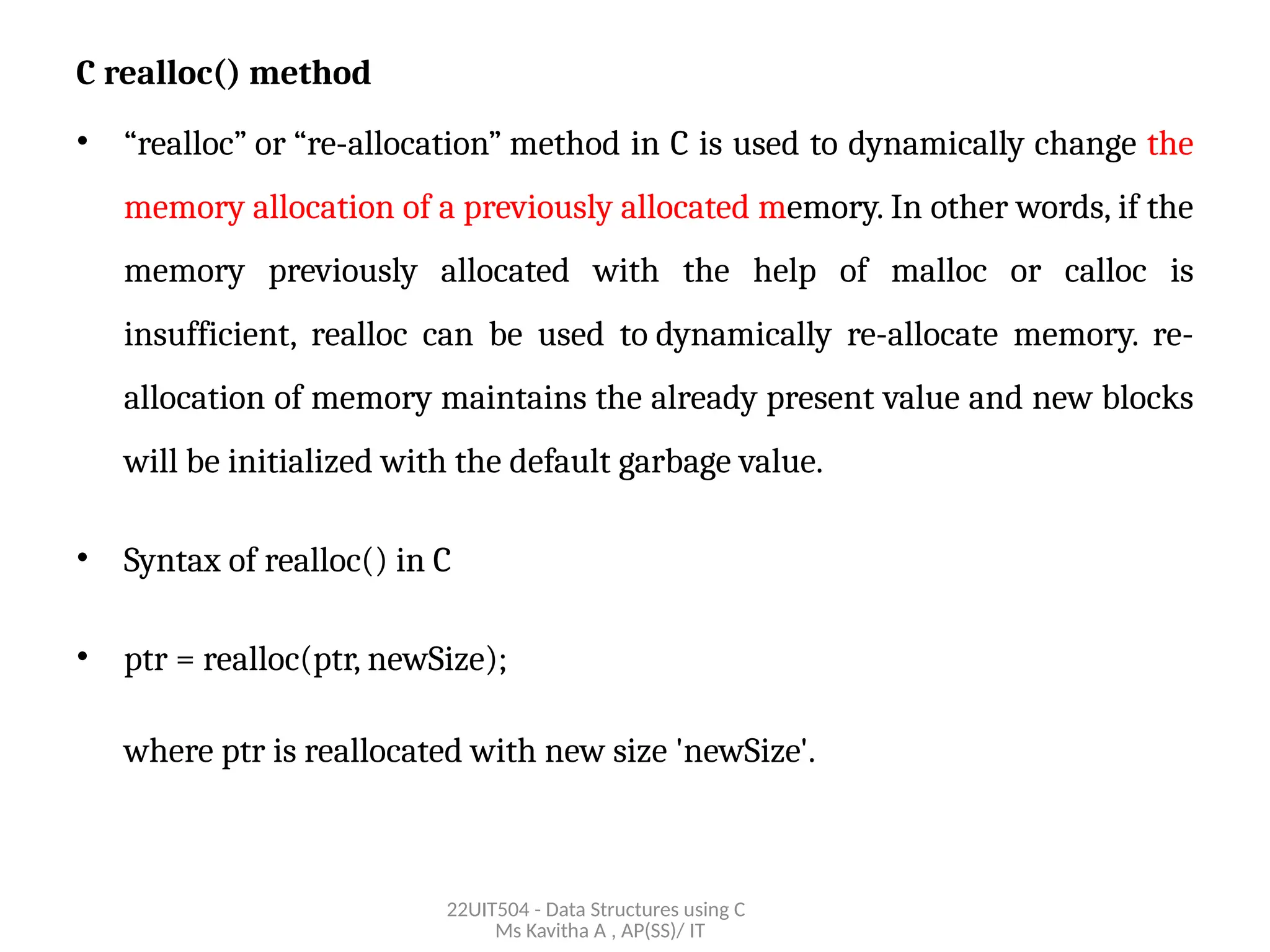

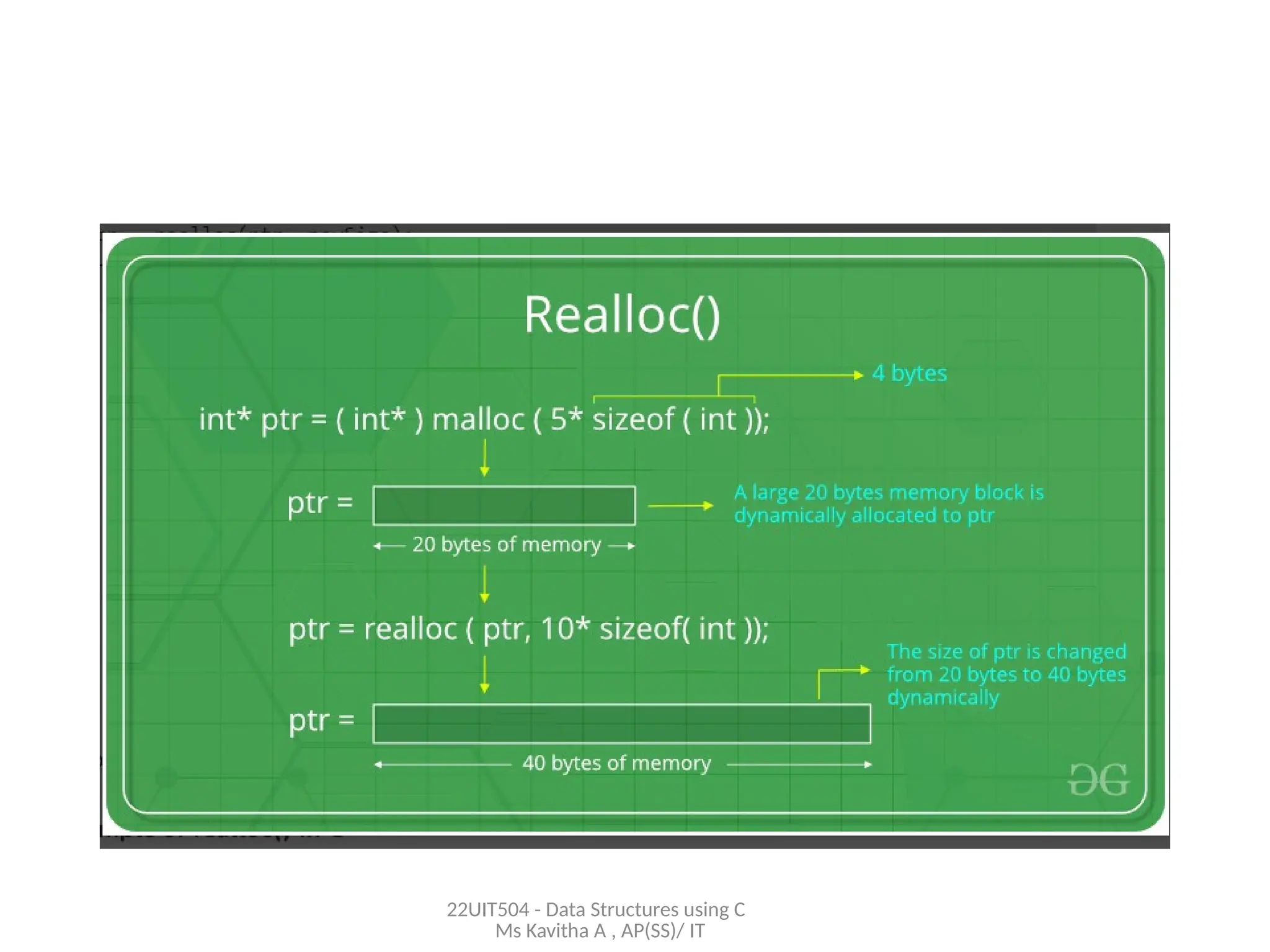

C realloc() method
• “realloc” or “re-allocation” method in C is used to dynamically change the
memory allocation of a previously allocated memory. In other words, if the
memory previously allocated with the help of malloc or calloc is
insufficient, realloc can be used to dynamically re-allocate memory. re-
allocation of memory maintains the already present value and new blocks
will be initialized with the default garbage value.
• Syntax of realloc() in C
• ptr = realloc(ptr, newSize);
where ptr is reallocated with new size 'newSize'.

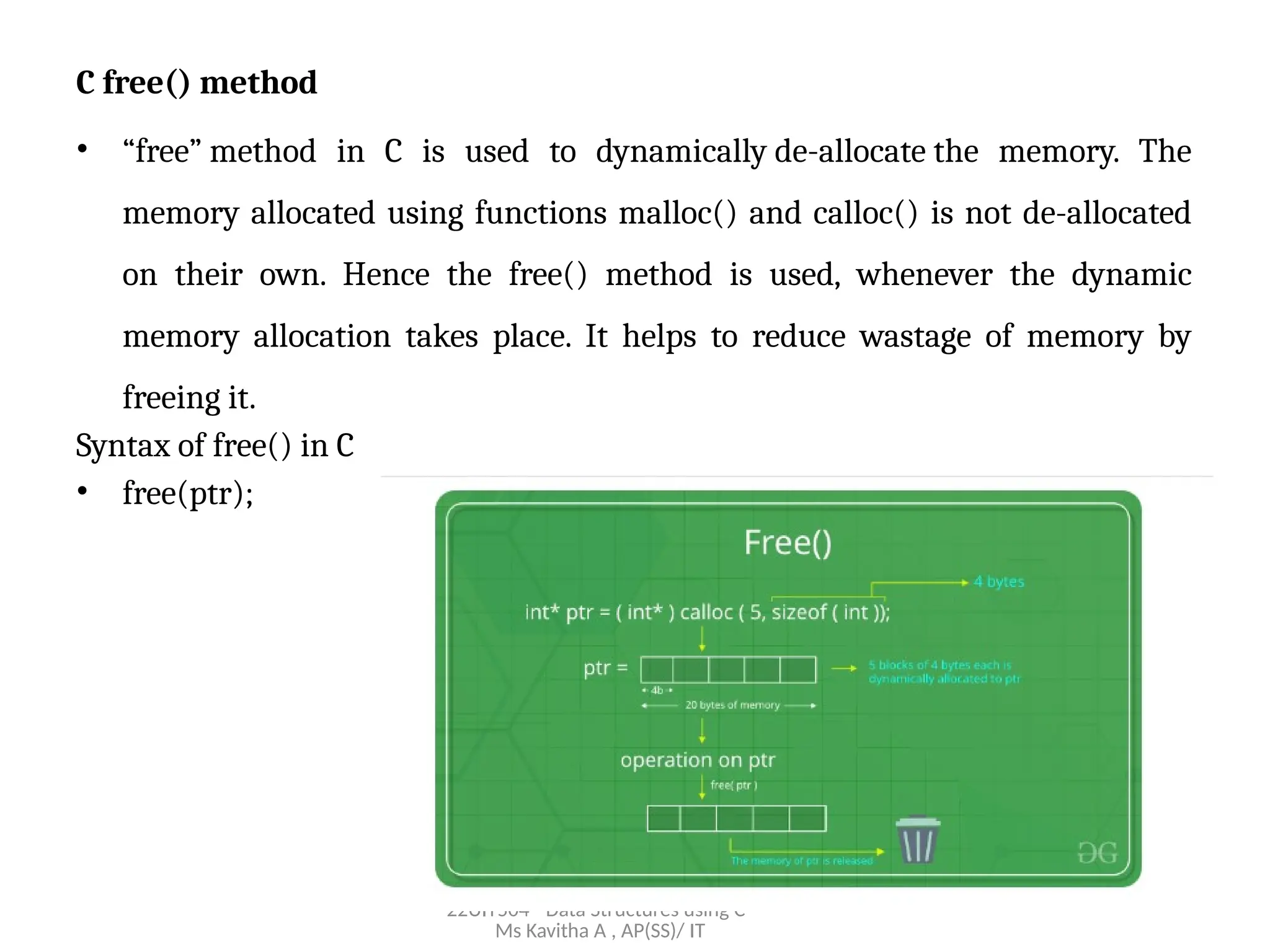

C free() method
• “free” method in C is used to dynamically de-allocate the memory. The
memory allocated using functions malloc() and calloc() is not de-allocated
on their own. Hence the free() method is used, whenever the dynamic
memory allocation takes place. It helps to reduce wastage of memory by
freeing it.
Syntax of free() in C
• free(ptr);

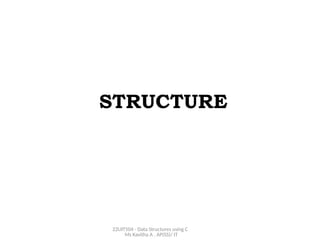

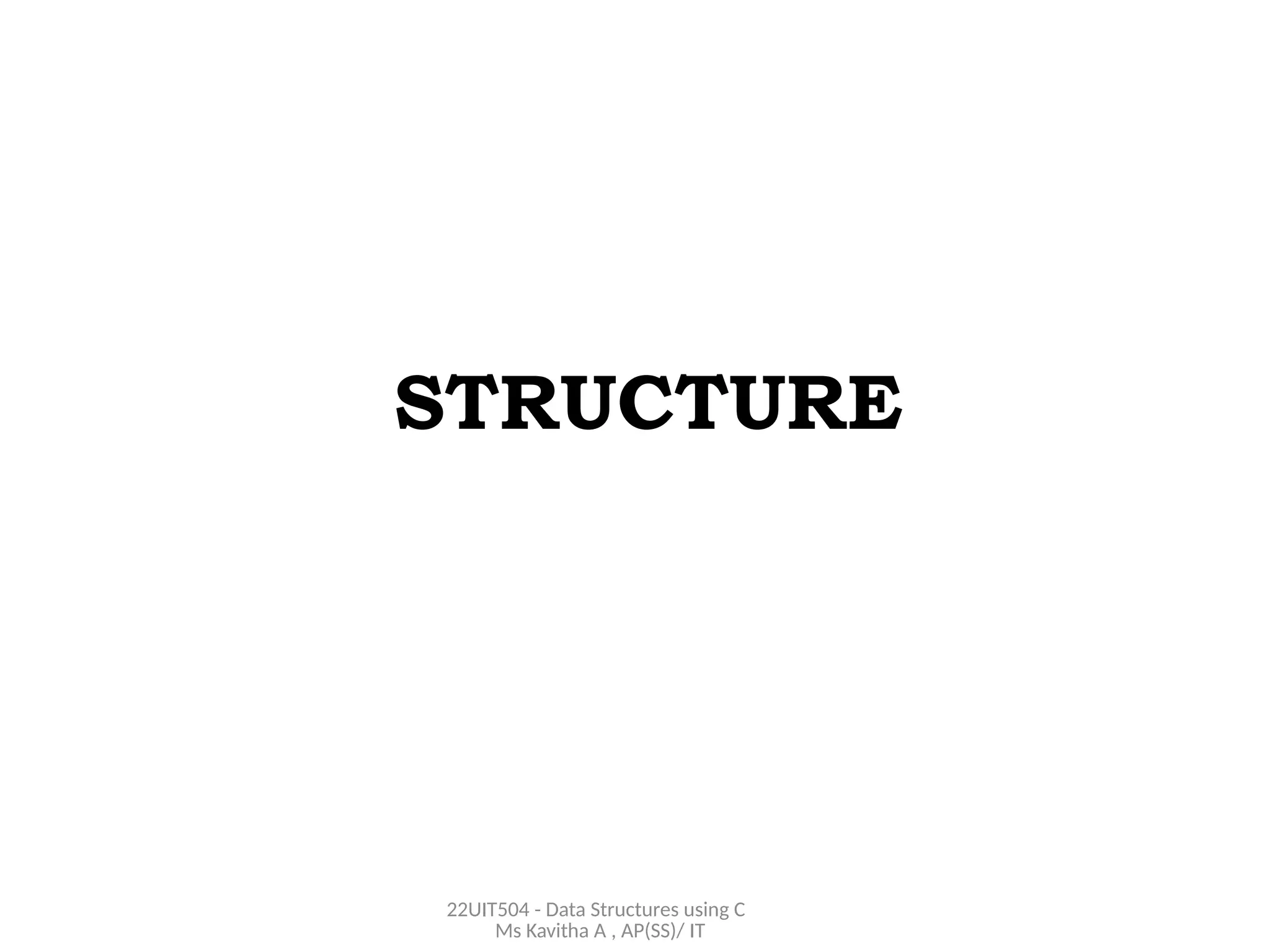

STRUCTURE

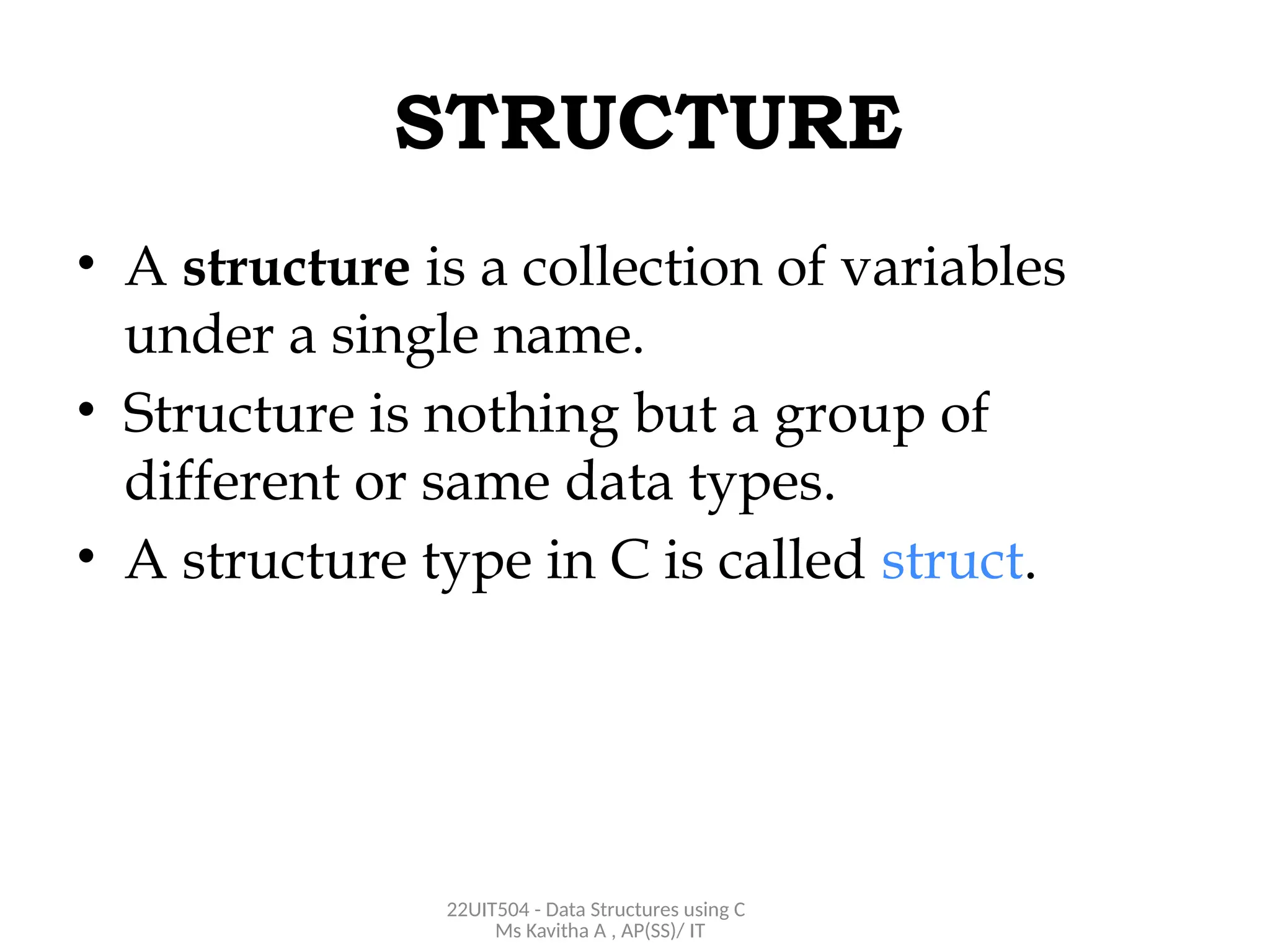

STRUCTURE
• A structure is a collection of variables
under a single name.
• Structure is nothing but a group of
different or same data types.
• A structure type in C is called struct.

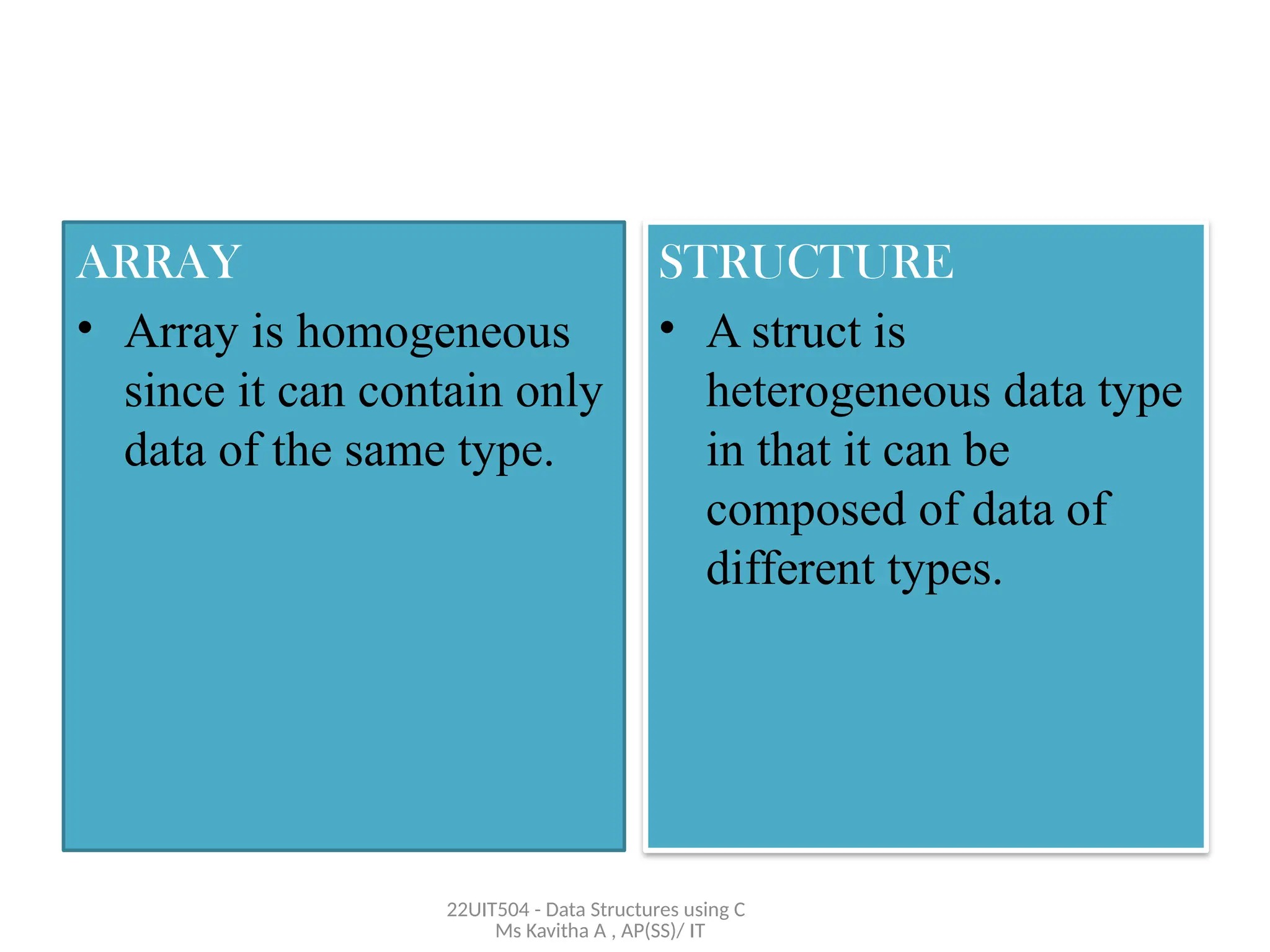

ARRAY
• Array is homogeneous
since it can contain only
data of the same type.
STRUCTURE
• A struct is
heterogeneous data type
in that it can be
composed of data of
different types.

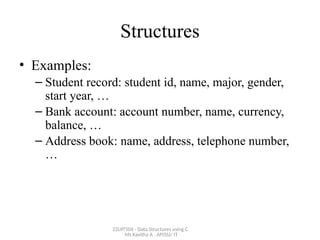

Structures
• Examples:
– Student record: student id, name, major, gender,
start year, …
– Bank account: account number, name, currency,
balance, …
– Address book: name, address, telephone number,
…

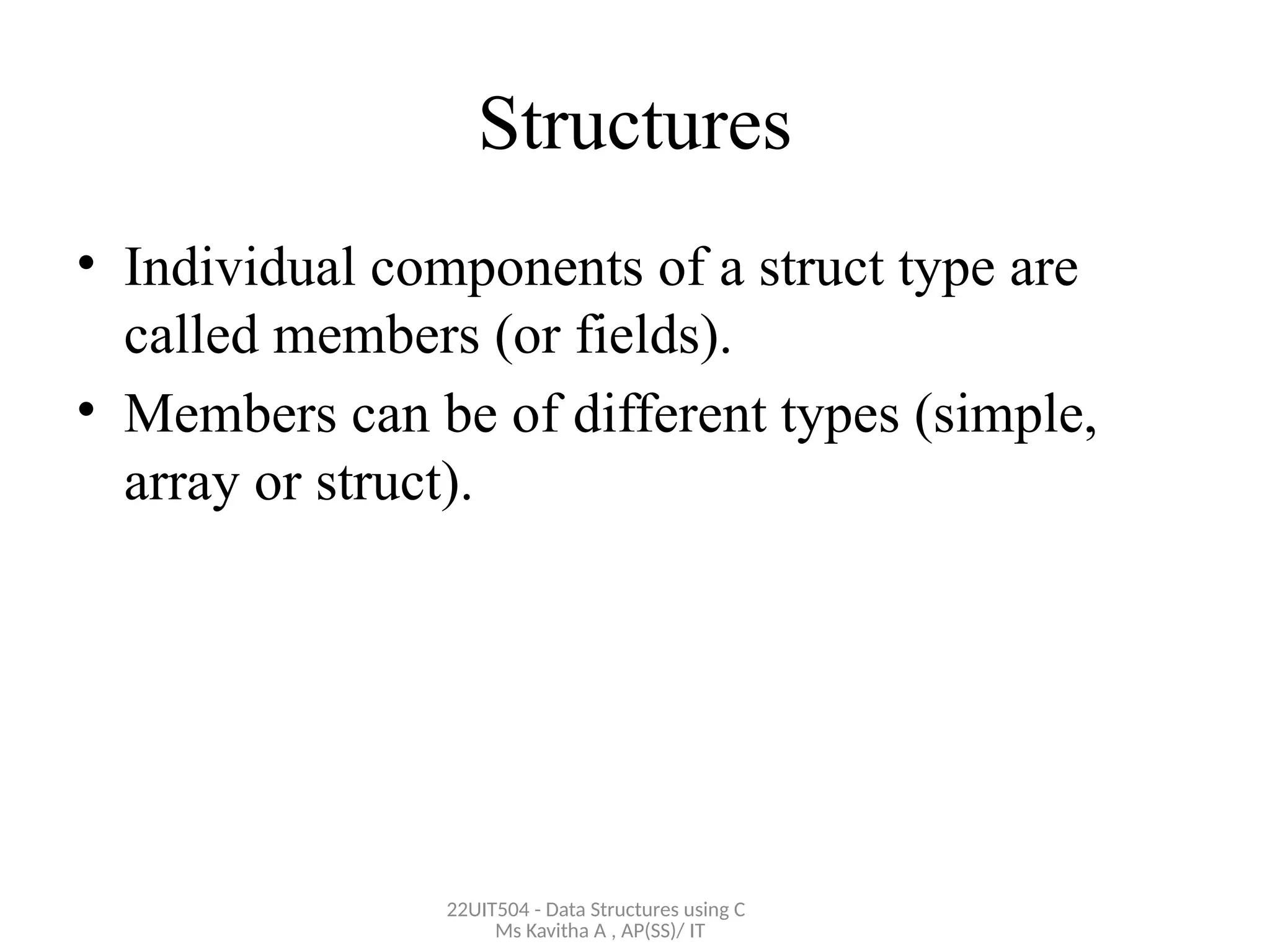

Structures
• Individual components of a struct type are
called members (or fields).
• Members can be of different types (simple,
array or struct).

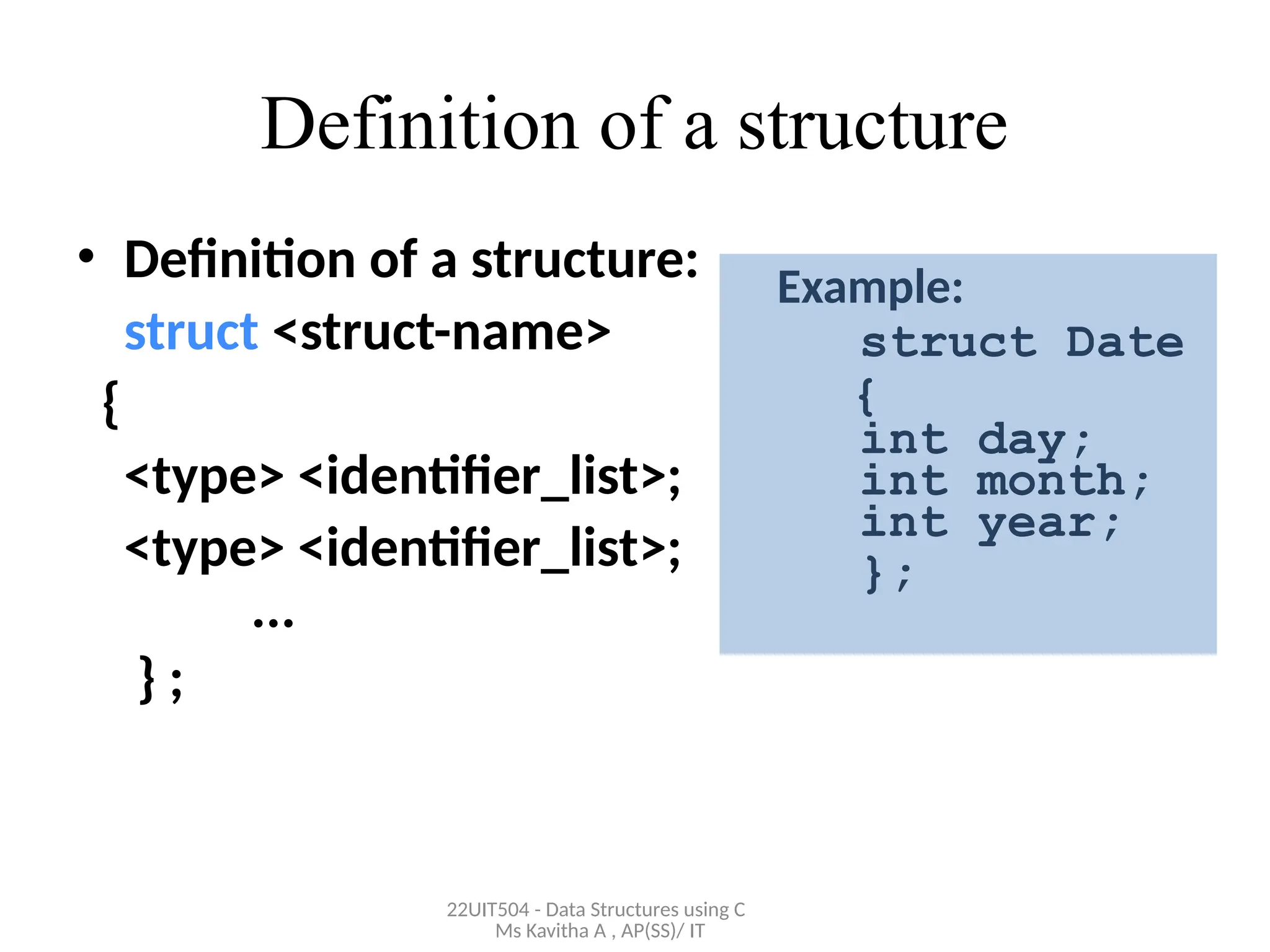

Definition of a structure
• Definition of a structure:
struct <struct-name>
{
<type> <identifier_list>;
<type> <identifier_list>;
...
} ;
Example:
struct Date
{
int day;
int month;
int year;
};

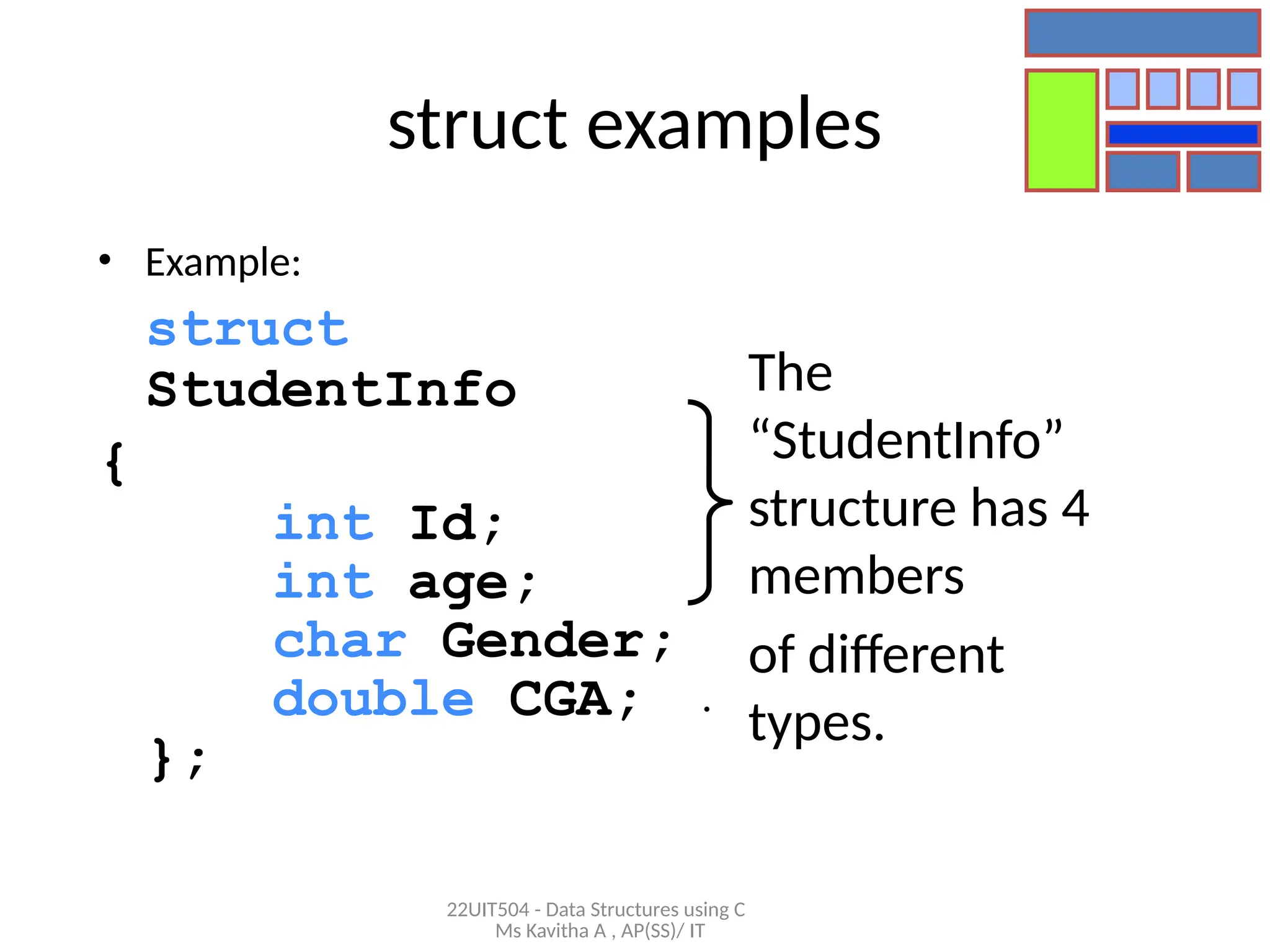

struct examples
• Example:
struct
StudentInfo
{
int Id;
int age;
char Gender;
double CGA;
};
.
The
“StudentInfo”
structure has 4
members
of different
types.

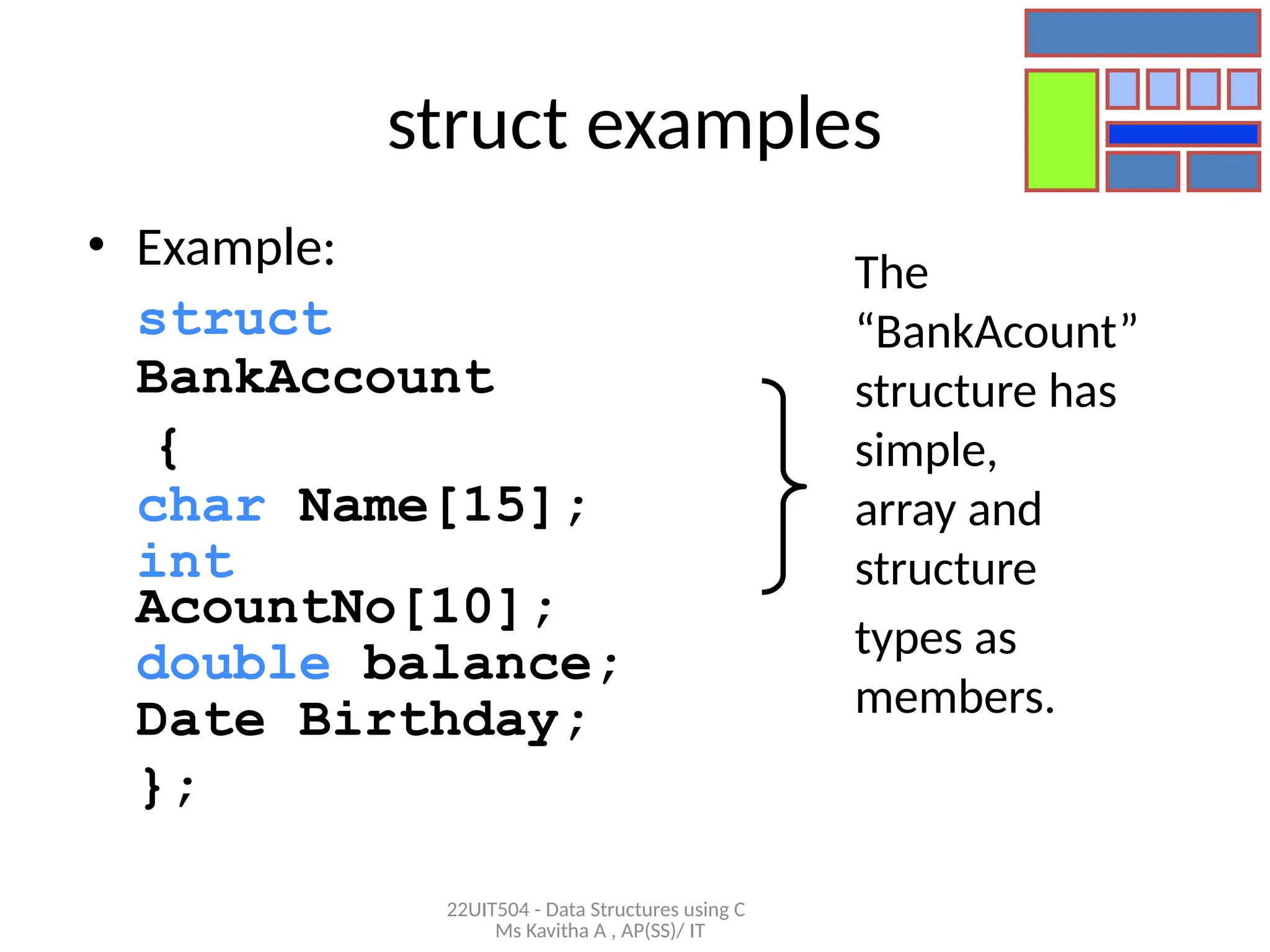

struct examples
• Example:
struct
BankAccount
{
char Name[15];
int
AcountNo[10];
double balance;
Date Birthday;
};
The
“BankAcount”
structure has
simple,
array and
structure
types as
members.

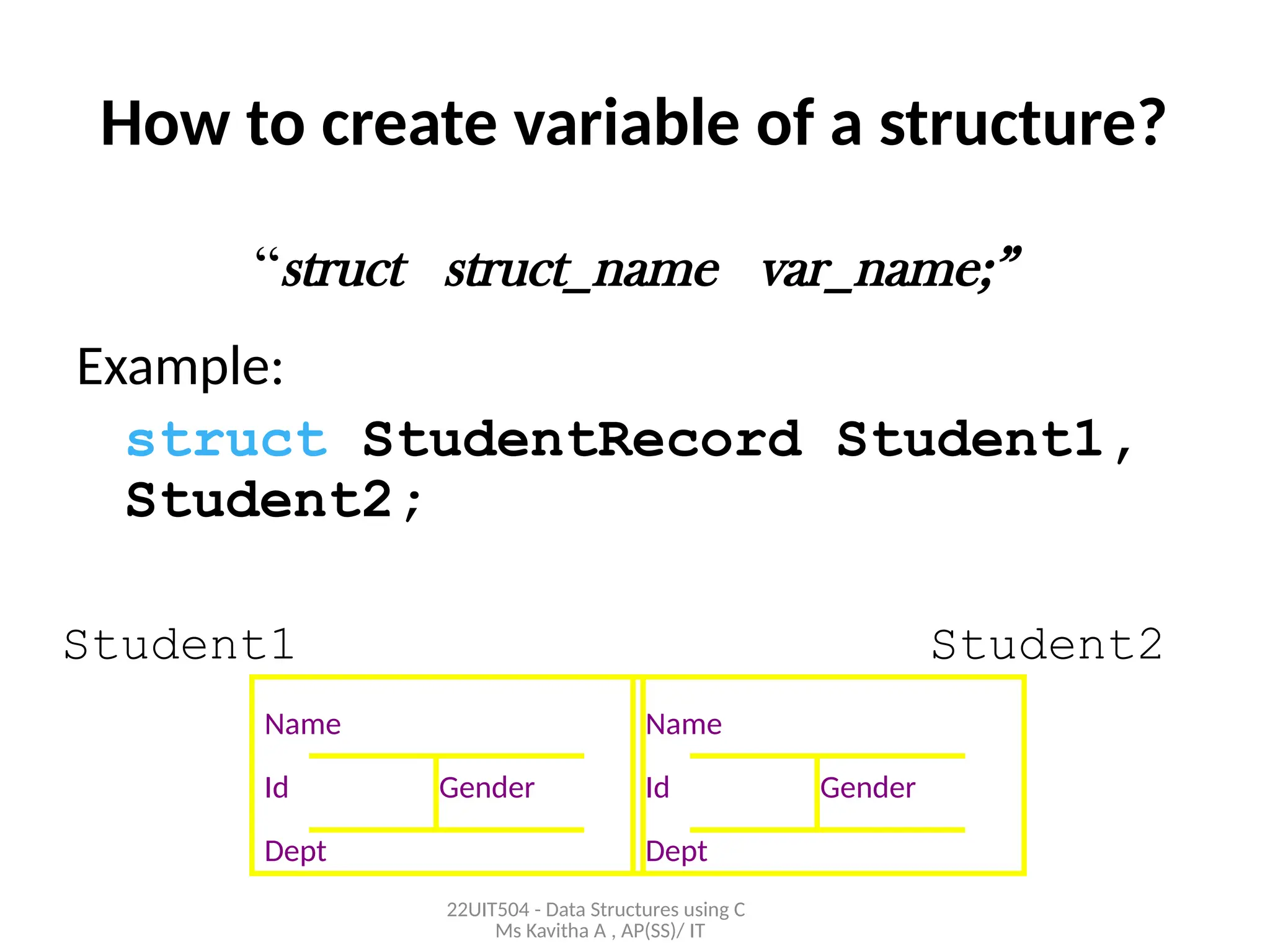

How to create variable of a structure?
“struct struct_name var_name;”
Example:
struct StudentRecord Student1,
Student2;
Student1 Student2
Name
Id Gender
Dept
Name
Id Gender
Dept

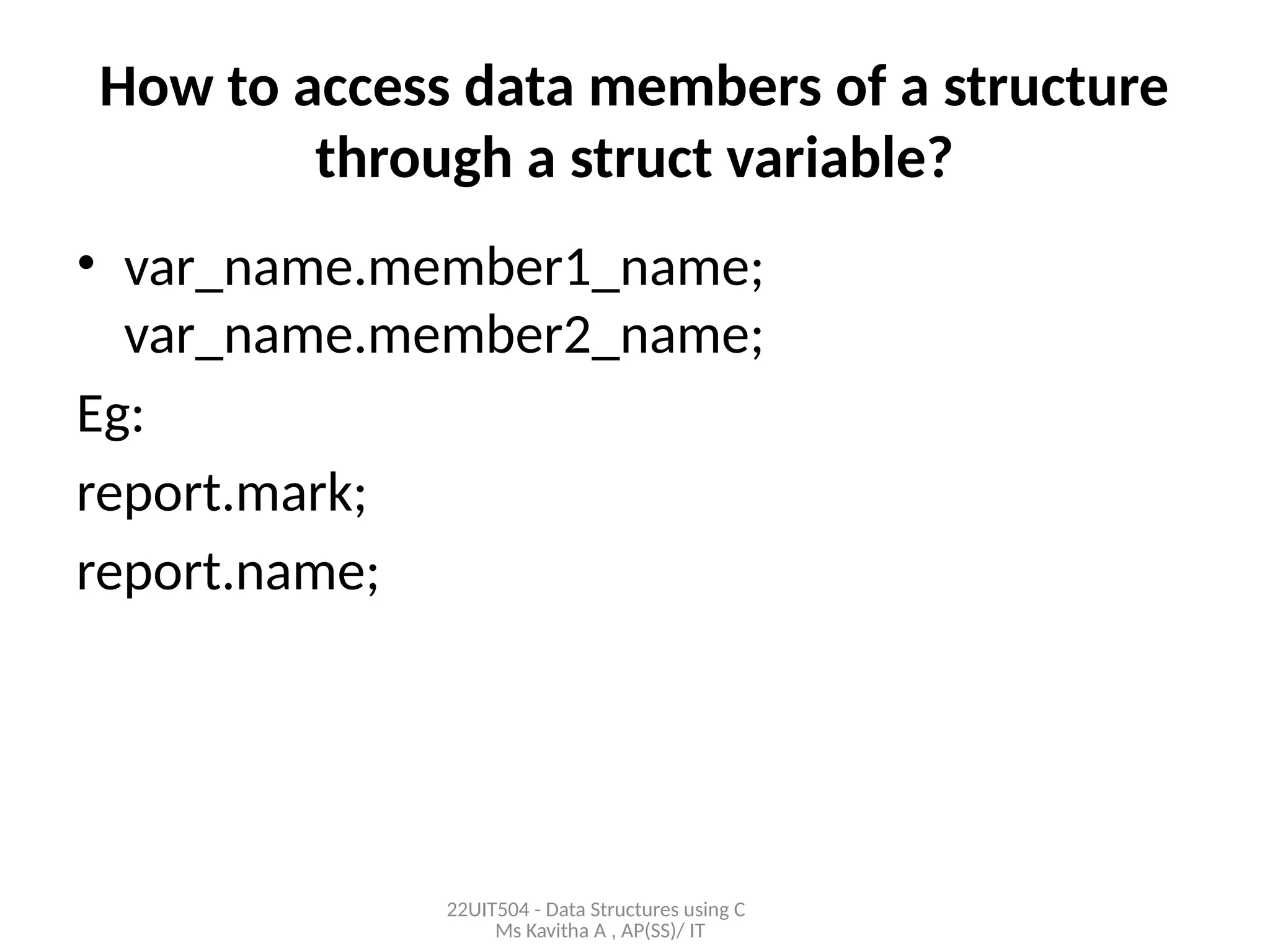

How to access data members of a structure
through a struct variable?
• var_name.member1_name;
var_name.member2_name;
Eg:
report.mark;
report.name;

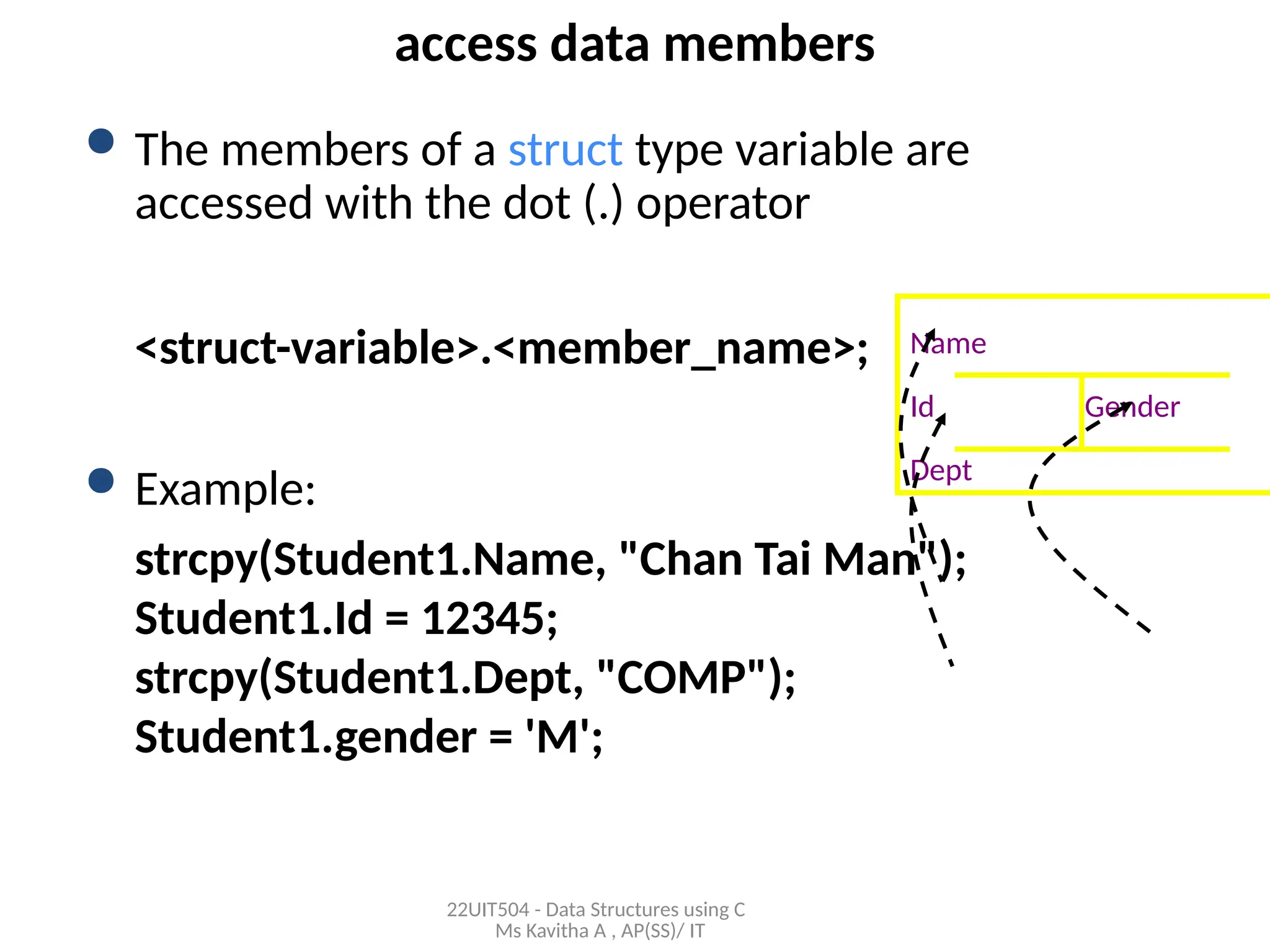

access data members
 The members of a struct type variable are
accessed with the dot (.) operator
<struct-variable>.<member_name>;
 Example:
strcpy(Student1.Name, "Chan Tai Man");
Student1.Id = 12345;
strcpy(Student1.Dept, "COMP");
Student1.gender = 'M';
Name
Id Gender
Dept

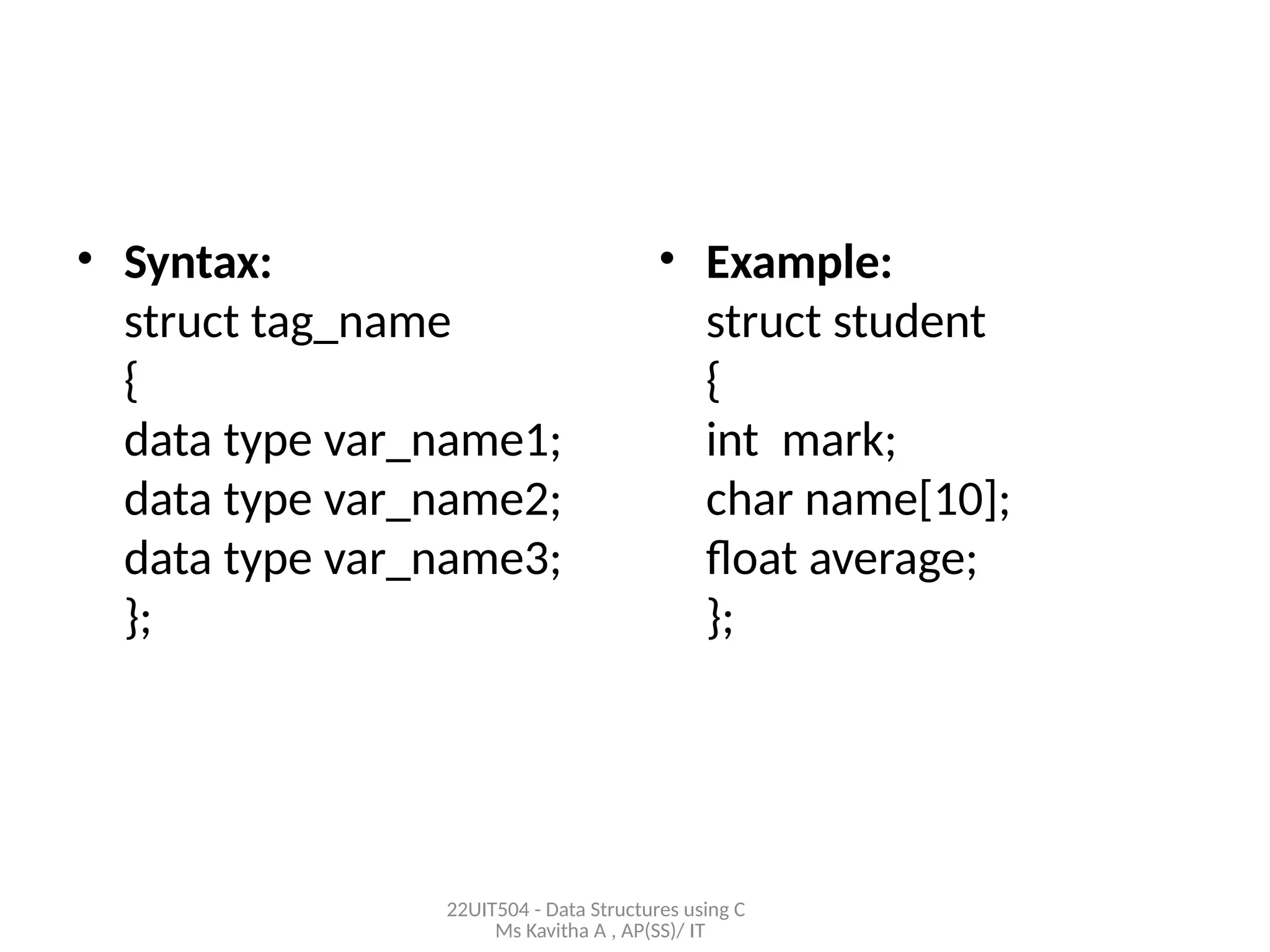

• Syntax:
struct tag_name
{
data type var_name1;
};
• Example:
struct student
{
int mark;
char name[10];
float average;
};

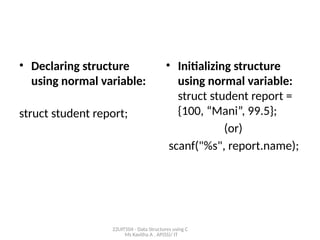

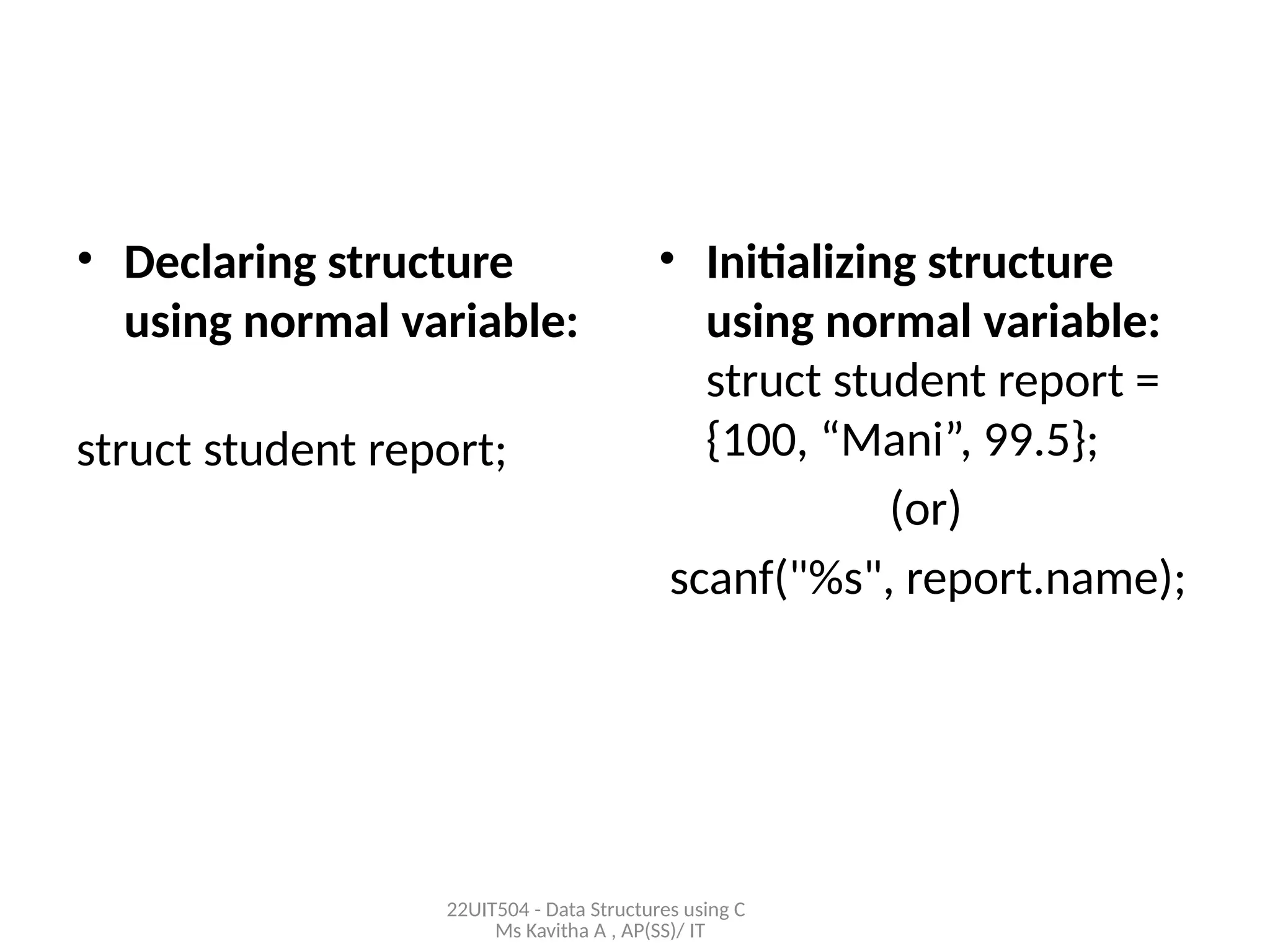

• Declaring structure
using normal variable:
struct student report;
• Initializing structure
struct student report =
{100, “Mani”, 99.5};
(or)
scanf("%s", report.name);

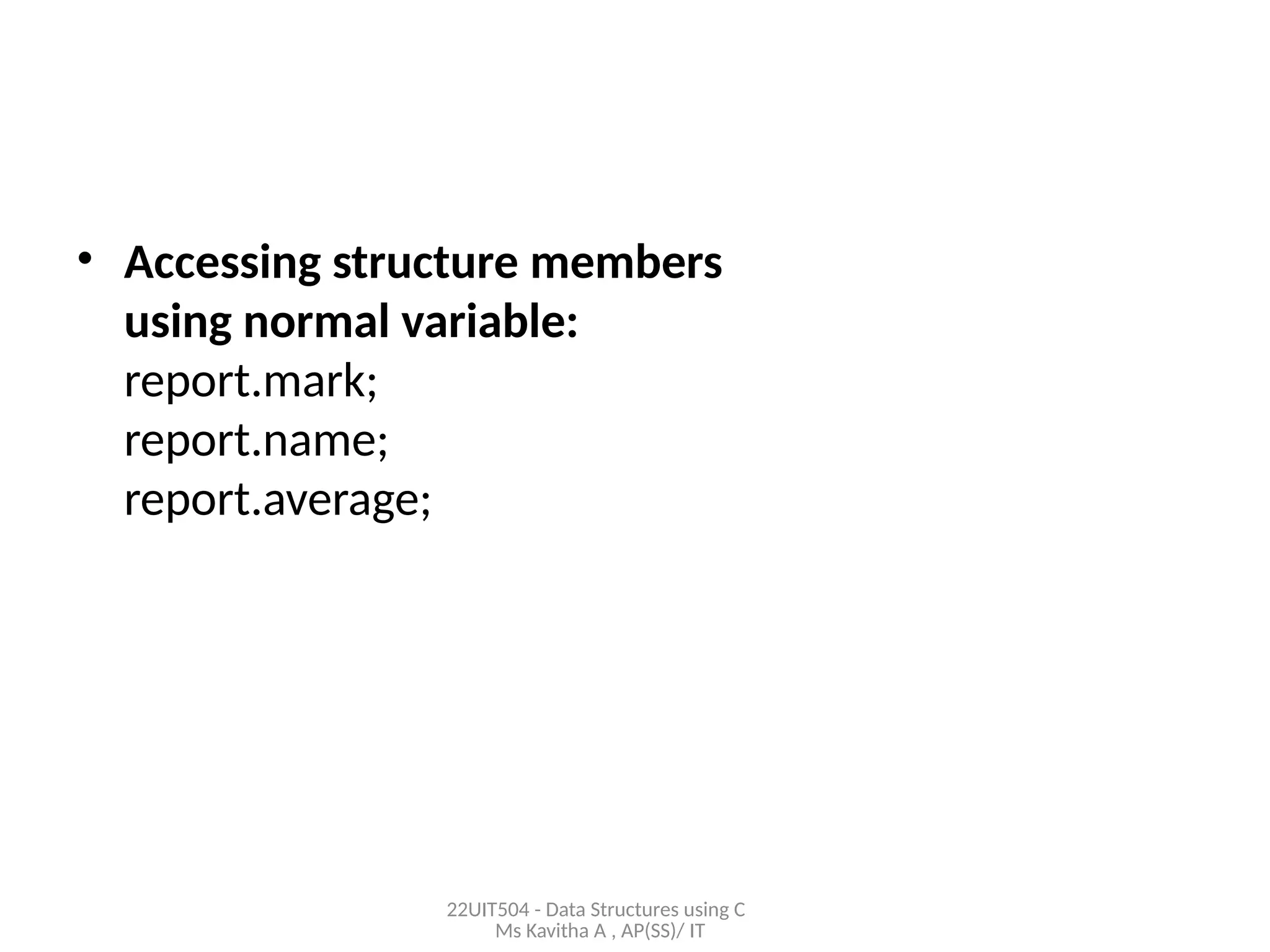

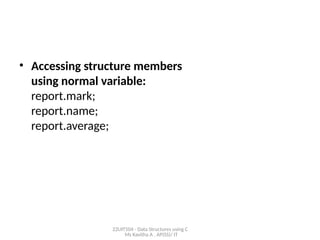

• Accessing structure members
report.mark;
report.name;
report.average;

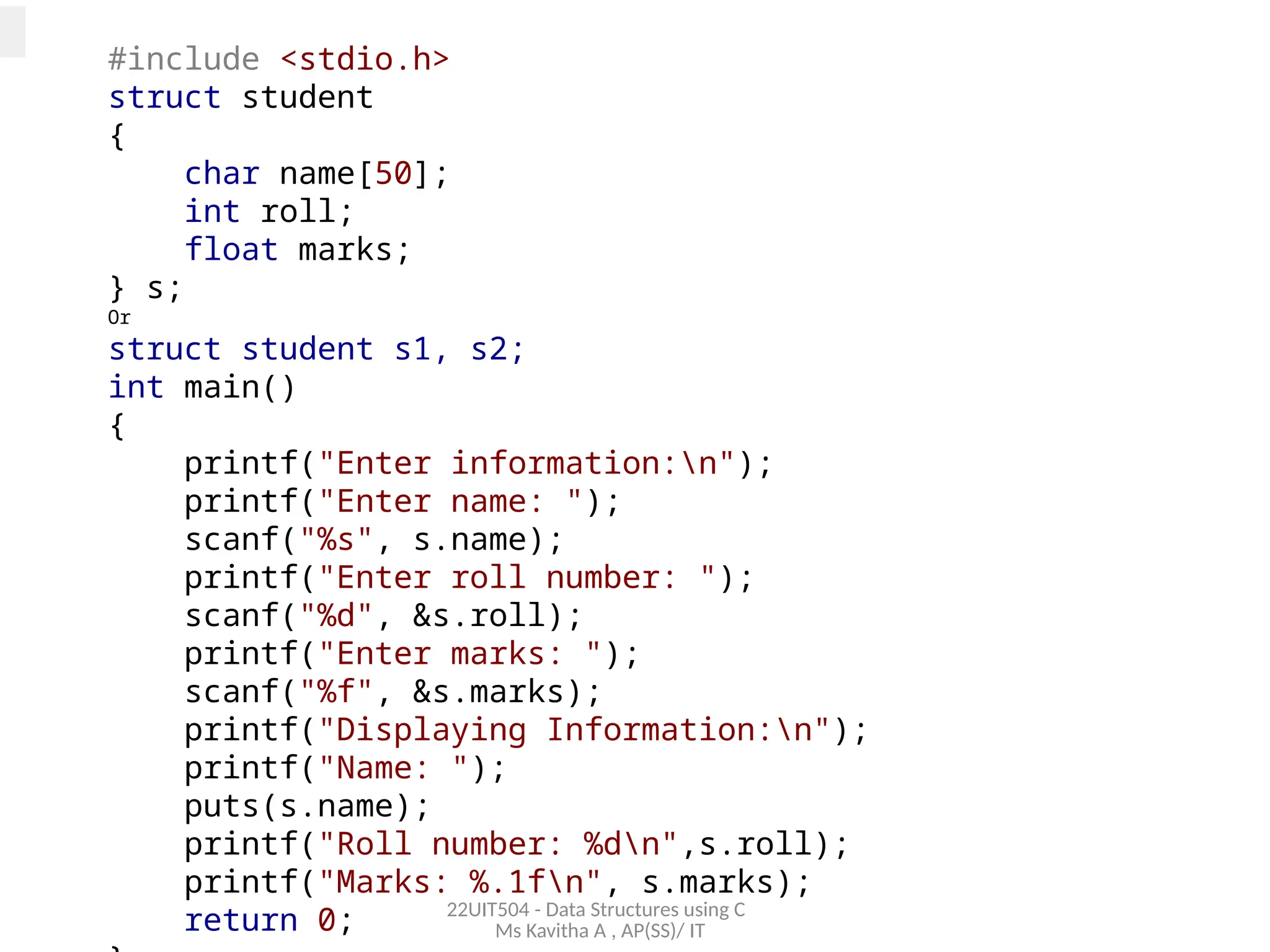

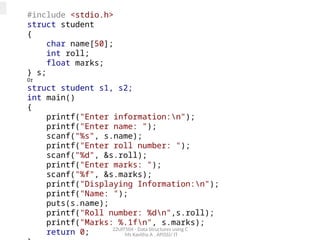

#include <stdio.h>
struct student
{
char name[50];
int roll;
float marks;
} s;
Or
struct student s1, s2;
int main()
{
printf("Enter information:n");
printf("Enter name: ");
scanf("%s", s.name);
printf("Enter roll number: ");
scanf("%d", &s.roll);
printf("Enter marks: ");
scanf("%f", &s.marks);
printf("Displaying Information:n");
printf("Name: ");
puts(s.name);
printf("Roll number: %dn",s.roll);
printf("Marks: %.1fn", s.marks);
return 0;

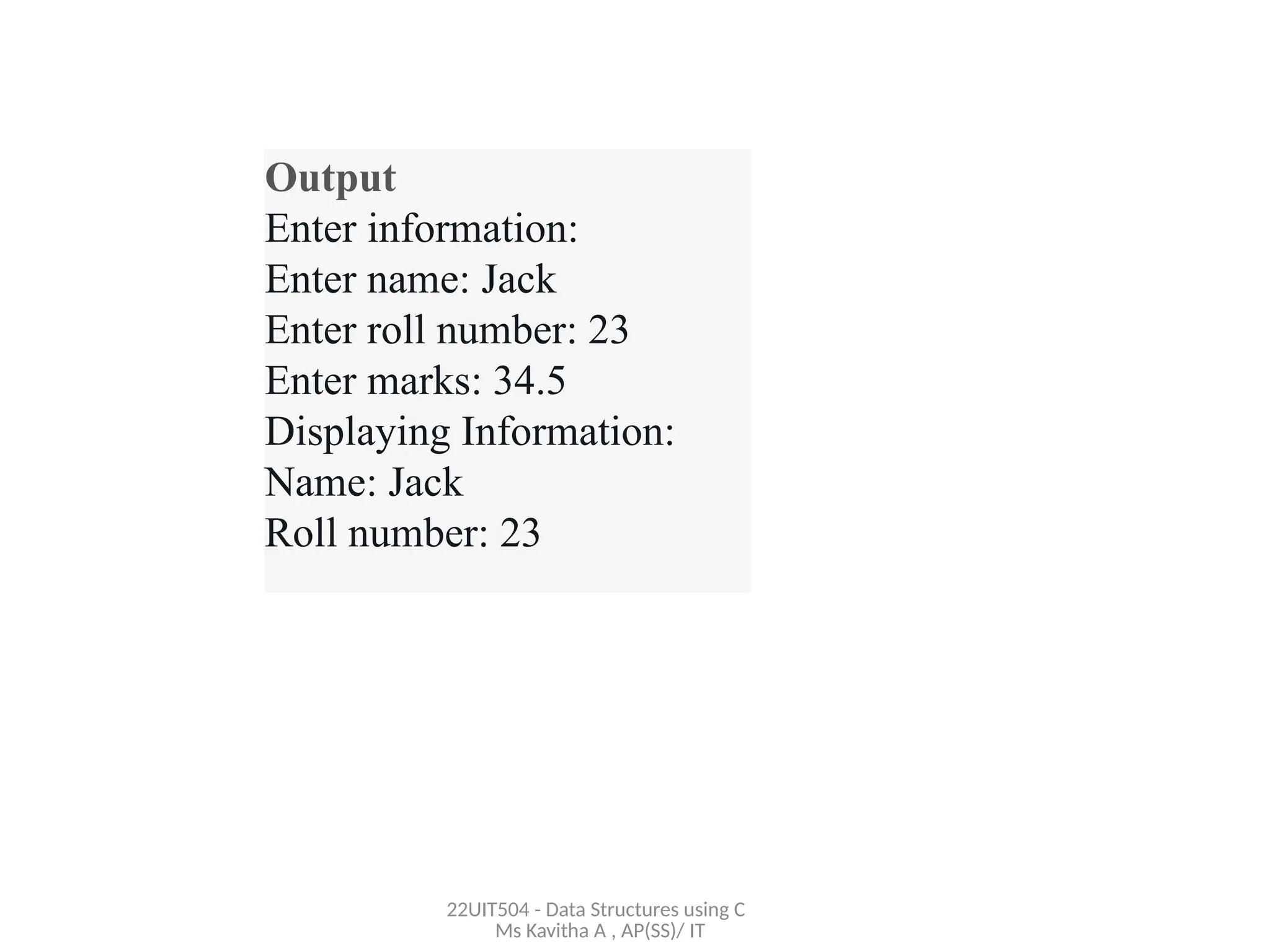

Output
Enter information:
Enter name: Jack
Enter roll number: 23
Enter marks: 34.5
Displaying Information:
Name: Jack
Roll number: 23

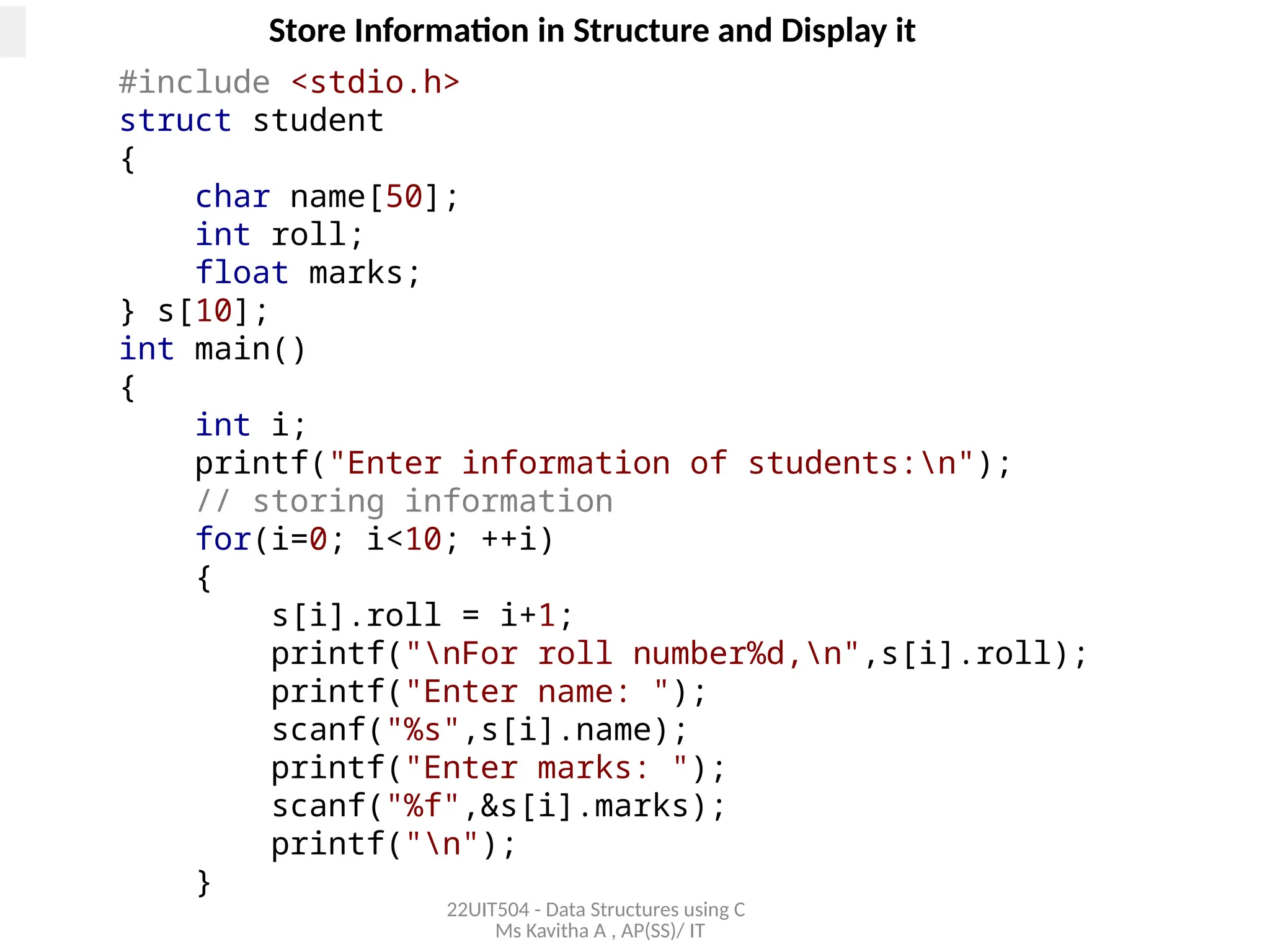

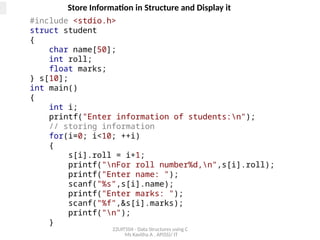

Store Information in Structure and Display it
#include <stdio.h>
struct student
{
char name[50];
int roll;
float marks;
} s[10];
int main()
{
int i;
printf("Enter information of students:n");
// storing information
for(i=0; i<10; ++i)
{
s[i].roll = i+1;
printf("nFor roll number%d,n",s[i].roll);
printf("Enter name: ");
scanf("%s",s[i].name);
printf("Enter marks: ");
scanf("%f",&s[i].marks);
printf("n");
}

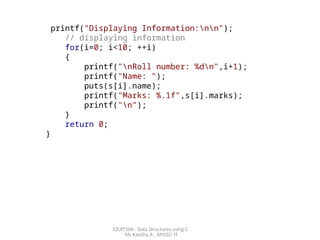

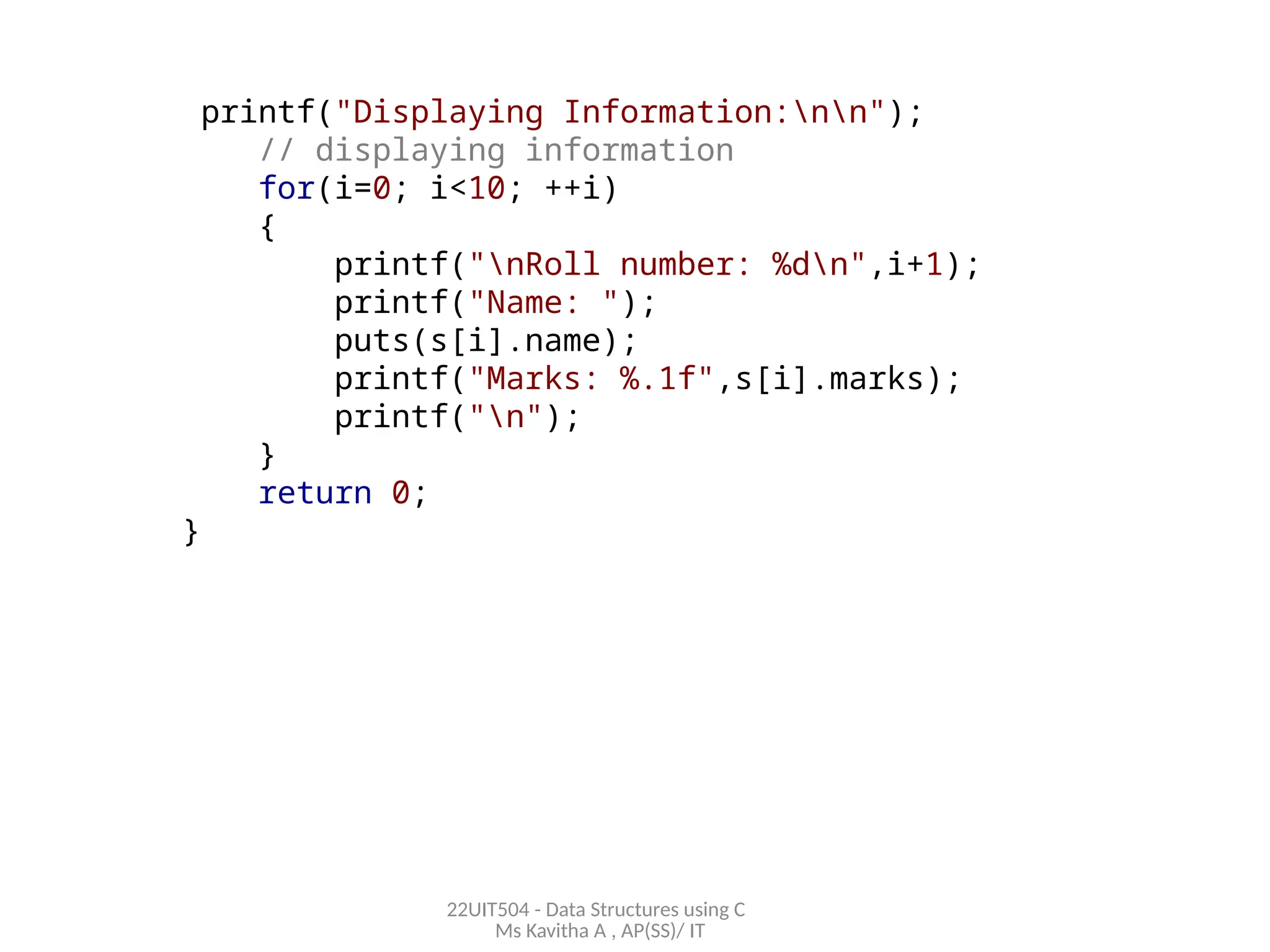

printf("Displaying Information:nn");
// displaying information
for(i=0; i<10; ++i)
{
printf("nRoll number: %dn",i+1);
printf("Name: ");
puts(s[i].name);
printf("Marks: %.1f",s[i].marks);
printf("n");
}
return 0;
}

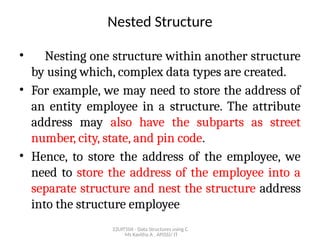

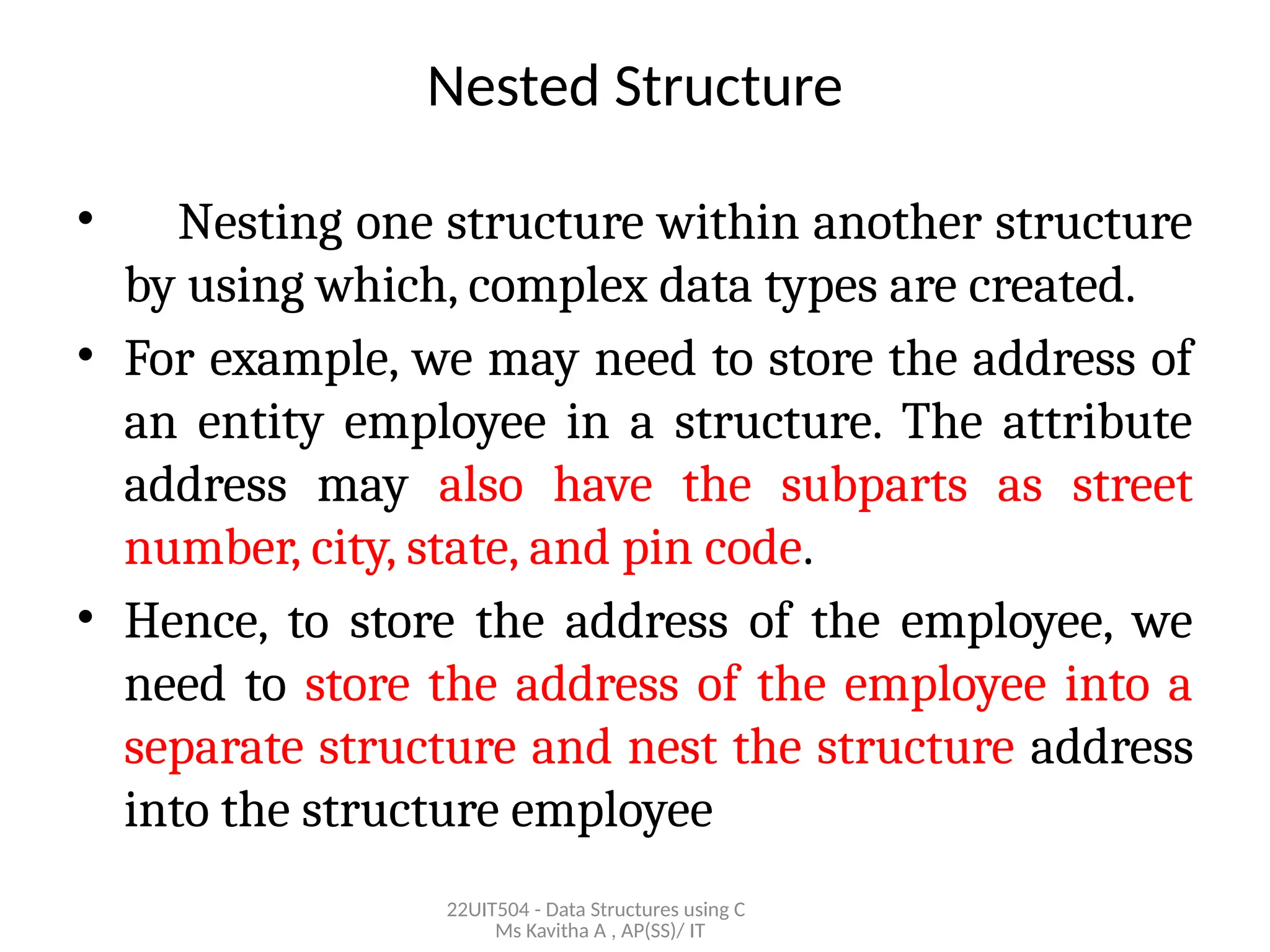

Nested Structure
• Nesting one structure within another structure
by using which, complex data types are created.
• For example, we may need to store the address of
an entity employee in a structure. The attribute
address may also have the subparts as street
number, city, state, and pin code.
• Hence, to store the address of the employee, we
need to store the address of the employee into a
separate structure and nest the structure address
into the structure employee

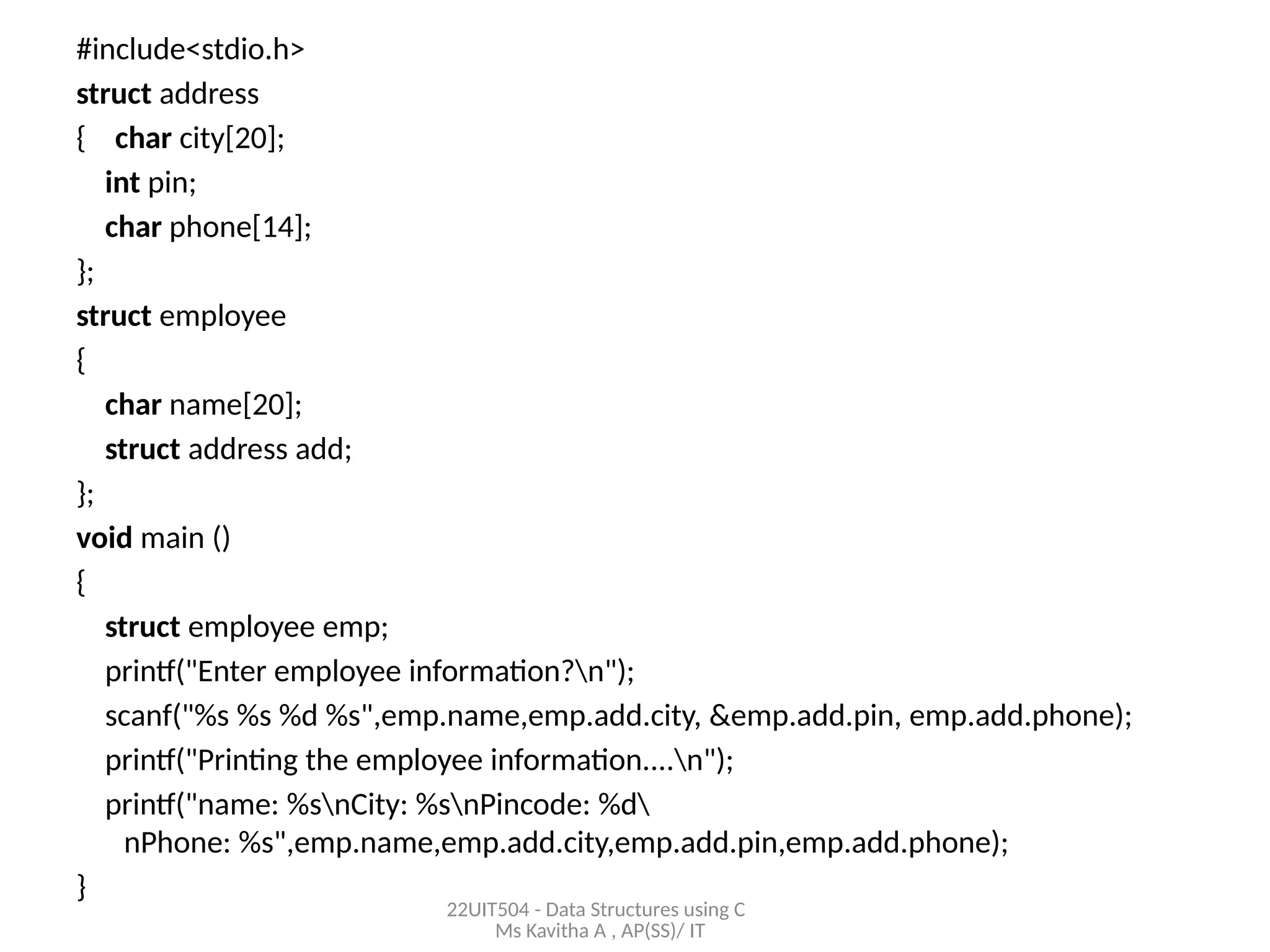

#include<stdio.h>
struct address
{ char city[20];
int pin;
char phone[14];
};
struct employee
{
char name[20];
struct address add;
};
void main ()
{
struct employee emp;
printf("Enter employee information?n");
scanf("%s %s %d %s",emp.name,emp.add.city, &emp.add.pin, emp.add.phone);
printf("Printing the employee information....n");
printf("name: %snCity: %snPincode: %d
nPhone: %s",emp.name,emp.add.city,emp.add.pin,emp.add.phone);
}

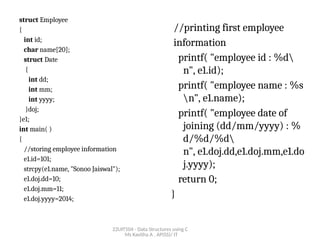

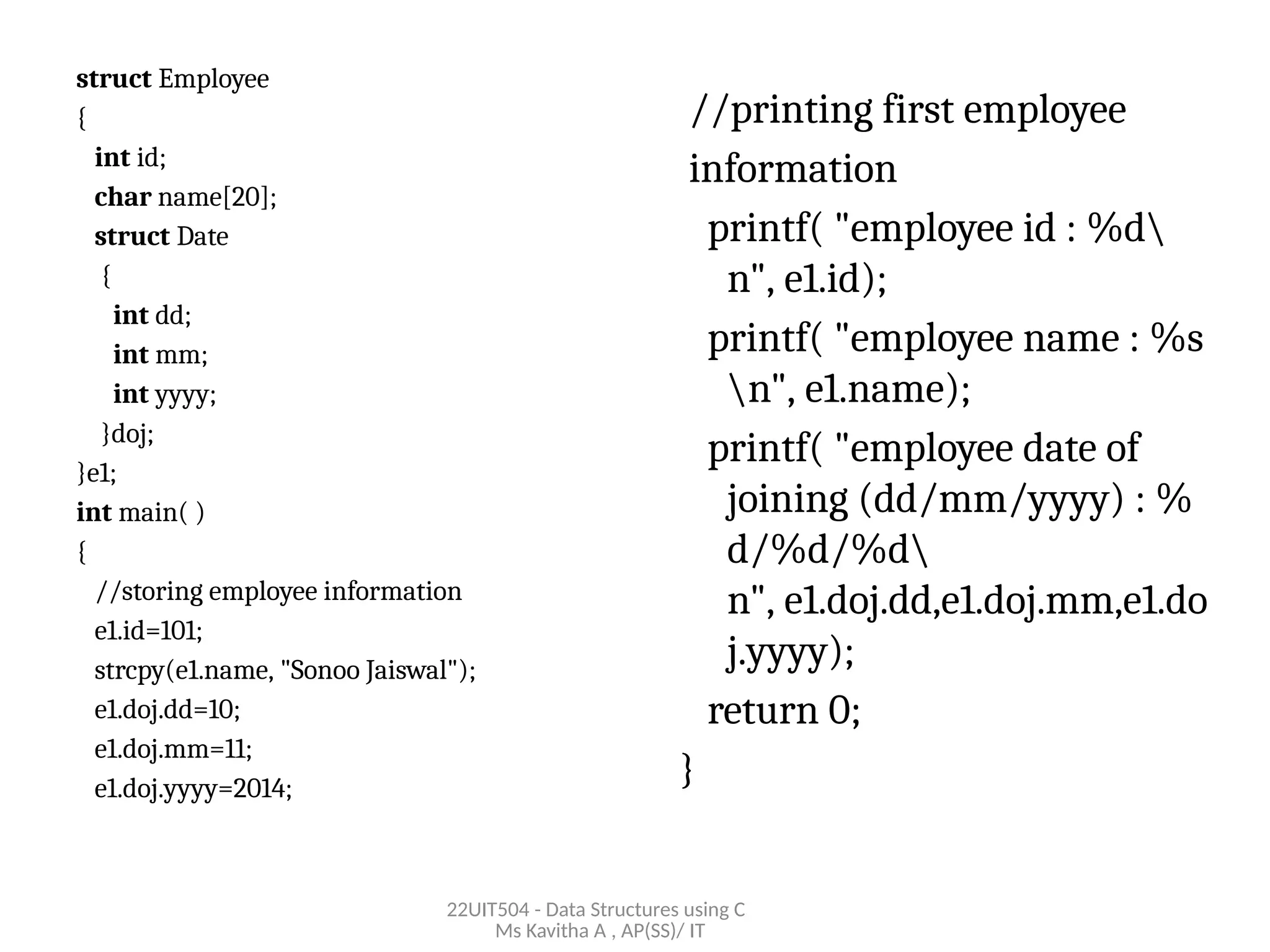

struct Employee
{
int id;
char name[20];
struct Date
{
int dd;
int mm;
int yyyy;
}doj;
}e1;
int main( )
{
//storing employee information
e1.id=101;
strcpy(e1.name, "Sonoo Jaiswal");
e1.doj.dd=10;
e1.doj.mm=11;
e1.doj.yyyy=2014;
//printing first employee
information
printf( "employee id : %d
n", e1.id);
printf( "employee name : %s
n", e1.name);
printf( "employee date of
joining (dd/mm/yyyy) : %
d/%d/%d
n", e1.doj.dd,e1.doj.mm,e1.do
j.yyyy);
return 0;
}

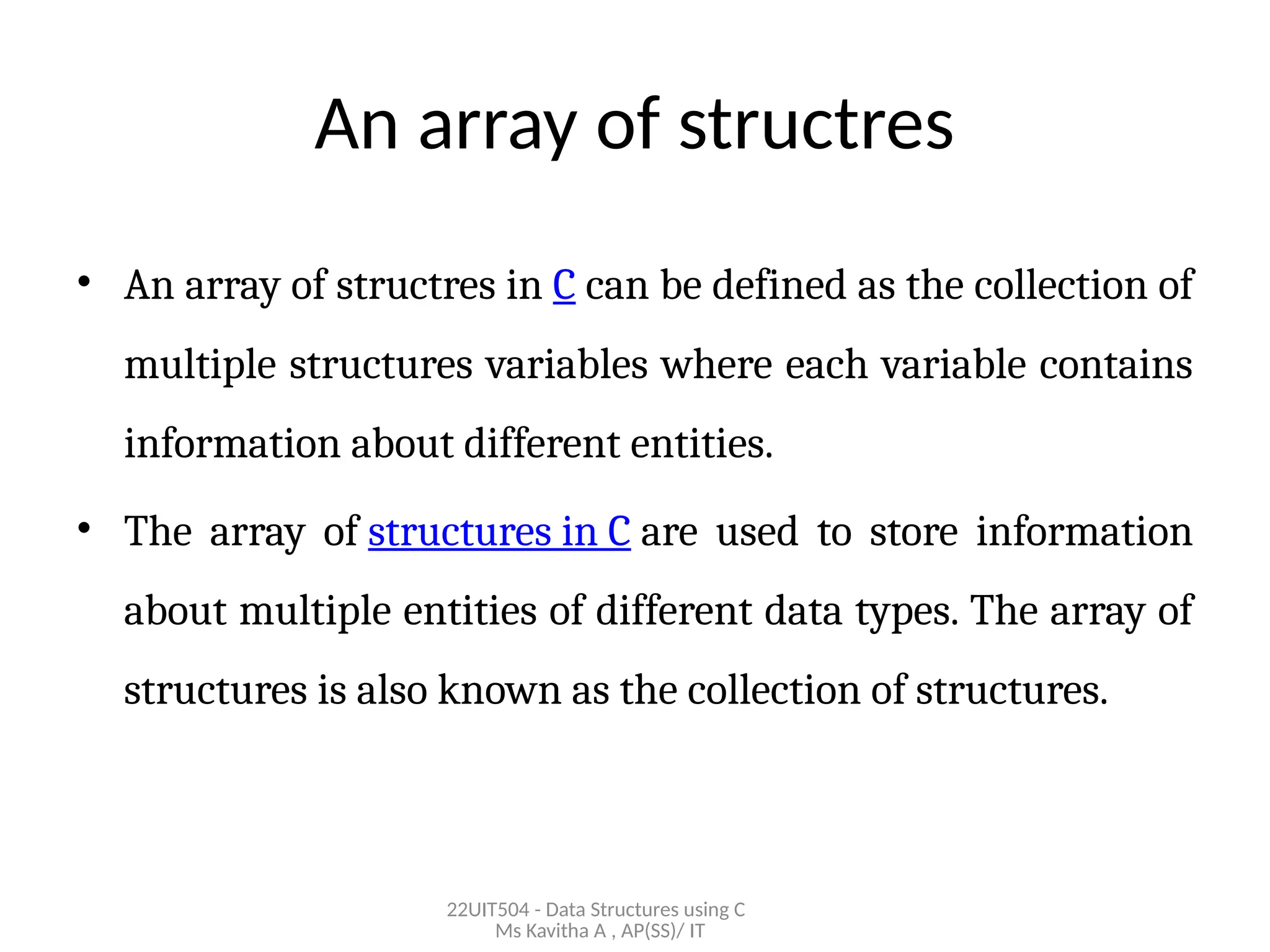

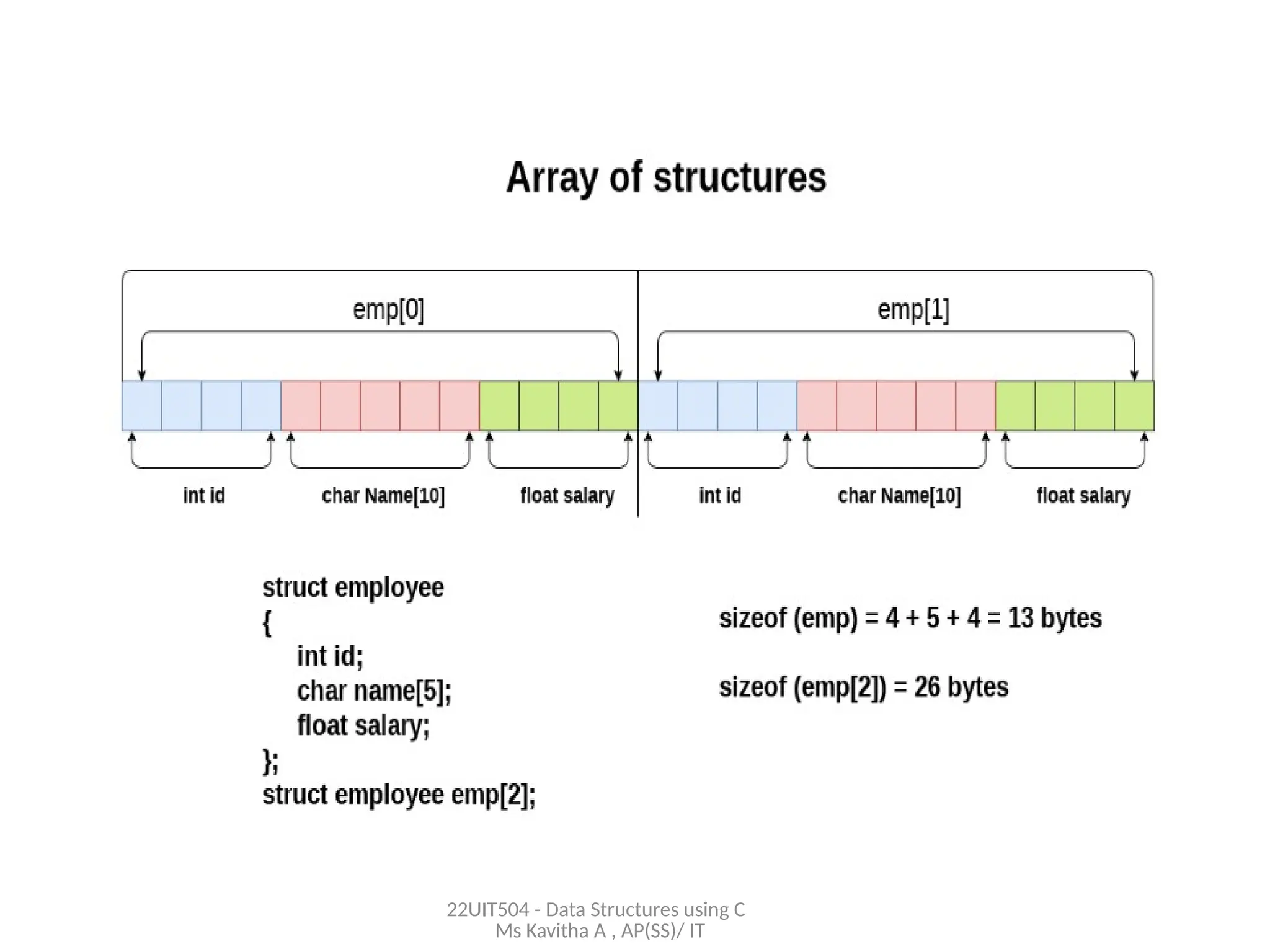

An array of structres
• An array of structres in C can be defined as the collection of
multiple structures variables where each variable contains
information about different entities.
• The array of structures in C are used to store information
about multiple entities of different data types. The array of
structures is also known as the collection of structures.

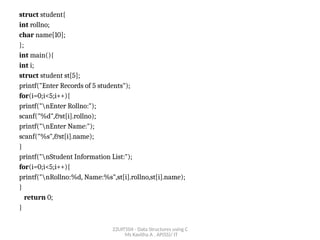

struct student{
int rollno;
char name[10];
};
int main(){
int i;
struct student st[5];
printf("Enter Records of 5 students");
for(i=0;i<5;i++){
printf("nEnter Rollno:");
scanf("%d",&st[i].rollno);
printf("nEnter Name:");
scanf("%s",&st[i].name);
}
printf("nStudent Information List:");
for(i=0;i<5;i++){
printf("nRollno:%d, Name:%s",st[i].rollno,st[i].name);
}
return 0;
}

Structure Pointer
• The structure pointer points to the address of a memory block
where the Structure is being stored.
• Like a pointer that tells the address of another variable of any data
type (int, char, float) in memory.
• And here, we use a structure pointer which tells the address of a
structure in memory by pointing pointer variable ptr to the
structure variable.

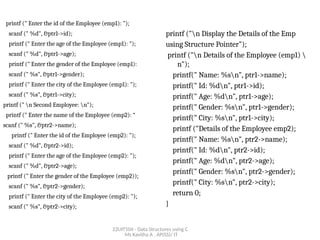

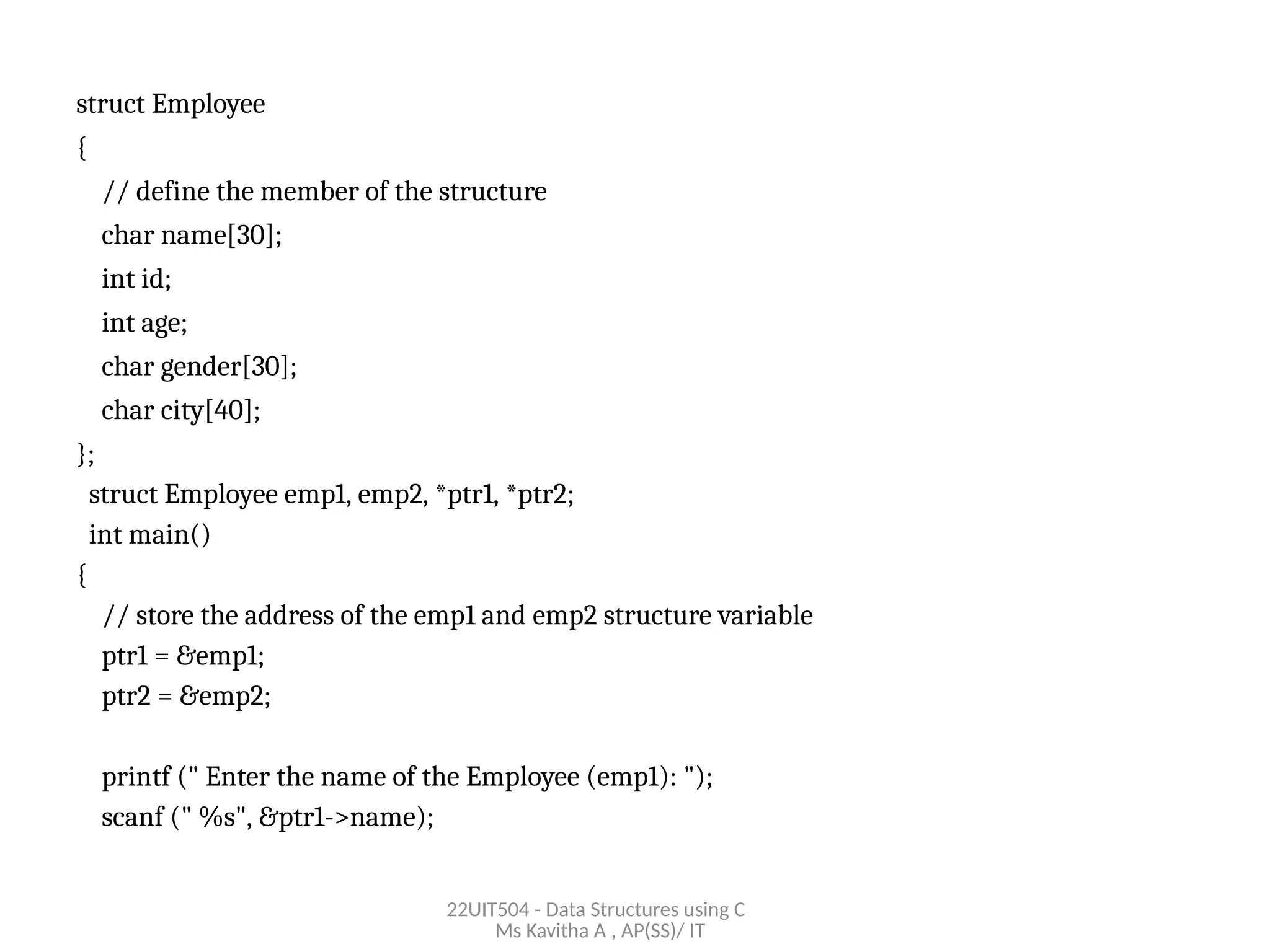

struct Employee
{
// define the member of the structure
char name[30];
int id;
int age;
char gender[30];
char city[40];
};
struct Employee emp1, emp2, *ptr1, *ptr2;
int main()
{
// store the address of the emp1 and emp2 structure variable
ptr1 = &emp1;
ptr2 = &emp2;
printf (" Enter the name of the Employee (emp1): ");
scanf (" %s", &ptr1->name);

printf (" Enter the id of the Employee (emp1): ");
scanf (" %d", &ptr1->id);
printf (" Enter the age of the Employee (emp1): ");
scanf (" %d", &ptr1->age);
printf (" Enter the gender of the Employee (emp1):
scanf (" %s", &ptr1->gender);
printf (" Enter the city of the Employee (emp1): ");
scanf (" %s", &ptr1->city);
printf (" n Second Employee: n");
printf (" Enter the name of the Employee (emp2): “
scanf (" %s", &ptr2->name);
printf (" Enter the id of the Employee (emp2): ");
scanf (" %d", &ptr2->id);
printf (" Enter the age of the Employee (emp2): ");
scanf (" %d", &ptr2->age);
printf (" Enter the gender of the Employee (emp2));
scanf (" %s", &ptr2->gender);
printf (" Enter the city of the Employee (emp2): ");
scanf (" %s", &ptr2->city);
printf ("n Display the Details of the Emp
using Structure Pointer");
printf ("n Details of the Employee (emp1)
n");
printf(" Name: %sn", ptr1->name);
printf(" Id: %dn", ptr1->id);
printf(" Age: %dn", ptr1->age);
printf(" Gender: %sn", ptr1->gender);
printf(" City: %sn", ptr1->city);
printf ("Details of the Employee emp2);
printf(" Name: %sn", ptr2->name);
printf(" Id: %dn", ptr2->id);
printf(" Age: %dn", ptr2->age);
printf(" Gender: %sn", ptr2->gender);
printf(" City: %sn", ptr2->city);
return 0;
}

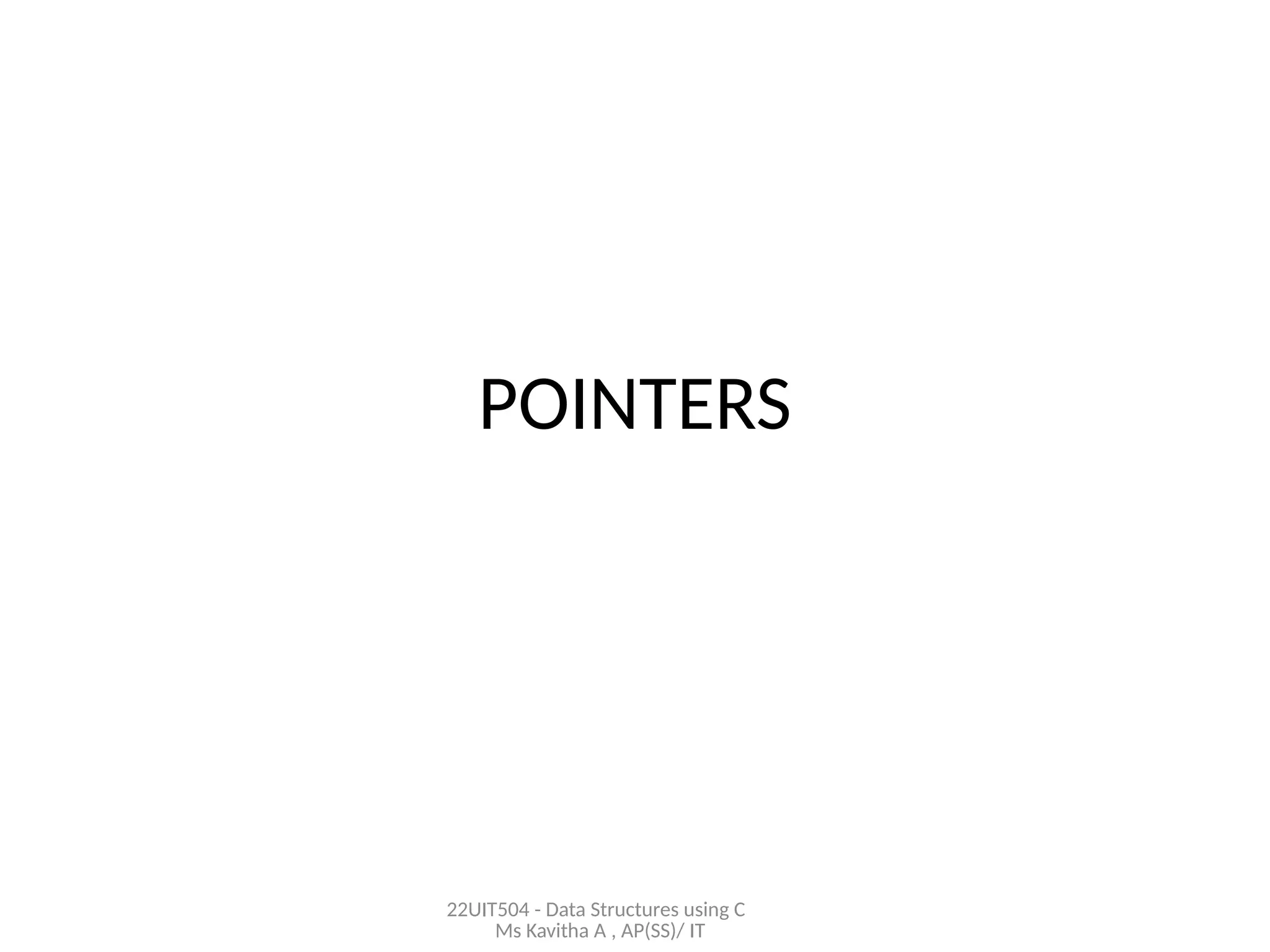

POINTERS

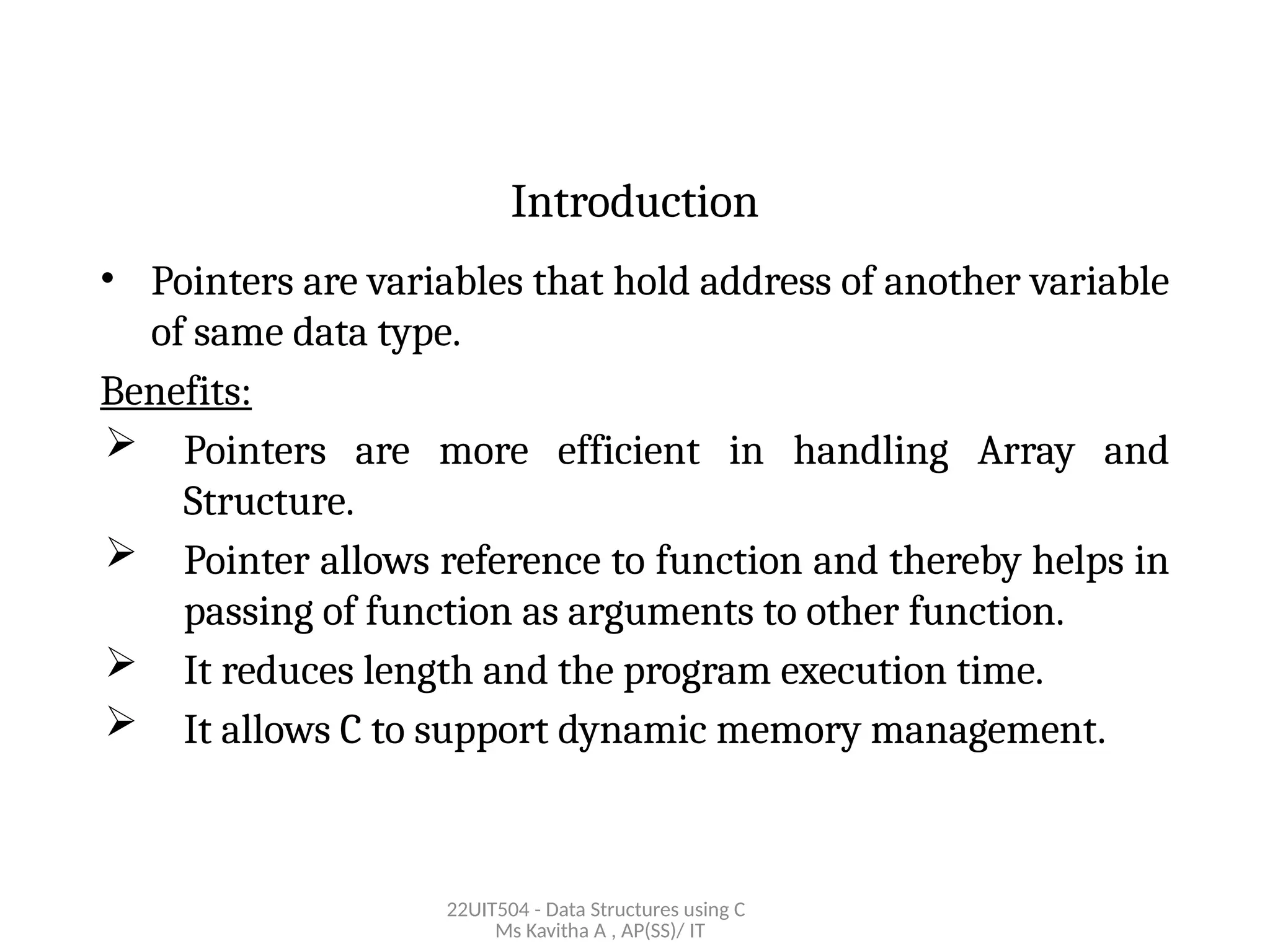

Introduction
• Pointers are variables that hold address of another variable
of same data type.
Benefits:
 Pointers are more efficient in handling Array and
Structure.
 Pointer allows reference to function and thereby helps in
passing of function as arguments to other function.
 It reduces length and the program execution time.
 It allows C to support dynamic memory management.

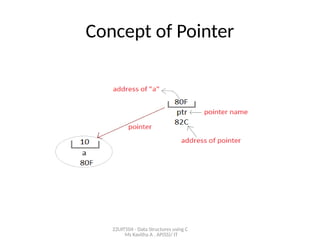

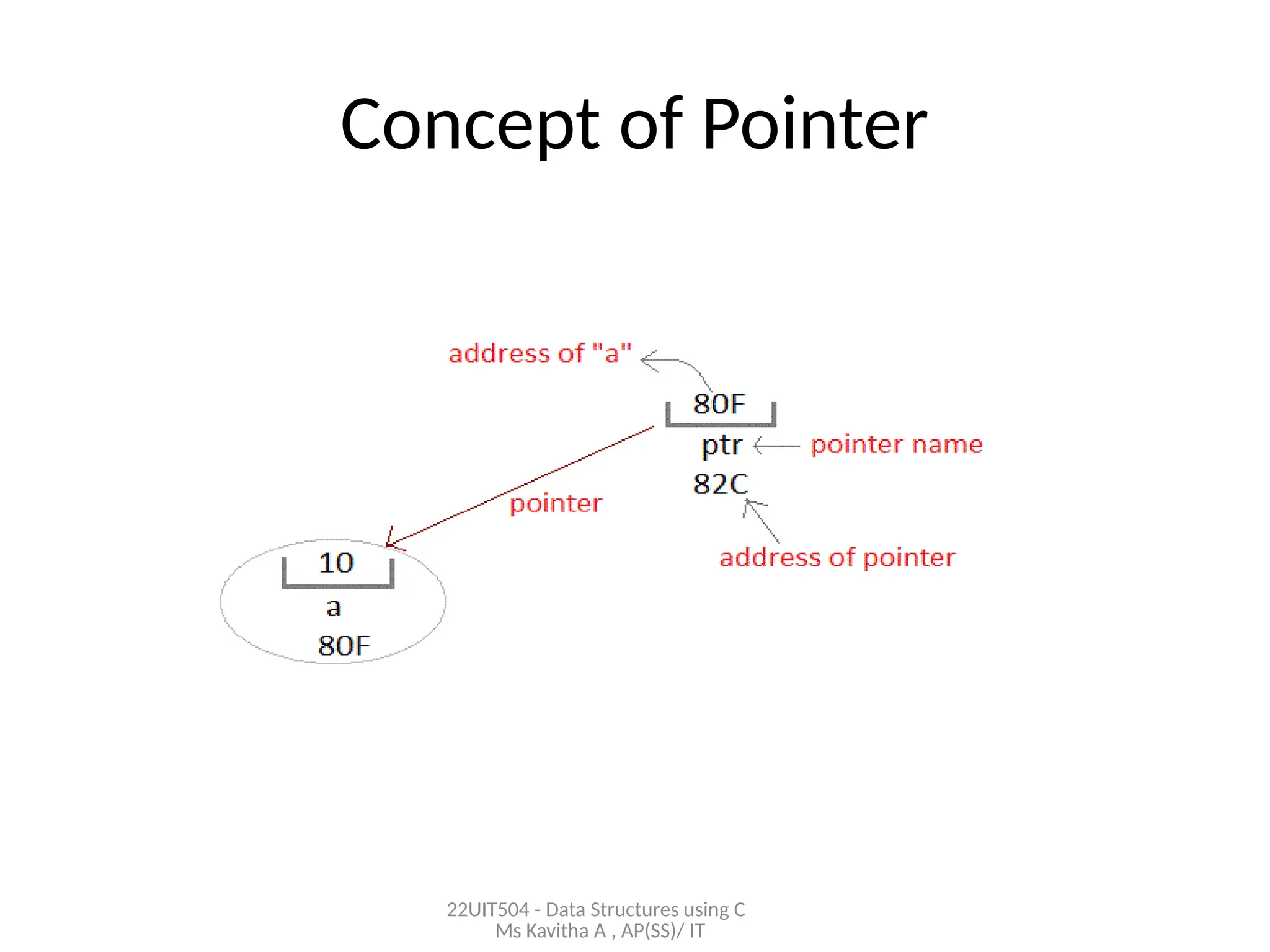

Concept of Pointer

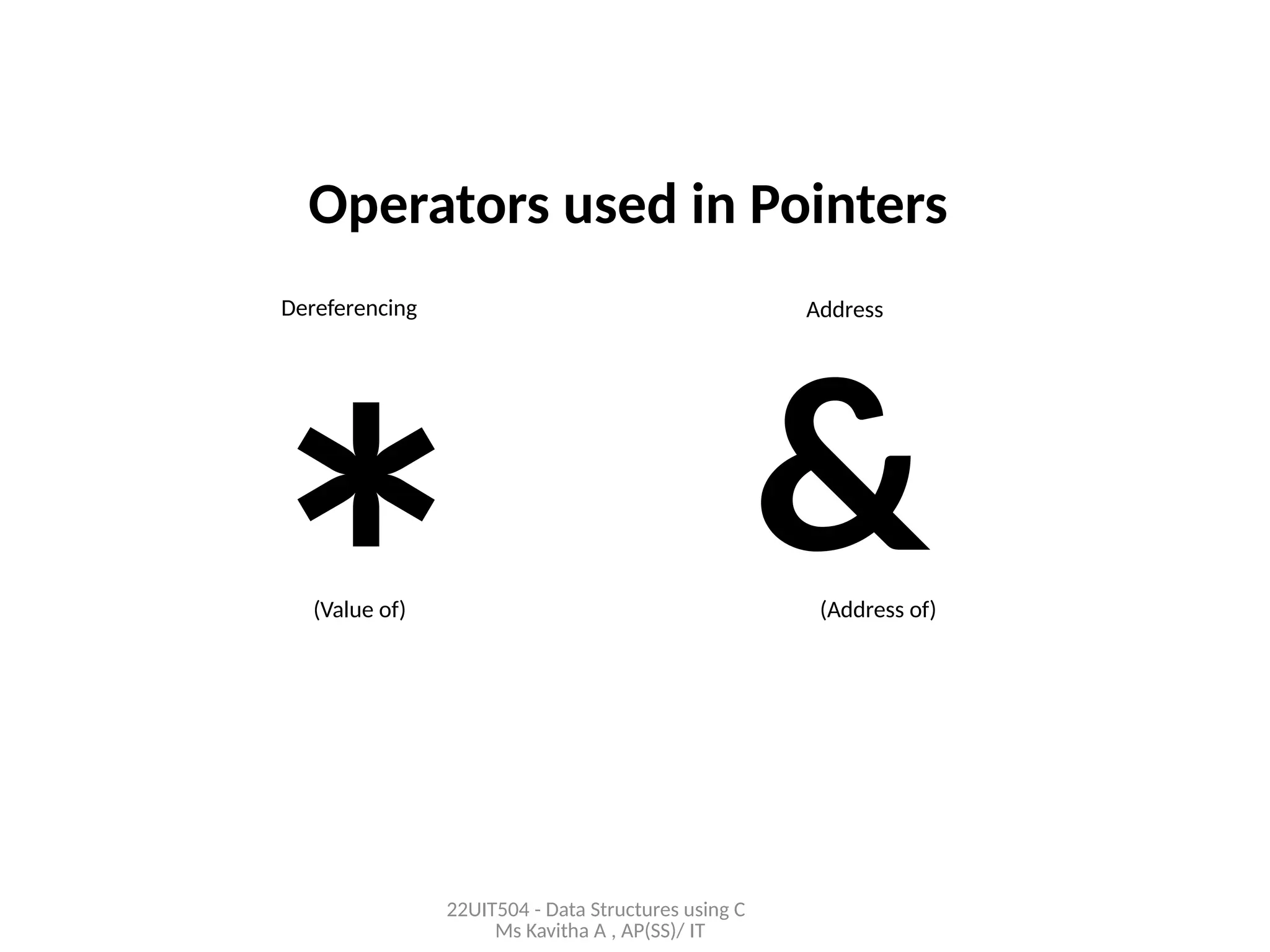

Operators used in Pointers
* &
Address
Dereferencing
(Address of)
(Value of)

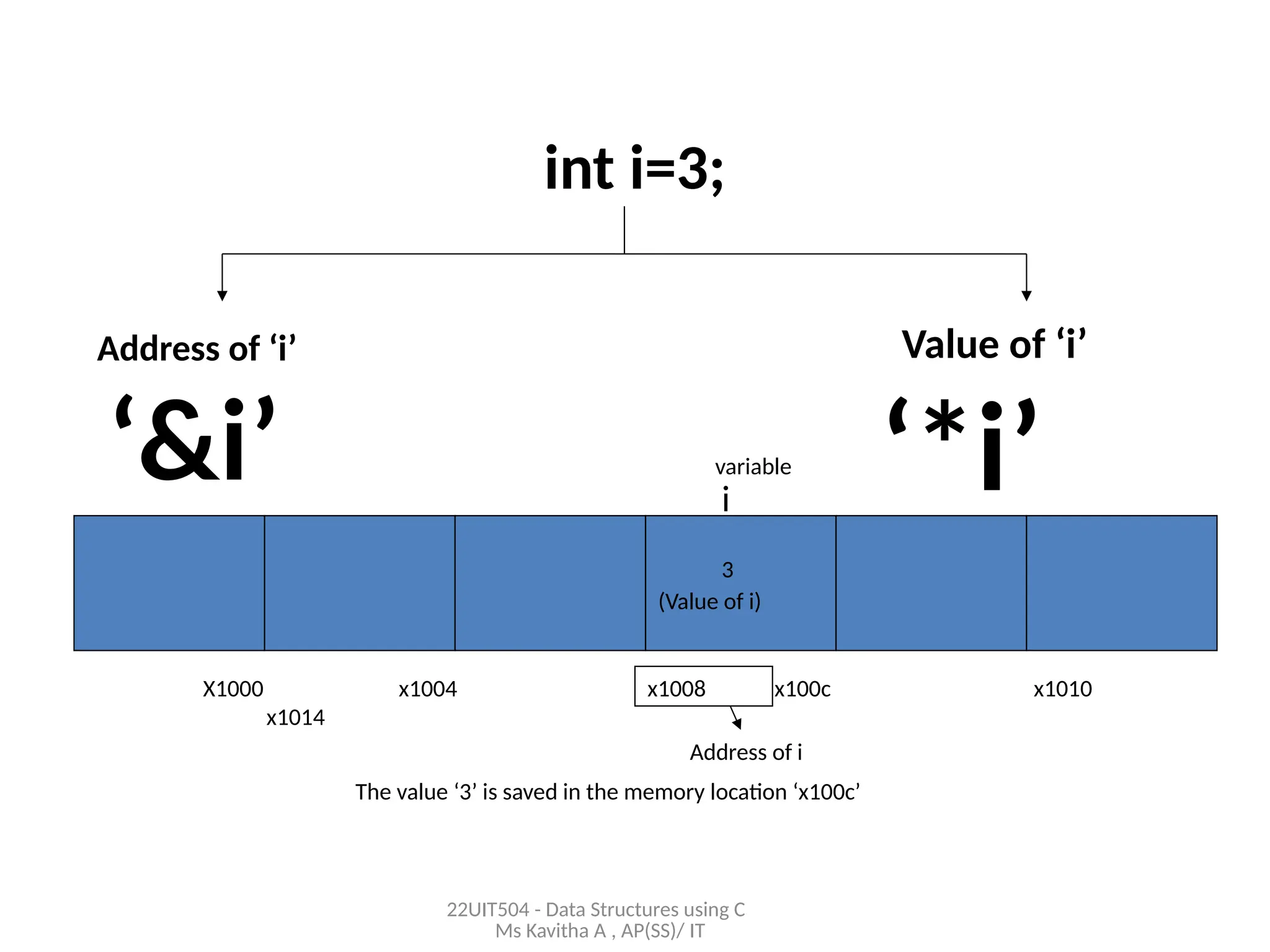

int i=3;
Address of ‘i’ Value of ‘i’
X1000 x1004 x1008 x100c x1010
x1014
variable
i
3
(Value of i)
Address of i
‘&i’ ‘*i’
The value ‘3’ is saved in the memory location ‘x100c’

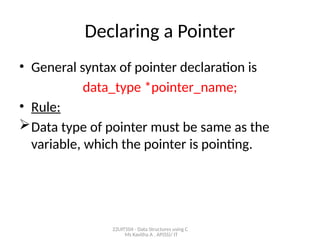

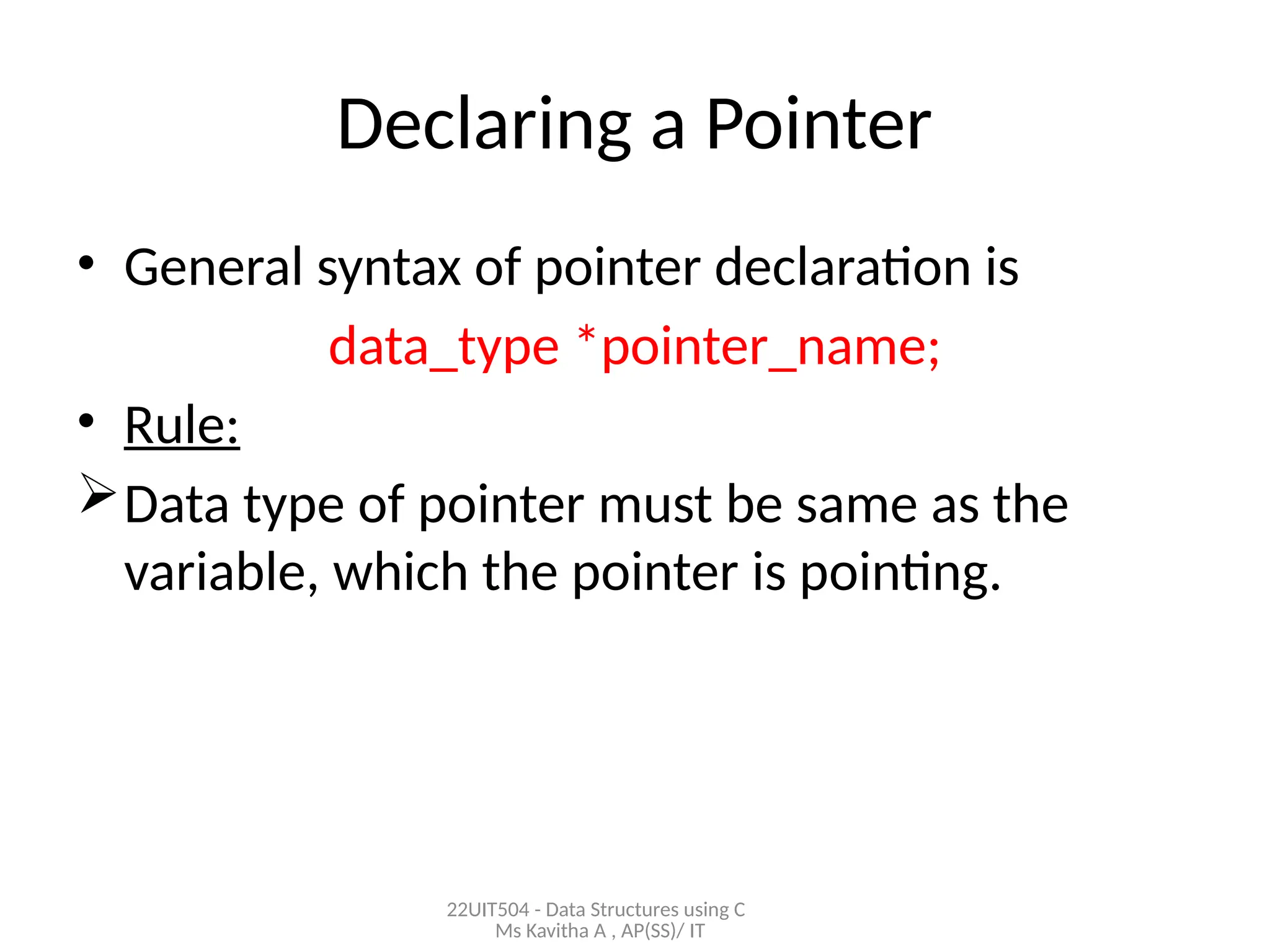

Declaring a Pointer
• General syntax of pointer declaration is
data_type *pointer_name;
• Rule:
Data type of pointer must be same as the
variable, which the pointer is pointing.

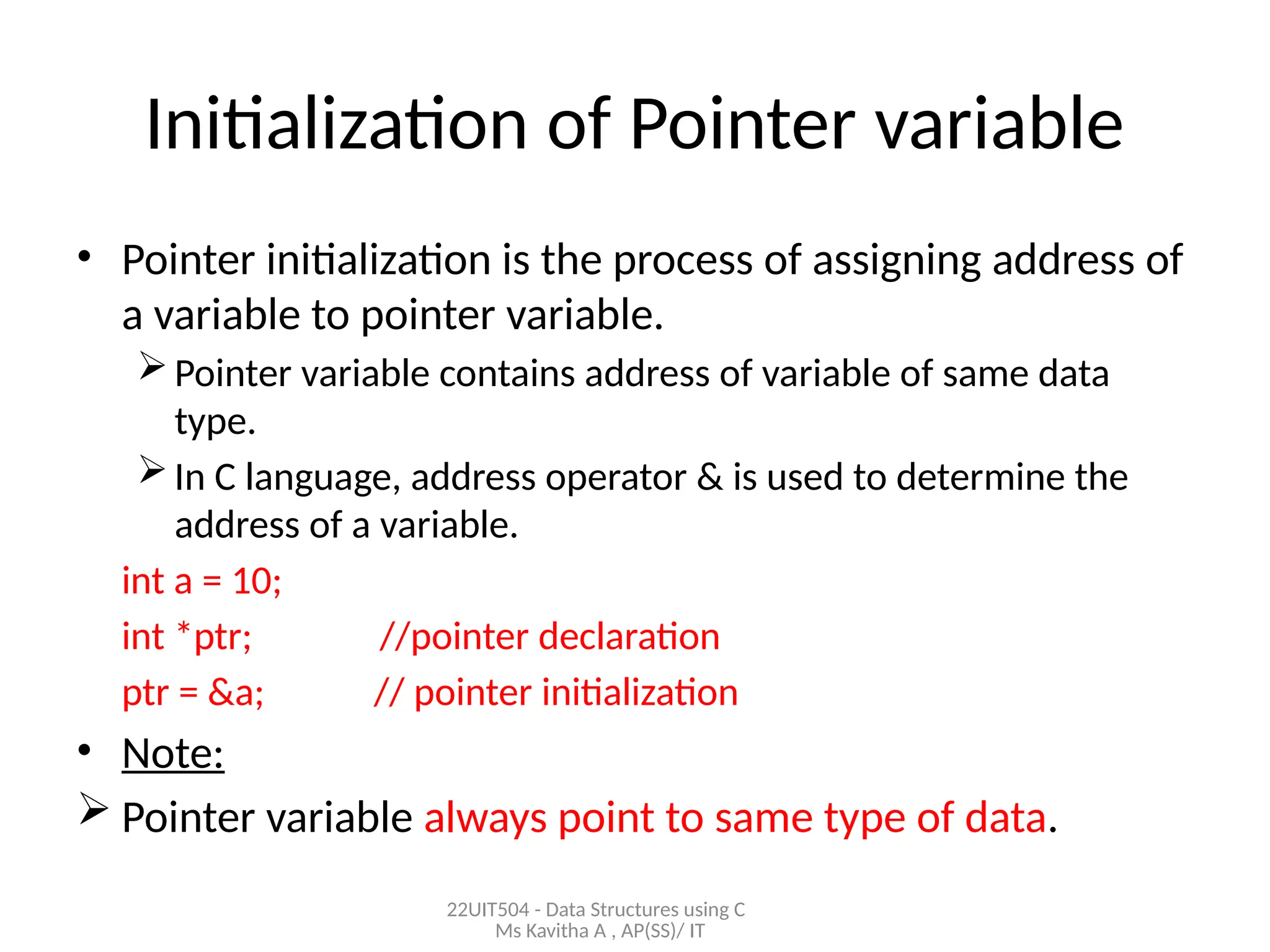

Initialization of Pointer variable
• Pointer initialization is the process of assigning address of
a variable to pointer variable.
Pointer variable contains address of variable of same data
type.
In C language, address operator & is used to determine the
address of a variable.
int a = 10;
int *ptr; //pointer declaration
ptr = &a; // pointer initialization
• Note:
 Pointer variable always point to same type of data.

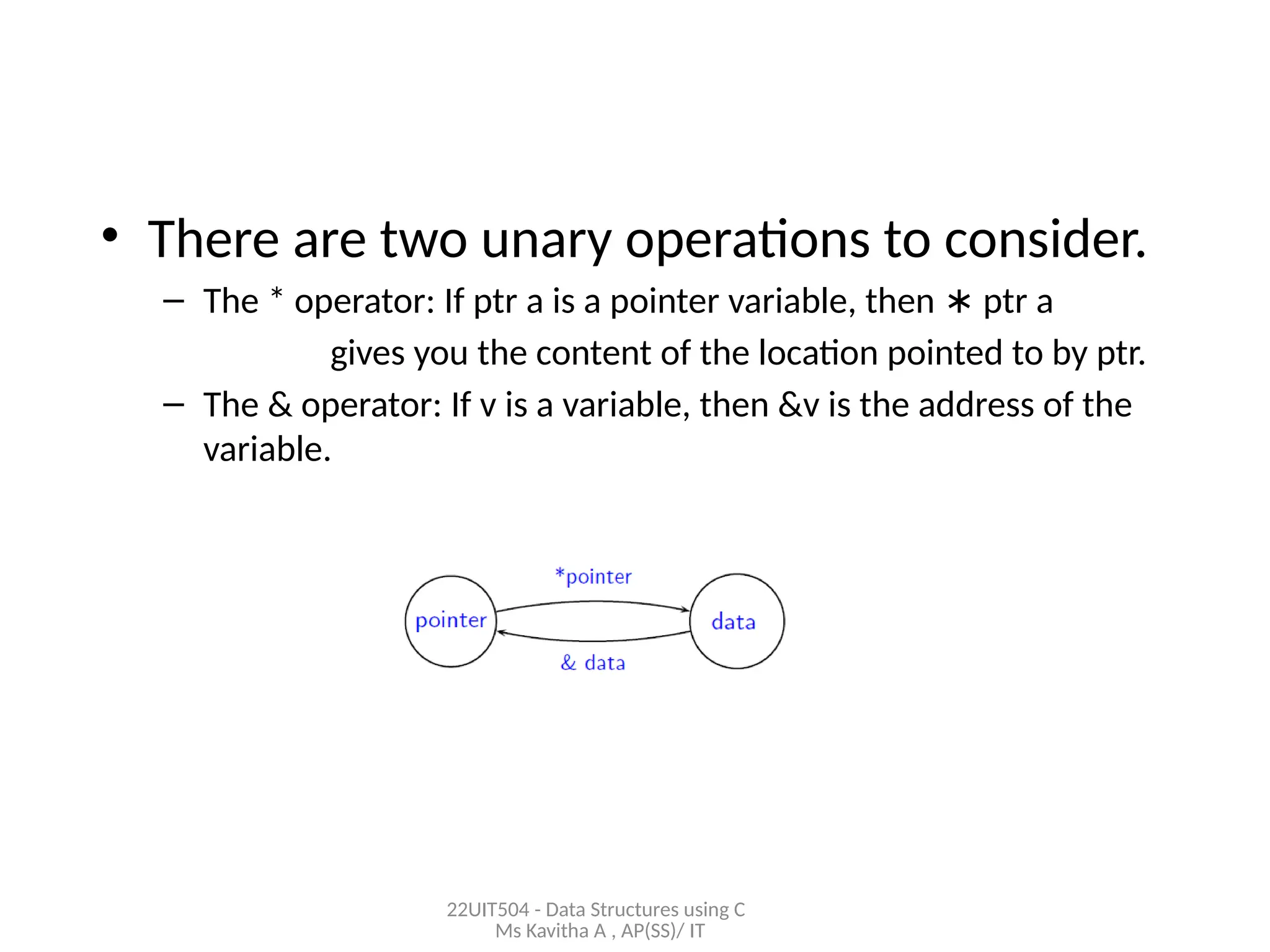

• There are two unary operations to consider.
– The * operator: If ptr a is a pointer variable, then ptr a
∗
gives you the content of the location pointed to by ptr.
– The & operator: If v is a variable, then &v is the address of the
variable.

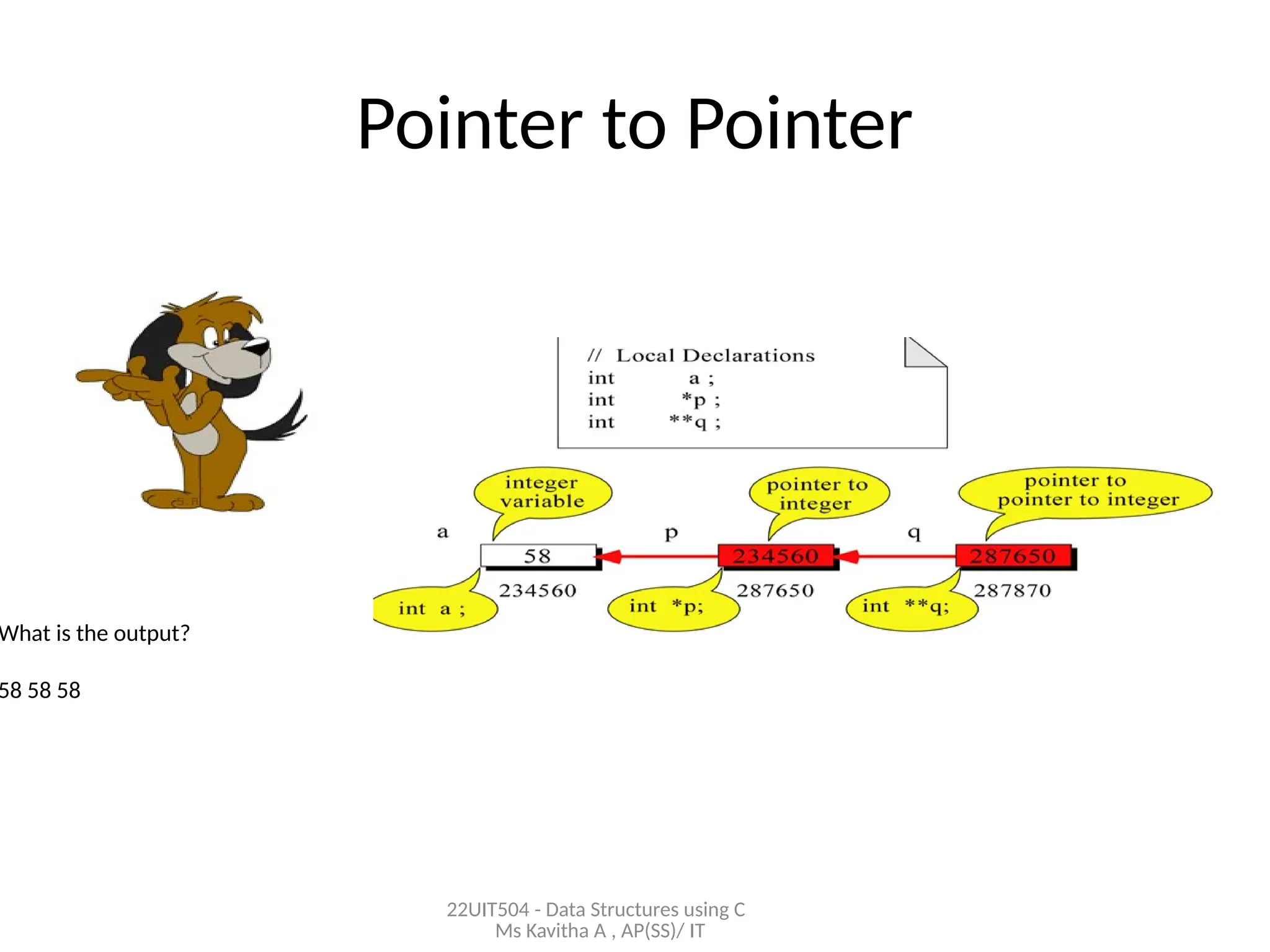

Pointer to Pointer
What is the output?
58 58 58

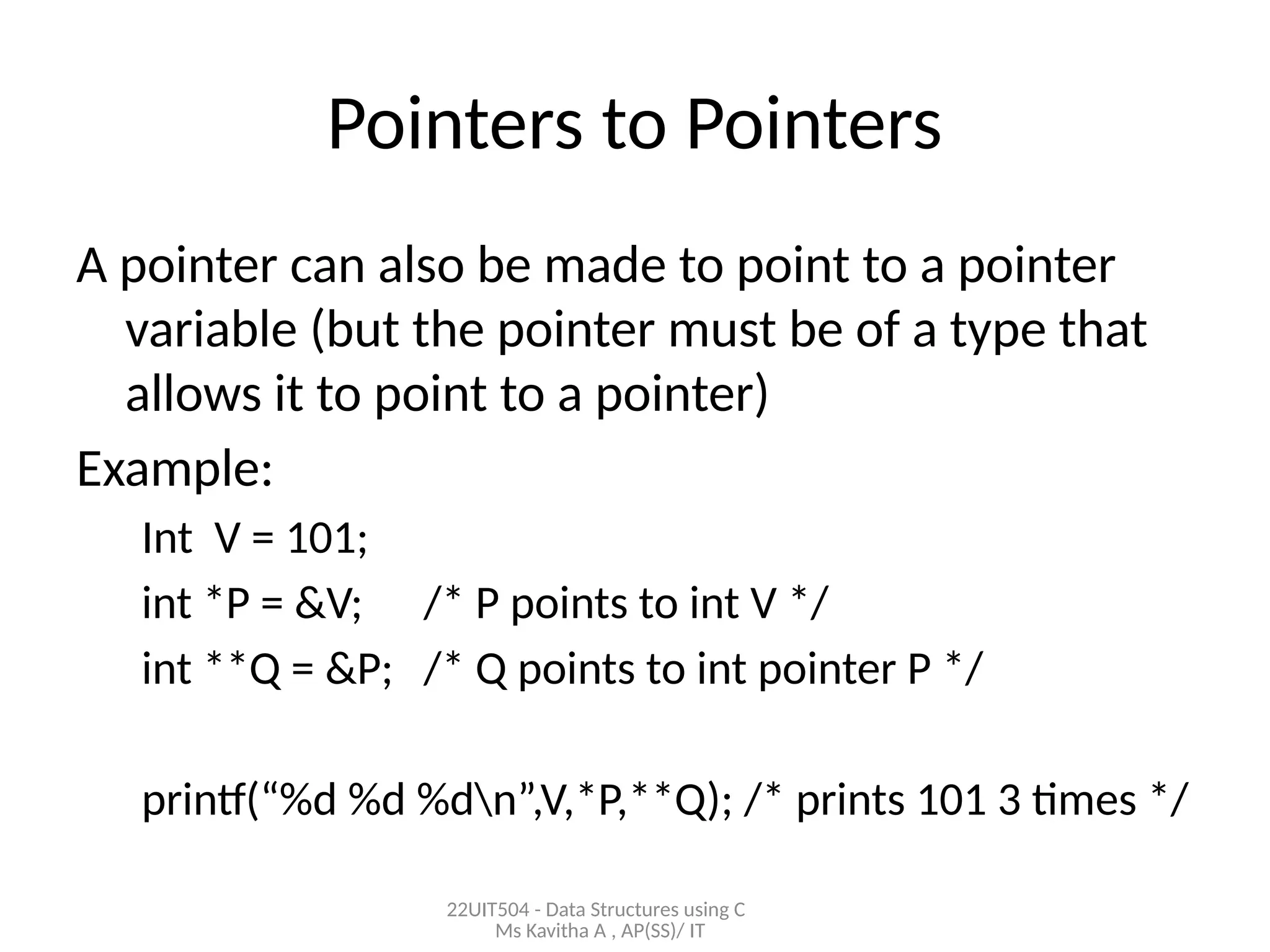

Pointers to Pointers
A pointer can also be made to point to a pointer
variable (but the pointer must be of a type that
allows it to point to a pointer)
Example:
Int V = 101;
int *P = &V; /* P points to int V */
int **Q = &P; /* Q points to int pointer P */
printf(“%d %d %dn”,V,*P,**Q); /* prints 101 3 times */

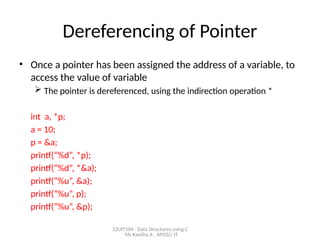

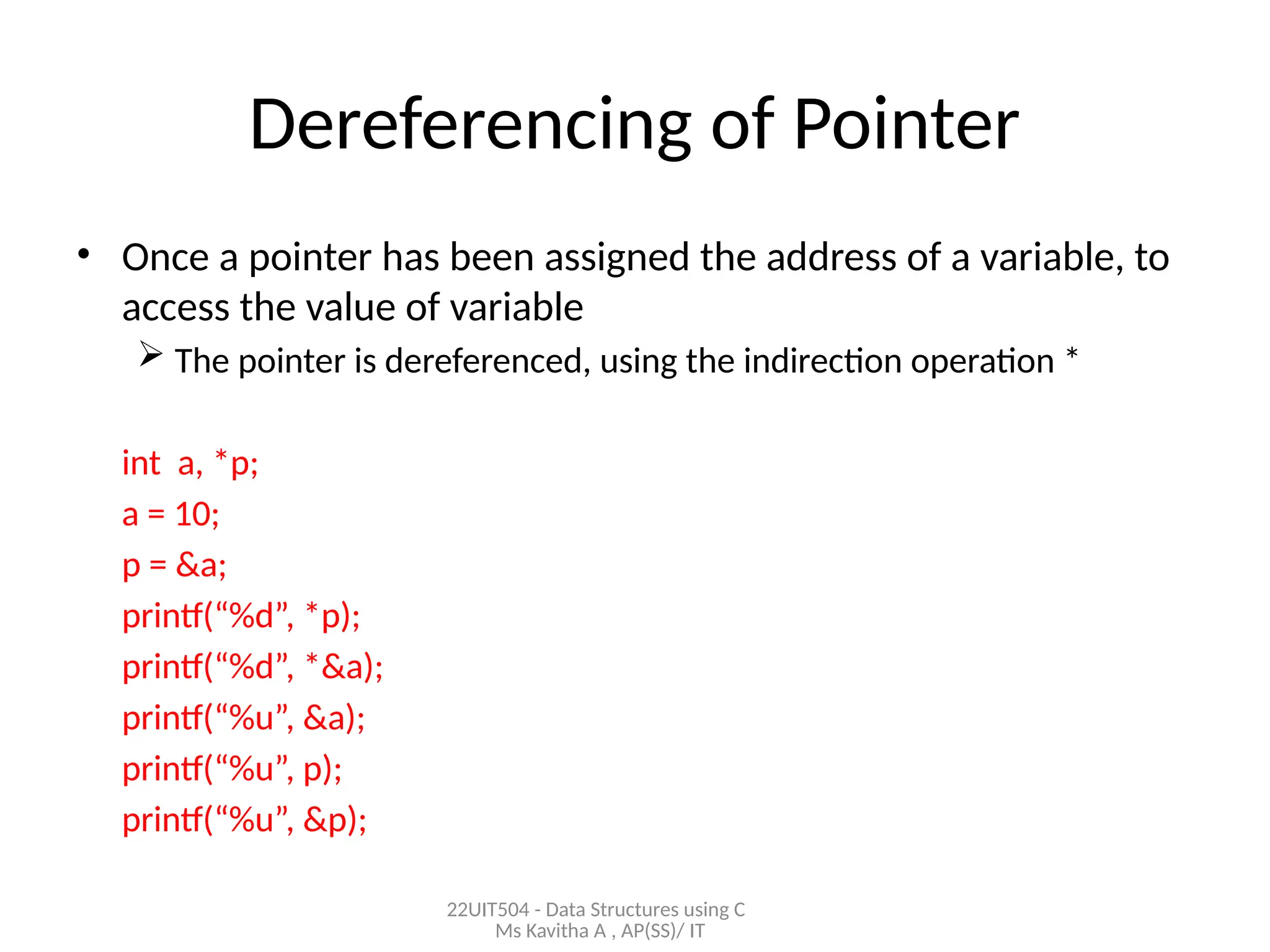

Dereferencing of Pointer
• Once a pointer has been assigned the address of a variable, to
access the value of variable
 The pointer is dereferenced, using the indirection operation *
int a, *p;
a = 10;
p = &a;
printf(“%d”, *p);
printf(“%d”, *&a);
printf(“%u”, &a);
printf(“%u”, p);
printf(“%u”, &p);

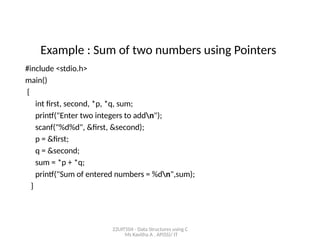

Example : Sum of two numbers using Pointers
#include <stdio.h>
main()
{
int first, second, *p, *q, sum;
printf("Enter two integers to addn");
scanf("%d%d", &first, &second);
p = &first;
q = &second;
sum = *p + *q;
printf("Sum of entered numbers = %dn",sum);
}

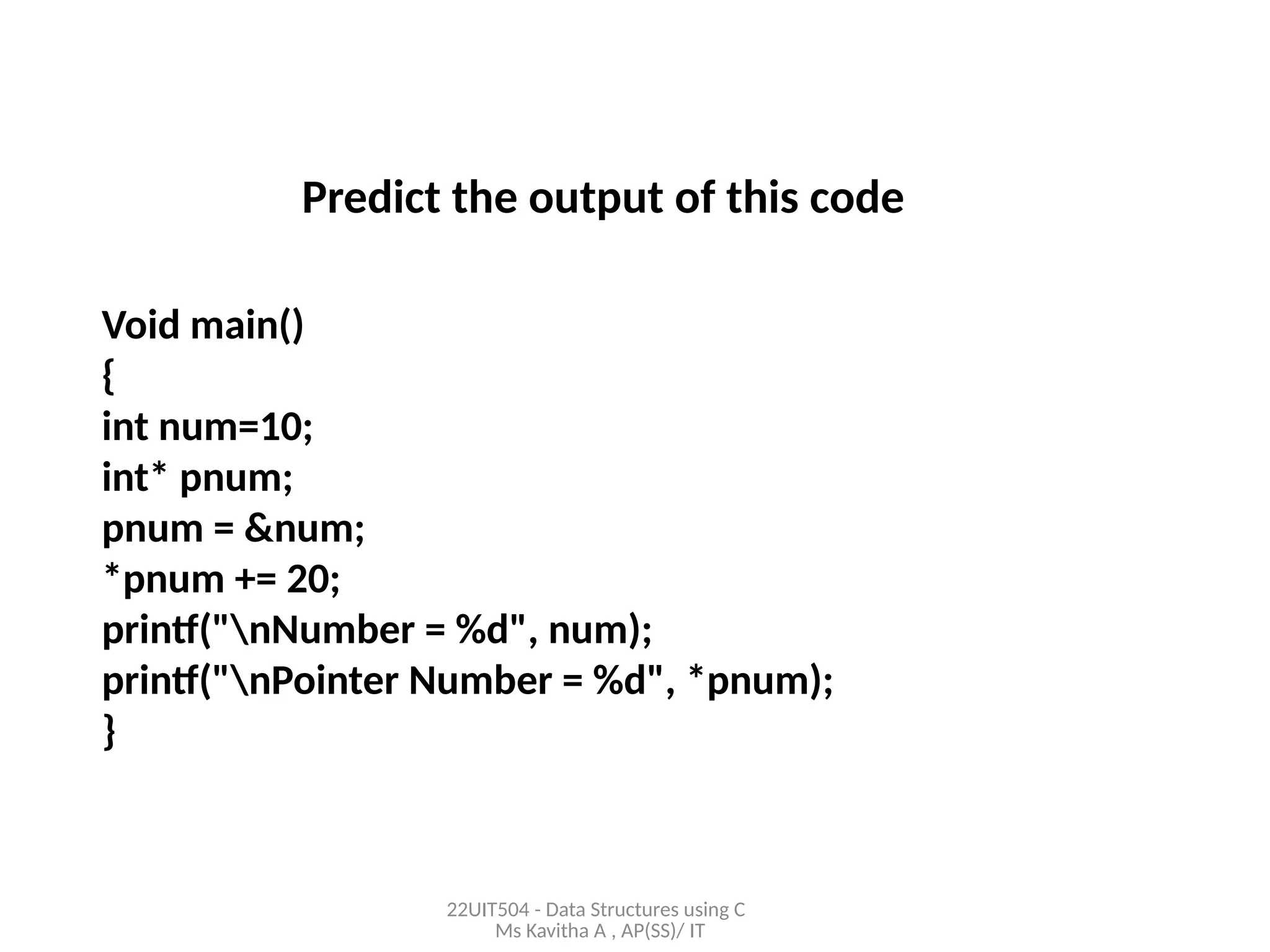

Void main()
{
int num=10;
int* pnum;
pnum = &num;
*pnum += 20;
printf("nNumber = %d", num);
printf("nPointer Number = %d", *pnum);
}

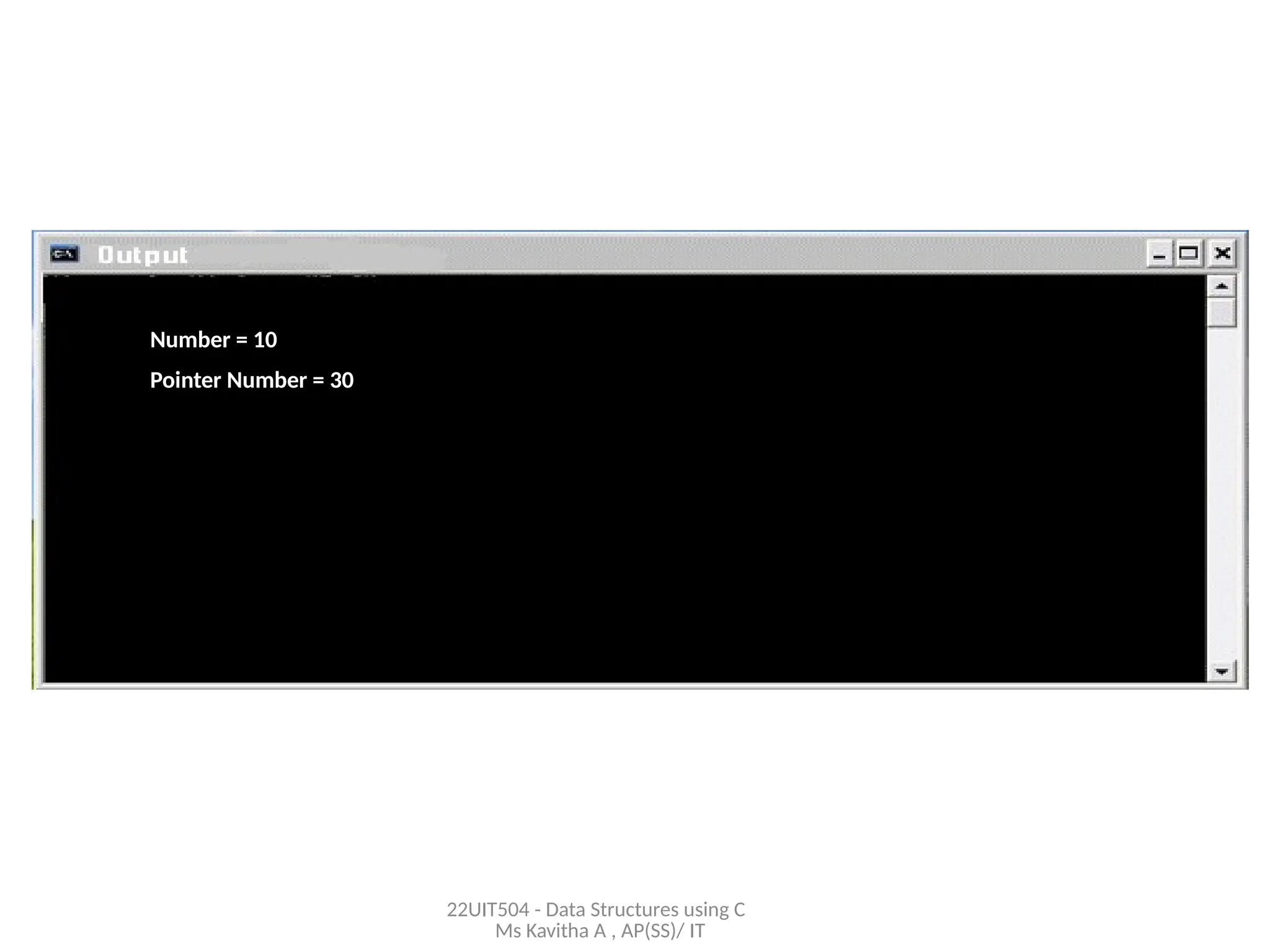

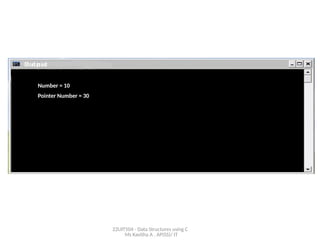

Predict the output of this code

Number = 10
Pointer Number = 30

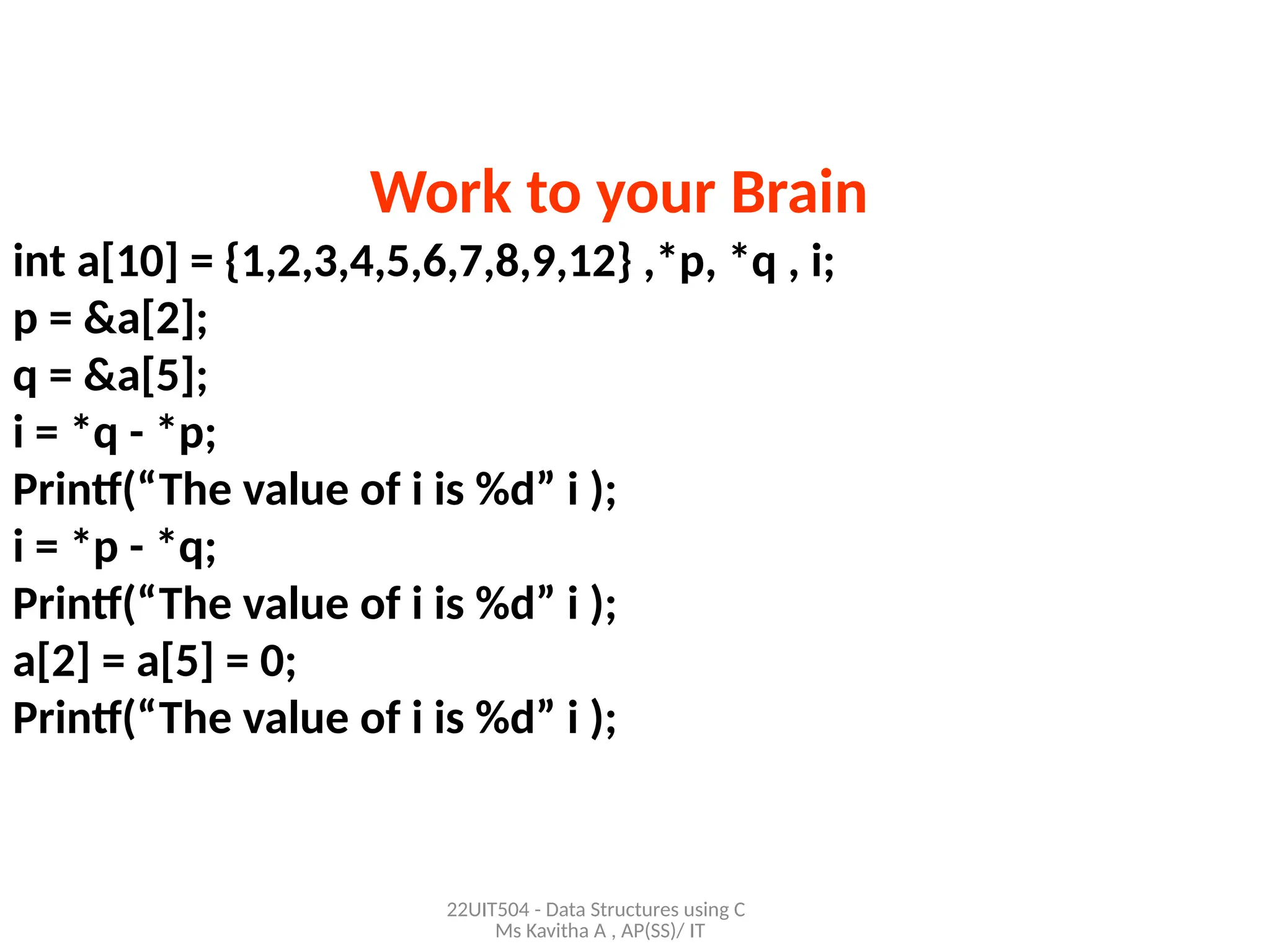

int a[10] = {1,2,3,4,5,6,7,8,9,12} ,*p, *q , i;
p = &a[2];
q = &a[5];
i = *q - *p;
Printf(“The value of i is %d” i );
i = *p - *q;
a[2] = a[5] = 0;

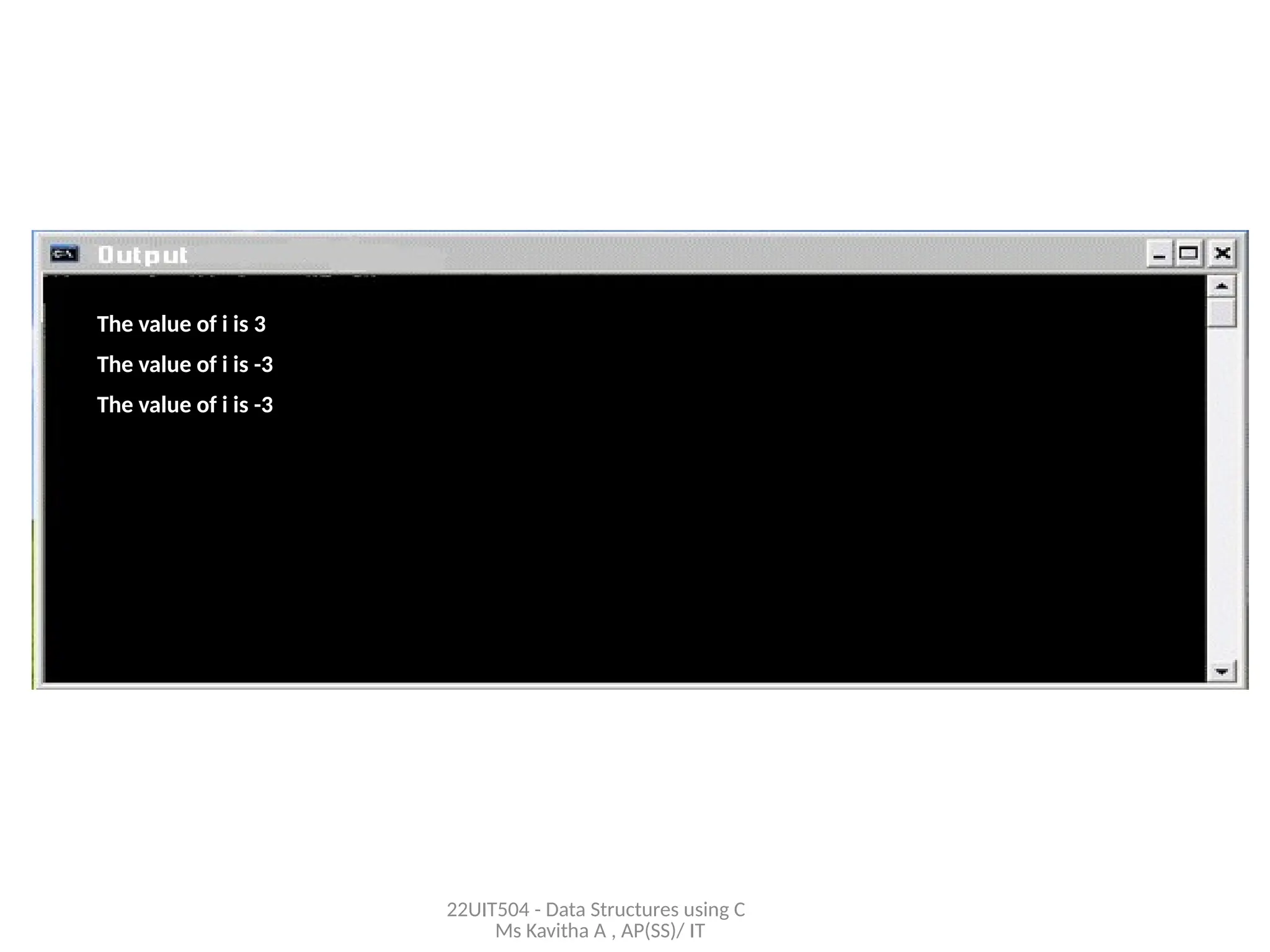

Work to your Brain

The value of i is 3
The value of i is -3
The value of i is -3

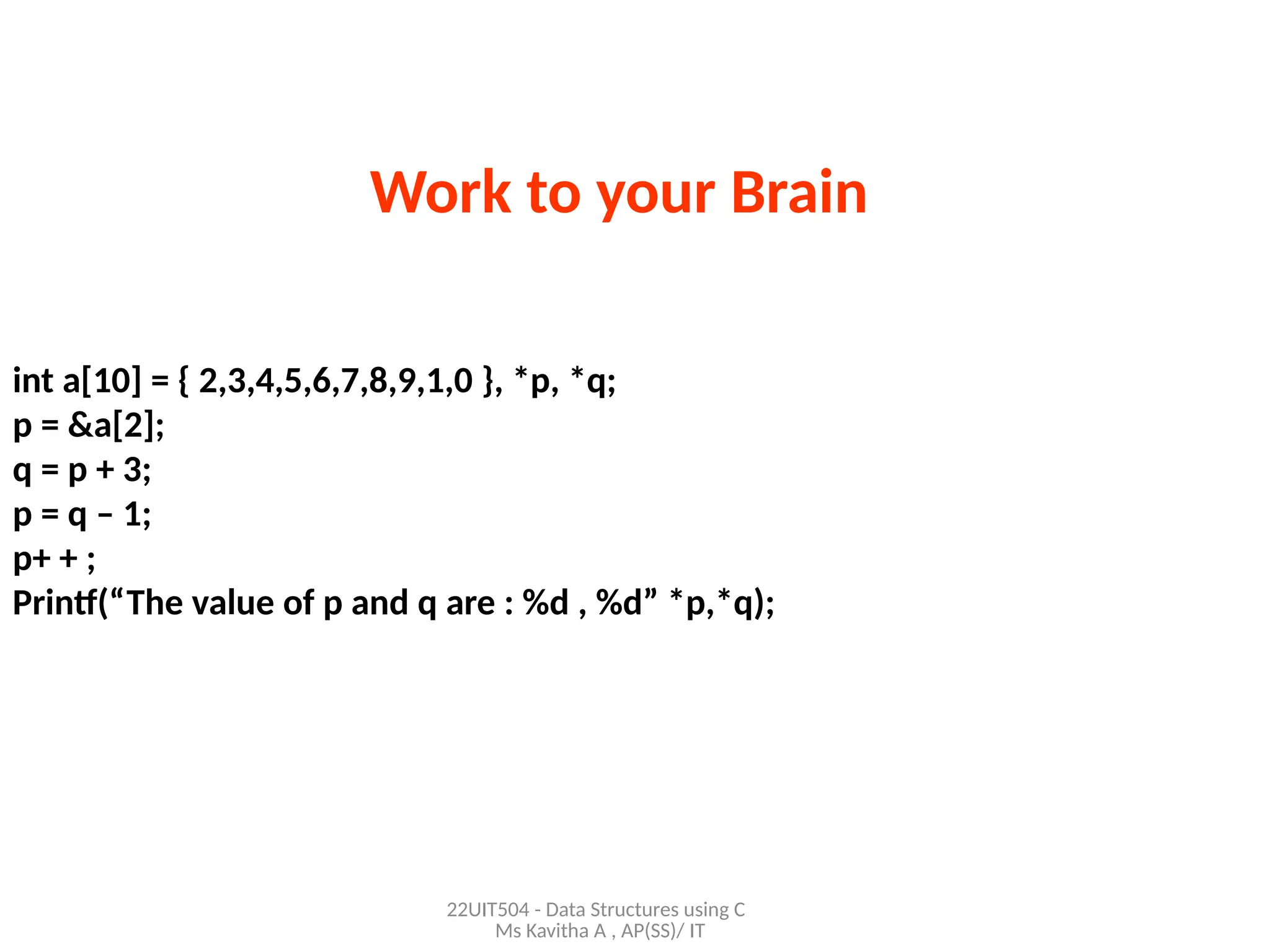

int a[10] = { 2,3,4,5,6,7,8,9,1,0 }, *p, *q;
p = &a[2];
q = p + 3;
p = q – 1;
p+ + ;
Printf(“The value of p and q are : %d , %d” *p,*q);
Work to your Brain

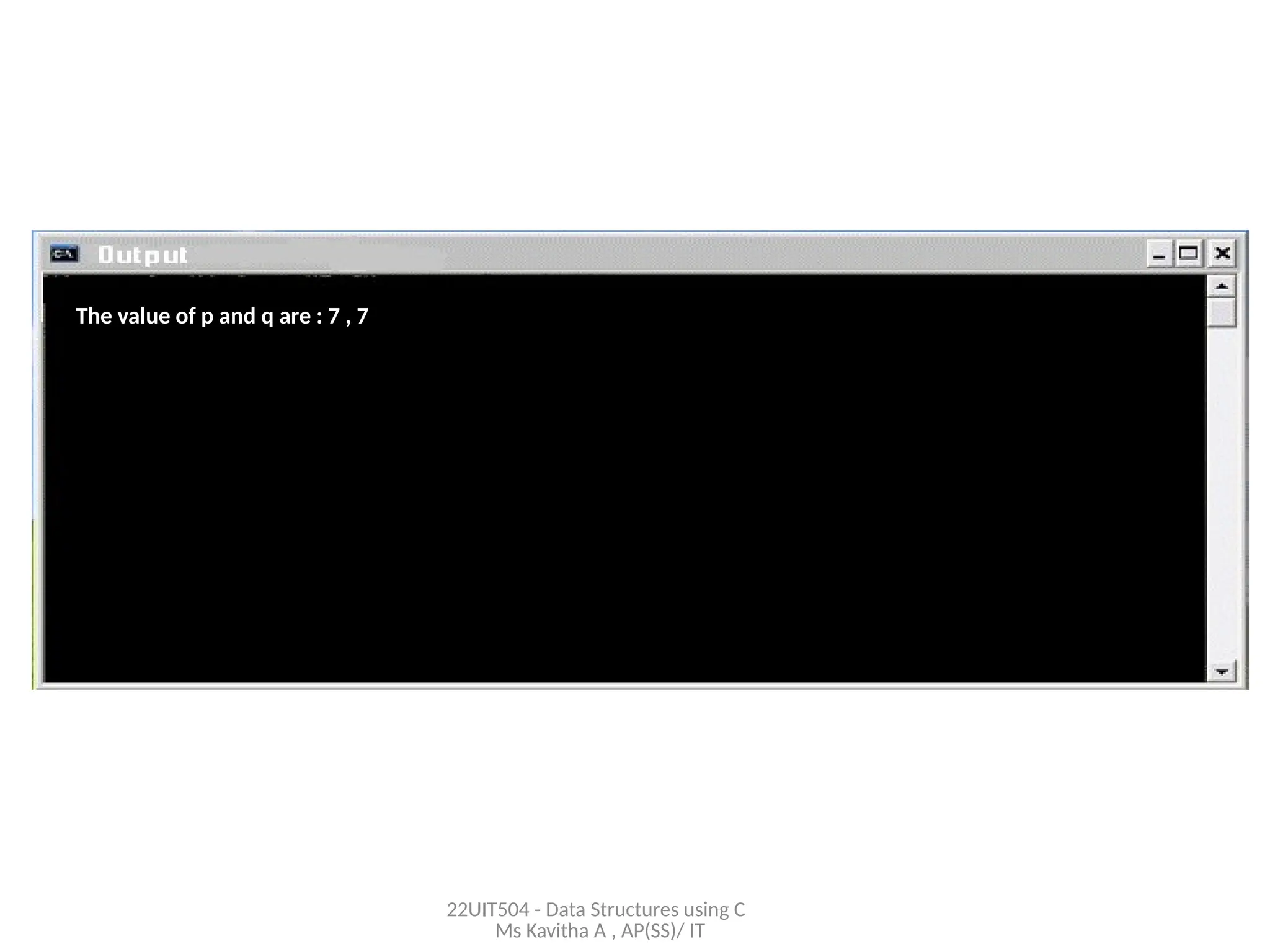

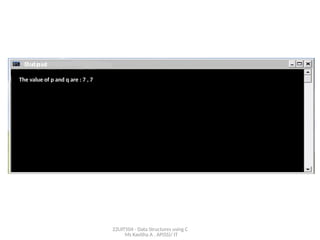

The value of p and q are : 7 , 7

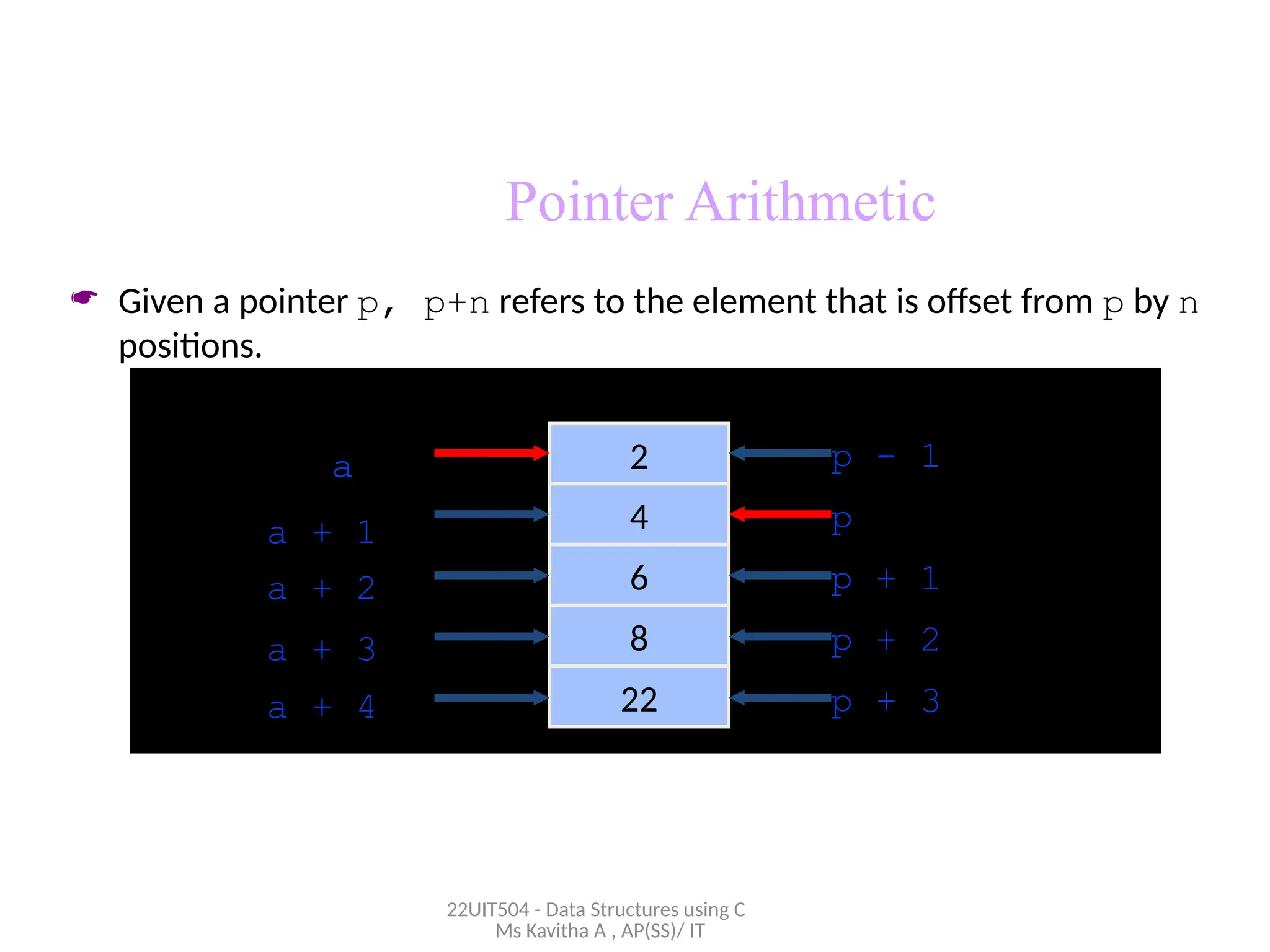

Pointer Arithmetic

Pointer Arithmetic
 Given a pointer p, p+n refers to the element that is offset from p by n
positions.
2
4
8
6
22
a
a + 2
a + 4
a + 3
a + 1 p
p + 2
p + 3
p - 1
p + 1

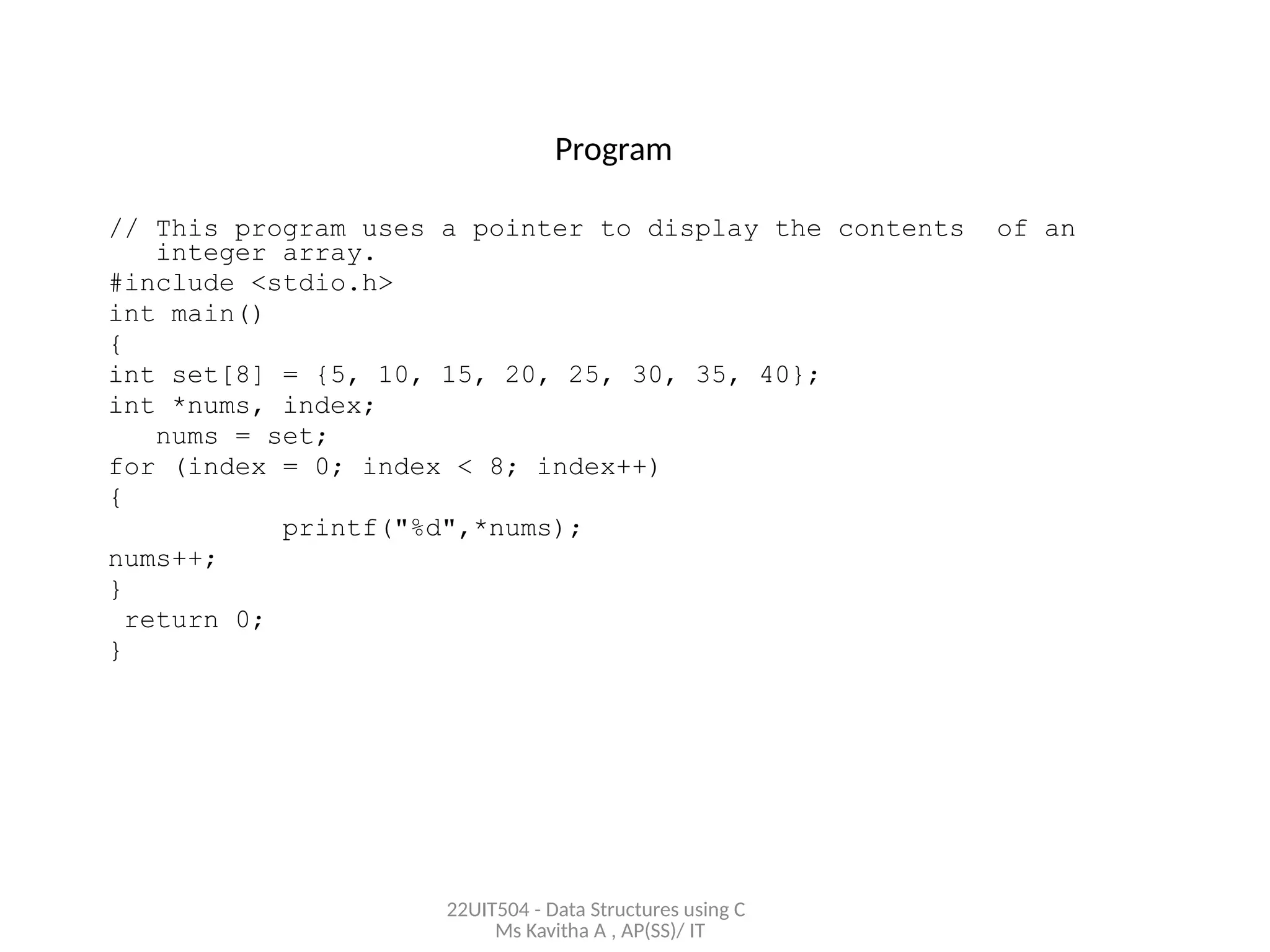

Program
// This program uses a pointer to display the contents of an
integer array.
#include <stdio.h>
int main()
{
int set[8] = {5, 10, 15, 20, 25, 30, 35, 40};
int *nums, index;
nums = set;
for (index = 0; index < 8; index++)
{
printf("%d",*nums);
nums++;
}
return 0;
}

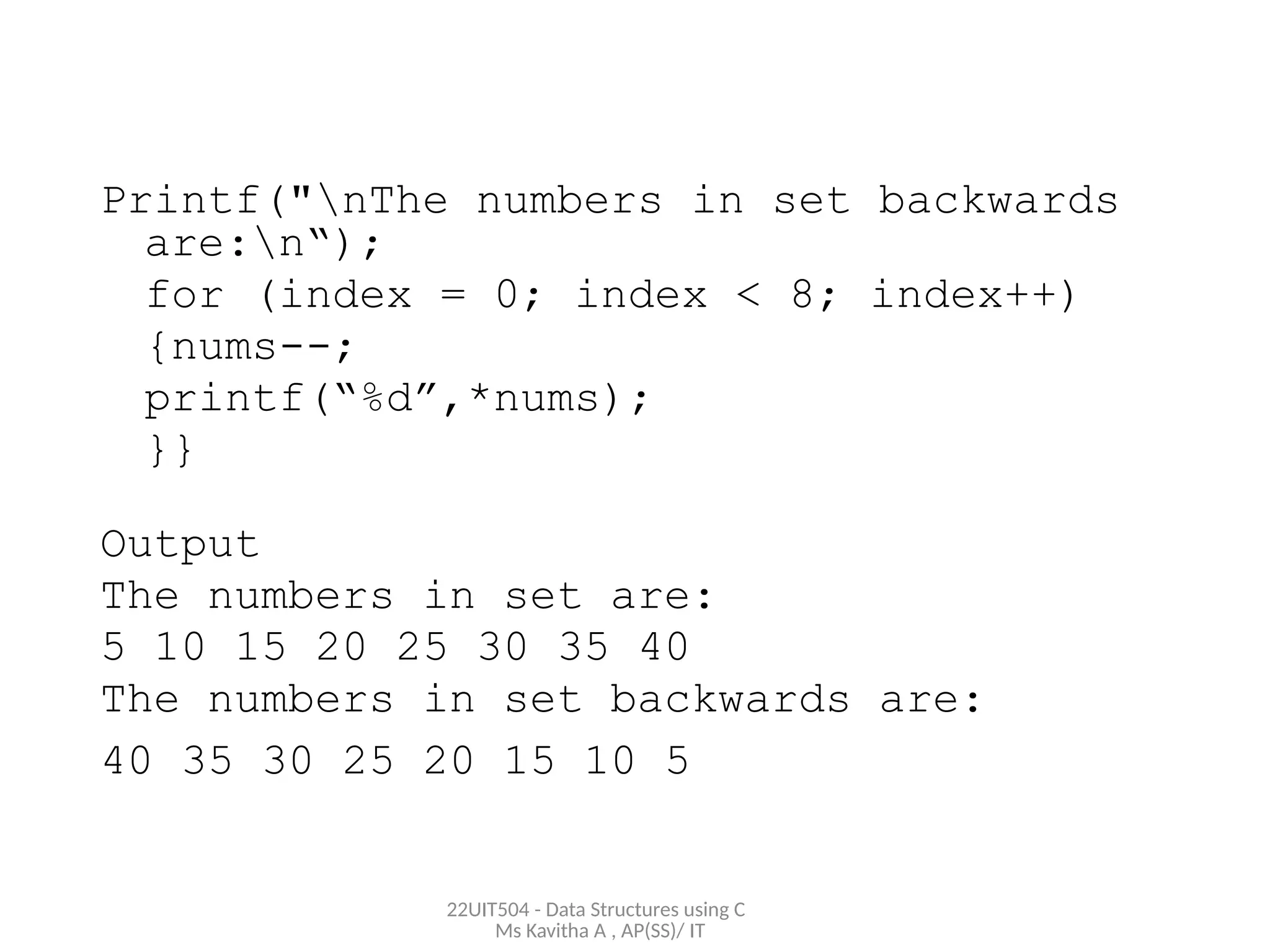

Printf("nThe numbers in set backwards
are:n“);
for (index = 0; index < 8; index++)
{nums--;
printf(“%d”,*nums);
}}
Output
The numbers in set are:
5 10 15 20 25 30 35 40
The numbers in set backwards are:
40 35 30 25 20 15 10 5

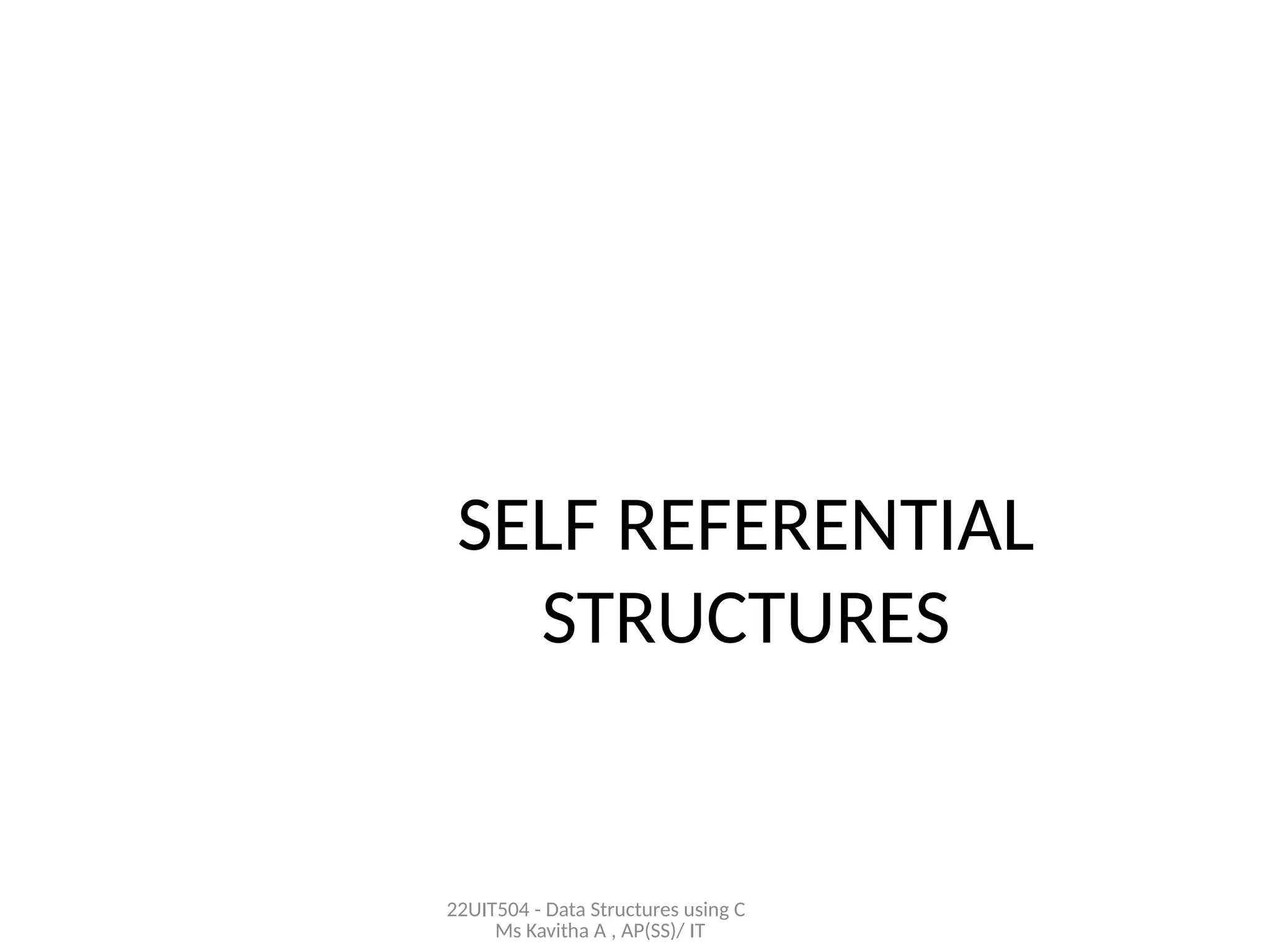

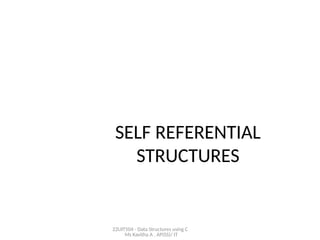

SELF REFERENTIAL
STRUCTURES

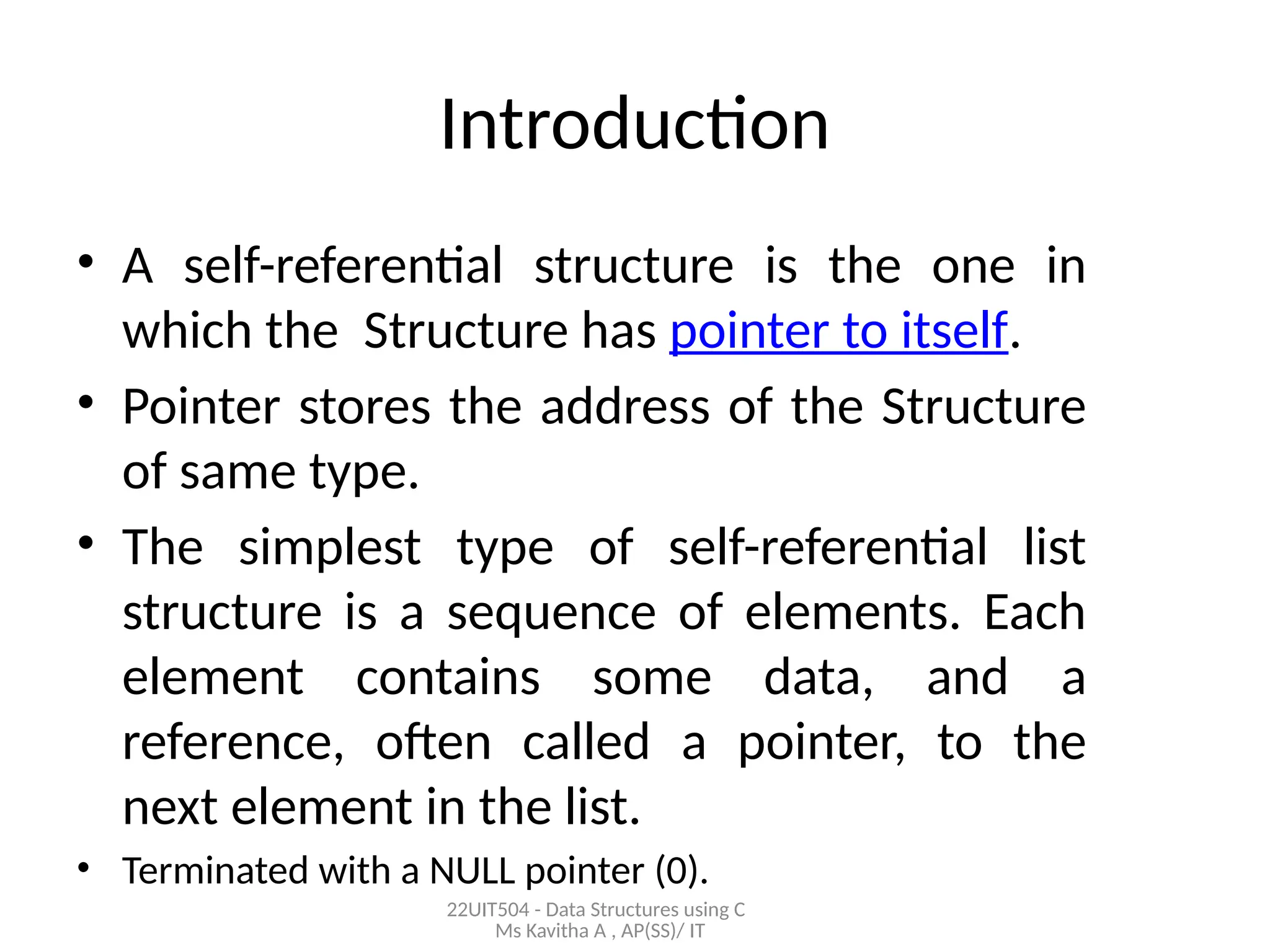

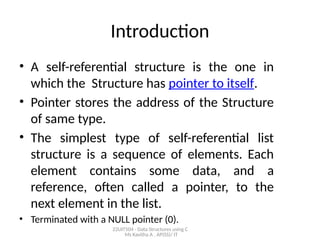

Introduction
• A self-referential structure is the one in
which the Structure has pointer to itself.
• Pointer stores the address of the Structure
of same type.

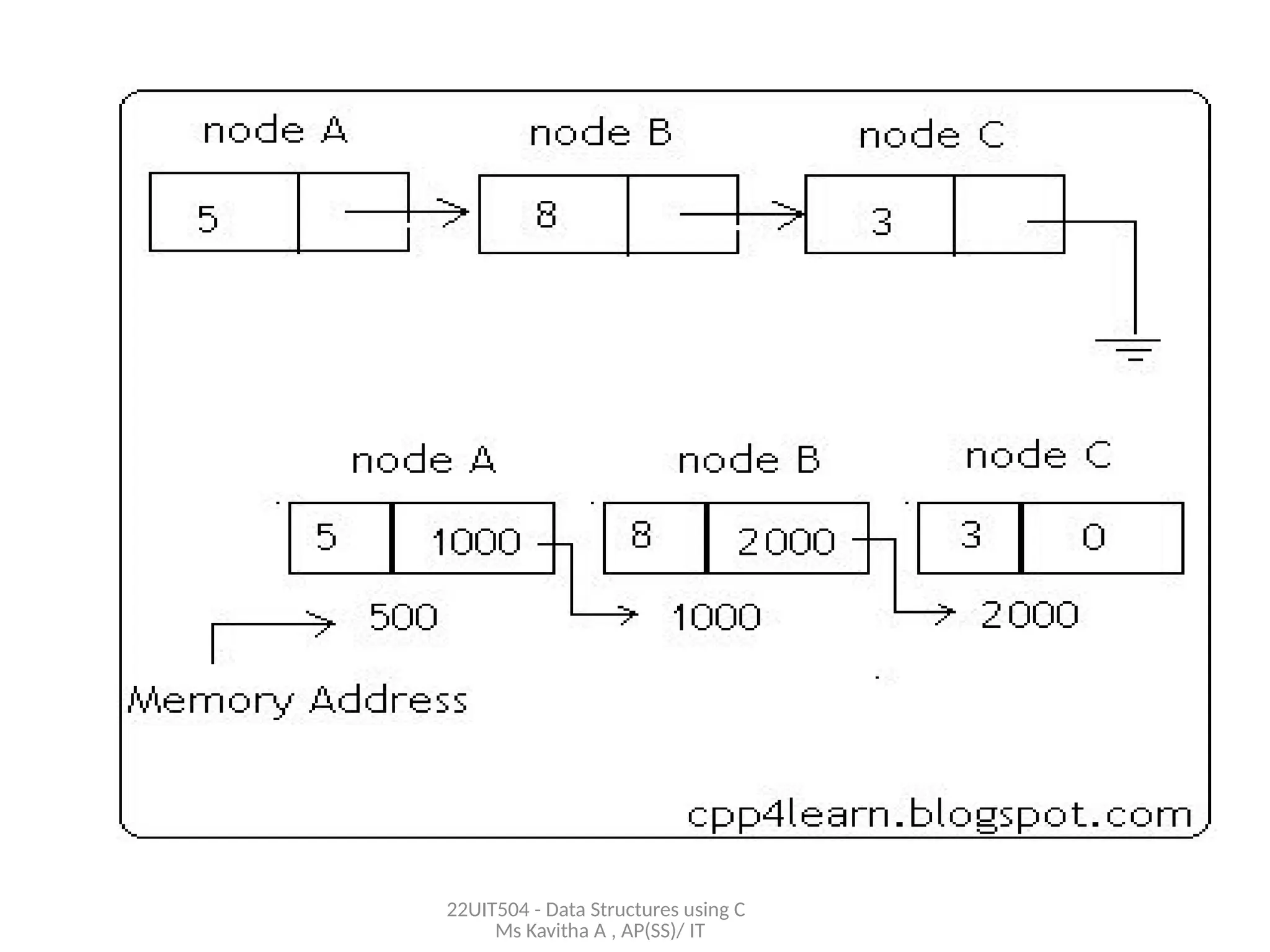

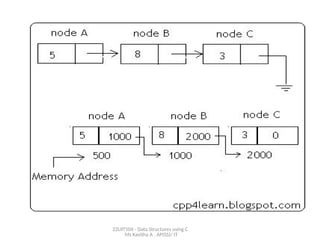

• The simplest type of self-referential list
structure is a sequence of elements. Each
element contains some data, and a
reference, often called a pointer, to the
next element in the list.
• Terminated with a NULL pointer (0).

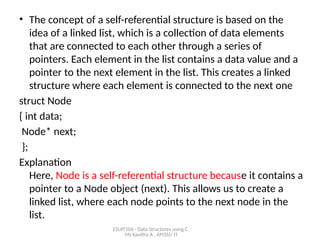

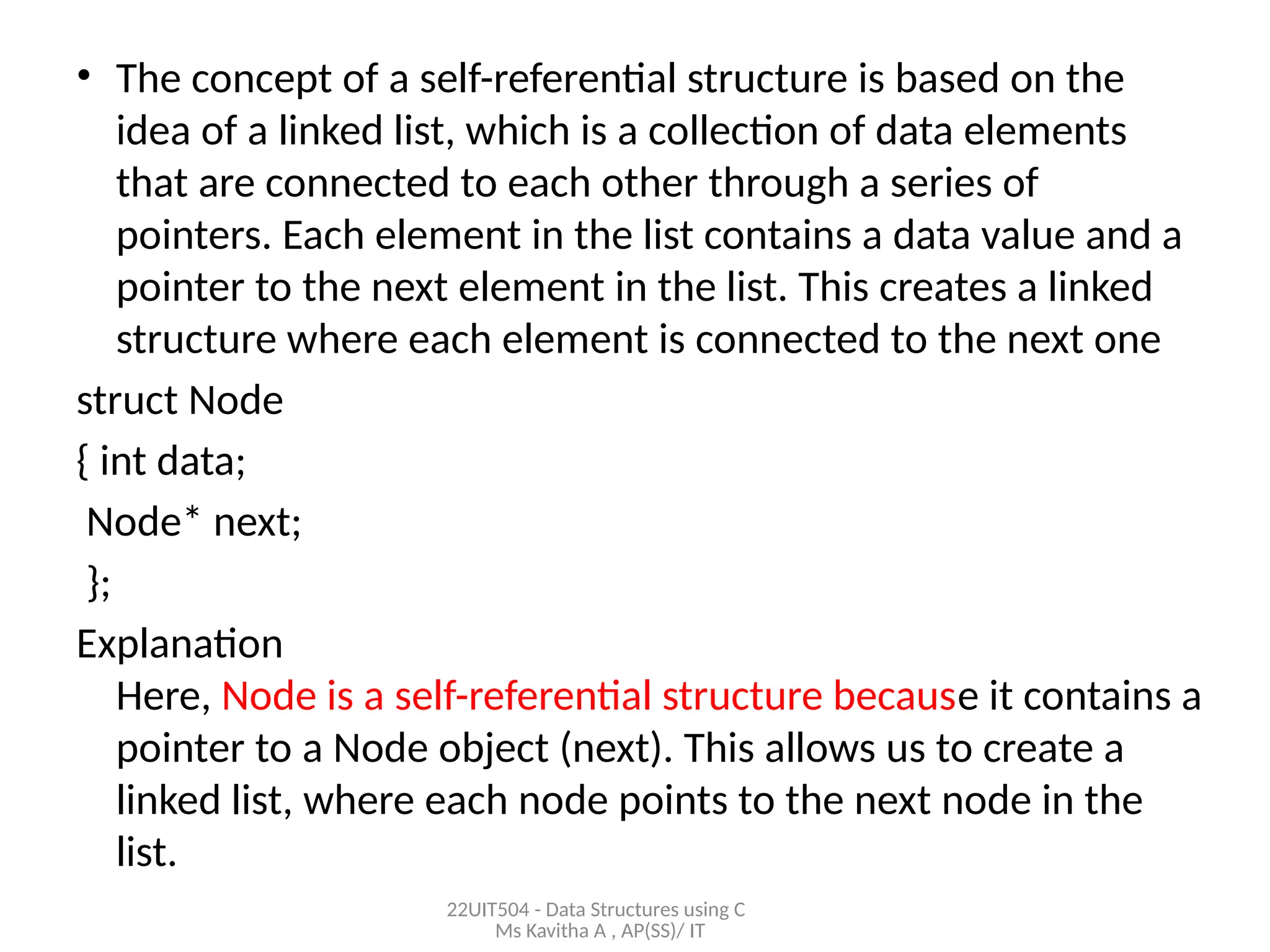

• The concept of a self-referential structure is based on the
idea of a linked list, which is a collection of data elements
that are connected to each other through a series of
pointers. Each element in the list contains a data value and a
pointer to the next element in the list. This creates a linked
structure where each element is connected to the next one
struct Node
{ int data;
Node* next;
};
Explanation
Here, Node is a self-referential structure because it contains a
pointer to a Node object (next). This allows us to create a
linked list, where each node points to the next node in the
list.

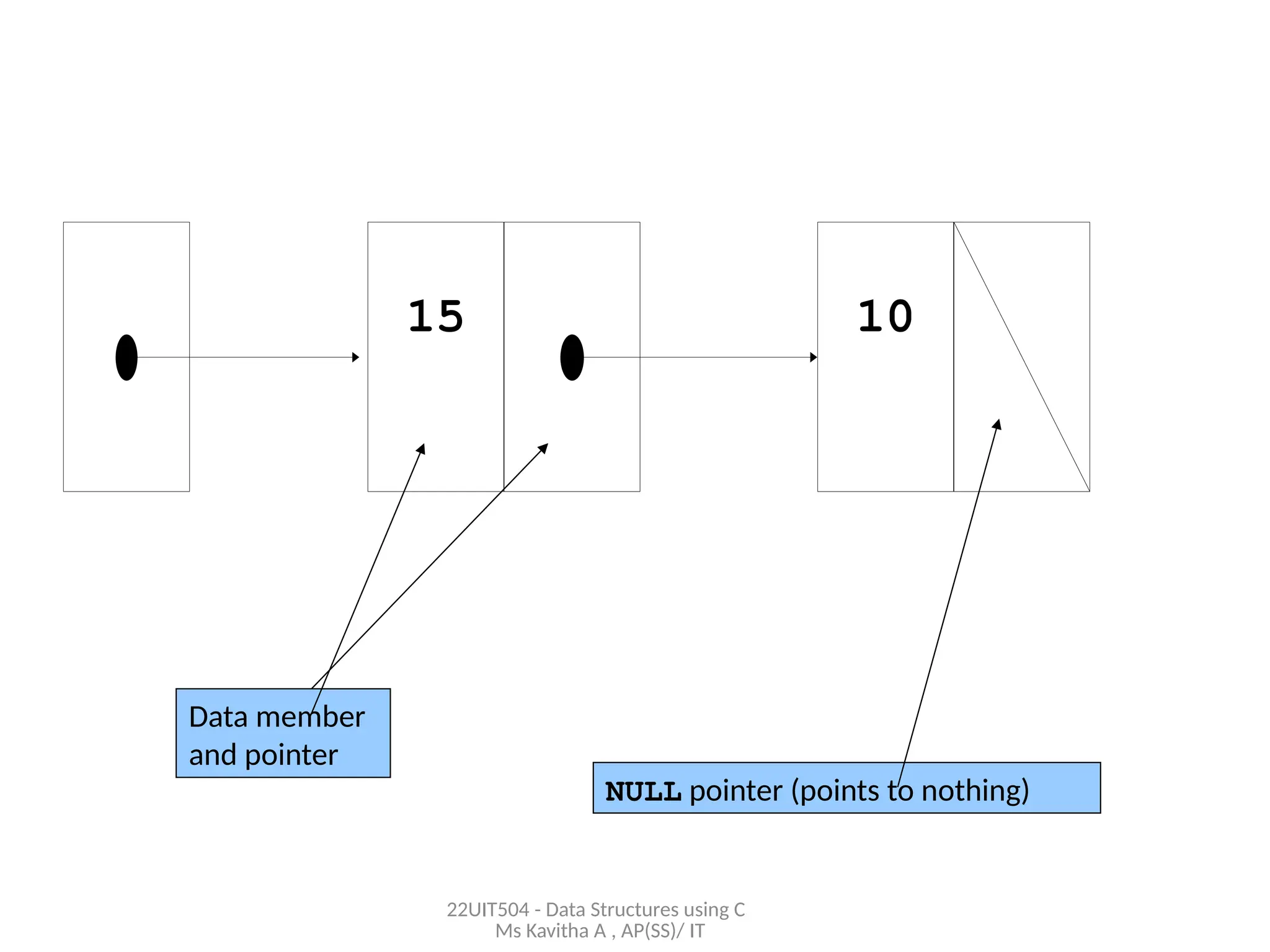

10
15
NULL pointer (points to nothing)
Data member
and pointer

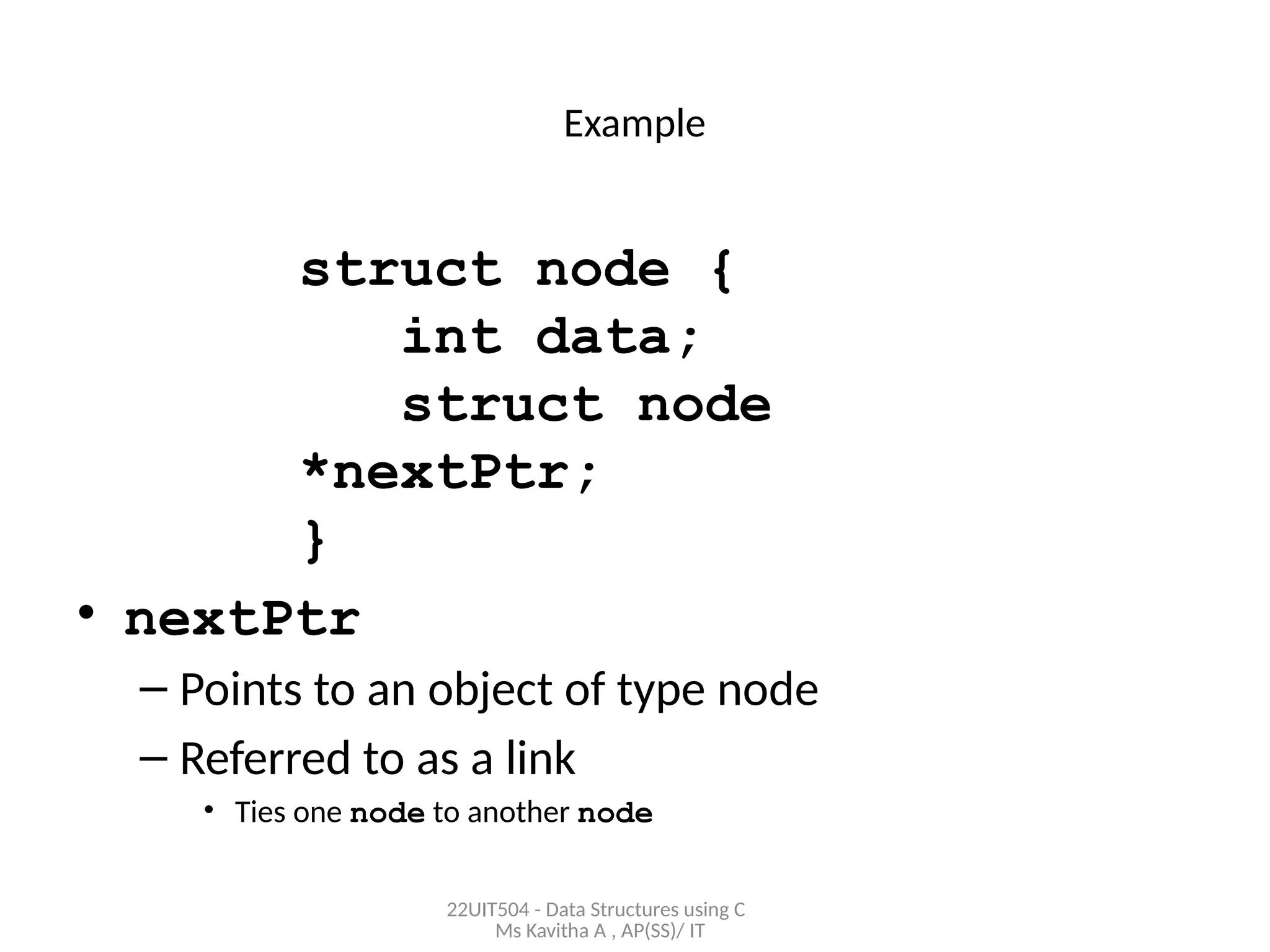

Example
struct node {
int data;
struct node
*nextPtr;
}
• nextPtr
– Points to an object of type node
– Referred to as a link
• Ties one node to another node

Introduction to dynamic memory allocation – Structures–accessing structure members – Pointers - Pointers to structures - self-referential structures.

More Related Content

Similar to Introduction to dynamic memory allocation – Structures–accessing structure members – Pointers - Pointers to structures - self-referential structures.

Recently uploaded

Introduction to dynamic memory allocation – Structures–accessing structure members – Pointers - Pointers to structures - self-referential structures.
