Mellanox is a leading provider of high-performance interconnect solutions for server and storage applications. It has over 1,300 employees worldwide and reported record revenue in 2012 of $500.8 million, up 93% year-over-year. Mellanox offers a comprehensive portfolio of InfiniBand and Ethernet adapters, switches, cables, and software to connect servers, storage and switches. It has a unique ability to design and manufacture its own interconnect components to ensure high performance, quality and reliability.

1. Interconnect Product Portfolio
Hanan Shumacher
November 12, 2013

2. Mellanox Overview
Ticker: MLNX
 Leading provider of high-throughput, low-latency server and storage interconnect
• FDR 56Gb/s InfiniBand and 10/40/56GbE
• Reduces application wait-time for data
• Dramatically increases ROI on data center infrastructure
 Company headquarters:
• Yokneam, Israel; Sunnyvale, California
• ~1,371 employees* worldwide
 Solid financial position
•
•
•
•
Record revenue in FY12; $500.8M, up 93% year-over-year
Q3’13 revenue of $104.1M
Q4’13 guidance ~$105M to $110M
Cash + investments @ 9/30/13 = $306.4M
* As of September 2013
© 2013 Mellanox Technologies
2

3. Leading Supplier of End-to-End Interconnect Solutions
Server / Compute
Storage
Switch / Gateway
Front / Back-End
Virtual Protocol Interconnect
Virtual Protocol Interconnect
56G IB & FCoIB
56G InfiniBand
10/40/56GbE & FCoE
10/40/56GbE
Comprehensive End-to-End InfiniBand and Ethernet Portfolio
ICs
© 2013 Mellanox Technologies
Adapter Cards
Switches/Gateways
Host/Fabric Software
Cables/Modules
3

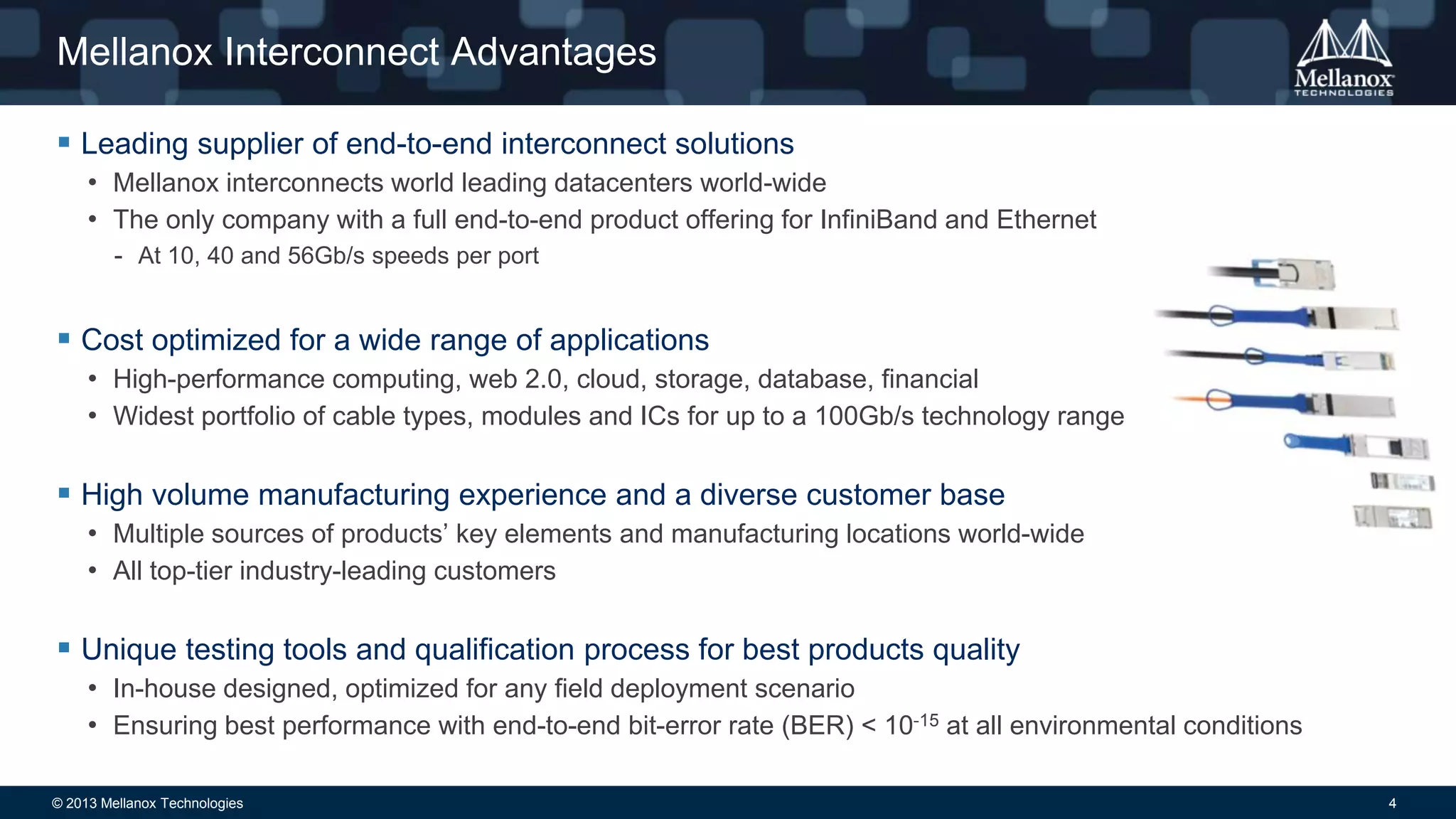

4. Mellanox Interconnect Advantages
 Leading supplier of end-to-end interconnect solutions
• Mellanox interconnects world leading datacenters world-wide
• The only company with a full end-to-end product offering for InfiniBand and Ethernet
- At 10, 40 and 56Gb/s speeds per port
 Cost optimized for a wide range of applications
• High-performance computing, web 2.0, cloud, storage, database, financial
• Widest portfolio of cable types, modules and ICs for up to a 100Gb/s technology range
 High volume manufacturing experience and a diverse customer base
• Multiple sources of products’ key elements and manufacturing locations world-wide
• All top-tier industry-leading customers
 Unique testing tools and qualification process for best products quality
• In-house designed, optimized for any field deployment scenario
• Ensuring best performance with end-to-end bit-error rate (BER) < 10-15 at all environmental conditions
© 2013 Mellanox Technologies
4

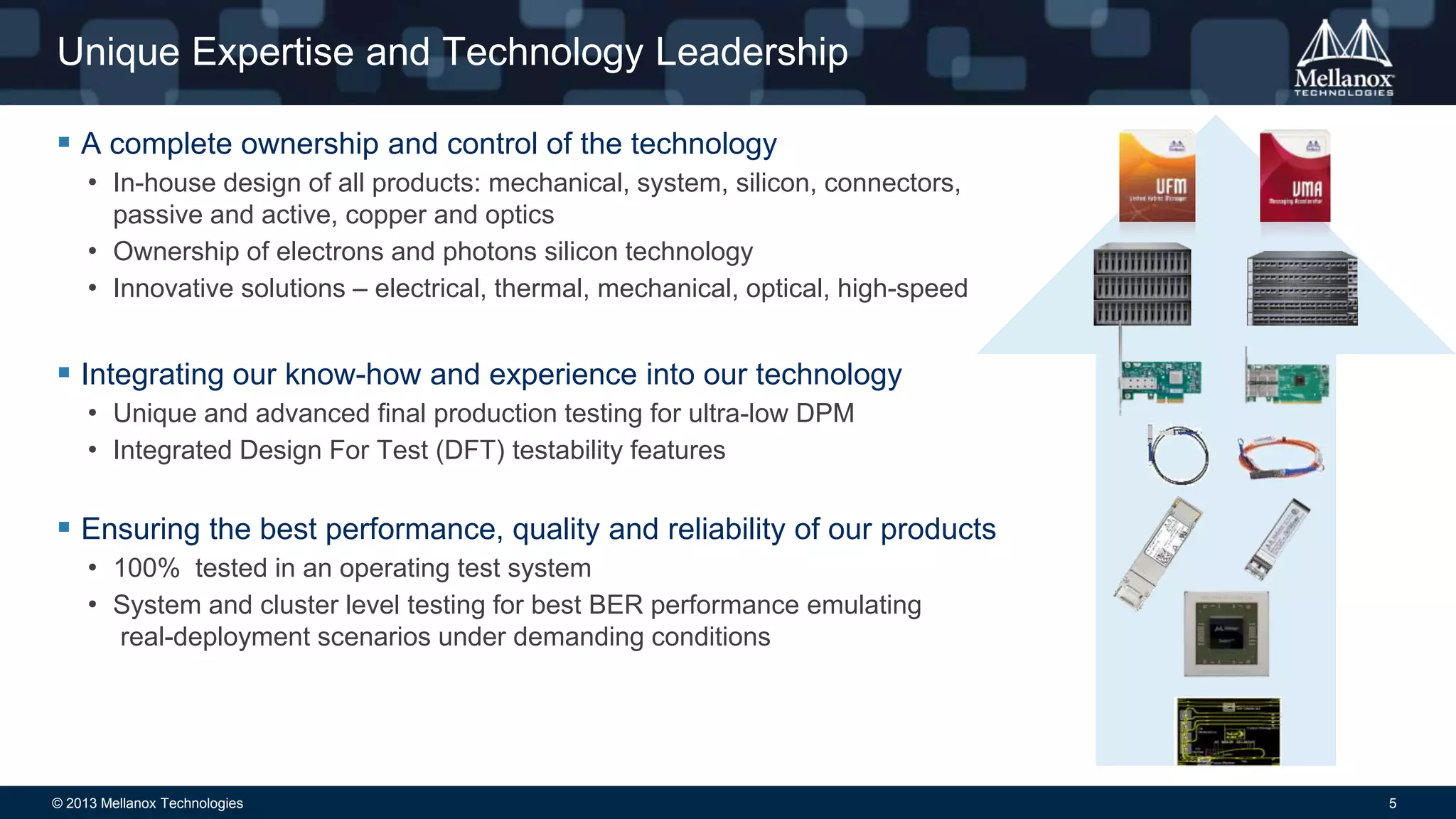

5. Unique Expertise and Technology Leadership
 A complete ownership and control of the technology
• In-house design of all products: mechanical, system, silicon, connectors,
passive and active, copper and optics
• Ownership of electrons and photons silicon technology
• Innovative solutions – electrical, thermal, mechanical, optical, high-speed
 Integrating our know-how and experience into our technology
• Unique and advanced final production testing for ultra-low DPM
• Integrated Design For Test (DFT) testability features
 Ensuring the best performance, quality and reliability of our products
• 100% tested in an operating test system
• System and cluster level testing for best BER performance emulating
real-deployment scenarios under demanding conditions
© 2013 Mellanox Technologies
5

6. Interconnect Product Portfolio
Server / Compute
Storage
Switch / Gateway
Front / Back-End
Virtual Protocol Interconnect
Virtual Protocol Interconnect
56G IB & FCoIB
56G InfiniBand
10/40/56GbE & FCoE
10/40/56GbE
Comprehensive InfiniBand and Ethernet Product Portfolio
Cables
ICs
Modules
• Active optical cables
• Passive copper cables
• QSFP optical module SR4
• QSFP optical module LR4
• SFP VOA
• TransImpedance Amplifier
• VCSEL Driver
• Hybrid cables
• Converters / Splitters
• VOA chips for VMUX
• QSFP optical module
• SFP+ optical module
© 2013 Mellanox Technologies
• 1/4/8 channels VOA
6

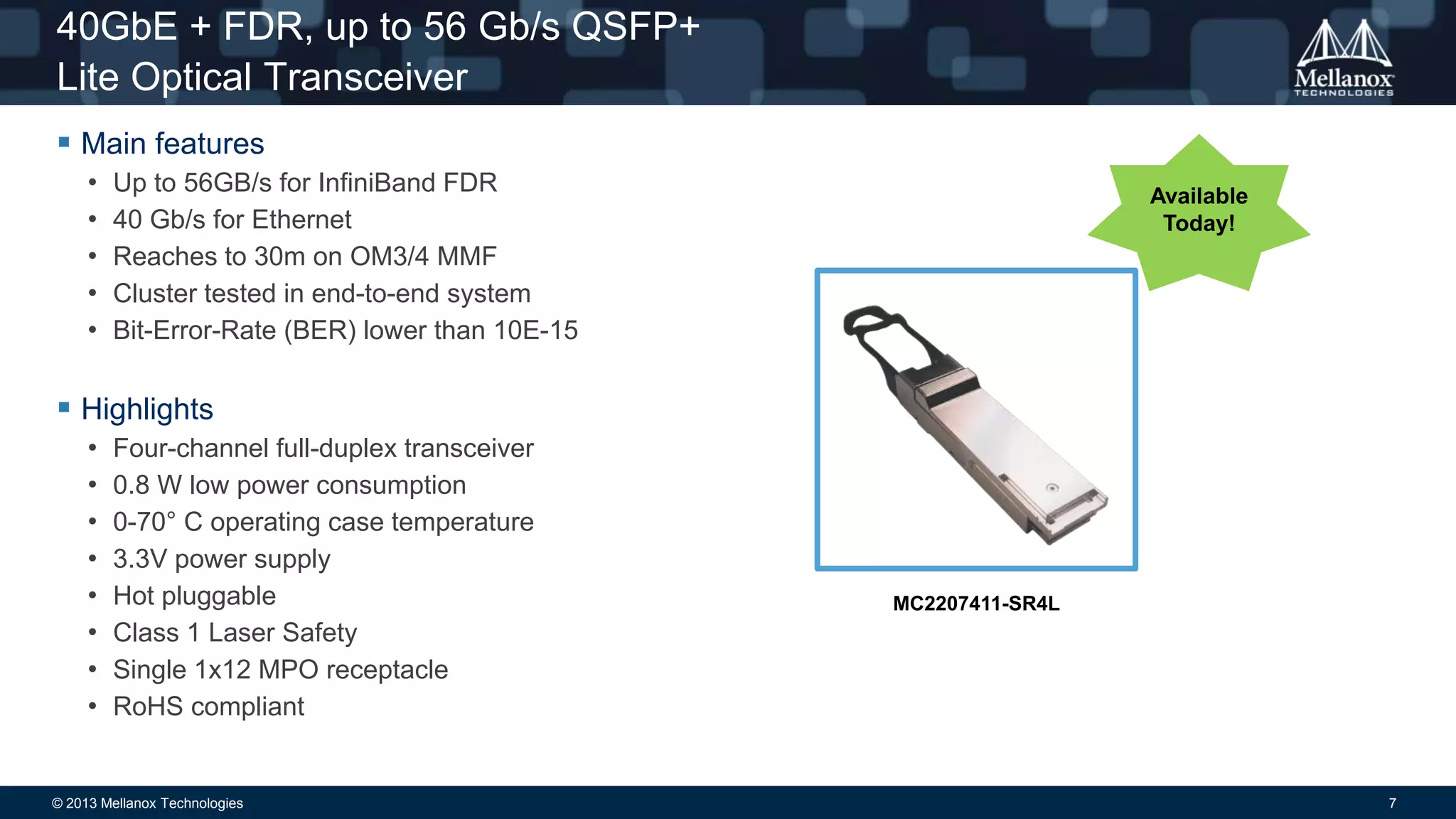

7. 40GbE + FDR, up to 56 Gb/s QSFP+
Lite Optical Transceiver
 Main features
•
•
•
•
•
Up to 56GB/s for InfiniBand FDR
40 Gb/s for Ethernet
Reaches to 30m on OM3/4 MMF
Cluster tested in end-to-end system
Bit-Error-Rate (BER) lower than 10E-15
Available
Today!
 Highlights
•
•
•
•
•
•
•
•
Four-channel full-duplex transceiver
0.8 W low power consumption
0-70° C operating case temperature
3.3V power supply
Hot pluggable
Class 1 Laser Safety
Single 1x12 MPO receptacle
RoHS compliant
© 2013 Mellanox Technologies
MC2207411-SR4L
7

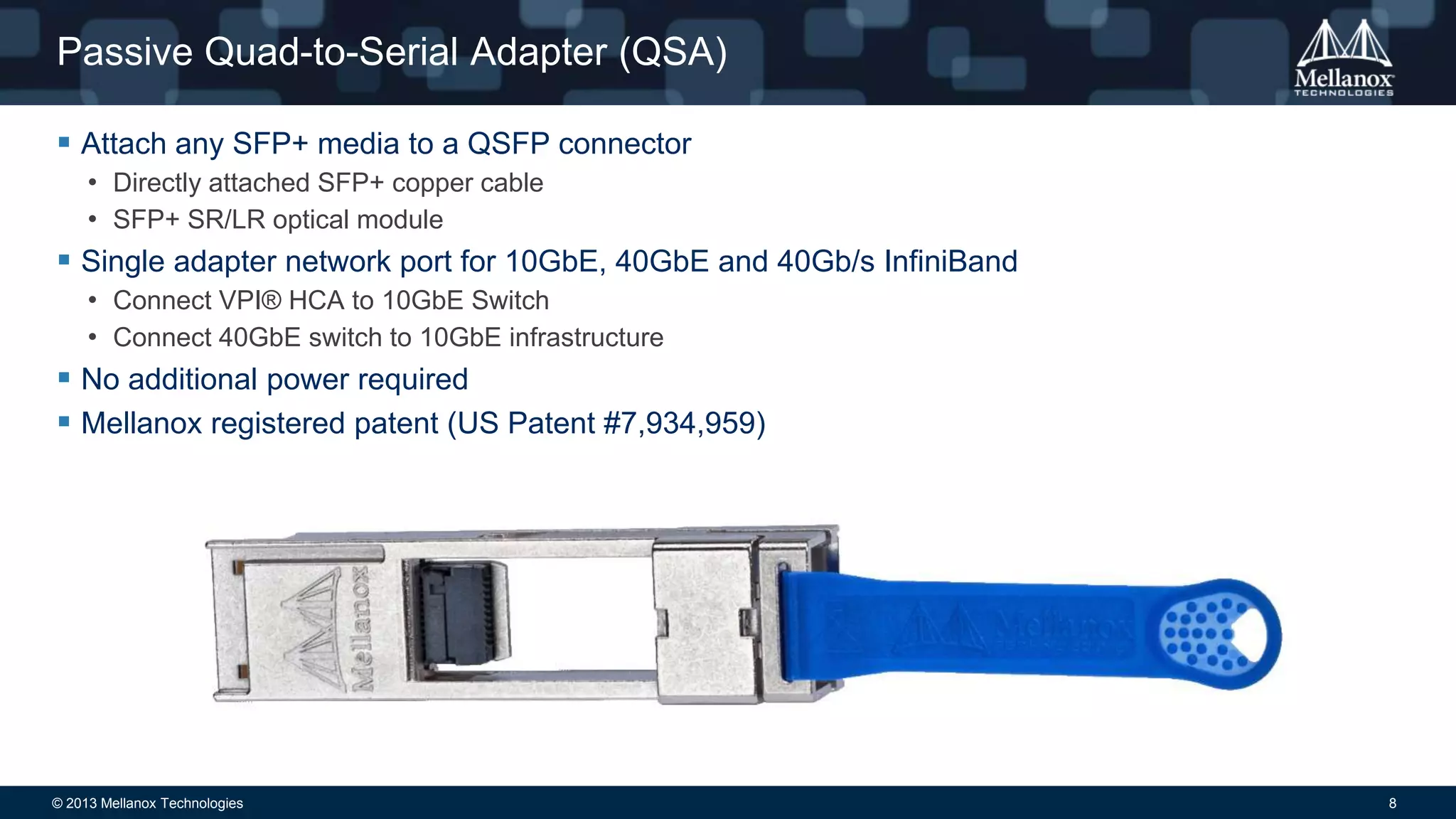

8. Passive Quad-to-Serial Adapter (QSA)
 Attach any SFP+ media to a QSFP connector
• Directly attached SFP+ copper cable
• SFP+ SR/LR optical module
 Single adapter network port for 10GbE, 40GbE and 40Gb/s InfiniBand
• Connect VPI® HCA to 10GbE Switch
• Connect 40GbE switch to 10GbE infrastructure
 No additional power required
 Mellanox registered patent (US Patent #7,934,959)
© 2013 Mellanox Technologies
8

9. Thank You
Thank You
