Inheritance allows one class to inherit properties from another base class, creating a hierarchy from general to specific classes. Derived classes inherit all public and protected members of the base class and can add new, class-specific features. This allows for code reuse and reduces time/effort. Access specifiers like public, private, and protected determine which members are inherited. Constructors and destructors execute in order of derivation, with base constructors first and destructors last. Virtual functions support runtime polymorphism by allowing overriding in derived classes. Pure virtual functions define an interface without implementation.

1. C++
Inheritance

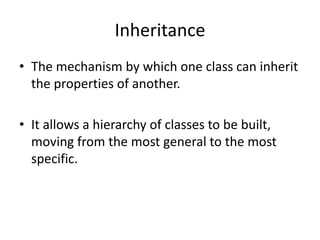

2. Inheritance
• The mechanism by which one class can inherit
the properties of another.
• It allows a hierarchy of classes to be built,
moving from the most general to the most
specific.

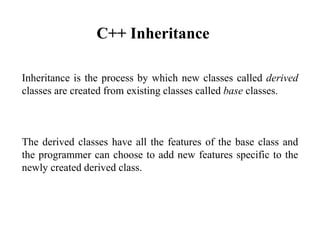

3. Inheritance is the process by which new classes called derived
classes are created from existing classes called base classes.
The derived classes have all the features of the base class and
the programmer can choose to add new features specific to the
newly created derived class.
C++ Inheritance

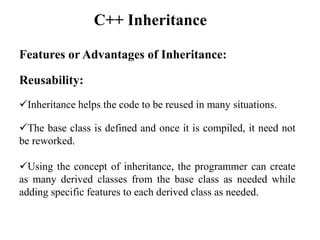

4. Features or Advantages of Inheritance:
Reusability:
Inheritance helps the code to be reused in many situations.
The base class is defined and once it is compiled, it need not
be reworked.
Using the concept of inheritance, the programmer can create
as many derived classes from the base class as needed while
adding specific features to each derived class as needed.
C++ Inheritance

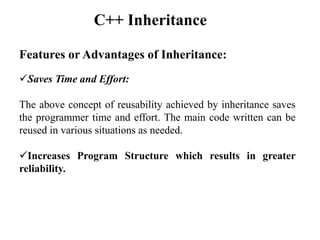

5. Features or Advantages of Inheritance:
Saves Time and Effort:
The above concept of reusability achieved by inheritance saves
the programmer time and effort. The main code written can be
reused in various situations as needed.
Increases Program Structure which results in greater
reliability.
C++ Inheritance

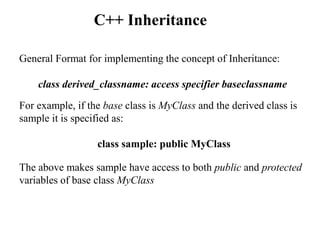

6. General Format for implementing the concept of Inheritance:
class derived_classname: access specifier baseclassname
For example, if the base class is MyClass and the derived class is
sample it is specified as:
class sample: public MyClass
The above makes sample have access to both public and protected
variables of base class MyClass
C++ Inheritance

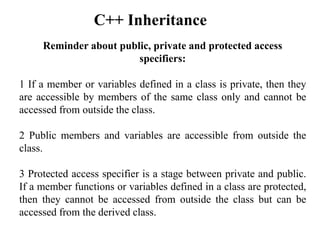

7. Reminder about public, private and protected access
specifiers:
1 If a member or variables defined in a class is private, then they
are accessible by members of the same class only and cannot be
accessed from outside the class.
2 Public members and variables are accessible from outside the
class.
3 Protected access specifier is a stage between private and public.
If a member functions or variables defined in a class are protected,
then they cannot be accessed from outside the class but can be
accessed from the derived class.
C++ Inheritance

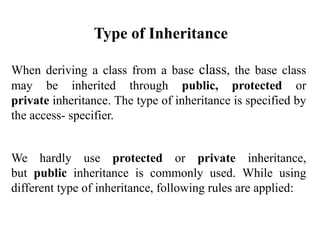

8. When deriving a class from a base class, the base class
may be inherited through public, protected or
private inheritance. The type of inheritance is specified by
the access- specifier.
We hardly use protected or private inheritance,
but public inheritance is commonly used. While using
different type of inheritance, following rules are applied:
Type of Inheritance

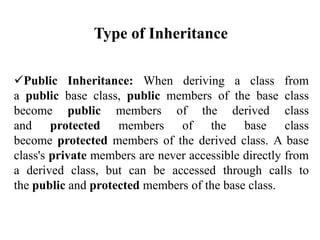

9. Public Inheritance: When deriving a class from
a public base class, public members of the base class
become public members of the derived class
and protected members of the base class
become protected members of the derived class. A base
class's private members are never accessible directly from
a derived class, but can be accessed through calls to
the public and protected members of the base class.
Type of Inheritance

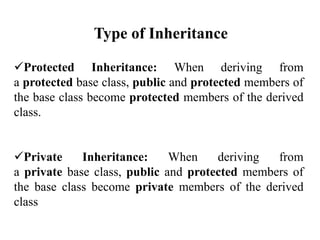

10. Protected Inheritance: When deriving from
a protected base class, public and protected members of
the base class become protected members of the derived
class.
Private Inheritance: When deriving from
a private base class, public and protected members of
the base class become private members of the derived
class
Type of Inheritance

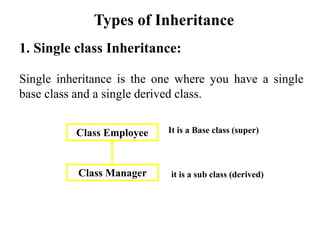

11. 1. Single class Inheritance:
Single inheritance is the one where you have a single
base class and a single derived class.
Types of Inheritance
Class Employee
Class Manager
It is a Base class (super)
it is a sub class (derived)

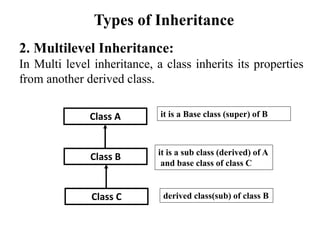

12. 2. Multilevel Inheritance:
In Multi level inheritance, a class inherits its properties
from another derived class.
Types of Inheritance
Class A
Class B
it is a Base class (super) of B
it is a sub class (derived) of A
and base class of class C
Class C derived class(sub) of class B

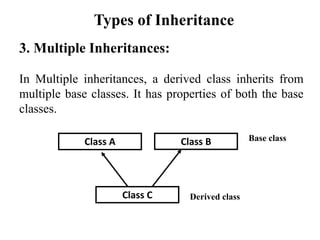

13. 3. Multiple Inheritances:
In Multiple inheritances, a derived class inherits from
multiple base classes. It has properties of both the base
classes.
Types of Inheritance
Class A Class B Base class
Class C Derived class

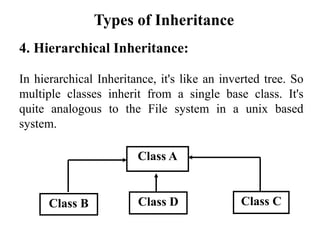

14. 4. Hierarchical Inheritance:
In hierarchical Inheritance, it's like an inverted tree. So
multiple classes inherit from a single base class. It's
quite analogous to the File system in a unix based
system.
Types of Inheritance
Class A
Class B Class C
Class D

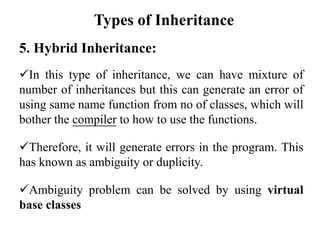

15. 5. Hybrid Inheritance:
In this type of inheritance, we can have mixture of
number of inheritances but this can generate an error of
using same name function from no of classes, which will
bother the compiler to how to use the functions.
Therefore, it will generate errors in the program. This
has known as ambiguity or duplicity.
Ambiguity problem can be solved by using virtual
base classes
Types of Inheritance

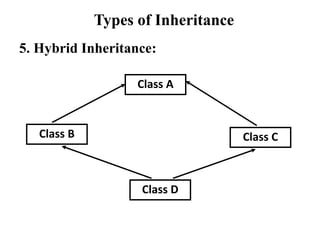

16. Types of Inheritance
Class A
Class B
Class D
Class C
5. Hybrid Inheritance:

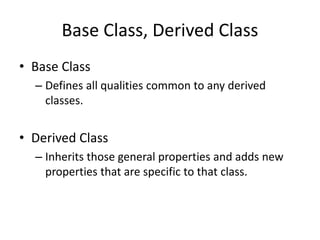

17. Base Class, Derived Class
• Base Class
– Defines all qualities common to any derived
classes.
• Derived Class
– Inherits those general properties and adds new
properties that are specific to that class.

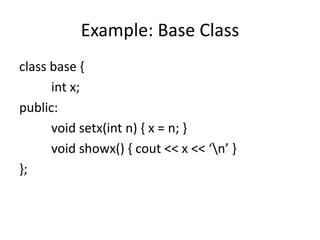

18. Example: Base Class
class base {
int x;
public:
void setx(int n) { x = n; }
void showx() { cout << x << ‘n’ }
};

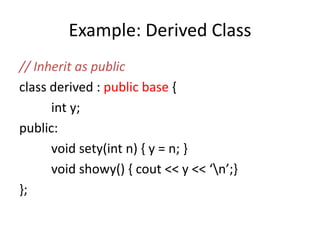

19. Example: Derived Class
// Inherit as public
class derived : public base {
int y;
public:
void sety(int n) { y = n; }
void showy() { cout << y << ‘n’;}
};

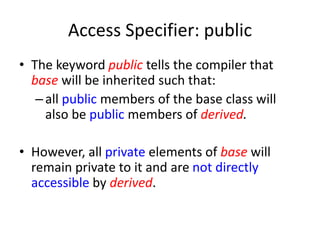

20. Access Specifier: public
• The keyword public tells the compiler that
base will be inherited such that:
–all public members of the base class will
also be public members of derived.
• However, all private elements of base will
remain private to it and are not directly
accessible by derived.

21. Example: main()
int main() {
derived ob;
ob.setx(10);
ob.sety(20);
ob.showx();
ob.showy();
}

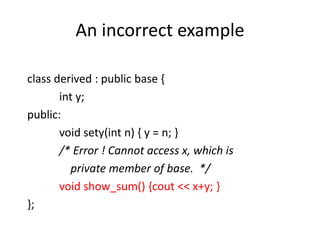

22. An incorrect example
class derived : public base {
int y;
public:
void sety(int n) { y = n; }
/* Error ! Cannot access x, which is
private member of base. */
void show_sum() {cout << x+y; }
};

23. Access Specifier: private
• If the access specifier is private:
–public members of base become private
members of derived.
–these members are still accessible by
member functions of derived.

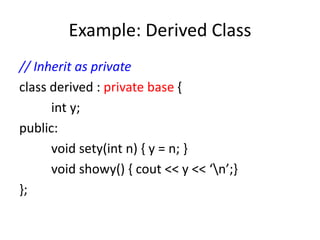

24. Example: Derived Class
// Inherit as private
class derived : private base {
int y;
public:
void sety(int n) { y = n; }
void showy() { cout << y << ‘n’;}
};

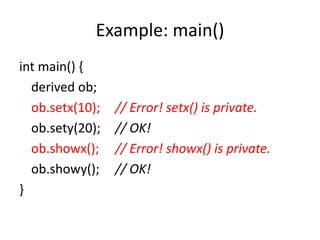

25. Example: main()
int main() {
derived ob;
ob.setx(10); // Error! setx() is private.
ob.sety(20); // OK!
ob.showx(); // Error! showx() is private.
ob.showy(); // OK!
}

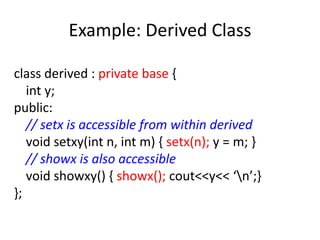

26. Example: Derived Class
class derived : private base {
int y;
public:
// setx is accessible from within derived
void setxy(int n, int m) { setx(n); y = m; }
// showx is also accessible
void showxy() { showx(); cout<<y<< ‘n’;}
};

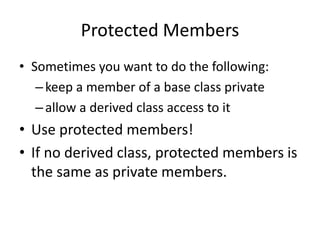

27. Protected Members
• Sometimes you want to do the following:
–keep a member of a base class private
–allow a derived class access to it
• Use protected members!
• If no derived class, protected members is
the same as private members.

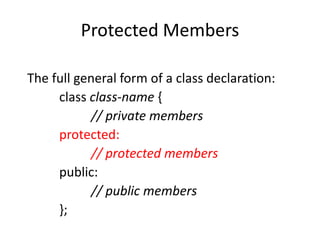

28. Protected Members
The full general form of a class declaration:
class class-name {
// private members
protected:
// protected members
public:
// public members
};

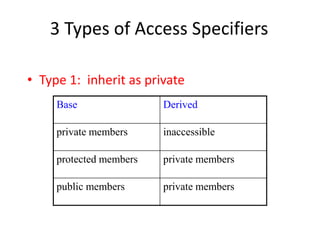

29. 3 Types of Access Specifiers
• Type 1: inherit as private
Base Derived
private members inaccessible
protected members private members
public members private members

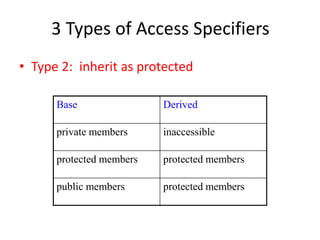

30. 3 Types of Access Specifiers
• Type 2: inherit as protected
Base Derived
private members inaccessible
protected members protected members
public members protected members

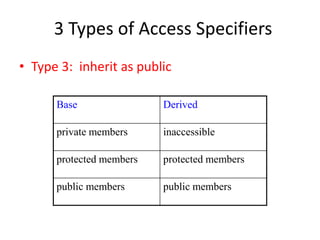

31. 3 Types of Access Specifiers
• Type 3: inherit as public
Base Derived
private members inaccessible
protected members protected members
public members public members

32. Constructor and Destructor
• It is possible for both the base class and the
derived class to have constructor and/or
destructor functions.
• The constructor functions are executed in
order of derivation.
– i.e.the base class constructor is executed first.
• The destructor functions are executed in
reverse order.

33. Passing arguments
• What if the constructor functions of both the
base class and derived class take arguments?
1. Pass all necessary arguments to the derived
class’s constructor.
2. Then pass the appropriate arguments along
to the base class.

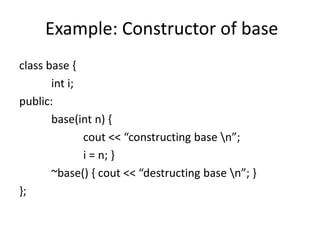

34. Example: Constructor of base
class base {
int i;
public:
base(int n) {
cout << “constructing base n”;
i = n; }
~base() { cout << “destructing base n”; }
};

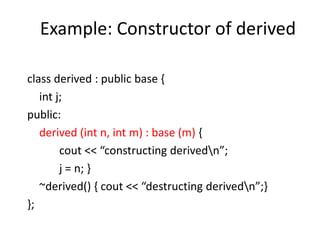

35. Example: Constructor of derived
class derived : public base {
int j;
public:
derived (int n, int m) : base (m) {
cout << “constructing derivedn”;
j = n; }
~derived() { cout << “destructing derivedn”;}
};

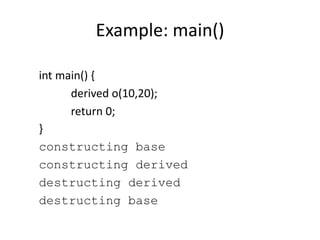

36. Example: main()
int main() {
derived o(10,20);
return 0;
}
constructing base
constructing derived
destructing derived
destructing base

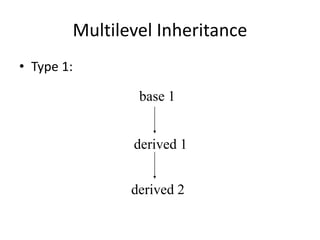

37. Multilevel Inheritance
• Type 1:
base 1
derived 1
derived 2

38. Multiple Inheritance
• Type 2:
base 1 base 2
derived

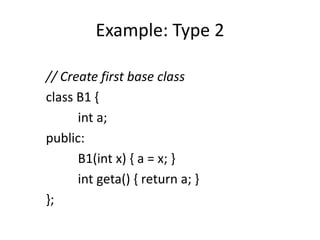

39. Example: Type 2
// Create first base class
class B1 {
int a;
public:
B1(int x) { a = x; }
int geta() { return a; }
};

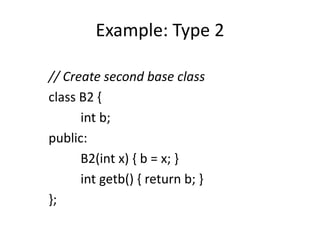

40. Example: Type 2
// Create second base class
class B2 {
int b;
public:
B2(int x) { b = x; }
int getb() { return b; }
};

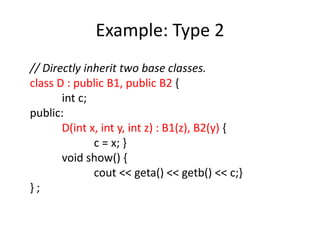

41. Example: Type 2
// Directly inherit two base classes.
class D : public B1, public B2 {
int c;
public:
D(int x, int y, int z) : B1(z), B2(y) {
c = x; }
void show() {
cout << geta() << getb() << c;}
} ;

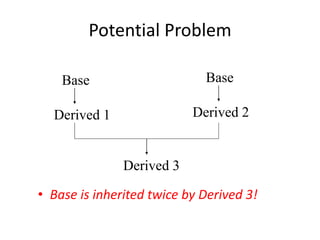

42. Potential Problem
• Base is inherited twice by Derived 3!
Base Base
Derived 1 Derived 2
Derived 3

43. Virtual Base Class
• To resolve this problem, virtual base class can
be used.
class base {
public:
int i;
};

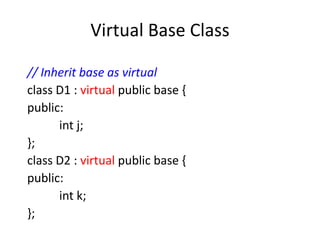

44. Virtual Base Class
// Inherit base as virtual
class D1 : virtual public base {
public:
int j;
};
class D2 : virtual public base {
public:
int k;
};

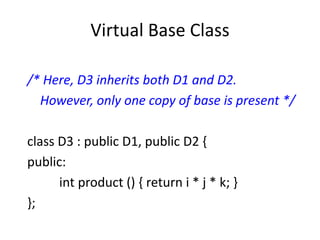

45. Virtual Base Class
/* Here, D3 inherits both D1 and D2.
However, only one copy of base is present */
class D3 : public D1, public D2 {
public:
int product () { return i * j * k; }
};

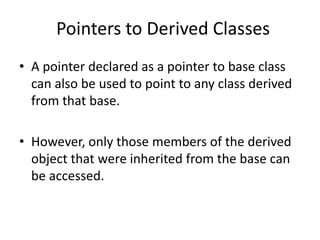

46. Pointers to Derived Classes
• A pointer declared as a pointer to base class
can also be used to point to any class derived
from that base.
• However, only those members of the derived
object that were inherited from the base can
be accessed.

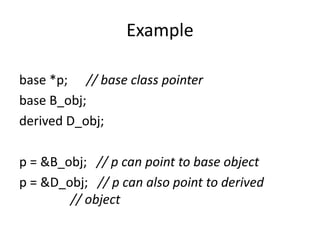

47. Example
base *p; // base class pointer
base B_obj;
derived D_obj;
p = &B_obj; // p can point to base object
p = &D_obj; // p can also point to derived
// object

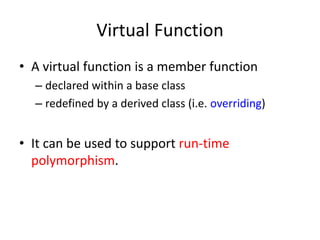

48. Virtual Function
• A virtual function is a member function
– declared within a base class
– redefined by a derived class (i.e. overriding)
• It can be used to support run-time
polymorphism.

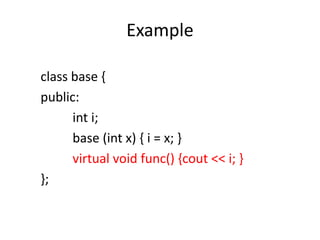

49. Example
class base {
public:
int i;
base (int x) { i = x; }
virtual void func() {cout << i; }
};

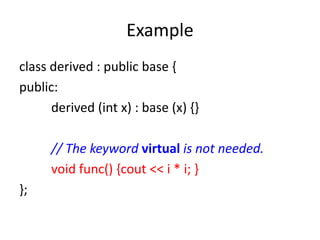

50. Example
class derived : public base {
public:
derived (int x) : base (x) {}
// The keyword virtual is not needed.
void func() {cout << i * i; }
};

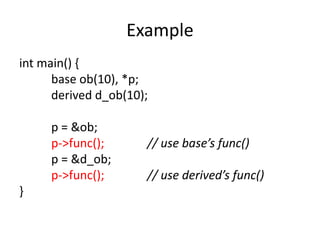

51. Example
int main() {
base ob(10), *p;
derived d_ob(10);
p = &ob;
p->func(); // use base’s func()
p = &d_ob;
p->func(); // use derived’s func()
}

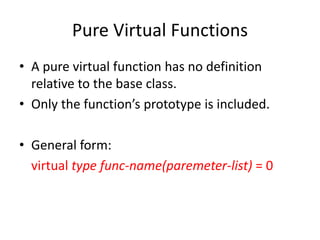

52. Pure Virtual Functions
• A pure virtual function has no definition
relative to the base class.
• Only the function’s prototype is included.
• General form:
virtual type func-name(paremeter-list) = 0

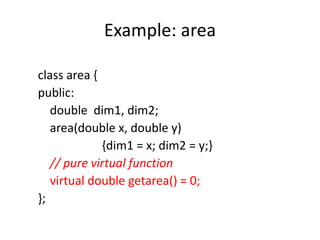

53. Example: area
class area {
public:
double dim1, dim2;
area(double x, double y)
{dim1 = x; dim2 = y;}
// pure virtual function
virtual double getarea() = 0;
};

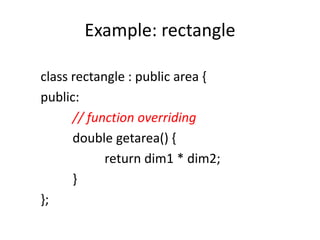

54. Example: rectangle
class rectangle : public area {
public:
// function overriding
double getarea() {
return dim1 * dim2;
}
};

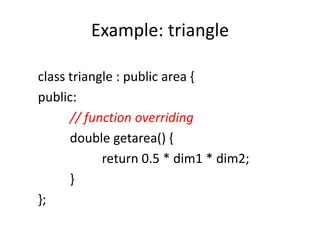

55. Example: triangle
class triangle : public area {
public:
// function overriding
double getarea() {
return 0.5 * dim1 * dim2;
}
};
