This document discusses object-oriented programming concepts like inheritance, polymorphism, overloading, and overriding. It provides examples of inheritance hierarchies for different types of birds. Inheritance allows subclasses to inherit attributes and methods from parent classes. Polymorphism means an object can have different implementations of the same method depending on its type. Overloading and overriding relate to creating multiple methods with the same name that differ in parameters or implementation.

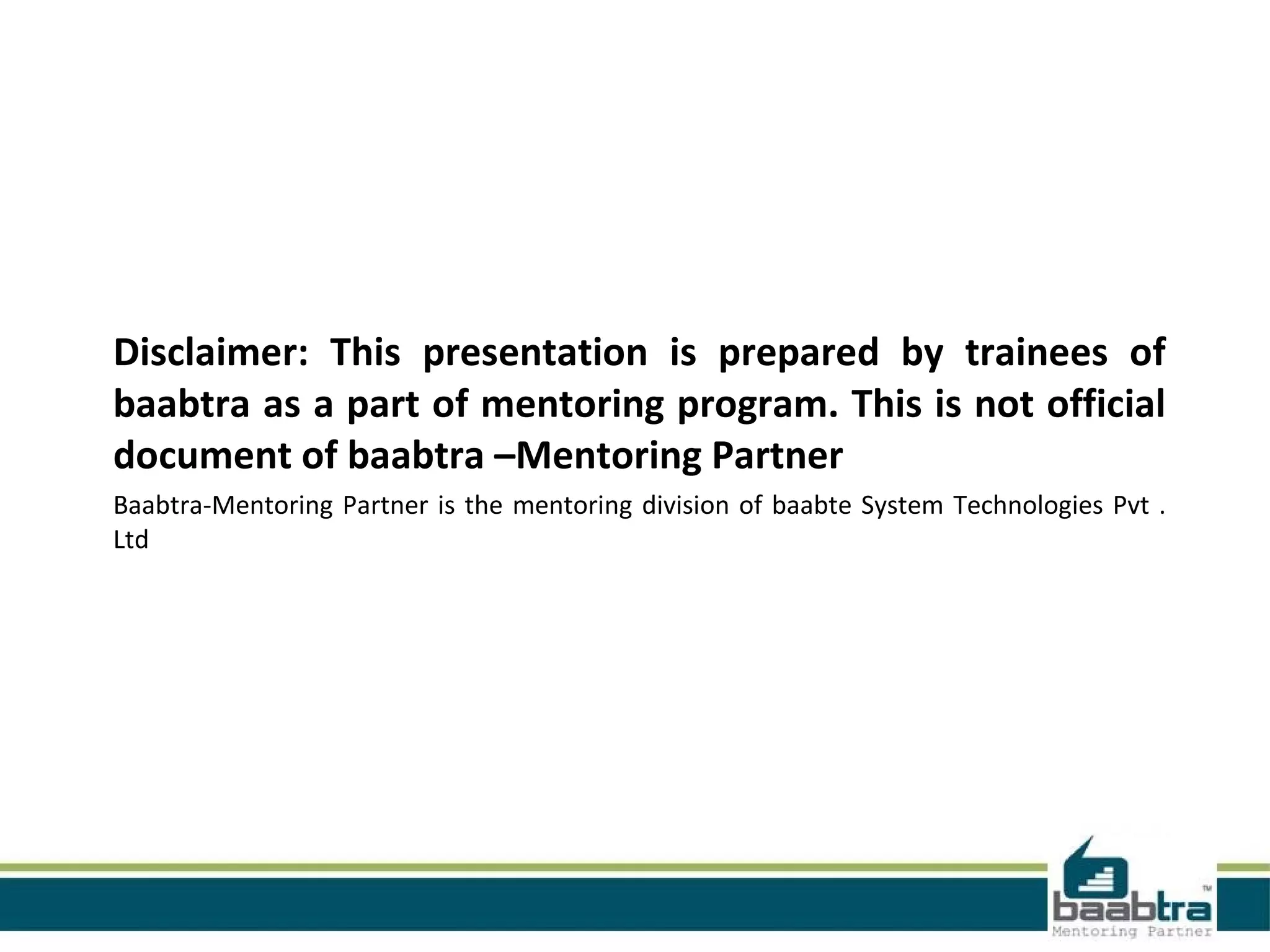

2. Disclaimer: This presentation is prepared by trainees of
baabtra as a part of mentoring program. This is not official
document of baabtra –Mentoring Partner
Baabtra-Mentoring Partner is the mentoring division of baabte System Technologies Pvt .
Ltd

3. Inheritance and
Polymorphism

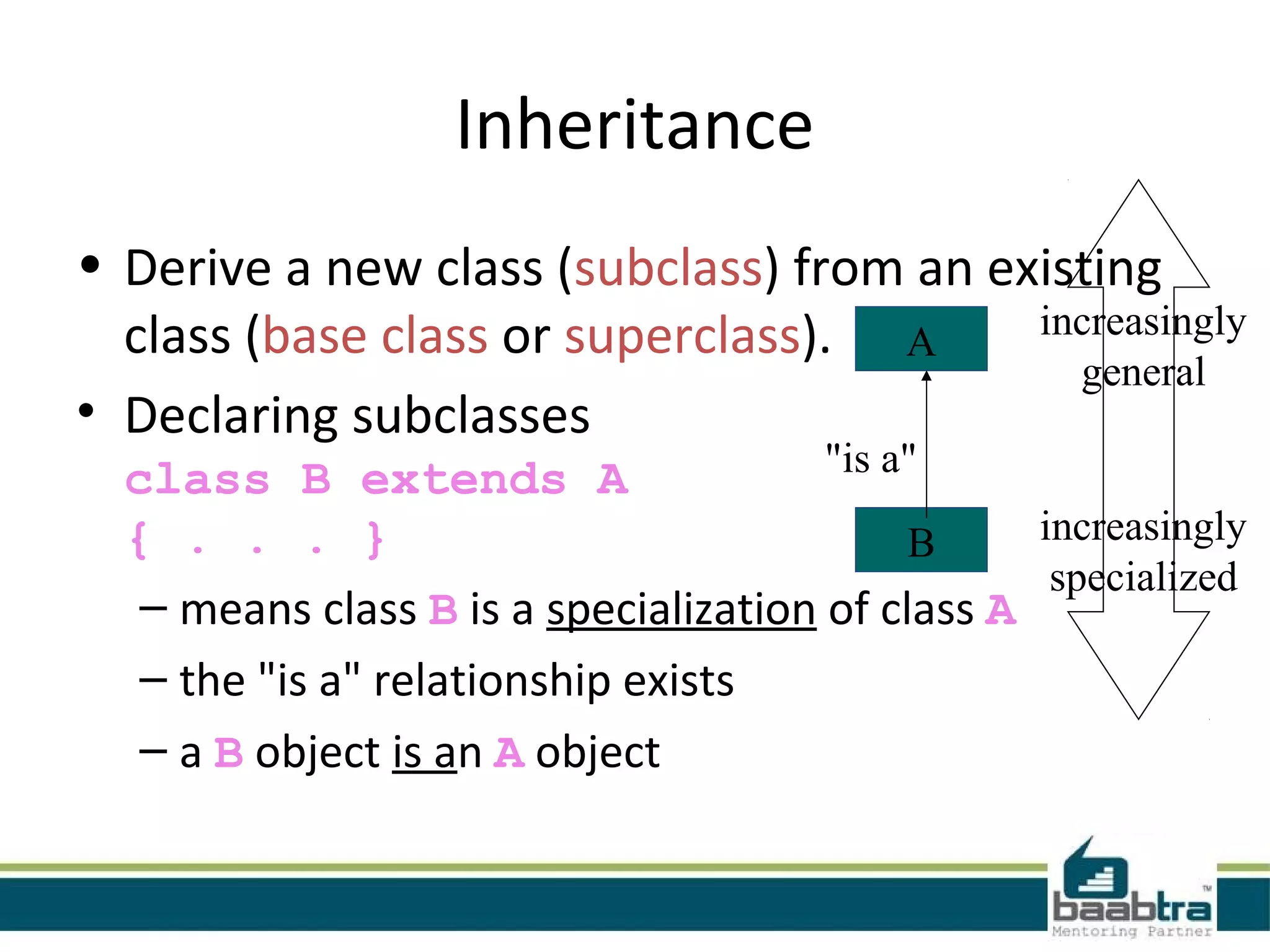

4. Inheritance
• Derive a new class (subclass) from an existing
class (base class or superclass).
• Declaring subclasses
class B extends A
{ . . . }
– means class B is a specialization of class A
– the "is a" relationship exists
– a B object is an A object
A
B
"is a"
increasingly
general
increasingly
specialized

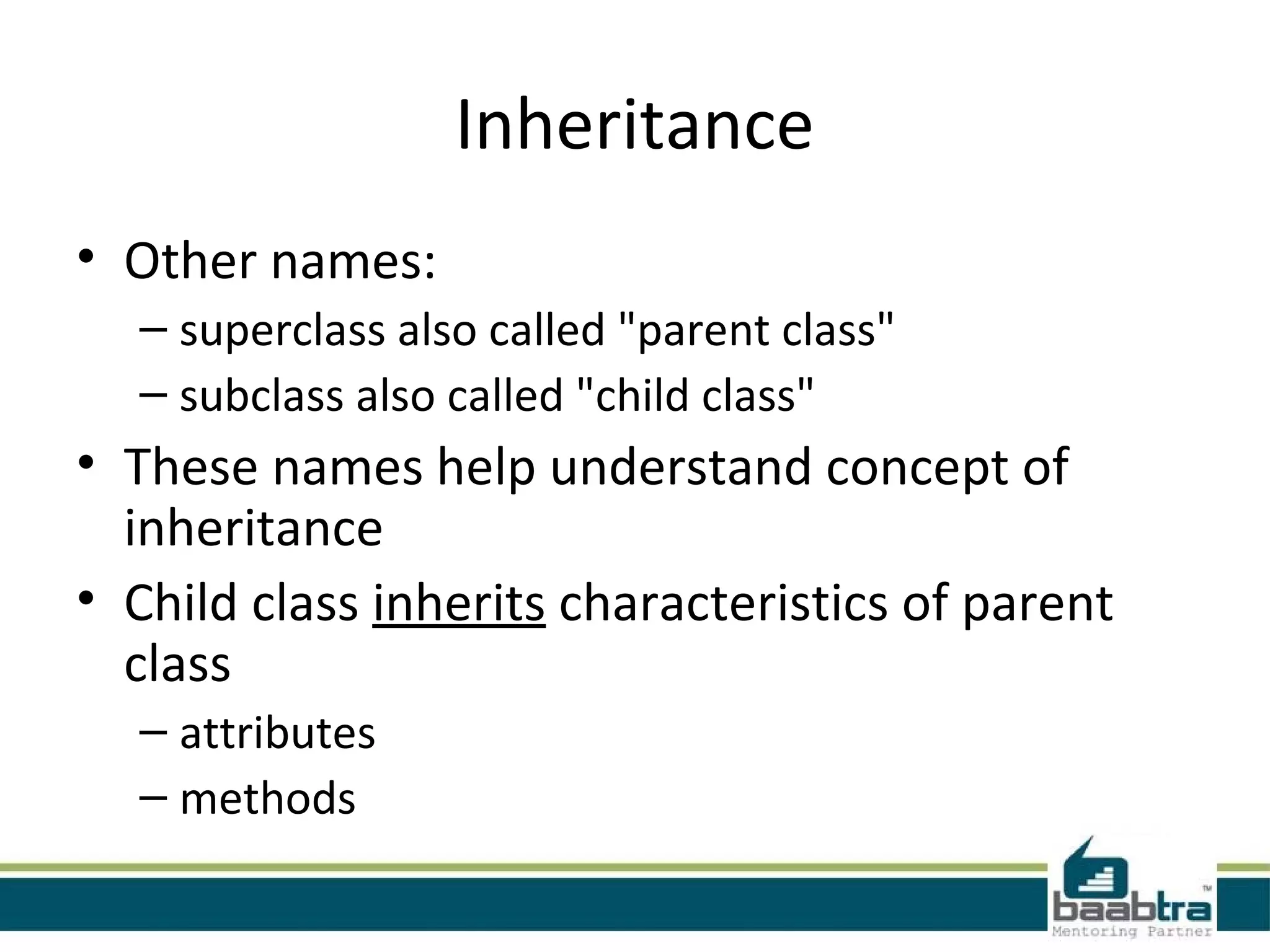

5. Inheritance
• Other names:
– superclass also called "parent class"
– subclass also called "child class"
• These names help understand concept of
inheritance
• Child class inherits characteristics of parent
class
– attributes
– methods

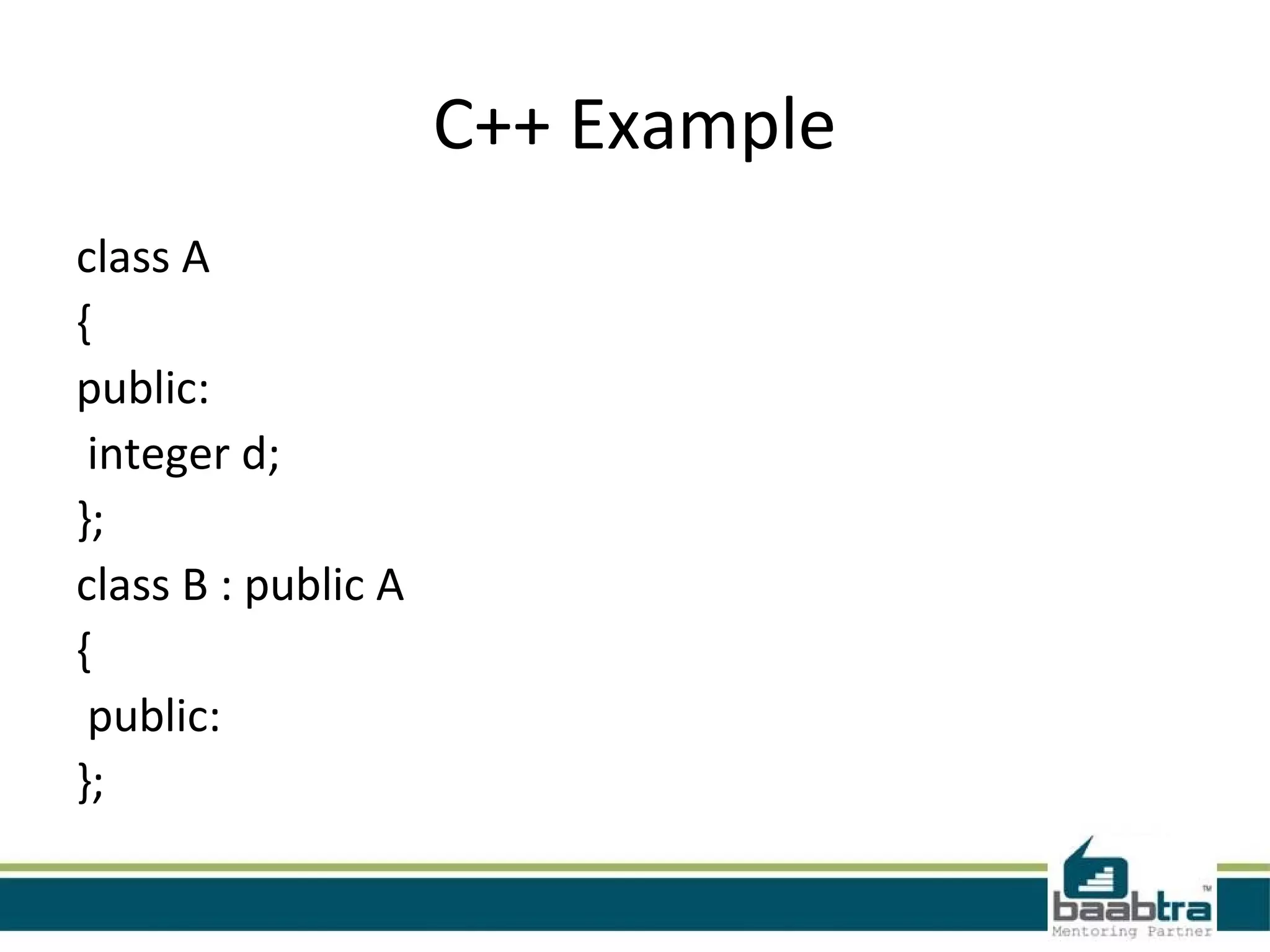

6. C++ Example
class A
{
public:
integer d;
};
class B : public A
{
public:
};

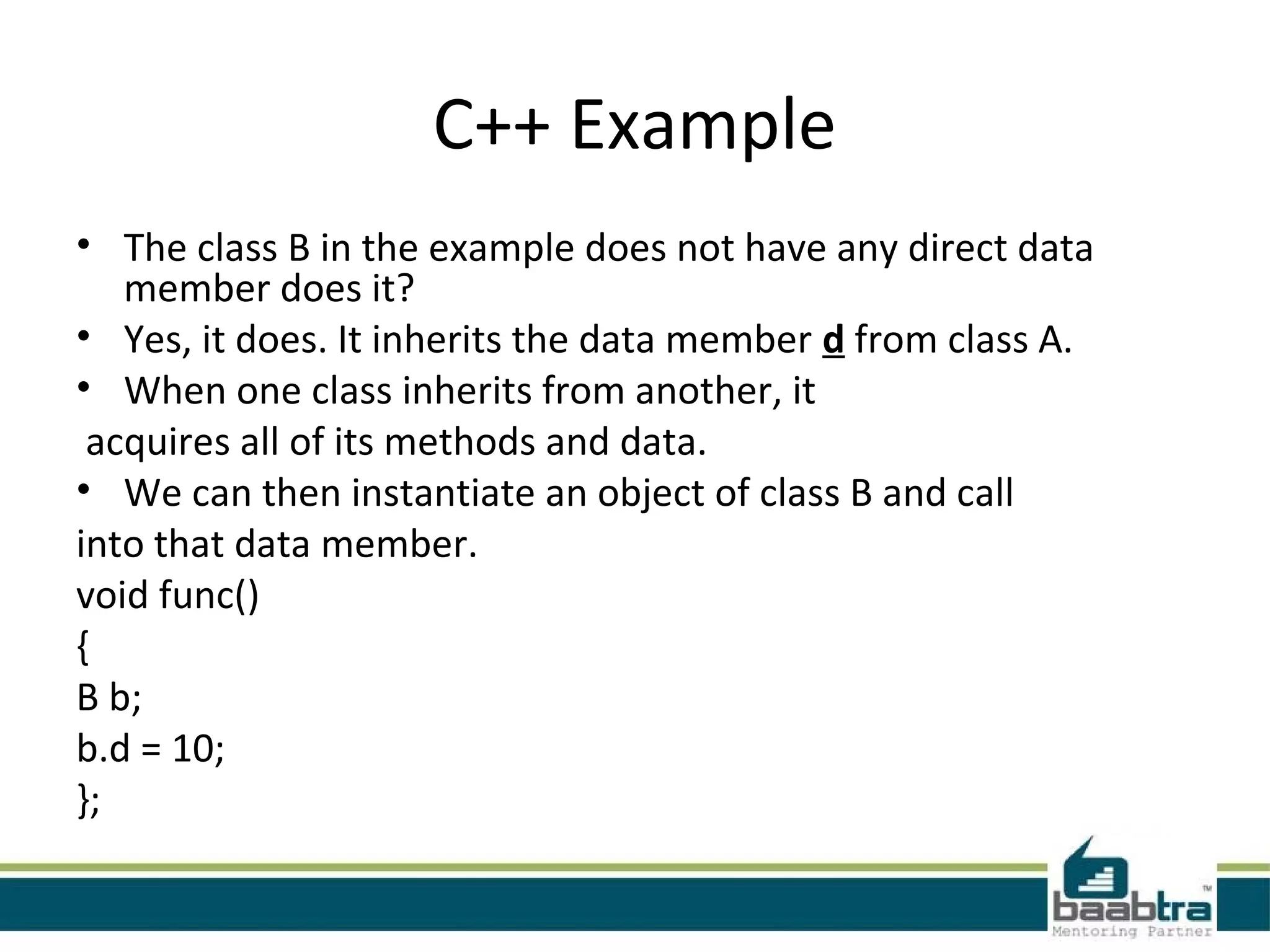

7. C++ Example
• The class B in the example does not have any direct data
member does it?
• Yes, it does. It inherits the data member d from class A.
• When one class inherits from another, it
acquires all of its methods and data.
• We can then instantiate an object of class B and call
into that data member.
void func()
{
B b;
b.d = 10;
};

8. Example: A Trip to Aviary
• Consider a collection of birds
which have different properties
– name
– color (some of the same name
are of different colors)
– they eat different things
– they make different noises
– some make multiple kinds of
sounds

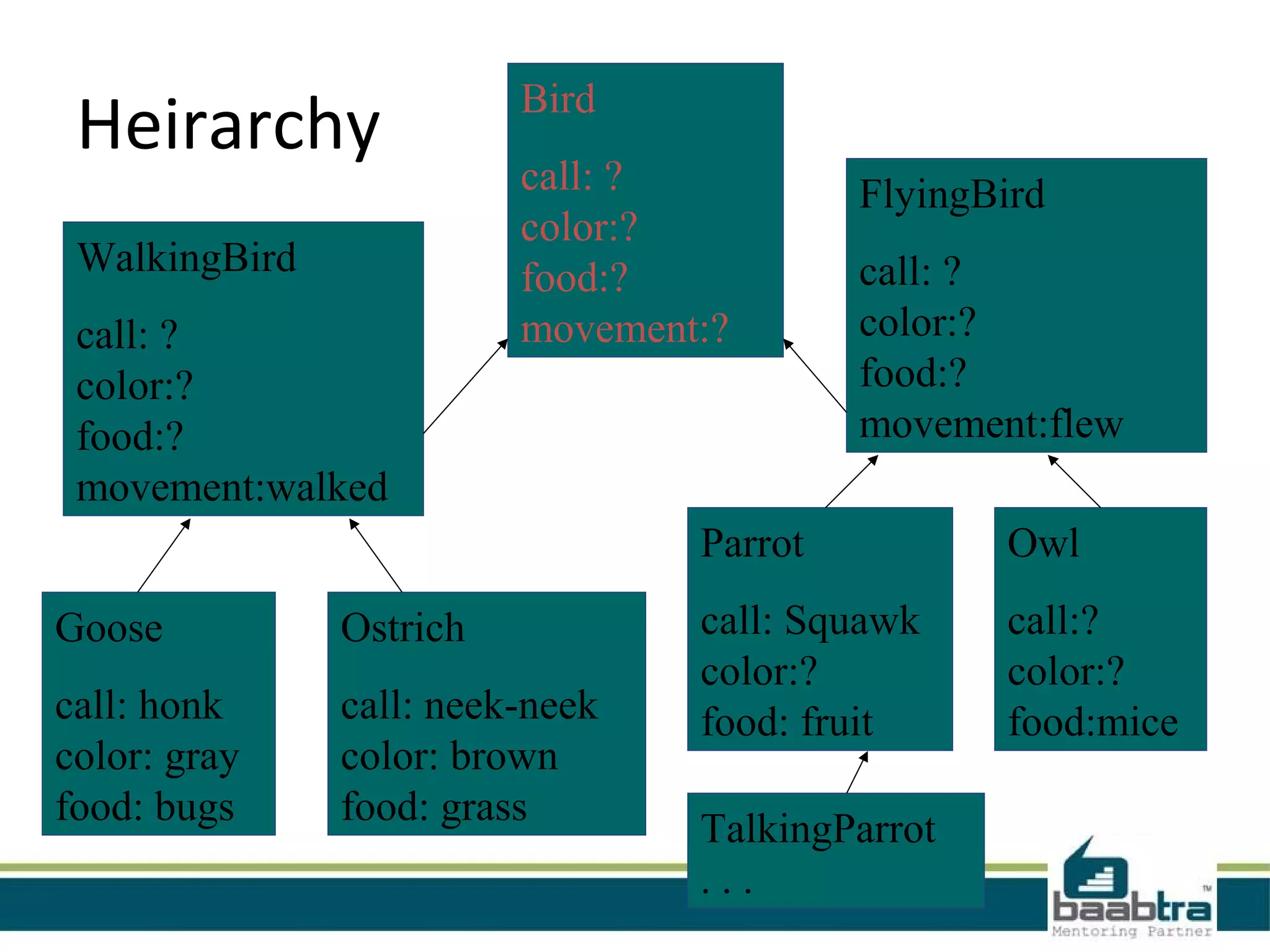

9. Heirarchy Bird
call: ?
color:?
food:?
movement:?
WalkingBird
call: ?
color:?
food:?
movement:walked
FlyingBird
call: ?
color:?
food:?
movement:flew
Goose
call: honk
color: gray
food: bugs
Ostrich
call: neek-neek
color: brown
food: grass
Parrot
call: Squawk
color:?
food: fruit
Owl
call:?
color:?
food:mice
TalkingParrot
. . .

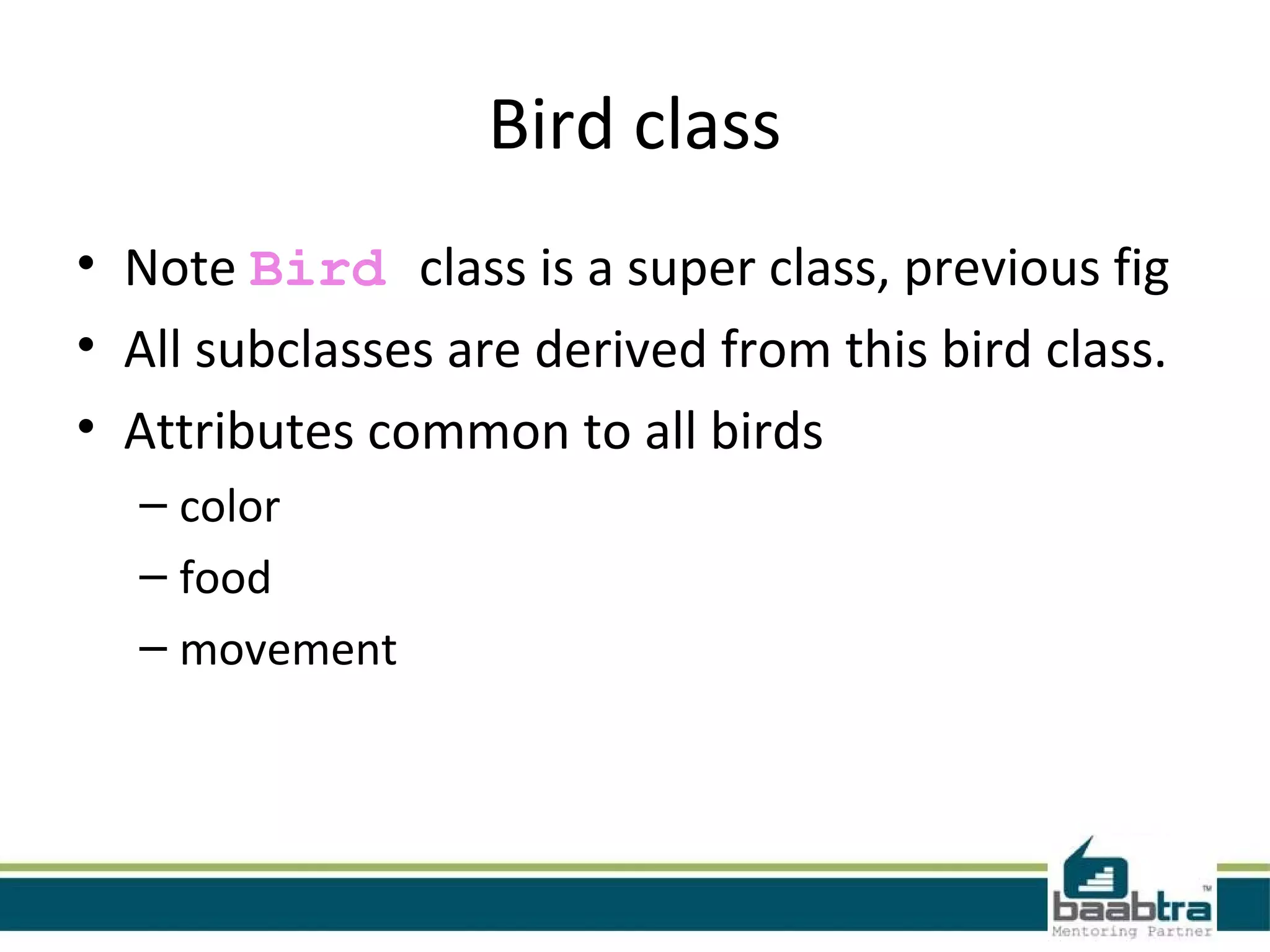

10. Bird class
• Note Bird class is a super class, previous fig
• All subclasses are derived from this bird class.
• Attributes common to all birds
– color
– food
– movement

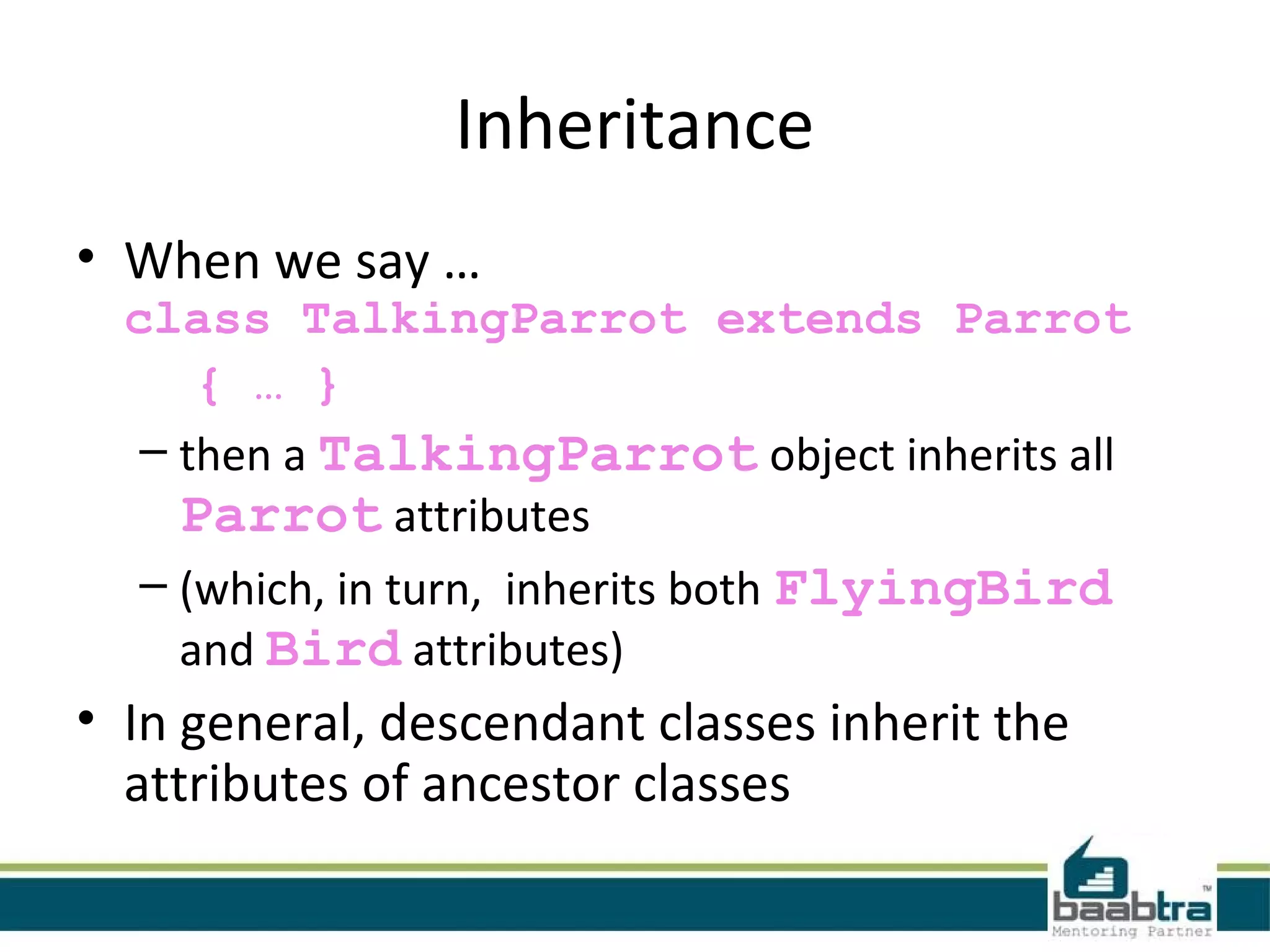

11. Inheritance
• When we say …
class TalkingParrot extends Parrot
{ … }
– then a TalkingParrot object inherits all
Parrot attributes
– (which, in turn, inherits both FlyingBird
and Bird attributes)
• In general, descendant classes inherit the
attributes of ancestor classes

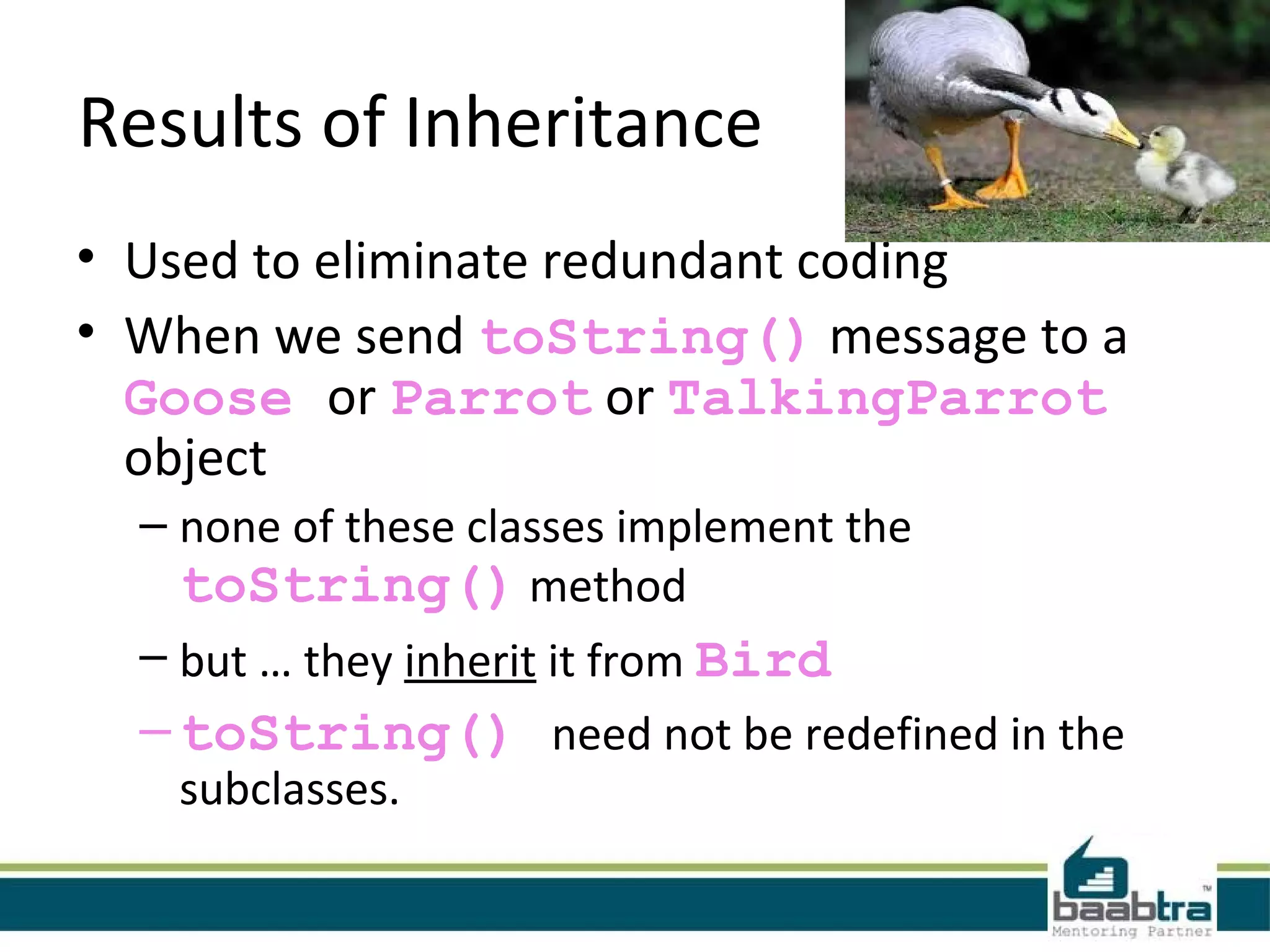

12. Results of Inheritance
• Used to eliminate redundant coding
• When we send toString() message to a
Goose or Parrot or TalkingParrot
object
– none of these classes implement the
toString() method
– but … they inherit it from Bird
–toString() need not be redefined in the
subclasses.

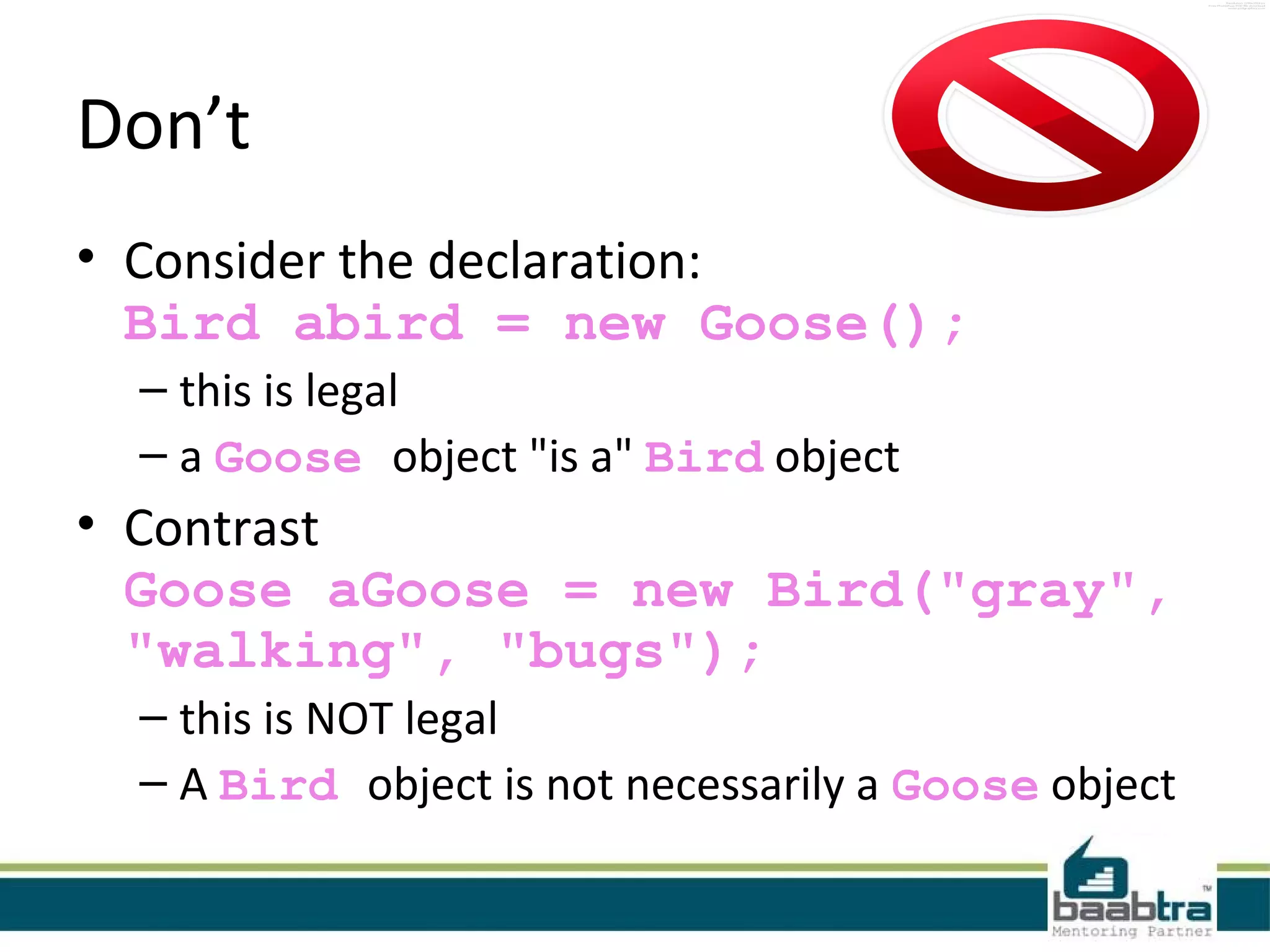

13. Don’t
• Consider the declaration:
Bird abird = new Goose();
– this is legal
– a Goose object "is a" Bird object
• Contrast
Goose aGoose = new Bird("gray",
"walking", "bugs");
– this is NOT legal
– A Bird object is not necessarily a Goose object

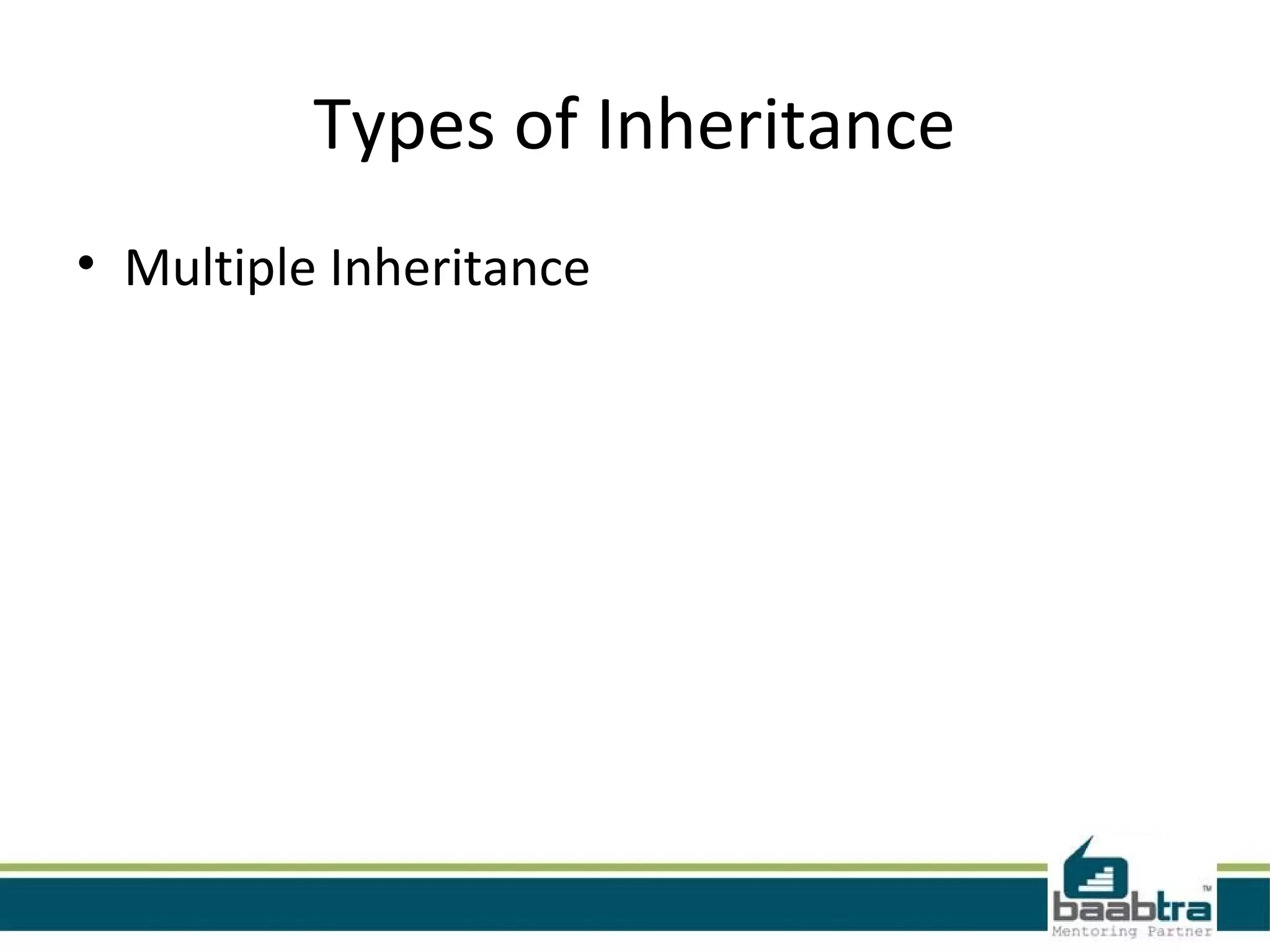

14. Types of Inheritance
• Multiple Inheritance

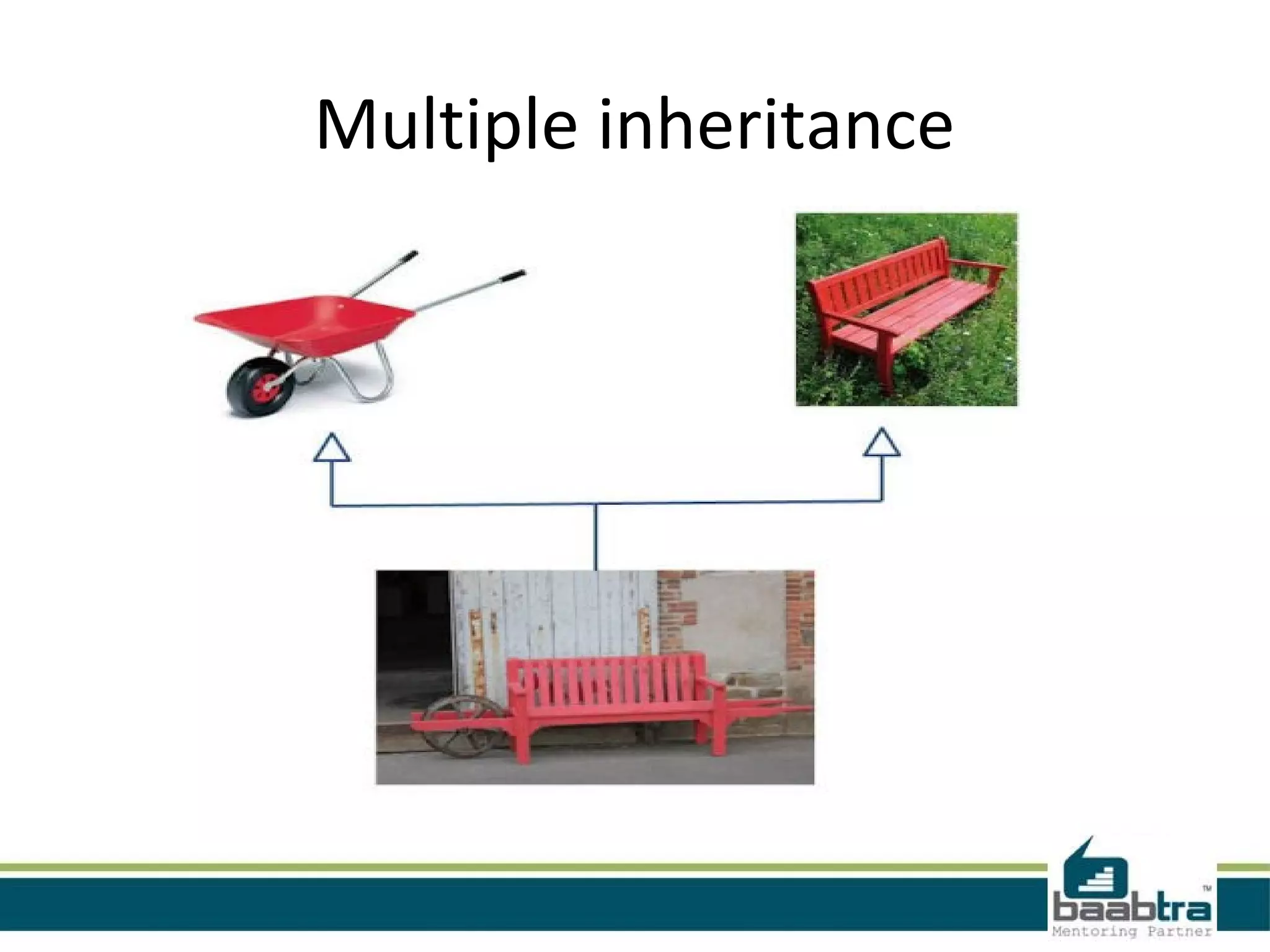

15. Multiple inheritance

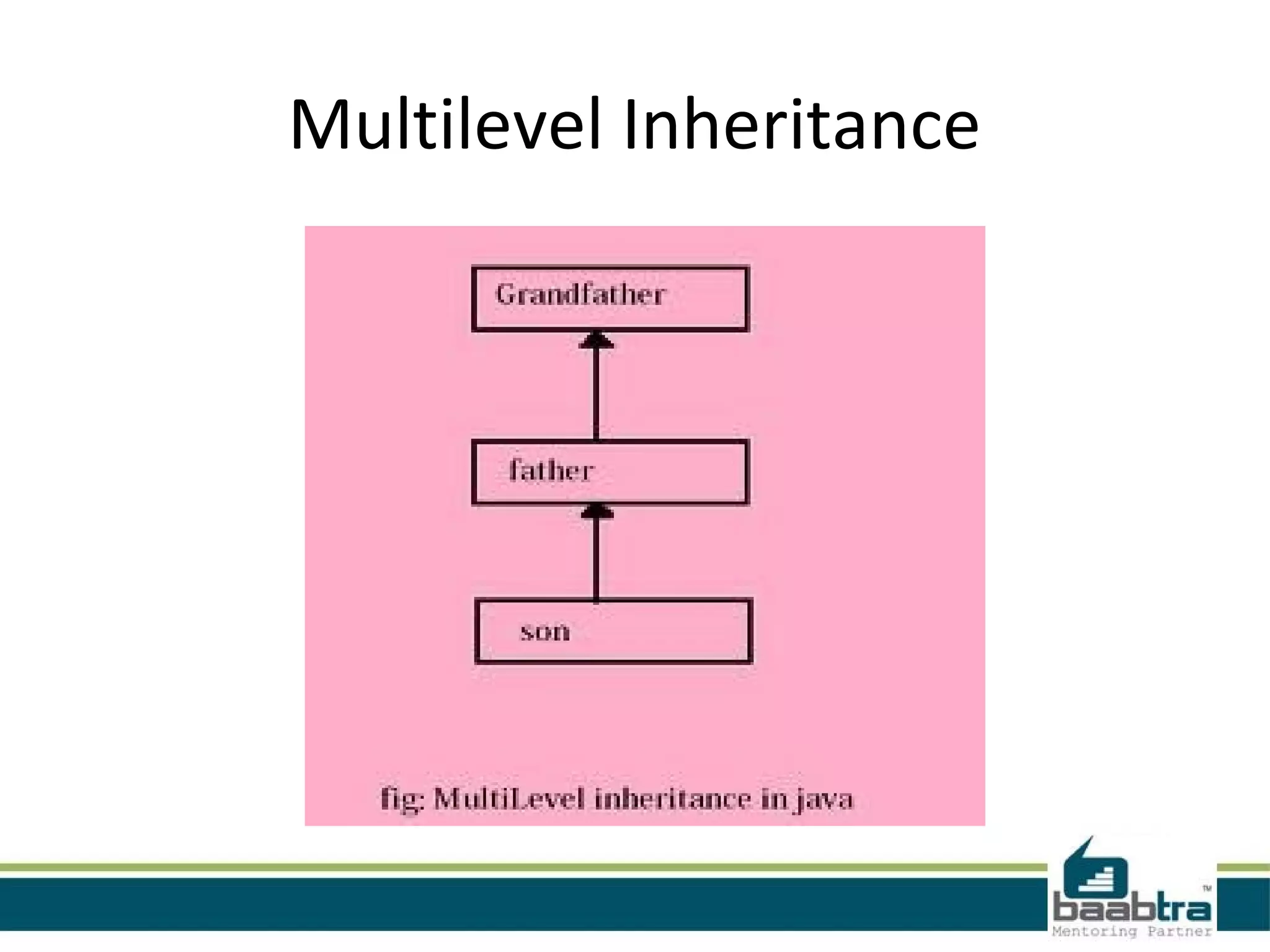

16. Multilevel Inheritance

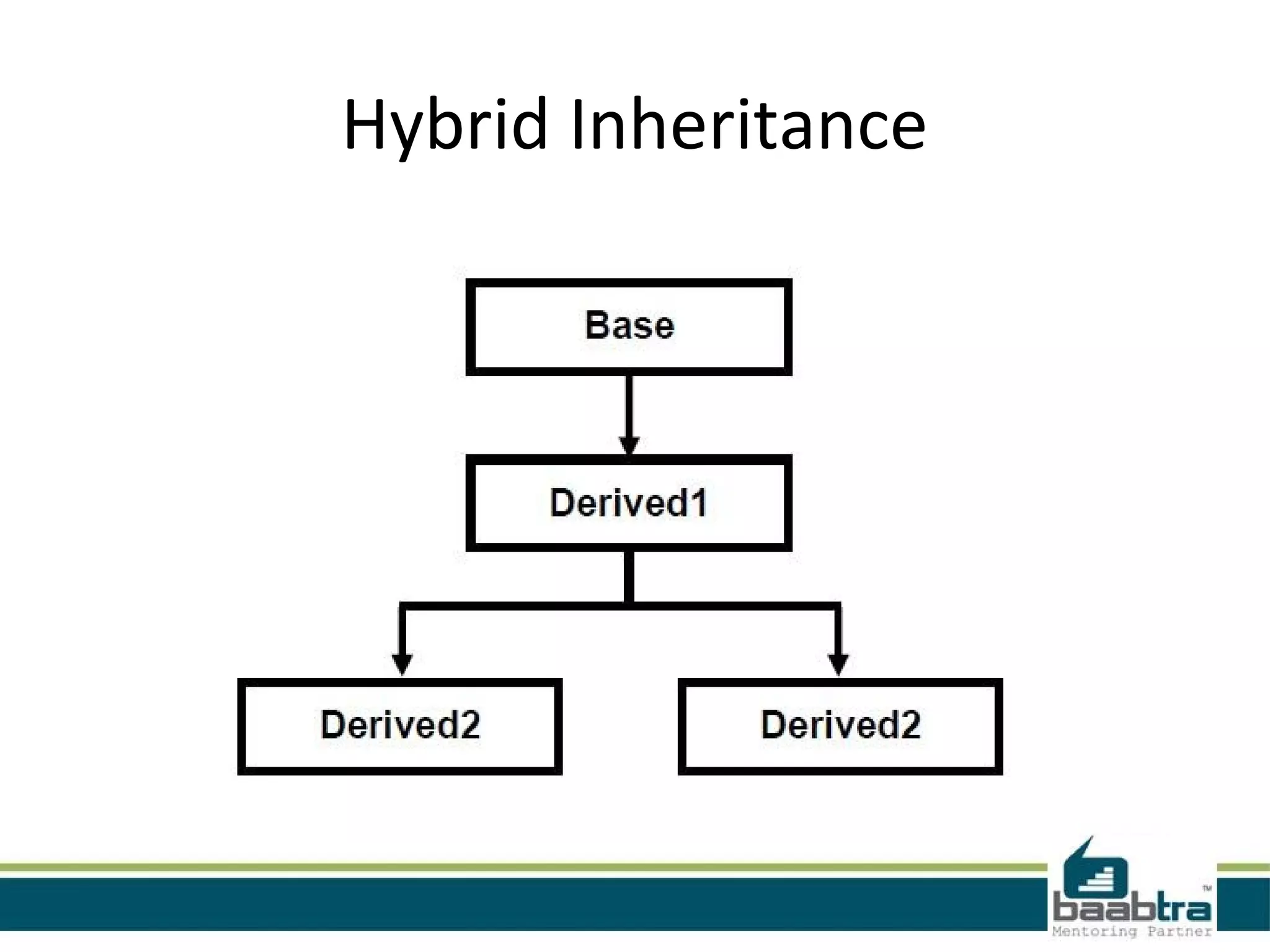

17. Hybrid Inheritance

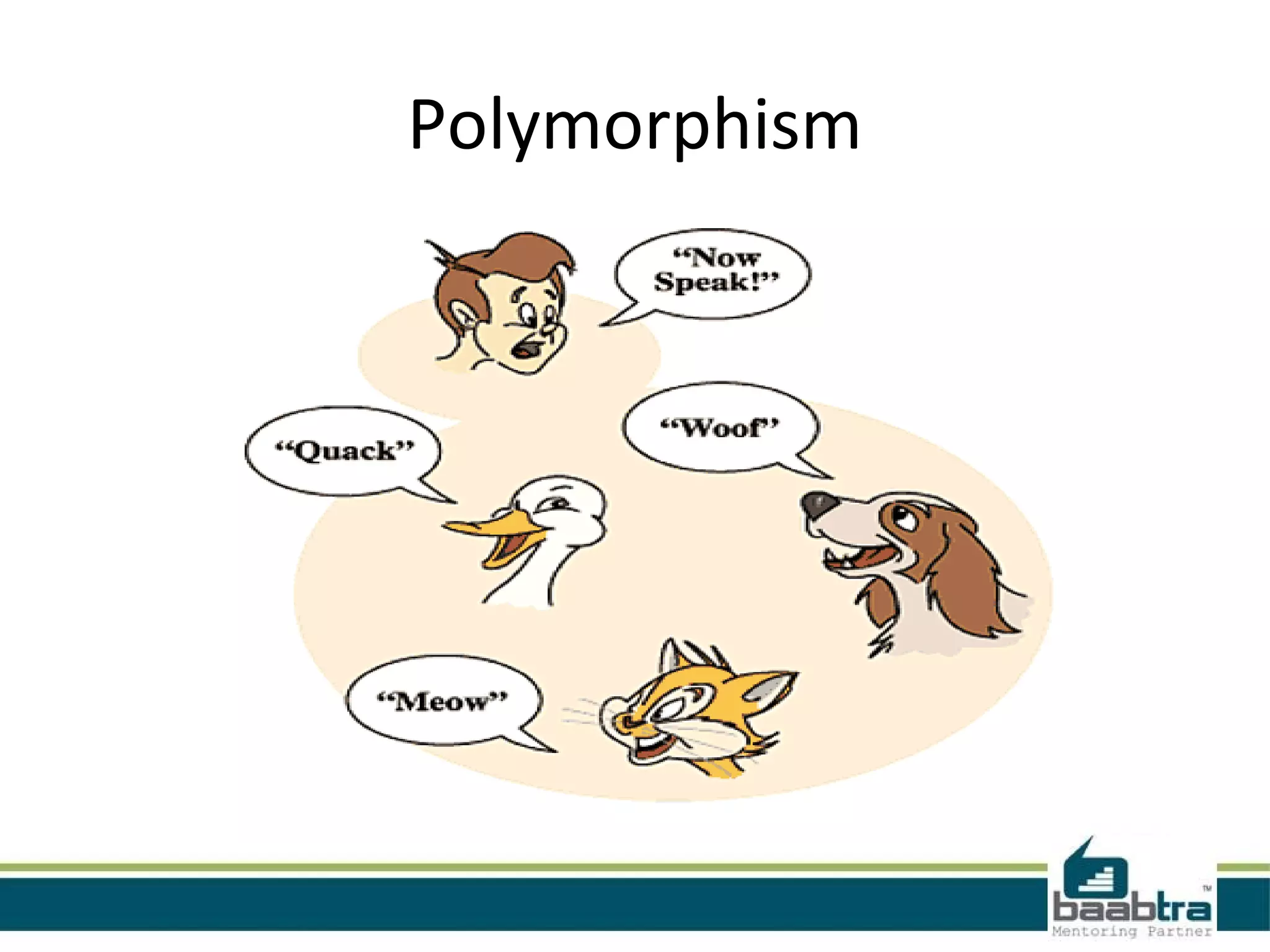

18. Polymorphism

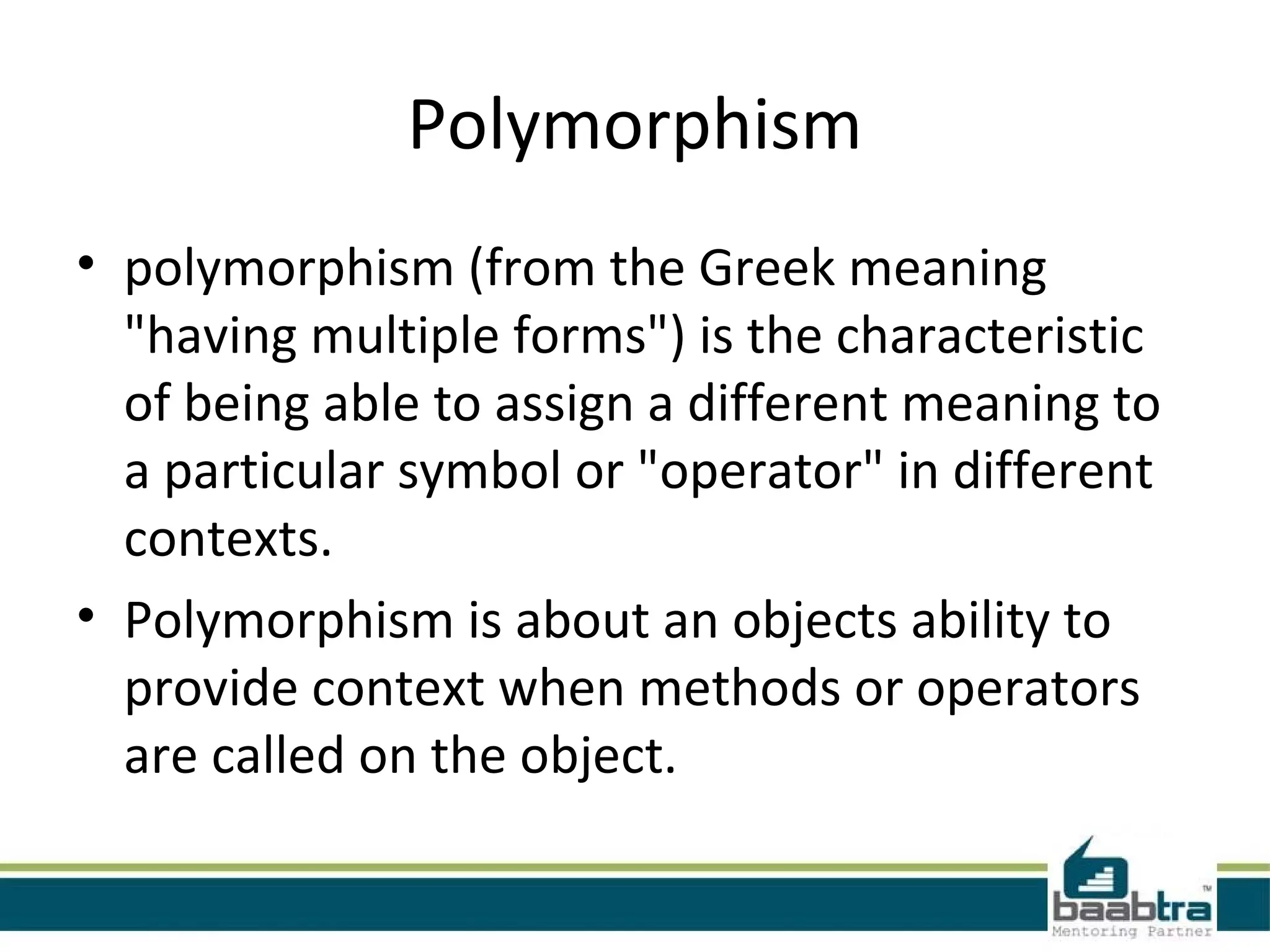

19. Polymorphism
• polymorphism (from the Greek meaning
"having multiple forms") is the characteristic
of being able to assign a different meaning to
a particular symbol or "operator" in different
contexts.
• Polymorphism is about an objects ability to
provide context when methods or operators
are called on the object.

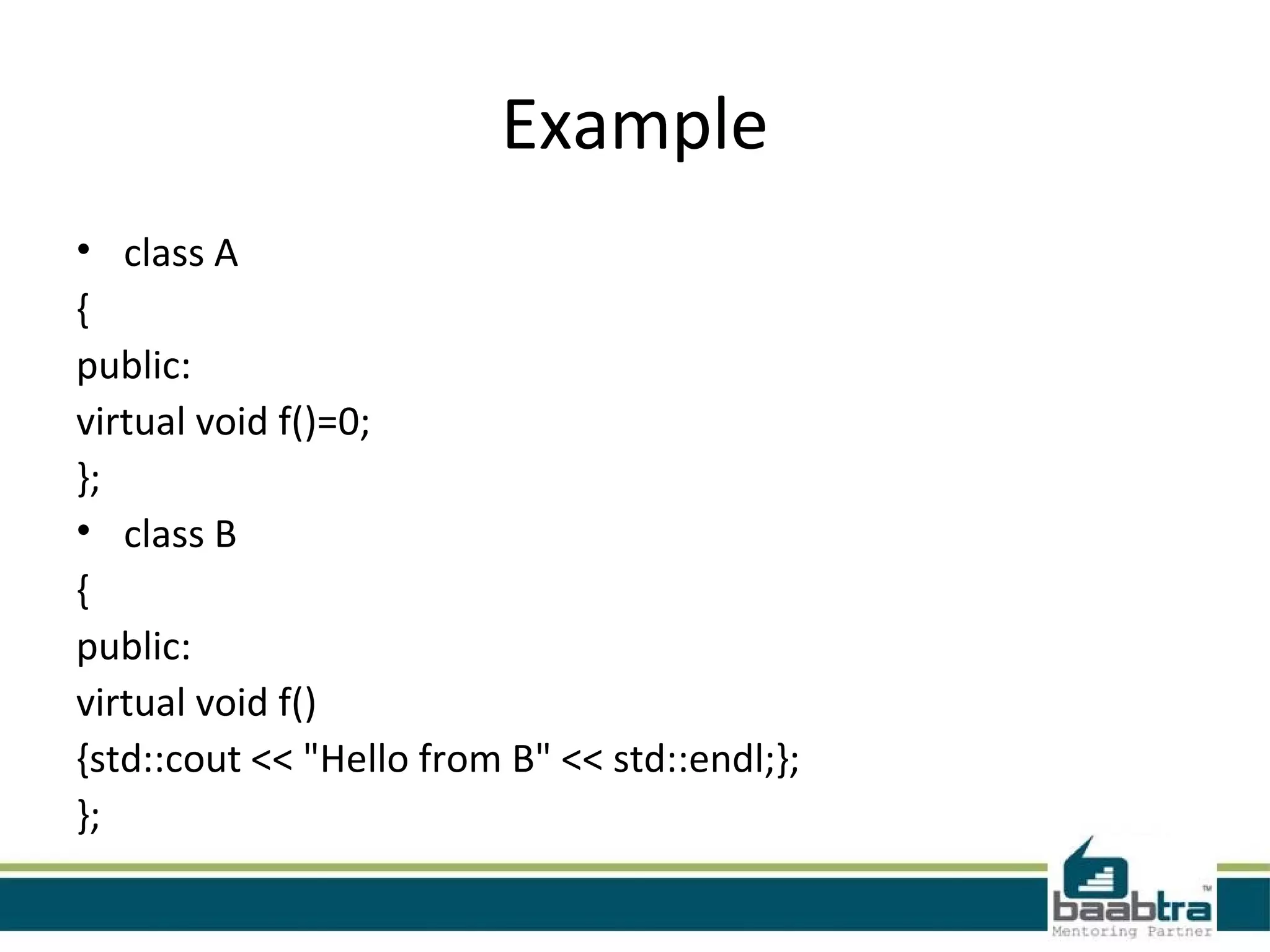

20. Example
• class A
{
public:
virtual void f()=0;
};
• class B
{
public:
virtual void f()
{std::cout << "Hello from B" << std::endl;};
};

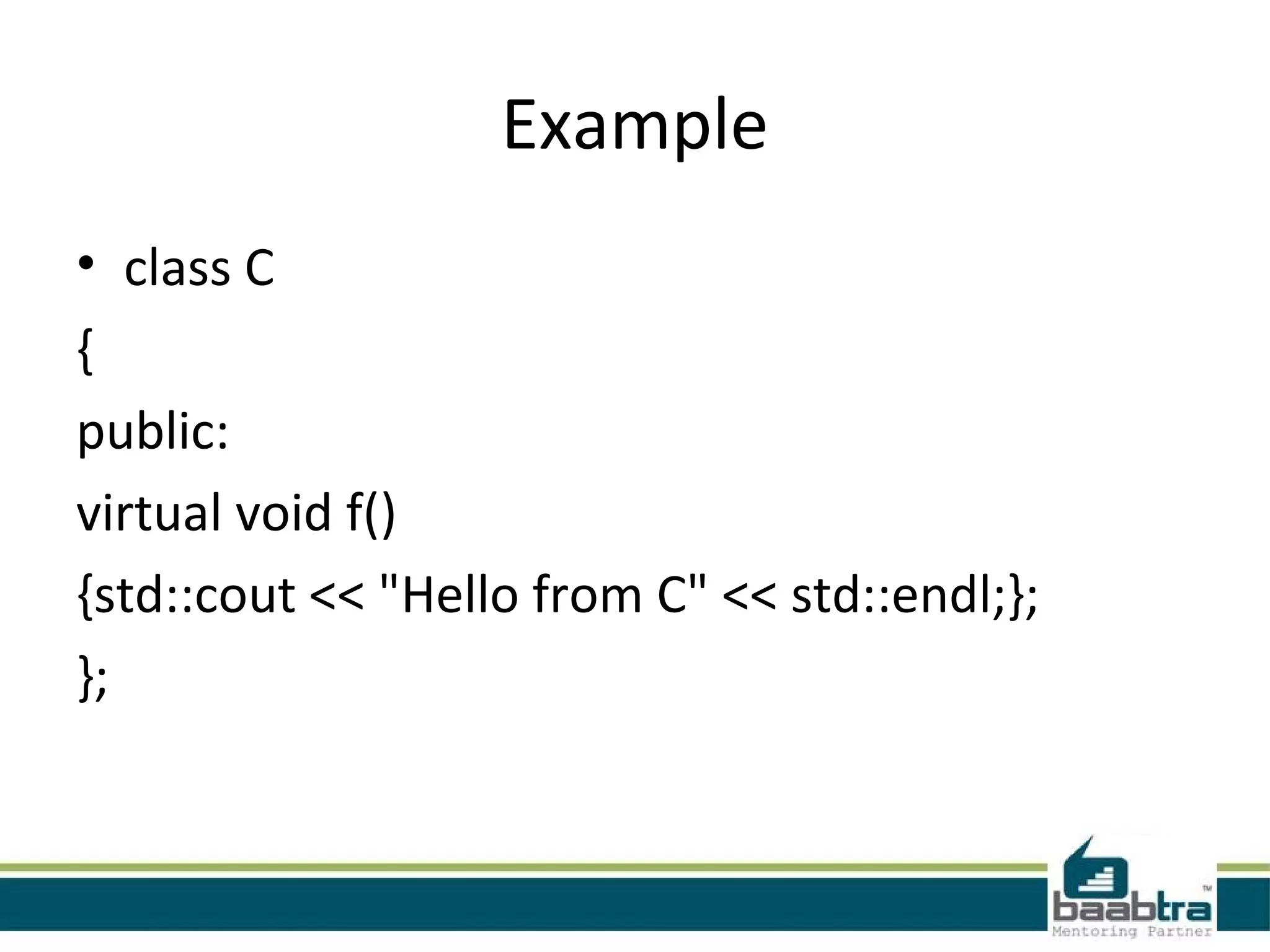

21. Example
• class C
{
public:
virtual void f()
{std::cout << "Hello from C" << std::endl;};
};

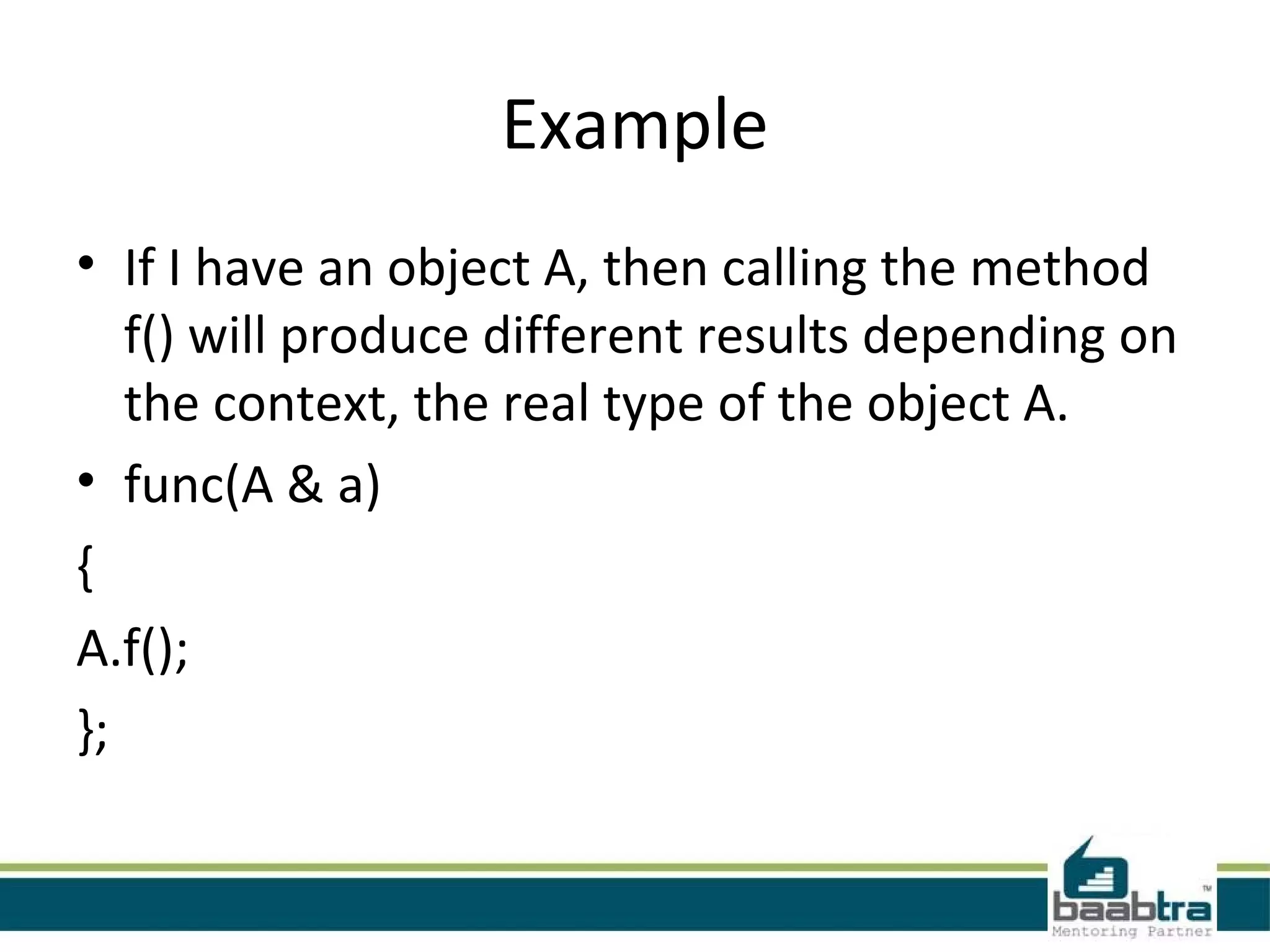

22. Example
• If I have an object A, then calling the method
f() will produce different results depending on
the context, the real type of the object A.
• func(A & a)
{
A.f();
};

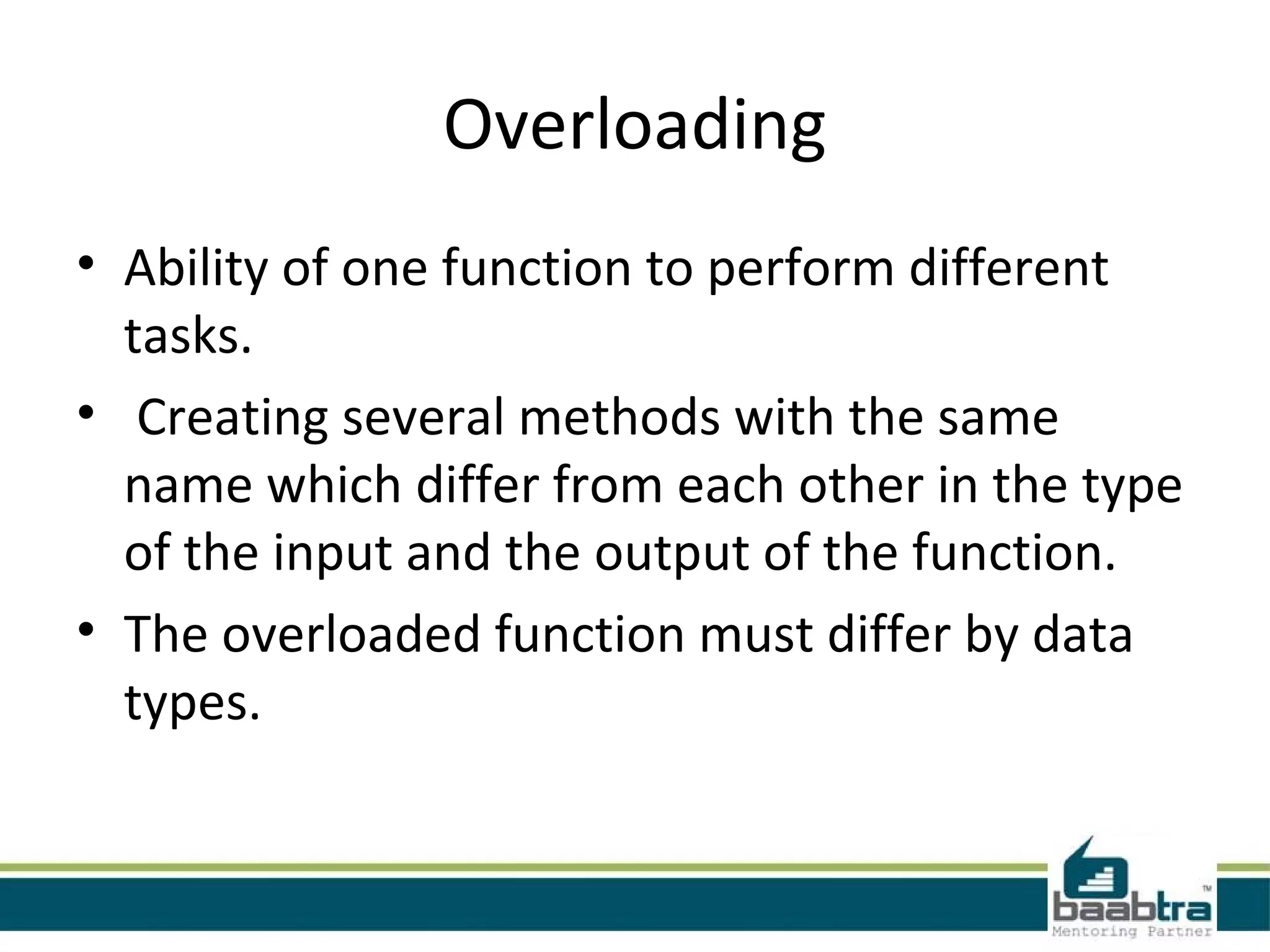

23. Overloading
• Ability of one function to perform different
tasks.
• Creating several methods with the same
name which differ from each other in the type
of the input and the output of the function.
• The overloaded function must differ by data
types.

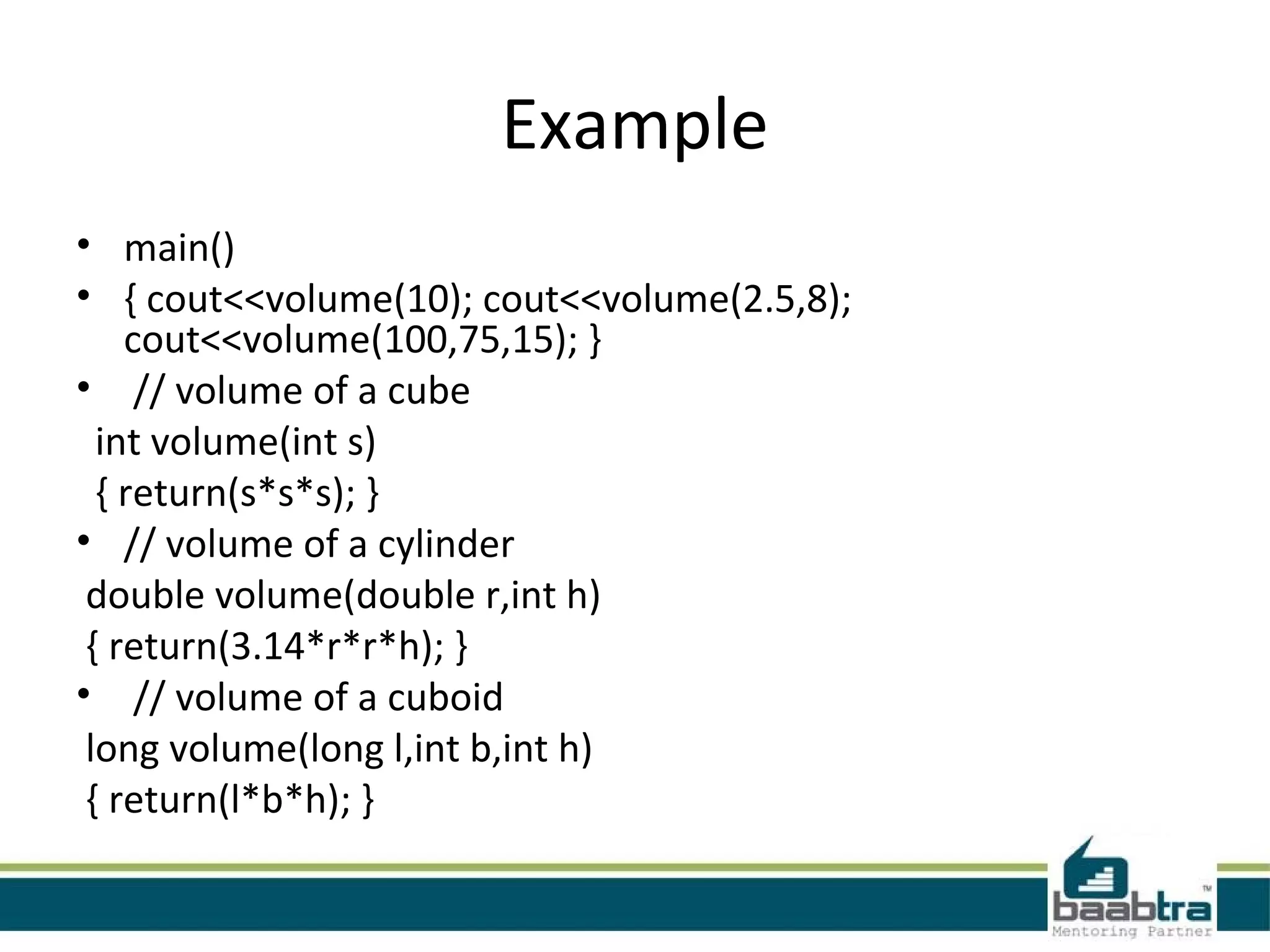

24. Example
• main()
• { cout<<volume(10); cout<<volume(2.5,8);
cout<<volume(100,75,15); }
• // volume of a cube
int volume(int s)
{ return(s*s*s); }
• // volume of a cylinder
double volume(double r,int h)
{ return(3.14*r*r*h); }
• // volume of a cuboid
long volume(long l,int b,int h)
{ return(l*b*h); }

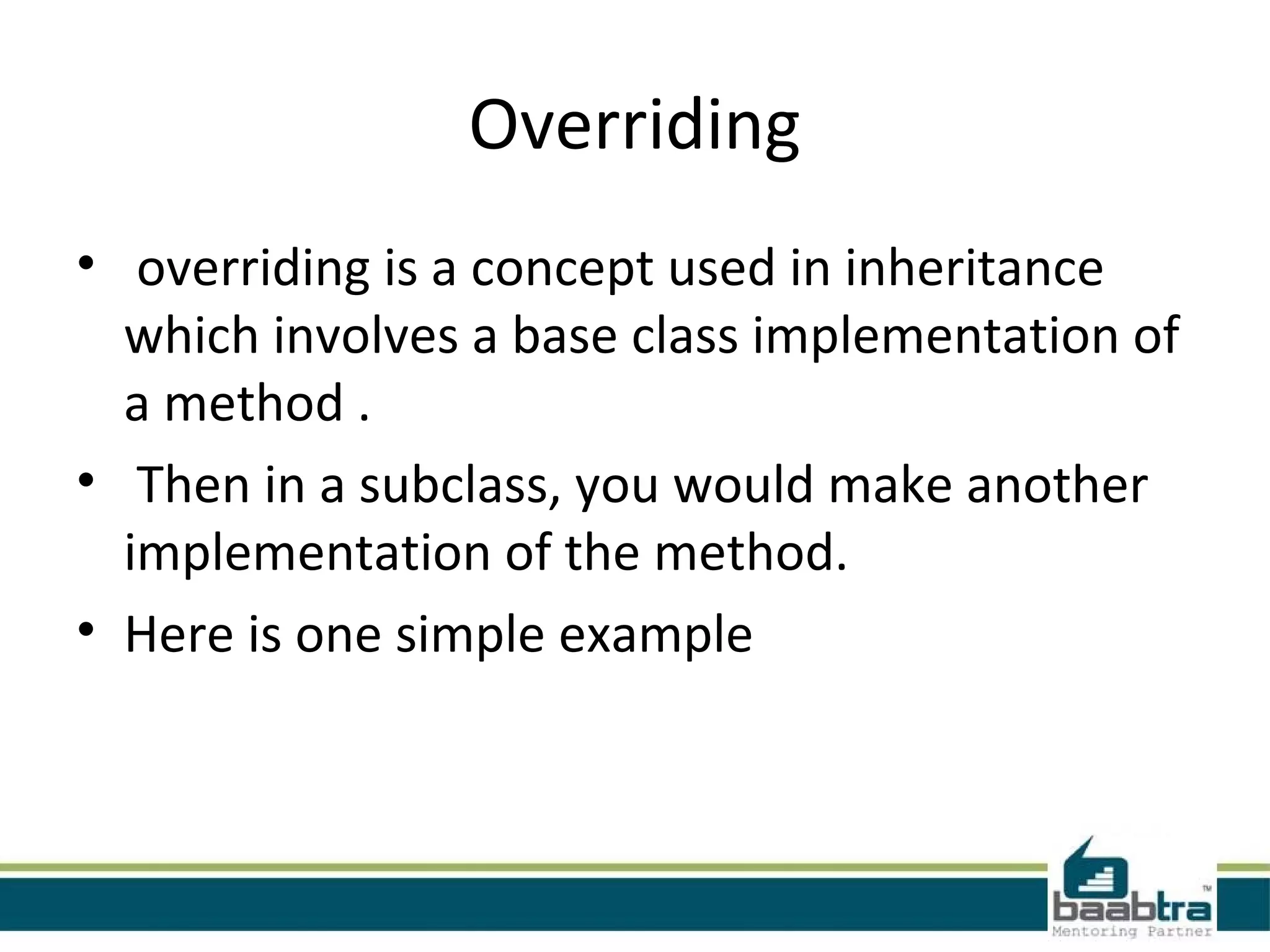

25. Overriding
• overriding is a concept used in inheritance
which involves a base class implementation of
a method .
• Then in a subclass, you would make another
implementation of the method.
• Here is one simple example

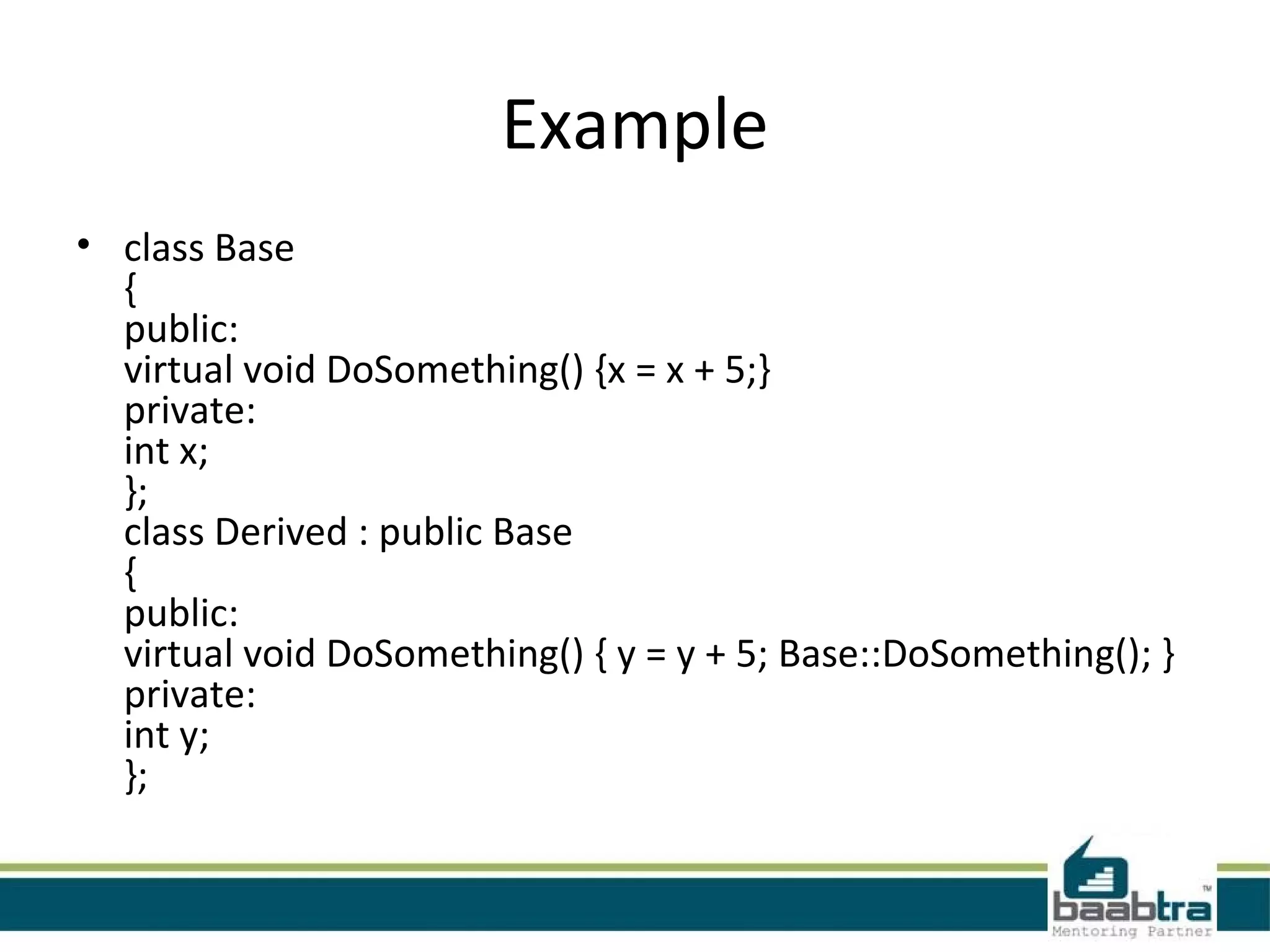

26. Example
• class Base
{
public:
virtual void DoSomething() {x = x + 5;}
private:
int x;
};
class Derived : public Base
{
public:
virtual void DoSomething() { y = y + 5; Base::DoSomething(); }
private:
int y;
};

27. Any Questions ?
