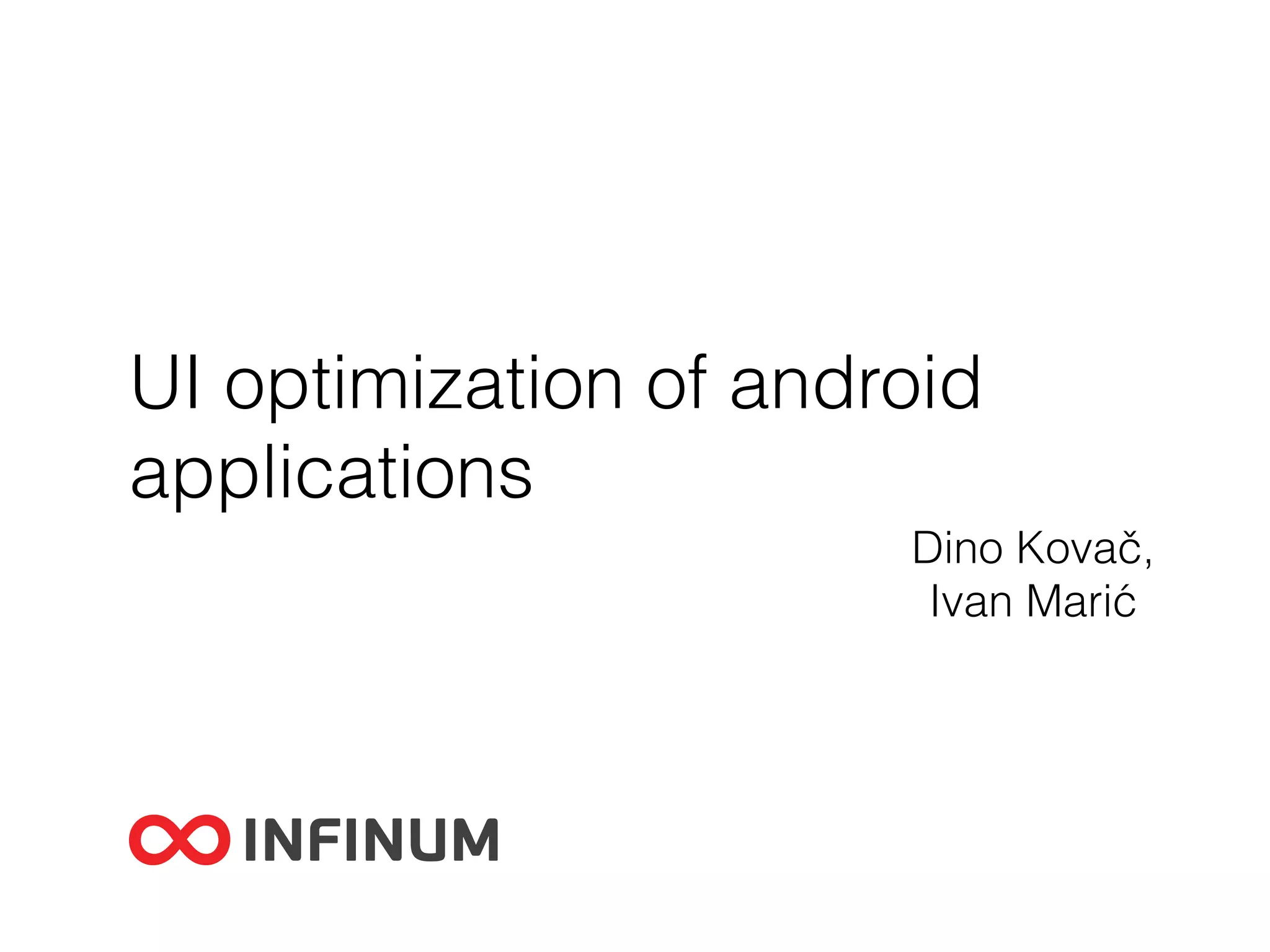

1. UI optimization of android
applications
Dino Kovač,
Ivan Marić

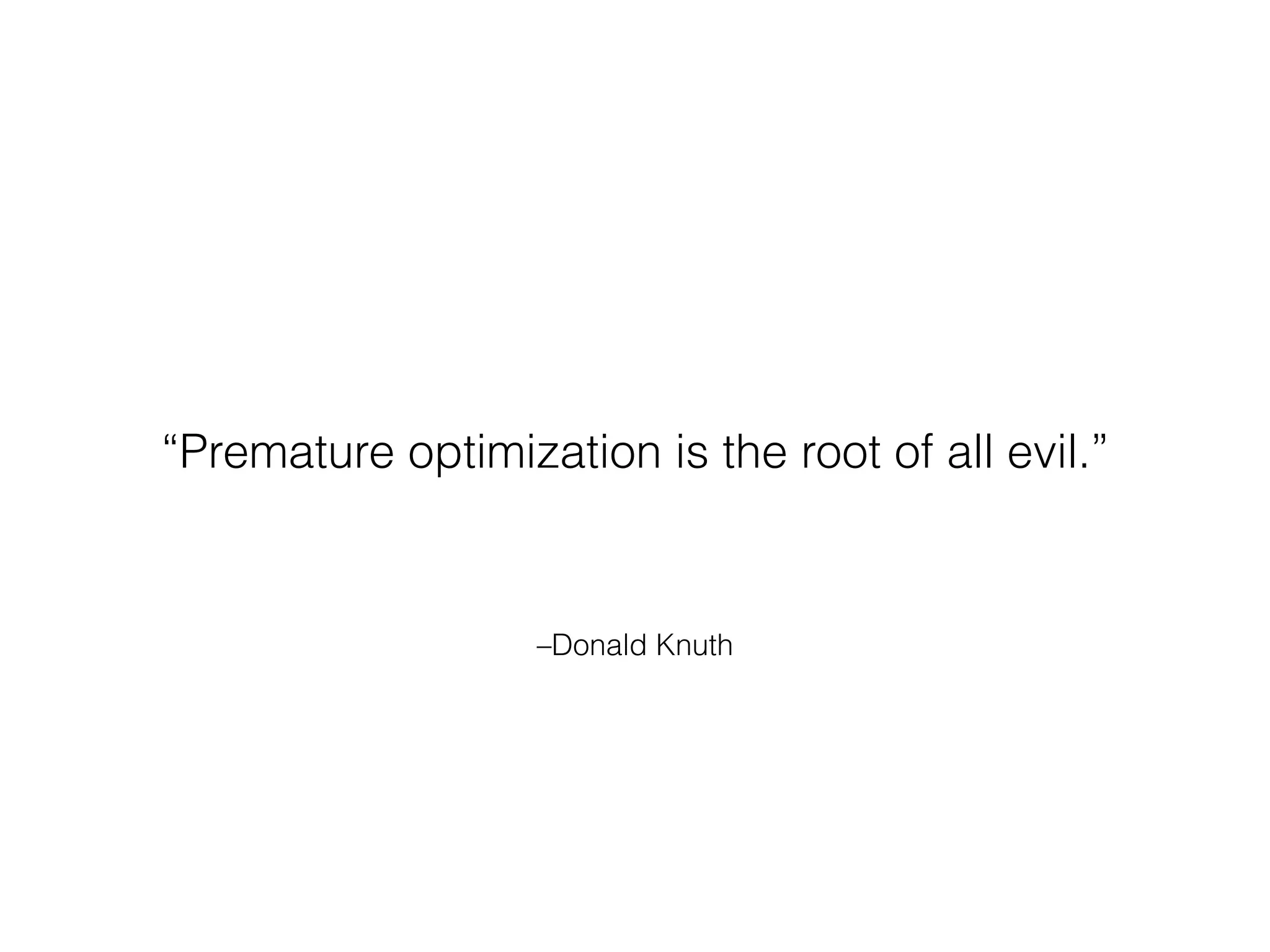

2. –Donald Knuth
“Premature optimization is the root of all evil.”

3. Tools
• Hierarchy Viewer
• “Show GPU Overdraw” (Developer options, android
4.2+)

4. Example app
• One relevant activity
• Two lists
• A compound view as the
right list item

5. View tree

6. How android draws views
1. measure pass - each view stores its
measurements
2. layout pass - each view positions its children
3. draw pass - each view draws itself

7. Focus of optimization
• Flattening layout hierarchy
• Minimizing overdraw

8. Layout simplification

9. <merge />

10. <merge />

11. Overdraw
• Pixels get drawn more
than once
• blue(2), green(3), light
red(4), dark red(5)
• mostly multiple
backgrounds

12. Tweaking the selector

13. Overdraw before/after

14. Some numbers
Hierarchy
depth
Total
views
Measure Layout Draw Total
Before 9 76 0.354 1.7792 3.3624 5.4956
After 8 52 0.3402 1.0984 2.7098 4.1484

15. Space
• “a lightweight View subclass that may be used to
create gaps between components”
• draw() method empty

16. ViewStub
• “an invisible, zero-sized View that can be used to
lazily inflate layout resources at runtime”
• does not support the <merge /> tag

17. ViewStub use case

18. ViewStub usage
((ViewStub) findViewById(R.id.stub_import)).inflate();

19. View tree before inflating

20. View tree after inflating

21. Think outside of box
Ivan Marić

22. Problem
• Implement items preview in grid
• Enable swipe gesture
• Enable editing grid
• No limit to number of pages

23. Solution
• ViewPager with GridView
• Grid item view states:
• Preview empty state
• Item preview
• Edit empty state

25. Optimize
• Simplify layout with just one view
• Eliminate measurement
• Custom view
