The document describes an approach for performing native keyword search over graph-structured data using database operations. It proposes indexing the data at the path level using a d-length 2-hop cover to efficiently access neighborhoods. It transforms the keyword search problem into a series of top-k join operators over the indexed paths. An integrated query plan is used to share operators between different join orders. Operator ranking is applied to the join processing to iteratively produce results.
Index Structures and Top-k Joins for Native Keyword Search Databases
- 1. Index Structures andTop-k Joins for Native Keyword Search Databases Günter Ladwig, Thanh Tran Conference on Information and Knowledge Management (CIKM2011) Institute of Applied Informatics and Formal Description Methods (AIFB) KIT – University of the State of Baden-Württemberg and National Large-scale Research Center of the Helmholtz Association www.kit.edu

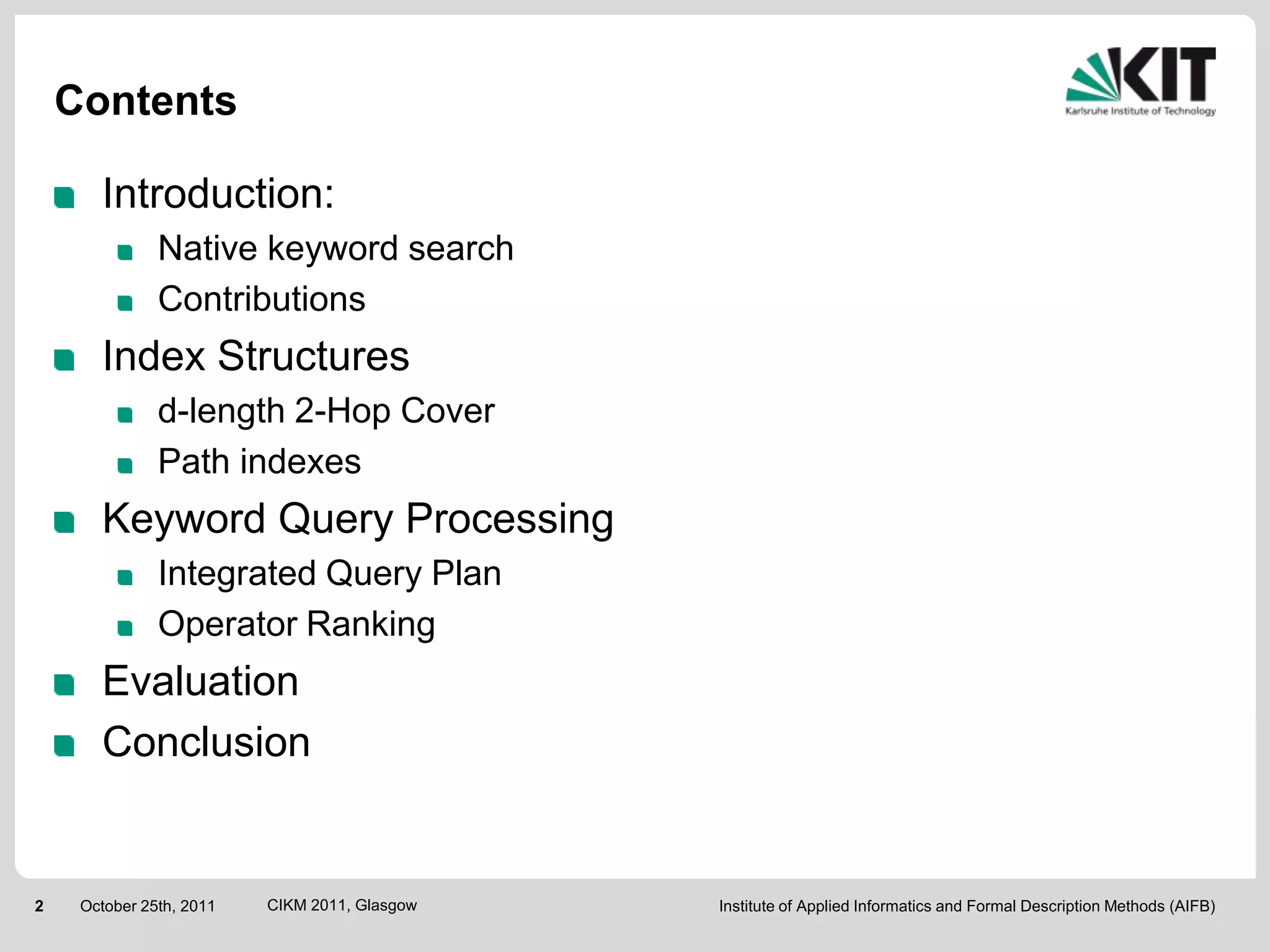

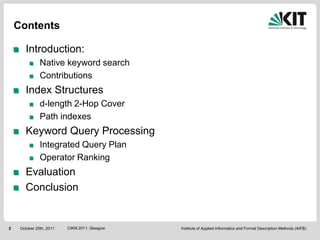

- 2. Contents Introduction: Native keyword search Contributions Index Structures d-length 2-Hop Cover Path indexes Keyword Query Processing Integrated Query Plan Operator Ranking Evaluation Conclusion 2 October 25th, 2011 CIKM 2011, Glasgow Institute of Applied Informatics and Formal Description Methods (AIFB)

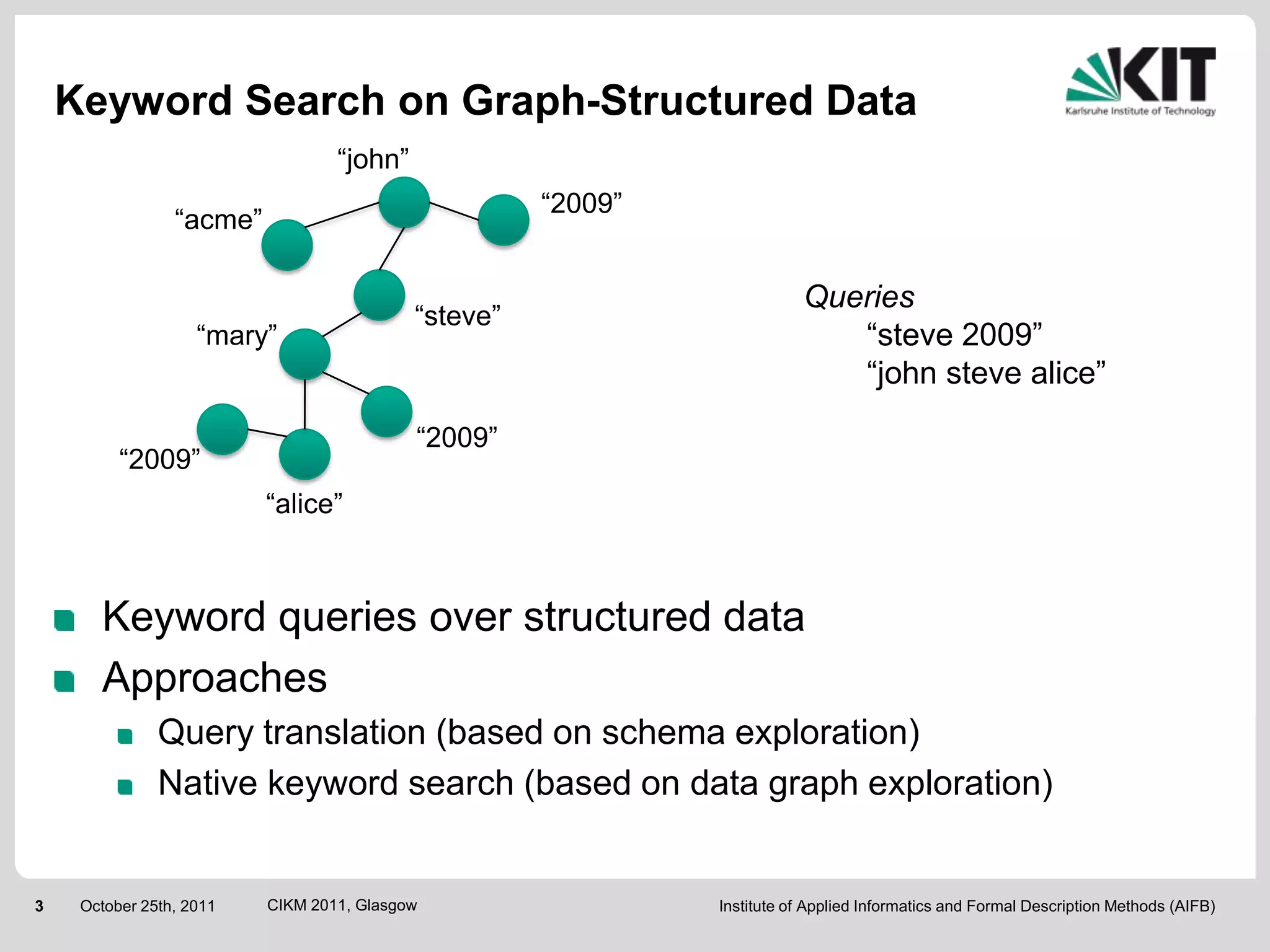

- 3. Keyword Search onGraph-Structured Data “john” “2009” “acme” Queries “steve” “mary” “steve 2009” “john steve alice” “2009” “2009” “alice” Keyword queries over structured data Approaches Query translation (based on schema exploration) Native keyword search (based on data graph exploration) 3 October 25th, 2011 CIKM 2011, Glasgow Institute of Applied Informatics and Formal Description Methods (AIFB)

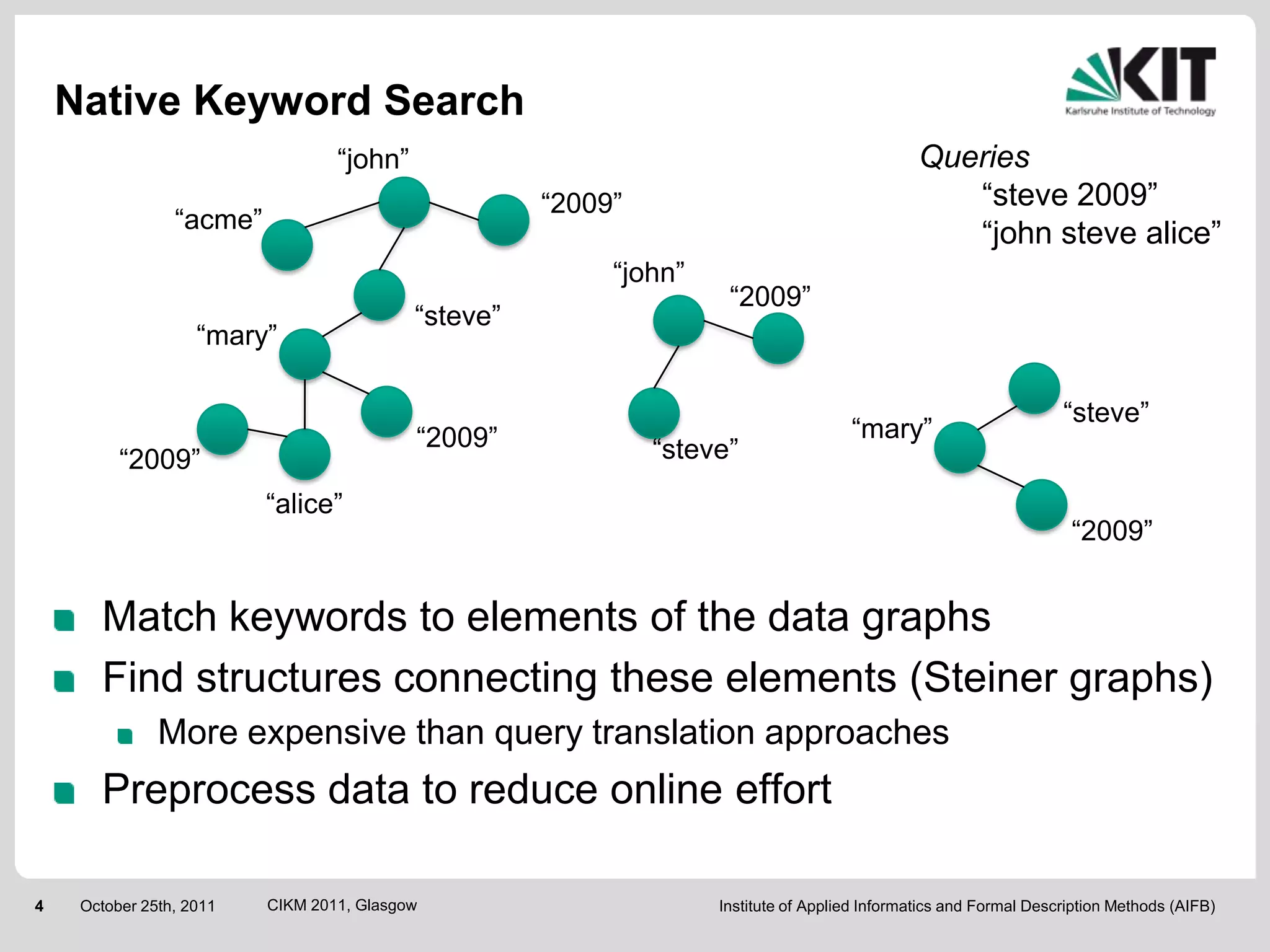

- 4. Native Keyword Search “john” Queries “2009” “steve 2009” “acme” “john steve alice” “john” “2009” “steve” “mary” “steve” “2009” “mary” “2009” “steve” “alice” “2009” Match keywords to elements of the data graphs Find structures connecting these elements (Steiner graphs) More expensive than query translation approaches Preprocess data to reduce online effort 4 October 25th, 2011 CIKM 2011, Glasgow Institute of Applied Informatics and Formal Description Methods (AIFB)

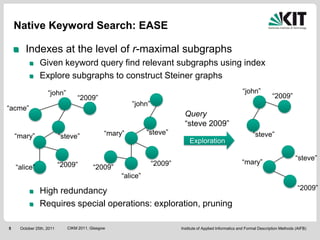

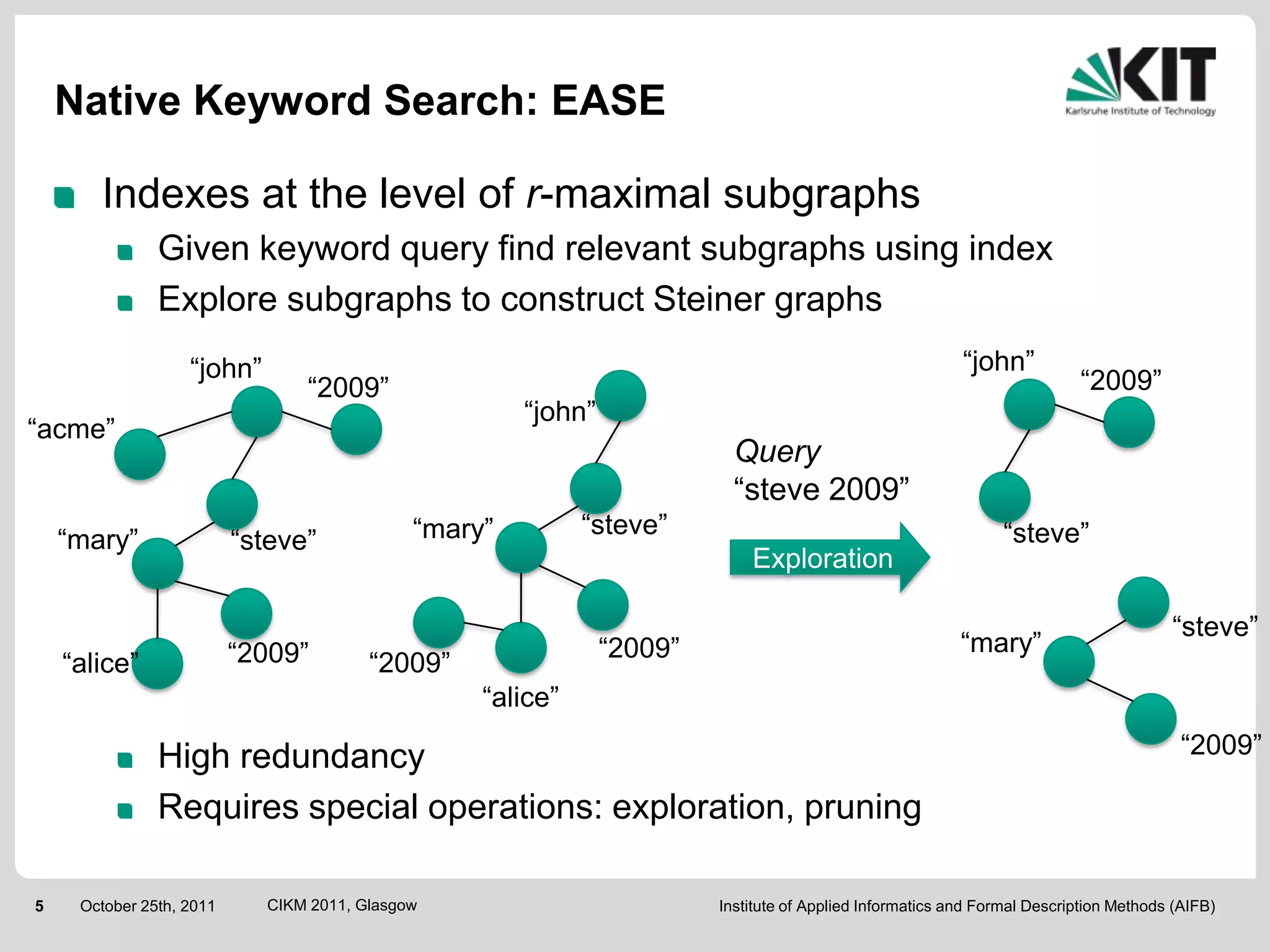

- 5. Native Keyword Search:EASE Indexes at the level of r-maximal subgraphs Given keyword query find relevant subgraphs using index Explore subgraphs to construct Steiner graphs “john” “john” “2009” “2009” “john” “acme” Query “steve 2009” “mary” “steve” “steve” “mary” “steve” Exploration “steve” “2009” “2009” “mary” “alice” “2009” “alice” High redundancy “2009” Requires special operations: exploration, pruning 5 October 25th, 2011 CIKM 2011, Glasgow Institute of Applied Informatics and Formal Description Methods (AIFB)

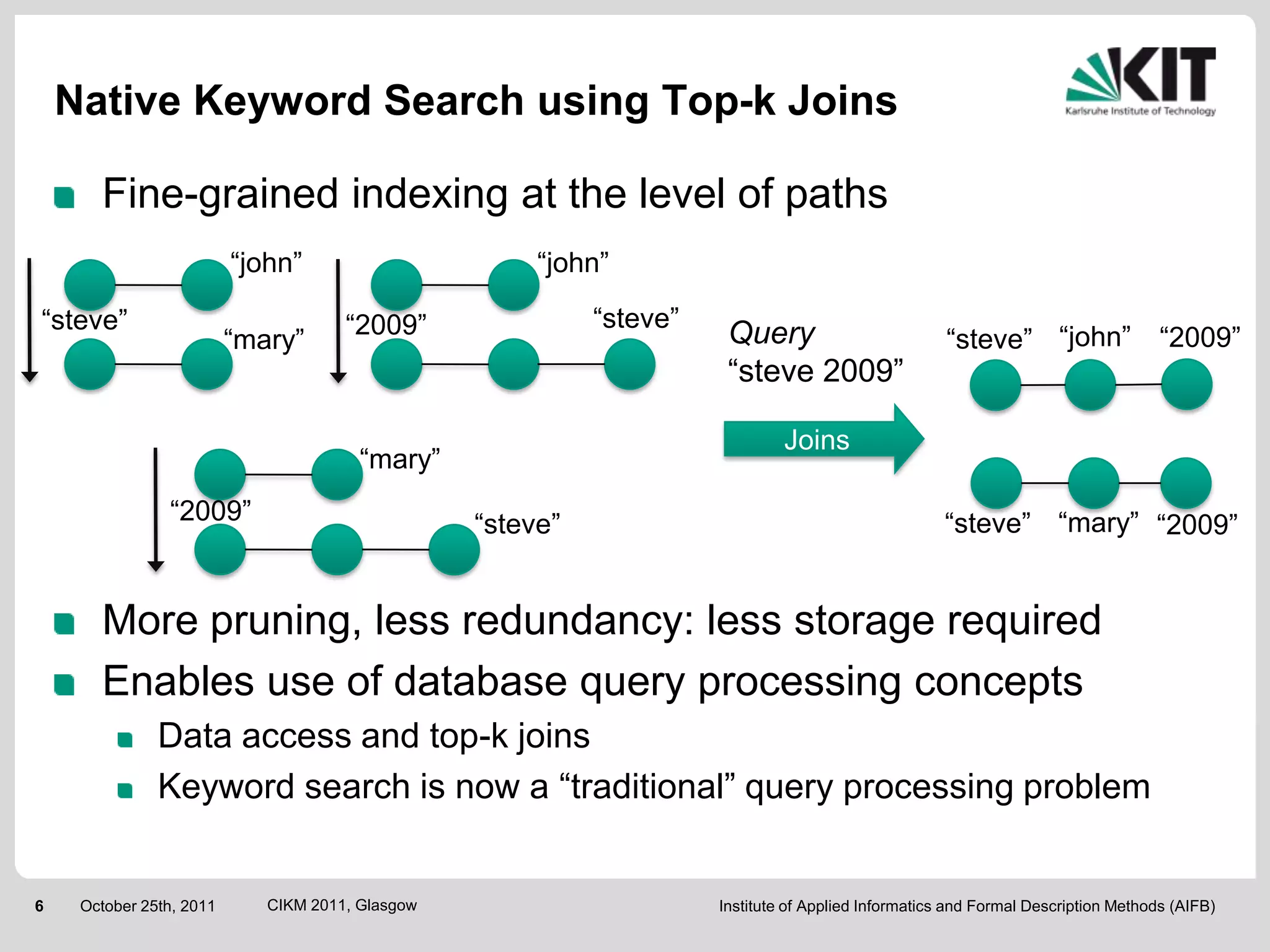

- 6. Native Keyword Searchusing Top-k Joins Fine-grained indexing at the level of paths “john” “john” “steve” “2009” “steve” “mary” Query “steve” “john” “2009” “steve 2009” Joins “mary” “2009” “steve” “steve” “mary” “2009” More pruning, less redundancy: less storage required Enables use of database query processing concepts Data access and top-k joins Keyword search is now a “traditional” query processing problem 6 October 25th, 2011 CIKM 2011, Glasgow Institute of Applied Informatics and Formal Description Methods (AIFB)

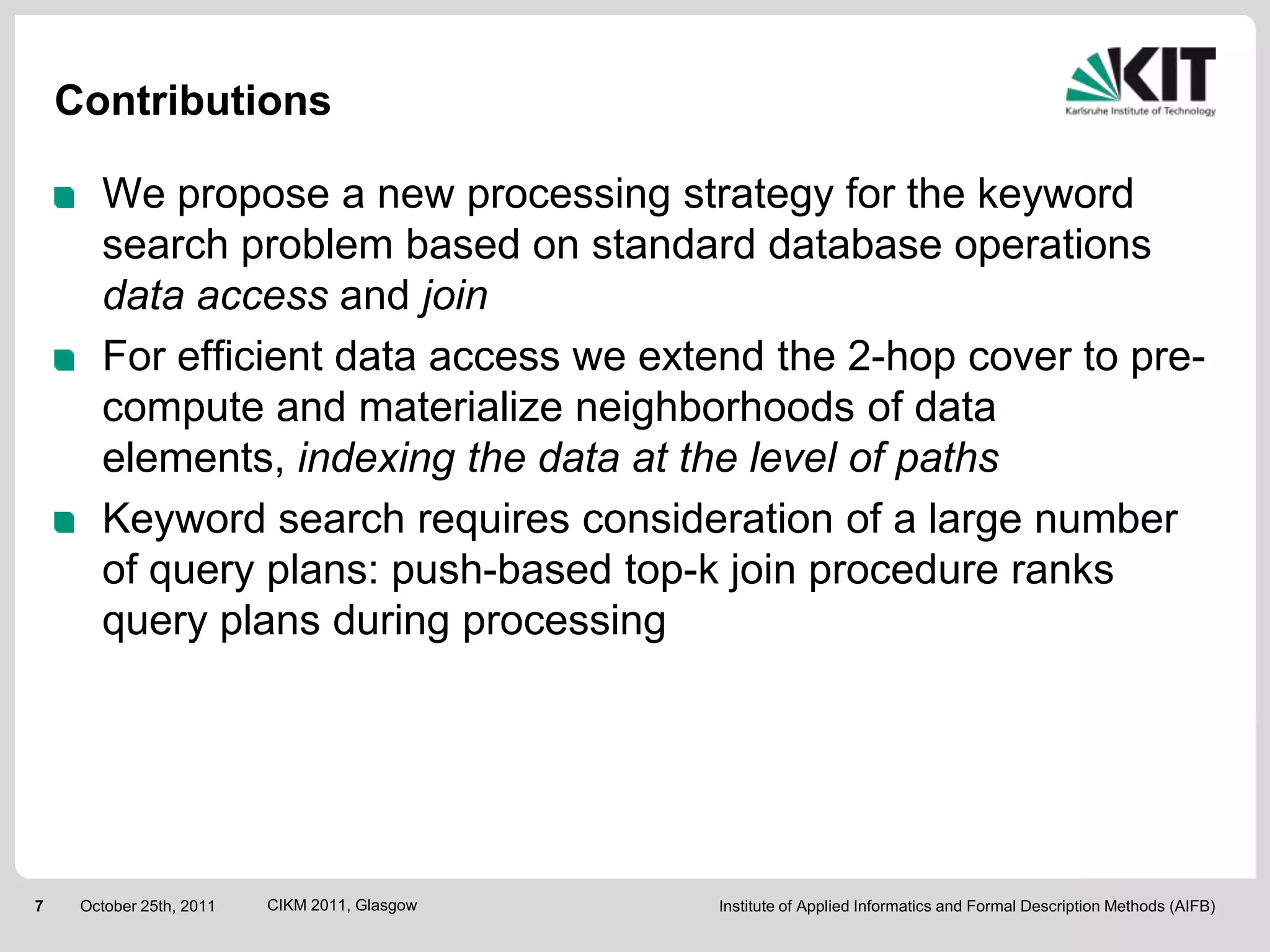

- 7. Contributions We propose a new processing strategy for the keyword search problem based on standard database operations data access and join For efficient data access we extend the 2-hop cover to pre- compute and materialize neighborhoods of data elements, indexing the data at the level of paths Keyword search requires consideration of a large number of query plans: push-based top-k join procedure ranks query plans during processing 7 October 25th, 2011 CIKM 2011, Glasgow Institute of Applied Informatics and Formal Description Methods (AIFB)
- 8. INDEX STRUCTURES 8 October 25th, 2011 CIKM 2011, Glasgow Institute of Applied Informatics and Formal Description Methods (AIFB)

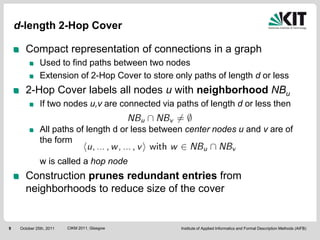

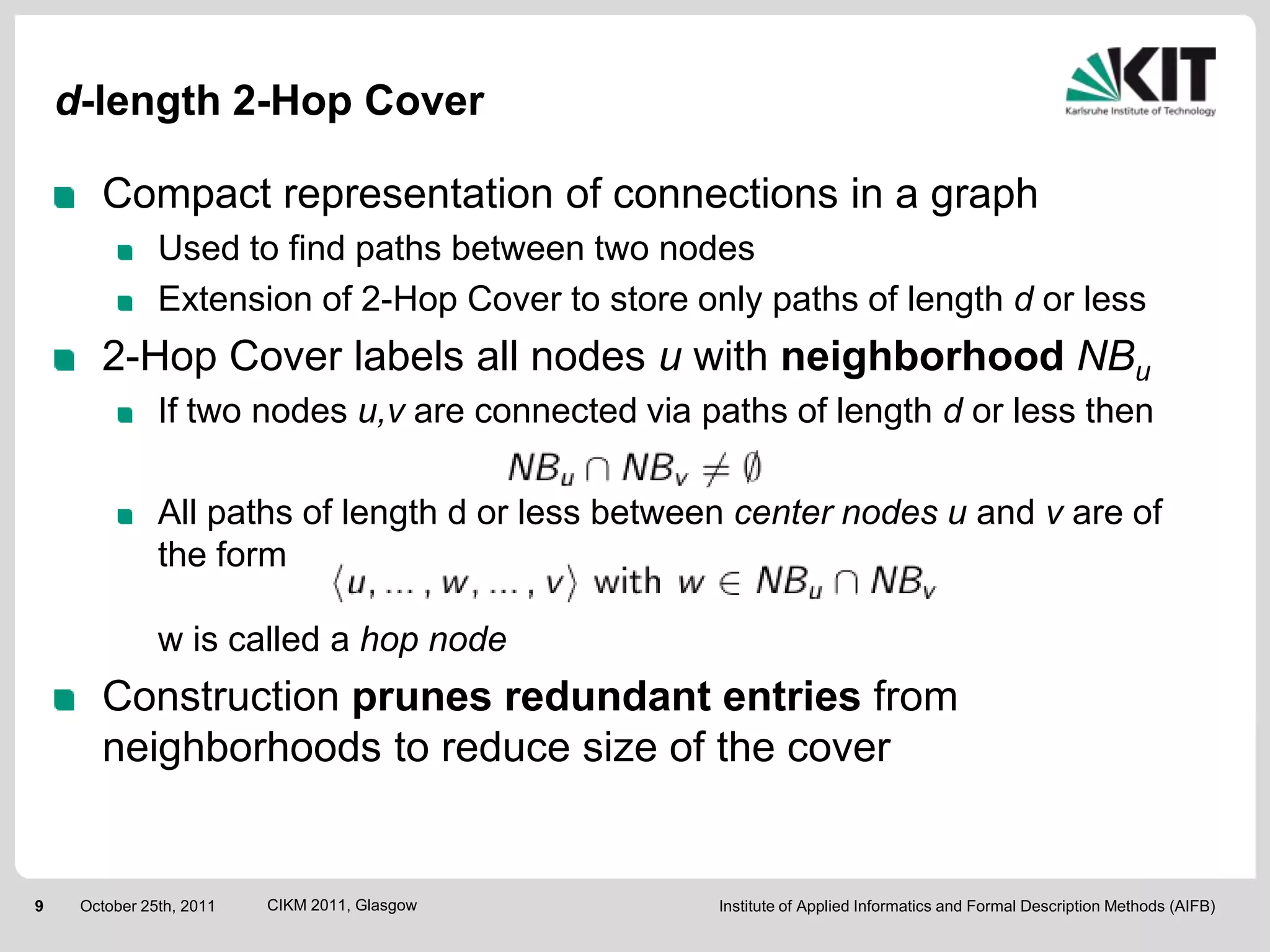

- 9. d-length 2-Hop Cover Compact representation of connections in a graph Used to find paths between two nodes Extension of 2-Hop Cover to store only paths of length d or less 2-Hop Cover labels all nodes u with neighborhood NBu If two nodes u,v are connected via paths of length d or less then All paths of length d or less between center nodes u and v are of the form w is called a hop node Construction prunes redundant entries from neighborhoods to reduce size of the cover 9 October 25th, 2011 CIKM 2011, Glasgow Institute of Applied Informatics and Formal Description Methods (AIFB)

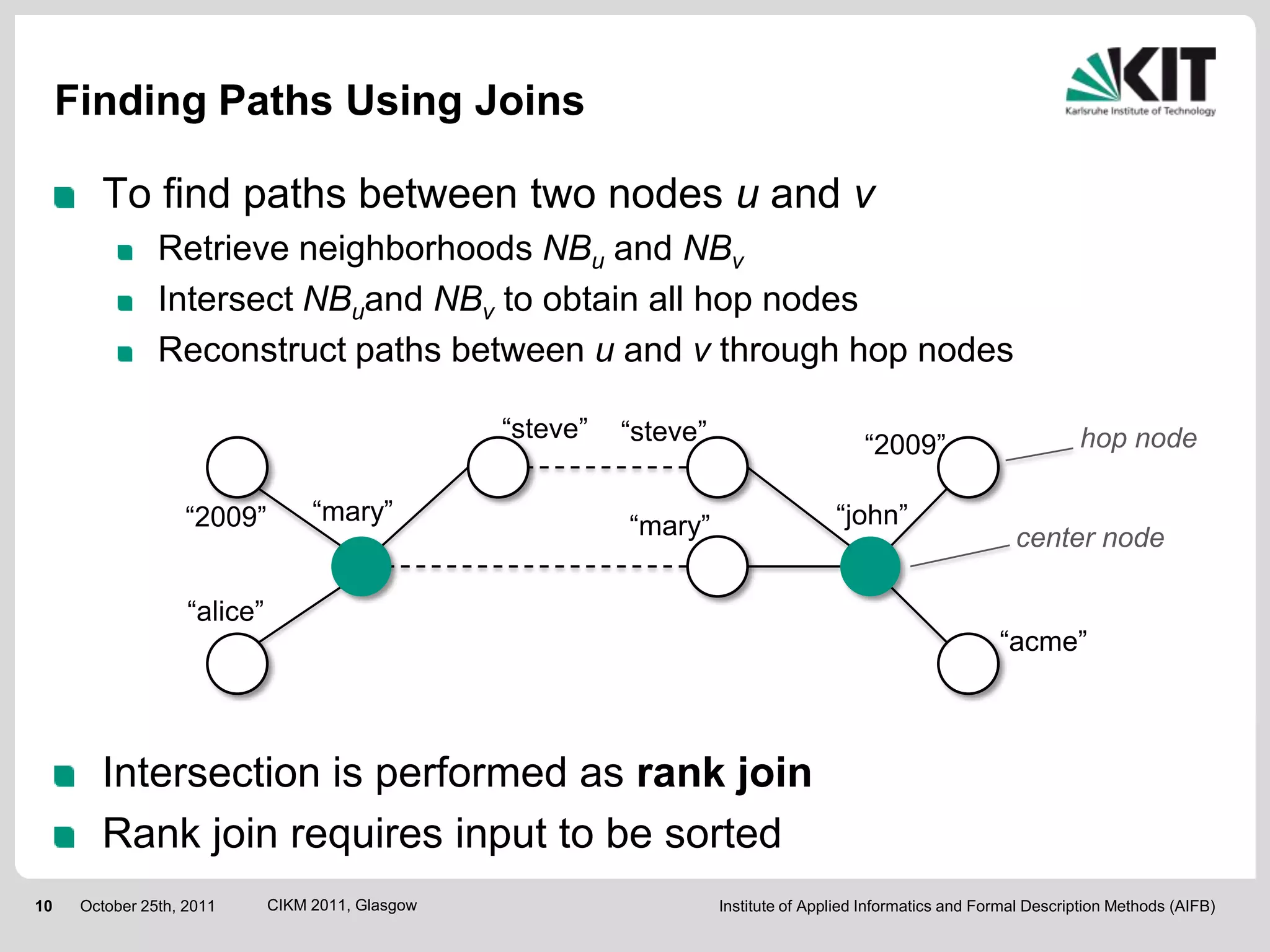

- 10. Finding Paths UsingJoins To find paths between two nodes u and v Retrieve neighborhoods NBu and NBv Intersect NBuand NBv to obtain all hop nodes Reconstruct paths between u and v through hop nodes “steve” “steve” hop node “2009” “2009” “mary” “john” “mary” center node “alice” “acme” Intersection is performed as rank join Rank join requires input to be sorted 10 October 25th, 2011 CIKM 2011, Glasgow Institute of Applied Informatics and Formal Description Methods (AIFB)

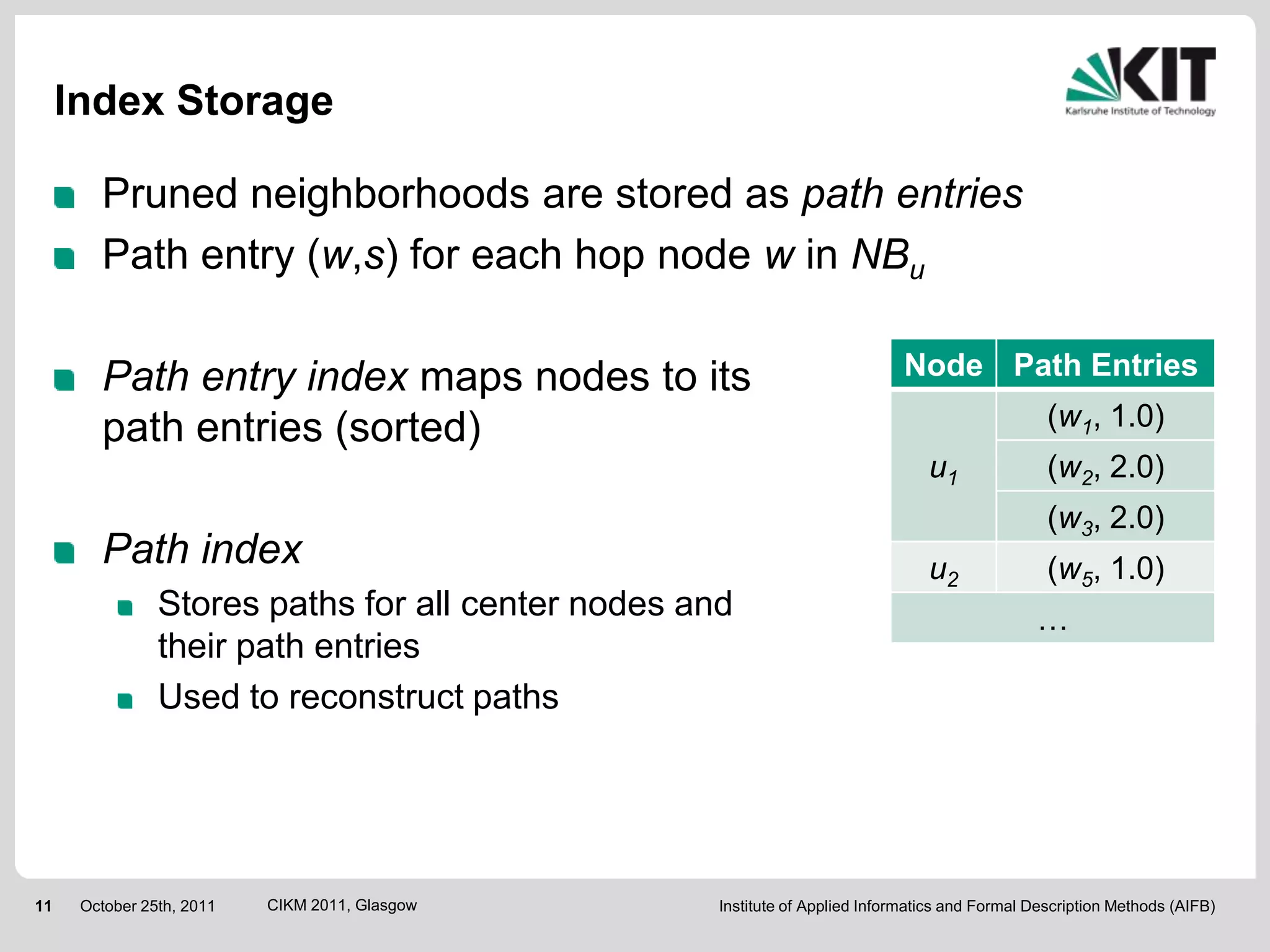

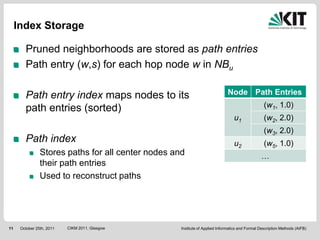

- 11. Index Storage Pruned neighborhoods are stored as path entries Path entry (w,s) for each hop node w in NBu Path entry index maps nodes to its Node Path Entries path entries (sorted) (w1, 1.0) u1 (w2, 2.0) (w3, 2.0) Path index u2 (w5, 1.0) Stores paths for all center nodes and … their path entries Used to reconstruct paths 11 October 25th, 2011 CIKM 2011, Glasgow Institute of Applied Informatics and Formal Description Methods (AIFB)
- 12. KEYWORD QUERY PROCESSING 12 October 25th, 2011 CIKM 2011, Glasgow Institute of Applied Informatics and Formal Description Methods (AIFB)

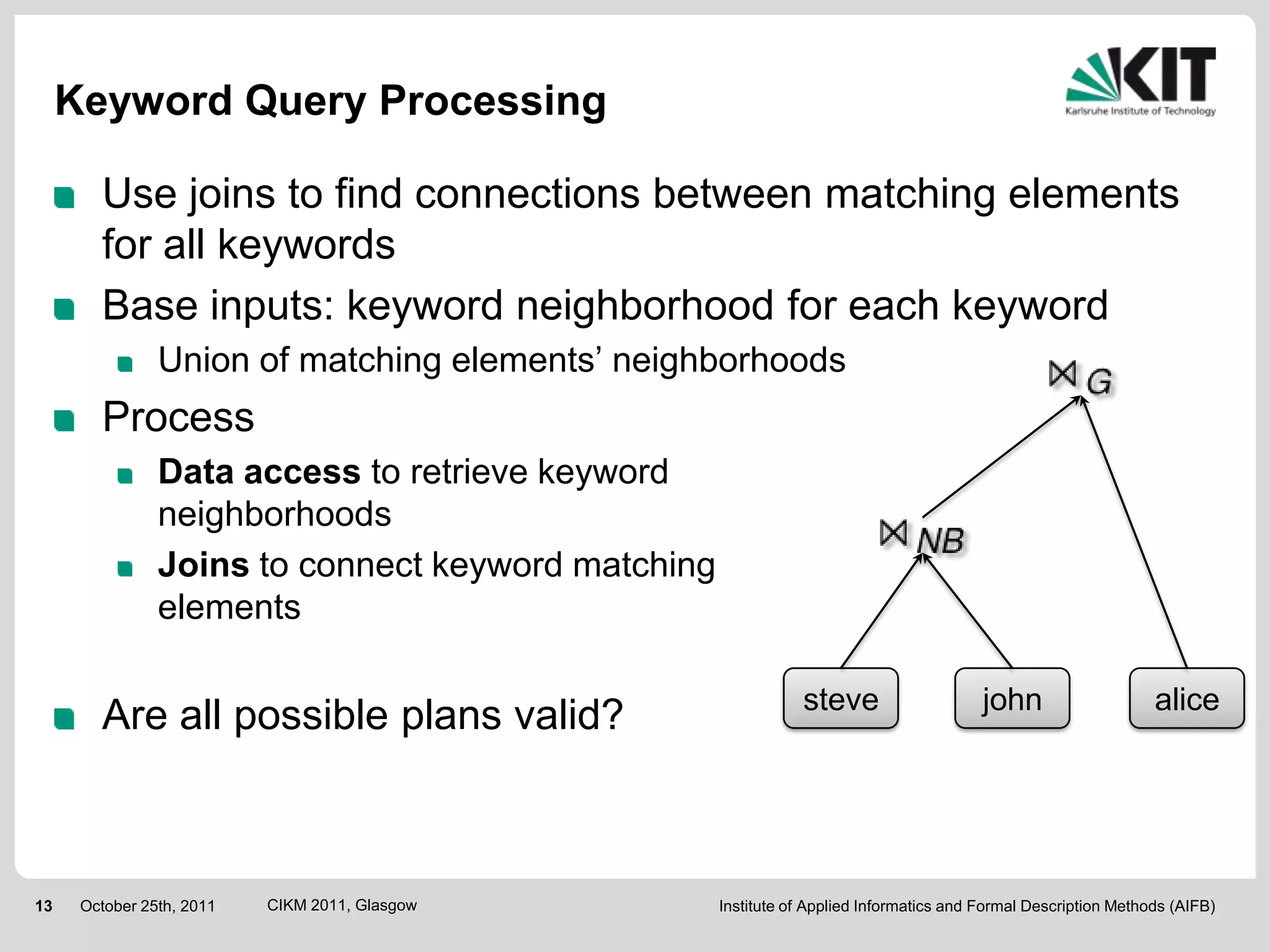

- 13. Keyword Query Processing Use joins to find connections between matching elements for all keywords Base inputs: keyword neighborhood for each keyword Union of matching elements’ neighborhoods Process Data access to retrieve keyword neighborhoods Joins to connect keyword matching elements steve john alice Are all possible plans valid? 13 October 25th, 2011 CIKM 2011, Glasgow Institute of Applied Informatics and Formal Description Methods (AIFB)

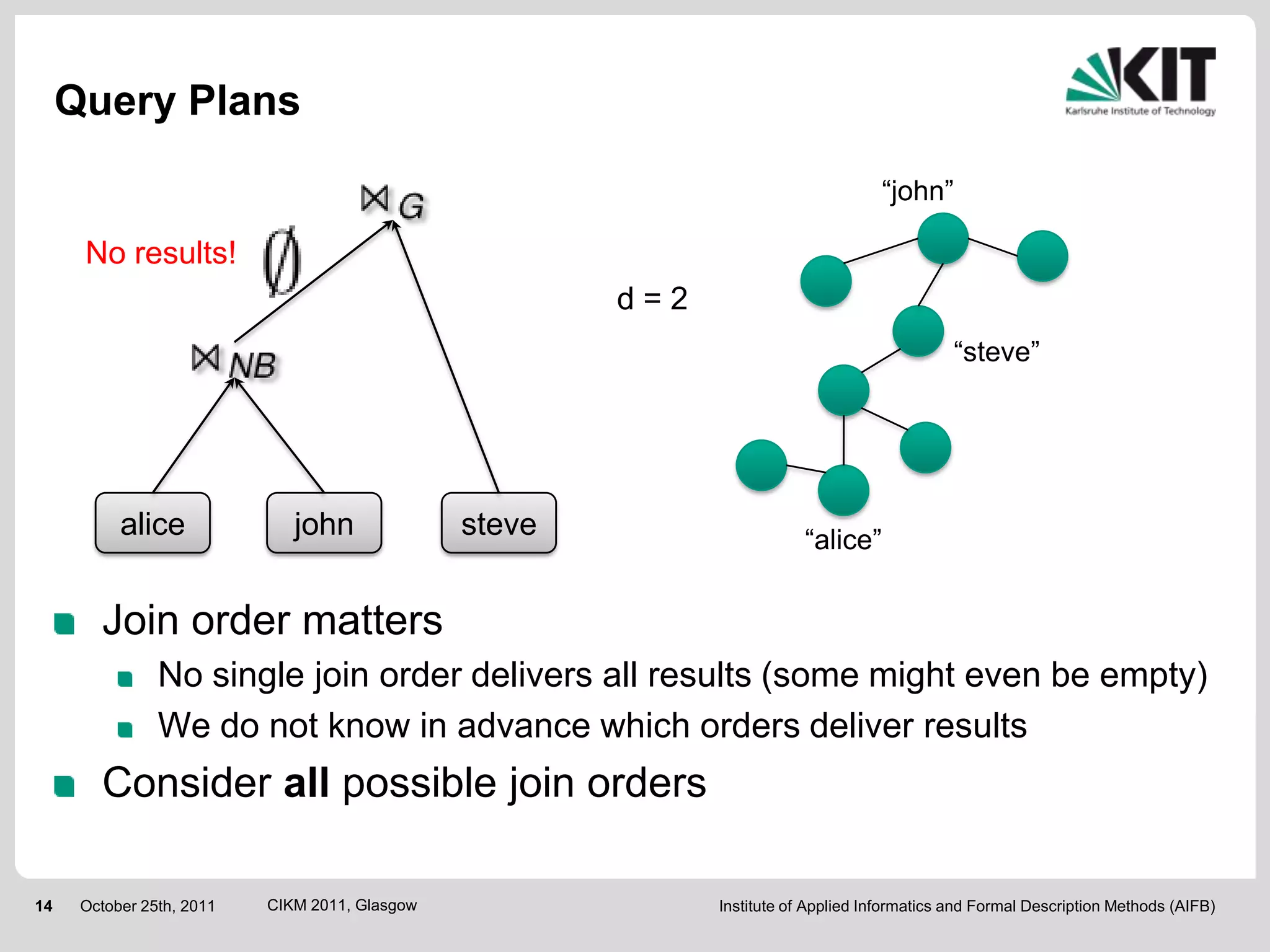

- 14. Query Plans “john” No results! d=2 “steve” alice john steve “alice” Join order matters No single join order delivers all results (some might even be empty) We do not know in advance which orders deliver results Consider all possible join orders 14 October 25th, 2011 CIKM 2011, Glasgow Institute of Applied Informatics and Formal Description Methods (AIFB)

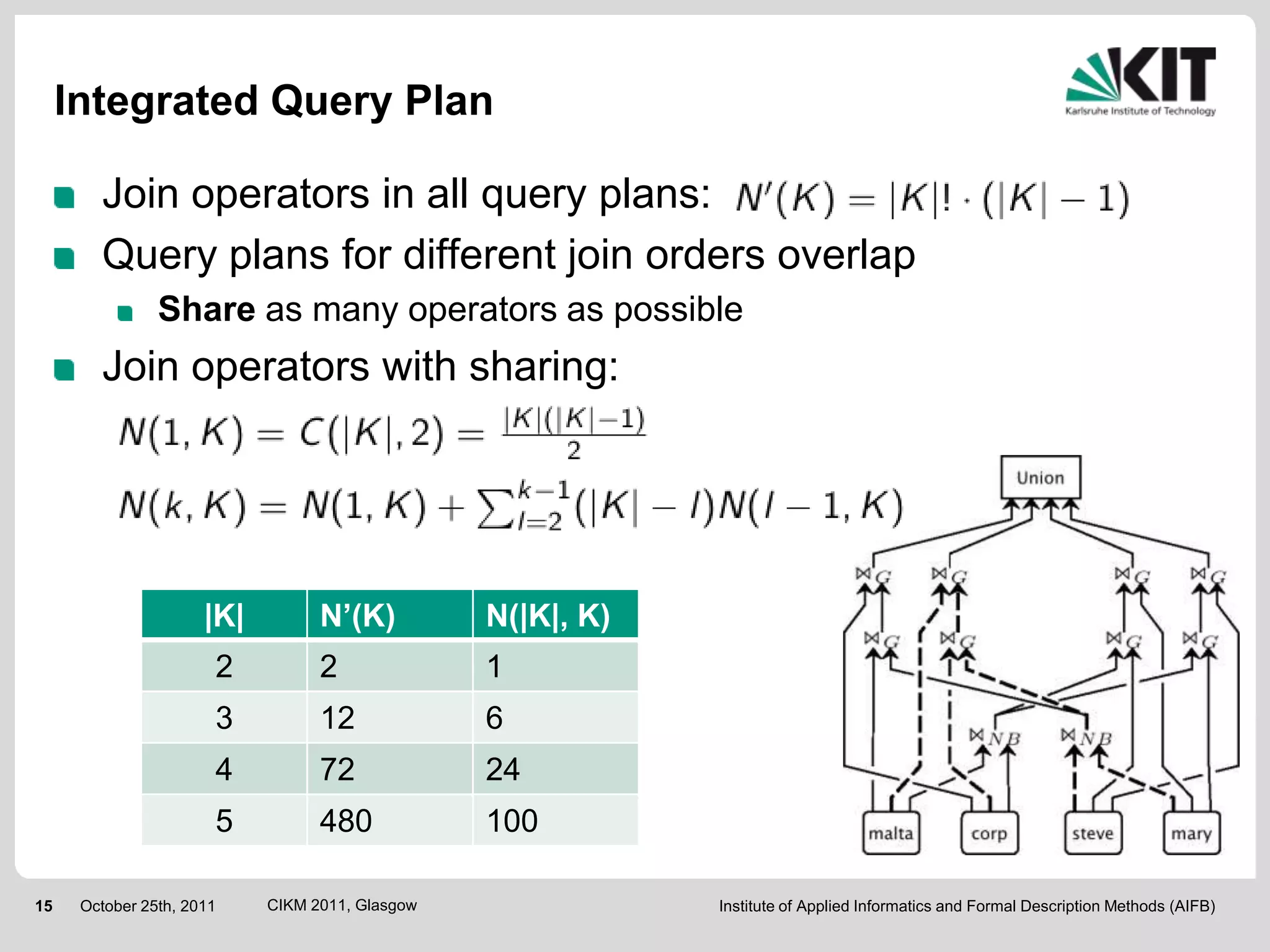

- 15. Integrated Query Plan Join operators in all query plans: Query plans for different join orders overlap Share as many operators as possible Join operators with sharing: |K| N’(K) N(|K|, K) 2 2 1 3 12 6 4 72 24 5 480 100 15 October 25th, 2011 CIKM 2011, Glasgow Institute of Applied Informatics and Formal Description Methods (AIFB)

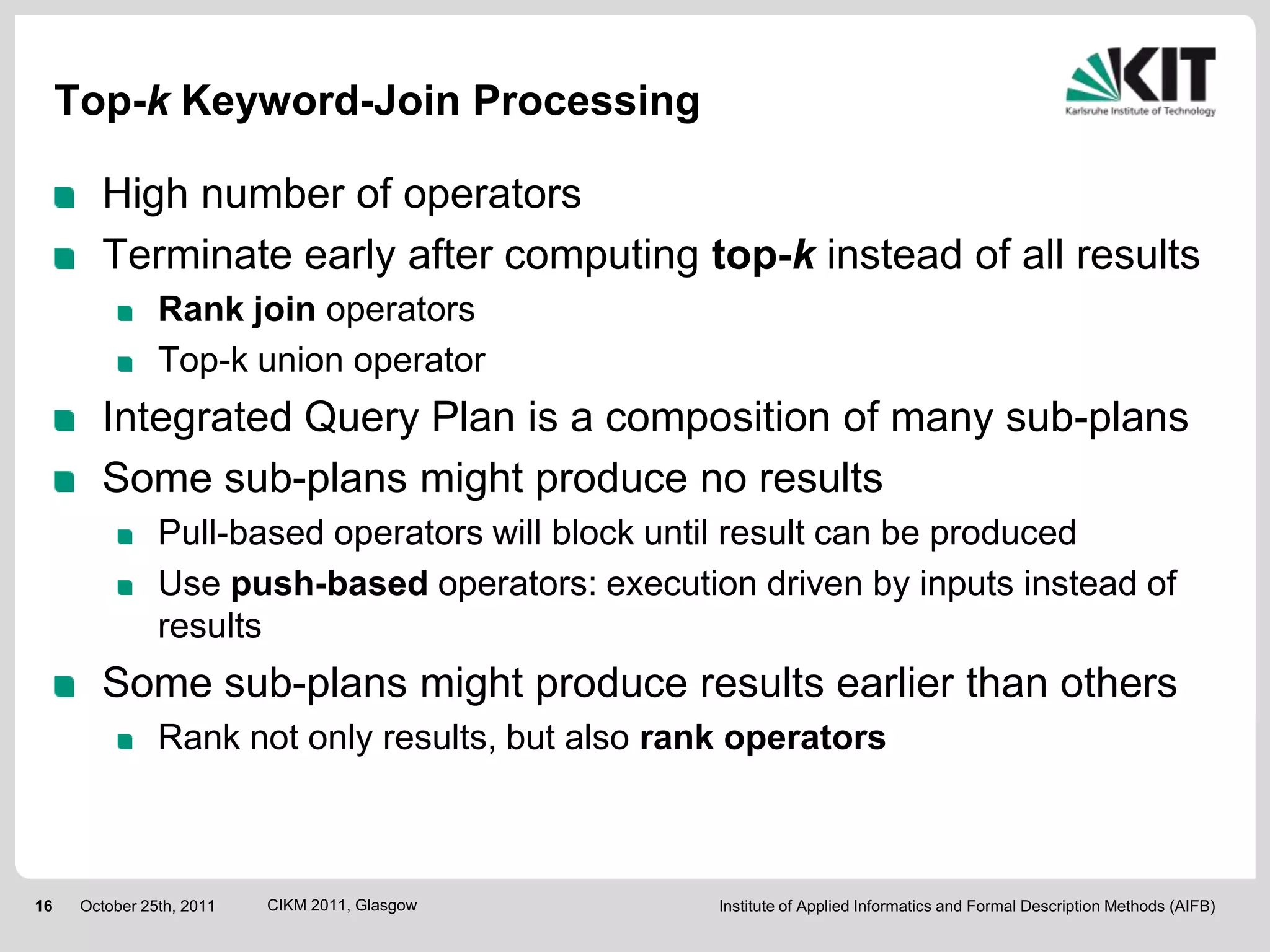

- 16. Top-k Keyword-Join Processing High number of operators Terminate early after computing top-k instead of all results Rank join operators Top-k union operator Integrated Query Plan is a composition of many sub-plans Some sub-plans might produce no results Pull-based operators will block until result can be produced Use push-based operators: execution driven by inputs instead of results Some sub-plans might produce results earlier than others Rank not only results, but also rank operators 16 October 25th, 2011 CIKM 2011, Glasgow Institute of Applied Informatics and Formal Description Methods (AIFB)

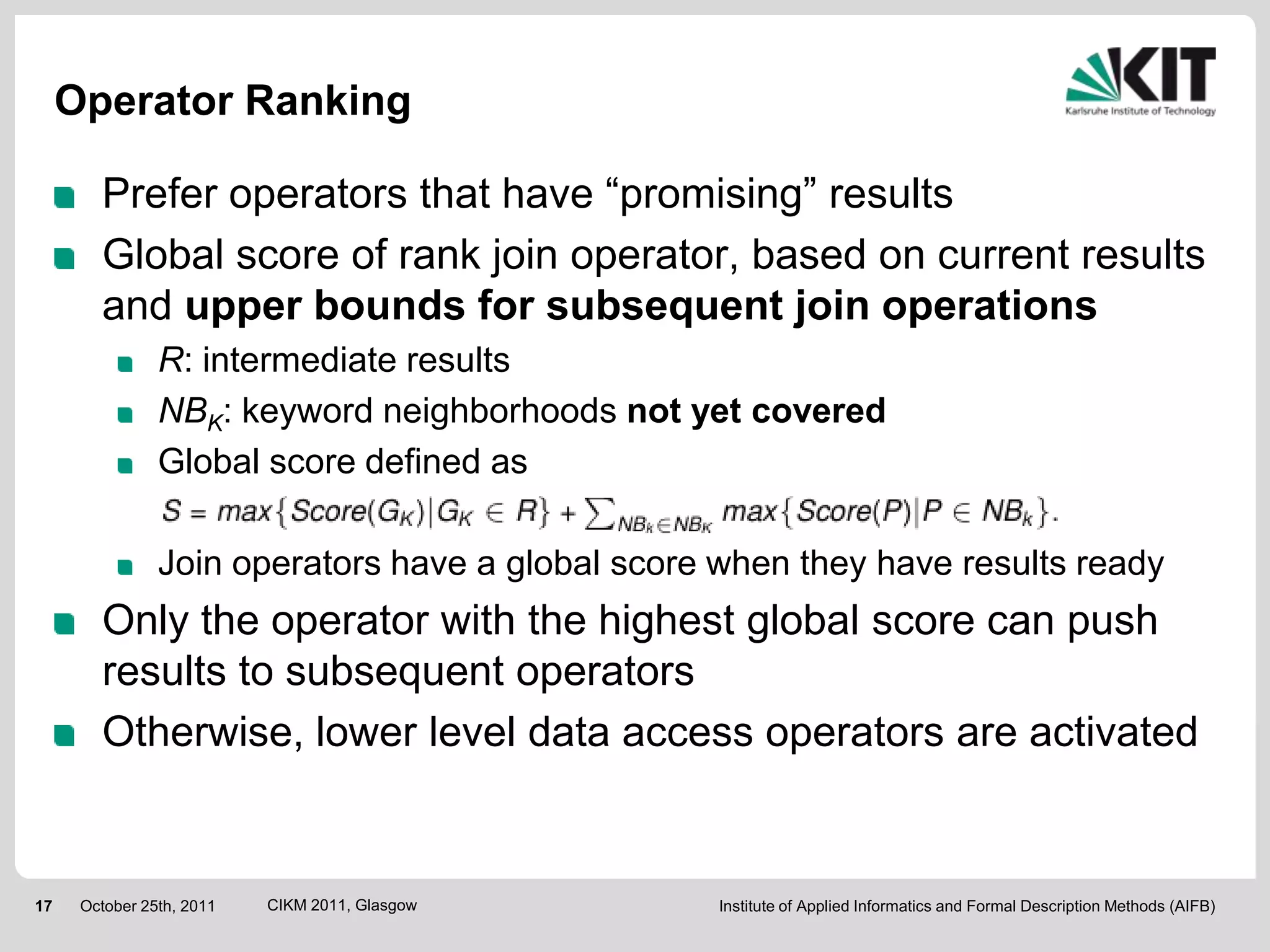

- 17. Operator Ranking Prefer operators that have “promising” results Global score of rank join operator, based on current results and upper bounds for subsequent join operations R: intermediate results NBK: keyword neighborhoods not yet covered Global score defined as Join operators have a global score when they have results ready Only the operator with the highest global score can push results to subsequent operators Otherwise, lower level data access operators are activated 17 October 25th, 2011 CIKM 2011, Glasgow Institute of Applied Informatics and Formal Description Methods (AIFB)
- 18. EVALUATION 18 October 25th, 2011 CIKM 2011, Glasgow Institute of Applied Informatics and Formal Description Methods (AIFB)
- 19. Evaluation Four approaches EASE: indexing at the level of graphs KJ: keyword join approach KJU: keyword join approach without operator ranking Datasets BTC: 10M triples DBLP1/5/10: 1M, 5M, 10M triples (from SP2Bench) 9 keyword queries for each dataset Reduction of index storage size 50% (DBLP1) – 79% (DBLP10) 19 October 25th, 2011 CIKM 2011, Glasgow Institute of Applied Informatics and Formal Description Methods (AIFB)

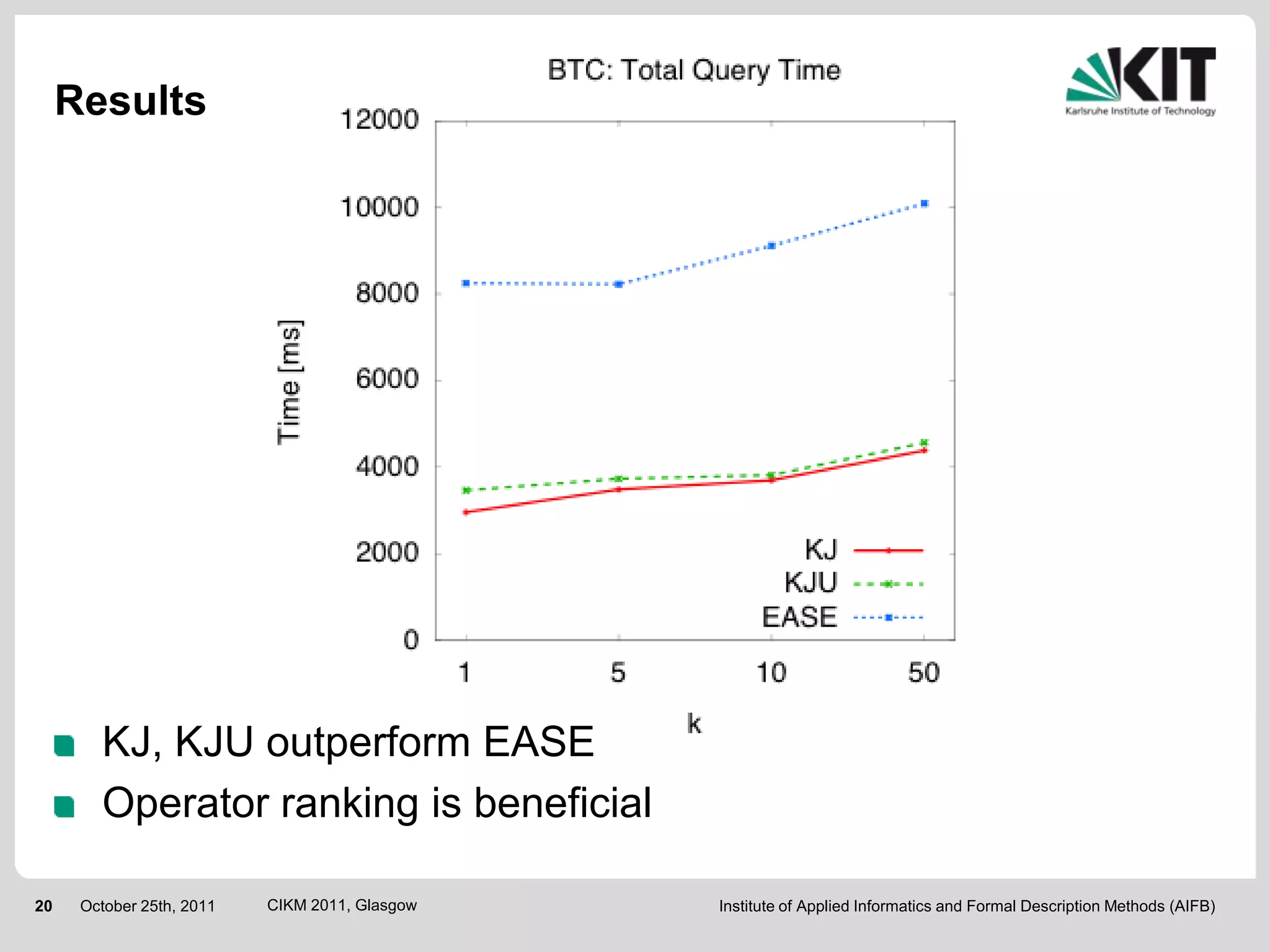

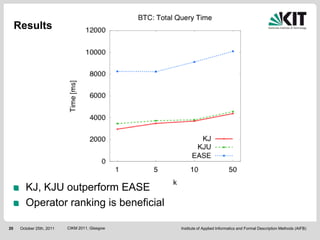

- 20. Results KJ, KJU outperform EASE Operator ranking is beneficial 20 October 25th, 2011 CIKM 2011, Glasgow Institute of Applied Informatics and Formal Description Methods (AIFB)

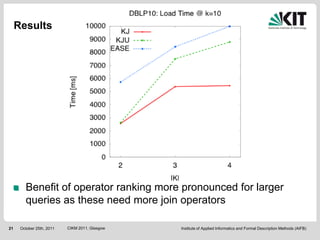

- 21. Results Benefit of operator ranking more pronounced for larger queries as these need more join operators 21 October 25th, 2011 CIKM 2011, Glasgow Institute of Applied Informatics and Formal Description Methods (AIFB)

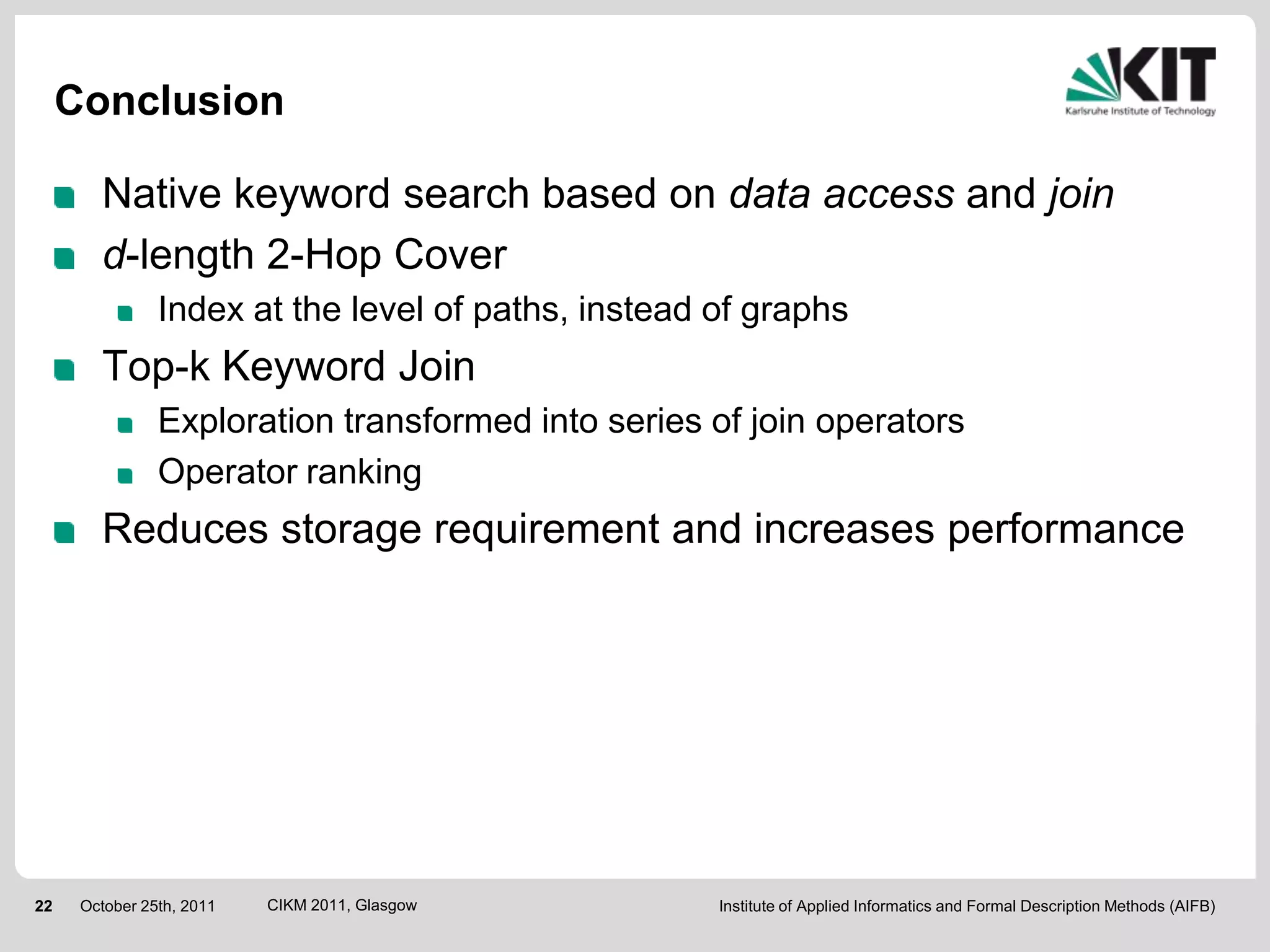

- 22. Conclusion Native keyword search based on data access and join d-length 2-Hop Cover Index at the level of paths, instead of graphs Top-k Keyword Join Exploration transformed into series of join operators Operator ranking Reduces storage requirement and increases performance 22 October 25th, 2011 CIKM 2011, Glasgow Institute of Applied Informatics and Formal Description Methods (AIFB)

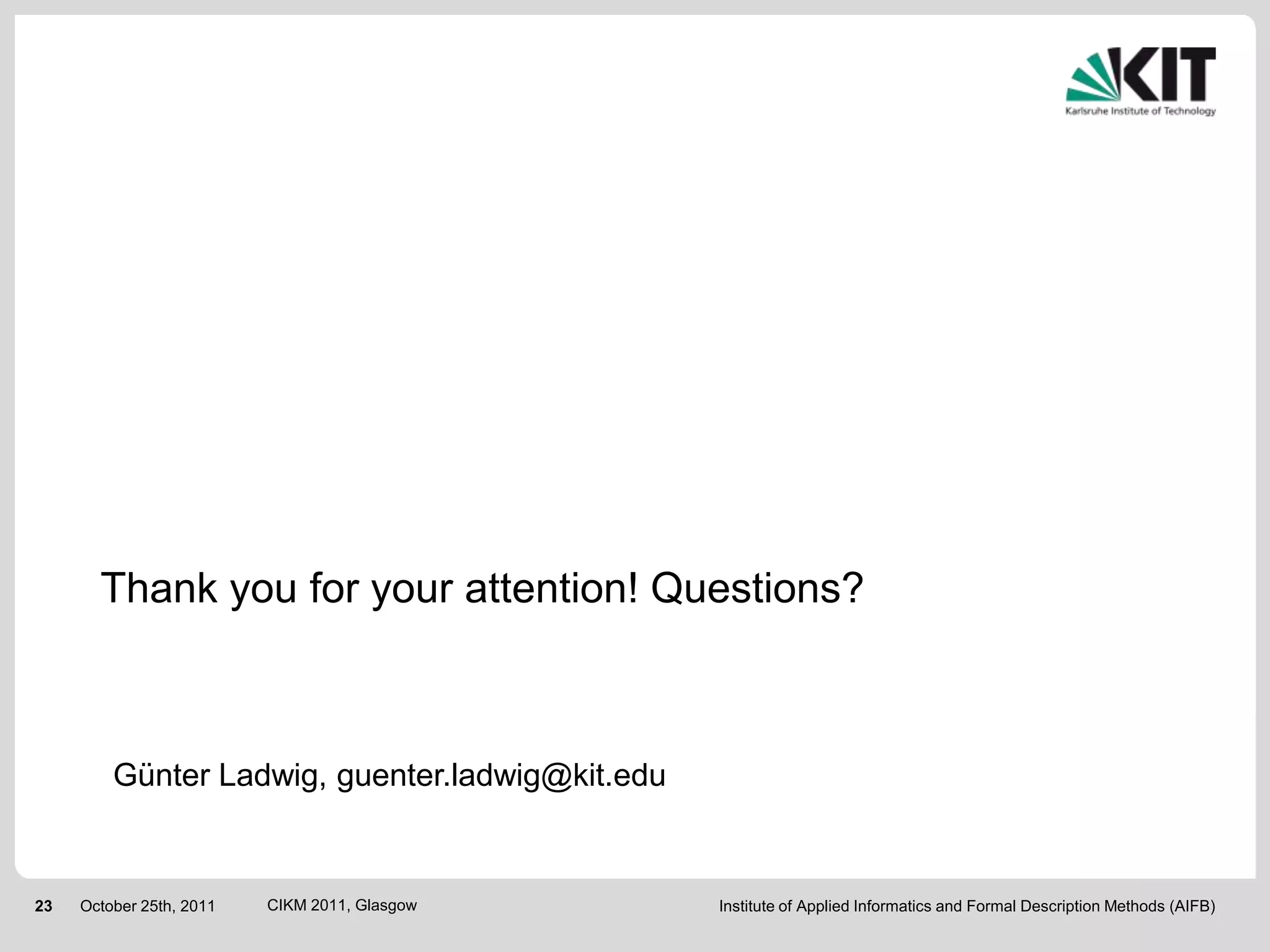

- 23. Thank you foryour attention! Questions? Günter Ladwig, guenter.ladwig@kit.edu 23 October 25th, 2011 CIKM 2011, Glasgow Institute of Applied Informatics and Formal Description Methods (AIFB)
- 24. BACKUP SLIDES 24 October 25th, 2011 CIKM 2011, Glasgow Institute of Applied Informatics and Formal Description Methods (AIFB)

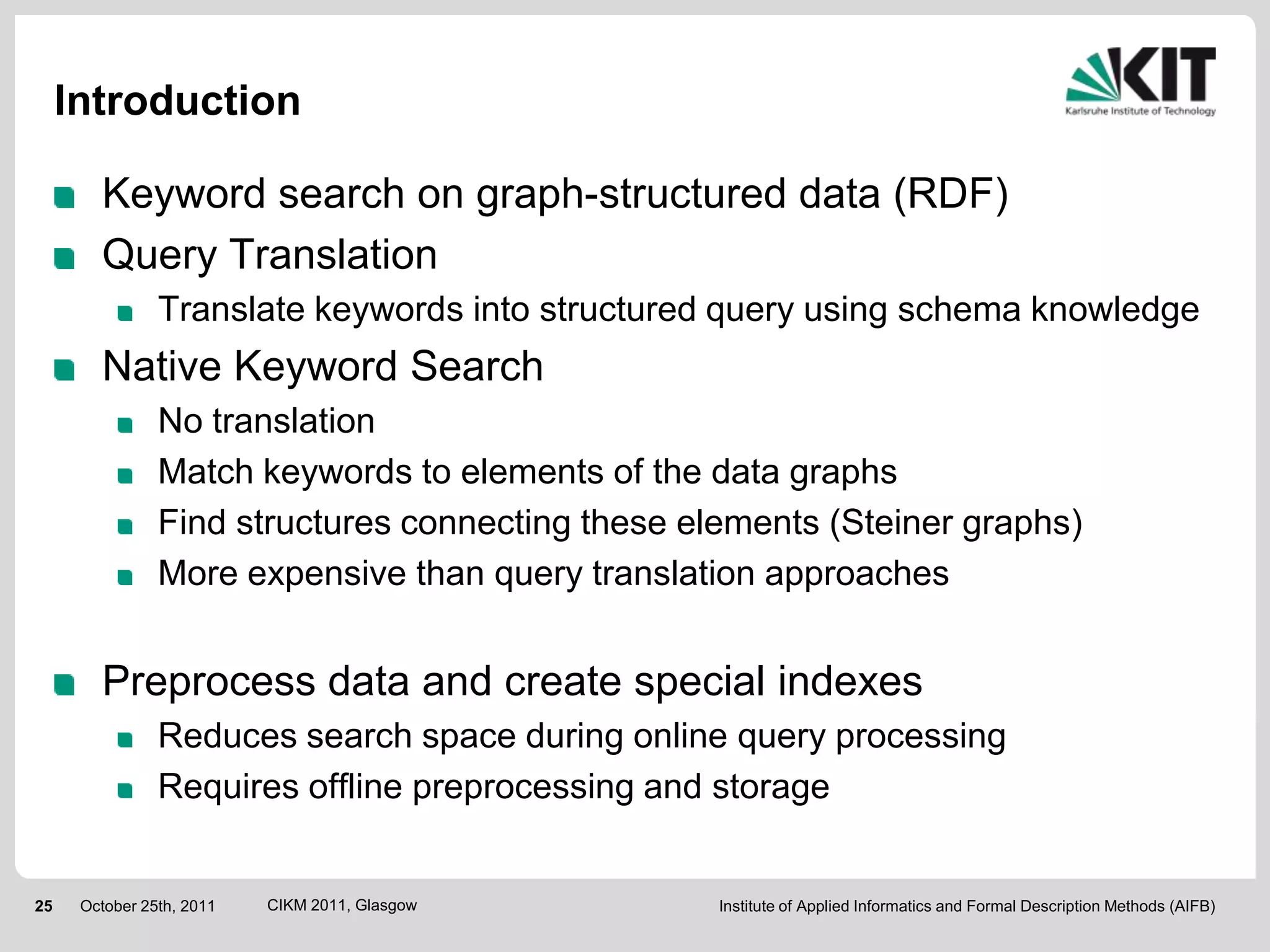

- 25. Introduction Keyword search on graph-structured data (RDF) Query Translation Translate keywords into structured query using schema knowledge Native Keyword Search No translation Match keywords to elements of the data graphs Find structures connecting these elements (Steiner graphs) More expensive than query translation approaches Preprocess data and create special indexes Reduces search space during online query processing Requires offline preprocessing and storage 25 October 25th, 2011 CIKM 2011, Glasgow Institute of Applied Informatics and Formal Description Methods (AIFB)

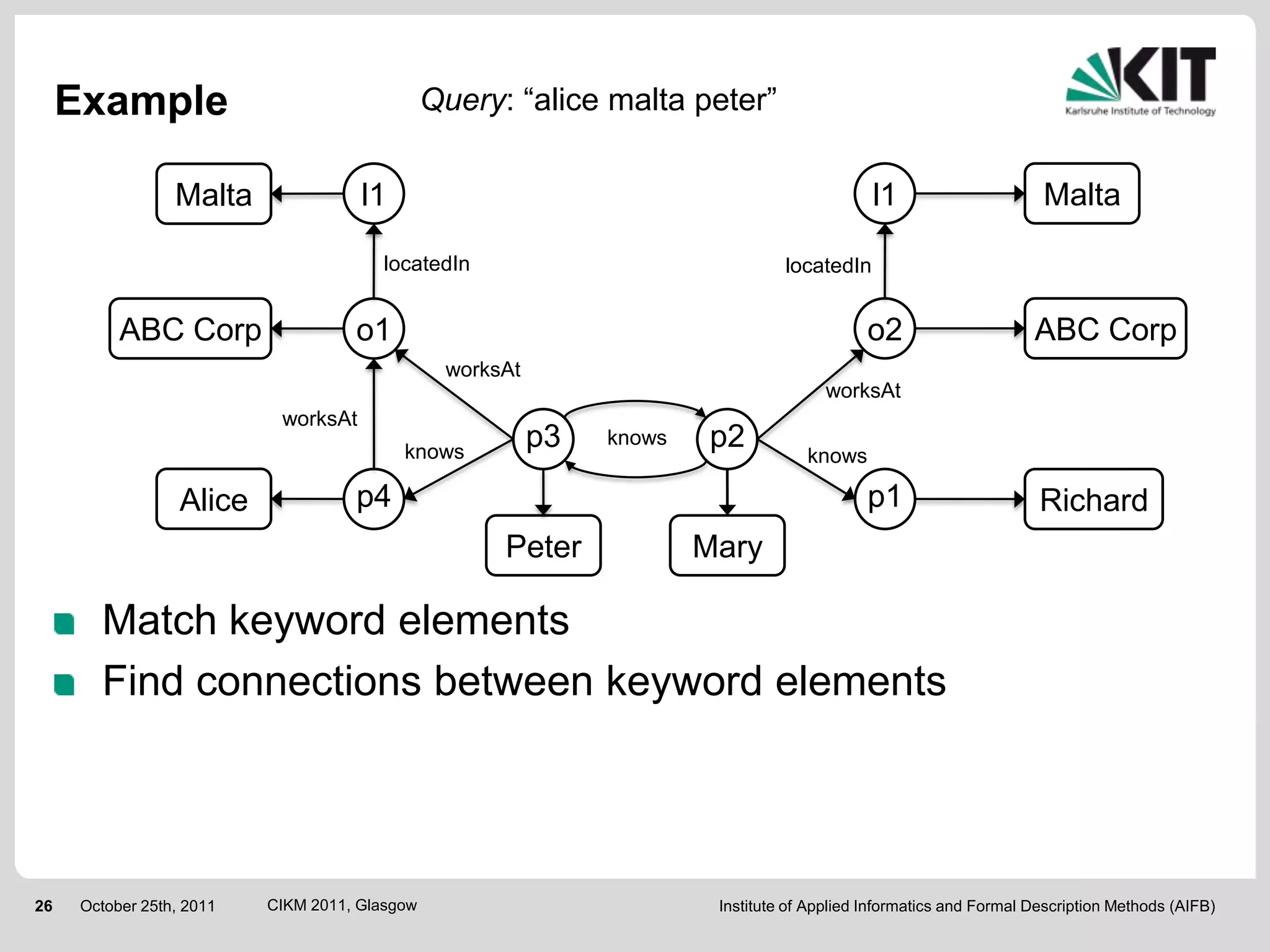

- 26. Example Query: “alice malta peter” Malta l1 l1 Malta locatedIn locatedIn ABC Corp o1 o2 ABC Corp worksAt worksAt worksAt knows p3 knows p2 knows Alice p4 p1 Richard Peter Mary Match keyword elements Find connections between keyword elements 26 October 25th, 2011 CIKM 2011, Glasgow Institute of Applied Informatics and Formal Description Methods (AIFB)

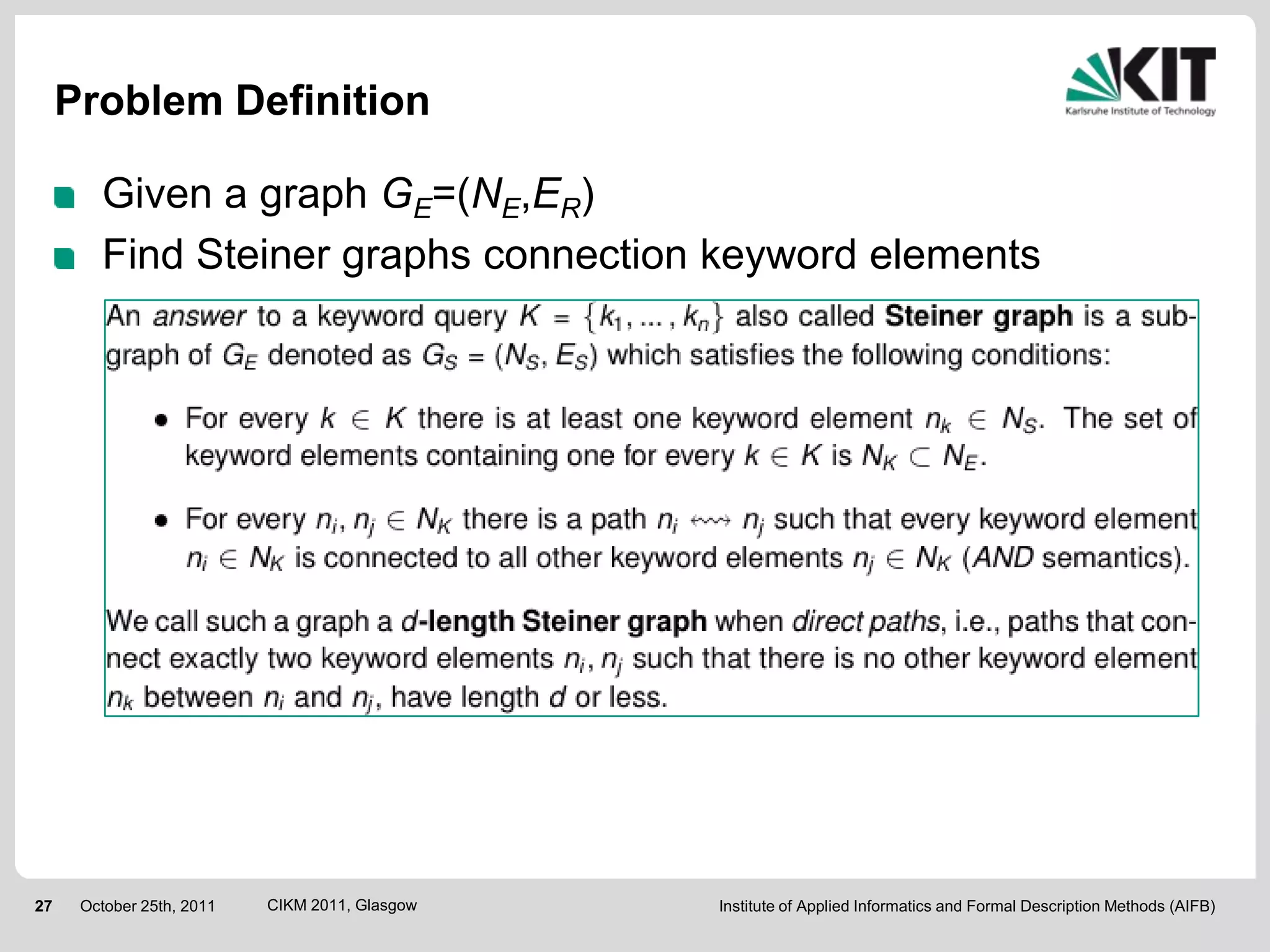

- 27. Problem Definition Given a graph GE=(NE,ER) Find Steiner graphs connection keyword elements 27 October 25th, 2011 CIKM 2011, Glasgow Institute of Applied Informatics and Formal Description Methods (AIFB)

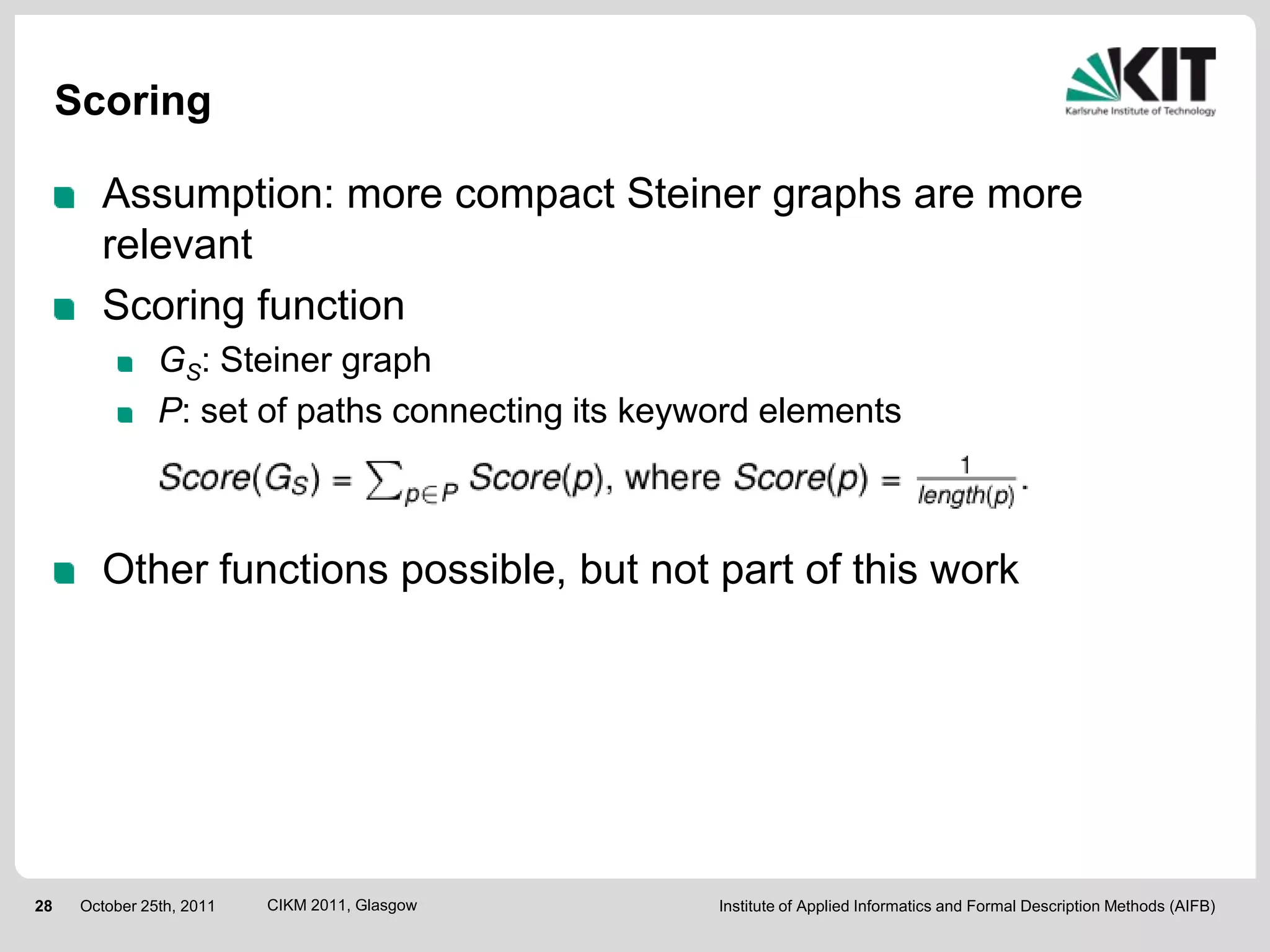

- 28. Scoring Assumption: more compact Steiner graphs are more relevant Scoring function GS: Steiner graph P: set of paths connecting its keyword elements Other functions possible, but not part of this work 28 October 25th, 2011 CIKM 2011, Glasgow Institute of Applied Informatics and Formal Description Methods (AIFB)

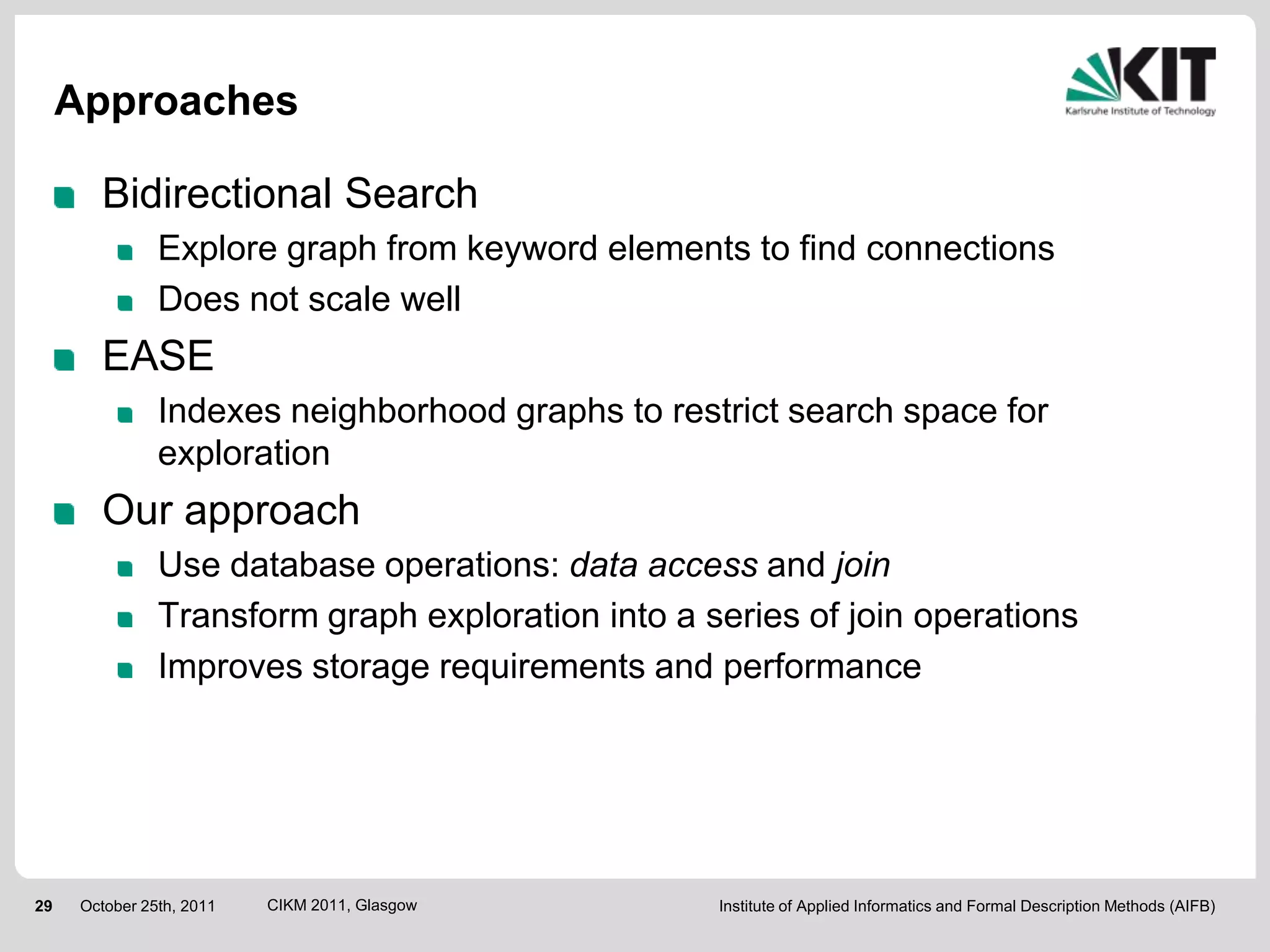

- 29. Approaches Bidirectional Search Explore graph from keyword elements to find connections Does not scale well EASE Indexes neighborhood graphs to restrict search space for exploration Our approach Use database operations: data access and join Transform graph exploration into a series of join operations Improves storage requirements and performance 29 October 25th, 2011 CIKM 2011, Glasgow Institute of Applied Informatics and Formal Description Methods (AIFB)

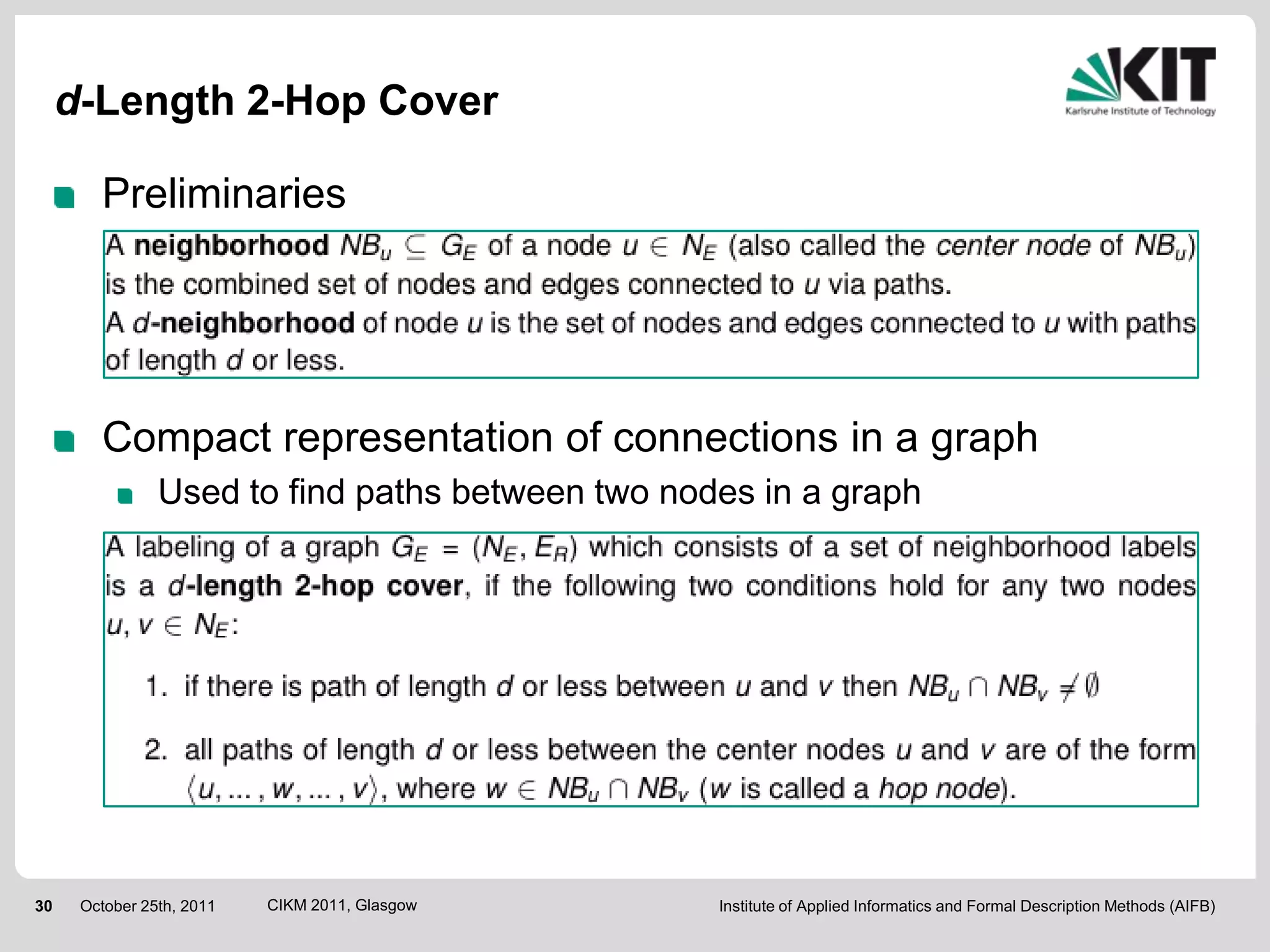

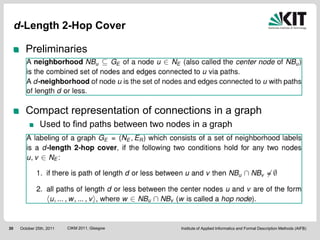

- 30. d-Length 2-Hop Cover Preliminaries Compact representation of connections in a graph Used to find paths between two nodes in a graph 30 October 25th, 2011 CIKM 2011, Glasgow Institute of Applied Informatics and Formal Description Methods (AIFB)

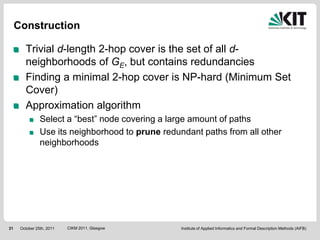

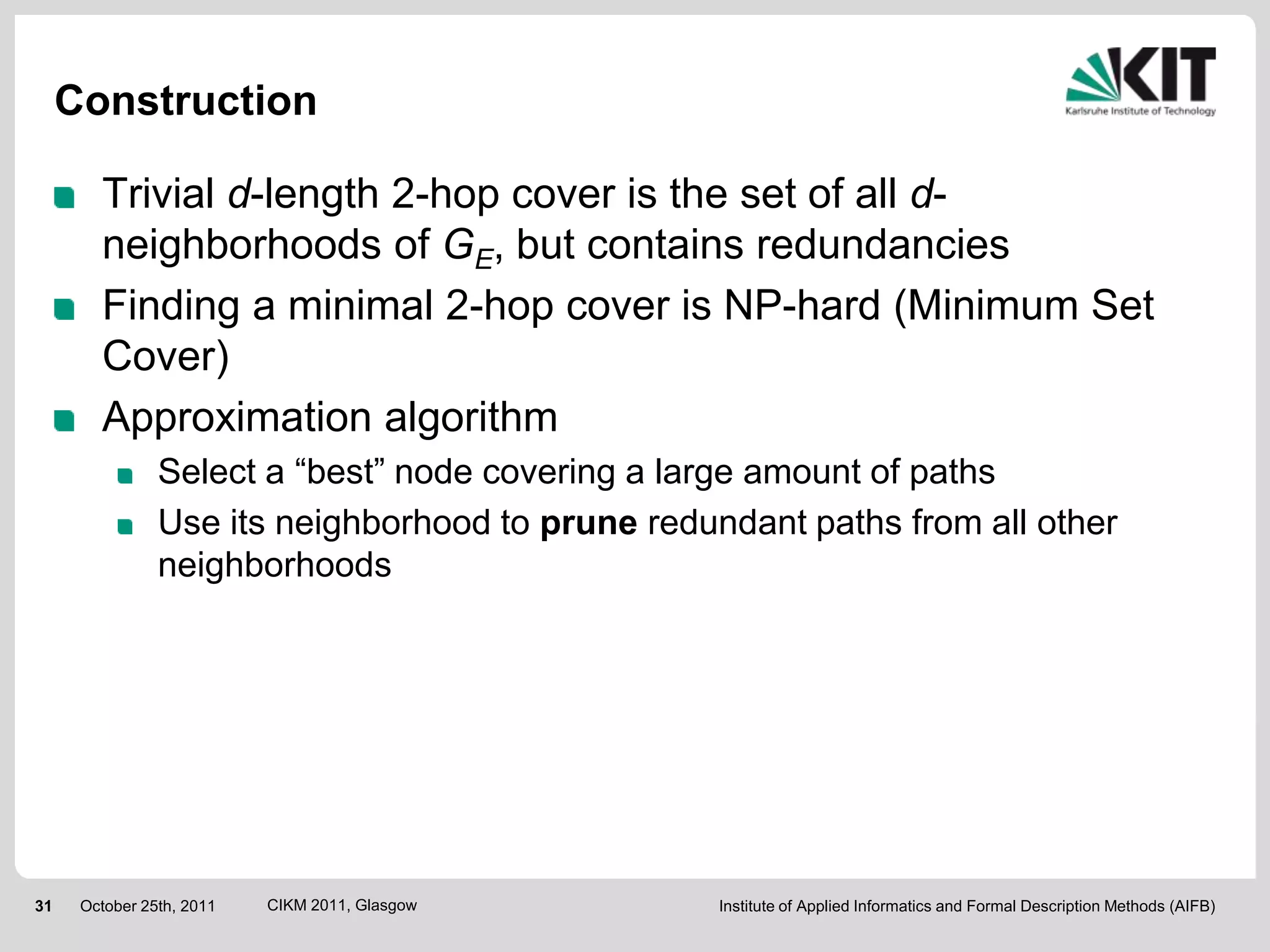

- 31. Construction Trivial d-length 2-hop cover is the set of all d- neighborhoods of GE, but contains redundancies Finding a minimal 2-hop cover is NP-hard (Minimum Set Cover) Approximation algorithm Select a “best” node covering a large amount of paths Use its neighborhood to prune redundant paths from all other neighborhoods 31 October 25th, 2011 CIKM 2011, Glasgow Institute of Applied Informatics and Formal Description Methods (AIFB)

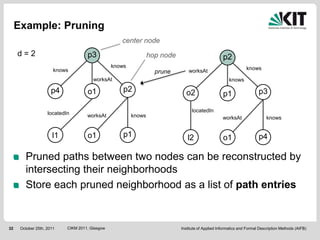

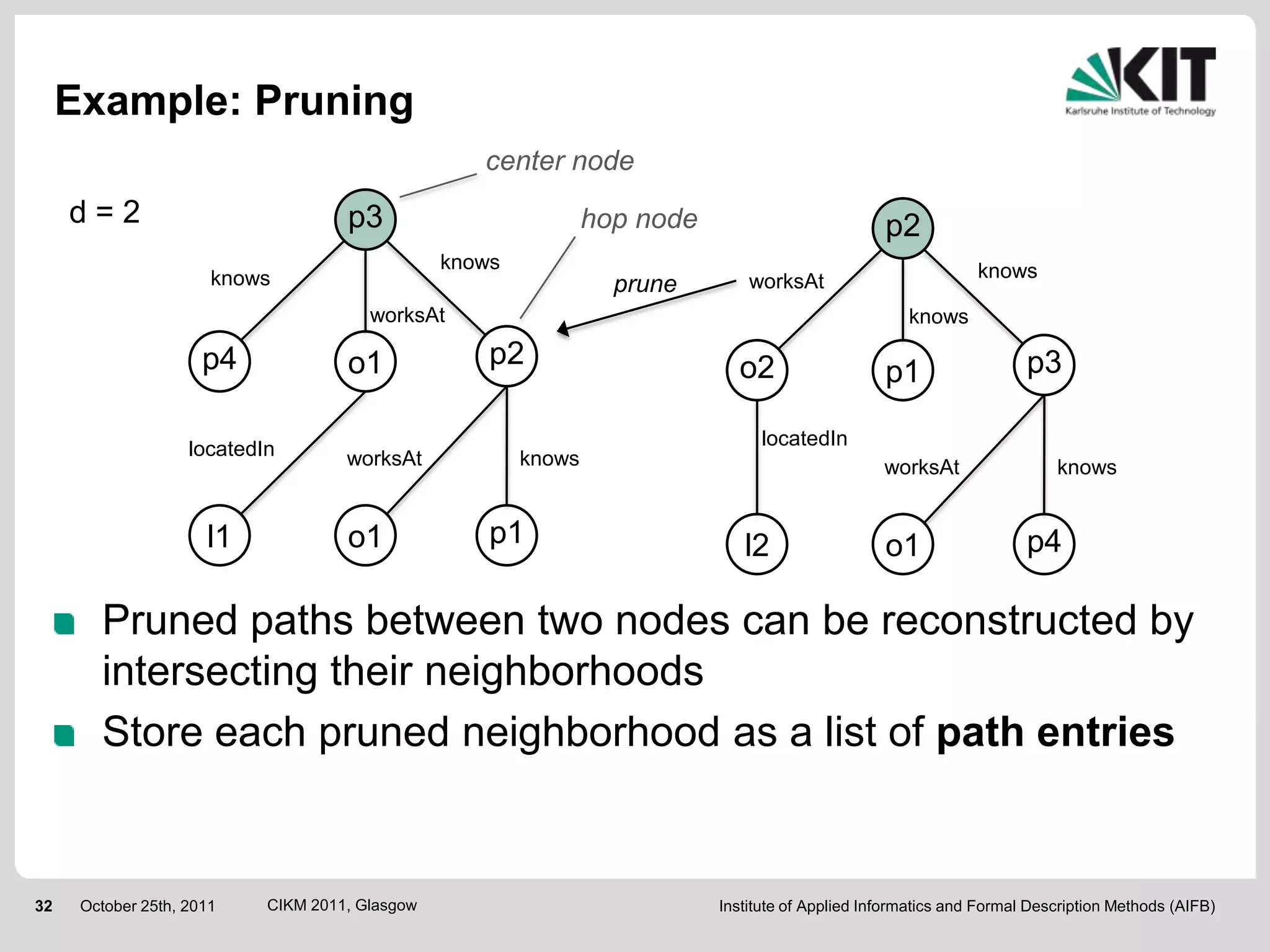

- 32. Example: Pruning center node d=2 p3 hop node p2 knows knows knows prune worksAt worksAt knows p4 o1 p2 o2 p3 p1 locatedIn locatedIn worksAt knows worksAt knows l1 o1 p1 l2 o1 p4 Pruned paths between two nodes can be reconstructed by intersecting their neighborhoods Store each pruned neighborhood as a list of path entries 32 October 25th, 2011 CIKM 2011, Glasgow Institute of Applied Informatics and Formal Description Methods (AIFB)

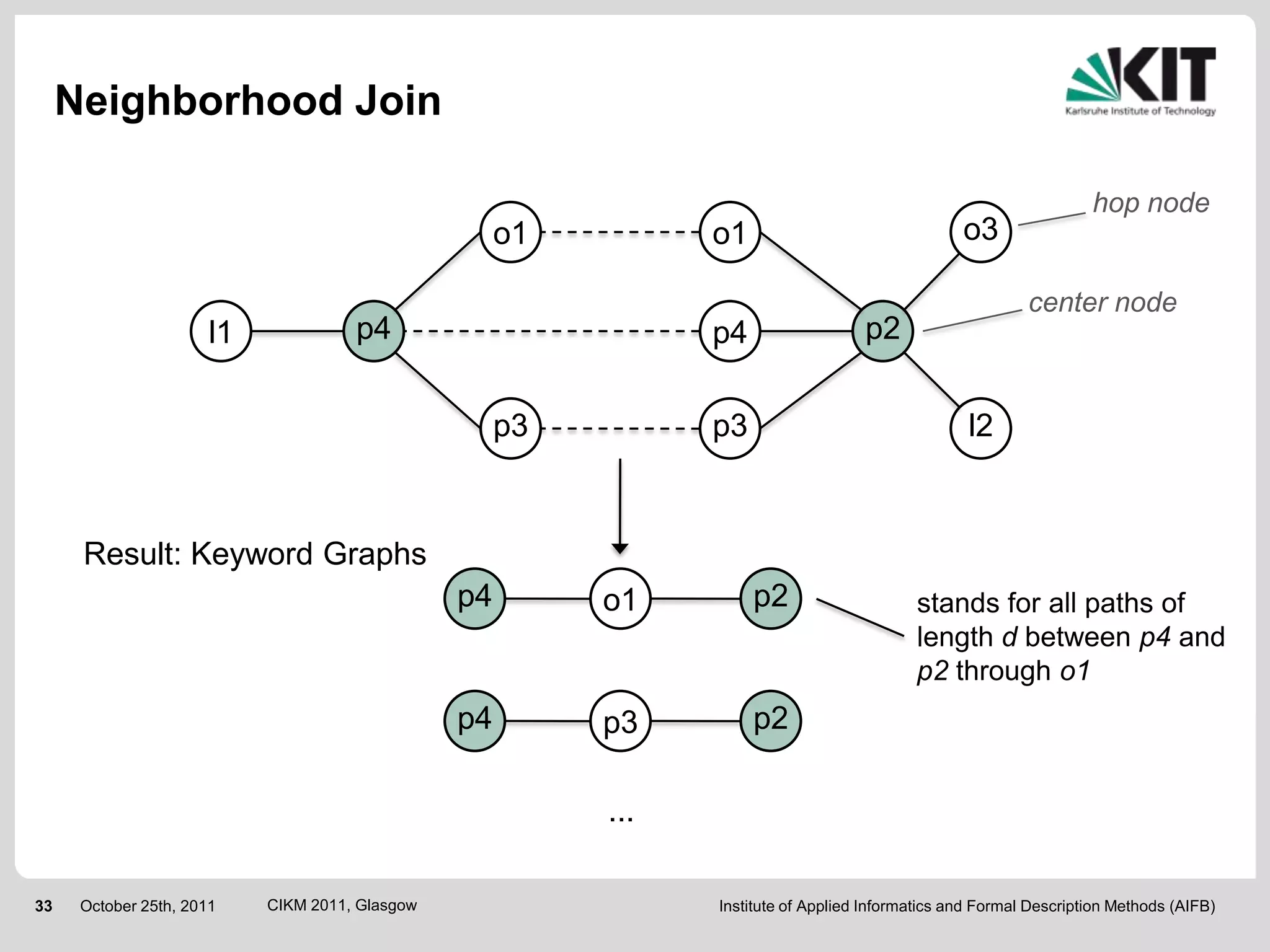

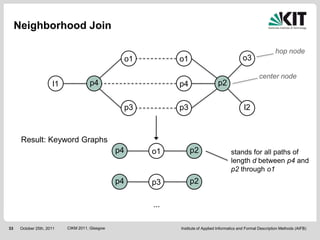

- 33. Neighborhood Join hop node o1 o1 o3 center node l1 p4 p4 p2 p3 p3 l2 Result: Keyword Graphs p4 o1 p2 stands for all paths of length d between p4 and p2 through o1 p4 p3 p2 ... 33 October 25th, 2011 CIKM 2011, Glasgow Institute of Applied Informatics and Formal Description Methods (AIFB)

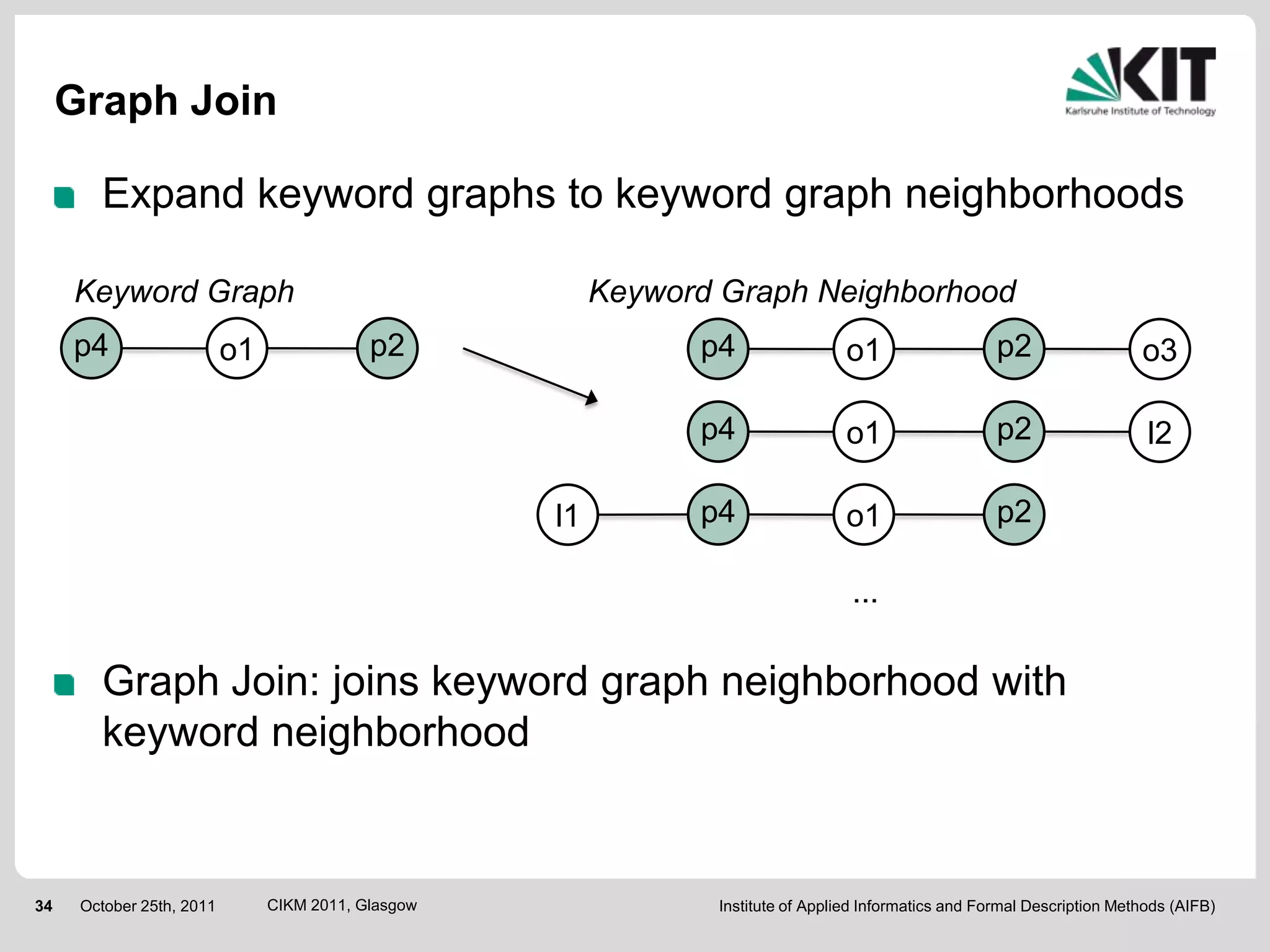

- 34. Graph Join Expand keyword graphs to keyword graph neighborhoods Keyword Graph Keyword Graph Neighborhood p4 o1 p2 p4 o1 p2 o3 p4 o1 p2 l2 l1 p4 o1 p2 ... Graph Join: joins keyword graph neighborhood with keyword neighborhood 34 October 25th, 2011 CIKM 2011, Glasgow Institute of Applied Informatics and Formal Description Methods (AIFB)

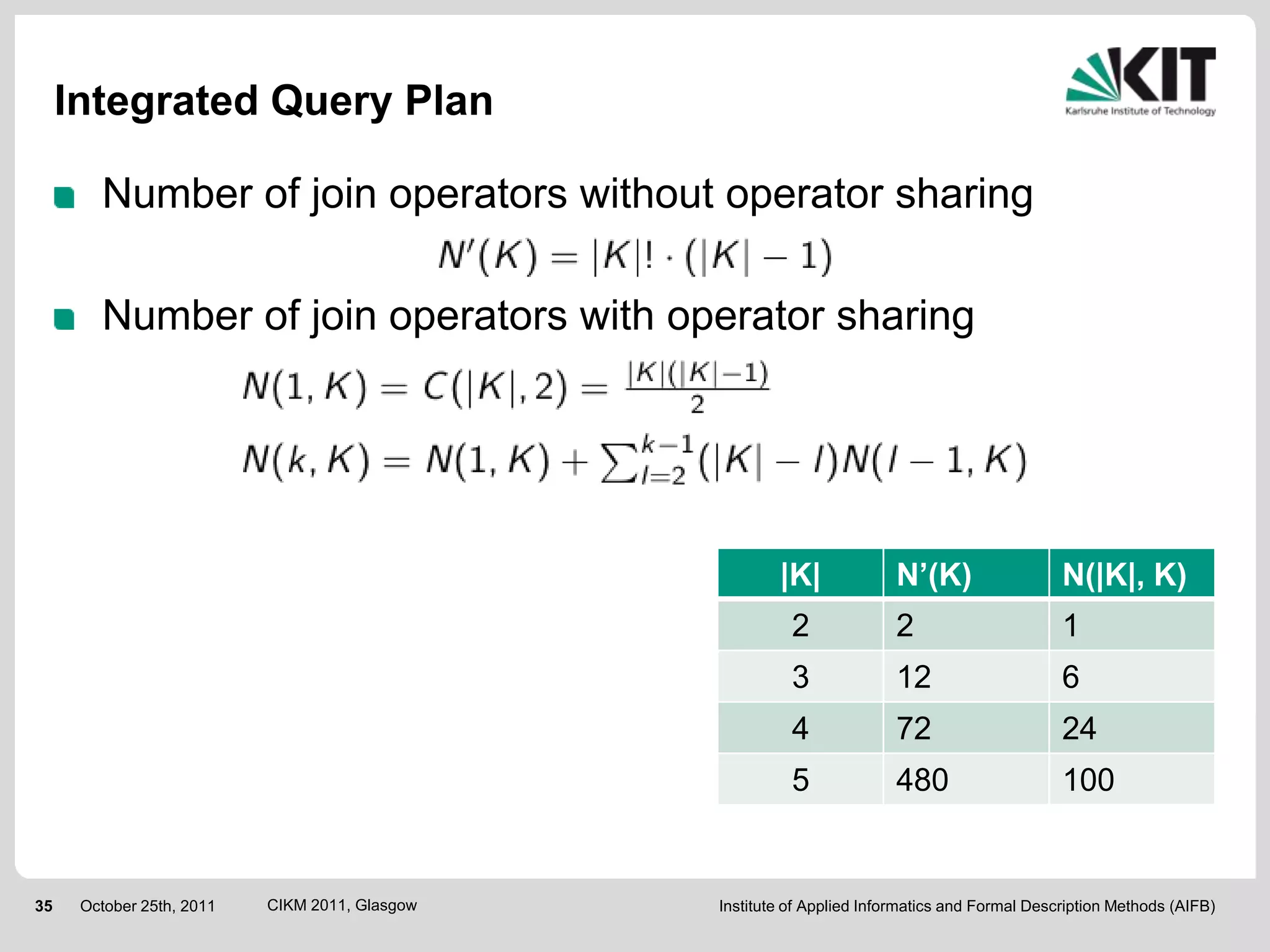

- 35. Integrated Query Plan Number of join operators without operator sharing Number of join operators with operator sharing |K| N’(K) N(|K|, K) 2 2 1 3 12 6 4 72 24 5 480 100 35 October 25th, 2011 CIKM 2011, Glasgow Institute of Applied Informatics and Formal Description Methods (AIFB)
