This document discusses adding Reason to an existing React/Apollo project to gain the benefits of strong typing. It demonstrates defining a GraphQL query to fetch promoted post data, creating Reason components to render the data, and using ReasonReact and Apollo to connect the components to the query. The end result is clear separation of concerns between the UI logic in Reason and the data fetching logic in GraphQL.

1. with Reason
Incremental Type Safety
in React Apollo
Evans Hauser
Core Developer, Apollo

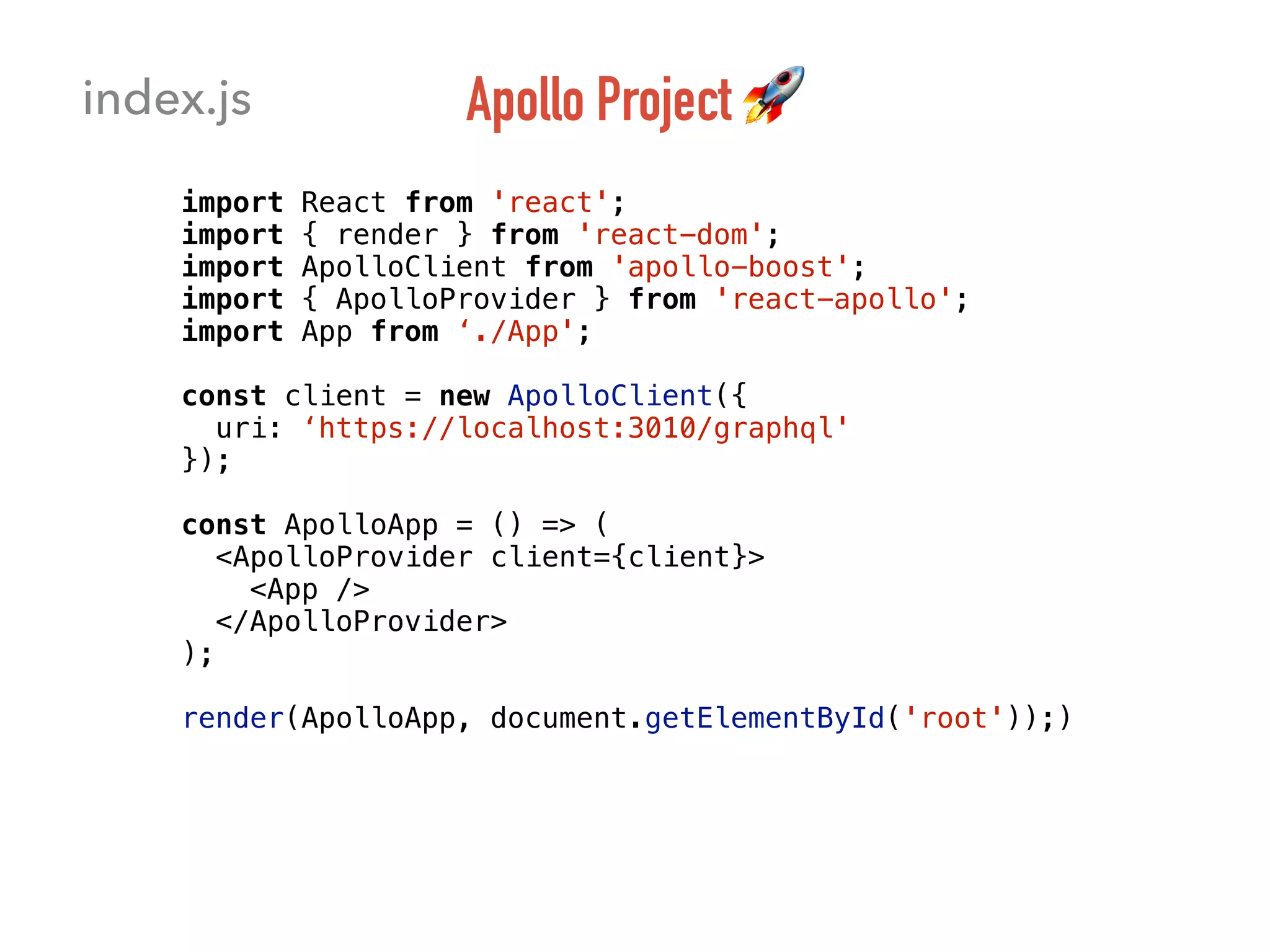

2. Apollo Project 🚀
import React from 'react';
import { render } from 'react-dom';
import ApolloClient from 'apollo-boost';
import { ApolloProvider } from 'react-apollo';
import App from ‘./App';
const client = new ApolloClient({
uri: ‘https://localhost:3010/graphql'
});
const ApolloApp = () => (
<ApolloProvider client={client}>
<App />
</ApolloProvider>
);
render(ApolloApp, document.getElementById('root'));)
index.js

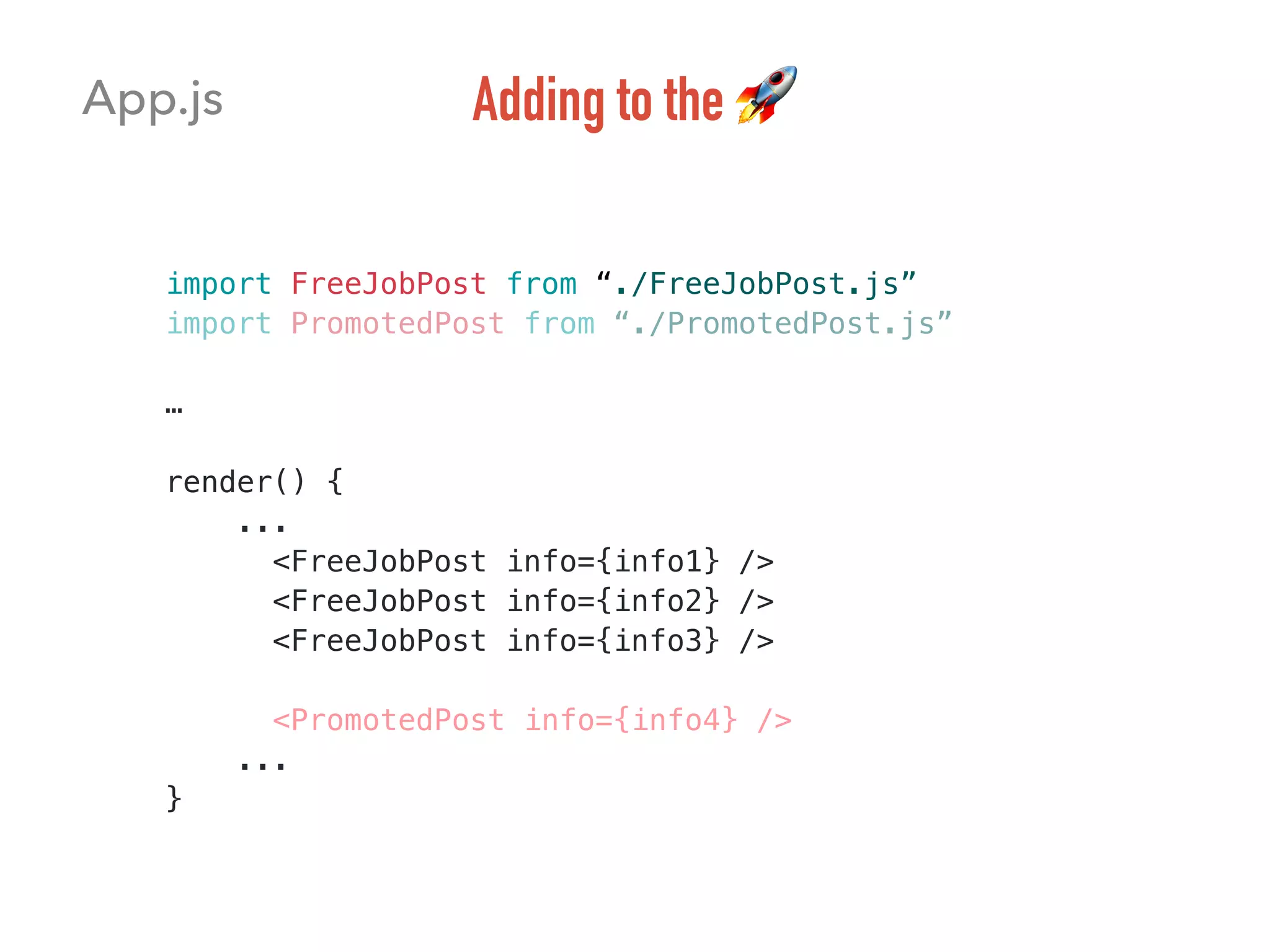

3. import FreeJobPost from “./FreeJobPost.js”
import PromotedPost from “./PromotedPost.js”
…
render() {
...
<FreeJobPost info={info1} />
<FreeJobPost info={info2} />
<FreeJobPost info={info3} />
<PromotedPost info={info4} />
...
}
App.js Adding to the 🚀

4. What about Reason 🤔

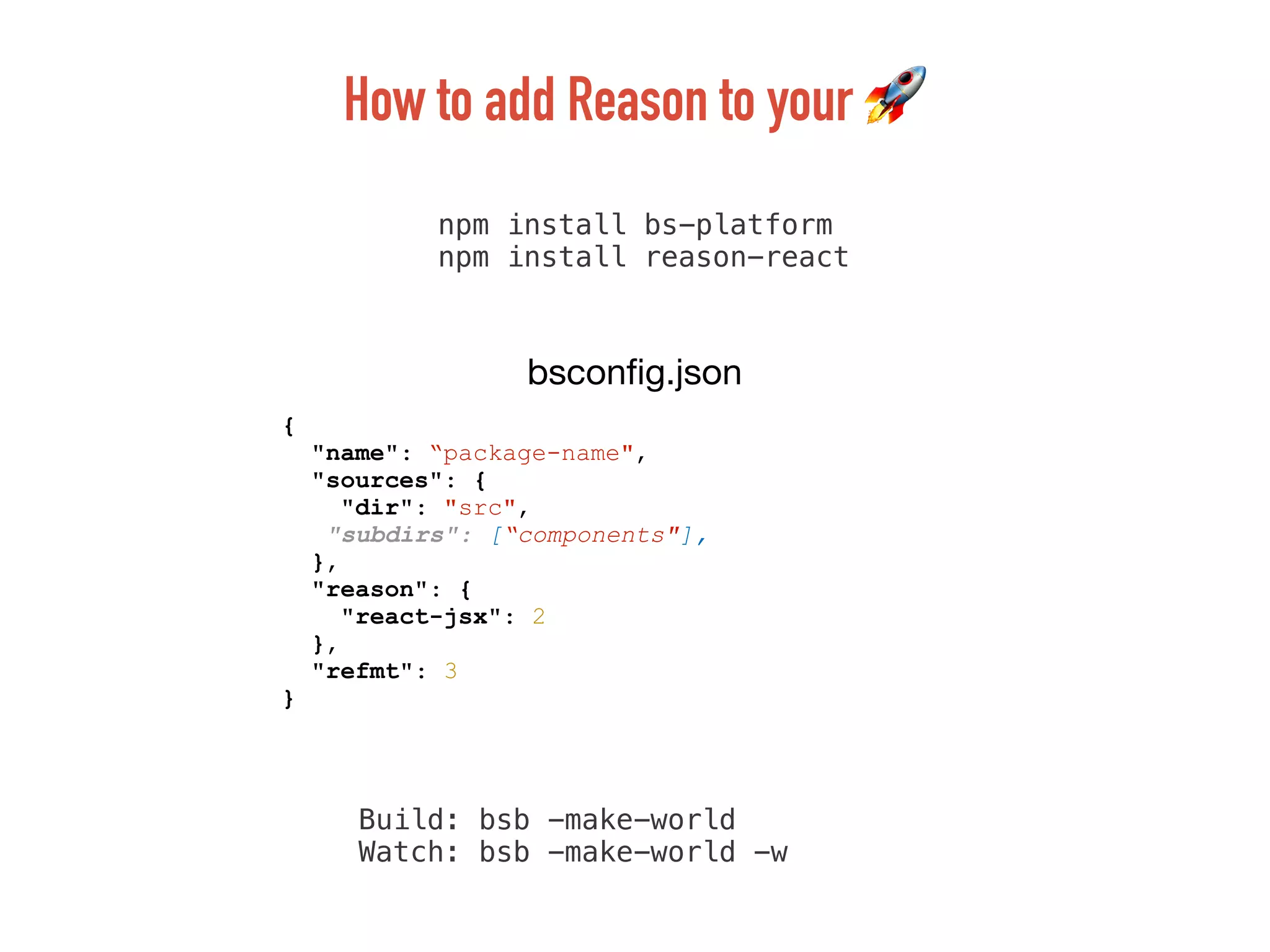

5. npm install bs-platform
npm install reason-react
{
"name": “package-name",
"sources": {
"dir": "src",
"subdirs": [“components"],
},
"reason": {
"react-jsx": 2
},
"refmt": 3
}
bsconfig.json
How to add Reason to your 🚀
Build: bsb -make-world
Watch: bsb -make-world -w

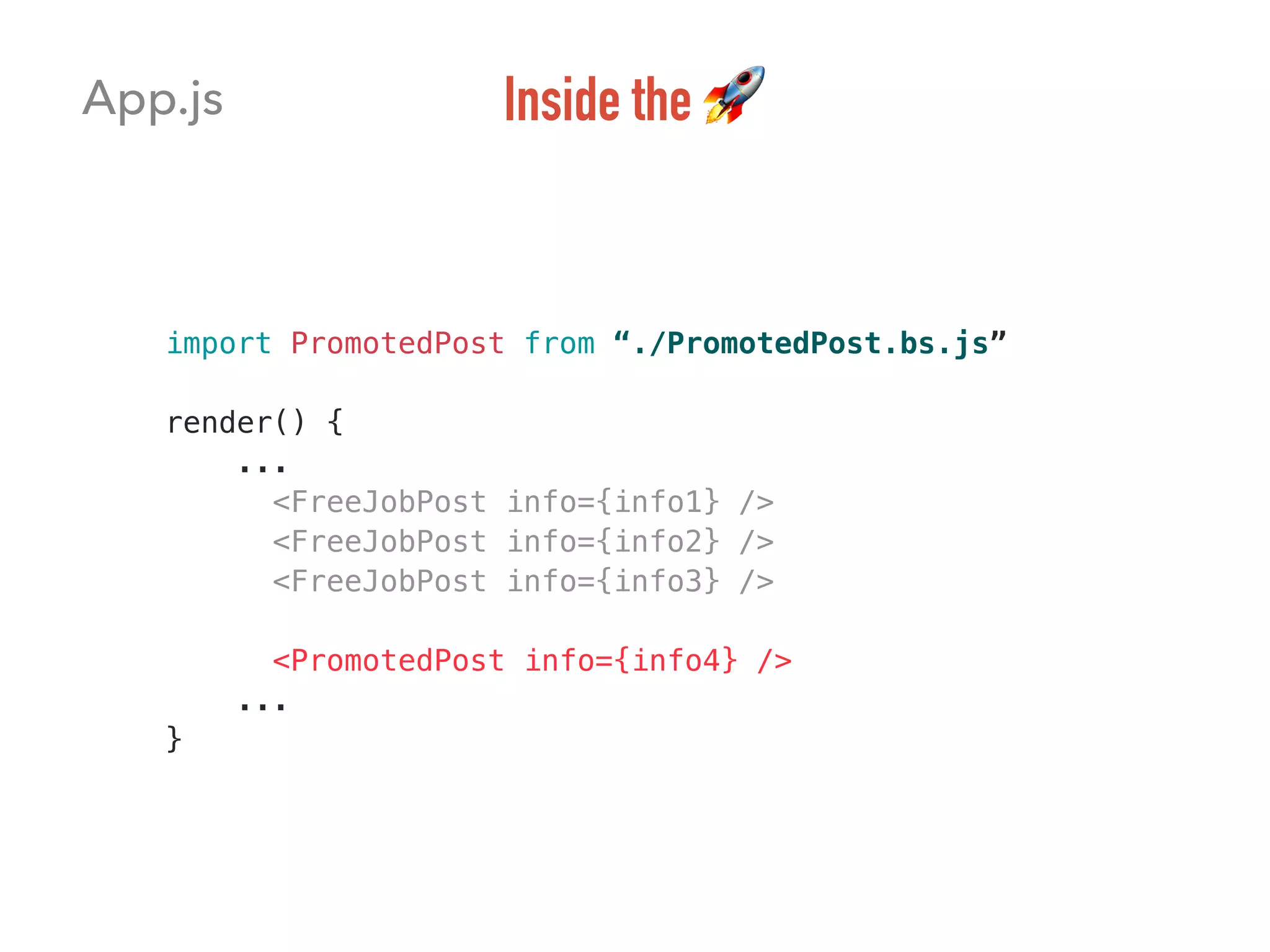

6. import PromotedPost from “./PromotedPost.bs.js”
render() {
...
<FreeJobPost info={info1} />
<FreeJobPost info={info2} />
<FreeJobPost info={info3} />
<PromotedPost info={info4} />
...
}
App.js Inside the 🚀

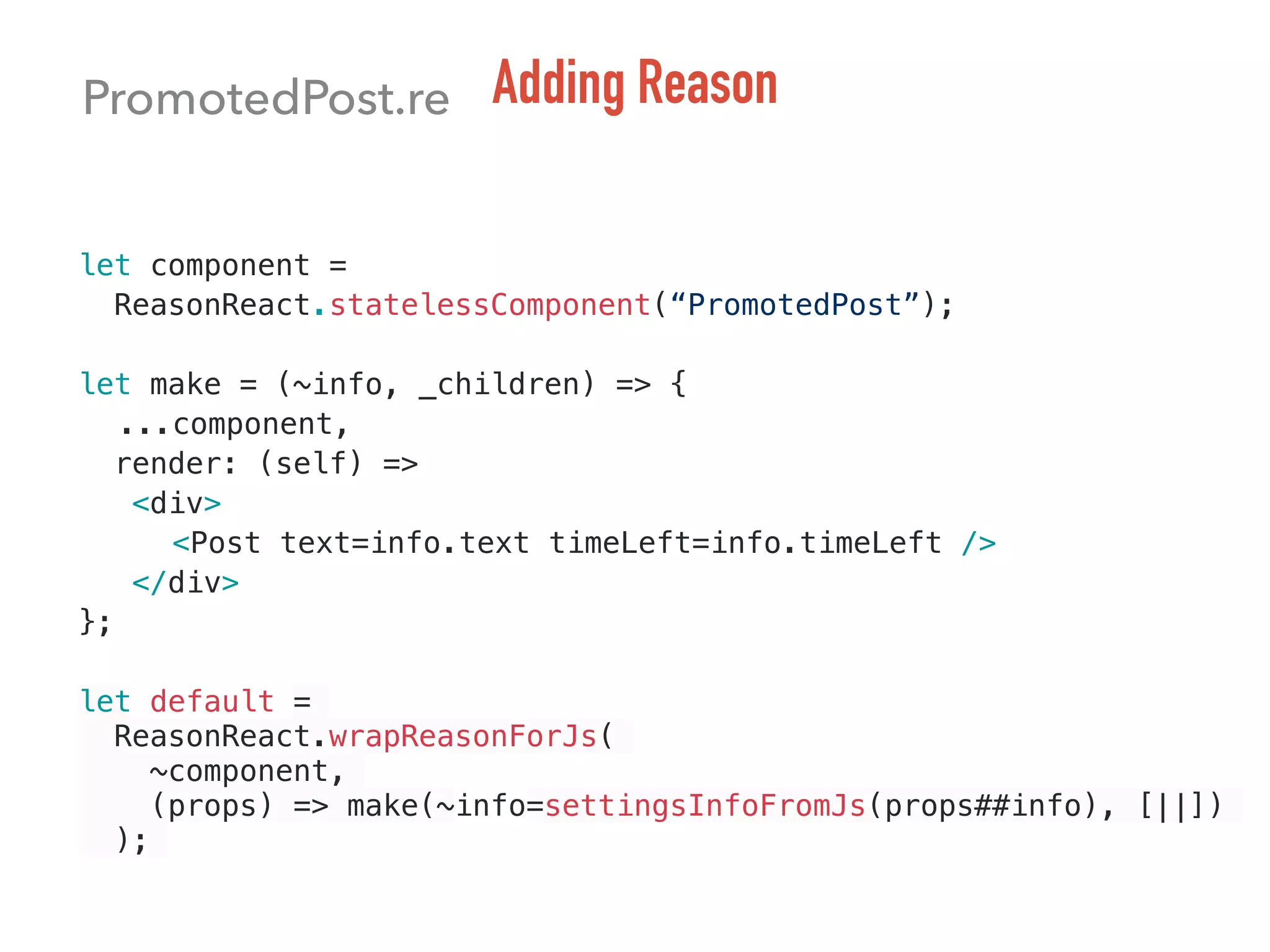

7. let component =
ReasonReact.statelessComponent(“PromotedPost”);
let make = (~info, _children) => {
...component,
render: (self) =>
<div>
<Post text=info.text timeLeft=info.timeLeft />
</div>
};
let default =
ReasonReact.wrapReasonForJs(
~component,
(props) => make(~info=settingsInfoFromJs(props##info), [||])
);
PromotedPost.re Adding Reason

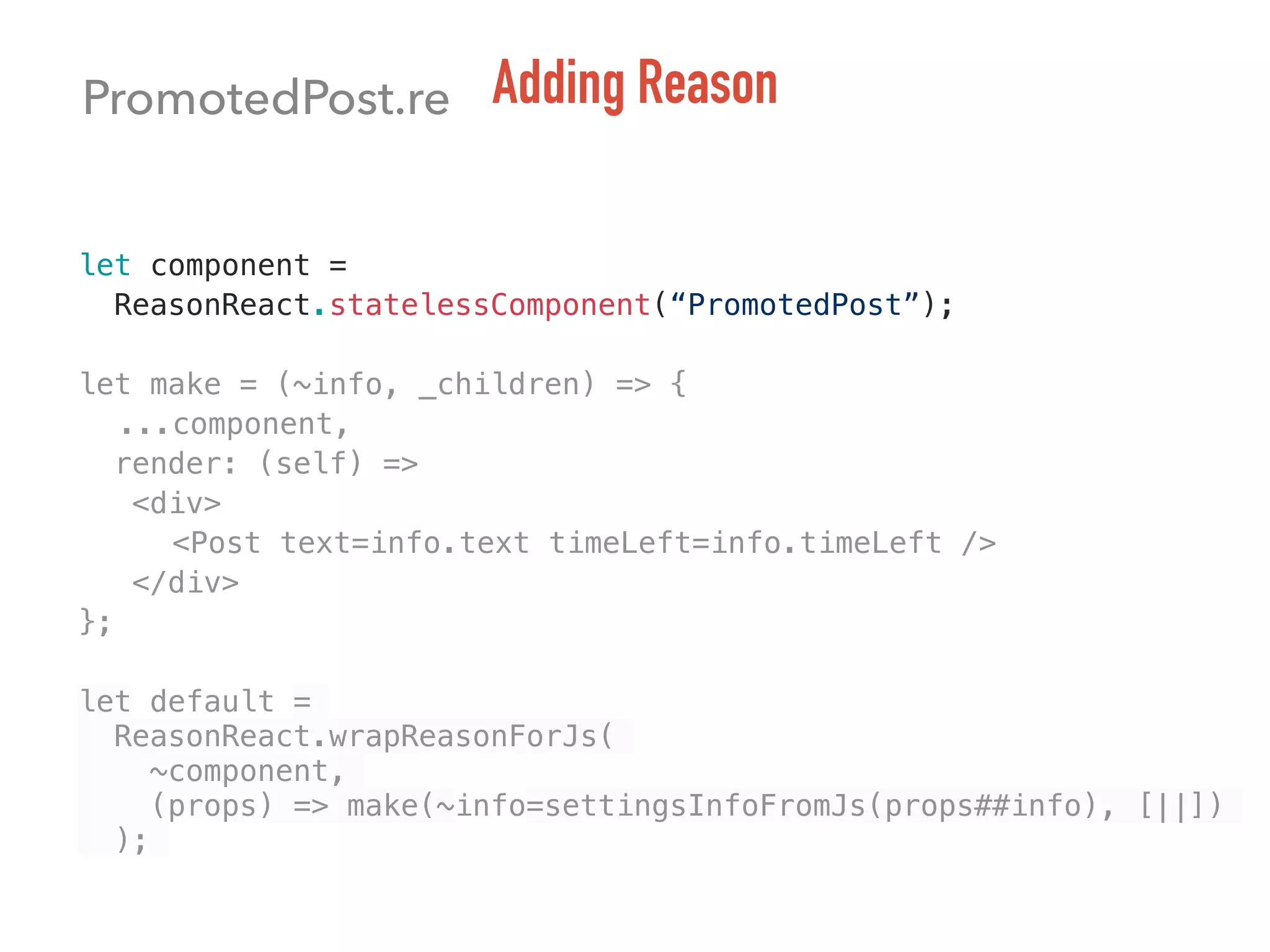

8. PromotedPost.re Adding Reason
let component =
ReasonReact.statelessComponent(“PromotedPost”);
let make = (~info, _children) => {
...component,
render: (self) =>
<div>
<Post text=info.text timeLeft=info.timeLeft />
</div>
};
let default =
ReasonReact.wrapReasonForJs(
~component,
(props) => make(~info=settingsInfoFromJs(props##info), [||])
);

9. PromotedPost.re Adding Reason
let component =
ReasonReact.statelessComponent(“PromotedPost”);
let make = (~info, _children) => {
...component,
render: (self) =>
<div>
<Post text=info.text timeLeft=info.timeLeft />
</div>
};
let default =
ReasonReact.wrapReasonForJs(
~component,
(props) => make(~info=settingsInfoFromJs(props##info), [||])
);

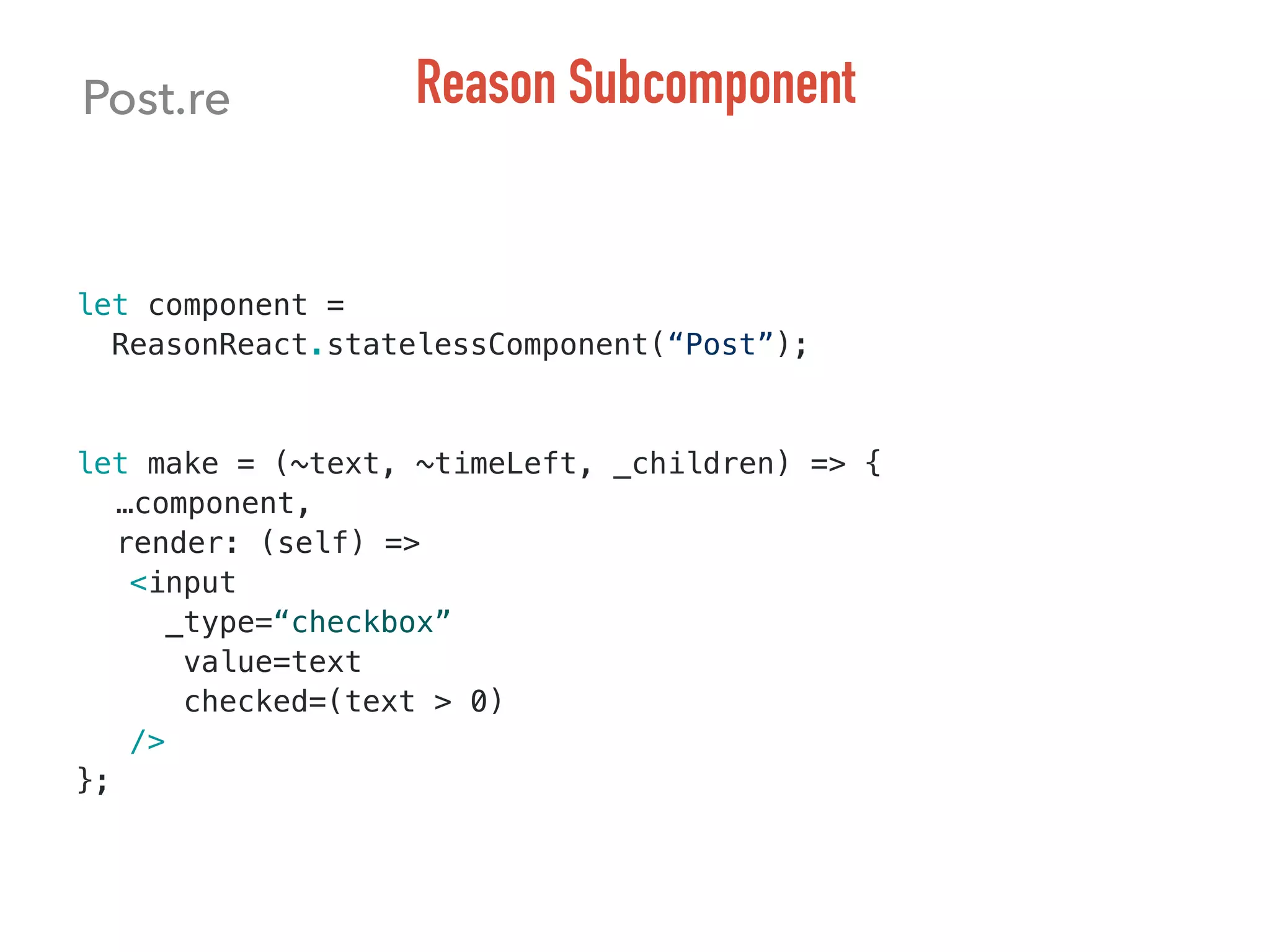

10. let component =
ReasonReact.statelessComponent(“Post”);
let make = (~text, ~timeLeft, _children) => {
…component,
render: (self) =>
<input
_type=“checkbox”
value=text
checked=(text > 0)
/>
};
Post.re Reason Subcomponent

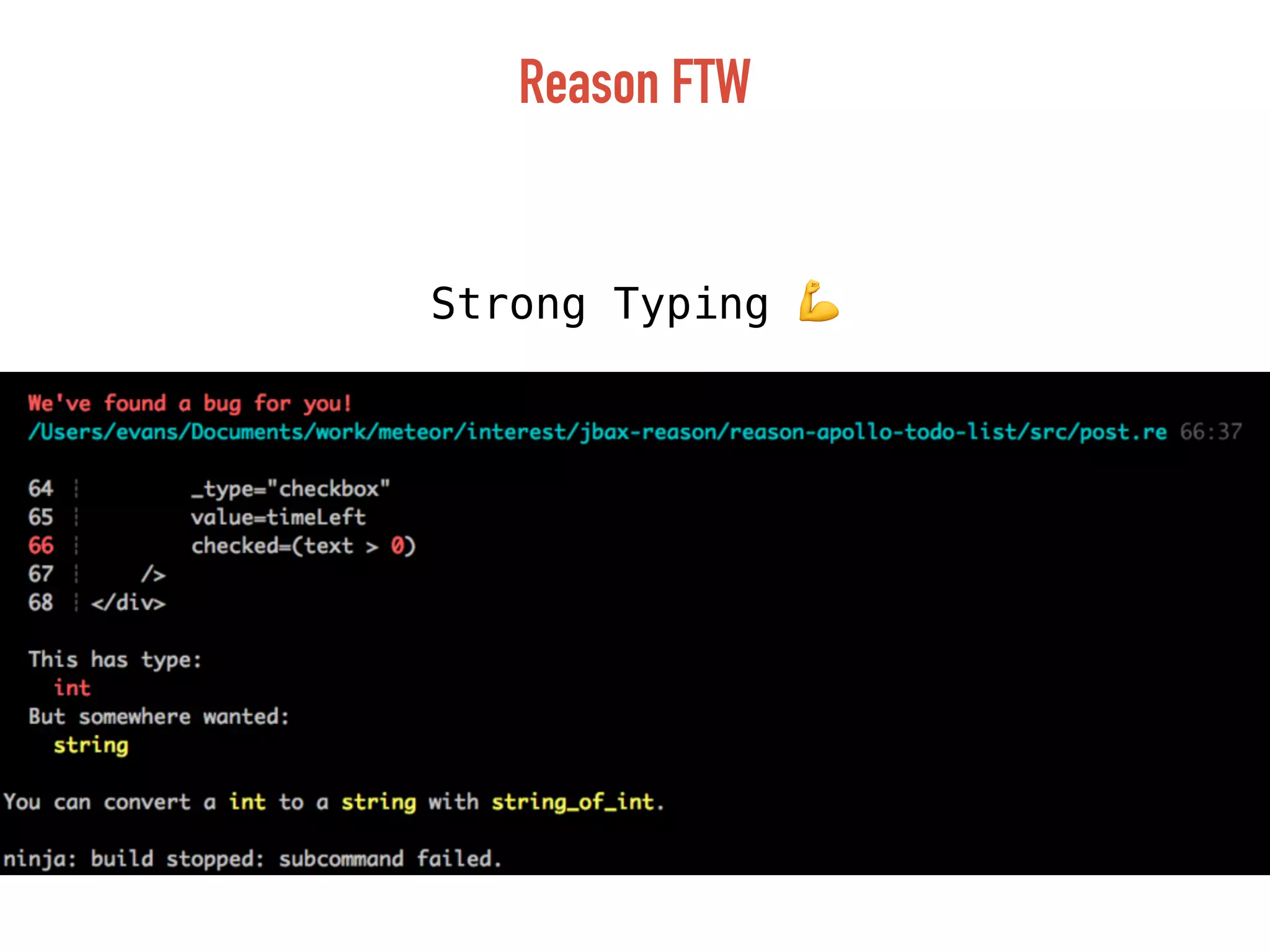

11. Reason FTW
Strong Typing 💪

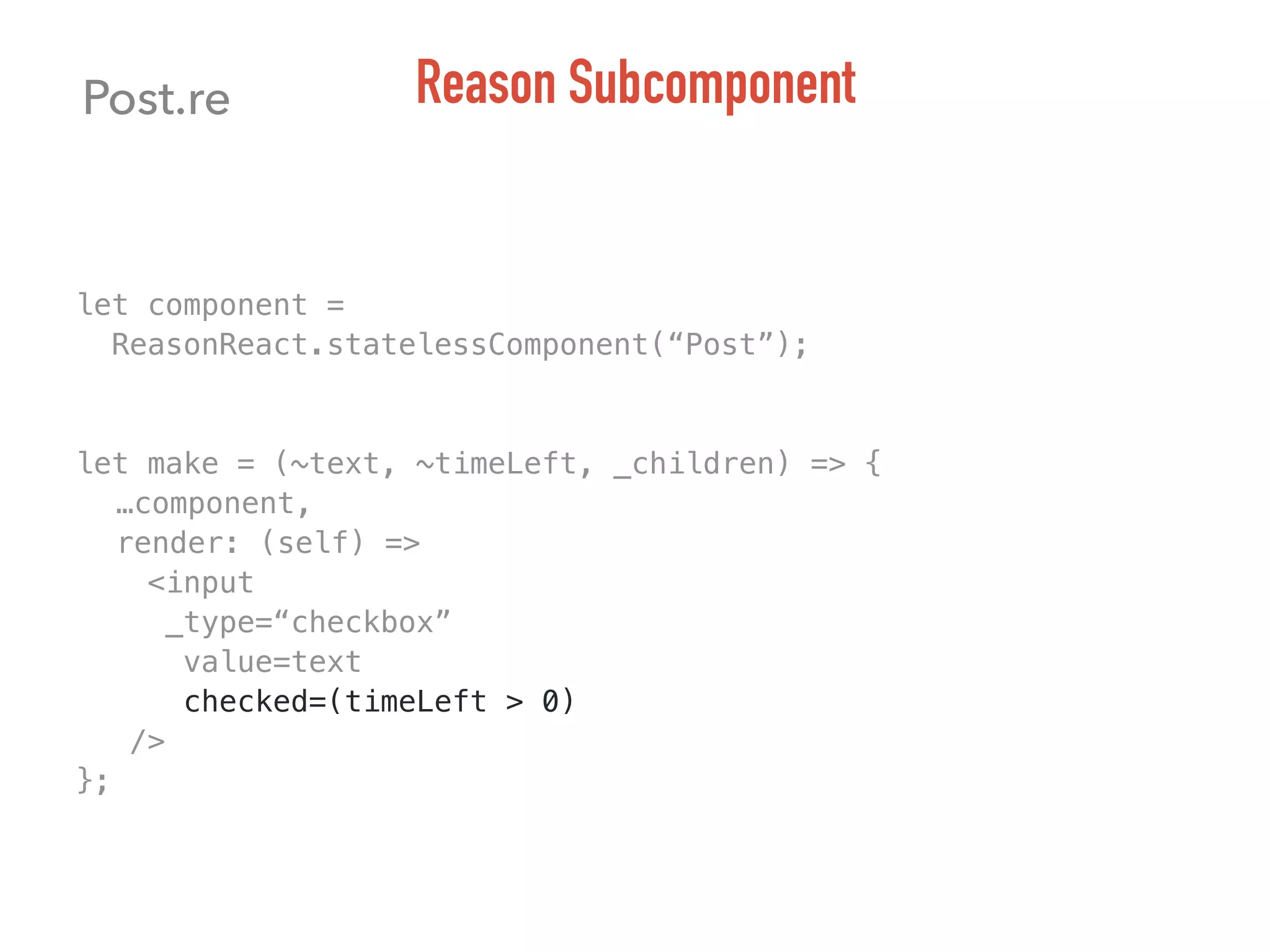

12. let component =
ReasonReact.statelessComponent(“Post”);
let make = (~text, ~timeLeft, _children) => {
…component,
render: (self) =>
<input
_type=“checkbox”
value=text
checked=(timeLeft > 0)
/>
};
Post.re Reason Subcomponent

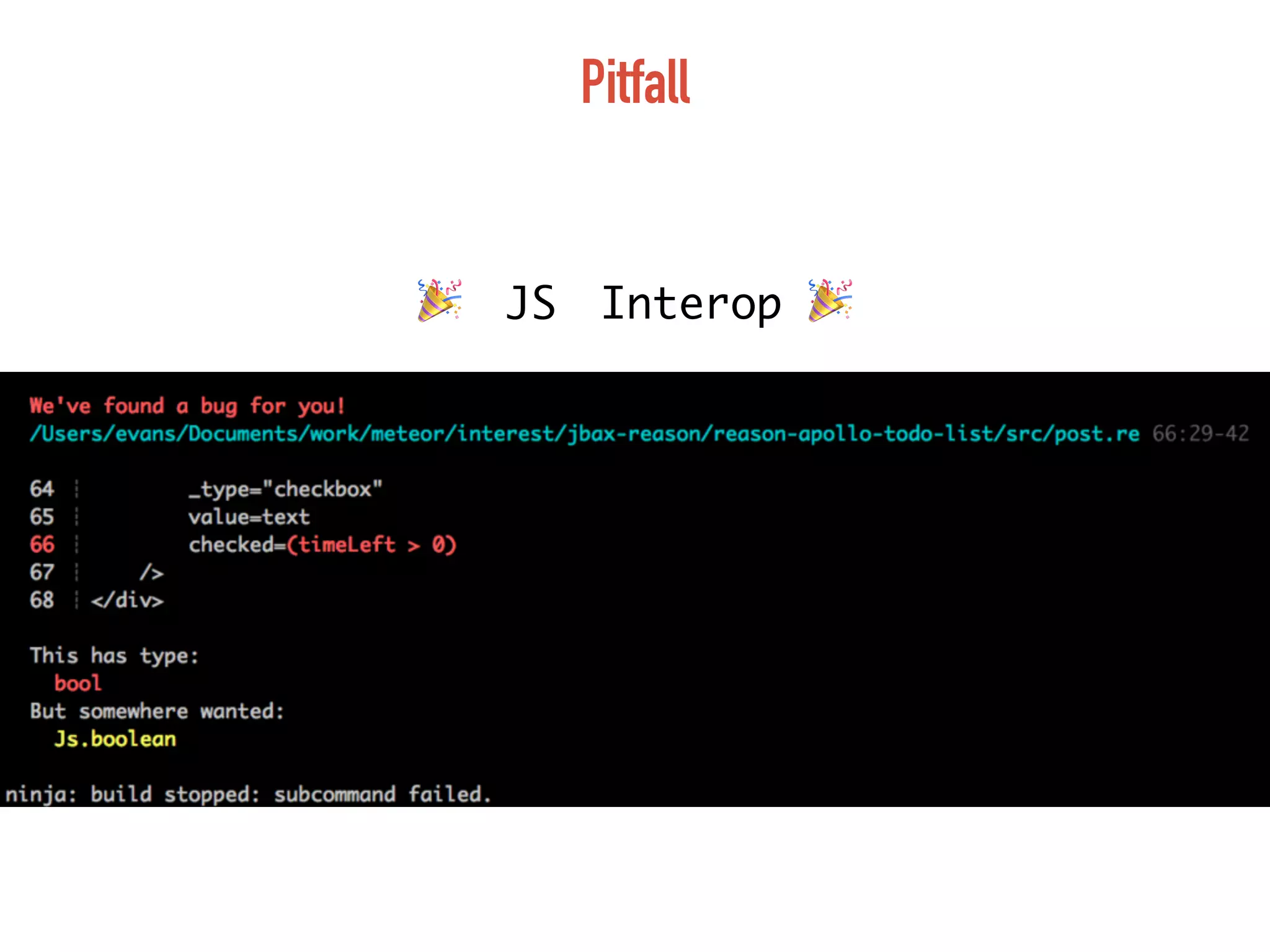

13. Pitfall
🎉 JS Interop 🎉

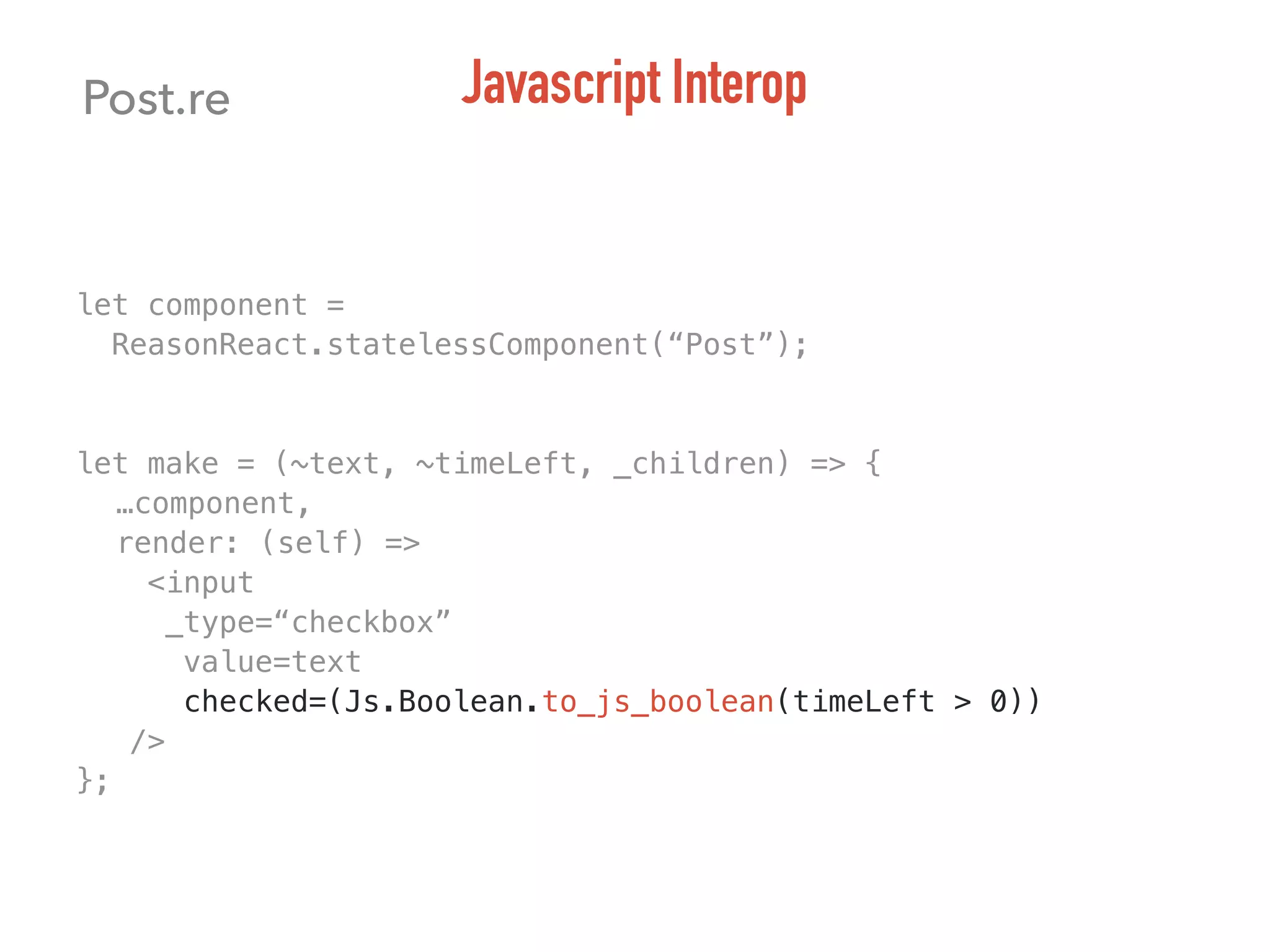

14. let component =
ReasonReact.statelessComponent(“Post”);
let make = (~text, ~timeLeft, _children) => {
…component,
render: (self) =>
<input
_type=“checkbox”
value=text
checked=(Js.Boolean.to_js_boolean(timeLeft > 0))
/>
};
Post.re Javascript Interop

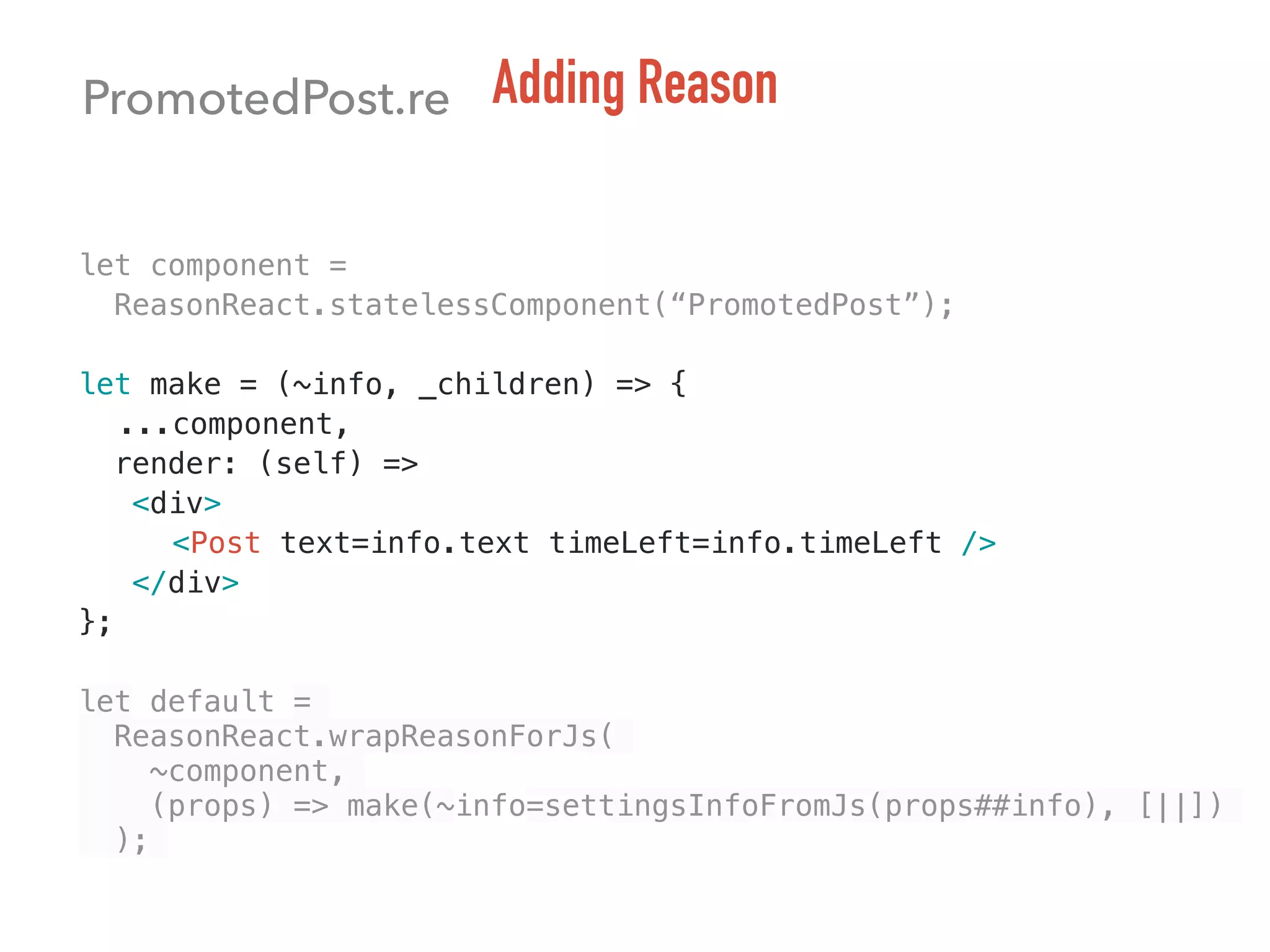

15. PromotedPost.re Adding Reason
let component =
ReasonReact.statelessComponent(“PromotedPost”);
let make = (~info, _children) => {
...component,
render: (self) =>
<div>
<Post text=info.text timeLeft=info.timeLeft />
</div>
};
let default =
ReasonReact.wrapReasonForJs(
~component,
(props) => make(~info=settingsInfoFromJs(props##info), [||])
);

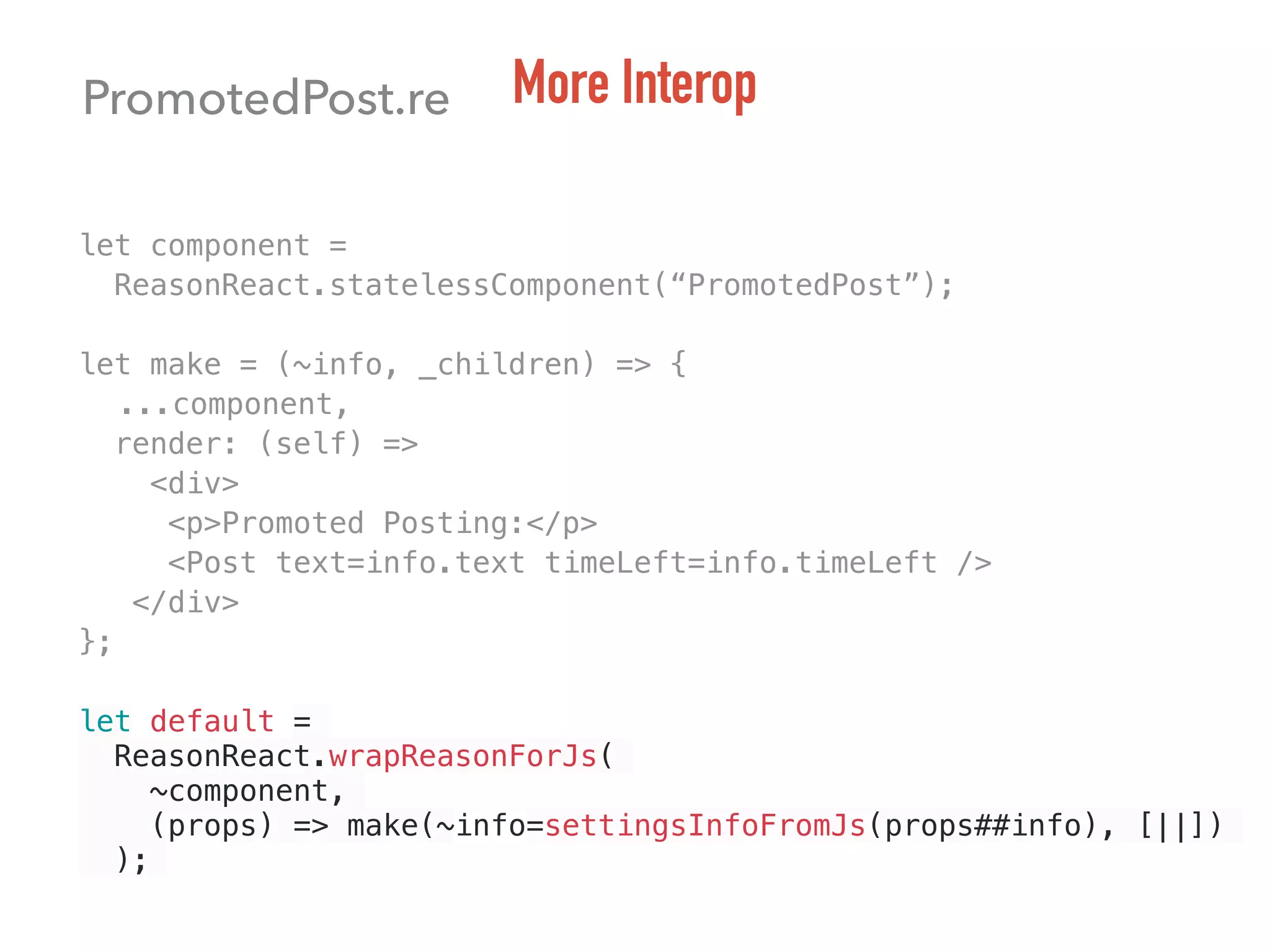

16. PromotedPost.re More Interop
let component =
ReasonReact.statelessComponent(“PromotedPost”);
let make = (~info, _children) => {
...component,
render: (self) =>
<div>
<p>Promoted Posting:</p>
<Post text=info.text timeLeft=info.timeLeft />
</div>
};
let default =
ReasonReact.wrapReasonForJs(
~component,
(props) => make(~info=settingsInfoFromJs(props##info), [||])
);

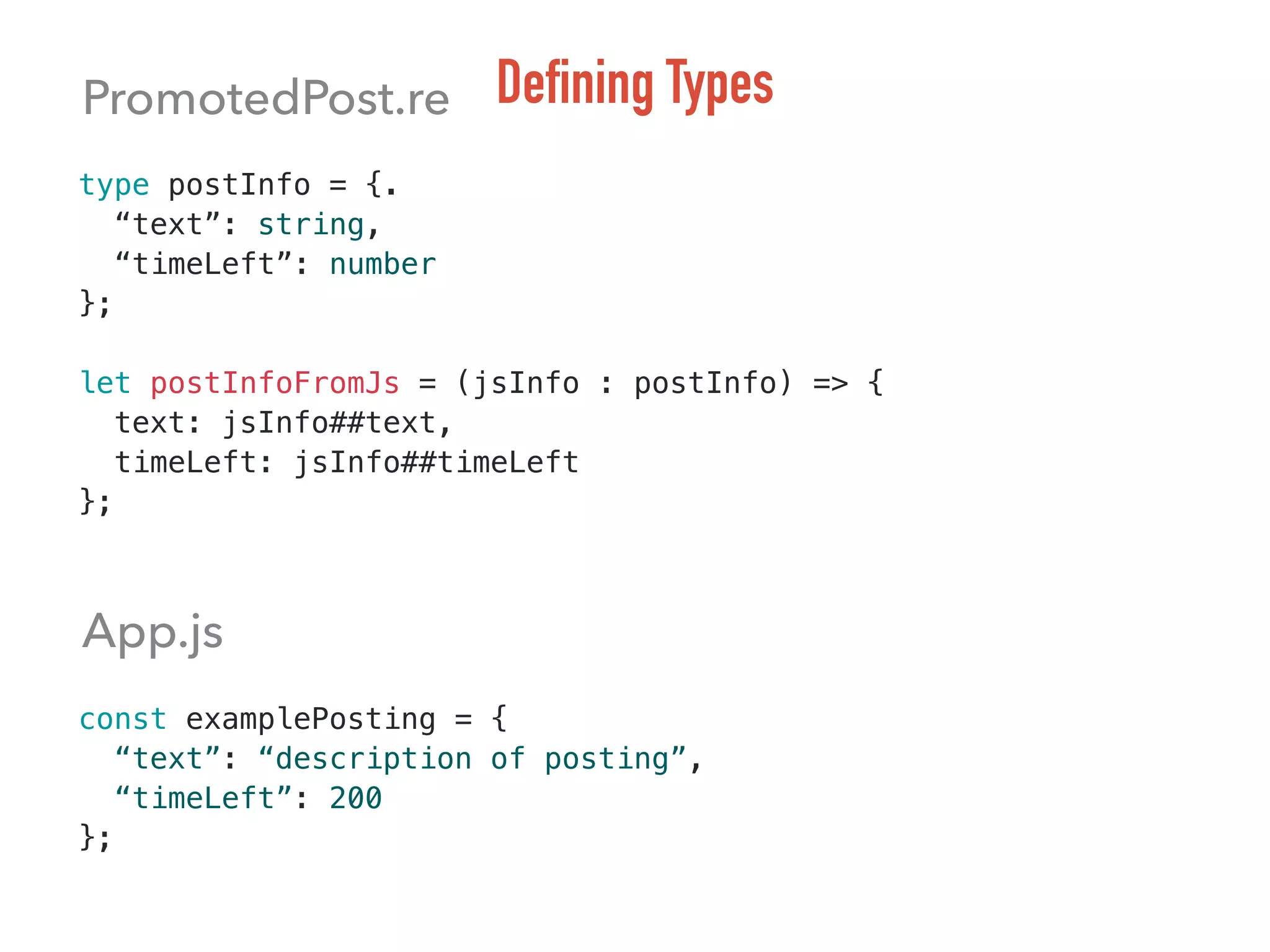

17. type postInfo = {.
“text”: string,
“timeLeft”: number
};
let postInfoFromJs = (jsInfo : postInfo) => {
text: jsInfo##text,
timeLeft: jsInfo##timeLeft
};
const examplePosting = {
“text”: “description of posting”,
“timeLeft”: 200
};
Defining TypesPromotedPost.re
App.js

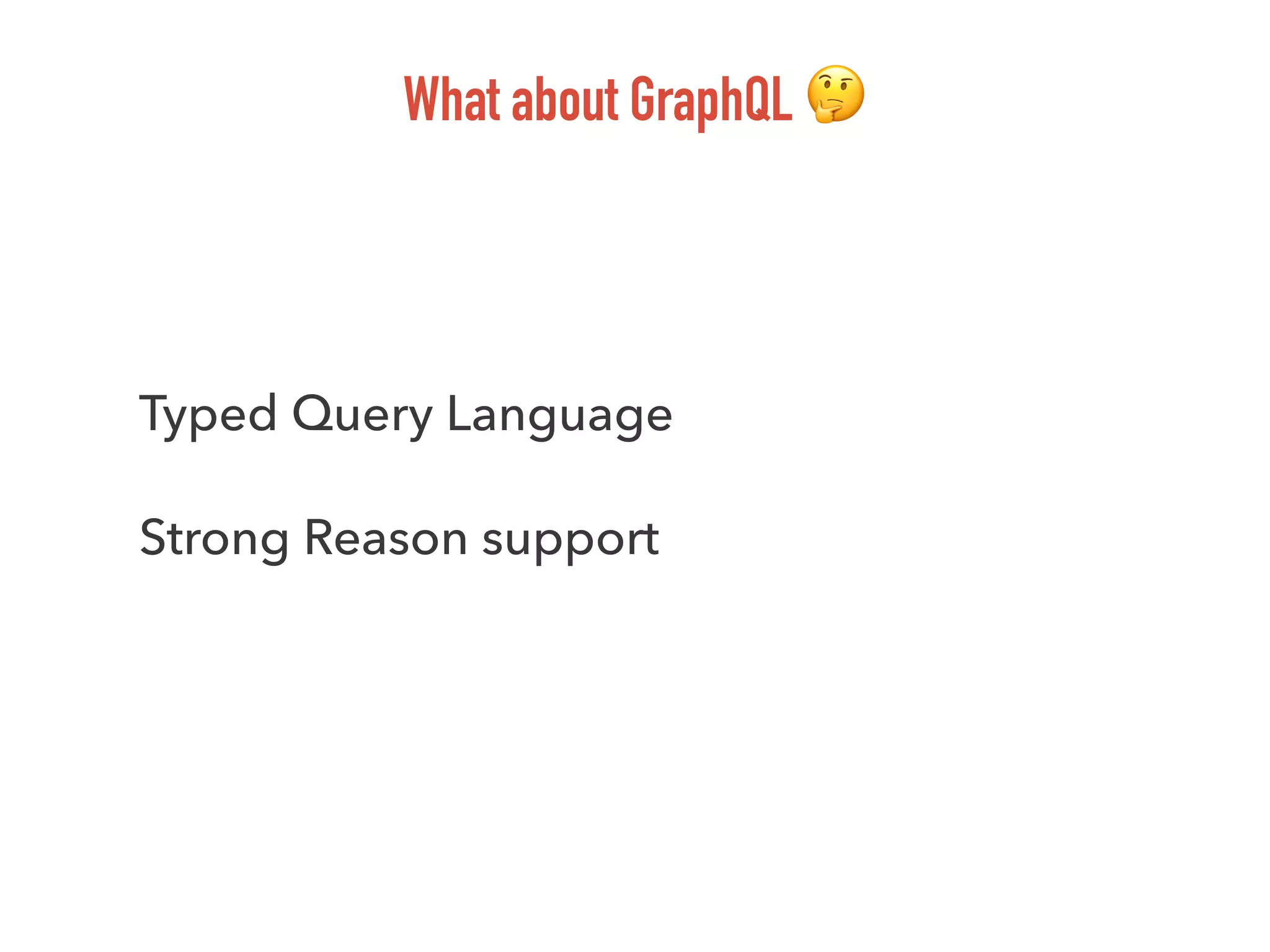

18. What about GraphQL 🤔
Typed Query Language
Strong Reason support

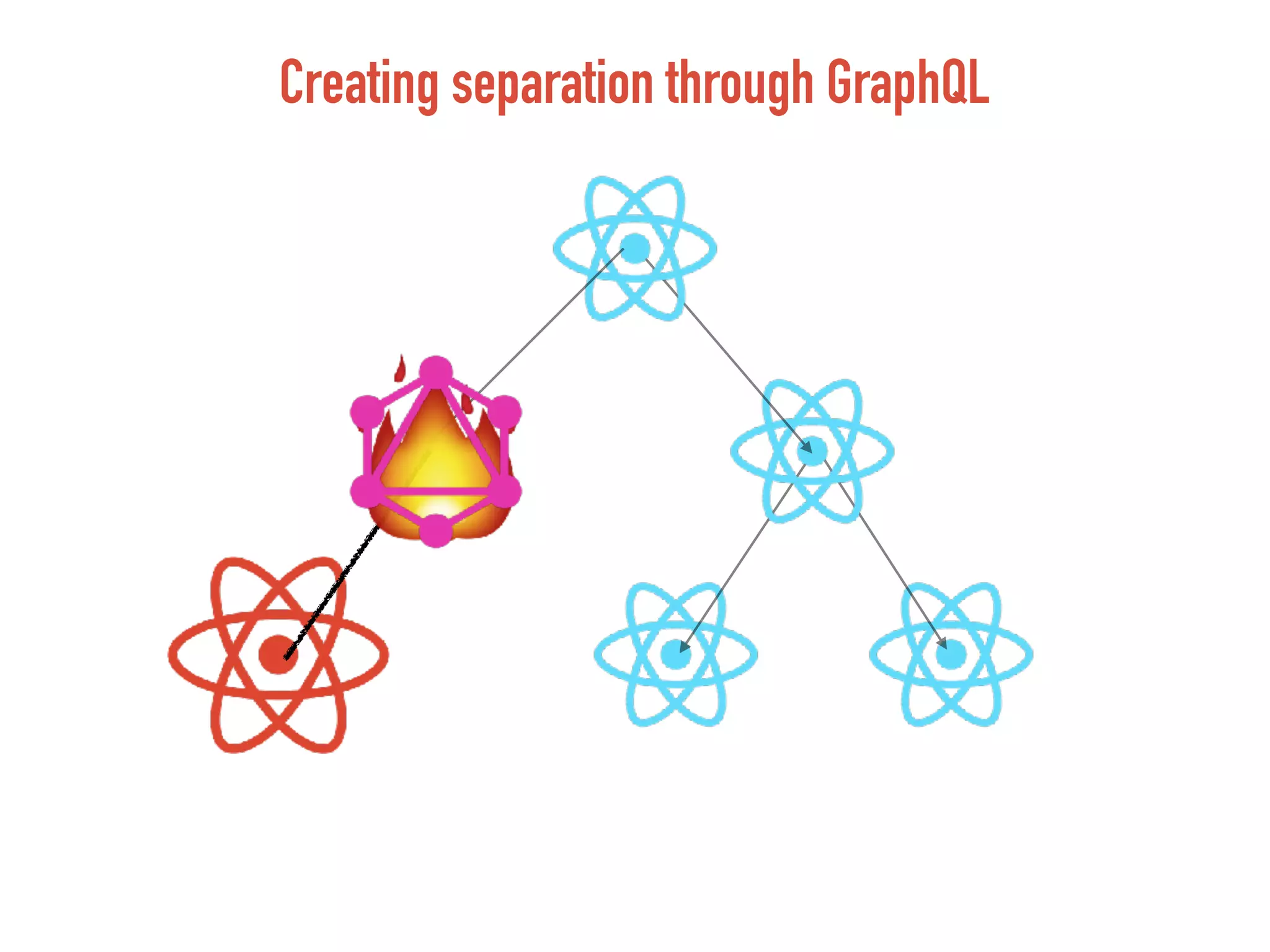

19. Creating separation through GraphQL

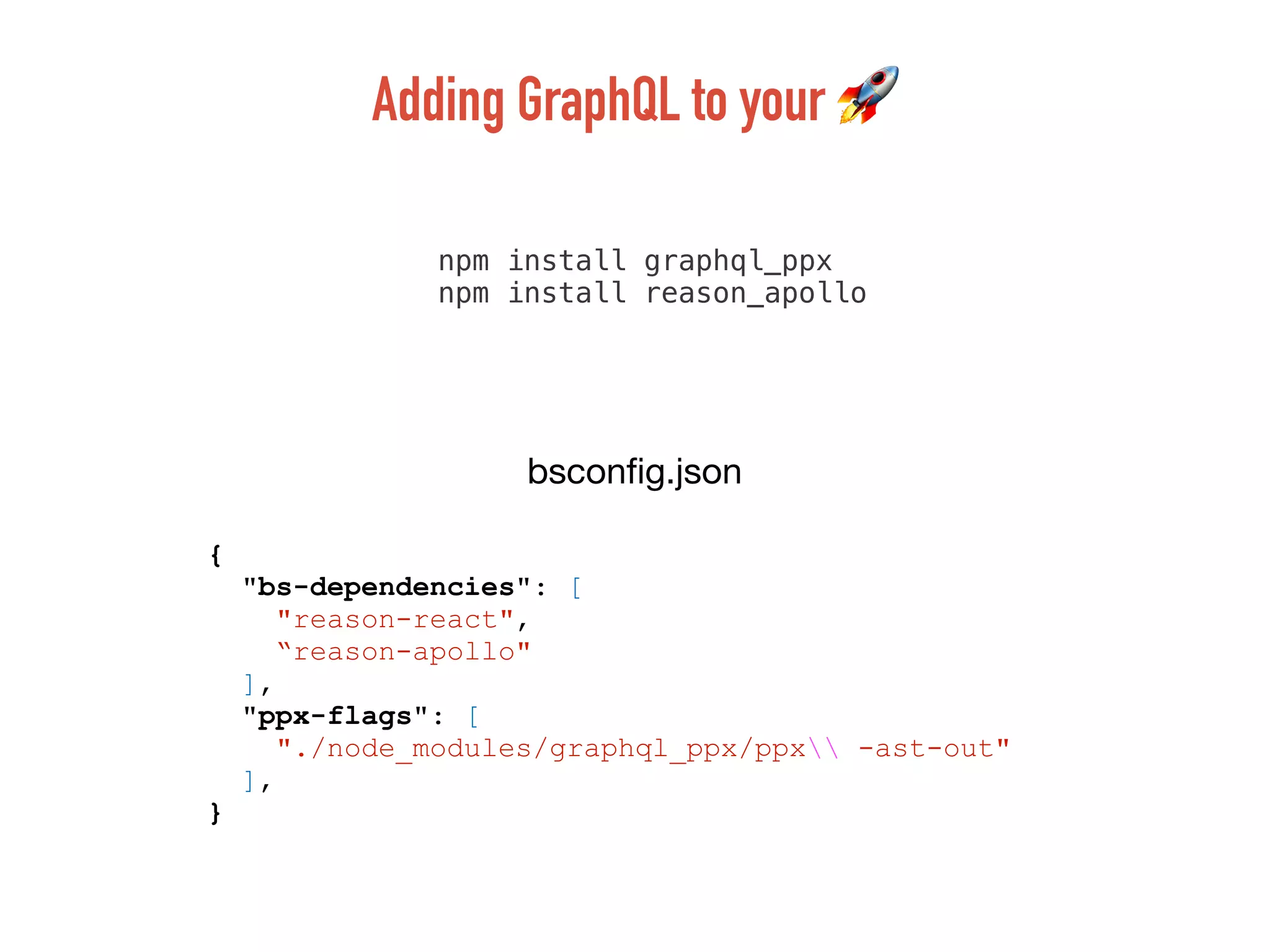

20. npm install graphql_ppx
npm install reason_apollo
{
"bs-dependencies": [
"reason-react",
“reason-apollo"
],
"ppx-flags": [
"./node_modules/graphql_ppx/ppx -ast-out"
],
}
bsconfig.json
Adding GraphQL to your 🚀

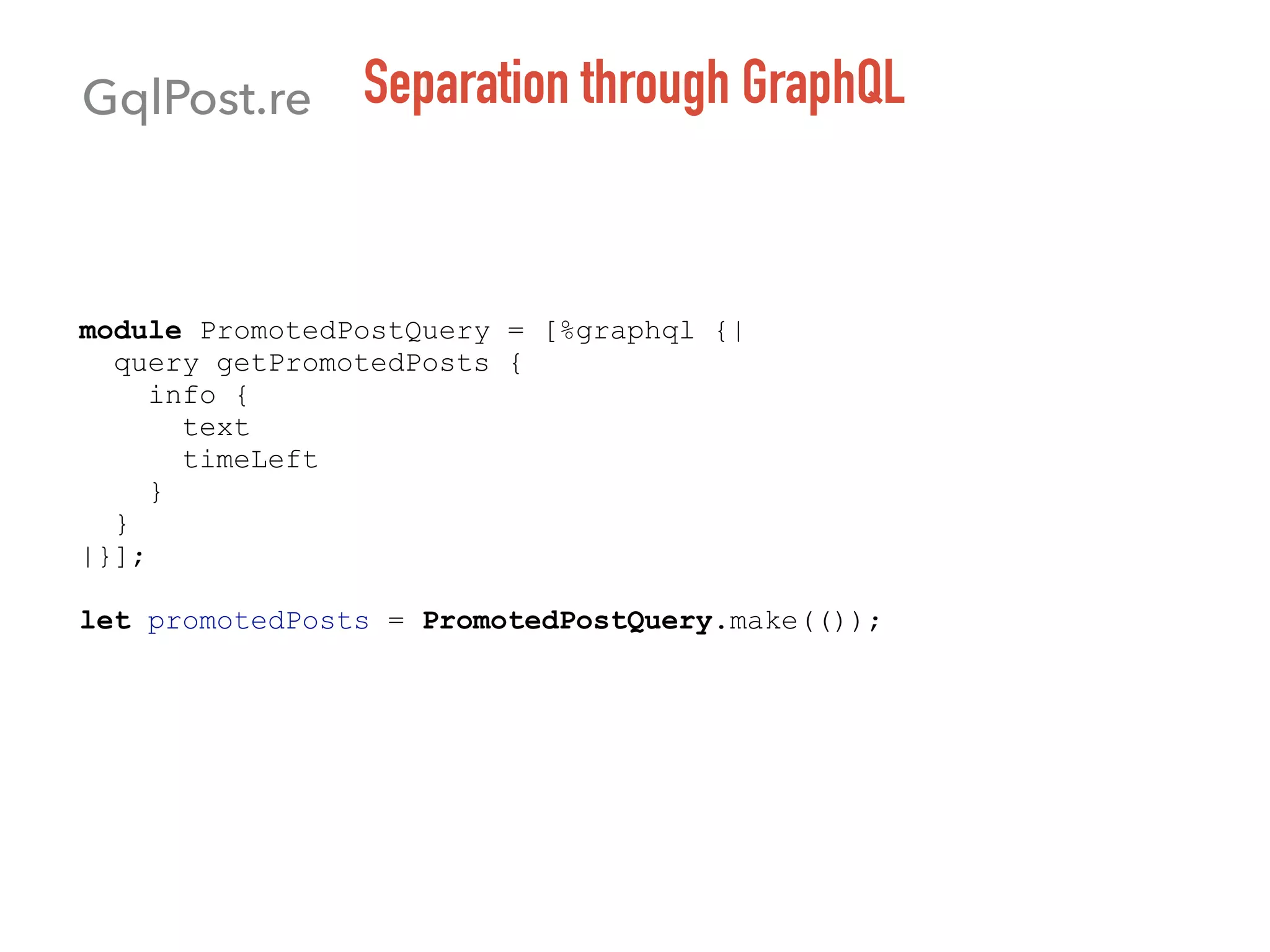

21. Separation through GraphQL
module PromotedPostQuery = [%graphql {|
query getPromotedPosts {
info {
text
timeLeft
}
}
|}];
let promotedPosts = PromotedPostQuery.make(());
GqlPost.re

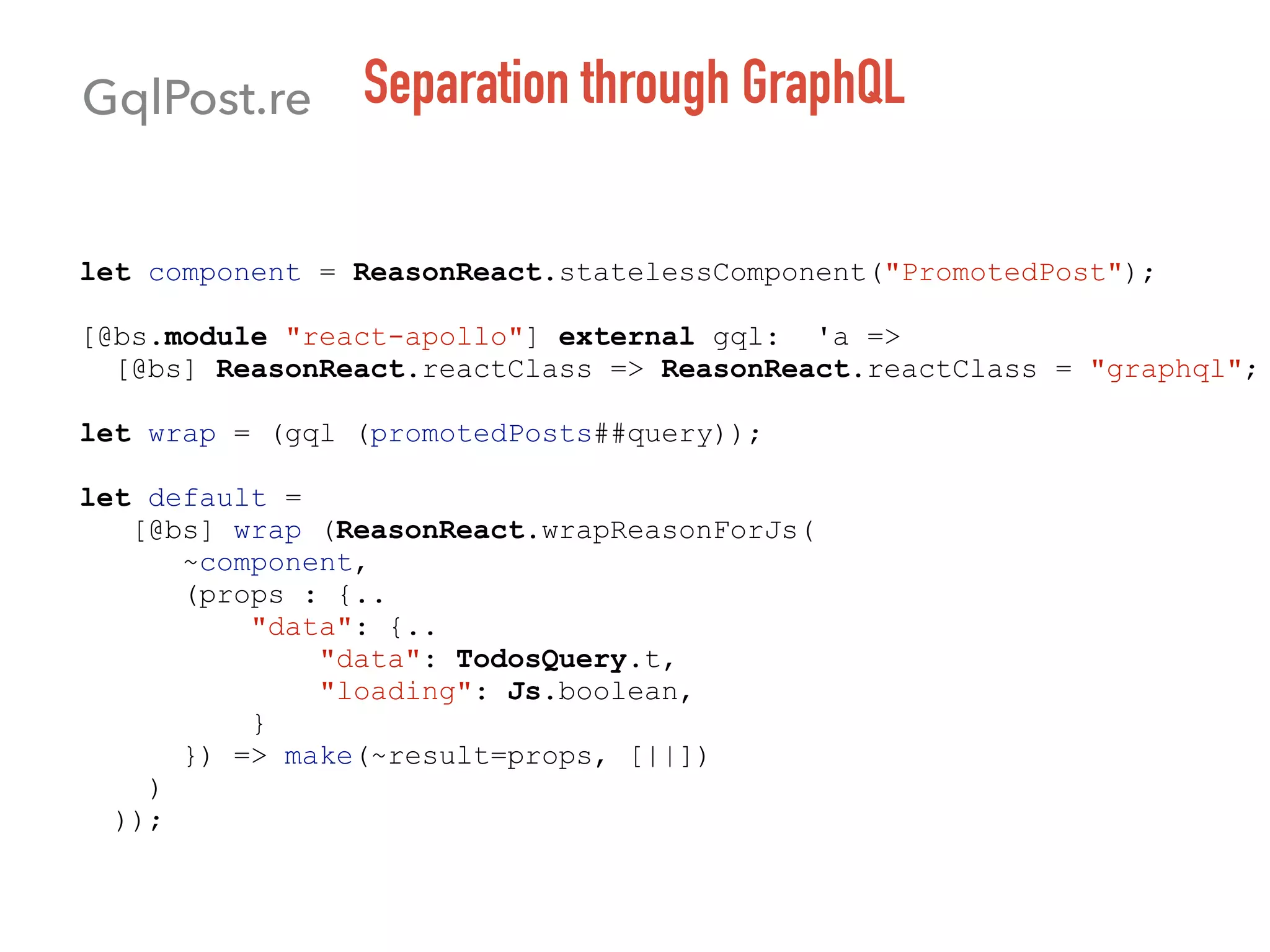

22. Separation through GraphQL
let component = ReasonReact.statelessComponent("PromotedPost");
[@bs.module "react-apollo"] external gql: 'a =>
[@bs] ReasonReact.reactClass => ReasonReact.reactClass = "graphql";
let wrap = (gql (promotedPosts##query));
let default =
[@bs] wrap (ReasonReact.wrapReasonForJs(
~component,
(props : {..
"data": {..
"data": TodosQuery.t,
"loading": Js.boolean,
}
}) => make(~result=props, [||])
)
));
GqlPost.re

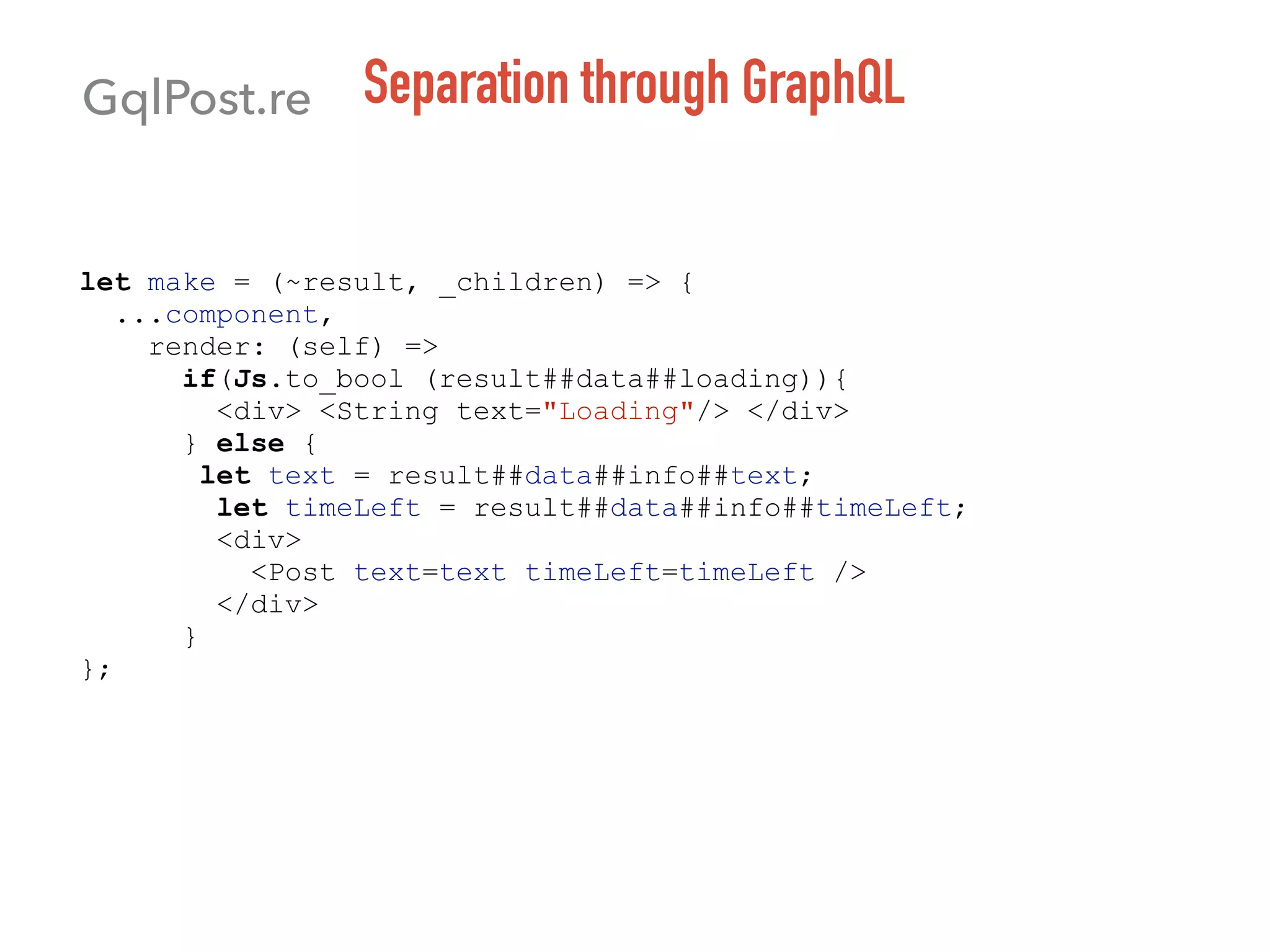

23. Separation through GraphQL
let make = (~result, _children) => {
...component,
render: (self) =>
if(Js.to_bool (result##data##loading)){
<div> <String text="Loading"/> </div>
} else {
let text = result##data##info##text;
let timeLeft = result##data##info##timeLeft;
<div>
<Post text=text timeLeft=timeLeft />
</div>
}
};
GqlPost.re

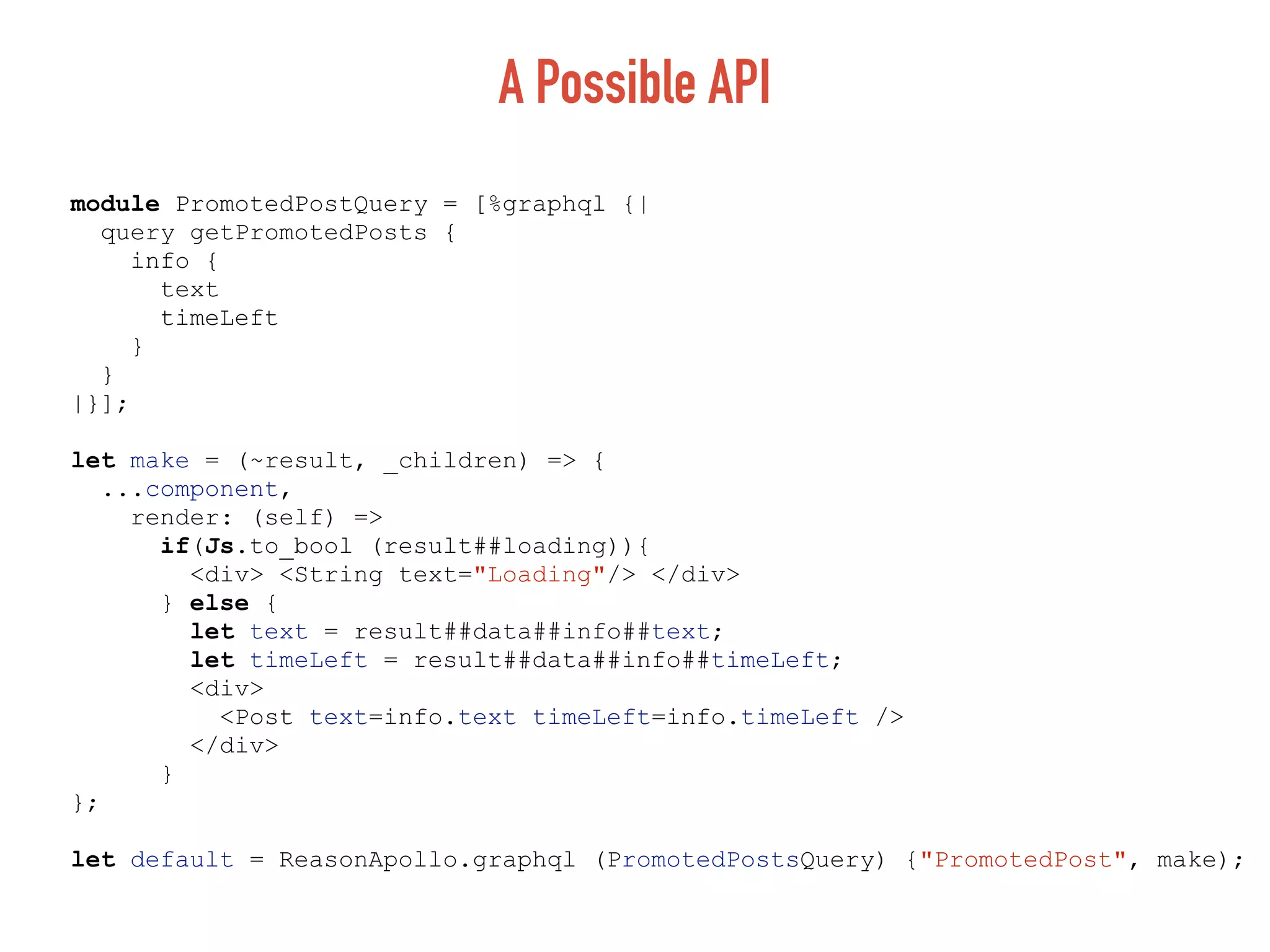

24. A Possible API
module PromotedPostQuery = [%graphql {|
query getPromotedPosts {
info {
text
timeLeft
}
}
|}];
let make = (~result, _children) => {
...component,
render: (self) =>
if(Js.to_bool (result##loading)){
<div> <String text="Loading"/> </div>
} else {
let text = result##data##info##text;
let timeLeft = result##data##info##timeLeft;
<div>
<Post text=info.text timeLeft=info.timeLeft />
</div>
}
};
let default = ReasonApollo.graphql (PromotedPostsQuery) {"PromotedPost", make);

25. Let’s collaborate!
Evans Hauser
@evanshauser
evans@apollograpql.com
• Next Steps:
• Ensure that your types work
across the client server
boundary
• Manage client-side state with
apollo-link-state
Huge thank you to Ben Souci for his
help putting together this talk!
