This is the first cut of a new talk I'm developing on implementing virtual machines in Ruby. In this instalment I cover the basic ideas behind interpreting a simple instruction set based on stacks, registers, and vectors. Many of the examples include simple assembler Another theme explored in the examples is that of sandboxing, protected operations, and primitive assembly/compilation. All of the code is written in Ruby and there are some interesting techniques used.

1. implementing
software machines
in
Ruby
Eleanor McHugh
@feyeleanor
http://github.com/feyeleanor
Rough
Cut

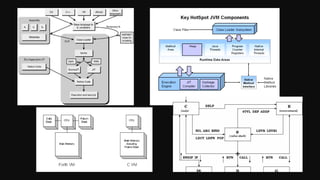

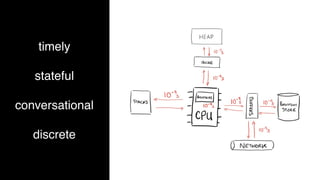

4. timely
stateful
conversational
discrete

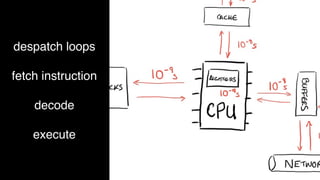

5. despatch loops
fetch instruction
decode

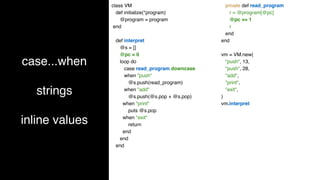

execute

6. case...when
strings
inline values
class VM
def initialize(*program)
@program = program
end
def interpret
@s = []
@pc = 0
loop do
case read_program.downcase
when "push"
@s.push(read_program)
when "add"
@s.push(@s.pop + @s.pop)
when "print"
puts @s.pop
when "exit"
return
end
end
end
private def read_program
r = @program[@pc]
@pc += 1
r
end
end
vm = VM.new(
"push", 13,
"push", 28,
"add",
"print",
"exit",
)
vm.interpret

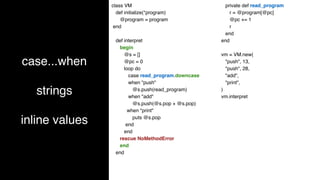

7. case...when
strings
inline values
class VM
def initialize(*program)
@program = program
end
def interpret
begin
@s = []
@pc = 0
loop do
case read_program.downcase
when "push"
@s.push(read_program)
when "add"
@s.push(@s.pop + @s.pop)
when "print"
puts @s.pop
end
end
rescue NoMethodError
end
end
private def read_program
r = @program[@pc]
@pc += 1
r
end
end
vm = VM.new(
"push", 13,
"push", 28,
"add",
"print",
)
vm.interpret

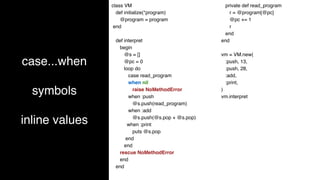

8. case...when
symbols
inline values
class VM
def initialize(*program)
@program = program
end
def interpret
begin
@s = []
@pc = 0
loop do
case read_program
when nil
raise NoMethodError
when :push
@s.push(read_program)
when :add
@s.push(@s.pop + @s.pop)
when :print
puts @s.pop
end
end
rescue NoMethodError
end
end
private def read_program
r = @program[@pc]
@pc += 1
r
end
end
vm = VM.new(
:push, 13,
:push, 28,
:add,
:print,
)
vm.interpret

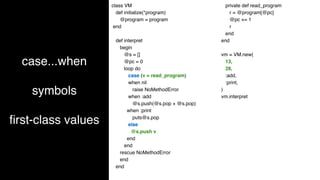

9. case...when
symbols
fi
rst-class values
class VM
def initialize(*program)
@program = program
end
def interpret
begin
@s = []
@pc = 0
loop do
case (v = read_program)
when nil
raise NoMethodError
when :add
@s.push(@s.pop + @s.pop)
when :print
puts@s.pop
else
@s.push v
end
end
rescue NoMethodError
end
end
private def read_program
r = @program[@pc]
@pc += 1
r
end
end
vm = VM.new(
13,
28,
:add,
:print,
)
vm.interpret

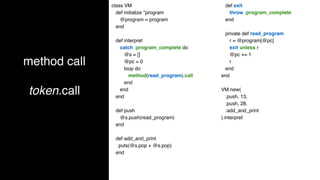

10. method call
token.call
class VM
def initialize *program
@program = program
end
def interpret
catch :program_complete do
@s = []
@pc = 0
loop do
method(read_program).call
end
end
end
def push
@s.push(read_program)
end
def add_and_print
puts(@s.pop + @s.pop)
end
def exit
throw :program_complete
end
private def read_program
r = @program[@pc]
exit unless r
@pc += 1
r
end
end
VM.new(
:push, 13,
:push, 28,
:add_and_print
).interpret

11. method call
token.call
class VM
def initialize *program
@program = program
end
def interpret
catch :program_complete do
@s = []
@pc = 0
loop do
self.public_send read_program
end
end
end
def push
@s.push(read_program)
end
def add_and_print
puts(@s.pop + @s.pop)
end
def exit
throw :program_complete
end
private def read_program
r = @program[@pc]
exit unless r
@pc += 1
r
end
end
VM.new(
:push, 13,
:push, 28,
:add_and_print
).interpret

12. method call
compile tokens
token.call
class VM
def initialize *program
@program = begin
compile program
rescue SecurityError
[]
end
end
def interpret
catch :program_complete do
@s = []
@pc = 0
loop do
read_program.call
end
end
end
# insert opcode methods here
def invalid
raise "!!! I'M NOT A VALID OP_CODE !!!"
end
def exit
throw :program_complete
end
private
def read_program
r = @program[@pc]
exit unless r
@pc += 1
r
end
def compile program
program.collect do |v|
raise SecurityError if v == :invalid
begin
self.respond_to?(v) ?
self.method(v) : v
rescue TypeError
v
end
end
end
end

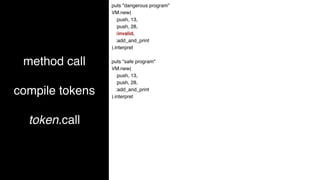

13. method call
compile tokens
token.call
puts "dangerous program"
VM.new(
:push, 13,
:push, 28,
:invalid,
:add_and_print
).interpret
puts "safe program"
VM.new(
:push, 13,
:push, 28,
:add_and_print
).interpret

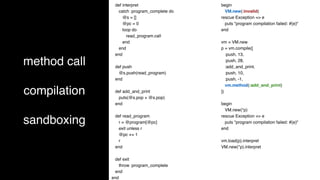

14. method call
compilation
sandboxing
class VM
BLACKLIST = [:load, :compile, :interpret, :invalid] + Object.methods
def initialize *program
load(program)
end
def load program
@program = compile(program)
self
end
def compile program
program.collect do |v|
case
when v.is_a?(Method)
raise "method injection of #{v.inspect} is not supported" if BLACKLIST.include?(v.name)
raise "unknown method #{v.inspect}" unless methods.include?(v.name)
v = v.unbind
v.bind(self)
when methods.include?(v)
raise "direct execution of #{v} is forbidden" if BLACKLIST.include?(v)
self.method(v)
else
v
end
end
end
def invalid; end

15. method call
compilation
sandboxing
def interpret
catch :program_complete do
@s = []
@pc = 0
loop do
read_program.call
end
end
end
def push
@s.push(read_program)
end
def add_and_print
puts(@s.pop + @s.pop)
end
def read_program
r = @program[@pc]
exit unless r
@pc += 1
r
end
def exit
throw :program_complete
end
end
begin
VM.new(:invalid)
rescue Exception => e
puts "program compilation failed: #{e}"
end
vm = VM.new
p = vm.compile([
:push, 13,
:push, 28,
:add_and_print,
:push, 10,
:push, -1,
vm.method(:add_and_print)
])
begin
VM.new(*p)
rescue Exception => e
puts "program compilation failed: #{e}"
end
vm.load(p).interpret
VM.new(*p).interpret

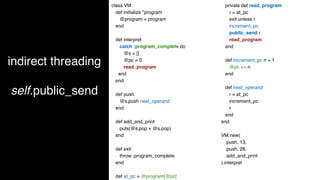

16. indirect threading
self.public_send
class VM
def initialize *program
@program = program
end
def interpret
catch :program_complete do
@s = []
@pc = 0
read_program
end
end
def push
@s.push next_operand
end
def add_and_print
puts(@s.pop + @s.pop)
end
def exit
throw :program_complete
end
def at_pc = @program[@pc]
private def read_program
r = at_pc
exit unless r
increment_pc
public_send r
read_program
end
def increment_pc n = 1
@pc += n
end
def next_operand
r = at_pc
increment_pc
r
end
end
VM.new(
:push, 13,
:push, 28,
:add_and_print
).interpret

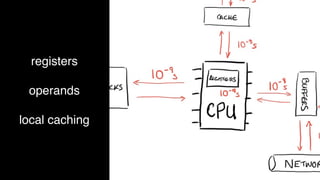

17. registers
operands
local caching

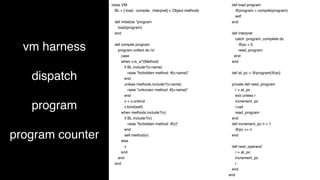

18. vm harness
dispatch
program
program counter
class VM
BL = [:load, :compile, :interpret] + Object.methods
def initialize *program
load(program)
end
def compile program
program.collect do |v|
case
when v.is_a?(Method)
if BL.include?(v.name)
raise "forbidden method: #{v.name}"
end
unless methods.include?(v.name)
raise "unknown method: #{v.name}"
end
v = v.unbind
v.bind(self)
when methods.include?(v)
if BL.include?(v)
raise "forbidden method: #{v}"
end
self.method(v)
else
v
end
end
end
def load program
@program = compile(program)
self
end
def interpret
catch :program_complete do
@pc = 0
read_program
end
end
def at_pc = @program[@pc]
private def read_program
r = at_pc
exit unless r
increment_pc
r.call
read_program
end
def increment_pc n = 1
@pc += n
end
def next_operand
r = at_pc
increment_pc
r
end
end

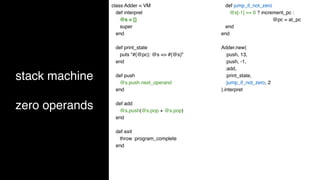

19. stack machine
zero operands
class Adder < VM
def interpret
@s = []
super
end
def print_state
puts "#{@pc}: @s => #{@s}"
end
def push
@s.push next_operand
end
def add
@s.push(@s.pop + @s.pop)
end
def exit
throw :program_complete
end
def jump_if_not_zero
@s[-1] == 0 ? increment_pc :
@pc = at_pc
end
end
Adder.new(
:push, 13,
:push, -1,
:add,
:print_state,
:jump_if_not_zero, 2
).interpret

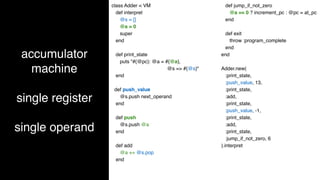

20. accumulator
machine
single register
single operand
class Adder < VM
def interpret
@s = []
@a = 0
super
end
def print_state
puts "#{@pc}: @a = #{@a},
@s => #{@s}"
end
def push_value
@s.push next_operand
end
def push
@s.push @a
end
def add
@a += @s.pop
end
def jump_if_not_zero
@a == 0 ? increment_pc : @pc = at_pc
end
def exit
throw :program_complete
end
end
Adder.new(
:print_state,
:push_value, 13,
:print_state,
:add,
:print_state,
:push_value, -1,
:print_state,
:add,
:print_state,
:jump_if_not_zero, 6
).interpret

21. register machine
multi-register
multi-operand
class Adder < VM
def interpret
@r = Array.new 2, 0
super
end
def load_value
@r[next_operand] = next_operand
end
def add
@r[next_operand] += @r[next_operand]
end
def jump_if_not_zero
r = at_pc
increment_pc
@r[next_operand] == 0 ?
increment_pc :
@pc = at_pc
end
def exit
throw :program_complete
end
def print_state
puts "#{@pc}: @r => #{@r}"
end
end
Adder.new(
:load_value, 0, 13,
:load_value, 1, -1,
:print_state,
:add, 0, 1,
:print_state,
:jump_if_not_zero, 0, 6,
:print_state
).interpret

22. register machine
multi-register
multi-operand
class Adder < VM
def interpret
@r = { a: 0, b: 0 }
super
end
def load_value
@r[next_operand] = next_operand
end
def add
@r[next_operand] += @r[next_operand]
end
def jump_if_not_zero
@r[next_operand] == 0 ?
increment_pc :
@pc = at_pc
end
def exit
throw :program_complete
end
def print_state
puts "#{@pc}: @r => #{@r}"
end
end
Adder.new(
:load_value, :a, 13,
:load_value, :b, -1,
:print_state,
:add, :a, :b,
:print_state,
:jump_if_not_zero, :a, 6,
:print_state
).interpret

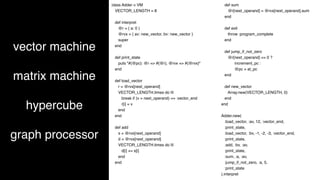

23. vector machine
matrix machine
hypercube
graph processor
class Adder < VM
VECTOR_LENGTH = 8
def interpret
@r = { a: 0 }
@rvx = { av: new_vector, bv: new_vector }
super
end
def print_state
puts "#{@pc}: @r => #{@r}, @rvx => #{@rvx}"
end
def load_vector
r = @rvx[next_operand]
VECTOR_LENGTH.times do |i|
break if (v = next_operand) == :vector_end
r[i] = v
end
end
def add
s = @rvx[next_operand]
d = @rvx[next_operand]
VECTOR_LENGTH.times do |i|
d[i] += s[i]
end
end
def sum
@r[next_operand] = @rvx[next_operand].sum
end
def exit
throw :program_complete
end
def jump_if_not_zero
@r[next_operand] == 0 ?
increment_pc :
@pc = at_pc
end
def new_vector
Array.new(VECTOR_LENGTH, 0)
end
end
Adder.new(
:load_vector, :av, 12, :vector_end,
:print_state,
:load_vector, :bv, -1, -2, -3, :vector_end,
:print_state,
:add, :bv, :av,
:print_state,
:sum, :a, :av,
:jump_if_not_zero, :a, 5,
:print_state
).interpret
