IMPAX_Virtual_Colonoscopy_(GB_-_datasheet)
IMPAX Virtual Colonoscopy 3.0 is an integrated software tool for virtual colonoscopy that provides automatic path-finding and fly-through capabilities for easy navigation of 3D colon images. It offers excellent visualization of endoscopic views and multi-planar reconstructions. The software segments the colon automatically and calculates a fly-through path within seconds. It allows marking and reporting of suspected lesions and generates structured reports that can be saved within the IMPAX system.
![C2C - the eHealth company [EN]](https://cdn.slidesharecdn.com/ss_thumbnails/c2c2015-p-150918090949-lva1-app6892-thumbnail.jpg?width=640&height=640&fit=bounds)
IMPAX_Virtual_Colonoscopy_(GB_-_datasheet)
- 1. IMPAX Virtual Colonoscopy3.0 IMPAX Virtual Colonoscopy Agfa HealthCare’s integrated tool for virtual colonoscopy ƒƒ Automatic path-finder and automatic fly- through for simple, user-friendly interaction ƒƒ Excellent image quality visualization of endoscopic views, multi-planar reconstructions and cross-curve MPR ƒƒ Tight integration with IMPAX for fast creation and distribution of reports Increased productivity CT colonography (CTC) is less time consuming than conventional colonoscopy. While conventional colonoscopy typically takes between 30 and 60 minutes, a CTC procedure takes only about 10 minutes. This results in better utilization of the imaging infrastructure and medical staff. IMPAX Virtual Colonoscopy is the natural extension to CTC. This advanced image processing tool shows the entire colon, regardless of any narrow or obstructed areas, which lowers the risk for complications like injury or perforation of the colon wall. Software that works for you Once you have started the IMPAX Virtual Colonoscopy application, the software will automatically segment the colon and calculate the fly-through path. This will only take a few seconds. Next, manually add or delete segments as required and you are ready to start reading. Depending on your preferences, you can look at prone or supine acquisitions or at both simultaneously. Manually turn the virtual camera around to inspect hidden areas or zoom in on details and mark, annotate and classify suspected lesions for reporting and further follow-up. Available reading views include a 3D endoscopic fly through mode, MPR reconstructions, cross-curve MPR, a view simulating double-contrast barium enema, and a 3D volume of interest.
- 2. IMPAX Virtual Colonoscopy3.0 2 Report your findings quickly IMPAX Virtual Colonoscopy is more than an advanced image processing tool. It also comes with a reporting module that helps you to collect your findings in a structured report, including C-RAD and E-RAD classification of the lesions and corresponding snapshots of the images. This report can be saved in IMPAX as a set of images or as a DICOM Structured Report. IMPORTANT NOTE: This product is not available for the USA or other markets which require FDA 510k. Features ƒƒ Automatic calculation of the colon centerline ƒƒ Interactive editing of incorrect or incomplete paths ƒƒ Automatic fly-through with color indication of navigation path ƒƒ Manual orientation of virtual camera in all directions ƒƒ Simultaneous display of prone and supine acquisitions during fly-through ƒƒ Real-time performance through hardware-accelerated image rendering ƒƒ C-RAD and E-RAD classification of polyps ƒƒ Create annotations and Regions of Interest ƒƒ Save images for further distribution/review within the PACS ƒƒ Report saved as DICOM Structured Report

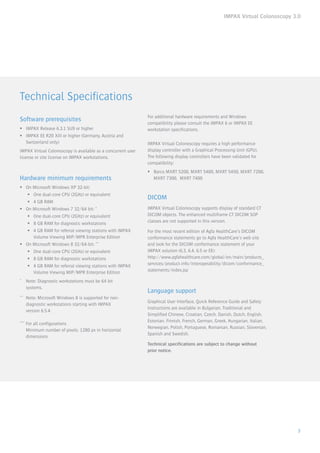

- 3. IMPAX Virtual Colonoscopy3.0 3 Technical Specifications Software prerequisites ƒƒ IMPAX Release 6.3.1 SU9 or higher ƒƒ IMPAX EE R20 XIII or higher (Germany, Austria and Switzerland only) IMPAX Virtual Colonoscopy is available as a concurrent user license or site license on IMPAX workstations. Hardware minimum requirements ƒƒ On Microsoft Windows XP 32-bit: ƒƒ One dual-core CPU (2GHz) or equivalent ƒƒ 4 GB RAM ƒƒ On Microsoft Windows 7 32/64 bit: * ƒƒ One dual-core CPU (2GHz) or equivalent ƒƒ 8 GB RAM for diagnostic workstations ƒƒ 4 GB RAM for referral viewing stations with IMPAX Volume Viewing MIP/MPR Enterprise Edition ƒƒ On Microsoft Windows 8 32/64-bit: ** ƒƒ One dual-core CPU (2GHz) or equivalent ƒƒ 8 GB RAM for diagnostic workstations ƒƒ 4 GB RAM for referral viewing stations with IMPAX Volume Viewing MIP/MPR Enterprise Edition * Note: Diagnostic workstations must be 64 bit systems. ** Note: Microsoft Windows 8 is supported for non- diagnostic workstations starting with IMPAX version 6.5.4. *** For all configurations Minimum number of pixels: 1280 px in horizontal dimensions For additional hardware requirements and Windows compatibility please consult the IMPAX 6 or IMPAX EE workstation specifications. IMPAX Virtual Colonoscopy requires a high performance display controller with a Graphical Processing Unit (GPU). The following display controllers have been validated for compatibility: ƒƒ Barco MXRT 5200, MXRT 5400, MXRT 5450, MXRT 7200, MXRT 7300, MXRT 7400 DICOM IMPAX Virtual Colonoscopy supports display of standard CT DICOM objects. The enhanced multiframe CT DICOM SOP classes are not supported in this version. For the most recent edition of Agfa HealthCare’s DICOM conformance statements go to Agfa HealthCare’s web site and look for the DICOM conformance statement of your IMPAX solution (6.3, 6.4, 6.5 or EE): http://www.agfahealthcare.com/global/en/main/products_ services/product-info/interoperability/dicom/conformance_ statements/index.jsp Language support Graphical User Interface, Quick Reference Guide and Safety Instructions are available in Bulgarian, Traditional and Simplified Chinese, Croatian, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Romanian, Russian, Slovenian, Spanish and Swedish. Technical specifications are subject to change without prior notice.
- 4. IMPAX Virtual Colonoscopy3.0 © 2013 Agfa HealthCare NV All rights reserved Published by Agfa HealthCare NV B-2640 Mortsel - Belgium NGMJD GB 00201405 Agfa and the Agfa rhombus are trademarks of Agfa-Gevaert N.V., Belgium, or its affiliates. IMPAX is a trademark of Agfa HealthCare NV, Belgium, or its affiliates. All other trademarks are held by their respective owners and are used in an editorial fashion with no intention of infringement. The data in this publication are for illustration purposes only and do not necessarily represent standards or specifications, which must be met by Agfa HealthCare. All information contained herein is intended for guidance purposes only, and characteristics of the products and services described in this publication can be changed at any time without notice. Products and services may not be available for your local area. Please contact your local sales representative for availability information. Agfa HealthCare diligently strives to provide as accurate information as possible, but shall not be responsible for any typographical error. Agfa HealthCare is a global leader in the fast growing market of integrated IT and imaging systems, offering healthcare facilities/hospitals a seamlessflowofinformationanda360°viewofpatientcare.Thecompany has a unique, holistic approach, enabling it to provide in-depth clinical know-how and fully integrated hospital-wide solutions. These specialized solutions ntegrate IT and imaging systems for Radiology, Cardiology, Mammography and Orthopaedics. Agfa HealthCare’s enterprise-wide IT platformintegratesalladministrativeandclinicaldatawithinahealthcare facility and is designed to match the unique needs of specific healthcare professionals. www.agfahealthcare.com Insight. Delivered.
