The Imenco LED 240 is a high output, multi-purpose LED light panel for use on ROVs or at inspection points. It uses LED arrays that provide over 12,000 lumens of light with a lifespan of 50,000 hours, much longer than traditional halogen or HID lights. The LED 240 can be delivered with different color temperatures and beam angles, and its light output is regulated from 0-100% through input voltage or a 0-10V DC signal.

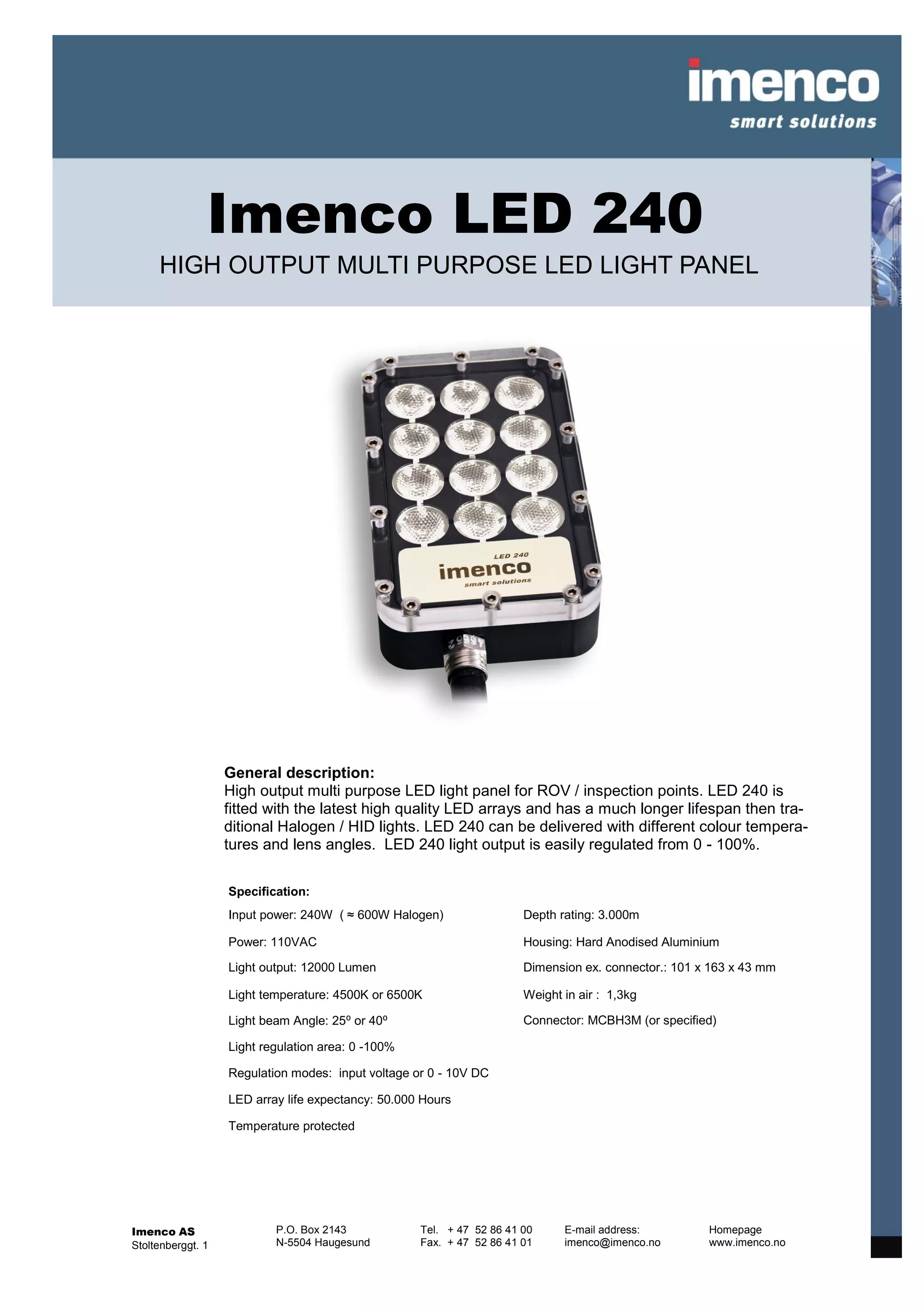

1. Imenco LED 240
HIGH OUTPUT MULTI PURPOSE LED LIGHT PANEL
General description:
High output multi purpose LED light panel for ROV / inspection points. LED 240 is
fitted with the latest high quality LED arrays and has a much longer lifespan then tra-
ditional Halogen / HID lights. LED 240 can be delivered with different colour tempera-
tures and lens angles. LED 240 light output is easily regulated from 0 - 100%.
Specification:
Input power: 240W ( ≈ 600W Halogen) Depth rating: 3.000m
Power: 110VAC Housing: Hard Anodised Aluminium
Light output: 12000 Lumen Dimension ex. connector.: 101 x 163 x 43 mm
Light temperature: 4500K or 6500K Weight in air : 1,3kg
Light beam Angle: 25⁰ or 40⁰ Connector: MCBH3M (or specified)
Light regulation area: 0 -100%
Regulation modes: input voltage or 0 - 10V DC
LED array life expectancy: 50.000 Hours
Temperature protected
