1. Datafari - Building an Open Source
Enterprise Search Solution from
Popular Building Blocks
CEDRIC ULMER
FRANCE LABS
II-SDV
25/04/17

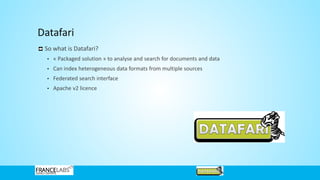

2. Datafari
So what is Datafari?
• « Packaged solution » to analyse and search for documents and data
• Can index heterogeneous data formats from multiple sources
• Federated search interface
• Apache v2 licence

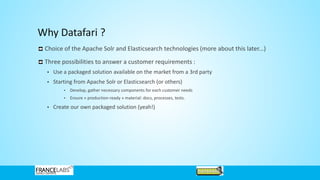

4. Why Datafari ?
Choice of the Apache Solr and Elasticsearch technologies (more about this later...)
Three possibilities to answer a customer requirements :
• Use a packaged solution available on the market from a 3rd party
• Starting from Apache Solr or Elasticsearch (or others)
• Develop, gather necessary components for each customer needs
• Ensure « production-ready » material: docs, processes, tests.
• Create our own packaged solution (yeah!)

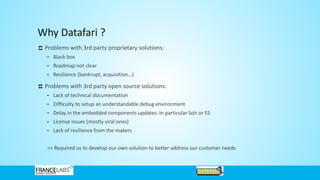

5. Why Datafari ?
Problems with 3rd party proprietary solutions:
• Black box
• Roadmap not clear
• Resilience (bankrupt, acquisition…)
Problems with 3rd party open source solutions:
• Lack of technical documentation
• Difficulty to setup an understandable debug environment
• Delay in the embedded components updates: In particular Solr or ES
• License issues (mostly viral ones)
• Lack of resilience from the makers
=> Required us to develop our own solution to better address our customer needs

6. Why Datafari
Idea:
• Gather the best of both worlds :
• The “packaged” aspect of existing solutions
• Many functionalities
• All in one
• The flexibility of a solution based on Solr and ES
• All of that with an Apache v2 licence ☺
• Focus on Enterprise Search:
• Admin for search experts
• Admin for search admin
• Eased AD/LDAP management
• Search and data analytics

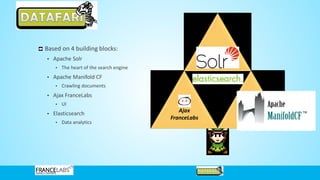

7. Based on 4 building blocks:
• Apache Solr
• The heart of the search engine
• Apache Manifold CF
• Crawling documents
• Ajax FranceLabs
• UI
• Elasticsearch
• Data analytics
Ajax
FranceLabs

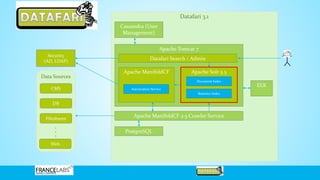

8. Datafari 3.1
Apache Tomcat 7
Data Sources
Datafari Search / Admin
Apache ManifoldCF
CMS
DB
Fileshares
Web
Security
(AD, LDAP)
PostgreSQL
Apache Solr 5.5
Document Index
Statistics Index
Apache ManifoldCF 2.5 Crawler Service
Autorization Service
ELK
Cassandra (User
Management)

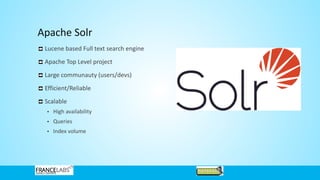

9. Apache Solr
Lucene based Full text search engine
Apache Top Level project
Large communauty (users/devs)
Efficient/Reliable
Scalable
• High availability
• Queries
• Index volume

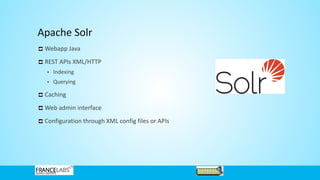

10. Apache Solr
Webapp Java
REST APIs XML/HTTP
• Indexing
• Querying
Caching
Web admin interface
Configuration through XML config files or APIs

11. Apache Lucene/Solr – Some refs

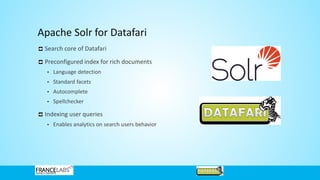

12. Apache Solr for Datafari
Search core of Datafari
Preconfigured index for rich documents
• Language detection
• Standard facets
• Autocomplete
• Spellchecker
Indexing user queries
• Enables analytics on search users behavior

13. Datafari 3.1
Apache Tomcat 7
Data Sources
Datafari Search / Admin
Apache ManifoldCF
CMS
DB
Fileshares
Web
Security
(AD, LDAP)
PostgreSQL
Apache Solr 5.5
Document Index
Statistics Index
Apache ManifoldCF 2.5 Crawler Service
Autorization Service
ELK
Cassandra (User
Management)

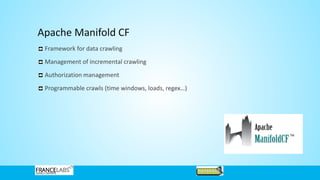

14. Apache Manifold CF
Framework for data crawling
Management of incremental crawling
Authorization management
Programmable crawls (time windows, loads, regex…)

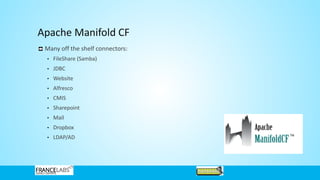

15. Apache Manifold CF
Many off the shelf connectors:
• FileShare (Samba)
• JDBC
• Website
• Alfresco
• CMIS
• Sharepoint
• Mail
• Dropbox
• LDAP/AD

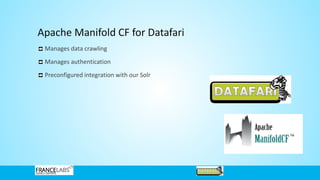

16. Apache Manifold CF for Datafari
Manages data crawling
Manages authentication
Preconfigured integration with our Solr

17. Datafari 3.1
Apache Tomcat 7
Data Sources
Datafari Search / Admin
Apache ManifoldCF
CMS
DB
Fileshares
Web
Security
(AD, LDAP)
PostgreSQL
Apache Solr 5.5
Document Index
Statistics Index
Apache ManifoldCF 2.5 Crawler Service
Autorization Service
ELK
Cassandra (User
Management)

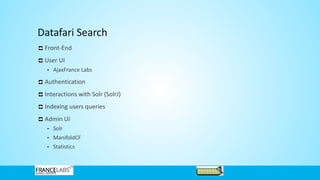

18. Datafari Search
Front-End
User UI
• AjaxFrance Labs
Authentication
Interactions with Solr (SolrJ)
Indexing users queries
Admin UI
• Solr
• ManifoldCF
• Statistics

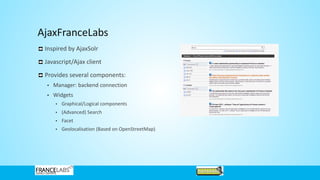

19. AjaxFranceLabs
Inspired by AjaxSolr
Javascript/Ajax client
Provides several components:
• Manager: backend connection
• Widgets
• Graphical/Logical components
• (Advanced) Search
• Facet
• Geolocalisation (Based on OpenStreetMap)

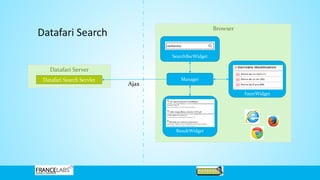

20. Browser
Datafari Server
Datafari Search
Manager
SearchBarWidget
ResultWidget
FacetWidget
Datafari Search Servlet
Ajax

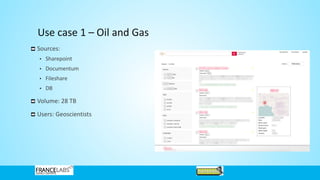

21. Use case 1 – Oil and Gas
Sources:
• Sharepoint
• Documentum
• Fileshare
• DB
Volume: 28 TB
Users: Geoscientists

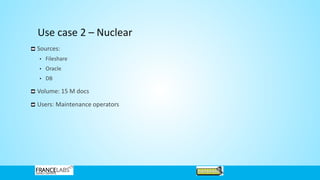

22. Use case 2 – Nuclear
Sources:
• Fileshare
• Oracle
• DB
Volume: 15 M docs
Users: Maintenance operators

23. Démo!!!

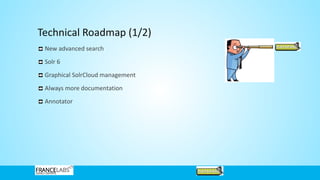

24. Technical Roadmap (1/2)
New advanced search
Solr 6
Graphical SolrCloud management
Always more documentation
Annotator

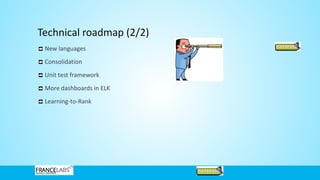

25. Technical roadmap (2/2)
New languages
Consolidation
Unit test framework
More dashboards in ELK
Learning-to-Rank

26. Where can I find Datafari
Main hub: http://www.datafari.com/en
Source code available on Github:
• https://code.google.com/p/datafari/
Install packages for Debian 7 and Windows available on:
• www.datafari.com
Forum:
• https://groups.google.com/forum/#!forum/datafari
Documentation on Confluence
• Technical and functional
Tickets and releases on Jira

27. Want to follow Datafari ?
@francelabs
#datafari
francelabs
francelabs

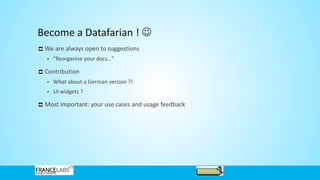

28. Become a Datafarian ! ☺
We are always open to suggestions
• “Reorganise your docs…”
Contribution
• What about a German version ?!
• UI widgets ?
Most important: your use cases and usage feedback
