1. HTML5 in Automotive
!
Alexandre Morgaut

2. Presentation
Alexandre Morgaut
W3C AC member
Wakanda Team
Community manager
Web Architect
JS, REST, NoSQL
@amorgaut
AMorgaut

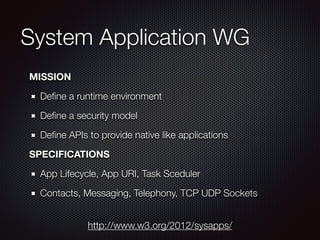

3. System Application WG
MISSION
Define a runtime environment
Define a security model
Define APIs to provide native like applications
SPECIFICATIONS
App Lifecycle, App URI, Task Sceduler
Contacts, Messaging, Telephony, TCP UDP Sockets
http://www.w3.org/2012/sysapps/

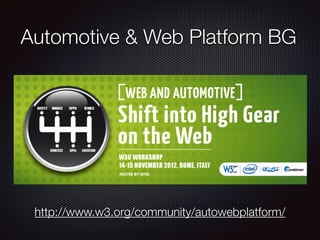

4. Automotive & Web Platform BG
http://www.w3.org/community/autowebplatform/

11. Members
Intel
QNX
Verisign
Opera
Nokia
Blackberry
Vodaphone
Sharp
Porsche
Hyundai
Volkswagen
Ford*
Continental Automotive*
KKDI
LG Electronics
...

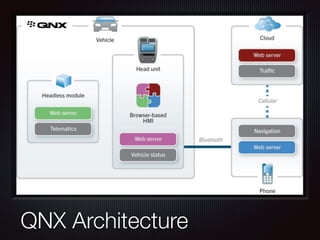

12. QNX Architecture

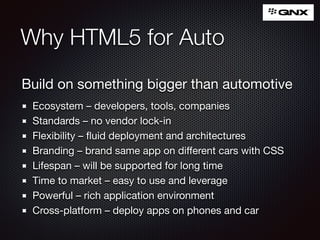

13. Why HTML5 for Auto
Build on something bigger than automotive
Ecosystem – developers, tools, companies
Standards – no vendor lock-in
Flexibility – fluid deployment and architectures
Branding – brand same app on different cars with CSS
Lifespan – will be supported for long time
Time to market – easy to use and leverage
Powerful – rich application environment
Cross-platform – deploy apps on phones and car

14. Other Solutions
Android
Compatibility limited to Android devices
Android not yet automotive grade
!
MirrorLink
Responsiveness lacking today
Solves phone to car problem, nothing else

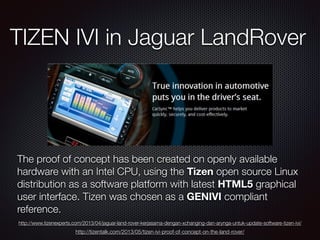

15. TIZEN IVI in Jaguar LandRover
The proof of concept has been created on openly available
hardware with an Intel CPU, using the Tizen open source Linux
distribution as a software platform with latest HTML5 graphical
user interface. Tizen was chosen as a GENIVI compliant
reference.
http://www.tizenexperts.com/2013/04/jaguar-land-rover-kerjasama-dengan-xchanging-dan-arynga-untuk-update-software-tizen-ivi/
http://tizentalk.com/2013/05/tizen-ivi-proof-of-concept-on-the-land-rover/

16. JavaScript API

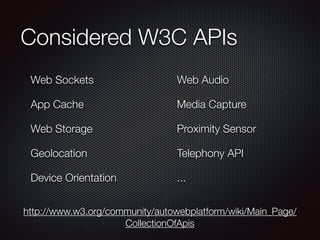

17. Considered W3C APIs
Web Sockets
App Cache
Web Storage
Geolocation
Device Orientation
Web Audio
Media Capture
Proximity Sensor
Telephony API
...
http://www.w3.org/community/autowebplatform/wiki/Main_Page/
CollectionOfApis

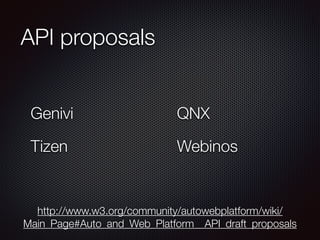

18. API proposals
Genivi
Tizen
QNX
Webinos
http://www.w3.org/community/autowebplatform/wiki/
Main_Page#Auto_and_Web_Platform__API_draft_proposals

19. Genevi/LGE code example
// Define constants for transmissionGearType
var TRANSMISSIONGEARTYPE_AUTO = 1;
var TRANSMISSIONGEARTYPE_MANUAL = 2;
// Get a transmission gear type from VehicleInfoEvent
vehicle.get("vehicleinfo_transmissiongeartype", handleVehicleData, handleError)
!
function handleVehicleData(data) {
if (data.transmissionGearType == TRANSMISSIONGEARTYPE_AUTO) {
console.log("Automatic transmission equipped");
}
else if (data.transmissionGearType == TRANSMISSIONGEARTYPE_MANUAL) {
console.log("Manual transmission equipped");
}
}

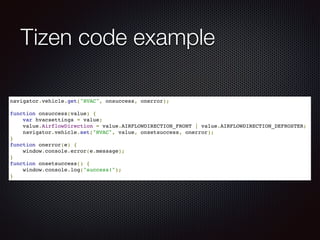

20. Tizen code example
navigator.vehicle.get("HVAC", onsuccess, onerror);!
!
function onsuccess(value) {!
var hvacsettings = value;!
value.AirflowDirection = value.AIRFLOWDIRECTION_FRONT | value.AIRFLOWDIRECTION_DEFROSTER;!
navigator.vehicle.set("HVAC", value, onsetsuccess, onerror);!
}!
function onerror(e) {!
window.console.error(e.message);!
}!
function onsetsuccess() {!
window.console.log("success!");!
}

21. QNX code example
//define a callback function
function myCallback(audioMixerItems) {
//iterate through the changed items
for (var i = 0; i < audioMixerItems.length; i++) {
console.log(
//a car.audiomixer.AudioMixerSetting value
"audio mixer item setting = " + audioMixerItems[i].setting + 'n' +
//a car.Zone value
"audio mixer item zone = " + audioMixerItems[i].zone + 'n' +
//a numeric value
"audio mixer item value = " + audioMixerItems[i].value + 'nn'
);
}
}
!
var watchId = car.audiomixer.watchAudioMixer(myCallback);

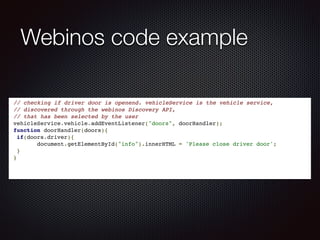

22. Webinos code example
// checking if driver door is openend. vehicleService is the vehicle service,!
// discovered through the webinos Discovery API, !
// that has been selected by the user !
vehicleService.vehicle.addEventListener("doors", doorHandler);!
function doorHandler(doors){!
if(doors.driver){!
document.getElementById("info").innerHTML = 'Please close driver door';!
} !
} !

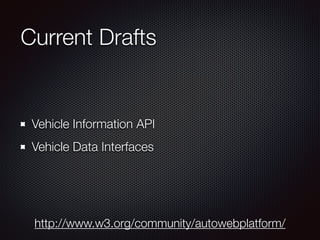

23. Current Drafts
Vehicle Information API
Vehicle Data Interfaces
http://www.w3.org/community/autowebplatform/

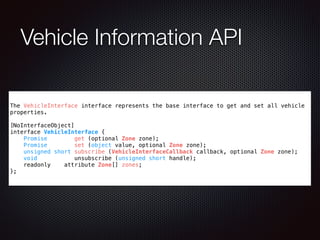

24. Vehicle Information API
The VehicleInterface interface represents the base interface to get and set all vehicle
properties.
!
[NoInterfaceObject]
interface VehicleInterface {
Promise get (optional Zone zone);
Promise set (object value, optional Zone zone);
unsigned short subscribe (VehicleInterfaceCallback callback, optional Zone zone);
void unsubscribe (unsigned short handle);
readonly attribute Zone[] zones;
};

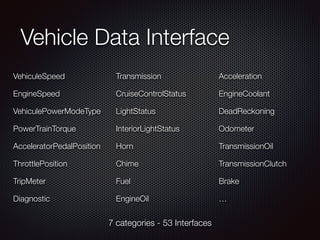

25. Vehicle Data Interface
VehiculeSpeed
EngineSpeed
VehiculePowerModeType
PowerTrainTorque
AcceleratorPedalPosition
ThrottlePosition
TripMeter
Diagnostic
Transmission
CruiseControlStatus
LightStatus
InteriorLightStatus
Horn
Chime
Fuel
EngineOil
Acceleration
EngineCoolant
DeadReckoning
Odometer
TransmissionOil
TransmissionClutch
Brake
…
7 categories - 53 Interfaces

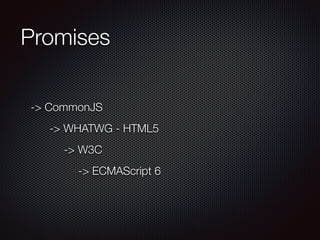

26. Promises
-> CommonJS
-> WHATWG - HTML5
-> W3C
-> ECMAScript 6

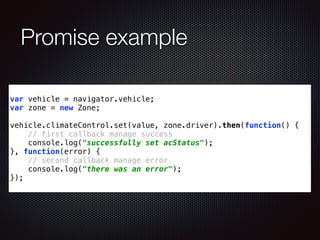

27. Promise example
var vehicle = navigator.vehicle;
var zone = new Zone;
!
vehicle.climateControl.set(value, zone.driver).then(function() {
// first callback manage success
console.log("successfully set acStatus");
}, function(error) {
// second callback manage error
console.log("there was an error");
});

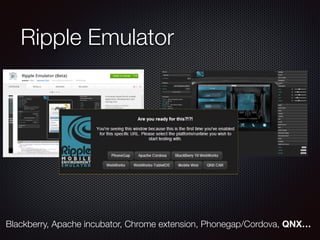

28. Ripple Emulator
Blackberry, Apache incubator, Chrome extension, Phonegap/Cordova, QNX…

29. Thanks
http://www.w3.org/community/autowebplatform/
@amorgaut http://about.me/amorgaut
