This document provides instructions for using the MST-3000 motorcycle diagnostic scanner from Zeus Tech Co. It includes: 1. An overview of the scanner's features and accessories. 2. Directions for connecting the scanner to a motorcycle and navigating its diagnostic functions, which allow users to view ECU data, current data, freeze frame data, fault codes, and test actuators. 3. Explanations of how to set up the scanner's system settings and view version information. 4. A section about upgrading the scanner's software offline using a SD card.

1. 1
ZEUS TECH CO.LTD, SHEN ZHEN, CHINA
MST-3000
Motorcycle Diagnostic
Instruction

2. 2
ZEUS TECH CO.LTD, SHEN ZHEN, CHINA
Part 1 Scanner Introduction & Attentions

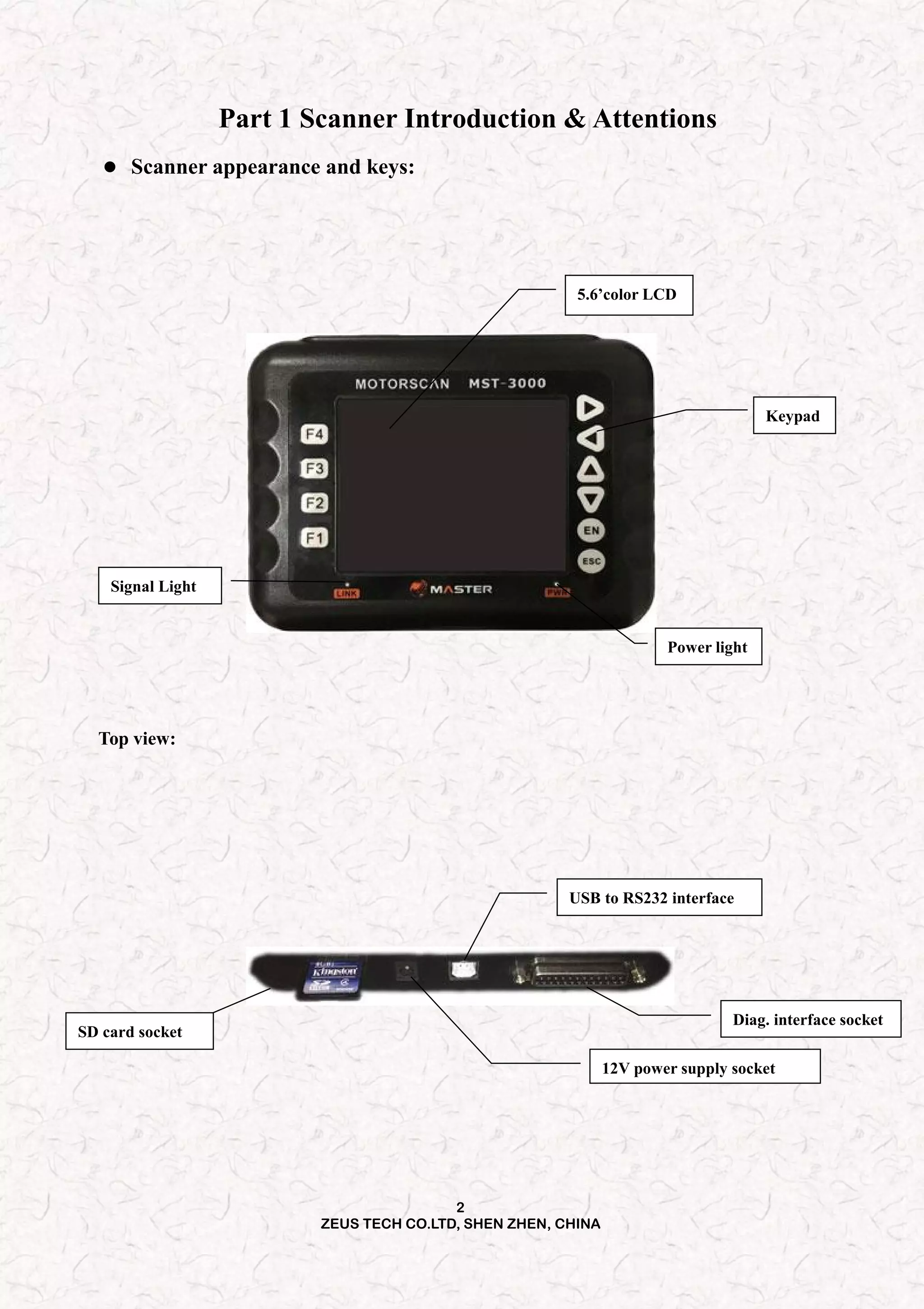

 Scanner appearance and keys:
Signal Light
5.6’color LCD
Keypad
Power light
Top view:
SD card socket
12V power supply socket
Diag. interface socket
USB to RS232 interface

3. 3
ZEUS TECH CO.LTD, SHEN ZHEN, CHINA

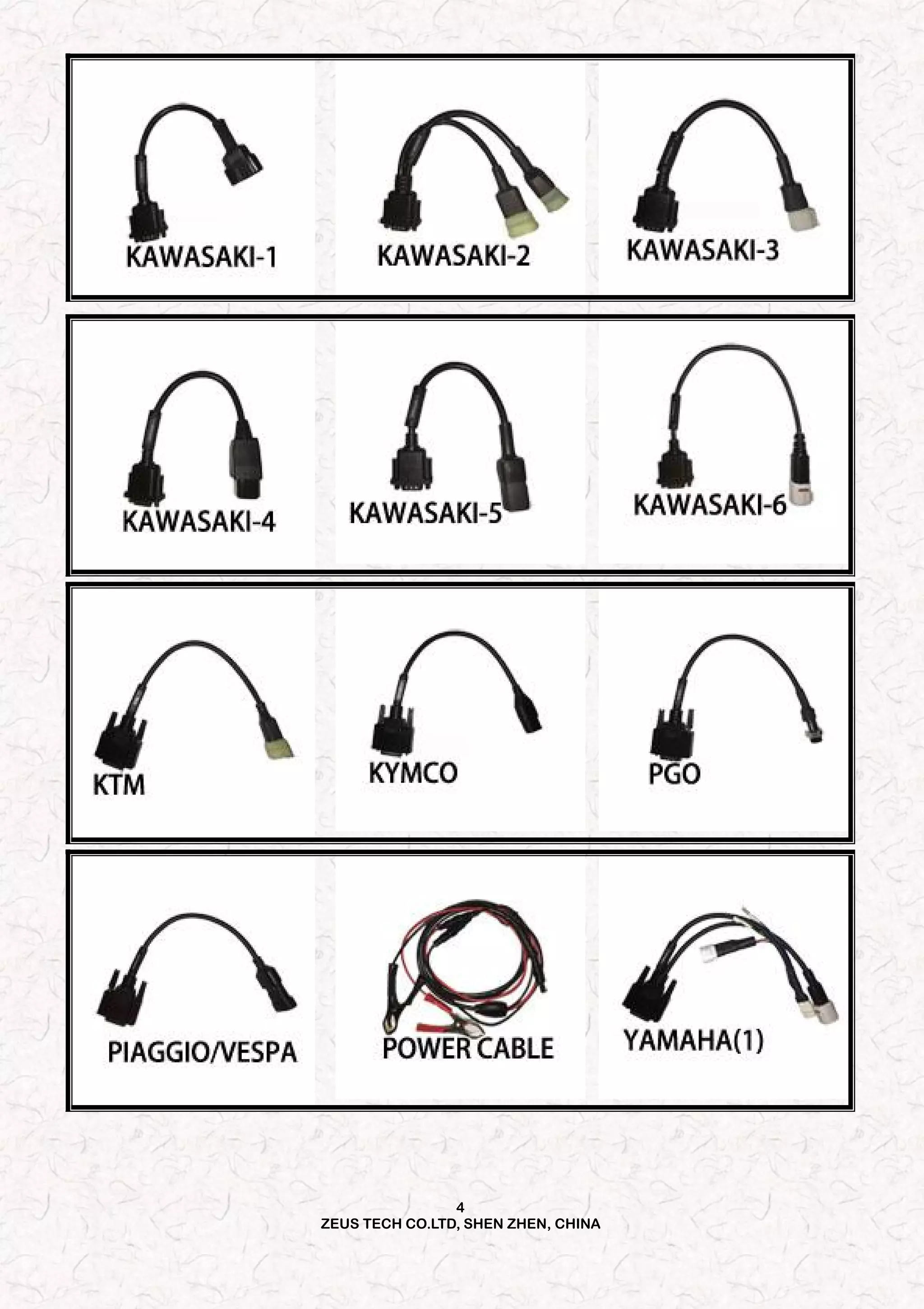

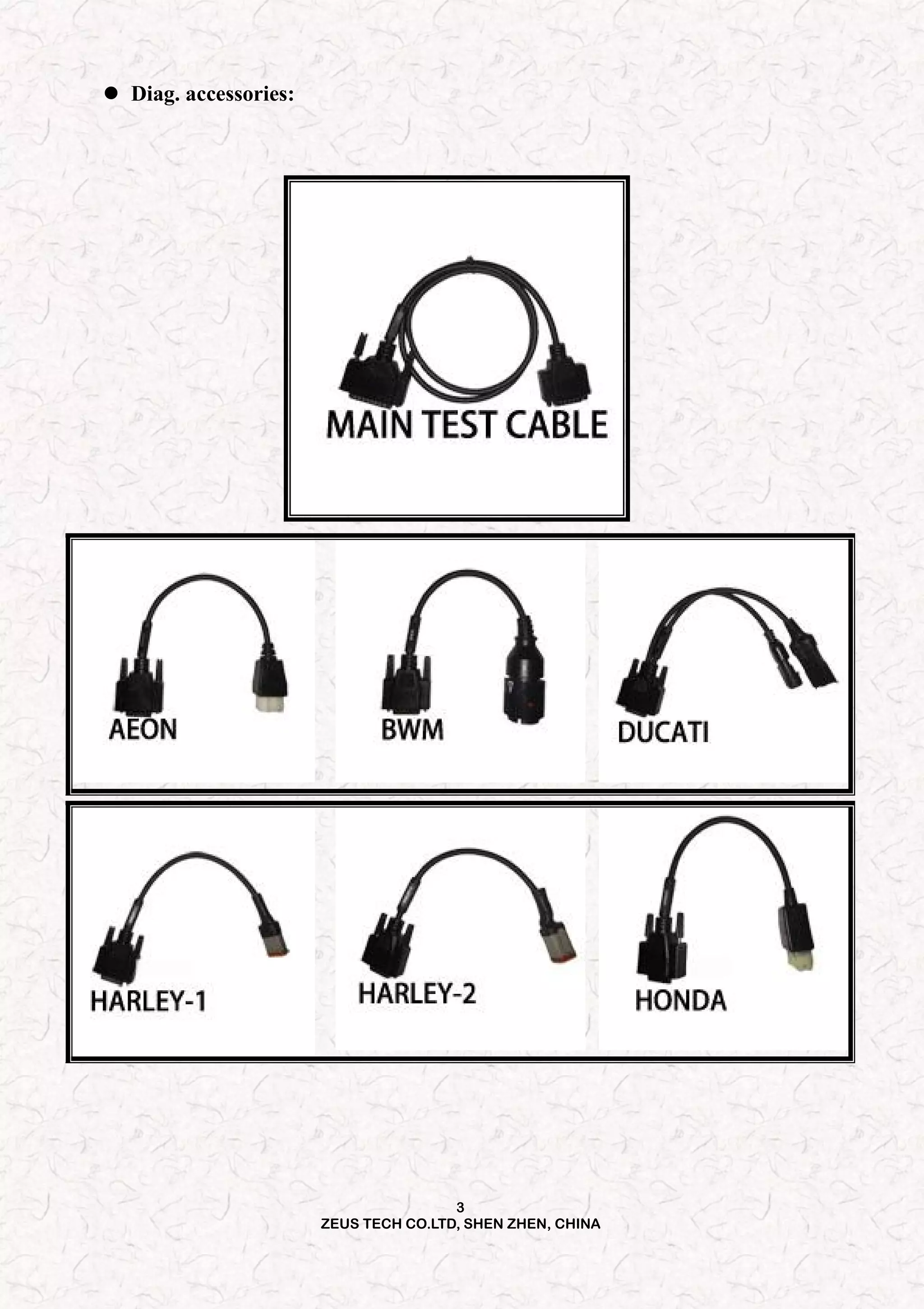

 Diag. accessories:

4. 4
ZEUS TECH CO.LTD, SHEN ZHEN, CHINA

5. 5
ZEUS TECH CO.LTD, SHEN ZHEN, CHINA

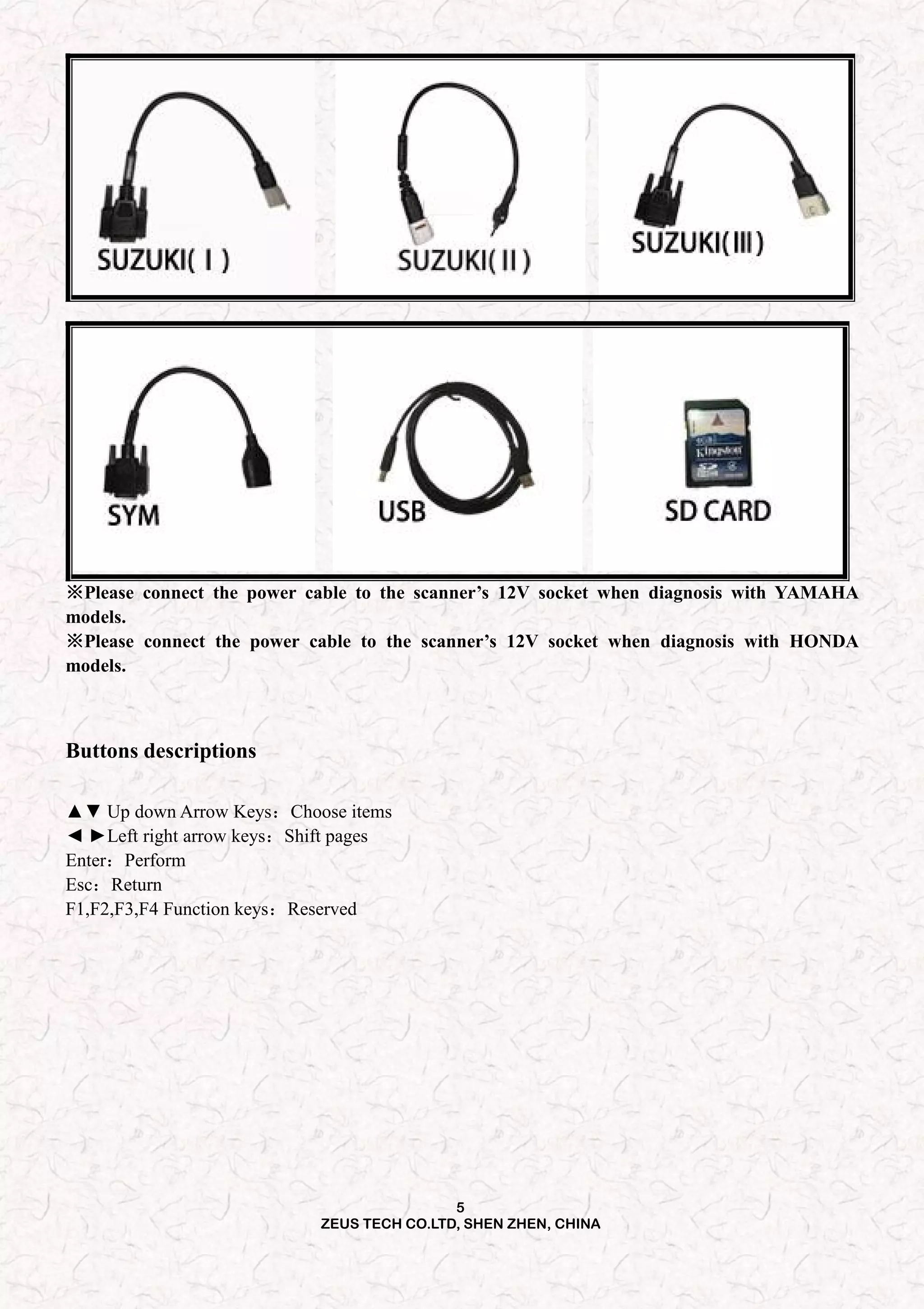

※Please connect the power cable to the scanner’s 12V socket when diagnosis with YAMAHA
models.
※Please connect the power cable to the scanner’s 12V socket when diagnosis with HONDA
models.
Buttons descriptions
▲▼ Up down Arrow Keys：Choose items
◄ ►Left right arrow keys：Shift pages
Enter：Perform
Esc：Return
F1,F2,F3,F4 Function keys：Reserved

6. 6
ZEUS TECH CO.LTD, SHEN ZHEN, CHINA

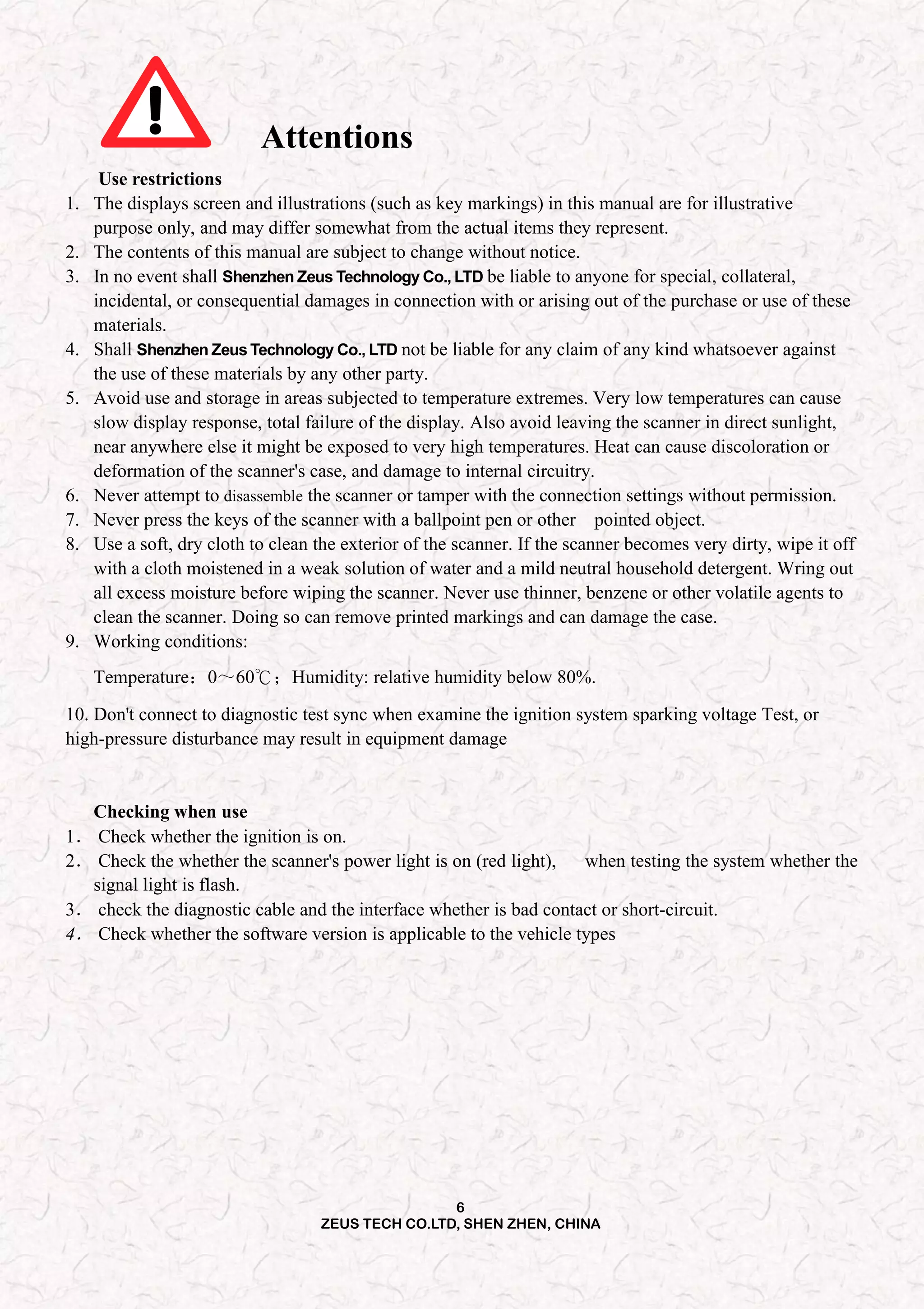

Attentions
Use restrictions
1. The displays screen and illustrations (such as key markings) in this manual are for illustrative
purpose only, and may differ somewhat from the actual items they represent.
2. The contents of this manual are subject to change without notice.
3. In no event shall Shenzhen Zeus Technology Co., LTD be liable to anyone for special, collateral,
incidental, or consequential damages in connection with or arising out of the purchase or use of these
materials.
4. Shall Shenzhen Zeus Technology Co., LTD not be liable for any claim of any kind whatsoever against
the use of these materials by any other party.
5. Avoid use and storage in areas subjected to temperature extremes. Very low temperatures can cause
slow display response, total failure of the display. Also avoid leaving the scanner in direct sunlight,
near anywhere else it might be exposed to very high temperatures. Heat can cause discoloration or
deformation of the scanner's case, and damage to internal circuitry.
6. Never attempt to disassemble the scanner or tamper with the connection settings without permission.
7. Never press the keys of the scanner with a ballpoint pen or other pointed object.
8. Use a soft, dry cloth to clean the exterior of the scanner. If the scanner becomes very dirty, wipe it off
with a cloth moistened in a weak solution of water and a mild neutral household detergent. Wring out
all excess moisture before wiping the scanner. Never use thinner, benzene or other volatile agents to
clean the scanner. Doing so can remove printed markings and can damage the case.
9. Working conditions:
Temperature：0～60℃；Humidity: relative humidity below 80%.
10. Don't connect to diagnostic test sync when examine the ignition system sparking voltage Test, or
high-pressure disturbance may result in equipment damage
Checking when use
1． Check whether the ignition is on.
2． Check the whether the scanner's power light is on (red light), when testing the system whether the
signal light is flash.
3． check the diagnostic cable and the interface whether is bad contact or short-circuit.
4． Check whether the software version is applicable to the vehicle types

7. 7
ZEUS TECH CO.LTD, SHEN ZHEN, CHINA
Part 2 Connection Specifications

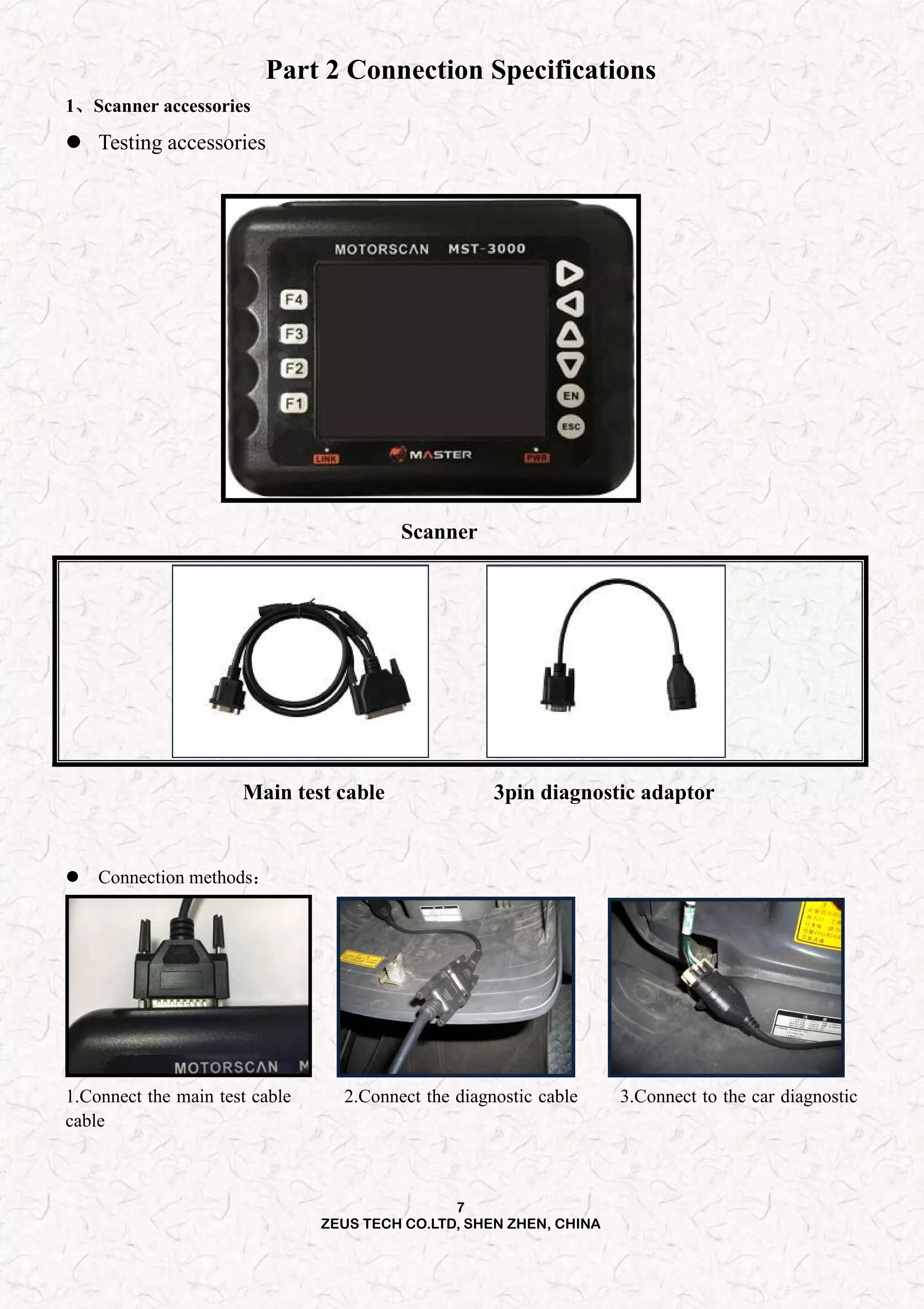

1、Scanner accessories
 Testing accessories
Scanner
Main test cable 3pin diagnostic adaptor
 Connection methods：
1.Connect the main test cable 2.Connect the diagnostic cable 3.Connect to the car diagnostic
cable

8. 8
ZEUS TECH CO.LTD, SHEN ZHEN, CHINA

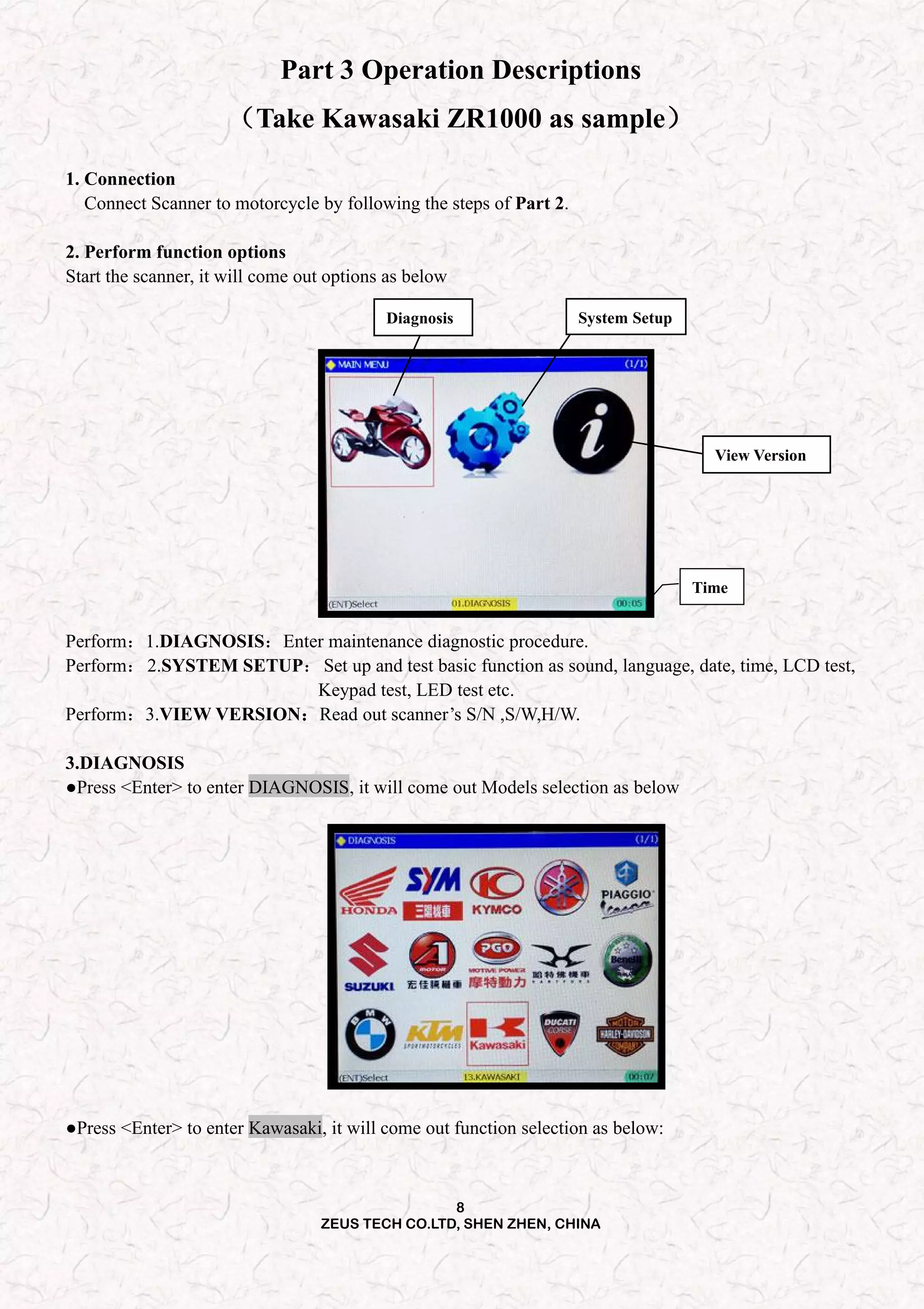

Part 3 Operation Descriptions
（Take Kawasaki ZR1000 as sample）
1. Connection
Connect Scanner to motorcycle by following the steps of Part 2.
2. Perform function options
Start the scanner, it will come out options as below
Time
View Version
System SetupDiagnosis
Perform：1.DIAGNOSIS：Enter maintenance diagnostic procedure.
Perform：2.SYSTEM SETUP：Set up and test basic function as sound, language, date, time, LCD test,
Keypad test, LED test etc.
Perform：3.VIEW VERSION：Read out scanner’s S/N ,S/W,H/W.
3.DIAGNOSIS
●Press <Enter> to enter DIAGNOSIS, it will come out Models selection as below
●Press <Enter> to enter Kawasaki, it will come out function selection as below:

9. 9
ZEUS TECH CO.LTD, SHEN ZHEN, CHINA

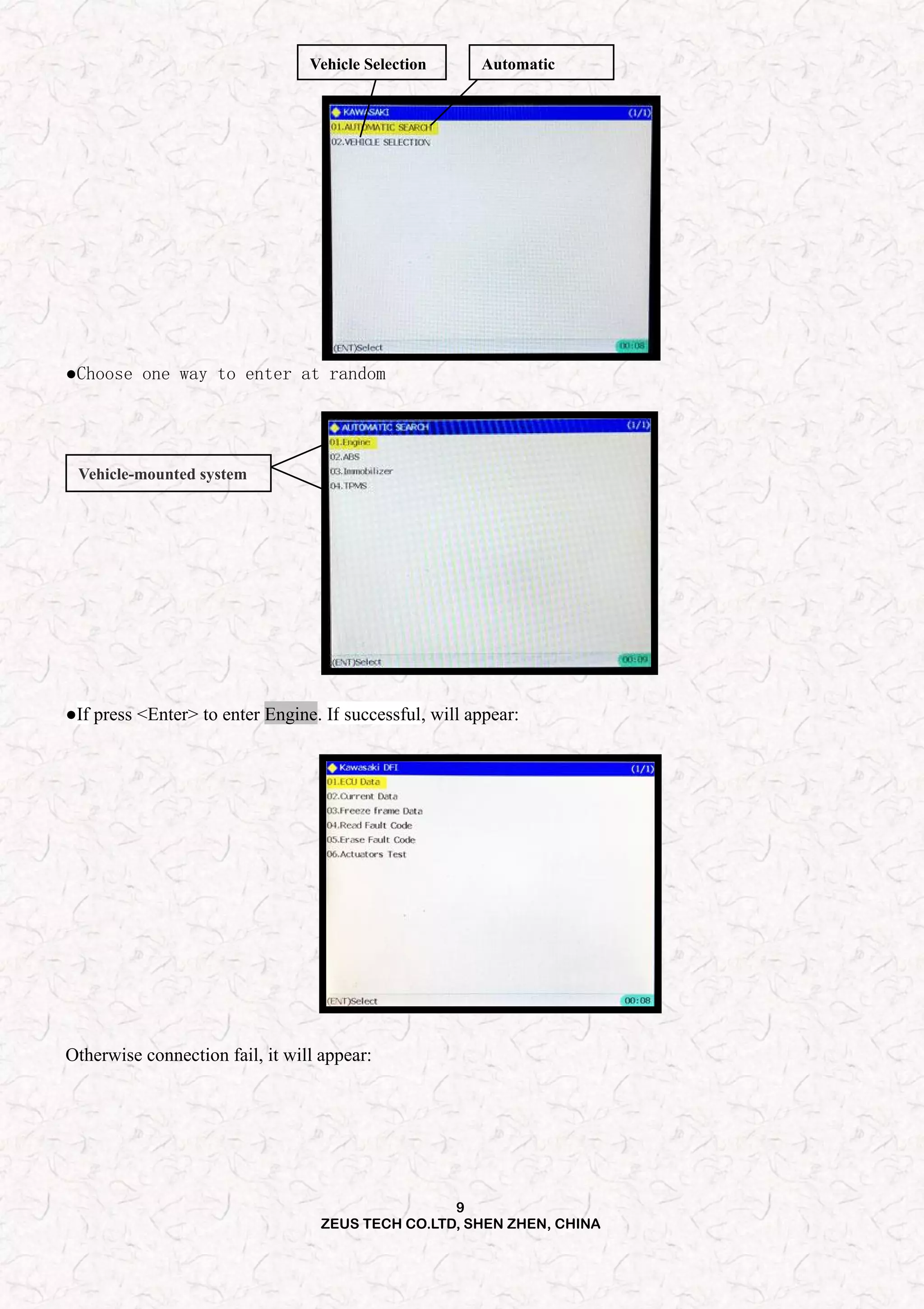

Vehicle Selection Automatic
●Choose one way to enter at random
Vehicle-mounted system
●If press <Enter> to enter Engine. If successful, will appear:
Otherwise connection fail, it will appear:

10. 10
ZEUS TECH CO.LTD, SHEN ZHEN, CHINA
It indicate that
failure to connect

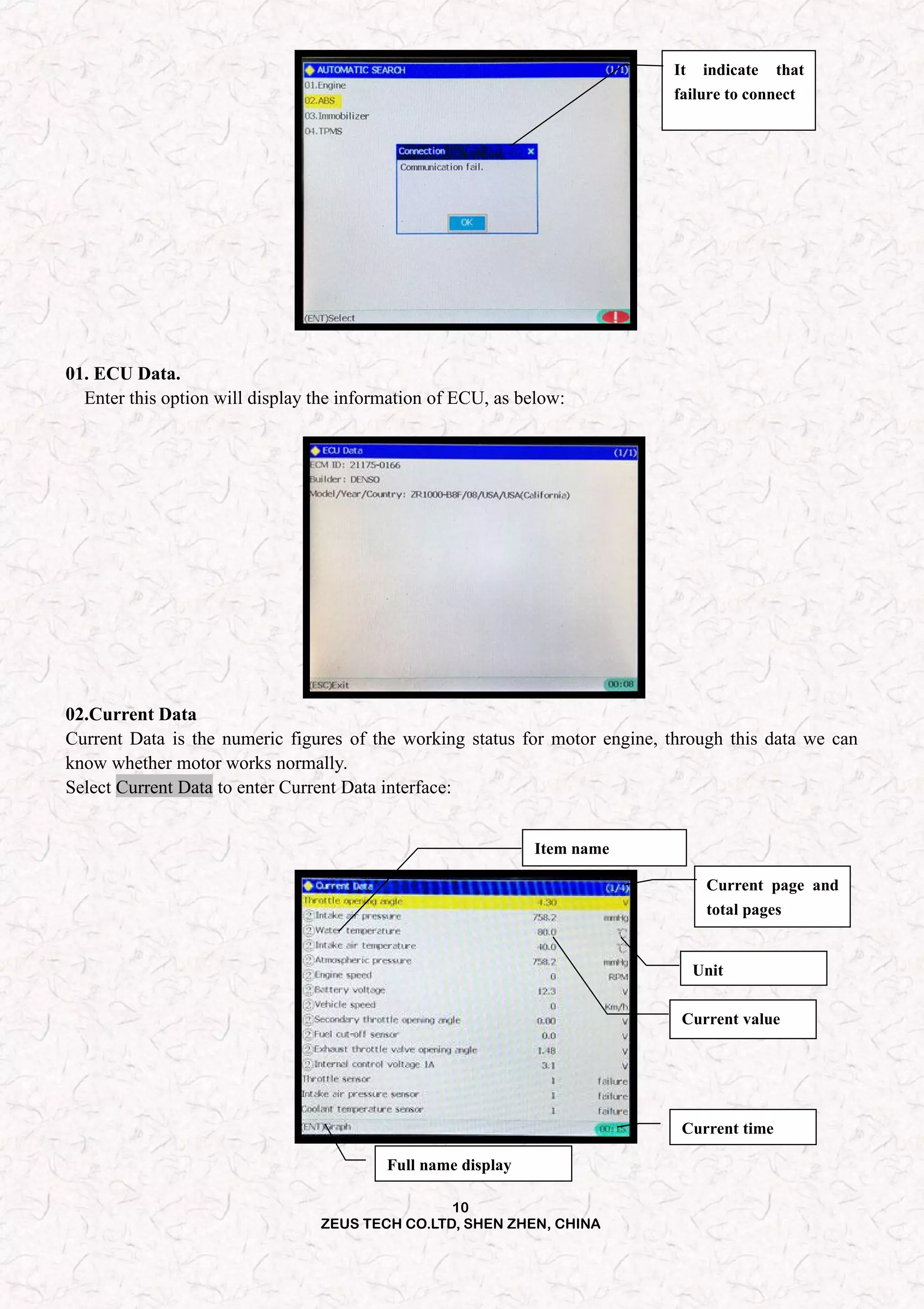

01. ECU Data.
Enter this option will display the information of ECU, as below:
02.Current Data
Current Data is the numeric figures of the working status for motor engine, through this data we can
know whether motor works normally.
Select Current Data to enter Current Data interface:
Full name display
Current time
Current value
Item name
Current page and
total pages
Unit

11. 11
ZEUS TECH CO.LTD, SHEN ZHEN, CHINA

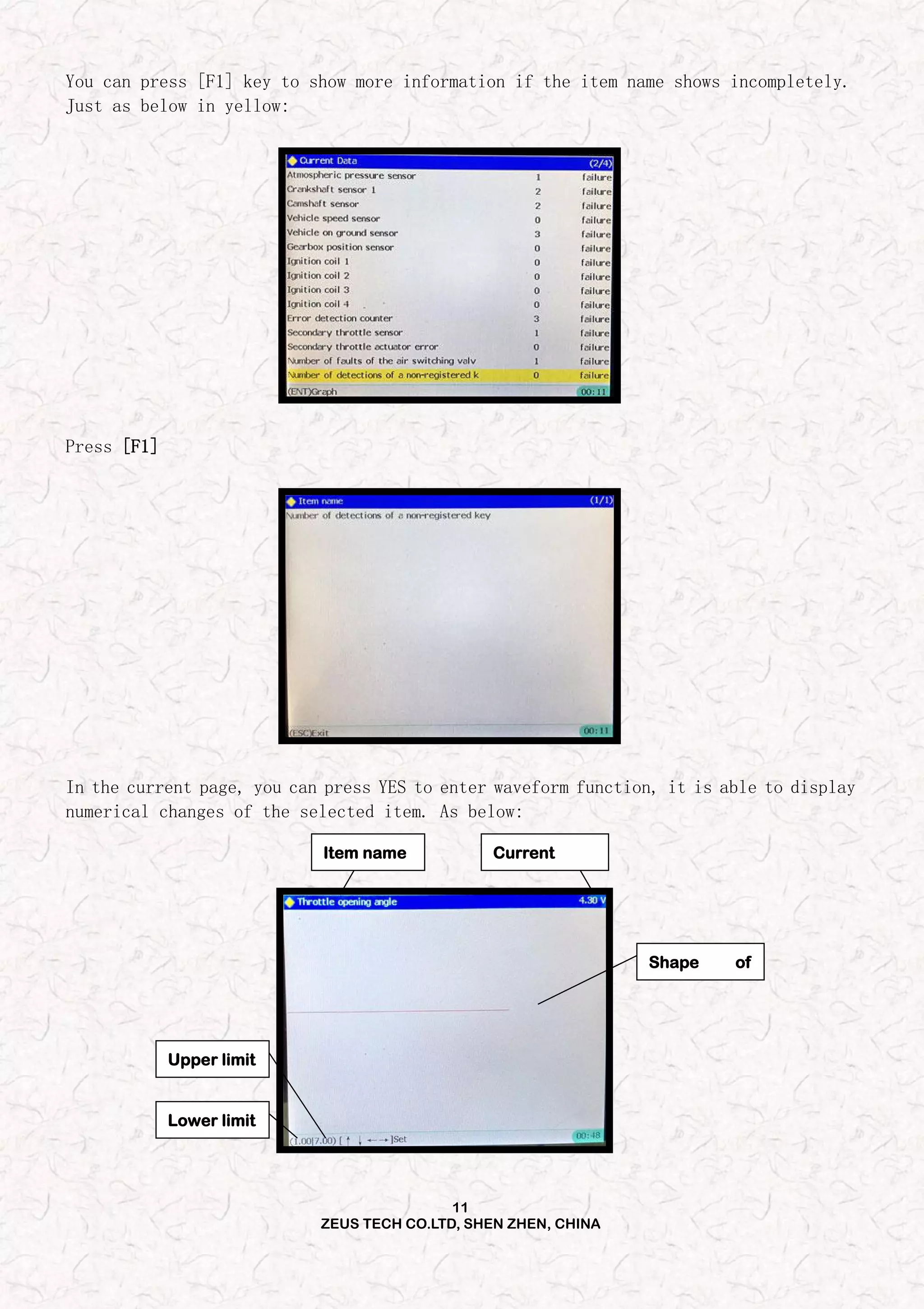

You can press [F1] key to show more information if the item name shows incompletely.
Just as below in yellow:
Press [F1]
In the current page, you can press YES to enter waveform function, it is able to display
numerical changes of the selected item. As below:
Shape of
Item name Current
Lower limit
Upper limit

12. 12
ZEUS TECH CO.LTD, SHEN ZHEN, CHINA
Please press [F2] if you want to know the item introduction in details,but it just be
supported in some items.

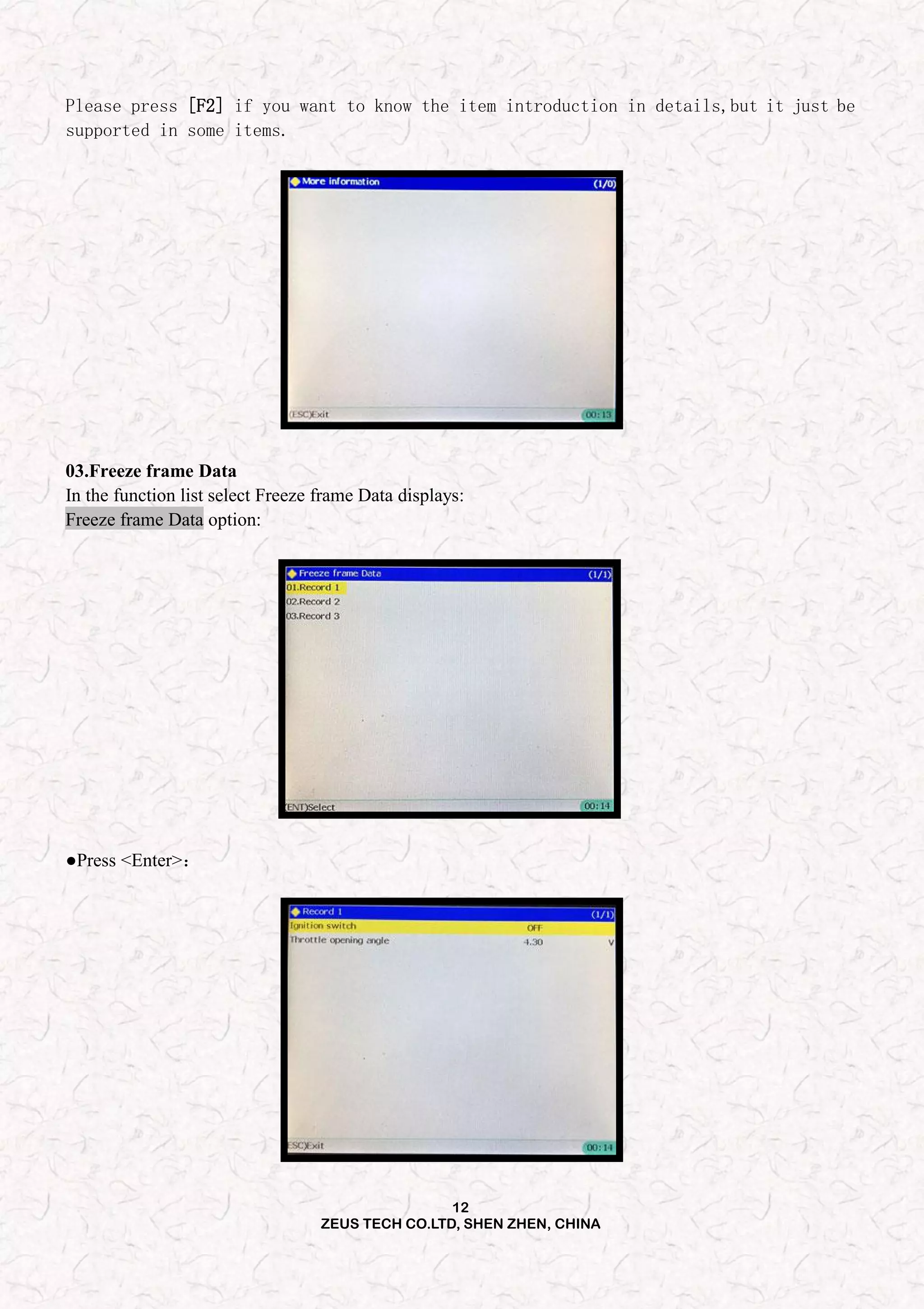

03.Freeze frame Data
In the function list select Freeze frame Data displays:
Freeze frame Data option:
●Press <Enter>：

13. 13
ZEUS TECH CO.LTD, SHEN ZHEN, CHINA

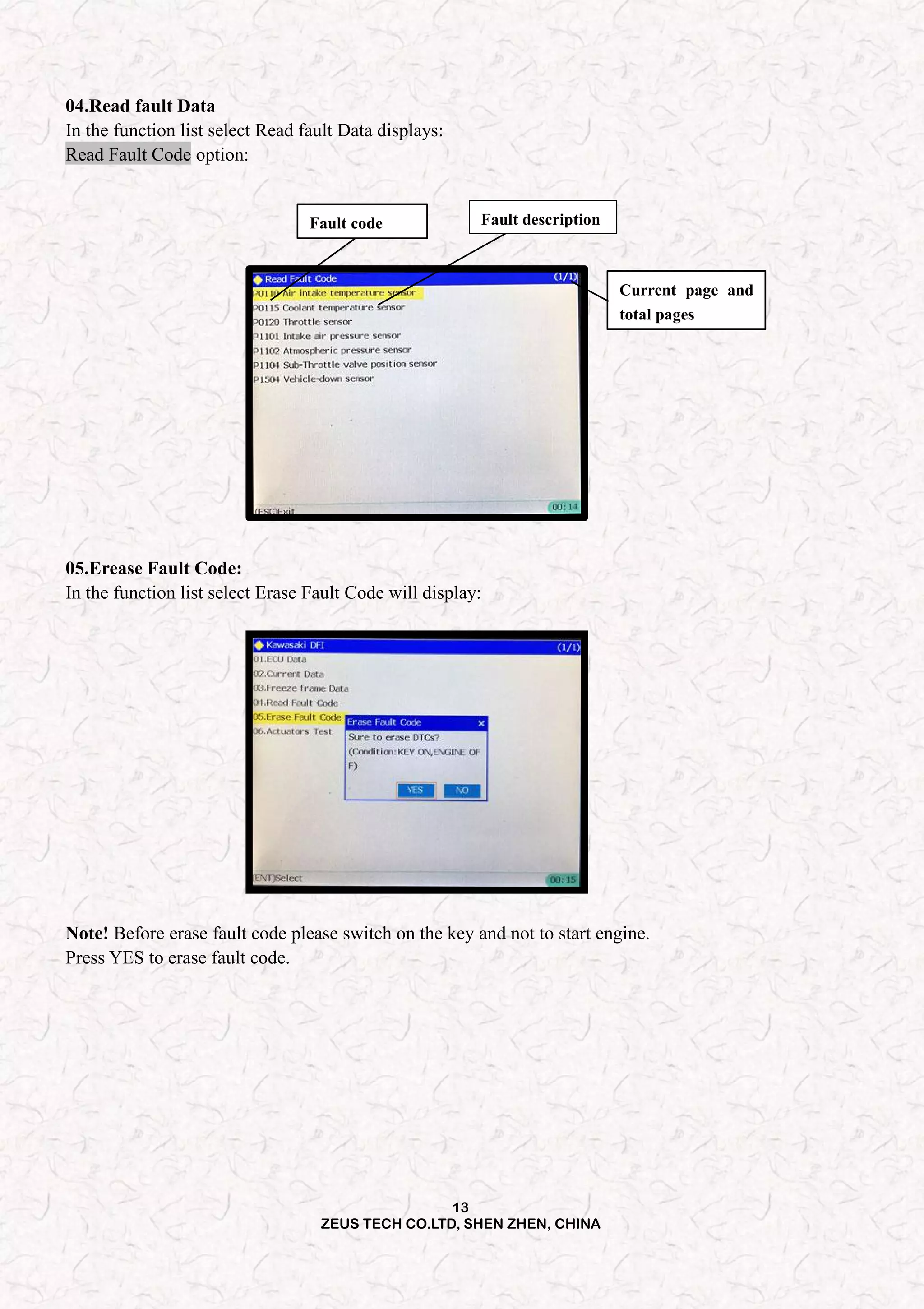

04.Read fault Data
In the function list select Read fault Data displays:
Read Fault Code option:
Fault code Fault description
Current page and
total pages
05.Erease Fault Code:
In the function list select Erase Fault Code will display:
Note! Before erase fault code please switch on the key and not to start engine.
Press YES to erase fault code.

14. 14
ZEUS TECH CO.LTD, SHEN ZHEN, CHINA

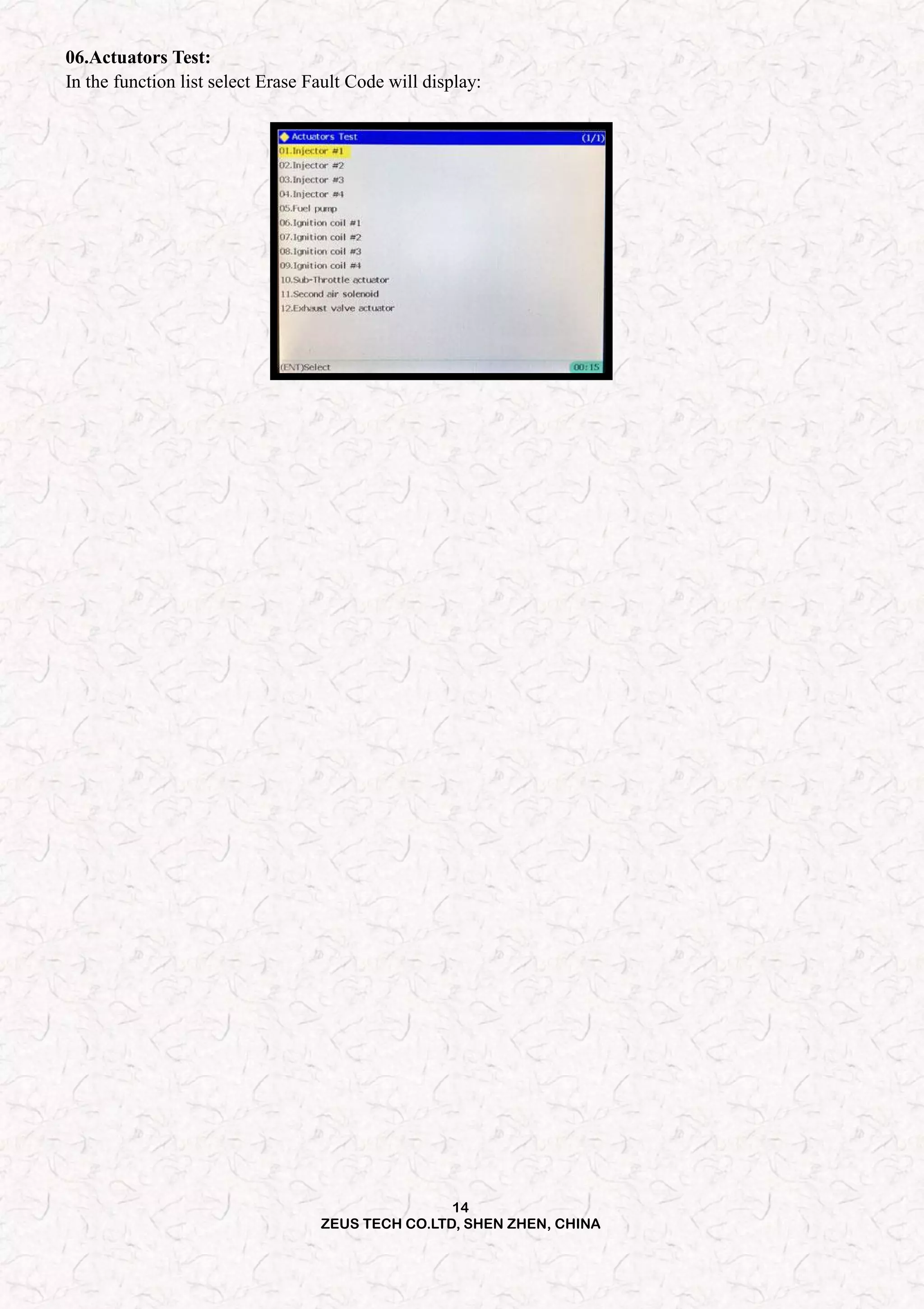

06.Actuators Test:
In the function list select Erase Fault Code will display:

15. 15
ZEUS TECH CO.LTD, SHEN ZHEN, CHINA
Part 4 System Settings And View Version

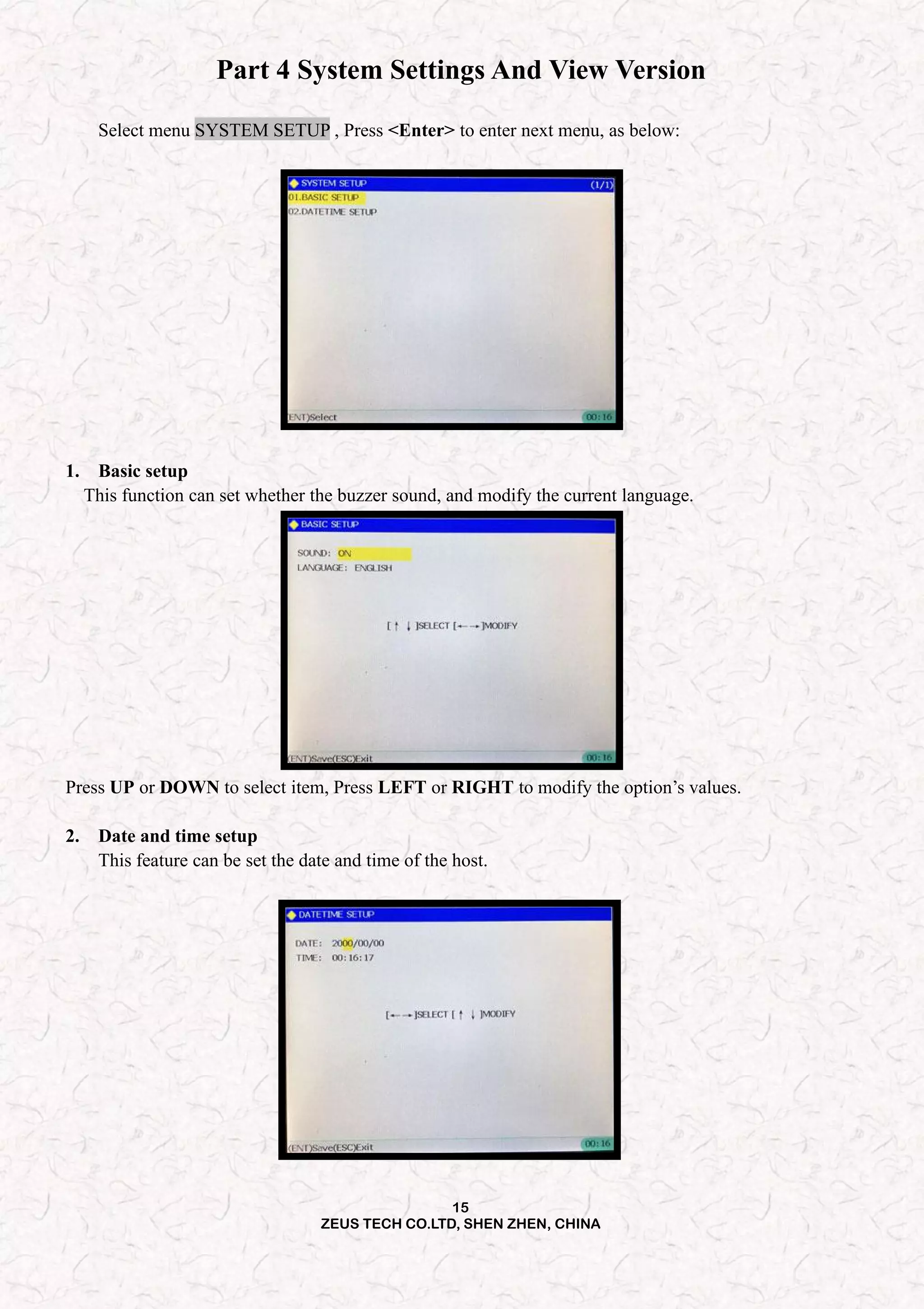

Select menu SYSTEM SETUP , Press <Enter> to enter next menu, as below:
1. Basic setup
This function can set whether the buzzer sound, and modify the current language.
Press UP or DOWN to select item, Press LEFT or RIGHT to modify the option’s values.
2. Date and time setup
This feature can be set the date and time of the host.

16. 16
ZEUS TECH CO.LTD, SHEN ZHEN, CHINA

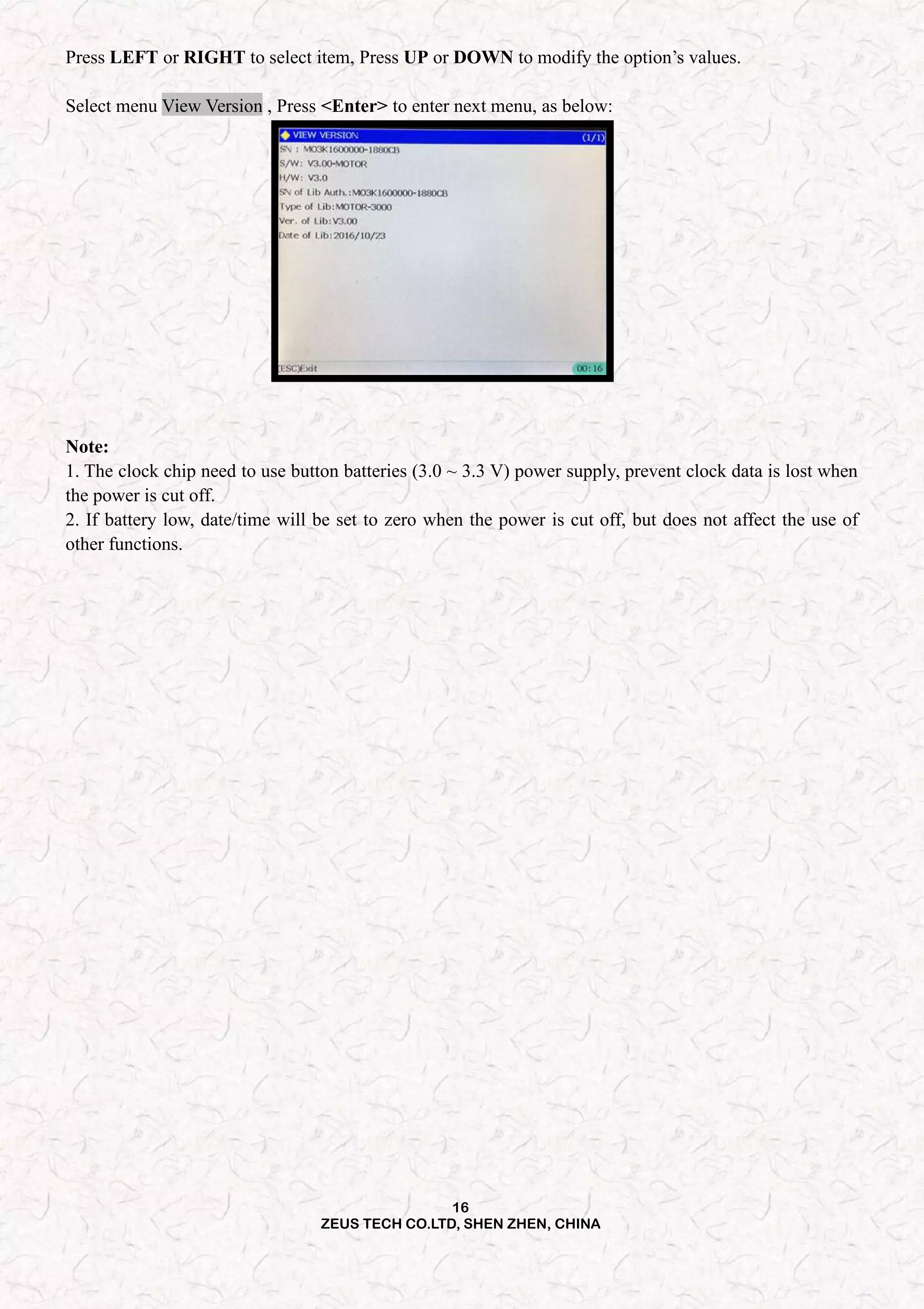

Press LEFT or RIGHT to select item, Press UP or DOWN to modify the option’s values.
Select menu View Version , Press <Enter> to enter next menu, as below:
Note:
1. The clock chip need to use button batteries (3.0 ~ 3.3 V) power supply, prevent clock data is lost when
the power is cut off.
2. If battery low, date/time will be set to zero when the power is cut off, but does not affect the use of
other functions.

17. 17
ZEUS TECH CO.LTD, SHEN ZHEN, CHINA
Part 5 Offline Upgrade

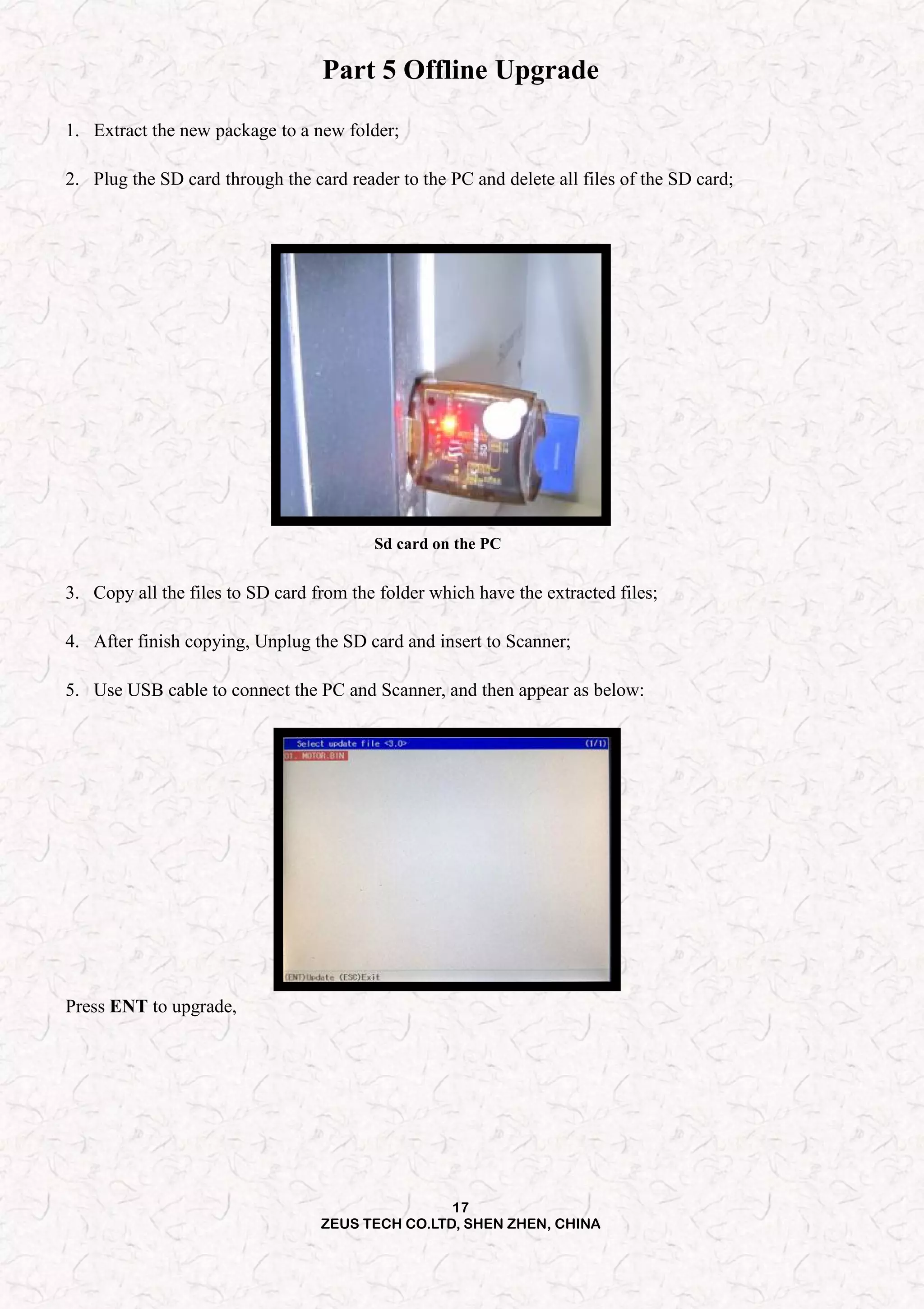

1. Extract the new package to a new folder;
2. Plug the SD card through the card reader to the PC and delete all files of the SD card;
Sd card on the PC
3. Copy all the files to SD card from the folder which have the extracted files;
4. After finish copying, Unplug the SD card and insert to Scanner;
5. Use USB cable to connect the PC and Scanner, and then appear as below:
Press ENT to upgrade,

18. 18
ZEUS TECH CO.LTD, SHEN ZHEN, CHINA
press ESC to cancel.

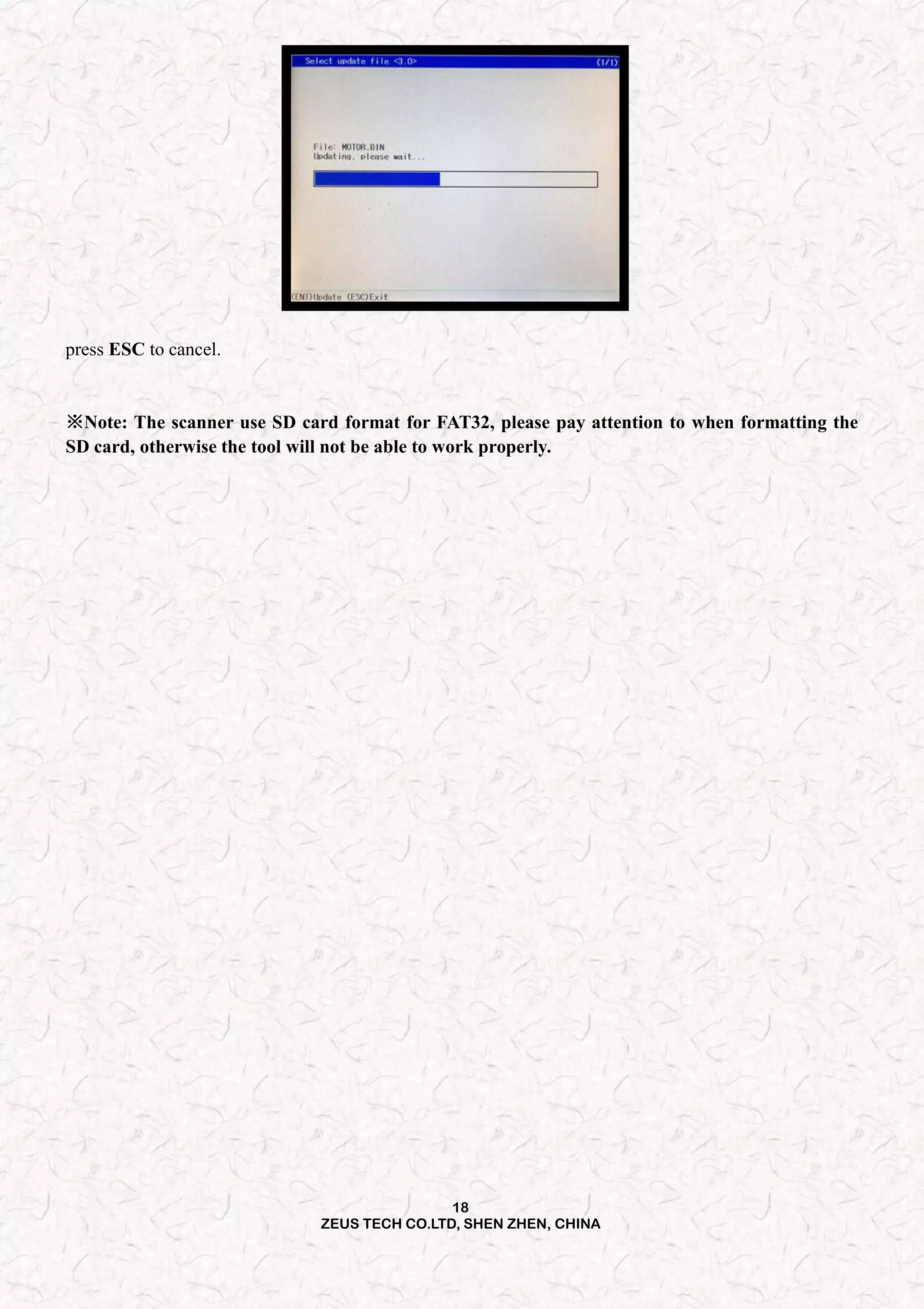

※Note: The scanner use SD card format for FAT32, please pay attention to when formatting the
SD card, otherwise the tool will not be able to work properly.
