How to part 2 build an agentry based app from scratch

SAP How-to Guide
SAP Mobility
SAP Mobile Platform (SMP)

How To Build an Agentry Based App from Scratch
Connecting to a SAP ERP Back-end - Part 2
provided by SAP Mobile - Rapid Innovation Group

Applicable Releases:
SAP Mobile Platform 2.3
Agentry 6.X

Version 1.0
June 2013

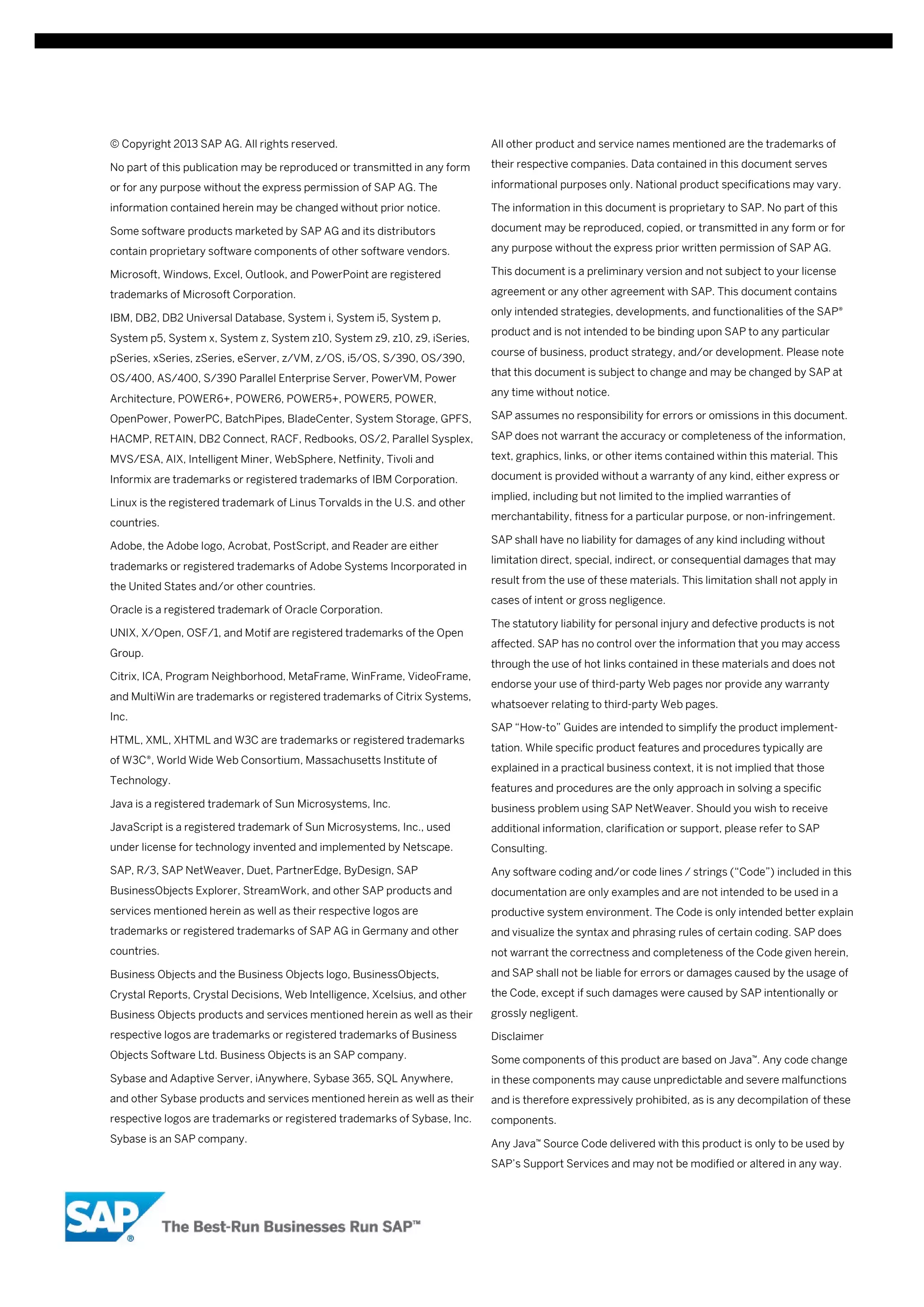

© Copyright 2013 SAP AG. All rights reserved.

All other product and service names mentioned are the trademarks of

No part of this publication may be reproduced or transmitted in any form

their respective companies. Data contained in this document serves

or for any purpose without the express permission of SAP AG. The

informational purposes only. National product specifications may vary.

information contained herein may be changed without prior notice.

The information in this document is proprietary to SAP. No part of this

Some software products marketed by SAP AG and its distributors

document may be reproduced, copied, or transmitted in any form or for

contain proprietary software components of other software vendors.

any purpose without the express prior written permission of SAP AG.

Microsoft, Windows, Excel, Outlook, and PowerPoint are registered

This document is a preliminary version and not subject to your license

trademarks of Microsoft Corporation.

agreement or any other agreement with SAP. This document contains

IBM, DB2, DB2 Universal Database, System i, System i5, System p,
System p5, System x, System z, System z10, System z9, z10, z9, iSeries,
pSeries, xSeries, zSeries, eServer, z/VM, z/OS, i5/OS, S/390, OS/390,
OS/400, AS/400, S/390 Parallel Enterprise Server, PowerVM, Power
Architecture, POWER6+, POWER6, POWER5+, POWER5, POWER,

only intended strategies, developments, and functionalities of the SAP®
product and is not intended to be binding upon SAP to any particular
course of business, product strategy, and/or development. Please note
that this document is subject to change and may be changed by SAP at
any time without notice.

OpenPower, PowerPC, BatchPipes, BladeCenter, System Storage, GPFS,

SAP assumes no responsibility for errors or omissions in this document.

HACMP, RETAIN, DB2 Connect, RACF, Redbooks, OS/2, Parallel Sysplex,

SAP does not warrant the accuracy or completeness of the information,

MVS/ESA, AIX, Intelligent Miner, WebSphere, Netfinity, Tivoli and

text, graphics, links, or other items contained within this material. This

Informix are trademarks or registered trademarks of IBM Corporation.

document is provided without a warranty of any kind, either express or

Linux is the registered trademark of Linus Torvalds in the U.S. and other
countries.
Adobe, the Adobe logo, Acrobat, PostScript, and Reader are either
trademarks or registered trademarks of Adobe Systems Incorporated in
the United States and/or other countries.
Oracle is a registered trademark of Oracle Corporation.
UNIX, X/Open, OSF/1, and Motif are registered trademarks of the Open
Group.
Citrix, ICA, Program Neighborhood, MetaFrame, WinFrame, VideoFrame,
and MultiWin are trademarks or registered trademarks of Citrix Systems,
Inc.
HTML, XML, XHTML and W3C are trademarks or registered trademarks
of W3C®, World Wide Web Consortium, Massachusetts Institute of
Technology.

implied, including but not limited to the implied warranties of
merchantability, fitness for a particular purpose, or non-infringement.
SAP shall have no liability for damages of any kind including without
limitation direct, special, indirect, or consequential damages that may
result from the use of these materials. This limitation shall not apply in
cases of intent or gross negligence.
The statutory liability for personal injury and defective products is not
affected. SAP has no control over the information that you may access
through the use of hot links contained in these materials and does not
endorse your use of third-party Web pages nor provide any warranty
whatsoever relating to third-party Web pages.
SAP “How-to” Guides are intended to simplify the product implementtation. While specific product features and procedures typically are
explained in a practical business context, it is not implied that those
features and procedures are the only approach in solving a specific

Java is a registered trademark of Sun Microsystems, Inc.

business problem using SAP NetWeaver. Should you wish to receive

JavaScript is a registered trademark of Sun Microsystems, Inc., used

additional information, clarification or support, please refer to SAP

under license for technology invented and implemented by Netscape.

Consulting.

SAP, R/3, SAP NetWeaver, Duet, PartnerEdge, ByDesign, SAP

Any software coding and/or code lines / strings (“Code”) included in this

BusinessObjects Explorer, StreamWork, and other SAP products and

documentation are only examples and are not intended to be used in a

services mentioned herein as well as their respective logos are

productive system environment. The Code is only intended better explain

trademarks or registered trademarks of SAP AG in Germany and other

and visualize the syntax and phrasing rules of certain coding. SAP does

countries.

not warrant the correctness and completeness of the Code given herein,

Business Objects and the Business Objects logo, BusinessObjects,

and SAP shall not be liable for errors or damages caused by the usage of

Crystal Reports, Crystal Decisions, Web Intelligence, Xcelsius, and other

the Code, except if such damages were caused by SAP intentionally or

Business Objects products and services mentioned herein as well as their

grossly negligent.

respective logos are trademarks or registered trademarks of Business

Disclaimer

Objects Software Ltd. Business Objects is an SAP company.

Some components of this product are based on Java™. Any code change

Sybase and Adaptive Server, iAnywhere, Sybase 365, SQL Anywhere,

in these components may cause unpredictable and severe malfunctions

and other Sybase products and services mentioned herein as well as their

and is therefore expressively prohibited, as is any decompilation of these

respective logos are trademarks or registered trademarks of Sybase, Inc.

components.

Sybase is an SAP company.

Any Java™ Source Code delivered with this product is only to be used by
SAP’s Support Services and may not be modified or altered in any way.

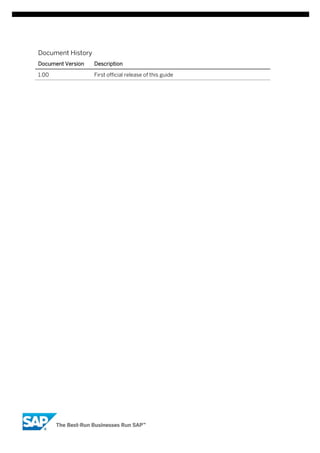

Document History
Document Version

Description

1.00

First official release of this guide

Typographic Conventions

Icons

Type Style

Description

Icon

Example Text

Words or characters quoted
from the screen. These
include field names, screen
titles, pushbuttons labels,
menu names, menu paths,
and menu options.
Cross-references to other
documentation

Example text

Emphasized words or
phrases in body text, graphic
titles, and table titles

Example text

File and directory names and
their paths, messages,
names of variables and
parameters, source text, and
names of installation,
upgrade and database tools.

Example text

User entry texts. These are
words or characters that you
enter in the system exactly
as they appear in the
documentation.

<Example text>

Variable user entry. Angle
brackets indicate that you
replace these words and
characters with appropriate
entries to make entries in the
system.

EXAMPLE TEXT

Keys on the keyboard, for
example, F2 or ENTER.

Description
Caution
Note or Important
Example
Recommendation or Tip

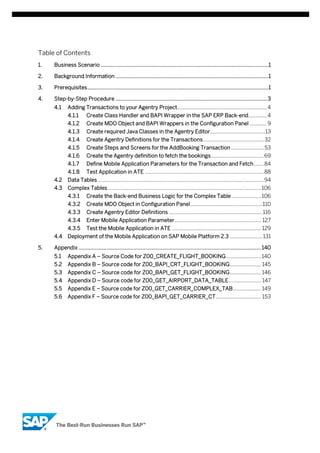

Table of Contents
1.

Business Scenario .................................................................................................................1

2.

Background Information .......................................................................................................1

3.

Prerequisites ..........................................................................................................................1

4.

Step-by-Step Procedure ...................................................................................................... 3

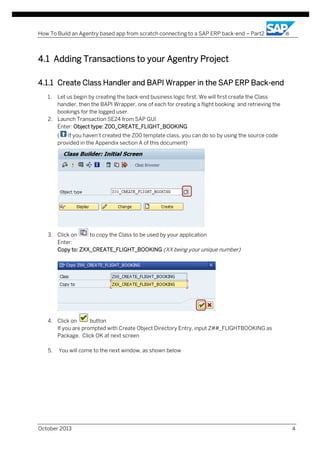

4.1

Adding Transactions to your Agentry Project ............................................................... 4
4.1.1

Create Class Handler and BAPI Wrapper in the SAP ERP Back-end............. 4

4.1.2

Create MDO Object and BAPI Wrappers in the Configuration Panel ............ 9

4.1.3

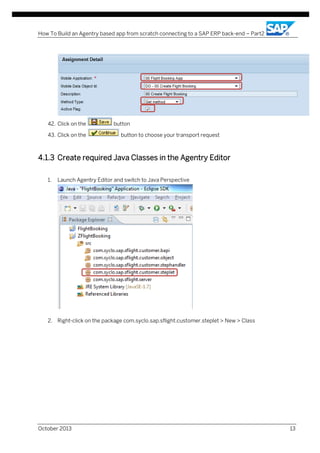

Create required Java Classes in the Agentry Editor.......................................13

4.1.4

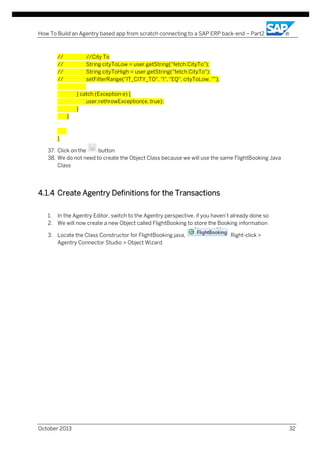

Create Agentry Definitions for the Transactions ........................................... 32

4.1.5

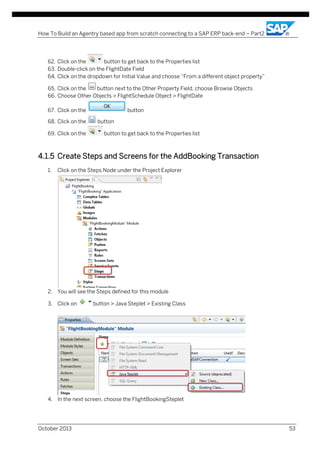

Create Steps and Screens for the AddBooking Transaction ....................... 53

4.1.6

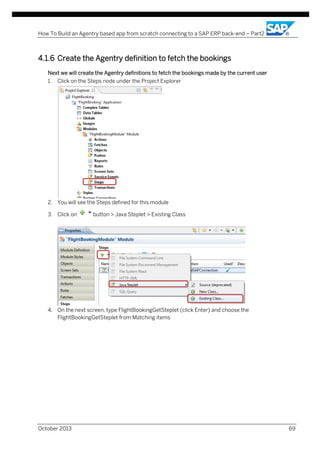

Create the Agentry definition to fetch the bookings ..................................... 69

4.1.7

Define Mobile Application Parameters for the Transaction and Fetch ....... 84

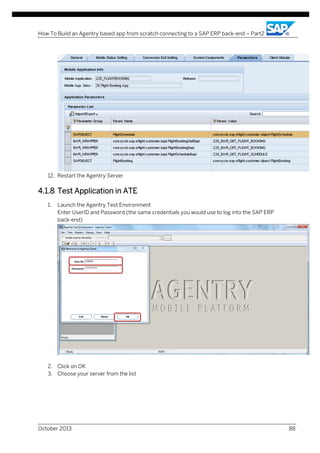

4.1.8

Test Application in ATE .................................................................................... 88

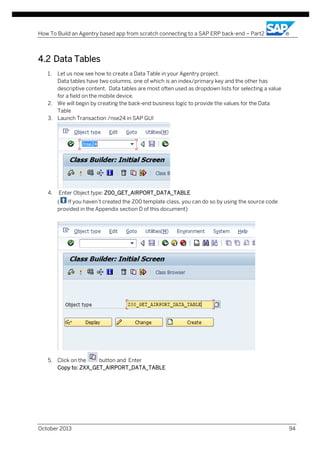

4.2

Data Tables ..................................................................................................................... 94

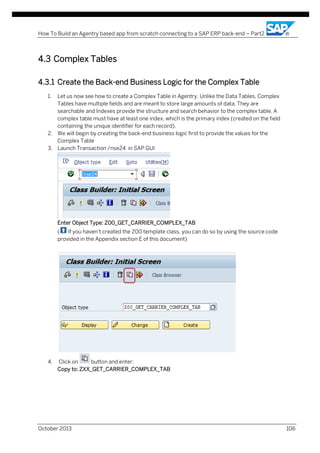

4.3

Complex Tables ............................................................................................................ 106
4.3.1
4.3.2

Create Agentry Editor Definitions .................................................................. 116

4.3.4

Enter Mobile Application Parameter ............................................................. 127

4.3.5
5.

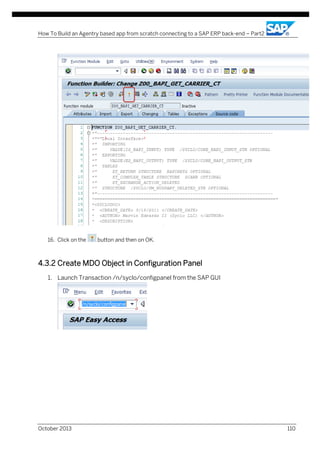

Create MDO Object in Configuration Panel ................................................... 110

4.3.3

4.4

Create the Back-end Business Logic for the Complex Table ..................... 106

Test the Mobile Application in ATE ............................................................... 129

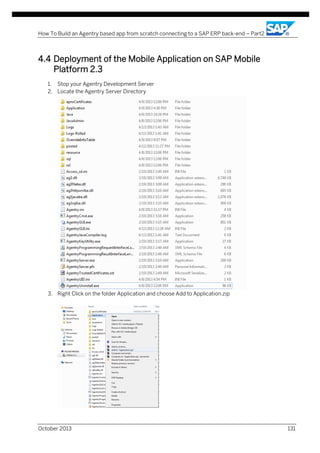

Deployment of the Mobile Application on SAP Mobile Platform 2.3 ....................... 131

Appendix ........................................................................................................................... 140
5.1

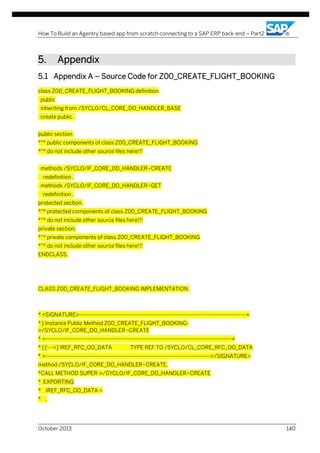

Appendix A – Source Code for Z00_CREATE_FLIGHT_BOOKING......................... 140

5.2

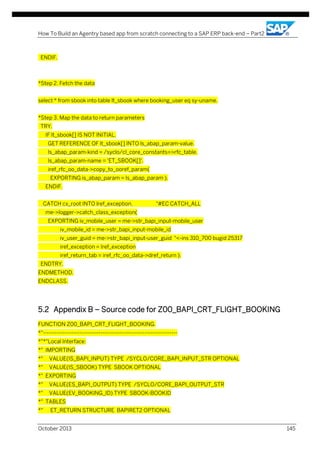

Appendix B – Source code for Z00_BAPI_CRT_FLIGHT_BOOKING ...................... 145

5.3

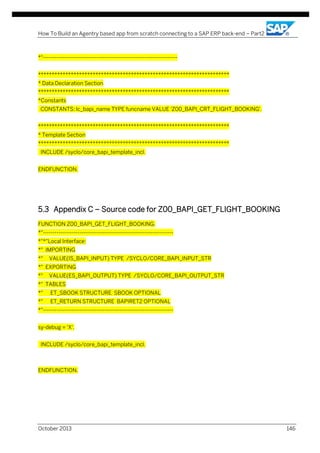

Appendix C – Source code for Z00_BAPI_GET_FLIGHT_BOOKING ...................... 146

5.4

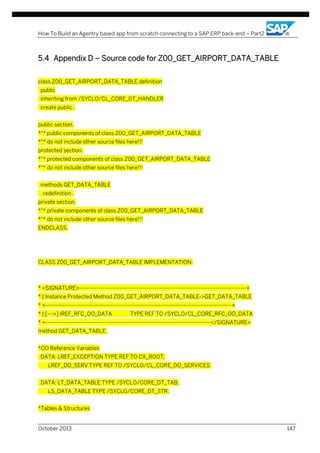

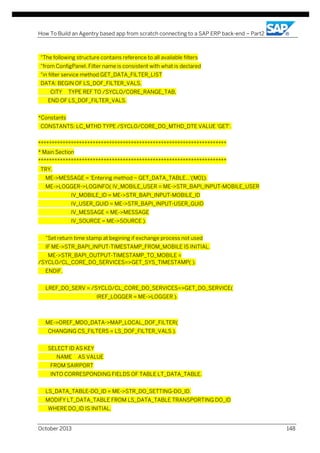

Appendix D – Source code for Z00_GET_AIRPORT_DATA_TABLE ....................... 147

5.5

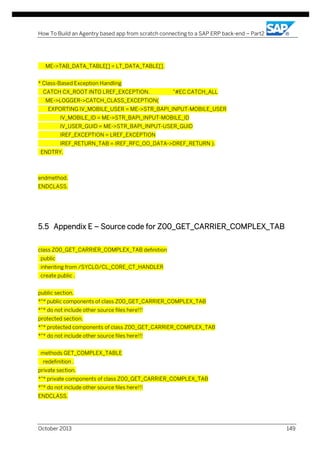

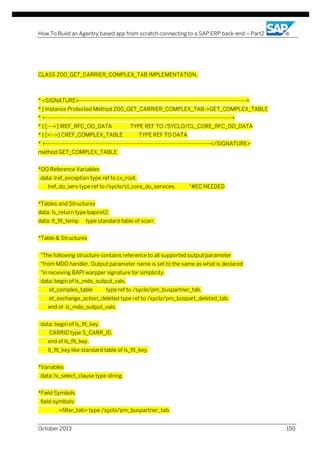

Appendix E – Source code for Z00_GET_CARRIER_COMPLEX_TAB.................... 149

5.6

Appendix F – Source code for Z00_BAPI_GET_CARRIER_CT ................................ 153

How To Build an Agentry based app from scratch connecting to a SAP ERP back-end – Part2

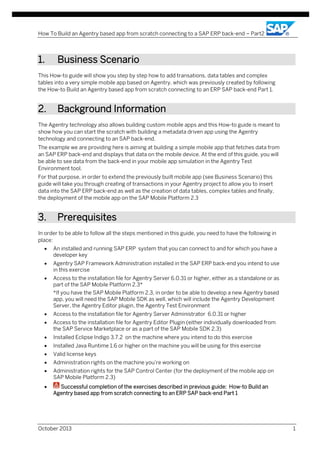

1.

Business Scenario

This How-to guide will show you step by step how to add transations, data tables and complex
tables into a very simple mobile app based on Agentry, which was previously created by following
the How-to Build an Agentry based app from scratch connecting to an ERP SAP back-end Part 1.

2.

Background Information

The Agentry technology also allows building custom mobile apps and this How-to guide is meant to
show how you can start the scratch with building a metadata driven app using the Agentry
technology and connecting to an SAP back-end.
The example we are providing here is aiming at building a simple mobile app that fetches data from
an SAP ERP back-end and displays that data on the mobile device. At the end of this guide, you will
be able to see data from the back-end in your mobile app simulation in the Agentry Test
Environment tool.
For that purpose, in order to extend the previously built mobile app (see Business Scenario) this
guide will take you through creating of transactions in your Agentry project to allow you to insert
data into the SAP ERP back-end as well as the creation of data tables, complex tables and finally,
the deployment of the mobile app on the SAP Mobile Platform 2.3

3.

Prerequisites

In order to be able to follow all the steps mentioned in this guide, you need to have the following in
place:
•

An installed and running SAP ERP system that you can connect to and for which you have a
developer key

•

Agentry SAP Framework Administration installed in the SAP ERP back-end you intend to use
in this exercise

•

Access to the installation file for Agentry Server 6.0.31 or higher, either as a standalone or as
part of the SAP Mobile Platform 2.3*
*If you have the SAP Mobile Platform 2.3, in order to be able to develop a new Agentry based
app, you will need the SAP Mobile SDK as well, which will include the Agentry Development
Server, the Agentry Editor plugin, the Agentry Test Environment

•

Access to the installation file for Agentry Server Administrator 6.0.31 or higher

•

Access to the installation file for Agentry Editor Plugin (either individually downloaded from
the SAP Service Marketplace or as a part of the SAP Mobile SDK 2.3)

•

Installed Eclipse Indigo 3.7.2 on the machine where you intend to do this exercise

•

Installed Java Runtime 1.6 or higher on the machine you will be using for this exercise

•

Valid license keys

•

Administration rights on the machine you’re working on

•

Administration rights for the SAP Control Center (for the deployment of the mobile app on
SAP Mobile Platform 2.3)

•

Successful completion of the exercises described in previous guide: How-to Build an
Agentry based app from scratch connecting to an ERP SAP back-end Part 1

October 2013

1


You can install the Agentry Server, the Agentry Editor and the Agentry Test Environment
components on the same machine.
A previous understanding of the Agentry technology is a must for this How-to Guide.
ABAP and Java understanding is recommended.

October 2013

2


4.

Step-by-Step Procedure

We assume that at this point you have built a very simple mobile app that fetches the flight
schedule (or other example data of your choice from your SAP ERP back-end system) and displays
it on the mobile device/ Agentry Test Environment.
Next we will insert new screens and transactions that will allow you to choose a schedule and create
a flight booking that will be updated then in the SAP ERP back-end, adding more complexity to your
app. The booking information captured in the device is sent to the back-end, on the next transmit,
with the local Booking IDs and a unique booking ID gets generated by the backend. We will create a
rule for the generation of unique IDs, consistent with the data in the back-end, for the cases where
data is created on the mobile device locally. Then as a part of the exercise, in addition to the
transaction, we will create a new fetch definition to retrieve all the bookings created by the current
user and display it in a screen. In the example SAP ERP backend we have used for the purpose of
this guide, the Flight Booking information is stored in a table called SBOOK.
We will start by creating the backend business logic required to create a booking in the SAP
System. You can find the source code for the needed ABAP Class and a BAPI Wrapper Class in the
Appendix section of this document. In addition, we will then create the MDO object and BAPI
Wrapper configurations to link the back-end ABAP classes and the BAPI Wrapper function module
created in the ABAP system.
In the Agentry Editor, we will create the POJO, steplet, stephandler and BAPI Java classes for the
creation of the booking as well as the fetch of the bookings created by the user. We will then create
transaction definitions and their properties in the Agentry Editor as well as the required UI
elements.
In addition, for exemplification purposes, we will create data tables and complex tables as well,
which can be then tested in the Agentry Test Environment only. Please note, that the data table and
complex tables are not included in the functional mobile app, which is why they are only visible in
the test environment tool.
Finally, we will deploy the mobile app on SAP Mobile Platform 2.3

October 2013

3


4.1 Adding Transactions to your Agentry Project
...
Exer cise 1 - Agent ry S erv er Ins tall ation

4.1.1 Create Class Handler and BAPI Wrapper in the SAP ERP Back-end
1.

Let us begin by creating the back-end business logic first. We will first create the Class
handler, then the BAPI Wrapper, one of each for creating a flight booking and retrieving the
bookings for the logged user.
2. Launch Transaction SE24 from SAP GUI
Enter: Object type: Z00_CREATE_FLIGHT_BOOKING
(
If you haven’t created the Z00 template class, you can do so by using the source code
provided in the Appendix section A of this document)

3. Click on
to copy the Class to be used by your application
Enter:
Copy to: ZXX_CREATE_FLIGHT_BOOKING (XX being your unique number)

4. Click on
button
If you are prompted with Create Object Directory Entry, input Z##_FLIGHTBOOKING as
Package. Click OK at next screen
5.

You will come to the next window, as shown below

October 2013

4


6. Click on the

7. Click on the

button

button

8. Click on the
button
9. Launch Transaction /nse37 to launch the Function Builder

10. Enter Function Module name
Function Module: Z00_BAPI_CRT_FLIGHT_BOOKING
(
provided in the Appendix section B of this document)

October 2013

5


11. Click on
button
Enter the following details:
To Function module: Z00_BAPI_CRT_FLIGHT_BOOKING
Function group: ZXX_FLIGHTBOOKING_FGRP

(where XX is your unique number)

12. Click on

button and the OK on the next screen

13. Enter Function Module: ZXX_BAPI_CRT_FLIGHT_BOOKING (where XX is your unique
number)

14. Click on
button
Change the highlighted section of the source code to:

October 2013

6


ZXX_BAPI_CRT_FLIGHT_BOOKING (XX being your unique number)

15. Click on the

button

We have just created the BAPI Wrapper for Create Flight Booking. Click OK on the next
screen.
Next we will create one for retrieving the Bookings for the user.
16. Click on the
button
Enter:
Function Module: Z00_BAPI_GET_FLIGHT_BOOKING
(
provided in the Appendix section C of this document)

October 2013

7


17. Click on the
button. Enter the following details
To Function module: ZXX_BAPI_GET_FLIGHT_BOOKING (XX is your unique number)

18. The Function Module is copied successfully,
Enter:
Function Module: ZXX_BAPI_GET_FLIGHT_BOOKING (XX is your unique number)

19. Click on
20. Click on the

button
button and click OK on the next screen.

We have created now the Class Handler and the BAPI Wrappers.

October 2013

8


4.1.2 Create MDO Object and BAPI Wrappers in the Configuration Panel
21. Next we will create MDO Object and BAPI Wrappers in the Configuration Panel. Launch
Transaction /n/syclo/configpanel in the SAP ERP back-end
22. Click on the

link

23. Click on the
button
Enter:
Mobile Data Object Id: ZXX_CREATE_FLIGHT_BOOKING (XX is your Unique number)
Description: XX Create Flight Booking
Data Object Type: Standard Data Object
Mobile Application: XX Flight Booking App (XX is your Unique number)
Data Object Handler: Z00_CREATE_FLIGHT_BOOKING: Flight MDO Class Handler
Get Method: GET
Create Method: CREATE
Data Object Active: Checked

October 2013

9


24. Click on the
25. Click on
26. Click on the

button
to choose the Transport Request
link

27. Click on
link
28. Select the Mobile Application Filter to display your application configuration

29. Click on the

30. Click on the

October 2013

button

button next to the BAPI Wrapper Name field

10


Enter:
Function Module: ZXX_BAPI_CRT_FLIGHT_BOOKING

31. Click on

button

32. Choose the BAPI Wrapper and click on the
button
33. Click on the Assignment tab
Enter:
Mobile Application: XX Flight Booking App (XX being your unique Number)
Mobile Data Object id: XX Create Flight Booking (Your MDO Object which you created)
Method Type: Create method
Active Flag: Checked

34. Click on the

button

35. Click on the
button to choose your transport request
36. We will create another BAPI Wrapper to fetch the Bookings made by the user
37. Click on the

October 2013

button

11


38. Click on the
button next to the BAPI Wrapper Name field
Enter:
Function Module: ZXX_BAPI_GET_FLIGHT_BOOKING

39. Click on

button

40. Choose the BAPI Wrapper and click on the
button
41. Click on the Assignment tab
Enter:
Mobile Application: XX Flight Booking App (XX being your unique Number)
Mobile Data Object id: XX Create Flight Booking (Your MDO Object which you created)
Method Type: Get method

October 2013

12


42. Click on the
43. Click on the

button

4.1.3 Create required Java Classes in the Agentry Editor
1.

Launch Agentry Editor and switch to Java Perspective

2. Right-click on the package com.syclo.sap.sflight.customer.steplet > New > Class

October 2013

13


3. Enter the name of the Java file
Name: FlightBookingSteplet

October 2013

14


4. Click on
button
5. Replace the source with the one provided here:
package com.syclo.sap.sflight.customer.steplet;
import com.syclo.agentry.AgentryException;
import com.syclo.agentry.BusinessLogicException;
import com.syclo.agentry.TransactionSession;
import com.syclo.sap.Steplet;
import com.syclo.sap.sflight.customer.stephandler.FlightBookingStephandler;
public class FlightBookingSteplet extends Steplet{

public FlightBookingSteplet(TransactionSession session)
throws AgentryException, BusinessLogicException {
super(session);
}
@Override
public boolean execute() throws AgentryException {
try{
FlightBookingStephandler handler = new
FlightBookingStephandler((com.syclo.sap.User)_user);
handler.createBooking();
return true;
}
catch(Throwable exception){
throwExceptionToClient(exception);
return false;
}
}
}
6. Click on the
button
7. Right-click on the package com.syclo.sap.sflight.customer.stephandler > New > Class

October 2013

15


Name: FlightBookingStephandler

9. Click on
button
10. Replace the source with the one provided here:
package com.syclo.sap.sflight.customer.stephandler;

October 2013

16


import java.util.GregorianCalendar;
import com.syclo.sap.StepHandler;
import com.syclo.sap.User;
import com.syclo.sap.sflight.customer.bapi.FlightBookingBapi;
import com.syclo.sap.sflight.customer.object.FlightBooking;
public class FlightBookingStephandler extends StepHandler{
com.syclo.sap.User user = null;
public FlightBookingStephandler(User usr) {
super(usr);
user = (com.syclo.sap.User)usr;
// TODO Auto-generated constructor stub
}

public void createBooking() throws Exception{
FlightBooking[] array = null;
FlightBooking sbookObj = new FlightBooking();
FlightBookingBapi bapi = new FlightBookingBapi(user, new GregorianCalendar());
bapi.run(sbookObj);
bapi.processResults();
/*ArrayList<SAPObject> sbookList = bapi.processResults();
array = new MyFlightBooking[sbookList.size()];
array = sbookList.toArray(array);
return array;*/
}
}
11. Click on the
button
12. Right-click on the package com.syclo.sap.sflight.customer.bapi > New > Class

October 2013

17


Name: FlightBookingBapi

14. Click on
button
15. Replace the source file with the one provided here:
package com.syclo.sap.sflight.customer.bapi;
import java.util.ArrayList;

October 2013

18


import com.sap.mw.jco.JCO;
import com.syclo.sap.Logger;
import com.syclo.sap.SAPObject;
import com.syclo.sap.bapi.AbstractFetchBAPI;
import com.syclo.sap.sflight.customer.object.FlightSchedule;
public class FlightBookingBapi extends AbstractFetchBAPI{
public User user = null;
public FlightBookingBapi(User u, GregorianCalendar lu) throws Exception {
super(u, lu);
user = (User) u;
}

@Override
public ArrayList<? extends SAPObject> processResults() throws Exception {
// TODO Auto-generated method stub
return null;
}

@Override
public void setParameters(SAPObject obj) throws Exception {
super.setParameters(obj);
try {
Logger log = new Logger(_user, "FetchBAPI_Java_Class");
//Pass Transaction Vales to BAPI_WRAPPER
JCO.Structure jcoStructure = _imports.getStructure("IS_SBOOK");
String carrierID = user.getString("transaction.CarrierID");
setValue(jcoStructure, log, "CARRID", carrierID);
String connectionID = user.getString("transaction.ConnectionID");
setValue(jcoStructure, log, "CONNID", connectionID);
String flightDate = user.getString("transaction.FlightDate");
setValue(jcoStructure, log, "FLDATE", flightDate);
String passName = user.getString("transaction.PassName");
setValue(jcoStructure, log, "PASSNAME", passName);
} catch (Exception e) {
user.rethrowException(e, true);

October 2013

19


}
}

}
16. Click on the
button
17. Right-click on the package com.syclo.sap.sflight.customer.object > New > Class

Name: FlightBooking

October 2013

20


19. Click on
button
20. Replace the source code with the one provided here:
package com.syclo.sap.sflight.customer.object;
import com.sap.mw.jco.JCO.Table;
import com.syclo.sap.bapi.BAPI;
public class FlightBooking extends SAPObject {
public String CarrierID;
public String ConnectionID;
public String FlightDate;
public String BookingID;
public String Order_Date;
public String PassName;
public String Booking_User;
public String Reserved;
public String Cancelled;

October 2013

21


public String ClassType;
public String getClassType() {
return ClassType;
}
public void setClassType(String class1) {
ClassType = class1;
}
public String getCancelled() {
return Cancelled;
}
public void setCancelled(String cancelled) {
Cancelled = cancelled;
}
public String getReserved() {
return Reserved;
}
public void setReserved(String reserved) {
Reserved = reserved;
}
public FlightBooking(Table arg0) throws Exception{
setCarrierID(arg0.getString("CARRID"));
setConnectionID(arg0.getString("CONNID"));
setFlightDate(arg0.getString("FLDATE"));
setBookingID(arg0.getString("BOOKID"));
setOrder_Date(arg0.getString("ORDER_DATE"));
setPassName(arg0.getString("PASSNAME"));
setBooking_User(arg0.getString("BOOKING_USER"));
setReserved(arg0.getString("RESERVED"));
setCancelled(arg0.getString("CANCELLED"));
setClassType(arg0.getString("CLASS"));
}
public FlightBooking() {
CarrierID = "";
ConnectionID = "";
FlightDate = "";
BookingID = "";
Order_Date = "";
PassName = "";
Booking_User = "";
Reserved = "";

October 2013

22


Cancelled = "";
ClassType = "";
}
public String getFlightDate() {
return FlightDate;
}
public void setFlightDate(String flightDate) {
FlightDate = flightDate;
}
public String getBookingID() {
return BookingID;
}
public void setBookingID(String bookingID) {
BookingID = bookingID;
}
public String getOrder_Date() {
return Order_Date;
}
public void setOrder_Date(String order_Date) {
Order_Date = order_Date;
}
public String getPassName() {
return PassName;
}
public void setPassName(String passName) {
PassName = passName;
}
public String getBooking_User() {
return Booking_User;
}
public void setBooking_User(String booking_User) {
Booking_User = booking_User;
}
@Override
public String getID() {
return getBookingID();
}

October 2013

23


public String getCarrierID() {
return CarrierID;
}
public void setCarrierID(String carrierID) {
CarrierID = carrierID;
}

public String getConnectionID() {
return ConnectionID;
}
public void setConnectionID(String connectionID) {
ConnectionID = connectionID;
}
@Override
public void setNotes(Table arg0) throws Exception {
}

@Override
public void setProperties(Table arg0) throws Exception {
}
}
21. Click on the
button
22. Next, we will create the Java source files for the Fetch, in order to retrieve the bookings
created by the logged user
23. Right-click on the package com.syclo.sap.sflight.customer.steplet > New > Class

October 2013

24


Name: FlightBookingGetSteplet

October 2013

25


25. Click on
button
package com.syclo.sap.sflight.customer.steplet;
import com.syclo.agentry.AgentryException;
import com.syclo.agentry.BusinessLogicException;
import com.syclo.agentry.FetchSession;
import com.syclo.sap.Steplet;
import com.syclo.sap.sflight.customer.stephandler.FlightBookingGetStephandler;
public class FlightBookingGetSteplet extends Steplet{
public FlightBooking[] _returnData;
public FlightBookingGetSteplet(FetchSession session)
throws AgentryException, BusinessLogicException {
super(session);
}

October 2013

26


@Override
public boolean execute() throws AgentryException {
try{
FlightBookingGetStephandler handler = new
FlightBookingGetStephandler((com.syclo.sap.User)_user);
_returnData = handler.getMyBookings();
return true;
}
catch(Throwable exception){
throwExceptionToClient(exception);
return false;
}
}
}
27. Click on the
button
28. Right-click on the package com.syclo.sap.sflight.customer.stephandler > New > Class

Name: FlightBookingGetStephandler

October 2013

27


30. Click on
button
package com.syclo.sap.sflight.customer.stephandler;
import com.syclo.sap.StepHandler;
import com.syclo.sap.sflight.customer.bapi.FlightBookingGetBapi;
public class FlightBookingGetStephandler extends StepHandler{
com.syclo.sap.User user = null;
public FlightBookingGetStephandler(User usr) {
super(usr);

October 2013

28


user = (com.syclo.sap.User)usr;
}

public FlightBooking [] getMyBookings() throws Exception{
FlightBooking[] array = null;
FlightBooking spfliObj = new FlightBooking();
FlightBookingGetBapi bapi = new FlightBookingGetBapi(user, new
GregorianCalendar());
bapi.run(spfliObj);
ArrayList<SAPObject> spfliList = bapi.processResults();
array = new FlightBooking[spfliList.size()];
array = spfliList.toArray(array);
return array;
}
}
32. Click on the
button
33. Right-click on the package com.syclo.sap.sflight.customer.bapi > New > Class

Name: FlightBookingGetBapi

October 2013

29


35. Click on
button
package com.syclo.sap.sflight.customer.bapi;
import com.sap.mw.jco.JCO;
import com.syclo.sap.bapi.AbstractFetchBAPI;
public class FlightBookingGetBapi extends AbstractFetchBAPI{
public User user = null;
public FlightBookingGetBapi(User u, GregorianCalendar lu) throws Exception {
super(u, lu);

October 2013

30


user = (User) u;
}
@Override
public ArrayList<SAPObject> processResults() throws Exception {
ArrayList<SAPObject> spfliTab = new ArrayList<SAPObject>();
JCO.Table _sTab = _tables.getTable("ET_SBOOK");
int rows = _sTab.getNumRows();
for(int i = 0; i<rows; i++)
{
_sTab.setRow(i);
FlightBooking spfliLine = new FlightBooking(_sTab);
spfliTab.add(spfliLine);
}
return spfliTab;
}

//
//
//
//
//
//
//
//
//
//
//
//
//
//
//
//
//
//
//
//
//

@Override
public void setParameters(SAPObject obj) throws Exception {
super.setParameters(obj);
try {
Logger log = new Logger(_user, "FetchBAPI_Java_Class");
//City From
String cityFrom = user.getString("fetch.CityFrom");
JCO.Field jcocityFrom = _imports.getField("IS_CITY_FROM");
setValue(jcocityFrom, log, cityFrom);

October 2013

//City To
String cityTo = user.getString("fetch.CityTo");
JCO.Field jcocityto = _imports.getField("IS_CITY_TO");
setValue(jcocityto, log, cityTo);
//Date
String date = user.getString("fetch.Date");
JCO.Field jcodate = _imports.getField("IS_TRAVEL_DATE");
setValue(jcodate, log, user.eval("<<fetch.Date format="%d.%m.%Y">>"));
String cityFromLow = user.getString("fetch.CityFrom");
String cityFromHigh = user.getString("fetch.CityFrom");
setFilterRange("IT_CITY_FROM", "I", "EQ", cityFromLow, "");

31


//
//
//
//

//City To
String cityToLow = user.getString("fetch.CityTo");
String cityToHigh = user.getString("fetch.CityTo");
setFilterRange("IT_CITY_TO", "I", "EQ", cityToLow, "");
} catch (Exception e) {
user.rethrowException(e, true);
}
}

}
37. Click on the
button
38. We do not need to create the Object Class because we will use the same FlightBooking Java
Class

4.1.4 Create Agentry Definitions for the Transactions
1. In the Agentry Editor, switch to the Agentry perspective, if you haven’t already done so
2. We will now create a new Object called FlightBooking to store the Booking information
3. Locate the Class Constructor for FlightBooking.java,
Agentry Connector Studio > Object Wizard

October 2013

Right-click >

32


4. Click on Object Wizard

October 2013

33


5. Click on the

October 2013

button

34


6. Click on the

October 2013

button

35


7. Change Key Property to – BookingID and click on

October 2013

button

36


8. Uncheck all the Transactions (Add, Edit, Delete) and click on the

October 2013

button

37


9. Uncheck the Get Step and click on the

button

10. You will notice that the new Object FlightBooking is created with all the properties

October 2013

38


11. Next we will create a Transaction
12. Click on Transactions in the Project Explorer

13. Click on the
button
14. Then select > to add an Object > “FlightBooking” Object

October 2013

39


15. In the next screen, accept the default selections

16. Click on
button
Update the below information on the Transaction Definitions
Name: AddBooking
Display Name: Add Booking

October 2013

40


17. Click on the
button
18. Next, we need to create a Rule to create an automatic BookingID for the new booking that
we create locally on the mobile device. The actual Booking ID is provided by the back-end
system, but we need to generate a local Booking ID to identify it uniquely on the mobile
device first. In the next steps, we will create a rule that will determine a unique ID on the
client.
19. Click on Properties

20. Double click on BookingID

October 2013

41


21. In the same screen, under Transaction Property Settings section

22. Change the Initial Value to “Rule - before data entry”
23. Click on the

button

24. Click on the

button next to Rule:

25. Choose Add New Rule

October 2013

42


26. Change the Name of the Rule to – “InitialBookingID”
27. Click on

button

For the next section: Please read carefully the following instructions, prior to commencing each
step.

October 2013

43


28. Within this screen, there are three main sections. On the left side are the different rule
terms; including function and data terms that may be added to the rule. In the center there
is the current rule function within the rule and one or more fields containing the parameters
to that function. On the right, you have the structure view. This view presents the rule logic
in a tree control representing its structure.
29. To define the InitialBookingID rule logic, select the field in the center portion of the screen
labeled Rule Entry Point. This term will be the root term of the rule logic and its return value
will be the one returned by the rule to the rule’s caller.

30. In the list of items on the left, select the function tab
. By default, this will display all the
rule functions available to the rule definition. Above this list, you have a drop down control
from which a function category can be selected. This will filter the list of rule functions to
only those within that category. Change this selection now to the String category.
31. In the list of functions now displayed, double-click the CONCATENATE function. The Rule
Editor will now appear as follows:

October 2013

44


Note the center portion of the screen now lists the CONCATENATE function. Below you
have the short description for this function. Clicking the function name along the top of the
list will display the functions long description.
32. The field displayed for this function is the first parameter to the function and is labeled
String 1. Selecting the field will display the parameter’s short description, as shown in the
above example. This parameter description includes information on whether the parameter
is required or optional and the data type expected.
On the right side of the Rule Editor, note the addition of the CONCATENATE function call to
the Structure View.
33. The first parameter to the CONCATENATE function is the constant value LOCAL_. This
value can be typed directly in the String 1 parameter field. Note that as you enter this text, a
second field, String 2, will be added to the parameter fields. Also, note that the structure
view now contains the LOCAL_ text as the first parameter to the CONCATENATE function:

October 2013

45


34. The second argument to the CONCATENATE function must be the total number of current
local FlightBooking objects plus one. To determine this value additional logic will be needed.
This will begin with a call to the Conversion function FROM_INTEGRAL_NUMBER. Select
the String 2 field in the Rule Editor. Then select the category Conversion in the functions list
on the left. Within the list now displayed, double-click the function
FROM_INTEGRAL_NUMBER - making this the second parameter to the CONCATENATE
function. Since a function was selected, that function will now be the one displayed in the
middle section of the Rule Editor. Again also note the update to the Structure View:

October 2013

46


35. The parameter to the FROM_INTEGRAL_NUMBER function will be another function call to
the Math function SUM. Set this by selecting the Conversion Parameter field and then
selecting the Mathematical category in the function term list on the left. In the list of
functions now displayed, double-click the SUM function.
The SUM function will add all parameter values and return the result. For this rule the logic
needed is to add the total number of local FlightBooking object instances and add one to
that total. The first parameter to the SUM function will then be a call to the Property
function COUNT. Select the Number 1 parameter field in the Rule Editor and select the
COUNT function for this parameter from the Property category of functions.
The COUNT function counts the number of object instances in a given collection property.
This collection property is provided as the first parameter to the COUNT function. As an
optional second parameter to the COUNT function, is the Include Criteria. The term
provided as this function parameter will be evaluated once for each object in the provided
collection property. Each object in the collection for which the term returns true will be
counted. Objects for which the term returns false will be ignored.

October 2013

47


For this rule, the collection to be counted is the FlightBooking collection property. This
should then be the first parameter to the COUNT function. Select the Object Collection
parameter field in the Rule Editor. Then select the properties list by clicking the Properties
icon
found just to the right of the parameter fields. This displays a popup menu that will
include the menu item FlightBookingCollection. Select this item in the menu, which will set
this collection property as the Object Collection parameter for the COUNT function.

The rule function structure will now appears as follows:

36. The “Include Criteria” parameter field will now be enabled. This term is evaluated once for
each object instance in the collection property provided as the Object Collection parameter
to COUNT. The “Include criteria” needed for this rule is to evaluate the BookingID property
of a FlightBooking object and determine if the first six characters begin with the text
“LOCAL_”. If it does, the term provided as the Include Criteria to the COUNT function
should return true, which will then cause the object to be counted. If it does not begin with
this text the term should return false, and the object will not be counted.
The “Include Criteria” parameter, then, begins with a function call to the Logical function
EQSTR. This function compares two or more string values and returns true if they are all
equal or false if any one of its parameters is different. For this rule the EQSTR function
will compare the first six characters of the BookingID property to the constant value
LOCAL_ and return true if they are equal. To obtain these first six characters, the function
LEFT will be used, which is a String function.
October 2013

48


37. To implement this portion of the logic, select the Include Criteria parameter. Click on
, in
the list of functions select the Logical category and then double-click the EQSTR function.
This function will now be displayed in the center of the Rule Editor. Select the String 1
parameter field. Then select the String function category and select the function LEFT.
38. The Structure of the rule will now appears as follows:

39. The LEFT function is now displayed in the Rule Editor. Select the Source String parameter
field and then click the Properties icon
. The only item displayed in the menu will be
Browse Properties... Select this item to display the Target Browser screen. In the tree
control displayed, select the item Other Objects | “FlightBooking” Object | “BookingID”
Property.

40. Click the OK button to return to the Rule Editor. This property will now be the first
parameter to the LEFT function.

October 2013

49


41. The second argument to LEFT is the number of characters to extract from the first
parameter, counting from the left. Enter the value 6 in the Length parameter field. The
Structure View will now appear as follows:

42. The second argument to the EQSTR function must now be provided. To return to this
function, select it in the Structure view on the right side of the Rule Editor. The function and
its parameters will now be displayed in the Rule Editor. String 1 will be set to the function
LEFT. Select String 2 and enter the text LOCAL_ in the field.
43. Finally, in the Structure View select the function call to SUM, which will display the function
in the Rule Editor. The Number 1 parameter field will be set to COUNT. Select the Number 2
parameter field and enter the value of 1.
The InitialBookingID rule has now been defined. Review the Structure view and verify it
matches the following example:

The logic of this rule, as defined above will result in the return value of a string value
containing LOCAL_n, where n is the total number of local FlightBooking objects in the
FlightBooking collection property, plus 1.
44. Click on the
button
45. This will return you back to the BookingID property definition

October 2013

50


46. Click on the
button
47. Next, we will set the initial values of the fields CarrierID, ConnectionID, FlightDate and
OrderDate, since these values are already available in our FlightSchedule Object
48. Click on the

button

49. Double-click on the Property CarrierID

50. Click on the dropdown for Initial Value and choose “From a different object property”
51. Click on the

October 2013

button next to the Other Property Field, choose Browse Objects

51


52. You will see the below screen
Expand the Other Objects node > “Flight Schedule” Object > Choose “CarrierID” Property

53. Click on the
54. Click on the

button
button

55. Click on the
button to get back to the Properties list
56. Double-click on the ConnectionID Field
58. Click on the
59. Choose Other Objects > FlightSchedule Object > ConnectionID
60. Click on the
61. Click on the
October 2013

button
button
52


62. Click on the
63. Double-click on the FlightDate Field
65. Click on the
66. Choose Other Objects > FlightSchedule Object > FlightDate
67. Click on the
68. Click on the
69. Click on the

button
button

4.1.5 Create Steps and Screens for the AddBooking Transaction
1.

Click on the Steps Node under the Project Explorer

2. You will see the Steps defined for this module
3. Click on

button > Java Steplet > Existing Class

4. In the next screen, choose the FlightBookingSteplet

October 2013

53


5. Click on

button

6. Click on Transactions under Project Explorer

October 2013

54


7. Double click on the AddBooking Transaction

8. You will see the Transaction definition

October 2013

55


9. Click on Update Steps

10. Click on the

October 2013

button

56


11. Double-click on the newly added Transaction Step
Update the following details:
Step: NewJavaSteplet2 (By choosing the
Response to Client: Delete Client Object

button)

12. Click on the
button
13. Now, we will create Screenset for the AddBooking Transaction
14. Click on Screensets in the Project Explorer

October 2013

57


15. Click on the
button
Displays: Transaction – AddBooking
Name: AddBooking

16. Click on the
button
17. Click on Platforms

October 2013

58


18. Click on
> Windows Mobile > Pocket PC Portrait
Caption: Add Booking

19. Click on the
button
20. Click on Platform Screens

October 2013

59


21. Click on
button
Add the following fields in the same order

22. Click on
button
Name: AddBooking_PPC_Detail1
Caption: Create Booking

October 2013

60


23. Click on the
button
24. Click on Fields

25. Double-click on the field BookingID

26. Check the Read-only checkbox
27. Click on the
28. Click on the

October 2013

button
button to go back to the Fields list

61


29. Similarly we will make the following fields as Read-only
CarrierID
ConnectionID
FlightDate
30. Double-click on the field CarrierID
32. Click on the

button

33. Click on the
34. Double-click on the field ConnectionID
36. Click on the

button

37. Click on the
38. Double-click on the field FlightDate
40. Click on the
button
41. Under Project Explorer, select Actions

42. Click on the
button
Name: AddBooking
Display Name: Add Booking

October 2013

62


43. Click on the
button
44. Click on Action Steps
45. Click on the

button > Transaction

46. Update the following values:
Step Name: AddBookingActionStep
Transaction: AddBooking
Screen Set: AddBooking

October 2013

63


47. Click on the

button

48. Click on the

button

49. Click on the

button > Apply

October 2013

64


50. Next we will create a button on the Details Page to invoke the AddBooking Transaction
51. Expand the node Screen Set from the Project Explorer, Expand ShowFlightScheduleDetails
–ScreenSet > Expand Screen > ShowFlightScheduleDetails_PPC_Detail1 > Choose Buttons

October 2013

65


52. Click on the
button
Update the following fields:
Name: BookFlight
Label: Book Flight

53. Click on the

button next to the Target field

54. Click on Browse

October 2013

66


55. Choose “FlightBookingModule” Module’s Main Object (“Main Object”)
56. Click on

October 2013

button

67


57. Click on the

October 2013

button

68


4.1.6 Create the Agentry definition to fetch the bookings
Next we will create the Agentry definitions to fetch the bookings made by the current user
1.

Click on the Steps node under the Project Explorer

2. You will see the Steps defined for this module
3. Click on

button > Java Steplet > Existing Class

4. On the next screen, type FlightBookingGetSteplet (click Enter) and choose the
FlightBookingGetSteplet from Matching items

October 2013

69


5. Click on the
button
6. Under the Project Explorer, click on Fetches

7. Click on the
button > FlightBookingCollection
Update the following information
Name: GetBooking
Display Name: GetBooking
Main Fetch: Checked

October 2013

70


8. Click on the
button
9. Click on Server Exchange Step

10. Click on the
button
Step: NewJavaSteplet3

October 2013

71


11. Click on the
button
12. Next, we will create a new screen to show up the list of all bookings made by the current
user
13. Expand the Screen Set node under Project Explorer > Expand ShowFlightSchedule Screen
set > choose Screens

14. Click on the

button > List Screen > FlightBookingCollection

15. Choose the following fields in the same order

October 2013

72


16. Click on
button
Name: ShowFlightBookings_PPC_List1
Caption: My Bookings

October 2013

73


17. Click on the
button
18. Under the Project Explorer, click on Actions

19. Double-click on the existing AddBooking Action

October 2013

74


20. Click on the Action Steps

21. We will not add another Action Step to show the locally created booking on the mobile
device
22. Click on the

October 2013

button > Navigation

75


23. Update the below fields:
Step Name: ShowBookingStep
Screen Set: ShowFlightSchedules
Close Screen Set(s): Close all screen sets except for the main screen set
Screen: ShowFlightBookings_PPC_List1

24. Click on the
button
25. Next, we will add a Transmit button to the ShowFlightBookings_PPC_List1 screen

October 2013

76


26. Expand the Screen Sets Node from the Project Explorer > Expand ShowFlightSchedules
Screenset > Expand Screens > Expand ShowFlightBookings_PPC_List1 Screen > Click on
Buttons

27. Click on the
button
Set the Action to Transmit
Name: Transmit
Label: Transmit
Action: Transmit

October 2013

77


28. Click on the
button
29. We are now done with the definitions in the Agentry Editor, we will now publish the
definitions to the Agentry Server
30. Click on the

October 2013

button to publish the definitions to the Agentry Server

78


31. Click on the

October 2013

button

79


October 2013

80


32. Click on the
button
33. Now we will export the Jar files which contains the Java Classes
34. Click on File > Export

October 2013

81


35. In the next screen,

36. Expand Java > choose JAR file
37. Click on

button

Update the following values:
Select ZFlightBooking under Select resources to export
Uncheck .classpath and .project
October 2013

82


Select options Export all output folders for checked projects
Select Export Java source files and resources

38. Click on

October 2013

button

83


39. Since you already exported the Jar file for the Fetch exercise in the previous guide (See
section Business Scenario of this document), the system prompts asking if you want to
replace the existing Jar file

40. Click on

button

4.1.7 Define Mobile Application Parameters for the Transaction and Fetch
1.

From the SAP GUI, launch Transaction /n/syclo/configpanel

2. Config Panel is launched

October 2013

84


3. Click on the link
4. From the Defined Mobile Application List, click on your Application Configuration
(ZXX_FLIGHTBOOKING)
5. Click on the Parameters tab

October 2013

85


6. Click on the

button

7. Click on the
button
Enter the following Parameter Detail:
Parameter Group: SAPOBJECT
Param. Name: FlightBooking
Param. Value: com.syclo.sap.sflight.customer.object.FlightBooking

8. Click on the
button
Parameter Group: BAPI_WRAPPER
Param. Name: com.syclo.sap.sflight.customer.bapi.FlightBookingBapi
October 2013

86


Param. Value: ZXX_BAPI_CRT_FLIGHT_BOOKING (XX is your Unique number)

9. Click on the
button
Parameter Group: BAPI_WRAPPER
Param. Name: com.syclo.sap.sflight.customer.bapi.FlightBookingGetBapi
Param. Value: ZXX_BAPI_GET_FLIGHT_BOOKING (XX is your Unique number)

10. Click on the

button

11. Click on the
button to choose the transport request
Your Parameter List should be as follows:

October 2013

87


12. Restart the Agentry Server

4.1.8 Test Application in ATE
1.

Launch the Agentry Test Environment
Enter UserID and Password (the same credentials you would use to log into the SAP ERP
back-end)

2. Click on OK
3. Choose your server from the list

October 2013

88


4. Click on OK Button

5. Choose your Server and click on OK Button

October 2013

89


6. Choose a Flight Schedule and click on Details

7. Click on Book Flight button
October 2013

90


Your Name

Enter a Passenger Name and click on the

Button

8. You should see the Local Object that you have created, listed with the ID Local_1
9. Click on Transmit button
Choose Connection: Network Connection

October 2013

91


And click on Start button

October 2013

92


10. Click on OK button
11. Notice the highlighted section, you will see the Local Object has been replaced with a
unique number assigned by the back-end system

October 2013

93


4.2 Data Tables
1.

Let us now see how to create a Data Table in your Agentry project.
Data tables have two columns, one of which is an index/primary key and the other has
descriptive content. Data tables are most often used as dropdown lists for selecting a value
for a field on the mobile device.
2. We will begin by creating the back-end business logic to provide the values for the Data
Table
3. Launch Transaction /nse24 in SAP GUI

4.

Enter Object type: Z00_GET_AIRPORT_DATA_TABLE
(
provided in the Appendix section D of this document)

5. Click on the
button and Enter
Copy to: ZXX_GET_AIRPORT_DATA_TABLE

October 2013

94


6. Click on the
button
Choose Package: ZXX_FLIGHTBOOKING

7. Click on
button
8. Choose the Transport Request
9. Click on the

October 2013

button

95


10. Click on the

11. Click on the
12. Click on the

button

button
button

13. Next we need to create the MDO Object in the Configuration Panel
14. Launch Transaction /n/syclo/configpanel from the SAP GUI

October 2013

96


15. Click on the

October 2013

link

97


16. Click on the
button
Enter the following data:
Mobile Data Object Id: ZXX_AIRPORT_DATA_TABLE (XX is your unique number)
Description: XX Airport Data Table
Data Object Type: Data Table
Mobile Application: XX Flight Booking App (Your Mobile Application Configuration)
Data Object Handler: ZXX_GET_AIRPORT_DATA_TABLE : Class Handler to GET DT
Get Method: GET

17. Click on the

button

18. Click on the
19. Next step is to create the Agentry Definitions for the data table. Launch Eclipse and switch
to Agentry (Properties) Perspective
20. From the Project Explorer, choose Data Table node

October 2013

98


21. Click on the

button > via BackendSAPConnection > Existing Class

22. Enter com.syclo.sap.DataTable

October 2013

99


23. Click on
button
Update the following information:
Name: dt_Airport
Display Name: Airport Data Table

October 2013

100


24. Click on the
button
25. We are now done with the definitions in the Agentry Editor, we will now publish the
definitions to the Agentry Server
26. Click on the

27. Click on the

October 2013

button to publish the definitions to the Agentry Server

button

101


28. Click on the
button
29. In the next step, we need to define Parameters for the Mobile Application Configuration

October 2013

102


31. Click on the
choose your Application Configuration

link. From the Defined Mobile Applications list

32. Click on the Parameters tab

October 2013

103


33. Click on the

button

34. Click on the
button
Parameter Group: DT_MDOID
Param. Name: dt_Airport
Param. Value: ZXX_AIRPORT_DATA_TABLE (where XX is your unique user number)

35. Click on the

button

36. Click on the
button to choose your Transport Request

38. Test Application in Agentry Test Environment by perform a Transmit

October 2013

104


39. Click on Inspect > Data Table > dt_Airport

October 2013

105


4.3 Complex Tables
...

4.3.1 Create the Back-end Business Logic for the Complex Table
1.

Let us now see how to create a Complex Table in Agentry. Unlike the Data Tables, Complex
Tables have multiple fields and are meant to store large amounts of data. They are
searchable and Indexes provide the structure and search behavior to the complex table. A
complex table must have at least one index, which is the primary index (created on the field
containing the unique identifier for each record).
2. We will begin by creating the back-end business logic first to provide the values for the
Complex Table
3. Launch Transaction /nse24 in SAP GUI

Enter Object Type: Z00_GET_CARRIER_COMPLEX_TAB
(
provided in the Appendix section E of this document)

4.

Click on
button and enter:
Copy to: ZXX_GET_CARRIER_COMPLEX_TAB

October 2013

106


5. Click on

button

6. Click on
button
7. Choose the Transport Request
8. Click on the

button

9. Click on the

October 2013

107


10. Click on the

button

11. Click on the
button
12. Launch Transaction /nse37

Enter Function Module: Z00_BAPI_GET_CARRIER_CT
(
provided in the Appendix section F of this document)

October 2013

108


13. Click on the
button
Enter the following:
To Function module: ZXX_BAPI_GET_CARRIER_CT
14. Click on the

button

15. Click on the
button in your newly created function module
(ZXX_BAPI_GET_CARRIER_CT)

October 2013

109


16. Click on the

button and then on OK.

4.3.2 Create MDO Object in Configuration Panel

October 2013

110


2. Click on the

October 2013

link

111


3. Click on the
button
Enter the following data:
Mobile Data Object Id: ZXX_CARRIER_COMPLEX_TABLE (XX is your unique number)
Description: XX Carrier Complex Table
Data Object Type: Complex Table
Mobile Application: XX Flight Booking App (Your Mobile Application Configuration)
Data Object Handler: ZXX_GET_CARRIER_COMPLEX_TAB: Class Handler for Get Flight CT
Get Method: GET

4. Click on the
5. Click on the
6. Click on the
7. Click on the

October 2013

button
button to choose the Transport Request
link
link

112


8. Click on the

button

9. Click on the
button next to the BAPI Wrapper Name
Enter:
Function Module: ZXX_BAPI_GET_CARRIER_CT

10. Click on the

October 2013

button

113


11. Choose the Function Module and click on the
12. Click on the Assignments tab

button

13. Click on the
button
Enter the following values:
Mobile Application: XX Flight Application (Your Application Configuration Copy)
Mobile Data Object Id: ZXX_CARRIER_COMPLEX_TABLE
Method Type: Get method
Default Assignment: Checked

Your Mobile Data Object Assignment List should look like this:

October 2013

114


14. Click on the
15. Click on the

October 2013

button
button to choose the transport request

115


4.3.3 Create Agentry Editor Definitions
1. In the Agentry Editor, switch to the Java Perspective
2. Right-click on the package com.syclo.sap.sflight.customer.object > New > Class

Enter Name: FlightCarrierCT

October 2013

116


3. Click on
button
4. Replace the source code with the provided here:

package com.syclo.sap.sflight.customer.object;
import com.sap.mw.jco.JCO.Table;
import com.syclo.sap.ComplexTableObject;
public class FlightCarrierCT extends ComplexTableObject {

public String CARRID;

October 2013

117


public String CARRNAME;
public String CURRCODE;
public String URL;
public String getCARRID() {
return CARRID;
}
public void setCARRID(String cARRID) {
CARRID = cARRID;
}
public String getCARRNAME() {
return CARRNAME;
}
public void setCARRNAME(String cARRNAME) {
CARRNAME = cARRNAME;
}
public String getCURRCODE() {
return CURRCODE;
}
public void setCURRCODE(String cURRCODE) {
CURRCODE = cURRCODE;
}
public String getURL() {
return URL;
}
public void setURL(String uRL) {
URL = uRL;
}
@Override
public String getID() {
return getCARRID();
}
@Override
public void setNotes(Table arg0) throws Exception {

October 2013

118


}
@Override
public void setProperties(Table arg0) throws Exception {
setCARRID(arg0.getString("CARRID"));
setCARRNAME(arg0.getString("CARRNAME"));
setCURRCODE(arg0.getString("CURRCODE"));
setURL(arg0.getString("URL"));
}
@Override
public void setPropertiesForDeletedRecord(Table arg0) throws Exception {
}
}
5. Switch to the Agentry (Properties) Perspective
6. Under the Project Explorer click on Complex Table

7. Click on

October 2013

button > BackendSAPConnection > Existing Class

119


8. Enter Class Name in Select entries: com.syclo.sap.ComplexTable

9. Click on
button
Name: ct_Carrier
Display Name: Carrier Complex Table

October 2013

120


10. Click on the
11. Click on Fields

button

12. Click on the

button

13. Click on the

button

14. Click on

October 2013

button

121


15. Click on the

button

16. Click on the

button

17. Click on

button

18. Click on the

button

19. Click on the

button

20. Click on
21. Click on the

October 2013

button
button

122


22. Click on the
button
You should have the following fields populated:

23. Click on
button
24. Click on Indexes

25. Click on the

October 2013

button

123


26. Click on the

button

27. Click on the

button

Your ct_Carrier Java Complex Table Indexes should look like the following screen:

October 2013

124


28. Publish the Agentry Definitions to the Agentry Server
. The publish window should show
2 new definitions.
29. Export the ZFlightBooking. jar File to the Server as well, as you did in the previous chapter.
30. Click on File > Export

October 2013

125


31. Expand Java > choose JAR file
32. Click on

October 2013

button

126


33. Click on

button

4.3.4Enter Mobile Application Parameter
1.

Launch Transaction /n/syclo/configpanel from SAP GUI

October 2013

127


2. Click on
link
3. Choose your Mobile Application Configuration
4. Click on the Parameters Tab
5. Click on the
6. Click on the

button
button

Parameter Group: CT_SAPOBJECT
Param. Name: ct_Carrier
Param. Value: com.syclo.sap.sflight.customer.object.FlightCarrierCT

7. Click on the

October 2013

button

128


8. The Param Value should be the Z##_BAPI_GET_CARRIER_CT created by you
9. Click on the

button

10. Click on the
button and Continue on screen prompt
Your Parameter List should look like the following (note that it includes other
parameters added from previous exercises):


4.3.5 Test the Mobile Application in ATE
1.

Perform a transmit in the Agentry Test Environment
You will now see ct_Carrier Complex Table from File > Inspect Menu.

October 2013

129


October 2013

130


4.4 Deployment of the Mobile Application on SAP Mobile
Platform 2.3
1. Stop your Agentry Development Server
2. Locate the Agentry Server Directory

3. Right Click on the folder Application and choose Add to Application.zip

October 2013

131


4. You will notice that a Zip File Application.zip is created

5. Double Click on the Application.zip file

6. Locate the following files in your Agentry Server Directory
Agentry.ini
JavaBE.ini
librfc32.dll
sapjcorfc.dll
SAPCommon-121161.jar
sapjco.jar
ini4j.jar
ZFlightBooking.jar
7. Multiple select the above files using Ctrl Key+ Click and then drag and drop these files into
the Application.zip

October 2013

132


8.

Click on OK

9. Close the Application.zip file
10. Now we need to deploy the Application to SMP2.3 using SAP Control Center. Start SMP
Services
11. Launch and login to the SAP Control Center

October 2013

133


12. Click on the Applications Node

13. Click on the

October 2013

button

134


14. Enter the following,
Application ID: com.sap.FlightBooking
Display name: FlightBooking
Description: FlightBooking Application
Client SDK Type: Agentry (Choose from Dropdown)
Security configuration: Agentry (disabled after choosing Client SDK Type)
Domain: default (disabled after choosing Client SDK Type)

October 2013

135


15. Select the Checkbox: Application File
16. Click on the

button, Locate the Agentry Server directory

17. Chose ZIP Files form the File of type dropdown

October 2013

136


18. Select the Application.zip file that you created in the previous step.

19. Click on the

October 2013

button

137


20. Click on the
button
21. On the SAP Control Center, you will get a Success message

22. Restart the SMP Services
23. Reset the Agentry Test Environment. Now you can test your application in the ATE. You
should see in the Agentry Server list your production Agentry Server running.
24. In addition, you can check the Agentry logs under:
...SAPMobilePlatformServersUnwiredServerlogs<YourApplication>

October 2013

138


25. To Change Log level, Expand the Applications Node, chose your Application, Select the
Logs Tab and set your log levels.

October 2013

139


5.

Appendix

5.1 Appendix A – Source Code for Z00_CREATE_FLIGHT_BOOKING
class Z00_CREATE_FLIGHT_BOOKING definition
public
inheriting from /SYCLO/CL_CORE_DO_HANDLER_BASE
create public .
public section.
*"* public components of class Z00_CREATE_FLIGHT_BOOKING
*"* do not include other source files here!!!
methods /SYCLO/IF_CORE_DO_HANDLER~CREATE
redefinition .
methods /SYCLO/IF_CORE_DO_HANDLER~GET
redefinition .
protected section.
*"* protected components of class Z00_CREATE_FLIGHT_BOOKING
private section.
*"* private components of class Z00_CREATE_FLIGHT_BOOKING
ENDCLASS.

CLASS Z00_CREATE_FLIGHT_BOOKING IMPLEMENTATION.

* <SIGNATURE>---------------------------------------------------------------------------------------+
* | Instance Public Method Z00_CREATE_FLIGHT_BOOKING>/SYCLO/IF_CORE_DO_HANDLER~CREATE
* +-------------------------------------------------------------------------------------------------+
* | [--->] IREF_RFC_OO_DATA

TYPE REF TO /SYCLO/CL_CORE_RFC_OO_DATA

* +--------------------------------------------------------------------------------------</SIGNATURE>
method /SYCLO/IF_CORE_DO_HANDLER~CREATE.
*CALL METHOD SUPER->/SYCLO/IF_CORE_DO_HANDLER~CREATE
* EXPORTING
* IREF_RFC_OO_DATA =
* .

October 2013

140


DATA: lref_exception TYPE REF TO cx_root.
*Tables and Structures
DATA: ls_bapi_output TYPE /syclo/core_bapi_output_str.
DATA: lt_in_ooref_param TYPE abap_parmbind_tab,
ls_abap_param TYPE abap_parmbind.
DATA: ls_return TYPE bapiret2.
*Variables
DATA: ls_sbook type SBOOK,
lv_carrid type sbook-carrid,
lv_connid type sbook-connid,
lv_fldate type sbook-fldate,
lv_order_date type sbook-order_date,
lv_reserved type sbook-reserved,
lv_passname type sbook-passname,
lv_booking_user type sbook-booking_user,
lv_bookid type sbook-bookid.
data return type INRI-RETURNCODE.
*Field Symbols
FIELD-SYMBOLS: <wa> TYPE ANY,
<table> TYPE ANY TABLE,
<bapi_return> TYPE bapiret2_t.
*****************************************************
* Main Section
*****************************************************
TRY.
* Step 1 - Convert OO parameter into required format
iref_rfc_oo_data->get_ooref_param_tab(
IMPORTING et_in_ooref_param_tab = lt_in_ooref_param ).
LOOP AT lt_in_ooref_param INTO ls_abap_param.
CASE ls_abap_param-name.
WHEN 'IS_SBOOK'.
ASSIGN ls_abap_param-value->* TO <wa>.
October 2013

141


ls_sbook = <wa>.
ENDCASE.
ENDLOOP.
ASSIGN iref_rfc_oo_data->dref_return->* TO <bapi_return>.
*

lv_unitr = ls_reading-recdu.

*

lv_record_val = ls_reading-recdv.
lv_carrid = ls_sbook-carrid.
lv_connid = ls_sbook-connid.
lv_fldate = ls_sbook-fldate.
ls_sbook-order_date = SY-DATUM.
lv_order_date = SY-DATUM.
lv_reserved = 'X'.
lv_passname = ls_sbook-passname.
lv_booking_user = sy-uname.
ls_sbook-booking_user = sy-uname.

* Generate Next Booking ID Number
CALL FUNCTION 'NUMBER_GET_NEXT'
EXPORTING
nr_range_nr = '01'
object

= 'SBOOKID'

subobject = lv_carrid
toyear

= lv_order_date(4)

IMPORTING
number

= lv_bookid

returncode = return
EXCEPTIONS
OTHERS

= 1.

CASE sy-subrc.
WHEN 0.
CASE return.
WHEN 1.
*

number of remaining numbers critical
ls_return-type = 'W'.
ls_return-message = 'Nearing End of Number Range'.
APPEND ls_return TO <bapi_return>.
WHEN 2.

*

last number

October 2013

142


ls_return-type = 'W'.
ls_return-message = 'No More Numbers in Number Range'.
WHEN 3.
*

no free number left over
ls_return-type = 'E'.
ls_return-message = 'Number Range Full'.
ENDCASE.
WHEN 1.

*

internal error
ls_return-message = 'Internal Error in Number Range'.
ENDCASE.

ls_sbook-bookid = lv_bookid.
ls_sbook-mandt = '800'.
insert into SBOOK CLIENT SPECIFIED values ls_sbook.
if sy-subrc eq 0.
ls_return-type = 'S'.
ls_return-message = 'Booking Successful Booking Reference No ' && ls_sbook-bookid .
else.
ls_return-message = 'Booking Failed'.
endif.

GET REFERENCE OF ls_sbook-bookid INTO ls_abap_param-value.
ls_abap_param-kind = /syclo/cl_core_constants=>rfc_exporting.
ls_abap_param-name = 'EV_BOOKING_ID'.
iref_rfc_oo_data->copy_to_ooref_param(
EXPORTING is_abap_param = ls_abap_param ).
* Class-Based Exception Handling
CATCH cx_root INTO lref_exception.

"#EC CATCH_ALL

/syclo/cl_core_appl_logger=>logger->catch_class_exception(
EXPORTING iv_mobile_user = me->str_bapi_input-mobile_user
iv_mobile_id = me->str_bapi_input-mobile_id
October 2013

143


iref_exception = lref_exception
iref_return_tab = iref_rfc_oo_data->dref_return ).
ENDTRY.

endmethod.

* <SIGNATURE>---------------------------------------------------------------------------------------+
* | Instance Public Method Z00_CREATE_FLIGHT_BOOKING>/SYCLO/IF_CORE_DO_HANDLER~GET
* +-------------------------------------------------------------------------------------------------+


* +--------------------------------------------------------------------------------------</SIGNATURE>
METHOD /SYCLO/IF_CORE_DO_HANDLER~GET.
DATA: lt_abap_param TYPE abap_parmbind_tab,
ls_abap_param TYPE abap_parmbind,
ls_return TYPE bapiret2.
DATA: lref_exception TYPE REF TO cx_root.
DATA: lt_sbook TYPE TABLE OF sbook. "Business data, in our case SBOOK table

FIELD-SYMBOLS: <source> TYPE any,
<return> TYPE bapiret2_t.
ASSIGN iref_rfc_oo_data->dref_return->* TO <return>.
* Retrieve BAPI Import Parameters
iref_rfc_oo_data->get_ooref_param_tab(
IMPORTING et_in_ooref_param_tab = lt_abap_param ).

*Step 1. Timestamp for mobile
IF me->mobile_timestamp_in IS INITIAL.
me->mobile_timestamp_out =
/syclo/cl_core_do_services=>get_sys_timestamp( ).
October 2013

144


ENDIF.

*Step 2. Fetch the data
select * from sbook into table lt_sbook where booking_user eq sy-uname.
*Step 3. Map the data to return parameters
TRY.
IF lt_sbook[] IS NOT INITIAL.
GET REFERENCE OF lt_sbook[] INTO ls_abap_param-value.
ls_abap_param-kind = /syclo/cl_core_constants=>rfc_table.
ls_abap_param-name = 'ET_SBOOK[]'.
iref_rfc_oo_data->copy_to_ooref_param(
EXPORTING is_abap_param = ls_abap_param ).
ENDIF.
CATCH cx_root INTO lref_exception.

"#EC CATCH_ALL

me->logger->catch_class_exception(
EXPORTING iv_mobile_user = me->str_bapi_input-mobile_user
iv_user_guid = me->str_bapi_input-user_guid "<-ins 310_700 bugid 25317
ENDTRY.
ENDMETHOD.
ENDCLASS.

5.2 Appendix B – Source code for Z00_BAPI_CRT_FLIGHT_BOOKING
FUNCTION Z00_BAPI_CRT_FLIGHT_BOOKING.
*"---------------------------------------------------------------------*"*"Local Interface:
*" IMPORTING
*"

VALUE(IS_BAPI_INPUT) TYPE /SYCLO/CORE_BAPI_INPUT_STR OPTIONAL

*"

VALUE(IS_SBOOK) TYPE SBOOK OPTIONAL

*" EXPORTING
*"

VALUE(ES_BAPI_OUTPUT) TYPE /SYCLO/CORE_BAPI_OUTPUT_STR

*"

VALUE(EV_BOOKING_ID) TYPE SBOOK-BOOKID

*" TABLES
*"

ET_RETURN STRUCTURE BAPIRET2 OPTIONAL

October 2013

145


*"---------------------------------------------------------------------**********************************************************************
* Data Declaration Section
**********************************************************************
*Constants
CONSTANTS: lc_bapi_name TYPE funcname VALUE 'Z00_BAPI_CRT_FLIGHT_BOOKING'.
**********************************************************************
* Template Section
**********************************************************************
INCLUDE /syclo/core_bapi_template_incl.
ENDFUNCTION.

5.3 Appendix C – Source code for Z00_BAPI_GET_FLIGHT_BOOKING
FUNCTION Z00_BAPI_GET_FLIGHT_BOOKING.
*"-------------------------------------------------------------------*"*"Local Interface:
*" IMPORTING
*"

VALUE(IS_BAPI_INPUT) TYPE /SYCLO/CORE_BAPI_INPUT_STR

*" EXPORTING
*"


*" TABLES
*"

ET_SBOOK STRUCTURE SBOOK OPTIONAL

*"


*"-------------------------------------------------------------------sy-debug = 'X'.

ENDFUNCTION.

October 2013

146


5.4 Appendix D – Source code for Z00_GET_AIRPORT_DATA_TABLE
class Z00_GET_AIRPORT_DATA_TABLE definition
public
inheriting from /SYCLO/CL_CORE_DT_HANDLER
create public .
public section.
*"* public components of class Z00_GET_AIRPORT_DATA_TABLE
protected section.
*"* protected components of class Z00_GET_AIRPORT_DATA_TABLE
methods GET_DATA_TABLE
redefinition .
private section.
*"* private components of class Z00_GET_AIRPORT_DATA_TABLE
ENDCLASS.

CLASS Z00_GET_AIRPORT_DATA_TABLE IMPLEMENTATION.

* <SIGNATURE>---------------------------------------------------------------------------------------+
* | Instance Protected Method Z00_GET_AIRPORT_DATA_TABLE->GET_DATA_TABLE
* +-------------------------------------------------------------------------------------------------+


* +--------------------------------------------------------------------------------------</SIGNATURE>
method GET_DATA_TABLE.
*OO Reference Variables
DATA: LREF_EXCEPTION TYPE REF TO CX_ROOT,
LREF_DO_SERV TYPE REF TO /SYCLO/CL_CORE_DO_SERVICES.
DATA: LT_DATA_TABLE TYPE /SYCLO/CORE_DT_TAB,
LS_DATA_TABLE TYPE /SYCLO/CORE_DT_STR.
*Tables & Structures
October 2013

147


"The following structure contains reference to all available filters
"from ConfigPanel. Filter name is consistent with what is declared
"in filter service method GET_DATA_FILTER_LIST
DATA: BEGIN OF LS_DOF_FILTER_VALS,
CITY

TYPE REF TO /SYCLO/CORE_RANGE_TAB,

END OF LS_DOF_FILTER_VALS.
*Constants
CONSTANTS: LC_MTHD TYPE /SYCLO/CORE_DO_MTHD_DTE VALUE 'GET'.
*********************************************************************
* Main Section
*********************************************************************
TRY.
ME->MESSAGE = 'Entering method ~ GET_DATA_TABLE...'(M01).
ME->LOGGER->LOGINFO( IV_MOBILE_USER = ME->STR_BAPI_INPUT-MOBILE_USER
IV_MOBILE_ID = ME->STR_BAPI_INPUT-MOBILE_ID
IV_USER_GUID = ME->STR_BAPI_INPUT-USER_GUID
IV_MESSAGE = ME->MESSAGE
IV_SOURCE = ME->SOURCE ).
"Set return time stamp at begining if exchange process not used
IF ME->STR_BAPI_INPUT-TIMESTAMP_FROM_MOBILE IS INITIAL.
ME->STR_BAPI_OUTPUT-TIMESTAMP_TO_MOBILE =
/SYCLO/CL_CORE_DO_SERVICES=>GET_SYS_TIMESTAMP( ).
ENDIF.
LREF_DO_SERV = /SYCLO/CL_CORE_DO_SERVICES=>GET_DO_SERVICE(
IREF_LOGGER = ME->LOGGER ).

ME->OREF_MDO_DATA->MAP_LOCAL_DOF_FILTER(
CHANGING CS_FILTERS = LS_DOF_FILTER_VALS ).
SELECT ID AS KEY
NAME

AS VALUE

FROM SAIRPORT
INTO CORRESPONDING FIELDS OF TABLE LT_DATA_TABLE.
LS_DATA_TABLE-DO_ID = ME->STR_DO_SETTING-DO_ID.
MODIFY LT_DATA_TABLE FROM LS_DATA_TABLE TRANSPORTING DO_ID
WHERE DO_ID IS INITIAL.
October 2013

148


ME->TAB_DATA_TABLE[] = LT_DATA_TABLE[].
CATCH CX_ROOT INTO LREF_EXCEPTION.

"#EC CATCH_ALL

ME->LOGGER->CATCH_CLASS_EXCEPTION(
EXPORTING IV_MOBILE_USER = ME->STR_BAPI_INPUT-MOBILE_USER
IV_MOBILE_ID = ME->STR_BAPI_INPUT-MOBILE_ID
IV_USER_GUID = ME->STR_BAPI_INPUT-USER_GUID
IREF_EXCEPTION = LREF_EXCEPTION
IREF_RETURN_TAB = IREF_RFC_OO_DATA->DREF_RETURN ).
ENDTRY.

endmethod.
ENDCLASS.

5.5 Appendix E – Source code for Z00_GET_CARRIER_COMPLEX_TAB
class Z00_GET_CARRIER_COMPLEX_TAB definition
public
inheriting from /SYCLO/CL_CORE_CT_HANDLER
create public .
public section.
*"* public components of class Z00_GET_CARRIER_COMPLEX_TAB
protected section.
*"* protected components of class Z00_GET_CARRIER_COMPLEX_TAB
methods GET_COMPLEX_TABLE
redefinition .
private section.
*"* private components of class Z00_GET_CARRIER_COMPLEX_TAB
ENDCLASS.

October 2013

149


CLASS Z00_GET_CARRIER_COMPLEX_TAB IMPLEMENTATION.

* <SIGNATURE>---------------------------------------------------------------------------------------+
* | Instance Protected Method Z00_GET_CARRIER_COMPLEX_TAB->GET_COMPLEX_TABLE
* +-------------------------------------------------------------------------------------------------+


* | [<-->] CREF_COMPLEX_TABLE

TYPE REF TO DATA

* +--------------------------------------------------------------------------------------</SIGNATURE>
method GET_COMPLEX_TABLE.
*OO Reference Variables
data: lref_exception type ref to cx_root,
lref_do_serv type ref to /syclo/cl_core_do_services.

"#EC NEEDED

*Tables and Structures
data: ls_return type bapiret2.
data: lt_flt_temp

type standard table of scarr.

*Table & Structures
"The following structure contains reference to all supported output parameter
"from MDO handler. Output parameter name is set to the same as what is declared
"in receiving BAPI warpper signature for simplicity.
data: begin of ls_mdo_output_vals,
et_complex_table

type ref to /syclo/pm_buspartner_tab,

et_exchange_action_deleted type ref to /syclo/pm_buspart_deleted_tab,
end of ls_mdo_output_vals.
data: begin of ls_flt_key,
CARRID type S_CARR_ID,
end of ls_flt_key,
lt_flt_key like standard table of ls_flt_key.
*Variables
data: lv_select_clause type string.
*Field Symbols
field-symbols:
<filter_tab> type /syclo/pm_buspartner_tab,
October 2013

150


<list_value> type /syclo/pm_buspartner_str,
<return> type bapiret2_t.
*Constants
constants: lc_mthd type /syclo/core_do_mthd_dte value 'GET'.

*****************************************************
* Main Section
*****************************************************
try.
me->message = 'Entering method ~ GET_COMPLEX_TABLE...'(m02).
me->logger->loginfo( iv_mobile_user = me->str_bapi_input-mobile_user
iv_user_guid = me->str_bapi_input-user_guid
iv_message = me->message
iv_source = me->source ).

if me->str_bapi_input-timestamp_from_mobile is initial.
me->str_bapi_output-timestamp_to_mobile =
/syclo/cl_core_do_services=>get_sys_timestamp( ).
endif.
*----------------------------------------------------------------------*
* Step 1 - Initialization
*----------------------------------------------------------------------*
"Build Filter from Filter Service & BAPI Input
lref_do_serv = /syclo/cl_core_do_services=>service.
"-->Initialize output tables
create data: ls_mdo_output_vals-et_complex_table,
ls_mdo_output_vals-et_exchange_action_deleted.

assign iref_rfc_oo_data->dref_return->* to <return>.
*----------------------------------------------------------------------*
* Step 2 - "Perform main SQL selection
*----------------------------------------------------------------------*
*Build Keys
October 2013

151


select CARRID from SCARR into table lt_flt_key.
if lt_flt_key[] is initial.
ls_return-type = 'I'.
ls_return-message = 'No data found'(i02).
append ls_return to <return>.
return.
else.
sort lt_flt_key[].
delete adjacent duplicates from lt_flt_key[].
endif.
select * from scarr into corresponding fields of table lt_flt_temp.
sort lt_flt_temp.
delete adjacent duplicates from lt_flt_temp.
if lt_flt_temp[] is initial.
ls_return-type = 'I'.
ls_return-message = 'No data found'(i02).
append ls_return to <return>.
return.
endif.
*----------------------------------------------------------------------*
* Step 3 - Prepare MDO output data
*----------------------------------------------------------------------*
if lt_flt_temp[] is not initial.
assign ls_mdo_output_vals-et_complex_table->* to <filter_tab>.
<filter_tab> = lt_flt_temp[].
endif.
" -->return output data to MDO data object,
" output data in MDO data are mapped to BAPI Wrapper
" data container automatically by POSTPROCESS_MAPPING
me->oref_mdo_data->set_mdo_output_via_ref_struct(
exporting is_mdo_output = ls_mdo_output_vals ).
catch cx_root into lref_exception.

"#EC CATCH_ALL

/syclo/cl_core_appl_logger=>logger->catch_class_exception(
exporting iv_mobile_user = me->str_bapi_input-mobile_user
October 2013

152


iv_user_guid = me->str_bapi_input-user_guid
endtry.

endmethod.
ENDCLASS.

5.6 Appendix F – Source code for Z00_BAPI_GET_CARRIER_CT
FUNCTION Z00_BAPI_GET_CARRIER_CT.
*"-------------------------------------------------------------------*"*"Local Interface:
*" IMPORTING
*"

VALUE(IS_BAPI_INPUT) TYPE /SYCLO/CORE_BAPI_INPUT_STR OPTIONAL

*" EXPORTING
*"


*" TABLES
*"


*"

ET_COMPLEX_TABLE STRUCTURE SCARR OPTIONAL

*"

ET_EXCHANGE_ACTION_DELETED

*" STRUCTURE /SYCLO/PM_BUSPART_DELETED_STR OPTIONAL
*"-------------------------------------------------------------------*======================================================================
*
*======================================================================
*
**********************************************************************
* Template Section
**********************************************************************
ENDFUNCTION.

October 2013

153

www.sap.com/contactsap
http://scn.sap.com/community/mobile
http://developers.sap.com/mobile
SAP Mobile Platform How-To Guides

How to part 2 build an agentry based app from scratch

More Related Content

Similar to How to part 2 build an agentry based app from scratch

More from Ganesh Kumar

Recently uploaded

How to part 2 build an agentry based app from scratch
