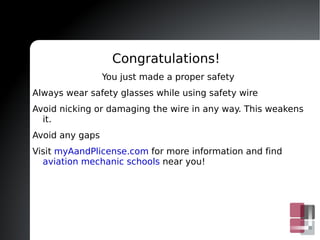

This document provides a step-by-step guide on how to use safety wire pliers to install safety wire. Key instructions include wearing safety glasses, ensuring proper torque on bolts, and twisting the wire correctly to secure it without gaps. It also emphasizes avoiding damage to the wire and provides resources for further information on aviation mechanic schools.

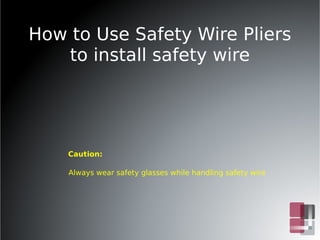

1. How to Use Safety Wire Pliers to install safety wire Always wear safety glasses while handling safety wire Caution:

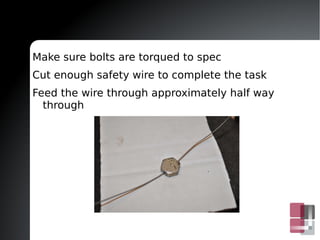

2. Make sure bolts are torqued to spec

3. Cut enough safety wire to complete the task

4. Feed the wire through approximately half way through

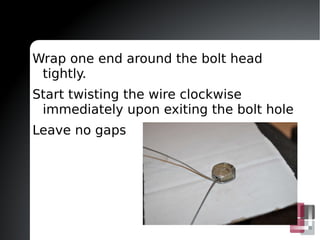

5. Wrap one end around the bolt head tightly.

6. Start twisting the wire clockwise immediately upon exiting the bolt hole

7. Leave no gaps

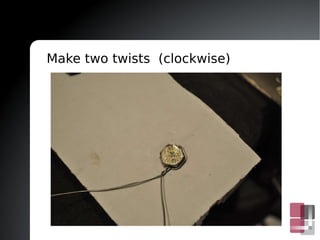

8. Make two twists (clockwise)

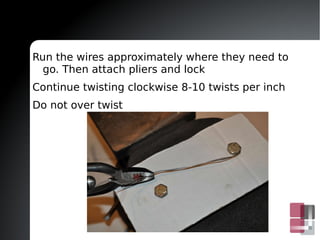

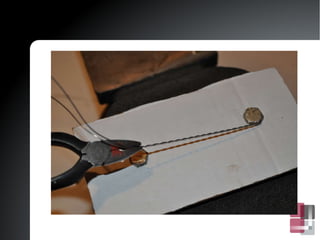

9. Run the wires approximately where they need to go. Then attach pliers and lock

10. Continue twisting clockwise 8-10 twists per inch

11. Do not over twist
