How the Web Has Weaved a Web of Interlinked Chemistry Data Antony Williams ACS Anaheim March 29 th 2011

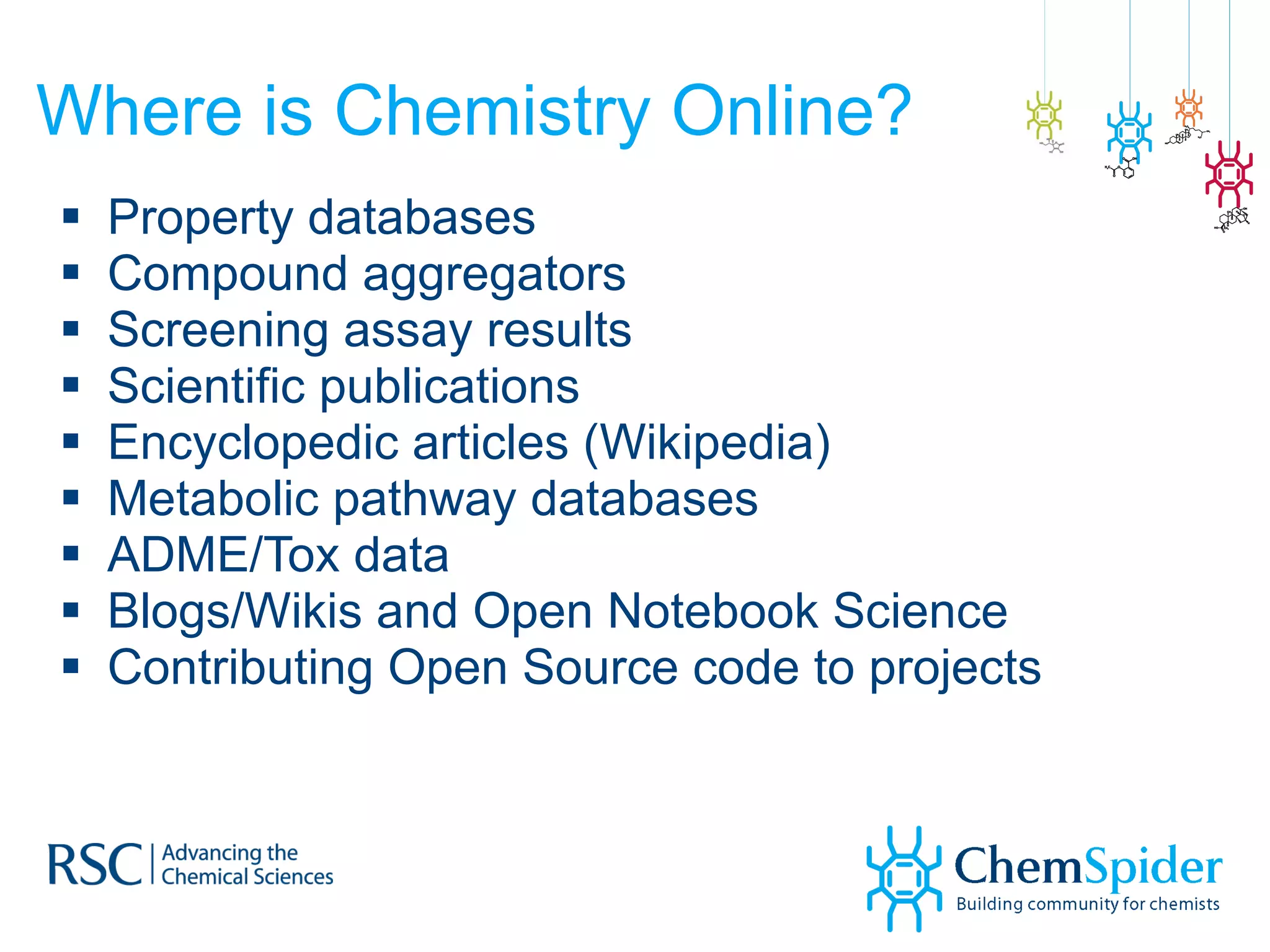

Where is Chemistry Online? Property databases Compound aggregators Screening assay results Scientific publications Encyclopedic articles (Wikipedia) Metabolic pathway databases ADME/Tox data Blogs/Wikis and Open Notebook Science Contributing Open Source code to projects

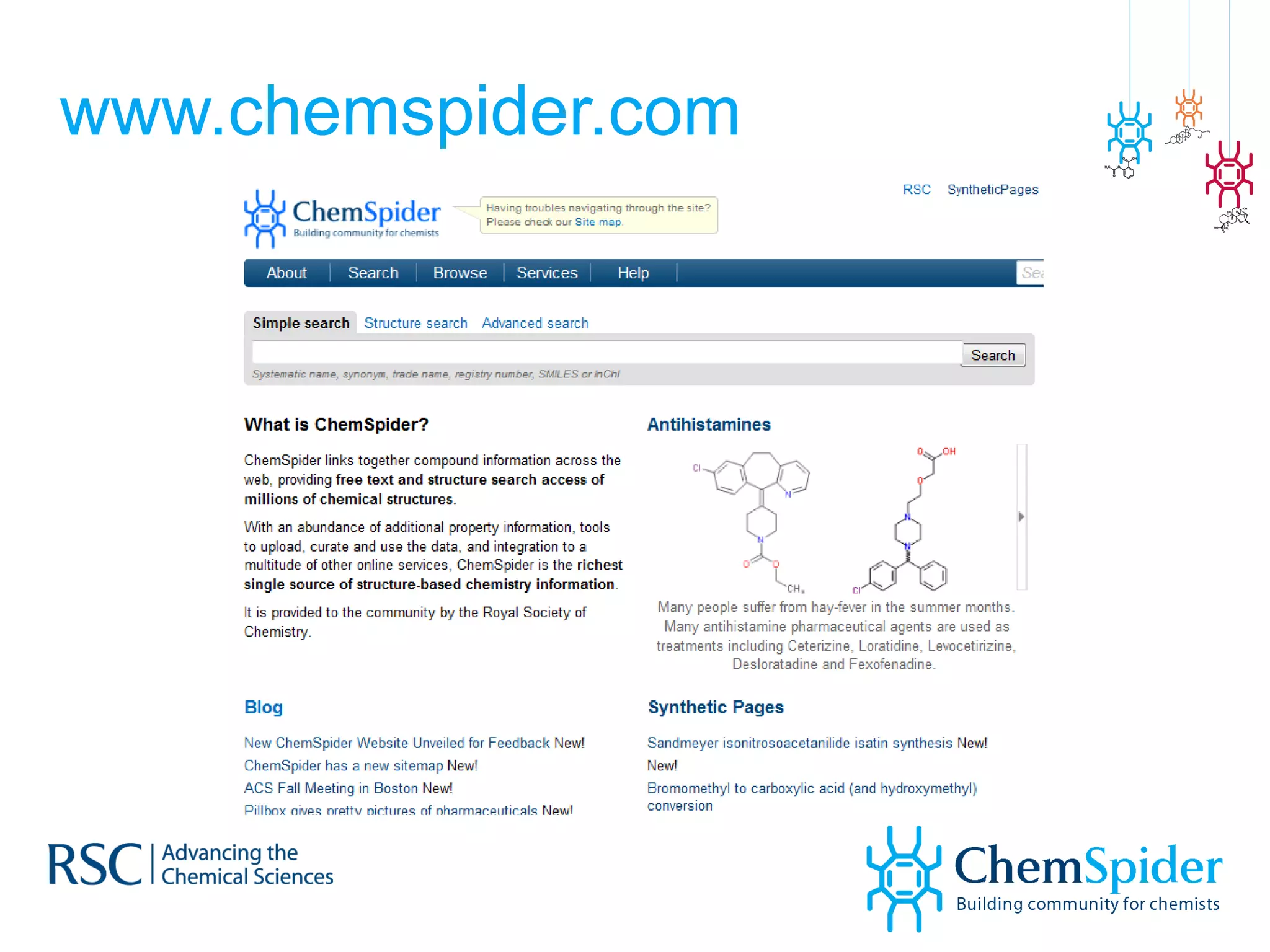

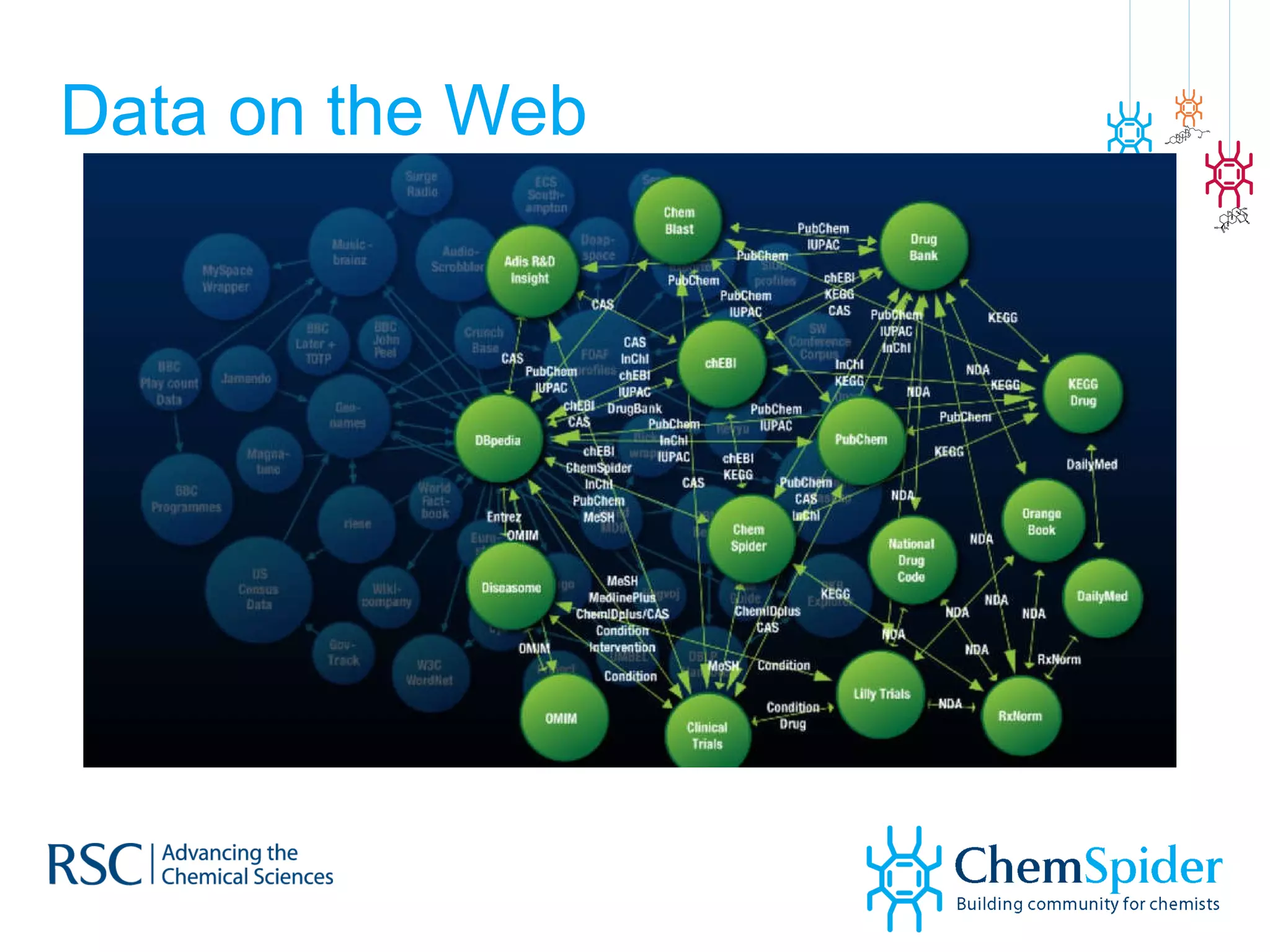

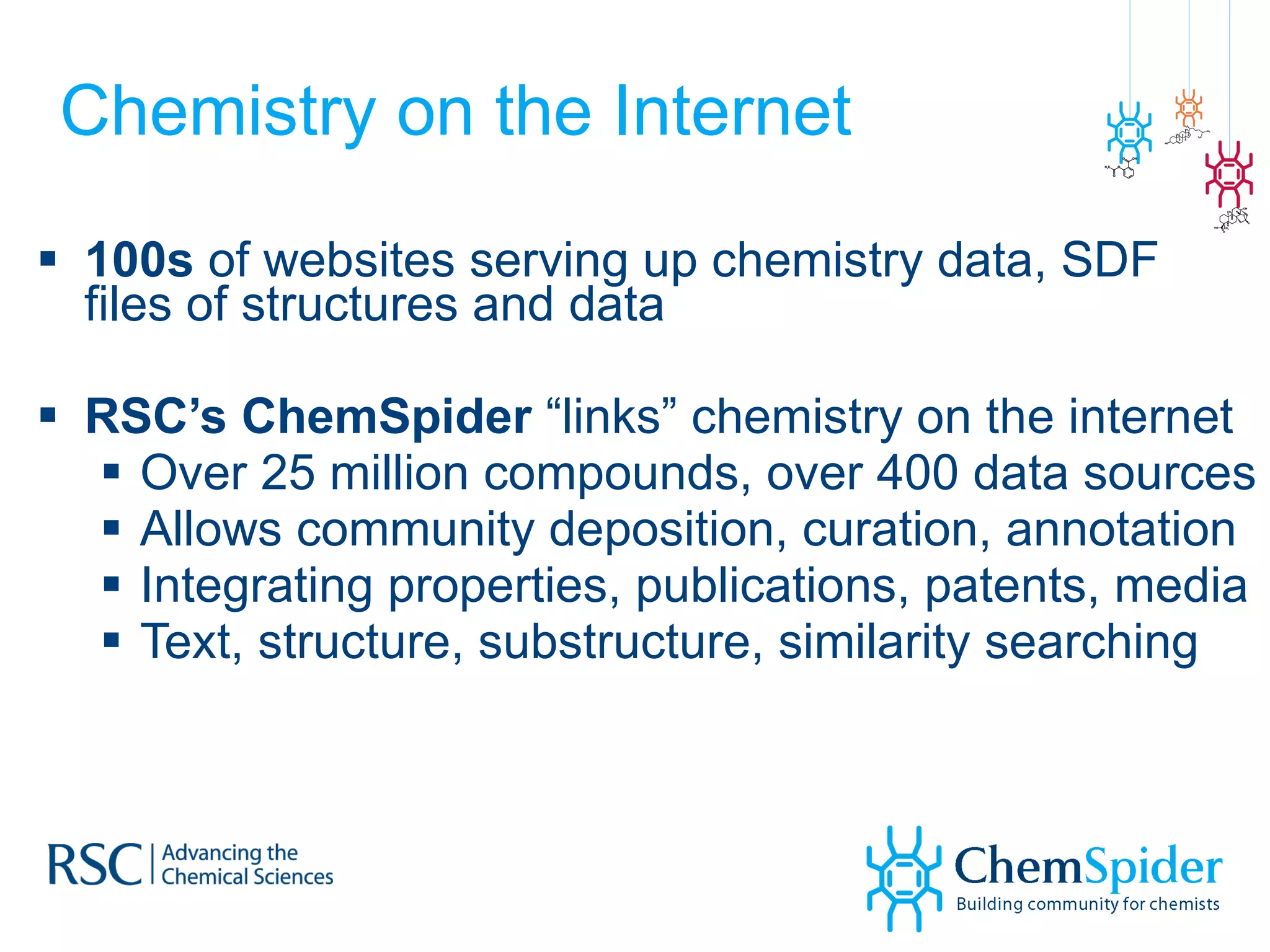

Chemistry on the Internet 100s of websites serving up chemistry data, SDF files of structures and data RSC’s ChemSpider “links” chemistry on the internet Over 25 million compounds, over 400 data sources Allows community deposition, curation, annotation Integrating properties, publications, patents, media Text, structure, substructure, similarity searching

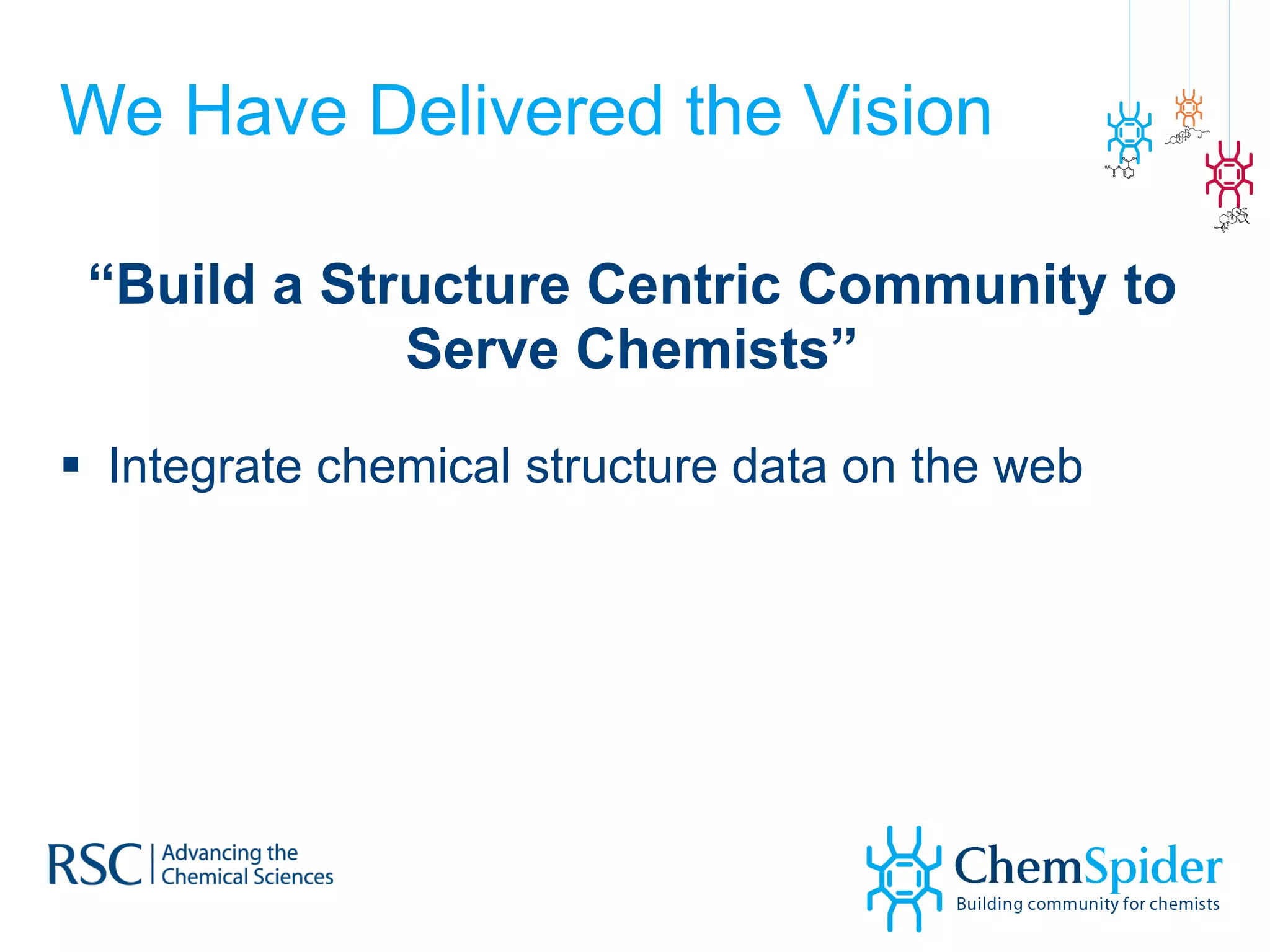

We Have Delivered the Vision “ Build a Structure Centric Community to Serve Chemists” Integrate chemical structure data on the web

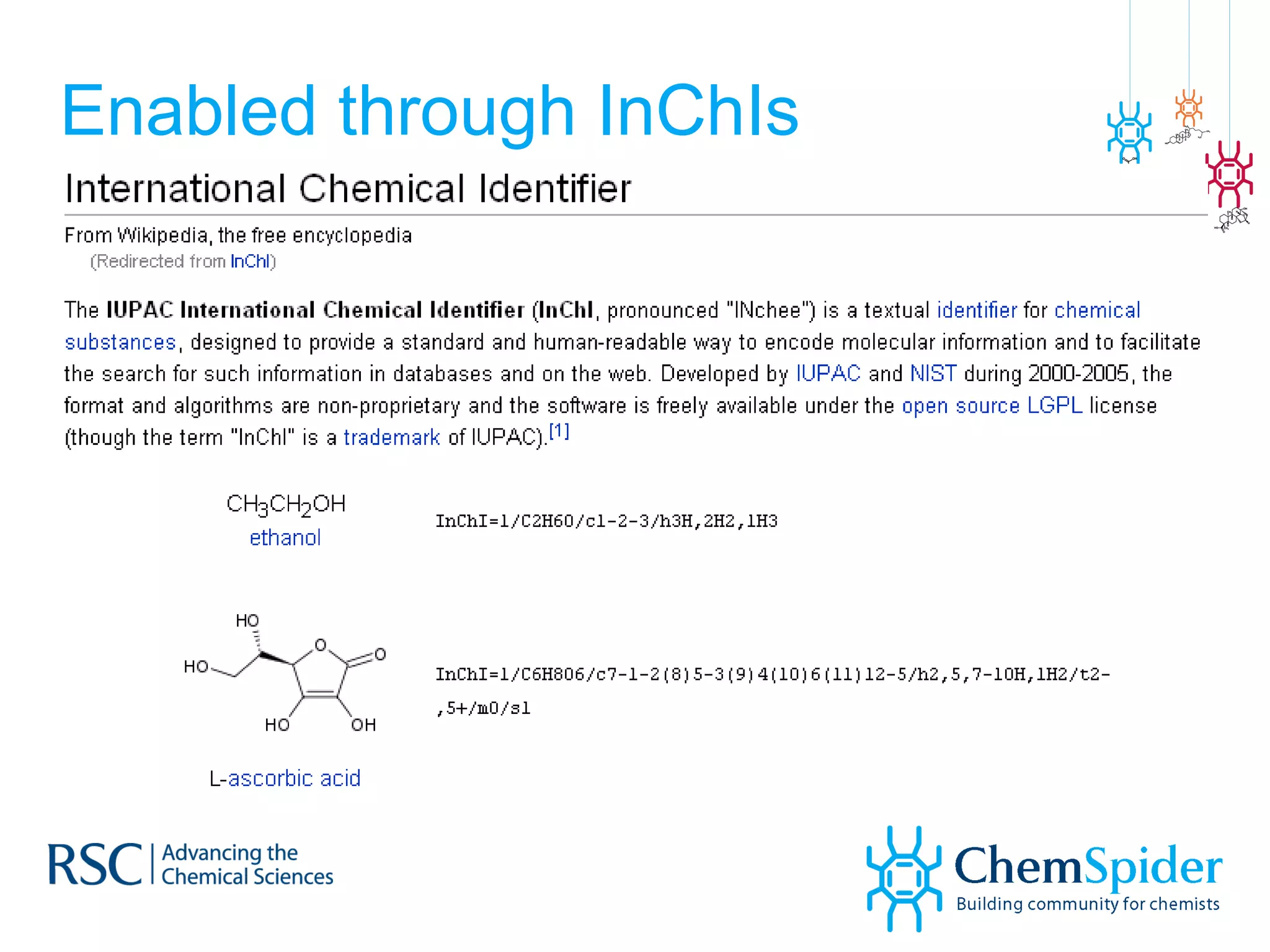

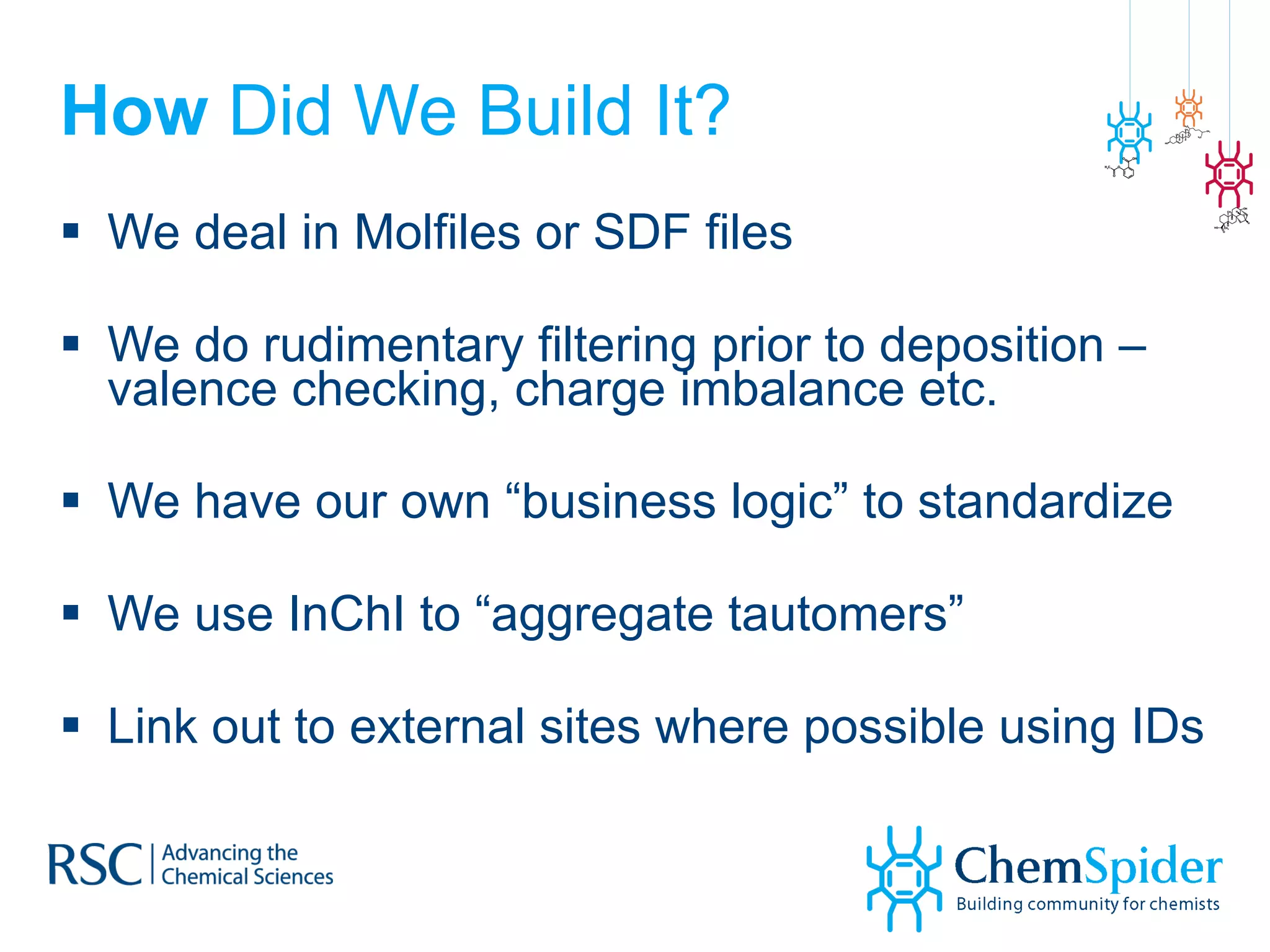

How Did We Build It? We deal in Molfiles or SDF files We do rudimentary filtering prior to deposition – valence checking, charge imbalance etc. We have our own “business logic” to standardize We use InChI to “aggregate tautomers” Link out to external sites where possible using IDs

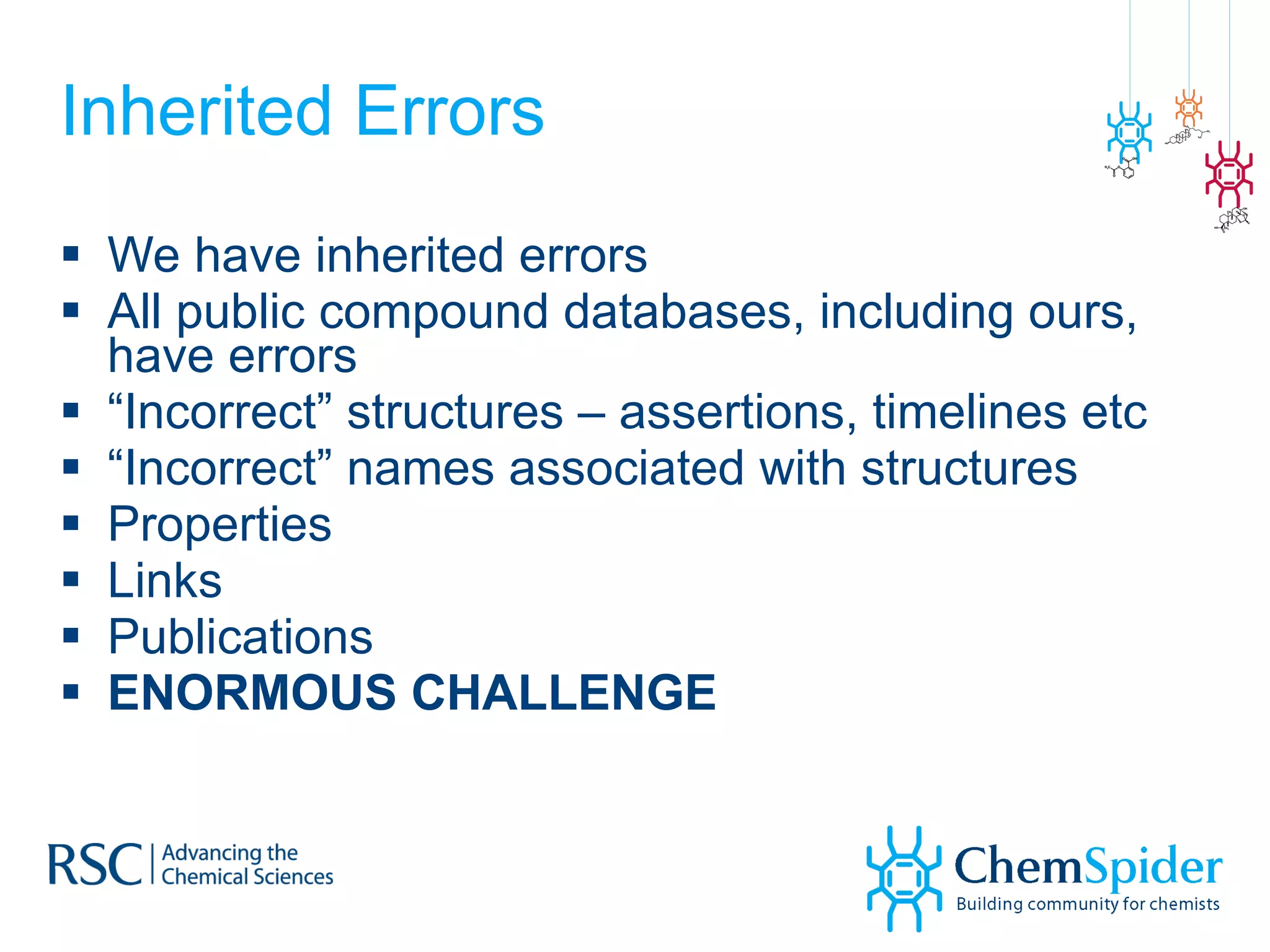

Inherited Errors We have inherited errors All public compound databases, including ours, have errors “ Incorrect” structures – assertions, timelines etc “ Incorrect” names associated with structures Properties Links Publications ENORMOUS CHALLENGE

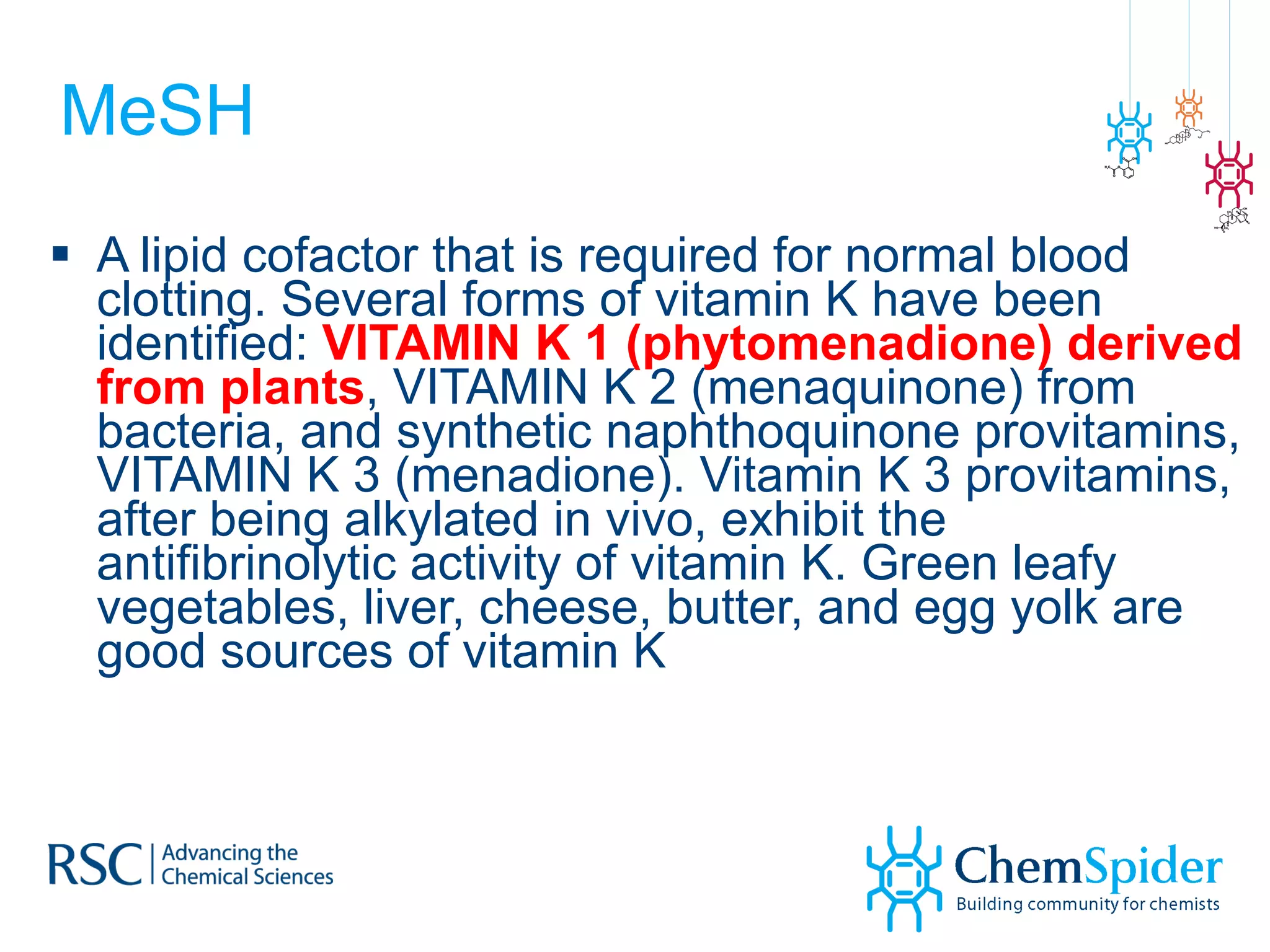

MeSH A lipid cofactor that is required for normal blood clotting. Several forms of vitamin K have been identified: VITAMIN K 1 (phytomenadione) derived from plants , VITAMIN K 2 (menaquinone) from bacteria, and synthetic naphthoquinone provitamins, VITAMIN K 3 (menadione). Vitamin K 3 provitamins, after being alkylated in vivo, exhibit the antifibrinolytic activity of vitamin K. Green leafy vegetables, liver, cheese, butter, and egg yolk are good sources of vitamin K

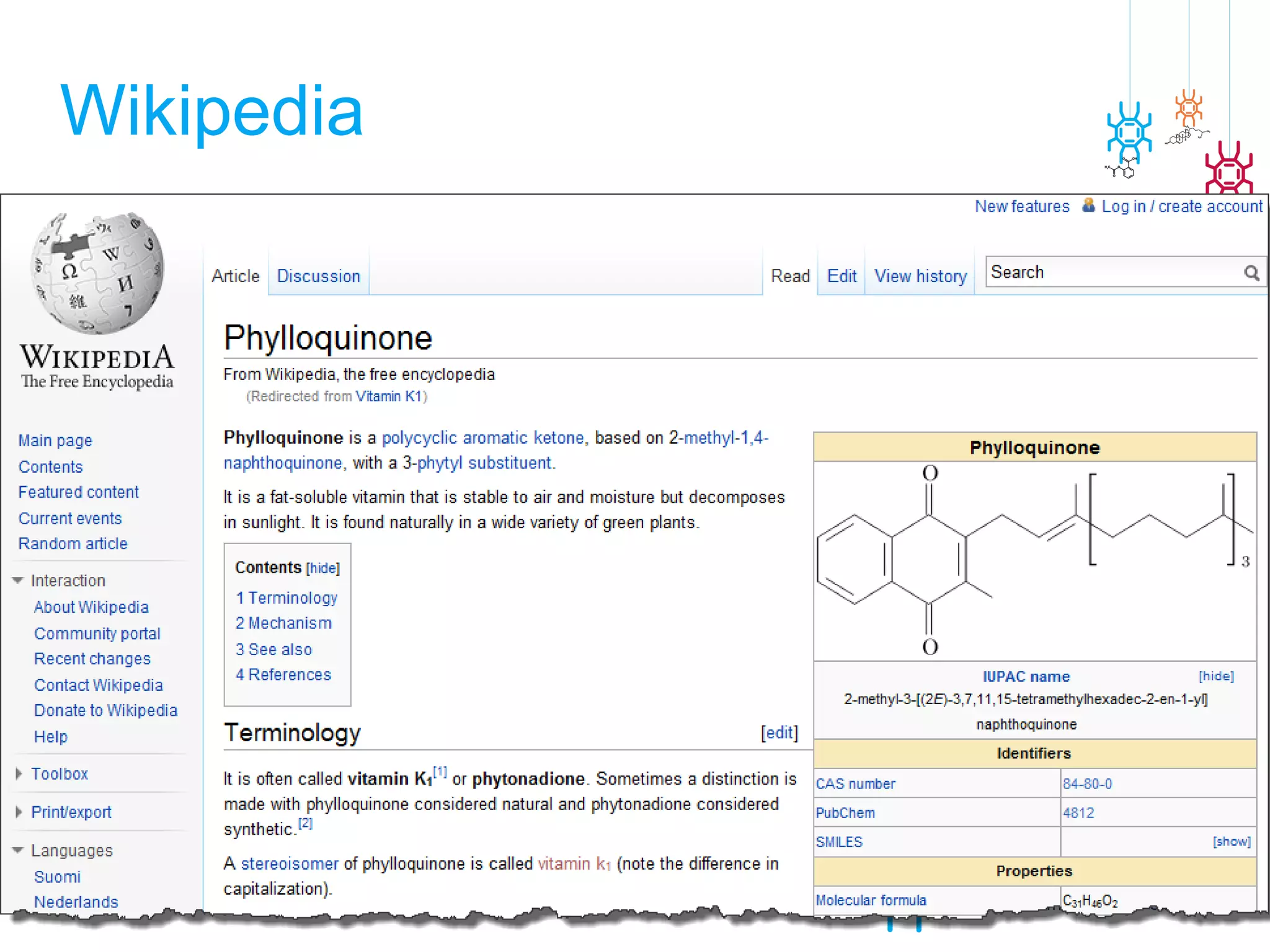

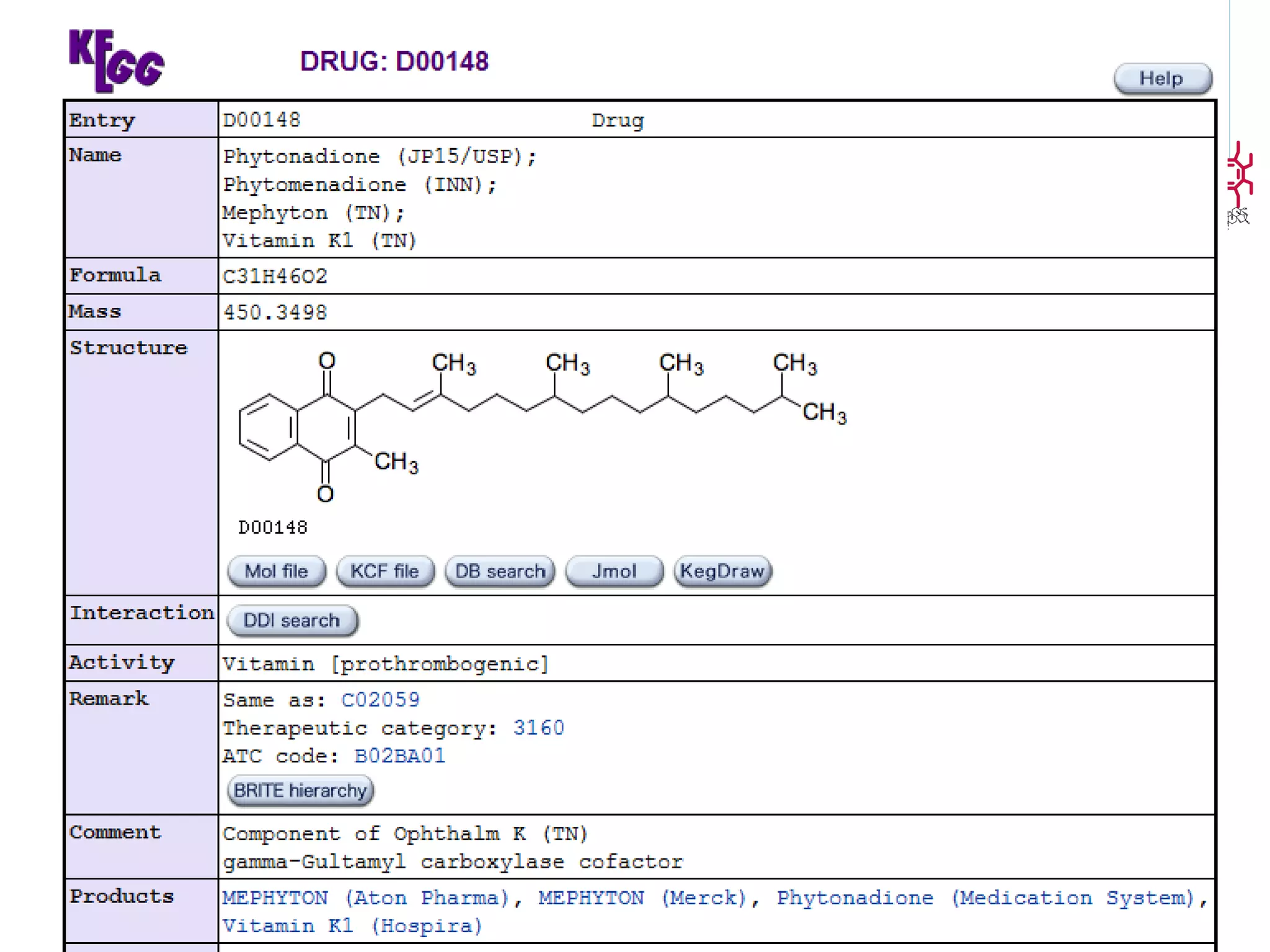

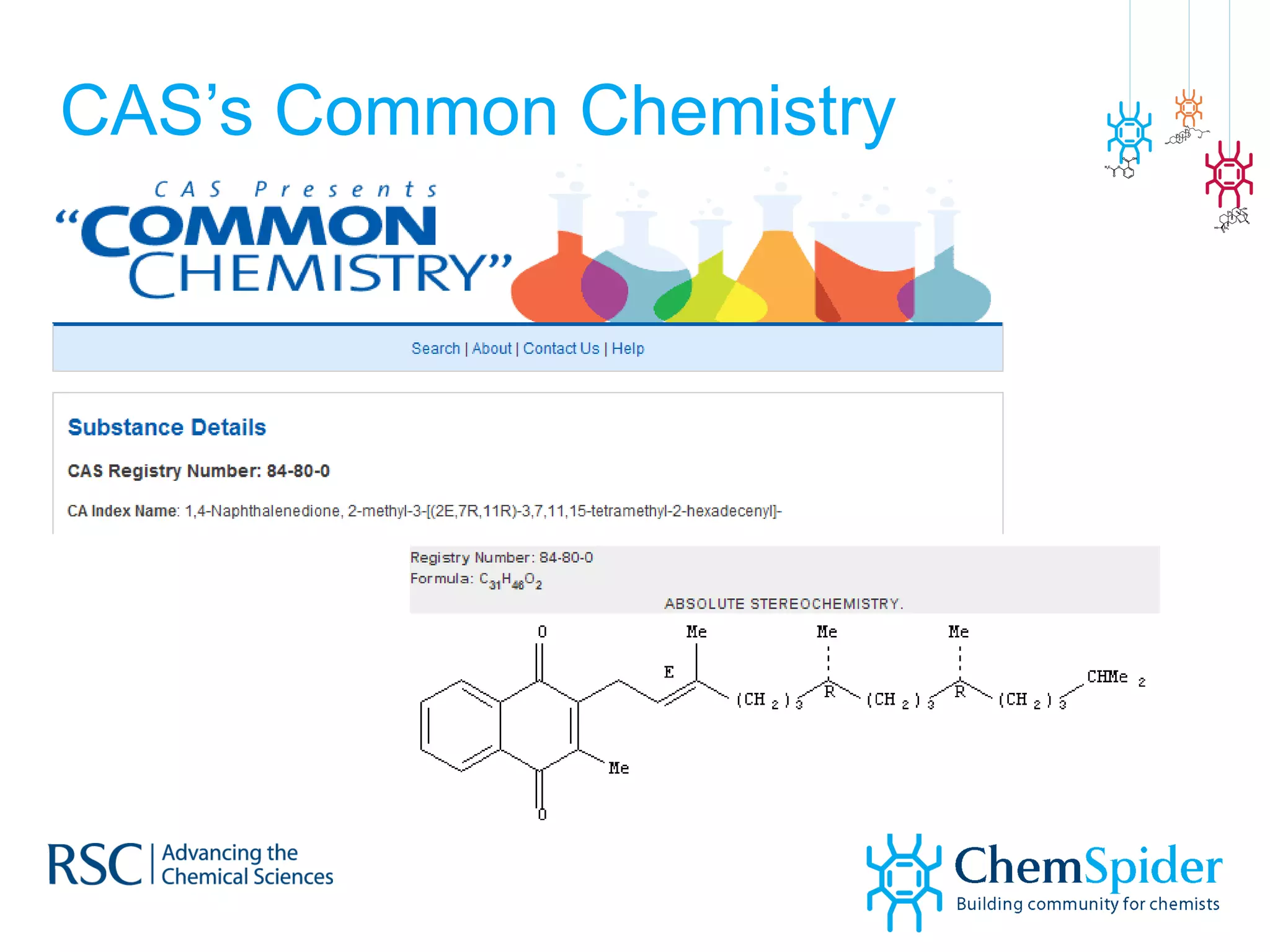

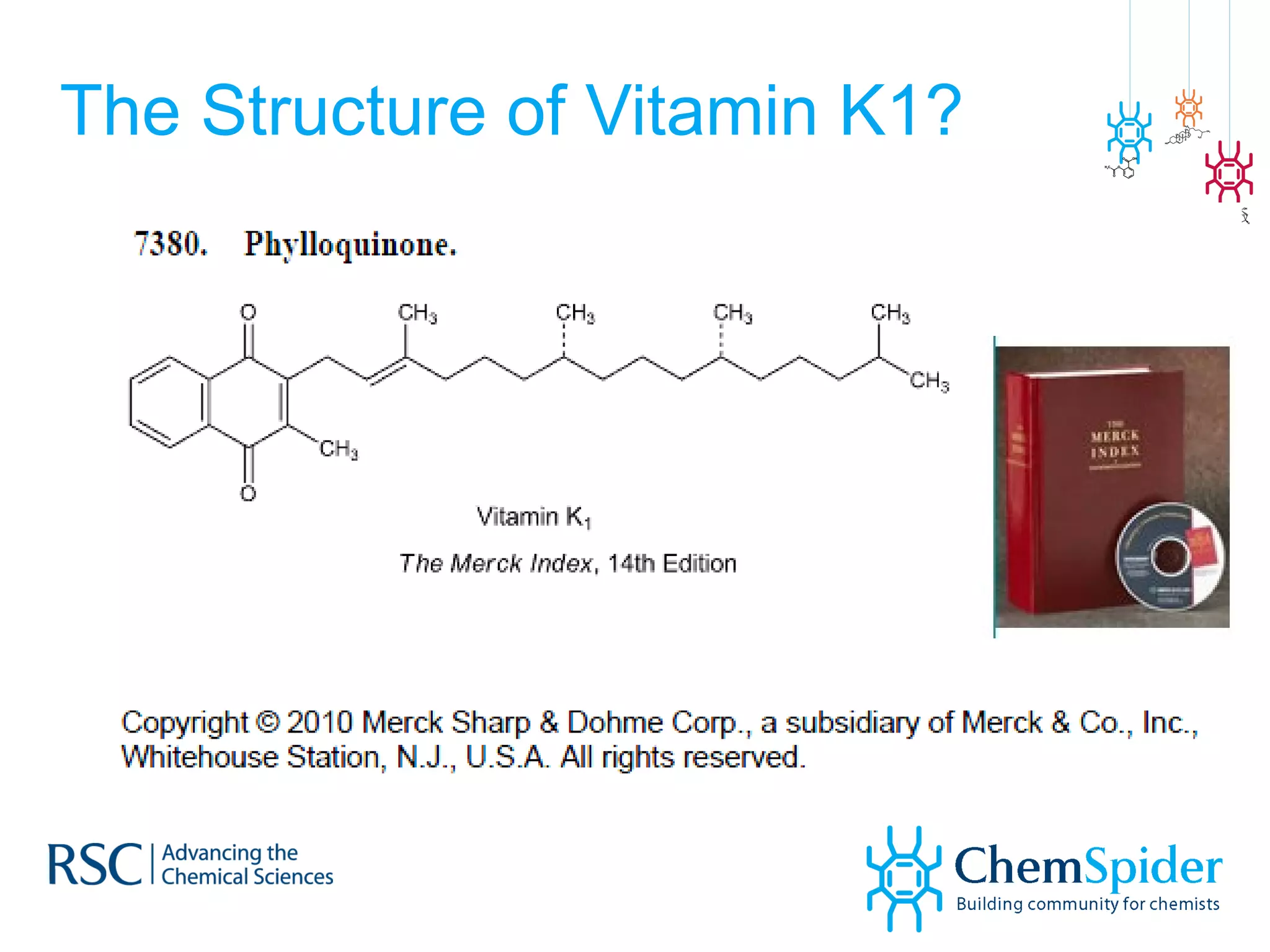

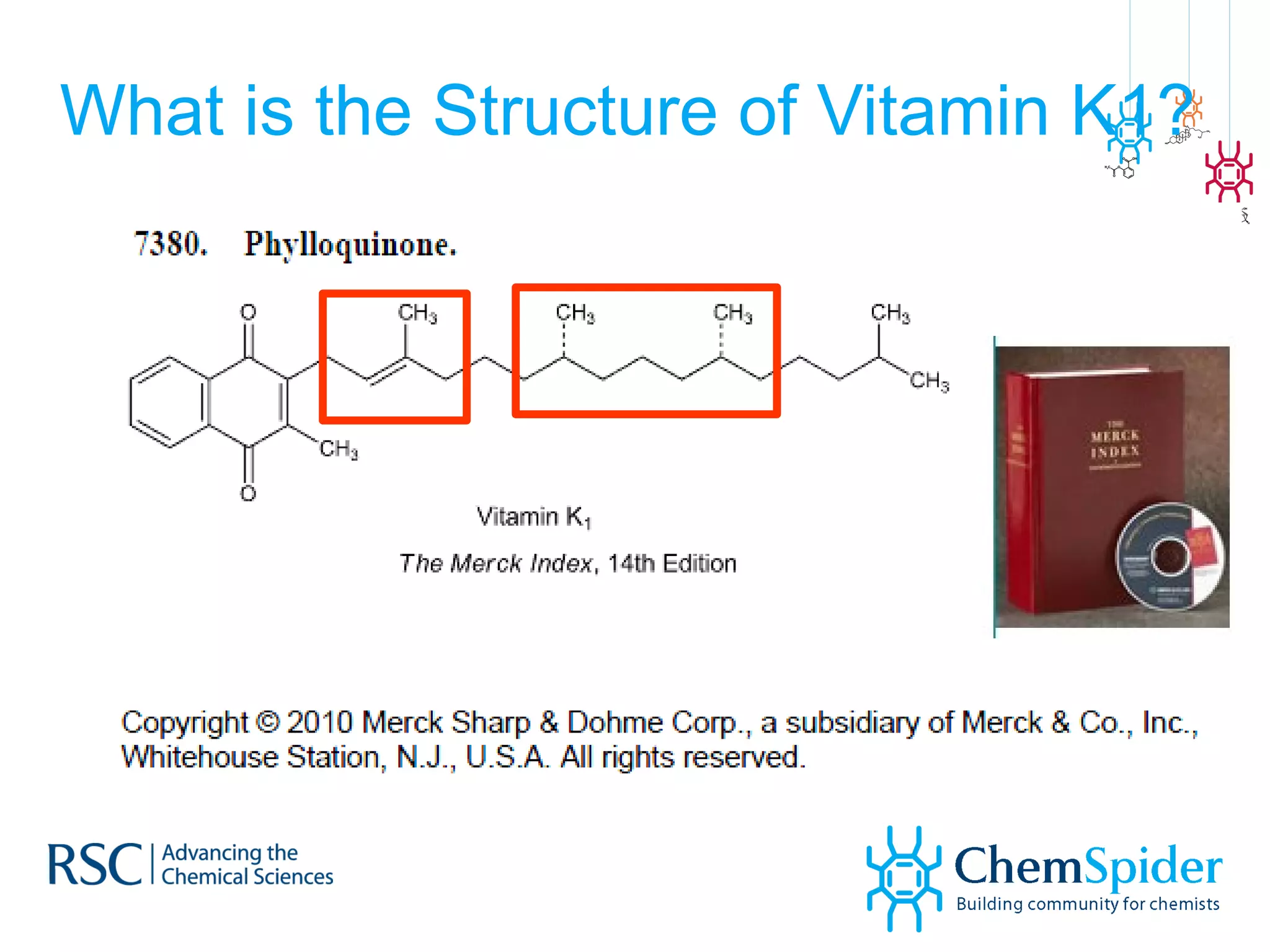

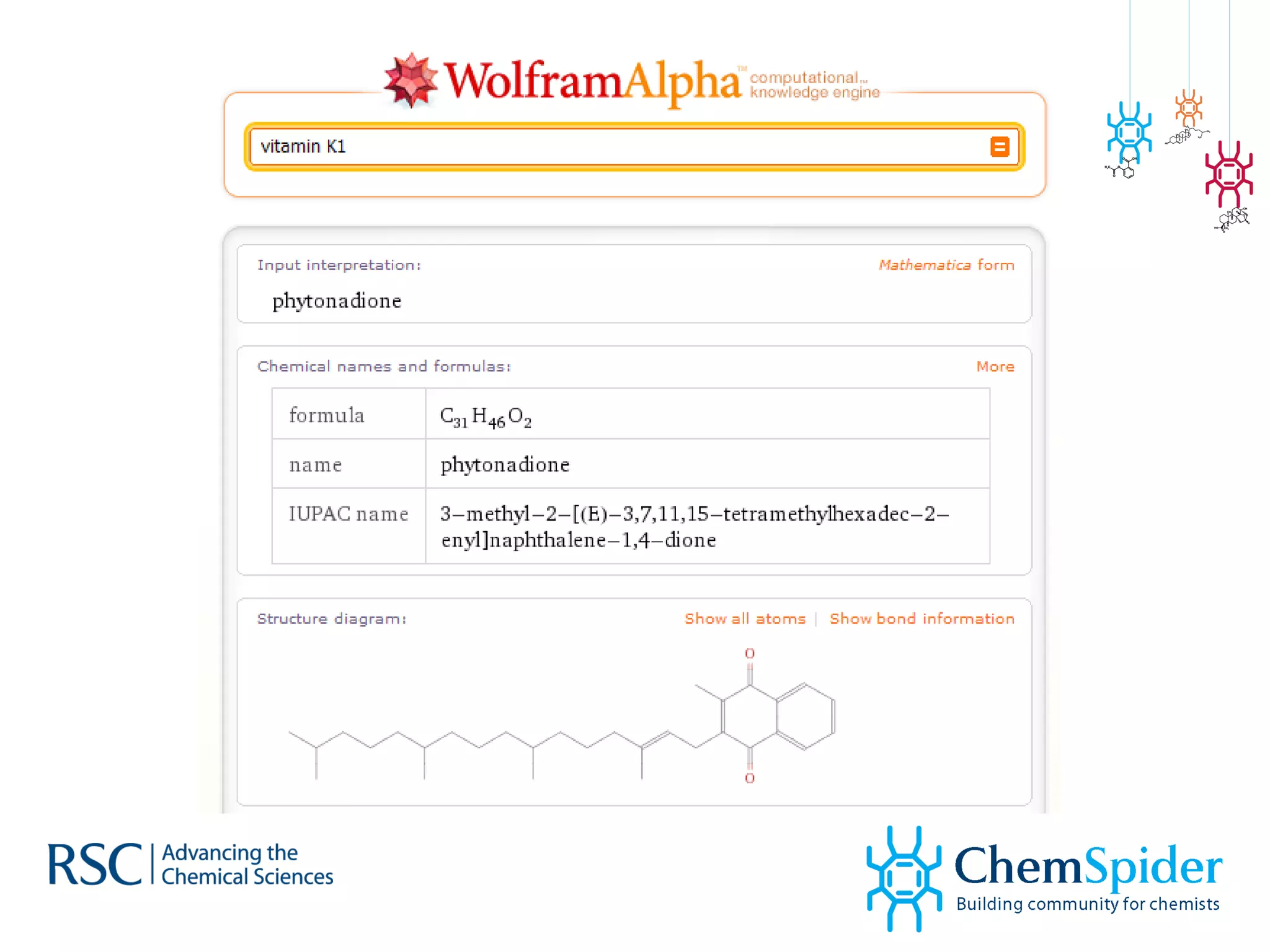

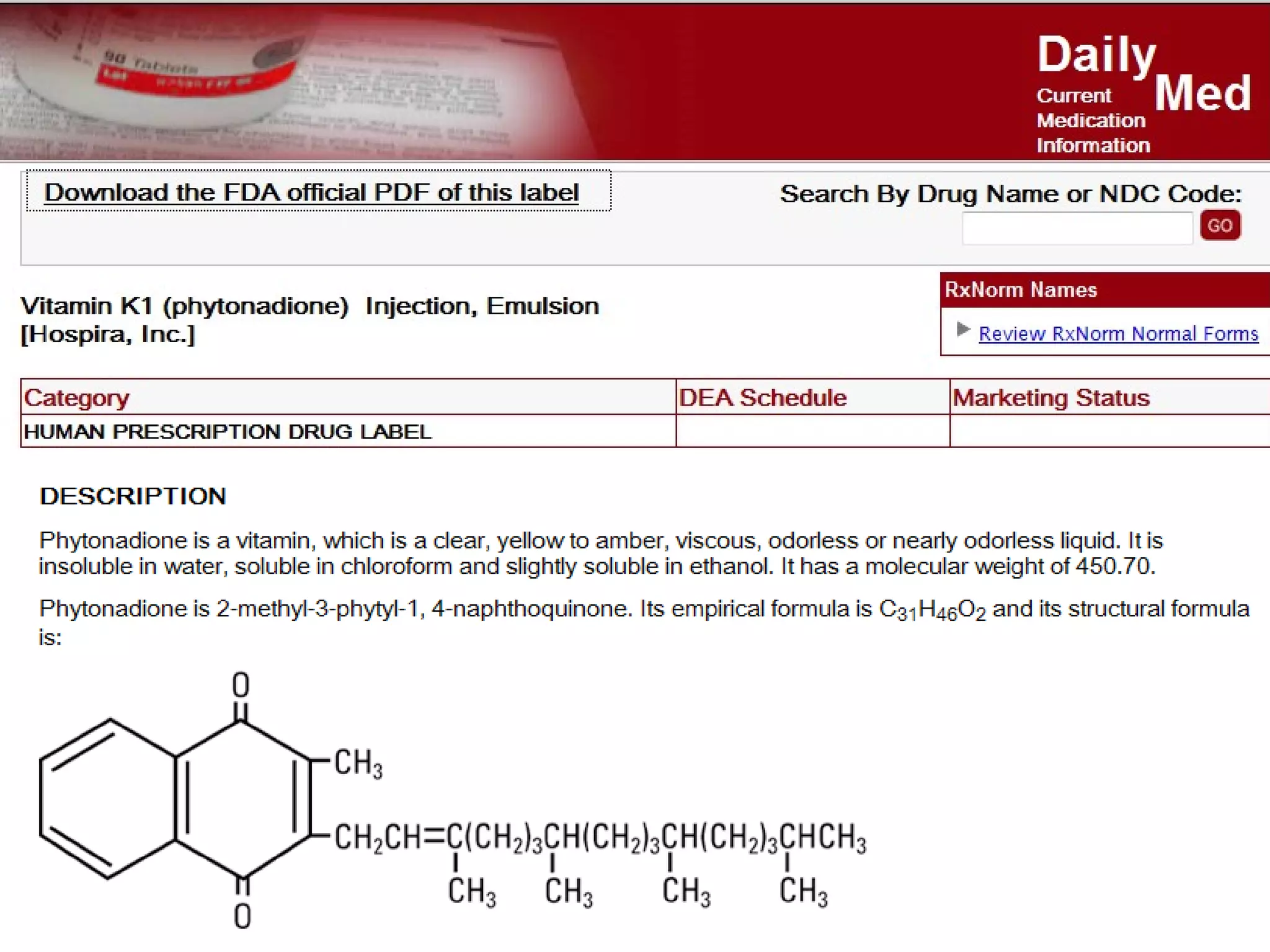

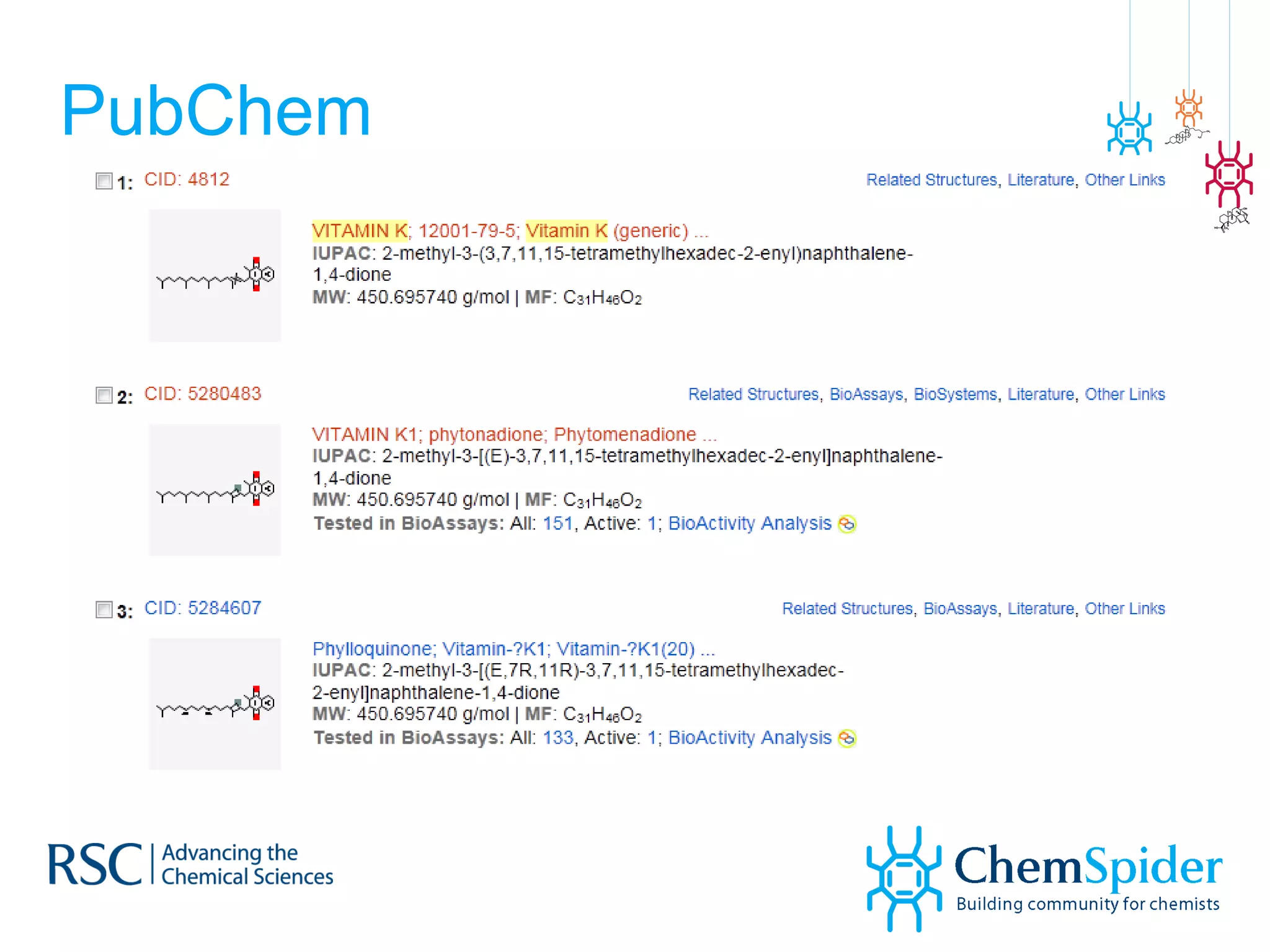

What is the Structure of Vitamin K1?

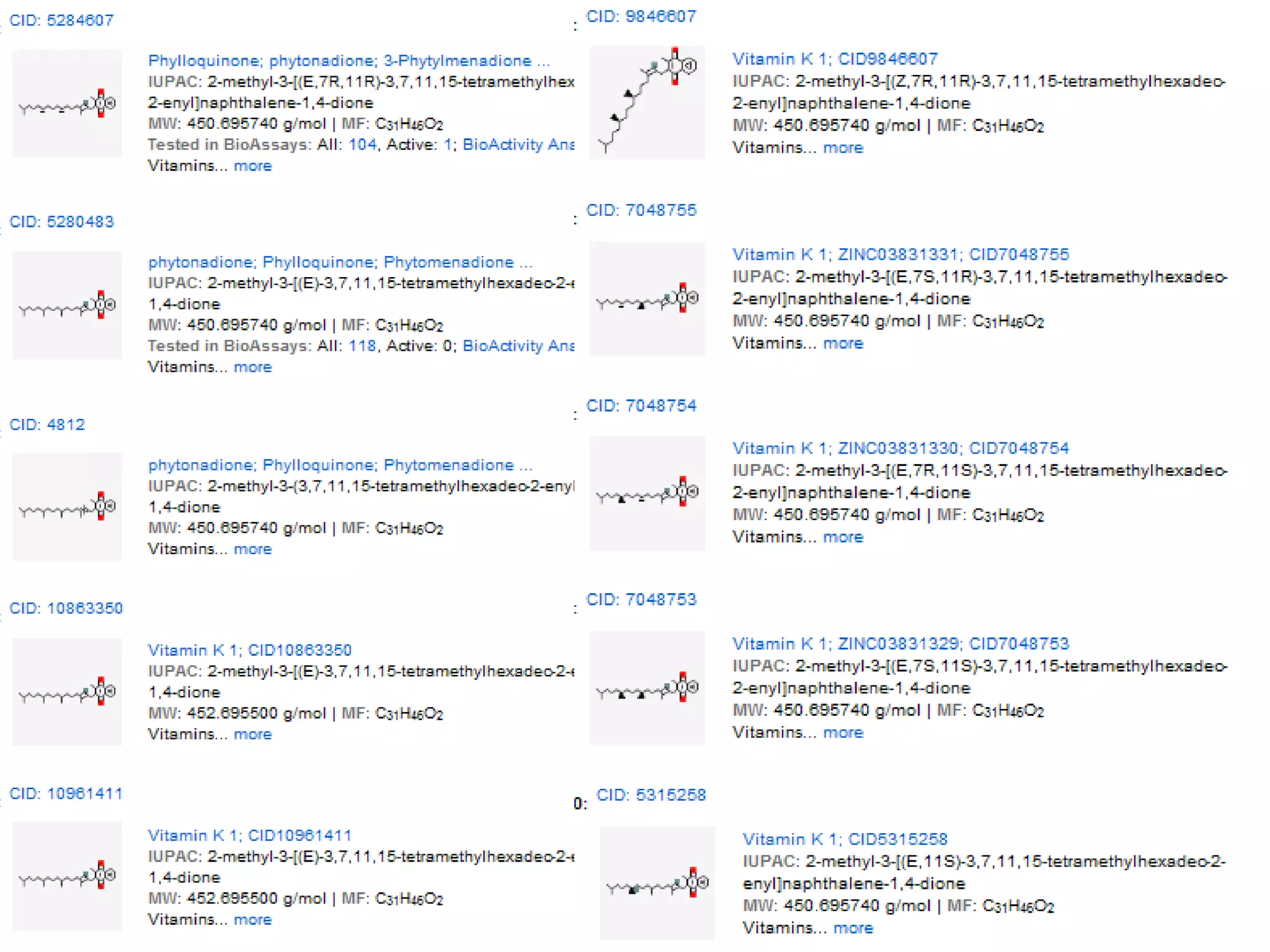

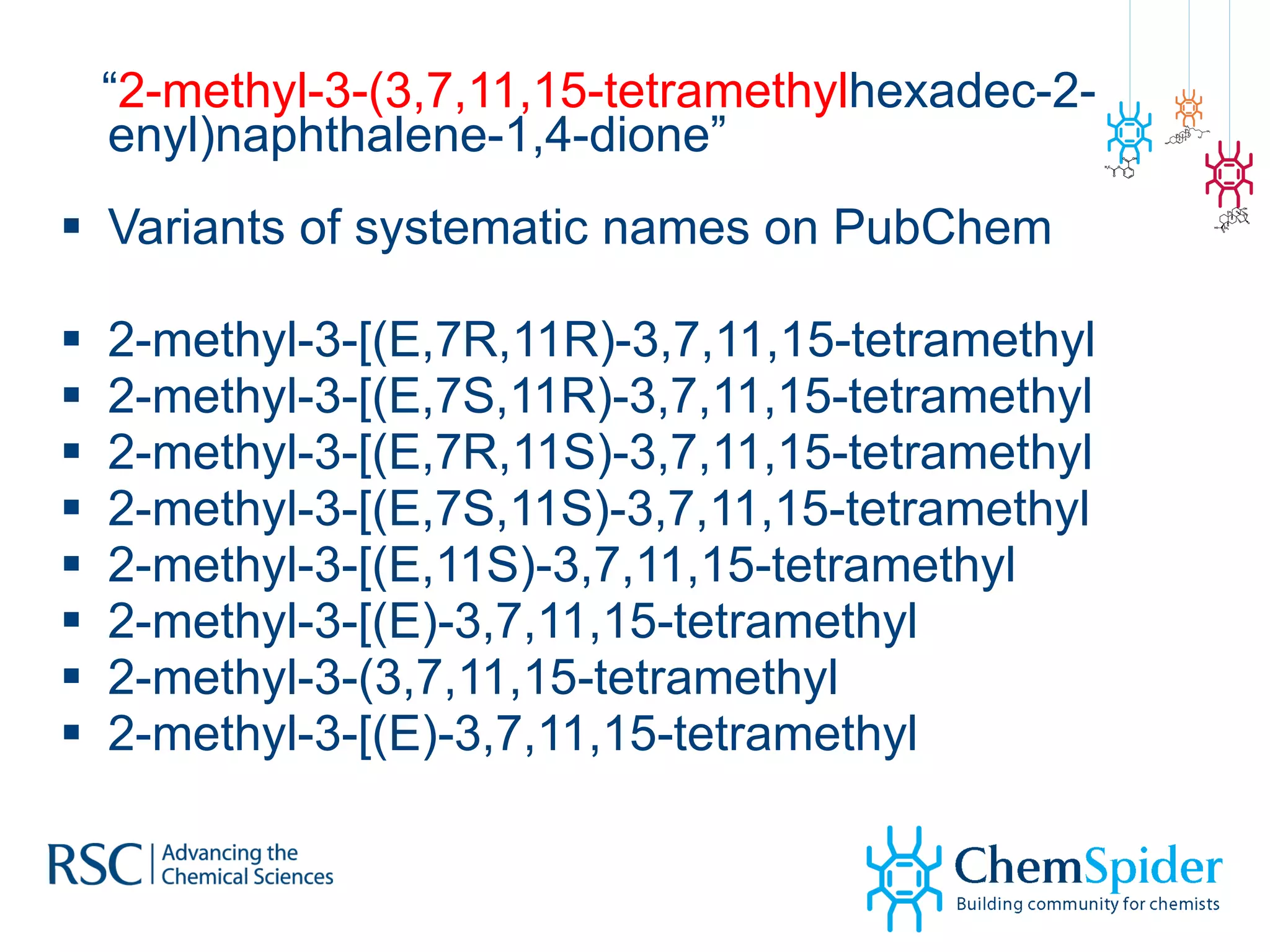

“ 2-methyl-3-(3,7,11,15-tetramethyl hexadec-2-enyl)naphthalene-1,4-dione” Variants of systematic names on PubChem 2-methyl-3-[(E,7R,11R)-3,7,11,15-tetramethyl 2-methyl-3-[(E,7S,11R)-3,7,11,15-tetramethyl 2-methyl-3-[(E,7R,11S)-3,7,11,15-tetramethyl 2-methyl-3-[(E,7S,11S)-3,7,11,15-tetramethyl 2-methyl-3-[(E,11S)-3,7,11,15-tetramethyl 2-methyl-3-[(E)-3,7,11,15-tetramethyl 2-methyl-3-(3,7,11,15-tetramethyl 2-methyl-3-[(E)-3,7,11,15-tetramethyl

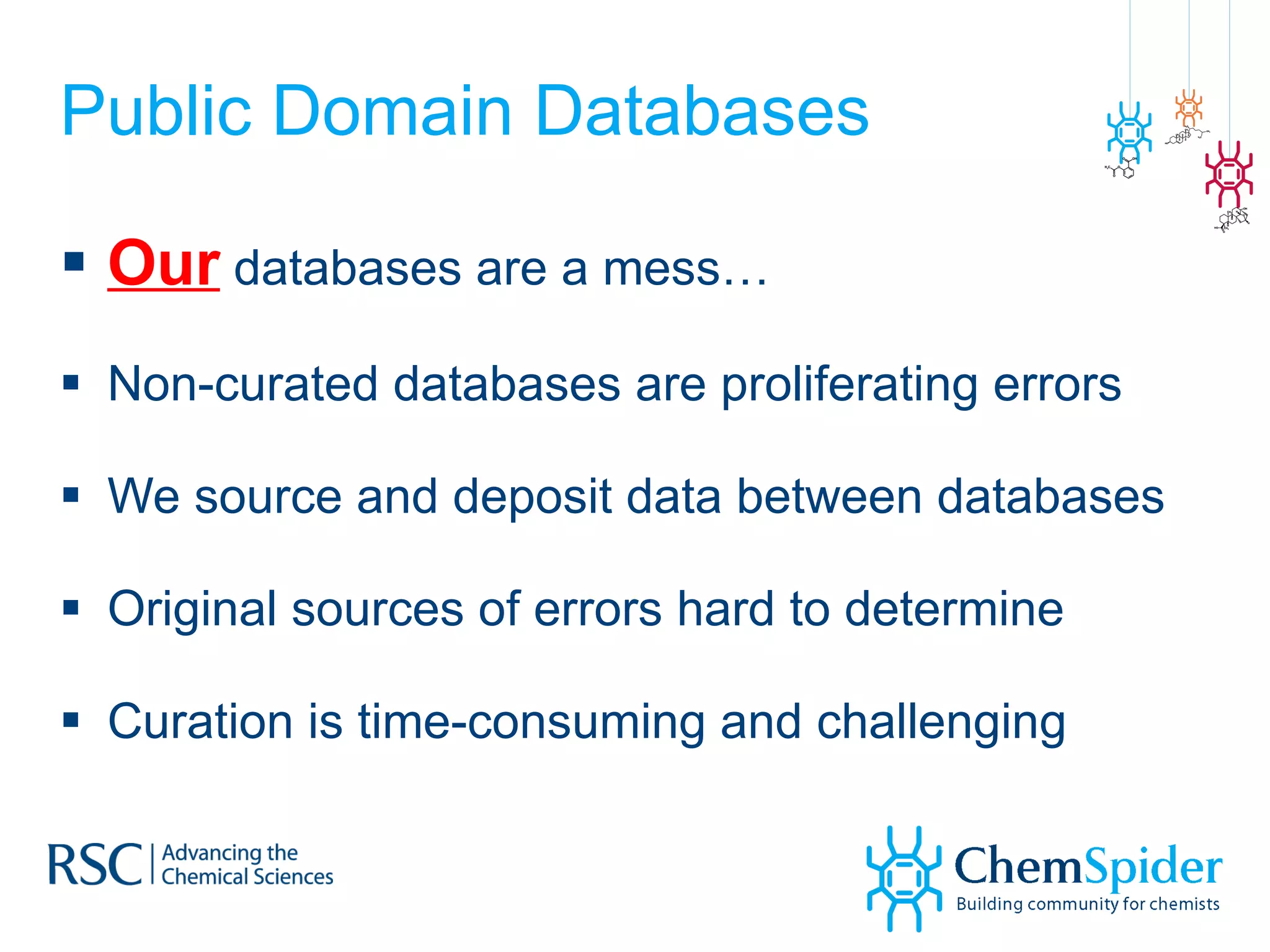

Public Domain Databases Our databases are a mess… Non-curated databases are proliferating errors We source and deposit data between databases Original sources of errors hard to determine Curation is time-consuming and challenging

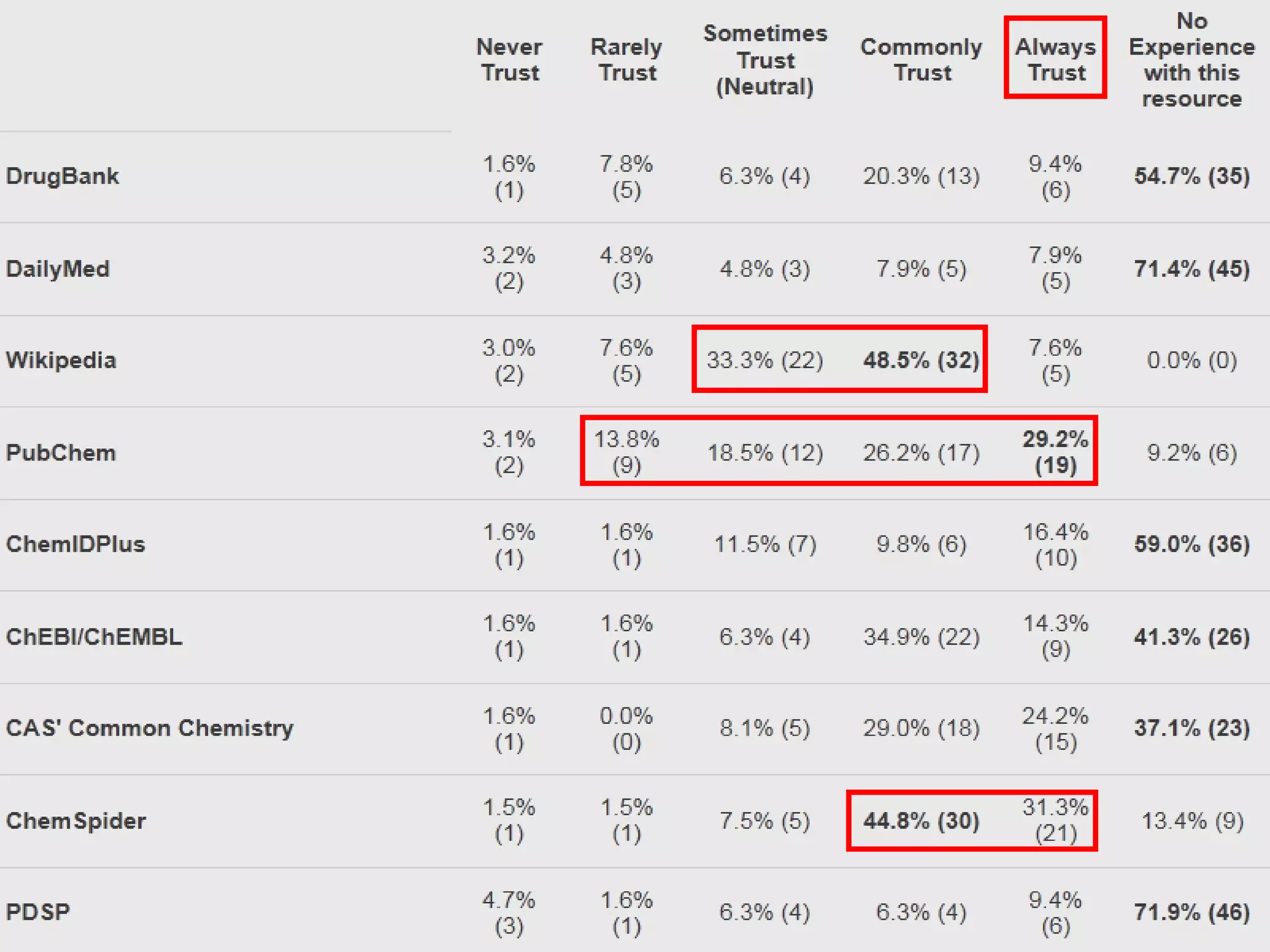

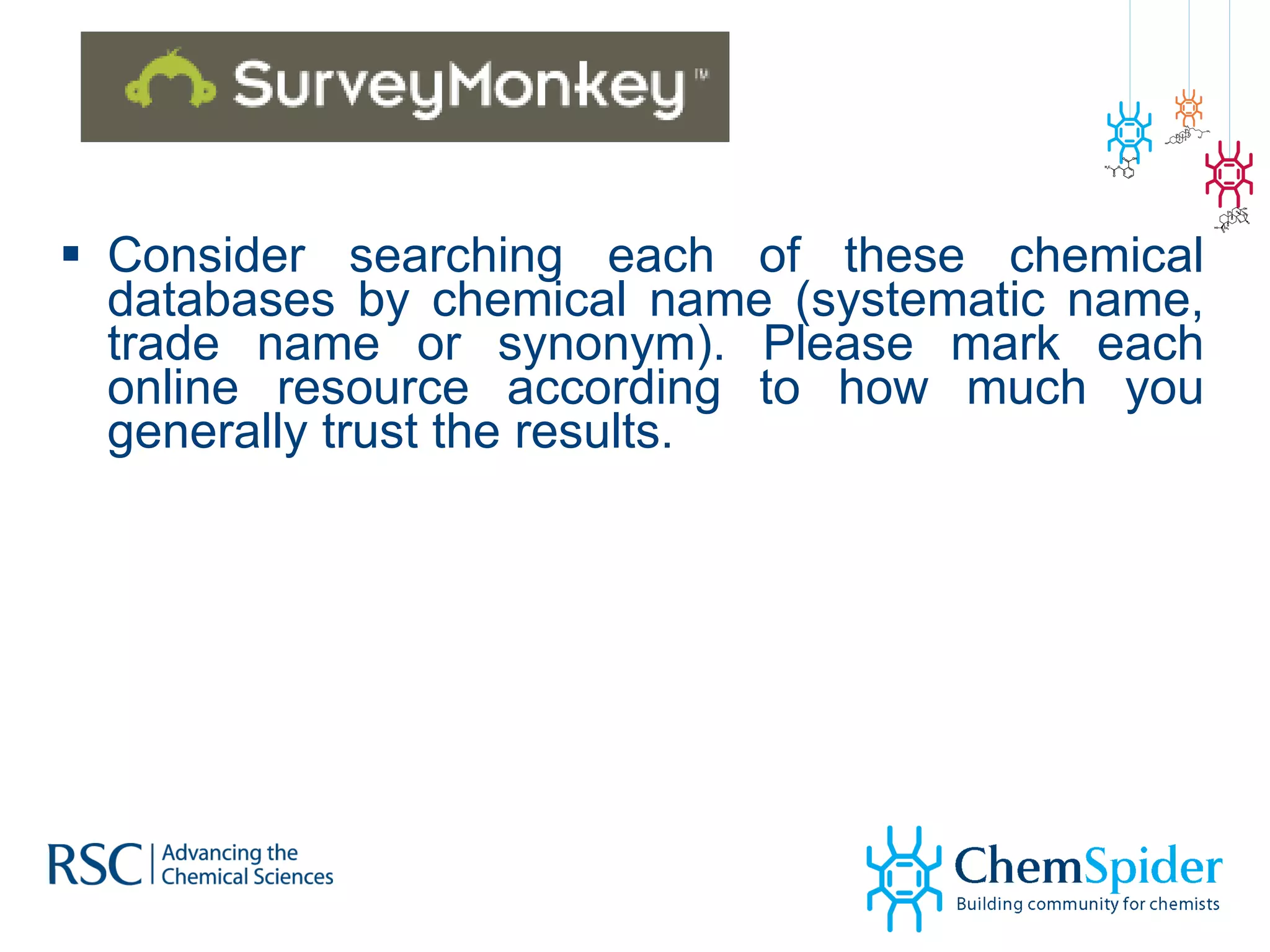

Consider searching each of these chemical databases by chemical name (systematic name, trade name or synonym). Please mark each online resource according to how much you generally trust the results.

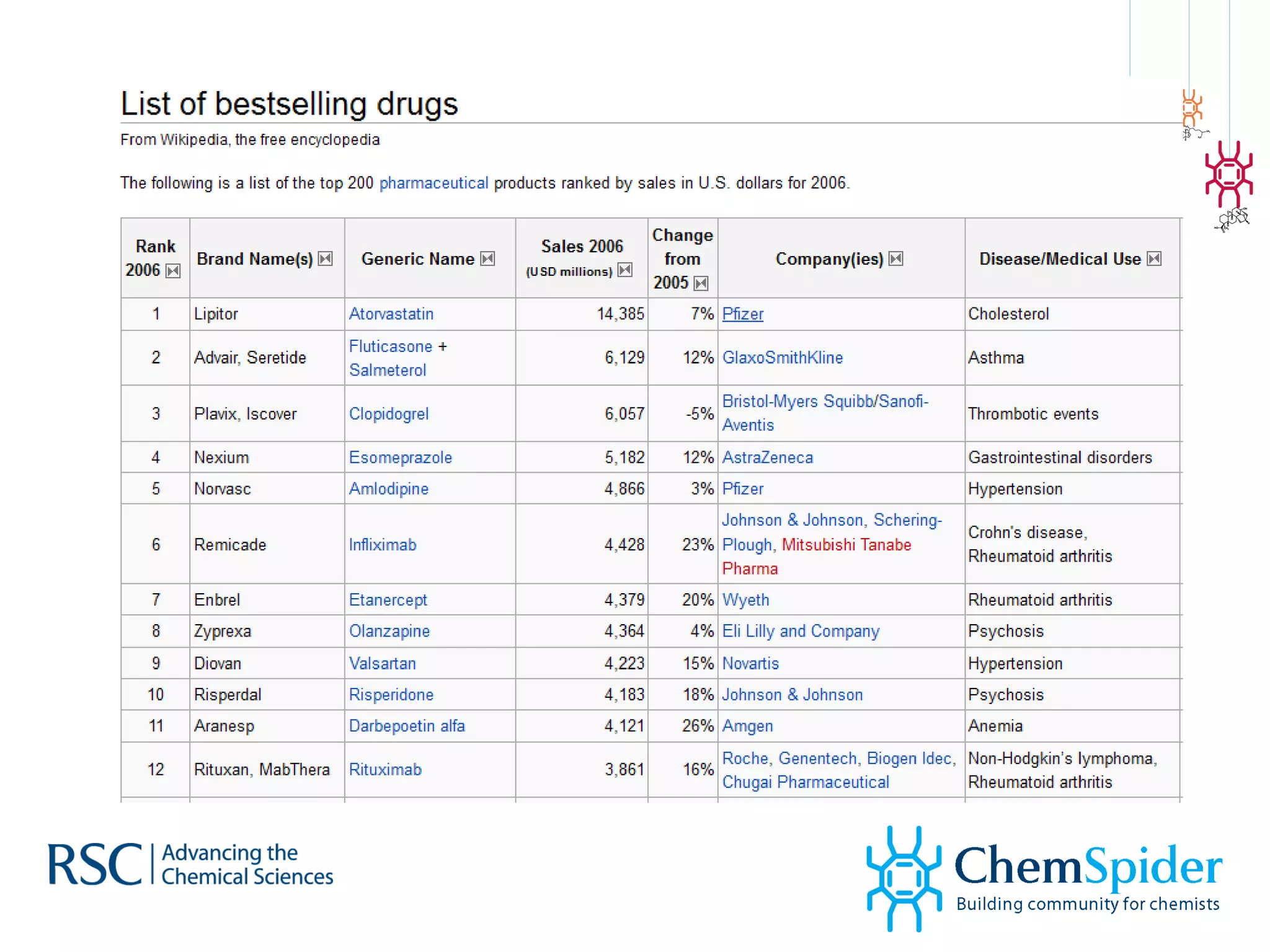

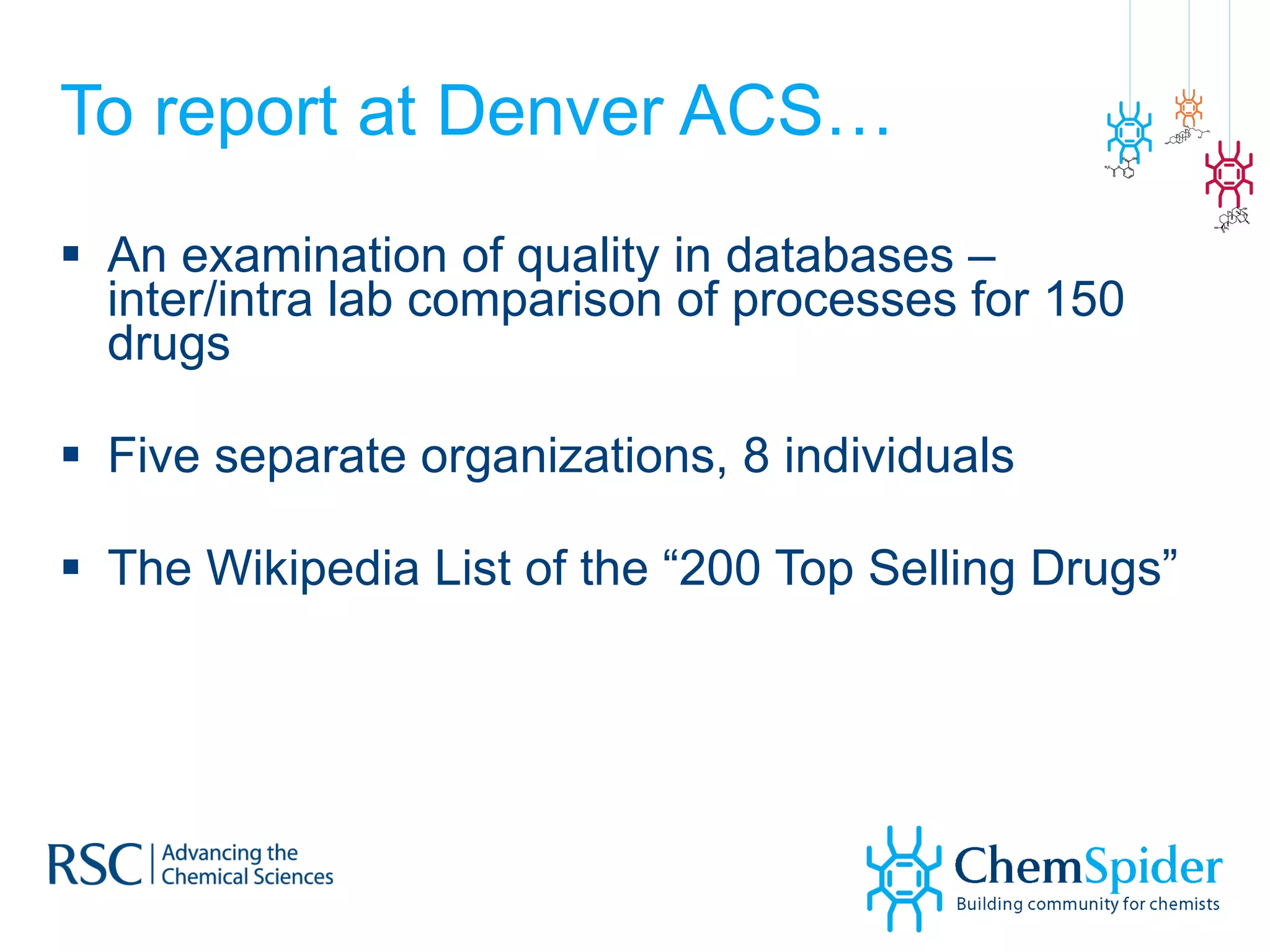

To report at Denver ACS… An examination of quality in databases – inter/intra lab comparison of processes for 150 drugs Five separate organizations, 8 individuals The Wikipedia List of the “200 Top Selling Drugs”

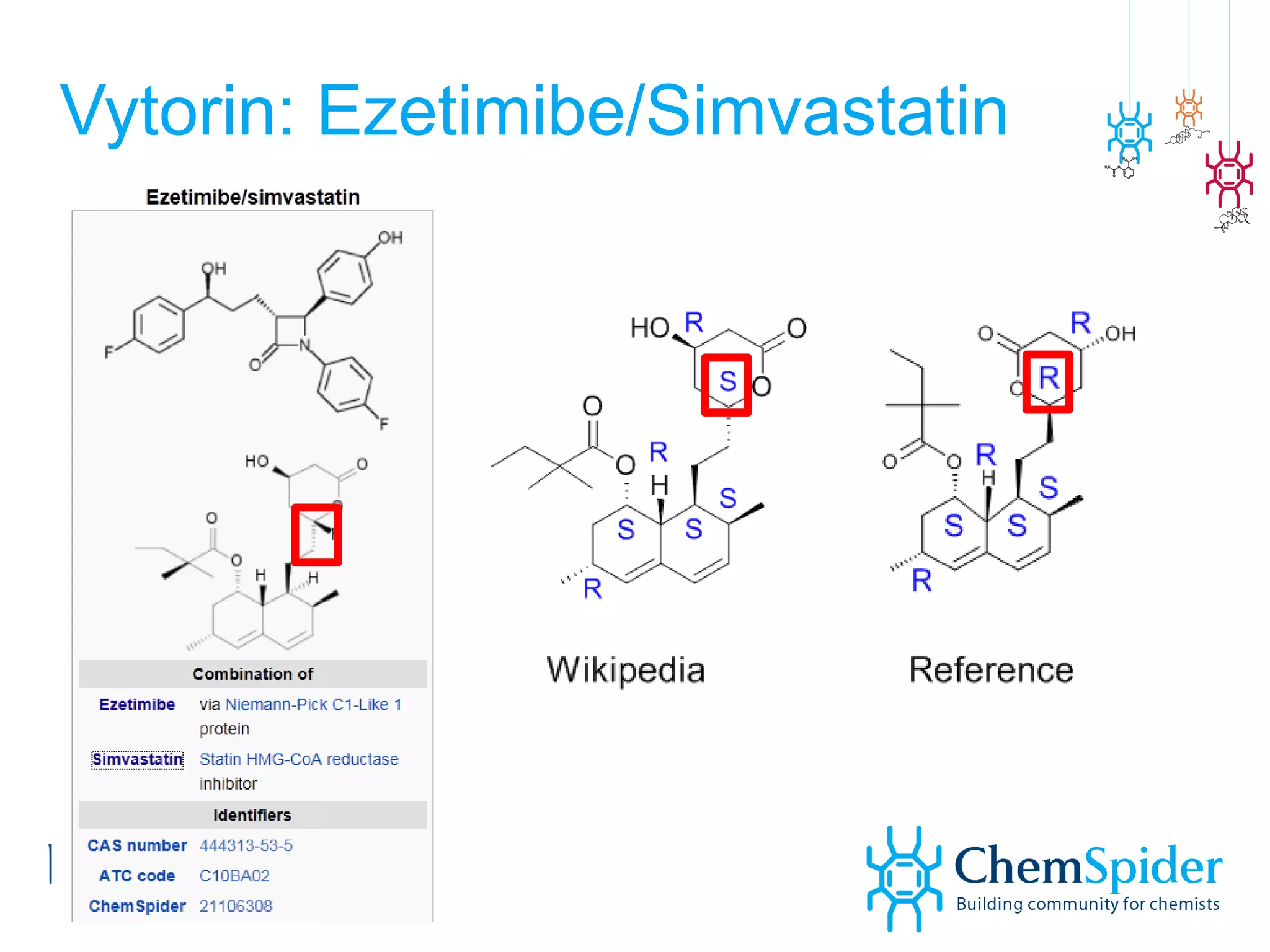

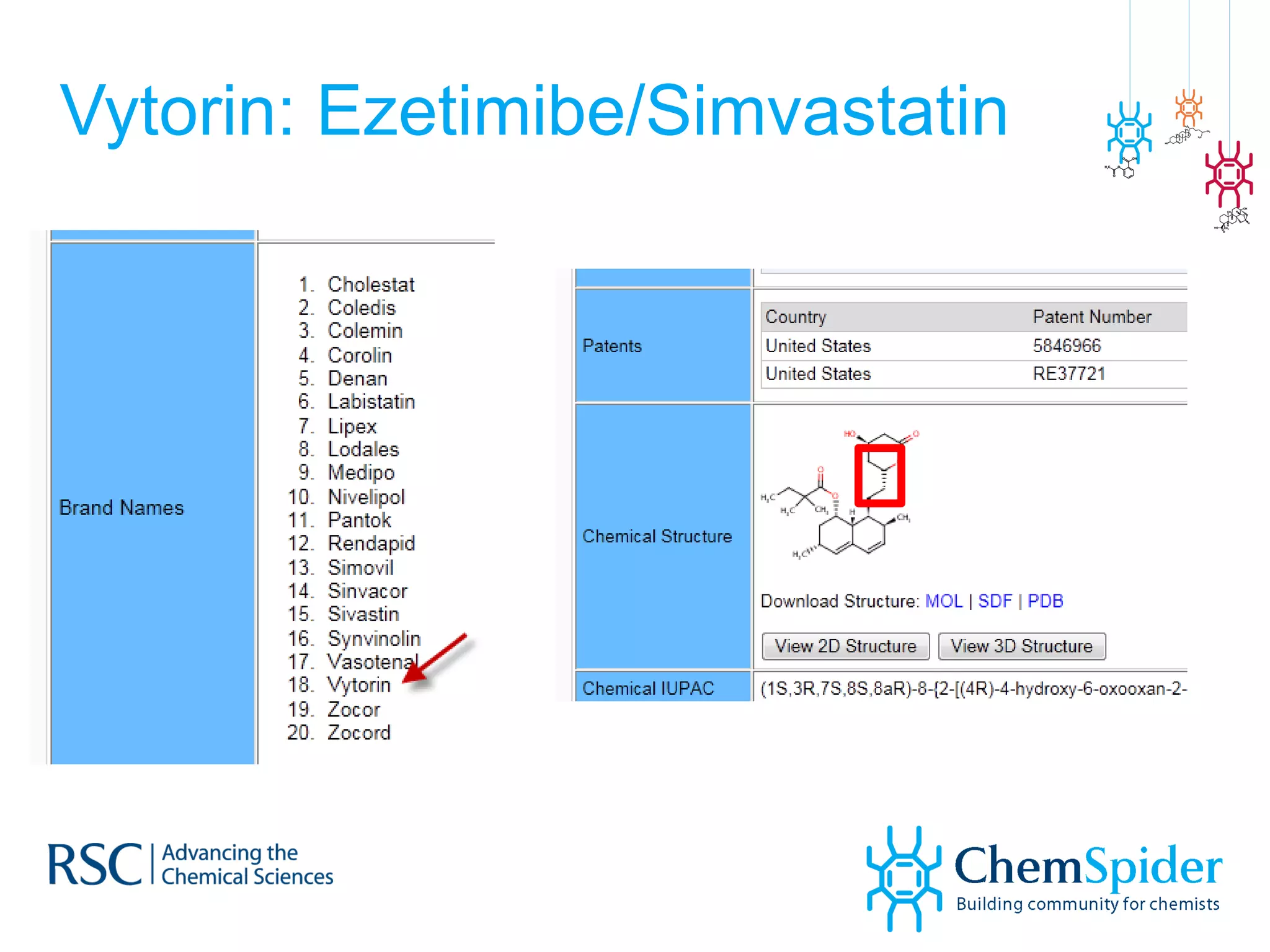

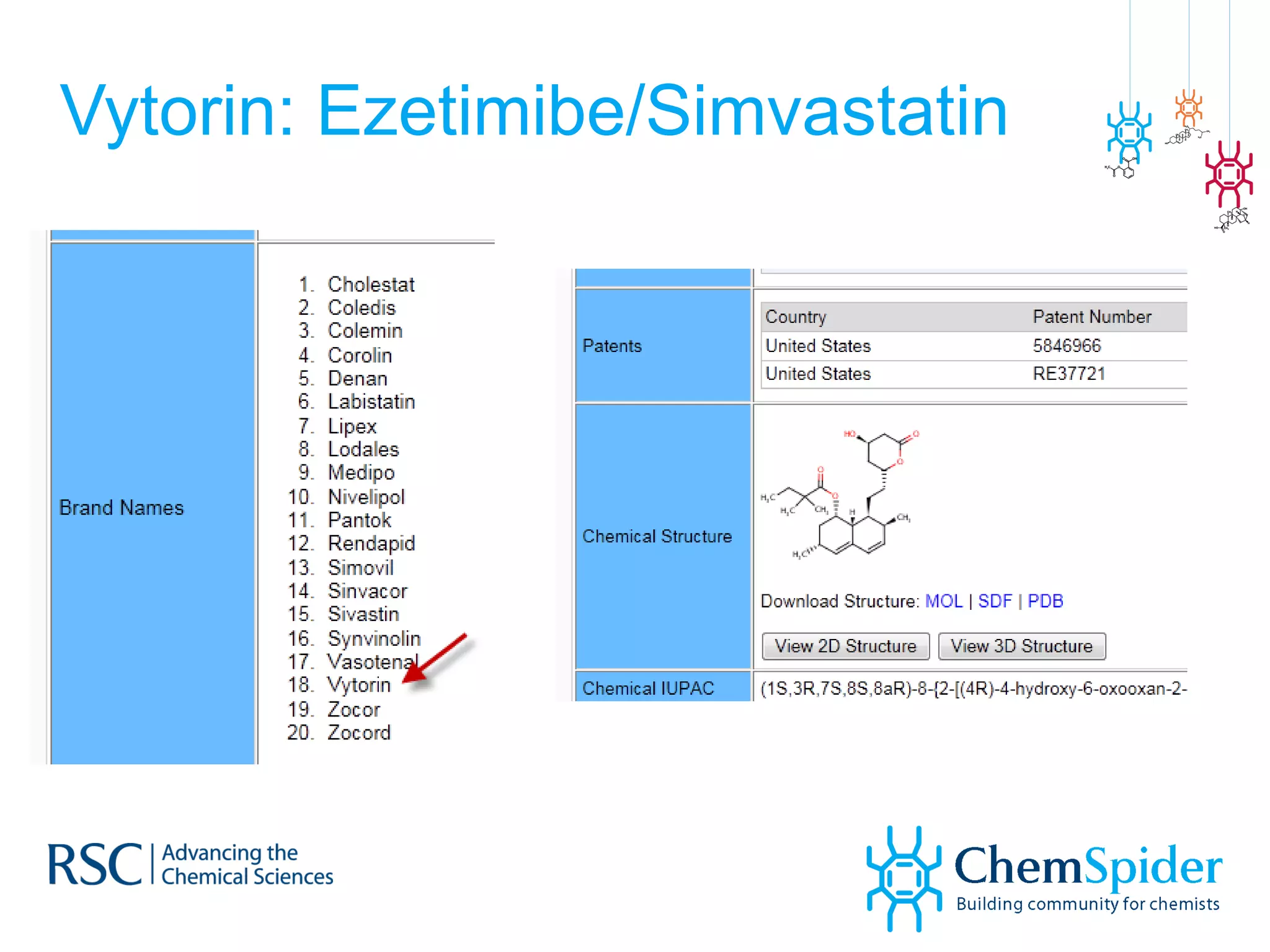

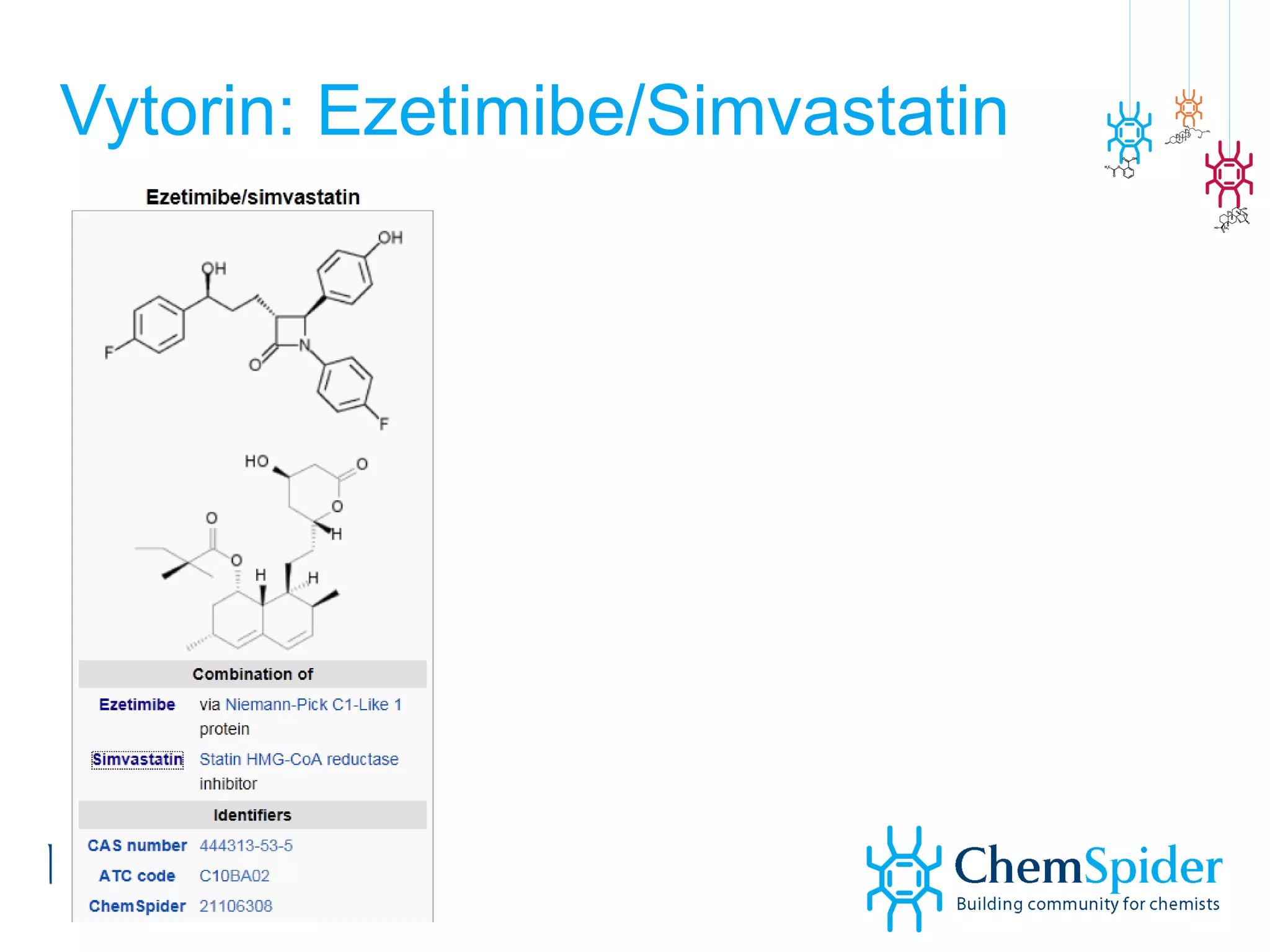

Vytorin: Ezetimibe/Simvastatin

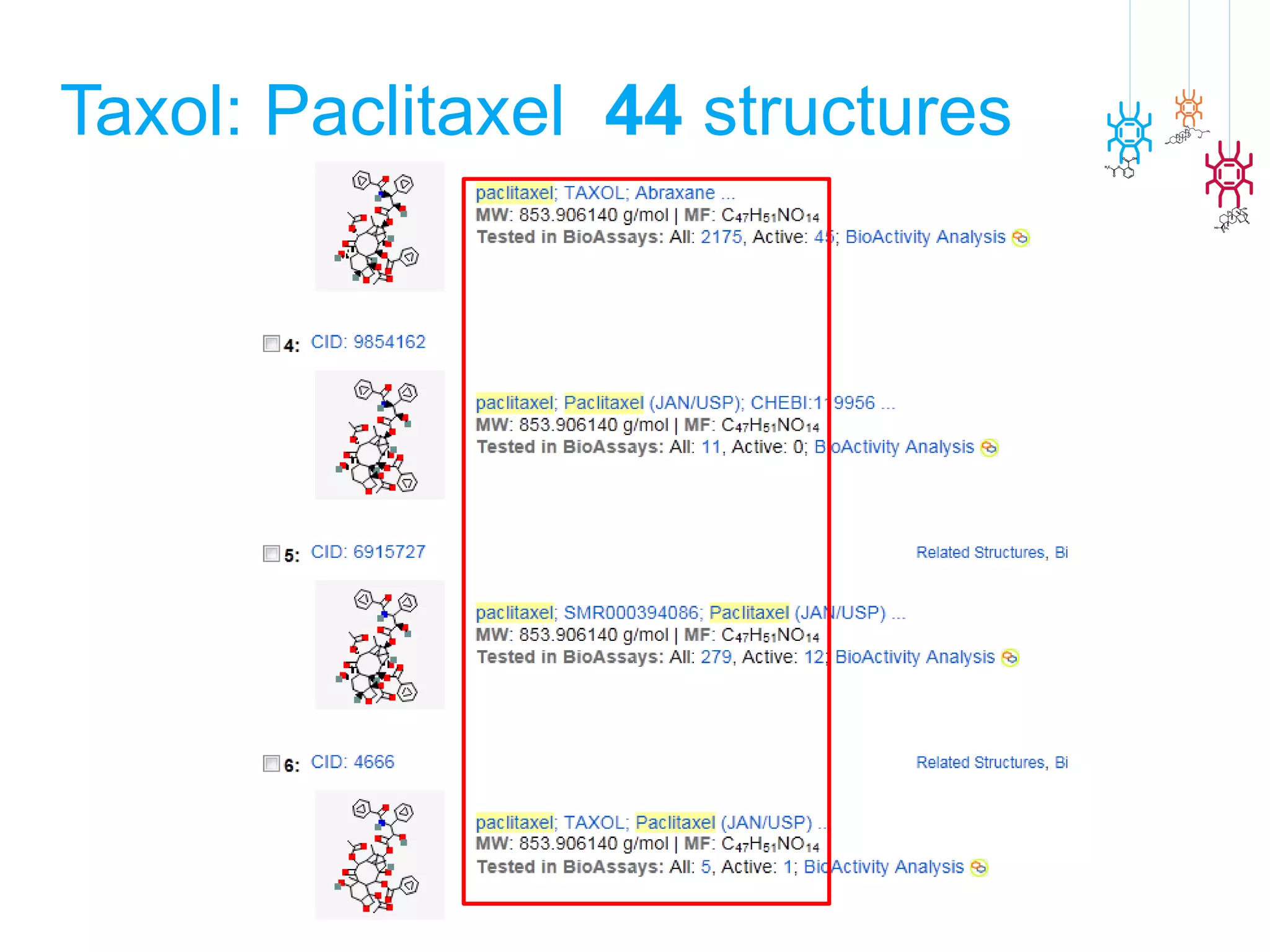

Taxol: Paclitaxel 44 structures

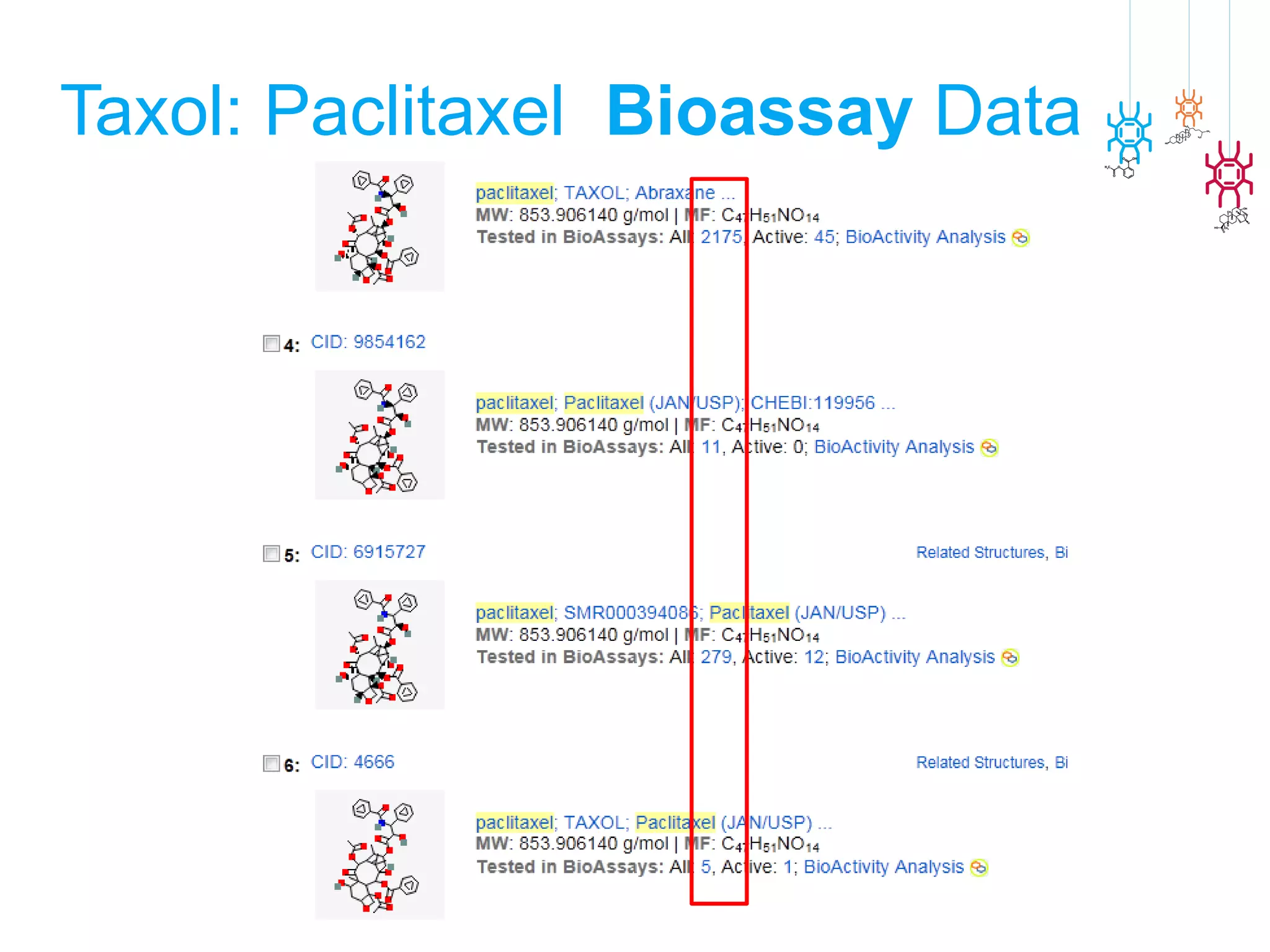

Taxol: Paclitaxel Bioassay Data

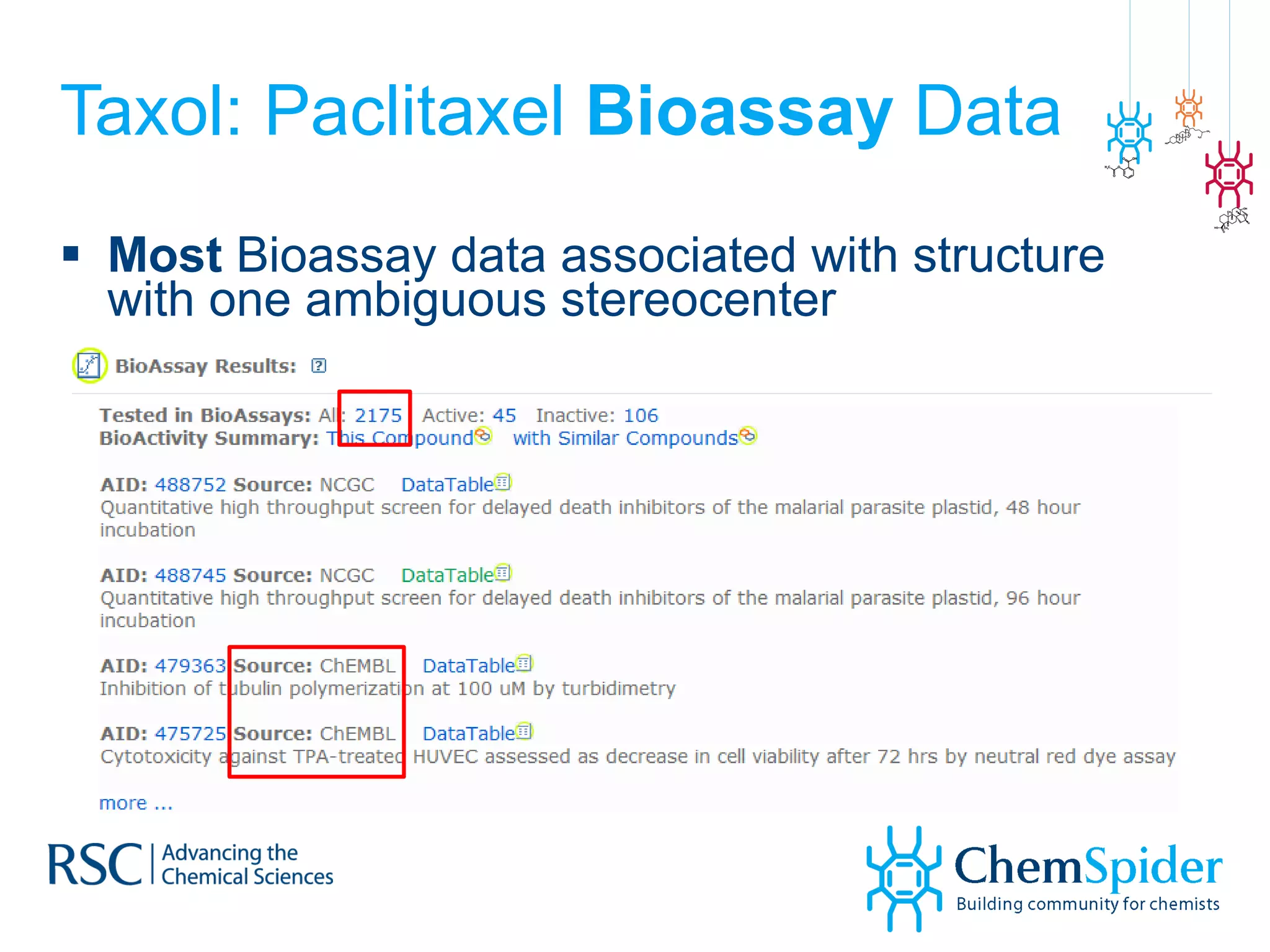

Taxol: Paclitaxel Bioassay Data Most Bioassay data associated with structure with one ambiguous stereocenter

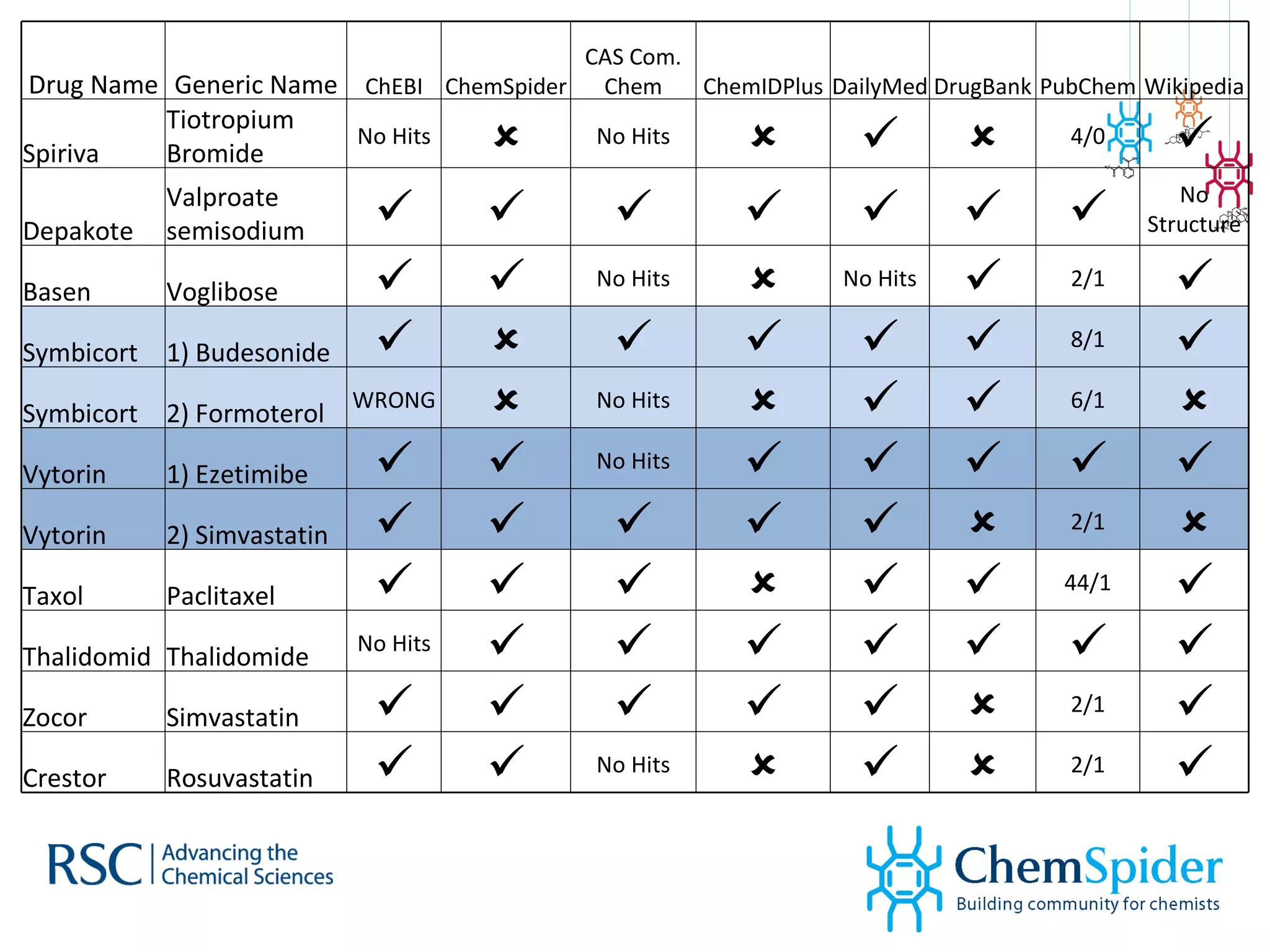

Drug Name Generic Name ChEBI ChemSpider CAS Com. Chem ChemIDPlus DailyMed DrugBank PubChem Wikipedia Spiriva Tiotropium Bromide No Hits  No Hits    4/0  Depakote Valproate semisodium        No Structure Basen Voglibose   No Hits  No Hits  2/1  Symbicort 1) Budesonide       8/1  Symbicort 2) Formoterol WRONG  No Hits    6/1  Vytorin 1) Ezetimibe   No Hits      Vytorin 2) Simvastatin       2/1  Taxol Paclitaxel       44/1  Thalidomid Thalidomide No Hits        Zocor Simvastatin       2/1  Crestor Rosuvastatin   No Hits    2/1 

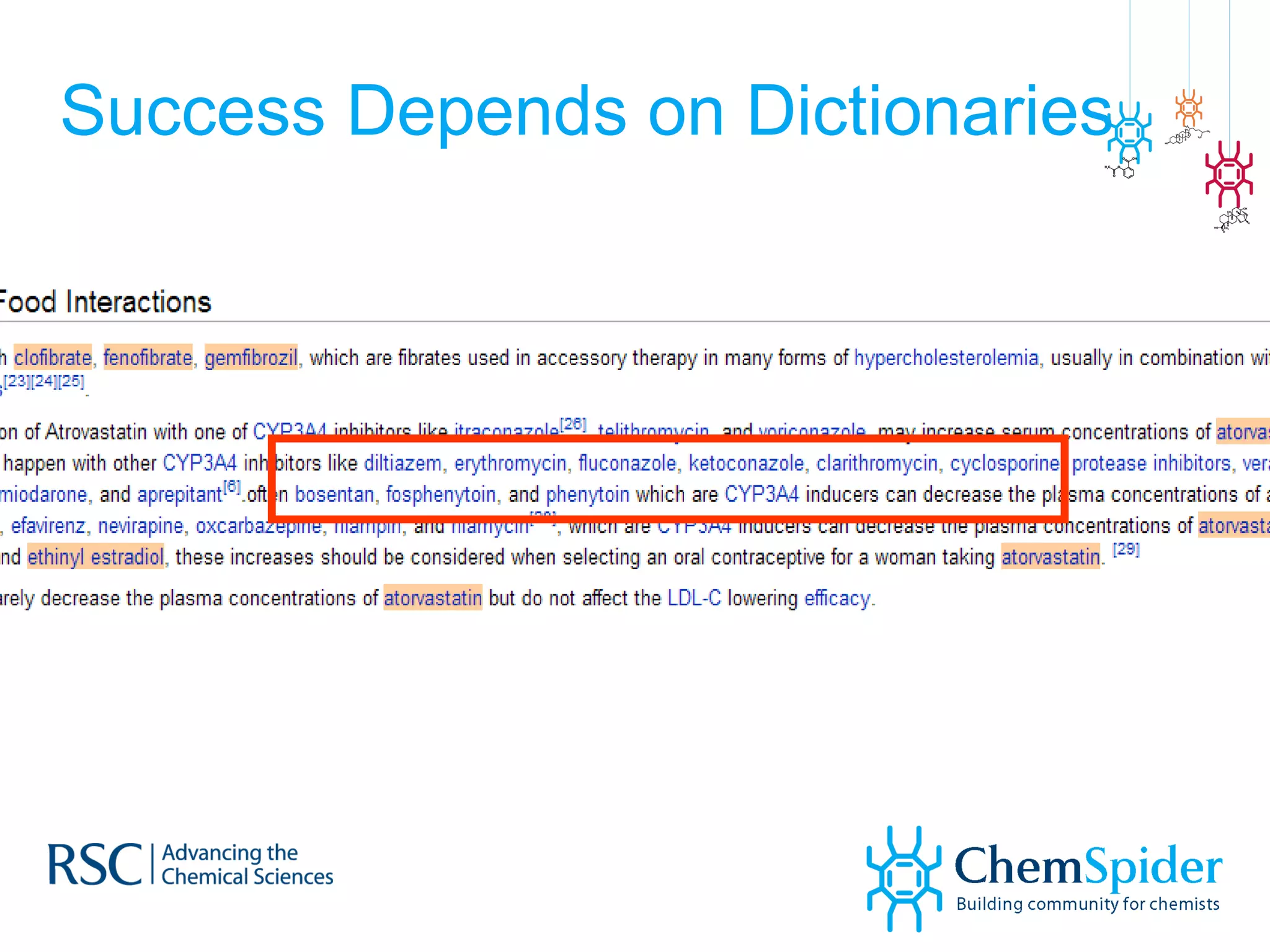

Success Depends on Dictionaries

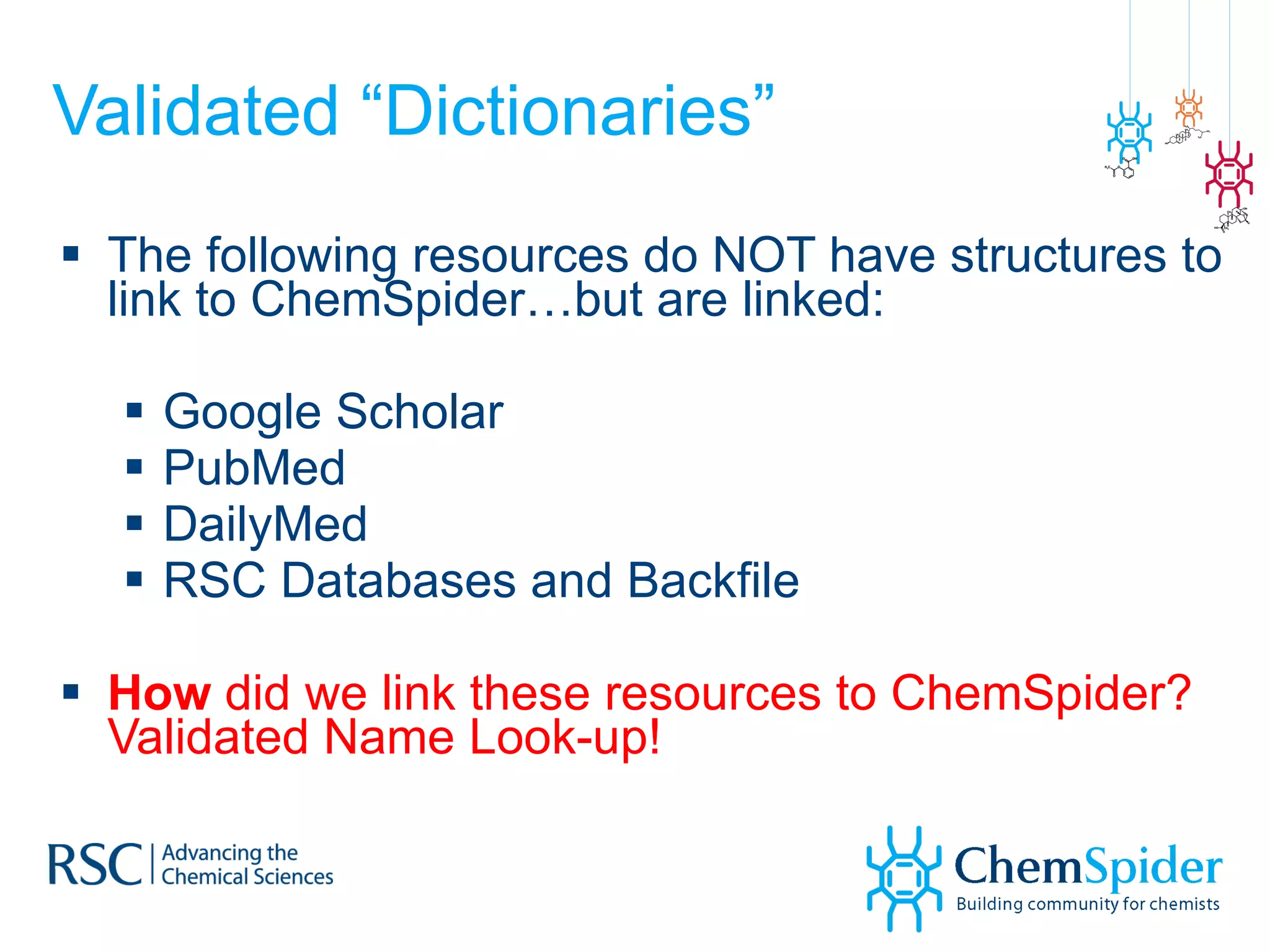

Validated “Dictionaries” The following resources do NOT have structures to link to ChemSpider…but are linked: Google Scholar PubMed DailyMed RSC Databases and Backfile How did we link these resources to ChemSpider? Validated Name Look-up!

Extend the Vision “ Build a Structure Centric Community to Serve Chemists” Integrate chemical structure data on the web Create a “structure-based hub” to information, data and algorithmic predictions

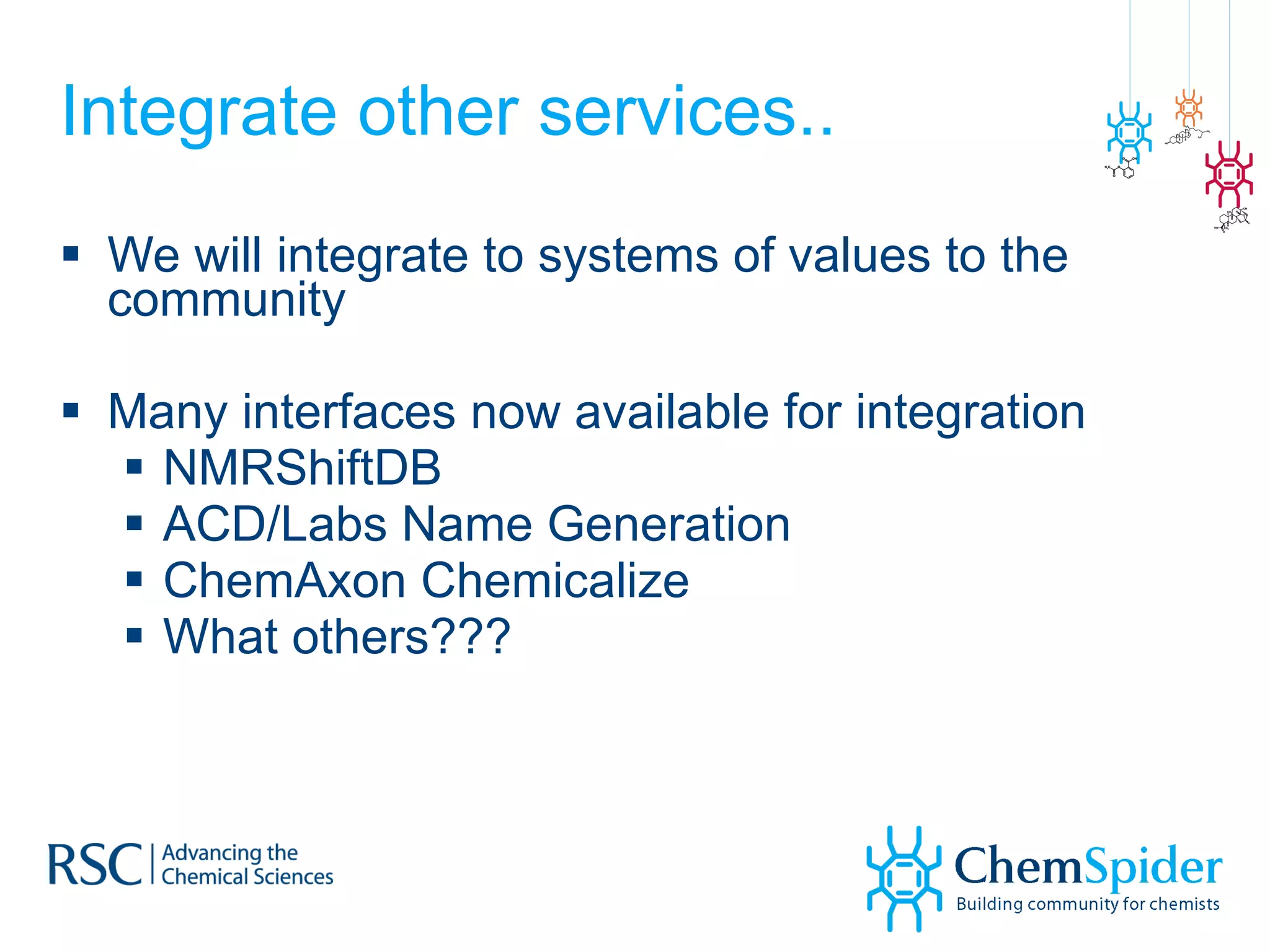

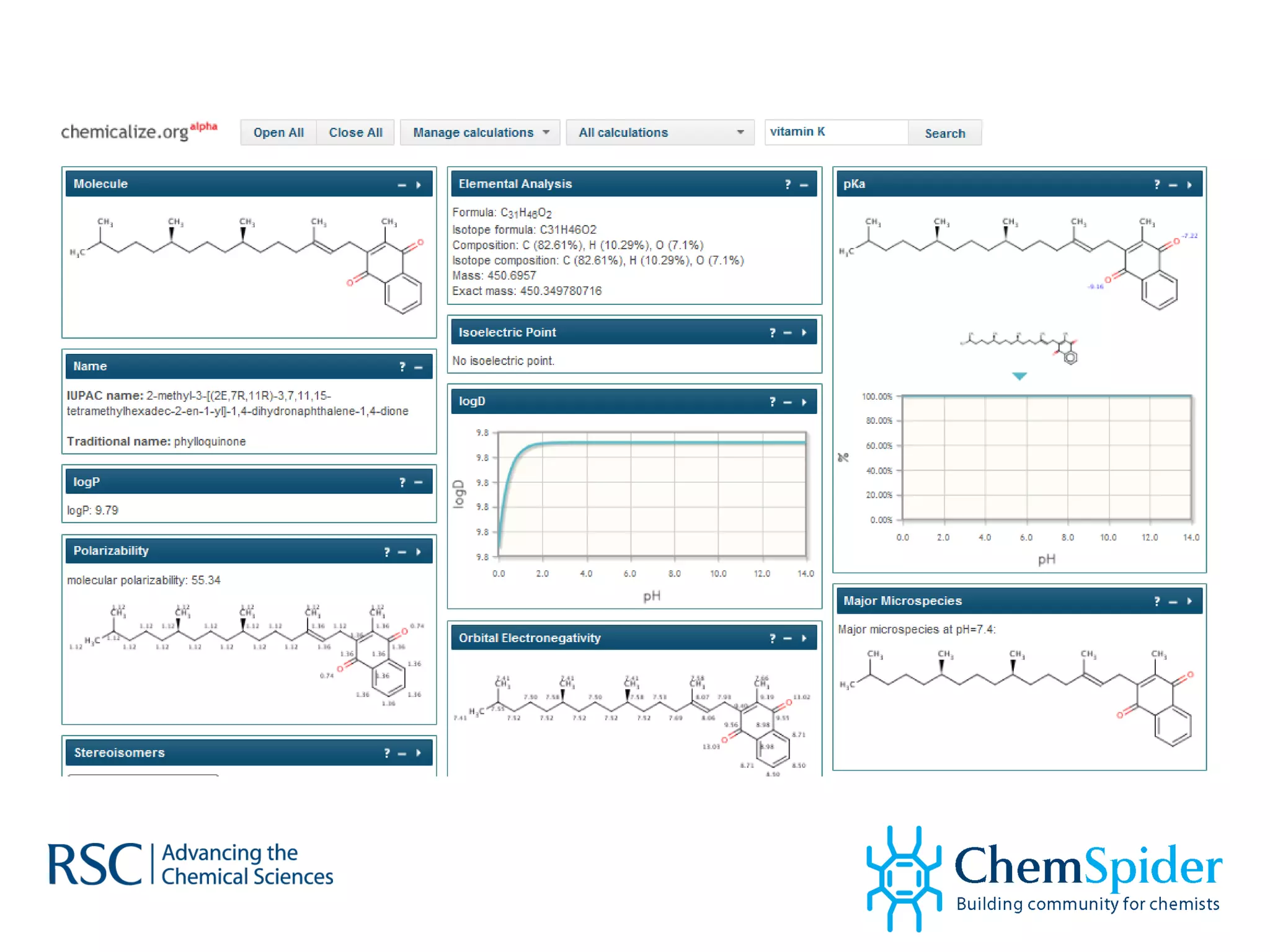

Integrate other services.. We will integrate to systems of values to the community Many interfaces now available for integration NMRShiftDB ACD/Labs Name Generation ChemAxon Chemicalize What others???

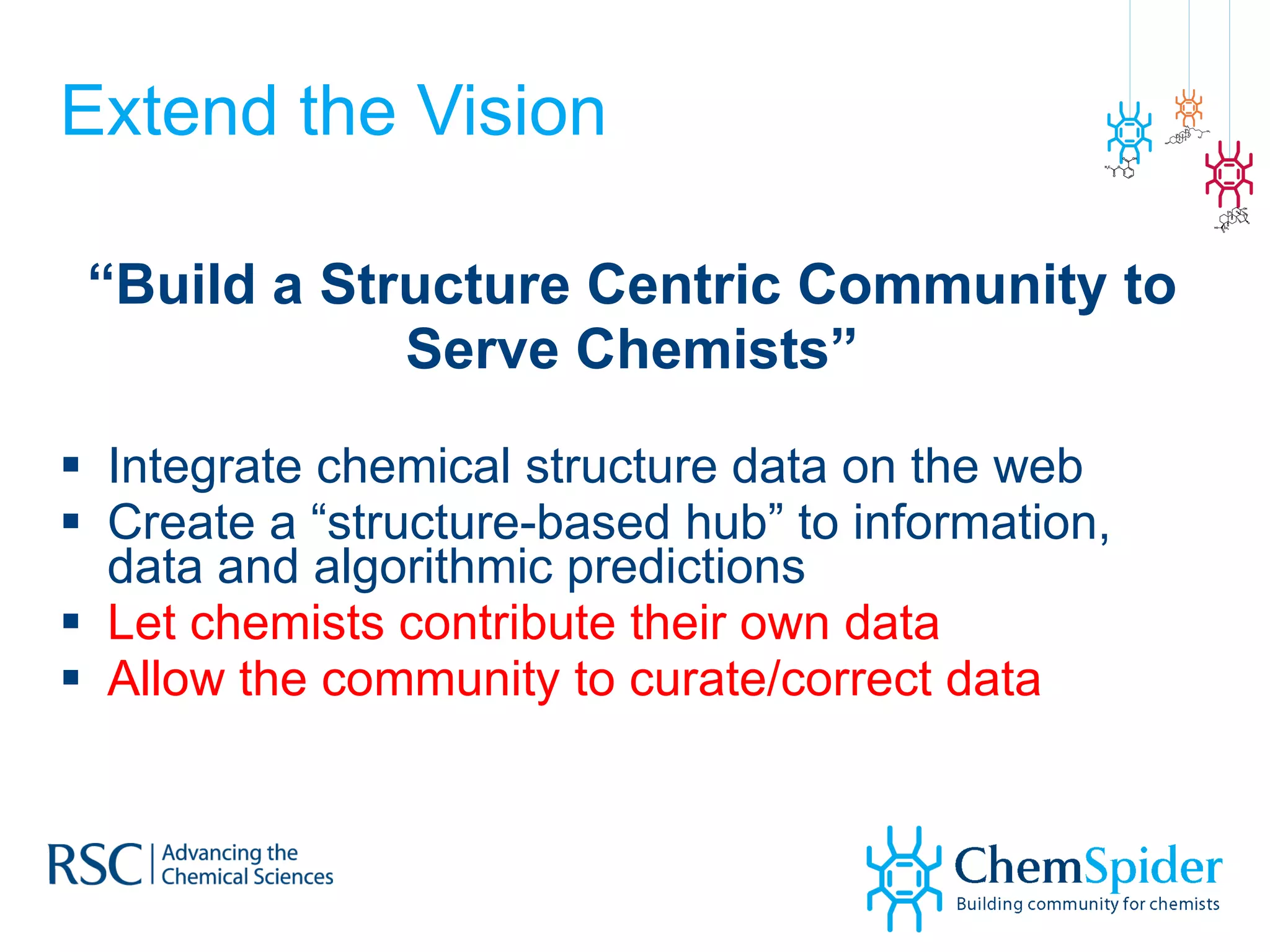

Extend the Vision “ Build a Structure Centric Community to Serve Chemists” Integrate chemical structure data on the web Create a “structure-based hub” to information, data and algorithmic predictions Let chemists contribute their own data Allow the community to curate/correct data

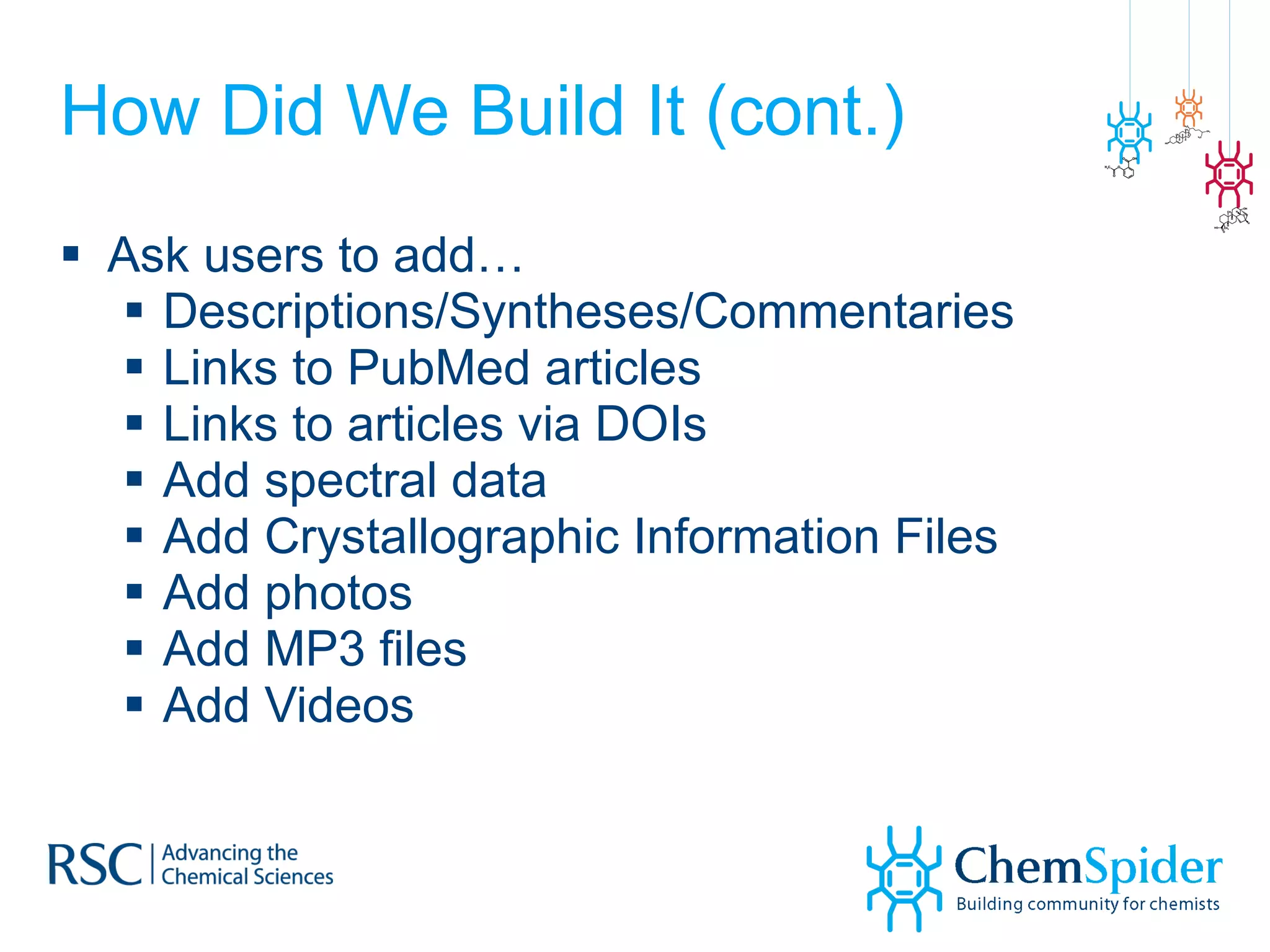

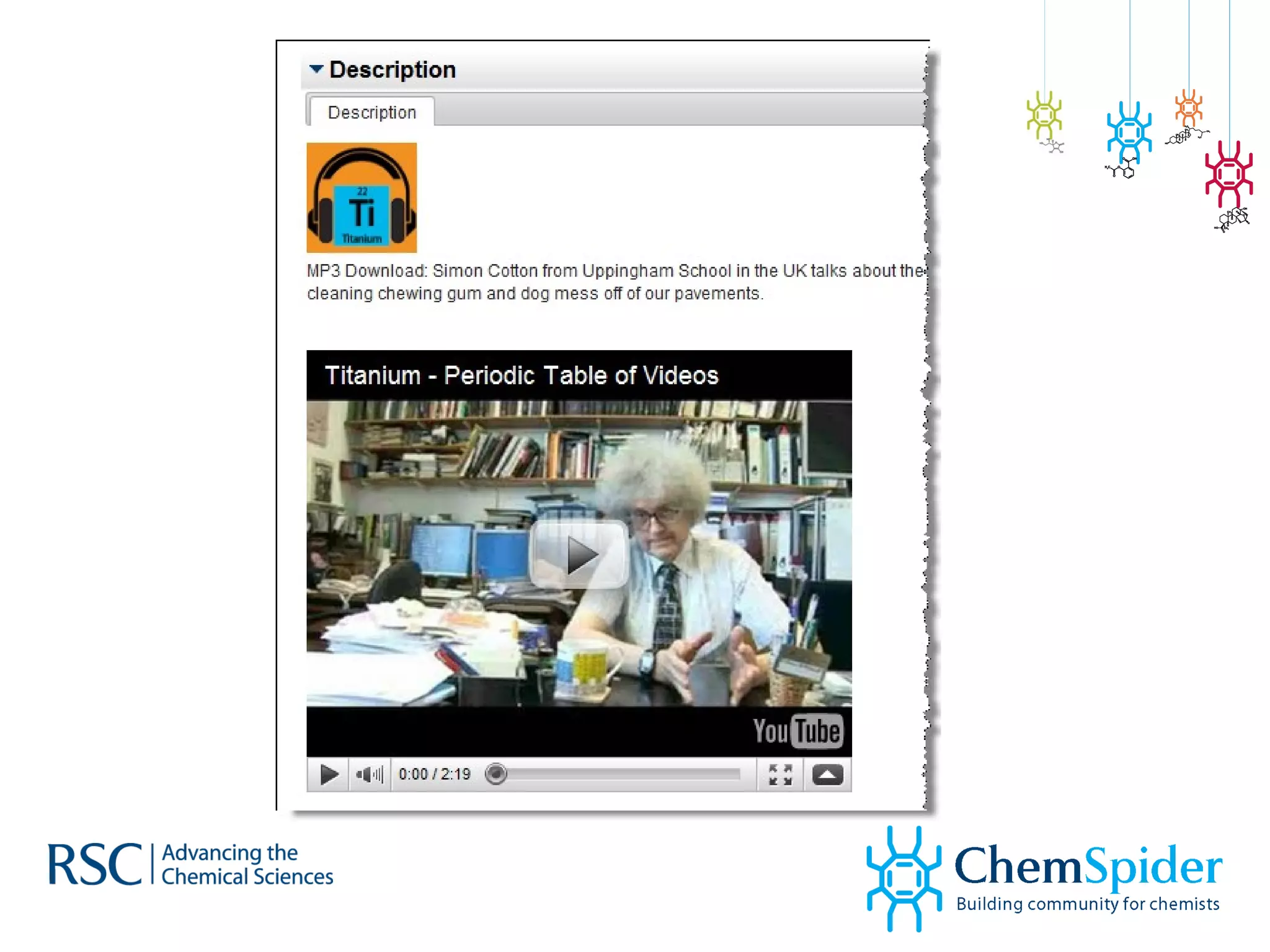

How Did We Build It (cont.) Ask users to add… Descriptions/Syntheses/Commentaries Links to PubMed articles Links to articles via DOIs Add spectral data Add Crystallographic Information Files Add photos Add MP3 files Add Videos

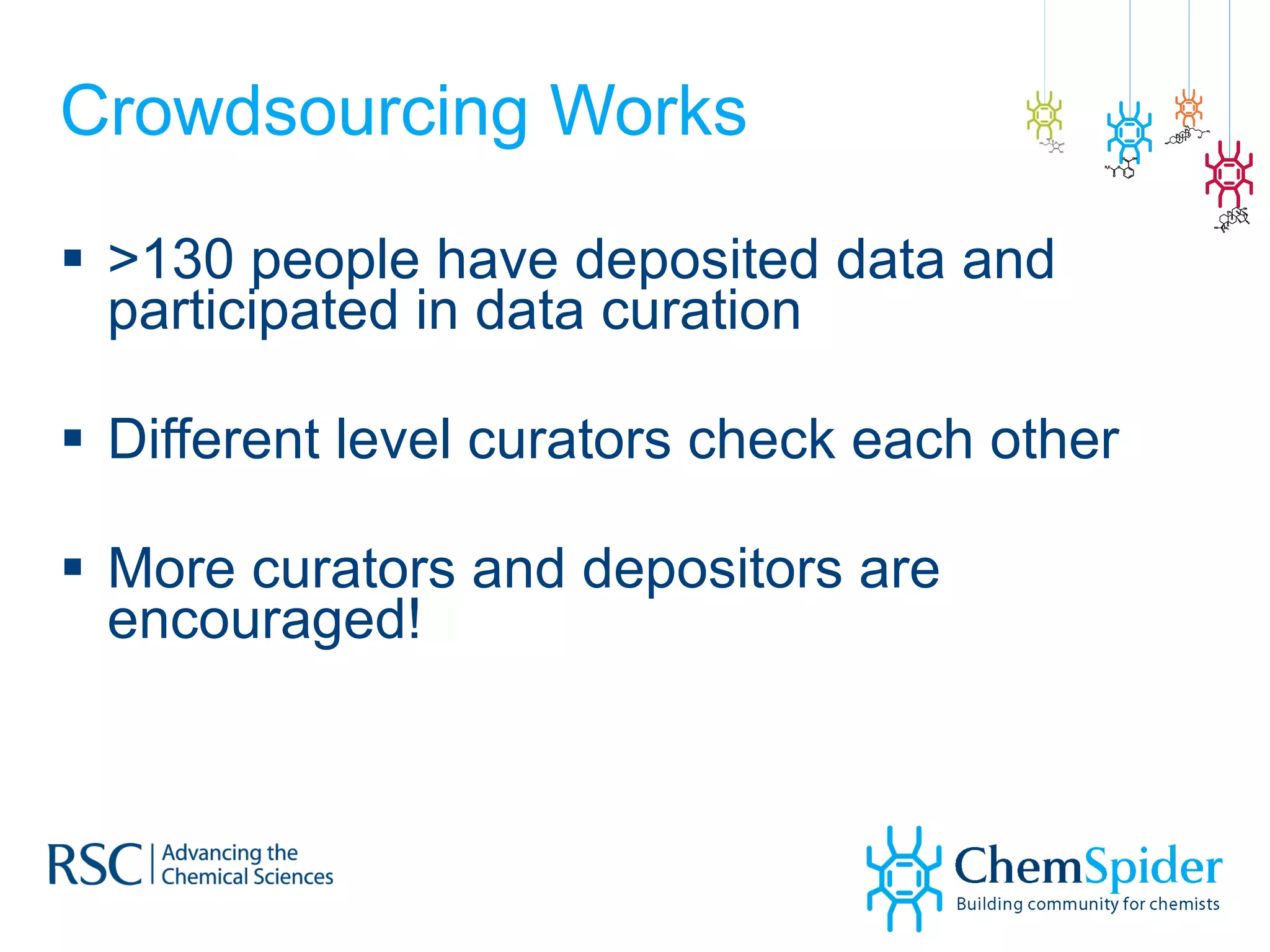

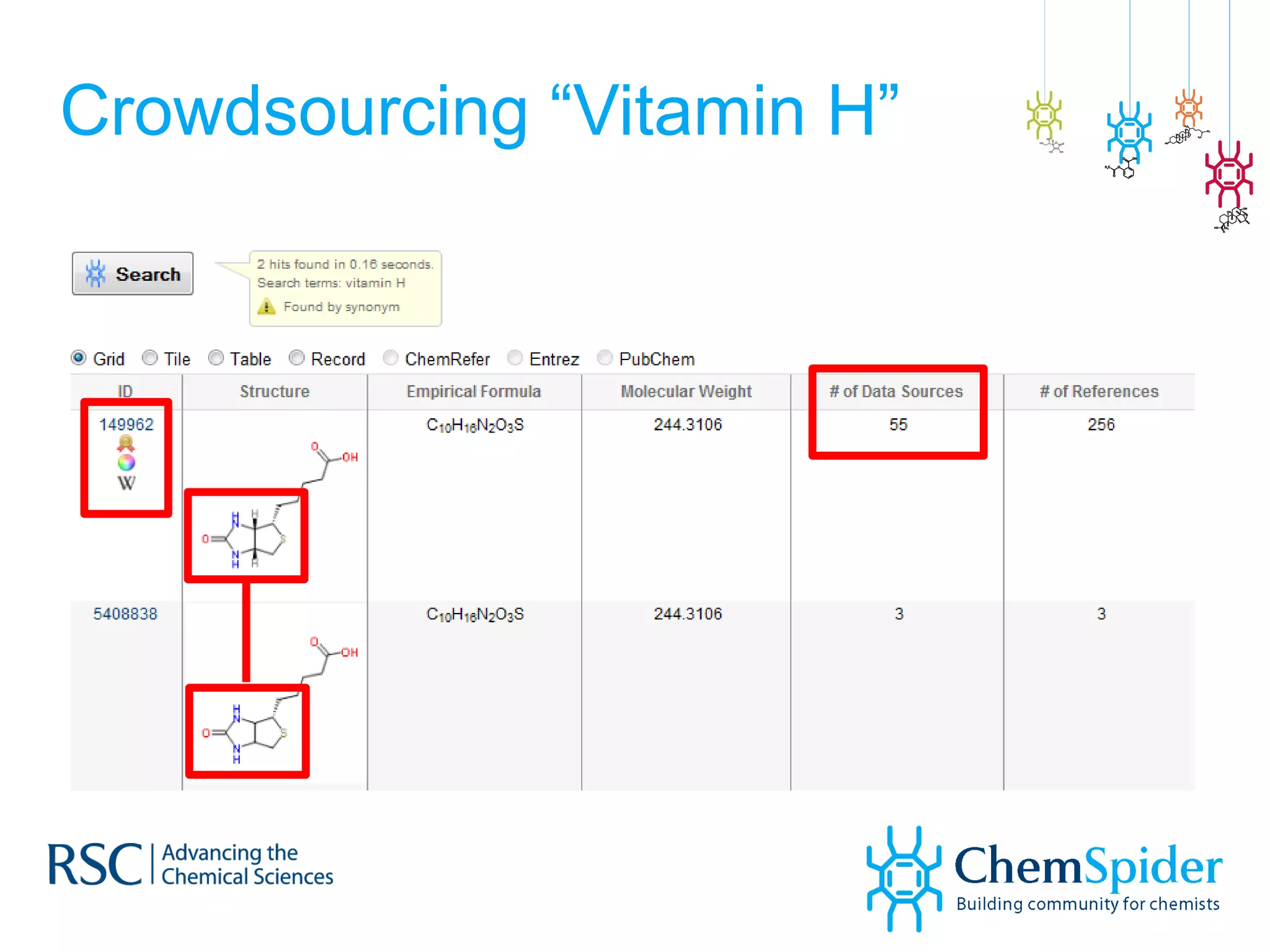

Crowdsourcing Works >130 people have deposited data and participated in data curation Different level curators check each other More curators and depositors are encouraged!

Accessibility and Reuse It’s a shame to go it alone!!! Can we “collectively” improve the quality of chemistry on the Internet?

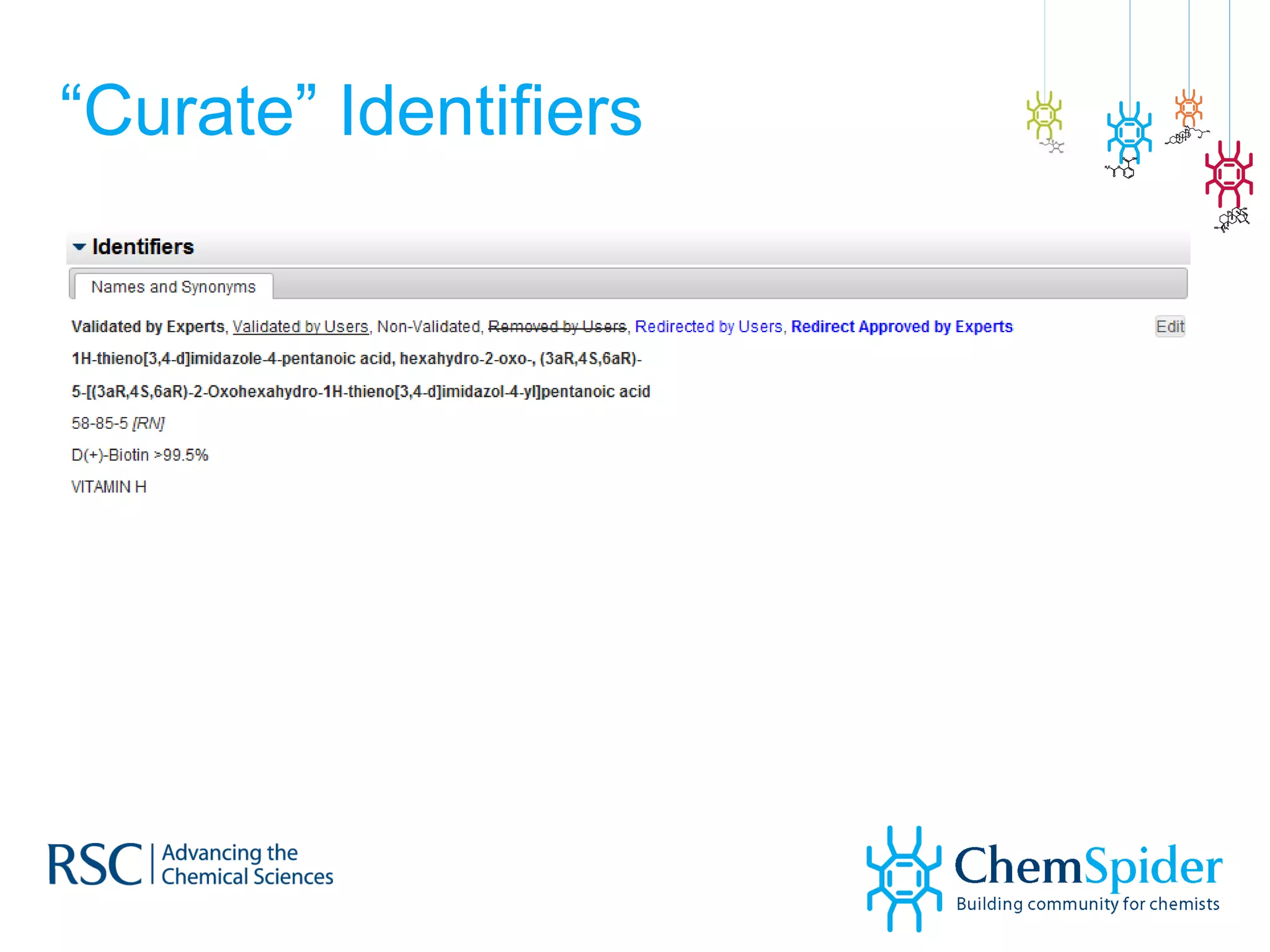

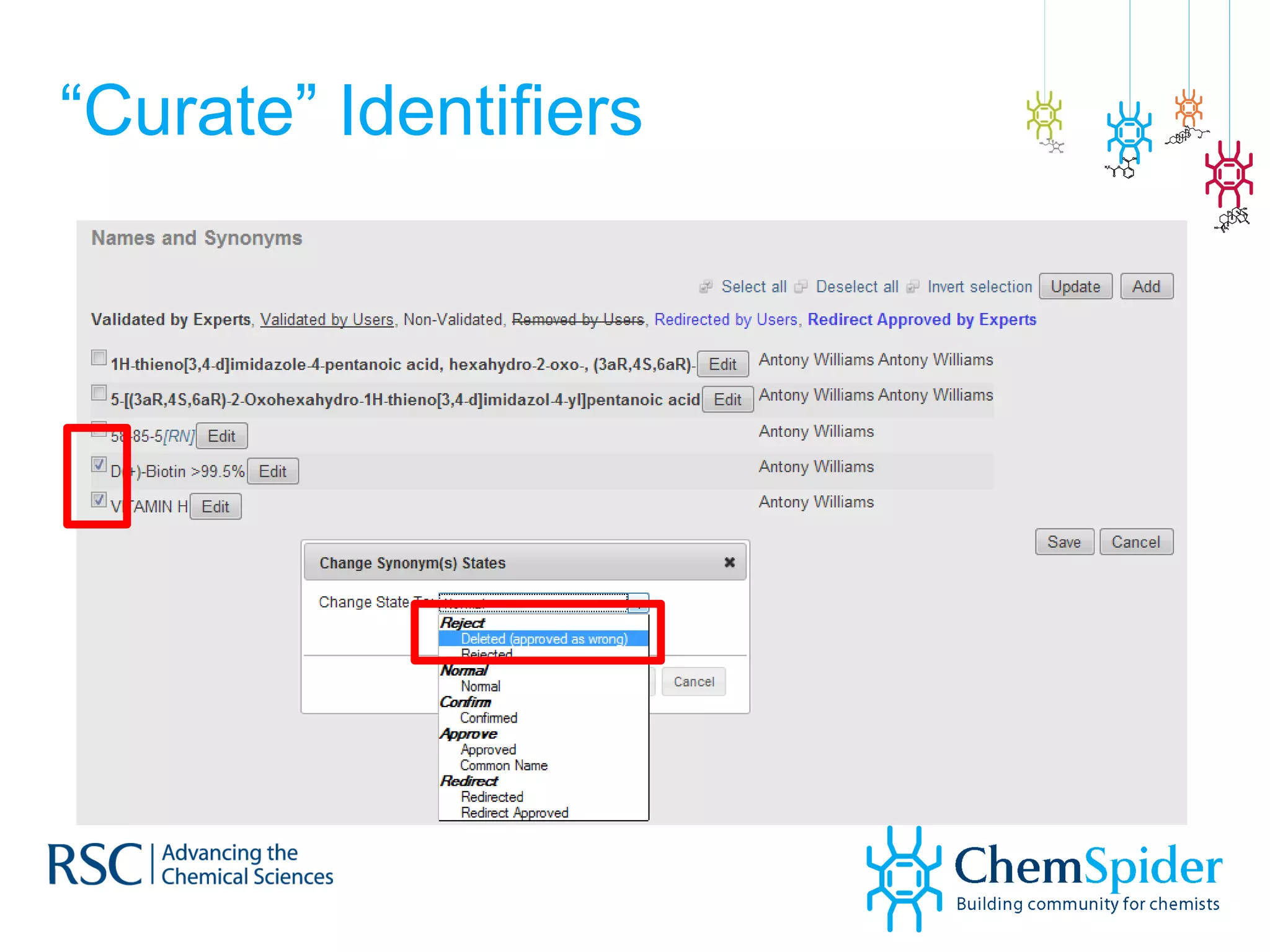

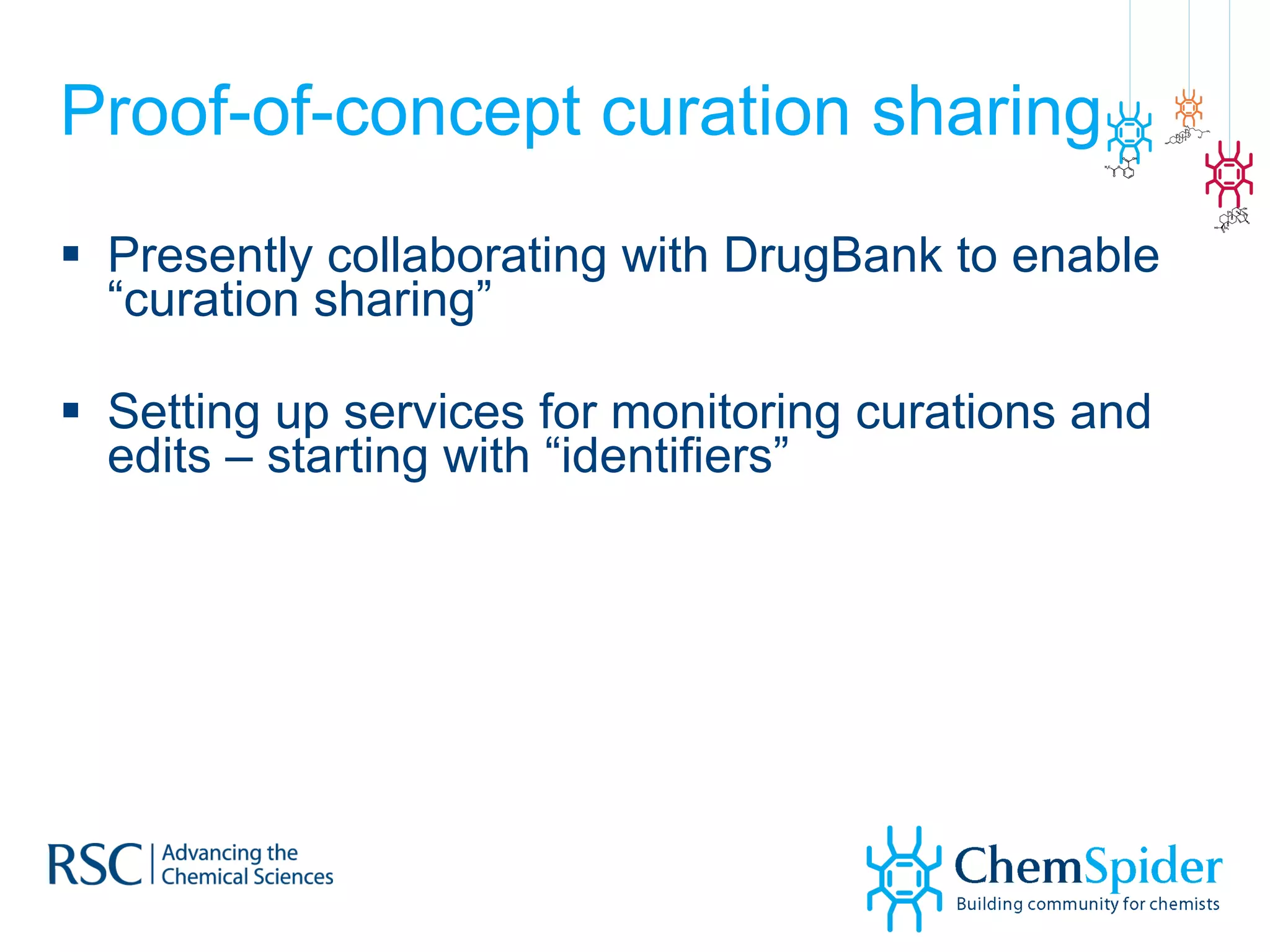

Proof-of-concept curation sharing Presently collaborating with DrugBank to enable “curation sharing” Setting up services for monitoring curations and edits – starting with “identifiers”

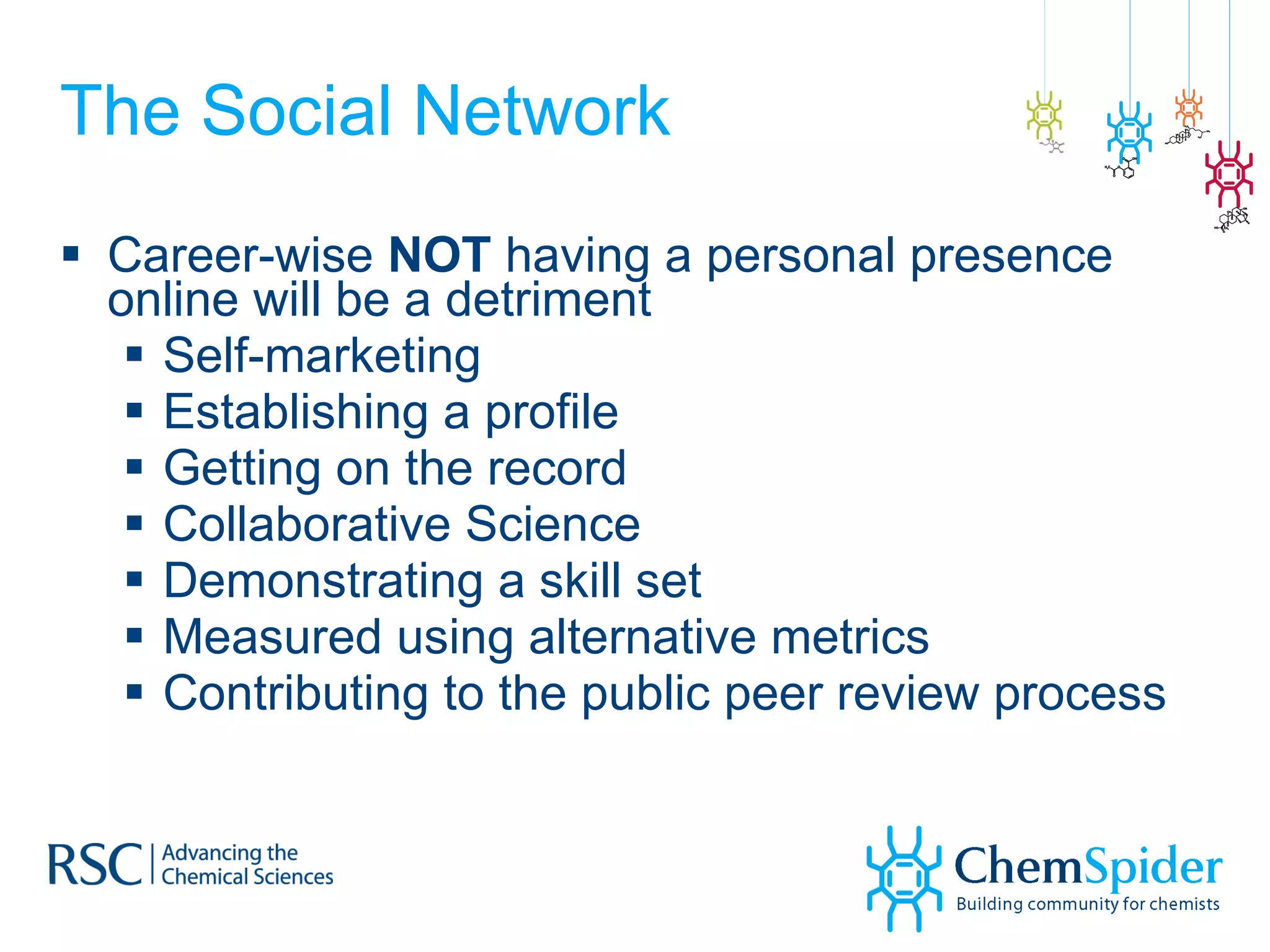

The Social Network Career-wise NOT having a personal presence online will be a detriment Self-marketing Establishing a profile Getting on the record Collaborative Science Demonstrating a skill set Measured using alternative metrics Contributing to the public peer review process

Social Networking Tools A growing number of social networking tools: Facebook Twitter Linked-In Flickr YouTube Blogs Communities Collaborative environments

Chemistry Social Networking Methods of sharing MY chemistry online include: Wikis or blogs Slideshare for presentations YouTube for videos Flickr, Wikimedia etc. for images PubChem for assay data NMRShiftDB for NMR assignments GoogleDocs for data

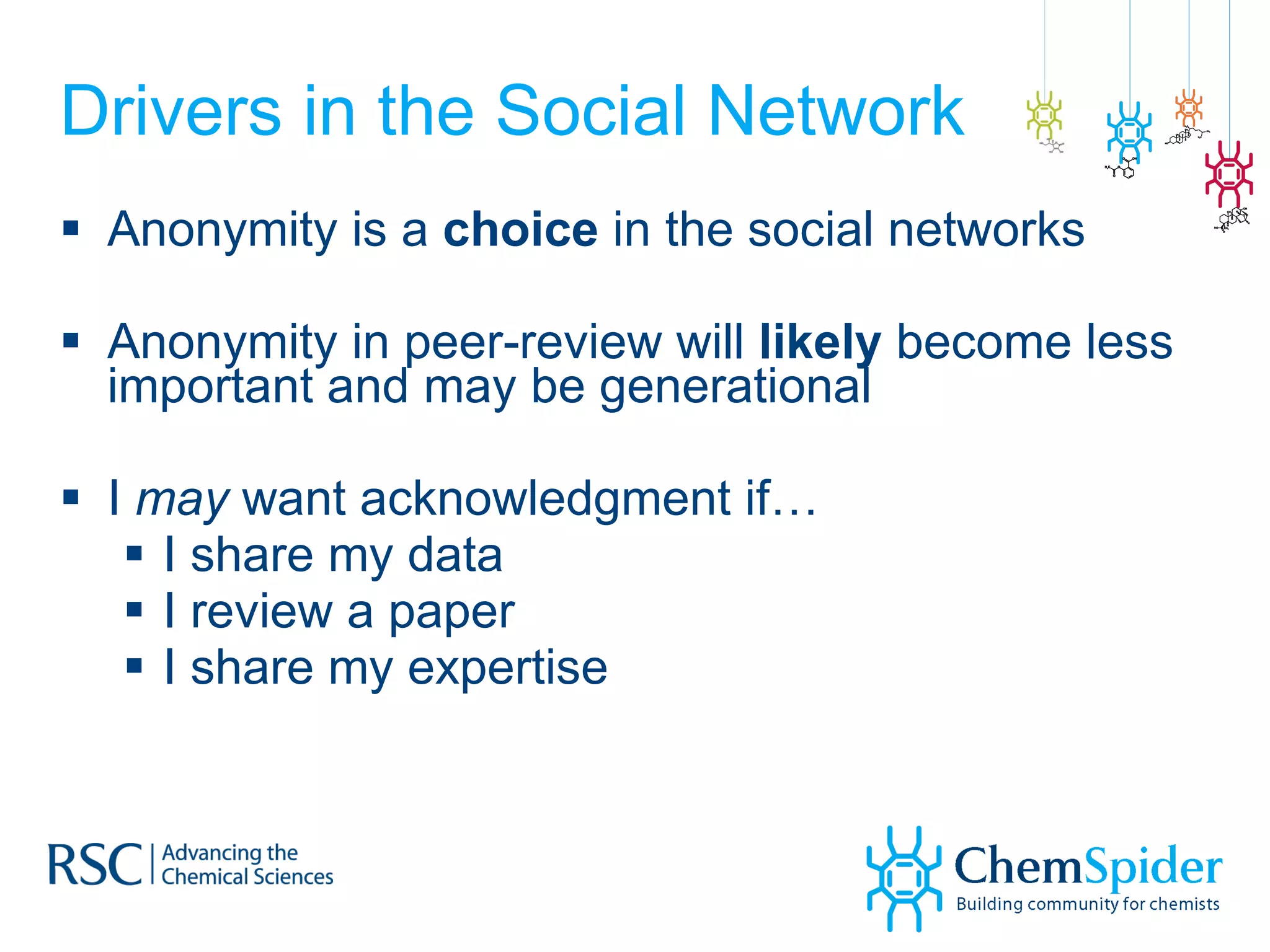

Drivers in the Social Network Anonymity is a choice in the social networks Anonymity in peer-review will likely become less important and may be generational I may want acknowledgment if… I share my data I review a paper I share my expertise

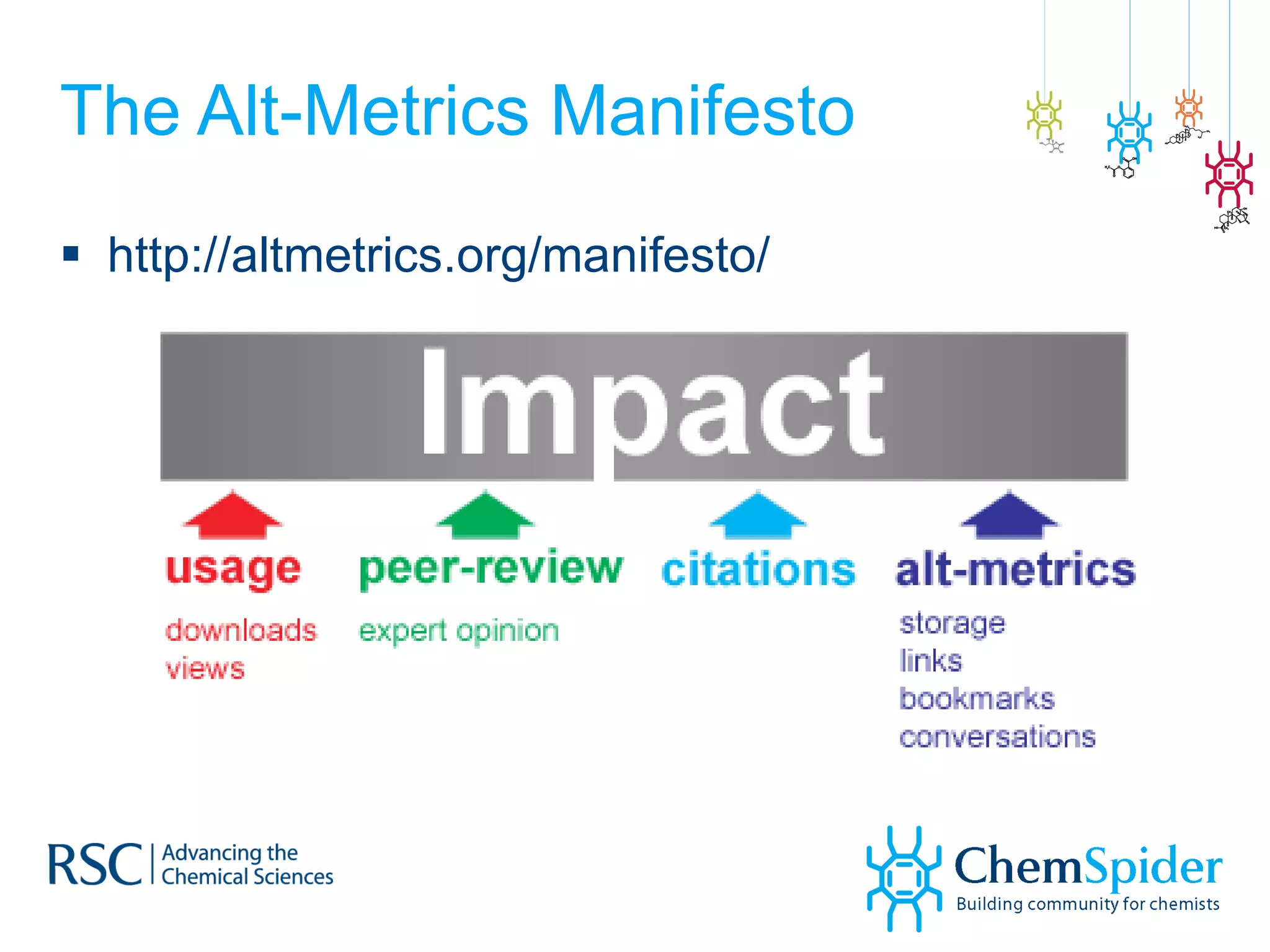

The Alt-Metrics Manifesto http://altmetrics.org/manifesto/

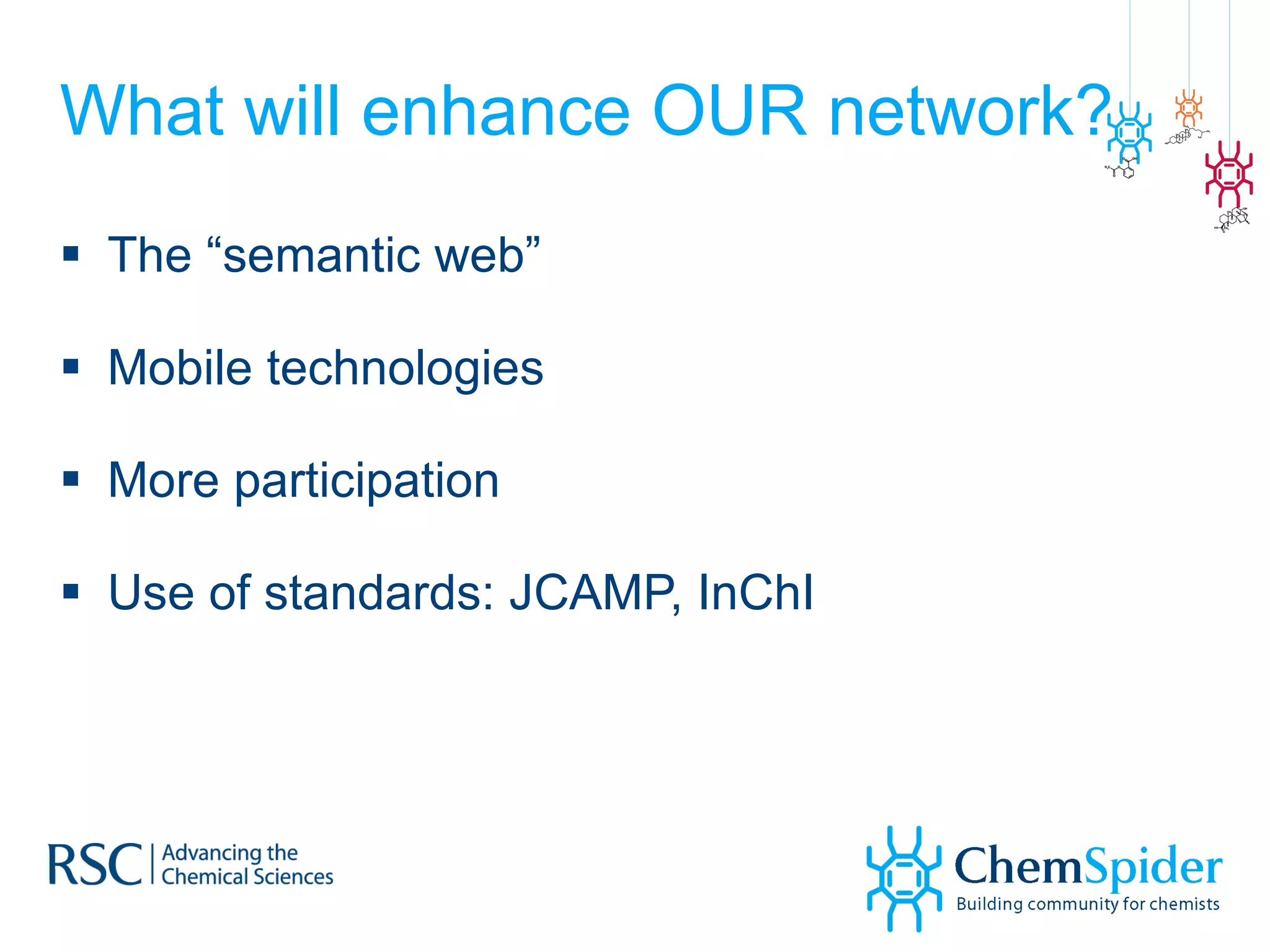

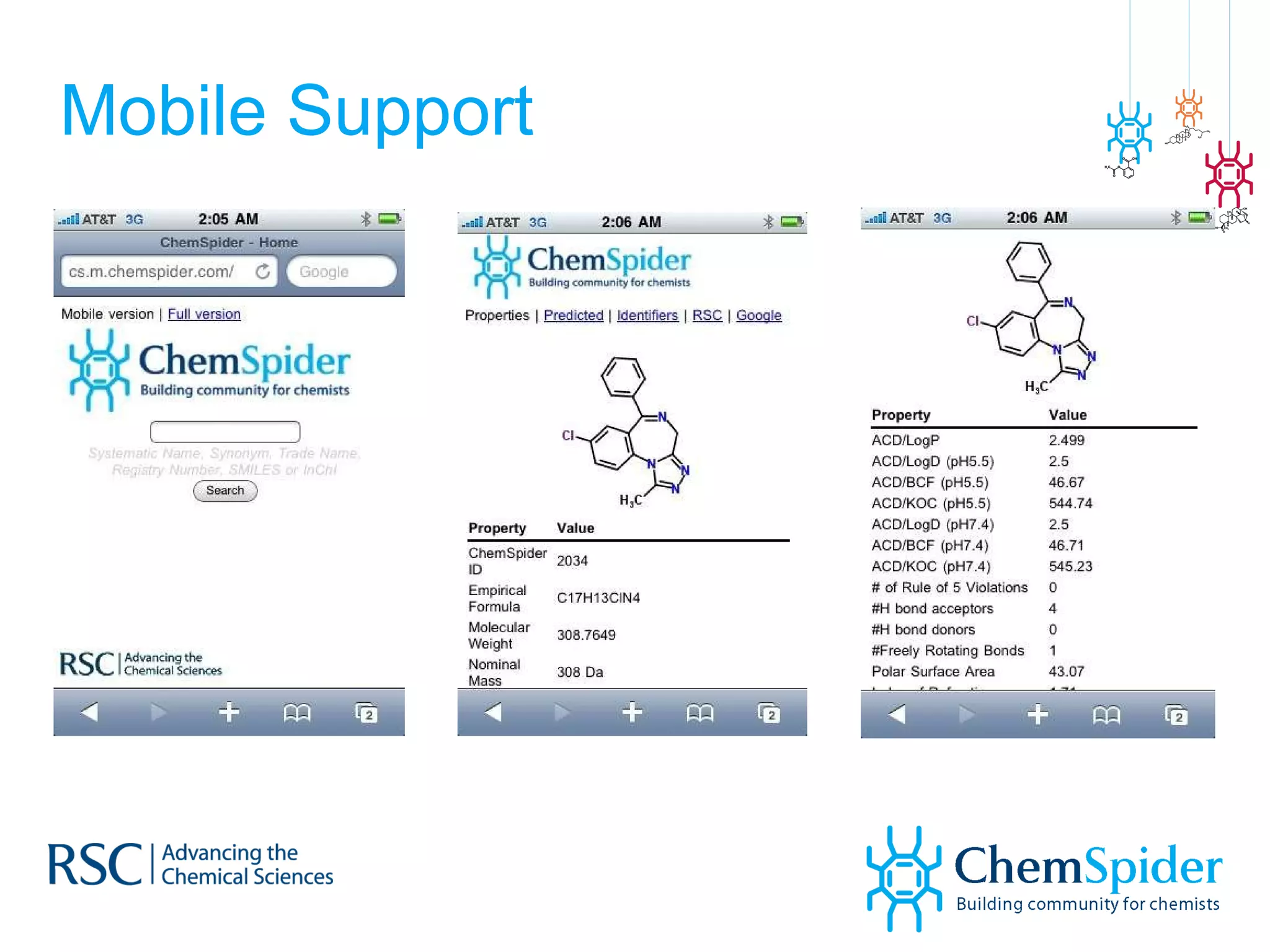

What will enhance OUR network? The “semantic web” Mobile technologies More participation Use of standards: JCAMP, InChI

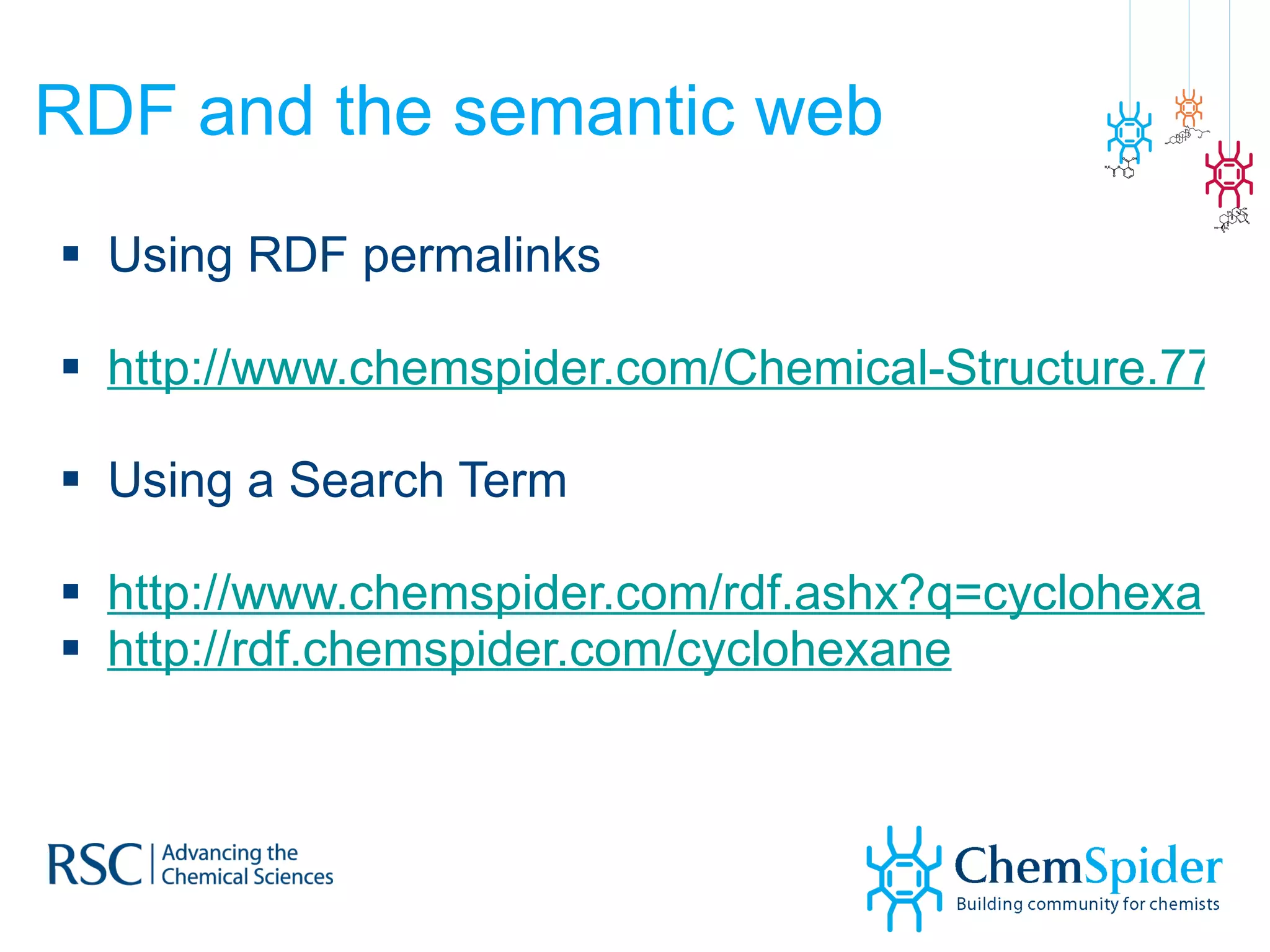

RDF and the semantic web Using RDF permalinks http://www.chemspider.com/Chemical-Structure.7787.rdf Using a Search Term http://www.chemspider.com/rdf.ashx?q=cyclohexane http://rdf.chemspider.com/cyclohexane

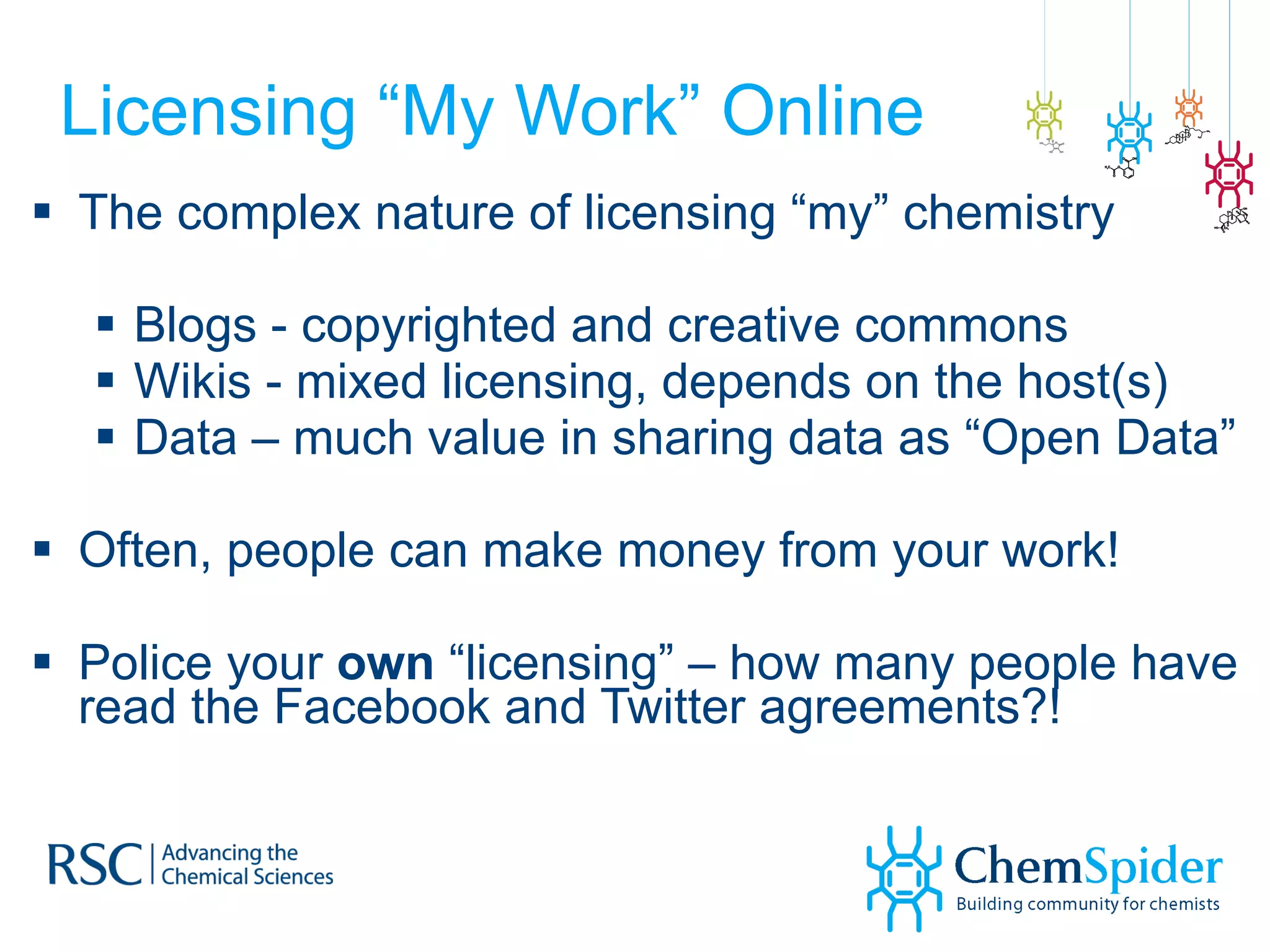

Licensing “My Work” Online The complex nature of licensing “my” chemistry Blogs - copyrighted and creative commons Wikis - mixed licensing, depends on the host(s) Data – much value in sharing data as “Open Data” Often, people can make money from your work! Police your own “licensing” – how many people have read the Facebook and Twitter agreements?!

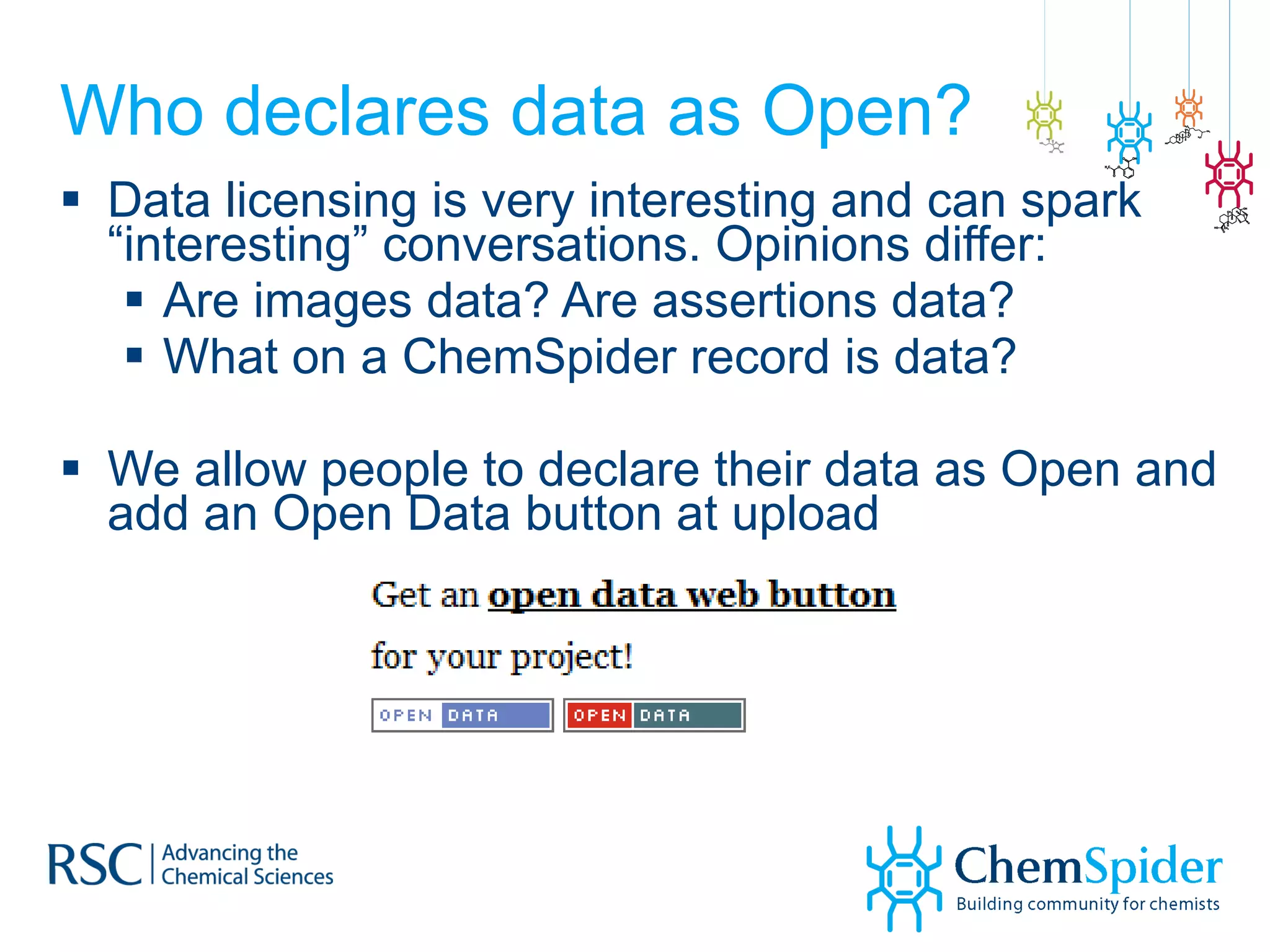

Who declares data as Open? Data licensing is very interesting and can spark “interesting” conversations. Opinions differ: Are images data? Are assertions data? What on a ChemSpider record is data? We allow people to declare their data as Open and add an Open Data button at upload

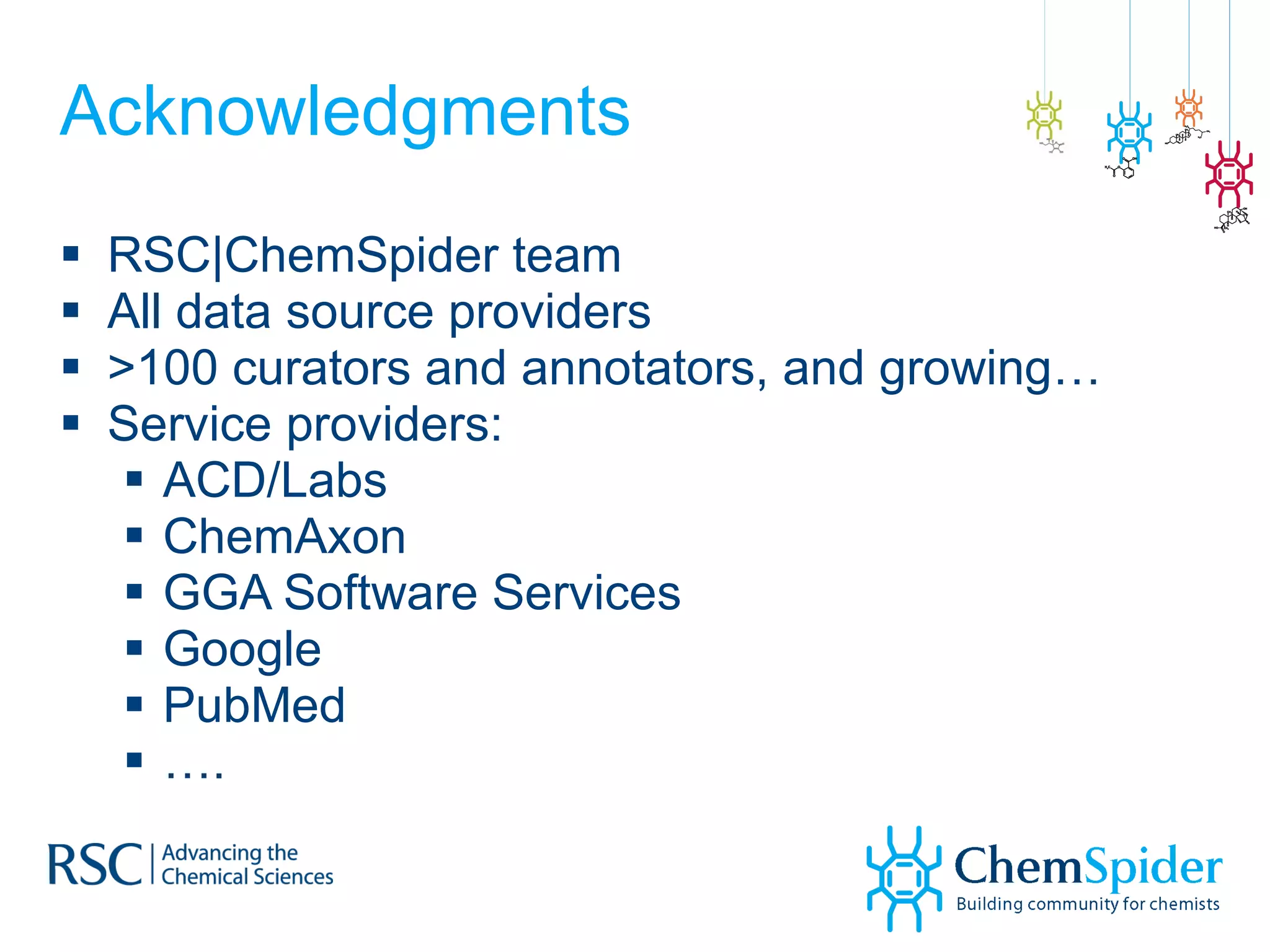

Acknowledgments RSC|ChemSpider team All data source providers >100 curators and annotators, and growing… Service providers: ACD/Labs ChemAxon GGA Software Services Google PubMed … .

ChemSpider Training Session ChemSpider: A Community Resource for Chemical Data Wednesday, March 30th 8:30-11:00 AM Anaheim Convention Center, Room 211 A
