@HOPENOC 2016 Network Overview

This document summarizes the network upgrades and operations for HOPENOC 2016. Key points include: installing 10G fiber connections and running fiber between floors for redundancy; sourcing and configuring new networking hardware including switches, wireless access points, and controllers; obtaining IP address space and establishing BGP; transporting and staging equipment; and standing up critical network services just before the conference. Network usage peaked at over 500Mbps wireless usage and 1.76Gbps total bandwidth. Monitoring showed high wireless client counts but only moderate issues. Lessons learned include encouraging more encrypted WiFi usage and bandwidth consumption.

Embed presentation

Download to read offline
@HOPENO PUSH MORE BANDWIDTHFri Sat Sun
OUR START….

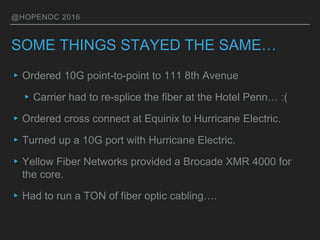

@HOPENOC 2016 SOME THINGS STAYED THE SAME… ▸Ordered 10G point-to-point to 111 8th Avenue ▸Carrier had to re-splice the fiber at the Hotel Penn… :( ▸Ordered cross connect at Equinix to Hurricane Electric. ▸Turned up a 10G port with Hurricane Electric. ▸Yellow Fiber Networks provided a Brocade XMR 4000 for the core. ▸Had to run a TON of fiber optic cabling….

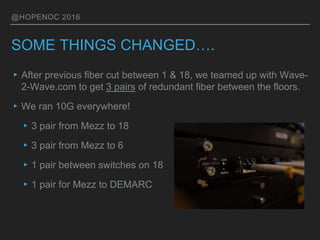

@HOPENOC 2016 SOME THINGS CHANGED…. ▸After previous fiber cut between 1 & 18, we teamed up with Wave- 2-Wave.com to get 3 pairs of redundant fiber between the floors. ▸We ran 10G everywhere! ▸3 pair from Mezz to 18 ▸3 pair from Mezz to 6 ▸1 pair between switches on 18 ▸1 pair for Mezz to DEMARC

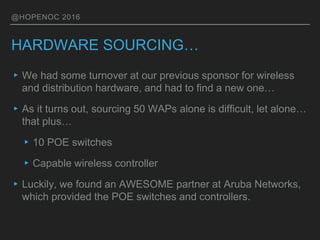

@HOPENOC 2016 HARDWARE SOURCING… ▸We had some turnover at our previous sponsor for wireless and distribution hardware, and had to find a new one… ▸As it turns out, sourcing 50 WAPs alone is difficult, let alone… that plus… ▸10 POE switches ▸Capable wireless controller ▸Luckily, we found an AWESOME partner at Aruba Networks, which provided the POE switches and controllers.
@HOPENOC 2016 HARDWARE SOURCING… ▸We received 10 shiny new switches straight from HPE Discover conference in Las Vegas. ▸Alex picked up 50 Wireless Access Points and 2 Controllers (redundancy!) from Aruba in Washington DC. ▸But… there were some additional challenges…

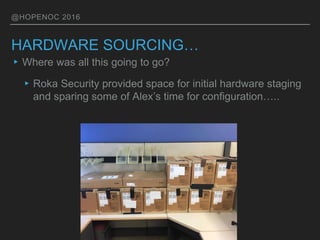

@HOPENOC 2016 HARDWARE SOURCING… ▸Where was all this going to go? ▸Roka Security provided space for initial hardware staging and sparing some of Alex’s time for configuration…..

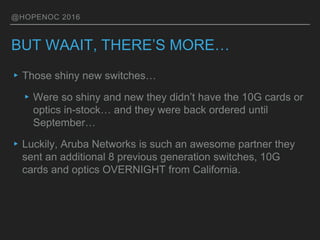

@HOPENOC 2016 BUT WAAIT, THERE’S MORE… ▸Those shiny new switches… ▸Were so shiny and new they didn’t have the 10G cards or optics in-stock… and they were back ordered until September… ▸Luckily, Aruba Networks is such an awesome partner they sent an additional 8 previous generation switches, 10G cards and optics OVERNIGHT from California.
@HOPENOC 2016 AND HOW ABOUT IP SPACE? ▸IPv4 depletion is a real problem. ARIN is out, and RIPE will be soon, but AFRINIC has some… ▸We thought about becoming an African ISP, but as it turns out that’s expensive and time consuming. ▸We reached out to Prefix Broker, a broker that sources available IPs, and they were nice enough to hook us up with… ▸/19 of IPv4 (registered to A&F Networks in Amsterdam) ▸/29 of IPv6 (registered to Falco Networks)

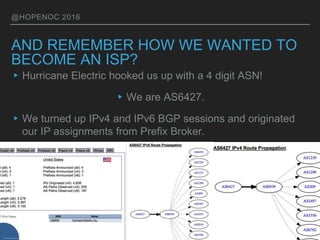

@HOPENOC 2016 AND REMEMBER HOW WE WANTED TO BECOME AN ISP? ▸Hurricane Electric hooked us up with a 4 digit ASN! ▸We are AS6427. ▸We turned up IPv4 and IPv6 BGP sessions and originated our IP assignments from Prefix Broker.
@HOPENOC 2016 BUT, HOW WOULD ALL THE GEAR GET TO NYC?▸At the end of the day, we had 4 pallets of equipment to bring to HOPE. ▸MAGFest was kind enough to allow us to break down our pallets and do some last-minute configuration. ▸We drove up two cars of gear with Radio Statler.
BUT WHAT ABOUT

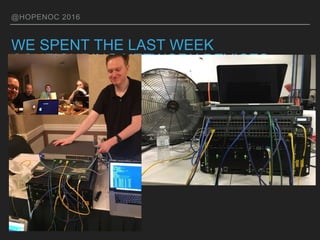

@HOPENOC 2016 WE SPENT THE LAST WEEK CONFIGURING NETWORK DEVICES

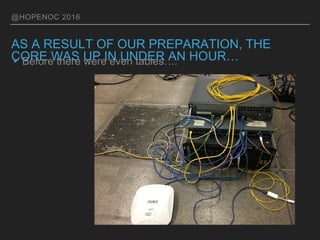

@HOPENOC 2016 AS A RESULT OF OUR PREPARATION, THE CORE WAS UP IN UNDER AN HOUR…▸Before there were even tables….

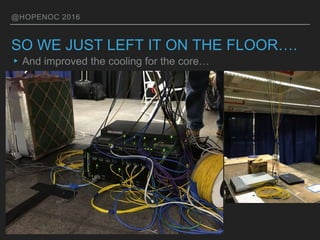

@HOPENOC 2016 SO WE JUST LEFT IT ON THE FLOOR…. ▸And improved the cooling for the core…
AND THEN THERE’S THE HARD

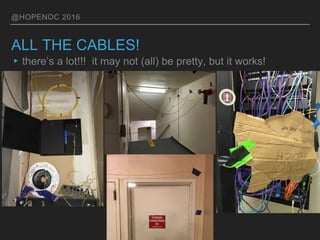

@HOPENOC 2016 ALL THE CABLES! ▸there’s a lot!!! it may not (all) be pretty, but it works!

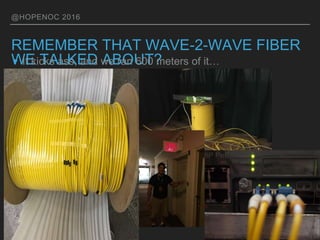

@HOPENOC 2016 REMEMBER THAT WAVE-2-WAVE FIBER WE TALKED ABOUT?▸It kicks ass, and we ran 600 meters of it…

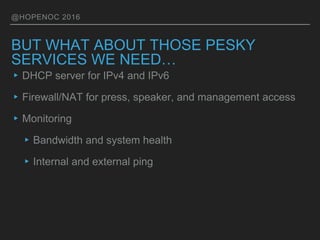

@HOPENOC 2016 BUT WHAT ABOUT THOSE PESKY SERVICES WE NEED… ▸DHCP server for IPv4 and IPv6 ▸Firewall/NAT for press, speaker, and management access ▸Monitoring ▸Bandwidth and system health ▸Internal and external ping
@HOPENOC 2016 DUE TO HARDWARE ISSUES, WE HAD TO GET THOSE UP LAST MINUTE…▸On a Windows 10 laptop running Hyper-V….. :( ▸Sorry, RMS… but, all the actual services ran on GNU/Linux.
@HOPENOC 2016 WE HAD SOME AMAZING MONITORING IN PLACE…▸We utilized Observium for bandwidth and health monitoring for systems. ▸Panopta was utilized for Internal and External availability monitoring. ▸They checked our external availability every 60 seconds from 3 different geographical areas. ▸All of our deployed wireless access points, controllers, switches, and core were monitored via an Internal sensor appliance. ▸Notifications were sent automagically to Slack for rapid response by the NOC team.

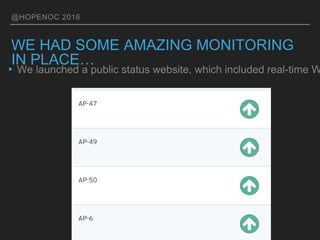

@HOPENOC 2016 WE HAD SOME AMAZING MONITORING IN PLACE… ▸We launched a public status website, which included real-time W
SOME STATS…

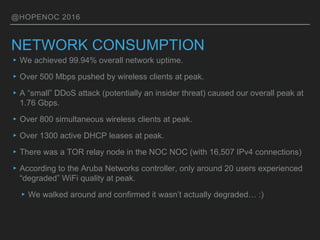

@HOPENOC 2016 NETWORK CONSUMPTION ▸We achieved 99.94% overall network uptime. ▸Over 500 Mbps pushed by wireless clients at peak. ▸A “small” DDoS attack (potentially an insider threat) caused our overall peak at 1.76 Gbps. ▸Over 800 simultaneous wireless clients at peak. ▸Over 1300 active DHCP leases at peak. ▸There was a TOR relay node in the NOC NOC (with 16,507 IPv4 connections) ▸According to the Aruba Networks controller, only around 20 users experienced “degraded” WiFi quality at peak. ▸We walked around and confirmed it wasn’t actually degraded… :)
INTERESTI NG

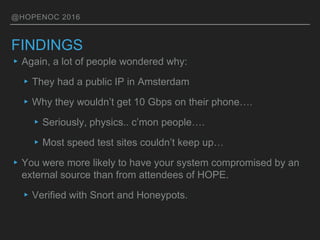

@HOPENOC 2016 FINDINGS ▸Again, a lot of people wondered why: ▸They had a public IP in Amsterdam ▸Why they wouldn’t get 10 Gbps on their phone…. ▸Seriously, physics.. c’mon people…. ▸Most speed test sites couldn’t keep up… ▸You were more likely to have your system compromised by an external source than from attendees of HOPE. ▸Verified with Snort and Honeypots.

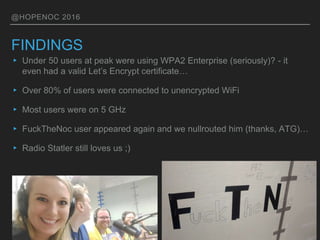

@HOPENOC 2016 FINDINGS ▸ Under 50 users at peak were using WPA2 Enterprise (seriously)? - it even had a valid Let’s Encrypt certificate… ▸ Over 80% of users were connected to unencrypted WiFi ▸ Most users were on 5 GHz ▸ FuckTheNoc user appeared again and we nullrouted him (thanks, ATG)… ▸ Radio Statler still loves us ;)

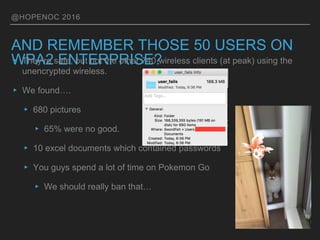

@HOPENOC 2016 AND REMEMBER THOSE 50 USERS ON WPA2 ENTERPRISE?▸ They’re safe, but not the other 740 wireless clients (at peak) using the unencrypted wireless. ▸ We found…. ▸ 680 pictures ▸ 65% were no good. ▸ 10 excel documents which contained passwords ▸ You guys spend a lot of time on Pokemon Go ▸ We should really ban that…
JUST KIDDING. <3 BUT NEXT TIME WE’RE RATE
NEXT TIME…

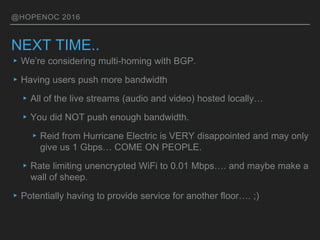

@HOPENOC 2016 NEXT TIME.. ▸We’re considering multi-homing with BGP. ▸Having users push more bandwidth ▸All of the live streams (audio and video) hosted locally… ▸You did NOT push enough bandwidth. ▸Reid from Hurricane Electric is VERY disappointed and may only give us 1 Gbps… COME ON PEOPLE. ▸Rate limiting unencrypted WiFi to 0.01 Mbps…. and maybe make a wall of sheep. ▸Potentially having to provide service for another floor…. ;)
WE COULD NOT HAVE DONE
@HOPENOC 2016 WITHOUT OUR AMAZING SPONSORS! ^^ Is hiring in VA/DC ^^
@HOPENOC 2016 AND @HOPENOC 2016 TEAM….
