1. Home Automation
Awareness
(Intensive Practical Session)

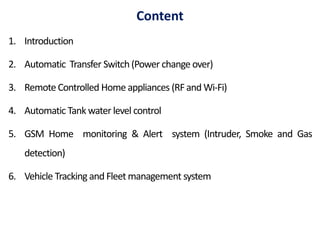

2. 1. Introduction
2. Automatic Transfer Switch (Power change over)
3. Remote Controlled Home appliances (RFand Wi-Fi)
4. Automatic Tank water level control
5. GSM Home monitoring & Alert system (Intruder, Smoke and Gas
detection)
6. Vehicle Tracking and Fleet management system
Content

3. Introduction
Home automation systems when installed and configured will monitor and/or
control home attributes such as mains power supply, lighting, climate, access,
water/gas supply, home safety, entertainment systems and all types of
electrical/electronic devices and appliances
Power Supply Control Lighting Climate Access Entertainment Systems
Automatically Switch power
between Utility (PHCN) and
Generator considering the
priority set by user.
Remotely/automatically
start the generator while
away from home…
Turn on/off lights as required
without walking to the wall
switch, Configure lighting
scenes for different purpose
which can be activated by
motion detection, voice or
remote control…
Turn on/off air coolers as
required; make the fan
start/stop based on temperature
detected, remotely Start up the
air conditioner on your way
home and stop it automatically
when required…
Open/Close gate and doors
while away from home.
24hrs monitoring of home
environment on camera app
+ remotely sound alarm or
voice prompt when intruder
is detected…
Voice command Google assistant
to set your room into a romantic
scene; the lightings automatically
turn red, AC chilling, TV show
latest romantic movie on Netflix
with very nice R&B background
music from the sound system…

4. Introduction
Water & Gas Supply Home Safety Bathroom Set up Schedules & Routines Housekeeping
Automatically/Remotely
start and stop underground
pump depending on level in
the storage tank. Cut off gas
supply when gas leak is
detected or intentional
control on cell phone app.
Get an alert on phone when
there is an anomaly/incident
like gas leak, smoke or fire at
home. Remotely turn off gas
supply, sound and audible
alarm for evacuation and
activate fire fighting systems.
Voice command Google
assistant that you are ready
for shower; the heater will
automatically turn ON,
pressure pump starts with a
voice feedback when all is
ready for a nice shower time
Let Alexa organize your daily
schedule; tell you real-time weather
and traffic update, remind you of
meeting and appointments, search
and make scheduled bookings for
flights, cinema and other timed
events with automated reminder.
Let Robot cleaner do your floor
vacuuming and mopping.
Schedule the robot to clean
dedicated floor and carpet
before arriving home or at
nigh-time. Voice and app
control available, no stress…
Home automation has high potential for sharing data between family members or
trusted individuals for personal security and saves a lot of electrical energy with
positive environmental impact.
Above all, it help homeowners disengage from boring routines associated with
control of various home devices/appliances and channel their energy to more
productive activities.

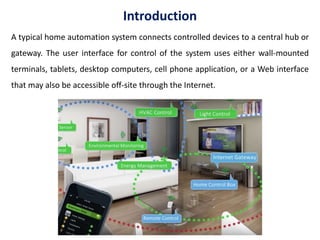

5. Introduction
A typical home automation system connects controlled devices to a central hub or
gateway. The user interface for control of the system uses either wall-mounted
terminals, tablets, desktop computers, cell phone application, or a Web interface
that may also be accessible off-site through the Internet.

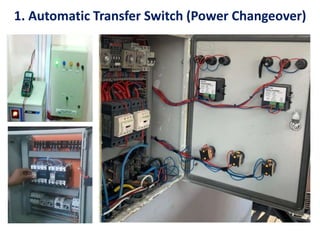

6. 1. Automatic Transfer Switch (Power Changeover)

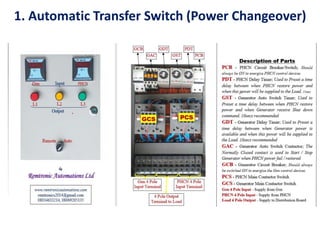

7. 1. Automatic Transfer Switch (Power Changeover)

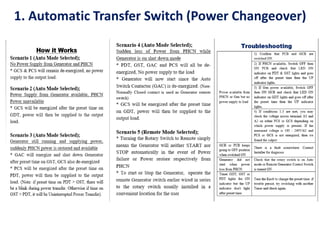

8. 1. Automatic Transfer Switch (Power Changeover)

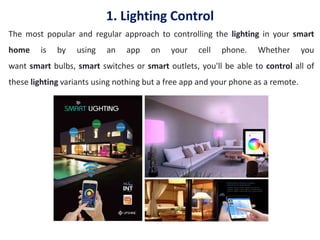

9. 1. Lighting Control
The most popular and regular approach to controlling the lighting in your smart
home is by using an app on your cell phone. Whether you
want smart bulbs, smart switches or smart outlets, you'll be able to control all of
these lighting variants using nothing but a free app and your phone as a remote.

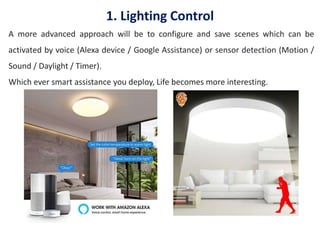

10. 1. Lighting Control
A more advanced approach will be to configure and save scenes which can be
activated by voice (Alexa device / Google Assistance) or sensor detection (Motion /
Sound / Daylight / Timer).
Which ever smart assistance you deploy, Life becomes more interesting.

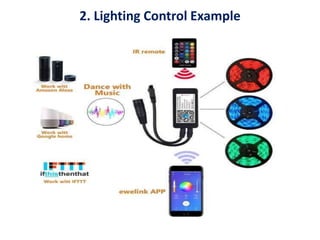

11. 2. Lighting Control Example

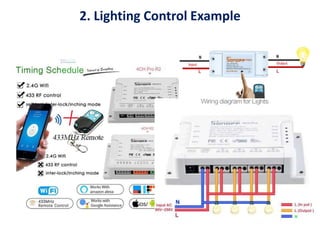

12. 2. Lighting Control Example
