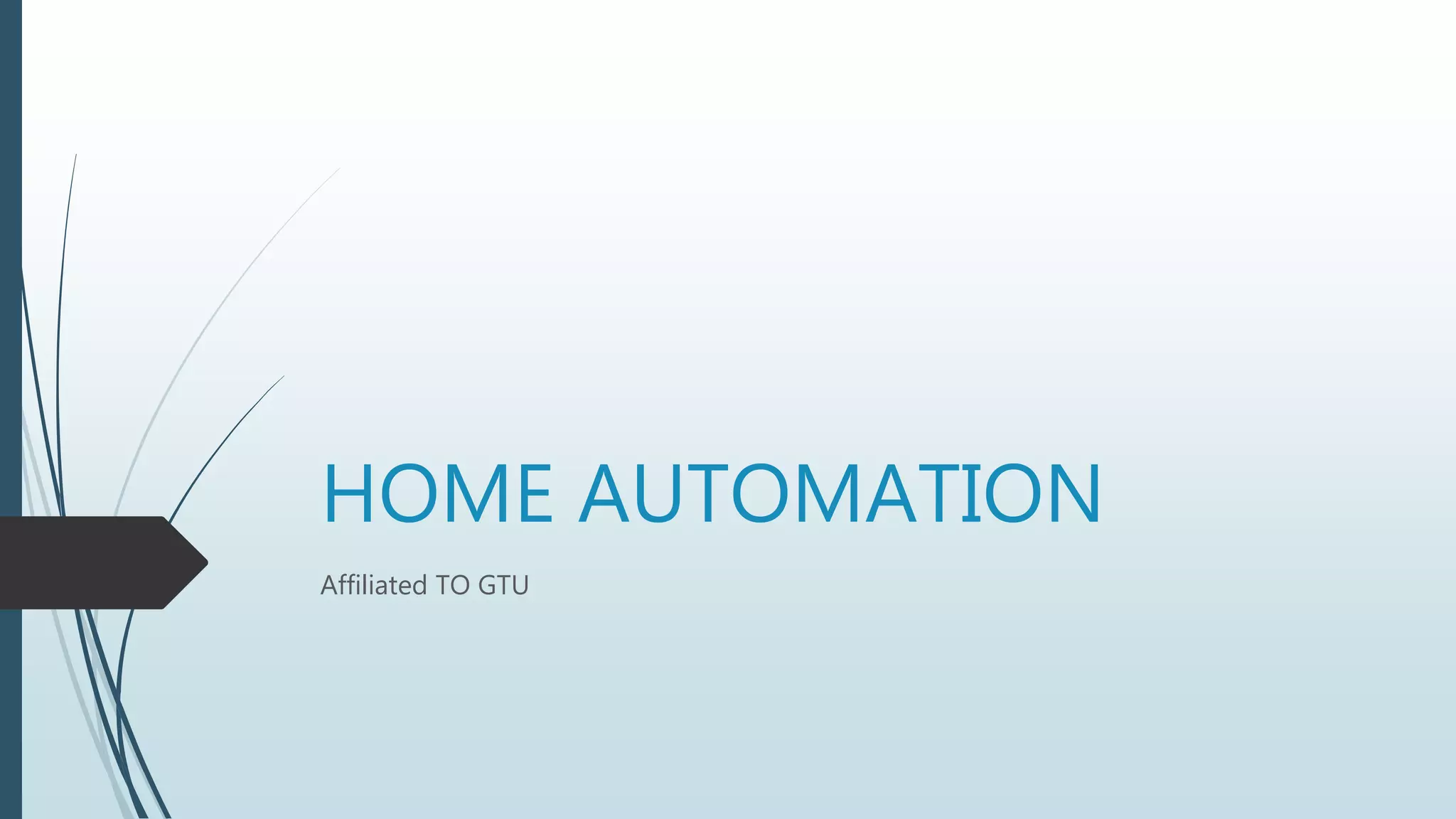

1. HOME AUTOMATION
Affiliated TO GTU

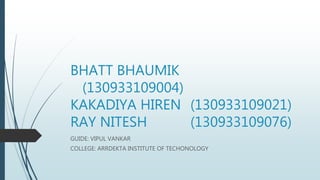

2. BHATT BHAUMIK
(130933109004)
KAKADIYA HIREN (130933109021)
RAY NITESH (130933109076)
GUIDE: VIPUL VANKAR
COLLEGE: ARRDEKTA INSTITUTE OF TECHONOLOGY

3. INTRODUCTION
 HOME AUTOMATION is basically automatic controlling of equipment we make use
in our daily lifestyle.
 It include various specially control which make it security and ease of work with
reduction of load.
 Very advance and dynamic programming with simplicity to user to use.

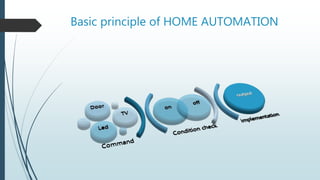

4. Basic principle of HOME AUTOMATION

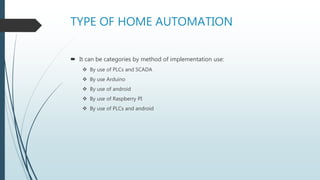

5. TYPE OF HOME AUTOMATION
 It can be categories by method of implementation use:
 By use of PLCs and SCADA
 By use Arduino
 By use of android
 By use of Raspberry PI
 By use of PLCs and android

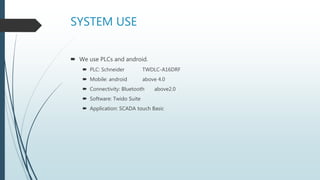

6. SYSTEM USE
 We use PLCs and android.
 PLC: Schneider TWDLC-A16DRF
 Mobile: android above 4.0
 Connectivity: Bluetooth above2.0
 Software: Twido Suite
 Application: SCADA touch Basic

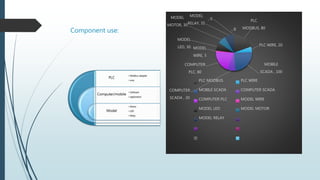

7. Component use:
PLC
MODBUS, 80
PLC WIRE, 20
MOBILE
SCADA , 100
COMPUTER
SCADA , 30
COMPUTER
PLC, 80
MODEL
WIRE, 5
MODEL
LED, 30
MODEL
MOTOR, 30
MODEL
RELAY, 35
, 0
, 0, 0, 0, 0, 0, 0
PLC MODBUS PLC WIRE
MOBILE SCADA COMPUTER SCADA
COMPUTER PLC MODEL WIRE
MODEL LED MODEL MOTOR
MODEL RELAY
PLC
Computer/mobile
Model
• Modbus adapter
• wire
• Software
• application
• Motor
• LED
• Relay

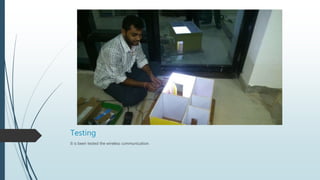

8. Testing
It is been tested the wireless communication.

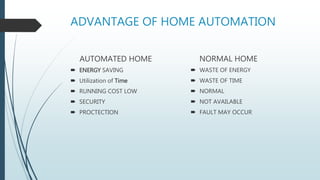

9. ADVANTAGE OF HOME AUTOMATION
AUTOMATED HOME
 ENERGY SAVING
 Utilization of Time
 RUNNING COST LOW
 SECURITY
 PROCTECTION
NORMAL HOME
 WASTE OF ENERGY
 WASTE OF TIME
 NORMAL
 NOT AVAILABLE
 FAULT MAY OCCUR

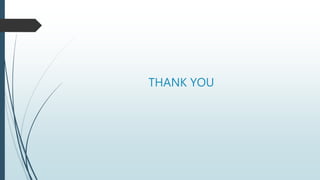

10. THANK YOU
