This document provides information on an epoxy molding resin. It can be used for molding outdoor heavy electric machinery, as a substitute for SF6 gas in high-voltage switchgear, and for molding high-voltage transformers, bushings, housings, and brackets. The resin has excellent electrical insulation and mechanical strength. It also meets customers' molding requirements. The document provides storage, curing, and usage instructions, and lists the resin's properties including tensile strength, flexural rigidity, hardness, and electrical breakdown voltage.

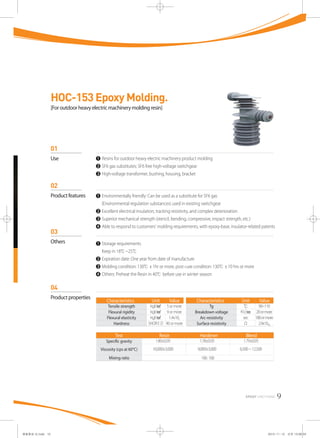

1. HOC-153EpoxyMolding.
01
Use
02
Productfeatures
❶ Resins for outdoor heavy electric machinery product molding
❷ SF6 gas substitutes: SF6 free high-voltage switchgear
❸ High-voltage transformer, bushing, housing, bracket
❶ Environmentally friendly: Can be used as a substitute for SF6 gas
(Environmental regulation substances) used in existing switchgear
❷ Excellent electrical insulation, tracking resistivity, and complex deterioration
❸ Superior mechanical strength (stencil, bending, compressive, impact strength, etc.)
❹ Able to respond to customers' molding requirements, with epoxy-base, insulator-related patents
04
Productproperties
03
Others ❶ Storage requirements
Keep in 18℃ ~25℃
❷ Expiration date: One year from date of manufacture
❸ Molding condition: 130℃ x 1hr or more, post cure condition: 130℃ x 10 hrs or more
❹ Others: Preheat the Resin in 40℃ before use in winter season
[Foroutdoorheavyelectricmachinerymoldingresin]
Characteristics Unit Value
Test Resin Hardener Blend
Characteristics Unit Value
Tensile strength
Flexural rigidity
Flexural elasticity
Hardness
Specific gravity
Mixing ratio
Viscosity (cps at 60ºC)
Tg
Breakdown voltage
Arc-resistivity
Surface resistivity
kgf/㎟
kgf/㎟
kgf/㎟
SHORED
1.80±0.05 1.78±0.05 1.79±0.05
10,000±3,000 9,000±3,000 6,500~12,500
℃
KV/㎜
sec
Ω
5ormore
9ormore
1.4x105
90ormore
90~110
20ormore
180ormore
2.9x1016
100:100
