The document presents the Hierarchical Stochastic Neighbor Embedding (HSNE) method, which enables efficient visualization and hierarchical organization of complex, high-dimensional data. It outlines the advantages of HSNE, including its capacity for non-linear dimensionality reduction and low memory footprint, as well as its application in deep learning and hyperspectral imaging. The approach is demonstrated to outperform existing techniques in terms of computation time and stability of embeddings.

1. EuroVis 2016
18th EG/VGTC Conference on Visualization
6-10 June 2016, Groningen, the Netherlands
Hierarchical Stochastic Neighbor Embedding
Nicola Pezzotti1, Thomas Höllt1, Boudewijn P.F. Lelieveldt2,
Elmar Eisemann1, Anna Vilanova1
1. Computer Graphics & Visualization, Delft University of Technology, Delft, The Netherlands
2. Division of Image Processing, Leiden Medical Center, Leiden, The Netherlands

2. EuroVis 2016 Pezzotti et al. // Hierarchical Stochastic Neighbor Embedding //EuroVis 2016

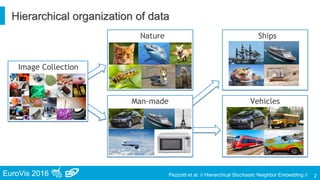

Hierarchical organization of data
Image Collection
Nature
Man-made
Ships
Vehicles
2

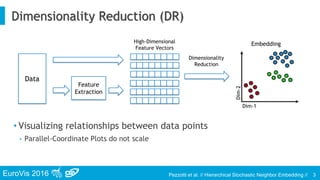

3. EuroVis 2016 Pezzotti et al. // Hierarchical Stochastic Neighbor Embedding //
• Visualizing relationships between data points
• Parallel-Coordinate Plots do not scale
Dimensionality Reduction (DR)
3
EmbeddingHigh-Dimensional
Feature Vectors
Dimensionality
Reduction
Dim-1
Dim-2
Data
Feature
Extraction

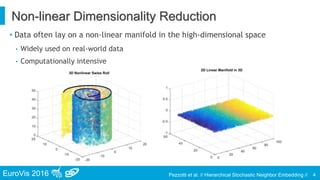

4. EuroVis 2016 Pezzotti et al. // Hierarchical Stochastic Neighbor Embedding //EuroVis 2016
Non-linear Dimensionality Reduction
• Data often lay on a non-linear manifold in the high-dimensional space
• Widely used on real-world data
• Computationally intensive
4

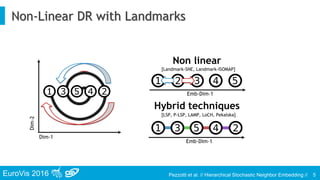

5. EuroVis 2016 Pezzotti et al. // Hierarchical Stochastic Neighbor Embedding //
Non-Linear DR with Landmarks
5
[Landmark-SNE, Landmark-ISOMAP]
[LSP, P-LSP, LAMP, LoCH, Pekalska]
Hybrid techniques
Non linear
Dim-1
Dim-2
Emb-Dim-1
Emb-Dim-1

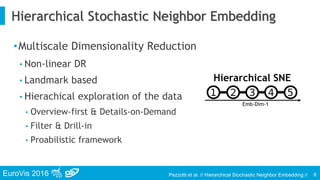

6. EuroVis 2016 Pezzotti et al. // Hierarchical Stochastic Neighbor Embedding //
•Multiscale Dimensionality Reduction
• Non-linear DR
• Landmark based
• Hierachical exploration of the data
• Overview-first & Details-on-Demand
• Filter & Drill-in
• Proabilistic framework
Hierarchical Stochastic Neighbor Embedding
6
Hierarchical SNE
Emb-Dim-1

7. EuroVis 2016
Algorithm

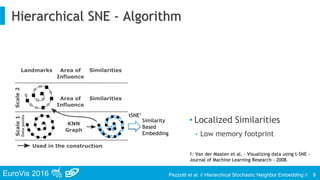

8. EuroVis 2016 Pezzotti et al. // Hierarchical Stochastic Neighbor Embedding //
Hierarchical SNE - Algorithm
8
Similarity
Based
Embedding
tSNE1
1: Van der Maaten et al. - Visualizing data using t-SNE -
Journal of Machine Learning Research - 2008.
• Localized Similarities
• Low memory footprint

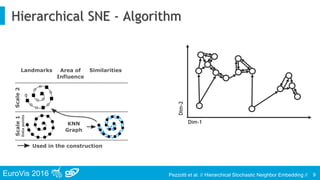

9. EuroVis 2016 Pezzotti et al. // Hierarchical Stochastic Neighbor Embedding //
Hierarchical SNE - Algorithm
9
Dim-1
Dim-2

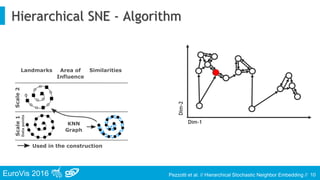

10. EuroVis 2016 Pezzotti et al. // Hierarchical Stochastic Neighbor Embedding //
Hierarchical SNE - Algorithm
10
Dim-1
Dim-2

11. EuroVis 2016 Pezzotti et al. // Hierarchical Stochastic Neighbor Embedding //
Hierarchical SNE - Algorithm
11
Dim-1
Dim-2

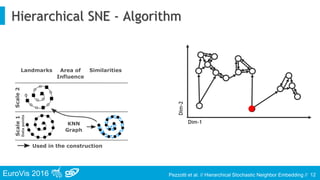

12. EuroVis 2016 Pezzotti et al. // Hierarchical Stochastic Neighbor Embedding //
Hierarchical SNE - Algorithm
12
Dim-1
Dim-2

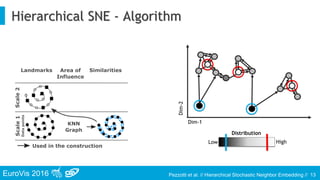

13. EuroVis 2016 Pezzotti et al. // Hierarchical Stochastic Neighbor Embedding //
Hierarchical SNE - Algorithm
13
Dim-1
Dim-2
Low High
Distribution

14. EuroVis 2016 Pezzotti et al. // Hierarchical Stochastic Neighbor Embedding //
Hierarchical SNE - Algorithm
14
Dim-1
Dim-2

15. EuroVis 2016 Pezzotti et al. // Hierarchical Stochastic Neighbor Embedding //
Hierarchical SNE - Algorithm
15
Dim-1
Dim-2

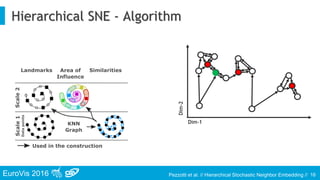

16. EuroVis 2016 Pezzotti et al. // Hierarchical Stochastic Neighbor Embedding //
Hierarchical SNE - Algorithm
16
Dim-1
Dim-2

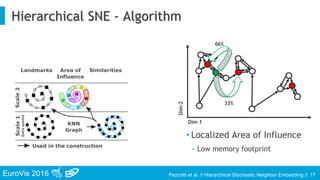

17. EuroVis 2016 Pezzotti et al. // Hierarchical Stochastic Neighbor Embedding //
Hierarchical SNE - Algorithm
17
Dim-1
Dim-2
66%
33%
• Localized Area of Influence
• Low memory footprint

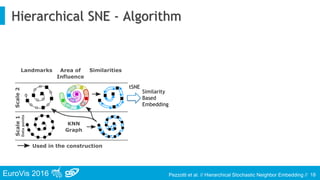

18. EuroVis 2016 Pezzotti et al. // Hierarchical Stochastic Neighbor Embedding //
Hierarchical SNE - Algorithm
18
Similarity
Based
Embedding
tSNE

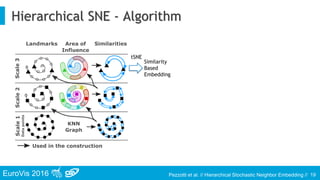

19. EuroVis 2016 Pezzotti et al. // Hierarchical Stochastic Neighbor Embedding //
Hierarchical SNE - Algorithm
19
Similarity
Based
Embedding
tSNE

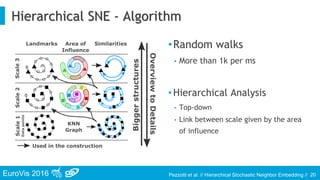

20. EuroVis 2016 Pezzotti et al. // Hierarchical Stochastic Neighbor Embedding //
Hierarchical SNE - Algorithm
20
•Random walks
• More than 1k per ms
•Hierarchical Analysis
• Top-down
• Link between scale given by the area
of influence

21. EuroVis 2016
Use Case 1
Deep Learning

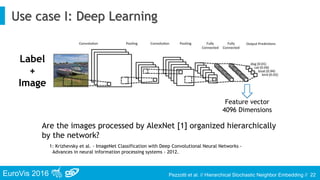

22. EuroVis 2016 Pezzotti et al. // Hierarchical Stochastic Neighbor Embedding //
Use case I: Deep Learning
22
Feature vector
4096 Dimensions
Are the images processed by AlexNet [1] organized hierarchically
by the network?
1: Krizhevsky et al. - ImageNet Classification with Deep Convolutional Neural Networks -
Advances in neural information processing systems - 2012.
Label
+

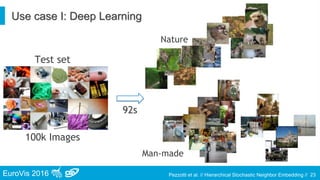

23. EuroVis 2016 Pezzotti et al. // Hierarchical Stochastic Neighbor Embedding //EuroVis 2016
Use case I: Deep Learning
Test set
Nature
Man-made
100k Images
92s
23

24. EuroVis 2016 Pezzotti et al. // Hierarchical Stochastic Neighbor Embedding //EuroVis 2016
Use case I: Deep Learning
Nature
Vehicles
Appliances
Ships
Man-made
24

25. EuroVis 2016 Pezzotti et al. // Hierarchical Stochastic Neighbor Embedding //EuroVis 2016
Use case I: Deep Learning
Appliances
Ships
Vehicles Trains
Cars
Buses
25

26. EuroVis 2016
Use Case 2
Hyperspectral Images

27. EuroVis 2016 Pezzotti et al. // Hierarchical Stochastic Neighbor Embedding //
Use case II: Hyperspectral images
27

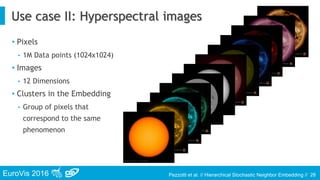

28. EuroVis 2016 Pezzotti et al. // Hierarchical Stochastic Neighbor Embedding //
Use case II: Hyperspectral images
28
• Pixels
• 1M Data points (1024x1024)
• Images
• 12 Dimensions
• Clusters in the Embedding
• Group of pixels that
correspond to the same
phenomenon

29. EuroVis 2016 Pezzotti et al. // Hierarchical Stochastic Neighbor Embedding //
Use case II: Hyperspectral images
29
Surface
Space
Low High
Influence

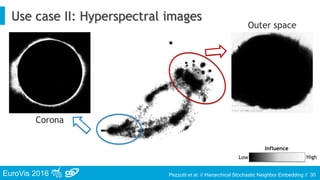

30. EuroVis 2016 Pezzotti et al. // Hierarchical Stochastic Neighbor Embedding //
Use case II: Hyperspectral images
30
Outer space
Corona
Low High
Influence

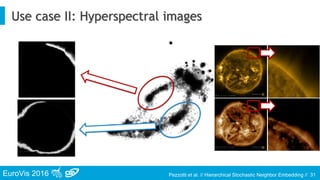

31. EuroVis 2016 Pezzotti et al. // Hierarchical Stochastic Neighbor Embedding //
Use case II: Hyperspectral images
31

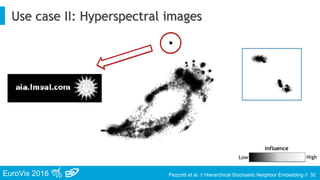

32. EuroVis 2016 Pezzotti et al. // Hierarchical Stochastic Neighbor Embedding //
Use case II: Hyperspectral images
32
Low High
Influence

33. EuroVis 2016
Conclusion

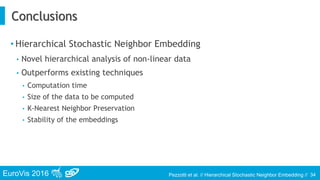

34. EuroVis 2016 Pezzotti et al. // Hierarchical Stochastic Neighbor Embedding //
• Hierarchical Stochastic Neighbor Embedding
• Novel hierarchical analysis of non-linear data
• Outperforms existing techniques
• Computation time
• Size of the data to be computed
• K-Nearest Neighbor Preservation
• Stability of the embeddings
34
Conclusions

35. EuroVis 2016 Pezzotti et al. // Hierarchical Stochastic Neighbor Embedding //

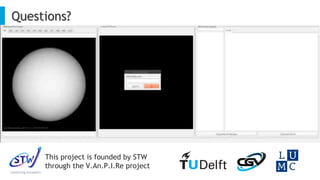

Questions?
This project is founded by STW
through the V.An.P.I.Re project
