1. OSLL
Hello Android
Vasily Romanikhin
1
vasily.romanikhin@gmail.com

2. Table of content
● About Android
● Android Architecture
● Application Fundamentals
● Activity, Service, ContentProvider,
BroadcastReceiver, Intent classes
● Application Resources
● User Interface
● Software for developing
● Practice
2

3. What is Android?
● Android Inc.
● Open Handset Alliance
(OHA)
● September 23, 2008
● October 21, 2008
3

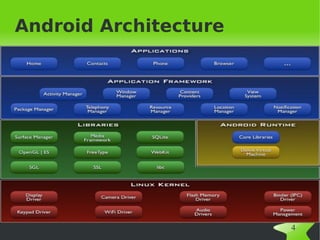

4. Android Architecture
4

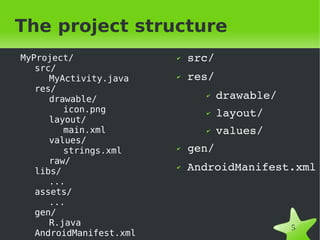

5. The project structure
MyProject/ ✔ src/
src/
MyActivity.java ✔ res/
res/
drawable/
✔ drawable/
icon.png ✔ layout/
layout/
main.xml ✔ values/
values/
strings.xml ✔ gen/
raw/
libs/
✔ AndroidManifest.xml
...
assets/
...
gen/
R.java 5
AndroidManifest.xml

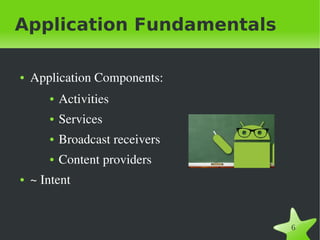

6. Application Fundamentals
● Application Components:
● Activities
● Services
● Broadcast receivers
● Content providers
● ~ Intent
6

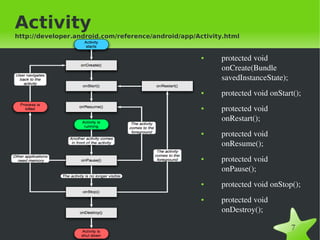

7. Activity
http://developer.android.com/reference/android/app/Activity.html
● protected void
onCreate(Bundle
savedInstanceState);
● protected void onStart();
● protected void
onRestart();
● protected void
onResume();
● protected void
onPause();
● protected void onStop();
● protected void
onDestroy();
7

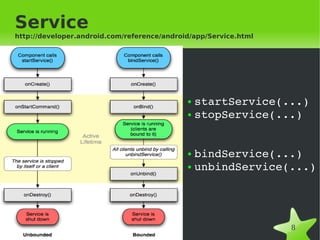

8. Service
http://developer.android.com/reference/android/app/Service.html
● startService(...)
● stopService(...)
● bindService(...)
● unbindService(...)
8

9. Service Implementation
example
9

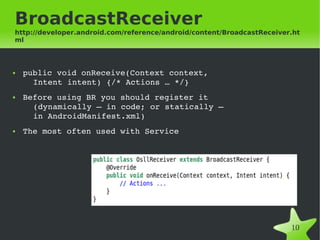

10. BroadcastReceiver
http://developer.android.com/reference/android/content/BroadcastReceiver.ht
ml
● public void onReceive(Context context,
Intent intent) {/* Actions … */}
● Before using BR you should register it
(dynamically – in code; or statically –
in AndroidManifest.xml)
● The most often used with Service
10

11. ContentProvider
http://developer.android.com/reference/android/content/ContentProvider.html
The primary methods that need to be implemented are:
● onCreate() which is called to initialize the provider
● query(Uri, String[], String, String[], String) which returns data to the
caller
● insert(Uri, ContentValues) which inserts new data into the content
provider
● update(Uri, ContentValues, String, String[]) which updates existing data
in the content provider
● delete(Uri, String, String[]) which deletes data from the content
provider
● Why is it need?
● See also ContentResolver, SQLiteOpenHanhler,
SQLiteDatabase, SQLiteQueryBuilder, Cursor,
ManagedCursor.
11

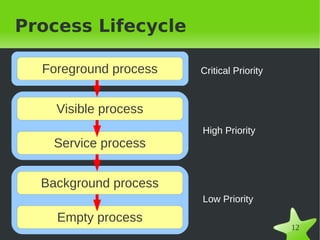

12. Process Lifecycle
Foreground process Critical Priority
Visible process
High Priority
Service process
Background process
Low Priority
Empty process
12

13. AndroidManifest.xml
http://developer.android.com/guide/topics/manifest/manifest-intro.html
<activity>
<intent-filter>
<action />
<category />
<?xml version="1.0" <data />
encoding="utf-8"?> </intent-filter>
<manifest> <meta-data />
<uses-permission /> </activity>
<permission /> <activity-alias>
<permission-tree /> <intent-filter>...</intent-filter>
<permission-group /> <meta-data />
<uses-sdk /> </activity-alias>
<uses-configuration /> <service>
<uses-feature /> <intent-filter>...</intent-filter>
<supports-screens /> <meta-data/>
<compatible-screens /> </service>
<supports-gl-texture /> <receiver>
<application> <intent-filter>...</intent-filter>
... <meta-data />
</application> </receiver>
</manifest> <provider>
<grant-uri-permission />
<meta-data />
</provider>
13

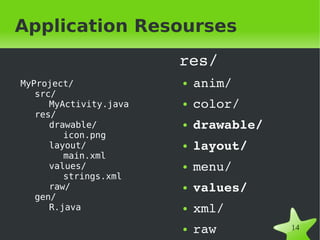

14. Application Resourses
res/
MyProject/ ● anim/
src/
MyActivity.java ● color/
res/
drawable/ ● drawable/
layout/ ● layout/
main.xml
values/ ● menu/
strings.xml
raw/ ● values/
gen/
R.java ● xml/
● raw 14

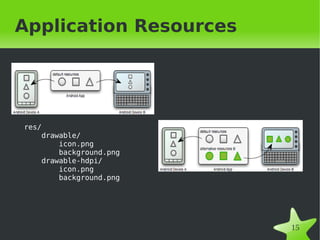

15. Application Resources
res/
drawable/
drawable-hdpi/
15

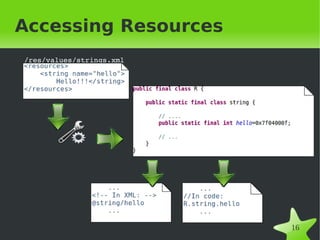

16. Accessing Resources
/res/values/strings.xml
16

17. User Interface
● Runtime (programmically)
● Xml layout file (ex: res/layout/main.xml)
● ViewGroup
● View
17

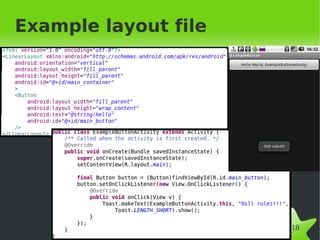

18. Example layout file
18

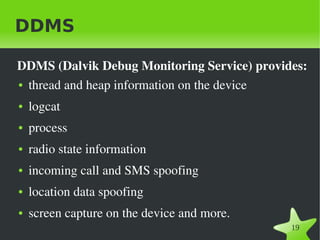

19. DDMS
DDMS (Dalvik Debug Monitoring Service) provides:
● thread and heap information on the device
● logcat
● process
● radio state information
● incoming call and SMS spoofing
● location data spoofing
● screen capture on the device and more.
19

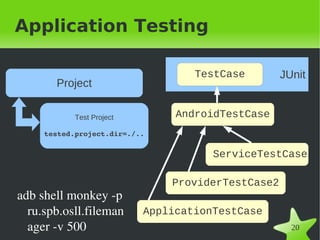

20. Application Testing
TestCase JUnit
Project
Test Project AndroidTestCase
tested.project.dir=./..
ServiceTestCase
ProviderTestCase2
adb shell monkey ­p
ru.spb.osll.fileman ApplicationTestCase
ager ­v 500
20

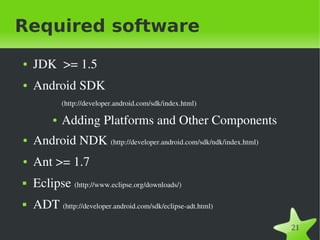

21. Required software
● JDK >= 1.5
● Android SDK
(http://developer.android.com/sdk/index.html)
● Adding Platforms and Other Components
● Android NDK (http://developer.android.com/sdk/ndk/index.html)
● Ant >= 1.7
 Eclipse (http://www.eclipse.org/downloads/)
 ADT (http://developer.android.com/sdk/eclipse­adt.html)
21

22. Adding Platforms and Other
Components
● android­sdk<...>/tools/android (Linux or Mac)
● SDK Manager.exe (Windows)
Result:
● AVDs
● USB Drivers
● ...
22

23. Troubles
● Problems with jdk (don't use open­jdk)
● ia32­libs (apt­get install ia32­libs)
● Developing on a Device
● USB Vendor IDs (for Linux or Mac) Device ????
● USB Driver (for Windows)
23

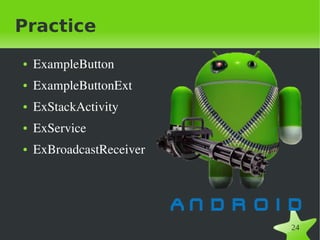

24. Practice
● ExampleButton
● ExampleButtonExt
● ExStackActivity
● ExService
● ExBroadcastReceiver
24

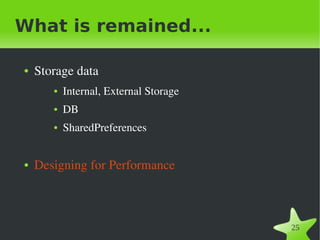

25. What is remained...
● Storage data
● Internal, External Storage
● DB
● SharedPreferences
● Designing for Performance
25

26. ● Questions... ???
● Thanks!
26
