Oil Fired Boiler

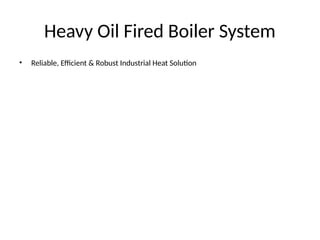

1. Heavy Oil Fired Boiler System
• Reliable, Efficient & Robust Industrial Heat Solution

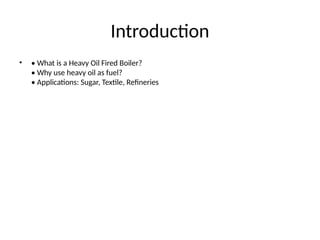

2. Introduction
• • What is a Heavy Oil Fired Boiler?
• Why use heavy oil as fuel?
• Applications: Sugar, Textile, Refineries

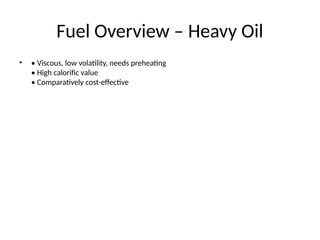

3. Fuel Overview – Heavy Oil
• • Viscous, low volatility, needs preheating
• High calorific value
• Comparatively cost-effective

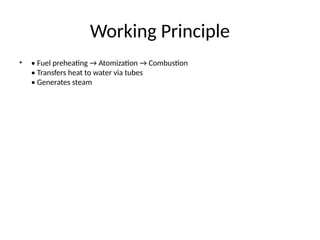

4. Working Principle
• • Fuel preheating → Atomization → Combustion
• Transfers heat to water via tubes
• Generates steam

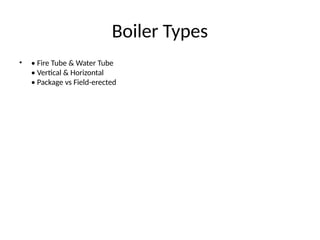

5. Boiler Types
• • Fire Tube & Water Tube
• Vertical & Horizontal
• Package vs Field-erected

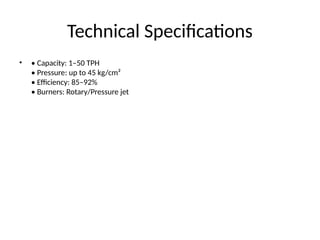

6. Technical Specifications
• • Capacity: 1–50 TPH
• Pressure: up to 45 kg/cm²
• Efficiency: 85–92%
• Burners: Rotary/Pressure jet

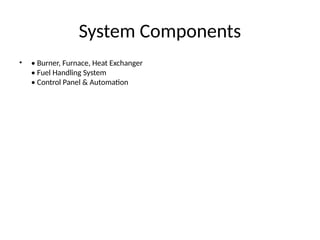

7. System Components
• • Burner, Furnace, Heat Exchanger
• Fuel Handling System
• Control Panel & Automation

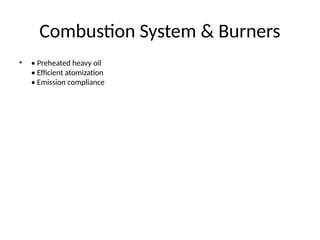

8. Combustion System & Burners
• • Preheated heavy oil
• Efficient atomization
• Emission compliance

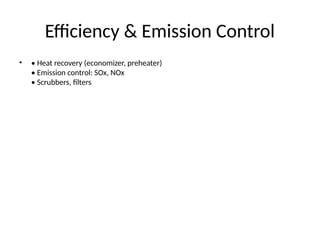

9. Efficiency & Emission Control
• • Heat recovery (economizer, preheater)
• Emission control: SOx, NOx
• Scrubbers, filters

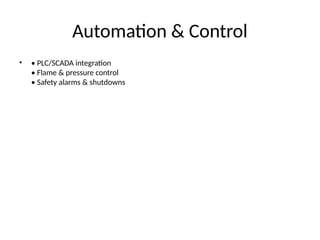

10. Automation & Control
• • PLC/SCADA integration
• Flame & pressure control
• Safety alarms & shutdowns

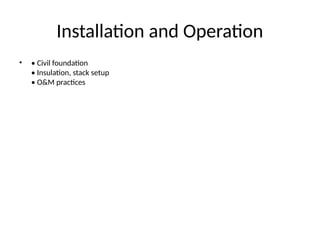

11. Installation and Operation
• • Civil foundation
• Insulation, stack setup
• O&M practices

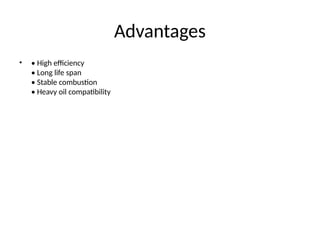

12. Advantages
• • High efficiency
• Long life span
• Stable combustion
• Heavy oil compatibility

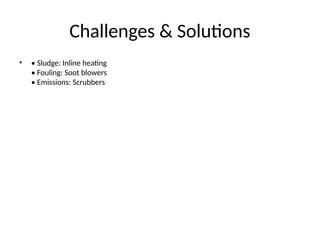

13. Challenges & Solutions
• • Sludge: Inline heating
• Fouling: Soot blowers
• Emissions: Scrubbers

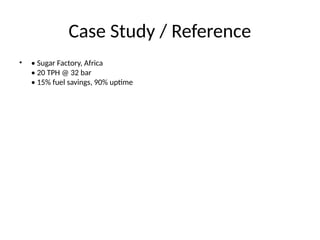

14. Case Study / Reference
• • Sugar Factory, Africa
• 20 TPH @ 32 bar
• 15% fuel savings, 90% uptime

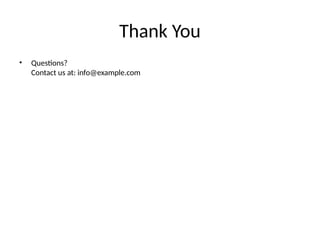

15. Thank You
• Questions?
