Headless approach for offloading heavy tasks in Magento

Headless approach
With Magento

Sander Mangel
- Magento Developer
- Lead @ FitForMe
- Co-organiser MMNL,
Unconf, MageStackDay,
Meetups
- Avid community member
twitter.com/sandermangel
linkedin.com/in/sandermangel
github.com/sandermangel

Welcome to 2017
welcome to the future...

Read more
http://bit.ly/2qo6XBc
http://bit.ly/1Wku9c0
http://bit.ly/2rtVIas
http://bit.ly/2qrkQKP
http://bit.ly/2hyM6Dy
Source: https://laughingsquid.com/victorian-headless-portrait-photography/

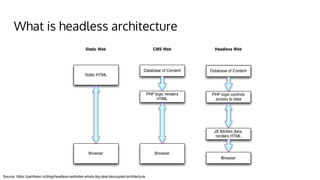

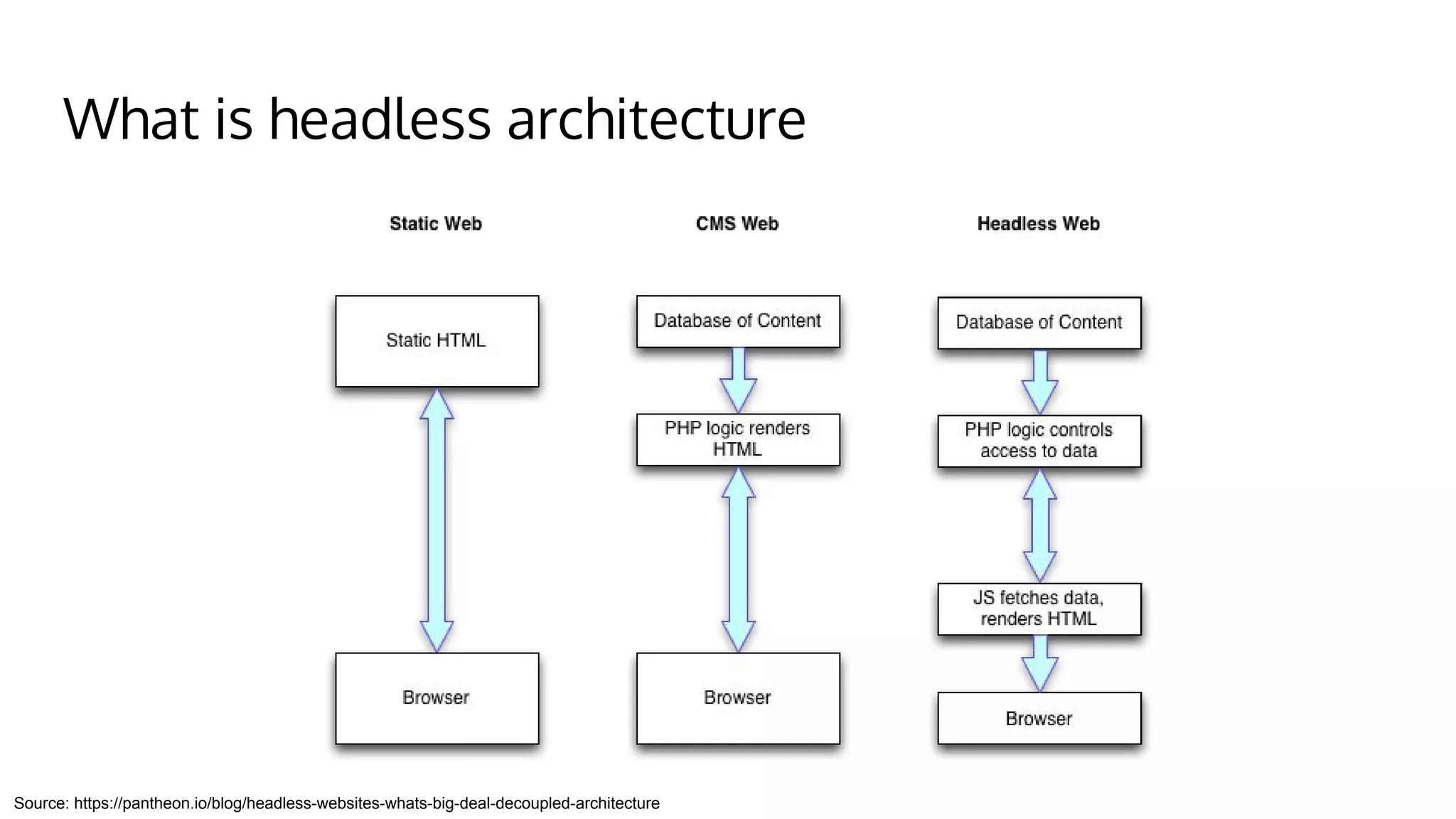

What is headless architecture
Source: https://pantheon.io/blog/headless-websites-whats-big-deal-decoupled-architecture

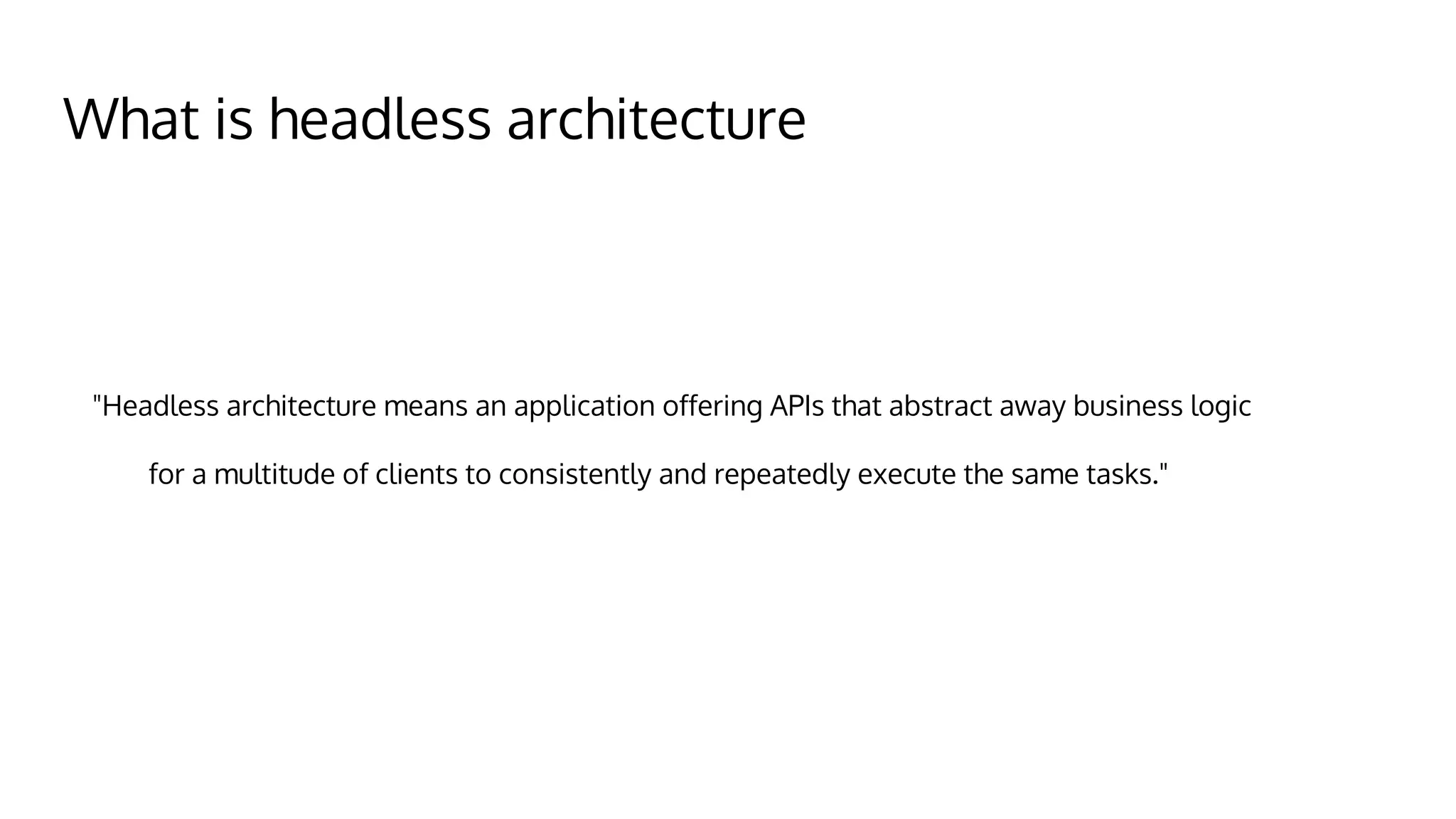

What is headless architecture
"Headless architecture means an application offering APIs that abstract away business logic
for a multitude of clients to consistently and repeatedly execute the same tasks."

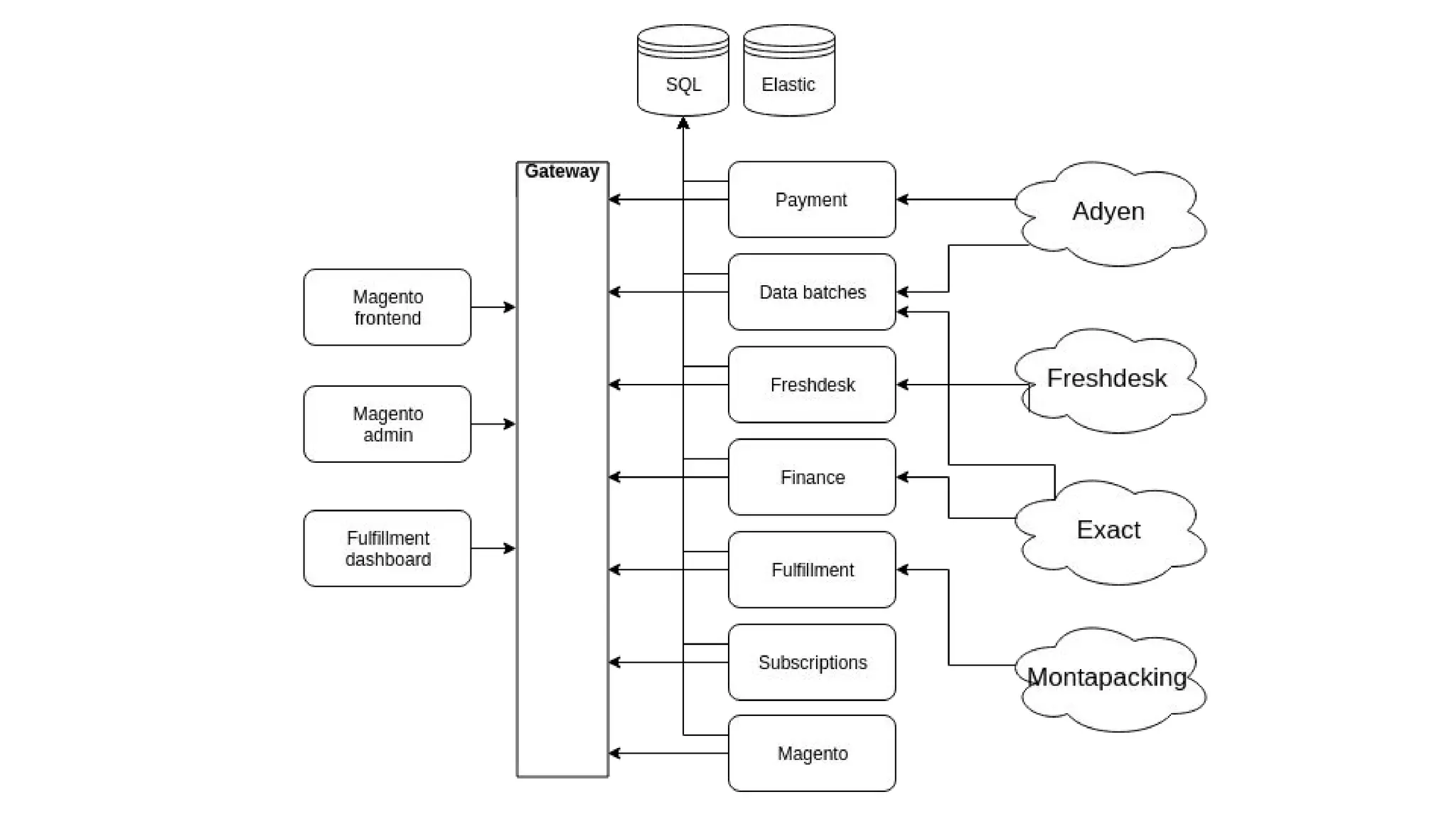

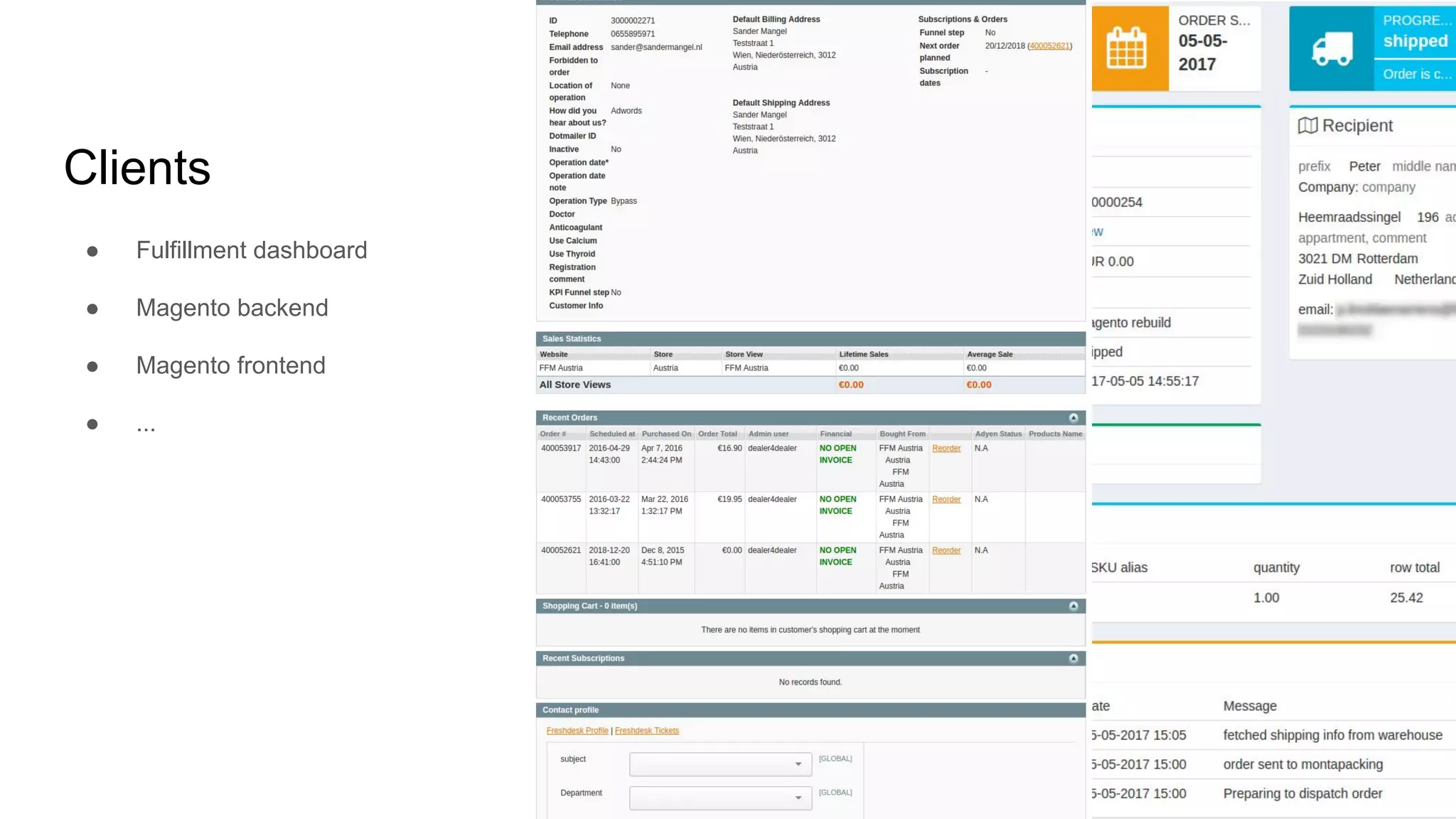

Clients
● Fulfillment dashboard
● Magento backend
● Magento frontend
● ...

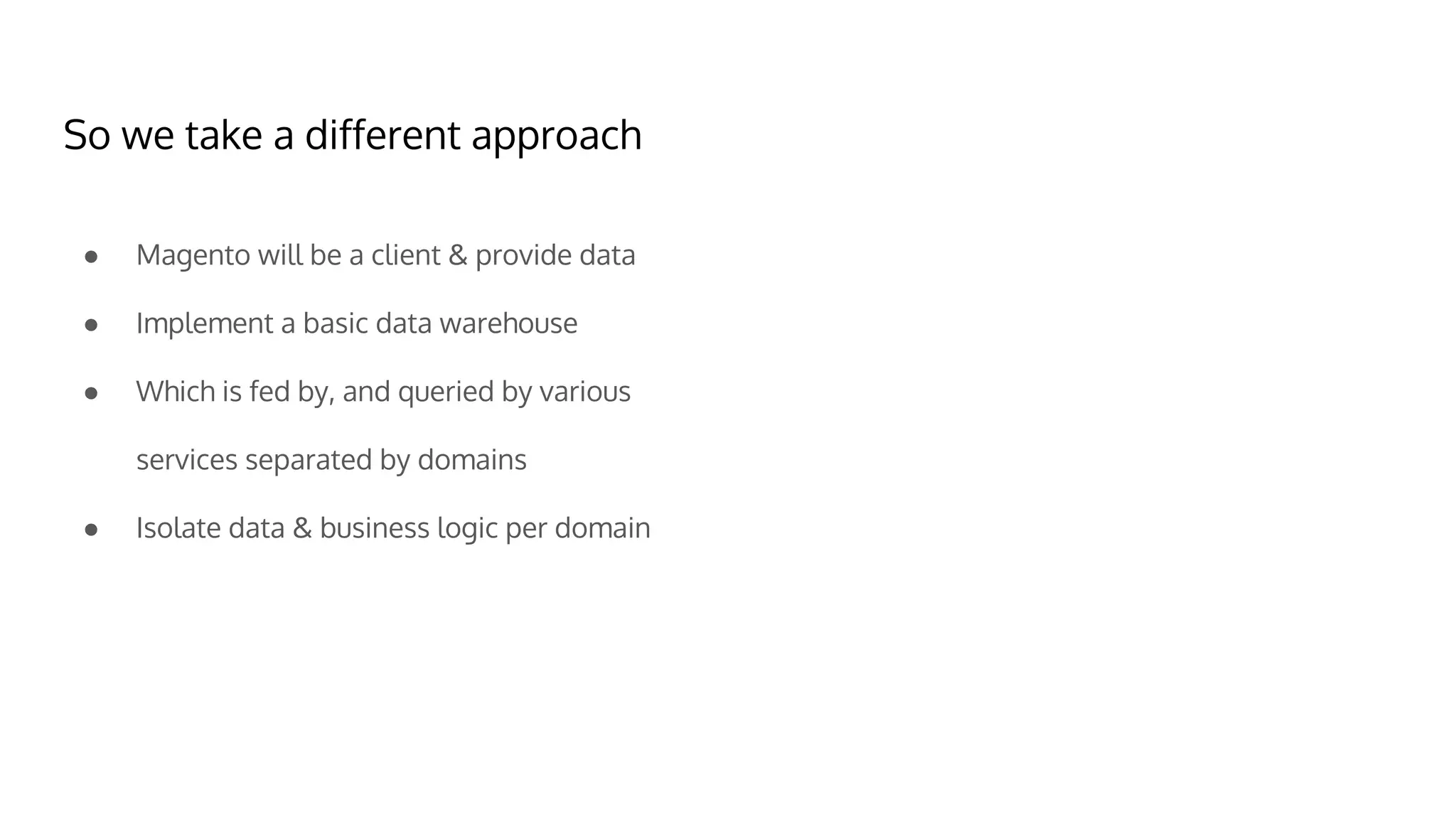

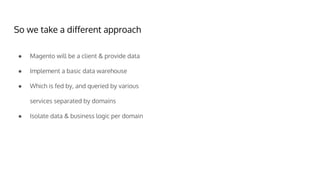

● Magento will be a client & provide data
● Implement a basic data warehouse
● Which is fed by, and queried by various
services separated by domains
● Isolate data & business logic per domain
So we take a different approach

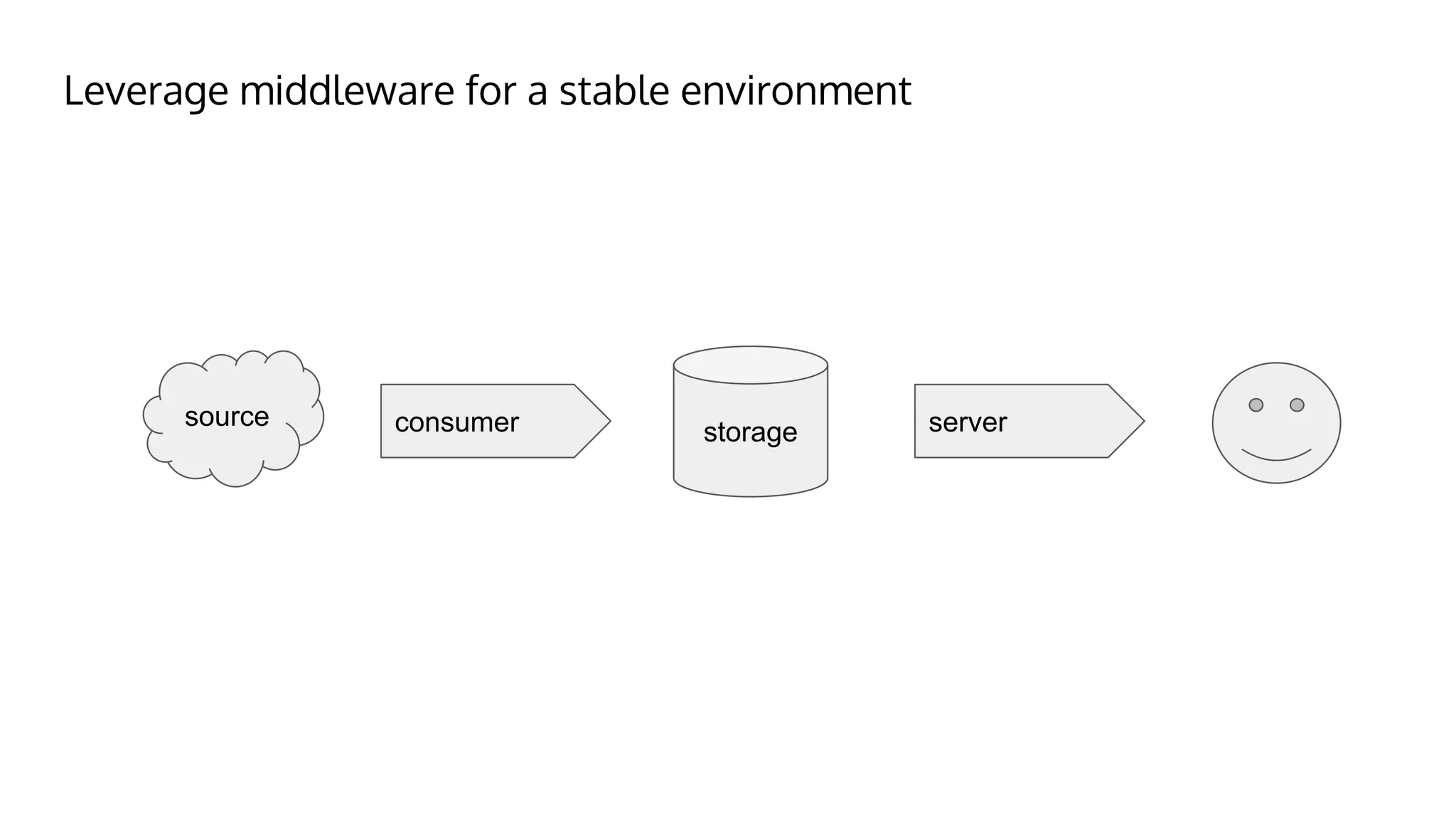

Leverage middleware for a stable environment
storage
source consumer server

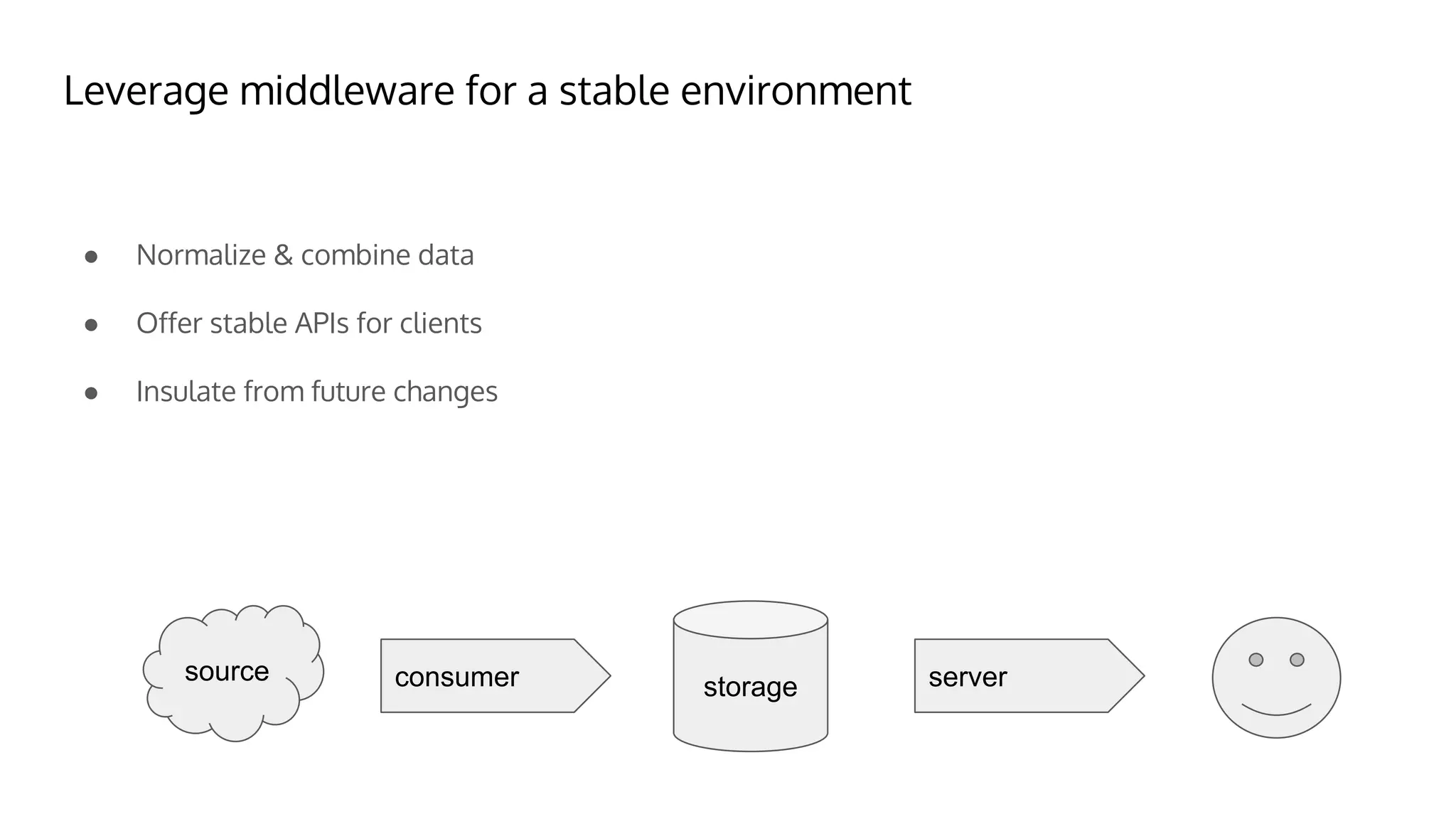

Leverage middleware for a stable environment
● Normalize & combine data
● Offer stable APIs for clients
● Insulate from future changes
storage
source consumer server

Source: https://www.linkedin.com/pulse/business-analysisits-rocket-science-paul-lumsden

http://matrix.wikia.com/wiki/Matrix

{

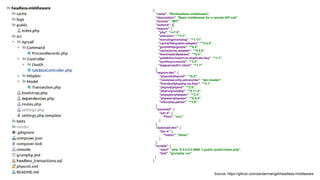

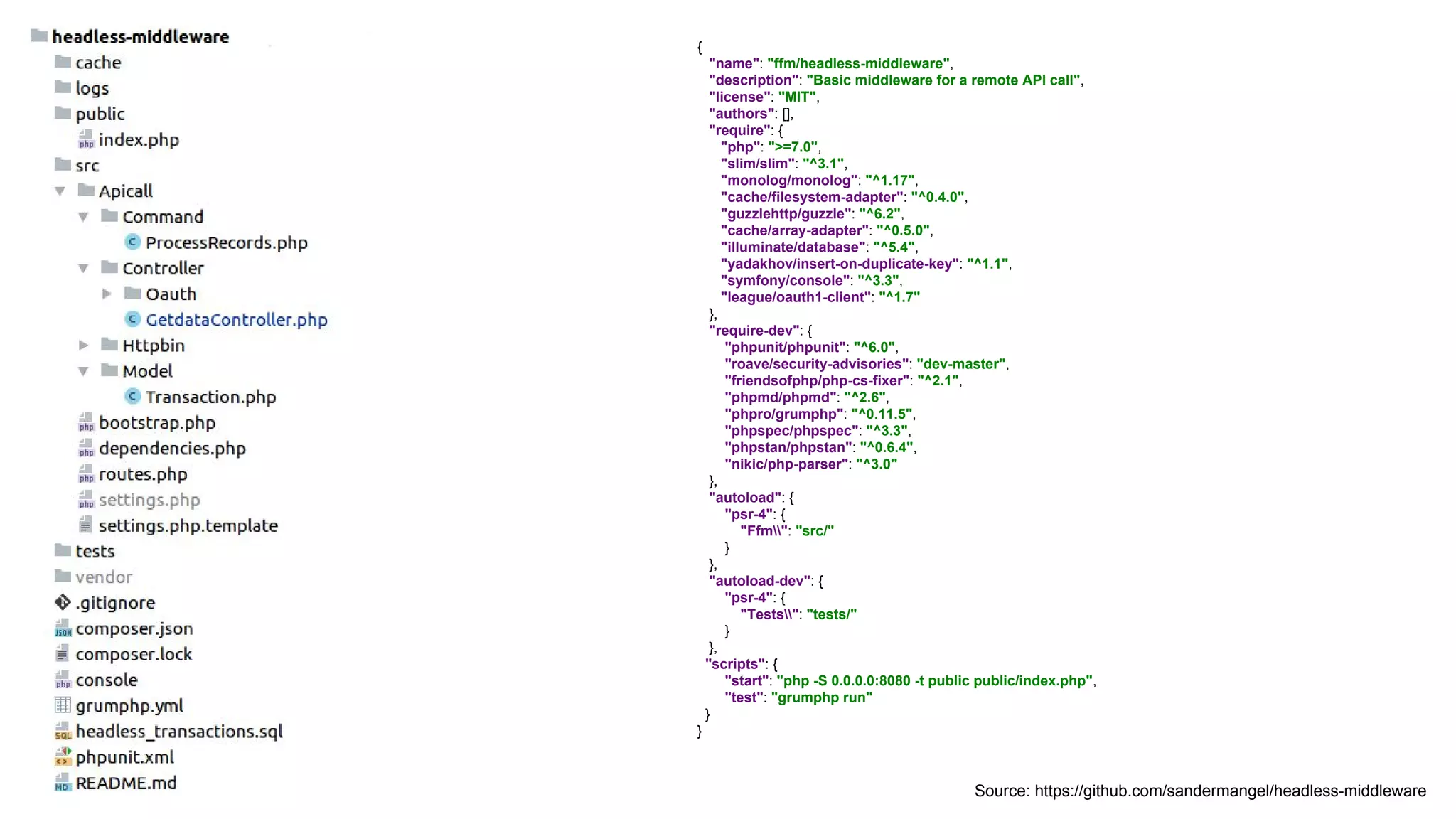

"name": "ffm/headless-middleware",
"description": "Basic middleware for a remote API call",
"license": "MIT",
"authors": [],
"require": {
"php": ">=7.0",
"slim/slim": "^3.1",
"monolog/monolog": "^1.17",
"cache/filesystem-adapter": "^0.4.0",
"guzzlehttp/guzzle": "^6.2",
"cache/array-adapter": "^0.5.0",
"illuminate/database": "^5.4",
"yadakhov/insert-on-duplicate-key": "^1.1",
"symfony/console": "^3.3",
"league/oauth1-client": "^1.7"
},
"require-dev": {
"phpunit/phpunit": "^6.0",
"roave/security-advisories": "dev-master",
"friendsofphp/php-cs-fixer": "^2.1",
"phpmd/phpmd": "^2.6",
"phpro/grumphp": "^0.11.5",
"phpspec/phpspec": "^3.3",
"phpstan/phpstan": "^0.6.4",
"nikic/php-parser": "^3.0"
},
"autoload": {
"psr-4": {
"Ffm": "src/"
}
},
"autoload-dev": {
"psr-4": {
"Tests": "tests/"
}
},
"scripts": {
"start": "php -S 0.0.0.0:8080 -t public public/index.php",
"test": "grumphp run"
}
}
Source: https://github.com/sandermangel/headless-middleware

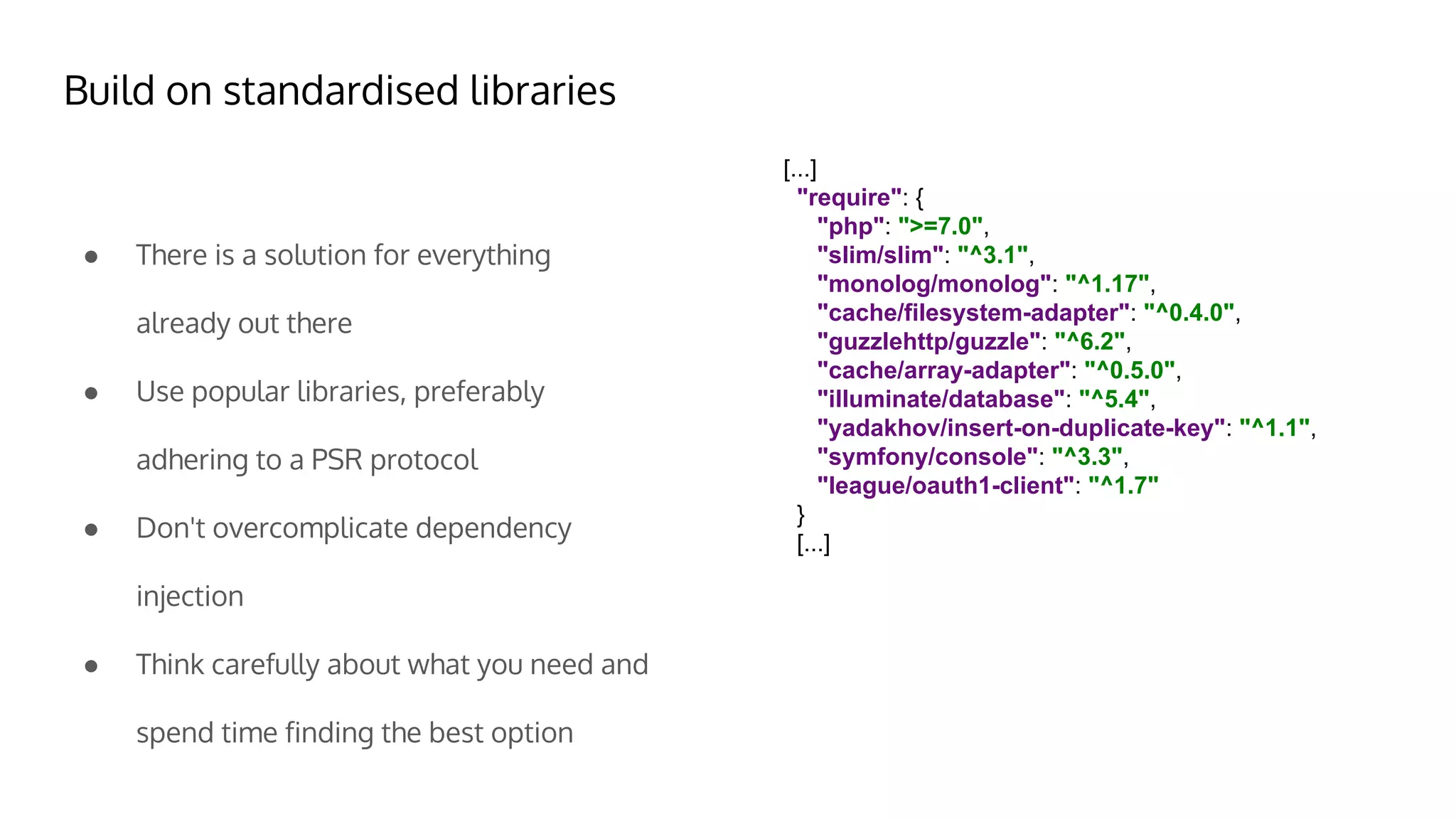

● There is a solution for everything
already out there
● Use popular libraries, preferably
adhering to a PSR protocol
● Don't overcomplicate dependency
injection
● Think carefully about what you need and
spend time finding the best option
Build on standardised libraries
[...]
"require": {
"php": ">=7.0",
}
[...]

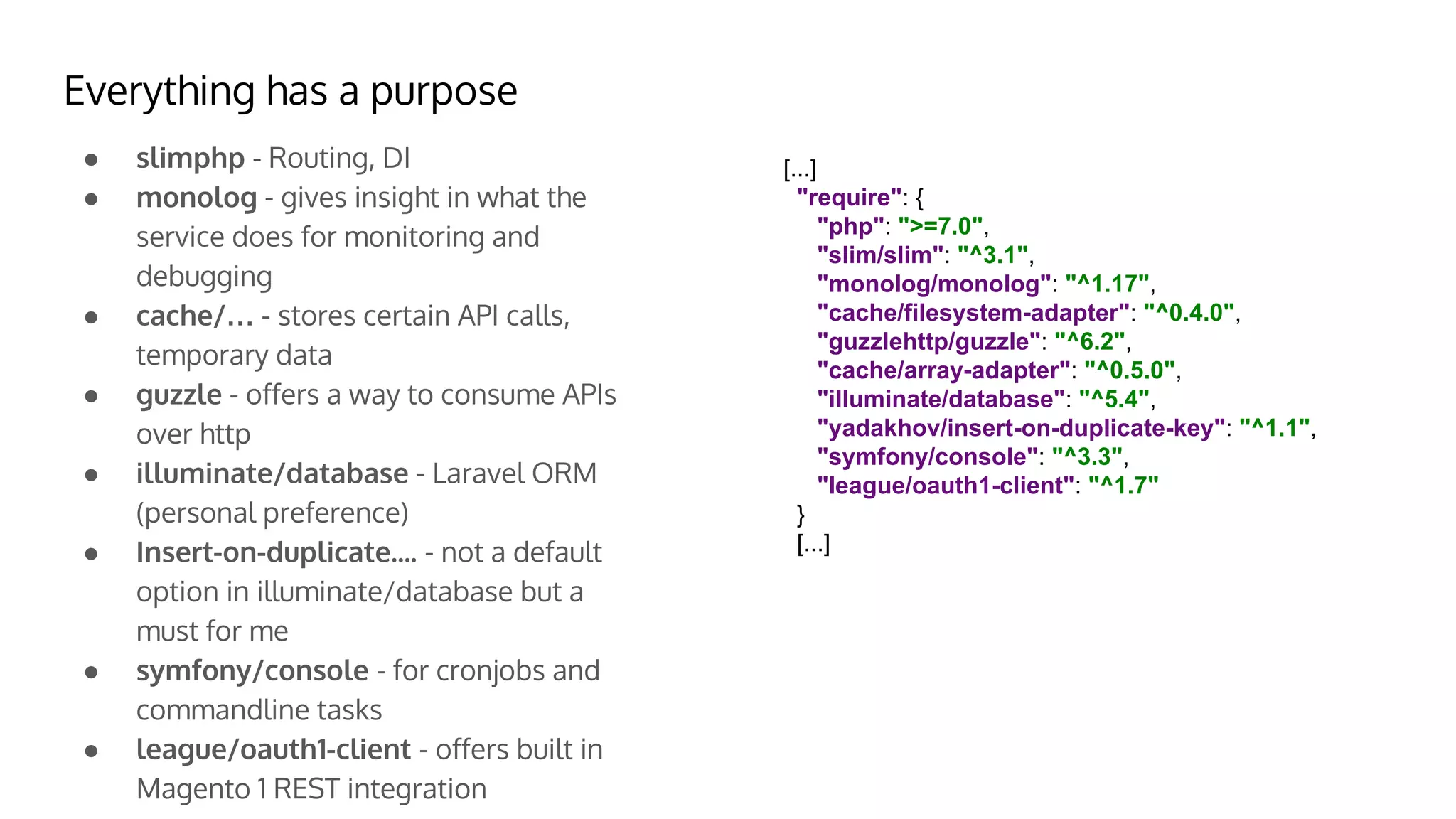

● slimphp - Routing, DI
● monolog - gives insight in what the
service does for monitoring and
debugging
● cache/… - stores certain API calls,
temporary data
● guzzle - offers a way to consume APIs
over http
● illuminate/database - Laravel ORM
(personal preference)
● Insert-on-duplicate.... - not a default
option in illuminate/database but a
must for me
● symfony/console - for cronjobs and
commandline tasks
● league/oauth1-client - offers built in
Magento 1 REST integration
Everything has a purpose
[...]
"require": {
"php": ">=7.0",
}
[...]

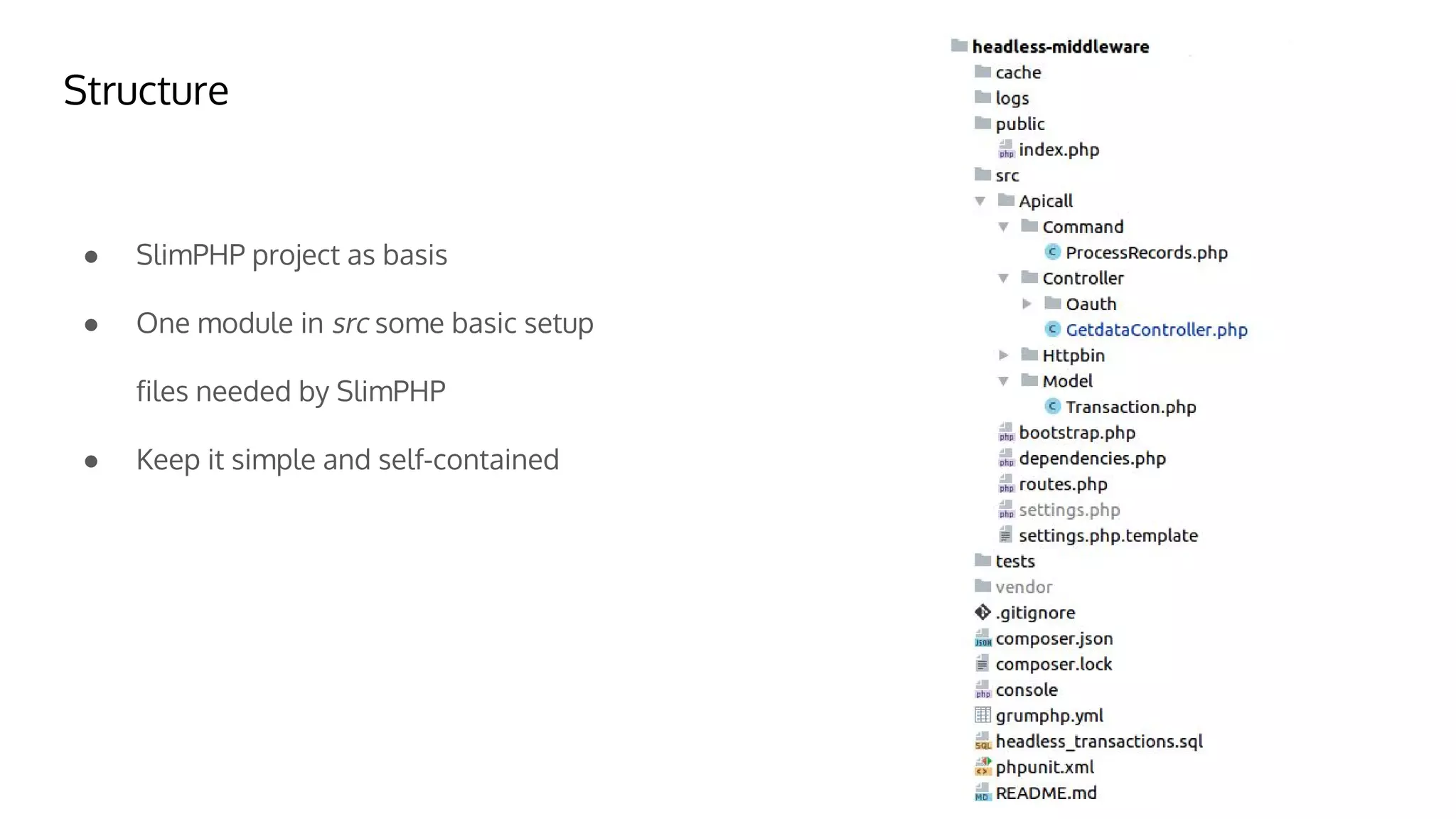

● SlimPHP project as basis
● One module in src some basic setup
files needed by SlimPHP
● Keep it simple and self-contained
Structure

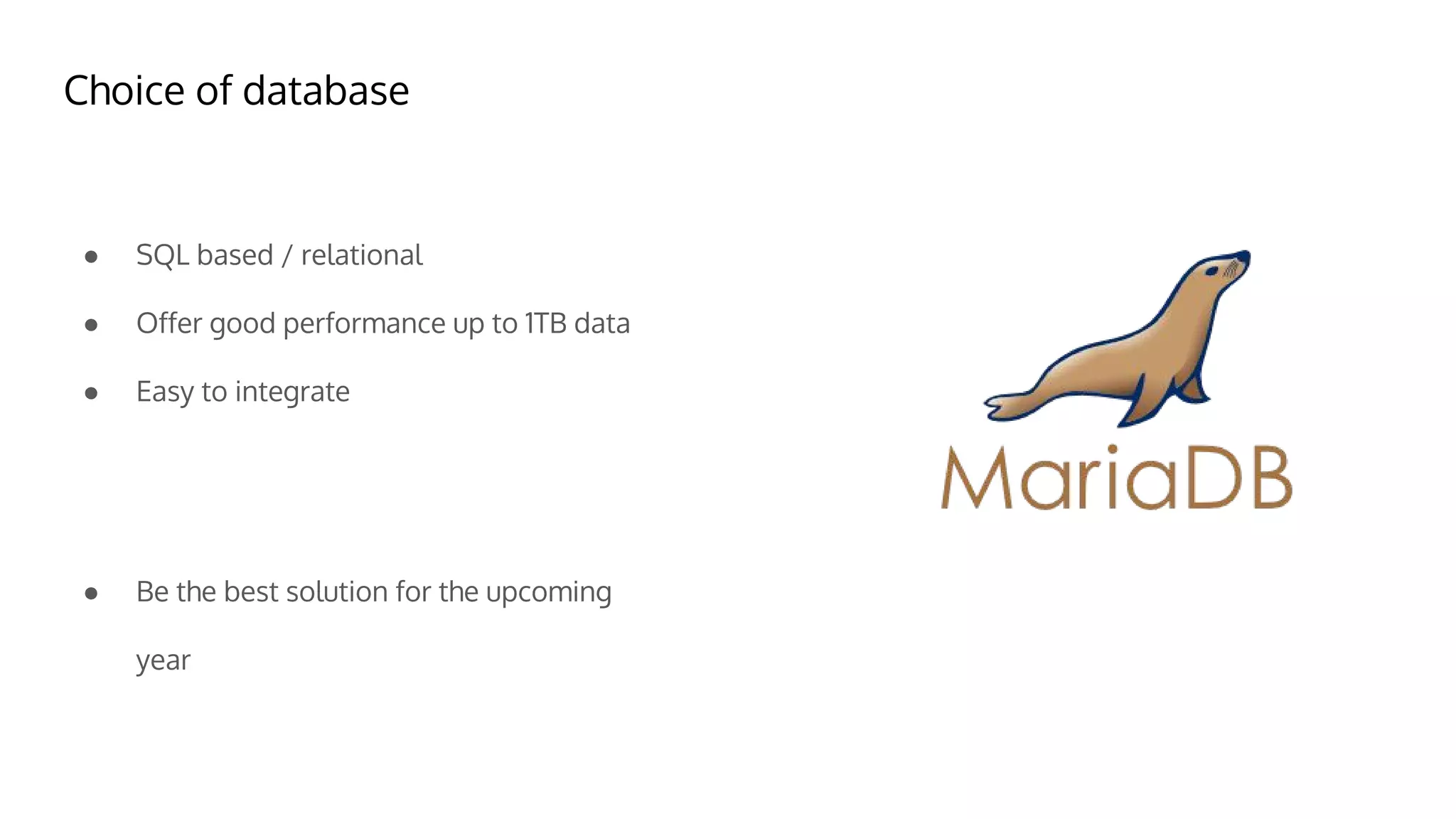

● SQL based / relational
● Offer good performance up to 1TB data
● Easy to integrate
● Be the best solution for the upcoming
year
Choice of database

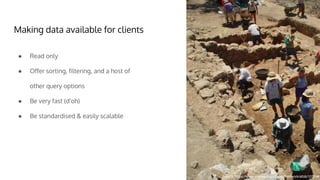

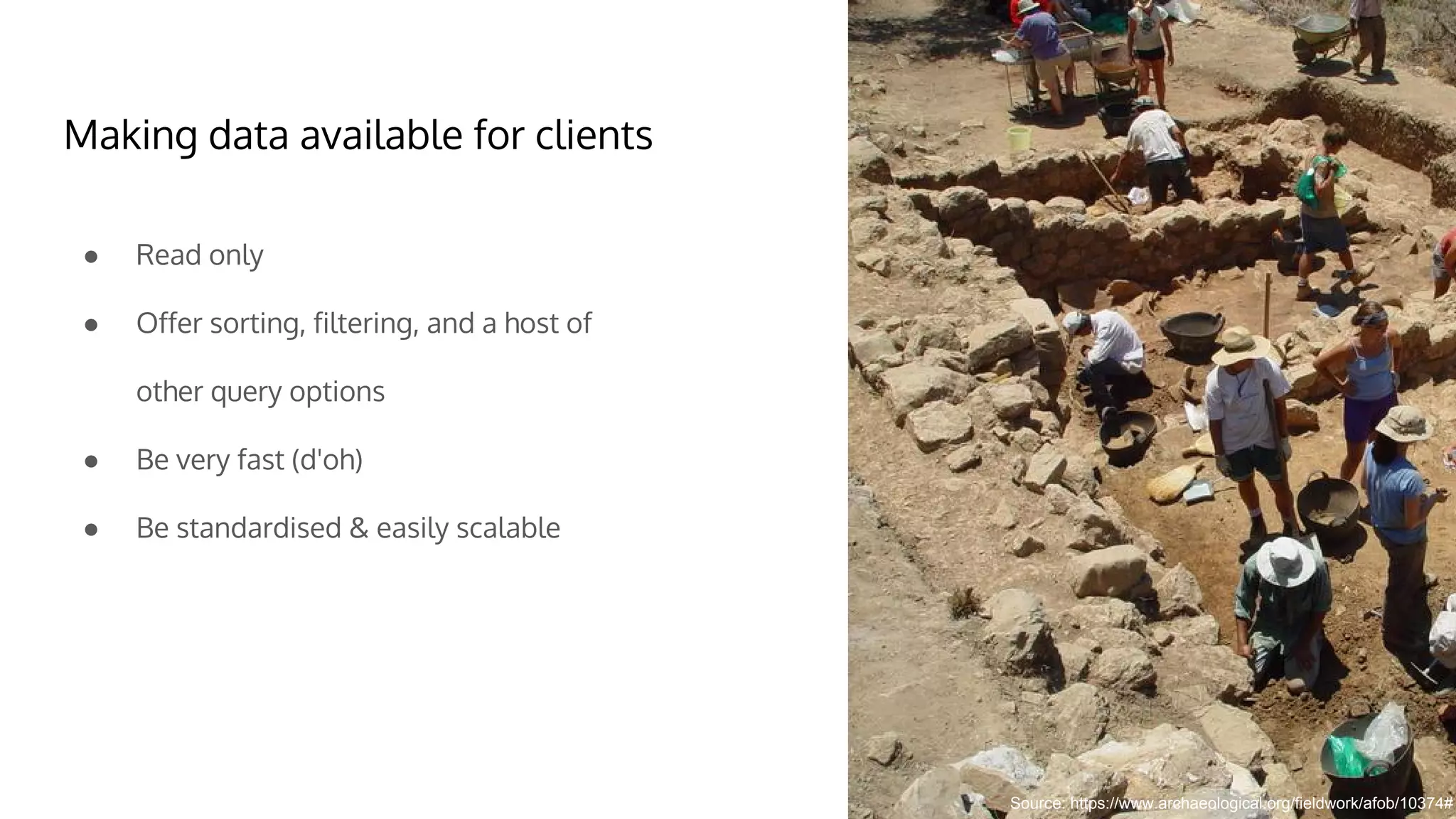

● Read only
● Offer sorting, filtering, and a host of
other query options
● Be very fast (d'oh)
● Be standardised & easily scalable
Making data available for clients
Source: https://www.archaeological.org/fieldwork/afob/10374#

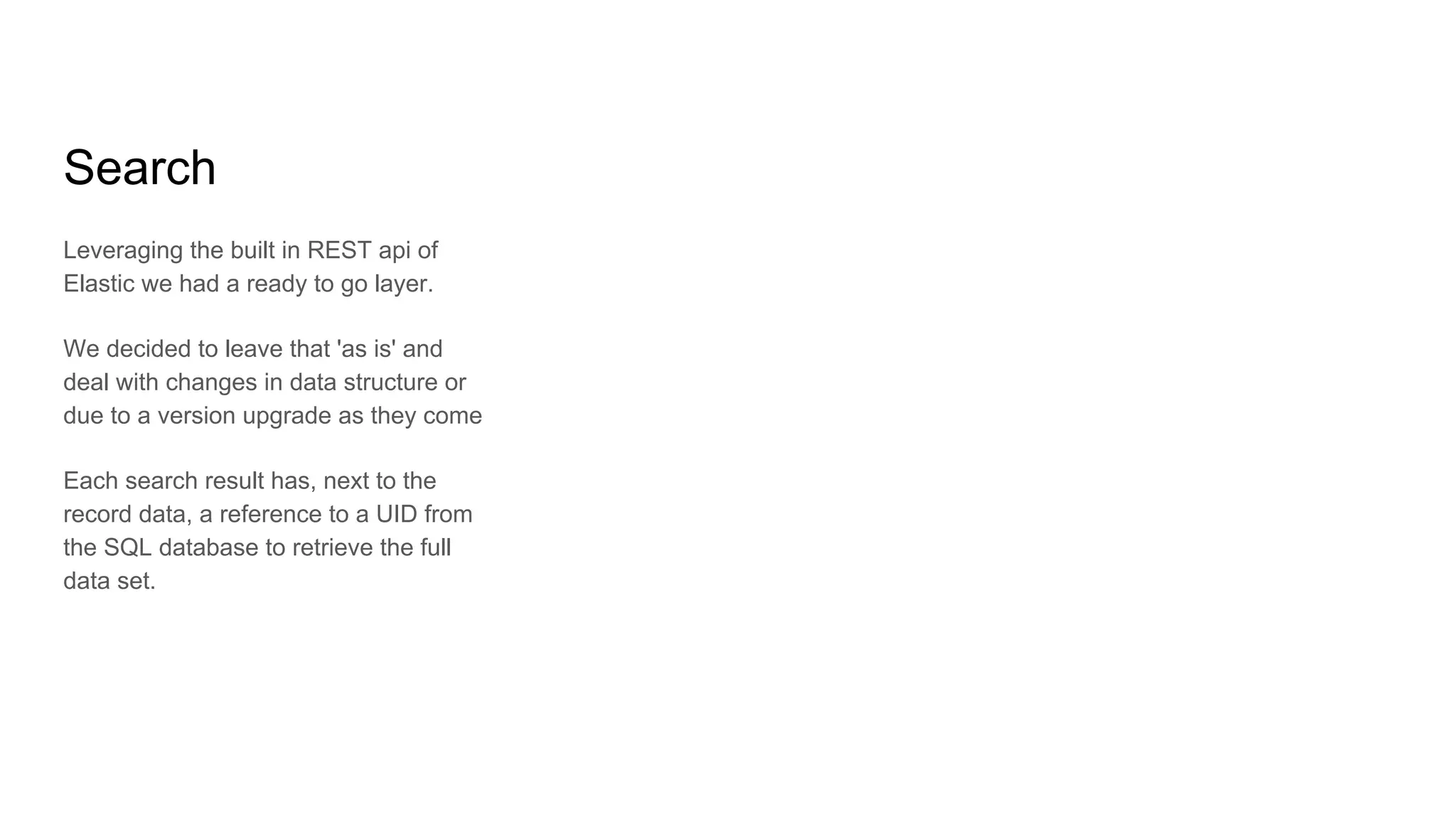

Search
Leveraging the built in REST api of
Elastic we had a ready to go layer.
We decided to leave that 'as is' and
deal with changes in data structure or
due to a version upgrade as they come
Each search result has, next to the
record data, a reference to a UID from
the SQL database to retrieve the full
data set.

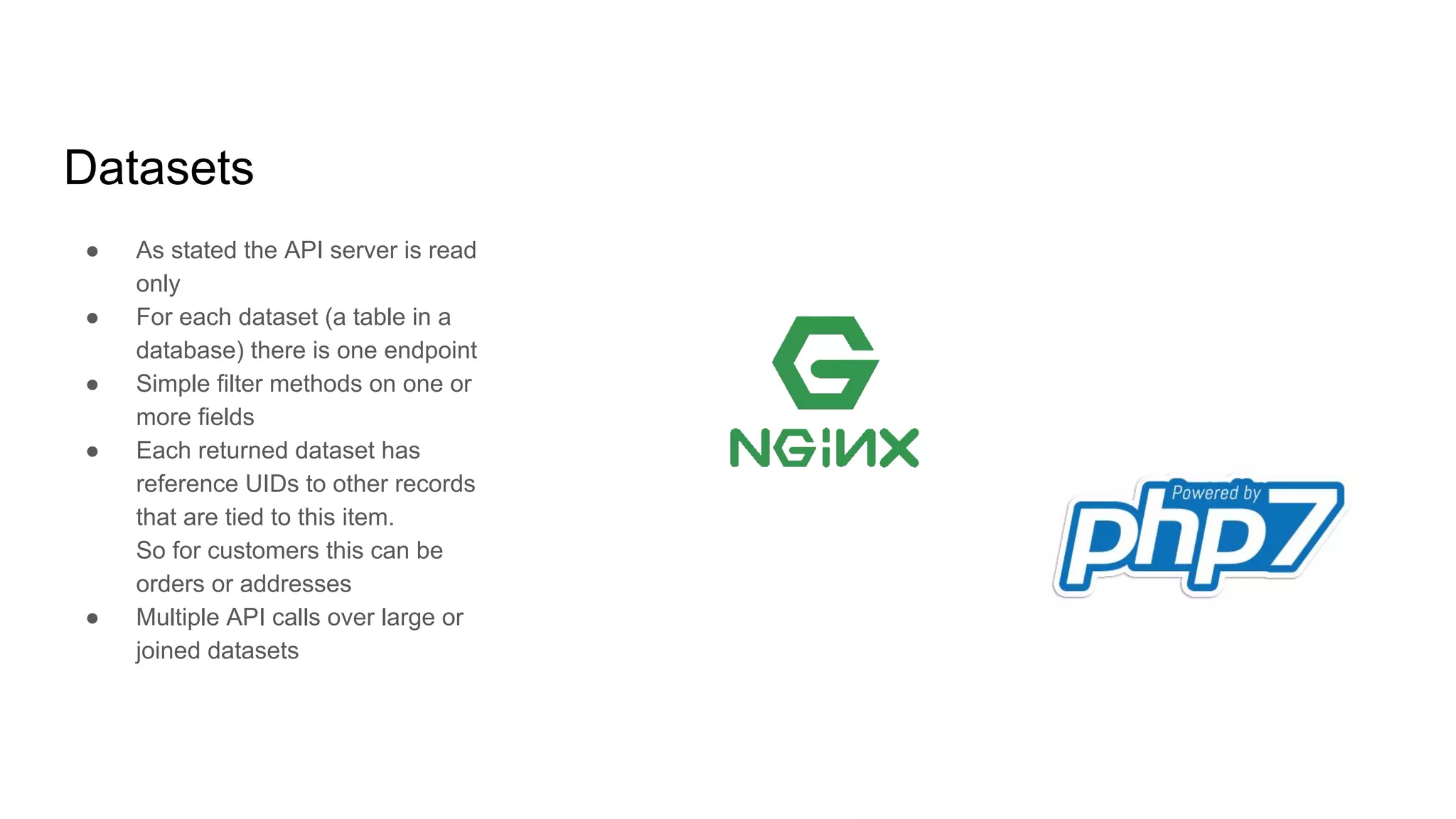

Datasets
● As stated the API server is read
only
● For each dataset (a table in a
database) there is one endpoint
● Simple filter methods on one or
more fields
● Each returned dataset has
reference UIDs to other records
that are tied to this item.
So for customers this can be
orders or addresses
● Multiple API calls over large or
joined datasets

● By offloading tasks from Magento we
keep it fast and lightweight
● Storing data in a central place and
making it available via REST apis makes
for easy integration
● Headless can start by adding some of
those APIs to the existing back- or
frontend
● Using lightweight php frameworks with
limited features makes for easy to
develop and fast applications
Summary
Source: https://www.archaeological.org/fieldwork/afob/10374#

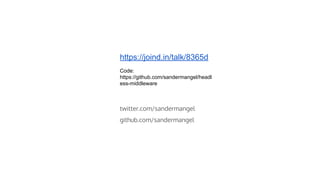

https://joind.in/talk/8365d
Code:
https://github.com/sandermangel/headl
ess-middleware
twitter.com/sandermangel
github.com/sandermangel
