This document discusses an LLVM backend that has been developed for the GHC Haskell compiler. The LLVM backend aims to simplify GHC's compilation pipeline, improve performance, and outsource maintenance work. Key aspects covered include how the backend handles GHC's STG registers and "tables next to code" optimization. Evaluation shows the LLVM backend is simpler to develop and maintain than GHC's existing C and native code generator backends. It also provides performance that is equal to or better than the other backends.

1. AN LLVM BACKEND
FOR GHC
David Terei & Manuel Chakravarty
University of New South Wales
Haskell Symposium 2010
Baltimore, USA, 30th Sep

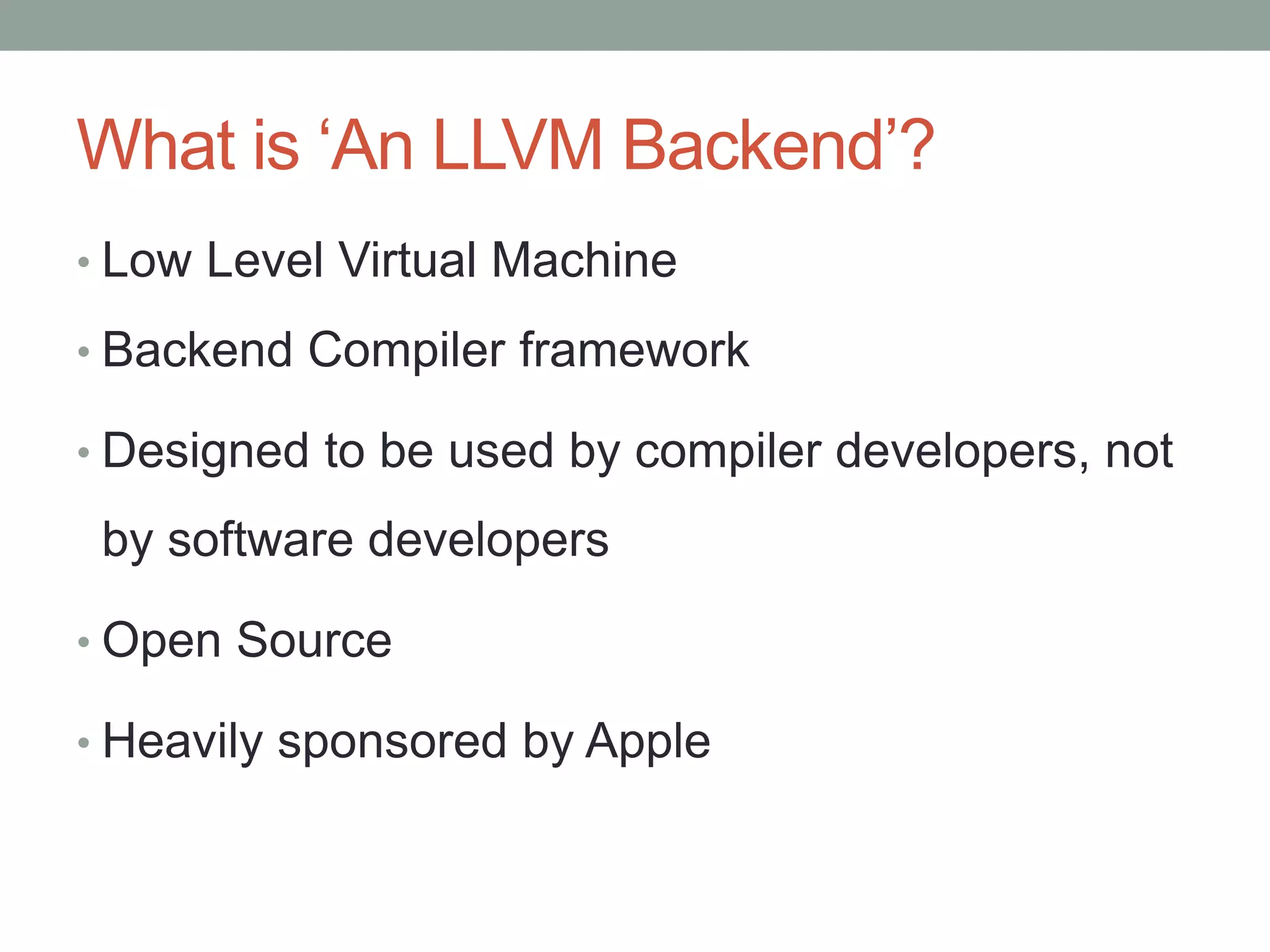

2. What is ‘An LLVM Backend’?
• Low Level Virtual Machine
• Backend Compiler framework
• Designed to be used by compiler developers, not
by software developers
• Open Source
• Heavily sponsored by Apple

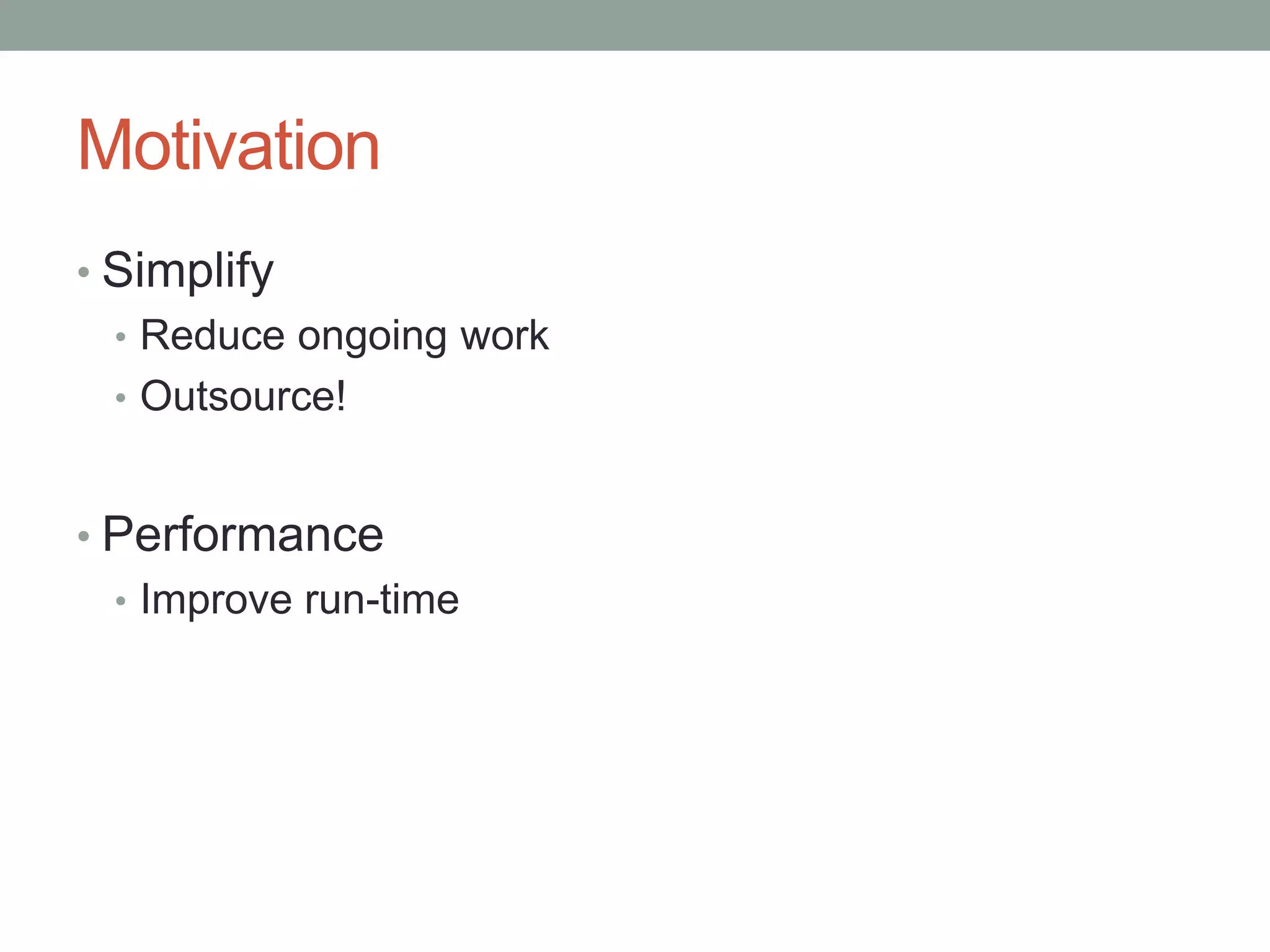

3. Motivation
• Simplify
• Reduce ongoing work
• Outsource!
• Performance
• Improve run-time

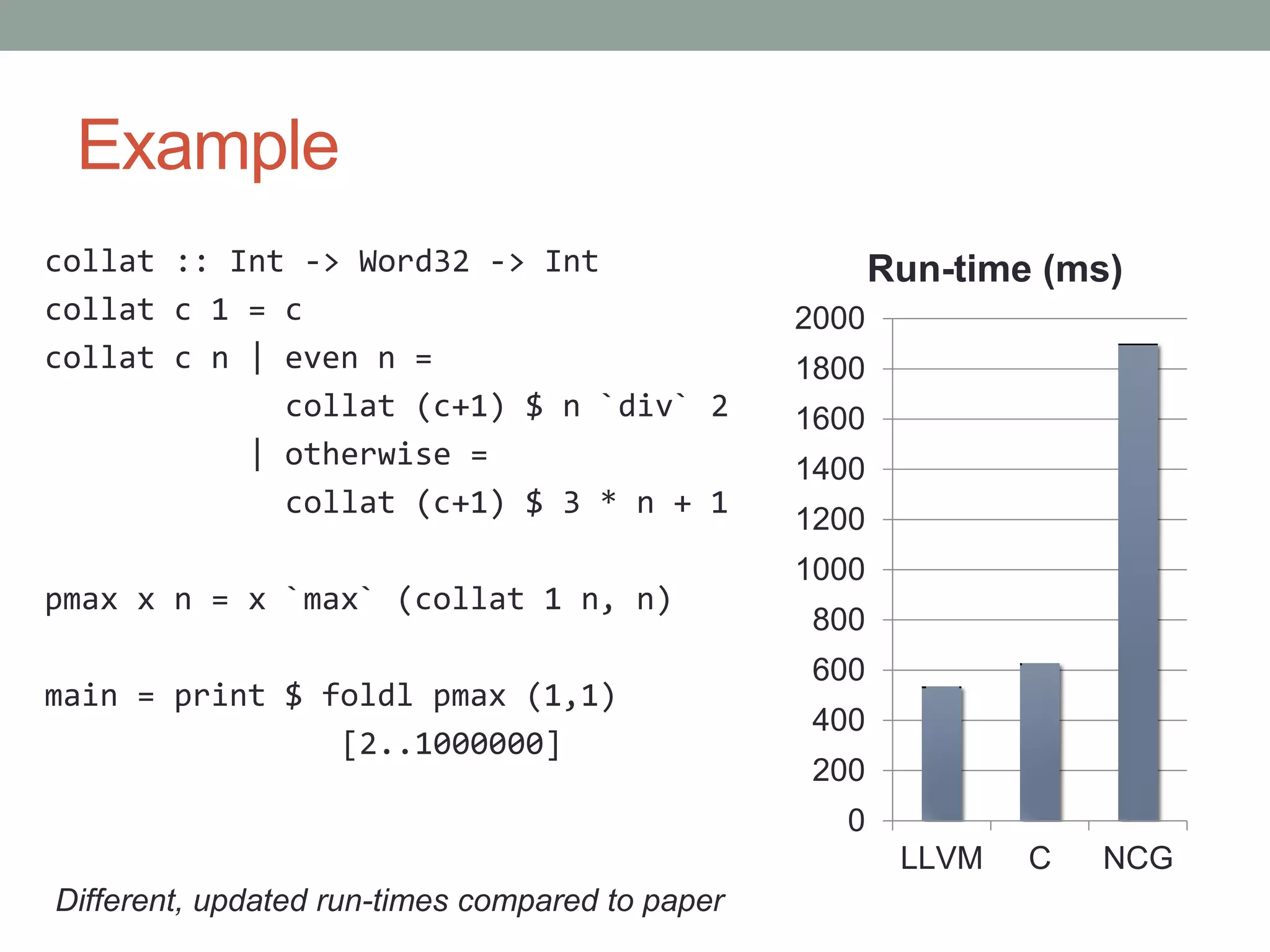

4. Example
collat :: Int -> Word32 -> Int Run-time (ms)
collat c 1 = c 2000
collat c n | even n = 1800
collat (c+1) $ n `div` 2 1600
| otherwise = 1400
collat (c+1) $ 3 * n + 1
1200
1000
pmax x n = x `max` (collat 1 n, n)
800
600
main = print $ foldl pmax (1,1)
400
[2..1000000]
200
0
LLVM C NCG
Different, updated run-times compared to paper

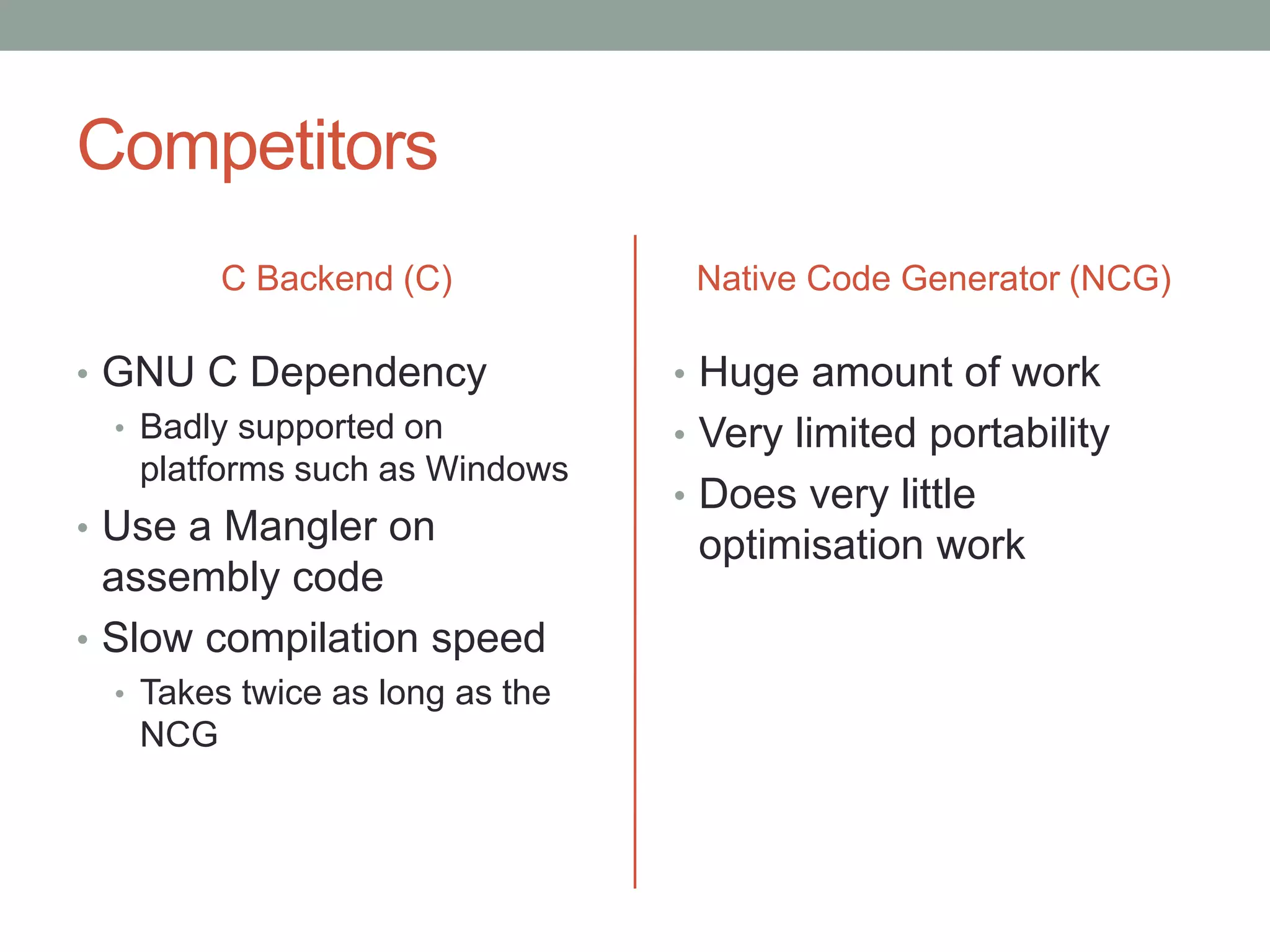

5. Competitors
C Backend (C) Native Code Generator (NCG)
• GNU C Dependency • Huge amount of work
• Badly supported on • Very limited portability
platforms such as Windows
• Does very little
• Use a Mangler on
optimisation work
assembly code
• Slow compilation speed
• Takes twice as long as the
NCG

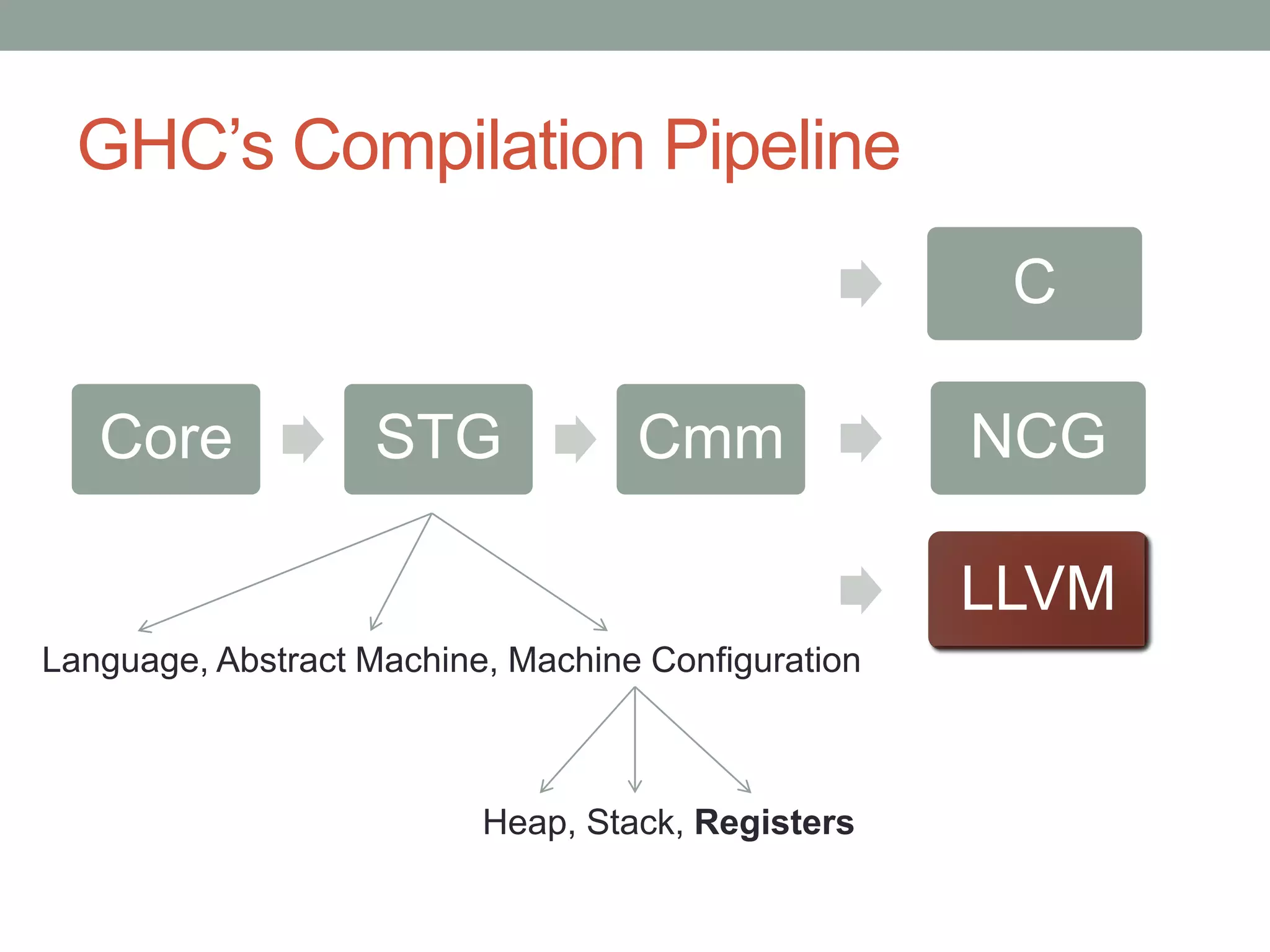

6. GHC’s Compilation Pipeline
C
Core STG Cmm NCG
LLVM
Language, Abstract Machine, Machine Configuration
Heap, Stack, Registers

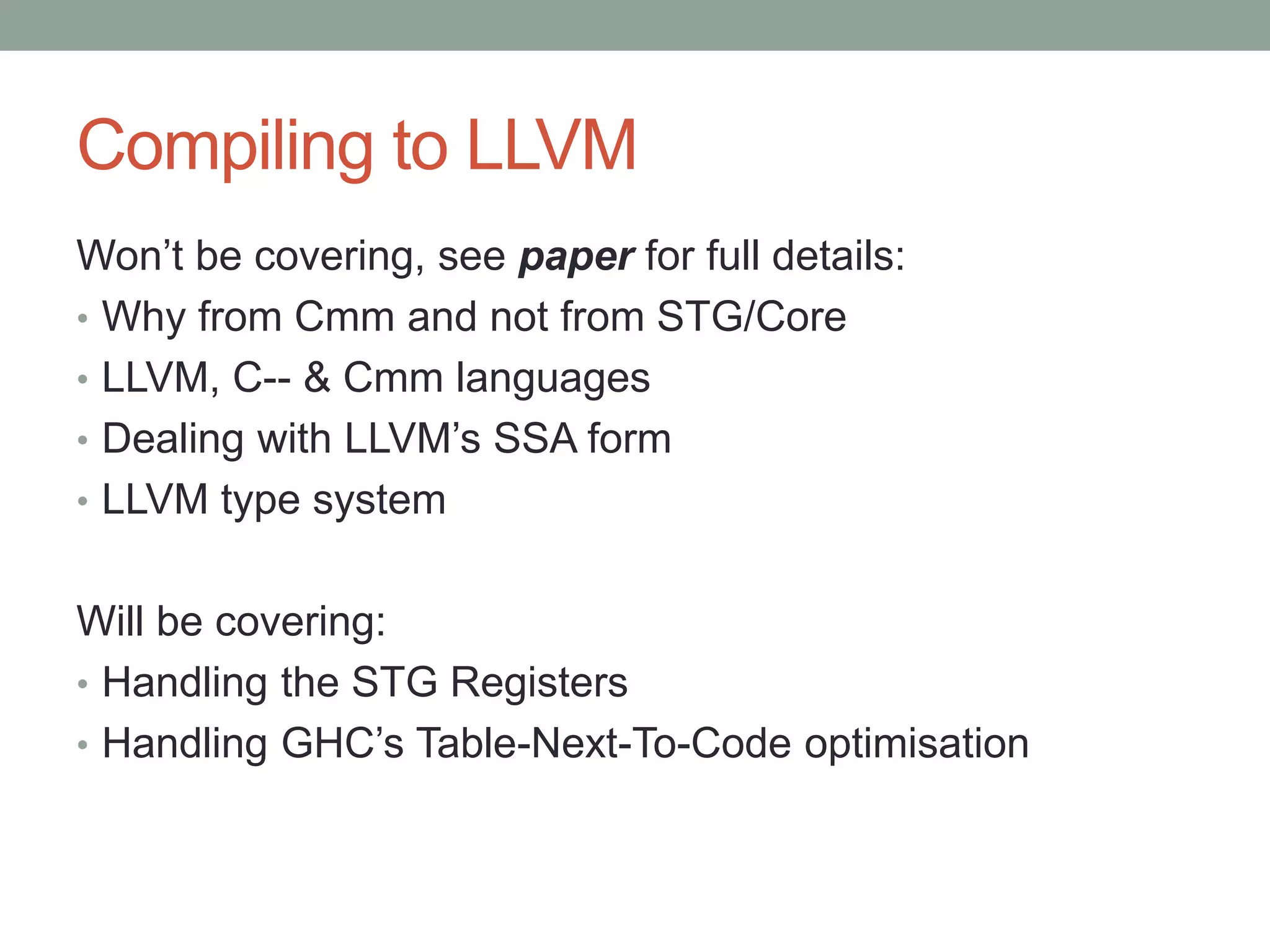

7. Compiling to LLVM
Won’t be covering, see paper for full details:
• Why from Cmm and not from STG/Core
• LLVM, C-- & Cmm languages
• Dealing with LLVM’s SSA form
• LLVM type system
Will be covering:
• Handling the STG Registers
• Handling GHC’s Table-Next-To-Code optimisation

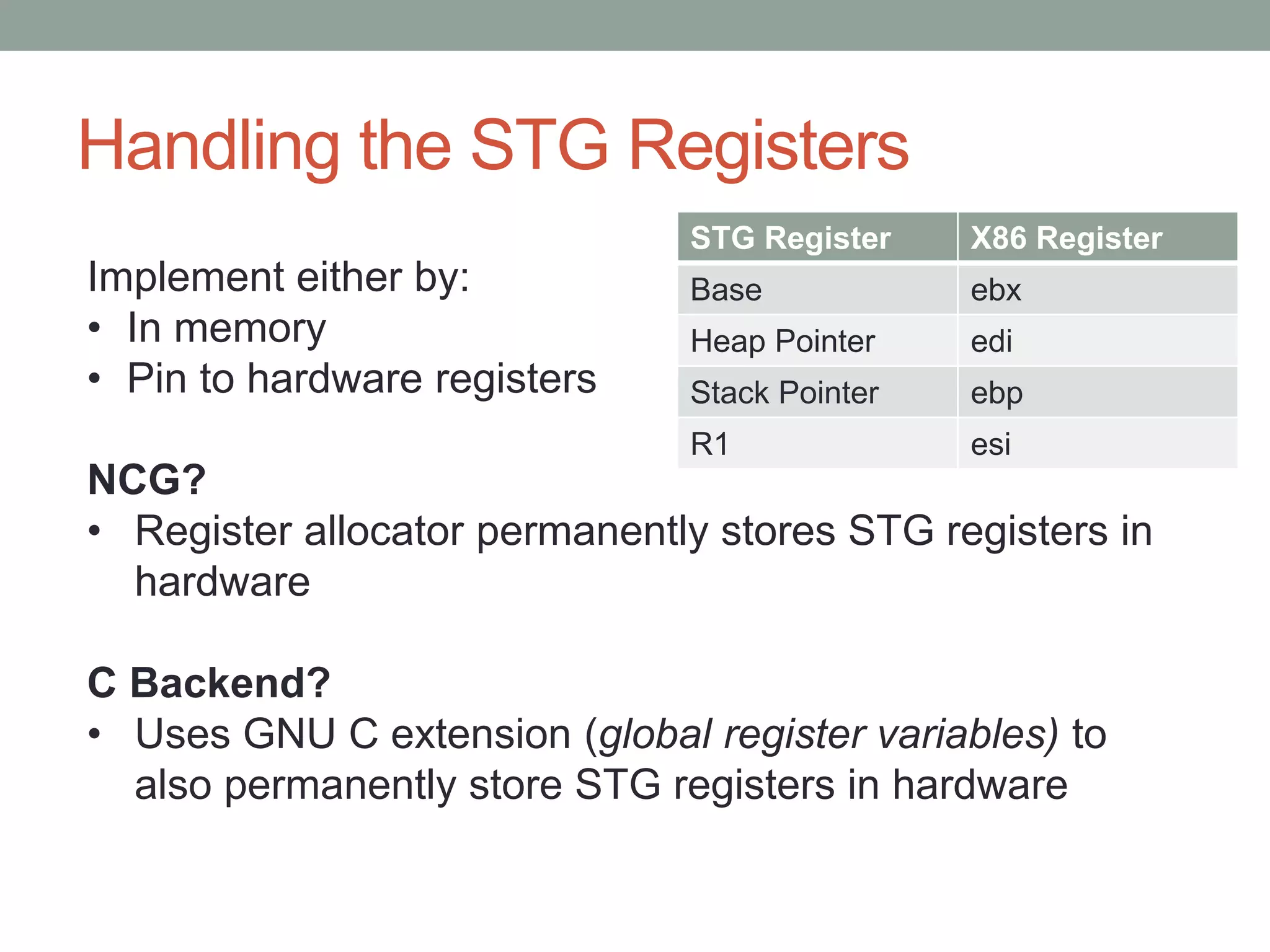

8. Handling the STG Registers
STG Register X86 Register
Implement either by: Base ebx
• In memory Heap Pointer edi
• Pin to hardware registers Stack Pointer ebp
R1 esi
NCG?
• Register allocator permanently stores STG registers in
hardware
C Backend?
• Uses GNU C extension (global register variables) to
also permanently store STG registers in hardware

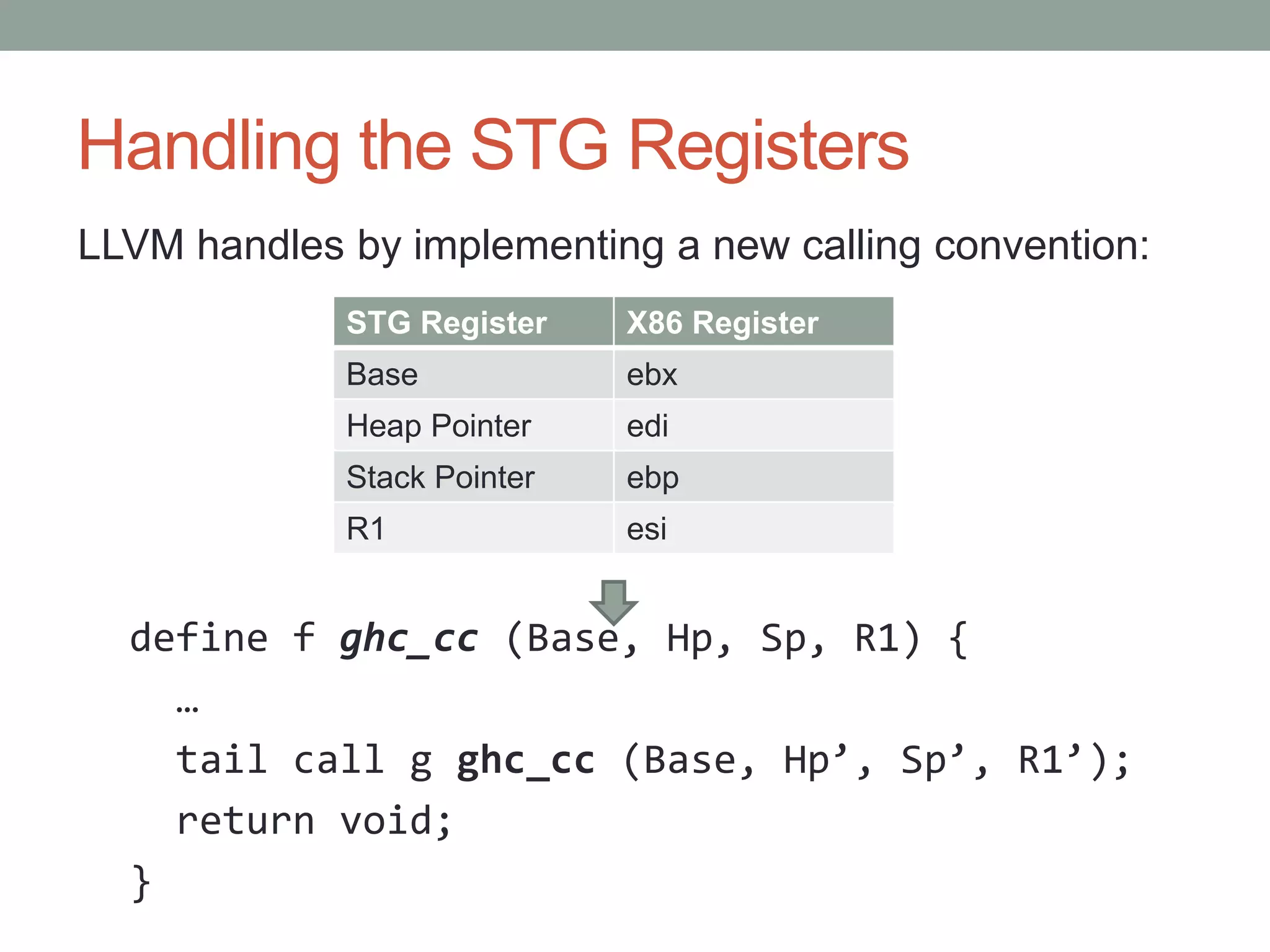

9. Handling the STG Registers
LLVM handles by implementing a new calling convention:
STG Register X86 Register
Base ebx
Heap Pointer edi
Stack Pointer ebp
R1 esi
define f ghc_cc (Base, Hp, Sp, R1) {
…
tail call g ghc_cc (Base, Hp’, Sp’, R1’);
return void;
}

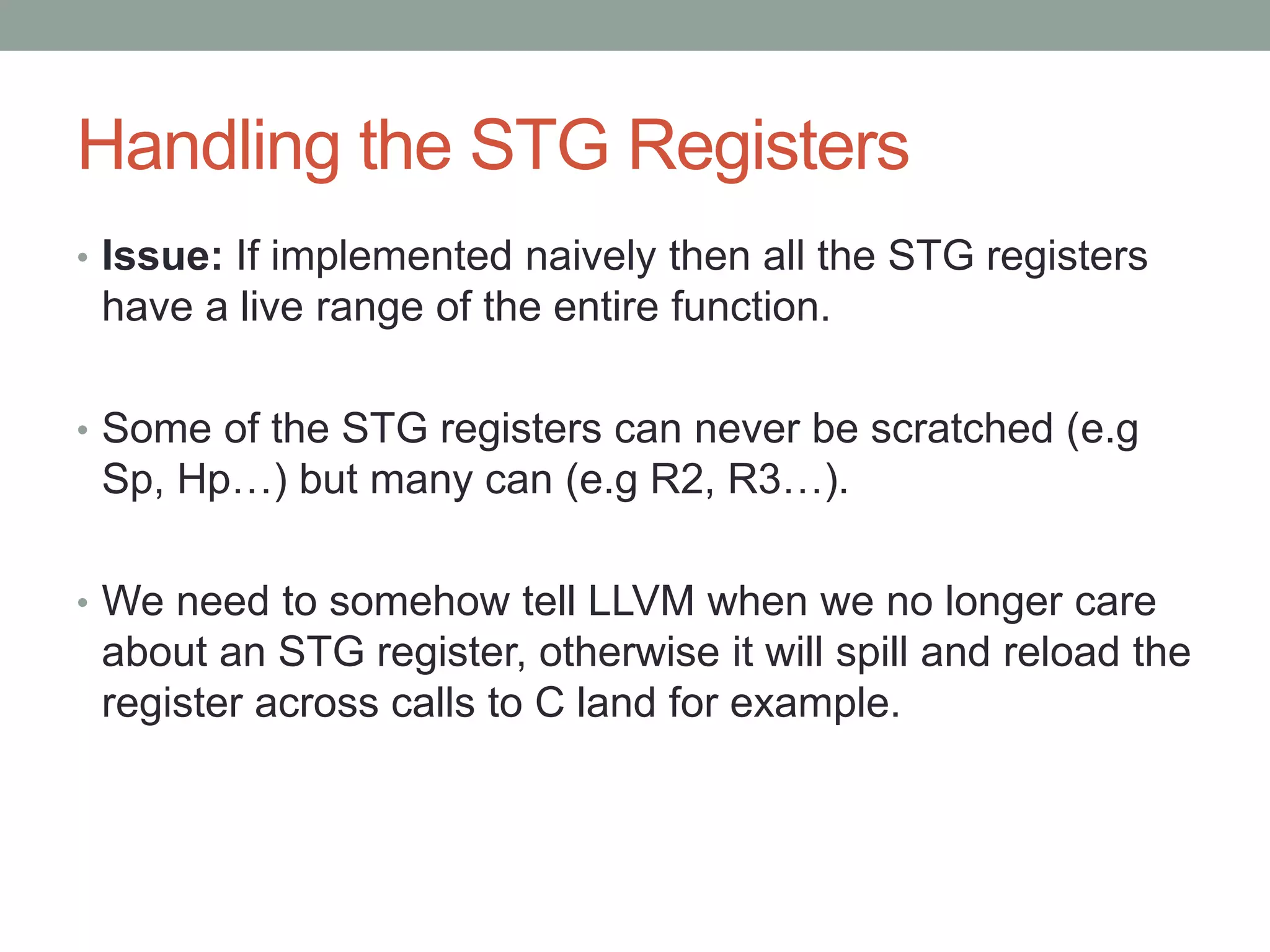

10. Handling the STG Registers
• Issue: If implemented naively then all the STG registers
have a live range of the entire function.
• Some of the STG registers can never be scratched (e.g
Sp, Hp…) but many can (e.g R2, R3…).
• We need to somehow tell LLVM when we no longer care
about an STG register, otherwise it will spill and reload the
register across calls to C land for example.

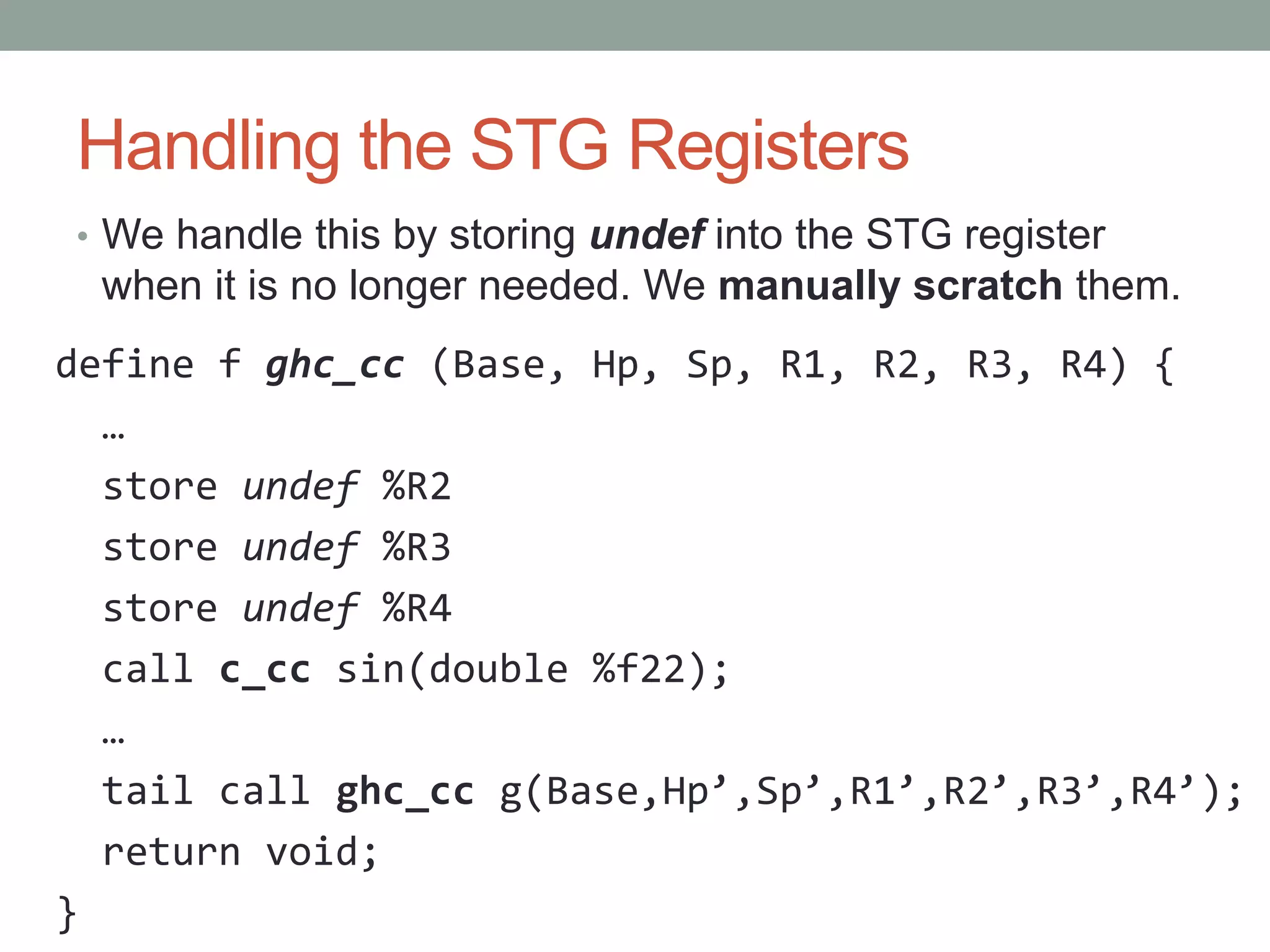

11. Handling the STG Registers
• We handle this by storing undef into the STG register
when it is no longer needed. We manually scratch them.
define f ghc_cc (Base, Hp, Sp, R1, R2, R3, R4) {
…
store undef %R2
store undef %R3
store undef %R4
call c_cc sin(double %f22);
…
tail call ghc_cc g(Base,Hp’,Sp’,R1’,R2’,R3’,R4’);
return void;
}

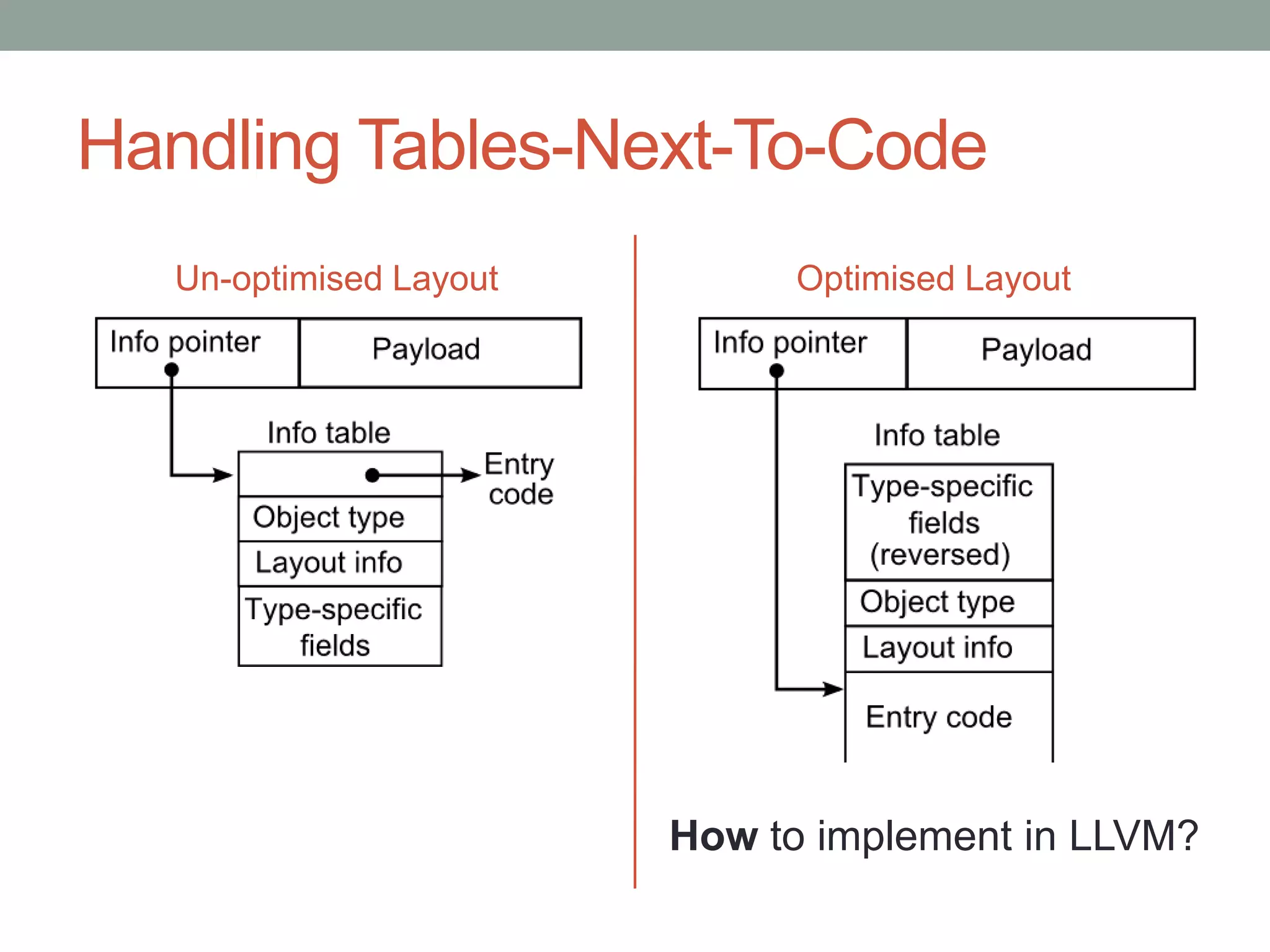

12. Handling Tables-Next-To-Code
Un-optimised Layout Optimised Layout
How to implement in LLVM?

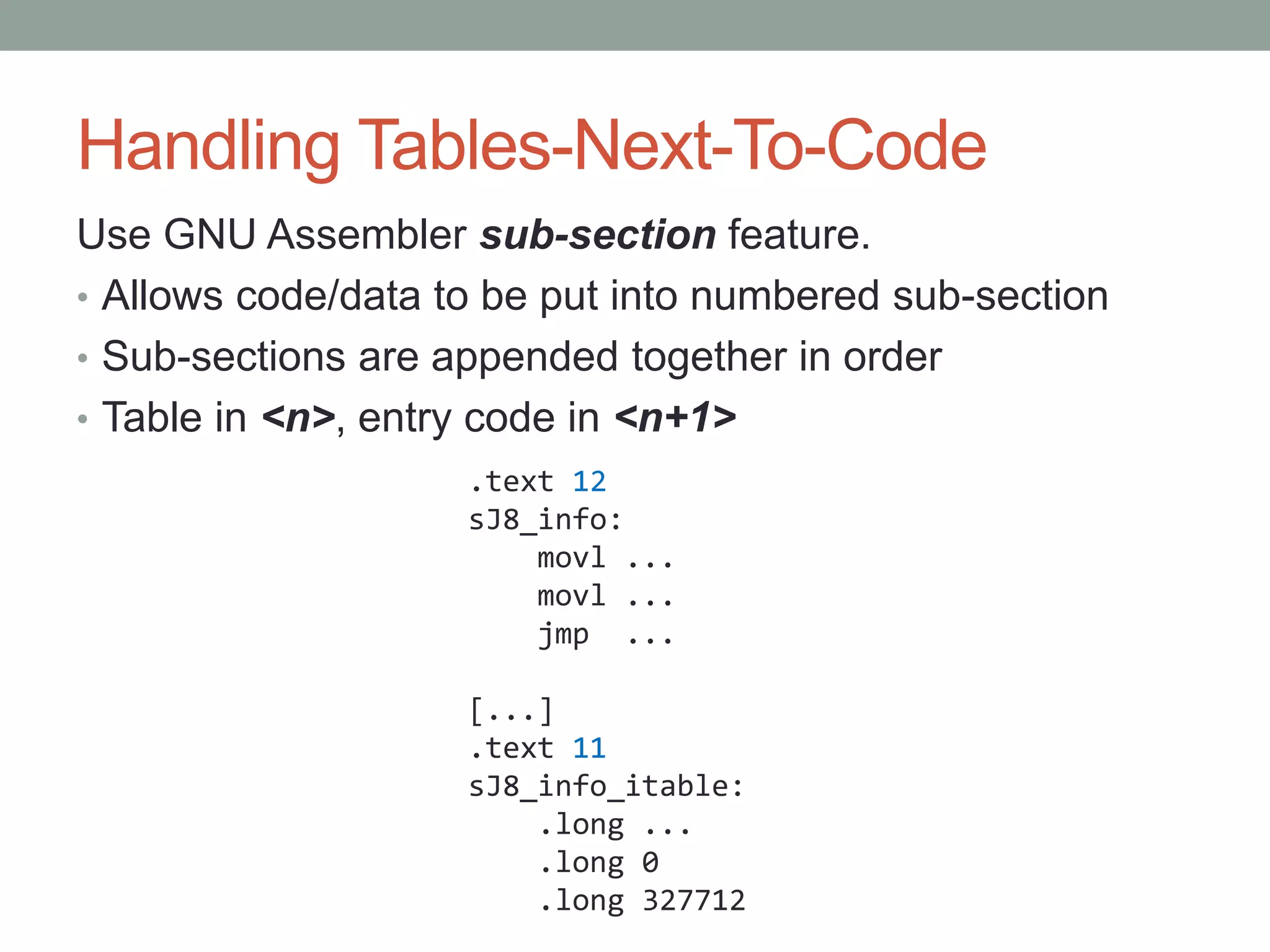

13. Handling Tables-Next-To-Code
Use GNU Assembler sub-section feature.
• Allows code/data to be put into numbered sub-section
• Sub-sections are appended together in order
• Table in <n>, entry code in <n+1>
.text 12
sJ8_info:
movl ...
movl ...
jmp ...
[...]
.text 11
sJ8_info_itable:
.long ...
.long 0
.long 327712

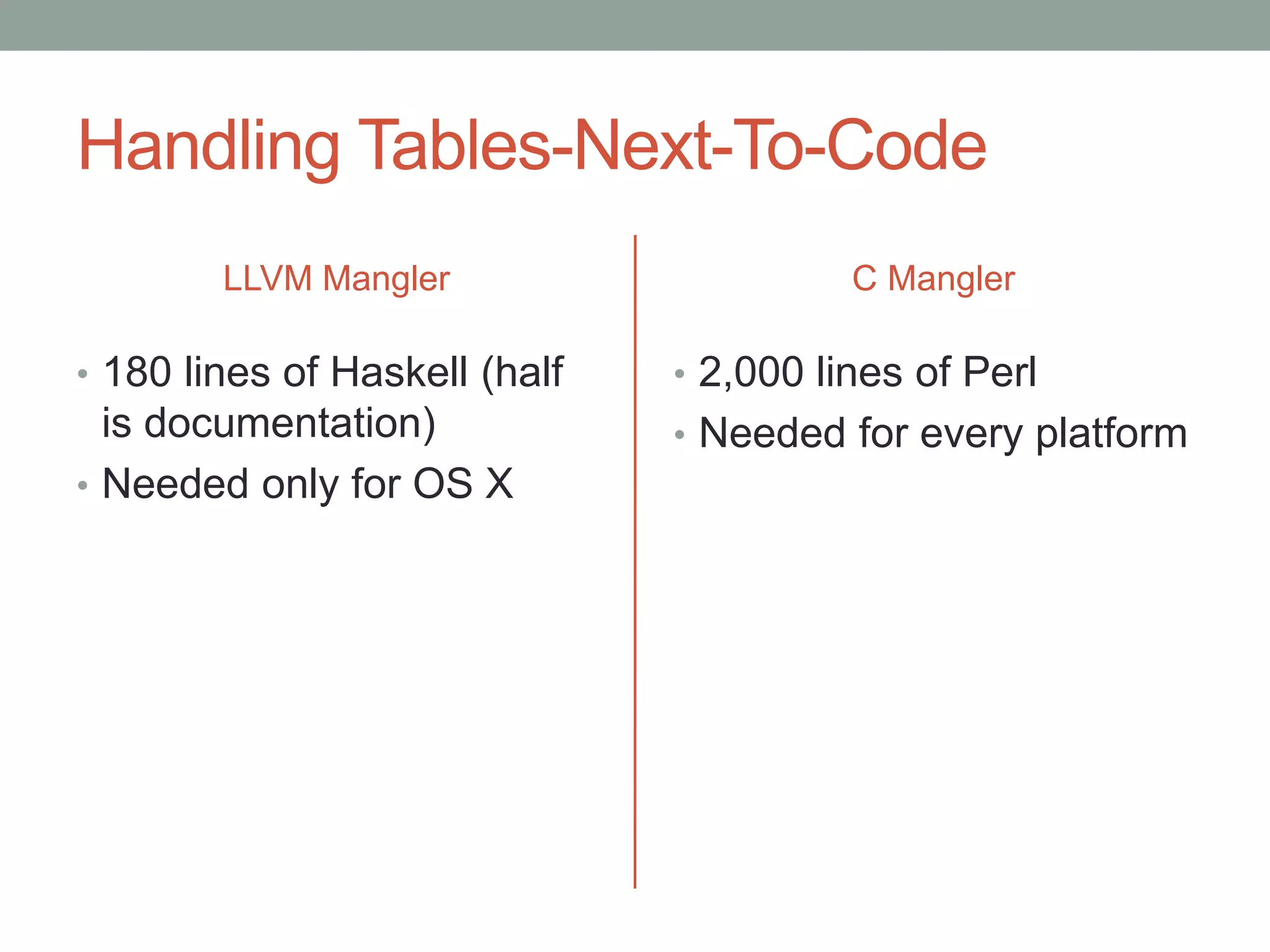

14. Handling Tables-Next-To-Code
LLVM Mangler C Mangler
• 180 lines of Haskell (half • 2,000 lines of Perl
is documentation) • Needed for every platform
• Needed only for OS X

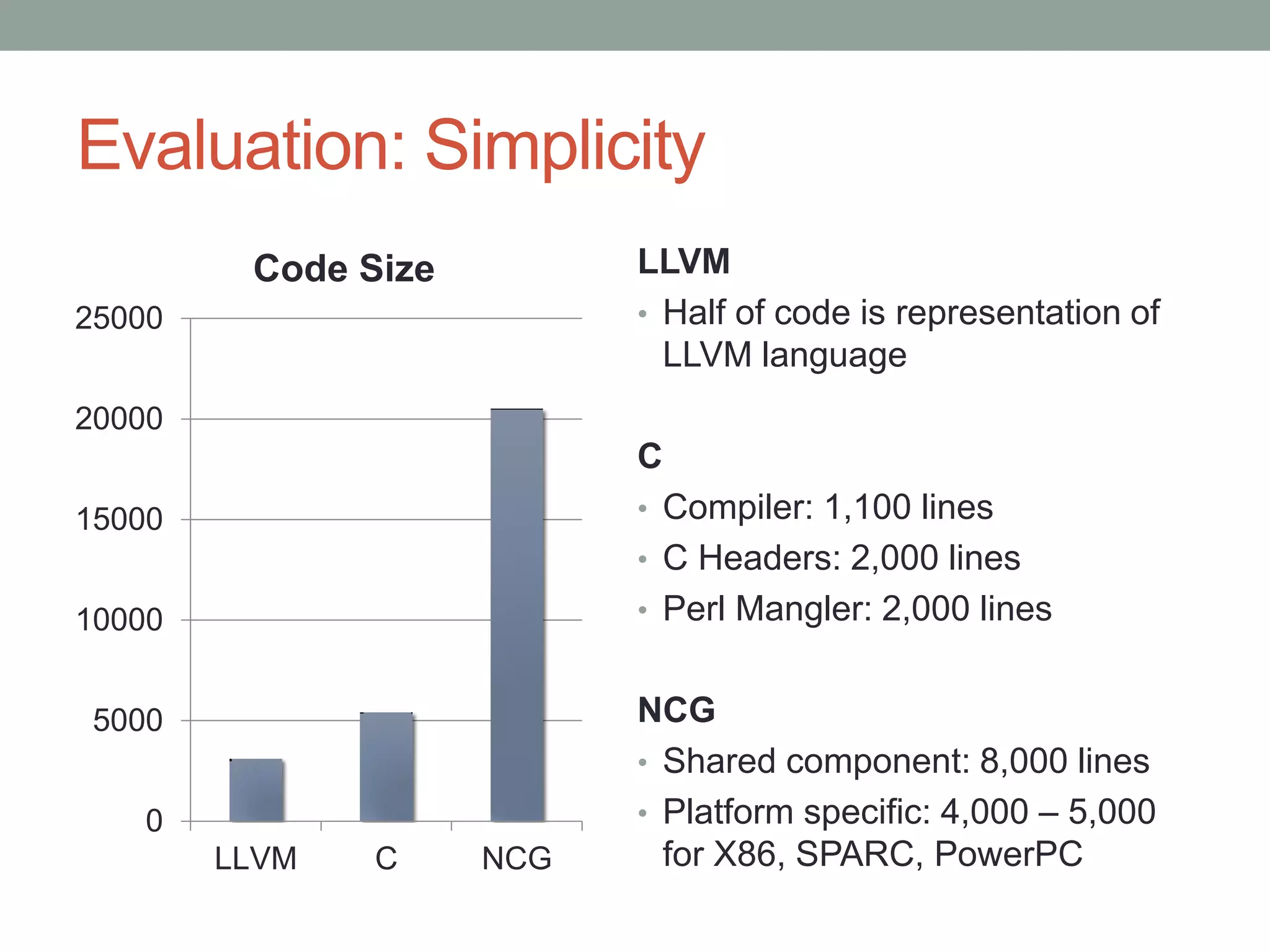

15. Evaluation: Simplicity
Code Size LLVM
25000 • Half of code is representation of
LLVM language
20000
C
15000 • Compiler: 1,100 lines
• C Headers: 2,000 lines
10000 • Perl Mangler: 2,000 lines
5000 NCG
• Shared component: 8,000 lines
0 • Platform specific: 4,000 – 5,000
LLVM C NCG for X86, SPARC, PowerPC

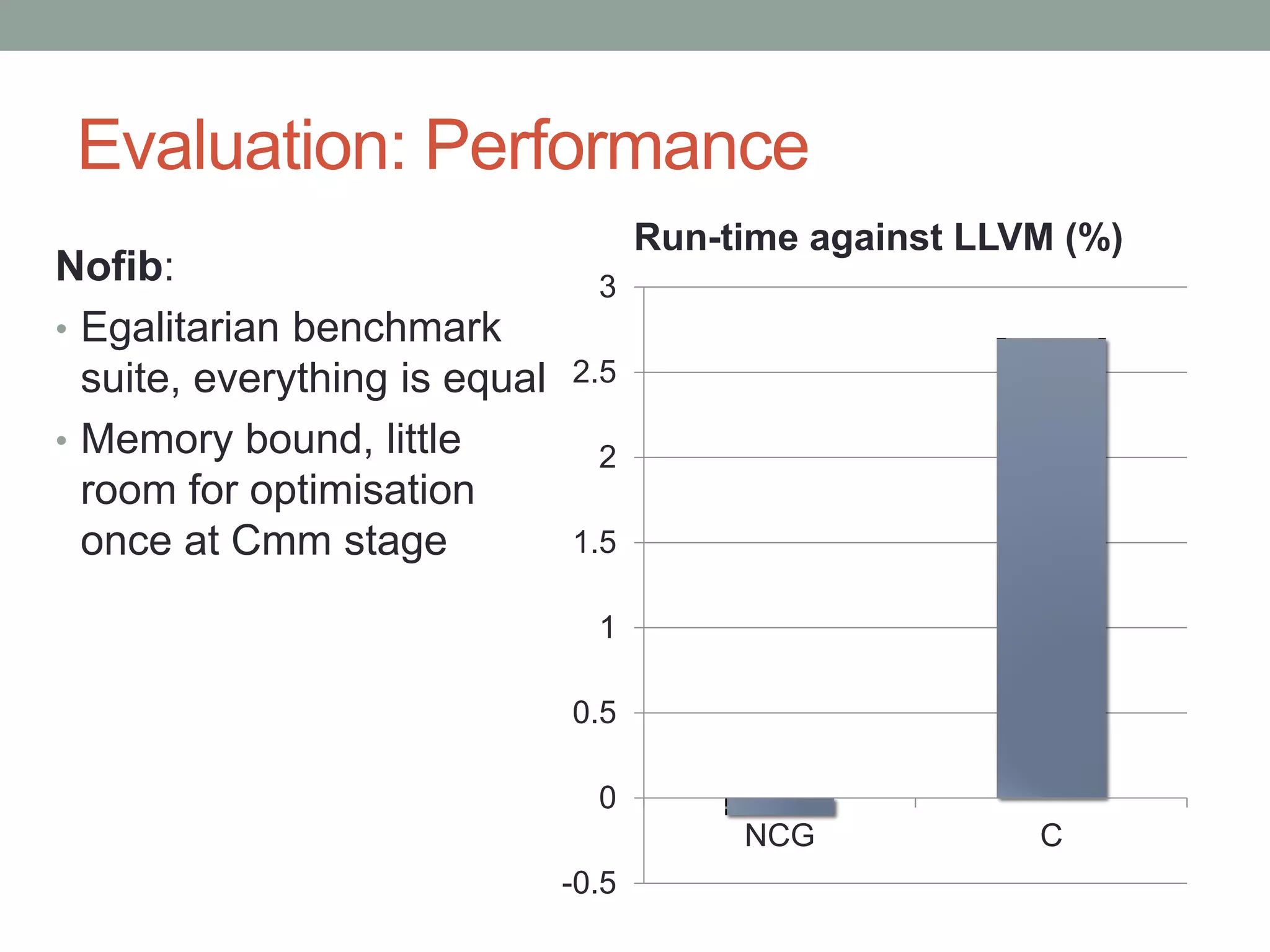

16. Evaluation: Performance
Run-time against LLVM (%)
Nofib: 3
• Egalitarian benchmark
suite, everything is equal 2.5
• Memory bound, little 2
room for optimisation
once at Cmm stage 1.5
1
0.5
0
NCG C
-0.5

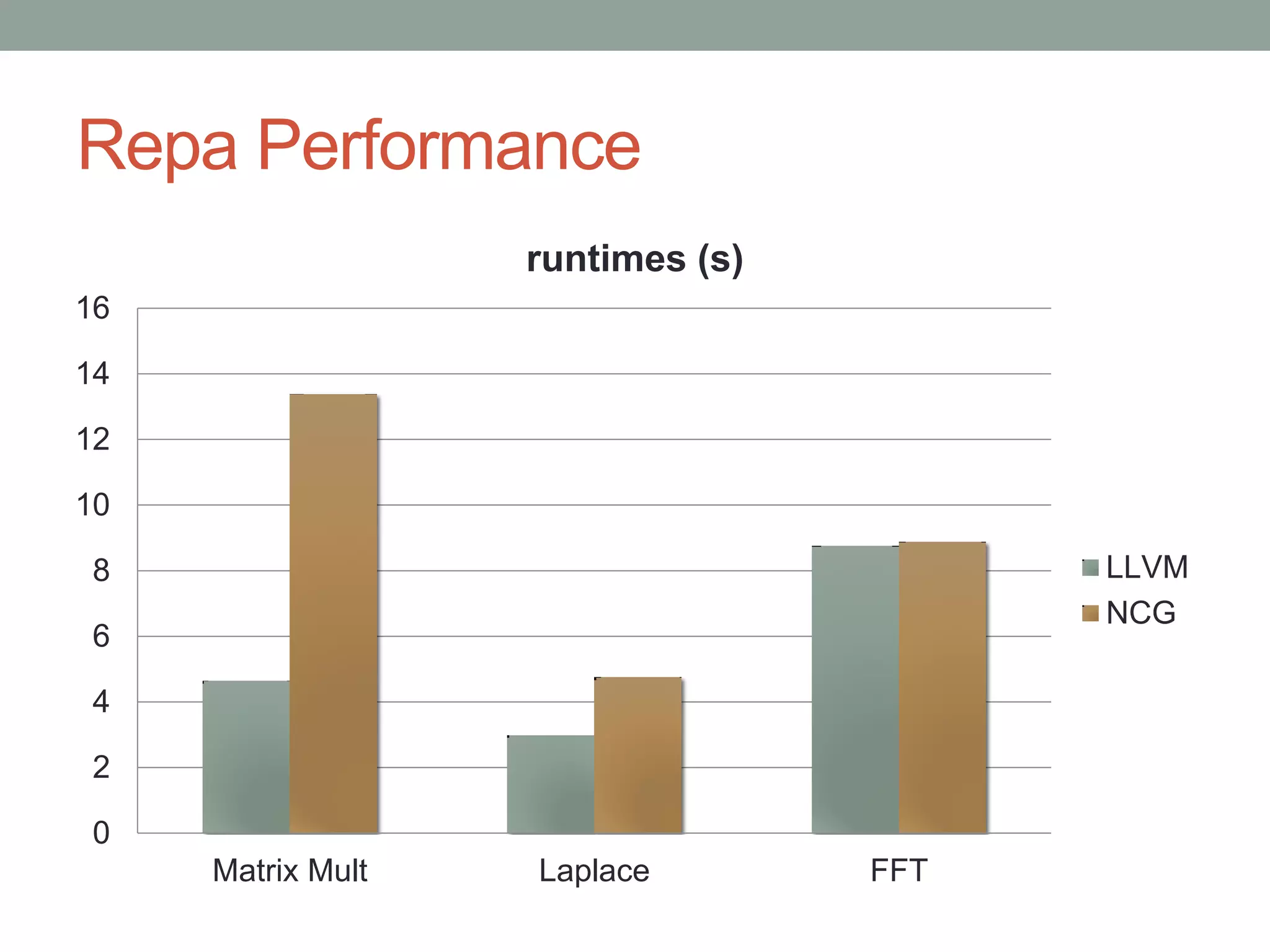

17. Repa Performance
runtimes (s)
16
14
12
10
8 LLVM
NCG
6
4
2
0
Matrix Mult Laplace FFT

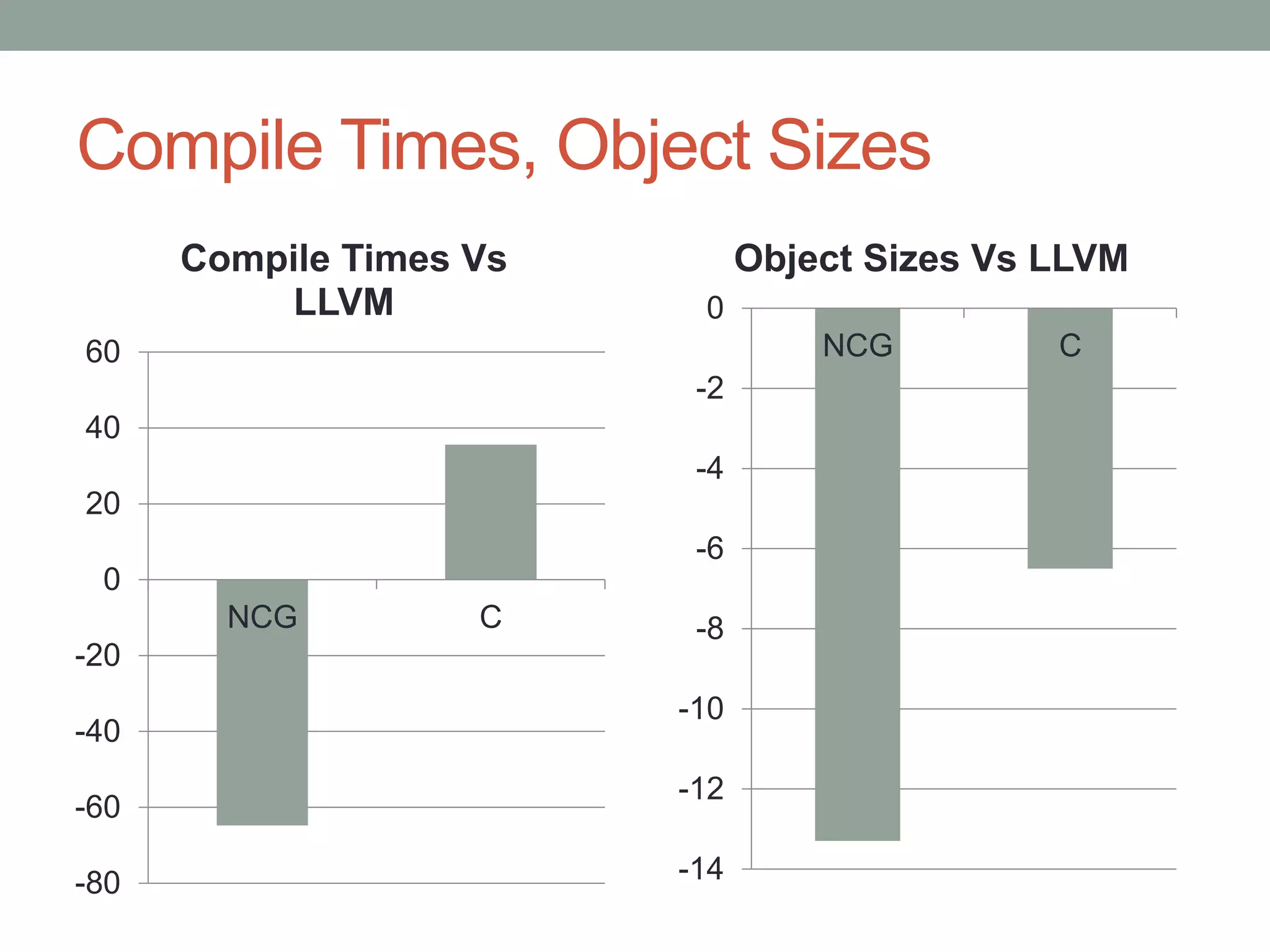

18. Compile Times, Object Sizes
Compile Times Vs Object Sizes Vs LLVM
LLVM 0
60 NCG C
-2
40
-4
20
-6
0
NCG C -8
-20
-10
-40
-12
-60
-80 -14

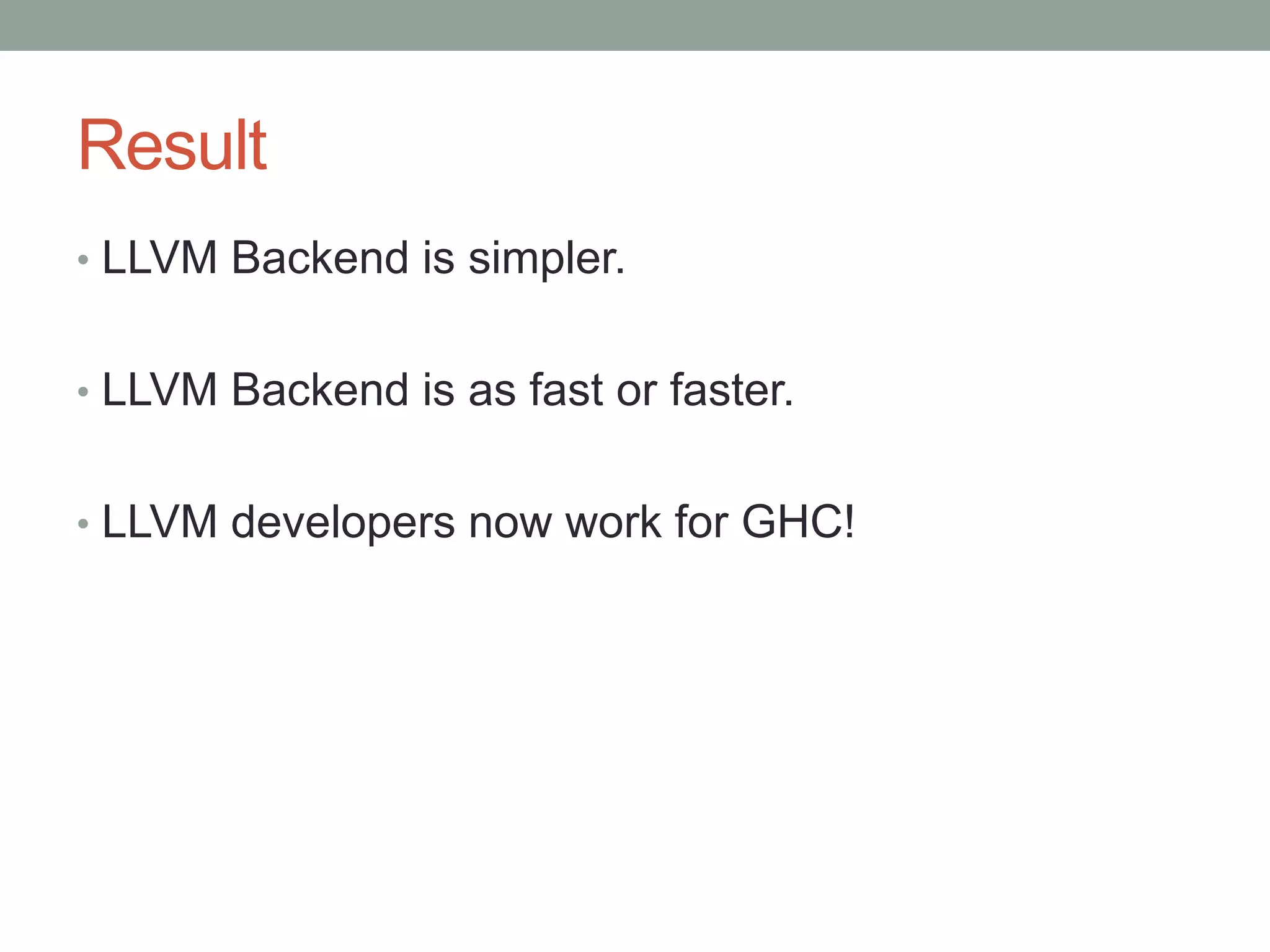

19. Result
• LLVM Backend is simpler.
• LLVM Backend is as fast or faster.
• LLVM developers now work for GHC!

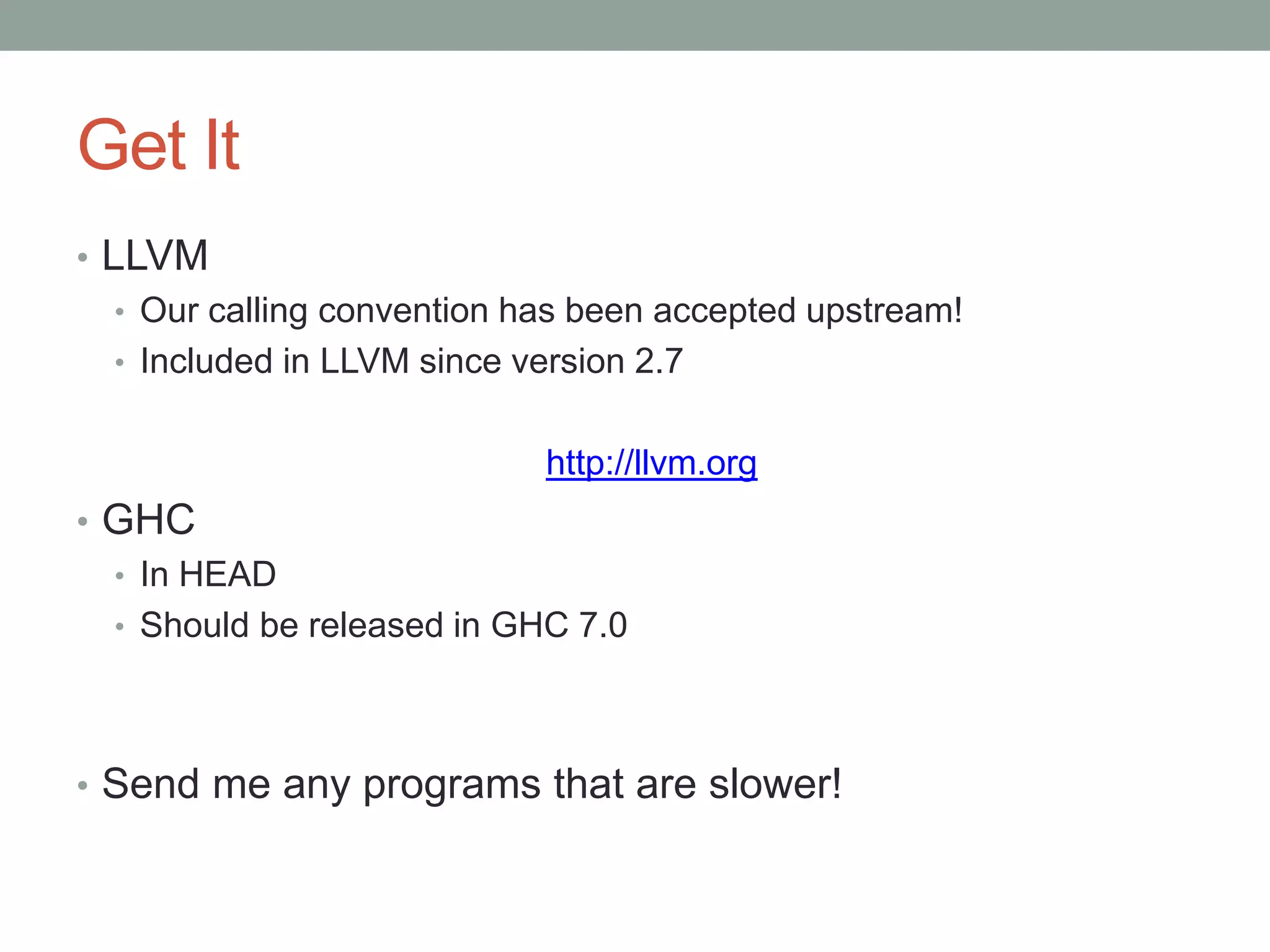

20. Get It
• LLVM
• Our calling convention has been accepted upstream!
• Included in LLVM since version 2.7
http://llvm.org
• GHC
• In HEAD
• Should be released in GHC 7.0
• Send me any programs that are slower!

21. Questions?

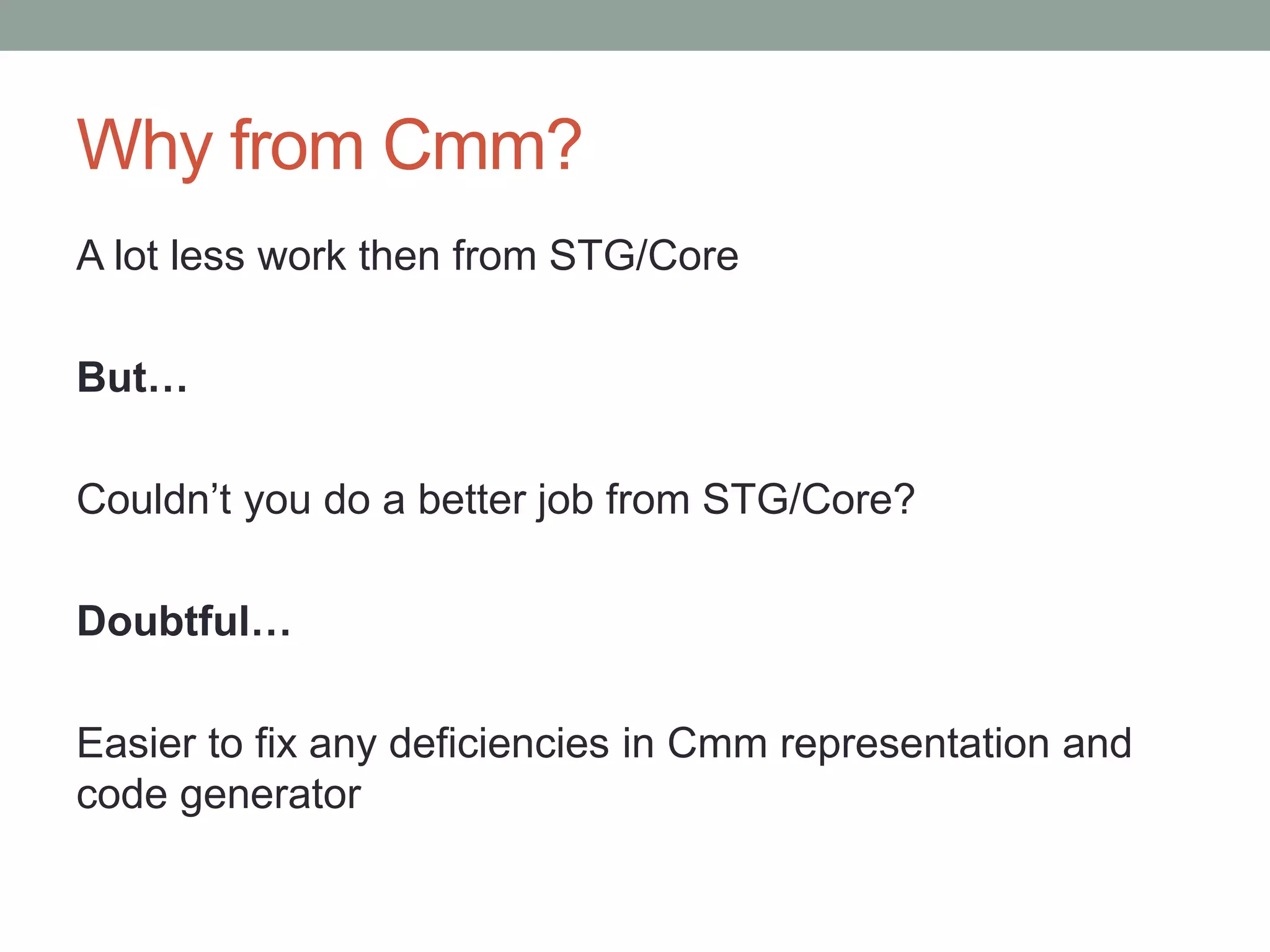

22. Why from Cmm?
A lot less work then from STG/Core
But…
Couldn’t you do a better job from STG/Core?
Doubtful…
Easier to fix any deficiencies in Cmm representation and
code generator

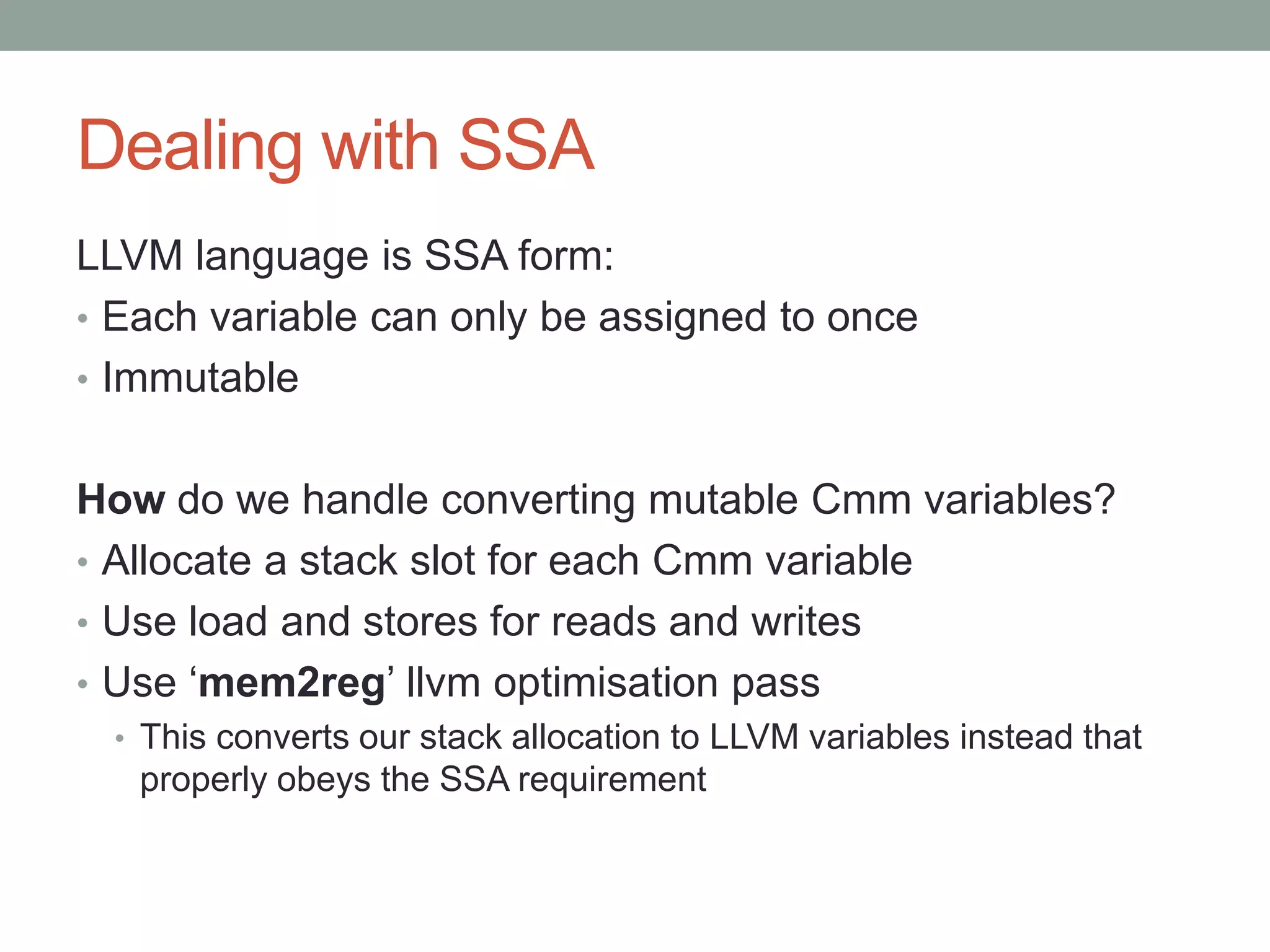

23. Dealing with SSA
LLVM language is SSA form:
• Each variable can only be assigned to once
• Immutable
How do we handle converting mutable Cmm variables?
• Allocate a stack slot for each Cmm variable
• Use load and stores for reads and writes
• Use ‘mem2reg’ llvm optimisation pass
• This converts our stack allocation to LLVM variables instead that
properly obeys the SSA requirement

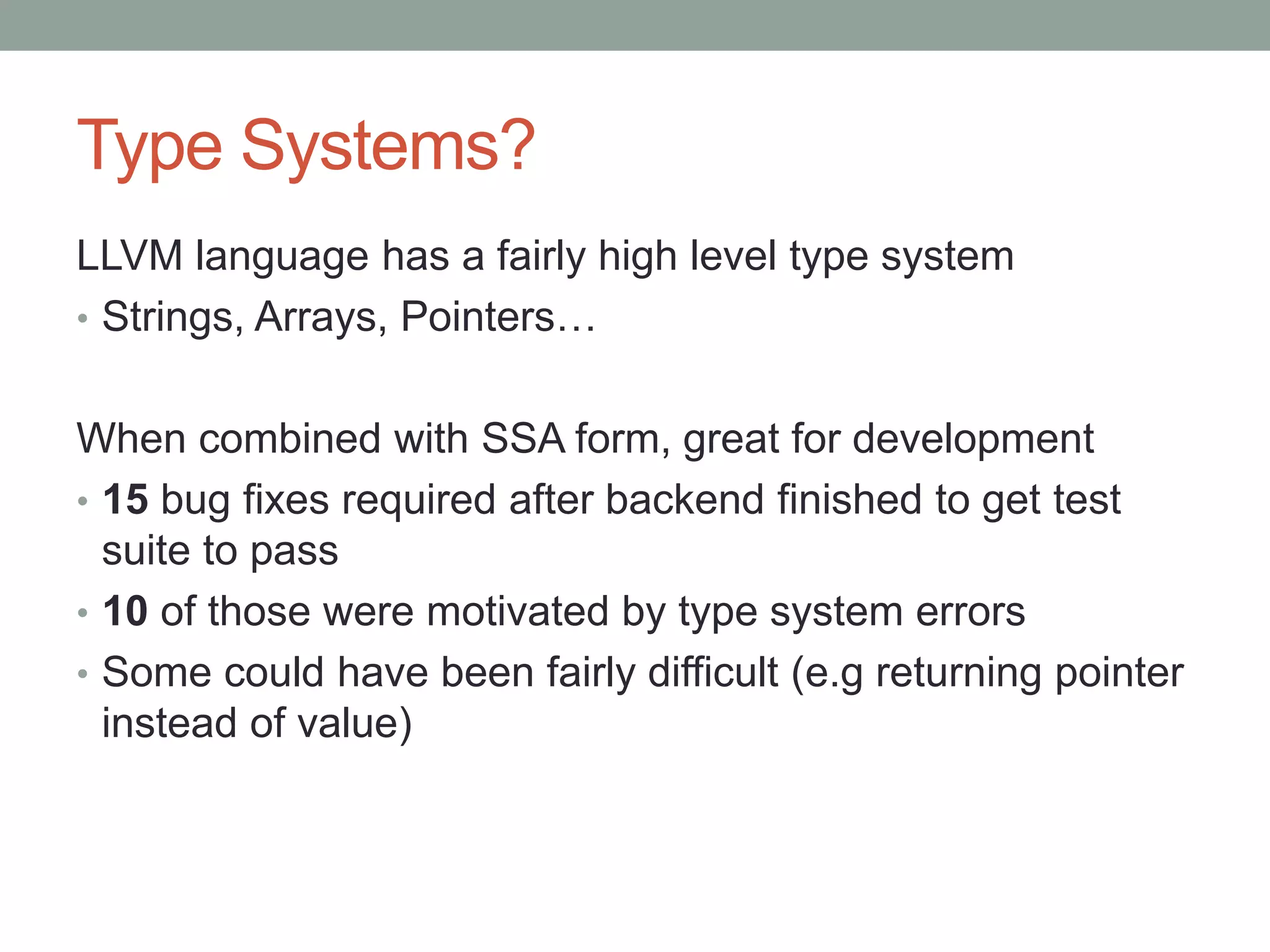

24. Type Systems?
LLVM language has a fairly high level type system
• Strings, Arrays, Pointers…
When combined with SSA form, great for development
• 15 bug fixes required after backend finished to get test
suite to pass
• 10 of those were motivated by type system errors
• Some could have been fairly difficult (e.g returning pointer
instead of value)
