Hand tools KLEMSAN
The document details various crimping tools and cable strippers, including their specifications, such as cable cross-sections, crimping techniques, and ergonomic features. It also describes additional tools for cutting wiring ducts and terminal block screwdrivers, emphasizing their design for ease of use and precision. Each tool is identified with specific model numbers and intended applications for electrical work.
More Related Content
Hand tools KLEMSAN
- 1.

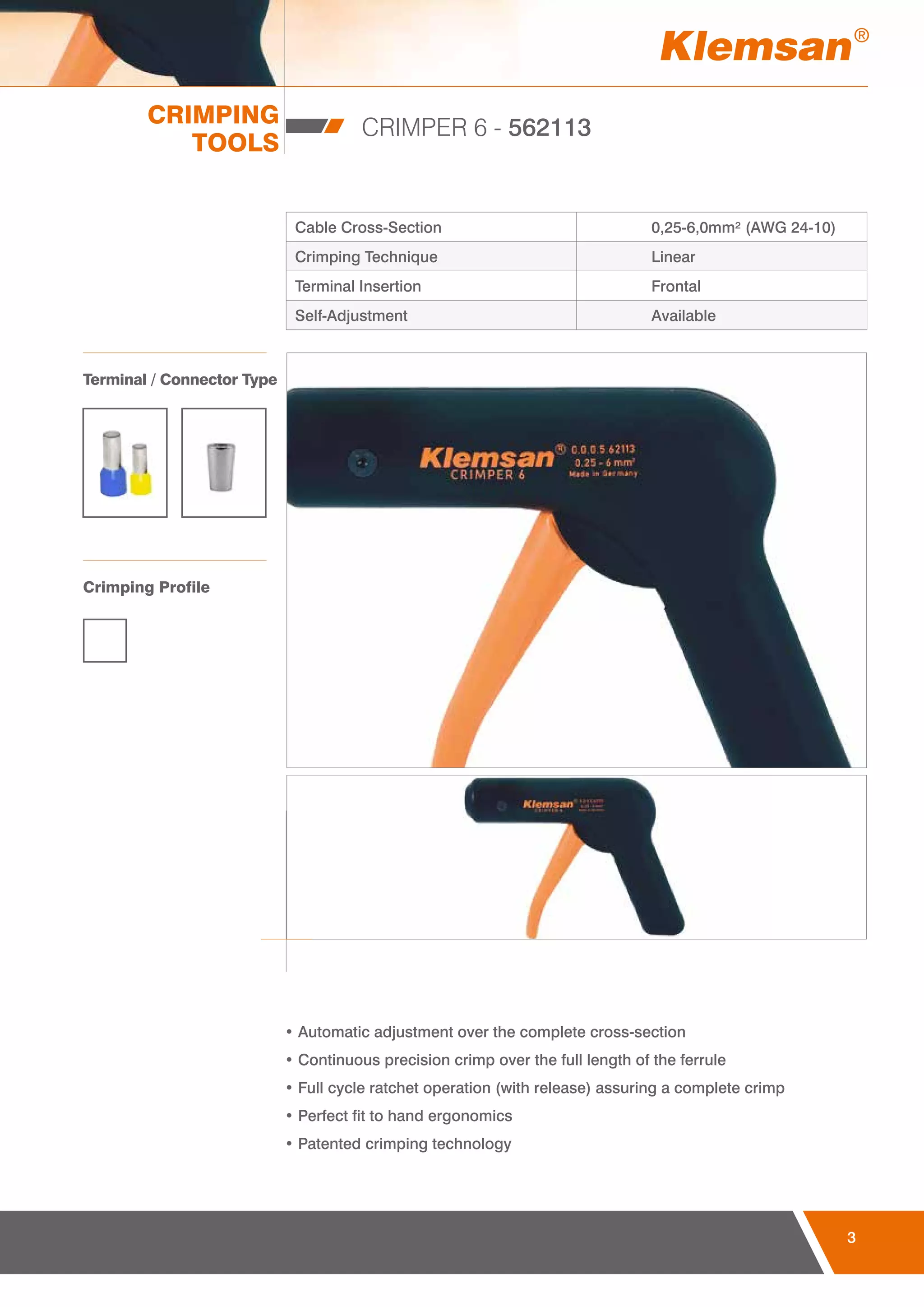

- 3. CRIMPING TOOLS 3 CRIMPER 6 -562113 Cable Cross-Section 0,25-6,0mm² (AWG 24-10) Crimping Technique Linear Terminal Insertion Frontal Self-Adjustment Available • Automatic adjustment over the complete cross-section • Continuous precision crimp over the full length of the ferrule • Full cycle ratchet operation (with release) assuring a complete crimp • Perfect fit to hand ergonomics • Patented crimping technology Terminal / Connector Type Crimping Profile

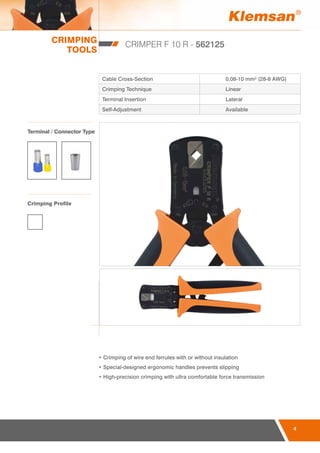

- 4. CRIMPING TOOLS 4 CRIMPER F 10R - 562125 Cable Cross-Section 0,08-10 mm² (28-8 AWG) Crimping Technique Linear Terminal Insertion Lateral Self-Adjustment Available • Crimping of wire end ferrules with or without insulation • Special-designed ergonomic handles prevents slipping • High-precision crimping with ultra comfortable force transmission Terminal / Connector Type Crimping Profile

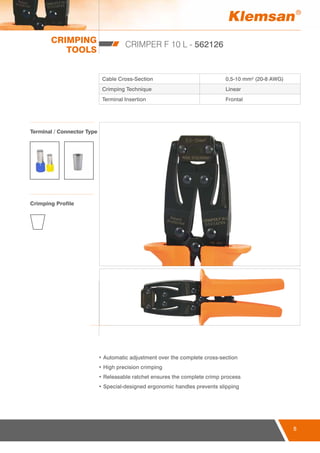

- 5. CRIMPING TOOLS 5 CRIMPER F 10L - 562126 Cable Cross-Section 0,5-10 mm² (20-8 AWG) Crimping Technique Linear Terminal Insertion Frontal • Automatic adjustment over the complete cross-section • High precision crimping • Releasable ratchet ensures the complete crimp process • Special-designed ergonomic handles prevents slipping Terminal / Connector Type Crimping Profile

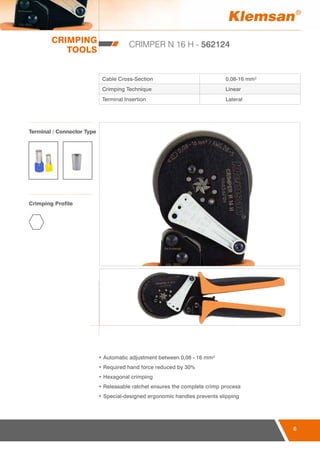

- 6. CRIMPING TOOLS 6 CRIMPER N 16H - 562124 Cable Cross-Section 0,08-16 mm² Crimping Technique Linear Terminal Insertion Lateral • Automatic adjustment between 0,08 - 16 mm² • Required hand force reduced by 30% • Hexagonal crimping • Releasable ratchet ensures the complete crimp process • Special-designed ergonomic handles prevents slipping Terminal / Connector Type Crimping Profile

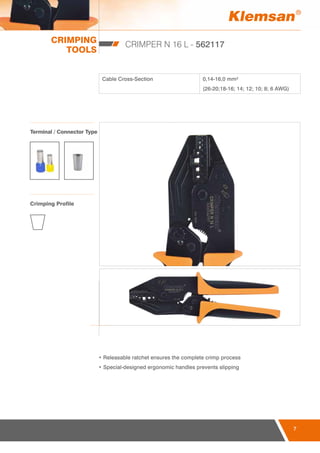

- 7. CRIMPING TOOLS 7 CRIMPER N 16L - 562117 Cable Cross-Section 0,14-16,0 mm² (26-20;18-16; 14; 12; 10; 8; 6 AWG) • Releasable ratchet ensures the complete crimp process • Special-designed ergonomic handles prevents slipping Terminal / Connector Type Crimping Profile

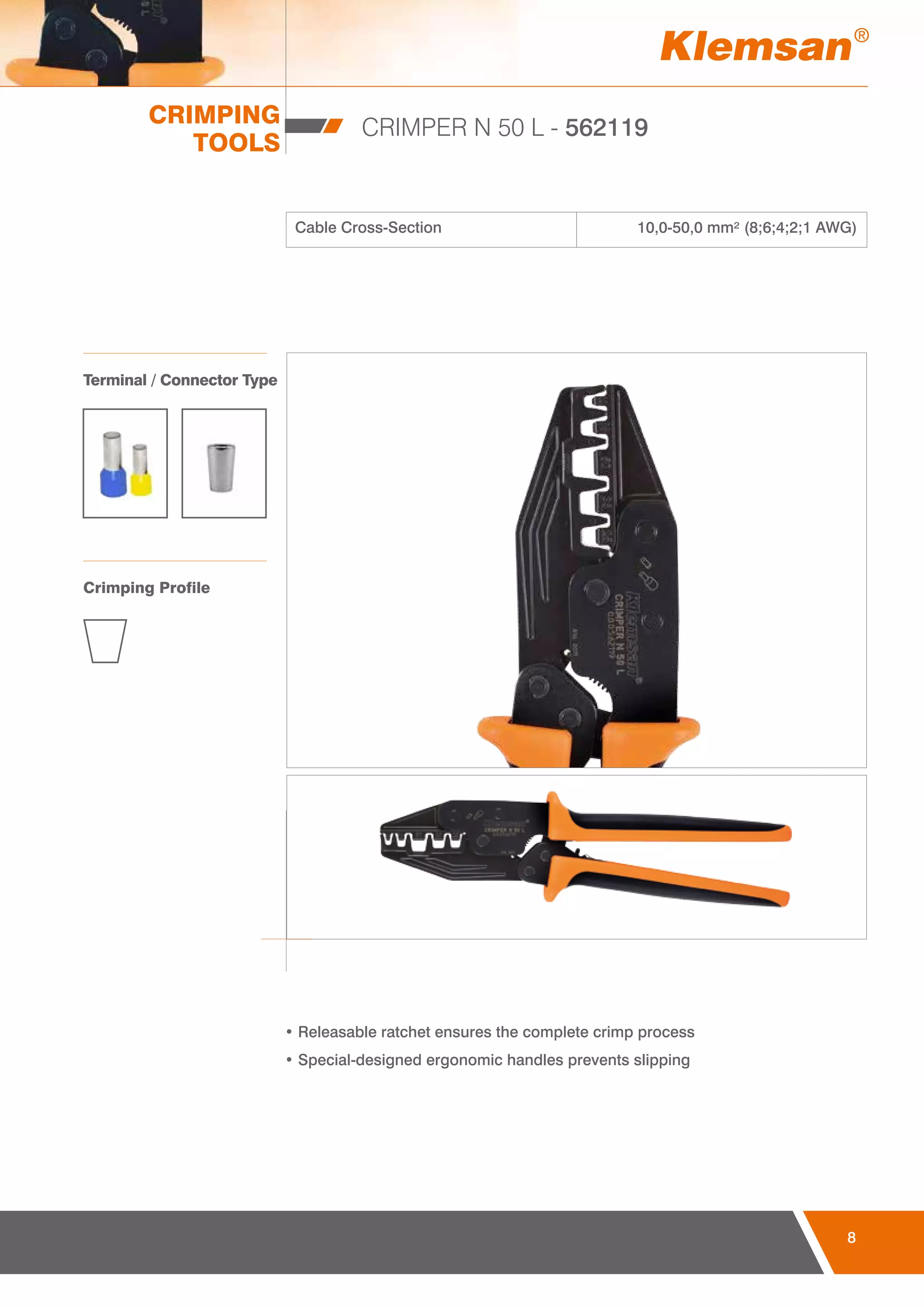

- 8. CRIMPING TOOLS 8 CRIMPER N 50L - 562119 Cable Cross-Section 10,0-50,0 mm² (8;6;4;2;1 AWG) • Releasable ratchet ensures the complete crimp process • Special-designed ergonomic handles prevents slipping Terminal / Connector Type Crimping Profile

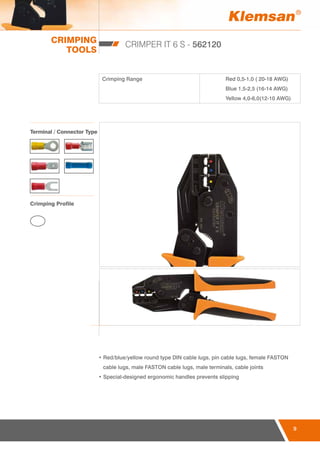

- 9. CRIMPING TOOLS 9 CRIMPER IT 6S - 562120 Crimping Range Red 0,5-1,0 ( 20-18 AWG) Blue 1,5-2,5 (16-14 AWG) Yellow 4,0-6,0(12-10 AWG) • Red/blue/yellow round type DIN cable lugs, pin cable lugs, female FASTON cable lugs, male FASTON cable lugs, male terminals, cable joints • Special-designed ergonomic handles prevents slipping Terminal / Connector Type Crimping Profile

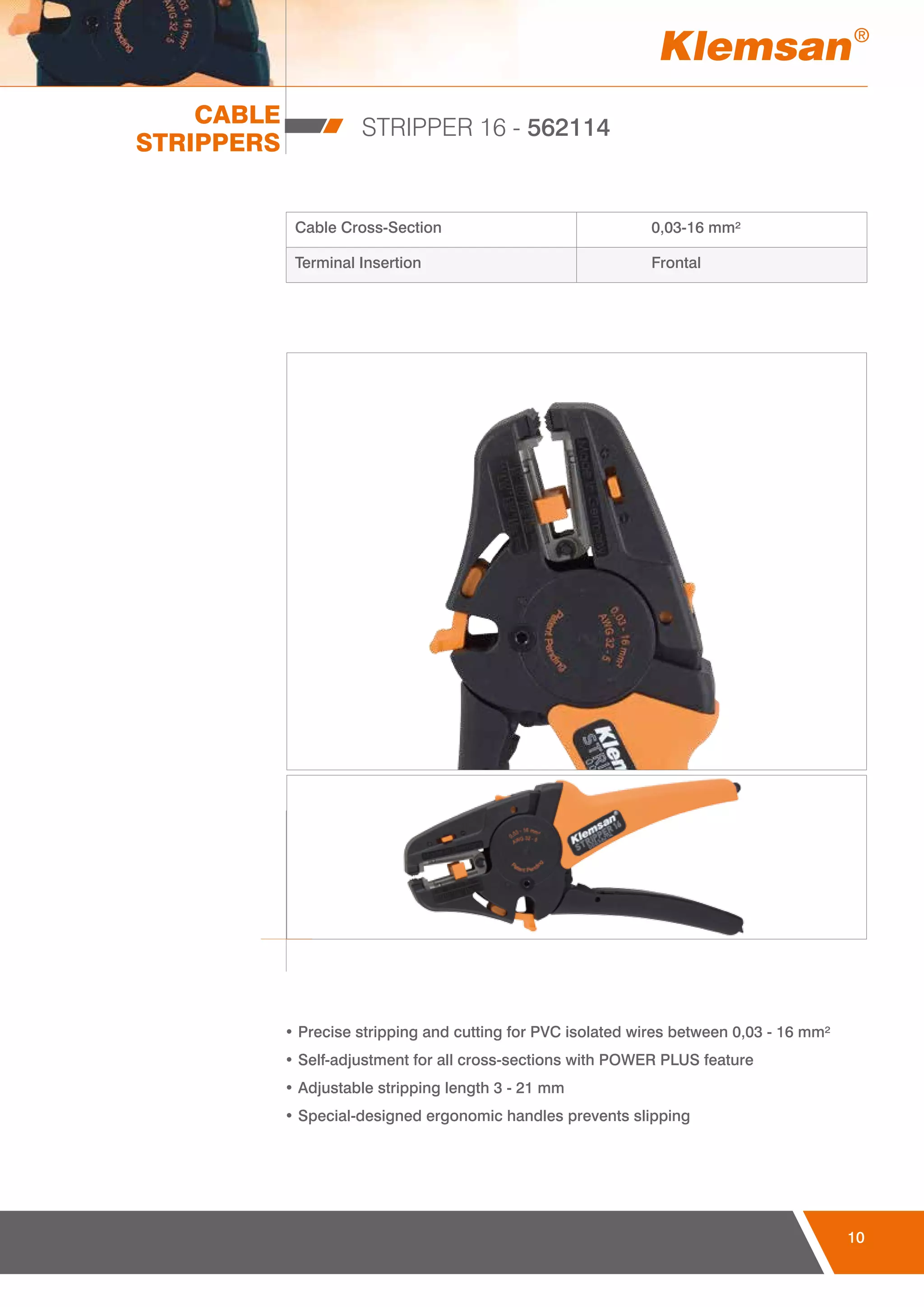

- 10. 10 CABLE STRIPPERS STRIPPER 16 -562114 Cable Cross-Section 0,03-16 mm² Terminal Insertion Frontal • Precise stripping and cutting for PVC isolated wires between 0,03 - 16 mm² • Self-adjustment for all cross-sections with POWER PLUS feature • Adjustable stripping length 3 - 21 mm • Special-designed ergonomic handles prevents slipping

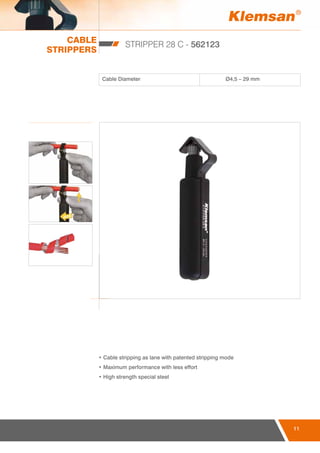

- 11. 11 CABLE STRIPPERS STRIPPER 28 C- 562123 Cable Diameter Ø4,5 – 29 mm • Cable stripping as lane with patented stripping mode • Maximum performance with less effort • High strength special steel

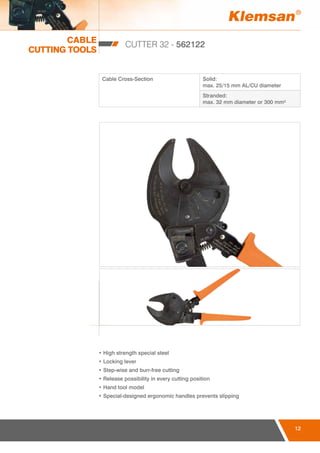

- 12. CABLE CUTTING TOOLS 12 CUTTER 32- 562122 Cable Cross-Section Solid: max. 25/15 mm AL/CU diameter Stranded: max. 32 mm diameter or 300 mm² • High strength special steel • Locking lever • Step-wise and burr-free cutting • Release possibility in every cutting position • Hand tool model • Special-designed ergonomic handles prevents slipping 12

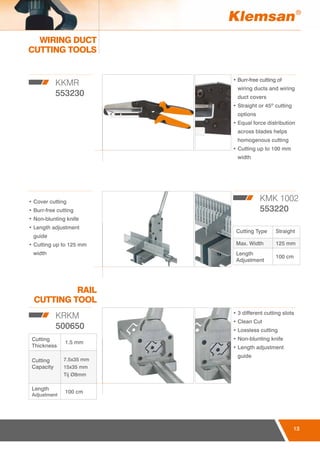

- 13. 13 WIRING DUCT CUTTING TOOLS RAIL CUTTINGTOOL 13 KKMR 553230 KMK 1002 553220 KRKM 500650 • Burr-free cutting of wiring ducts and wiring duct covers • Straight or 45º cutting options • Equal force distribution across blades helps homogenous cutting • Cutting up to 100 mm width • 3 different cutting slots • Clean Cut • Lossless cutting • Non-blunting knife • Length adjustment guide • Cover cutting • Burr-free cutting • Non-blunting knife • Length adjustment guide • Cutting up to 125 mm width Cutting Type Straight Max. Width 125 mm Length Adjustment 100 cm Cutting Thickness 1.5 mm Cutting Capacity 7.5x35 mm 15x35 mm Tij Ø8mm Length Adjustment 100 cm

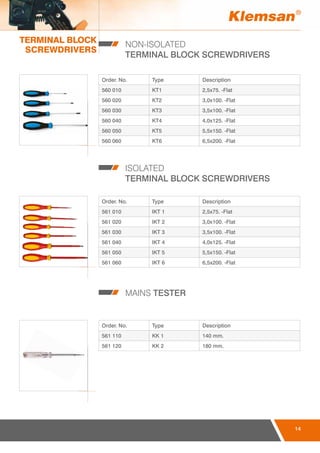

- 14. TERMINAL BLOCK SCREWDRIVERS 14 NON-ISOLATED TERMINAL BLOCKSCREWDRIVERS Order. No. Type Description 561 010 IKT 1 2,5x75. -Flat 561 020 IKT 2 3,0x100. -Flat 561 030 IKT 3 3,5x100. -Flat 561 040 IKT 4 4,0x125. -Flat 561 050 IKT 5 5,5x150. -Flat 561 060 IKT 6 6,5x200. -Flat Order. No. Type Description 561 110 KK 1 140 mm. 561 120 KK 2 180 mm. Order. No. Type Description 560 010 KT1 2,5x75. -Flat 560 020 KT2 3,0x100. -Flat 560 030 KT3 3,5x100. -Flat 560 040 KT4 4,0x125. -Flat 560 050 KT5 5,5x150. -Flat 560 060 KT6 6,5x200. -Flat ISOLATED TERMINAL BLOCK SCREWDRIVERS MAINS TESTER 14

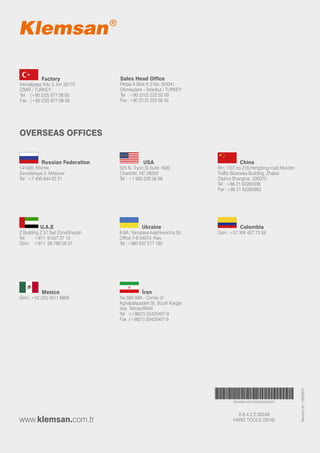

- 16. HAND TOOLS (2016) 293466516057639020000001 6.6.4.2.2.00248 www.klemsan.com.tr RevisionNo:10032016 Factory Kemalpaşa Yolu 3. km 35170 İZMİR / TURKEY Tel : (+90 232) 877 08 00 Fax : (+90 232) 877 08 06 OVERSEAS OFFICES Sales Head Office Perpa A Blok K:2 No: 9/0041 Okmeydanı – İstanbul / TURKEY Tel :+90 (212) 222 52 00 Fax :+90 (212) 222 66 55 Russian Federation 141400, Khimki, Zavodskaya 2- Moscow Tel : +7 495 644 02 21 China Rm.1707,no.218,Hengfeng road,Morden Traffic Business Building, Zhabei District,Shanghai. 200070 Tel :+86 21 62260338 Fax :+86 21 62263983 USA 525 N. Tryon St.Suite 1600 Charlotte, NC 28202 Tel : +1 980 226 06 88 U.A.E Z Building Z 57 Saif ZoneSharjah Tel :+971 6-557 37 10 Gsm :+971 56-760 28 37 Ukraine 6-8A, Yaroslava Ivashkevicha Str. Office 7-8 04074, Kiev Tel :+380 637 217 185 Colombia Gsm :+57 304 427 73 59 Mexico Gsm :+52 (55) 4511 8809 İran No.592-594 - Corner of Aghabalazadeh St. South Kargar Ave. Tehran/IRAN Tel :(+9821) 55425407-9 Fax :(+9821) 55425407-9
