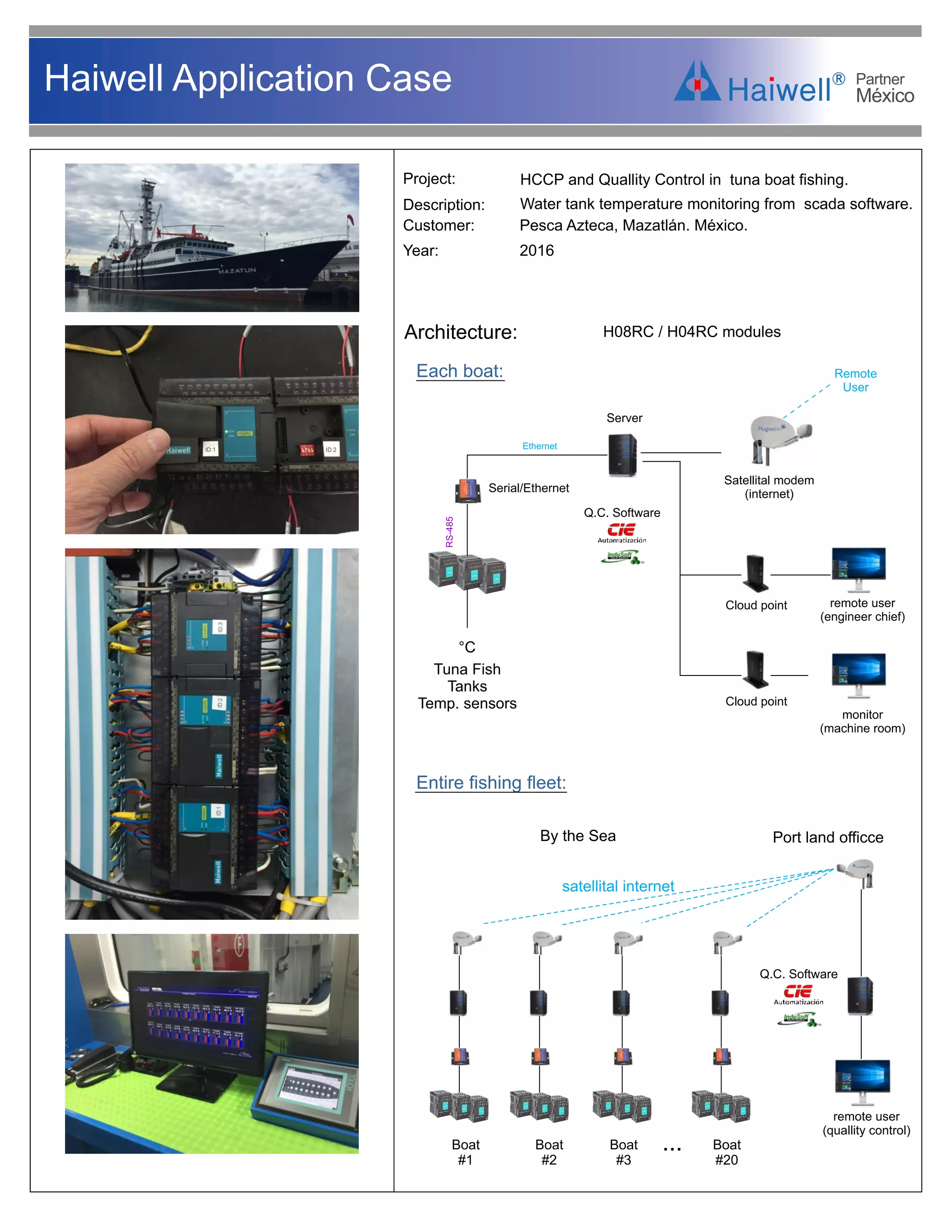

1. R
Haiwell Application Case
Project: HCCP and Quallity Control in tuna boat fishing.
Description: Water tank temperature monitoring from scada software.
Architecture:
Each boat:
H08RC / H04RC modules
Tuna Fish
Tanks
Temp. sensors
°C
Q.C. Software
Serial/Ethernet
Satellital modem
(internet)
Remote
User
Cloud point
Cloud point
remote user
(engineer chief)
monitor
(machine room)
RS-485 Ethernet
Server
Boat
#1
Boat
#2
Boat
#3
Boat
#20
...
Q.C. Software
By the Sea Port land officce
satellital internet
remote user
(quallity control)
Entire fishing fleet:
Customer: Pesca Azteca, Mazatlán. México.
Year: 2016

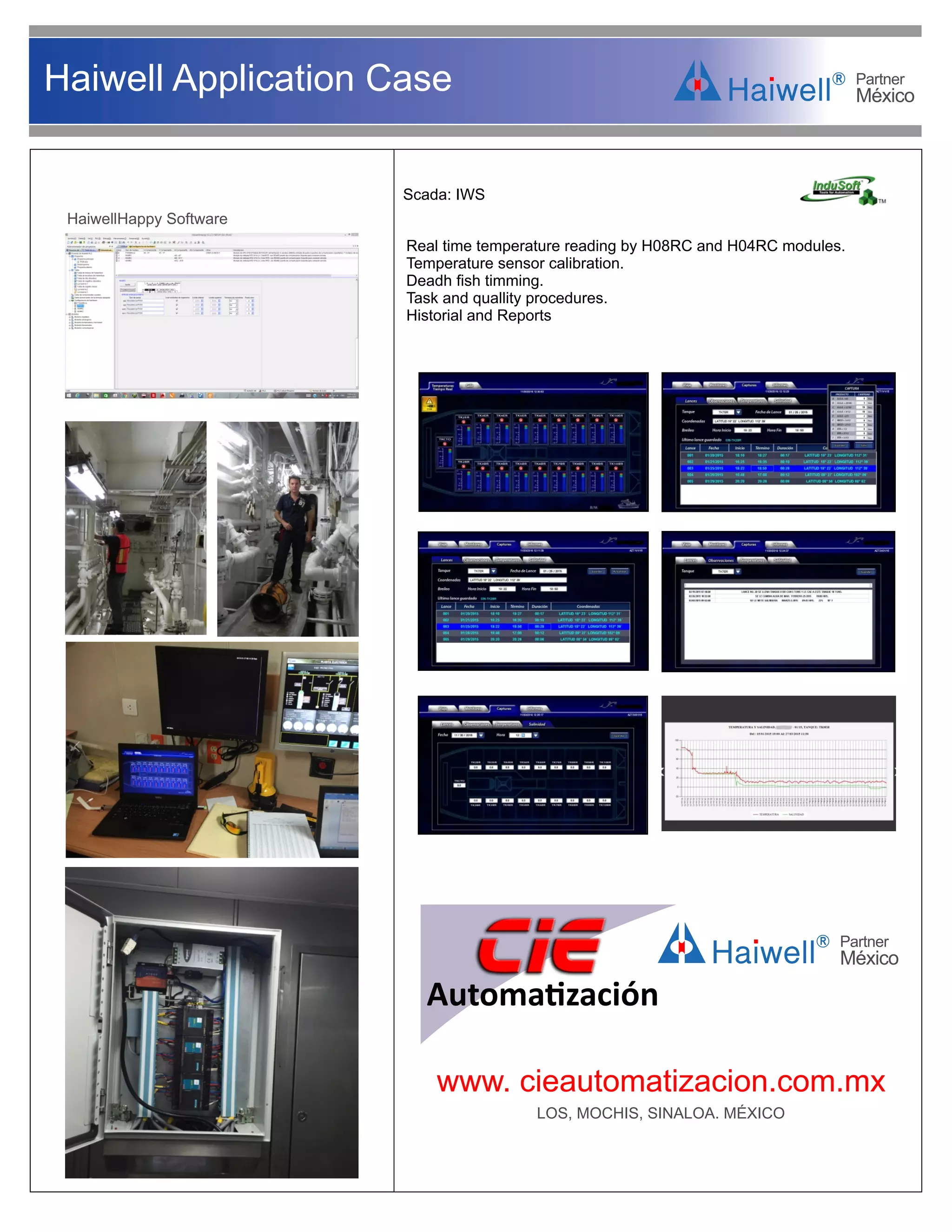

2. R
Haiwell Application Case
Scada: IWS
Real time temperature reading by H08RC and H04RC modules.
Temperature sensor calibration.
Deadh fish timming.
Task and quallity procedures.
Historial and Reports
Automa zación
www. cieautomatizacion.com.mx
R
LOS, MOCHIS, SINALOA. MÉXICO
HaiwellHappy Software
