The GPSI-3900D is a small, easy to install vehicle tracking device that connects to the OBD-II port for access to diagnostic data and vehicle location tracking. It has built-in GPS and cellular antennas for a simple installation. The device tracks location, speed, driver behavior and detects impacts. GPS Insight provides customizable dashboard interfaces and reports for fleet monitoring and asset control.

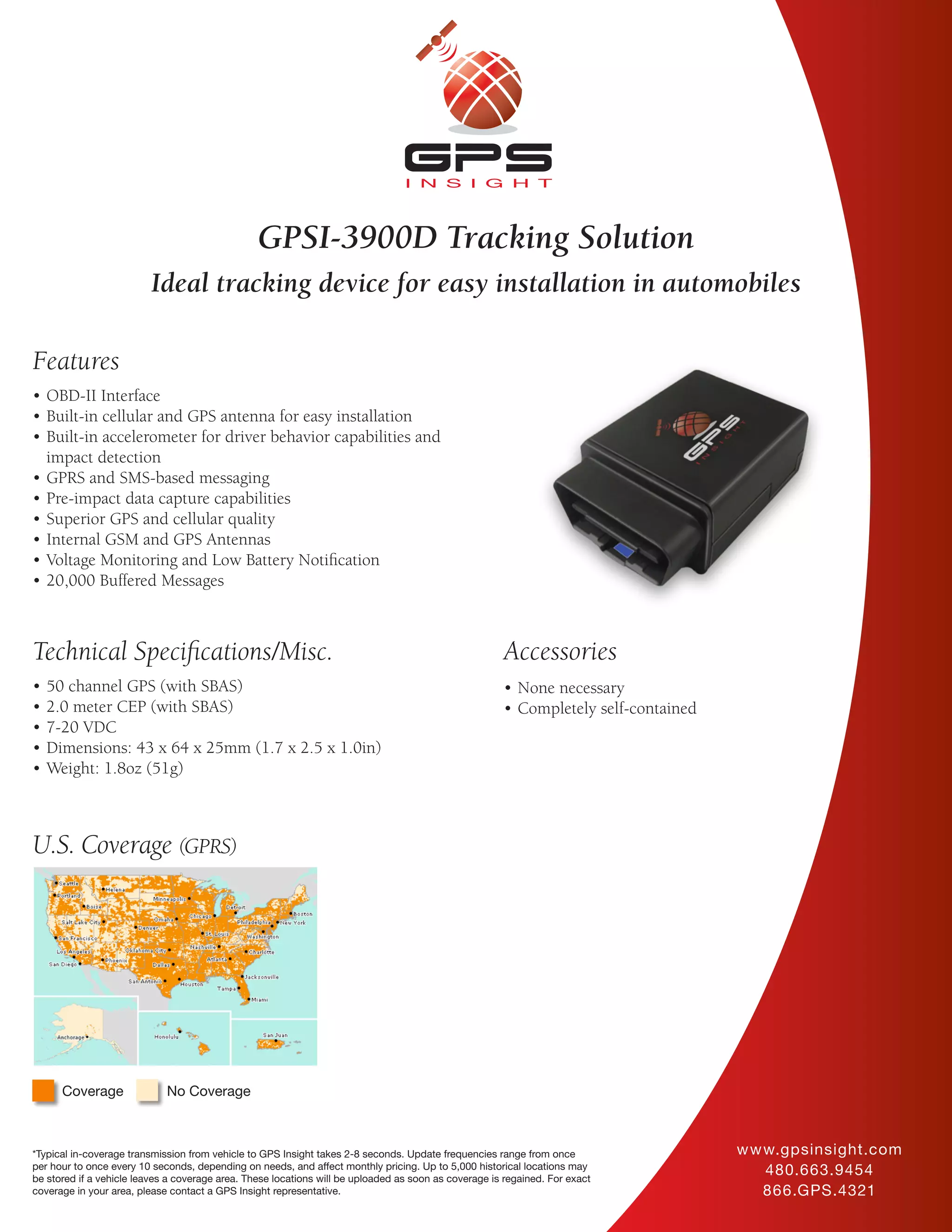

1. GPSI-3900D Tracking Solution
Ideal tracking device for easy installation in automobiles
Features
• OBD-II Interface
• Built-in cellular and GPS antenna for easy installation
• Built-in accelerometer for driver behavior capabilities and
impact detection
• GPRS and SMS-based messaging
• Pre-impact data capture capabilities
• Superior GPS and cellular quality
• Internal GSM and GPS Antennas
• Voltage Monitoring and Low Battery Notification
• 20,000 Buffered Messages
Technical Specifications/Misc. Accessories
• 50 channel GPS (with SBAS) • None necessary
• 2.0 meter CEP (with SBAS) • Completely self-contained
• 7-20 VDC
• Dimensions: 43 x 64 x 25mm (1.7 x 2.5 x 1.0in)
• Weight: 1.8oz (51g)
U.S. Coverage (GPRS)
Coverage No Coverage
*Typical in-coverage transmission from vehicle to GPS Insight takes 2-8 seconds. Update frequencies range from once w w w.gpsinsight.com
per hour to once every 10 seconds, depending on needs, and affect monthly pricing. Up to 5,000 historical locations may
be stored if a vehicle leaves a coverage area. These locations will be uploaded as soon as coverage is regained. For exact
480.663.9454
coverage in your area, please contact a GPS Insight representative. 866.GPS.4321

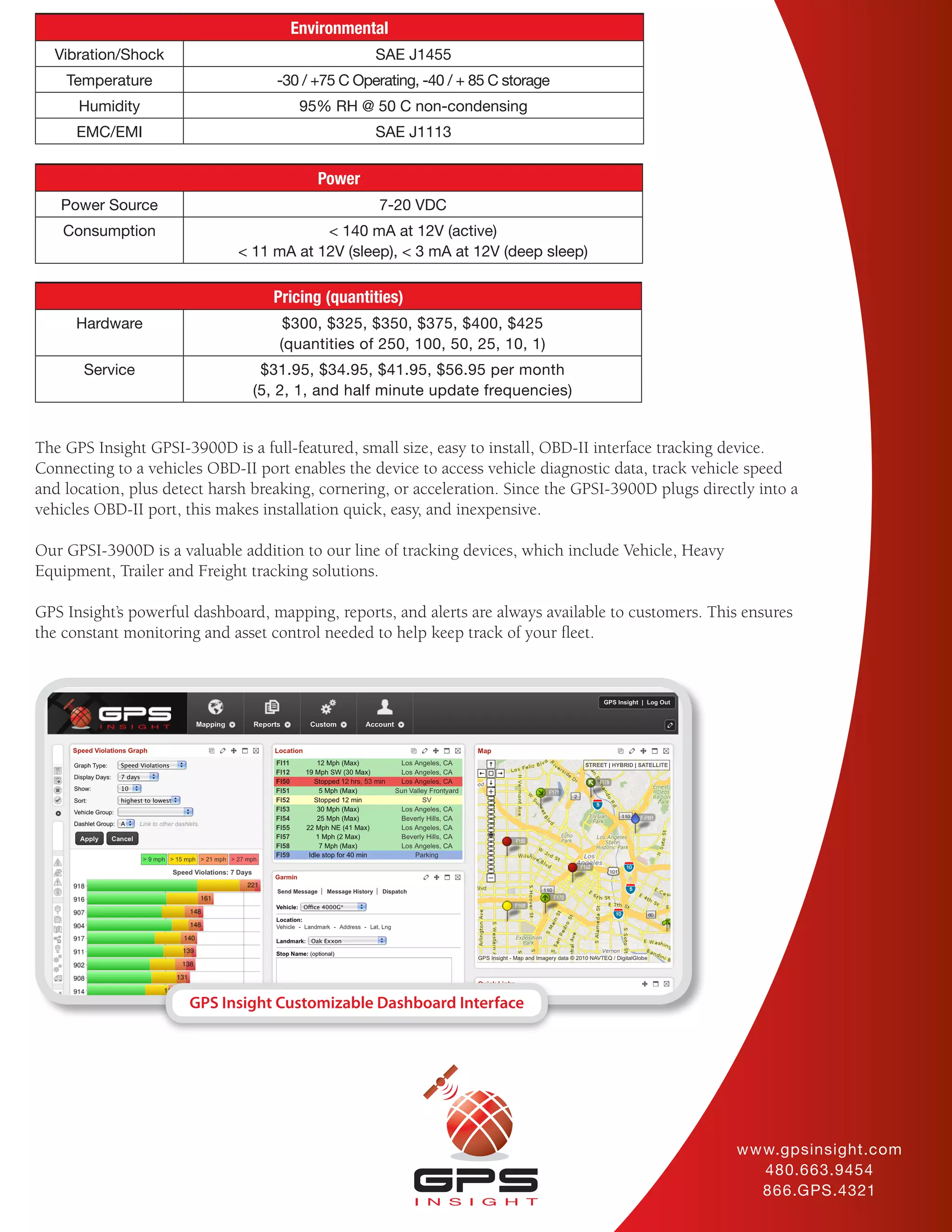

2. Environmental
Vibration/Shock SAE J1455
Temperature -30 / +75 C Operating, -40 / + 85 C storage
Humidity 95% RH @ 50 C non-condensing
EMC/EMI SAE J1113
Power
Power Source 7-20 VDC
Consumption < 140 mA at 12V (active)
< 11 mA at 12V (sleep), < 3 mA at 12V (deep sleep)
Pricing (quantities)
Hardware $300, $325, $350, $375, $400, $425
(quantities of 250, 100, 50, 25, 10, 1)
Service $31.95, $34.95, $41.95, $56.95 per month
(5, 2, 1, and half minute update frequencies)
The GPS Insight GPSI-3900D is a full-featured, small size, easy to install, OBD-II interface tracking device.
Connecting to a vehicles OBD-II port enables the device to access vehicle diagnostic data, track vehicle speed
and location, plus detect harsh breaking, cornering, or acceleration. Since the GPSI-3900D plugs directly into a
vehicles OBD-II port, this makes installation quick, easy, and inexpensive.
Our GPSI-3900D is a valuable addition to our line of tracking devices, which include Vehicle, Heavy
Equipment, Trailer and Freight tracking solutions.
GPS Insight’s powerful dashboard, mapping, reports, and alerts are always available to customers. This ensures
the constant monitoring and asset control needed to help keep track of your fleet.
GPS Insight Customizable Dashboard Interface
w w w.gpsinsight.com
480.663.9454
866.GPS.4321
