GOOD LABORATORY
PRACTICES
Magaji Amadu
OBJECTIVES
At the end of this session, PS would be able to;
 Define the term; good laboratory practices
 Describe procedures for maintaining a clean and
organized laboratory
 Describe standard safety measures required in a
laboratory
HISTORY
 GLP is a formal regulation that was created by the FDA
(United states food and drug administration) in 1978.
 In 1981 an organization named OECD (organization for
economic co-operation and development ) produced GLP
principles that are international standard.
 FDA became aware of cases of poor laboratory practice all
over the United States.
 FDA decided to do an in-depth investigation on 40
toxicology labs.
 They discovered a lot fraudulent activities and a lot of poor
lab practices.
FAMOUS EXAMPLE
 One of the labs that went under such an
investigation made headline news.
 The name of the Lab was Industrial Bio Test.
This was a big lab that ran tests for big
companies such as Procter and Gamble.
 It was discovered that mice that they had used
to test cosmetics such as lotion and deodorants
had developed cancer and died.
 Industrial Bio Test lab threw the dead mice and
covered results deeming the products good for
human consumption
THOSE INVOLVED IN PRODUCTION, DISTRIBUTION AND SALES
FOR THE LAB EVENTUALLY SERVED JAIL TIME
DEFINITION
GLP refers to general , but
important guidelines that should
be followed to ensure that a lab
facility meets the requirements
for producing quality results in a
safe environment
WHY GLP NOW?
To ensure that laboratory
investigations are conducted under
the conditions that allow the results
of the investigation to be interpreted
and presented to the medical
community with confidence.
COMPONENTS OF GLP
 Testing facility
 Personnel
 Quality Assurance Unit
 Testing process
 Documentation
 Equipment
 Standard Operating Procedures
 Reagents, solutions, and test kits
 Safety

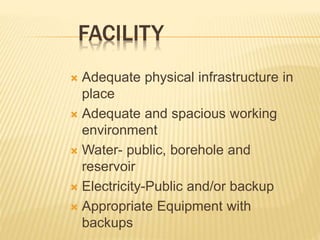

FACILITY
 Adequate physical infrastructure in
place
 Adequate and spacious working
environment
 Water- public, borehole and
reservoir
 Electricity-Public and/or backup
 Appropriate Equipment with
backups
PERSONNEL
 Develop job descriptions
(duties and responsibilities)
 Provide orientation, training,
and continuing education
programs
 Assess employee competence
and performance
DOCUMENTS
AND RECORDS
 Develop uniform format for each
document type.
 Develop and implement a system for
document revision, approval and
distribution
 Manage patient test records. Ensure
confidentiality
 Maintain a document storage, retrieval
and destruction system
RECORD AND REPORTS MAINTENANCE
 1 Facility
 Organizational charts
 Personnel records
 Equipment records
 SOP’s and policies
HAND WRITTEN RECORDS
 All handwritten records should comply
with GLP guidelines
 Recorded promptly
 Indelible
 Signed/initialed and dated by the
person making the entry
DATA CORRECTIONS
 When amending data the following
procedure should be followed
 Draw a single line through the original
entry
 Record the correct value
 Sign and date the change
 Document the reason for the change
 Do not use correction fluid.
WHAT ARE DOCUMENTS?
 Written policies
 Process descriptions
 Procedures
 Blank forms
WHAT ARE RECORDS?
INFORMATION
CAPTURED ON
WORKSHEETS,
LOGBOOKS,
FORMS AND
CHARTS
RECORDS
WHY DOCUMENTATION AND RECORD KEEPING?
 Permanent and tangible testimony
 Follow-up
 Data collection
 Research purpose
 Easy reference
 Monitoring and evaluation of
laboratories
 Planning
CONSIDERATIONS
 Simple and clear to understand
 Easy to access
 Provide Right and necessary information
 Durable
 Duplicates or Back-up should be
provided
REQUIREMENTS FOR RECORD KEEPING
Materials;
 Note books/registers
 Writing materials
 Files/folders/binders
 Electronic devices e.g. computers,diskettes,
CDs.
Storage Facilities
 File Cabinets
 Drawers/cupboards
ITEMS THAT NEED DOCUMENTATION
 SOPs
 Specimens
 Laboratory Results
 Corrective Actions
 Temperature
 Materials and stock received
 Equipment Maintenance
 Personnel items
 Requests /Orders placed
STANDARD OPERATING PROCEDURES (SOPS)
 Written procedures which describe
how tests or activities are performed.
 Clear, simple and direct to the point
 Communicated in the fewest possible
words,
 Complete - containing all the
necessary information to perform the
procedure,
 Steps must be listed sequentially.
TYPES OF SOPS
 Specific SOPs: refer to a specific test,
procedure or assay. Examples;
Determine SOP or Statpak SOP
 General SOPs: Do not pertain to a
specific test, procedure or assay.
Examples: Processing, Safety, QA
USES OF SOPS
Ensures consistent quality of
work
Provides guidance for
solving problems when
results fail to meet the
expected quality standards
USES OF SOPS
Best way to maintain optimal
quality of results
Enables everyone working at
the testing site to understand
the various procedures
Provides a stable pattern of
function
COMPONENTS OF GENERAL SOPS
 Definition
 Purpose
 Scope
 Policy
 Responsibilities
 References
 Chart, or etc.
EQUIPMENT SOPS
Additional Information May Include
 Services
 Maintenance
 Calibration
 Troubleshooting
 Repairs
 Contact Information
REFERENCES FOR SOPS
 Package Inserts
 Manuals
 Journals
 Text Books
 Internet
CORRECTIVE ACTIONS FORM
 Used to document problems in the
laboratory and corrective actions
taken, example;
a) Pre-analytical, e.g. room
temperature out of range
b) Analytical, e.g. instrument fail,
controls fail
c) Post-analytical, e.g. transcriptional
error
Remember,
 If there is no documentation, then you
did not do it
 Documentation is the only proof you
have to your claim.
SAFETY IN THE LABORATORY
 Why Is Safety Important?
 Performing testing is a potential
health hazard.
 Safety involves taking precautions to
protect yourself and your client
against infection.
UNIVERSAL PRECAUTIONS
Universal precautions are simple infection
control measures that reduce the risk of
transmission of bloodborne pathogens
through exposure to blood or body fluids
among patients and health care workers.
Under the “universal precaution” principle,
blood and body fluids from all persons
should be considered as infected with
HIV, regardless of the known or
supposed status of the person,
( WHO definition).
EVERY INDIVIDUAL’S
SPECIMEN SHOULD BE
TREATED AS INFECTIOUS
WHAT ELSE NEEDS
PROTECTION?
Other People
Products
Environment
HOW IT IS DONE
Ensure Universal Precautions
 Barrier Protection should be used
whenever samples are obtained from
patients.
 Personal protective equipment should be
worn in the laboratory when handling and
processing specimens and performing
diagnostic testing.
 All technical procedures should be
performed in a way that minimizes the
creation of aerosols, droplets, splashes or
spills.
 Mouth pipetting of all substances should be
prohibited.
X
YES
NO
HOW IT IS DONE
 After use, hypodermic needles should
not be recapped, clipped or removed
from disposable syringe. The complete
assemble should be placed in a sharps
container.
 Adequate and conveniently located
biohazard containers should be
available for disposal of contaminated
materials.
 Designate all lab areas and equipment
as “Dirty” or “Clean” (including benches,
desks,refrigerators,freezers and sinks)
HOW IT IS DONE
 Work surfaces must be
decontaminated after any spill of
potentially dangerous materials at the
end of the working day.
 Personnel must wash their hands,
before leaving the laboratory working
areas and before eating.
 Personal protective clothing must be
removed before leaving the
laboratory.
DEVELOP PERSONAL SAFE WORK
HABITS
 Pipetting by mouth is
strictly forbidden
 Never eat, drink or
smoke at the test site
 Keep food out of the
laboratory/testing site
refrigerator
 Do not apply cosmetics
in the laboratory
Lab workers Health workers Counselors
 Thank you

GLP ppt 2013.pptx

  • 1.
  • 2.
    OBJECTIVES At the endof this session, PS would be able to;  Define the term; good laboratory practices  Describe procedures for maintaining a clean and organized laboratory  Describe standard safety measures required in a laboratory
  • 3.
    HISTORY  GLP isa formal regulation that was created by the FDA (United states food and drug administration) in 1978.  In 1981 an organization named OECD (organization for economic co-operation and development ) produced GLP principles that are international standard.  FDA became aware of cases of poor laboratory practice all over the United States.  FDA decided to do an in-depth investigation on 40 toxicology labs.  They discovered a lot fraudulent activities and a lot of poor lab practices.
  • 4.
    FAMOUS EXAMPLE  Oneof the labs that went under such an investigation made headline news.  The name of the Lab was Industrial Bio Test. This was a big lab that ran tests for big companies such as Procter and Gamble.  It was discovered that mice that they had used to test cosmetics such as lotion and deodorants had developed cancer and died.  Industrial Bio Test lab threw the dead mice and covered results deeming the products good for human consumption
  • 5.
    THOSE INVOLVED INPRODUCTION, DISTRIBUTION AND SALES FOR THE LAB EVENTUALLY SERVED JAIL TIME
  • 6.
    DEFINITION GLP refers togeneral , but important guidelines that should be followed to ensure that a lab facility meets the requirements for producing quality results in a safe environment
  • 7.
    WHY GLP NOW? Toensure that laboratory investigations are conducted under the conditions that allow the results of the investigation to be interpreted and presented to the medical community with confidence.
  • 8.
    COMPONENTS OF GLP Testing facility  Personnel  Quality Assurance Unit  Testing process  Documentation  Equipment  Standard Operating Procedures  Reagents, solutions, and test kits  Safety
  • 9.
    FACILITY  Adequate physicalinfrastructure in place  Adequate and spacious working environment  Water- public, borehole and reservoir  Electricity-Public and/or backup  Appropriate Equipment with backups
  • 10.
    PERSONNEL  Develop jobdescriptions (duties and responsibilities)  Provide orientation, training, and continuing education programs  Assess employee competence and performance
  • 11.
    DOCUMENTS AND RECORDS  Developuniform format for each document type.  Develop and implement a system for document revision, approval and distribution  Manage patient test records. Ensure confidentiality  Maintain a document storage, retrieval and destruction system
  • 12.
    RECORD AND REPORTSMAINTENANCE  1 Facility  Organizational charts  Personnel records  Equipment records  SOP’s and policies
  • 13.
    HAND WRITTEN RECORDS All handwritten records should comply with GLP guidelines  Recorded promptly  Indelible  Signed/initialed and dated by the person making the entry
  • 14.
    DATA CORRECTIONS  Whenamending data the following procedure should be followed  Draw a single line through the original entry  Record the correct value  Sign and date the change  Document the reason for the change  Do not use correction fluid.
  • 15.
    WHAT ARE DOCUMENTS? Written policies  Process descriptions  Procedures  Blank forms
  • 16.
    WHAT ARE RECORDS? INFORMATION CAPTUREDON WORKSHEETS, LOGBOOKS, FORMS AND CHARTS RECORDS
  • 17.
    WHY DOCUMENTATION ANDRECORD KEEPING?  Permanent and tangible testimony  Follow-up  Data collection  Research purpose  Easy reference  Monitoring and evaluation of laboratories  Planning
  • 18.
    CONSIDERATIONS  Simple andclear to understand  Easy to access  Provide Right and necessary information  Durable  Duplicates or Back-up should be provided
  • 19.
    REQUIREMENTS FOR RECORDKEEPING Materials;  Note books/registers  Writing materials  Files/folders/binders  Electronic devices e.g. computers,diskettes, CDs. Storage Facilities  File Cabinets  Drawers/cupboards
  • 20.
    ITEMS THAT NEEDDOCUMENTATION  SOPs  Specimens  Laboratory Results  Corrective Actions  Temperature  Materials and stock received  Equipment Maintenance  Personnel items  Requests /Orders placed
  • 21.
    STANDARD OPERATING PROCEDURES(SOPS)  Written procedures which describe how tests or activities are performed.  Clear, simple and direct to the point  Communicated in the fewest possible words,  Complete - containing all the necessary information to perform the procedure,  Steps must be listed sequentially.
  • 22.
    TYPES OF SOPS Specific SOPs: refer to a specific test, procedure or assay. Examples; Determine SOP or Statpak SOP  General SOPs: Do not pertain to a specific test, procedure or assay. Examples: Processing, Safety, QA
  • 23.
    USES OF SOPS Ensuresconsistent quality of work Provides guidance for solving problems when results fail to meet the expected quality standards
  • 24.
    USES OF SOPS Bestway to maintain optimal quality of results Enables everyone working at the testing site to understand the various procedures Provides a stable pattern of function
  • 25.
    COMPONENTS OF GENERALSOPS  Definition  Purpose  Scope  Policy  Responsibilities  References  Chart, or etc.
  • 26.
    EQUIPMENT SOPS Additional InformationMay Include  Services  Maintenance  Calibration  Troubleshooting  Repairs  Contact Information
  • 27.
    REFERENCES FOR SOPS Package Inserts  Manuals  Journals  Text Books  Internet
  • 28.
    CORRECTIVE ACTIONS FORM Used to document problems in the laboratory and corrective actions taken, example; a) Pre-analytical, e.g. room temperature out of range b) Analytical, e.g. instrument fail, controls fail c) Post-analytical, e.g. transcriptional error
  • 29.
    Remember,  If thereis no documentation, then you did not do it  Documentation is the only proof you have to your claim.
  • 30.
    SAFETY IN THELABORATORY  Why Is Safety Important?  Performing testing is a potential health hazard.  Safety involves taking precautions to protect yourself and your client against infection.
  • 31.
    UNIVERSAL PRECAUTIONS Universal precautionsare simple infection control measures that reduce the risk of transmission of bloodborne pathogens through exposure to blood or body fluids among patients and health care workers. Under the “universal precaution” principle, blood and body fluids from all persons should be considered as infected with HIV, regardless of the known or supposed status of the person, ( WHO definition).
  • 32.
    EVERY INDIVIDUAL’S SPECIMEN SHOULDBE TREATED AS INFECTIOUS
  • 33.
    WHAT ELSE NEEDS PROTECTION? OtherPeople Products Environment
  • 34.
    HOW IT ISDONE Ensure Universal Precautions  Barrier Protection should be used whenever samples are obtained from patients.  Personal protective equipment should be worn in the laboratory when handling and processing specimens and performing diagnostic testing.  All technical procedures should be performed in a way that minimizes the creation of aerosols, droplets, splashes or spills.  Mouth pipetting of all substances should be prohibited. X YES NO
  • 35.
    HOW IT ISDONE  After use, hypodermic needles should not be recapped, clipped or removed from disposable syringe. The complete assemble should be placed in a sharps container.  Adequate and conveniently located biohazard containers should be available for disposal of contaminated materials.  Designate all lab areas and equipment as “Dirty” or “Clean” (including benches, desks,refrigerators,freezers and sinks)
  • 36.
    HOW IT ISDONE  Work surfaces must be decontaminated after any spill of potentially dangerous materials at the end of the working day.  Personnel must wash their hands, before leaving the laboratory working areas and before eating.  Personal protective clothing must be removed before leaving the laboratory.
  • 37.
    DEVELOP PERSONAL SAFEWORK HABITS  Pipetting by mouth is strictly forbidden  Never eat, drink or smoke at the test site  Keep food out of the laboratory/testing site refrigerator  Do not apply cosmetics in the laboratory Lab workers Health workers Counselors
  • 38.
