1. Git for Excel
Felix Zumstein, 23 September 2019
xlwings Meetup London

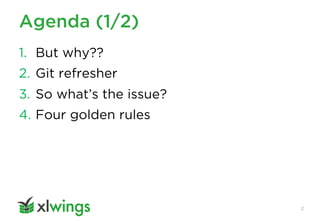

2. Agenda (1/2)
2
1. But why??
2. Git refresher
3. So what’s the issue?
4. Four golden rules

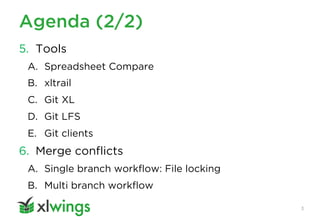

3. Agenda (2/2)
3
5. Tools
A. Spreadsheet Compare
B. xltrail
C. Git XL
D. Git LFS
E. Git clients
6. Merge conflicts
A. Single branch workflow: File locking
B. Multi branch workflow

4. About us

5. Innovative Solutions
for Microsoft Excel
A small team with a big mission
5

6. xlwings
6
• Python for Excel
• Scripts, UDFs,
Macros, REST API
• Windows & Mac
(except UDFs)
• Free & open-source
• New: Professional
support plans

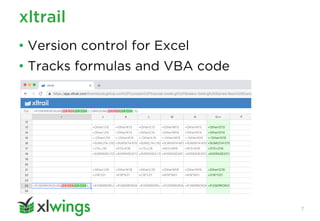

7. xltrail
7
• Version control for Excel
• Tracks formulas and VBA code

8. • Local Git extension that makes git diff
and git merge work with VBA code (only)
• Free & open-source
Git XL
8

9. xlwings CI
9
Continuous integration for Excel files
• Write unit tests for Excel files with xlwings
• Run them automatically on the server after
pushing changes to your Git repo
Example: Gitlab Pipeline

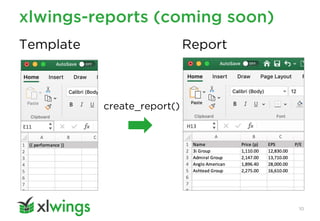

10. xlwings-reports (coming soon)
10
Template Report
create_report()

11. 1. But why??

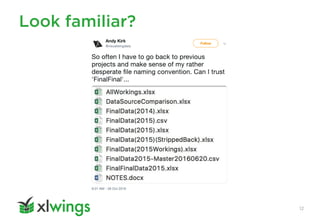

12. Look familiar?
12

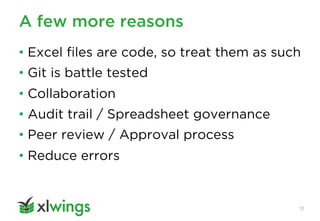

13. A few more reasons
13
• Excel files are code, so treat them as such
• Git is battle tested
• Collaboration
• Audit trail / Spreadsheet governance
• Peer review / Approval process
• Reduce errors

14. 2. Git refresher

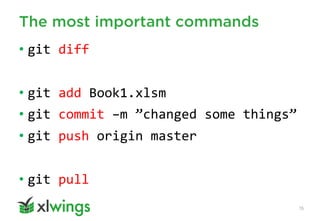

15. The most important commands
15
• git diff
• git add Book1.xlsm
• git commit –m ”changed some things”
• git push origin master
• git pull

16. 3. So what’s the issue?

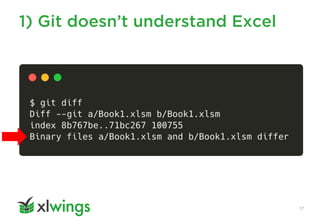

17. 1) Git doesn’t understand Excel
17

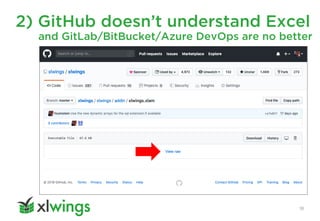

18. 2) GitHub doesn’t understand Excel
18
and GitLab/BitBucket/Azure DevOps are no better

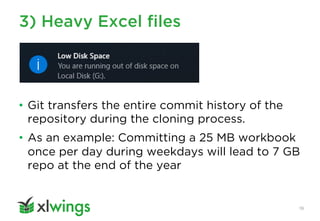

19. 3) Heavy Excel files
19
• Git transfers the entire commit history of the
repository during the cloning process.
• As an example: Committing a 25 MB workbook
once per day during weekdays will lead to 7 GB
repo at the end of the year

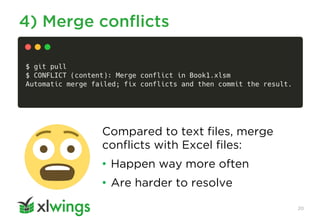

20. 4) Merge conflicts
20
Compared to text files, merge
conflicts with Excel files:
• Happen way more often
• Are harder to resolve

21. 4. Four golden rules

22. 1) No more versioned file names!
22
Financial Model_v1.xlsb
Financial Model.xlsb

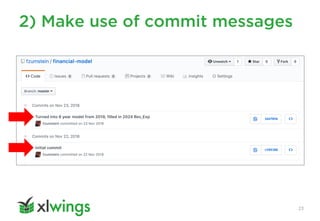

23. 2) Make use of commit messages
23

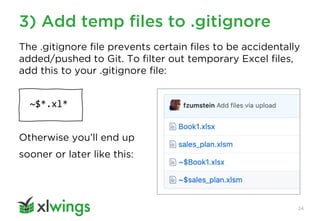

24. 3) Add temp files to .gitignore
24
The .gitignore file prevents certain files to be accidentally
added/pushed to Git. To filter out temporary Excel files,
add this to your .gitignore file:
~$*.xl*
Otherwise you’ll end up
sooner or later like this:

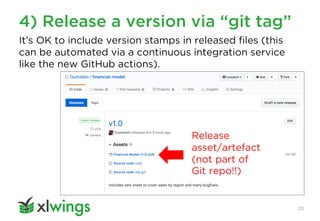

25. 4) Release a version via “git tag”
25
Release
asset/artefact
(not part of
Git repo!!)
It’s OK to include version stamps in released files (this
can be automated via a continuous integration service
like the new GitHub actions).

26. 5. Tools

27. A. Spreadsheet Compare

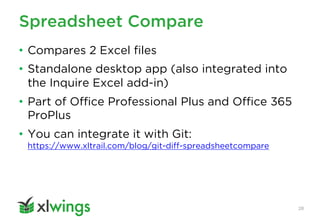

28. Spreadsheet Compare
28
• Compares 2 Excel files
• Standalone desktop app (also integrated into
the Inquire Excel add-in)
• Part of Office Professional Plus and Office 365
ProPlus
• You can integrate it with Git:
https://www.xltrail.com/blog/git-diff-spreadsheetcompare

29. Sheet comparison
29

30. VBA comparison
30

31. B. xltrail

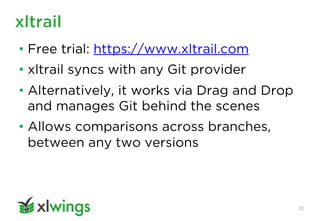

32. xltrail
32
• Free trial: https://www.xltrail.com
• xltrail syncs with any Git provider
• Alternatively, it works via Drag and Drop
and manages Git behind the scenes
• Allows comparisons across branches,
between any two versions

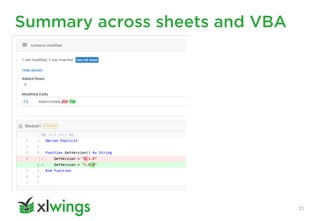

33. Summary across sheets and VBA
33

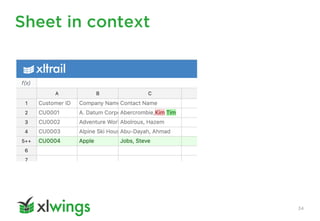

34. Sheet in context
34

35. C. Git XL

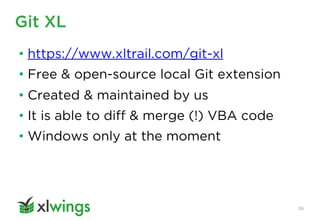

36. Git XL
36
• https://www.xltrail.com/git-xl
• Free & open-source local Git extension
• Created & maintained by us
• It is able to diff & merge (!) VBA code
• Windows only at the moment

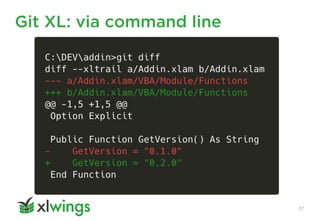

37. Git XL: via command line
37

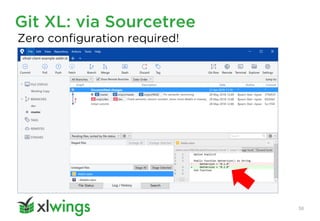

38. Git XL: via Sourcetree
38
Zero configuration required!

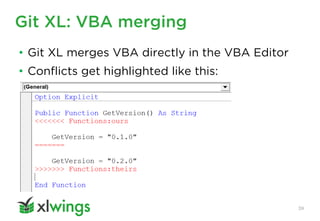

39. Git XL: VBA merging
39
• Git XL merges VBA directly in the VBA Editor
• Conflicts get highlighted like this:

40. D. Git LFS (Large File Storage)

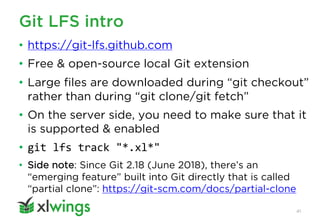

41. Git LFS intro
41
• https://git-lfs.github.com
• Free & open-source local Git extension
• Large files are downloaded during “git checkout”
rather than during “git clone/git fetch”
• On the server side, you need to make sure that it
is supported & enabled
• git lfs track "*.xl*"
• Side note: Since Git 2.18 (June 2018), there’s an
“emerging feature” built into Git directly that is called
“partial clone”: https://git-scm.com/docs/partial-clone

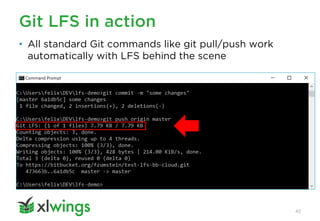

42. Git LFS in action
42
• All standard Git commands like git pull/push work
automatically with LFS behind the scene

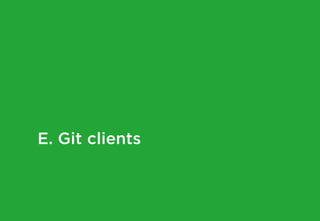

43. E. Git clients

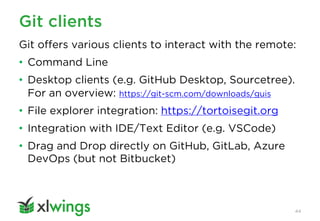

44. Git clients
44
Git offers various clients to interact with the remote:
• Command Line
• Desktop clients (e.g. GitHub Desktop, Sourcetree).
For an overview: https://git-scm.com/downloads/guis
• File explorer integration: https://tortoisegit.org
• Integration with IDE/Text Editor (e.g. VSCode)
• Drag and Drop directly on GitHub, GitLab, Azure
DevOps (but not Bitbucket)

45. 6. Merge conflicts

46. Merge conflicts will bite you!
46
They also happen:
• with a single master branch
• with a single user
For example:
• You commit during the day at work. In the
evening, you continue at home and forget to
pull before you make a new commit.

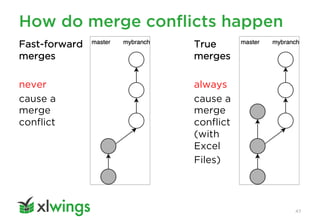

47. How do merge conflicts happen
47
True
merges
always
cause a
merge
conflict
(with
Excel
Files)
Fast-forward
merges
never
cause a
merge
conflict

48. A. Single branch workflow:
File locking

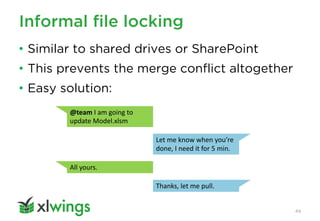

49. Informal file locking
49
• Similar to shared drives or SharePoint
• This prevents the merge conflict altogether
• Easy solution:
@team I am going to
update Model.xlsm
Let me know when you’re
done, I need it for 5 min.
All yours.
Thanks, let me pull.

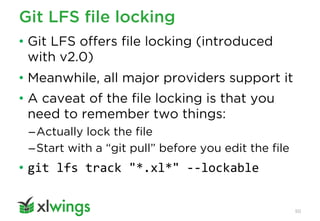

50. Git LFS file locking
50
• Git LFS offers file locking (introduced
with v2.0)
• Meanwhile, all major providers support it
• A caveat of the file locking is that you
need to remember two things:
–Actually lock the file
–Start with a “git pull” before you edit the file
• git lfs track "*.xl*" --lockable

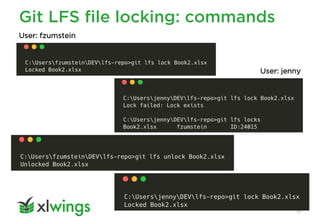

51. Git LFS file locking: commands
51
User: fzumstein
User: jenny

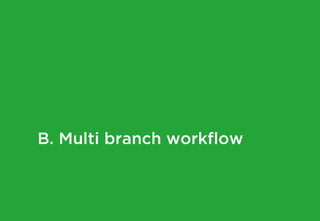

52. B. Multi branch workflow

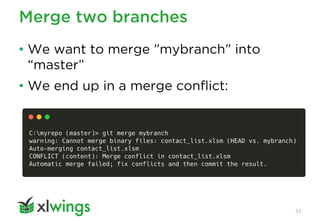

53. Merge two branches
53
• We want to merge ”mybranch” into
“master”
• We end up in a merge conflict:

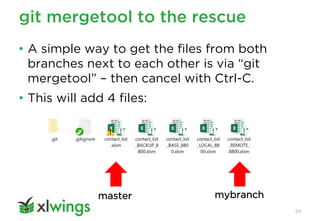

54. git mergetool to the rescue
54
• A simple way to get the files from both
branches next to each other is via “git
mergetool” – then cancel with Ctrl-C.
• This will add 4 files:
master mybranch

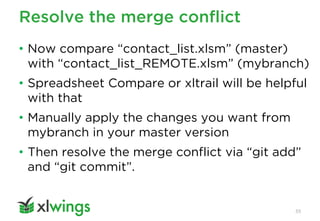

55. Resolve the merge conflict
55
• Now compare “contact_list.xlsm” (master)
with “contact_list_REMOTE.xlsm” (mybranch)
• Spreadsheet Compare or xltrail will be helpful
with that
• Manually apply the changes you want from
mybranch in your master version
• Then resolve the merge conflict via “git add”
and “git commit”.

56. Thank You
Let’s connect:
https://www.linkedin.com/in/felix-zumstein
More material:
https://www.xltrail.com/blog
