GIS AND TERRAIN ANALYSIS FOR UNDERSTANDING WATER PROCESSES AND FEATURES
The document outlines the inaugural meeting of the UNESCO Water Scientific Meeting Series held on March 11, 2014, at the University for Foreigners of Perugia. It focuses on using GIS for terrain analysis related to water resources and hydrogeomorphic applications, including floodplain mapping and large-scale engineering applications. The meeting included presentations on various river basins, highlighting methodologies and ongoing research in understanding water processes through terrain analysis.
![[001198]](https://cdn.slidesharecdn.com/ss_thumbnails/001198-161227122410-thumbnail.jpg?width=640&height=640&fit=bounds)
GIS AND TERRAIN ANALYSIS FOR UNDERSTANDING WATER PROCESSES AND FEATURES
- 1. UNESCO and WATER SCIENTIFIC MEETING SERIES SM S3 jointly organized by Unesco Chair «Water Resources Management and Culture» Inaugural Mee+ng MARCH 11, 2014 University for Foreigners of Perugia -‐ Palazzo Gallenga Sala Goldoniana GIS AND TERRAIN ANALYSIS FOR UNDERSTANDING WATER PROCESSES AND FEATURES Talk @ Unesco Chair Inaugural MeeRng Perugia, Italy, March 11th, 2014 Fernando Nardi University for Foreigners of Perugia

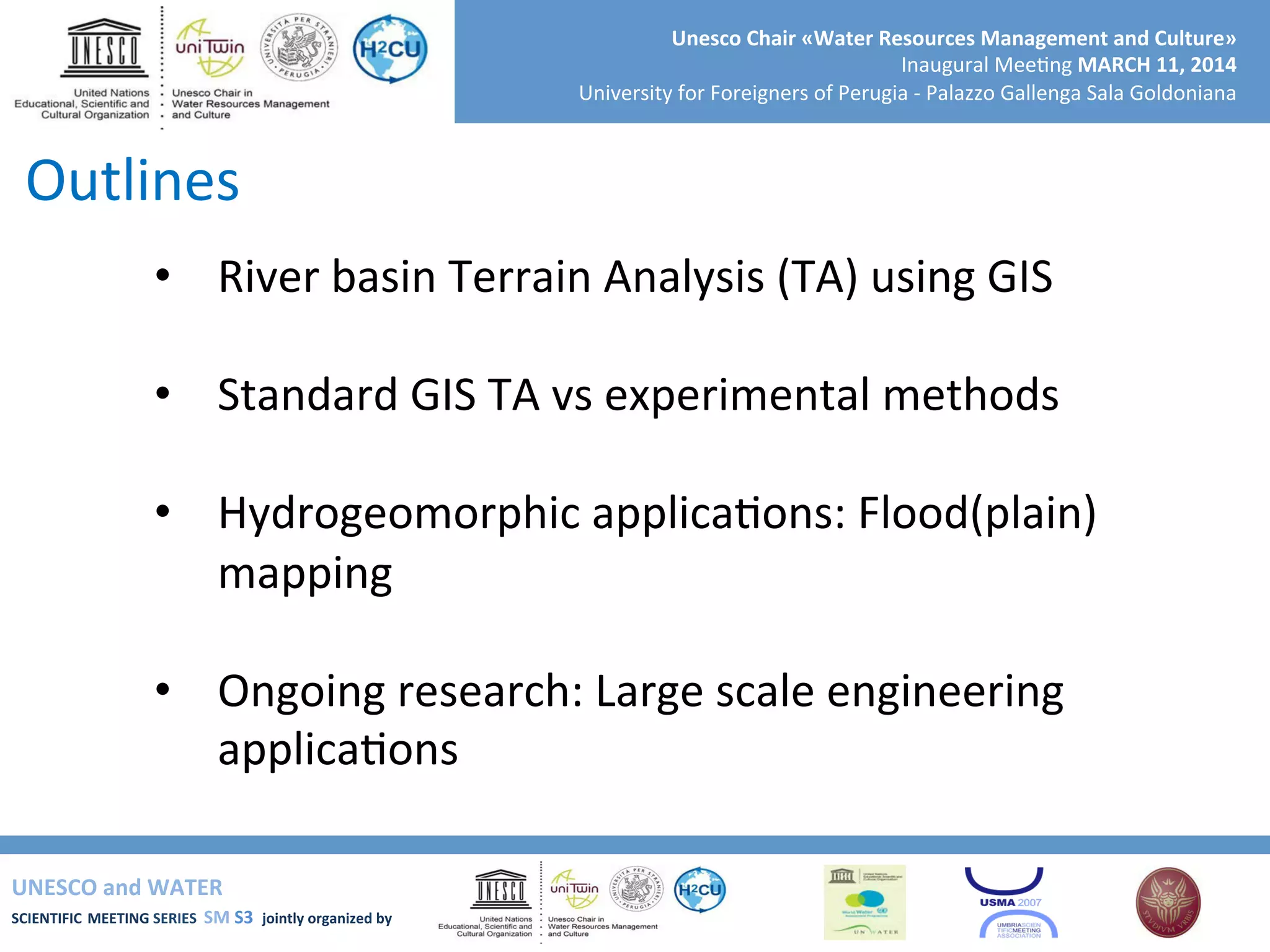

- 2. UNESCO and WATER SCIENTIFIC MEETING SERIES SM S3 jointly organized by Unesco Chair «Water Resources Management and Culture» Inaugural Mee+ng MARCH 11, 2014 University for Foreigners of Perugia -‐ Palazzo Gallenga Sala Goldoniana • River basin Terrain Analysis (TA) using GIS • Standard GIS TA vs experimental methods • Hydrogeomorphic applica+ons: Flood(plain) mapping • Ongoing research: Large scale engineering applica+ons Outlines

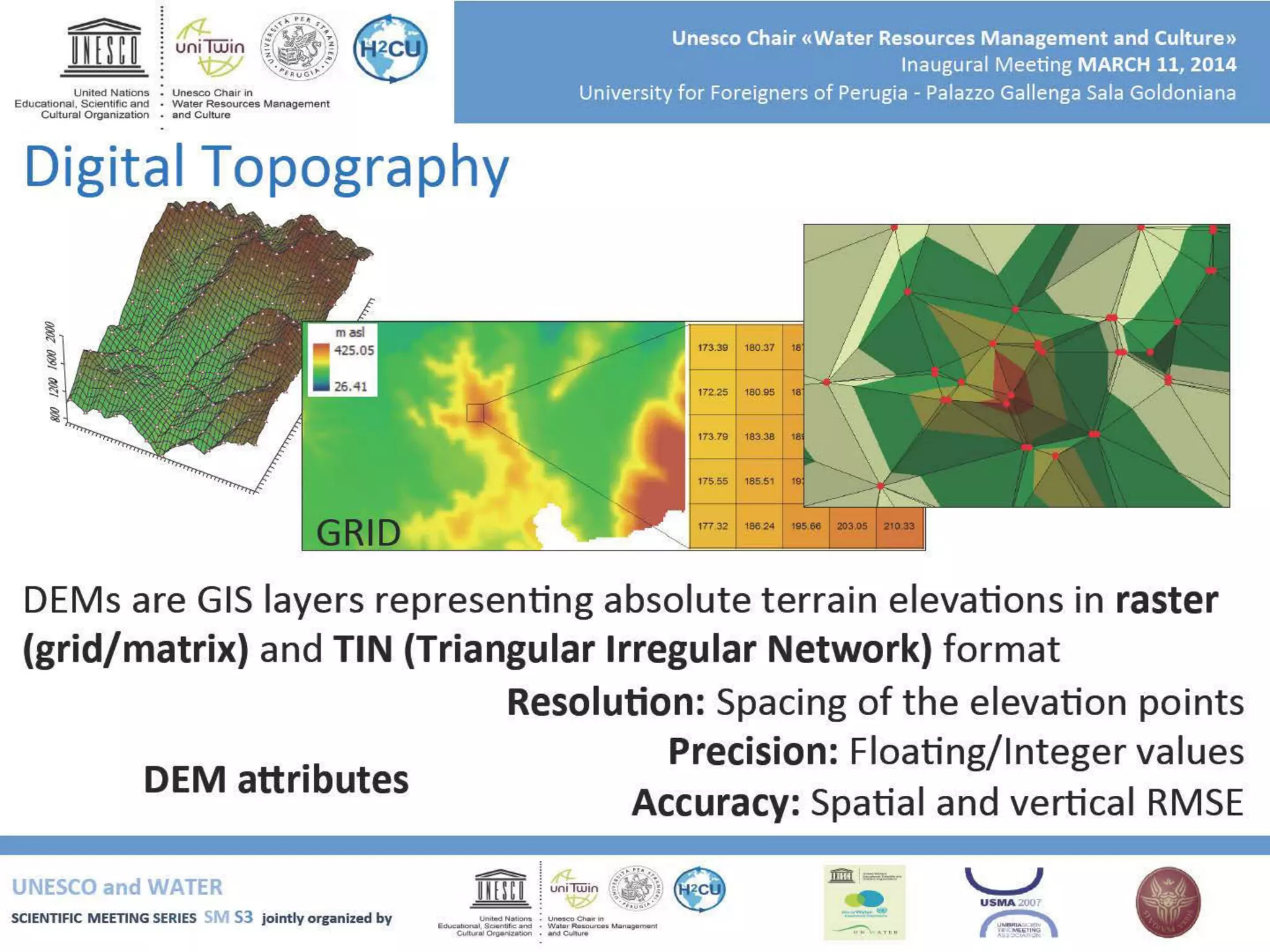

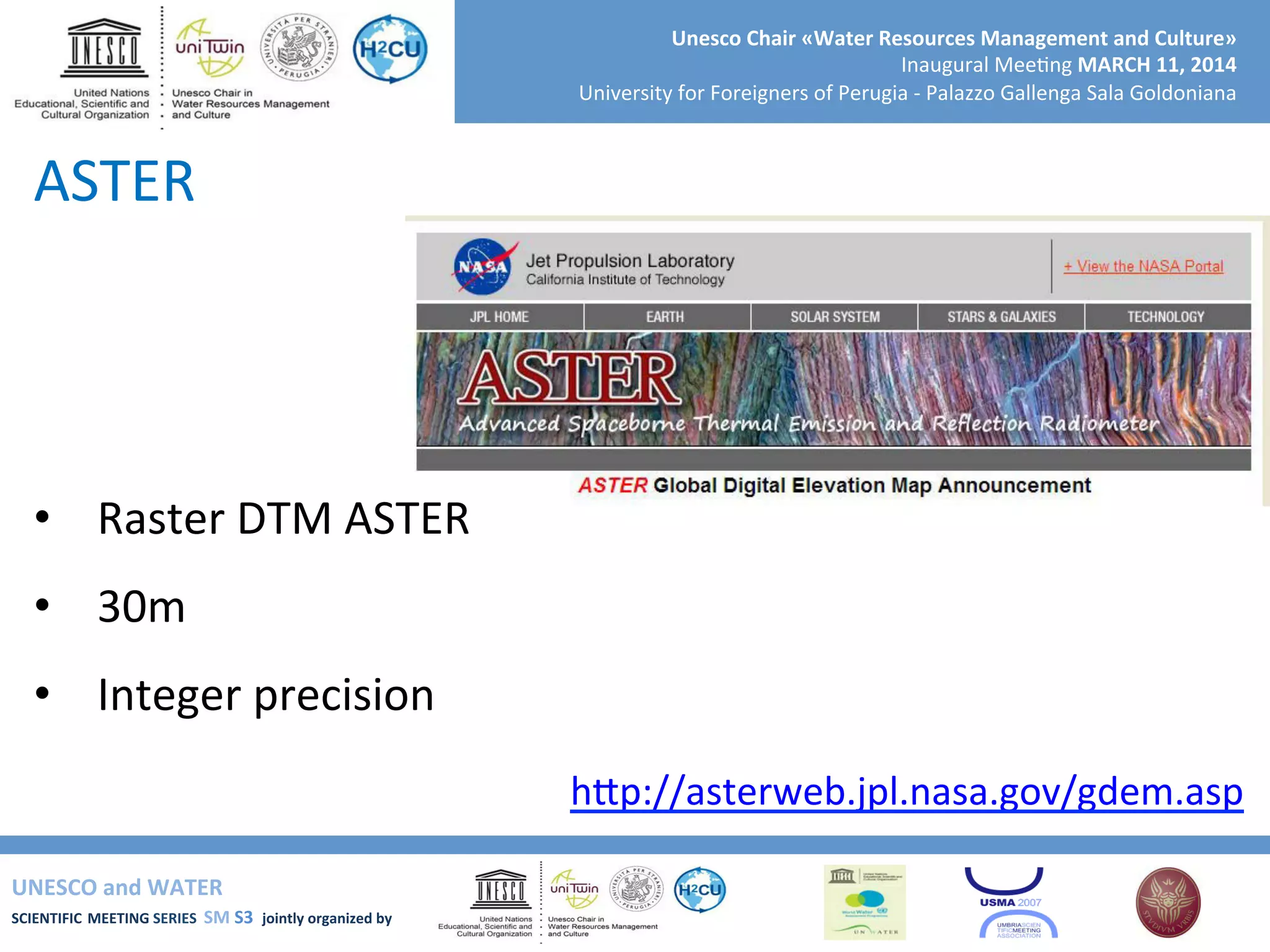

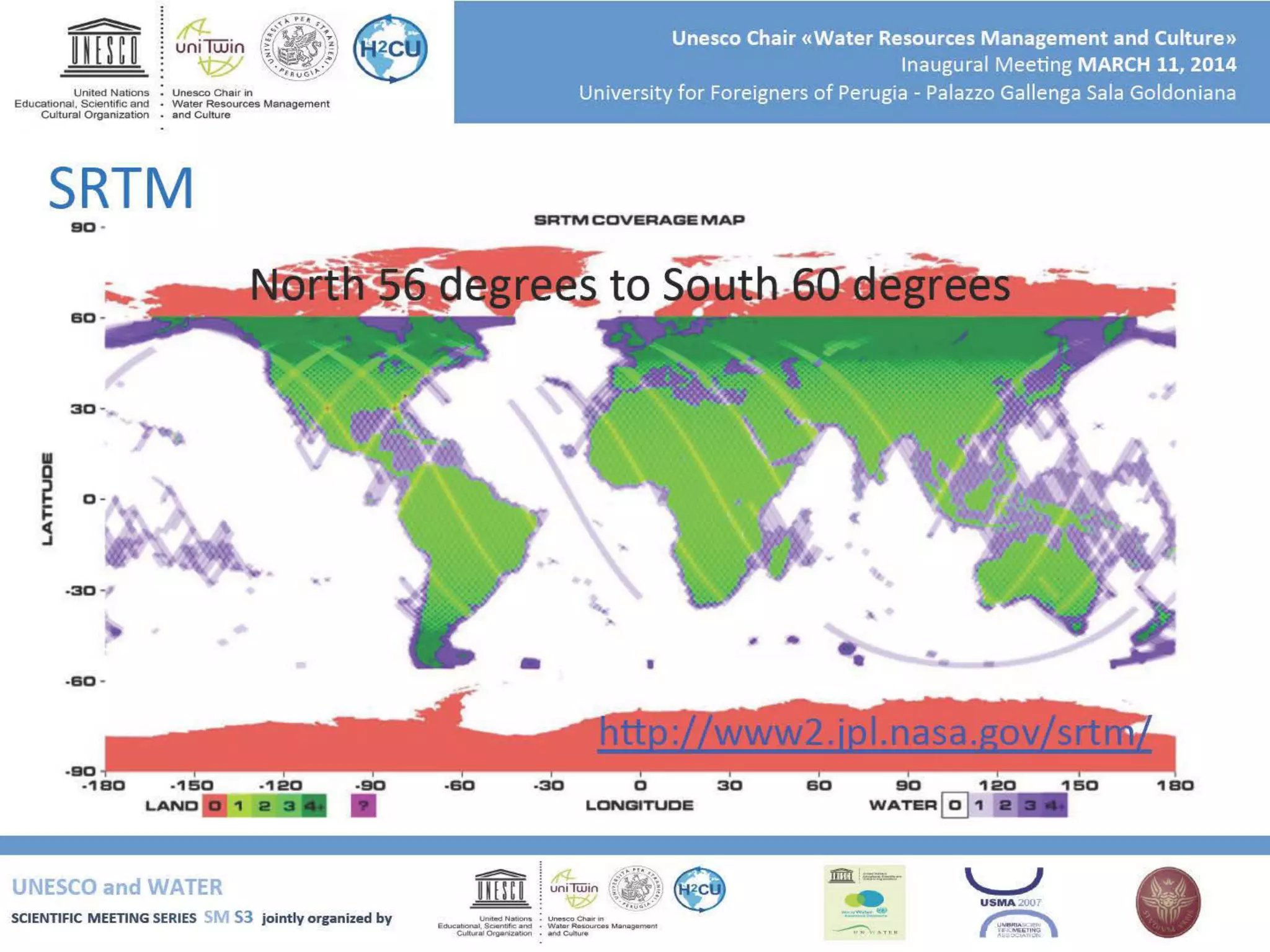

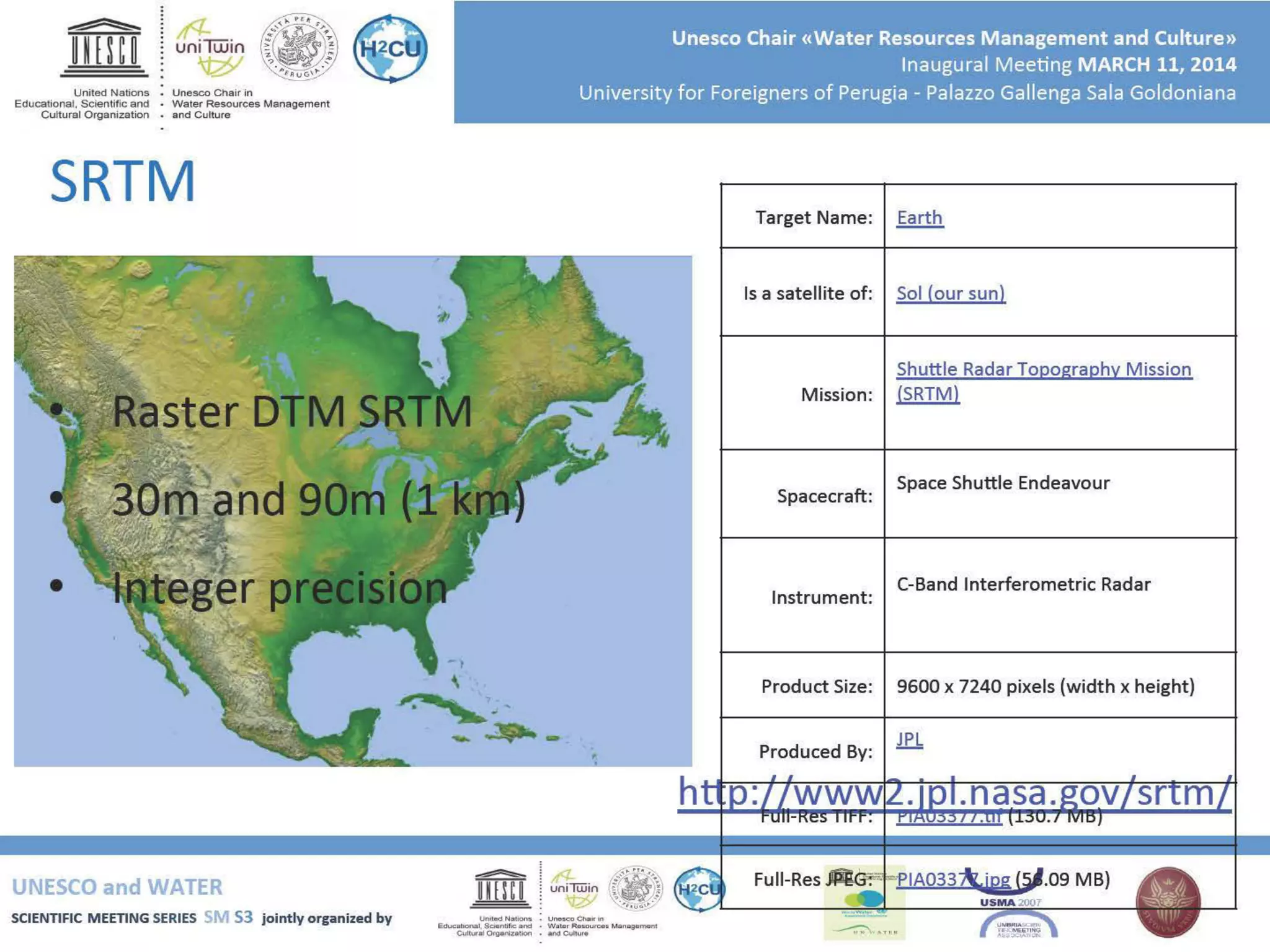

- 7. UNESCO and WATER SCIENTIFIC MEETING SERIES SM S3 jointly organized by Unesco Chair «Water Resources Management and Culture» Inaugural Mee+ng MARCH 11, 2014 University for Foreigners of Perugia -‐ Palazzo Gallenga Sala Goldoniana ASTER • Raster DTM ASTER • 30m • Integer precision hSp://asterweb.jpl.nasa.gov/gdem.asp

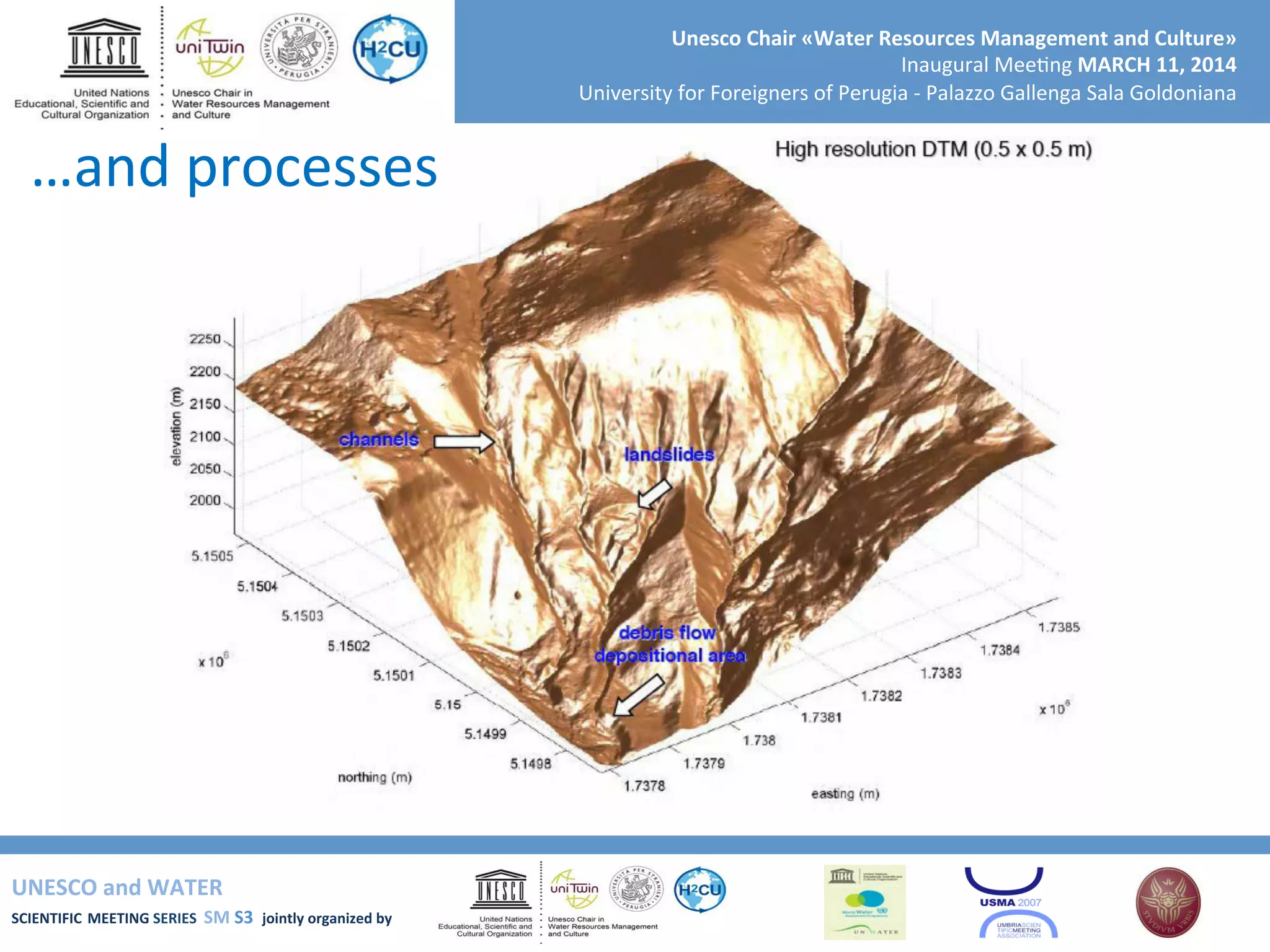

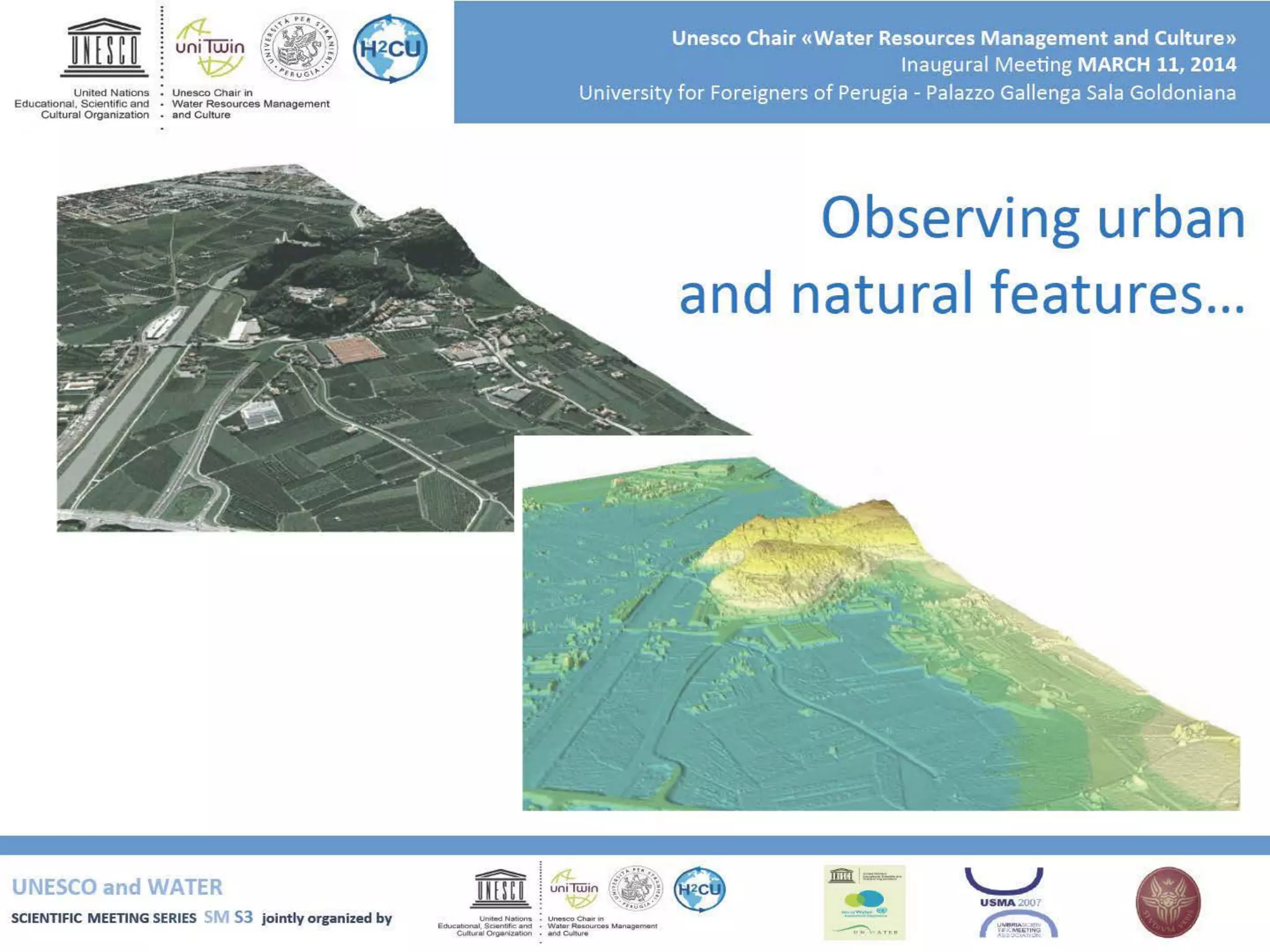

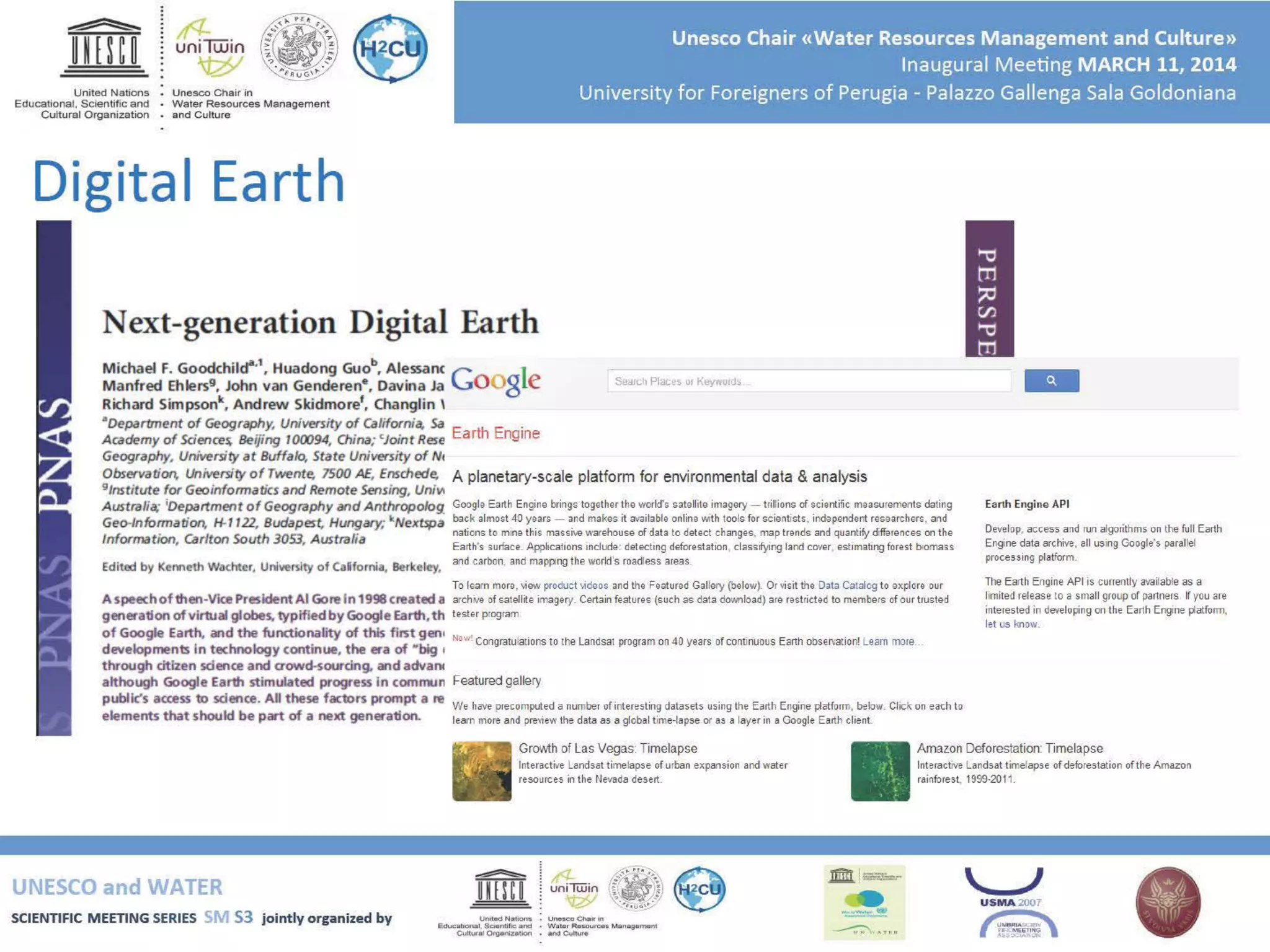

- 12. UNESCO and WATER SCIENTIFIC MEETING SERIES SM S3 jointly organized by Unesco Chair «Water Resources Management and Culture» Inaugural Mee+ng MARCH 11, 2014 University for Foreigners of Perugia -‐ Palazzo Gallenga Sala Goldoniana …and processes

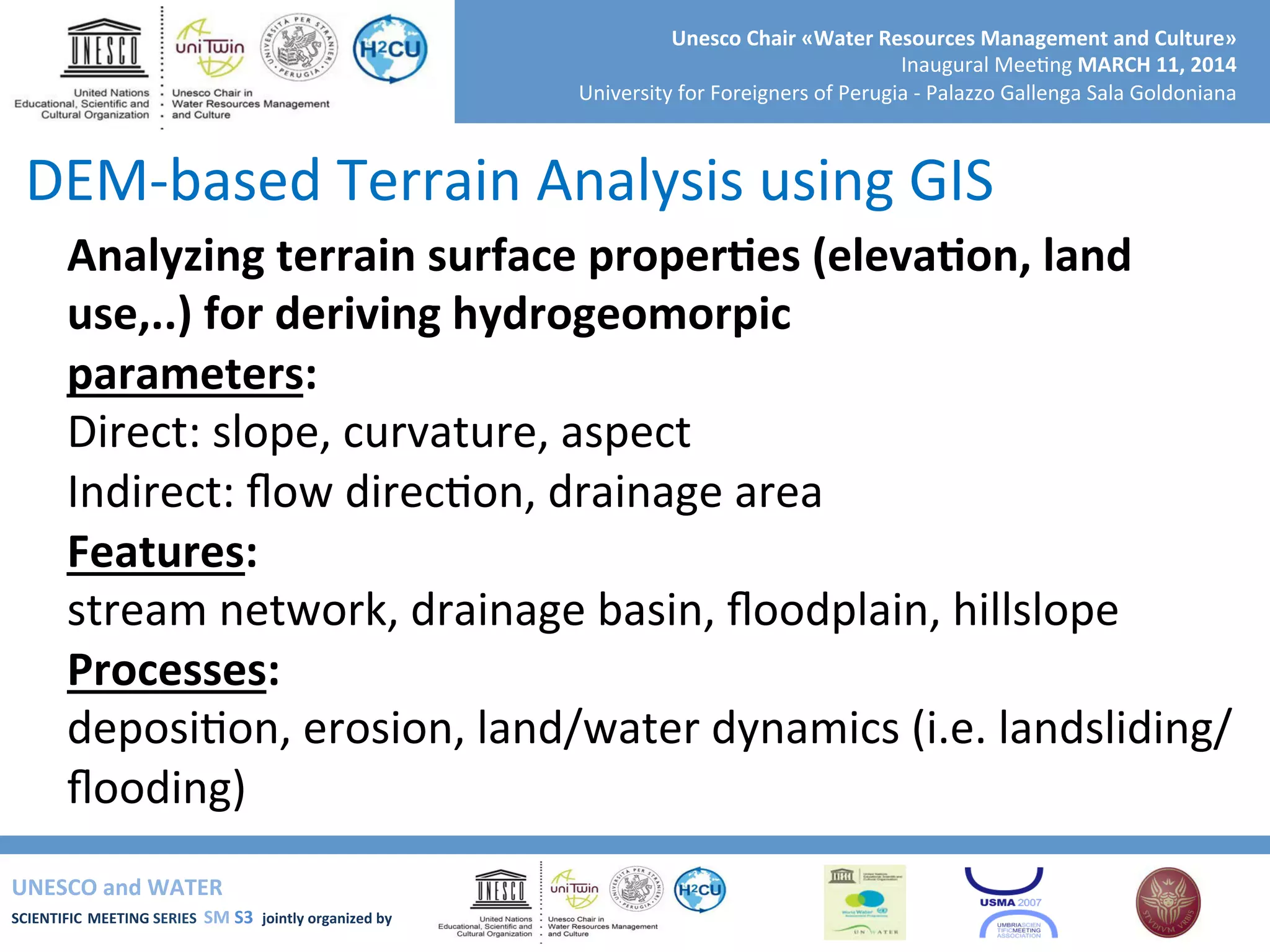

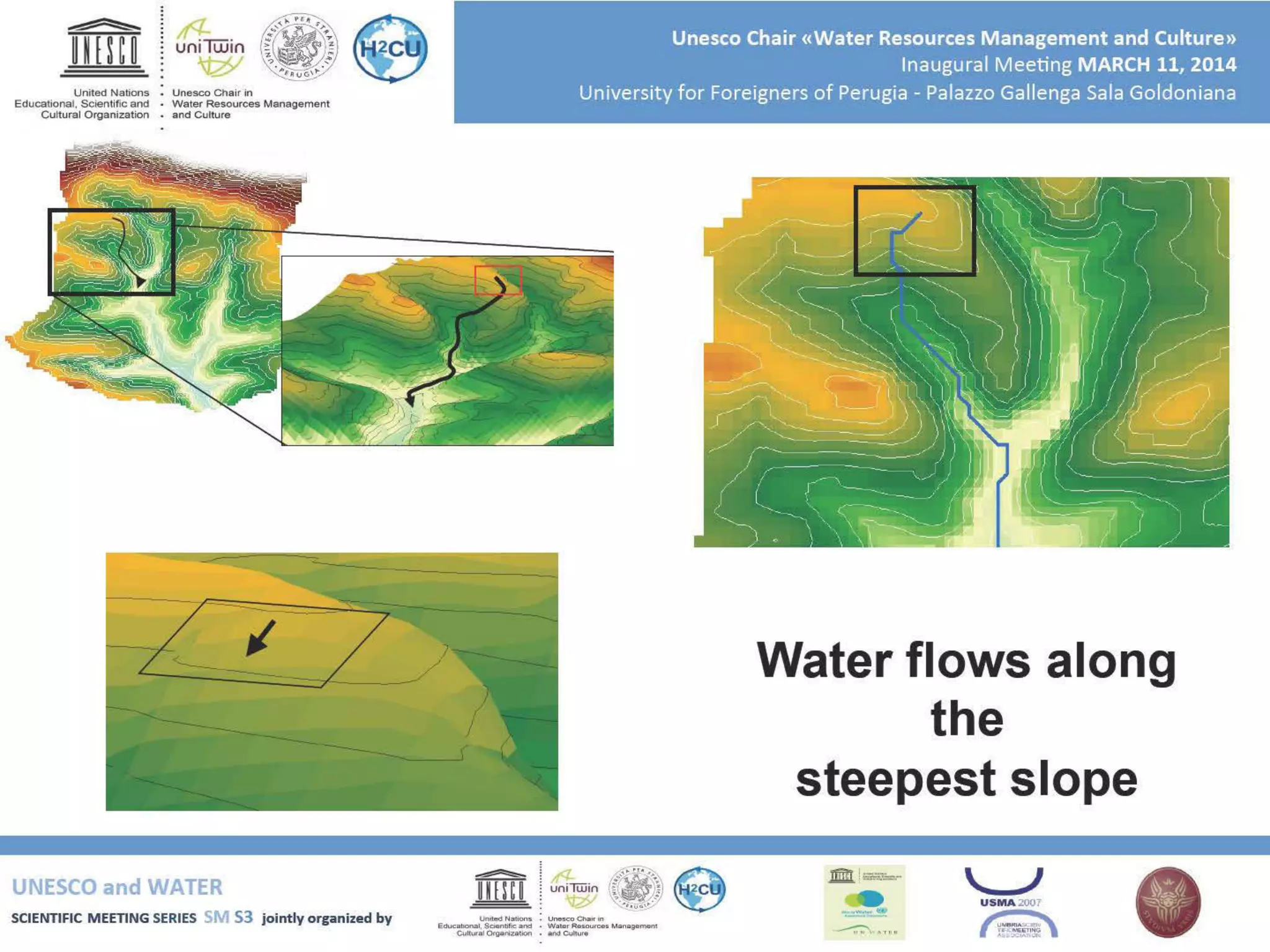

- 13. UNESCO and WATER SCIENTIFIC MEETING SERIES SM S3 jointly organized by Unesco Chair «Water Resources Management and Culture» Inaugural Mee+ng MARCH 11, 2014 University for Foreigners of Perugia -‐ Palazzo Gallenga Sala Goldoniana Analyzing terrain surface properRes (elevaRon, land use,..) for deriving hydrogeomorpic parameters: Direct: slope, curvature, aspect Indirect: flow direc+on, drainage area Features: stream network, drainage basin, floodplain, hillslope Processes: deposi+on, erosion, land/water dynamics (i.e. landsliding/ flooding) DEM-‐based Terrain Analysis using GIS

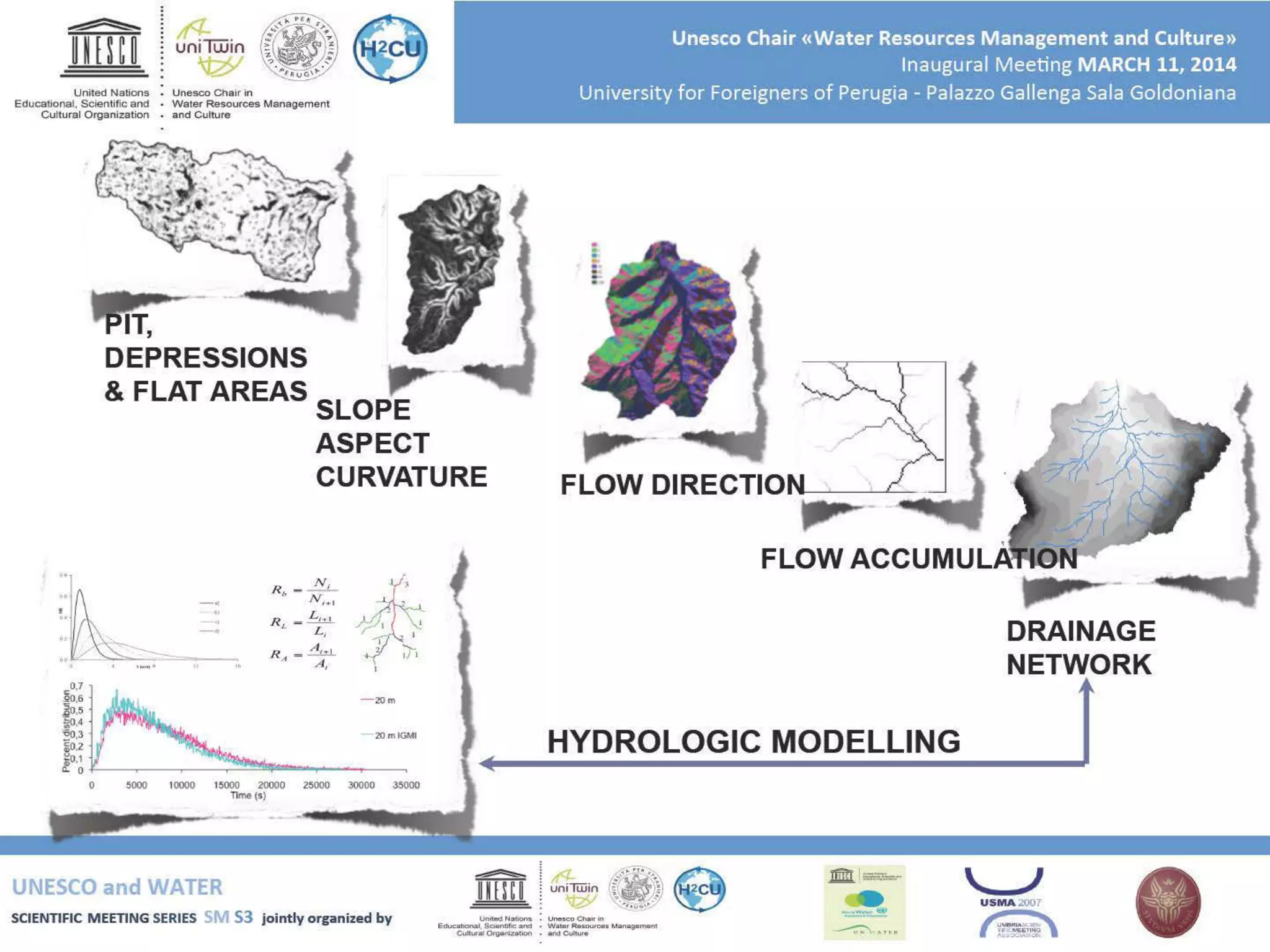

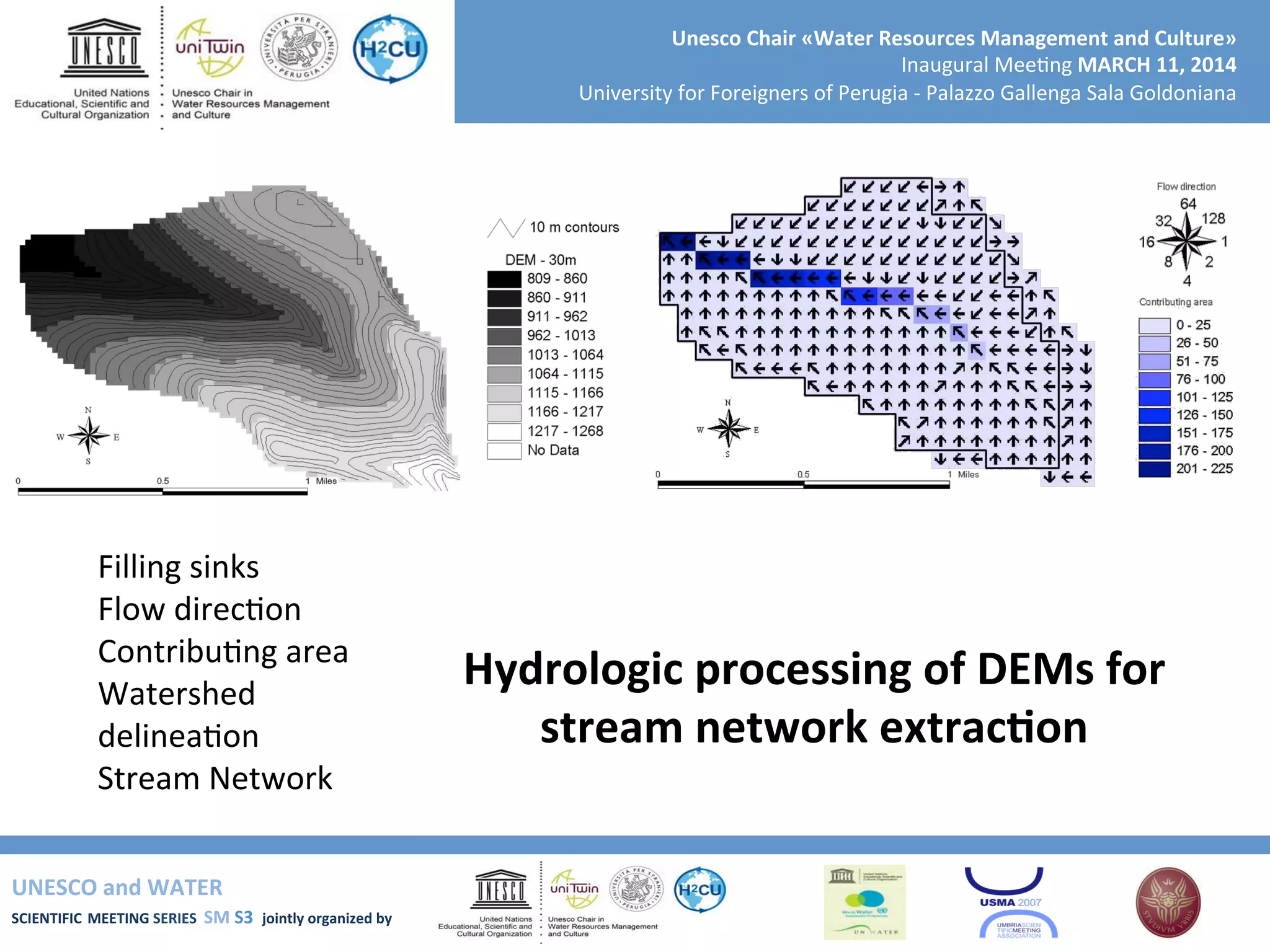

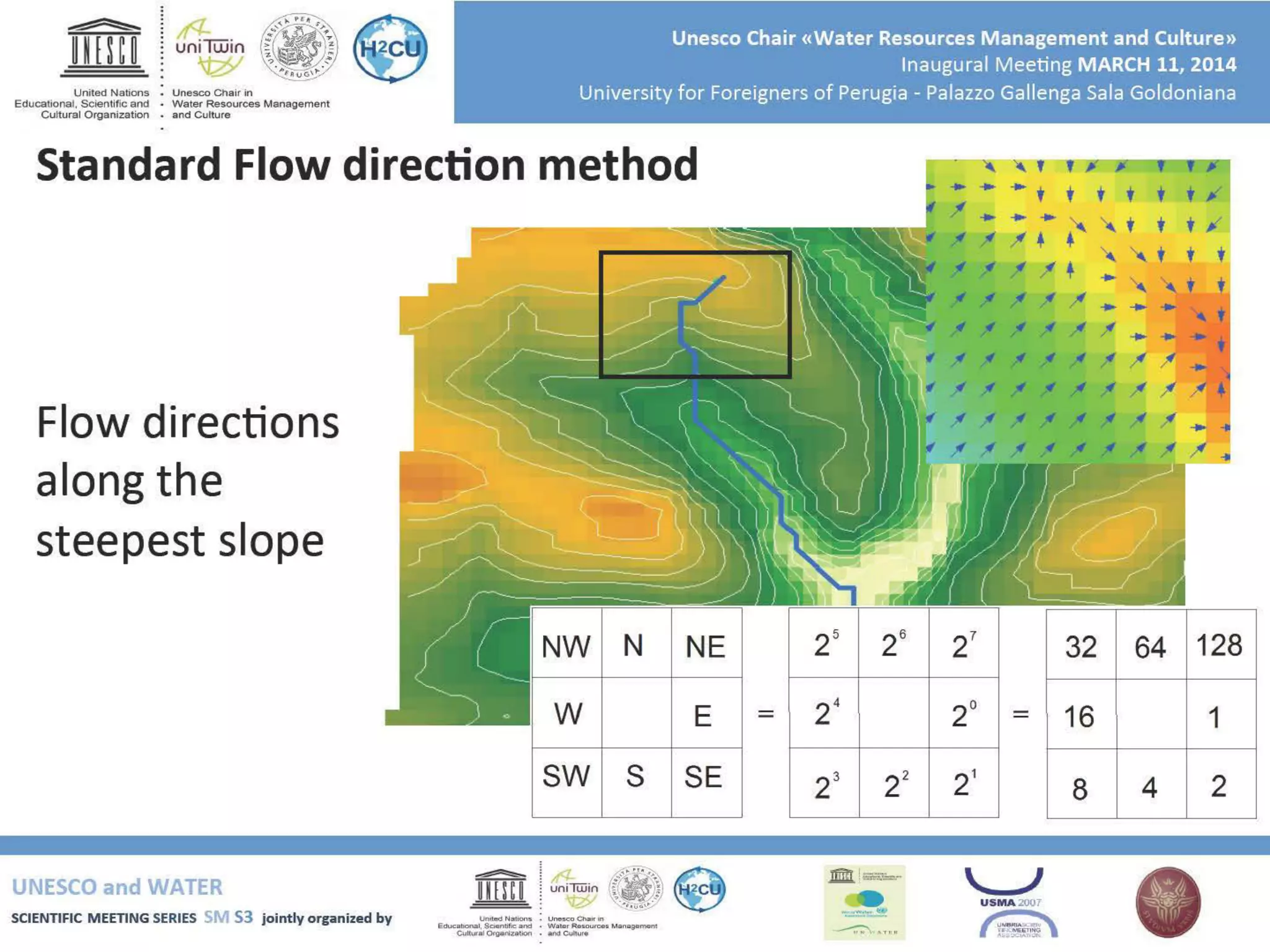

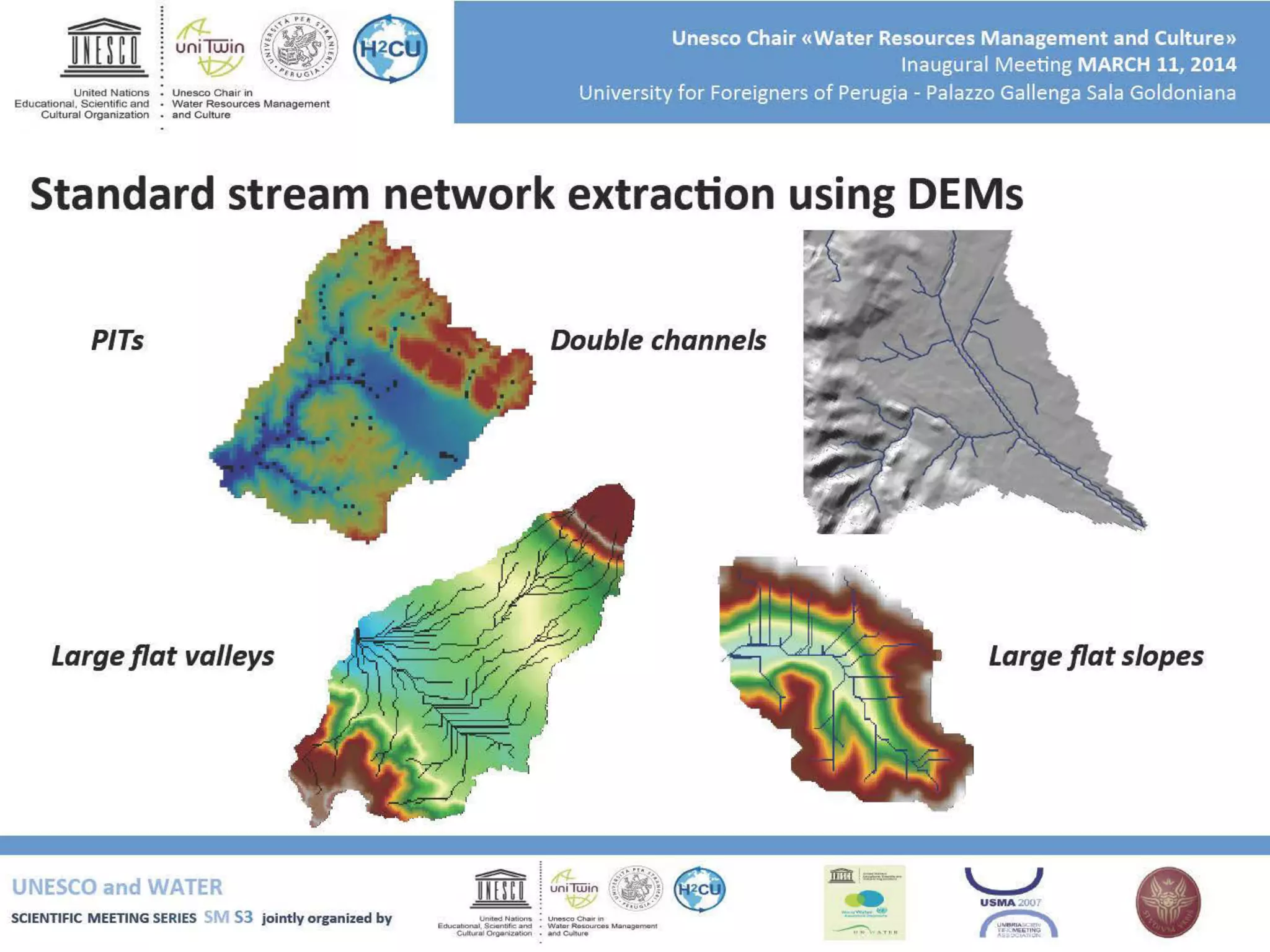

- 16. UNESCO and WATER SCIENTIFIC MEETING SERIES SM S3 jointly organized by Unesco Chair «Water Resources Management and Culture» Inaugural Mee+ng MARCH 11, 2014 University for Foreigners of Perugia -‐ Palazzo Gallenga Sala Goldoniana Filling sinks Flow direc+on Contribu+ng area Watershed delinea+on Stream Network Hydrologic processing of DEMs for stream network extracRon

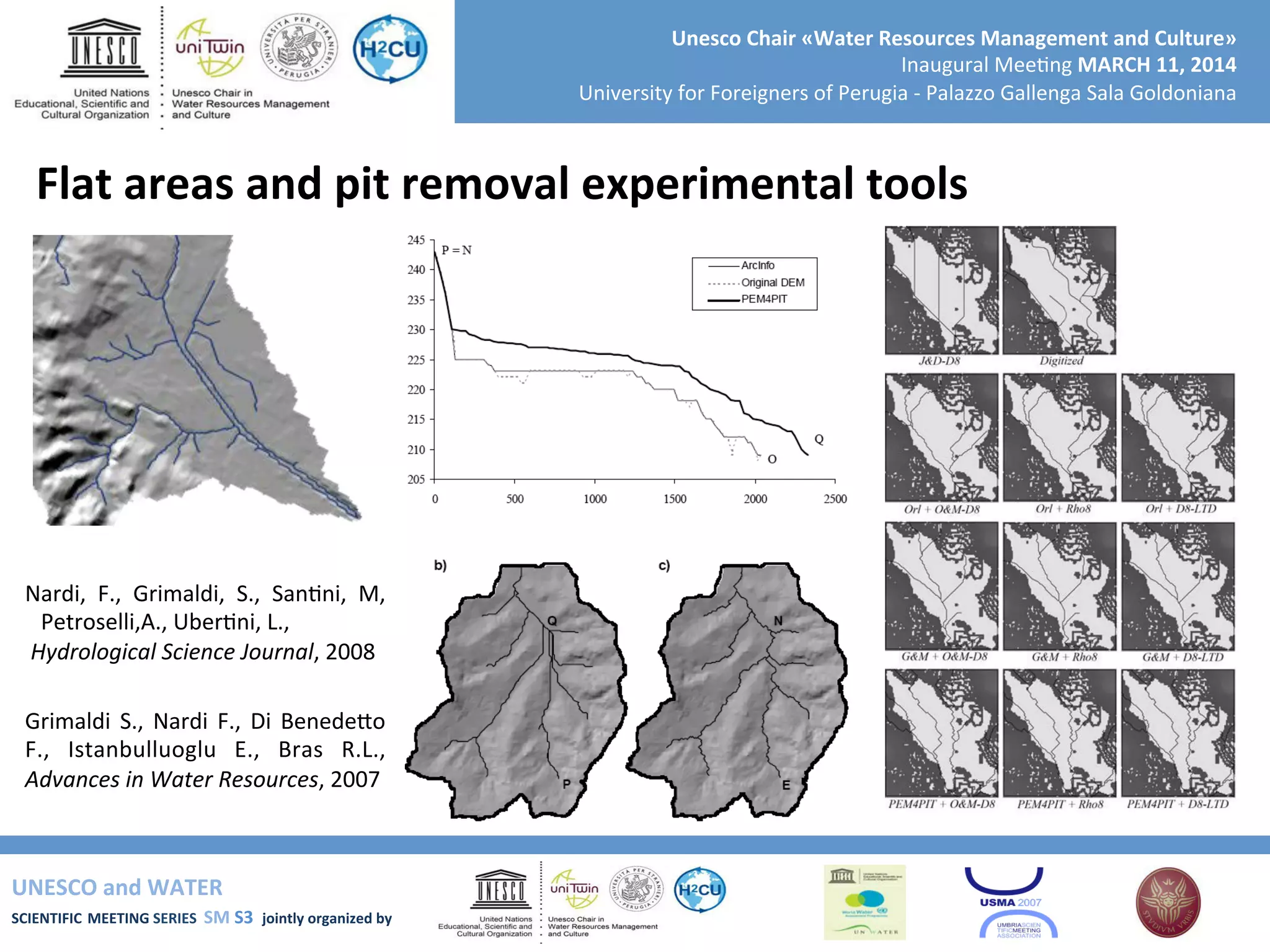

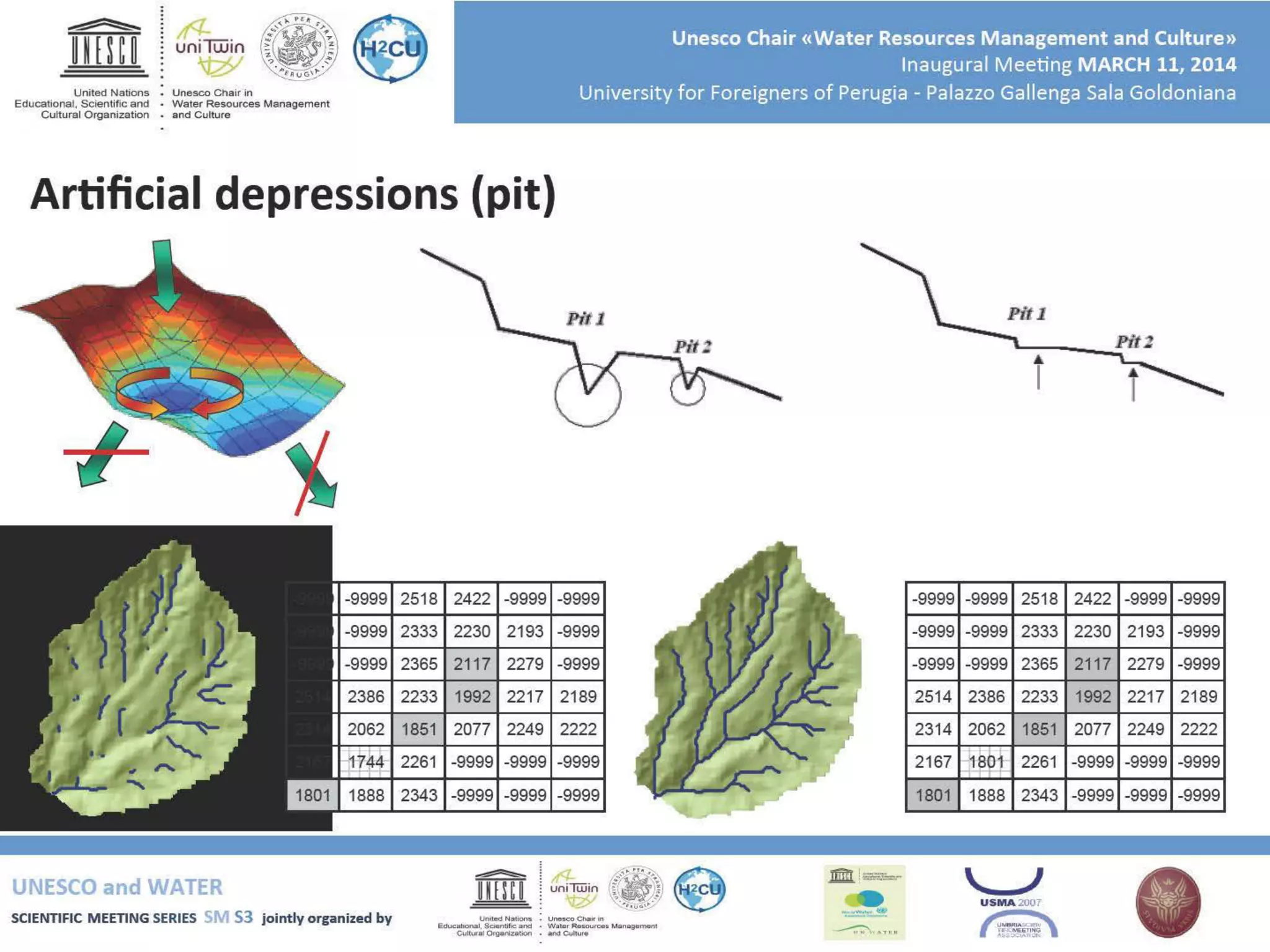

- 20. UNESCO and WATER SCIENTIFIC MEETING SERIES SM S3 jointly organized by Unesco Chair «Water Resources Management and Culture» Inaugural Mee+ng MARCH 11, 2014 University for Foreigners of Perugia -‐ Palazzo Gallenga Sala Goldoniana Flat areas and pit removal experimental tools Nardi, F., Grimaldi, S., San+ni, M, Petroselli,A., Uber+ni, L., Hydrological Science Journal, 2008 Grimaldi S., Nardi F., Di BenedeSo F., Istanbulluoglu E., Bras R.L., Advances in Water Resources, 2007

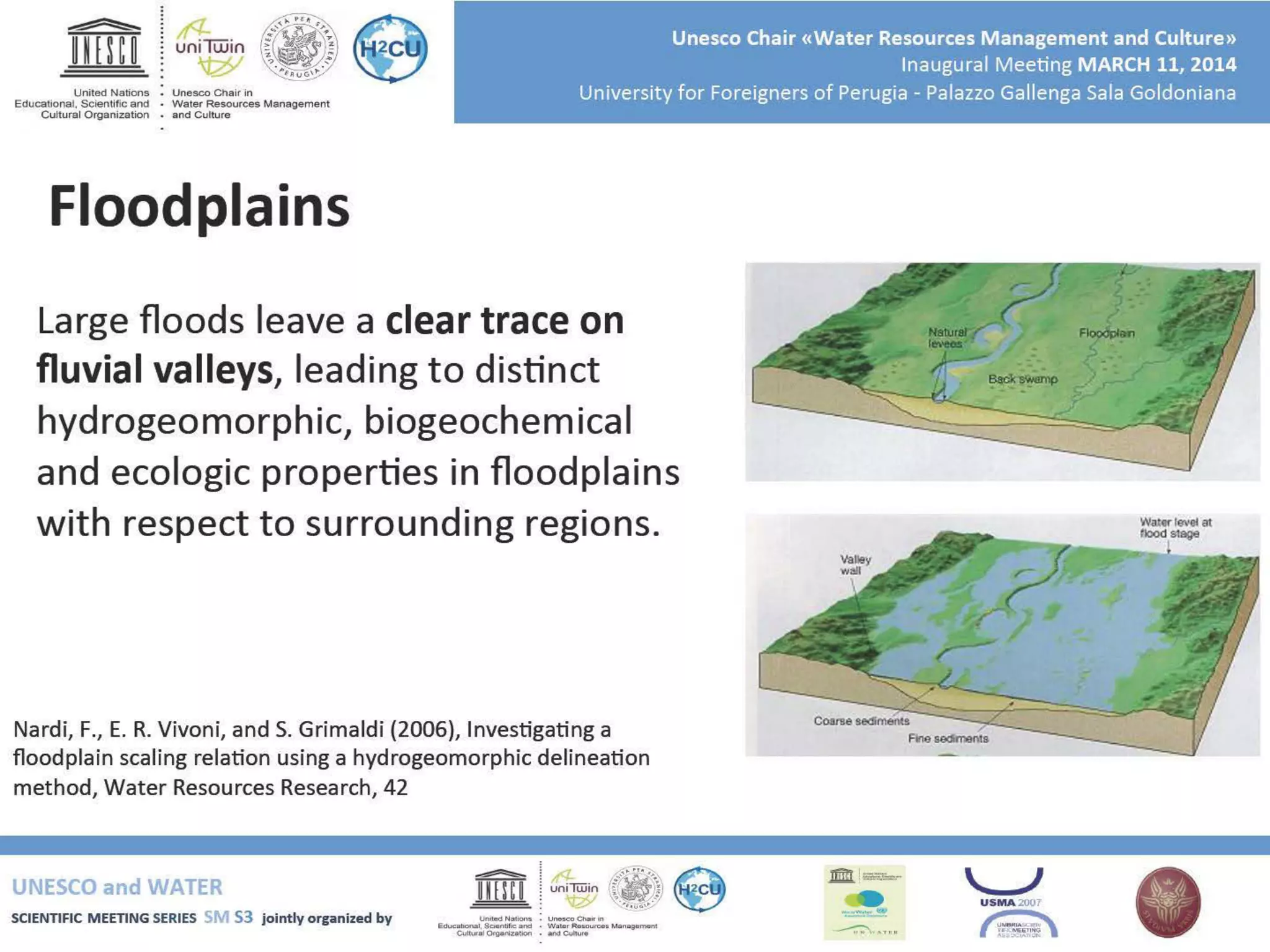

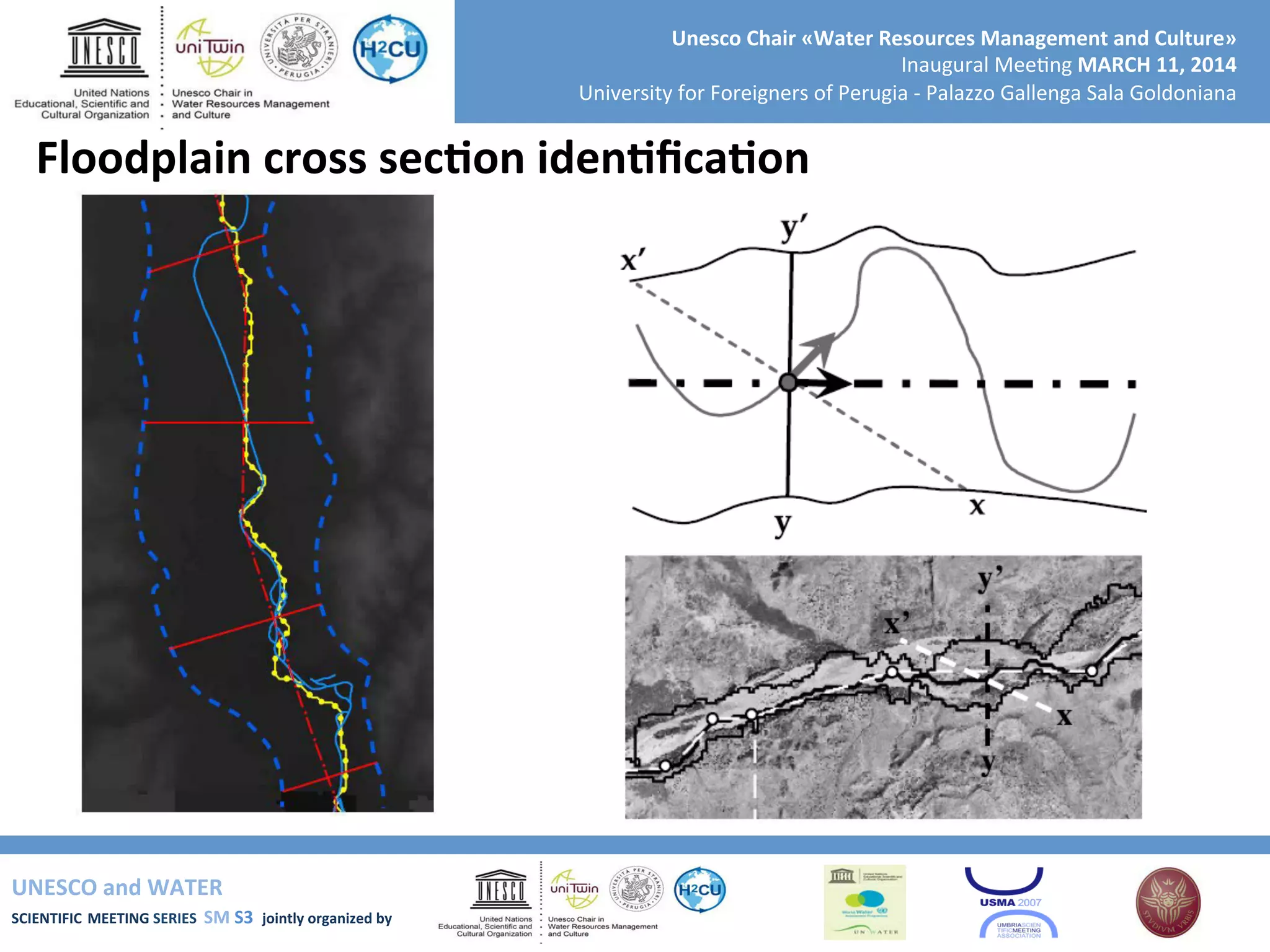

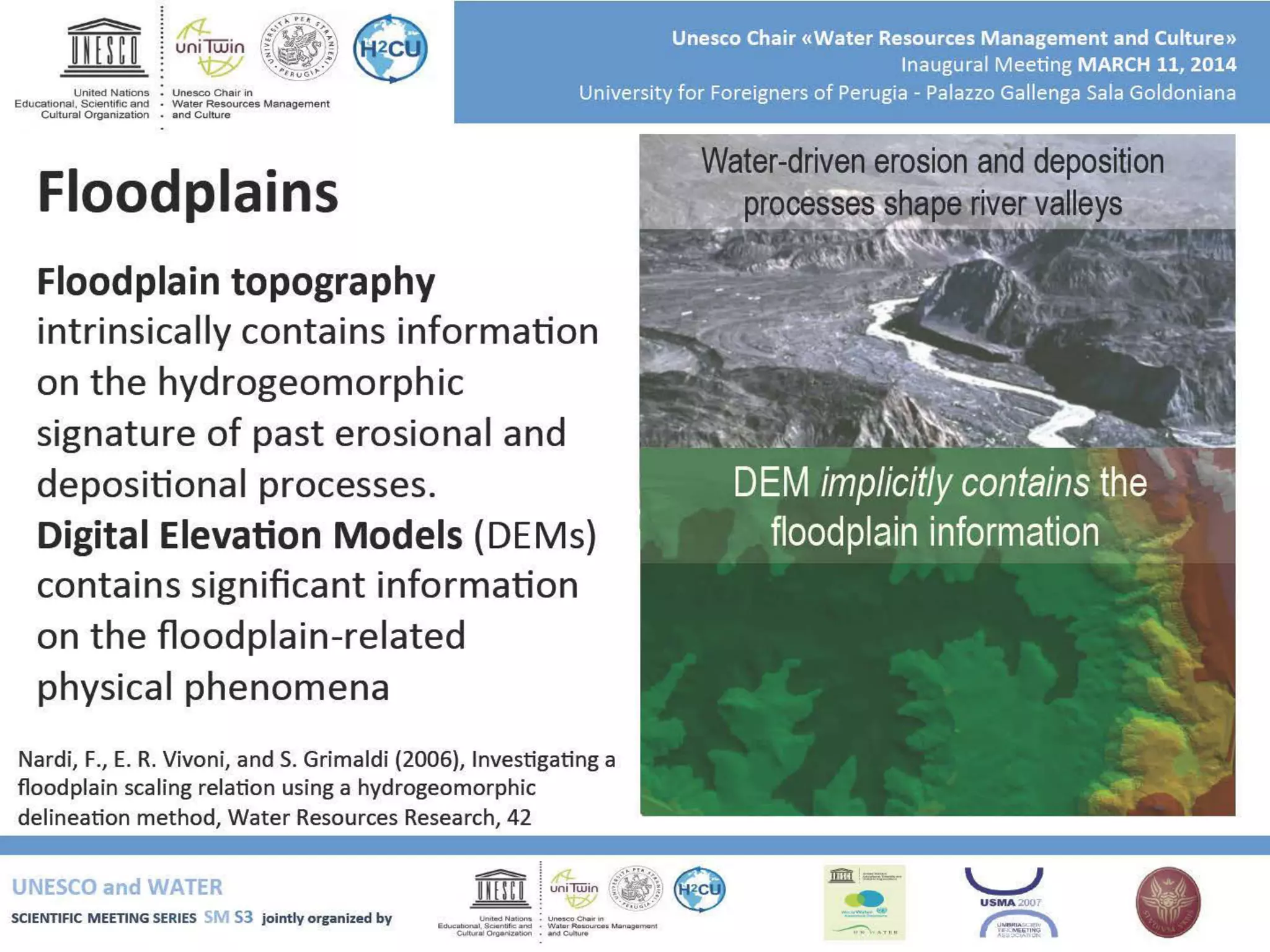

- 24. UNESCO and WATER SCIENTIFIC MEETING SERIES SM S3 jointly organized by Unesco Chair «Water Resources Management and Culture» Inaugural Mee+ng MARCH 11, 2014 University for Foreigners of Perugia -‐ Palazzo Gallenga Sala Goldoniana Floodplain cross secRon idenRficaRon

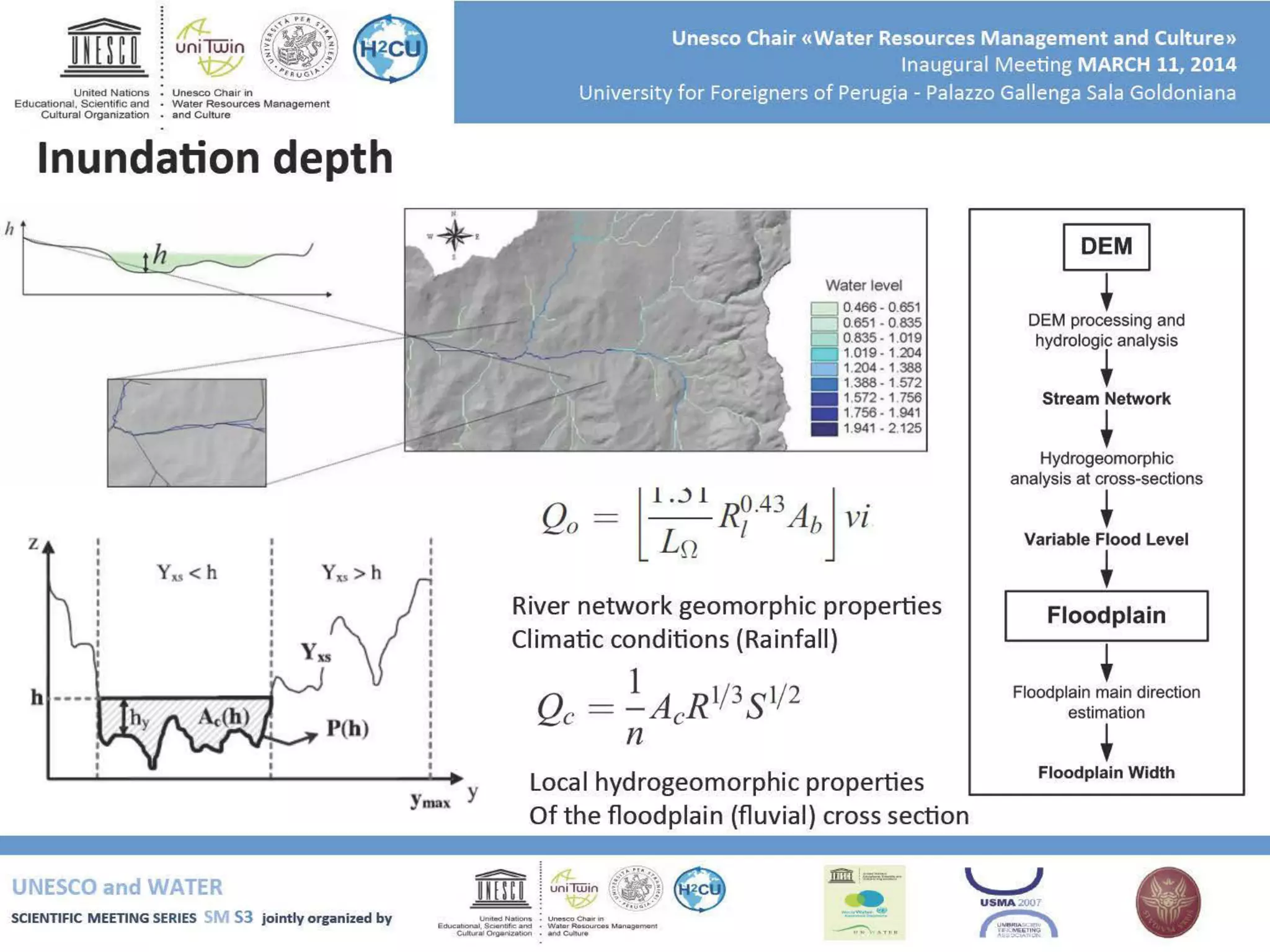

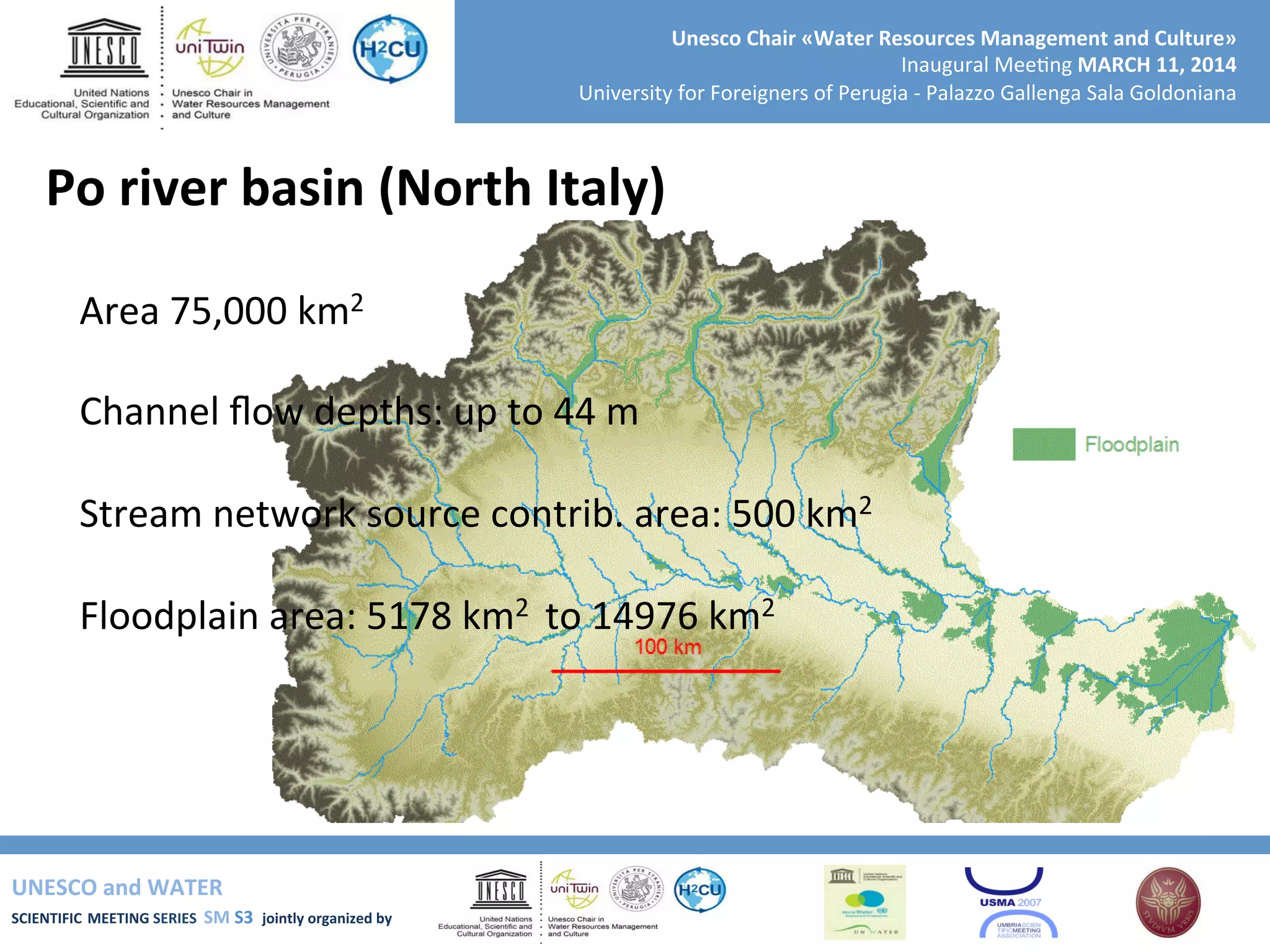

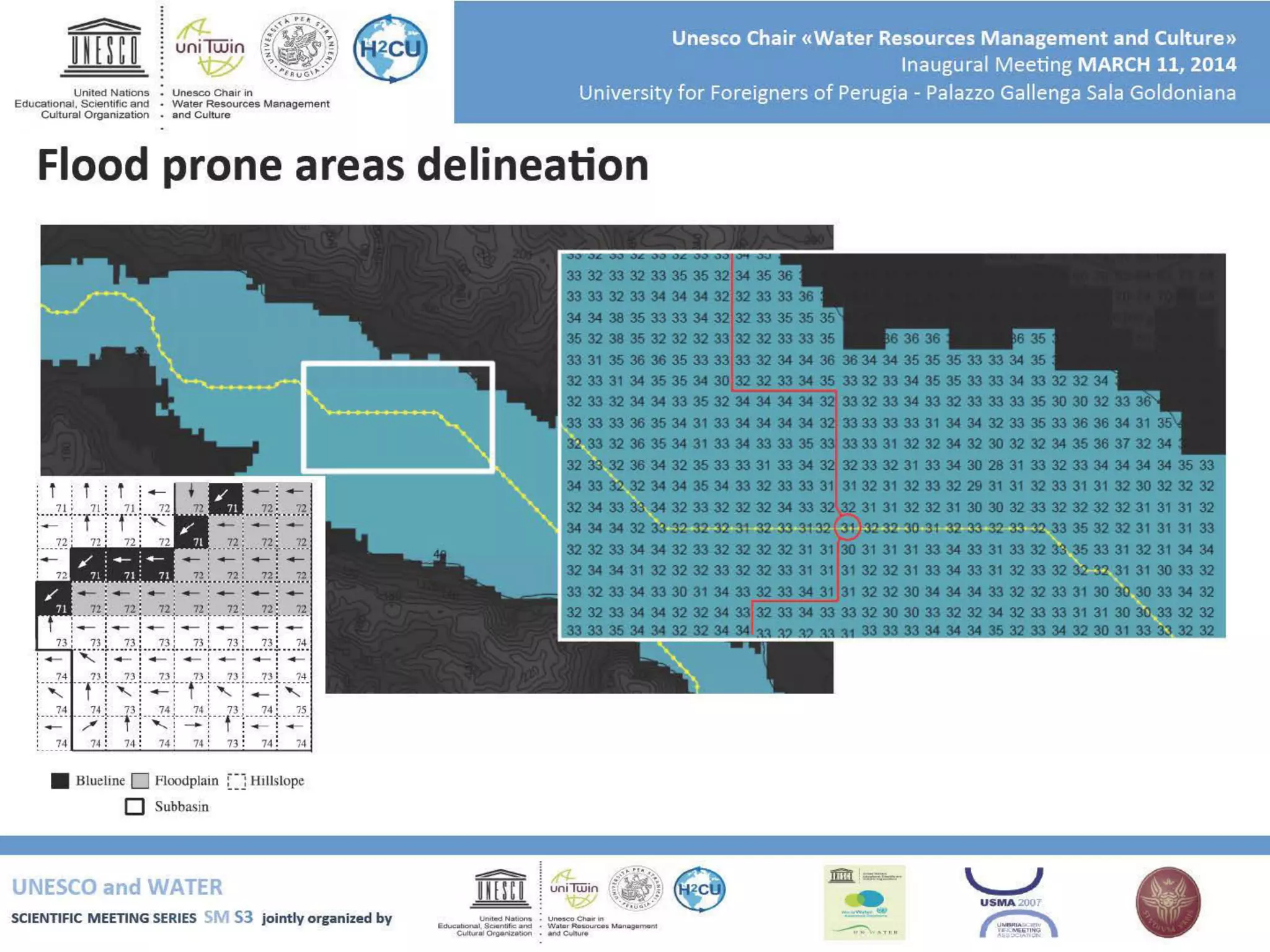

- 27. UNESCO and WATER SCIENTIFIC MEETING SERIES SM S3 jointly organized by Unesco Chair «Water Resources Management and Culture» Inaugural Mee+ng MARCH 11, 2014 University for Foreigners of Perugia -‐ Palazzo Gallenga Sala Goldoniana Po river basin (North Italy) Area 75,000 km2 Channel flow depths: up to 44 m Stream network source contrib. area: 500 km2 Floodplain area: 5178 km2 to 14976 km2

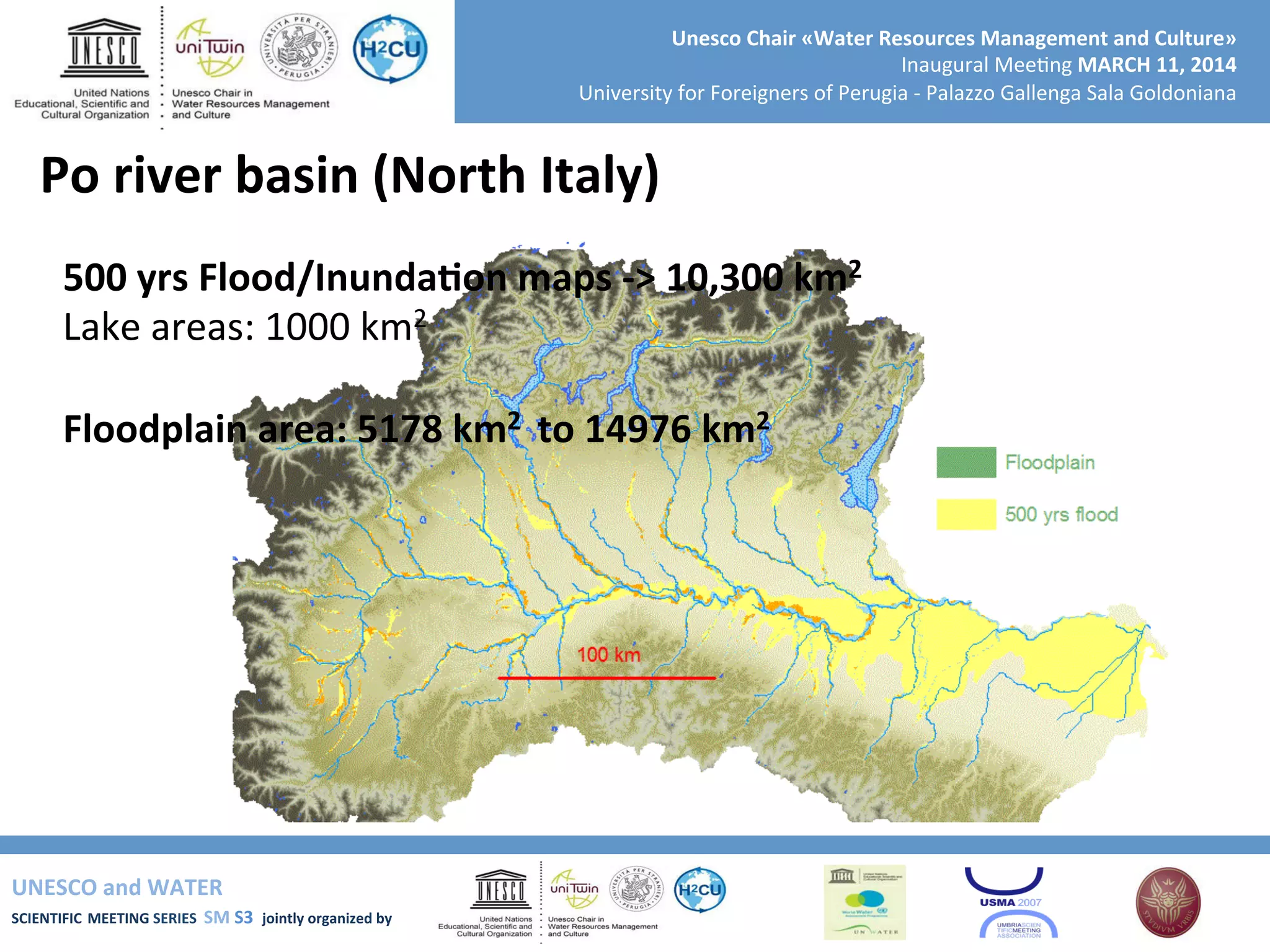

- 28. UNESCO and WATER SCIENTIFIC MEETING SERIES SM S3 jointly organized by Unesco Chair «Water Resources Management and Culture» Inaugural Mee+ng MARCH 11, 2014 University for Foreigners of Perugia -‐ Palazzo Gallenga Sala Goldoniana Po river basin (North Italy) 500 yrs Flood/InundaRon maps -‐> 10,300 km2 Lake areas: 1000 km2 Floodplain area: 5178 km2 to 14976 km2

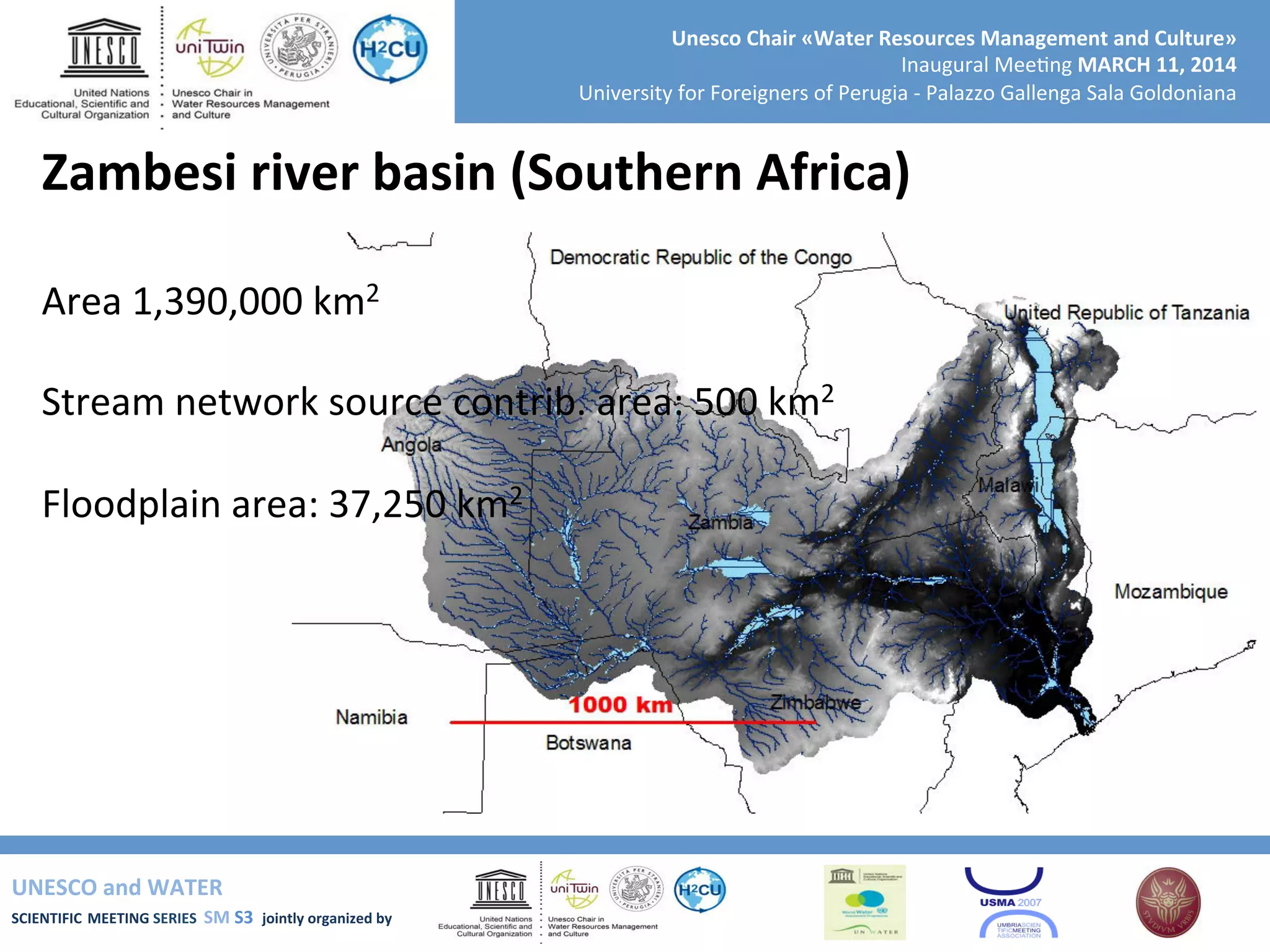

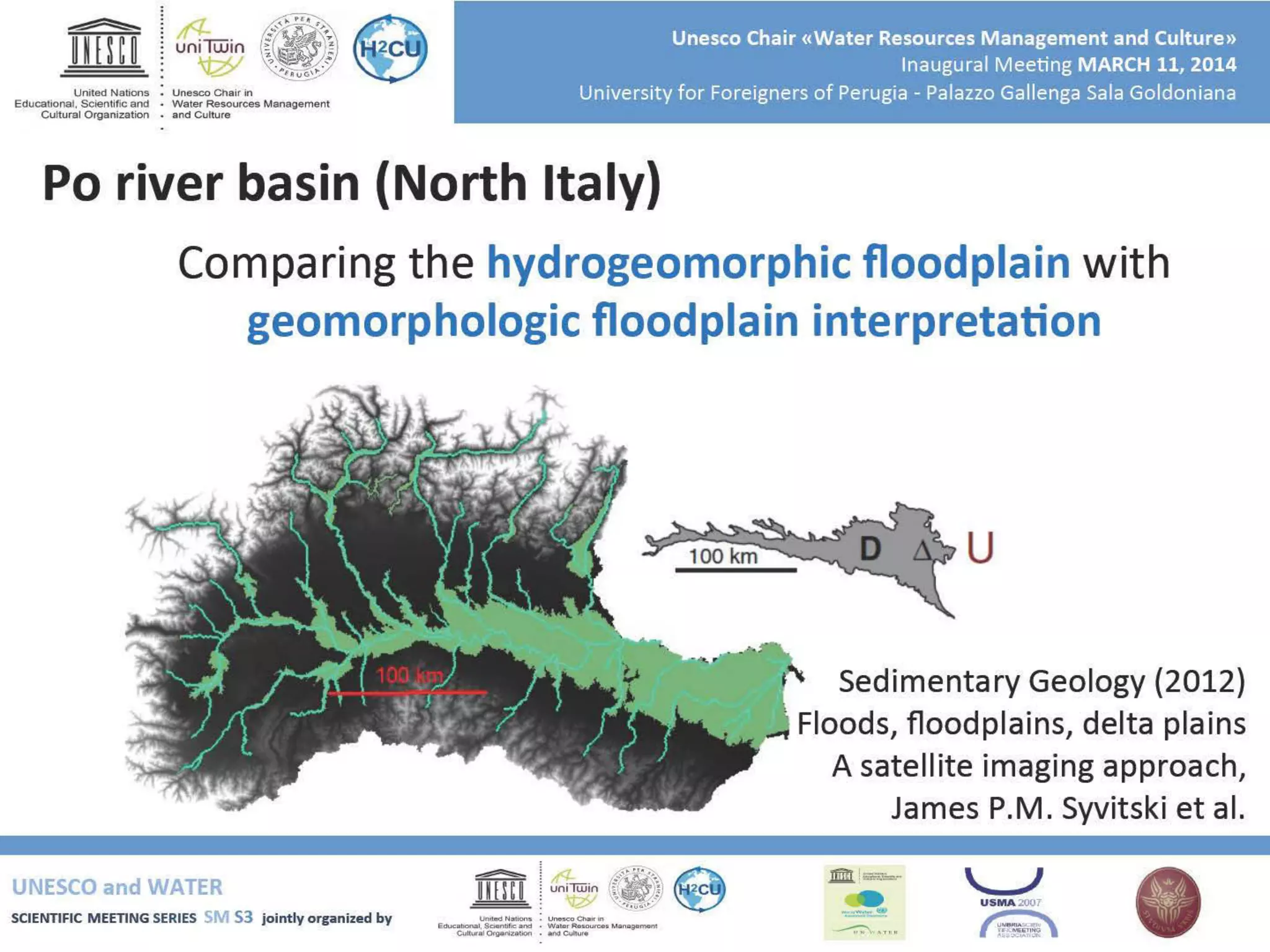

- 30. UNESCO and WATER SCIENTIFIC MEETING SERIES SM S3 jointly organized by Unesco Chair «Water Resources Management and Culture» Inaugural Mee+ng MARCH 11, 2014 University for Foreigners of Perugia -‐ Palazzo Gallenga Sala Goldoniana Zambesi river basin (Southern Africa) Area 1,390,000 km2 Stream network source contrib. area: 500 km2 Floodplain area: 37,250 km2

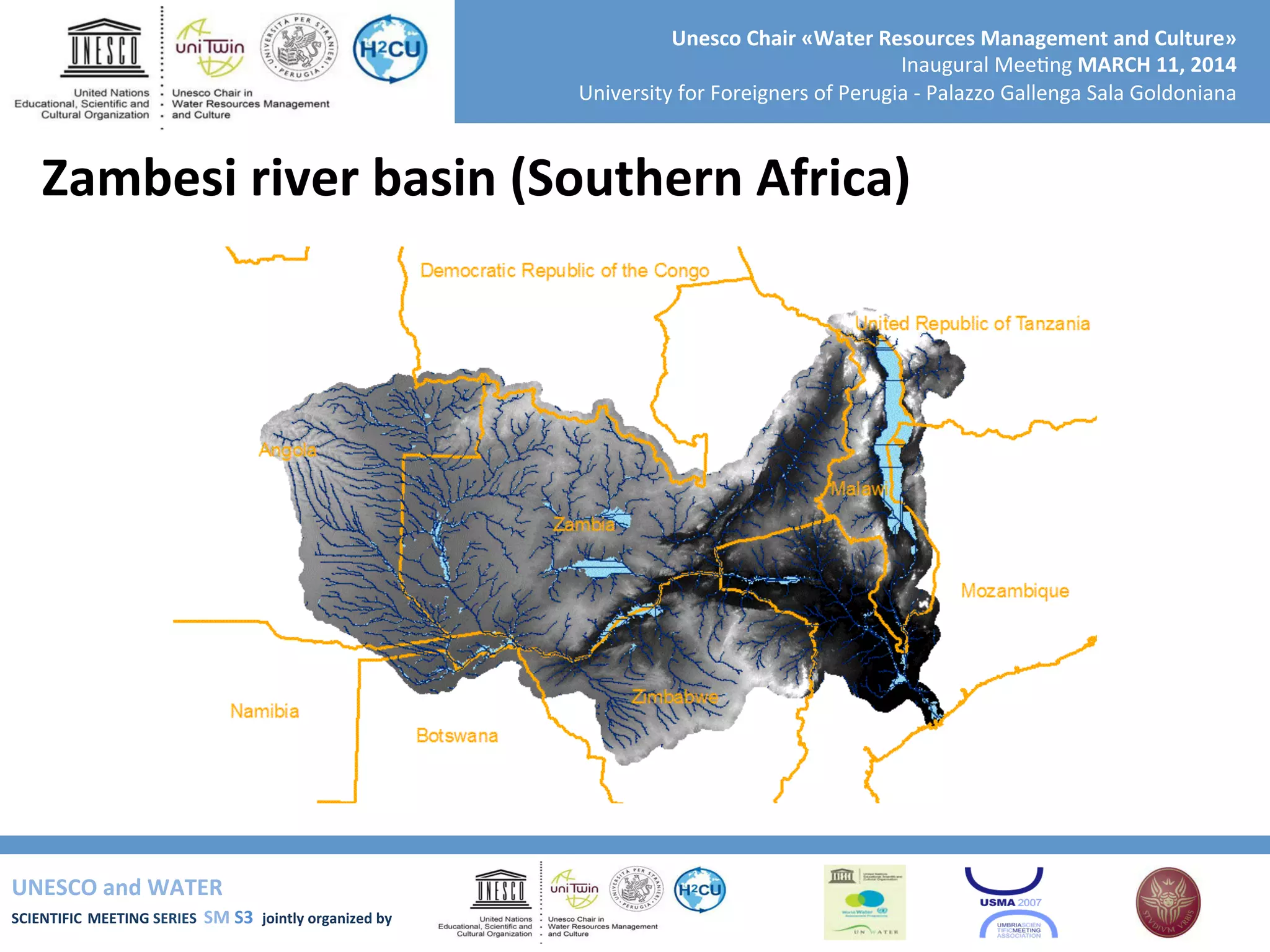

- 31. UNESCO and WATER SCIENTIFIC MEETING SERIES SM S3 jointly organized by Unesco Chair «Water Resources Management and Culture» Inaugural Mee+ng MARCH 11, 2014 University for Foreigners of Perugia -‐ Palazzo Gallenga Sala Goldoniana Zambesi river basin (Southern Africa)

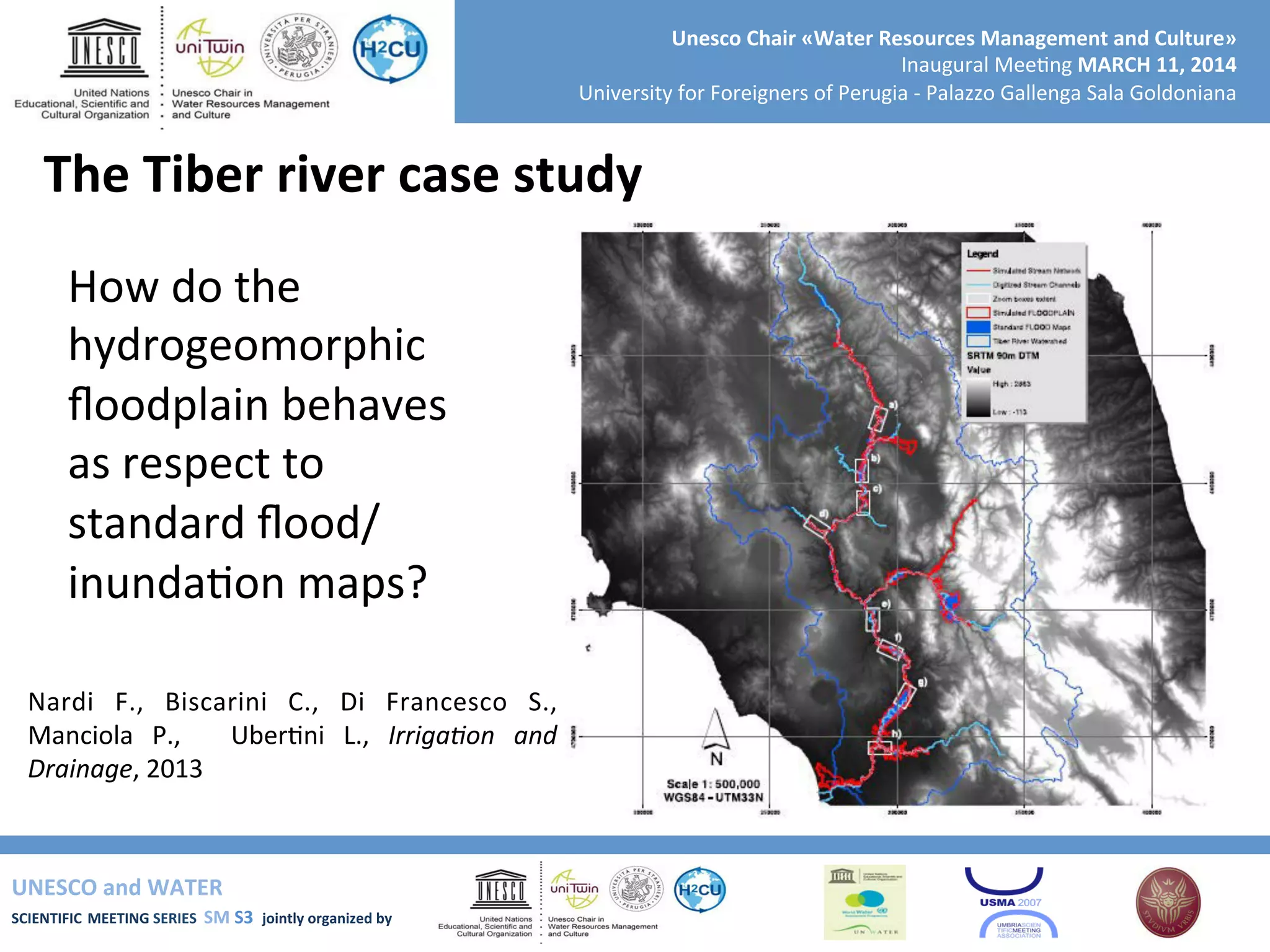

- 33. UNESCO and WATER SCIENTIFIC MEETING SERIES SM S3 jointly organized by Unesco Chair «Water Resources Management and Culture» Inaugural Mee+ng MARCH 11, 2014 University for Foreigners of Perugia -‐ Palazzo Gallenga Sala Goldoniana The Tiber river case study Nardi F., Biscarini C., Di Francesco S., Manciola P., Uber+ni L., Irriga9on and Drainage, 2013 How do the hydrogeomorphic floodplain behaves as respect to standard flood/ inunda+on maps?

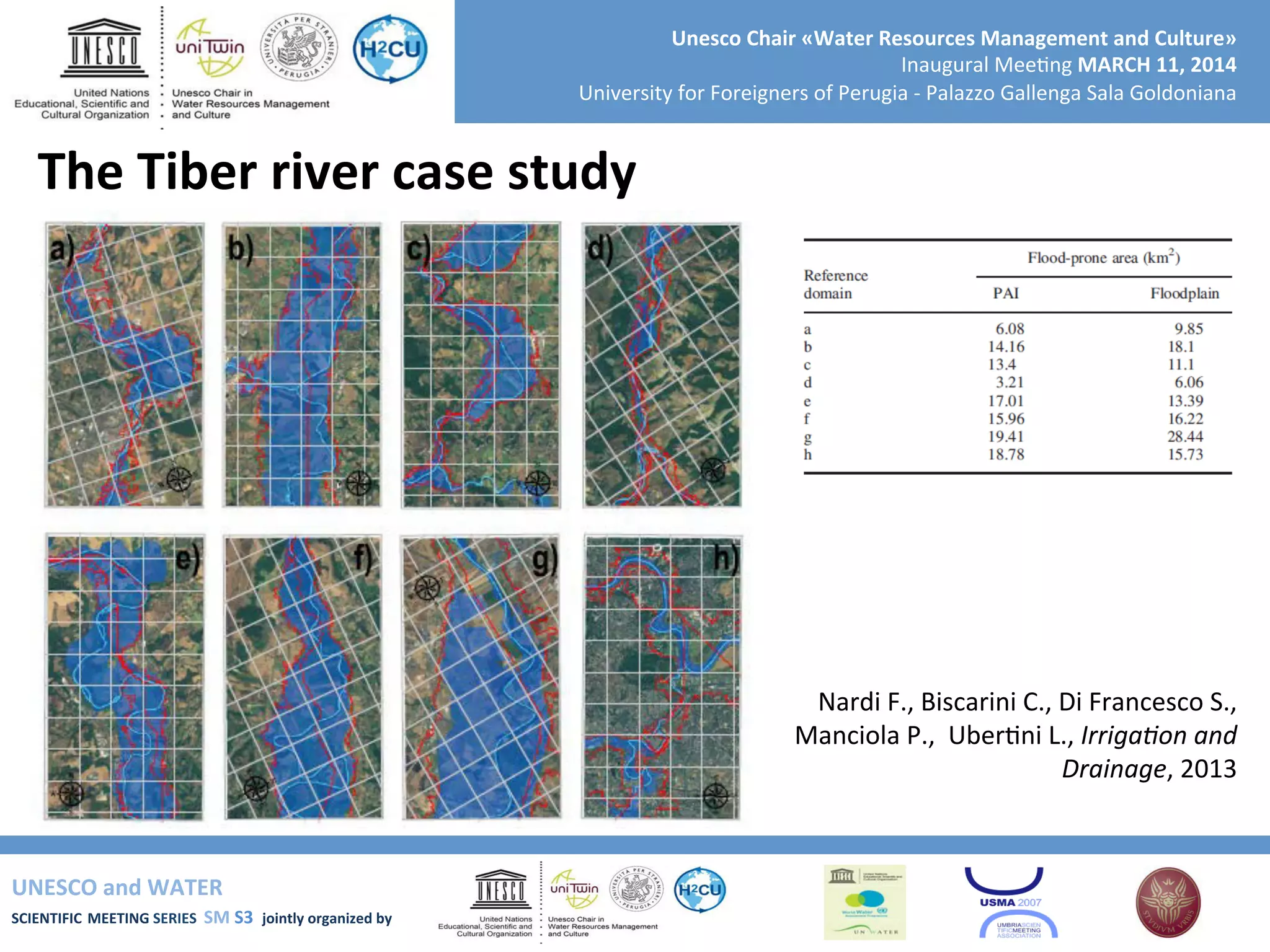

- 34. UNESCO and WATER SCIENTIFIC MEETING SERIES SM S3 jointly organized by Unesco Chair «Water Resources Management and Culture» Inaugural Mee+ng MARCH 11, 2014 University for Foreigners of Perugia -‐ Palazzo Gallenga Sala Goldoniana The Tiber river case study Nardi F., Biscarini C., Di Francesco S., Manciola P., Uber+ni L., Irriga9on and Drainage, 2013

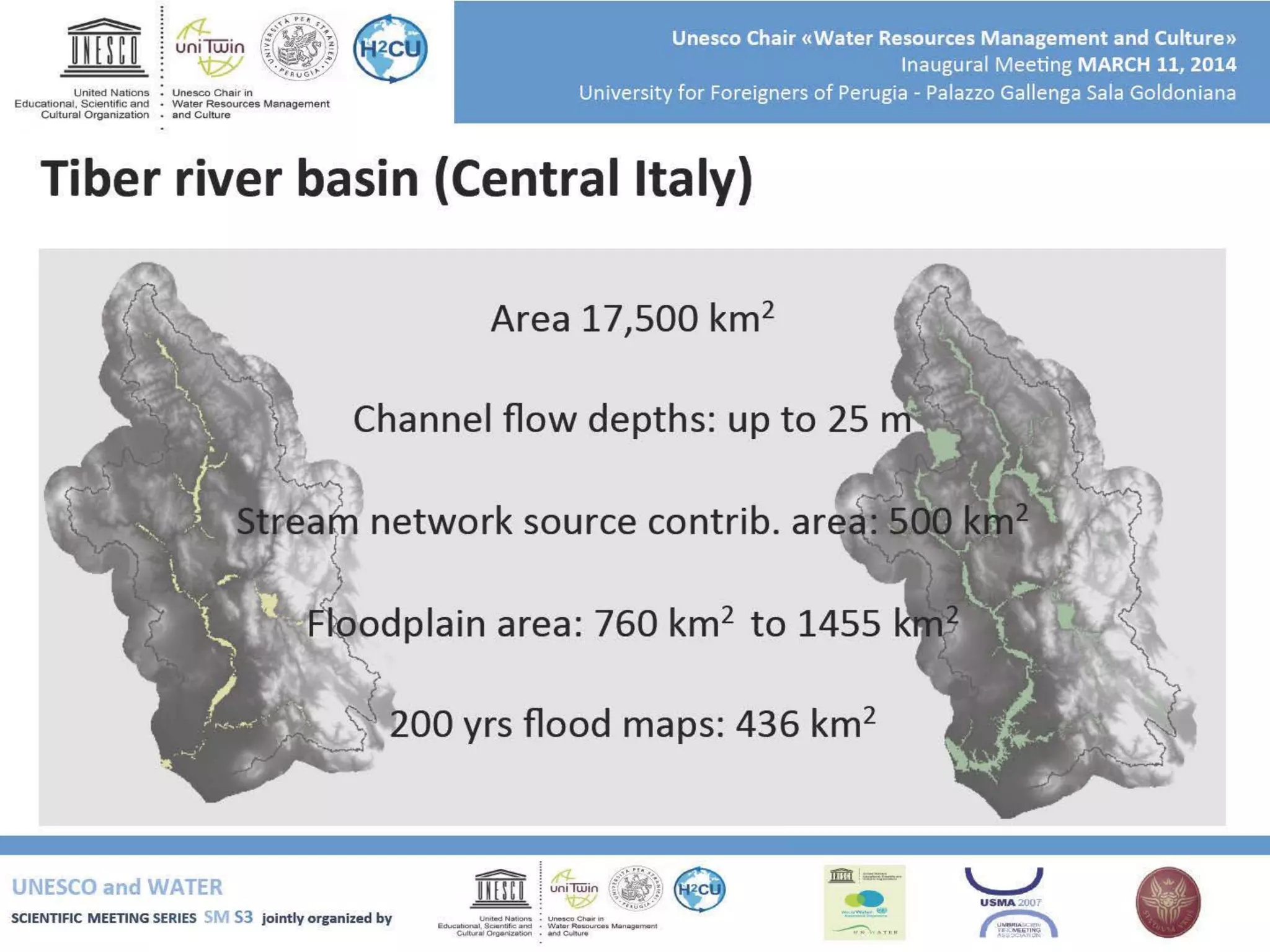

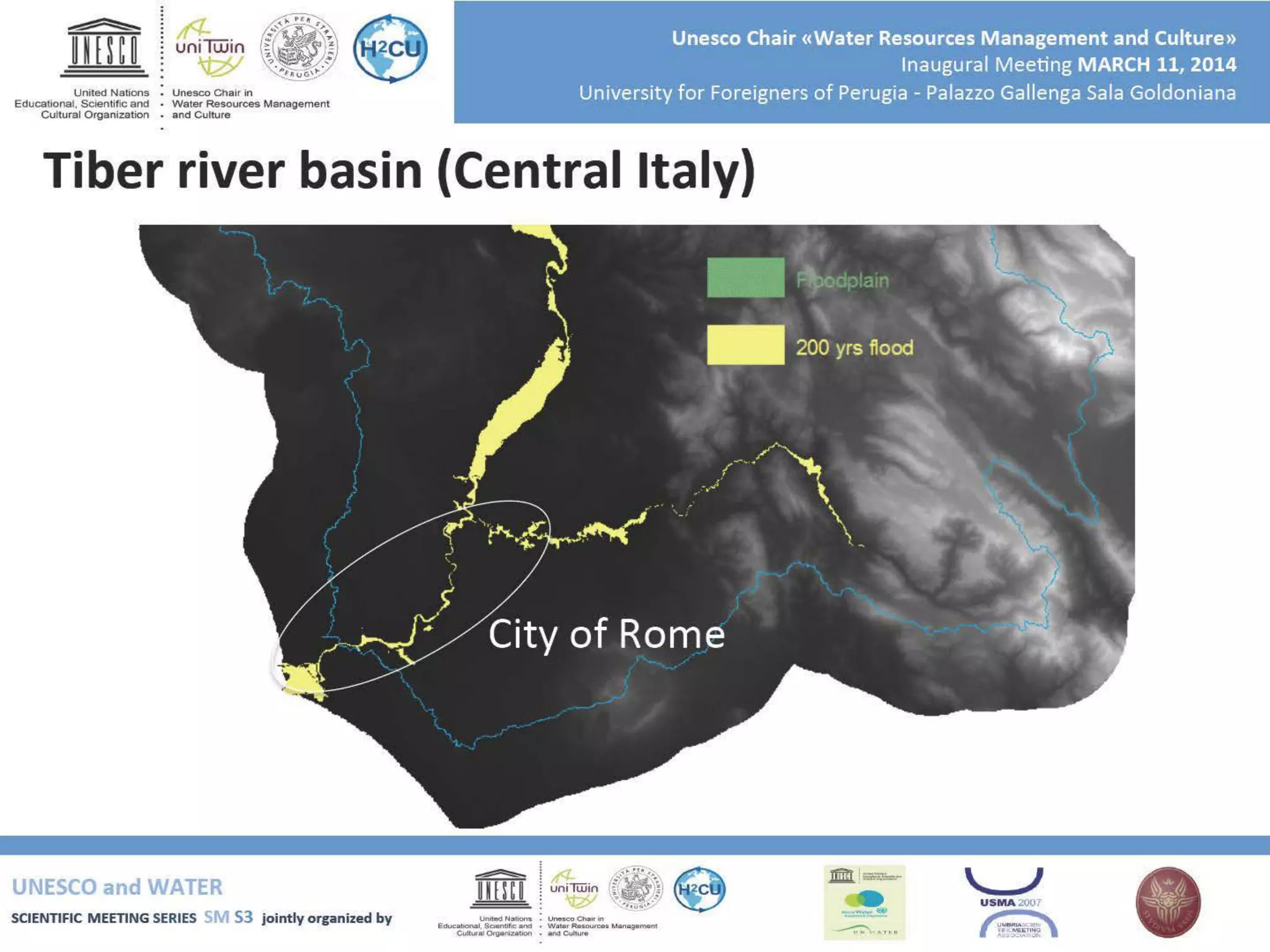

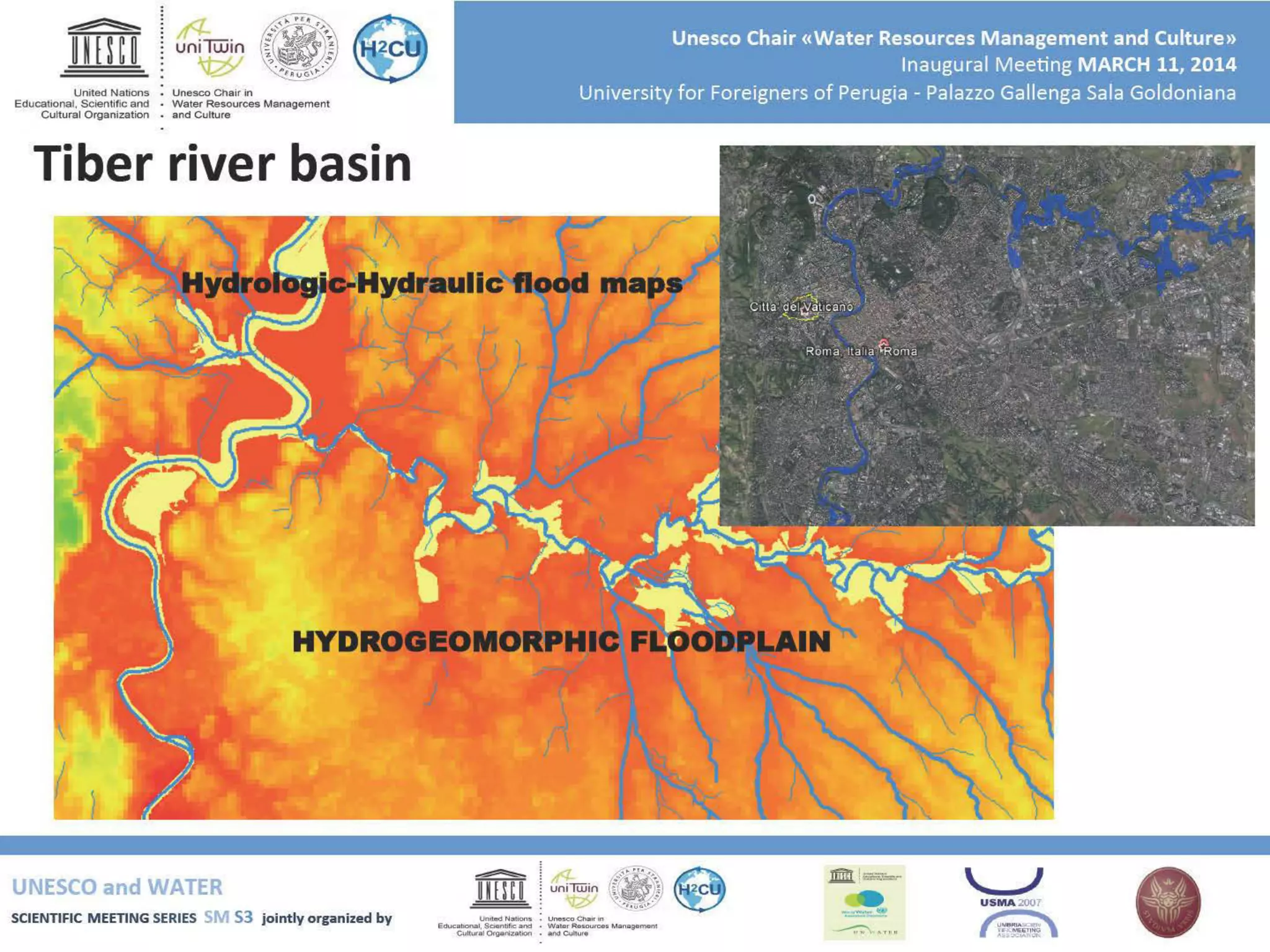

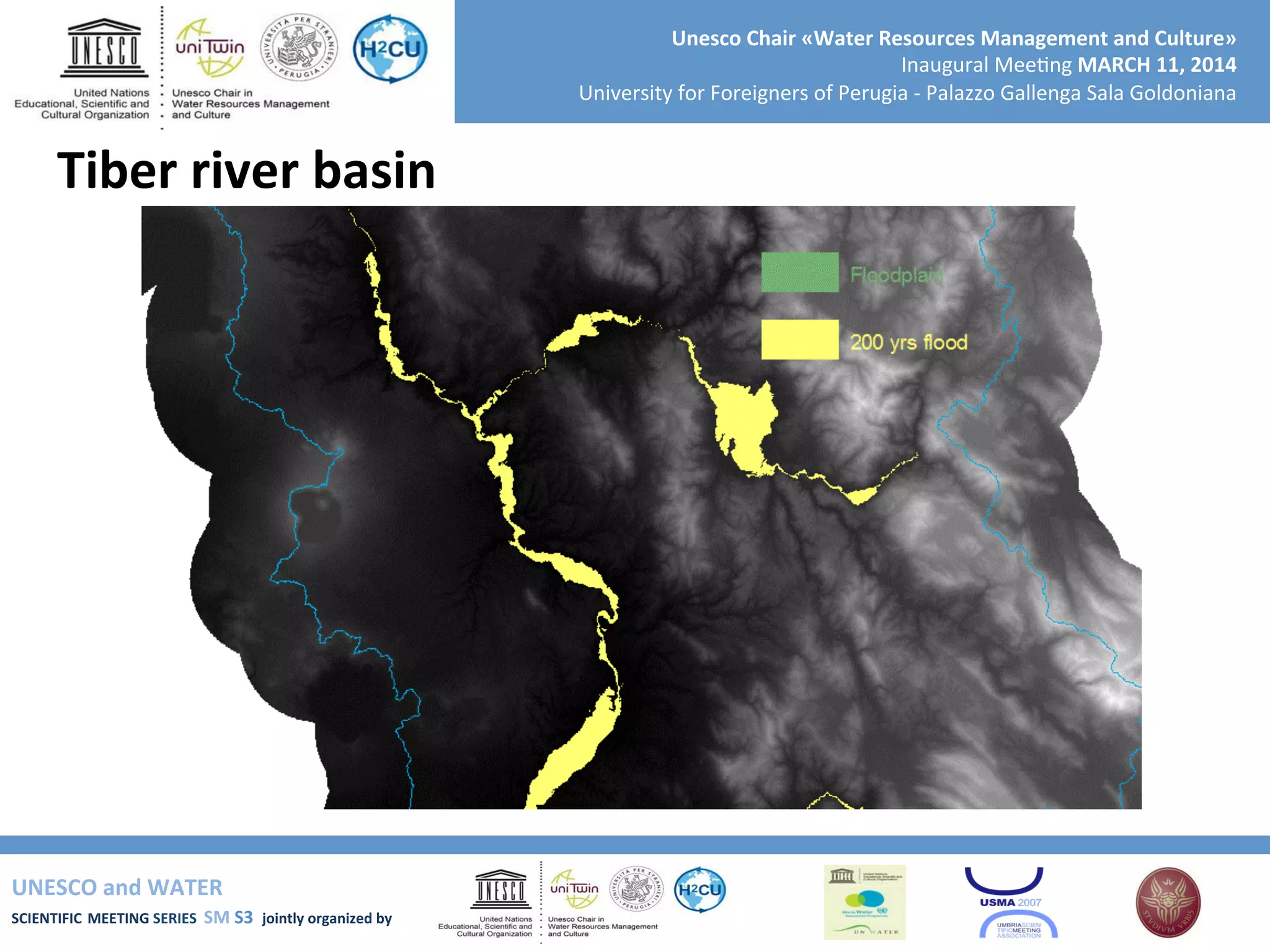

- 36. UNESCO and WATER SCIENTIFIC MEETING SERIES SM S3 jointly organized by Unesco Chair «Water Resources Management and Culture» Inaugural Mee+ng MARCH 11, 2014 University for Foreigners of Perugia -‐ Palazzo Gallenga Sala Goldoniana Tiber river basin

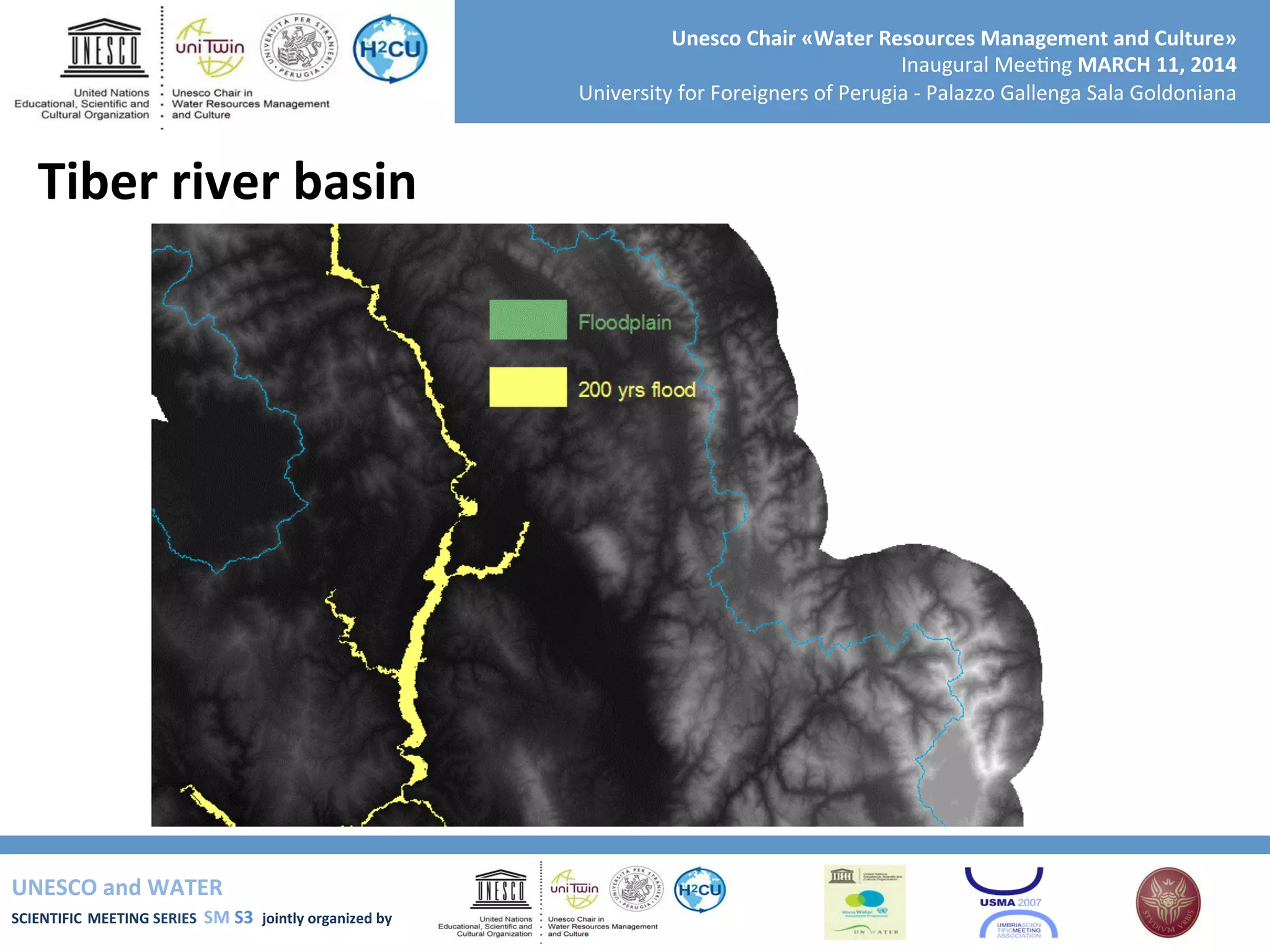

- 37. UNESCO and WATER SCIENTIFIC MEETING SERIES SM S3 jointly organized by Unesco Chair «Water Resources Management and Culture» Inaugural Mee+ng MARCH 11, 2014 University for Foreigners of Perugia -‐ Palazzo Gallenga Sala Goldoniana Tiber river basin

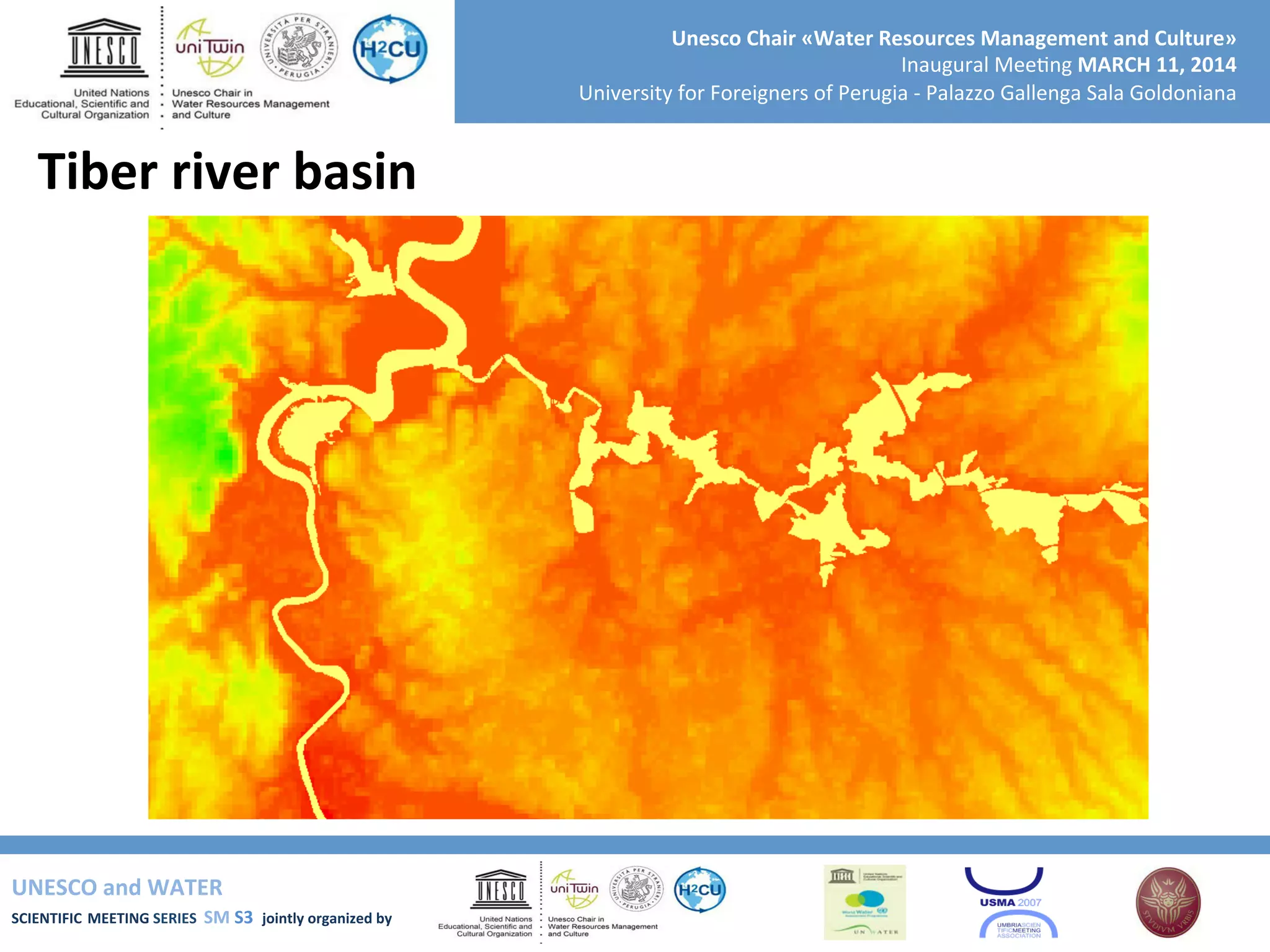

- 38. UNESCO and WATER SCIENTIFIC MEETING SERIES SM S3 jointly organized by Unesco Chair «Water Resources Management and Culture» Inaugural Mee+ng MARCH 11, 2014 University for Foreigners of Perugia -‐ Palazzo Gallenga Sala Goldoniana Tiber river basin

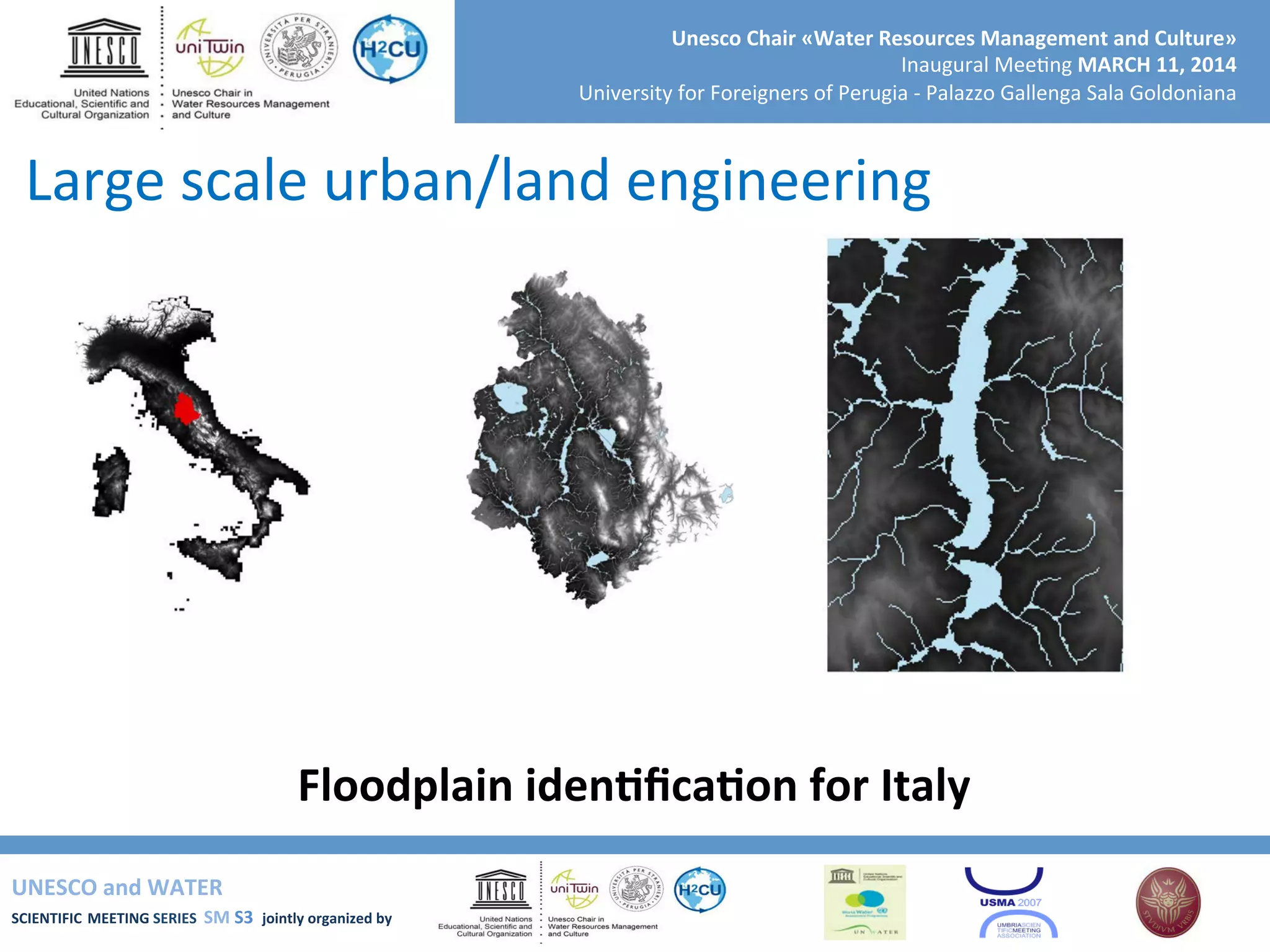

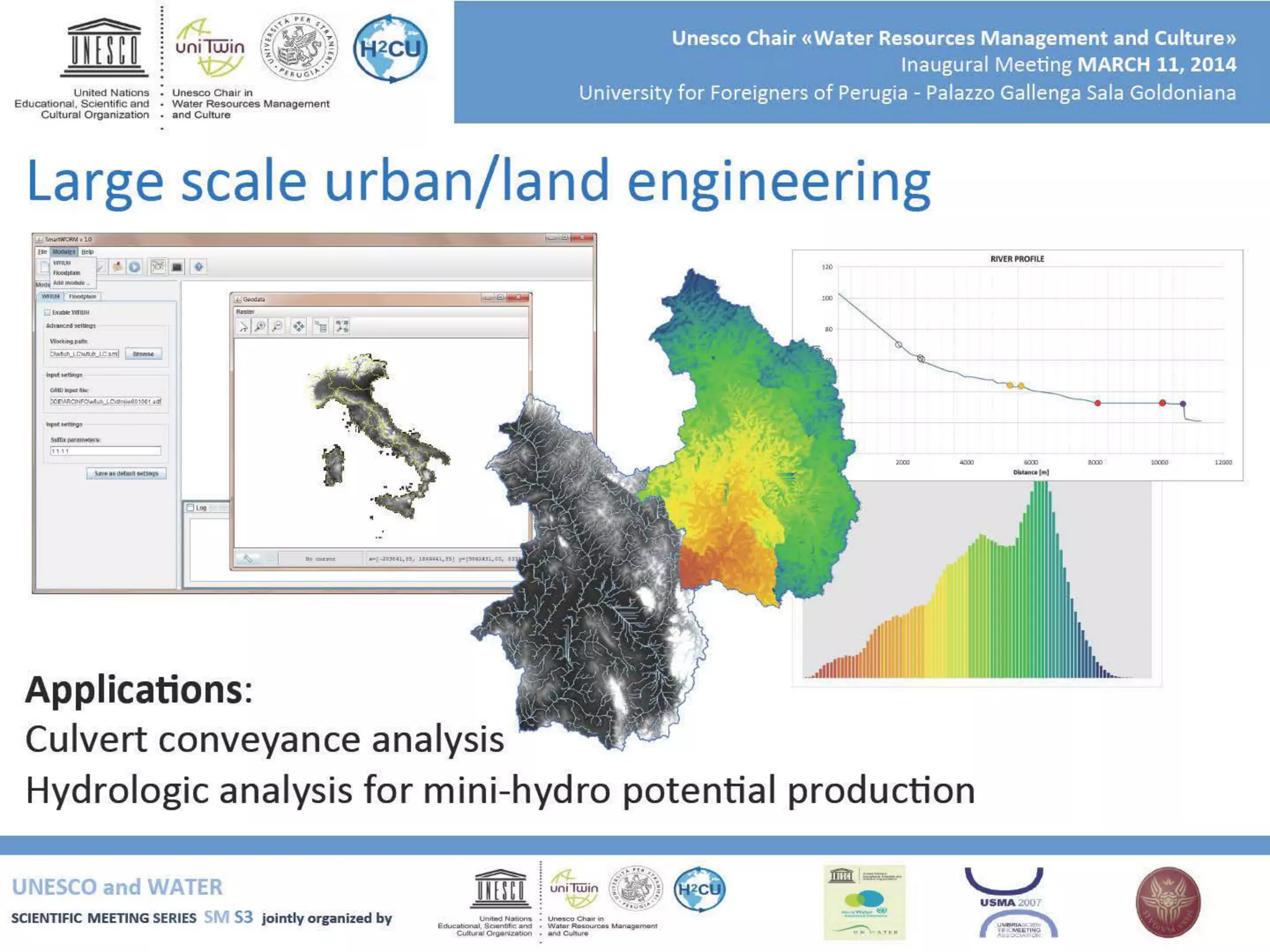

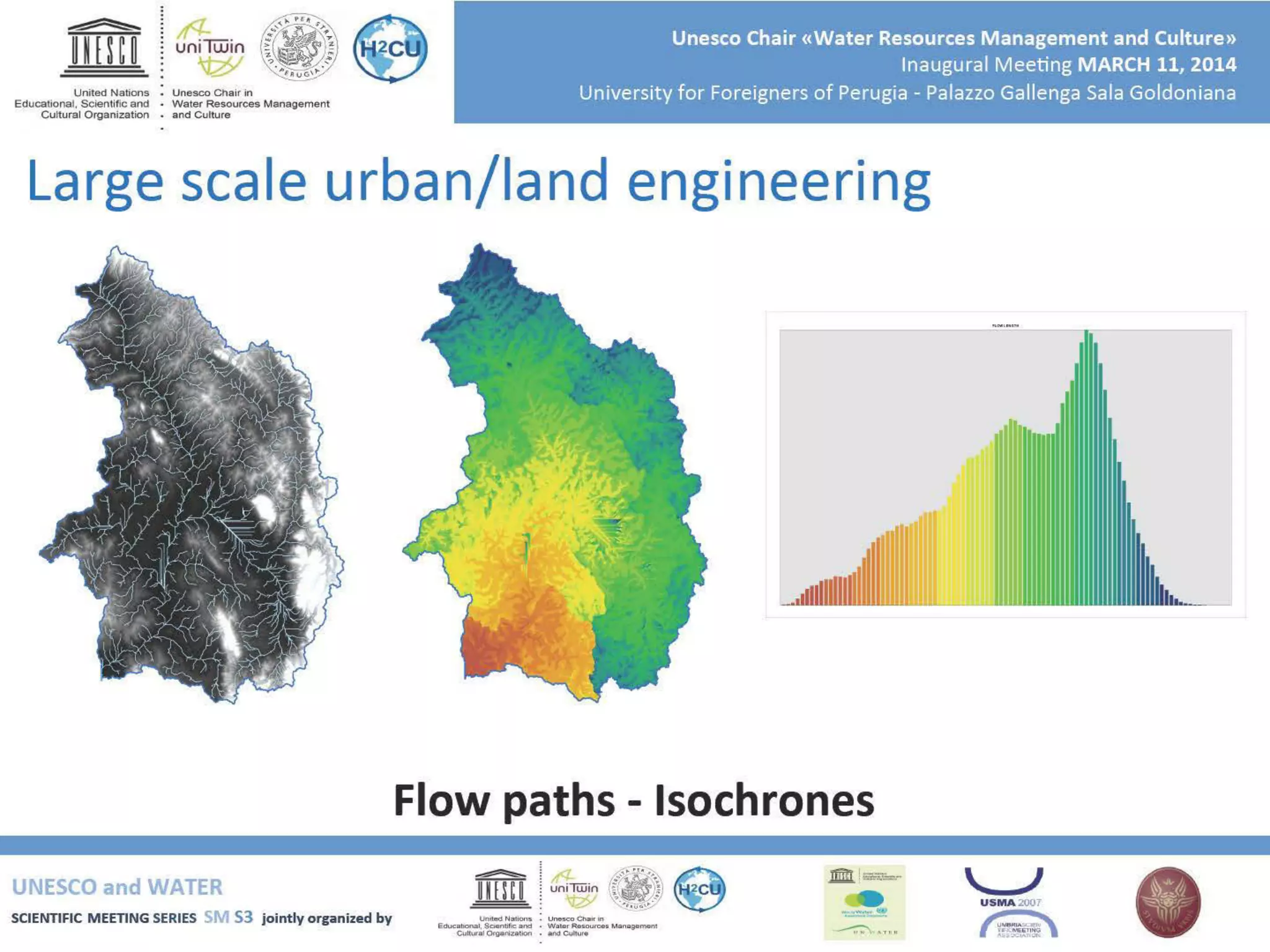

- 41. UNESCO and WATER SCIENTIFIC MEETING SERIES SM S3 jointly organized by Unesco Chair «Water Resources Management and Culture» Inaugural Mee+ng MARCH 11, 2014 University for Foreigners of Perugia -‐ Palazzo Gallenga Sala Goldoniana Floodplain idenRficaRon for Italy Large scale urban/land engineering

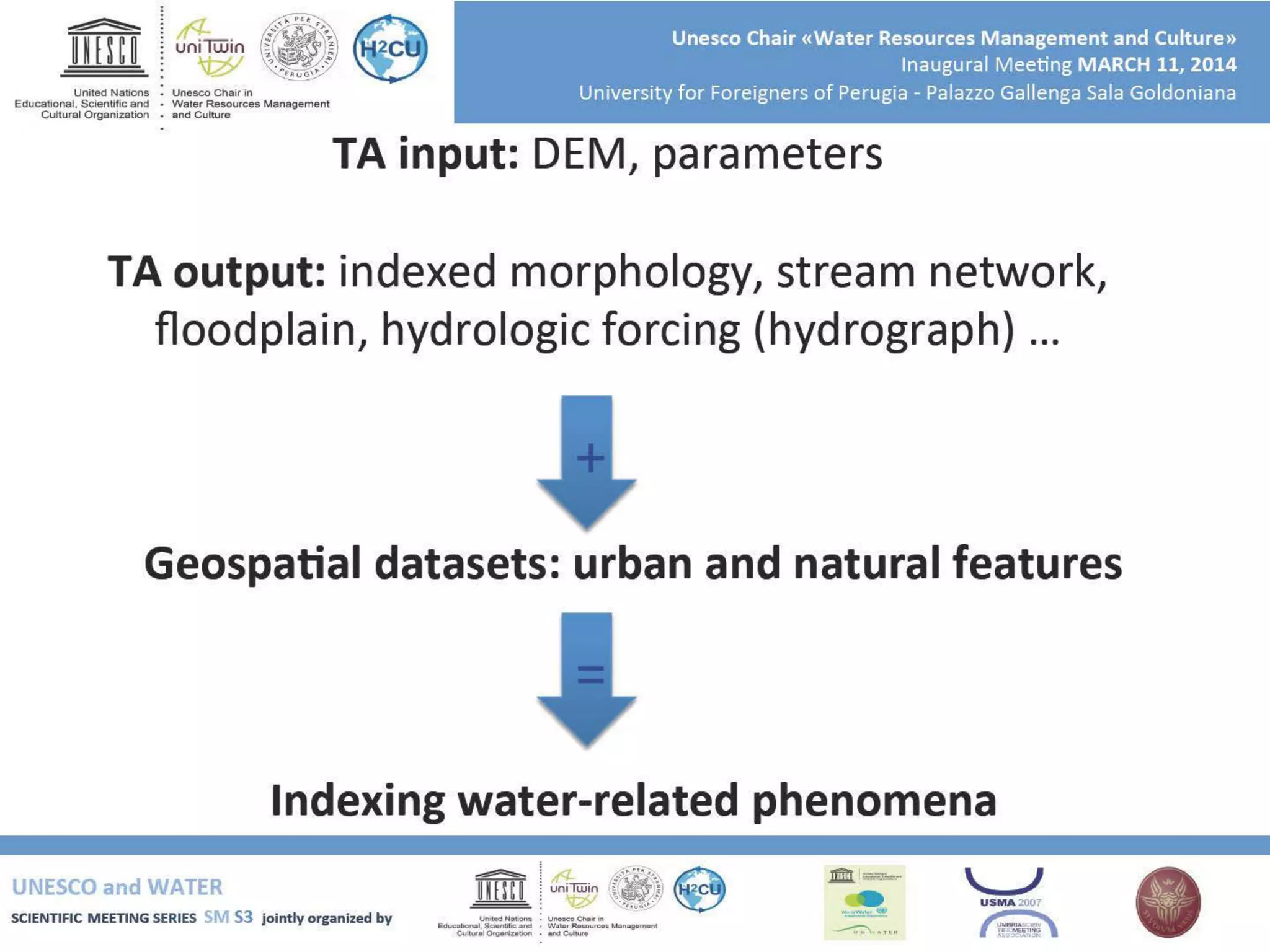

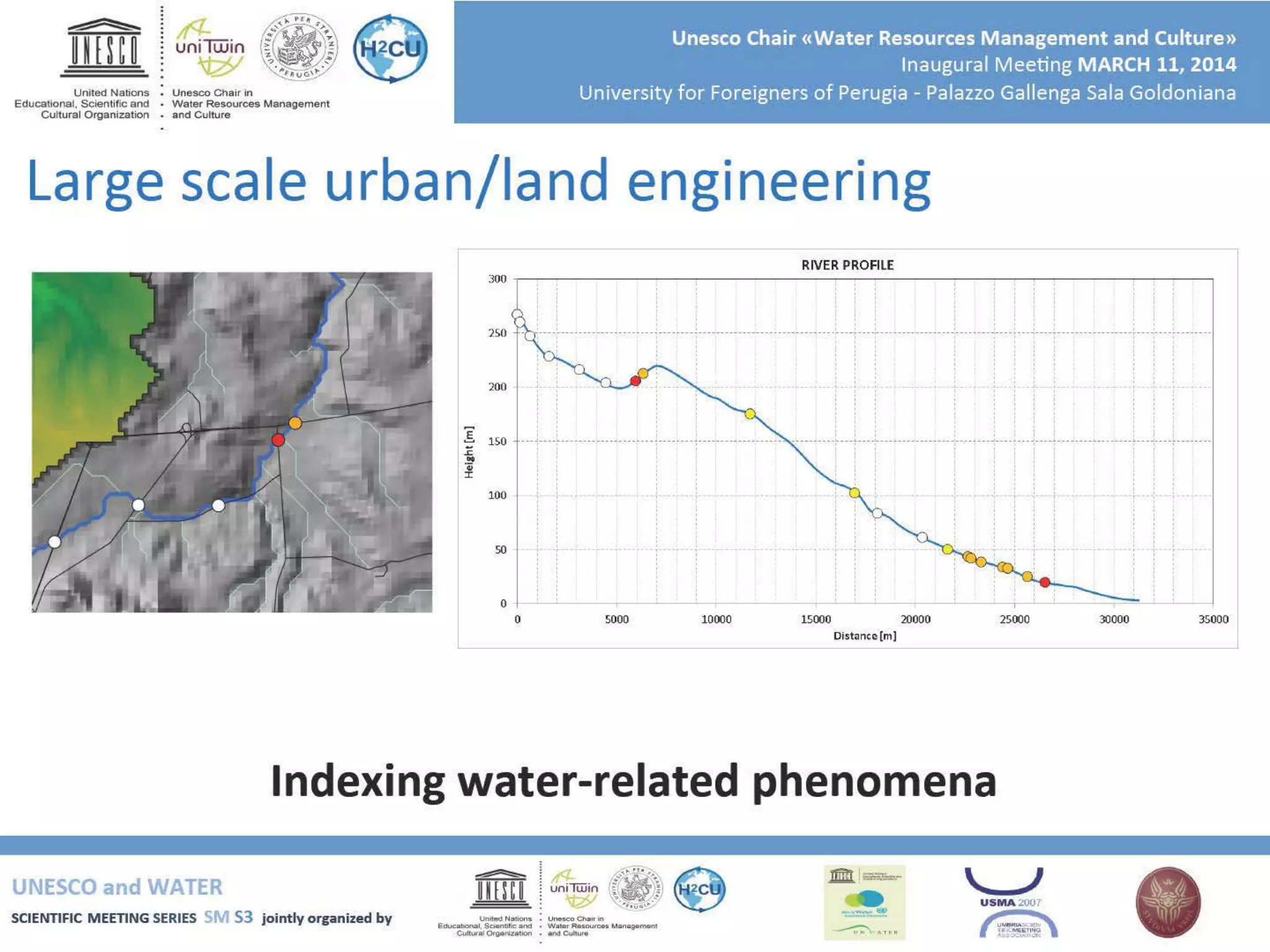

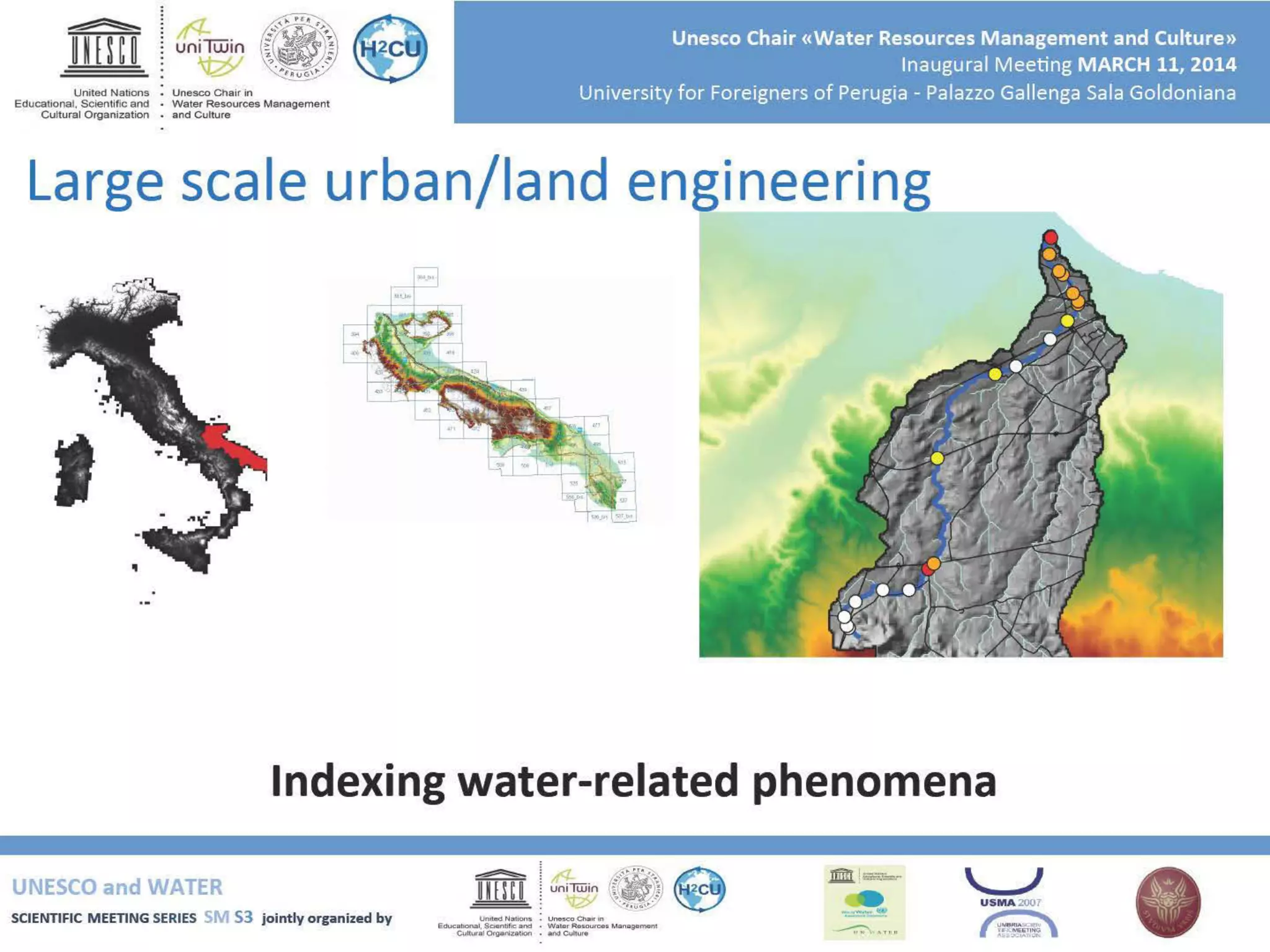

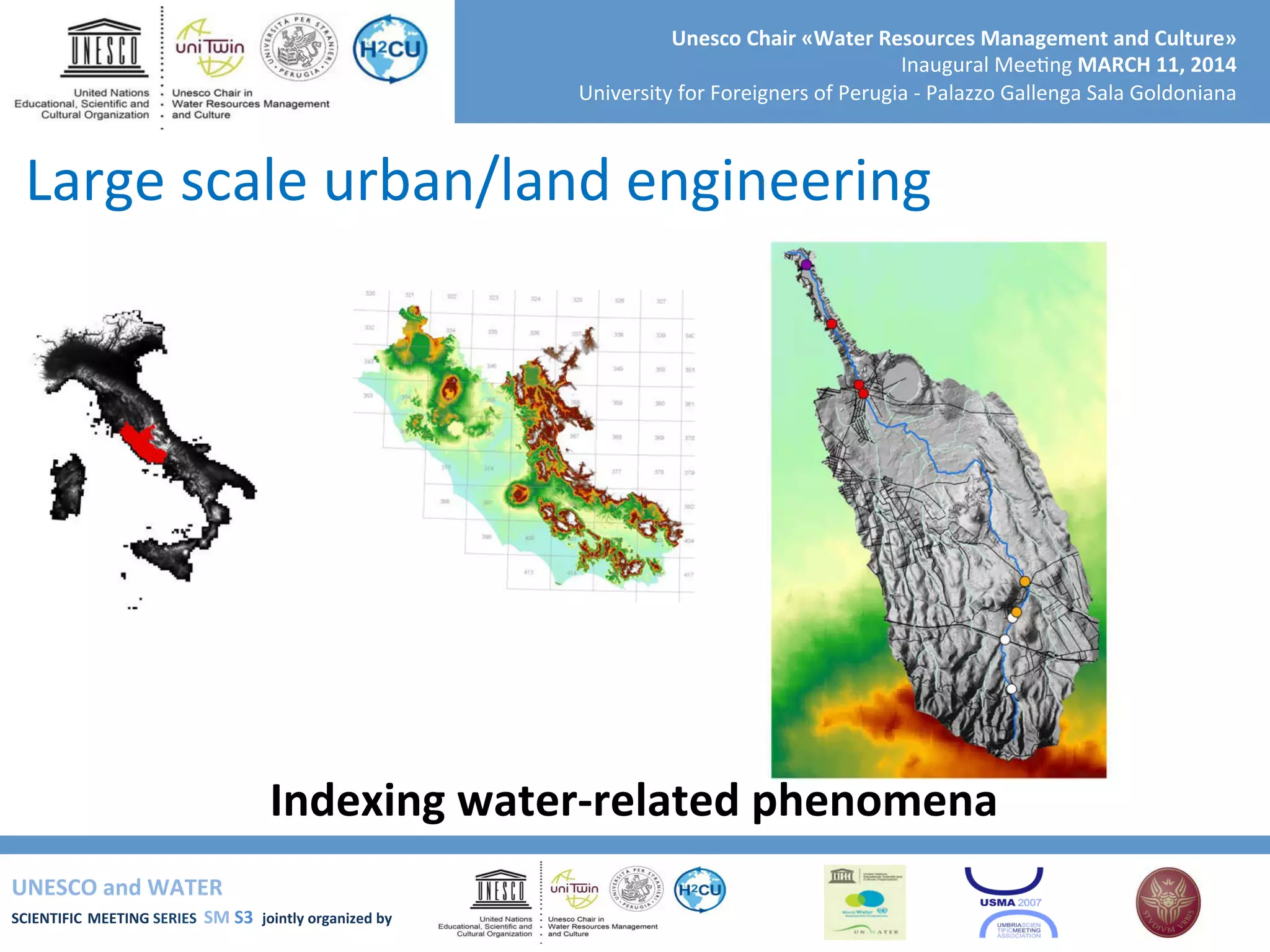

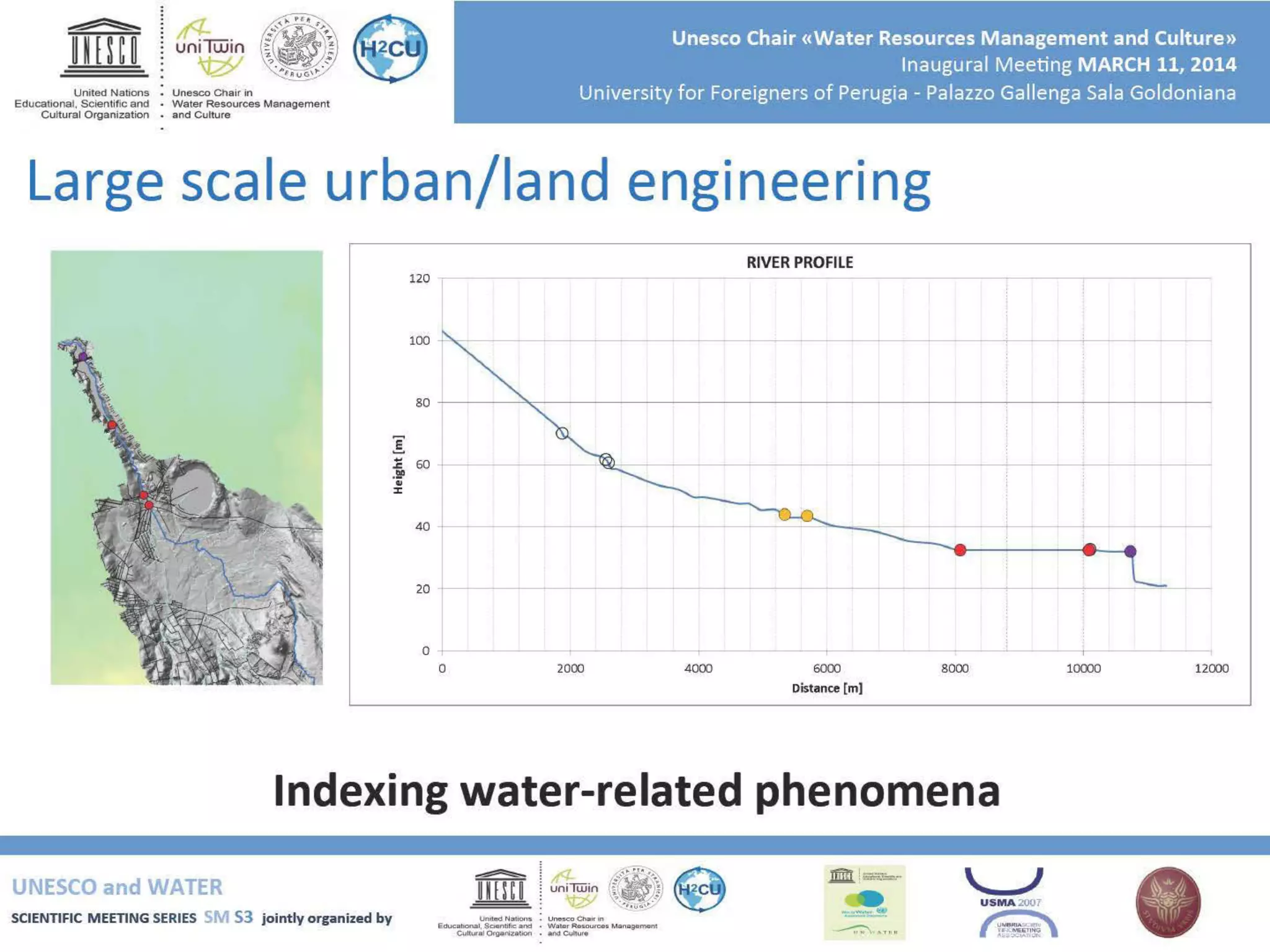

- 45. UNESCO and WATER SCIENTIFIC MEETING SERIES SM S3 jointly organized by Unesco Chair «Water Resources Management and Culture» Inaugural Mee+ng MARCH 11, 2014 University for Foreigners of Perugia -‐ Palazzo Gallenga Sala Goldoniana Indexing water-‐related phenomena Large scale urban/land engineering

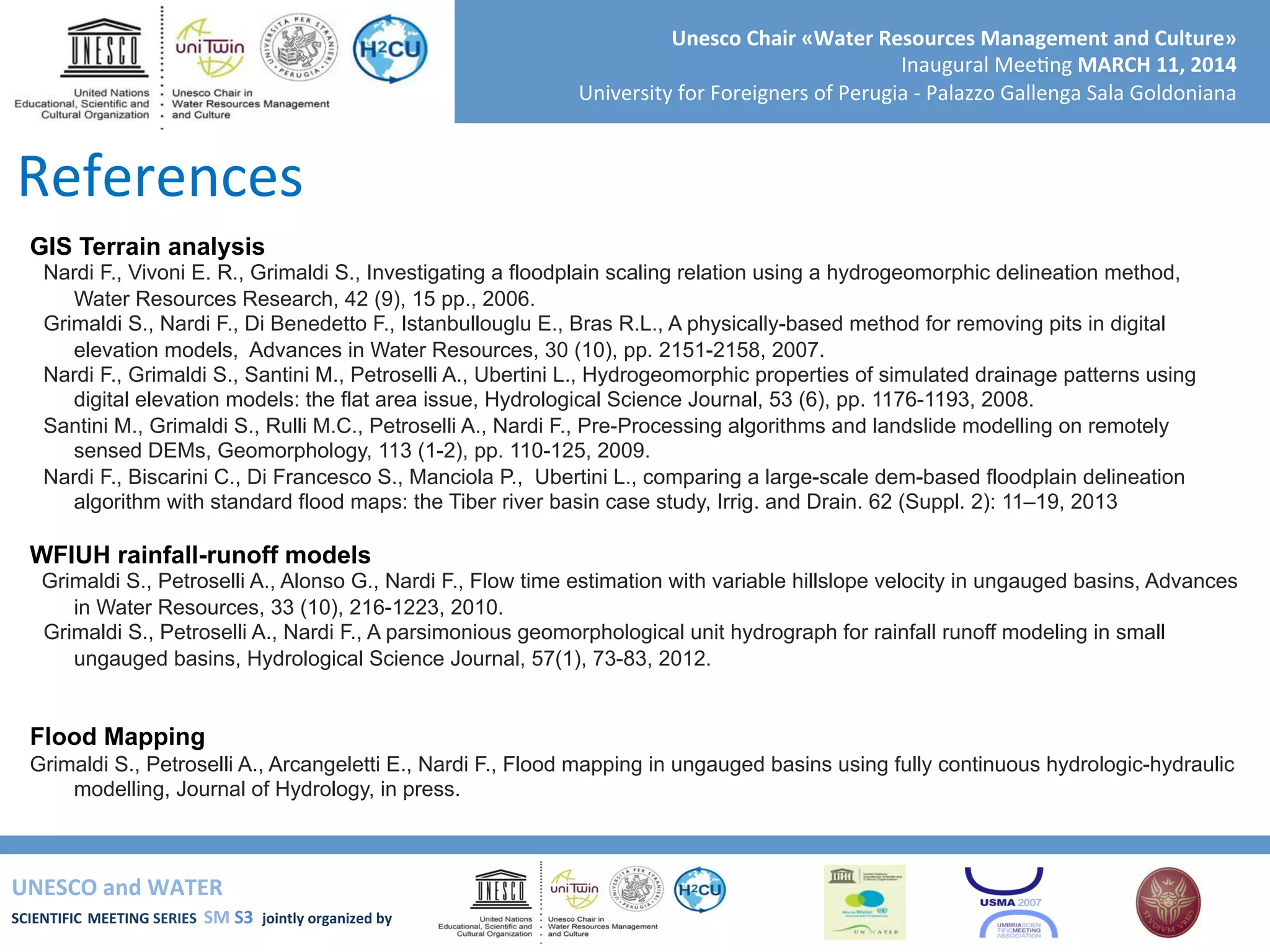

- 48. UNESCO and WATER SCIENTIFIC MEETING SERIES SM S3 jointly organized by Unesco Chair «Water Resources Management and Culture» Inaugural Mee+ng MARCH 11, 2014 University for Foreigners of Perugia -‐ Palazzo Gallenga Sala Goldoniana GIS Terrain analysis Nardi F., Vivoni E. R., Grimaldi S., Investigating a floodplain scaling relation using a hydrogeomorphic delineation method, Water Resources Research, 42 (9), 15 pp., 2006. Grimaldi S., Nardi F., Di Benedetto F., Istanbullouglu E., Bras R.L., A physically-based method for removing pits in digital elevation models, Advances in Water Resources, 30 (10), pp. 2151-2158, 2007. Nardi F., Grimaldi S., Santini M., Petroselli A., Ubertini L., Hydrogeomorphic properties of simulated drainage patterns using digital elevation models: the flat area issue, Hydrological Science Journal, 53 (6), pp. 1176-1193, 2008. Santini M., Grimaldi S., Rulli M.C., Petroselli A., Nardi F., Pre-Processing algorithms and landslide modelling on remotely sensed DEMs, Geomorphology, 113 (1-2), pp. 110-125, 2009. Nardi F., Biscarini C., Di Francesco S., Manciola P., Ubertini L., comparing a large-scale dem-based floodplain delineation algorithm with standard flood maps: the Tiber river basin case study, Irrig. and Drain. 62 (Suppl. 2): 11–19, 2013 WFIUH rainfall-runoff models Grimaldi S., Petroselli A., Alonso G., Nardi F., Flow time estimation with variable hillslope velocity in ungauged basins, Advances in Water Resources, 33 (10), 216-1223, 2010. Grimaldi S., Petroselli A., Nardi F., A parsimonious geomorphological unit hydrograph for rainfall runoff modeling in small ungauged basins, Hydrological Science Journal, 57(1), 73-83, 2012. Flood Mapping Grimaldi S., Petroselli A., Arcangeletti E., Nardi F., Flood mapping in ungauged basins using fully continuous hydrologic-hydraulic modelling, Journal of Hydrology, in press. References

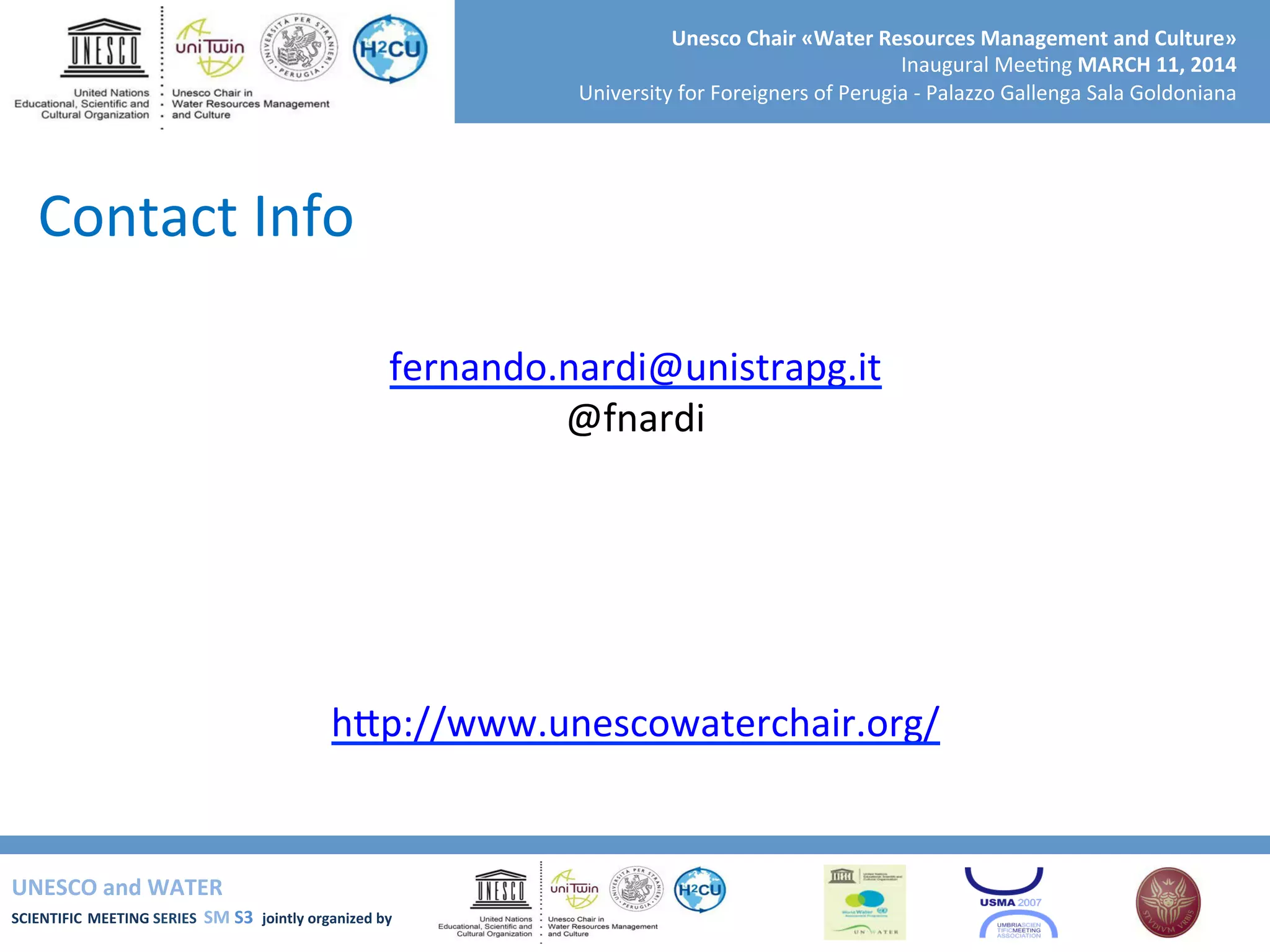

- 49. UNESCO and WATER SCIENTIFIC MEETING SERIES SM S3 jointly organized by Unesco Chair «Water Resources Management and Culture» Inaugural Mee+ng MARCH 11, 2014 University for Foreigners of Perugia -‐ Palazzo Gallenga Sala Goldoniana Contact Info fernando.nardi@unistrapg.it @fnardi hSp://www.unescowaterchair.org/
