1. 1
Getting access to the SAP server
via SAP Management Console
Dmitry Chastuhin, Dmitry Yudin

2. 2
About us
Business application
security expert
Yet another security
researcher
ERPScan

3. 3
About us
Security researcher
Reverse engineer
ERPScan

4. 4
About ERPScan

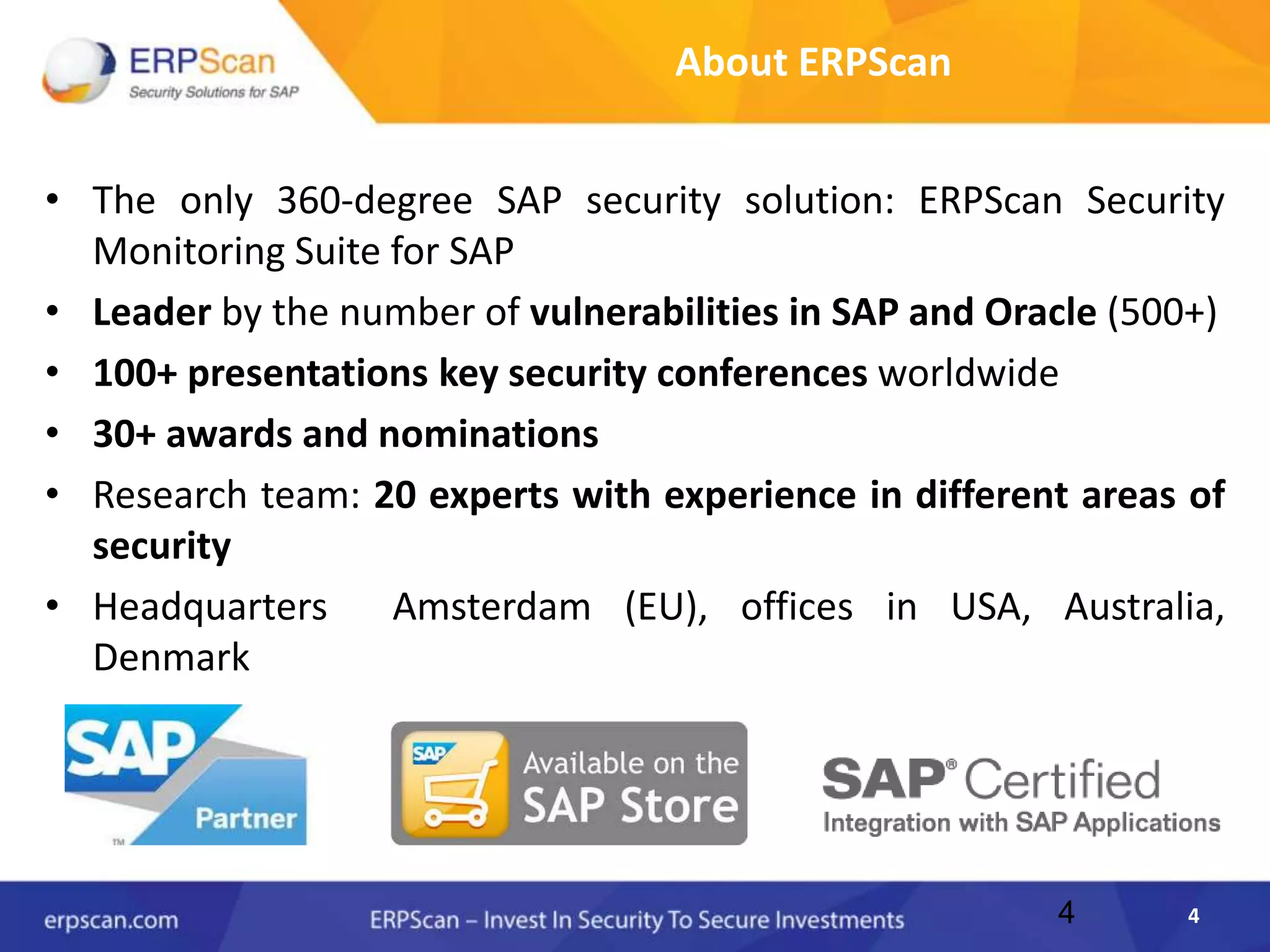

• The only 360-degree SAP security solution: ERPScan Security
Monitoring Suite for SAP
• Leader by the number of vulnerabilities in SAP and Oracle (500+)
• 100+ presentations key security conferences worldwide
• 30+ awards and nominations
• Research team: 20 experts with experience in different areas of
security
• Headquarters Amsterdam (EU), offices in USA, Australia,
Denmark
4

5. 5

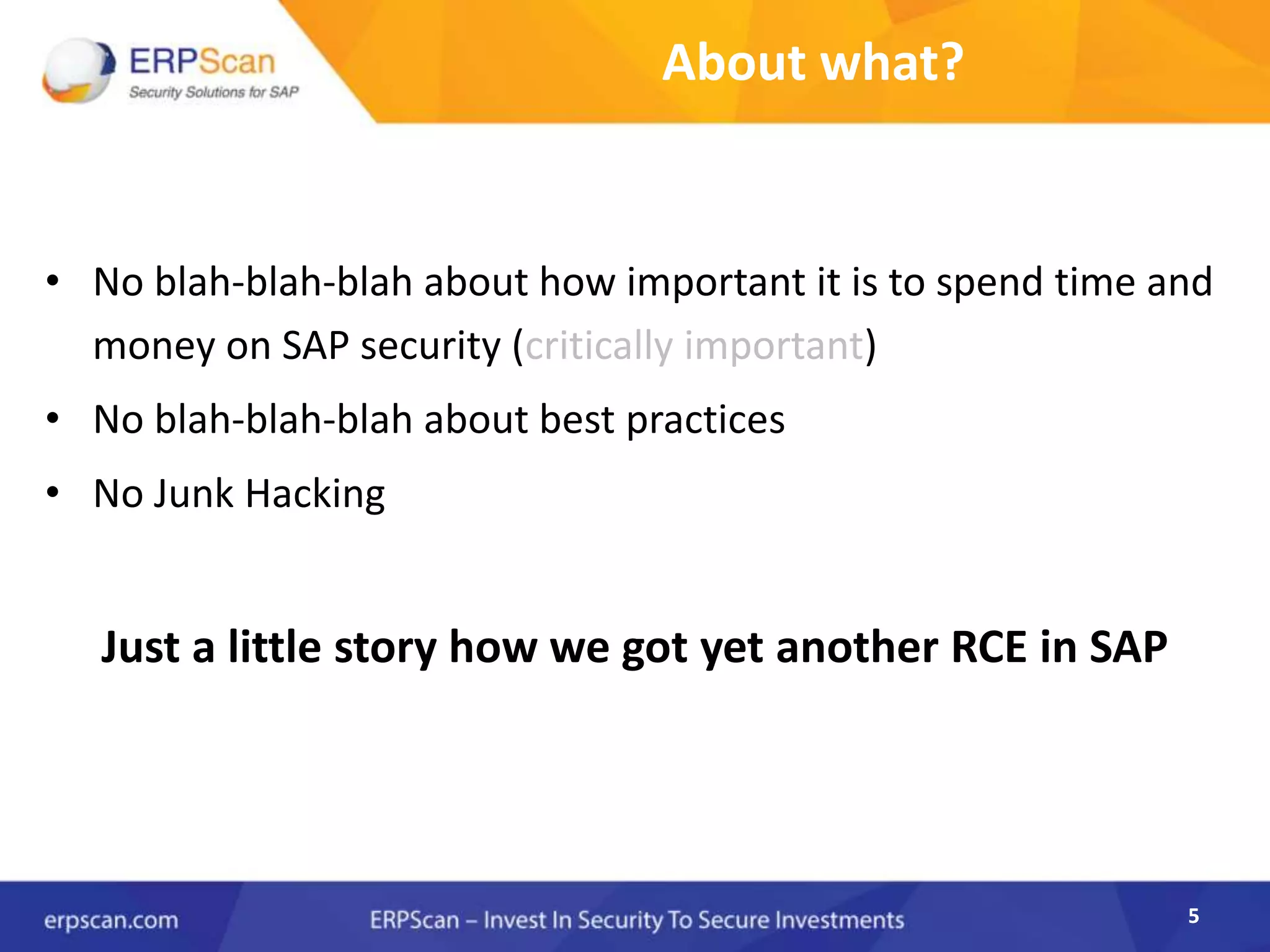

About what?
• No blah-blah-blah about how important it is to spend time and
money on SAP security (critically important)
• No blah-blah-blah about best practices
• No Junk Hacking
Just a little story how we got yet another RCE in SAP
5

6. 6
SAP
6

7. 7

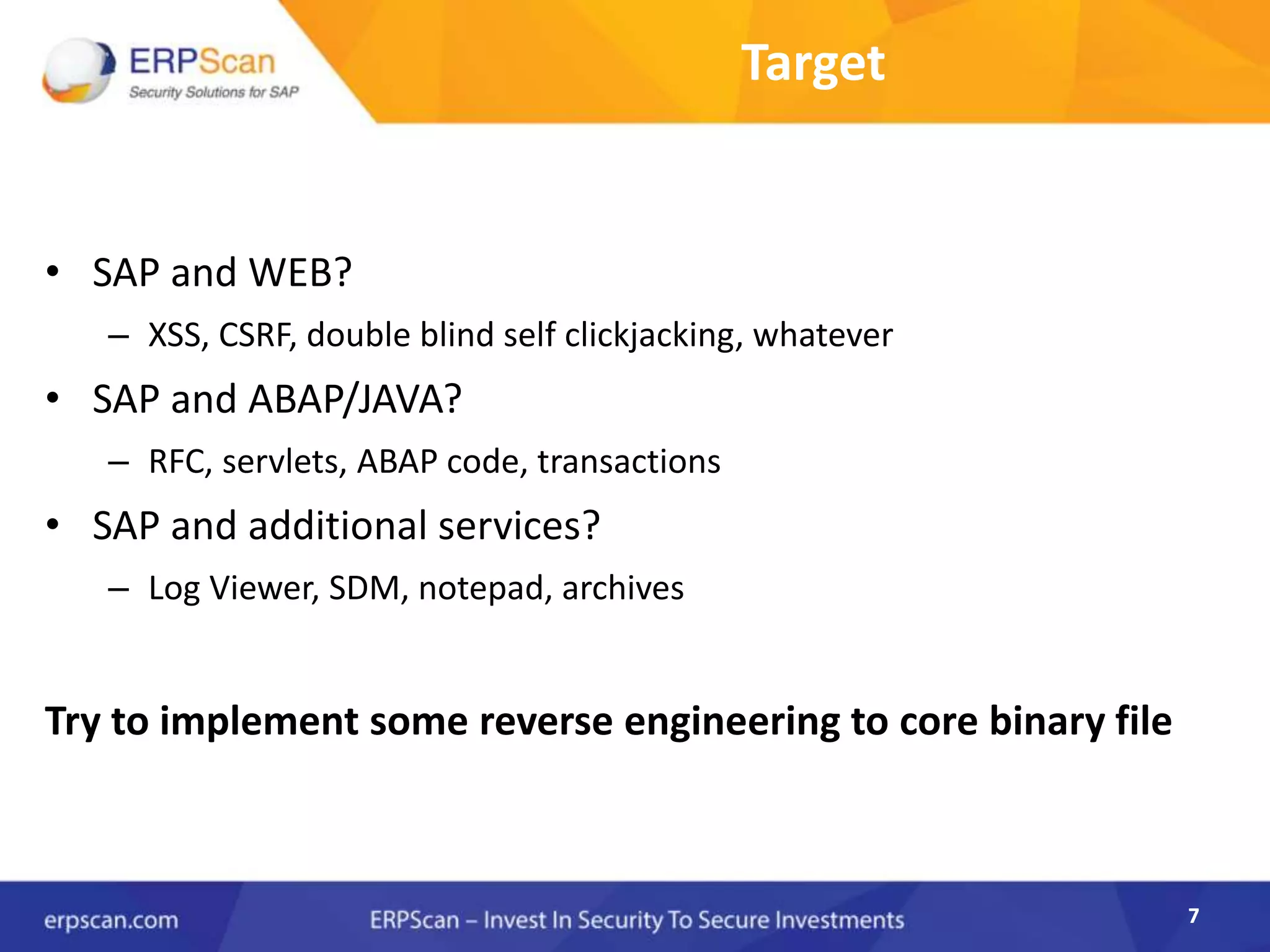

Target
• SAP and WEB?
– XSS, CSRF, double blind self clickjacking, whatever
• SAP and ABAP/JAVA?
– RFC, servlets, ABAP code, transactions
• SAP and additional services?
– Log Viewer, SDM, notepad, archives
Try to implement some reverse engineering to core binary file
7

8. 8
DISP+WORK.EXE

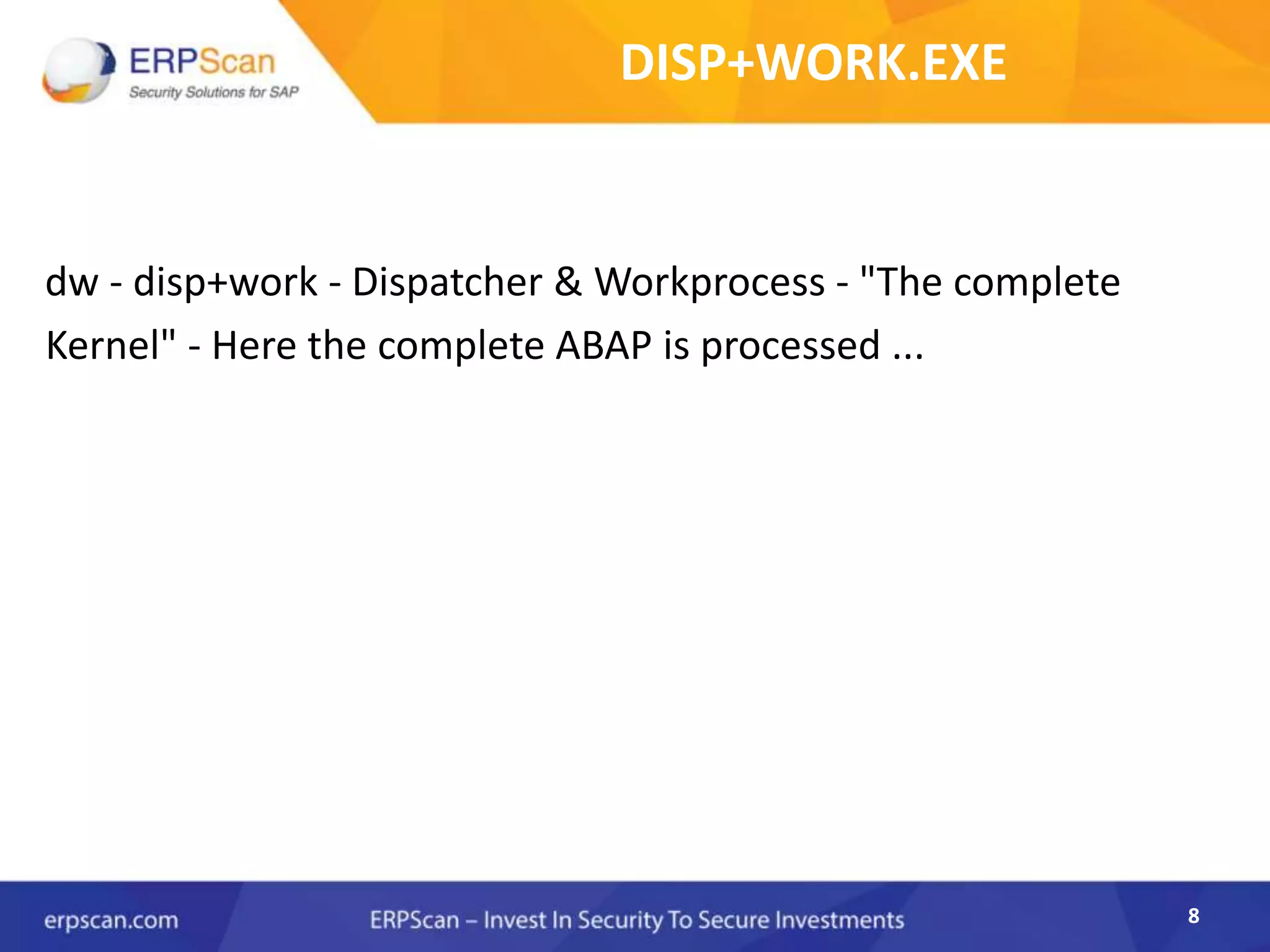

dw - disp+work - Dispatcher & Workprocess - "The complete
Kernel" - Here the complete ABAP is processed ...
8

9. 9
DISP+WORK.EXE

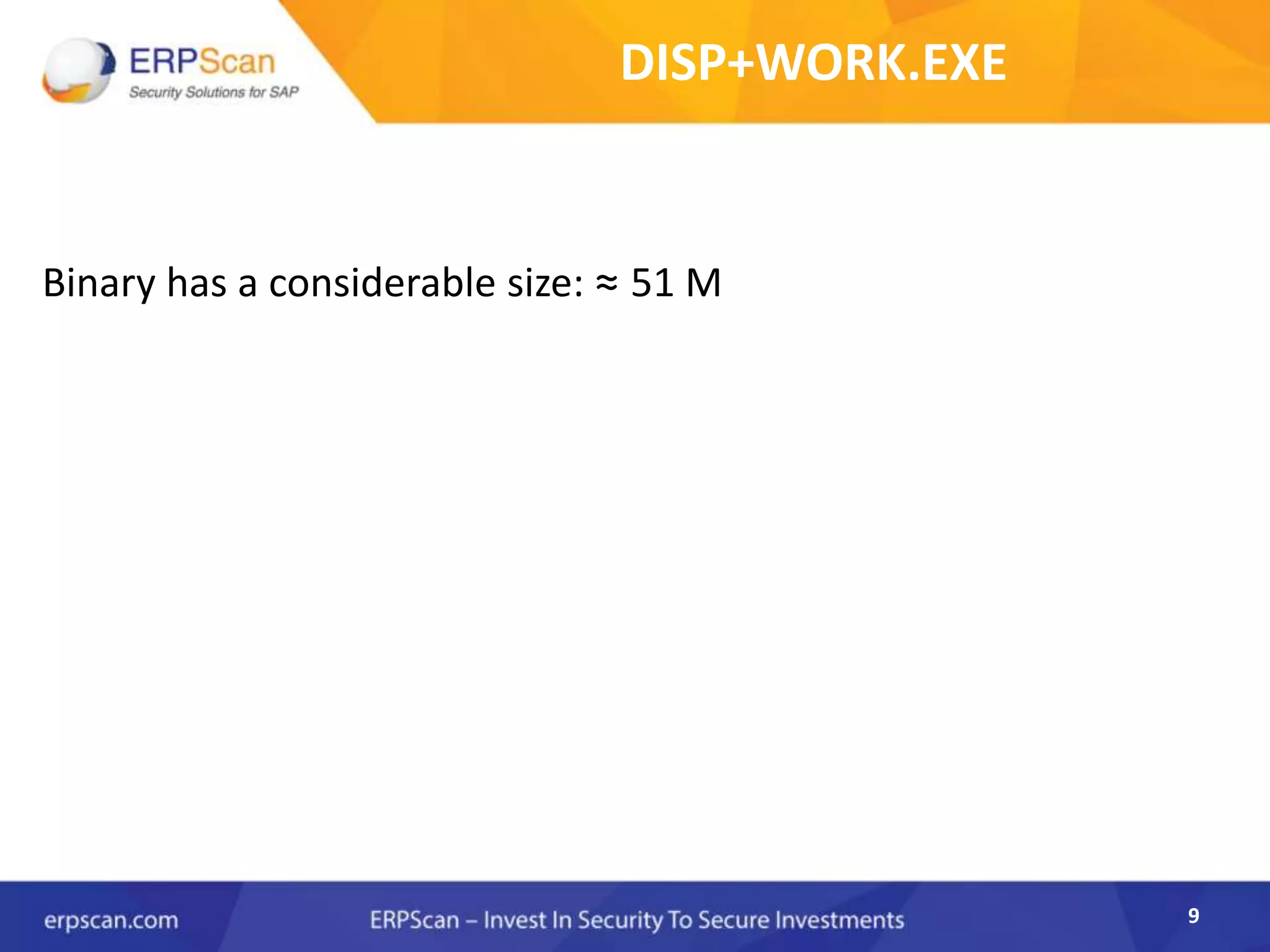

Binary has a considerable size: ≈ 51 M
9

10. 10
DISP+WORK.EXE
Binary has a considerable size: ≈ 51 M

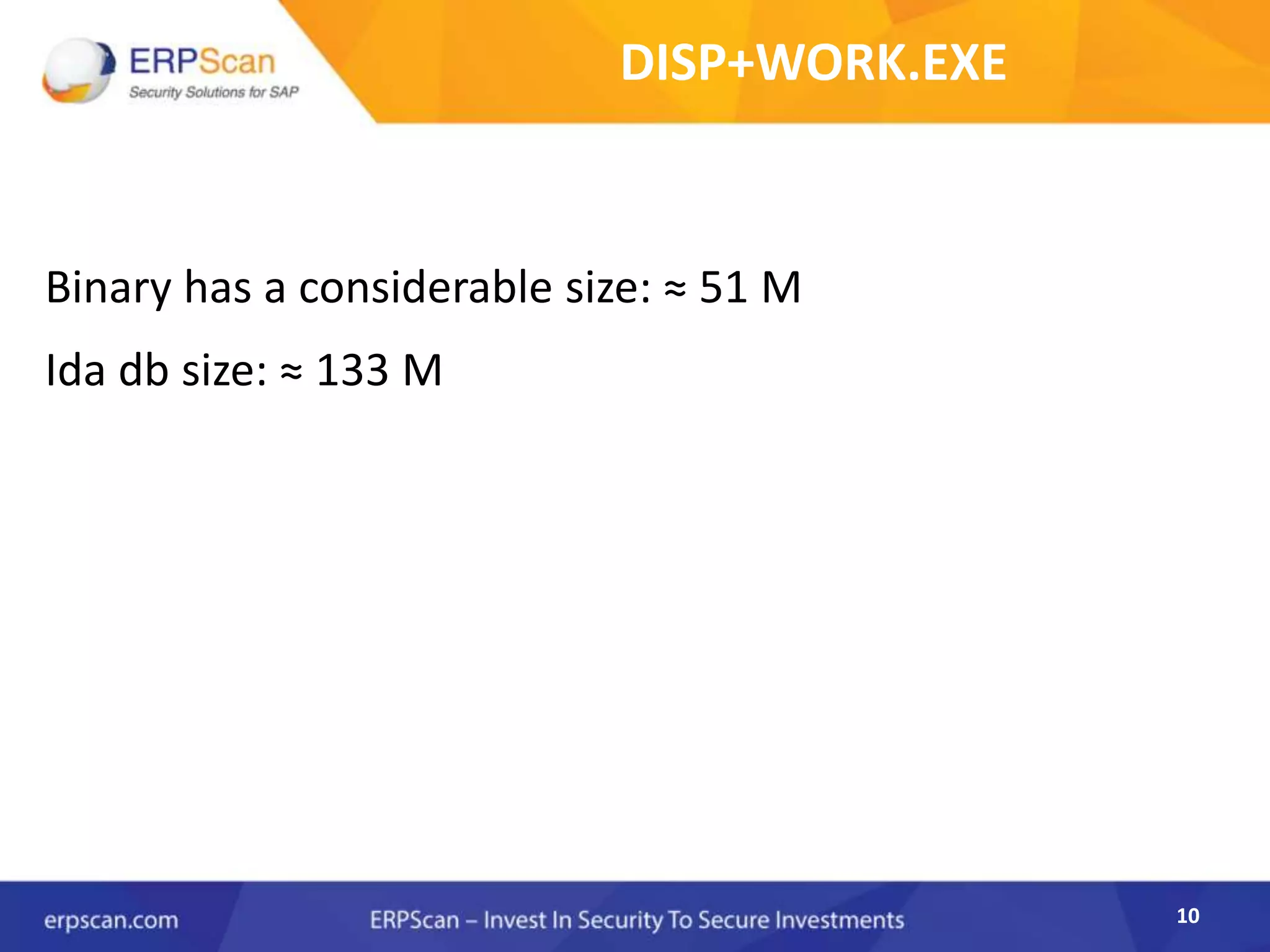

Ida db size: ≈ 133 M
10

11. 11

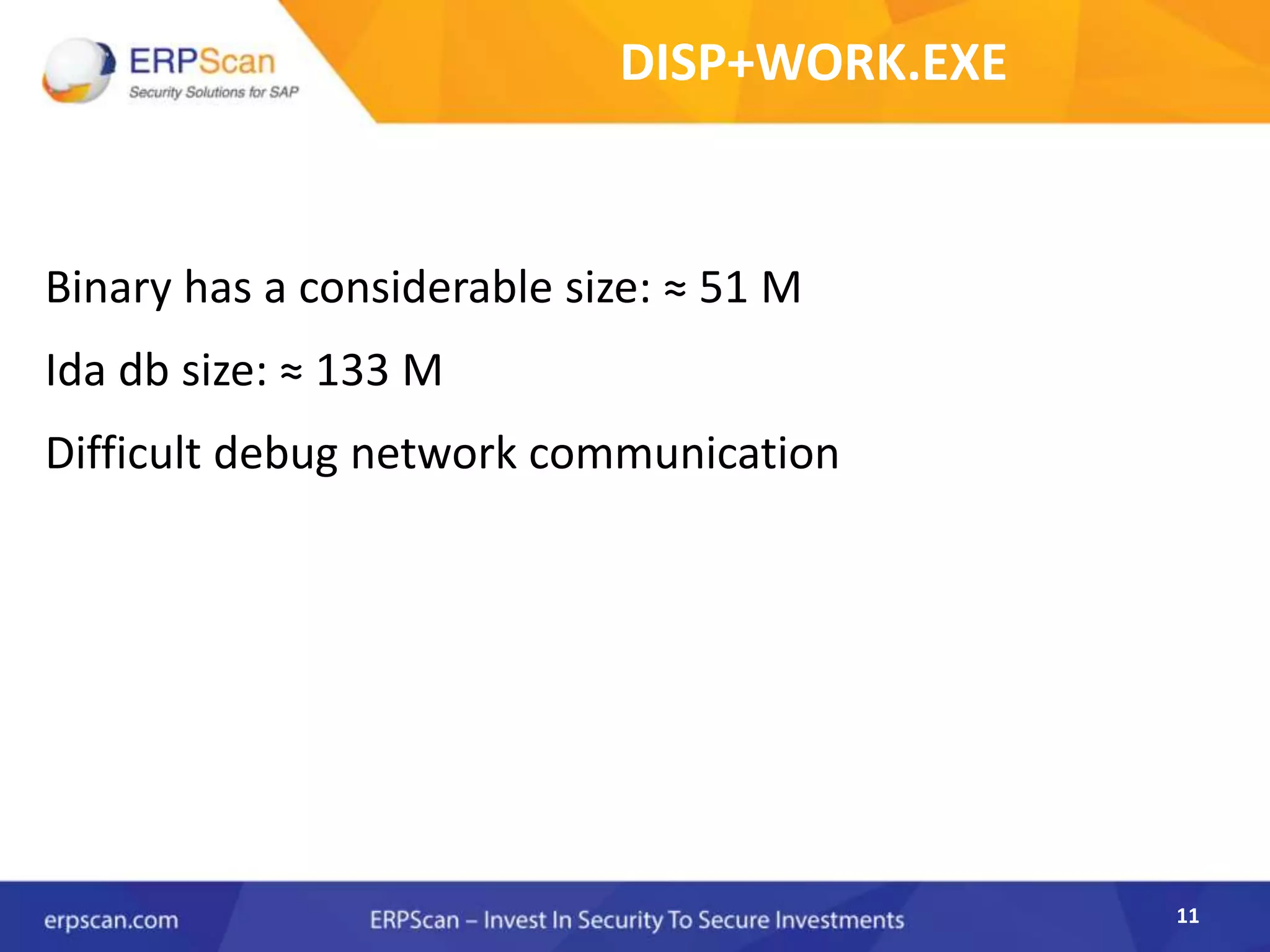

DISP+WORK.EXE
Binary has a considerable size: ≈ 51 M
Ida db size: ≈ 133 M
Difficult debug network communication
11

12. 12
DISP+WORK.EXE
Difficulties with debug network communication

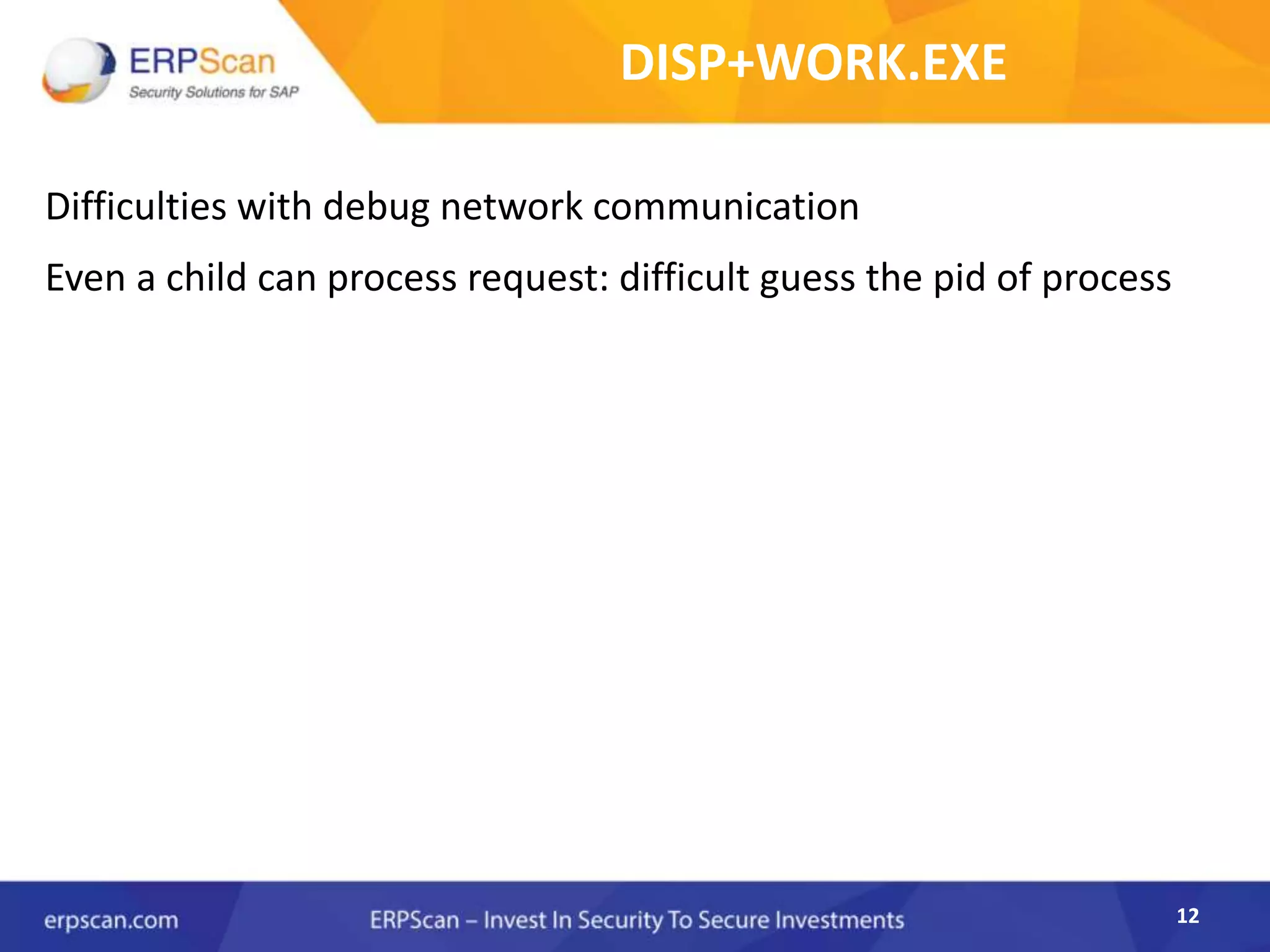

Even a child can process request: difficult guess the pid of process
12

13. 13
DISP+WORK.EXE

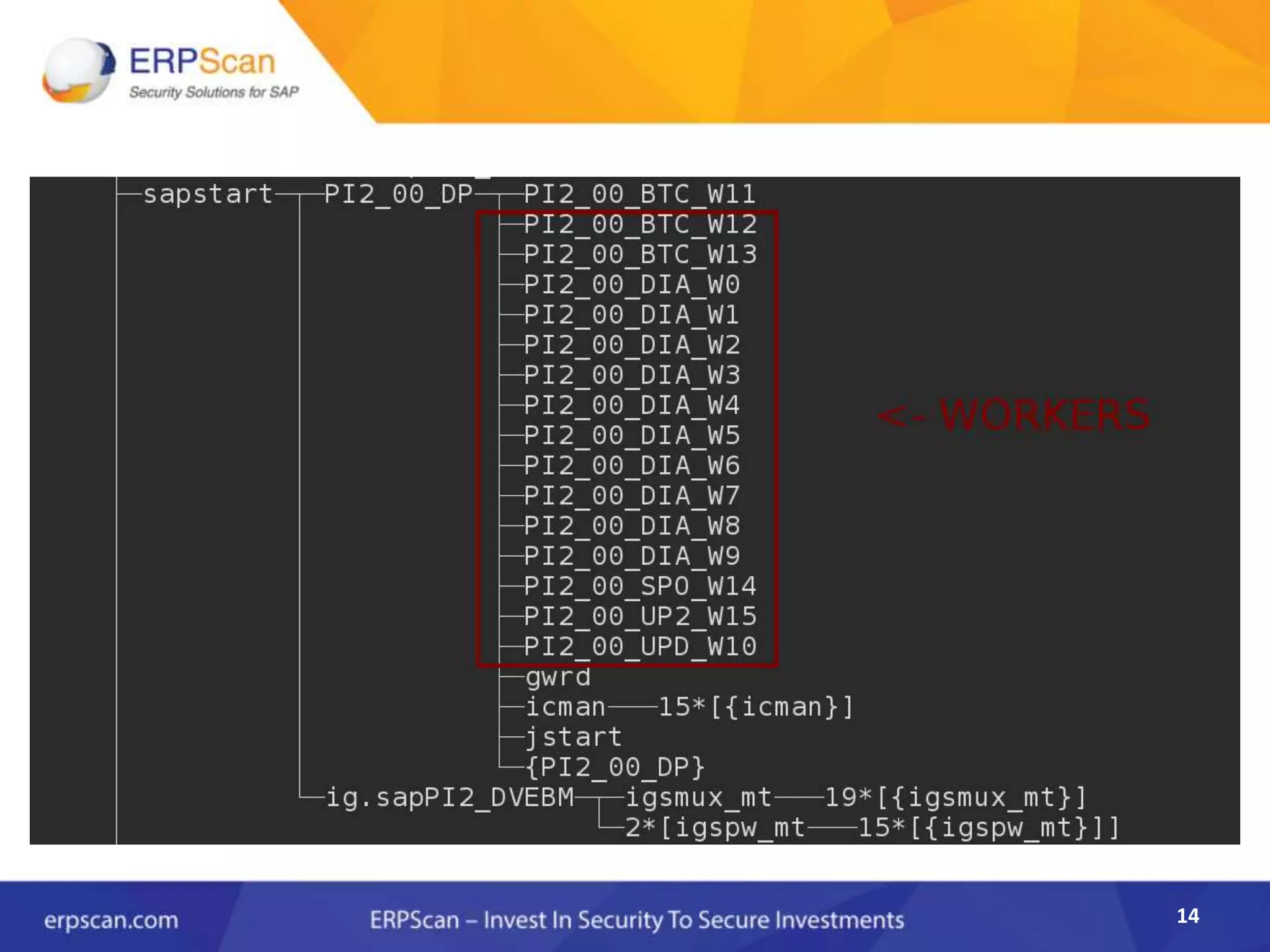

14. 14

15. 15

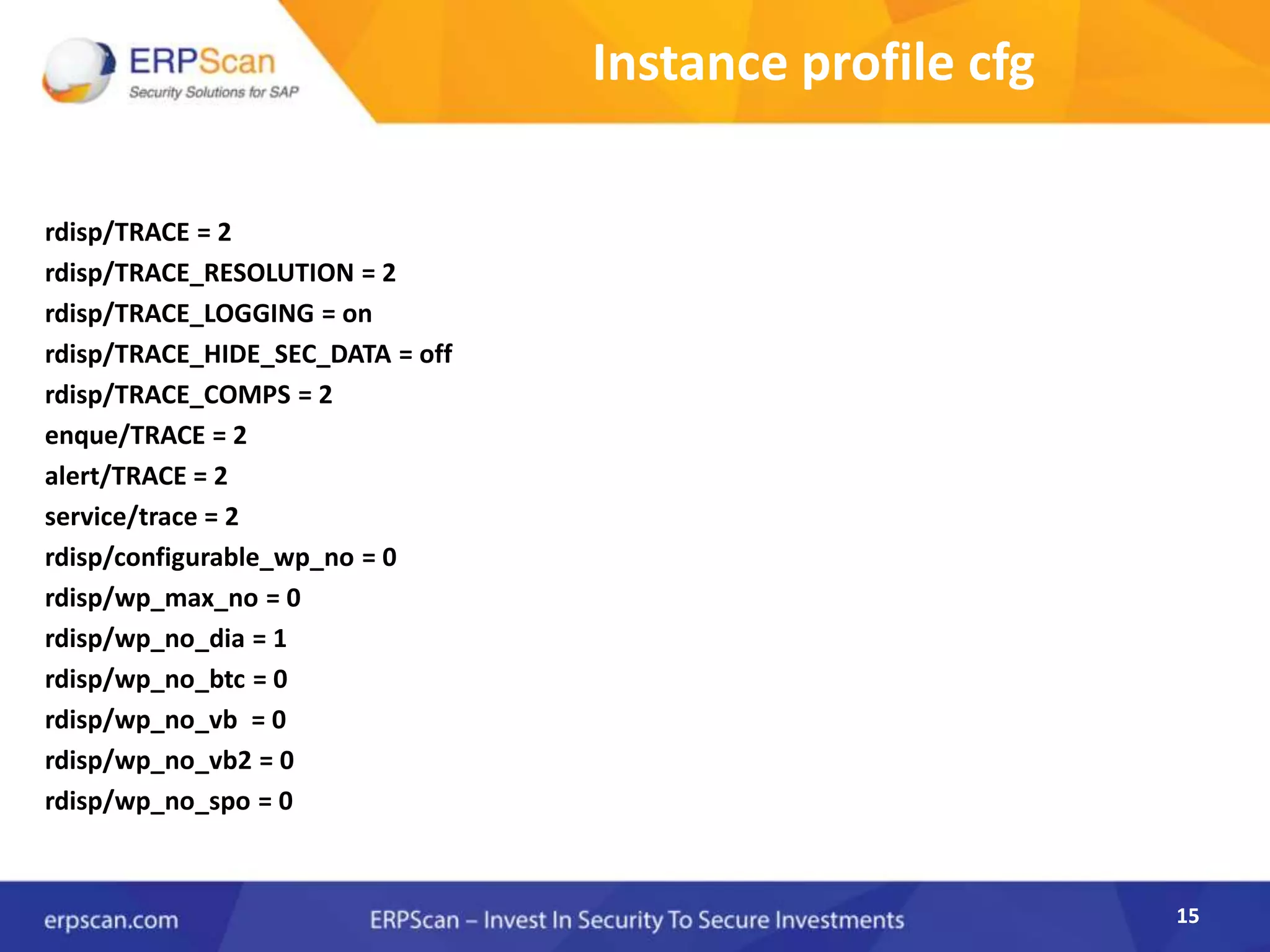

Instance profile cfg
rdisp/TRACE = 2
rdisp/TRACE_RESOLUTION = 2
rdisp/TRACE_LOGGING = on
rdisp/TRACE_HIDE_SEC_DATA = off
rdisp/TRACE_COMPS = 2
enque/TRACE = 2
alert/TRACE = 2
service/trace = 2
rdisp/configurable_wp_no = 0
rdisp/wp_max_no = 0
rdisp/wp_no_dia = 1
rdisp/wp_no_btc = 0
rdisp/wp_no_vb = 0
rdisp/wp_no_vb2 = 0
rdisp/wp_no_spo = 0
15

16. 16
Instance profile cfg
rdisp/TRACE = 2
rdisp/TRACE_RESOLUTION = 2
rdisp/TRACE_LOGGING = on
rdisp/TRACE_HIDE_SEC_DATA = off
rdisp/TRACE_COMPS = 2
enque/TRACE = 2
alert/TRACE = 2
service/trace = 2
rdisp/configurable_wp_no = 0
rdisp/wp_max_no = 0
rdisp/wp_no_dia = 1
rdisp/wp_no_btc = 0
rdisp/wp_no_vb = 0
rdisp/wp_no_vb2 = 0
rdisp/wp_no_spo = 0
16

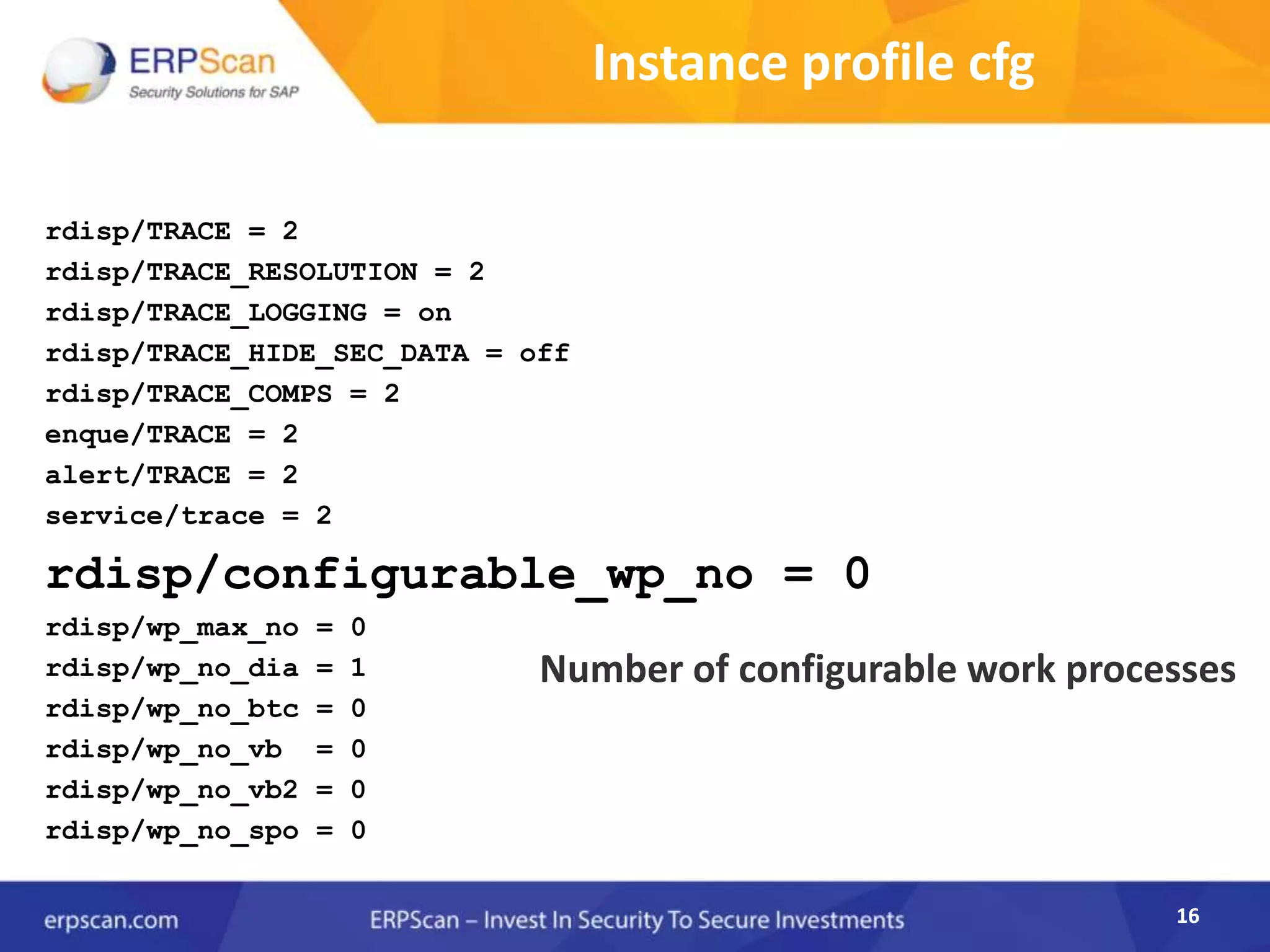

Number of configurable work processes

17. 17

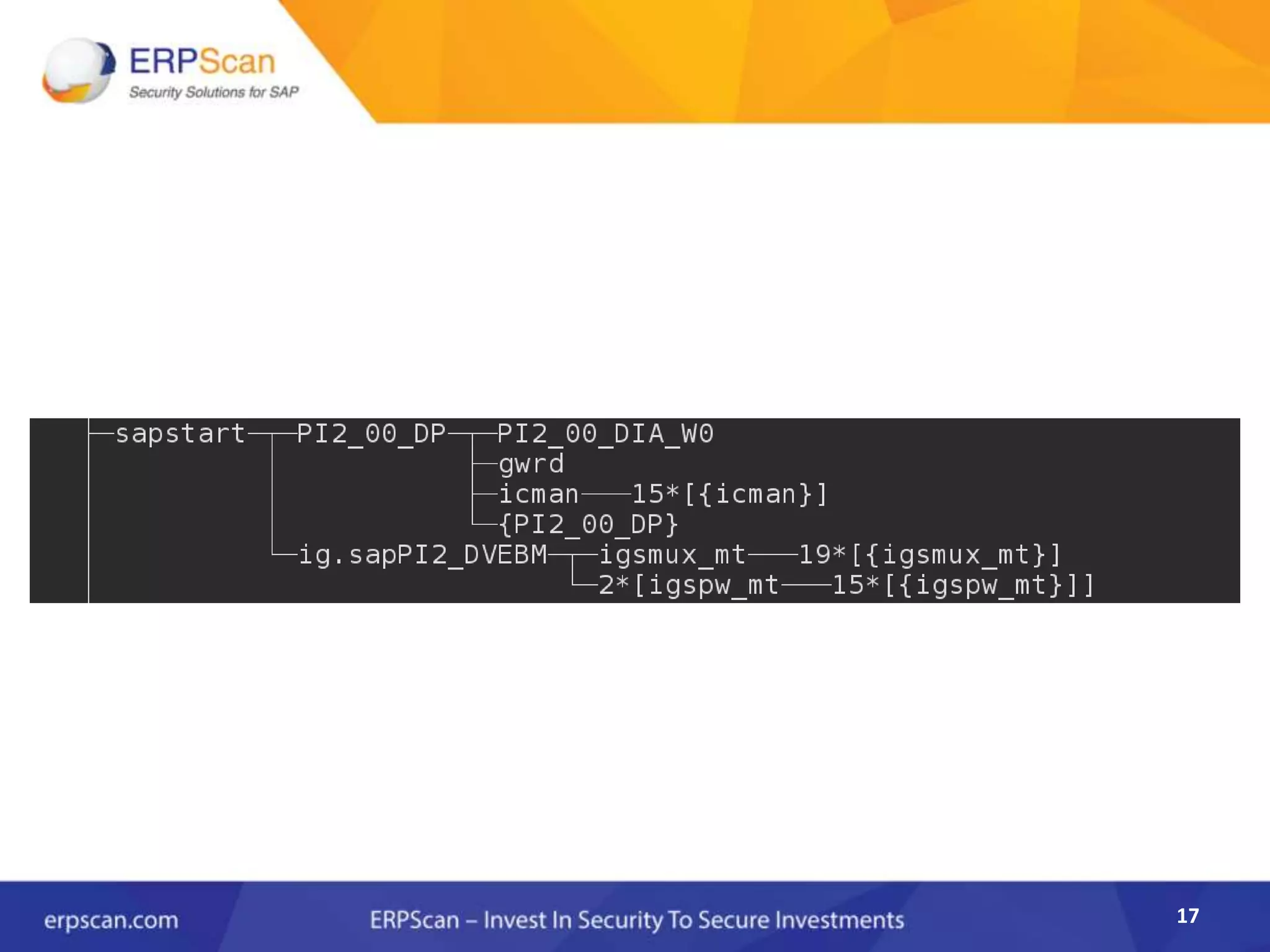

18. 18

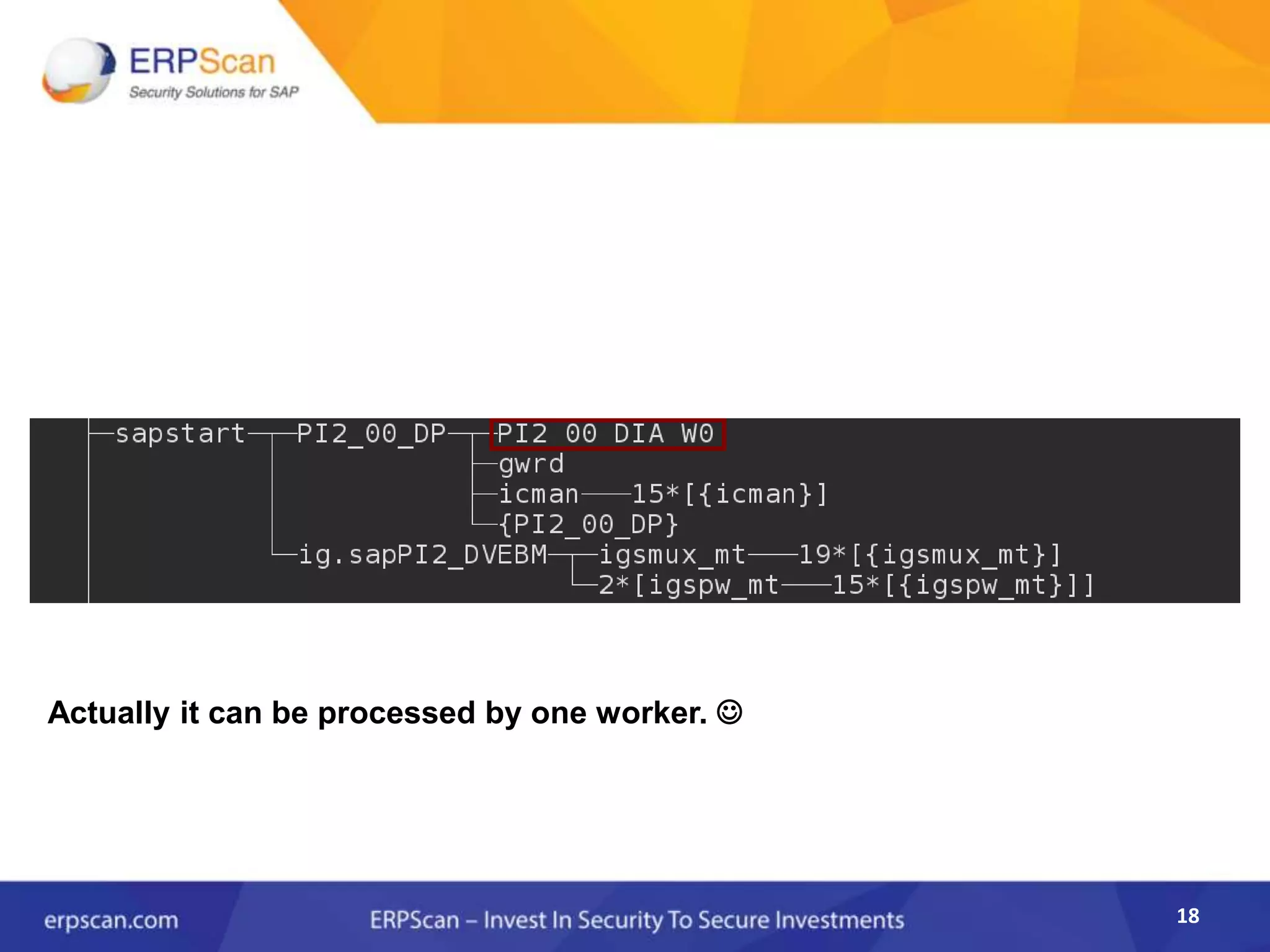

Actually it can be processed by one worker. 

19. 19
By only one worker 
But …

20. 20
DISP+WORK.EXE

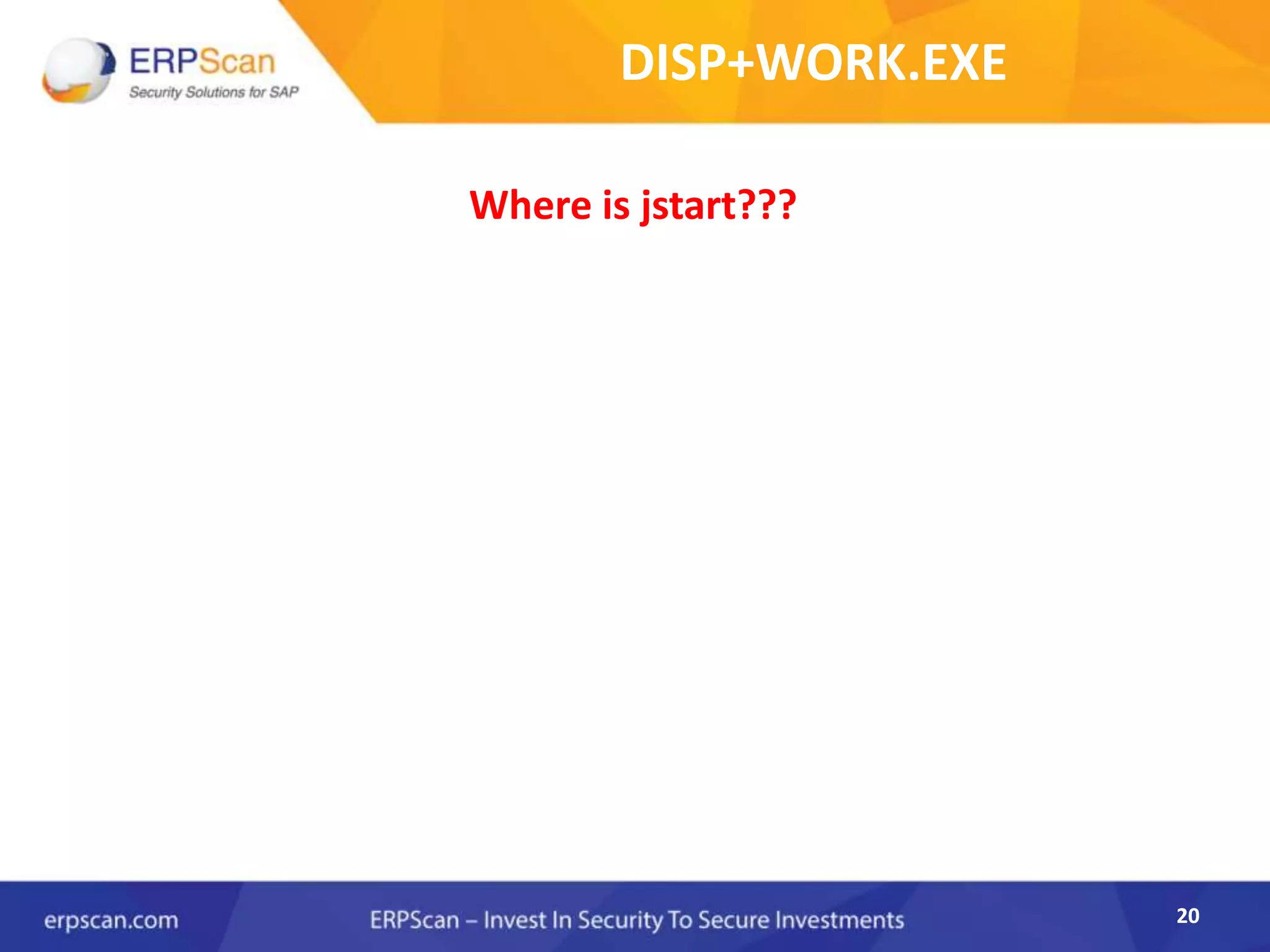

Where is jstart???
20

21. 21

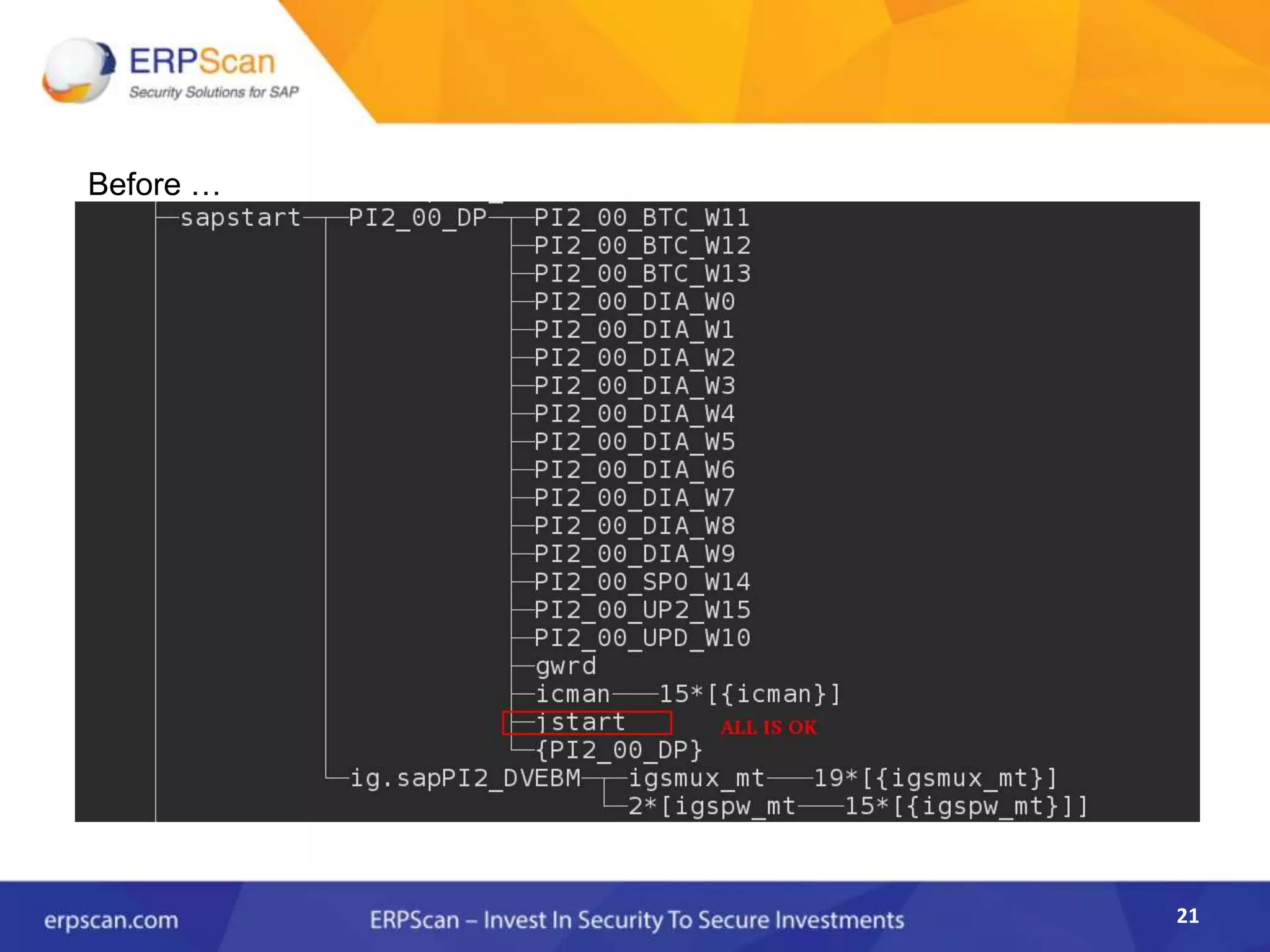

Before …

22. 22

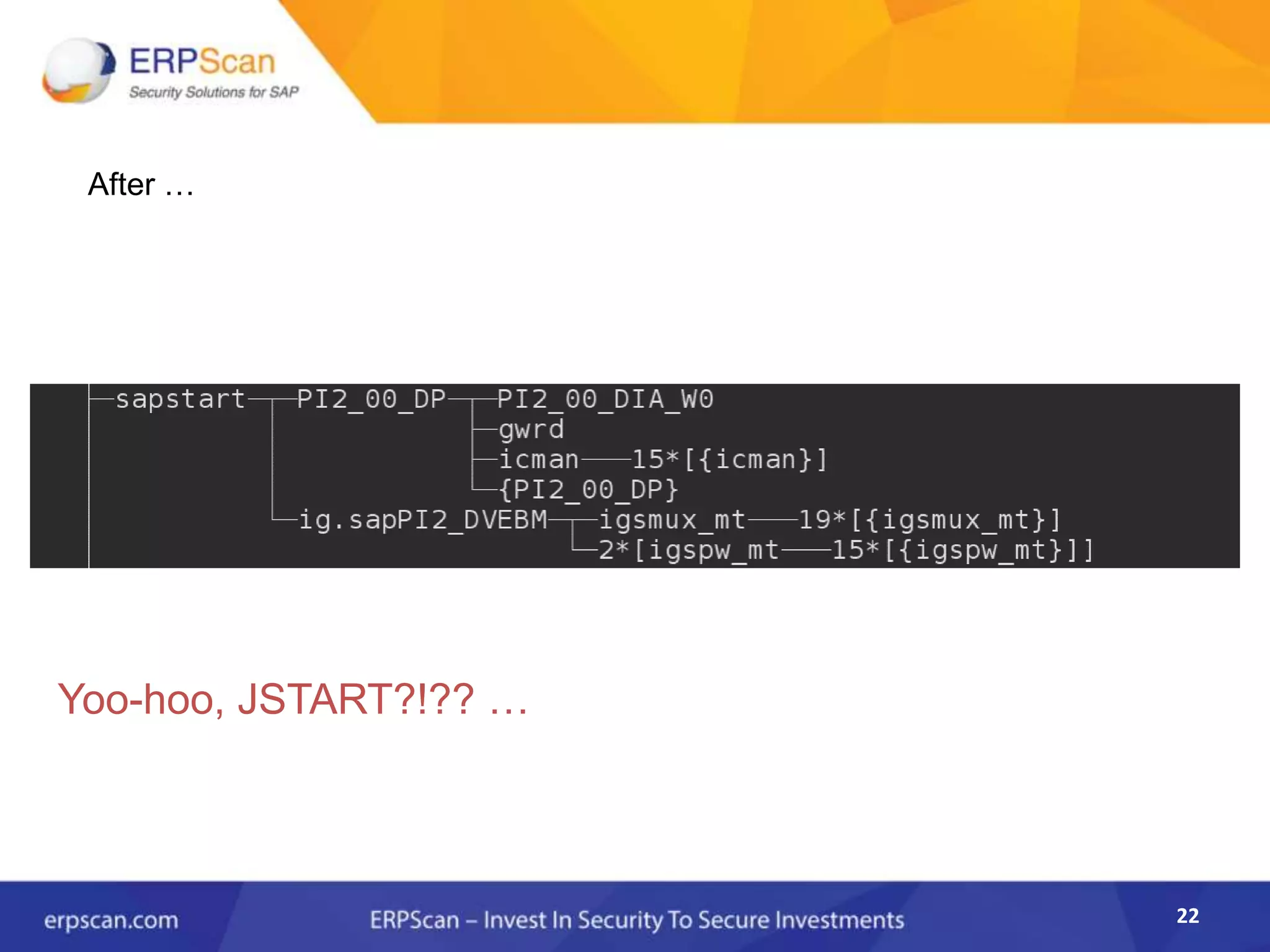

After …
Yoo-hoo, JSTART?!?? …

23. 23
DISP+WORK.EXE
JSTART
23

24. 24
Reverse engineering of DISP+WORK.EXE
GOAL

25. 25

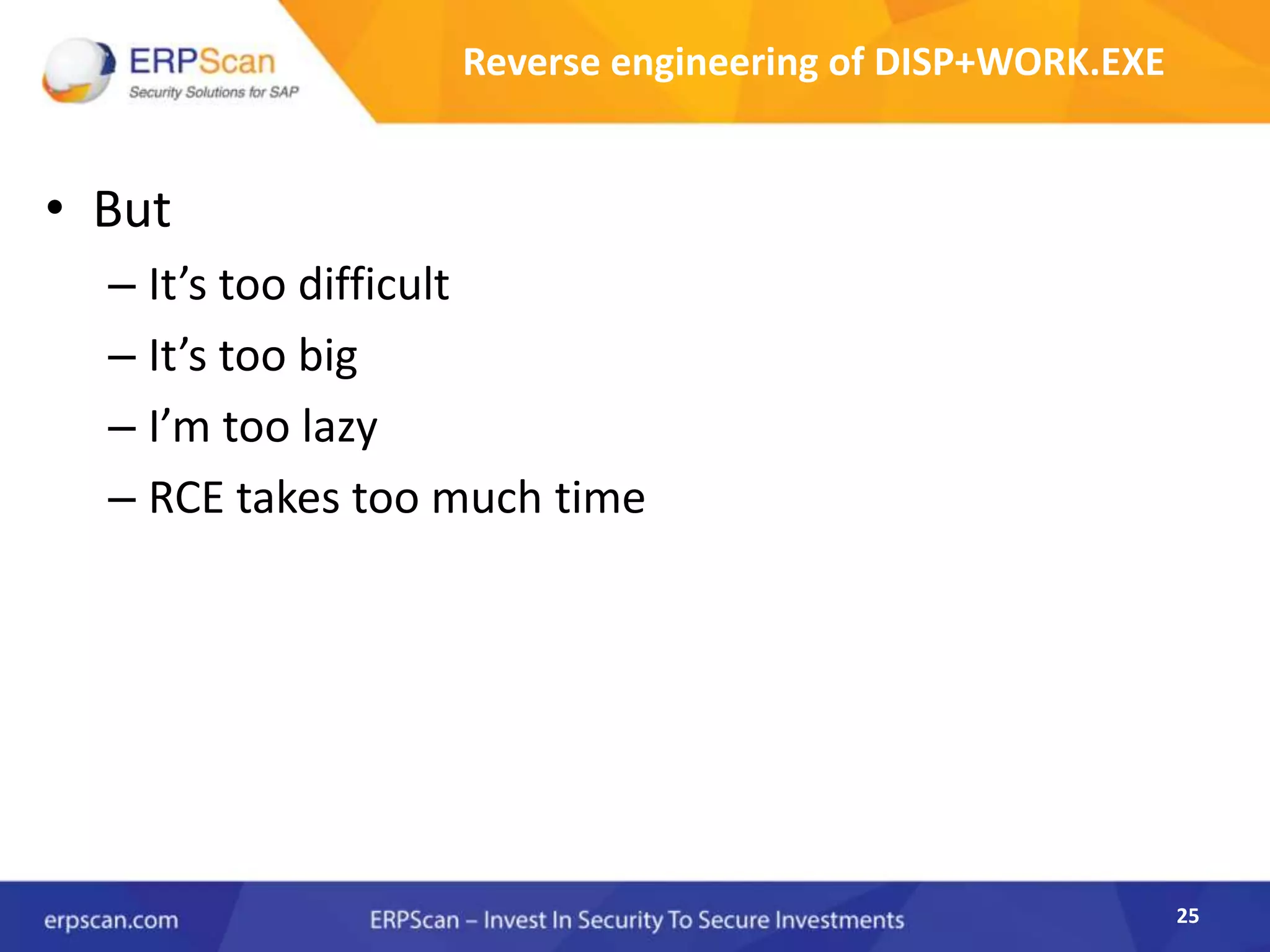

Reverse engineering of DISP+WORK.EXE
• But
– It’s too difficult
– It’s too big
– I’m too lazy
– RCE takes too much time

26. 26
Reverse engineering of DISP+WORK.EXE
• But
– It’s too difficult
– It’s too big
– I’m too lazy
– RCE takes too much time (maybe)

27. 27
SEEK AND DESTROY

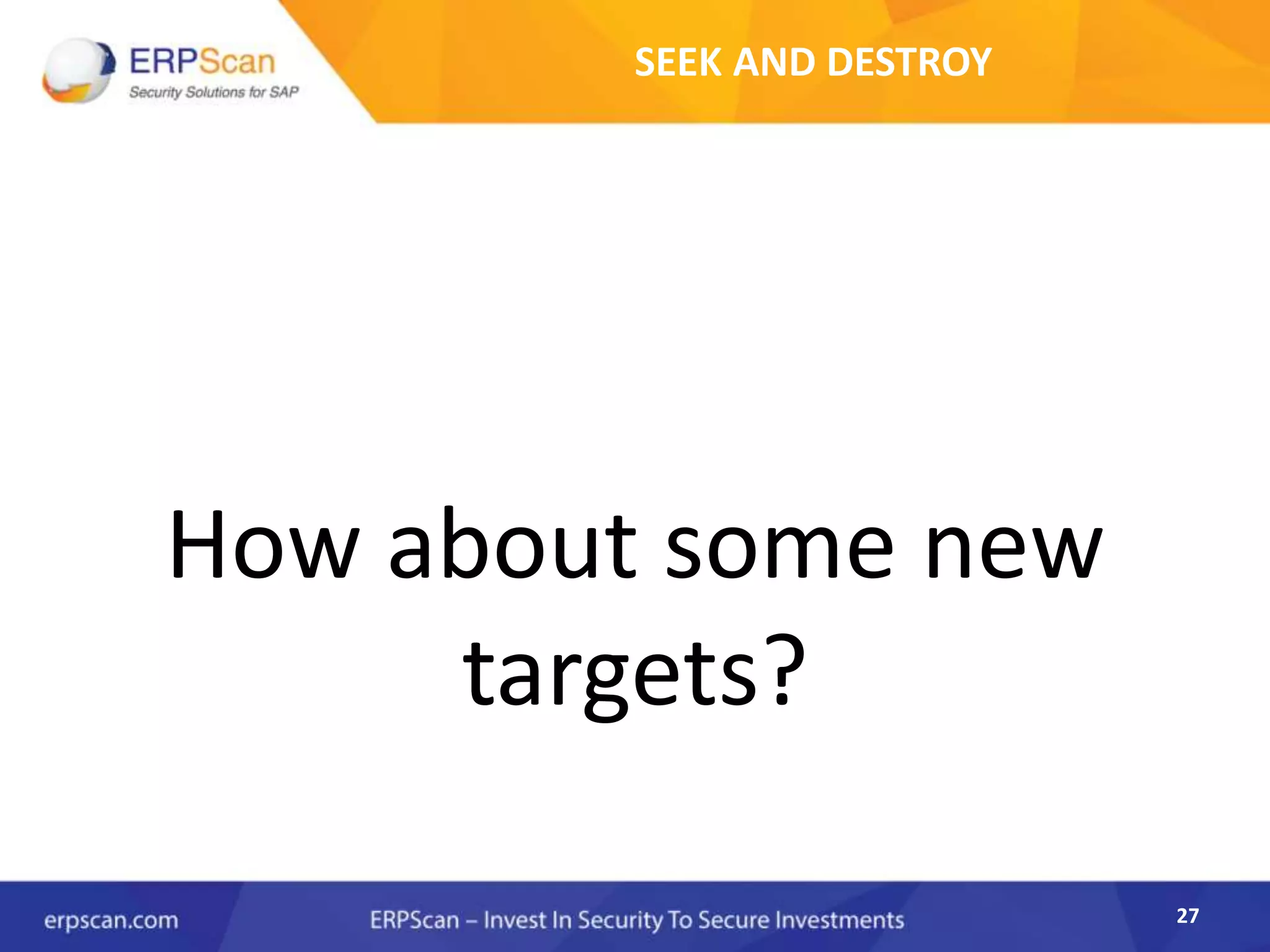

How about some new
targets?

28. 28

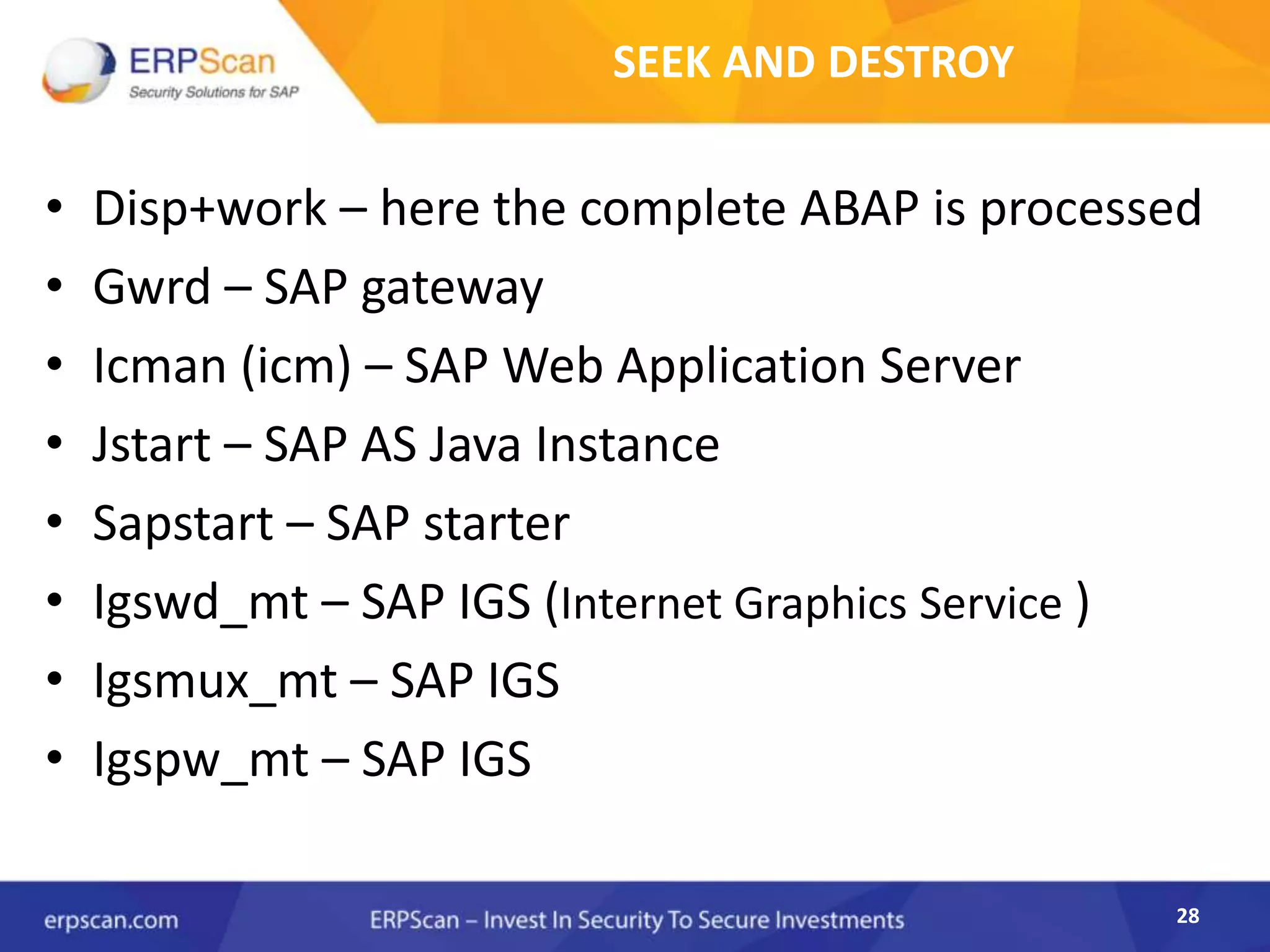

SEEK AND DESTROY
• Disp+work – here the complete ABAP is processed
• Gwrd – SAP gateway
• Icman (icm) – SAP Web Application Server
• Jstart – SAP AS Java Instance
• Sapstart – SAP starter
• Igswd_mt – SAP IGS (Internet Graphics Service )
• Igsmux_mt – SAP IGS
• Igspw_mt – SAP IGS

29. 29

30. 30

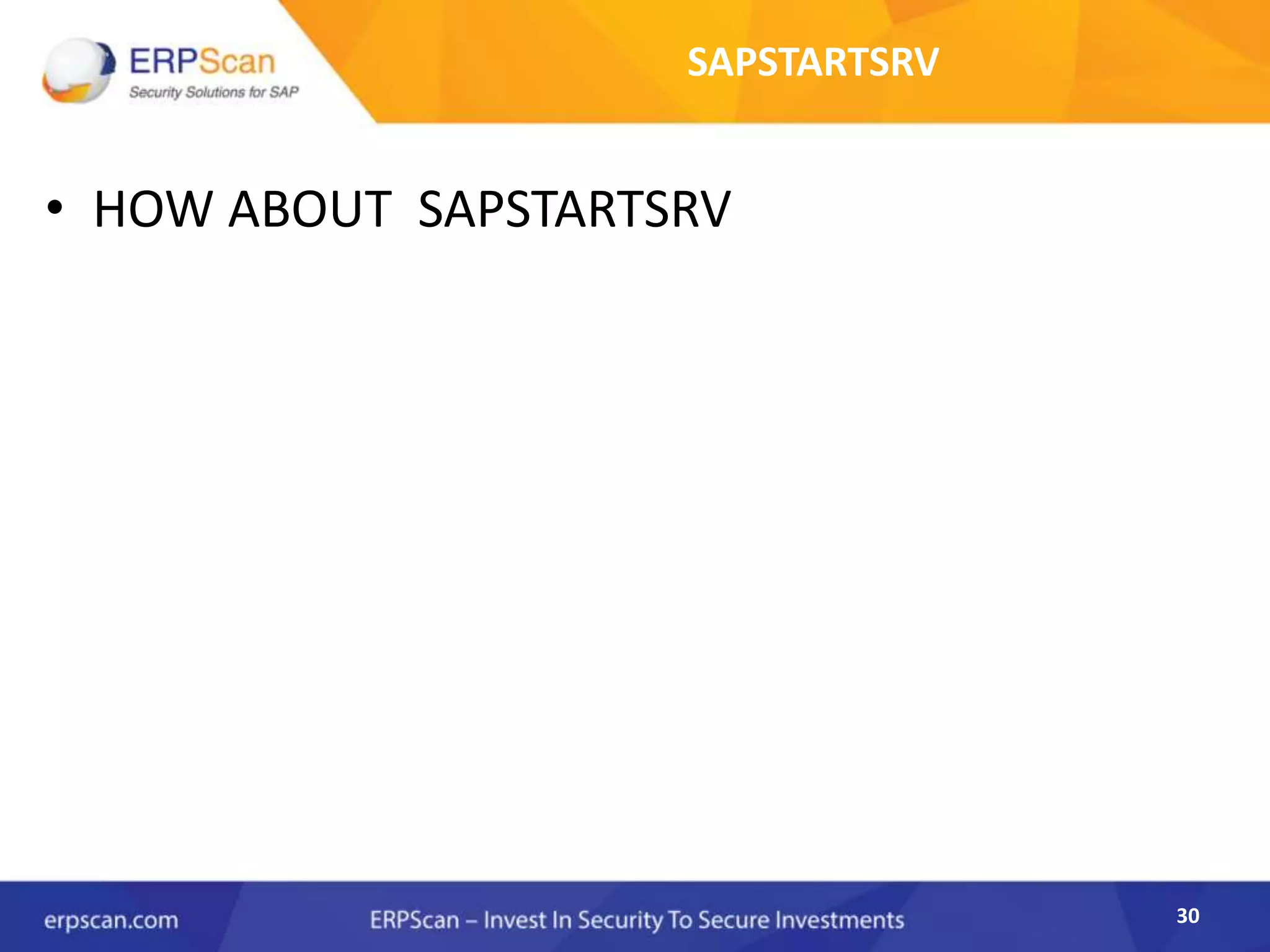

SAPSTARTSRV
• HOW ABOUT SAPSTARTSRV

31. 31

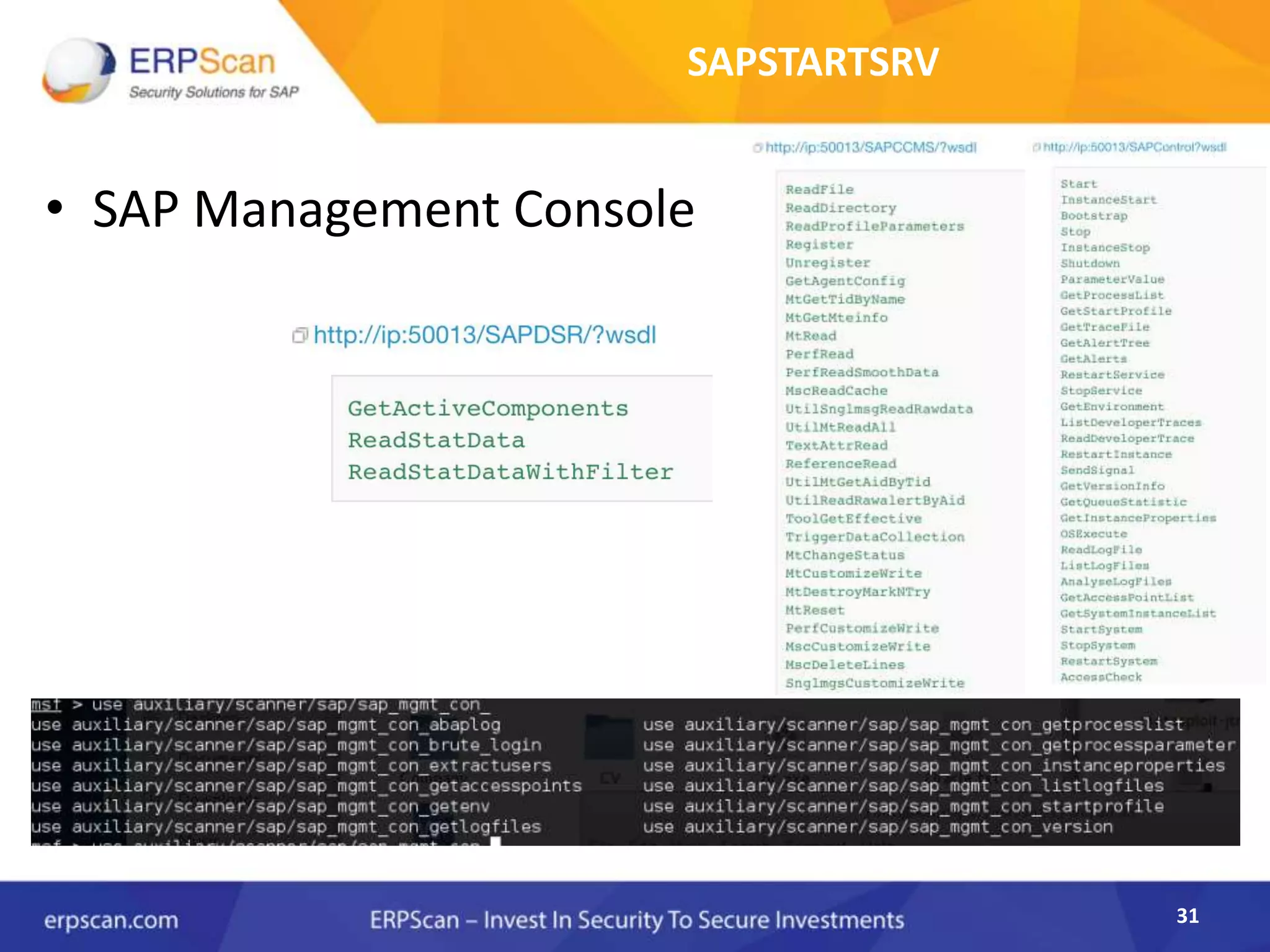

SAPSTARTSRV
• SAP Management Console

32. 32

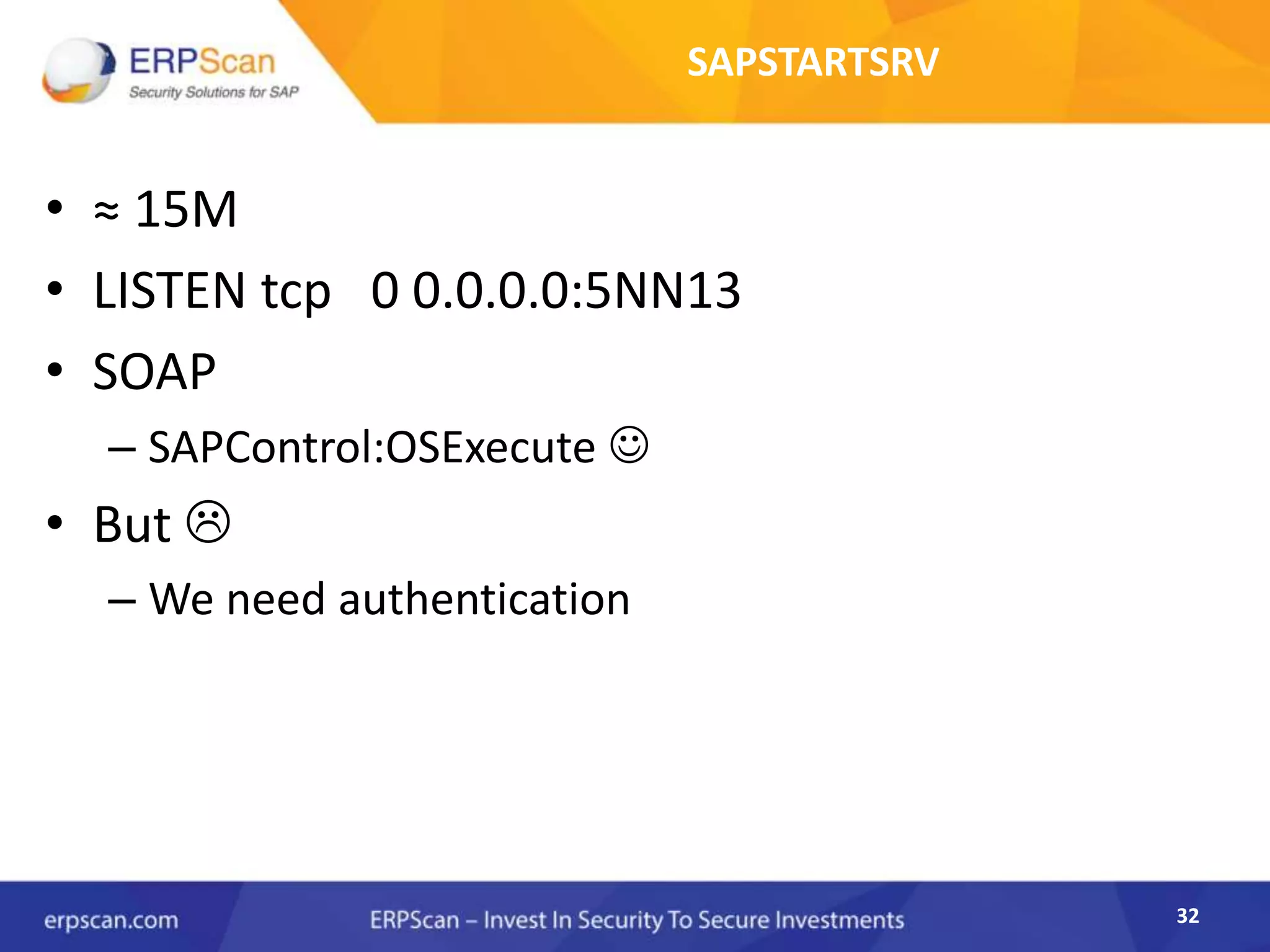

SAPSTARTSRV
• ≈ 15M
• LISTEN tcp 0 0.0.0.0:5NN13
• SOAP
– SAPControl:OSExecute 
• But 
– We need authentication

33. 33

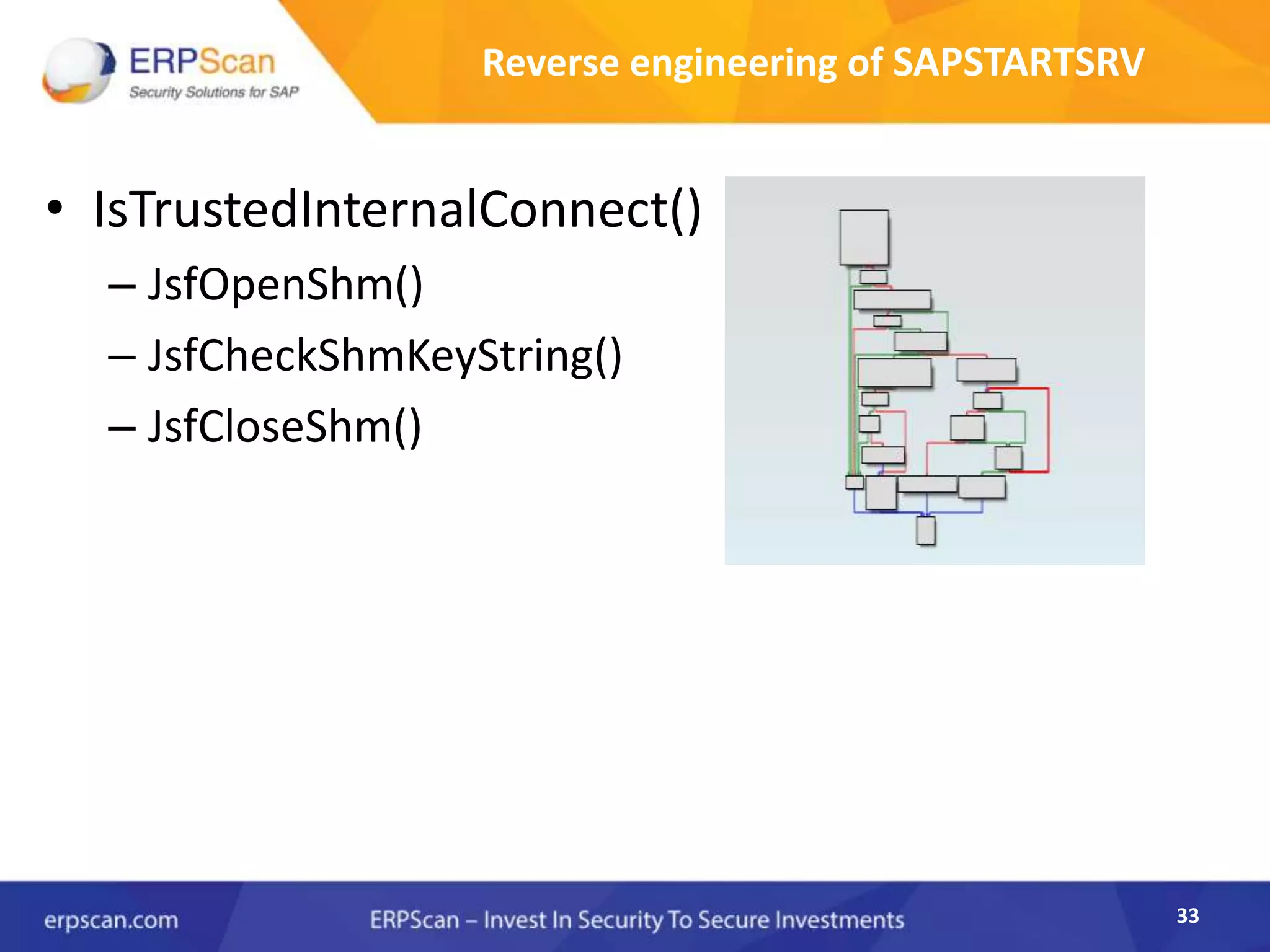

Reverse engineering of SAPSTARTSRV
• IsTrustedInternalConnect()
– JsfOpenShm()
– JsfCheckShmKeyString()
– JsfCloseShm()

34. 34

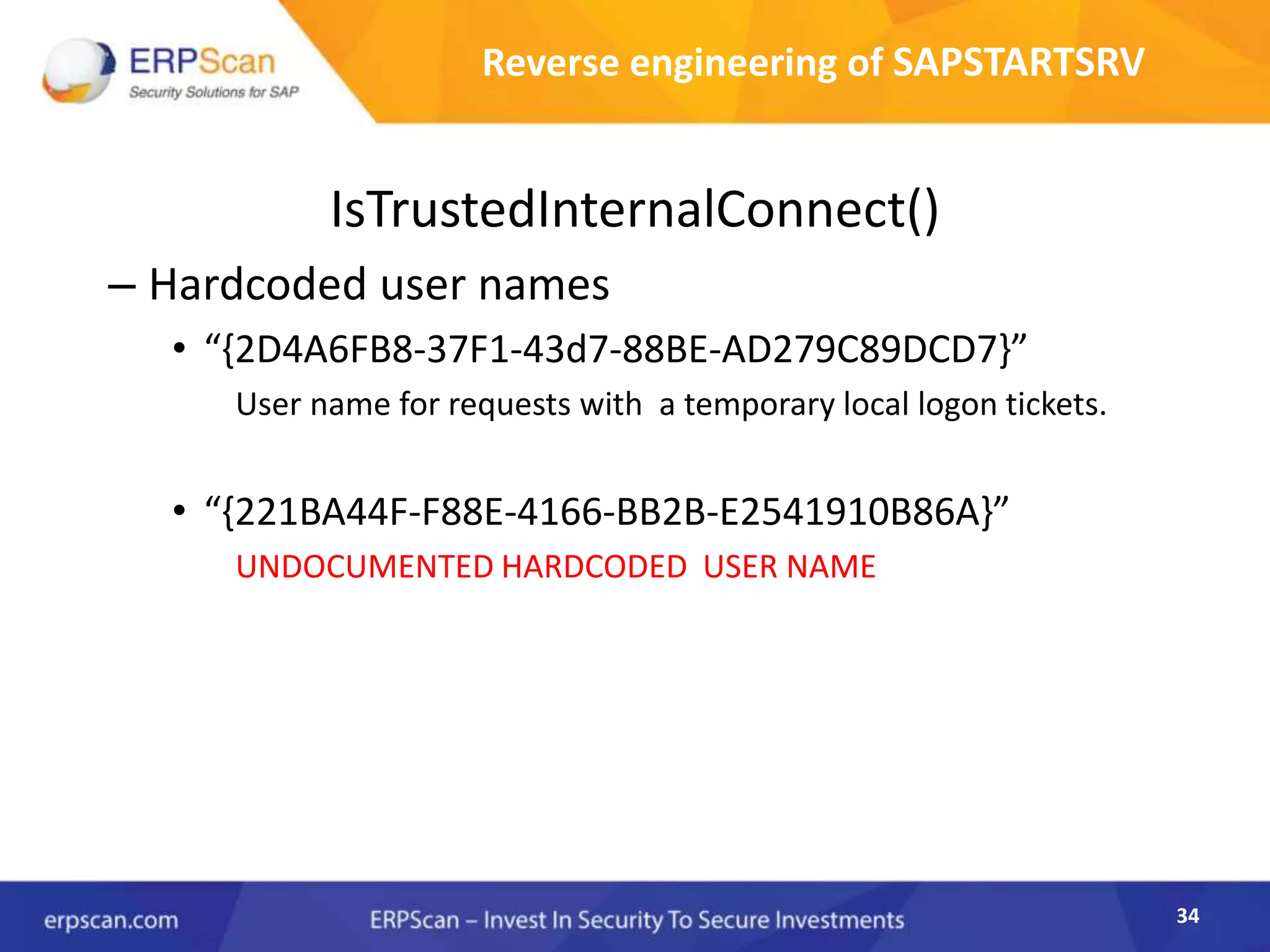

Reverse engineering of SAPSTARTSRV
IsTrustedInternalConnect()
– Hardcoded user names
• “{2D4A6FB8-37F1-43d7-88BE-AD279C89DCD7}”
User name for requests with a temporary local logon tickets.
• “{221BA44F-F88E-4166-BB2B-E2541910B86A}”
UNDOCUMENTED HARDCODED USER NAME

35. 35

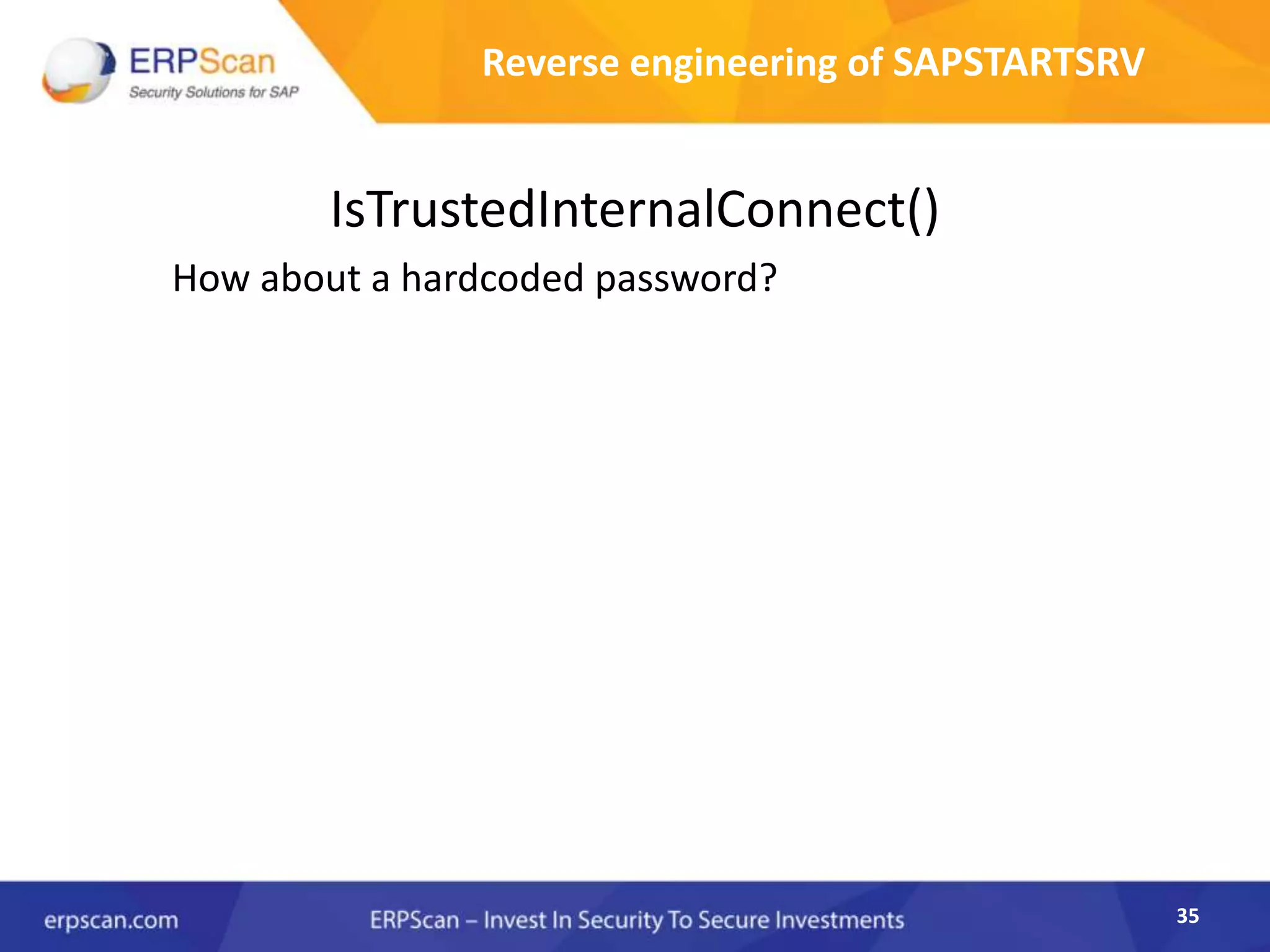

Reverse engineering of SAPSTARTSRV
IsTrustedInternalConnect()
How about a hardcoded password?

36. 36
Reverse engineering of SAPSTARTSRV
IsTrustedInternalConnect()
How about a hardcoded password?

37. 37

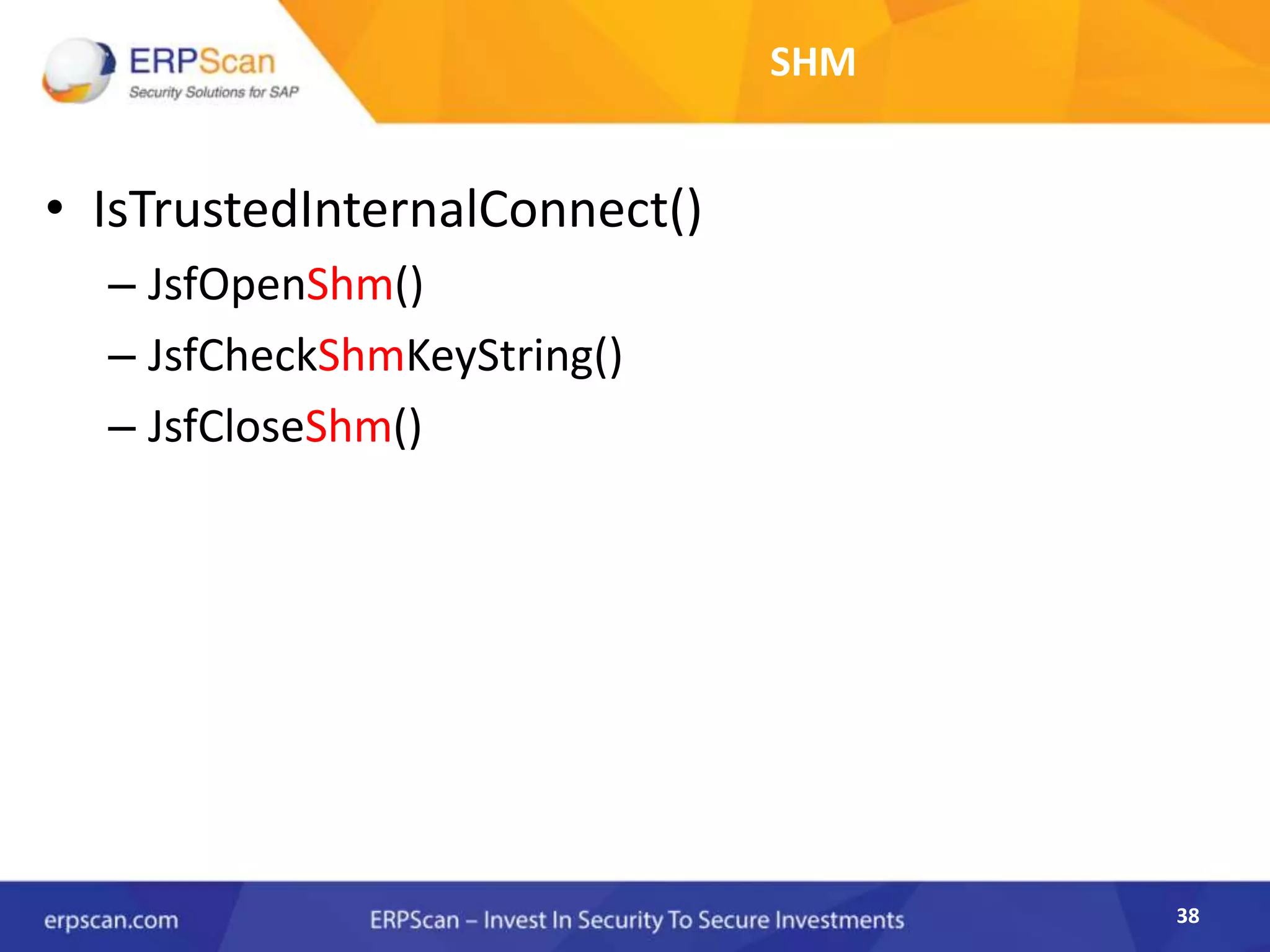

SHM
• IsTrustedInternalConnect()
– JsfOpenShm()
– JsfCheckShmKeyString()
– JsfCloseShm()

38. 38
SHM
• IsTrustedInternalConnect()
– JsfOpenShm()
– JsfCheckShmKeyString()
– JsfCloseShm()

39. 39
SHM
What is SHM?

40. 40

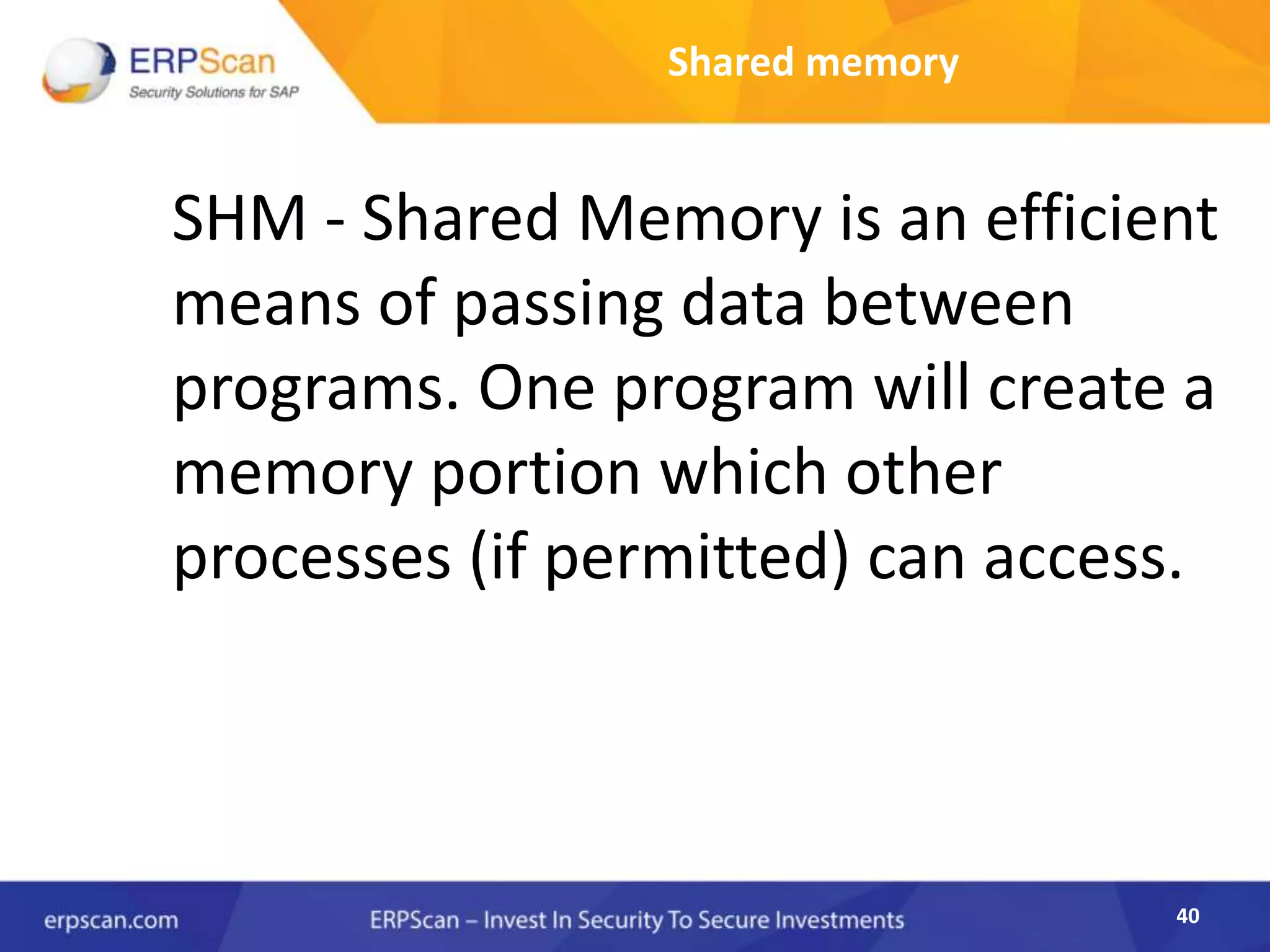

Shared memory
SHM - Shared Memory is an efficient
means of passing data between
programs. One program will create a
memory portion which other
processes (if permitted) can access.

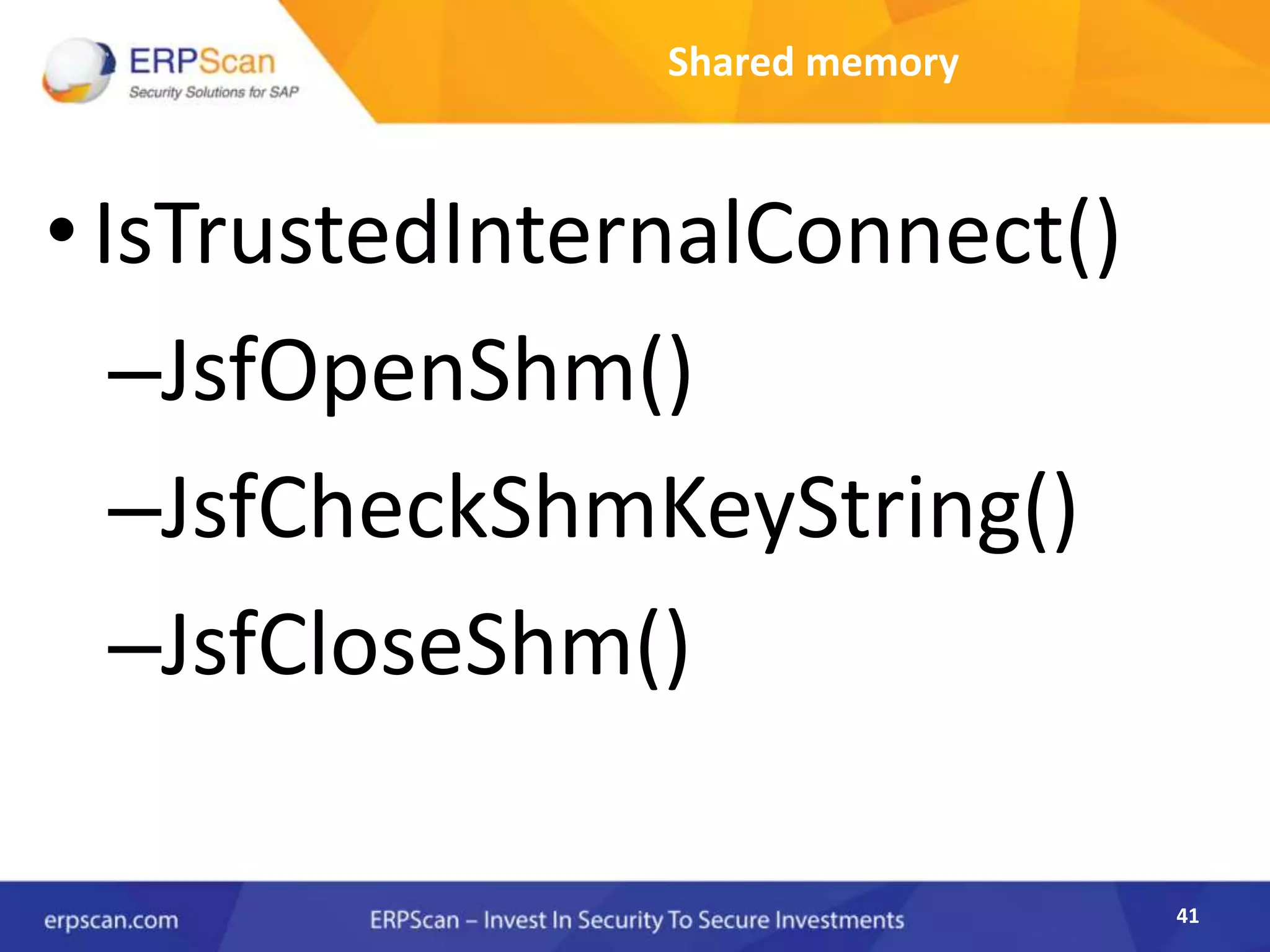

41. 41
Shared memory
•IsTrustedInternalConnect()
–JsfOpenShm()
–JsfCheckShmKeyString()
–JsfCloseShm()

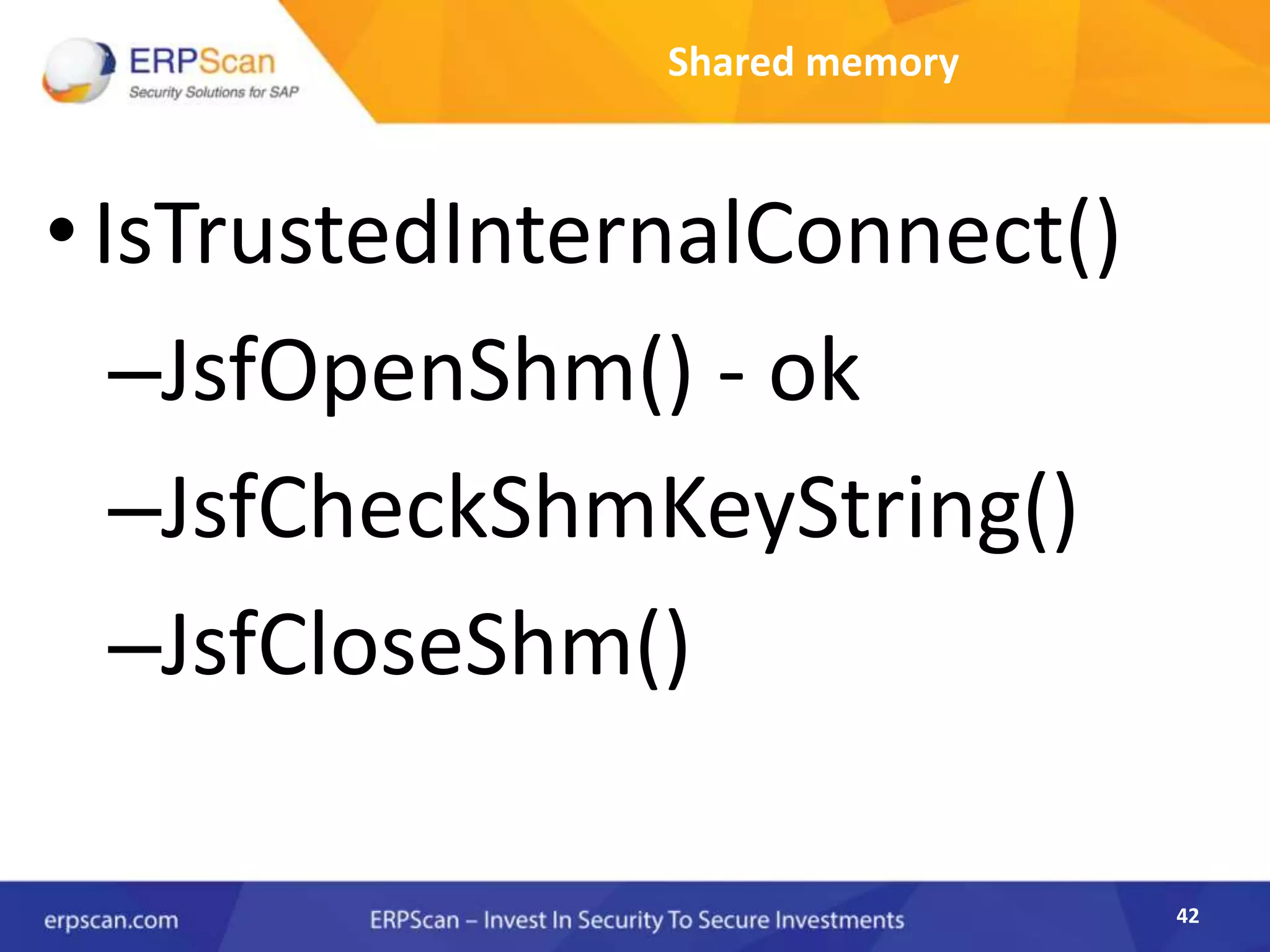

42. 42
Shared memory
•IsTrustedInternalConnect()
–JsfOpenShm() - ok
–JsfCheckShmKeyString()
–JsfCloseShm()

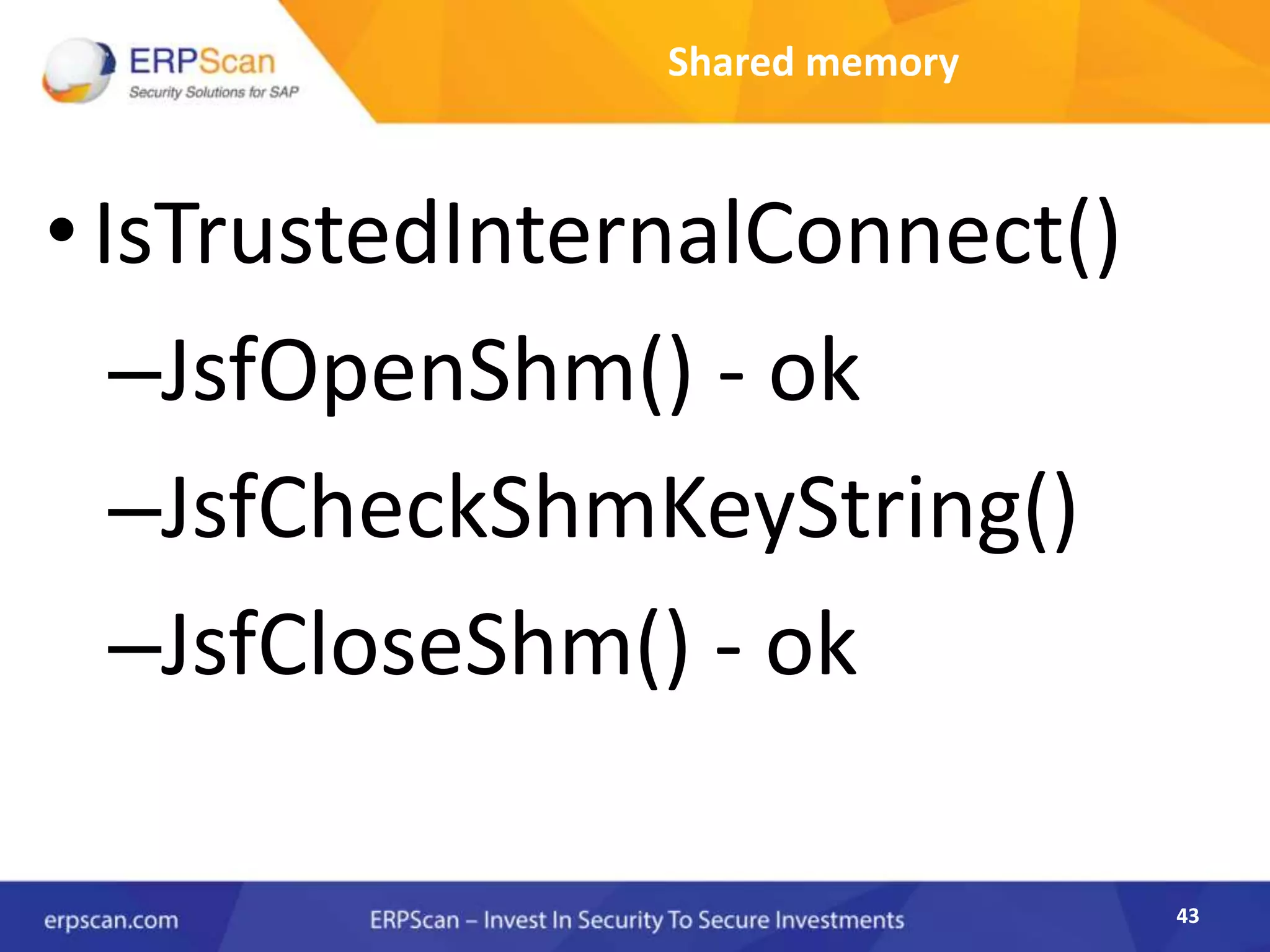

43. 43
Shared memory
•IsTrustedInternalConnect()
–JsfOpenShm() - ok
–JsfCheckShmKeyString()
–JsfCloseShm() - ok

44. 44

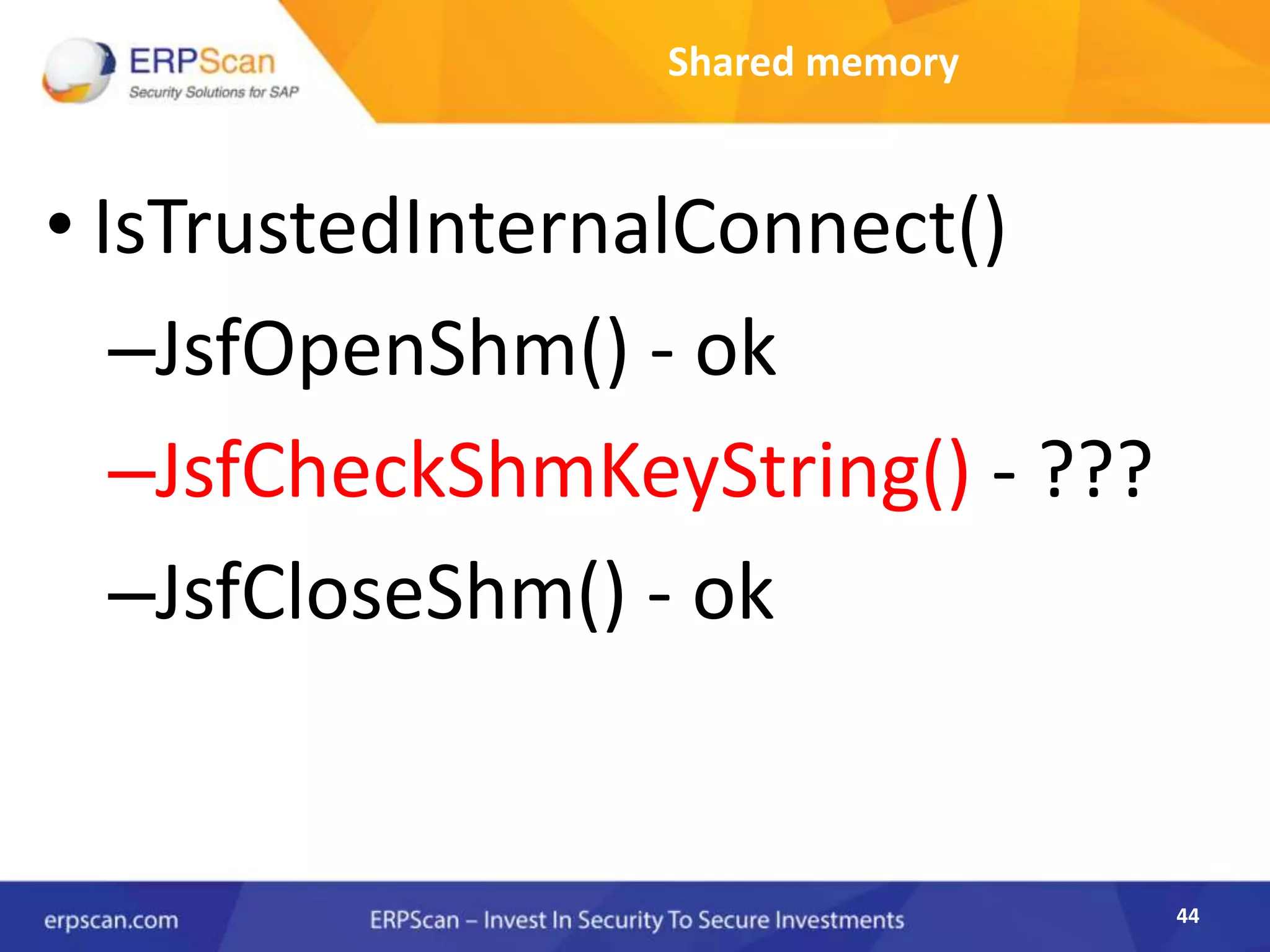

Shared memory
• IsTrustedInternalConnect()
–JsfOpenShm() - ok
–JsfCheckShmKeyString() - ???
–JsfCloseShm() - ok

45. 45
Shared memory

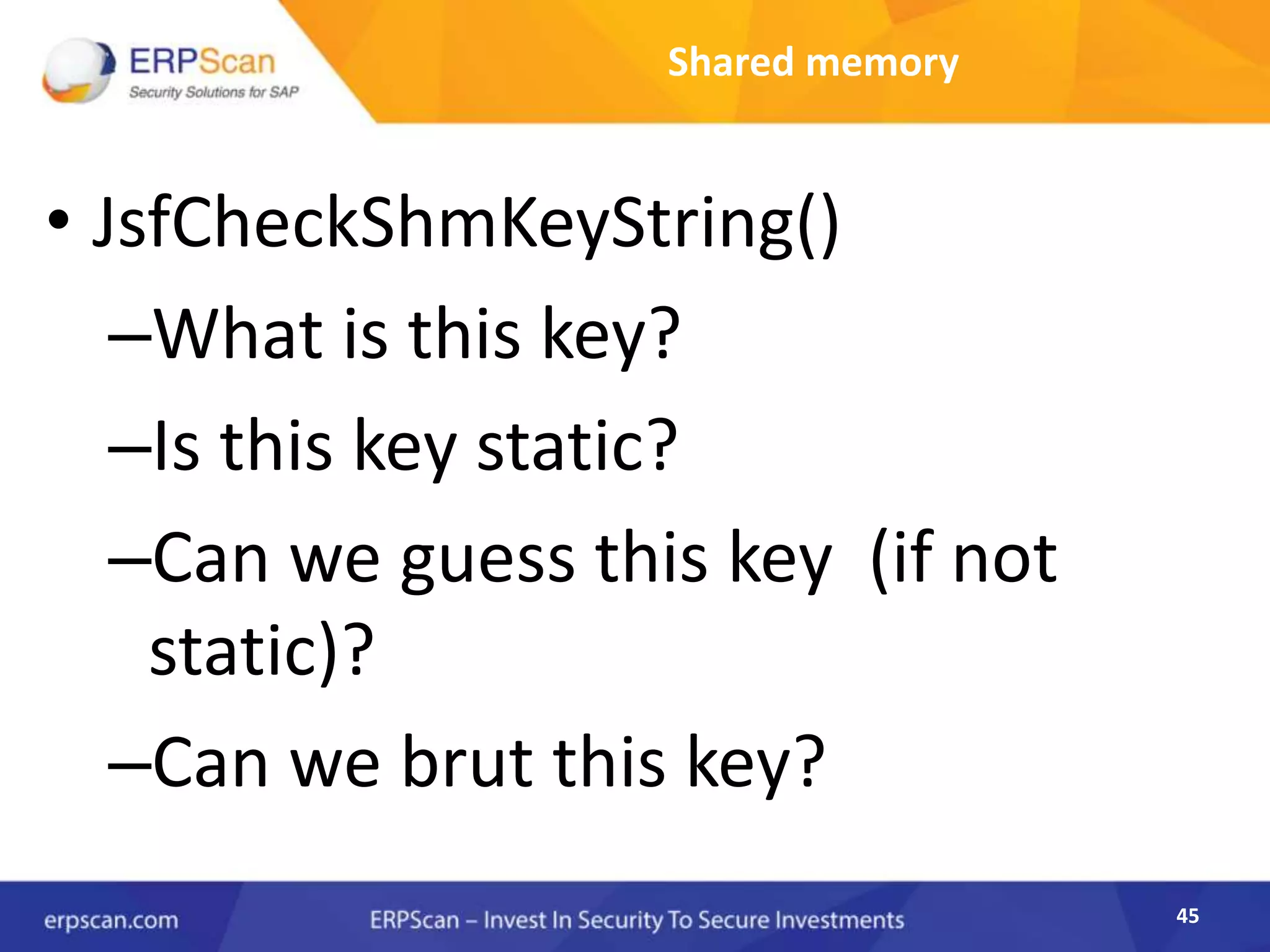

• JsfCheckShmKeyString()
–What is this key?
–Is this key static?
–Can we guess this key (if not
static)?
–Can we brut this key?

46. 46
Shared memory

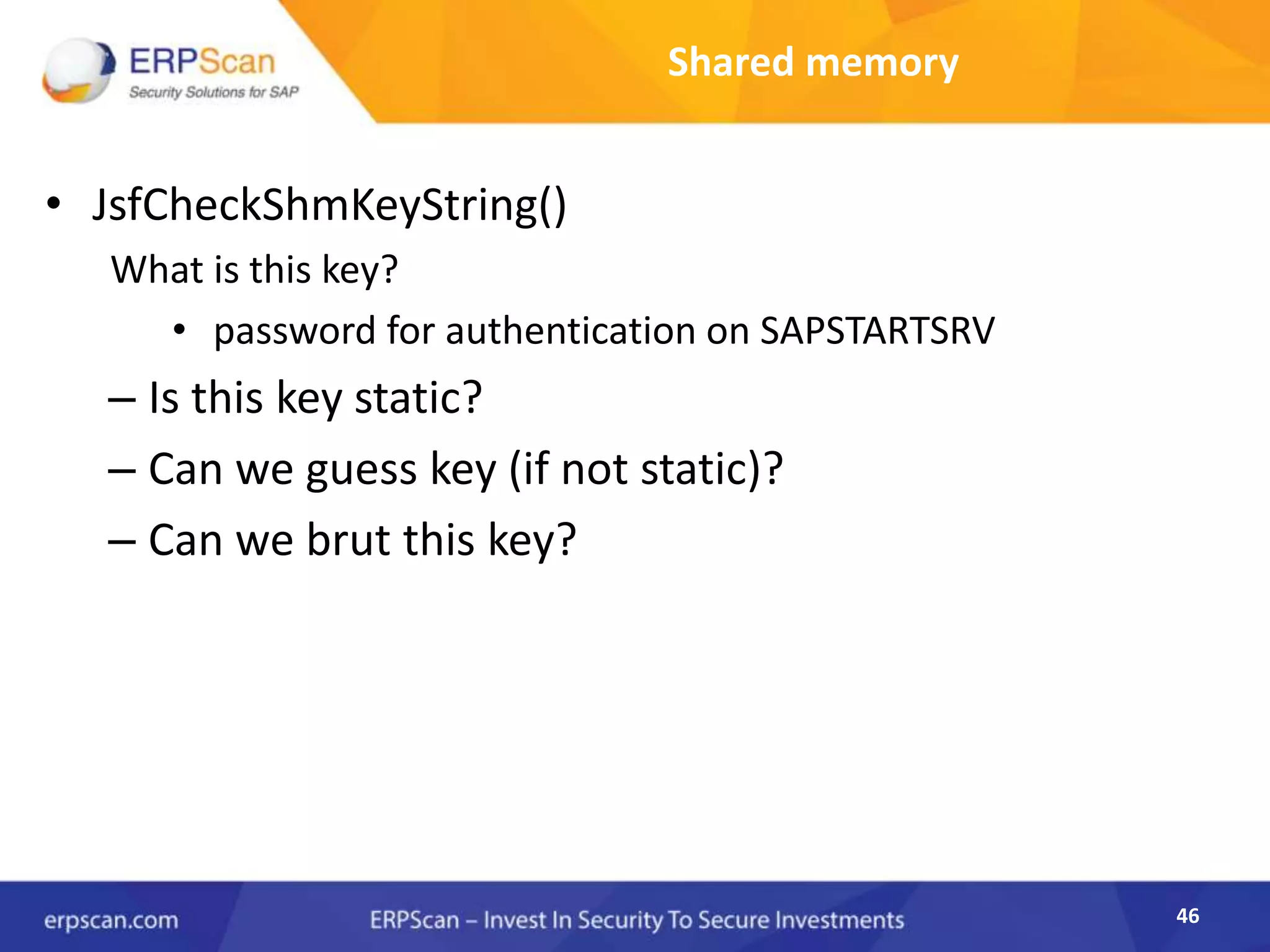

• JsfCheckShmKeyString()
What is this key?
• password for authentication on SAPSTARTSRV
– Is this key static?
– Can we guess key (if not static)?
– Can we brut this key?

47. 47

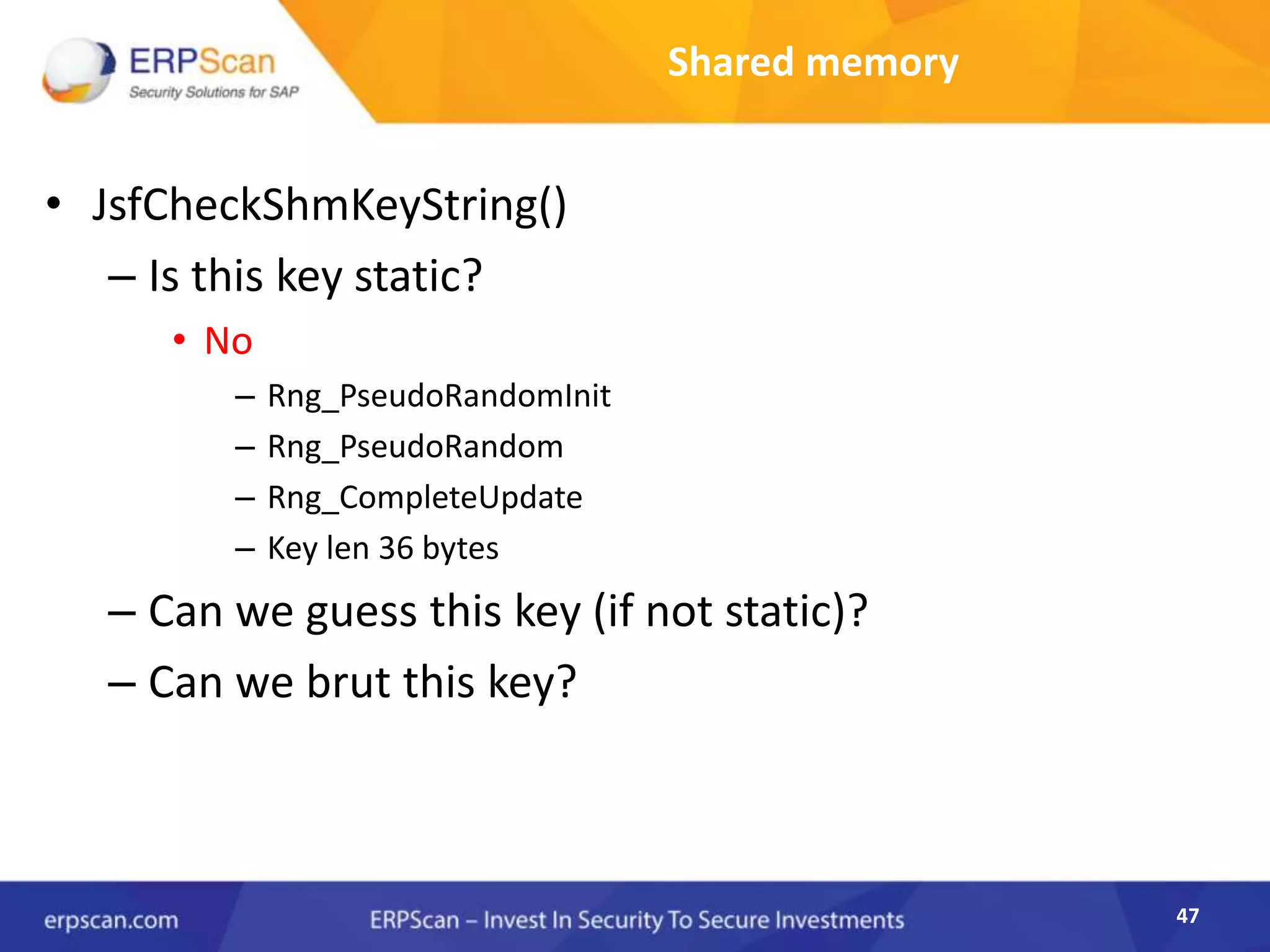

Shared memory
• JsfCheckShmKeyString()
– Is this key static?
• No
– Rng_PseudoRandomInit
– Rng_PseudoRandom
– Rng_CompleteUpdate
– Key len 36 bytes
– Can we guess this key (if not static)?
– Can we brut this key?

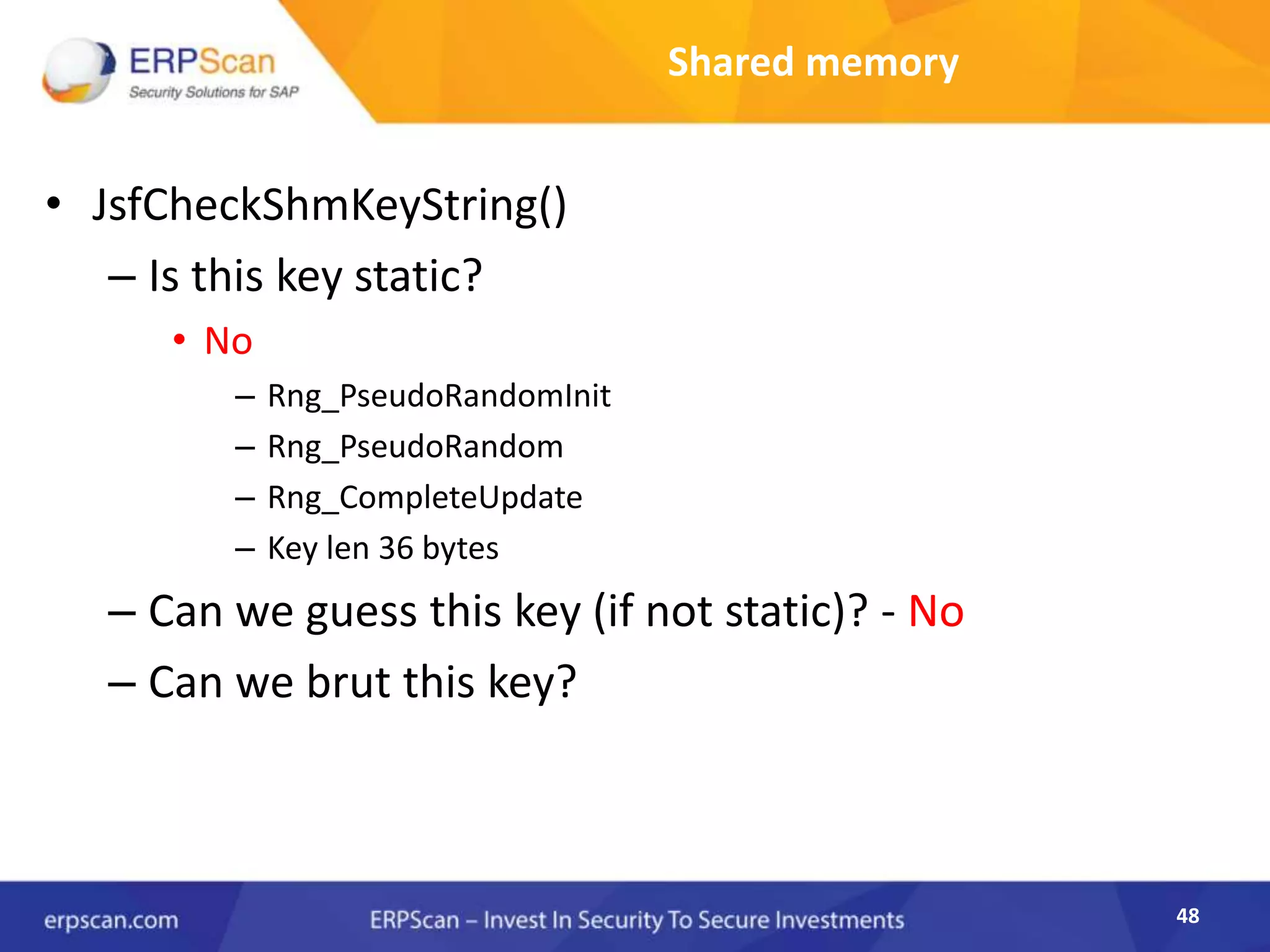

48. 48
Shared memory
• JsfCheckShmKeyString()
– Is this key static?
• No
– Rng_PseudoRandomInit
– Rng_PseudoRandom
– Rng_CompleteUpdate
– Key len 36 bytes
– Can we guess this key (if not static)? - No
– Can we brut this key?

49. 49
Shared memory
• JsfCheckShmKeyString()
– Is this key static?
• No
– Rng_PseudoRandomInit
– Rng_PseudoRandom
– Rng_CompleteUpdate
– Key len 36 bytes
– Can we guess this key (if not static)? - No
– Can we brut this key? - No

50. 50
Shared memory
• JsfCheckShmKeyString()

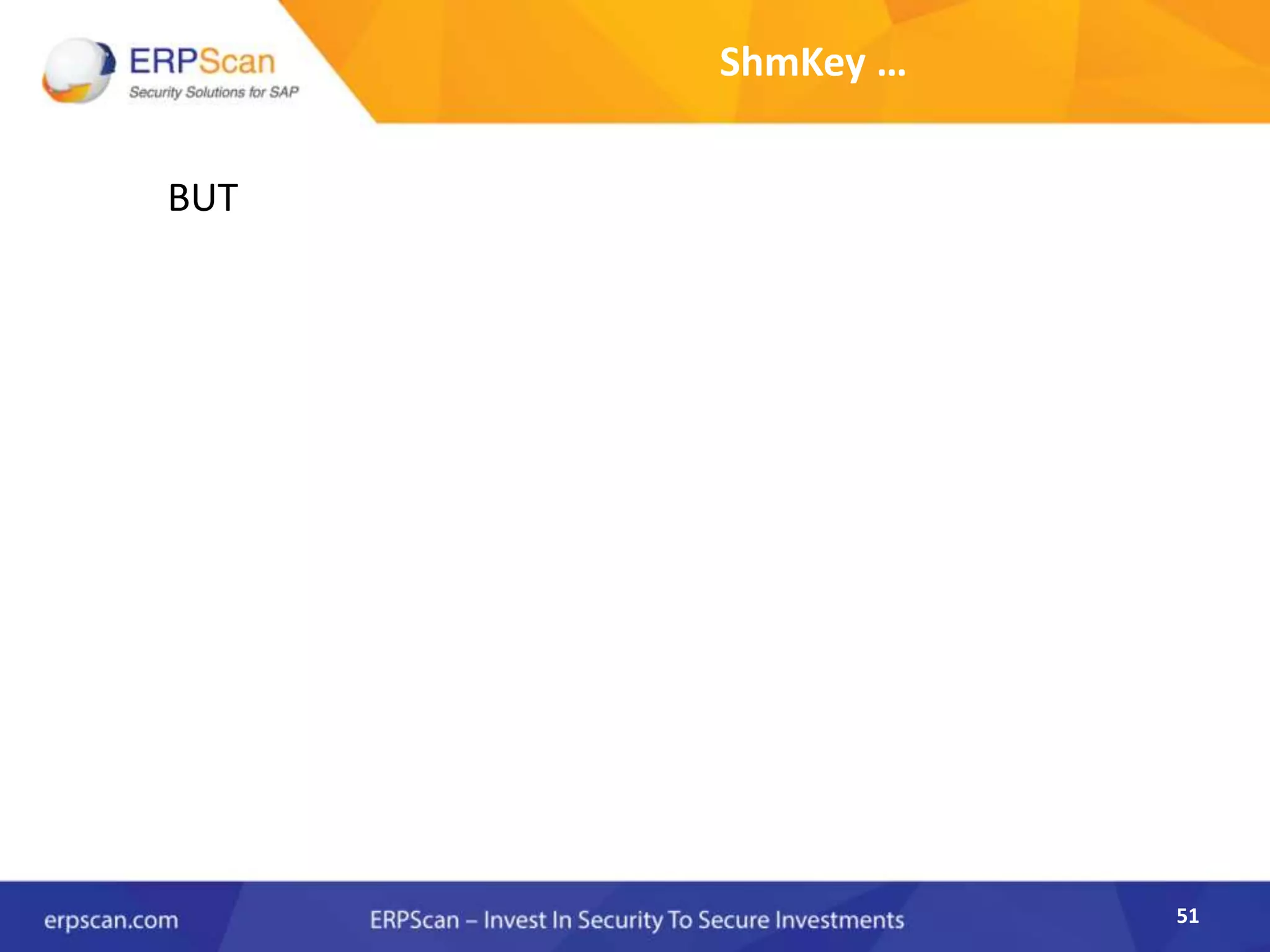

51. 51
ShmKey …
BUT

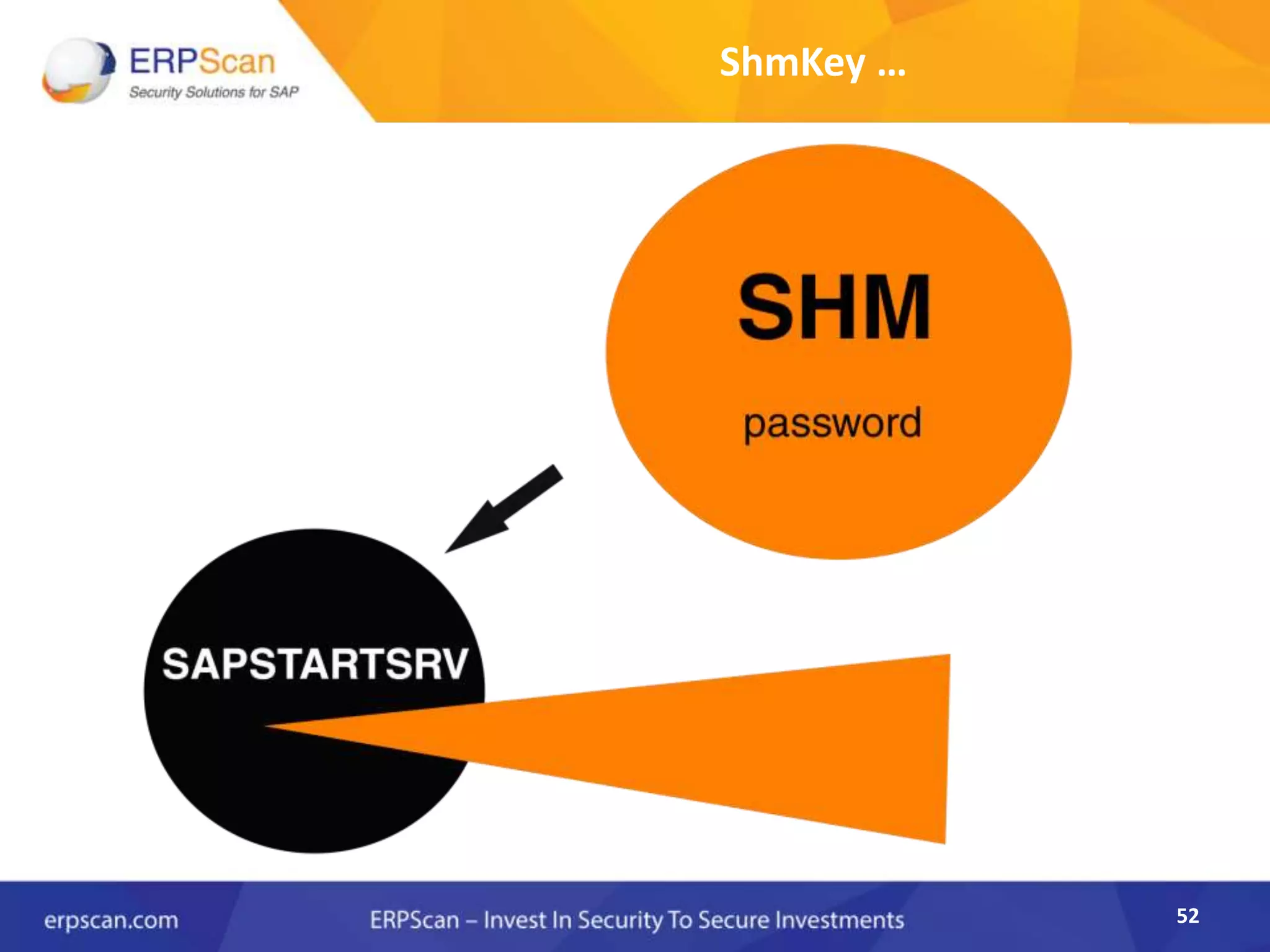

52. 52
ShmKey …

53. 53
ShmKey …

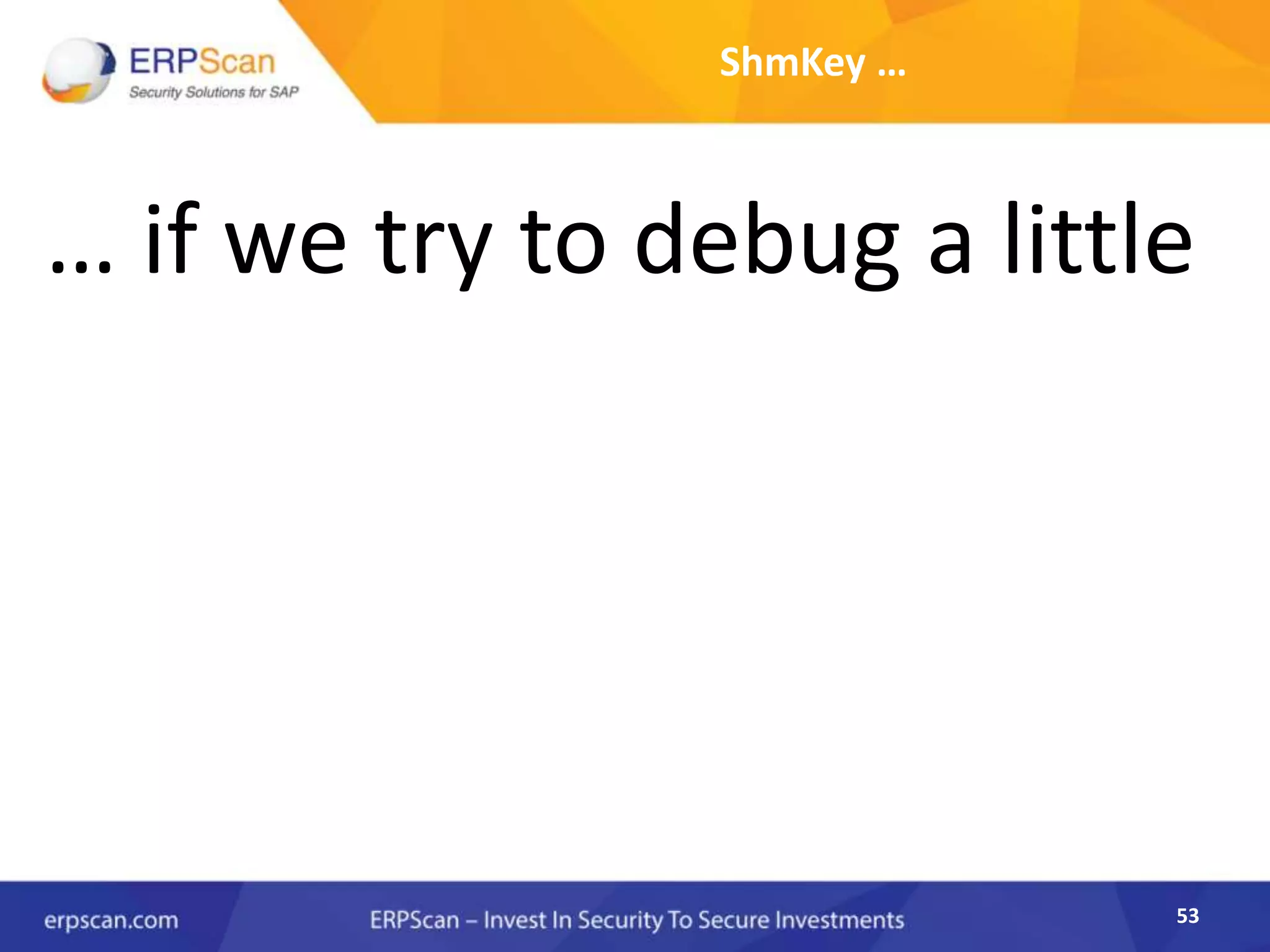

… if we try to debug a little

54. 54

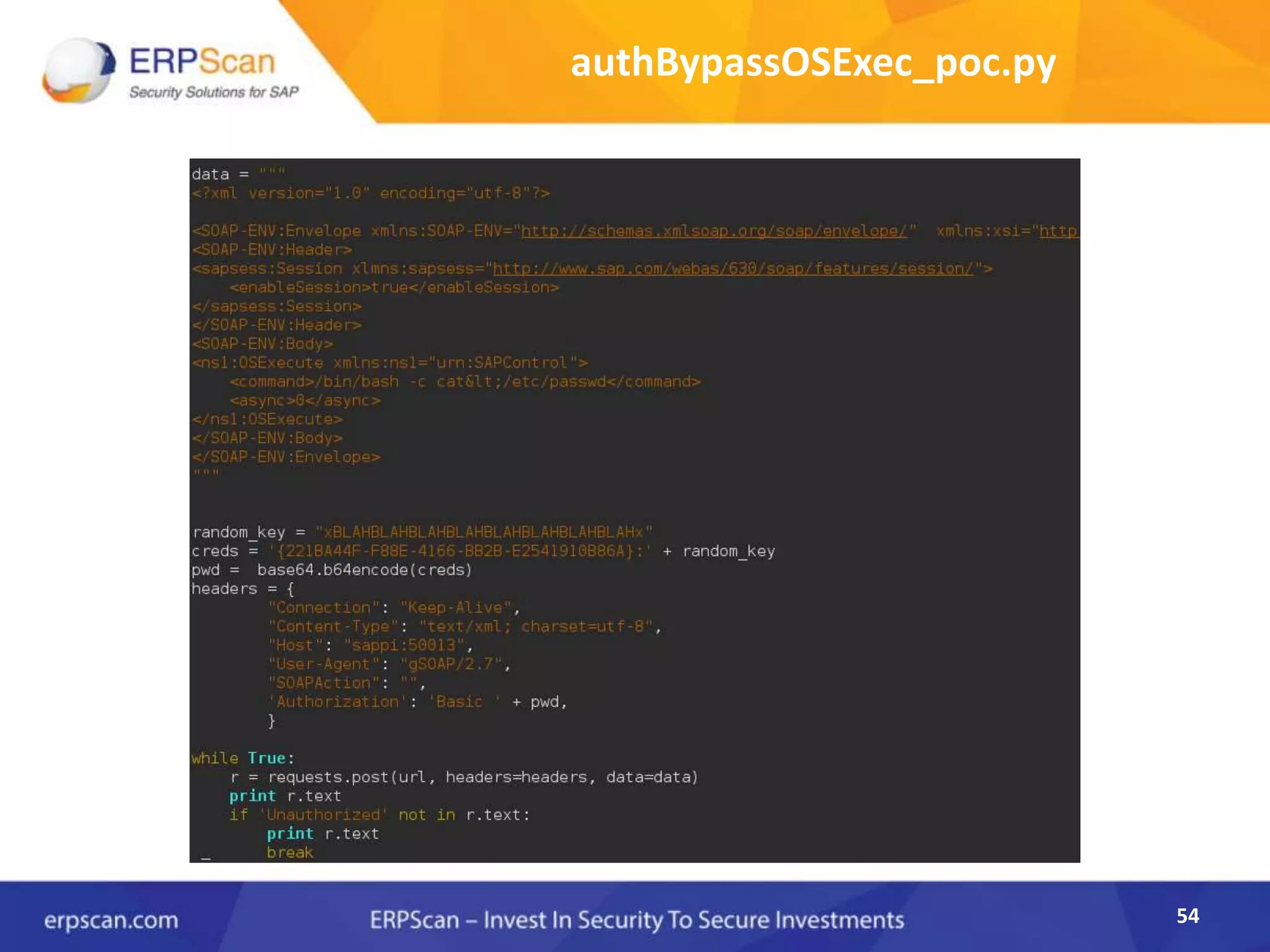

authBypassOSExec_poc.py

55. 55
DEMO 1

56. 56

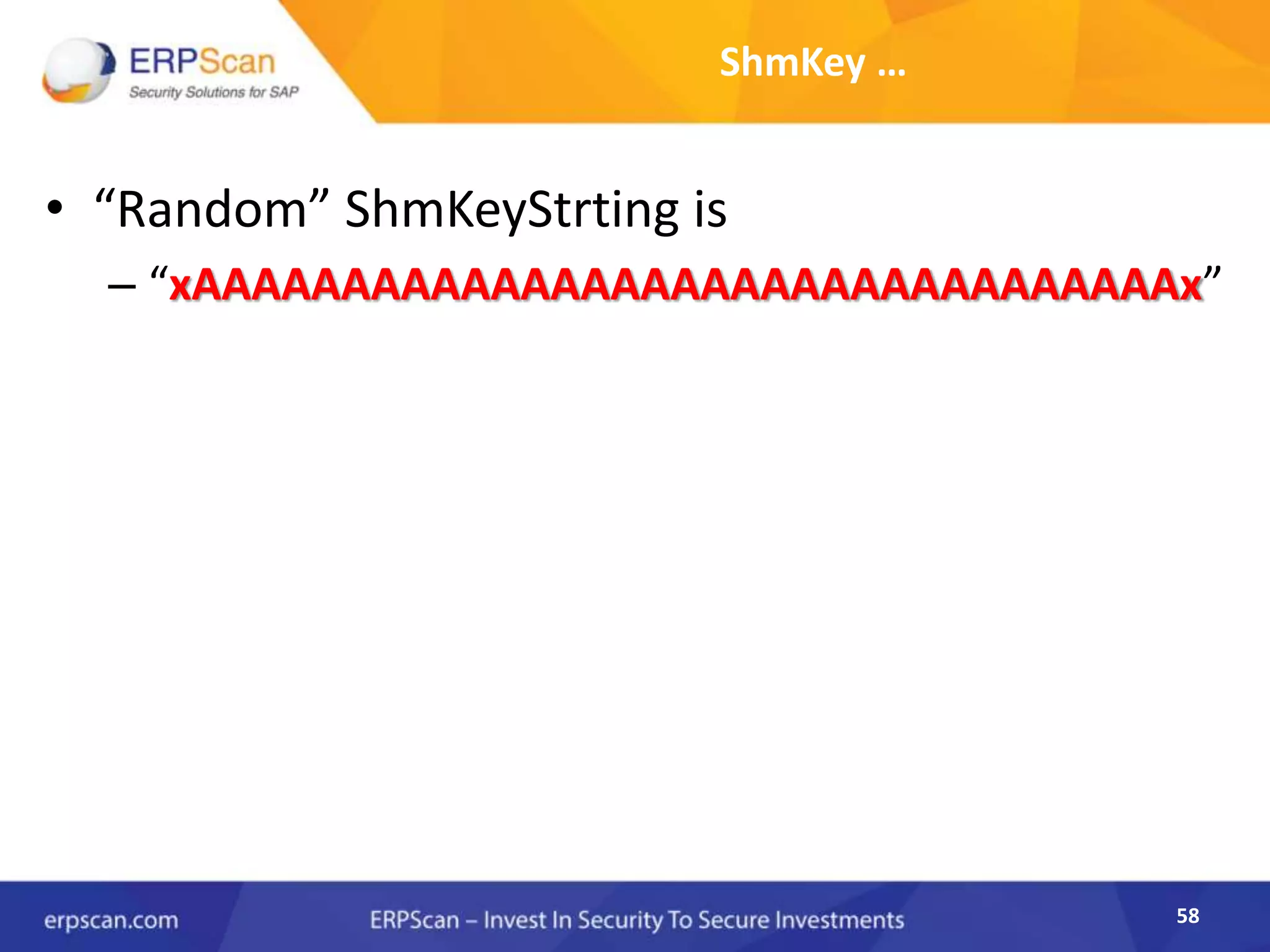

ShmKey …

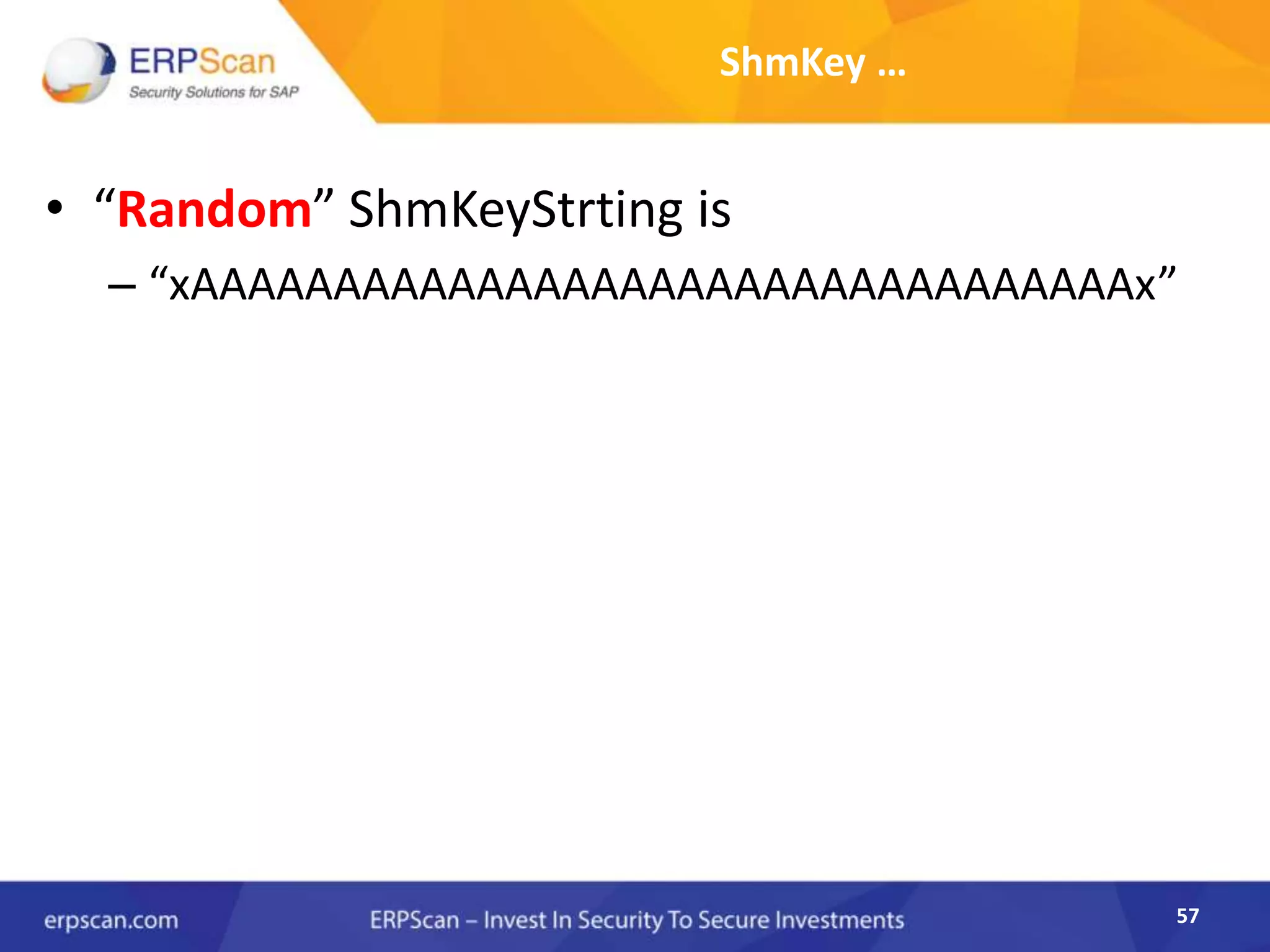

• “Random” ShmKeyStrting is
– “xAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAx”

57. 57
ShmKey …
• “Random” ShmKeyStrting is
– “xAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAx”

58. 58
ShmKey …
• “Random” ShmKeyStrting is
– “xAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAx”

59. 59
Random ShmKey …
AWESOME

60. 60

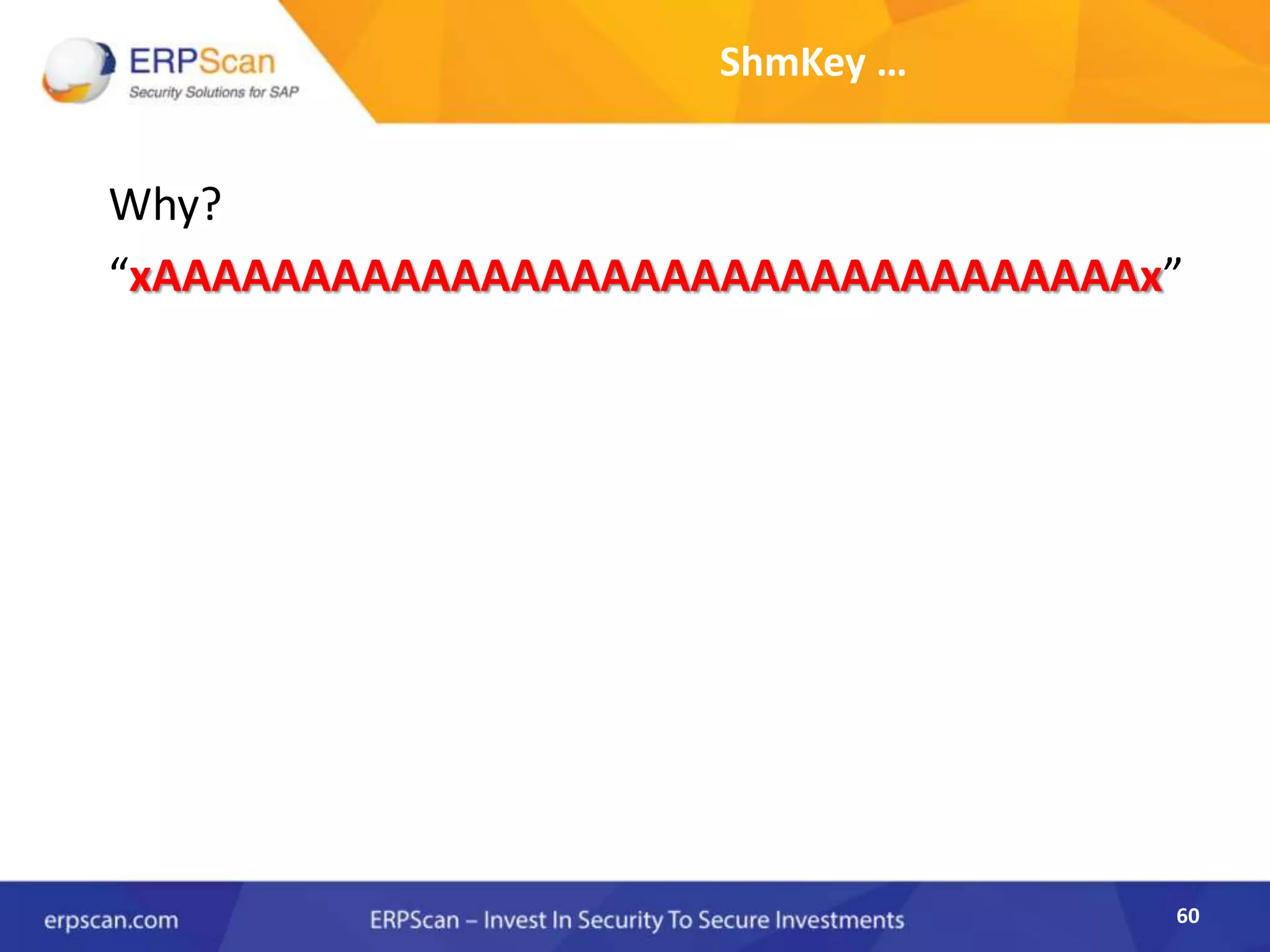

ShmKey …
Why?
“xAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAx”

61. 61

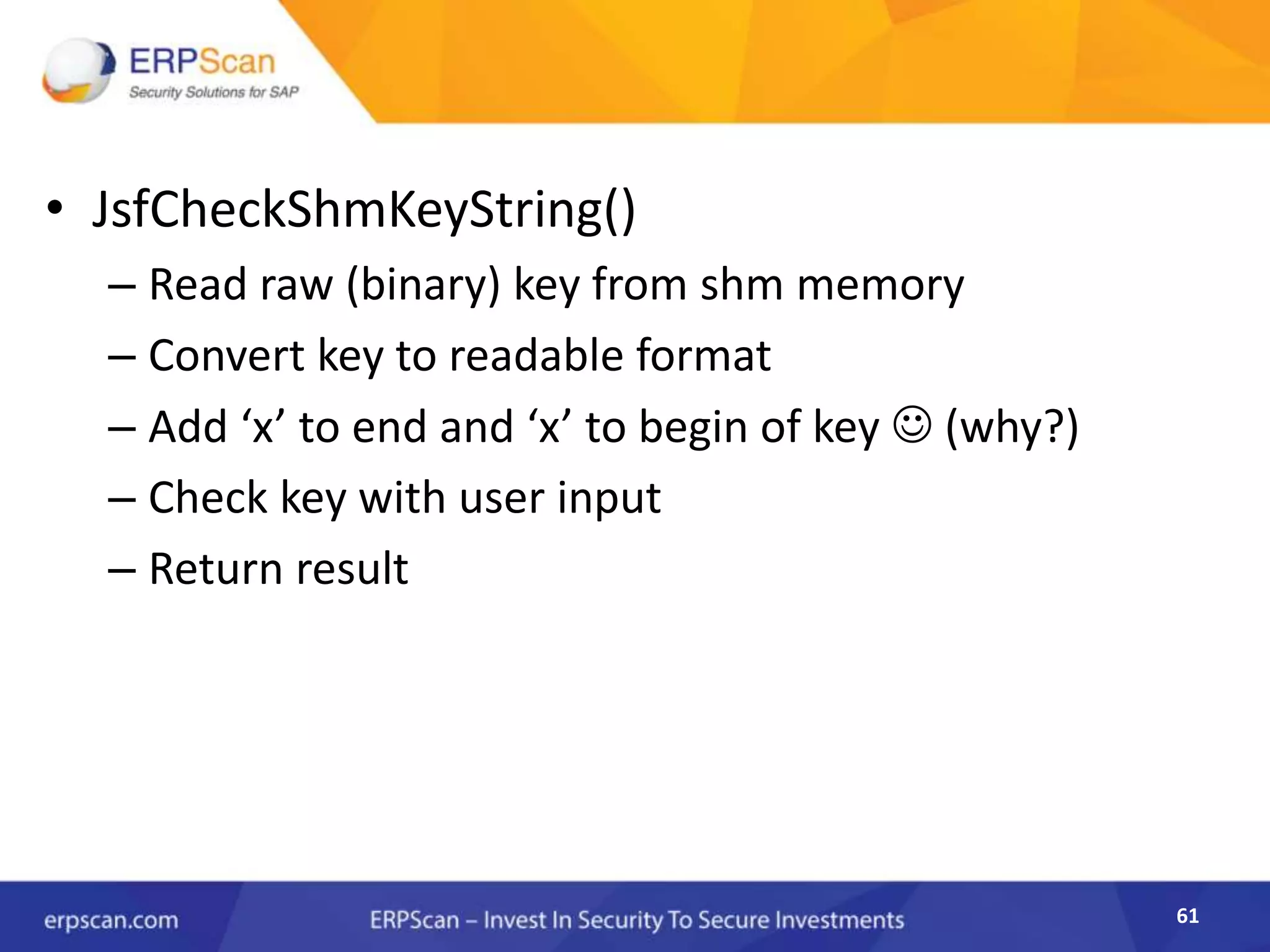

• JsfCheckShmKeyString()
– Read raw (binary) key from shm memory
– Convert key to readable format
– Add ‘x’ to end and ‘x’ to begin of key  (why?)
– Check key with user input
– Return result

62. 62

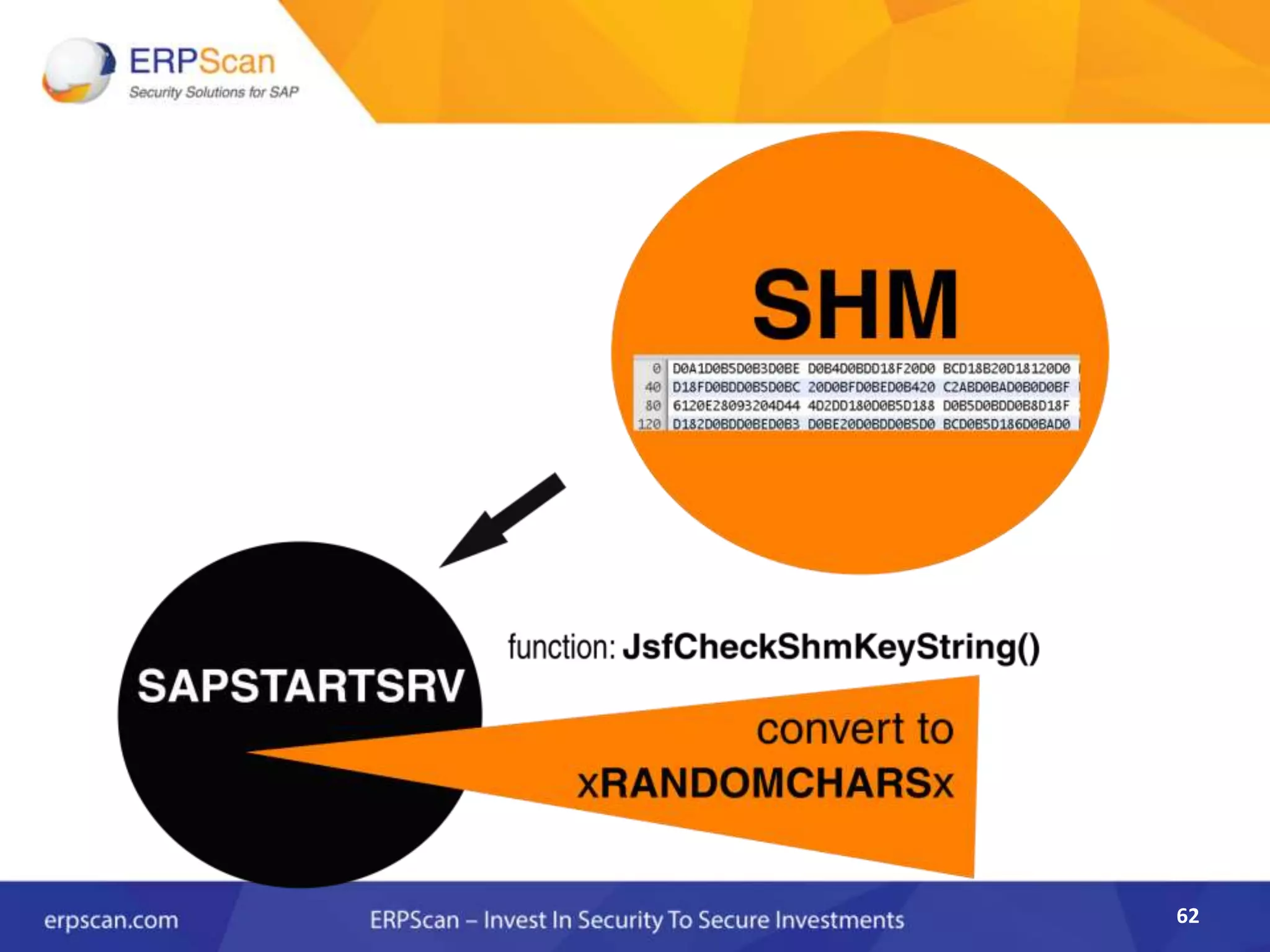

63. 63

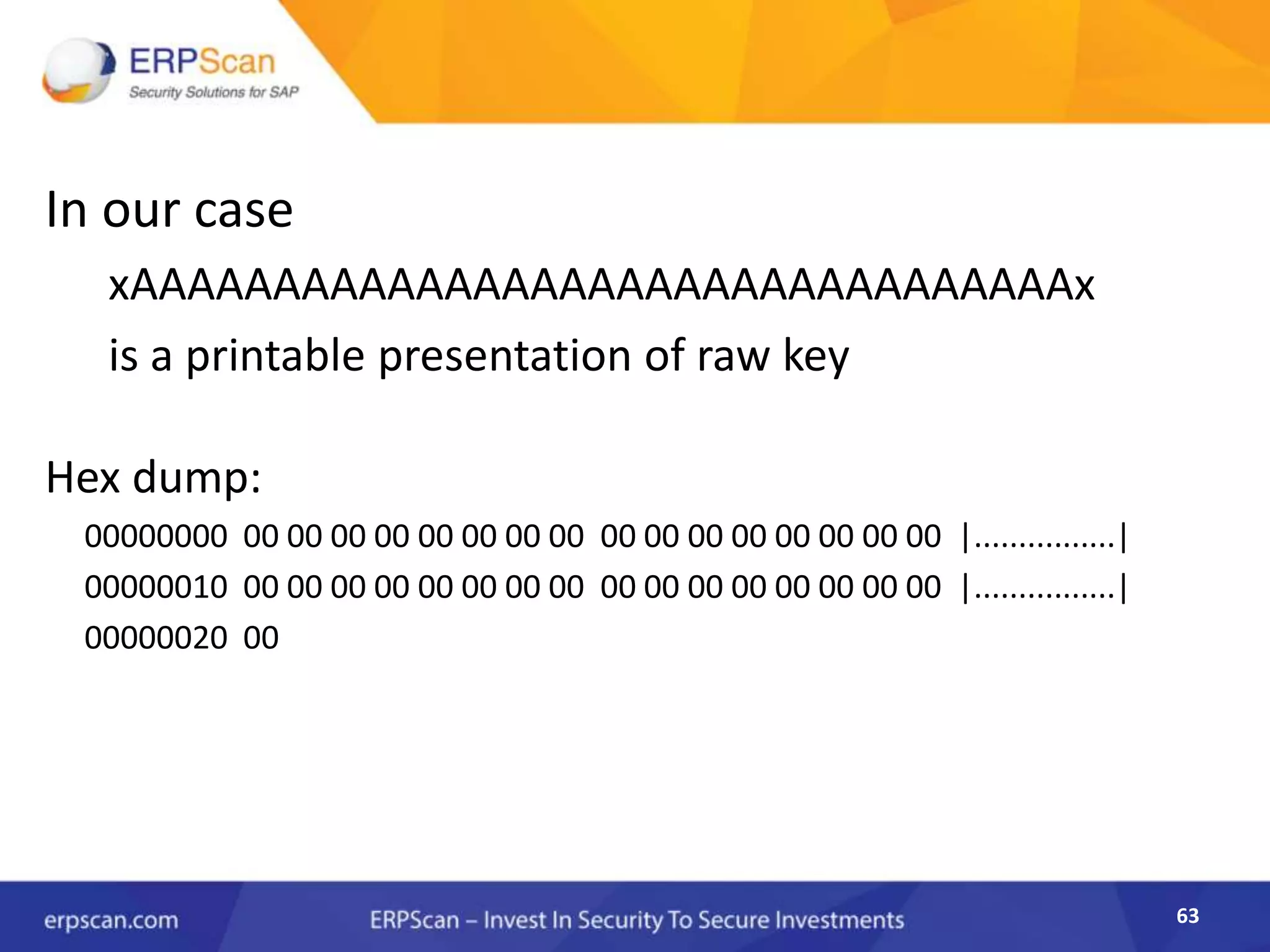

In our case
xAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAx
is a printable presentation of raw key
Hex dump:
00000000 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
00000010 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
00000020 00

64. 64

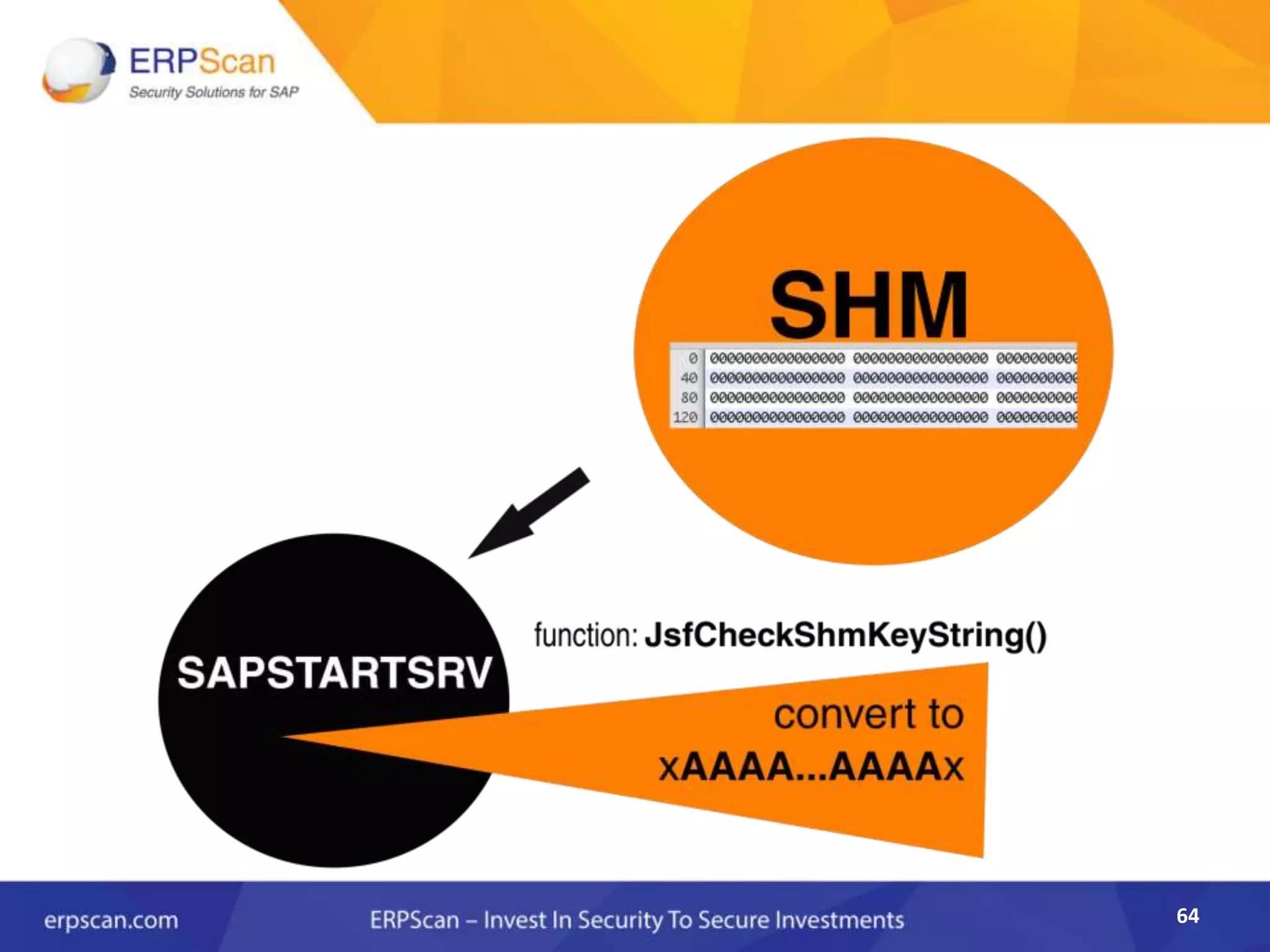

65. 65
In our case
xAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAx
is a printable presentation of raw key
Hex dump:
00000000 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
00000010 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
00000020 00
Some shared memory problems?

66. 66
Random ShmKey …
Do you remember …

67. 67
Random ShmKey …
Do you remember …
profile cfg …

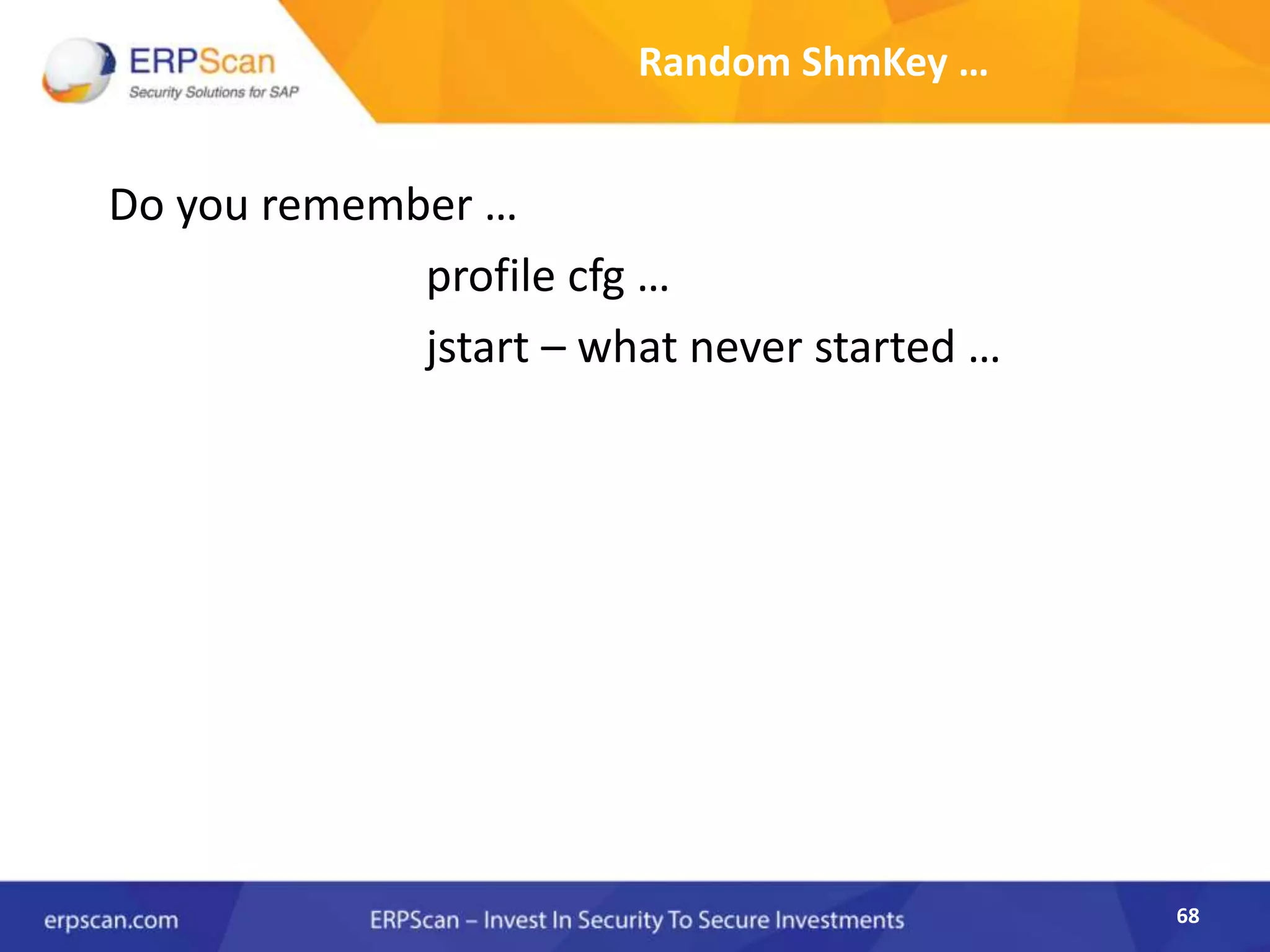

68. 68
Random ShmKey …
Do you remember …
profile cfg …
jstart – what never started …

69. 69
Instance profile cfg
rdisp/TRACE = 1337
rdisp/TRACE_RESOLUTION = 1337
rdisp/TRACE_LOGGING = on
rdisp/TRACE_HIDE_SEC_DATA = off
rdisp/TRACE_COMPS = 7
enque/TRACE = 7
alert/TRACE = 7
service/trace = 7
rdisp/configurable_wp_no = 0
rdisp/wp_max_no = 0
rdisp/wp_no_dia = 1
rdisp/wp_no_btc = 0
rdisp/wp_no_vb = 0
rdisp/wp_no_vb2 = 0
rdisp/wp_no_spo = 0
69

70. 70
Instance profile cfg
#rdisp/TRACE = 1337
#rdisp/TRACE_RESOLUTION = 1337
#rdisp/TRACE_LOGGING = on
#rdisp/TRACE_HIDE_SEC_DATA = off
#rdisp/TRACE_COMPS = 7
#enque/TRACE = 7
#alert/TRACE = 7
#service/trace = 7
#rdisp/configurable_wp_no = 0
#rdisp/wp_max_no = 0
#rdisp/wp_no_dia = 1
#rdisp/wp_no_btc = 0
#rdisp/wp_no_vb = 0
#rdisp/wp_no_vb2 = 0
#rdisp/wp_no_spo = 0
70

71. 71

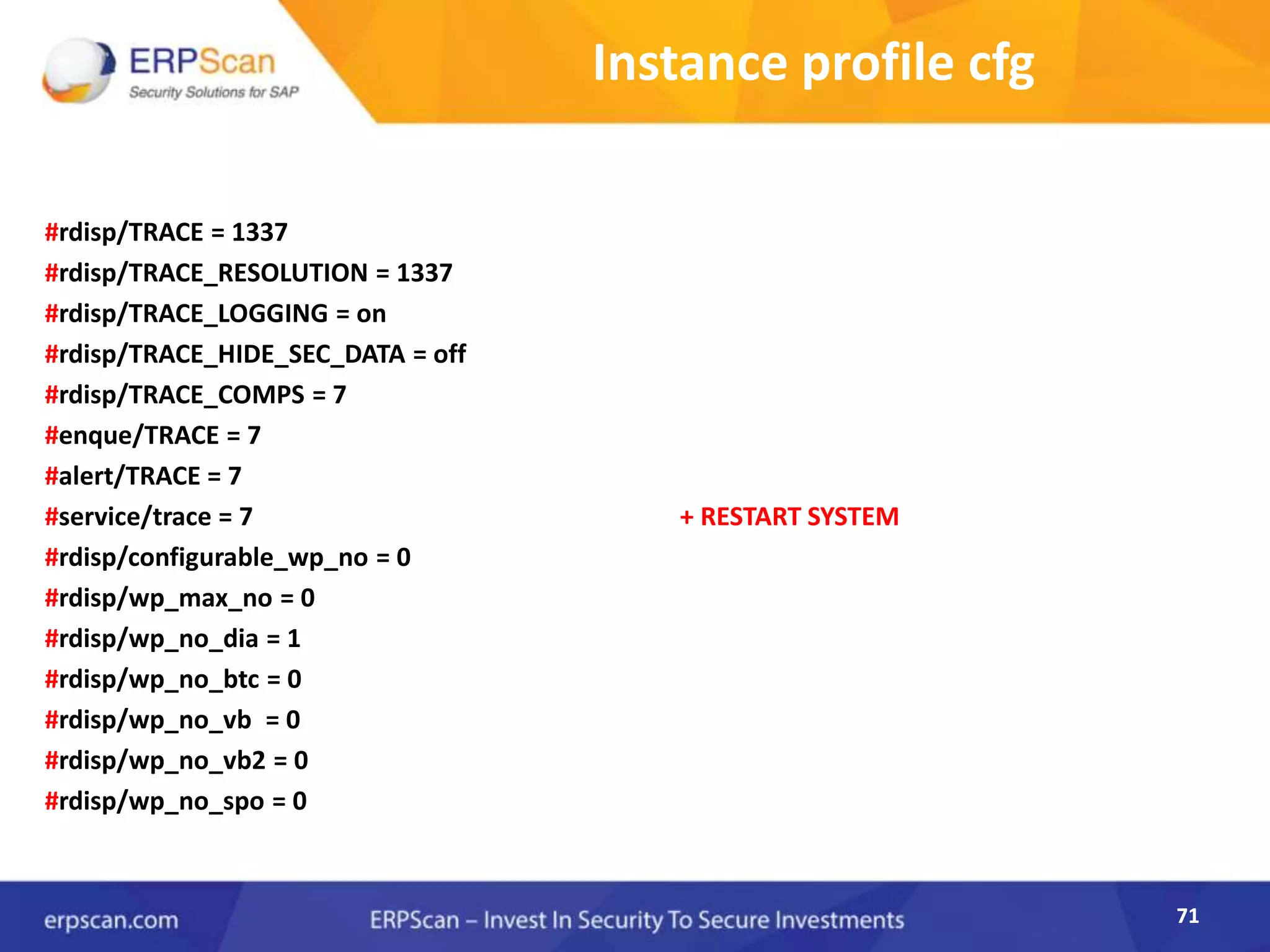

Instance profile cfg
#rdisp/TRACE = 1337
#rdisp/TRACE_RESOLUTION = 1337
#rdisp/TRACE_LOGGING = on
#rdisp/TRACE_HIDE_SEC_DATA = off
#rdisp/TRACE_COMPS = 7
#enque/TRACE = 7
#alert/TRACE = 7
#service/trace = 7 + RESTART SYSTEM
#rdisp/configurable_wp_no = 0
#rdisp/wp_max_no = 0
#rdisp/wp_no_dia = 1
#rdisp/wp_no_btc = 0
#rdisp/wp_no_vb = 0
#rdisp/wp_no_vb2 = 0
#rdisp/wp_no_spo = 0
71

72. 72

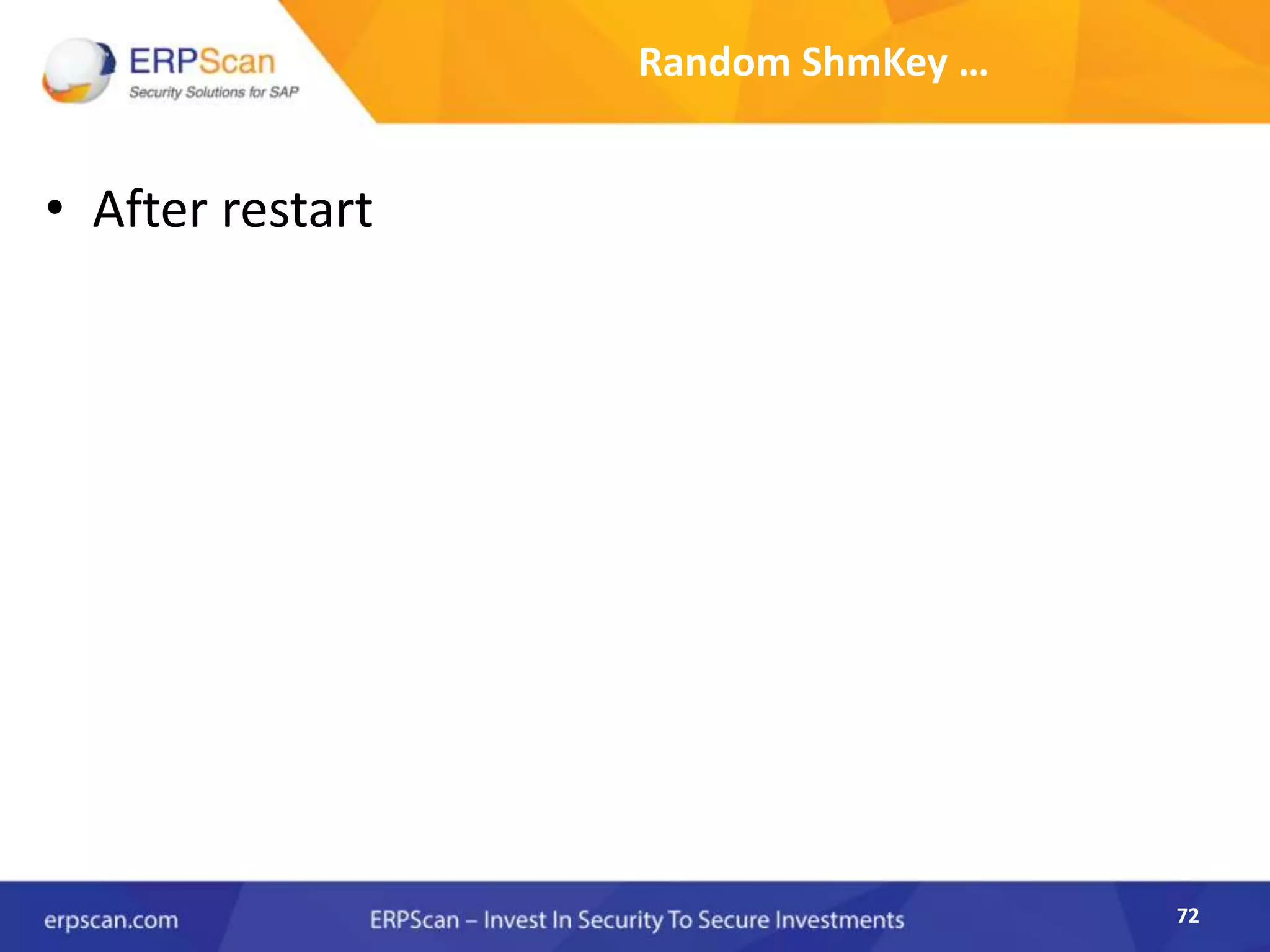

Random ShmKey …
• After restart

73. 73
Random ShmKey …
• After restart
– Jstart started

74. 74

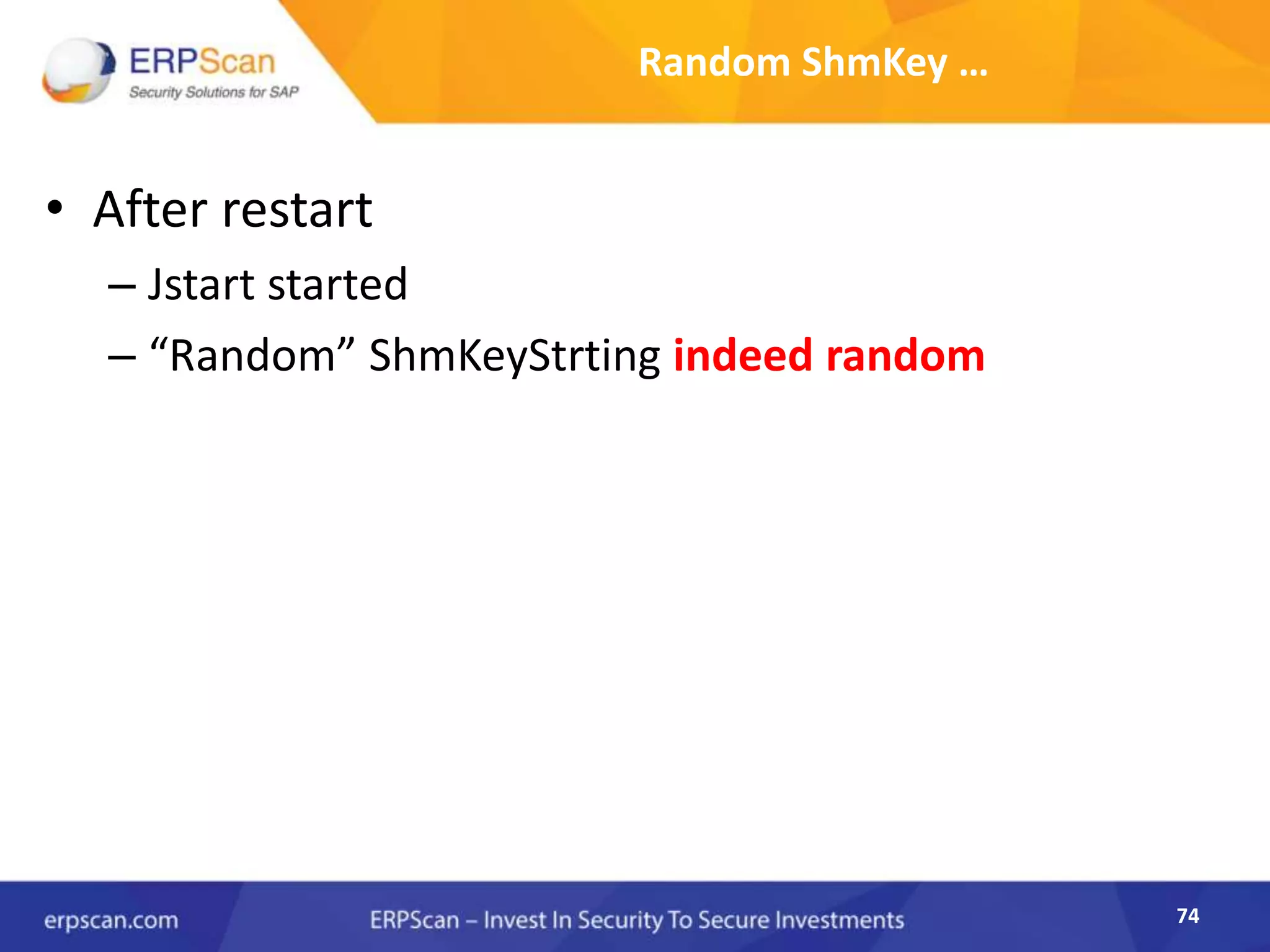

Random ShmKey …
• After restart
– Jstart started
– “Random” ShmKeyStrting indeed random

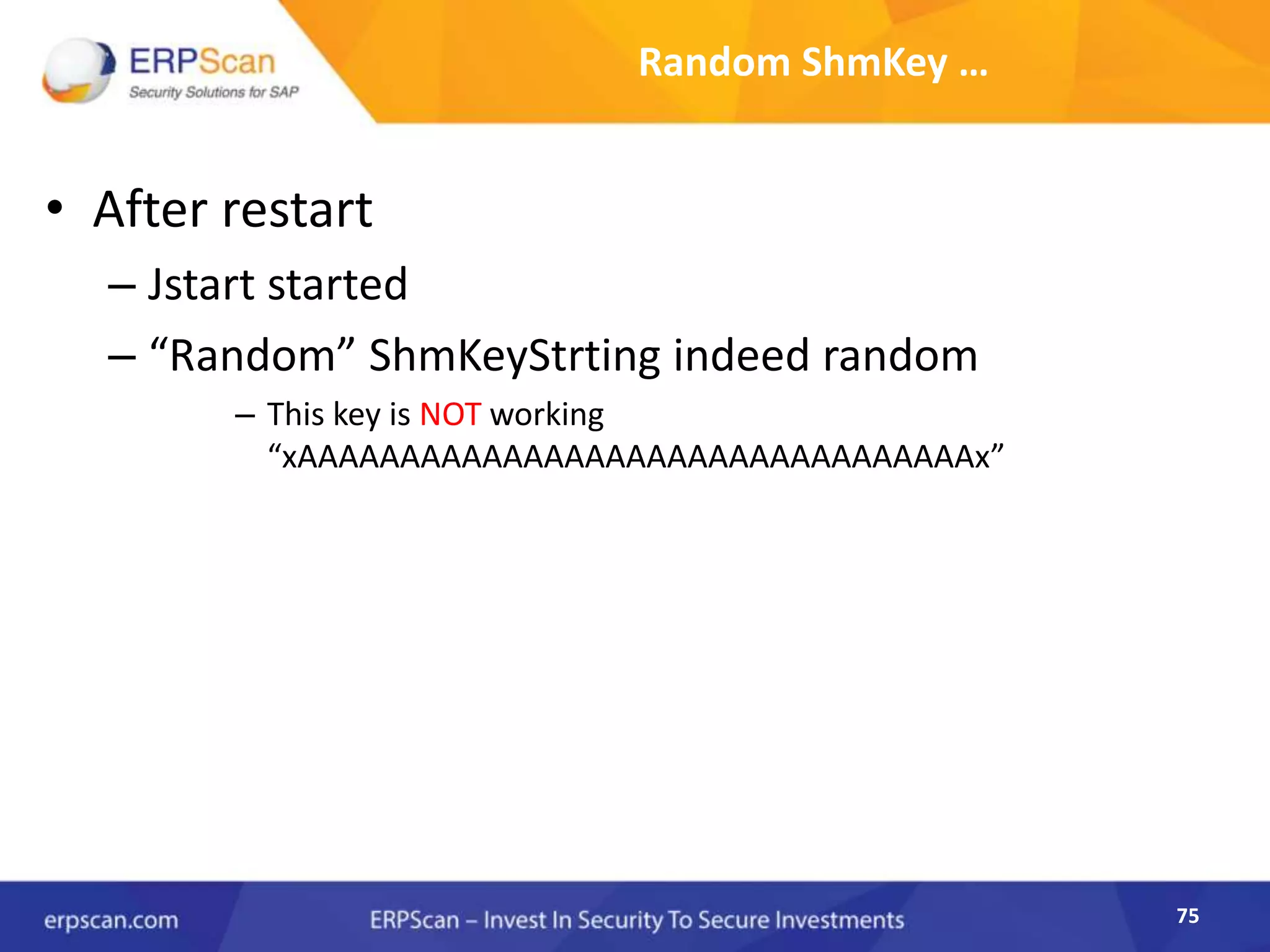

75. 75
Random ShmKey …
• After restart
– Jstart started
– “Random” ShmKeyStrting indeed random
– This key is NOT working
“xAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAx”

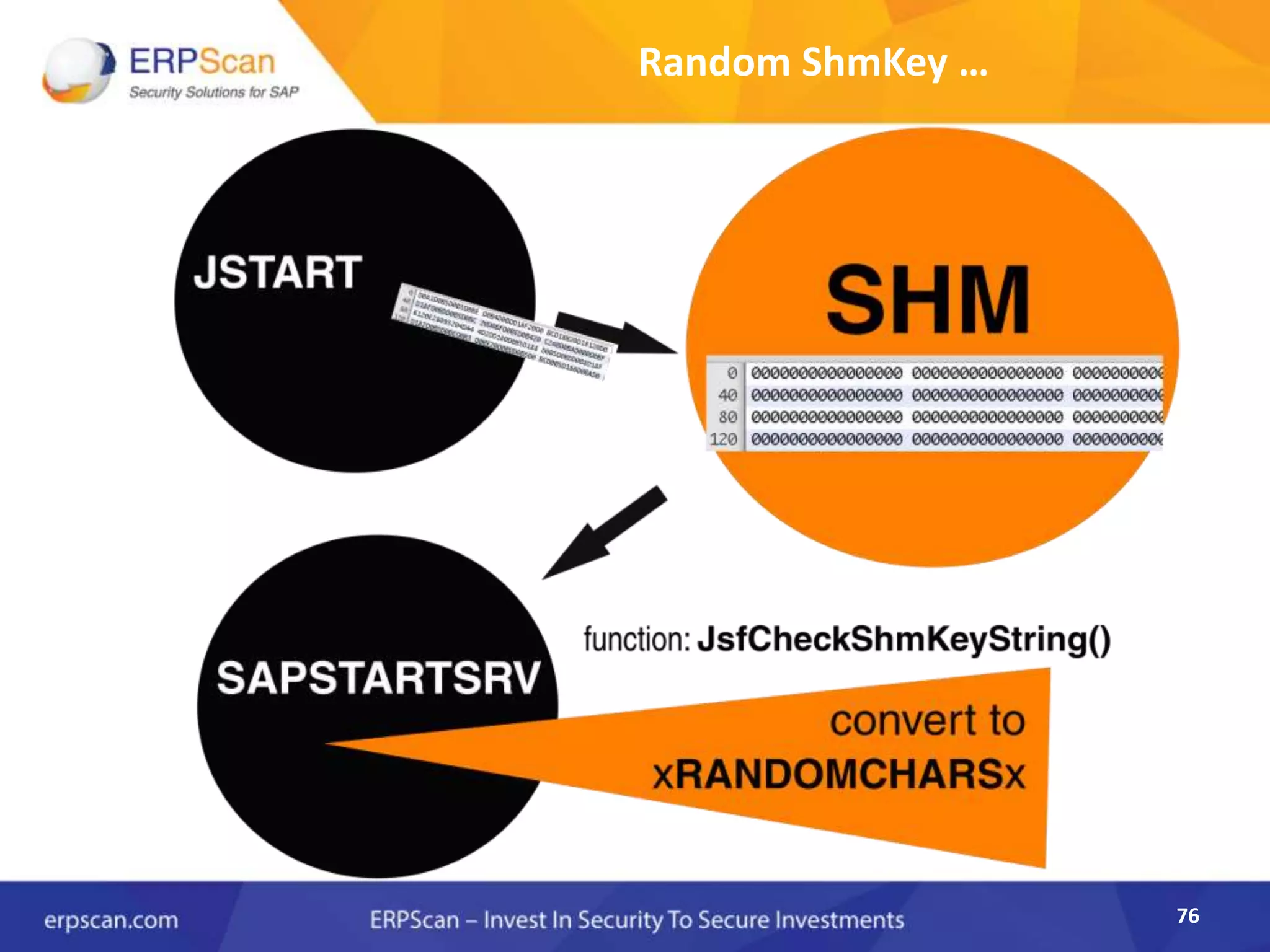

76. 76
Random ShmKey …

77. 77
HOW CONVERT THIS BUG TO REMOTE RCE WITHOUT LOCAL PF
MODIFICATION?

78. 78

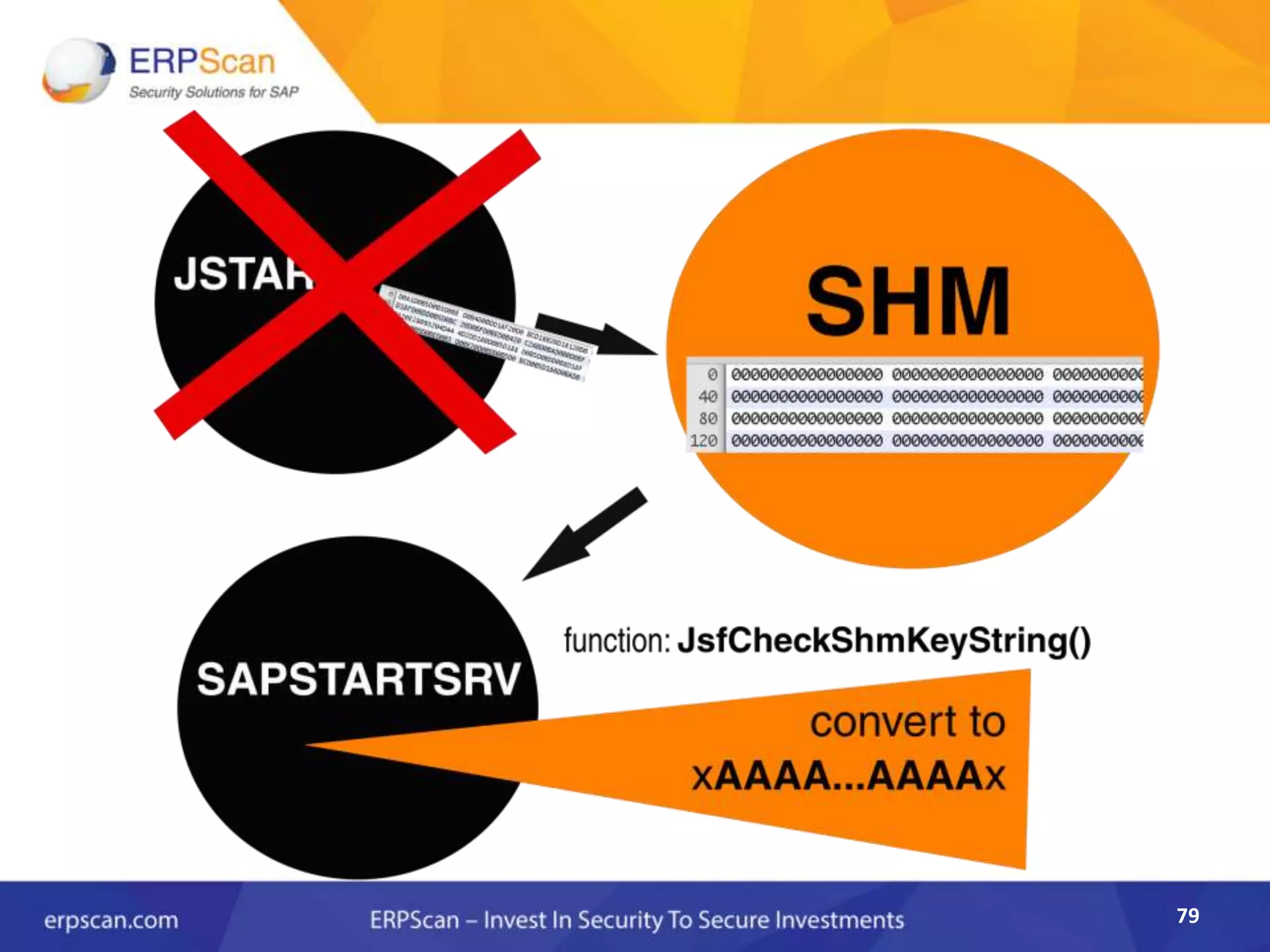

HOW ABOUT JSTART …

79. 79

80. 80

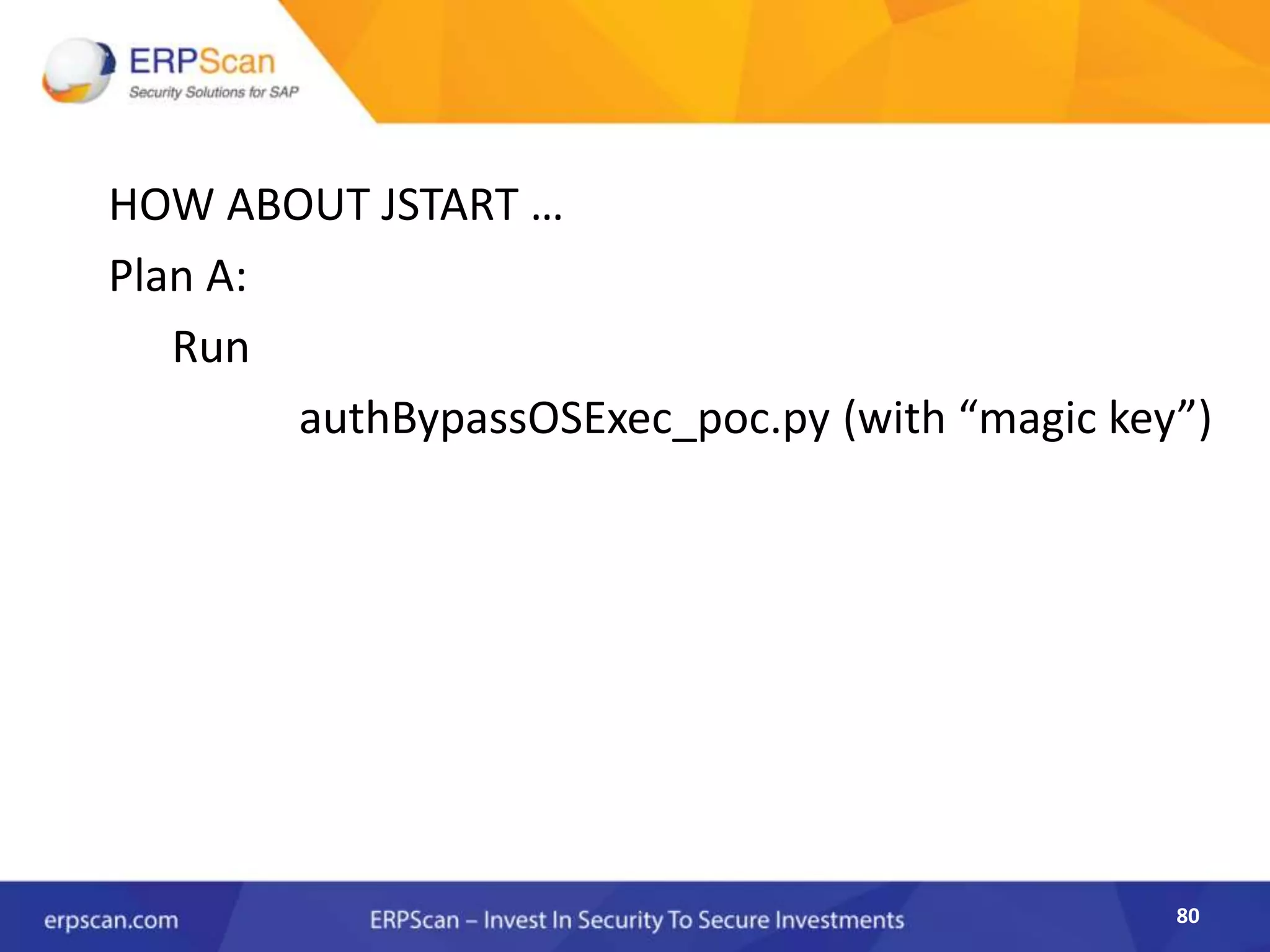

HOW ABOUT JSTART …
Plan A:
Run
authBypassOSExec_poc.py (with “magic key”)

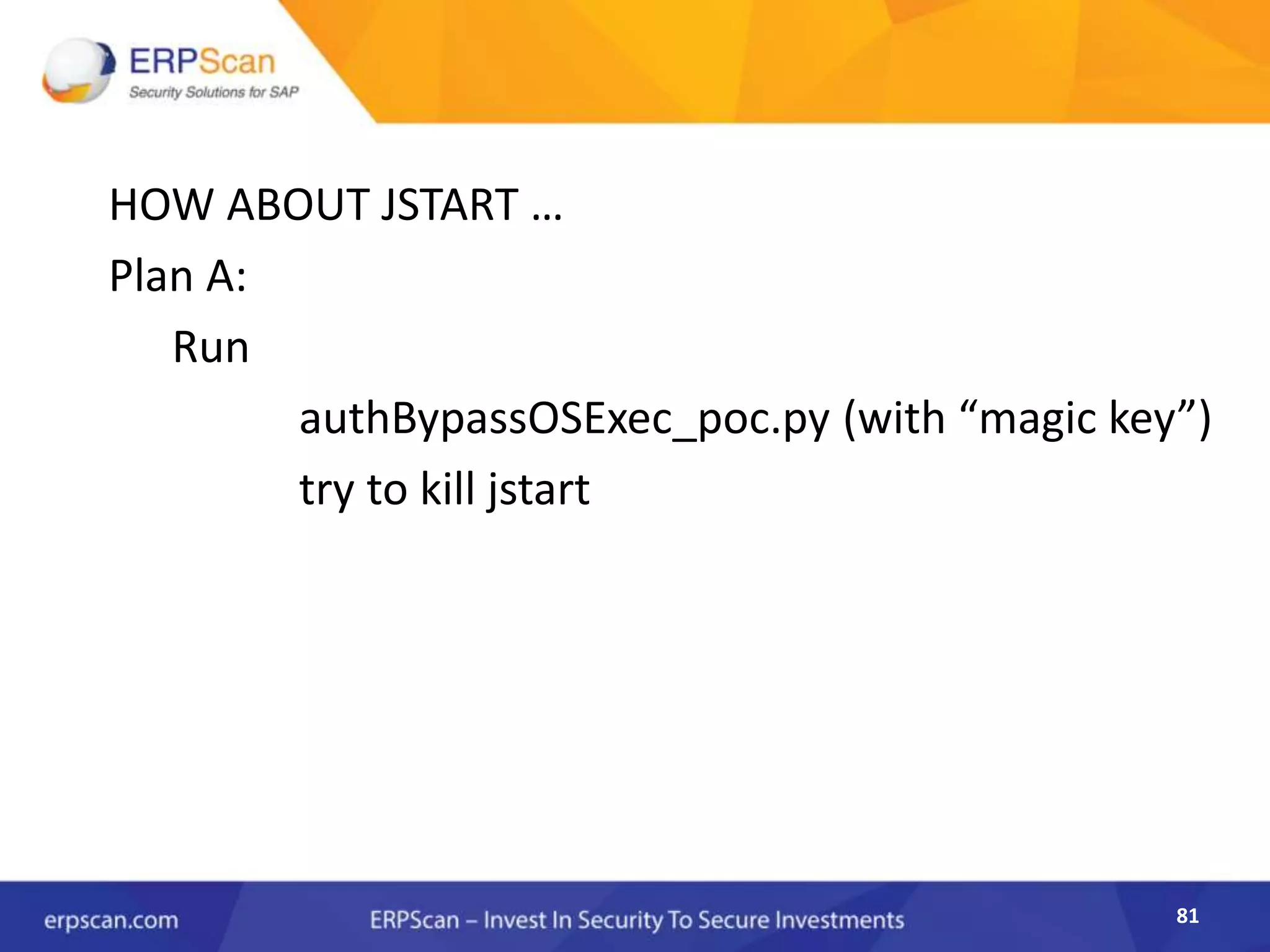

81. 81
HOW ABOUT JSTART …
Plan A:
Run
authBypassOSExec_poc.py (with “magic key”)
try to kill jstart

82. 82

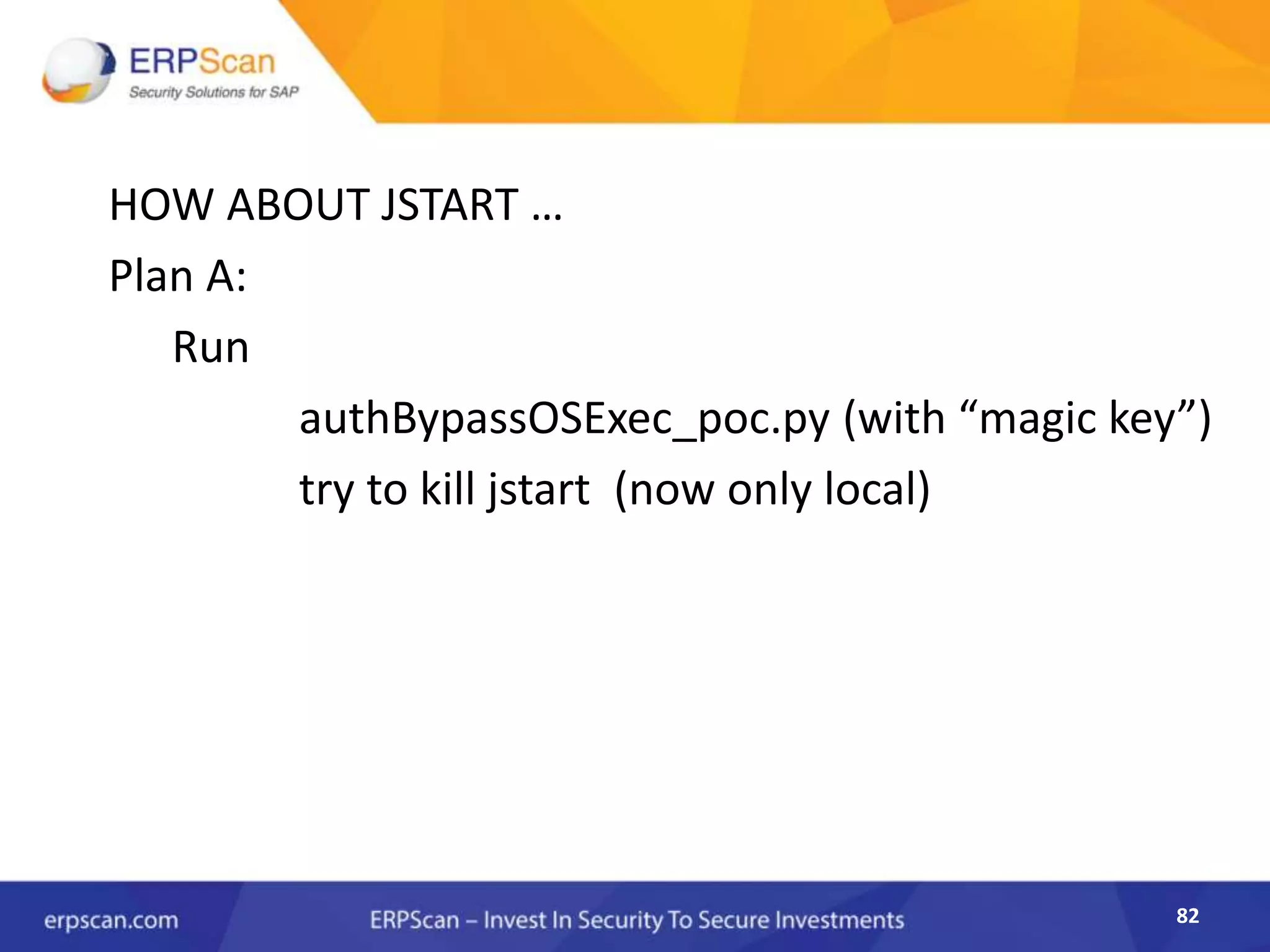

HOW ABOUT JSTART …
Plan A:
Run
authBypassOSExec_poc.py (with “magic key”)
try to kill jstart (now only local)

83. 83

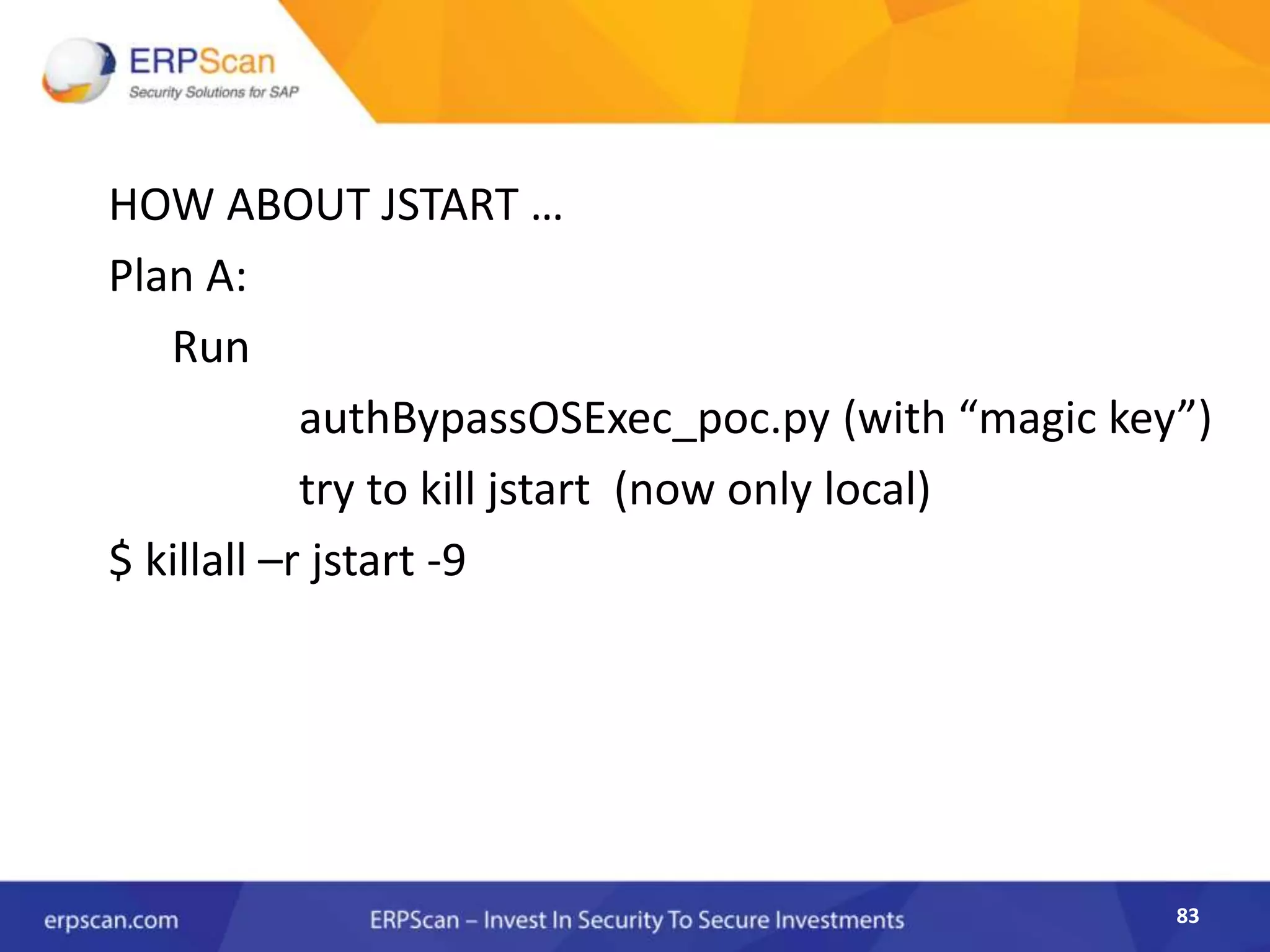

HOW ABOUT JSTART …
Plan A:
Run
authBypassOSExec_poc.py (with “magic key”)
try to kill jstart (now only local)
$ killall –r jstart -9

84. 84
• AND

85. 85

86. 86
PLAN B
• Ok, time for plan B

87. 87
PLAN B
• Plan B

88. 88
PLAN B
• ICMAN …

89. 89

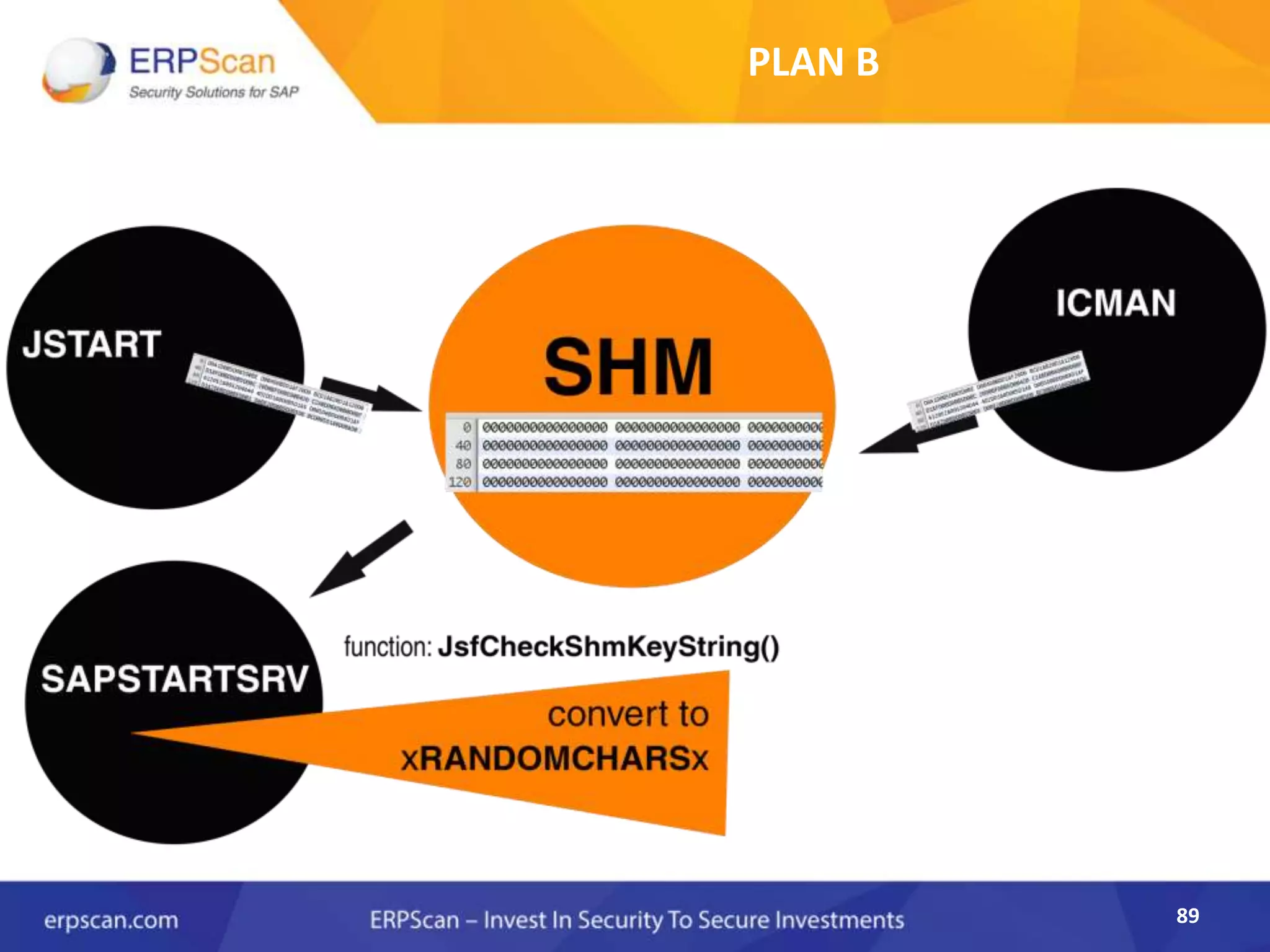

PLAN B

90. 90
PLAN B

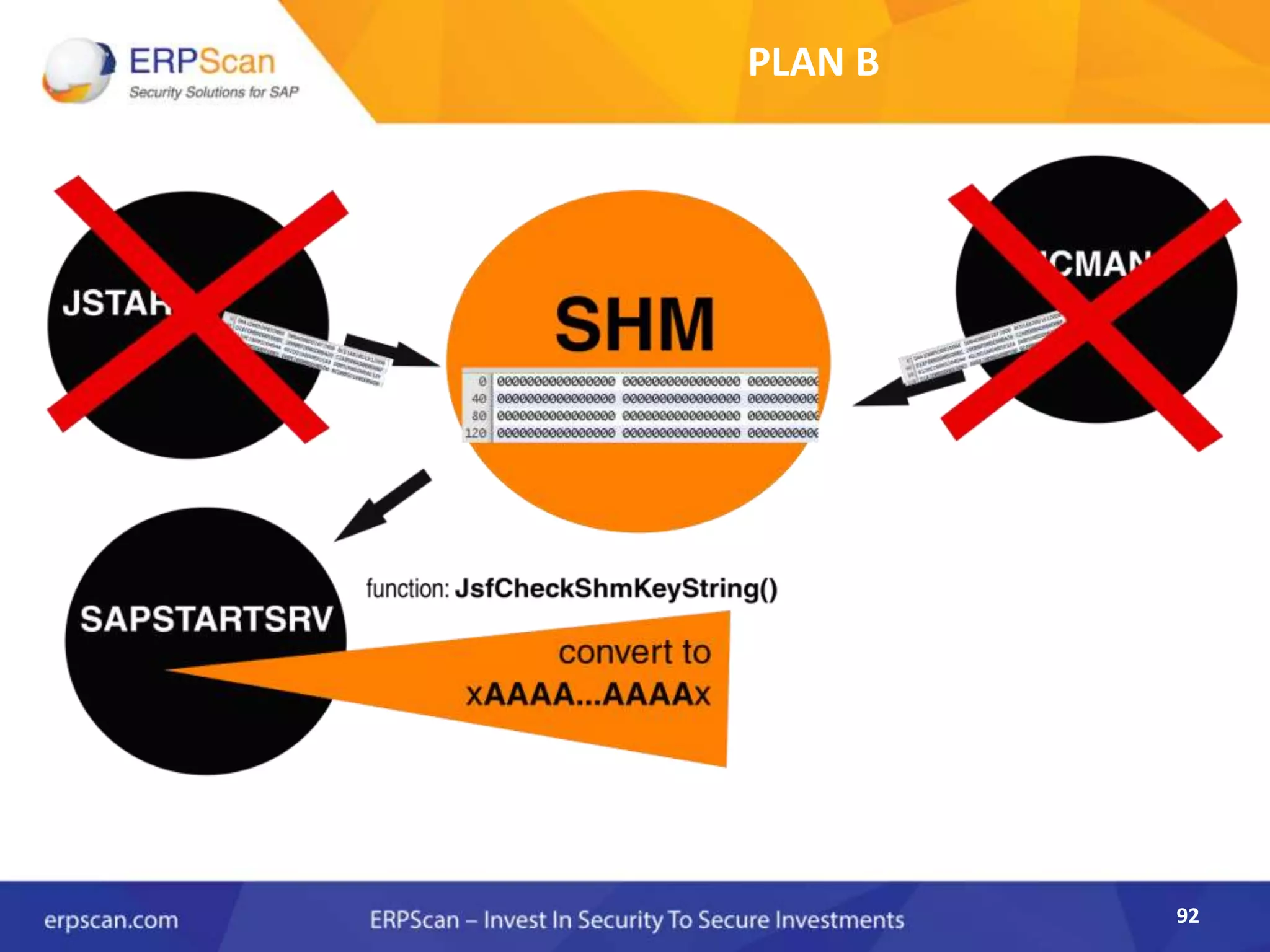

Q:
How do you think it killed both jstart and icman at the same
time?

91. 91
PLAN B
A:

92. 92
PLAN B

93. 93

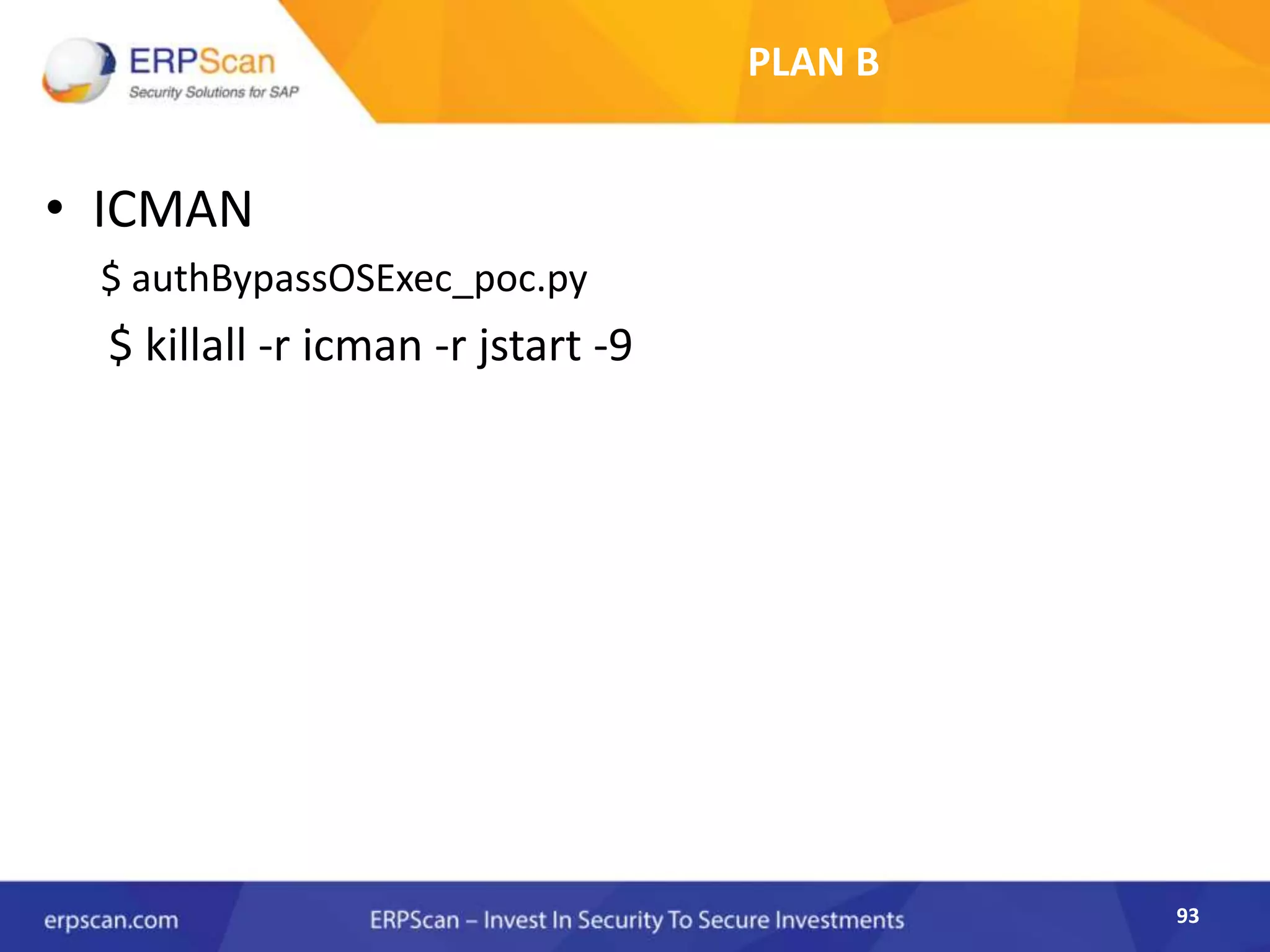

PLAN B
• ICMAN
$ authBypassOSExec_poc.py
$ killall -r icman -r jstart -9

94. 94
DEMO 2

95. 95

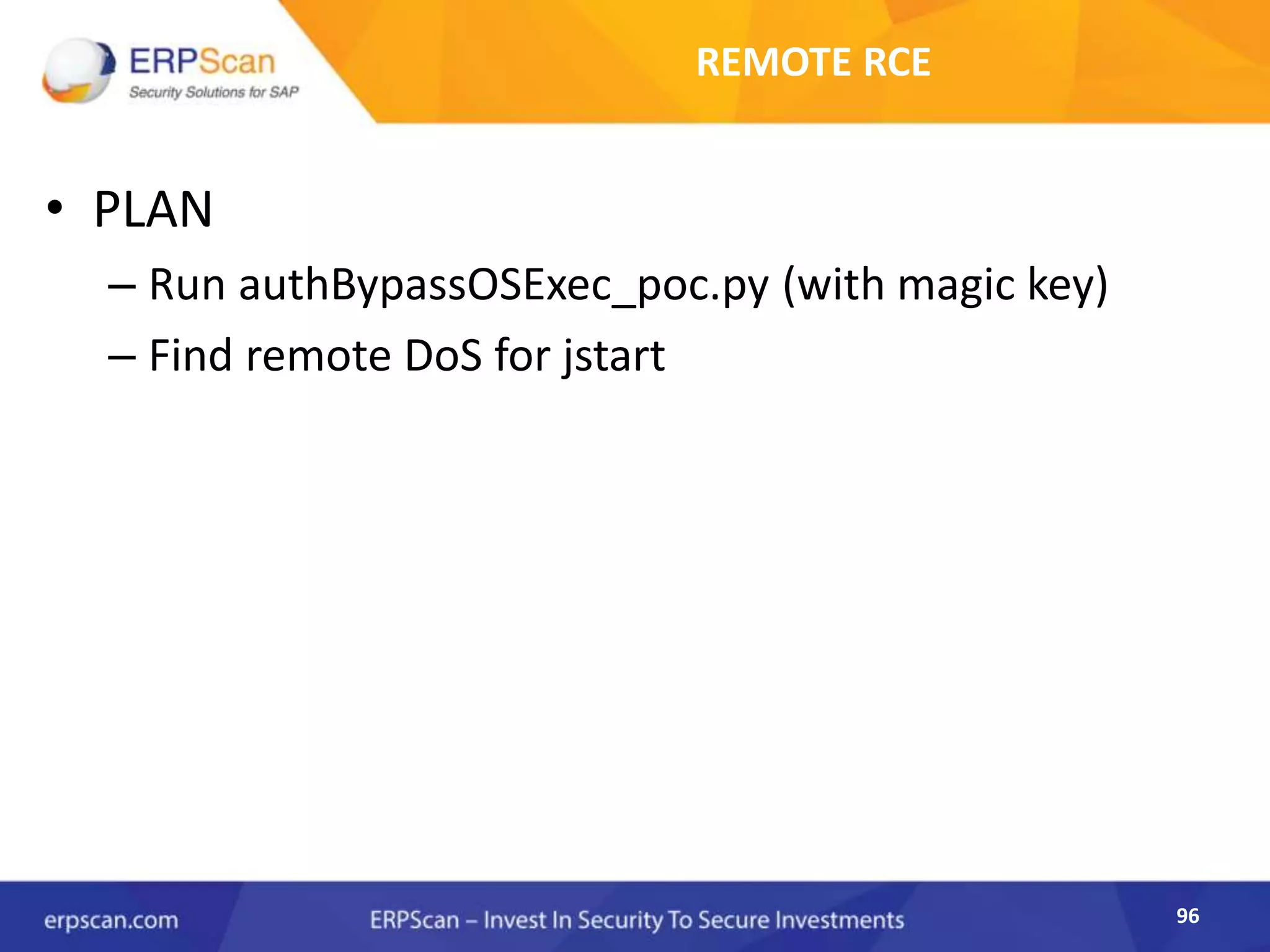

REMOTE RCE
• PLAN

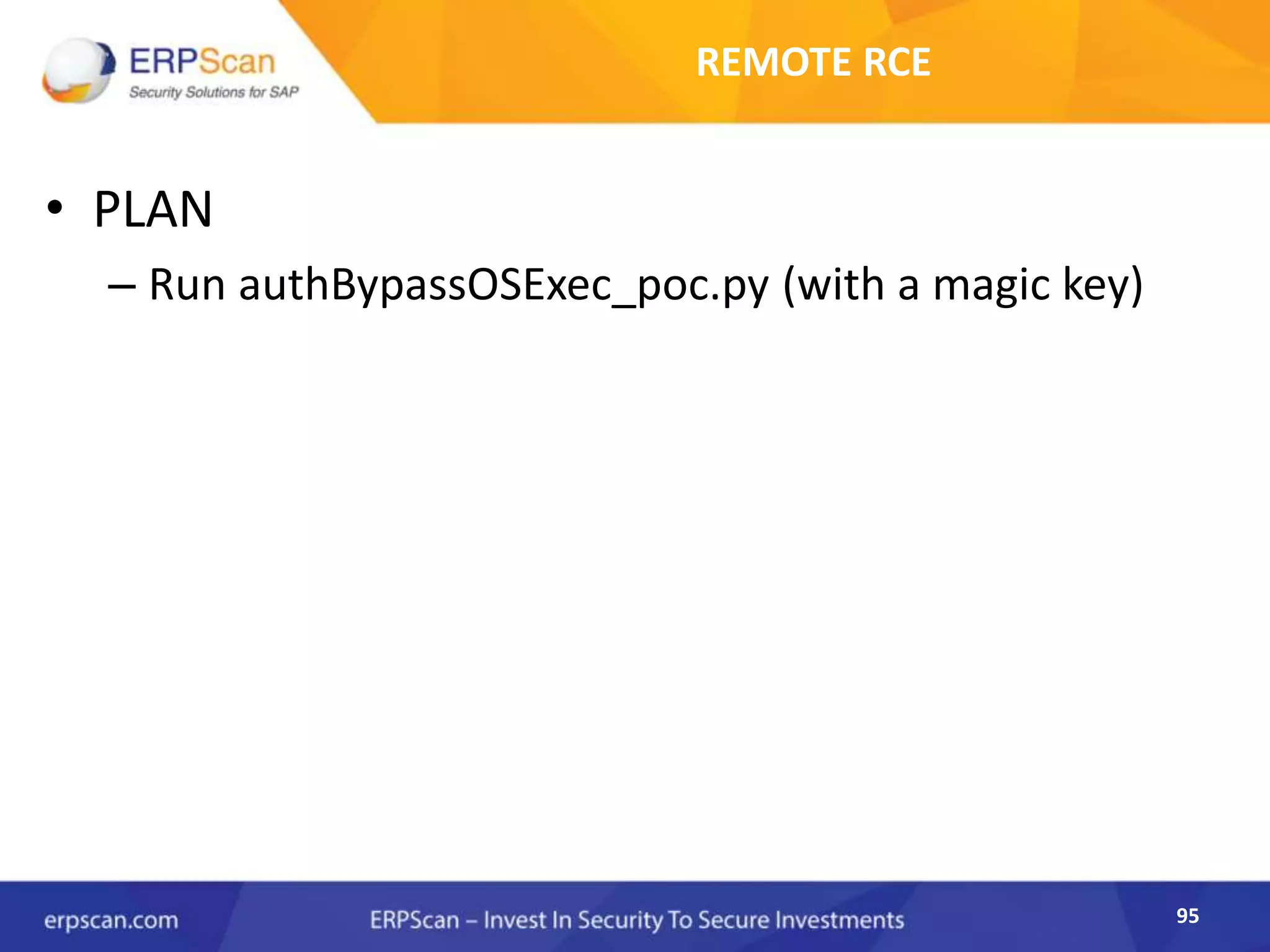

– Run authBypassOSExec_poc.py (with a magic key)

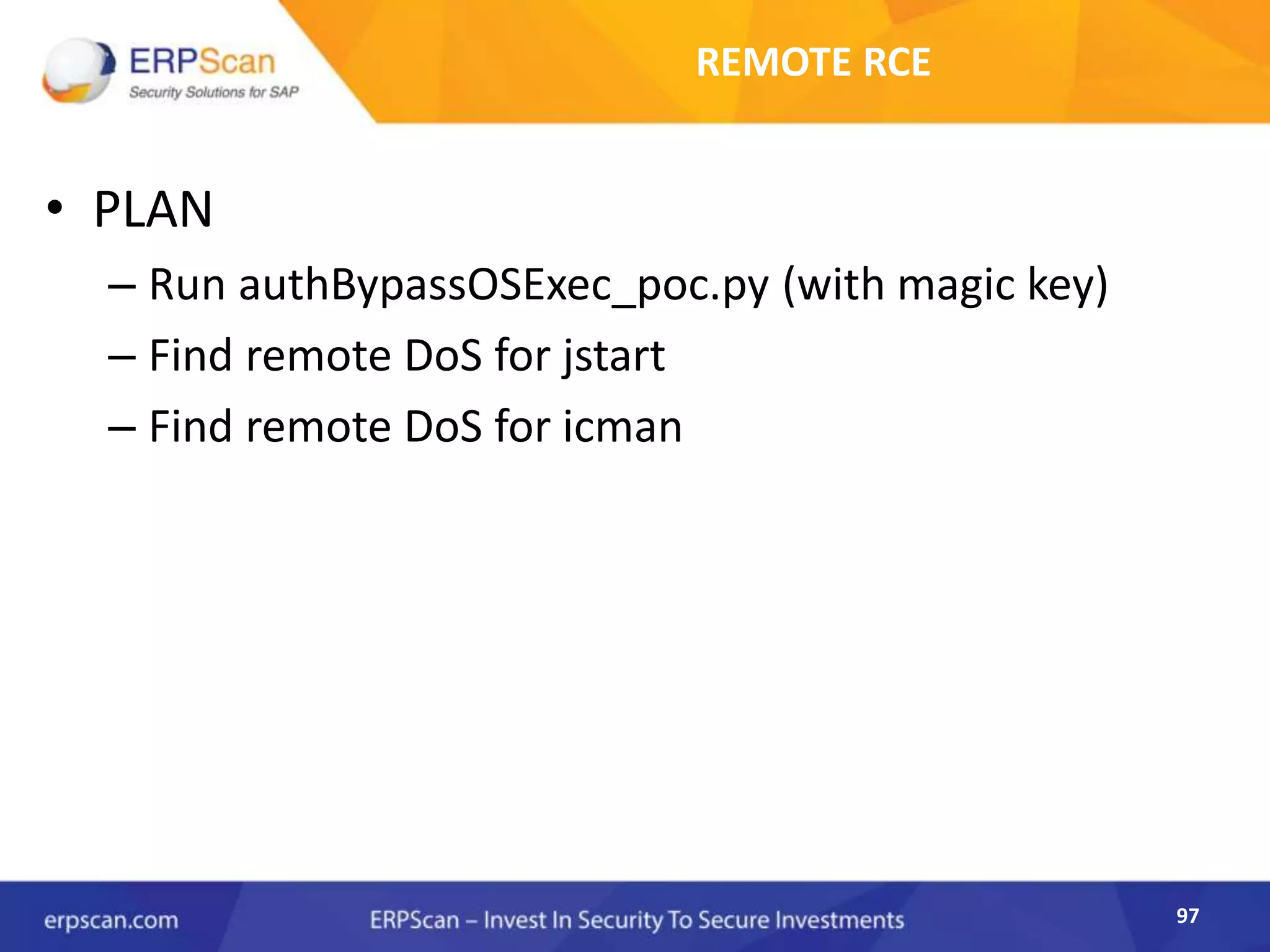

96. 96
REMOTE RCE
• PLAN
– Run authBypassOSExec_poc.py (with magic key)
– Find remote DoS for jstart

97. 97
REMOTE RCE
• PLAN
– Run authBypassOSExec_poc.py (with magic key)
– Find remote DoS for jstart
– Find remote DoS for icman

98. 98
JSTART

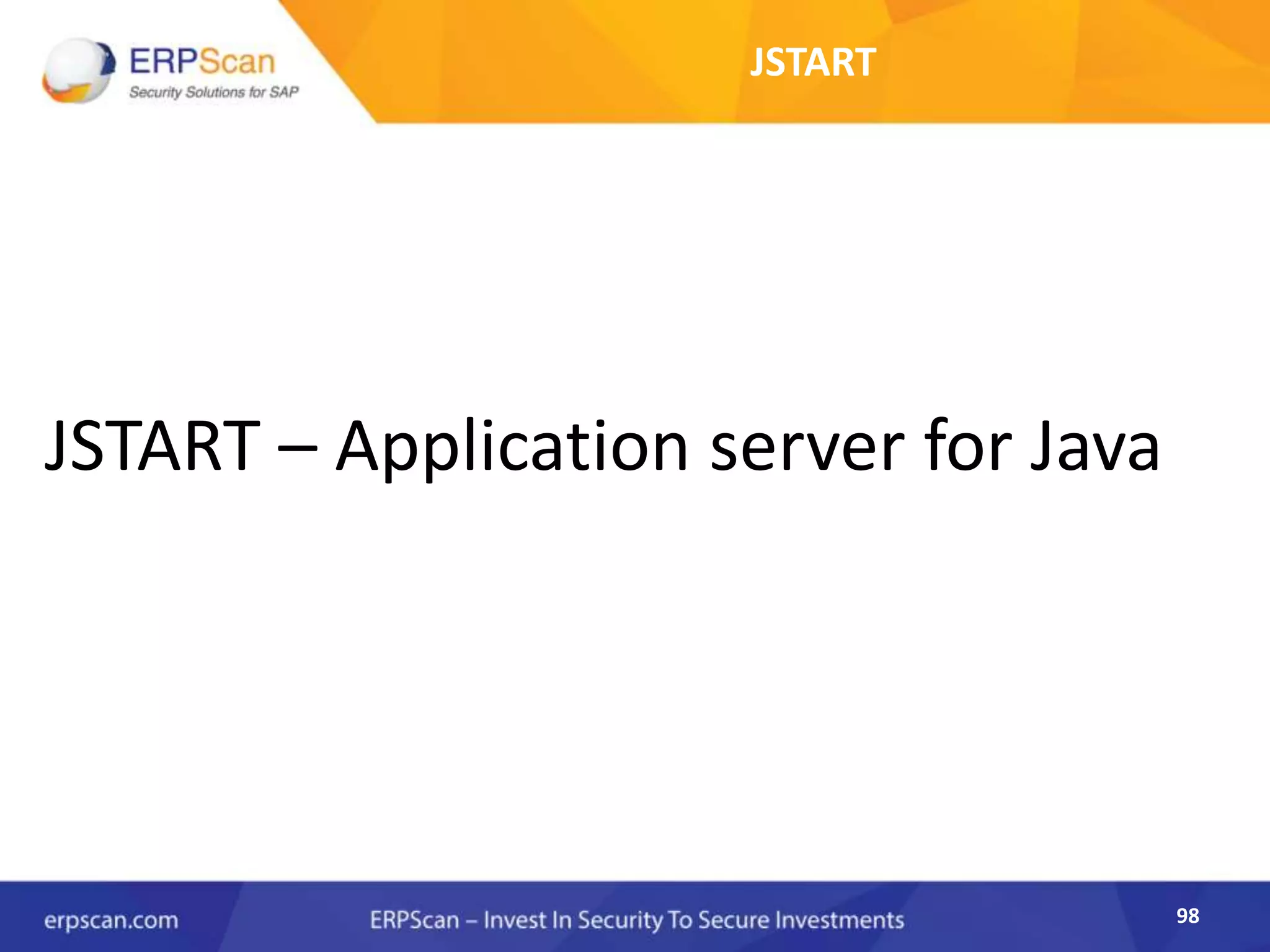

JSTART – Application server for Java

99. 99
JSTART
• DoS after ≈ 3 days

100. 100

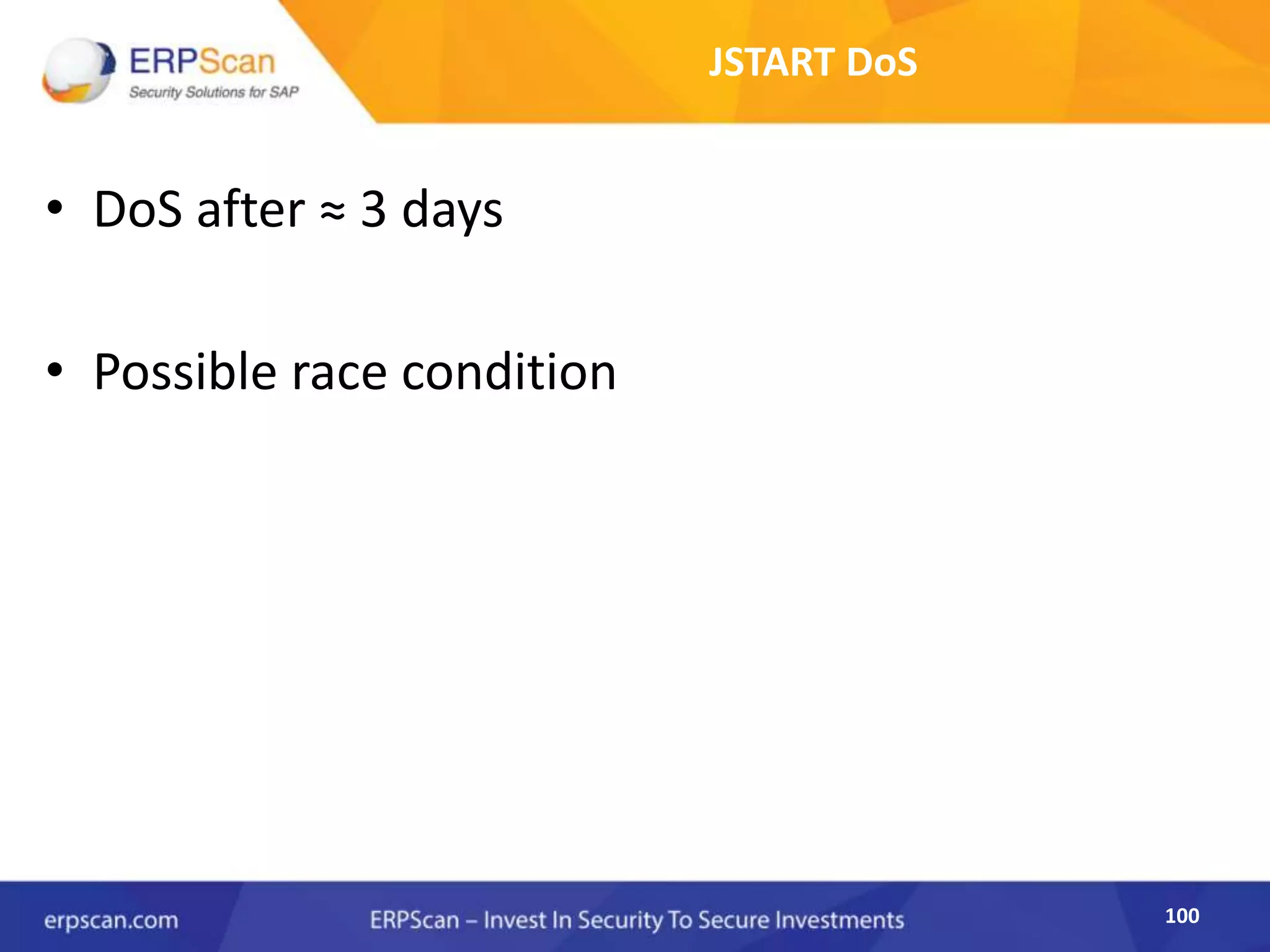

JSTART DoS
• DoS after ≈ 3 days
• Possible race condition

101. 101

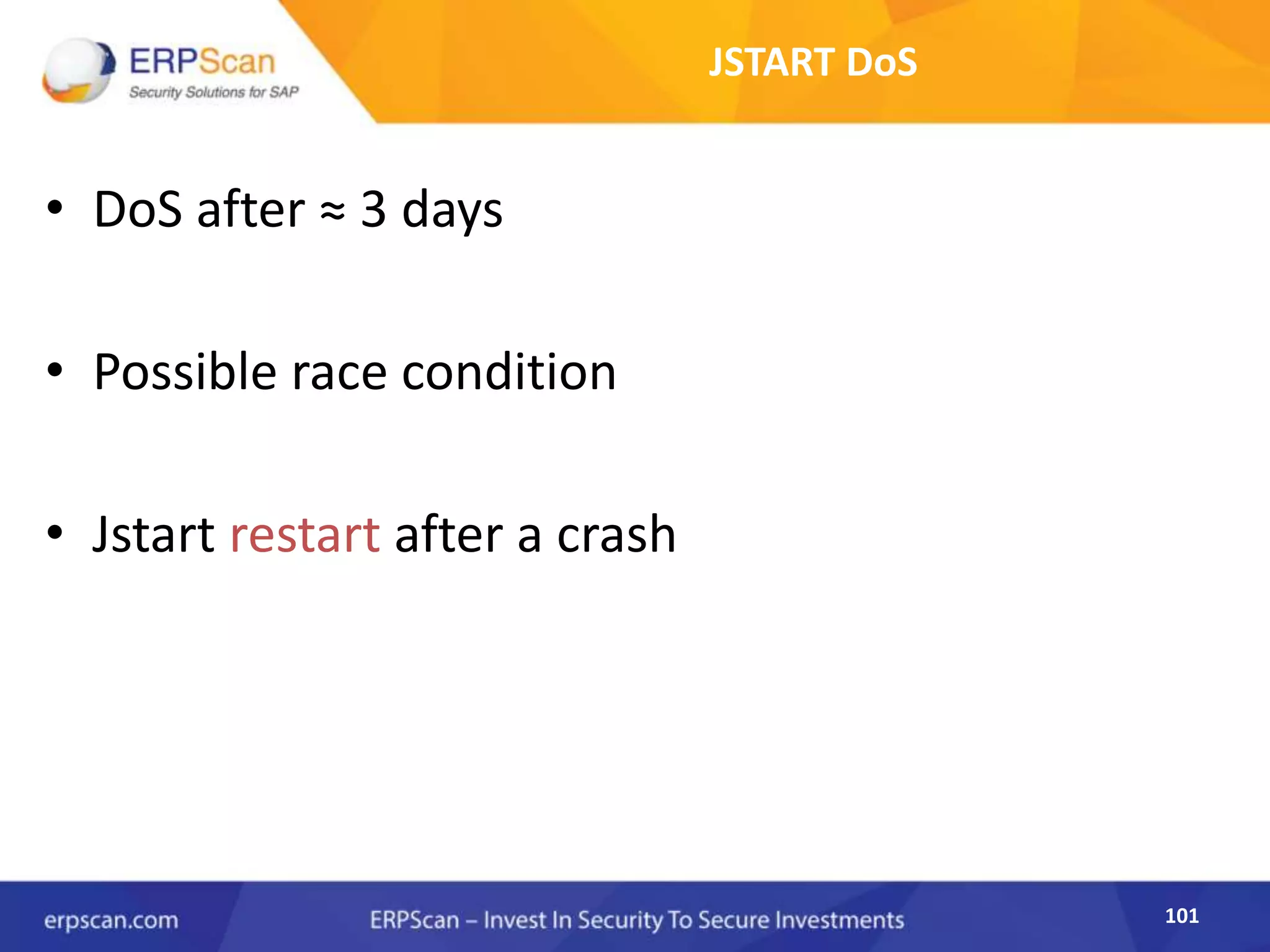

JSTART DoS
• DoS after ≈ 3 days
• Possible race condition
• Jstart restart after a crash

102. 102

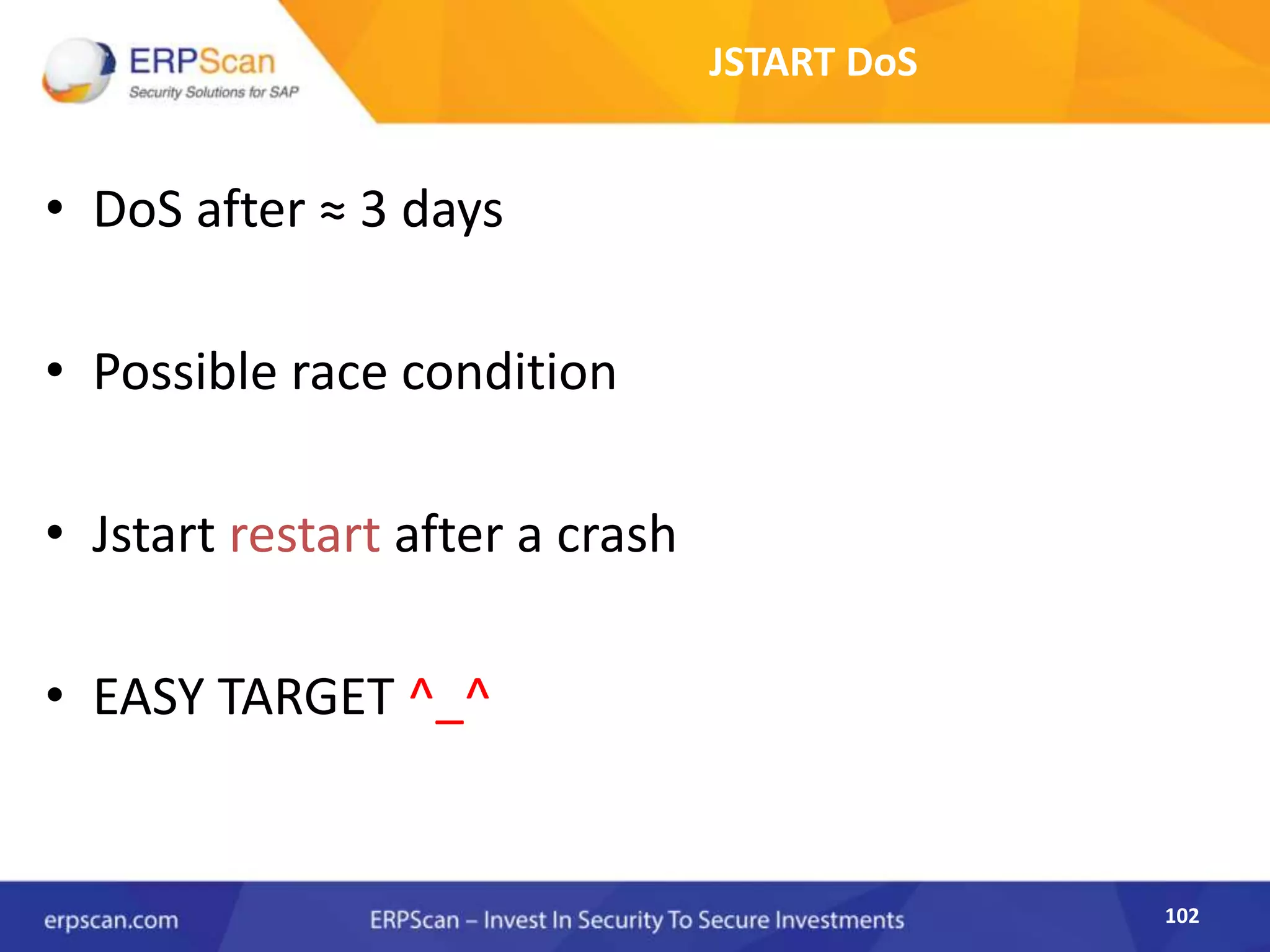

JSTART DoS
• DoS after ≈ 3 days
• Possible race condition
• Jstart restart after a crash
• EASY TARGET ^_^

103. 103

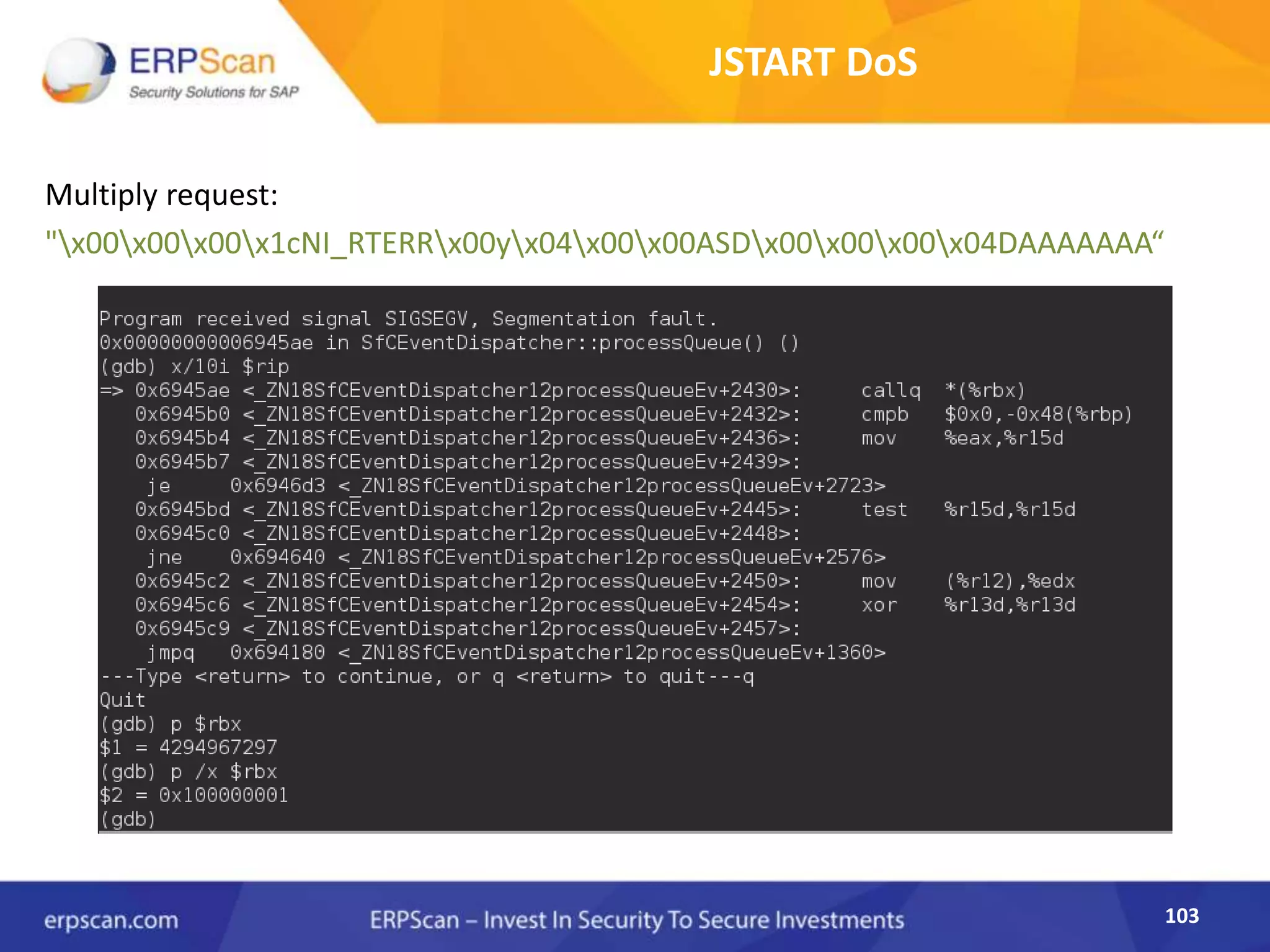

JSTART DoS
Multiply request:
"x00x00x00x1cNI_RTERRx00yx04x00x00ASDx00x00x00x04DAAAAAAA“

104. 104
ICM
• ICM …

105. 105
ICM
•ICM …

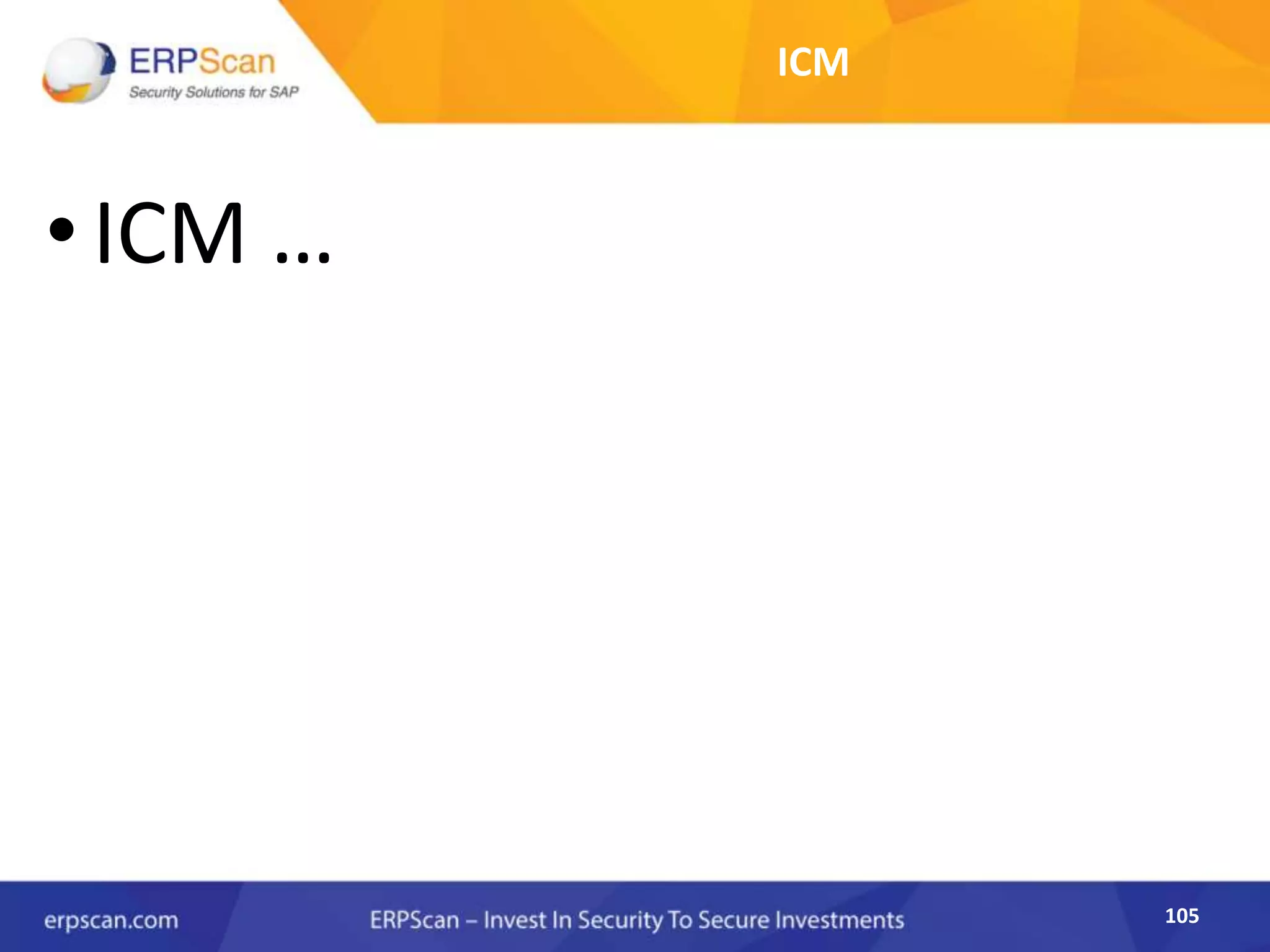

106. 106
ICM
•ICM…

107. 107
ICM

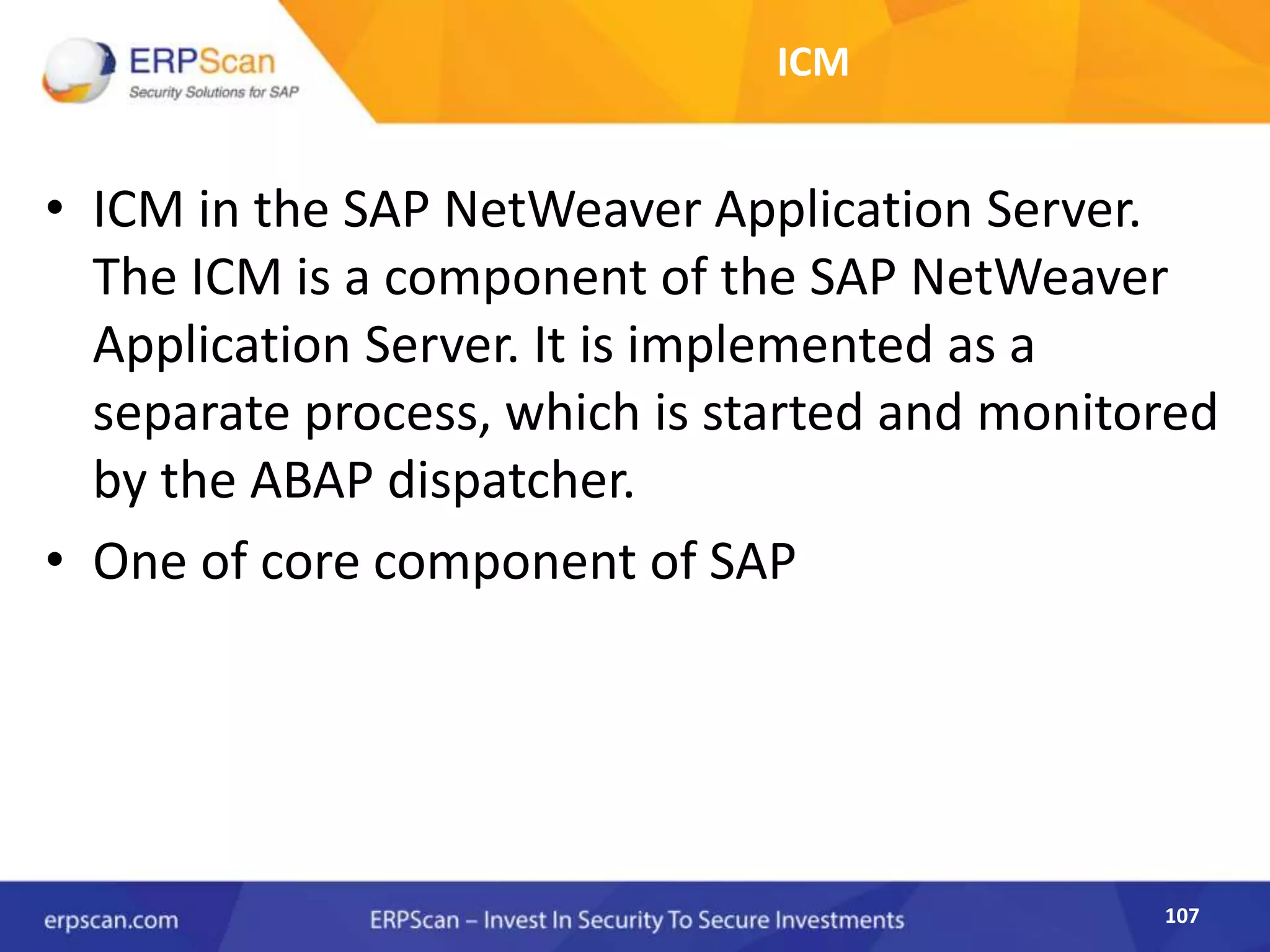

• ICM in the SAP NetWeaver Application Server.
The ICM is a component of the SAP NetWeaver
Application Server. It is implemented as a
separate process, which is started and monitored
by the ABAP dispatcher.
• One of core component of SAP

108. 108

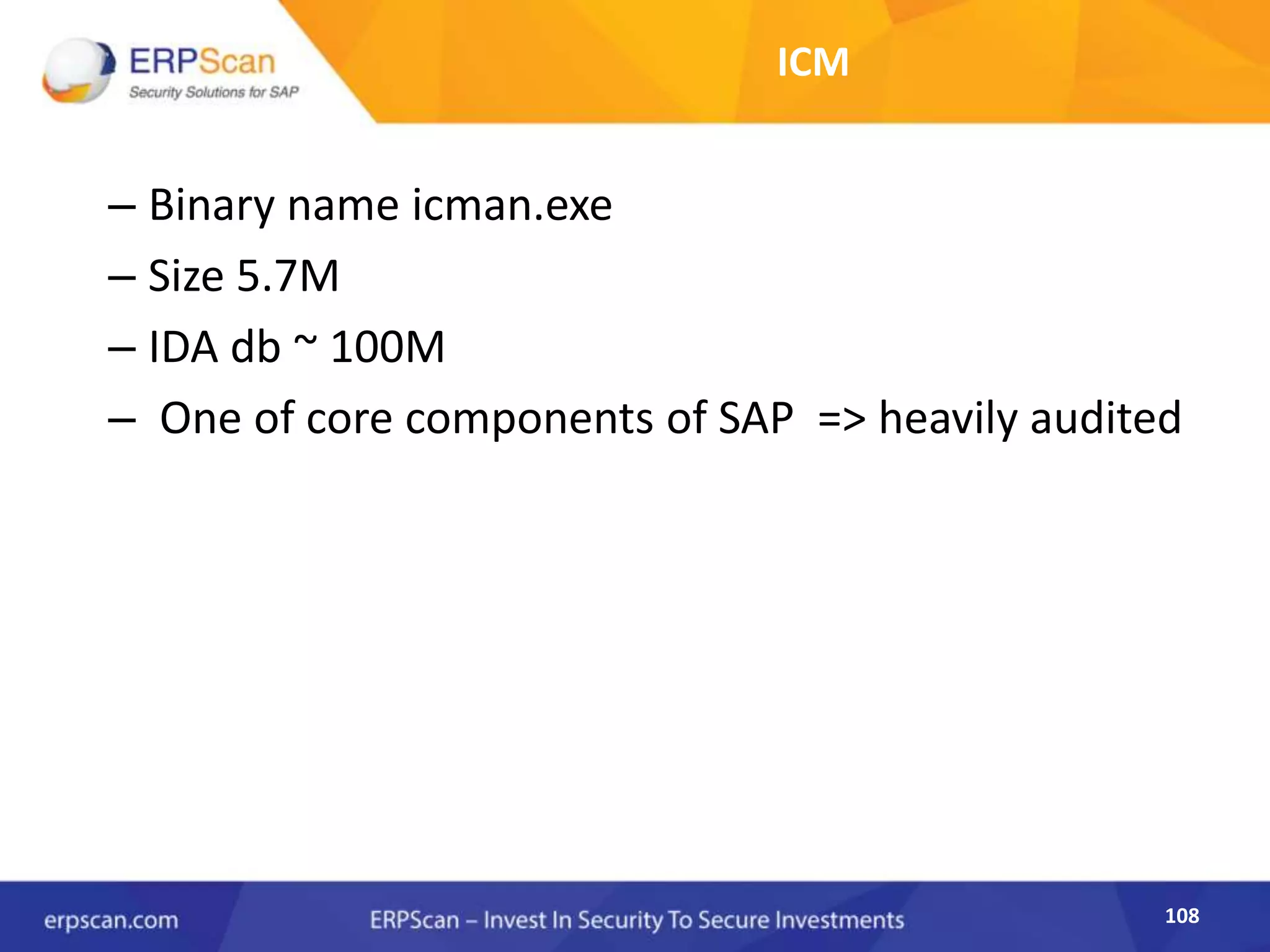

ICM
– Binary name icman.exe
– Size 5.7M
– IDA db ~ 100M
– One of core components of SAP => heavily audited

109. 109
ICM

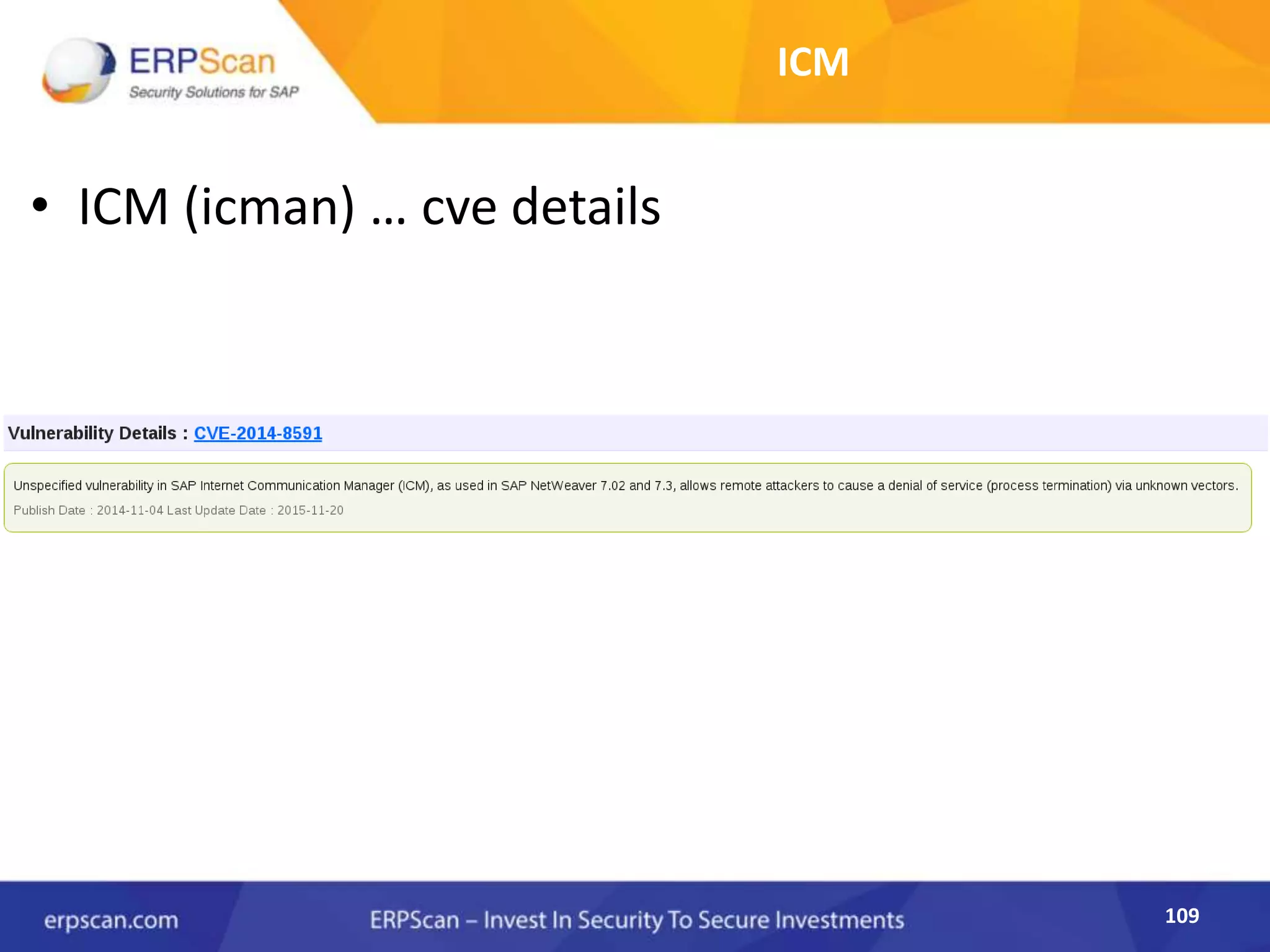

• ICM (icman) … cve details

110. 110

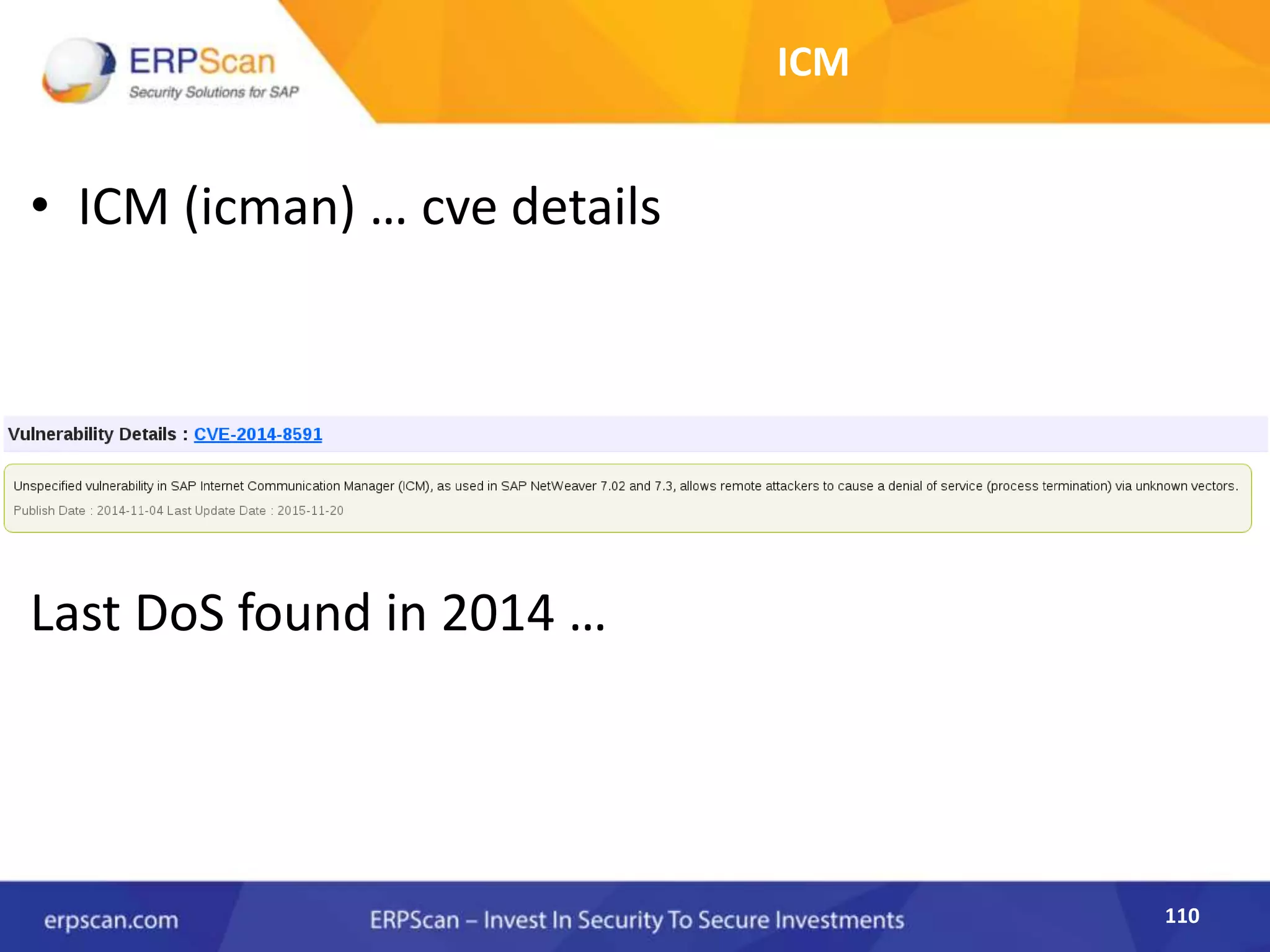

ICM
• ICM (icman) … cve details
Last DoS found in 2014 …

111. 111

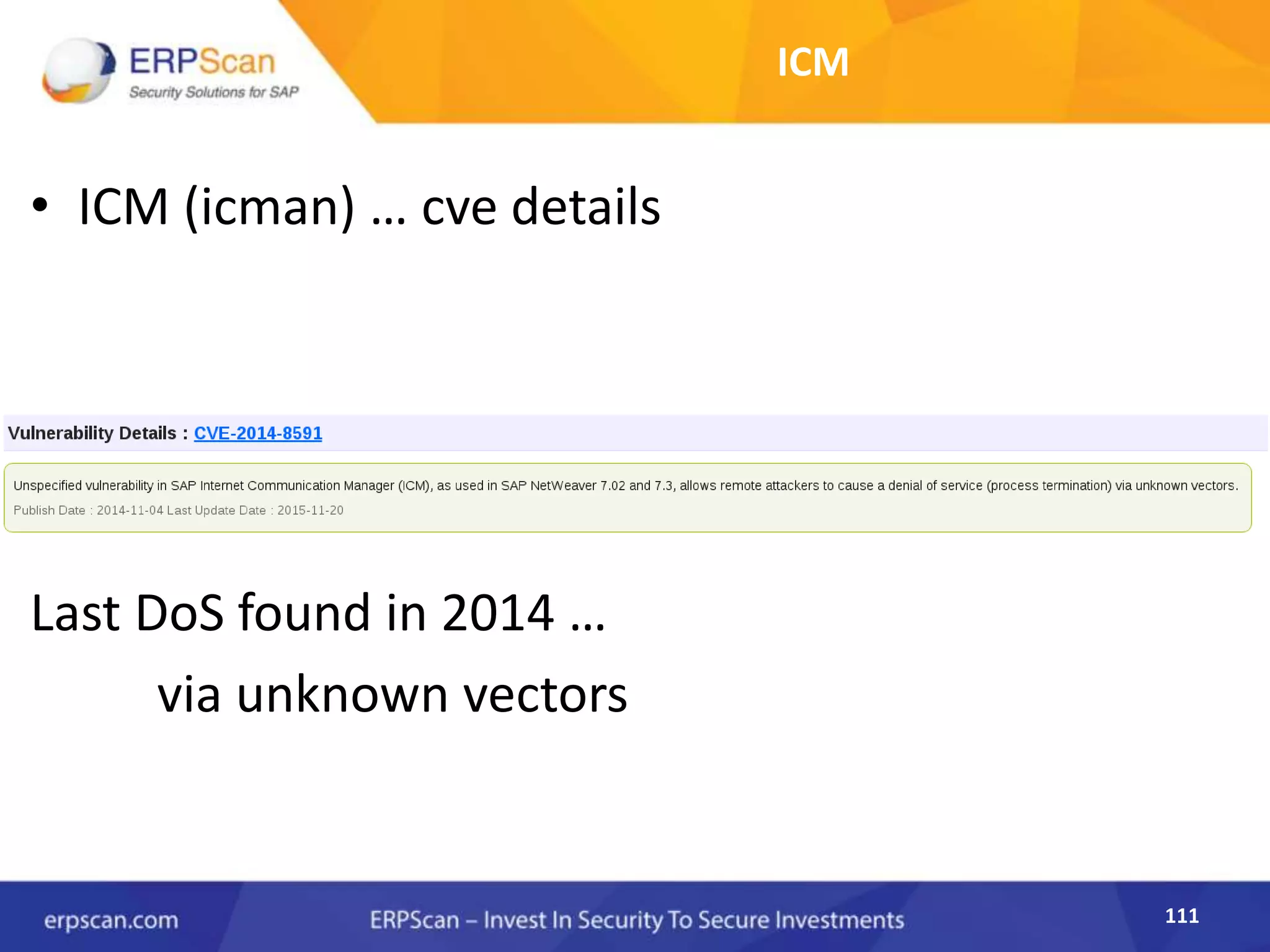

ICM
• ICM (icman) … cve details
Last DoS found in 2014 …
via unknown vectors

112. 112
ICM DoS
• DoS after …
Not so easy ...

113. 113
ICM DoS

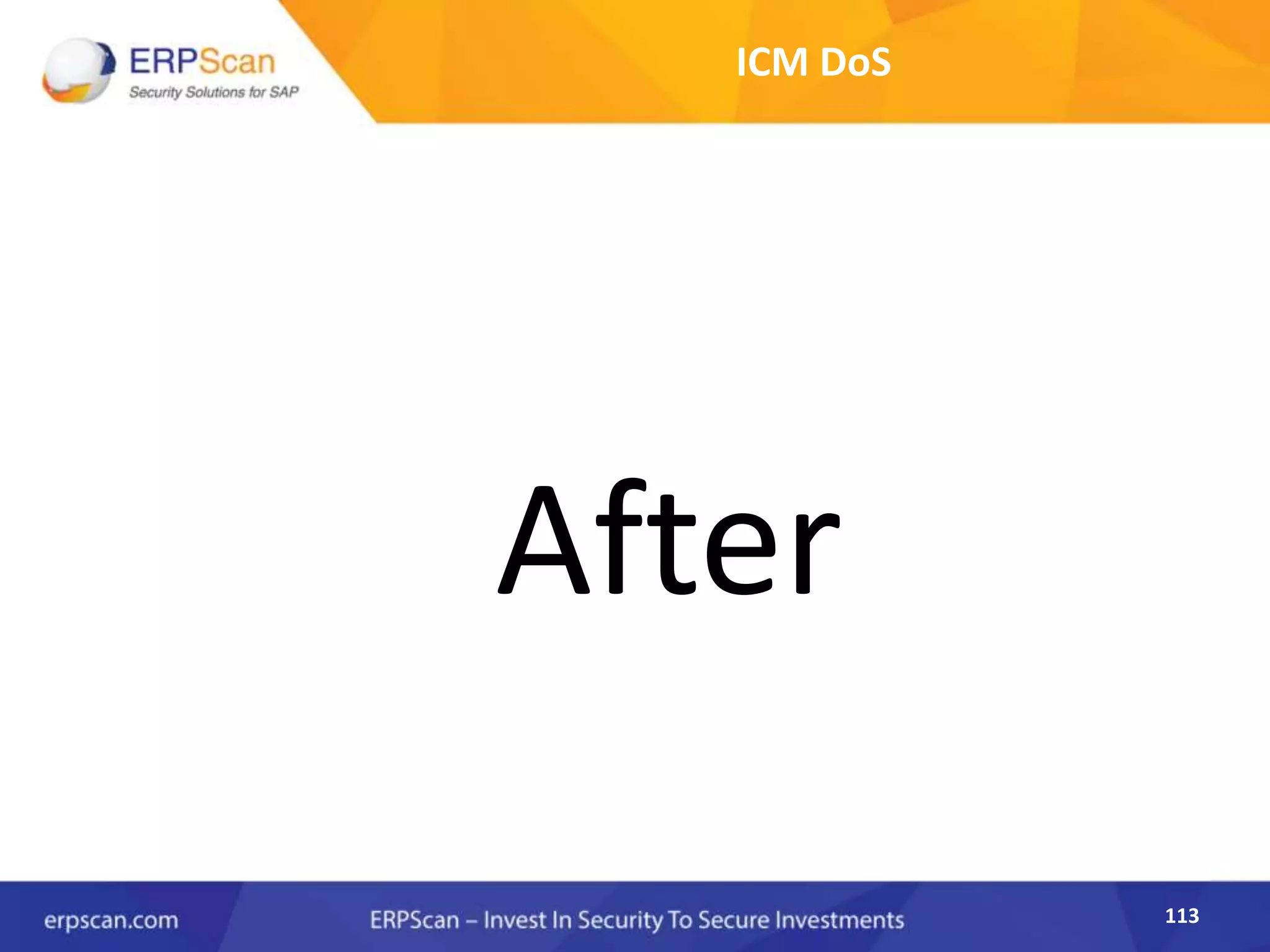

After

114. 114
ICM DoS
≈ 35 days

115. 115
ICM DoS
≈ 35 days + some weekends

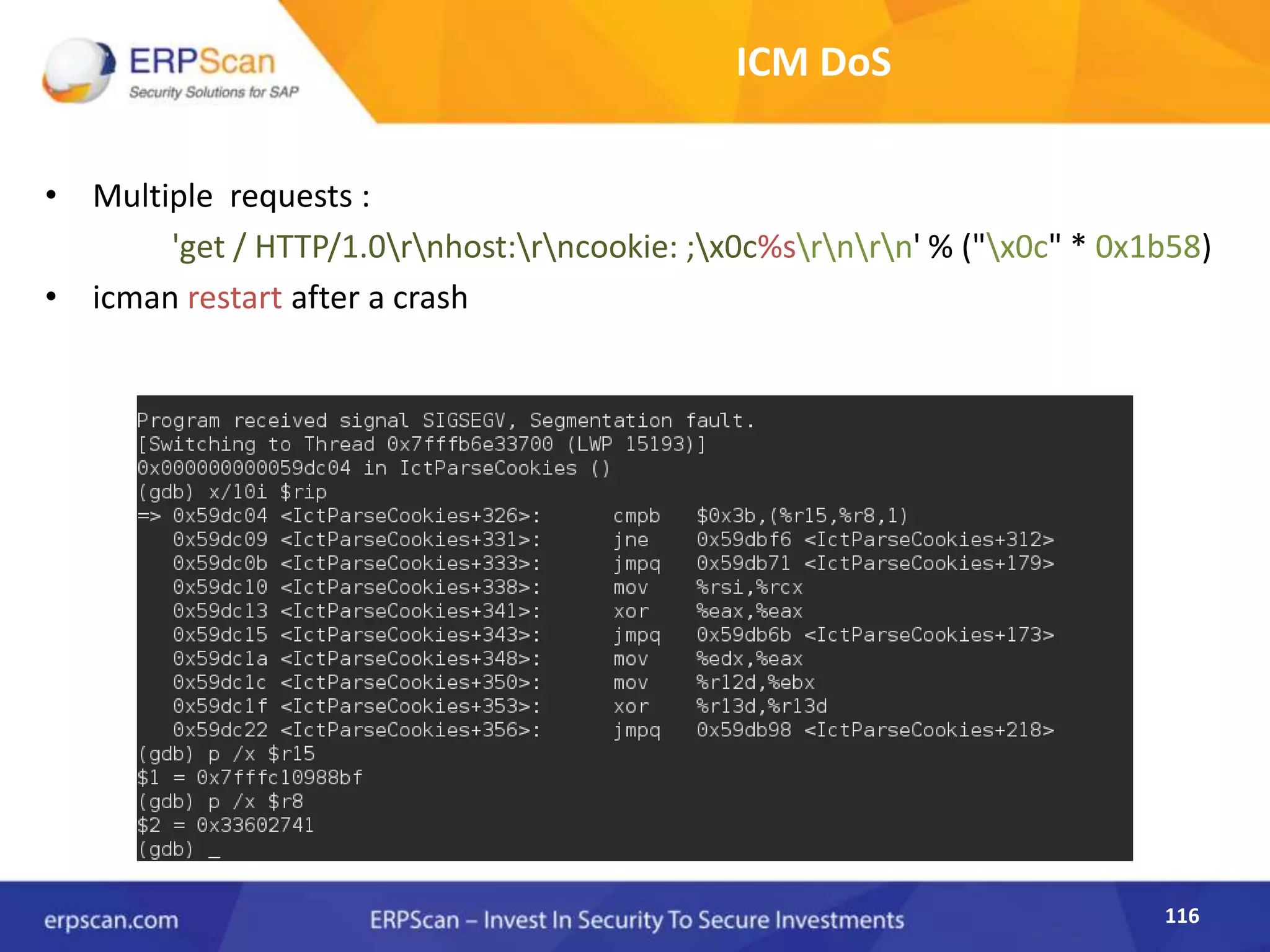

116. 116
ICM DoS
• Multiple requests :
'get / HTTP/1.0rnhost:rncookie: ;x0c%srnrn' % ("x0c" * 0x1b58)
• icman restart after a crash

117. 117

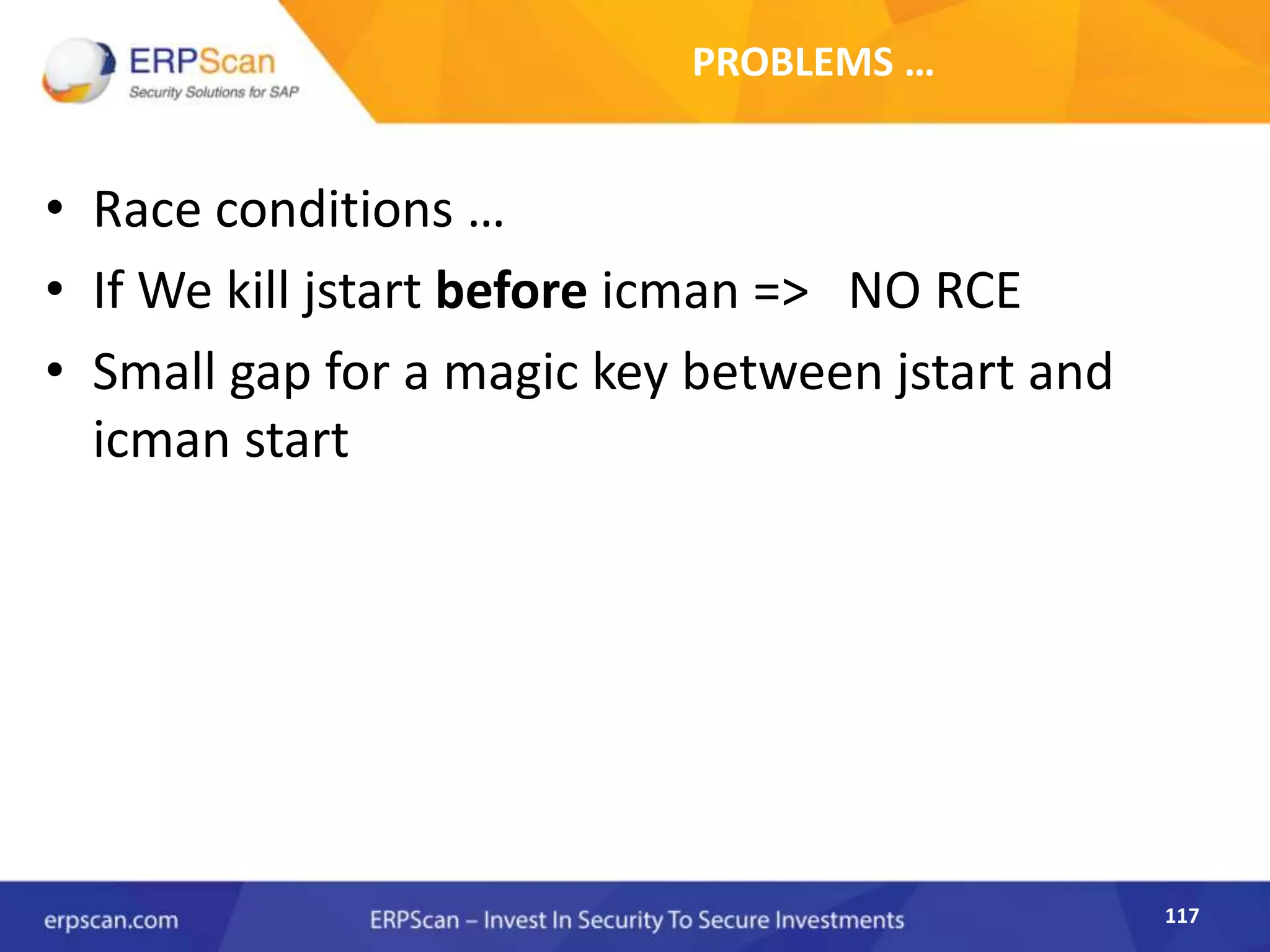

PROBLEMS …
• Race conditions …
• If We kill jstart before icman => NO RCE
• Small gap for a magic key between jstart and
icman start

118. 118

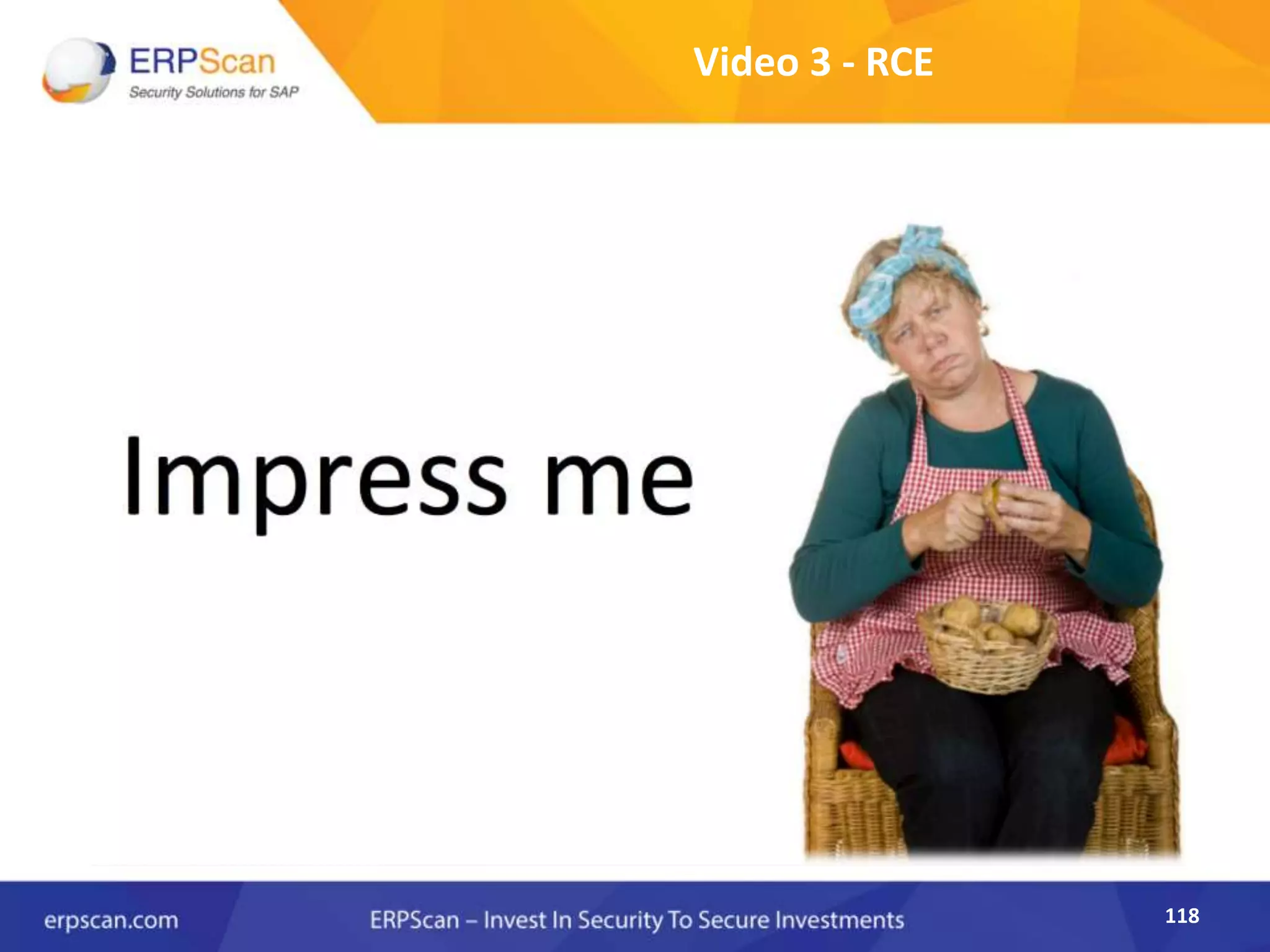

Video 3 - RCE

119. 119

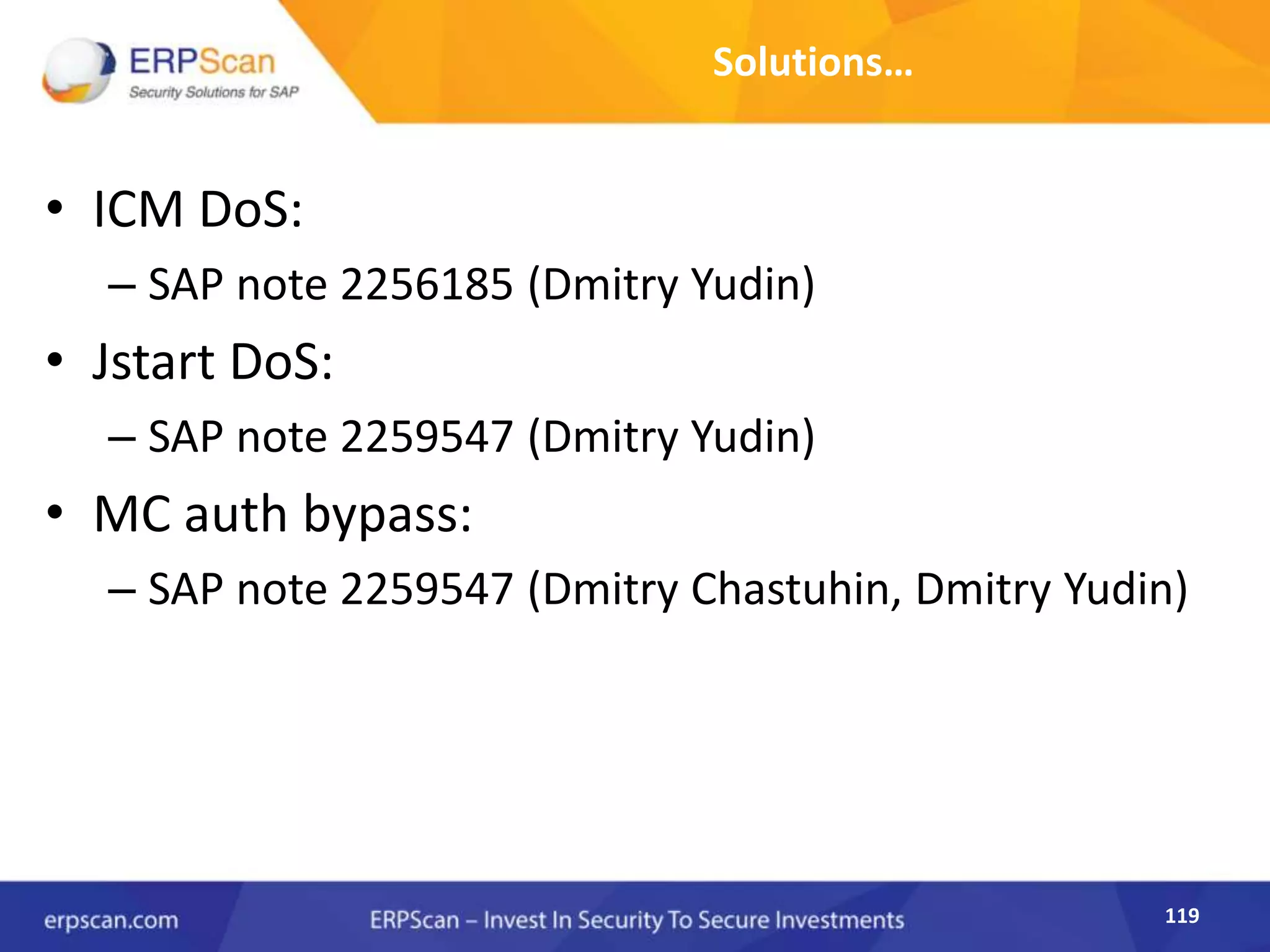

Solutions…
• ICM DoS:
– SAP note 2256185 (Dmitry Yudin)
• Jstart DoS:
– SAP note 2259547 (Dmitry Yudin)
• MC auth bypass:
– SAP note 2259547 (Dmitry Chastuhin, Dmitry Yudin)

120. 120

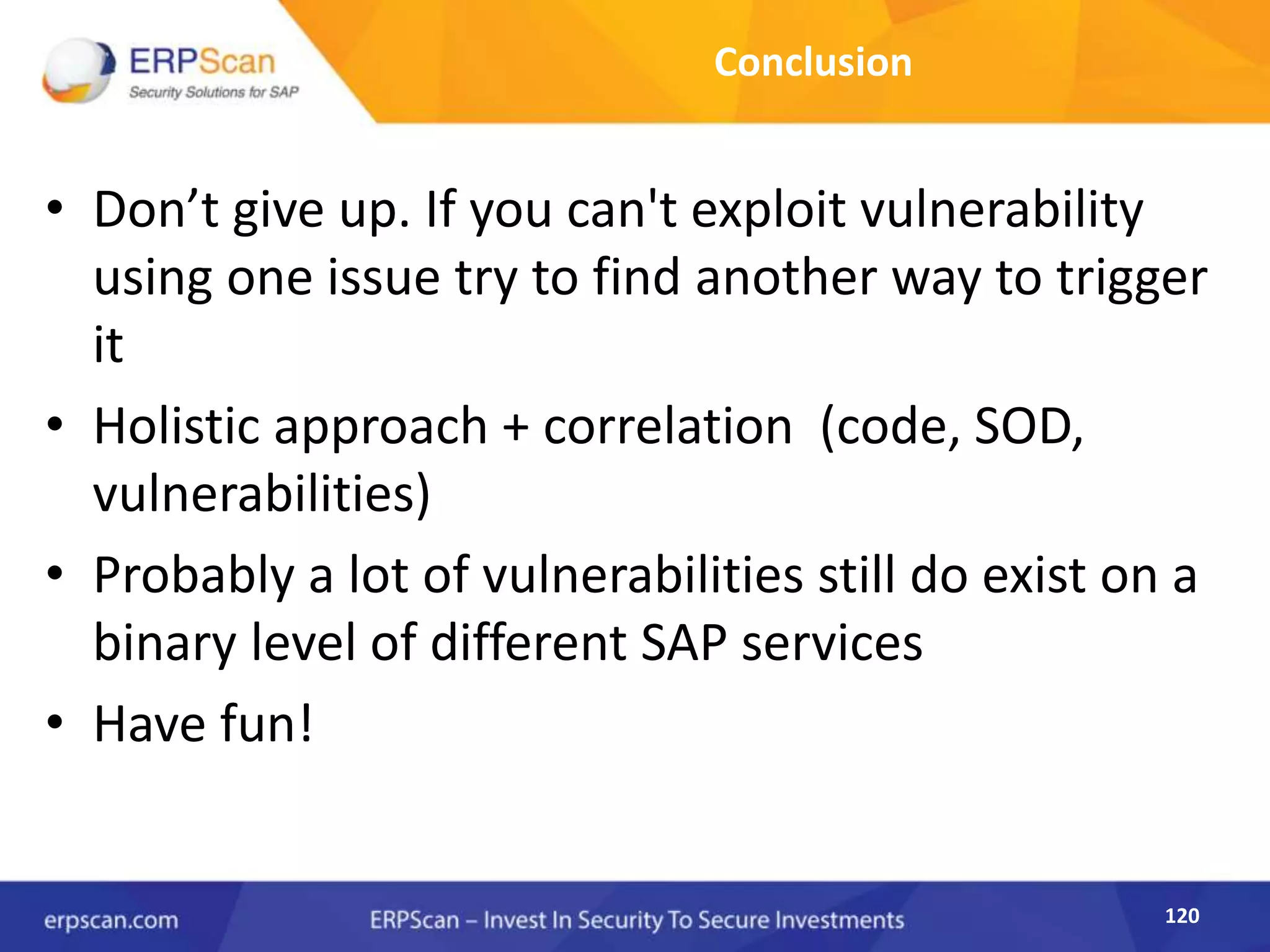

Conclusion
• Don’t give up. If you can't exploit vulnerability
using one issue try to find another way to trigger
it
• Holistic approach + correlation (code, SOD,
vulnerabilities)
• Probably a lot of vulnerabilities still do exist on a
binary level of different SAP services
• Have fun!

121. 121121
About
228 Hamilton Avenue, Fl. 3,
Palo Alto, CA. 94301
USA HQ
Luna ArenA 238 Herikerbergweg,
1101 CM Amsterdam
EU HQ
www.erpscan.com
info@erpscan.com
@_chipik @ret5et
