This document summarizes a thesis proposal presentation on generalized attribute centric access control. The presentation covered the problem statement of achieving completely mediated access control in dynamic environments where privacy and anonymity are important. It discussed limitations of traditional access control models and reviewed literature on attribute based access control. The proposed solution involved developing a family of attribute centric access control models that are context sensitive, fine-grained, and multi-factor. Potential applications and impact were also discussed.

1. Generalized Attribute Centric Access Control
Arjumand Fatima, December 12, 2014
Thesis Proposal Defense

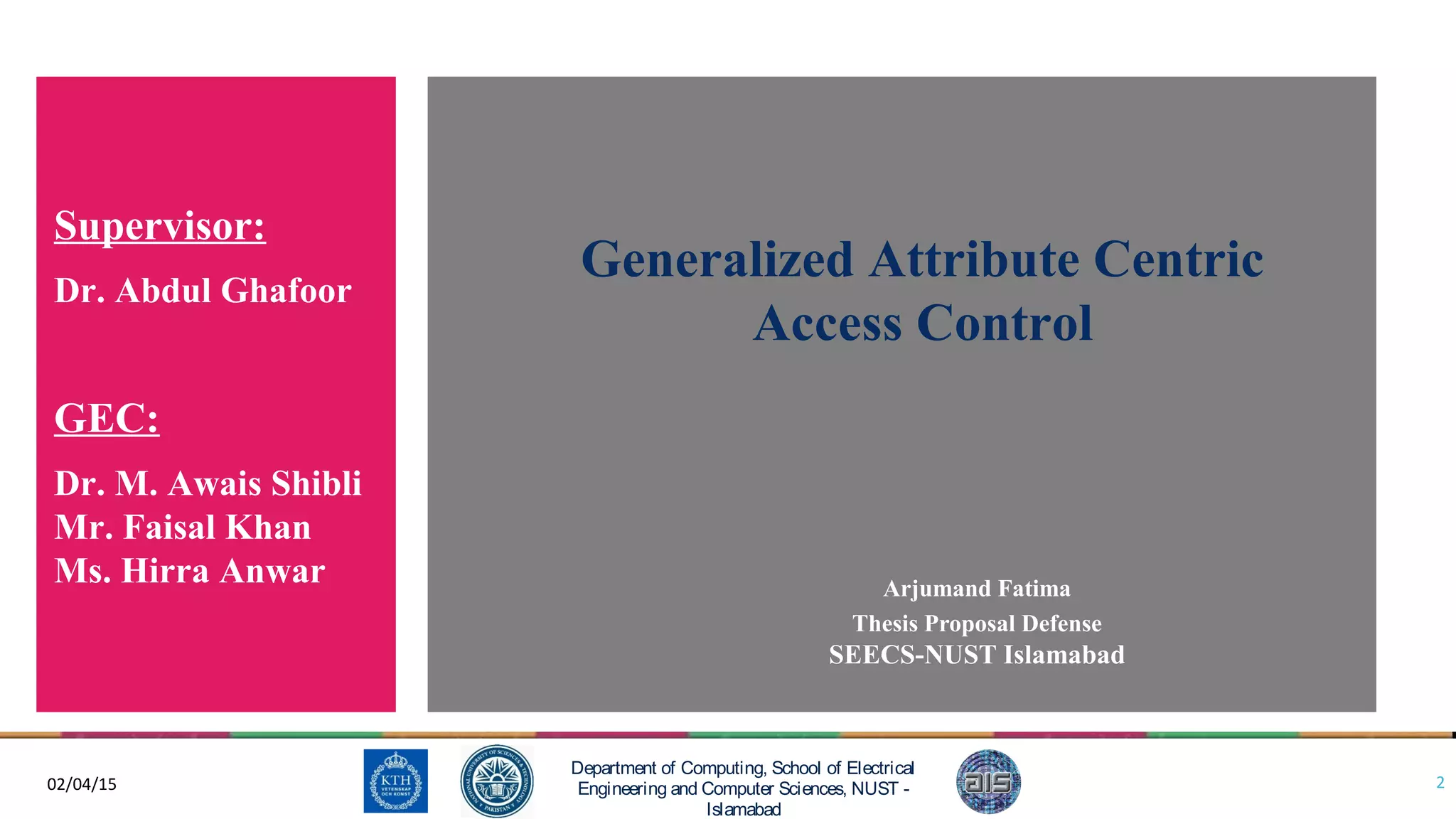

2. 02/04/15
Department of Computing, School of Electrical
Engineering and Computer Sciences, NUST -
Islamabad
2
Supervisor:
Dr. Abdul Ghafoor
GEC:
Dr. M. Awais Shibli
Mr. Faisal Khan
Ms. Hirra Anwar Arjumand Fatima
Thesis Proposal Defense
SEECS-NUST Islamabad
Generalized Attribute Centric
Access Control

3. Department of Computing, School of Electrical
Engineering and Computer Sciences, NUST -
Islamabad
 Problem Statement
 Introduction
 Literature Review
 Proposed Solution
 Abstract Architecture
 Impact
 Applications
 References
3
Agenda

4. Department of Computing, School of Electrical
Engineering and Computer Sciences, NUST -
Islamabad
 Achieving completely mediated access control using
existing models is a challenge in dynamic environments,
where ensuring privacy and anonymity is essential,
and fine-grained, flexible and multi-factor authorization is
required.
4
Problem Statement

5. Department of Computing, School of Electrical
Engineering and Computer Sciences, NUST -
Islamabad
 Controlling access to sensitive
resources
 Access is controlled based on
different factors such as identity,
role and attributes
5
Introduction

6. Department of Computing, School of Electrical
Engineering and Computer Sciences, NUST -
Islamabad
Evolution of Access Control
 Role-Based Access Control (RBAC)
 Limitations of Traditional Access Control Models
 Addressing the Limitations of Traditional Access Control
Models
• Extended Role Based Access Control Models
• Attribute Based Access Control (ABAC) Model
 Extended RBAC Models and their limitations
 Attribute Based Access Control (ABAC) Model
 The Conventional Debate: RBAC vs ABAC
6
Literature Review

7. 1996 20011992 2007 2009 - 2014
Pre
RBAC
Early
RBAC
Standard
RBAC
Pre ABAC
Extended RBAC
Early
ABAC
RBAC
vs ABAC
Role Centric
A
t
t
r
i
b
u
t
e
C
e
n
t
r
i
C
MAC
DAC
volution of Access Control

8. Department of Computing, School of Electrical
Engineering and Computer Sciences, NUST -
Islamabad
8
Role Based Access Control
OPS OBS
PRMS
ROLESUSERS
SSD
DSDSESSIONS
(UA)
User
Assignment
(PA)
Permission
Assignment
(RH)
Role Hierarchy
Session rolesUser Session
OBS = Objects
OPS = Operations
PRMS = Permissions
SSD= Separation of Duty
DSD = Dynamic Separation of Duty

9. Department of Computing, School of Electrical
Engineering and Computer Sciences, NUST -
Islamabad
Limitations of RBAC
 Role Engineering  Role Activation  Role Engineering

10. Department of Computing, School of Electrical
Engineering and Computer Sciences, NUST -
Islamabad
Limitations of RBAC
 Role Engineering  Role Activation  Role Engineering

11. Department of Computing, School of Electrical
Engineering and Computer Sciences, NUST -
Islamabad
11
Challenges in Traditional Access Control
Access Control Models
User
Centric
Rigid
Static One Time
Identity
Based
Coarse Grained
Context Insensitive
Single
Factor

12. Department of Computing, School of Electrical
Engineering and Computer Sciences, NUST -
Islamabad
Context Sensitivity

13. 02/04/15 13
Department of Computing, School of Electrical
Engineering and Computer Sciences, NUST -
Islamabad
Context Sensitive Access Control
Context Based Access Control Context Aware Access Control
 Inherently context sensitive
 Attribute Based Access Control (ABAC) Model
 Extensions built on top of a context insensitive
model
 Extended Role Based Access Control (RBAC) Models

14. Department of Computing, School of Electrical
Engineering and Computer Sciences, NUST -
Islamabad
Extended RBAC Models
Team Based Environmental
Roles
Time Based Location Based

15. Department of Computing, School of Electrical
Engineering and Computer Sciences, NUST -
Islamabad
Limitations of Extended RBAC Models
Role Centric Too Complex Too Specific

16. Department of Computing, School of Electrical
Engineering and Computer Sciences, NUST -
Islamabad
16
Challenges in Traditional Access Control
Access Control Models
Rigid One Time
Identity
Based
Coarse Grained
Single
Factor

17. Department of Computing, School of Electrical
Engineering and Computer Sciences, NUST -
Islamabad
Attribute Based Access Control (ABAC)
Subject
Attributes
Resource
Attributes
Environment
Attributes
Controls access based on the attributes of
Subject, Resource as well as Environment. This
provides a greater flexibility for making access
control decisions as compared to traditional
methods which were mostly subject-centric
and did not consider resource or environment
as the primary factor.

18. Department of Computing, School of Electrical
Engineering and Computer Sciences, NUST -
Islamabad
The Conventional Debate
RBAC
Model
ABAC
Model

19. 02/04/15 19
Department of Computing, School of Electrical
Engineering and Computer Sciences, NUST -
Islamabad
The Conventional Debate
ABAC RBAC
• Newer
• Simpler to implement
• Attribute-Centric
• Dynamically changing environments
• Attribute Engineering
• Difficult to audit permissions
• Outdated
• Expensive to implement
• Role-Centric
• Static environments
• Role Engineering
• Simplified auditing of resources

20. Department of Computing, School of Electrical
Engineering and Computer Sciences, NUST -
Islamabad
Adding Attributes To Role Based Access Control
Option User ID Role Attribute Model
0 0 0 0 Undefined
1 0 0 1 ABAC-basic
2 0 1 0 Undefined
3 0 1 1 ABAC-RBAC hybrid
4 1 0 0 ACL
5 1 0 1 ABAC-ID
6 1 1 0 RBAC-basic
7 1 1 1 RBAC-A dynamic roles
8 1 1 1 RBAC-A role centric
9 1 1 1 RBAC-A attribute centric
• Assigning
permissions to
roles
• Adding further
constraints based
on attributes
• Still role centric

21. Department of Computing, School of Electrical
Engineering and Computer Sciences, NUST -
Islamabad
 Need Analysis
 Existing Work on Attribute Centric Solution
 Common Misconceptions
 Our Contribution
 Core Components
 Access Control Mechanism
 Family of Access Control Models
 Potential Impact
 Validity of Proposed Solution
21
Proposed Solution

22. Department of Computing, School of Electrical
Engineering and Computer Sciences, NUST -
Islamabad
Attribute Centric Access Control (AC)2
Role-Less Environments Anonymous Users
Flexible
On-Going Control
Fine GrainedMulti-Factor

23. Department of Computing, School of Electrical
Engineering and Computer Sciences, NUST -
Islamabad
Existing Work on Attribute Centric Solutions
Attribute Based Access Control (ABAC) Model Already exists but still in nascent state

24. Department of Computing, School of Electrical
Engineering and Computer Sciences, NUST -
Islamabad
Existing Work on Attribute Centric Solutions
Lack of Standard Before 2014 Details Still Missing

25. Department of Computing, School of Electrical
Engineering and Computer Sciences, NUST -
Islamabad
Common Misconceptions
ABAC
Myth
RBAC
Attribute
Role
Reality

26. 02/04/15 26
Department of Computing, School of Electrical
Engineering and Computer Sciences, NUST -
Islamabad
Common Misconceptions
Myth Reality
• Auditing permissions is easy in RBAC
• Reviewing permissions is difficult in ABAC
• User-Role review is easy
• Permission-Role review is challenging
• We need to divide permission
auditing into smaller tasks for ABAC
as well
• ABAC Model offers fine-grained access
control
• ABAC Model offers multi-factor
access control

27. Department of Computing, School of Electrical
Engineering and Computer Sciences, NUST -
Islamabad
 Achieving completely mediated access control using
existing models is a challenge in dynamic environments,
where ensuring privacy and anonymity is essential,
and fine-grained, flexible and multi-factor authorization is
required.
27
Problem Statement

28. Department of Computing, School of Electrical
Engineering and Computer Sciences, NUST -
Islamabad
 Generalized Attribute Centric Access Control
 Subject
 Object
 Environment
 Operation
 Rules
 Permissions
28
Our Contribution
Inherently context sensitive attributes
<Action, User, Object, Environment> Ɛ Rule
<Rule(s)> Ɛ Permission
Where Rule= {Allow, Do not Allow}

29. Department of Computing, School of Electrical
Engineering and Computer Sciences, NUST -
Islamabad
29
Our Contribution
User
Resource
Access Request
PDP
Policy
Repository
Find applicable policy
PAP
Store
policies
PIP
Retrieve attributes
Environment
attribute authority
Resource
attribute
authoritySubject
attribute
authority
Access Response
Allow or deny access
PEP
Access Request

30. Department of Computing, School of Electrical
Engineering and Computer Sciences, NUST -
Islamabad
Our Contribution
Context Attribute Authority
Context Provider
Sensors
Context Provider Context Provider
Sensors Sensors

31. Department of Computing, School of Electrical
Engineering and Computer Sciences, NUST -
Islamabad
31
Our Contribution
Attribute
Centric
Access
Control
Constrained (AC)2
Fine Grained(AC)2
Core (AC)2
Towards A Family of Access Control Models

32. Department of Computing, School of Electrical
Engineering and Computer Sciences, NUST -
Islamabad
32
Potential Impact
Interoperability Across Access Control Solutions Compliance and Assurance

33. Department of Computing, School of Electrical
Engineering and Computer Sciences, NUST -
Islamabad
33
Validity
NIST ABAC
Workshop,
July 2013
Guide to Attribute
Based Access Control
(ABAC) Definition and
Considerations,
January 2014
SACMAT 2015
Call for PapersTreating ABAC
as a single
model would
be a mistake.
Towards an
ABAC Family
of Models

34. Department of Computing, School of Electrical
Engineering and Computer Sciences, NUST -
Islamabad
34
Potential Applications
Small Teams with Overlapping Responsibilities (SMEs /
SMBs)

35. Department of Computing, School of Electrical
Engineering and Computer Sciences, NUST -
Islamabad
35
Potential Applications
Bring Your Own Device (BYOD) Security
Authorization
Challenges

36. Department of Computing, School of Electrical
Engineering and Computer Sciences, NUST -
Islamabad
36
Potential Applications
Smart Classrooms (BYOD)

37. Department of Computing, School of Electrical
Engineering and Computer Sciences, NUST -
Islamabad
37
Potential Applications
Restrictive Use of Corporate Devices For
Personal Use

38. Department of Computing, School of Electrical
Engineering and Computer Sciences, NUST -
Islamabad
38
Timeline
Literature Review
TH-1 Form Submission
Problem Identification
Proposal Defense
TH-2 Form Submission (15. 12. 2014)
Implementation (31. 3. 2015)
Testing and Evaluation (30. 4.2015)
Research Paper Writing(10.5.2015)
In-house Defense (15.5.2015)
Final Defense (15.6.2015)

39. Department of Computing, School of Electrical
Engineering and Computer Sciences, NUST -
Islamabad
1. Park, Jaehong, and Ravi Sandhu. "Towards usage control models: beyond traditional access control." Proceedings of the seventh
ACM symposium on Access control models and technologies. ACM, 2002.
2. Sandhu, Ravi S., and Pierangela Samarati. "Access control: principle and practice." Communications Magazine, IEEE 32.9 (1994): 40-
48.
3. Hwang, JeeHyun, Vincent Hu, and Tao Xie. "Paradigm in Verification of Access Control." Software Security and Reliability
Companion (SERE-C), 2012 IEEE Sixth International Conference on. IEEE, 2012.
4. Hu, Vincent C., et al. "Guide to attribute based access control (ABAC) definition and considerations (draft)." NIST Special Publication
800 (2013): 162.
5. Sandhu, Ravi S. "Lattice-based access control models." Computer 26.11 (1993): 9-19.
6. Fuchs, Ludwig, Günther Pernul, and Ravi Sandhu. "Roles in information security–a survey and classification of the research area."
computers & security 30.8 (2011): 748-769.
3. Jin, Xin, Ram Krishnan, and Ravi Sandhu. "A unified attribute-based access control model covering DAC, MAC and RBAC." Data and
applications security and privacy XXVI. Springer Berlin Heidelberg, 2012. 41-55.
4. Giuri, Luigi, and Pietro Iglio. "Role templates for content-based access control." Proceedings of the second ACM workshop on Role-
based access control. ACM, 1997.
5. Al-Kahtani, Mohammad A., and Ravi Sandhu. "Induced role hierarchies with attribute-based RBAC." Proceedings of the eighth ACM
symposium on Access control models and technologies. ACM, 2003.
6. Ferraiolo, David F., et al. "Proposed NIST standard for role-based access control." ACM Transactions on Information and System
Security (TISSEC) 4.3 (2001): 224-274.
39
References

40. Department of Computing, School of Electrical
Engineering and Computer Sciences, NUST -
Islamabad
11. INCITS, ANSI. "INCITS 359-2004. Role-Based Access Control." American Nat’l Standard for Information Technology (2004).
12. Sandhu, Ravi, David Ferraiolo, and Richard Kuhn. "The NIST model for role-based access control: towards a unified standard." ACM
workshop on Role-based access control. Vol. 2000. 2000.
12. Fuchs, Ludwig, and Günther Pernul. "HyDRo–Hybrid Development of Roles." Information Systems Security. Springer Berlin
Heidelberg, 2008. 287-302.
13. Wang, Lingyu, Duminda Wijesekera, and Sushil Jajodia. "A logic-based framework for attribute based access control." Proceedings of
the 2004 ACM workshop on Formal methods in security engineering. ACM, 2004.
14. Lang, Bo, et al. "A flexible attribute based access control method for grid computing." Journal of Grid Computing 7.2 (2009): 169-180.
15. Covington, Michael J., et al. "Securing context-aware applications using environment roles." Proceedings of the sixth ACM
symposium on Access control models and technologies. ACM, 2001.
16. Hansen, Frode, and Vladimir Oleshchuk. "SRBAC: A spatial role-based access control model for mobile systems." Proceedings of the
7th Nordic Workshop on Secure IT Systems (NORDSEC’03). 2003.
17. Yuan, Eric, and Jin Tong. "Attributed based access control (ABAC) for web services." Web Services, 2005. ICWS 2005. Proceedings.
2005 IEEE International Conference on. IEEE, 2005.
18. Wang, Qihua, et al. "On the correctness criteria of fine-grained access control in relational databases." Proceedings of the 33rd
international conference on Very large data bases. VLDB Endowment, 2007.
19. Fischer, Jeffrey, et al. "Fine-grained access control with object-sensitive roles." ECOOP 2009–Object-Oriented Programming. Springer
Berlin Heidelberg, 2009. 173-194.
40
References

41. Department of Computing, School of Electrical
Engineering and Computer Sciences, NUST -
Islamabad
20. Fischer, Jeffrey, et al. "Fine-grained access control with object-sensitive roles." ECOOP 2009–Object-Oriented Programming.
Springer Berlin Heidelberg, 2009. 173-194.
21. Tolone, William, et al. "Access control in collaborative systems." ACM Computing Surveys (CSUR) 37.1 (2005): 29-41.
22. Goyal, Vipul, et al. "Attribute-based encryption for fine-grained access control of encrypted data." Proceedings of the 13th
ACM conference on Computer and communications security. ACM, 2006.
23. Al-Muhtadi, Jalal, et al. "Cerberus: a context-aware security scheme for smart spaces." Pervasive Computing and
Communications, 2003.(PerCom 2003). Proceedings of the First IEEE International Conference on. IEEE, 2003.
24. Hulsebosch, R. J., et al. "Context sensitive access control." Proceedings of the tenth ACM symposium on Access control
models and technologies. ACM, 2005.
25. http://www.oxforddictionaries.com/definition/english/context?searchDictCode=all
26. di Vimercati, S. De Capitani, Sara Foresti, and Pierangela Samarati. "Recent advances in access control." Handbook of
Database Security. Springer US, 2008. 1-26.
27. di Vimercati, Sabrina De Capitani, Pierangela Samarati, and Sushil Jajodia. "Policies, models, and languages for access
control." Databases in Networked Information Systems. Springer Berlin Heidelberg, 2005. 225-237.
28. Park, Jaehong, and Ravi Sandhu. "The UCON ABC usage control model." ACM Transactions on Information and System
Security (TISSEC) 7.1 (2004): 128-174.
29. Coyne, Ed, and Timothy R. Weil. "ABAC and RBAC: Scalable, Flexible, and Auditable Access Management." IT Professional 15.3
(2013): 0014-16.
41
References

42. 02/04/15 42
Department of Computing, School of Electrical
Engineering and Computer Sciences, NUST -
Islamabad
Questions ?

43. 02/04/15 43
Department of Computing, School of Electrical
Engineering and Computer Sciences, NUST -
Islamabad
Thank You
