Gearman is a software framework that allows for the distribution of work across multiple machines. It consists of clients that submit jobs, workers that process jobs, and a central Gearmand daemon that coordinates jobs and workers. Some key features include asynchronous job handling, prioritization of jobs, and de-duplication of identical jobs. Gearman provides a way to distribute tasks like processing user requests, sending email, or logging data across a cluster.
Gearman
- 1. The Magical World ofGearman Brian Moon dealnews.com http://brian.moonspot.net/ @brianlmoon
- 2. Basic Features Use Cases How It Works
- 3. “The way Ilike to think of Gearman is as a massively distributed, massively fault tolerant fork mechanism.” - Joe Stump
- 4. The Basics • Clientsneed jobs done • Workers can do jobs • Gearmand coordinates the work
- 5. Gearmand http://www.flickr.com/photos/andrefromont/4896802557

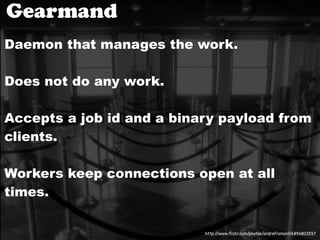

- 6. Gearmand Daemon that managesthe work. Does not do any work. Accepts a job id and a binary payload from clients. Workers keep connections open at all times. http://www.flickr.com/photos/andrefromont/4896802557
- 7. Client http://www.flickr.com/photos/pitadel/4951801589
- 8. Client Clients connect toGearmand and ask for work to be done. The client can fire and forget or wait on a response. Multiple jobs can be done asynchronously by workers for one client. http://www.flickr.com/photos/pitadel/4951801589
- 9. Workers http://www.flickr.com/photos/nathaninsandiego/5972599772

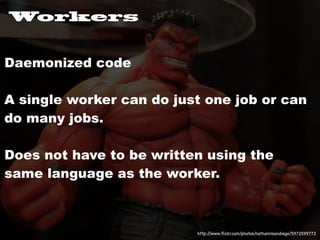

- 10. Workers Daemonized code A singleworker can do just one job or can do many jobs. Does not have to be written using the same language as the worker. http://www.flickr.com/photos/nathaninsandiego/5972599772

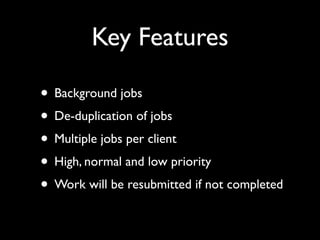

- 11. Key Features • Backgroundjobs • De-duplication of jobs • Multiple jobs per client • High, normal and low priority • Work will be resubmitted if not completed

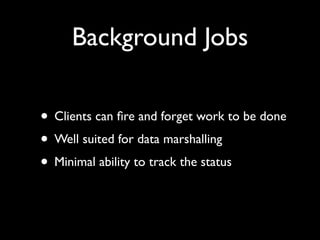

- 12. Background Jobs • Clientscan fire and forget work to be done • Well suited for data marshalling • Minimal ability to track the status

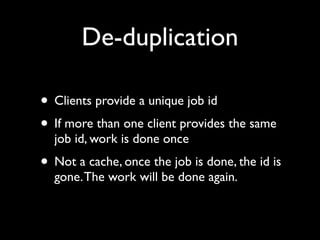

- 13. De-duplication • Clients providea unique job id • If more than one client provides the same job id, work is done once • Not a cache, once the job is done, the id is gone. The work will be done again.

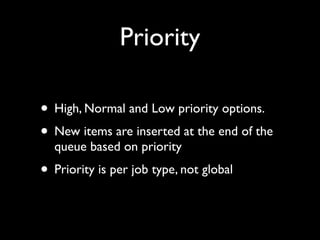

- 14. Priority • High, Normaland Low priority options. • New items are inserted at the end of the queue based on priority • Priority is per job type, not global

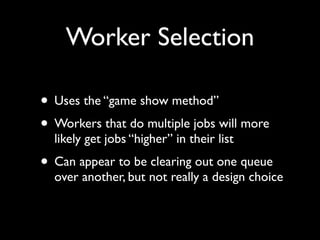

- 15. Worker Selection • Usesthe “game show method” • Workers that do multiple jobs will more likely get jobs “higher” in their list • Can appear to be clearing out one queue over another, but not really a design choice

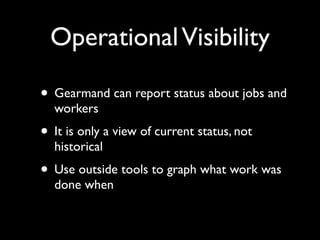

- 16. Operational Visibility • Gearmandcan report status about jobs and workers • It is only a view of current status, not historical • Use outside tools to graph what work was done when
- 17.

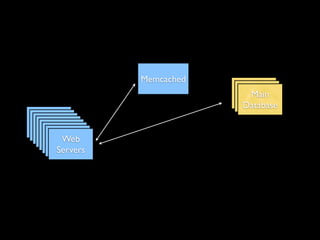

- 18. Memcached Main Main Main Database Database Database Web Web Web Web Servers Web Servers Web Servers Web Servers Web Servers Servers Servers Servers

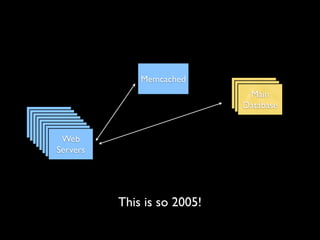

- 19. Memcached Main Main Main Database Database Database Web Web Web Web Servers Web Servers Web Servers Web Servers Web Servers Servers Servers Servers This is so 2005!

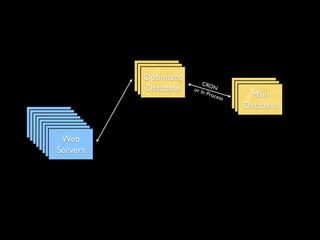

- 20. Main Main Optimized Database Database CRO Database or In N Main Main Proc ess Main Database Database Database Web Web Web Web Servers Web Servers Web Servers Web Servers Web Servers Servers Servers Servers
- 21. Main Main Optimized Database Database CRO Database or In N Main Main Proc ess Main Database Database Database Web Web Web Web Servers Web Servers Web Servers Web Servers Web Servers Servers Servers Servers This is so 2009!

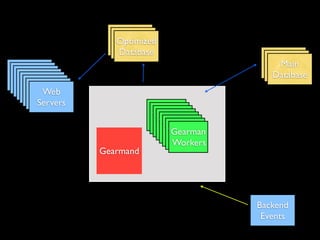

- 22. Main Main Optimized Database Database Database Main Main Main Web Web Database Database Web Web Database Servers Web Servers Web Servers Web Servers Web Servers Servers Servers Servers Gearman Gearman Gearman Gearman Workers Gearman Workers Gearman Workers Gearman Workers Gearman Workers Workers Workers Workers Gearmand Backend Events

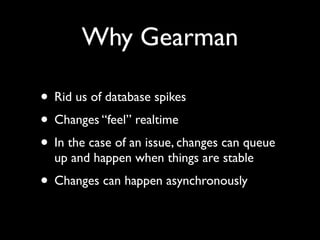

- 23. Why Gearman • Ridus of database spikes • Changes “feel” realtime • In the case of an issue, changes can queue up and happen when things are stable • Changes can happen asynchronously

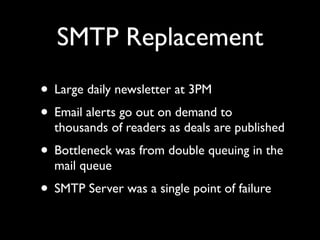

- 24. SMTP Replacement • Largedaily newsletter at 3PM • Email alerts go out on demand to thousands of readers as deals are published • Bottleneck was from double queuing in the mail queue • SMTP Server was a single point of failure
- 25. Web Web Cron Web Web Cron Cron Servers Web Servers Cron Jobs Web Servers Web Backend Jobs Servers Web Servers Jobs Jobs Servers Servers Events Servers Gearmand Gearman Gearman Gearman Gearman Gearman Gearman Gearman Gearman Workers Gearman Workers Workers Gearman Workers Gearman Workers Gearman Gearman Workers Gearman Workers Gearman Workers SMTP Workers Gearman Workers SMTP Workers Workers Workers Workers Workers Server Workers Server
- 26.

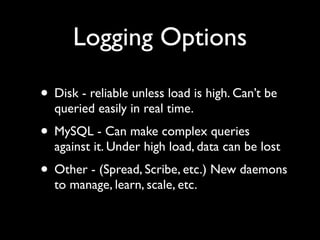

- 27. Logging Options • Disk- reliable unless load is high. Can’t be queried easily in real time. • MySQL - Can make complex queries against it. Under high load, data can be lost • Other - (Spread, Scribe, etc.) New daemons to manage, learn, scale, etc.

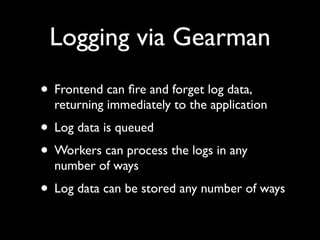

- 28. Logging via Gearman •Frontend can fire and forget log data, returning immediately to the application • Log data is queued • Workers can process the logs in any number of ways • Log data can be stored any number of ways

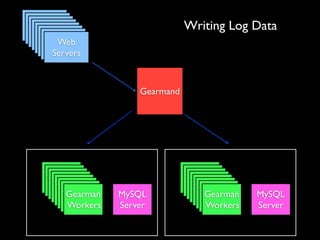

- 29. Web Web Web Web Servers Web Writing Log Data Servers Web Servers Web Servers Web Servers Servers Servers Servers Gearmand Gearman Gearman Gearman Gearman Gearman Gearman Gearman Gearman Workers Gearman Workers Workers Gearman Workers Gearman Workers Gearman Gearman Workers Gearman Workers Gearman Workers MySQL Workers Gearman Workers MySQL Workers Workers Workers Workers Workers Server Workers Server

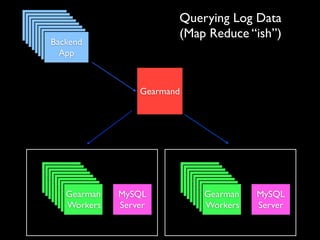

- 30. Web Web Querying Log Data Web Web Servers Web Servers Web Servers Web Servers (Map Reduce “ish”) Backend Servers Servers Servers App Gearmand Gearman Gearman Gearman Gearman Gearman Gearman Gearman Gearman Workers Gearman Workers Workers Gearman Workers Gearman Workers Gearman Gearman Workers Gearman Workers Gearman Workers MySQL Workers Gearman Workers MySQL Workers Workers Workers Workers Workers Server Workers Server
- 31.
- 32.

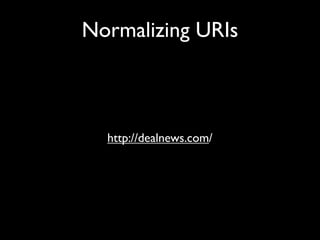

- 33. Normalizing URIs http://dealnews.com/

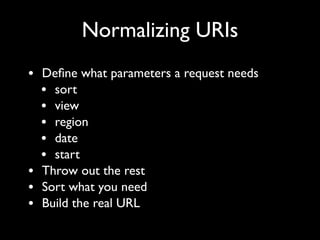

- 34. Normalizing URIs • Definewhat parameters a request needs • sort • view • region • date • start • Throw out the rest • Sort what you need • Build the real URL

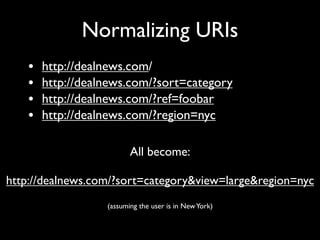

- 35. Normalizing URIs • http://dealnews.com/ • http://dealnews.com/?sort=category • http://dealnews.com/?ref=foobar • http://dealnews.com/?region=nyc All become: http://dealnews.com/?sort=category&view=large®ion=nyc (assuming the user is in New York)
- 36. Why normalize/funnel? • Wecan now cache the data for this request and know it is the same data even if the original URI is different. (cache reuse) • We can fetch the content only once for all requests coming in for the content via request funneling.

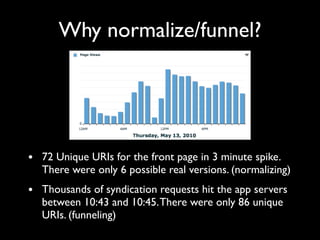

- 37. Why normalize/funnel? • 72Unique URIs for the front page in 3 minute spike. There were only 6 possible real versions. (normalizing) • Thousands of syndication requests hit the app servers between 10:43 and 10:45. There were only 86 unique URIs. (funneling)

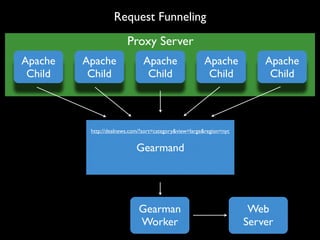

- 38. Request Funneling Proxy Server Apache Apache Apache Apache Apache Child Child Child Child Child http://dealnews.com/?sort=category&view=large®ion=nyc Gearmand Gearman Web Worker Server

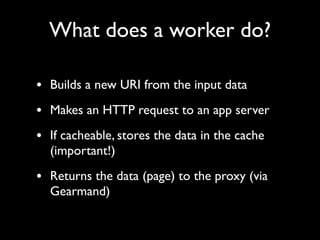

- 39. What does aworker do? • Builds a new URI from the input data • Makes an HTTP request to an app server • If cacheable, stores the data in the cache (important!) • Returns the data (page) to the proxy (via Gearmand)

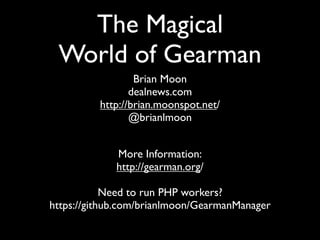

- 40. The Magical Worldof Gearman Brian Moon dealnews.com http://brian.moonspot.net/ @brianlmoon More Information: http://gearman.org/ Need to run PHP workers? https://github.com/brianlmoon/GearmanManager
