This document contains a parts list and assembly drawing for a Bluetooth device. It lists 16 parts with descriptions, materials, and quantities. The parts include a body, front, chip, locks, splits, buttons, string bar, circuit board, Bluetooth receiver, button board, screws, bottom locks, battery holder, and screws. Dimensions are in millimeters and tolerances range from 0.5 to 0.007 mm depending on number of decimal places.

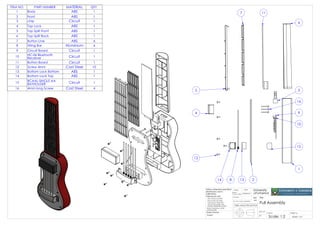

1. THIRD ANGLE PROJECTION
7 11
6
3
16
9
10
15
1
213814
12
4
5
ITEM NO. PART NUMBER MATERIAL QTY.
1 Body ABS 1
2 Front ABS 1
3 chip Circuit 1
4 Top Lock ABS 1
5 Top Split Front ABS 1
6 Top Split Back ABS 1
7 Button Line ABS 6
8 String Bar Aluminium 6
9 Circuit Board Circuit 1
10 HC-06 Bluetooth
Receiver Circuit 1
11 Button Board Circuit 1
12 Screw 4mm Cast Steel 10
13 Bottom Lock Bottom ABS 1
14 Bottom Lock Top ABS 1
15 BCAAL-SINGLE AA
BATHOLDER Circuit 1
16 4mm long Screw Cast Steel 4
Title:
University
of Limerick
Unless otherwise specified
dimensions are in
millimetres.
Tolerances are:
Full Assembly
Scale: 1:2 Sheet 1 of 1
XXX (0 PLS) 0.5 MM
XX.X (1 PLS) 0.1 MM
X.XX (2 PLS) 0.03 MM
.XXX (3 PLS) 0.007 MM
UNLESS OTHERWISE NOTED
ANGLE TOLERANCE 0 30',
UNLESS NOTED
A4
SIZE
Sheet Name:
DateName
Drawn
Checked
DO NOT SCALE DRAWING
Weight: gMaterial:
DWG. NO.
REV.
23/03/2015
Sheet1
Cormac Willins
