1. FMS Solution Proposal
December 2020

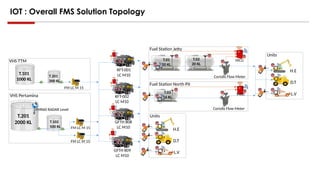

2. IOT : Overall FMS Solution Topology
T.101
1000 KL
T.102
500 KL
T.201
2000 KL
KFT-001
LC M10
KFT-002
LC M10
GFTH 808
LC M10
GFTH 809
LC M10
T.03
16 KL
T.01
20 KL
VHS TTM
VHS Pertamina
FM LC M 15
FM LC M 15
Fuel Station Jetty
Fuel Station North Pit
H.E
D.T
L.V
Units
T.201
300 KL
T.02
20 KL
H.E
D.T
L.V
Units
FMR60 RADAR Level
FM LC M 15
Coriolis Flow Meter
Coriolis Flow Meter
MCU
MCU

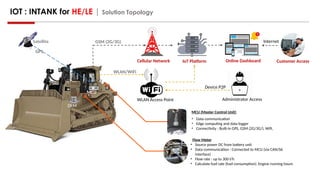

3. IOT : INTANK for HE/LE | Solution Topology
Customer Access
IoT Platform Online Dashboard
Cellular Network
GSM (2G/3G) Internet
MCU
MCU (Master Control Unit)
• Data communication
• Edge computing and data logger
• Connectivity : Built-in GPS, GSM (2G/3G/), Wifi,
DFM
Flow Meter
• Source power DC from battery unit
• Data communication : Connected to MCU (via CAN/S6
interface)
• Flow rate : up to 300 l/h
• Calculate fuel rate (fuel consumption), Engine running hours
Satellite
GPS
WLAN Access Point Administrator Access
Device P2P
WLAN/WiFi

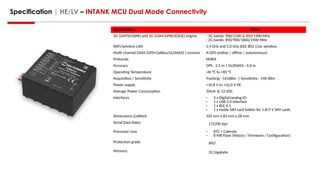

4. Specification | HE/LV – INTANK MCU Dual Mode Connectivity
Specification Value
3G (UMTS/HSPA) and 2G (GSM/GPRS/EDGE) engine - 3G bands: 900/2100 & 850/1900 MHz
- 2G bands: 850/900/1800/1900 MHz
WiFi/wireless LAN 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless
Multi channel GNSS (GPS+Galileo/GLONASS ) receiver A-GPS (online / offline / autonomous)
Protocols NMEA
Accuracy GPS : 2.5 m | GLONASS : 4.0 m
Operating Temperature -40 °C to +85 °C
Acquisition / Sensitivity Tracking: -161dBm | Sensitivity: -148 dBm
Power supply +10,8 V to +32,0 V DC
Average Power Consumption 50mA @ 12 VDC
Interfaces - 3 x Digital/analog IO
- 1 x USB 2.0 interface
- 1 x BLE 4.1
- 1 x Inside SIM card holder for 1,8/3 V SIM cards
Dimensions (LxWxH) 105 mm x 83 mm x 28 mm
Serial Data Rates 115200 bps
Processor core - RTC + Calenda
- 8 MB Flash (History / Firmware / Configuration)
Protection grade IP67
Memory 32 Gigabyte

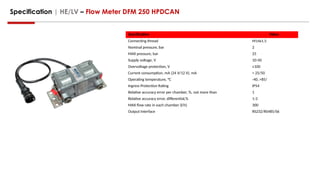

5. Specification | HE/LV – Flow Meter DFM 250 HPDCAN
Specification Value
Connecting thread M14x1.5
Nominal pressure, bar 2
MAX pressure, bar 25
Supply voltage, V 10-50
Overvoltage protection, V ≤100
Current consumption, mA (24 V/12 V), mA < 25/50
Operating temperature, °C -40..+85/
Ingress Protection Rating IP54
Relative accuracy error per chamber, %, not more than 1
Relative accuracy error, differential,% 1-3
MAX flow rate in each chamber (l/h) 300
Output Interface RS232/RS485/S6

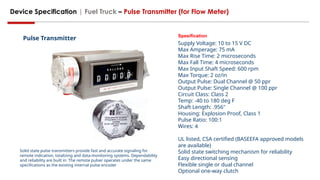

6. Device Specification | Fuel Truck – Pulse Transmitter (for Flow Meter)
Solid state pulse transmitters provide fast and accurate signaling for
remote indication, totalizing and data-monitoring systems. Dependability
and reliability are built in. The remote pulser operates under the same
specifications as the existing internal pulse encoder
Spesification
Supply Voltage: 10 to 15 V DC
Max Amperage: 75 mA
Max Rise Time: 2 microseconds
Max Fall Time: 4 microseconds
Max Input Shaft Speed: 600 rpm
Max Torque: 2 oz/in
Output Pulse: Dual Channel @ 50 ppr
Output Pulse: Single Channel @ 100 ppr
Circuit Class: Class 2
Temp: -40 to 180 deg F
Shaft Length: .956"
Housing: Explosion Proof, Class 1
Pulse Ratio: 100:1
Wires: 4
UL listed, CSA certified (BASEEFA approved models
are available)
Solid state switching mechanism for reliability
Easy directional sensing
Flexible single or dual channel
Optional one-way clutch
Pulse Transmitter

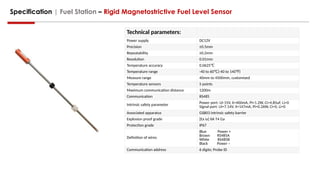

7. Specification | Fuel Station – Rigid Magnetostrictive Fuel Level Sensor
Technical parameters:
Power supply DC12V
Precision ±0.5mm
Repeatability ±0.2mm
Resolution 0.01mm
Temperature accuracy 0.0625℃
Temperature range -40 to 60 (-40 to 140 )
℃ ℉
Measure range 40mm to 4500mm, customized
Temperature sensors 5 points
Maximum communication distance 1200m
Communication RS485
Intrinsic safety parameter Power port: Ui-15V, Ii=400mA, Pi=1.2W, Ci=4.85uF, Li=0
Signal port: Ui=7.14V, Ii=147mA, Pi=0.26W, Ci=0, Li=0
Associated apparatus GSB03 intrinsic safety barrier
Explosion proof grade [Ex ia] IIA T4 Ga
Protection grade IP67
Definition of wires
Blue Power +
Brown RS485A
White RS485B
Black Power –
Communication address 6 digits; Probe ID

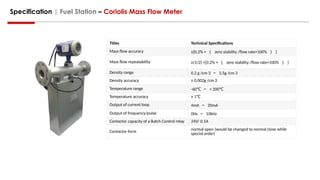

8. Specification | Fuel Station – Coriolis Mass Flow Meter
Titles Technical Specifications
Mass flow accuracy ±[0.2% + （ zero stability /flow rate×100% ） ]
Mass flow repeatability ±(1/2) ×[0.2% + （ zero stability /flow rate×100% ） ]
Density range 0.2 g /cm 3 ～ 3.5g /cm 3
Density accuracy ± 0.002g /cm 3
Temperature range -60℃ ～ + 200℃
Temperature accuracy ± 1℃
Output of current loop 4mA ～ 20mA
Output of frequency/pulse 0Hz ～ 10kHz
Contactor capacity of a Batch Control relay 24V/ 0.1A
Contactor form
normal open (would be changed to normal close while
special order)

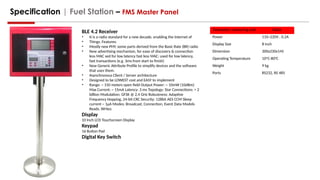

9. Specification | Fuel Station – FMS Master Panel
BLE 4.2 Receiver
• It is a radio standard for a new decade, enabling the Internet of
• Things. Features:
• Mostly new PHY; some parts derived from the Basic Rate (BR) radio
• New advertising mechanism, for ease of discovery & connection
less MAC sed for low latency fast less MAC: used for low latency,
fast transactions (e.g. 3ms from start to finish)
• New Generic Attribute Profile to simplify devices and the software
that uses them.
• Asynchronous Client / Server architecture
• Designed to be LOWEST cost and EASY to implement
• Range: ~ 150 meters open field Output Power: ~ 10mW (10dBm)
Max Current: ~ 15mA Latency: 3 ms Topology: Star Connections: > 2
billion Modulation: GFSK @ 2.4 GHz Robustness: Adaptive
Frequency Hopping, 24-bit CRC Security: 128bit AES CCM Sleep
current ~ 1µA Modes: Broadcast, Connection, Event Data Models
Reads, Writes
Display
10 Inch LCD Touchscreen Display
Keypad
16 Button Pad
Digital Key Switch
Parameter, measuring unit Value
Power 110~220V , 0.2A
Display Size 8 inch
Dimension 300x230x145
Operating Temperature 10O
C-800
C
Weight 9 kg
Ports RS232, RS 485

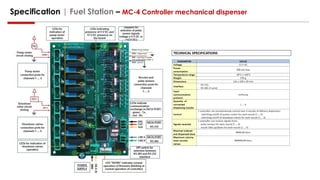

10. Specification | Fuel Station – MC-4 Controller mechanical dispenser

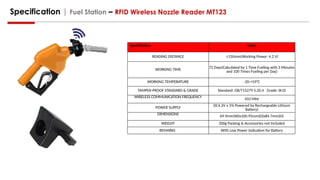

11. Specification | Fuel Station – RFID Wireless Nozzle Reader MT123
Specification Value
READING DISTANCE ≤150mm(Working Power: 4.2 V)
WORKING TIME 72 Days(Calculated by 1 Time Fueling with 3 Minutes
and 100 Times Fueling per Day)
WORKING TEMPERATURE -20-+55°C
TAMPER-PROOF STANDARD & GRADE Standard: GB/T15279 5.20.4 Grade: IK10
WIRELESS COMMUNICATION FREQUENCY
433 MHz
POWER SUPPLY
DC4.2V ± 5% Powered by Rechargeable Lithium
Battery)
DIMENSIONS
69.9mm(W)x100.95mm(D)x84.7mm(H)
WEIGHT 200g Packing & Accessories not Included
REMARKS With Low Power Indication for Battery

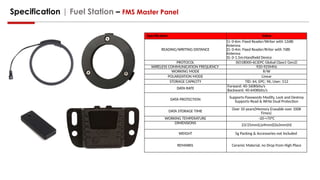

12. Specification | Fuel Station – FMS Master Panel
Specification Value
READING/WRITING DISTANCE
1): 0-6m: Fixed Reader/Writer with 12dBi
Antenna
2): 0-4m: Fixed Reader/Rriter with 7dBi
Antenna
3): 0-1.5m:Handheld Device
PROTOCOL ISO18000-6C(EPC Global Class1 Gen2)
WIRELESS COMMUNICATION FREQUENCY 920-925MHz
WORKING MODE R/W
POLARIZATION MODE Linear
STORAGE CAPACITY TID: 64, EPC: 96, User: 512
DATA RATE
Forward: 40-160Kbits/s
Backward: 40-640Kbits/s
DATA PROTECTION
Supports Passwords Modify, Lock and Destroy
Supports Read & Write Dual Protection
DATA STORAGE TIME
Over 10 years(Memory Erasable over 100K
Times)
WORKING TEMPERATURE -20-+70°C
DIMENSIONS 23/25mm(L)x9mm(D)x3mm(H)
WEIGHT 5g Packing & Accessories not Included
REMARKS Ceramic Material, no Drop from High Place

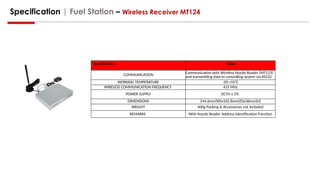

13. Specification | Fuel Station – Wireless Receiver MT124
Specification Value
COMMUNICATION
Communication with Wireless Nozzle Reader (MT123)
and transmitting data to controlling system via RS232
WORKING TEMPERATURE -20-+55°C
WIRELESS COMMUNICATION FREQUENCY 433 MHz
POWER SUPPLY DC5V ± 5%
DIMENSIONS 244.6mm(W)x162.8mm(D)x36mm(H)
WEIGHT 400g Packing & Accessories not Included
REMARKS With Nozzle Reader Address Identification Function

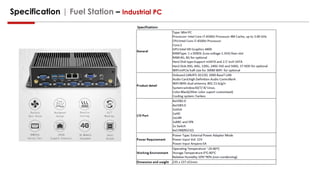

14. Specification | Fuel Station – Industrial PC
