Ftth implementation process

•Download as PPTX, PDF•

2 likes•140 views

The document outlines the steps and safety procedures for a site survey project. It includes confirming customer information, marking locations of overhead boxes and trench routes, and assessing existing utilities. Safety measures like signage, barricades, and personal protective equipment are reviewed. Required equipment is listed, including trenchers, bobcats, trucks, and generators. Materials needed like ducts, spacers, and warning tape are also specified. The trenching, duct laying, and backfilling processes are described. Finally, mandrel testing and additional work items are mentioned.

Technology

ITC NBB 2020 Project: By Engr . Munawer Iqbal Chuhan
OBHR-
Janobia
Jeddah

21 June 2018

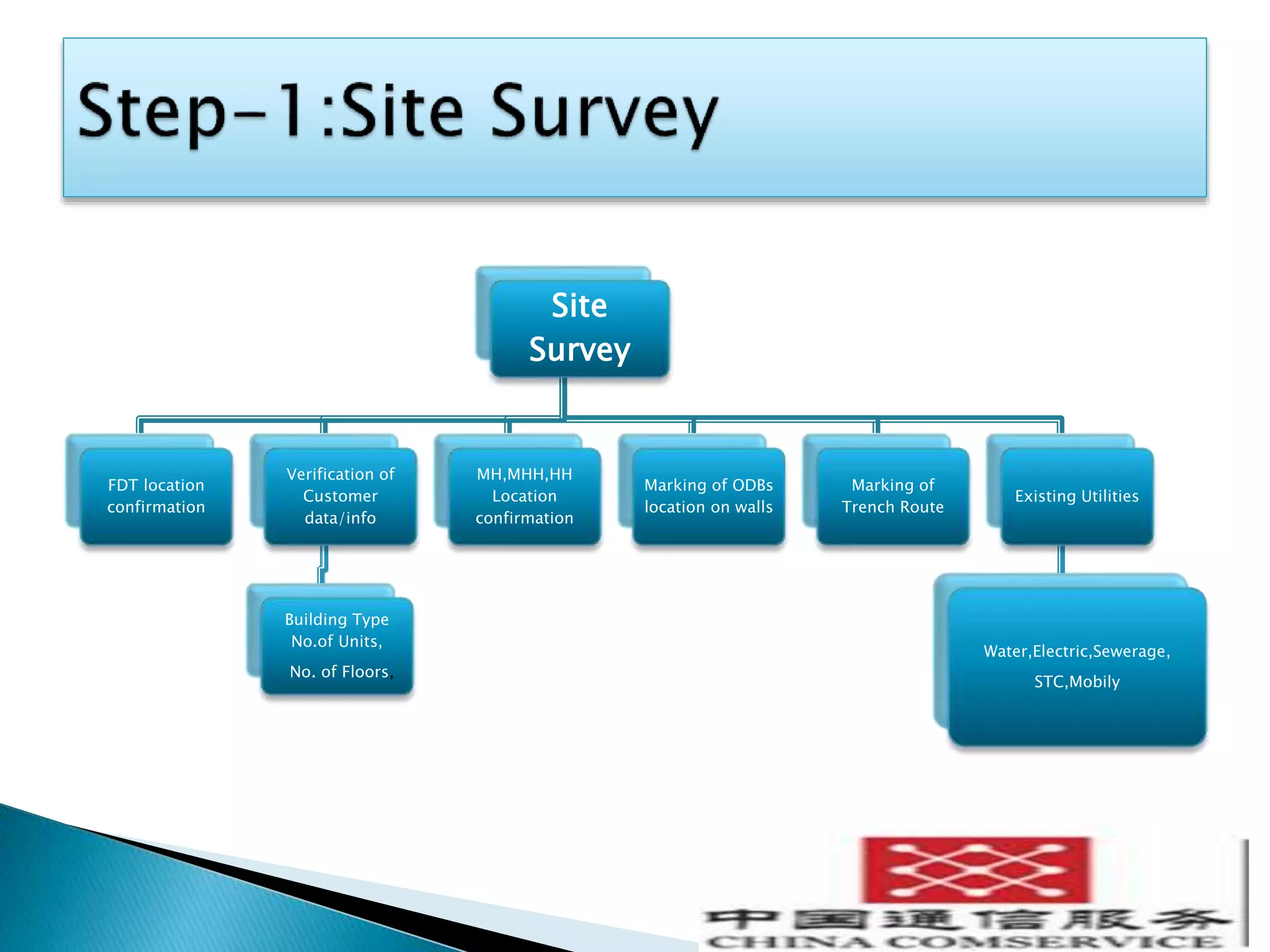

Site
Survey
FDT location
confirmation
Verification of
Customer
data/info
Building Type
No.of Units,
No. of Floors,
MH,MHH,HH
Location
confirmation
Marking of ODBs
location on walls
Marking of
Trench Route
Existing Utilities
Water,Electric,Sewerage,
STC,Mobily

 Building Type: Commercial, Residential or
Mixed,Govt office
 No.of E/ Units like U1,U2, etc
 No.of Floors like,G,G+1,G+2 etc
 No. of Shops
21 June 2018

 Survey should be done on Foot ,no use of
vehicle
 Take notice of the existing utilities ,water
sewerage & electric etc .
 Existing HH,MH .
 Confirmation place for new MH,MHH &HH
 FDT &Type A location(should be near to
Mosque, Park or school)
21 June 2018

 During survey ODB place should be find
 It should be near to existing telephone box
 Or it should be near to the place of internal
duct
 It should be finalized by discussing
with customer
21 June 2018

21 June 2018
Safety
Road Safety
Warning Sign
Boards
Safety Lights
Sign board with
logos
Safety
Polls,Safety
Mesh
Barricades,Steel
plates
Men Safety
Safety Helmet Safety Shoes Safety Gloves Safety Jacket Safety Masks

 Personnel Safety(use of Reflector Jacket,
Helmet & Shoes, Gloves &Full length Pants,
no Shorts)
 Safety on Site(Different Sign
boards,Barricades,Safety net, Steel plates )
21 June 2018

21 June 2018
Sign Board Logos
Safety Mesh Steel Plate
Street
lightening
Safety cones Warning Sign

21 June 2018
Safety Helmet Safety Jacket

 Machinery Required
(Trencher,Bobcot,JCB,Compressor,Mini Truck,
Portable Generator, Drill Machine)
 Material Required:
 50mm blue, orange &black ducts ,20 mm
blue ducts
 Spaces
 HH,MMH, MH
21 June 2018

Equipment
JCB/Excavator
Trencher 13/20
cm
Bobcat /Lifter
Mini
Truck/Dayina
Compressor/Jack
Hammer
21 June 2018

Material
Holes
Type A MMH 2 cover HH
Ducts
50 mm
Blue,Orange,Blac
k
20mm
Blue
Spacers
3*4 :for 50 mm 2*8 :for 20mm
Rope
6mm 4mm
Warning Tape U-Guard Coupling
21 June 2018

 Mobilize the Machines/Equipment on site
 Transport Safety on site
 Shift material from warehouse to site
21 June 2018

• First install MH in front of FDT
• Then install MMH or HH on one route
21 June 2018

 Mark the area as per plan
 Put Safety(sign board having permit & traffic
paper)
 Use test pits on the route
 Use trencher 13cm or 20cm as per plan(for
Access 20 cm &for Last mile 13cm)
21 June 2018

 Use JCB with proper bucket 13cm or 20cm
 Trench should be straight with proper depth
(for access 20x65 &for last mile 13x60)
 Minimize the curves or bends in the trench
 Minimize the existing utilities damages
21 June 2018
20X65 cm2
Excavation

 Laying of ducts (50mm or 20mm)
 Installation of spacers at the span of 1.5m
21 June 2018
Blue,Orange,Black 50mm
Ducts
Spacer Ducts Laying

 Backfilling of trench with concrete
 Laying of warning tape
21 June 2018

 After finish civil work C-PAT is executed
 Mandrell Test(by Rope or by Air)
21 June 2018

21 June 2018
HH
Change
Addition
al offset
Extra
work
